Wikipedia dynamic (pl)

This network shows the evolution of hyperlinks between articles of the Polish Wikipedia. The nodes represent articles. An edge indicates that a hyperlink was added or removed depending on the edge weight (−1 for removal or +1 for addition).

Metadata

CodeUp
Internal namelink-dynamic-plwiki
NameWikipedia dynamic (pl)
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningReference
Network formatUnipartite, directed
Edge typeDynamic
Temporal data Edges are annotated with timestamps
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =1,033,050
Volume m =25,026,208
Unique edge count m̿ =12,587,086
Loop count l =627
Wedge count s =42,876,854,599
Claw count z =379,770,237,481,986
Cross count x =6,623,220,433,217,829,888
Triangle count t =72,570,341
Maximum degree dmax =262,227
Maximum outdegree d+max =110,702
Maximum indegree dmax =151,525
Average degree d =48.451 1
Fill p =1.194 23 × 10−5
Average edge multiplicity m̃ =1.988 24
Size of LCC N =1,031,602
Size of LSCC Ns =723,953
Relative size of LSCC Nrs =0.700 792
Diameter δ =14
50-Percentile effective diameter δ0.5 =2.951 90
90-Percentile effective diameter δ0.9 =4.000 47
Mean distance δm =3.545 10
Gini coefficient G =0.723 052
Balanced inequality ratio P =0.224 161
Outdegree balanced inequality ratio P+ =0.257 070
Indegree balanced inequality ratio P =0.167 646
Relative edge distribution entropy Her =0.881 103
Power law exponent γ =1.497 43
Tail power law exponent γt =2.421 00
Degree assortativity ρ =−0.064 357 3
Degree assortativity p-value pρ =0.000 00
In/outdegree correlation ρ± =+0.609 445
Clustering coefficient c =0.005 077 59
Spectral norm α =680.257
Operator 2-norm ν =498.940
Cyclic eigenvalue π =214.864
Spectral separation 1[A] / λ2[A]| =1.554 97
Reciprocity y =0.174 561
Non-bipartivity bA =0.356 903
Normalized non-bipartivity bN =0.017 545 8
Controllability C =440,917
Relative controllability Cr =0.429 475

Plots

Degree distribution

Cumulative degree distribution

Lorenz curve

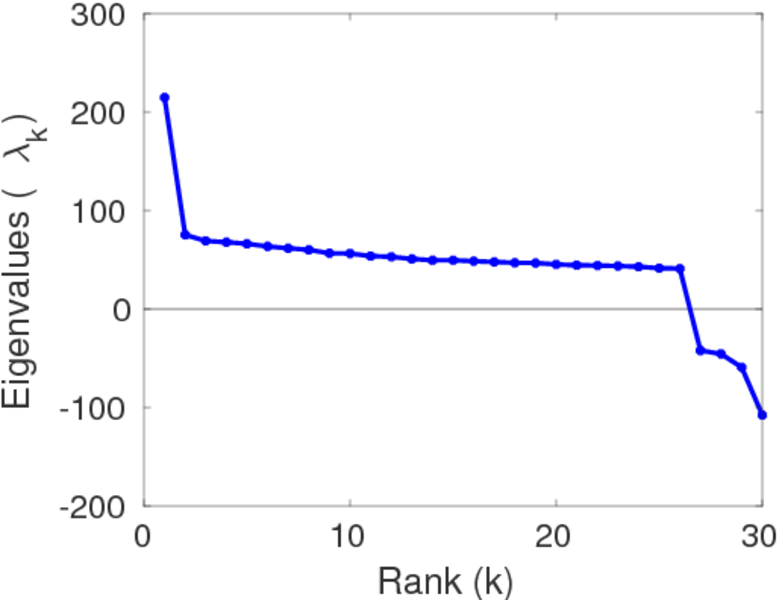

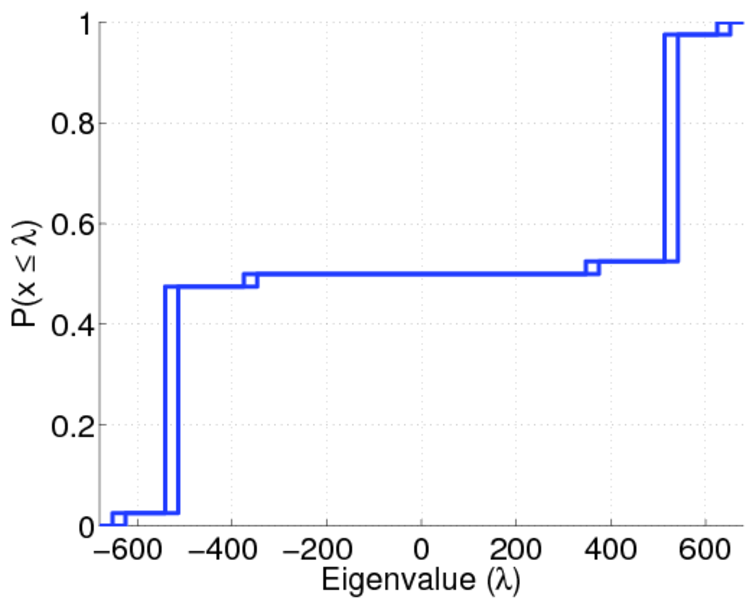

Spectral distribution of the adjacency matrix

Spectral distribution of the normalized adjacency matrix

Spectral distribution of the Laplacian

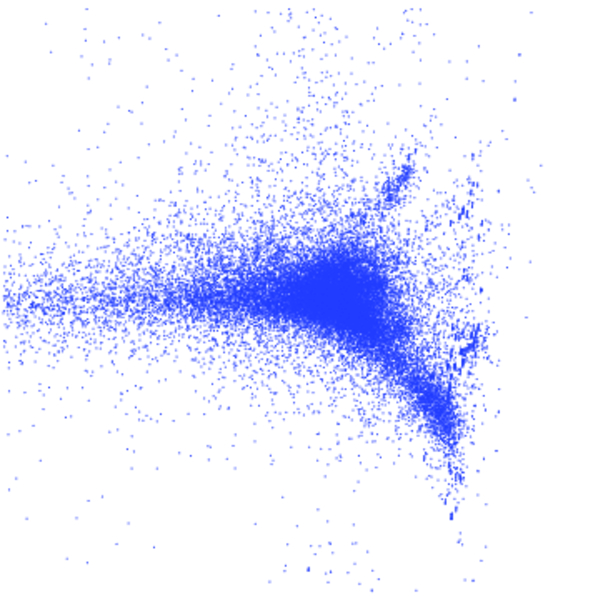

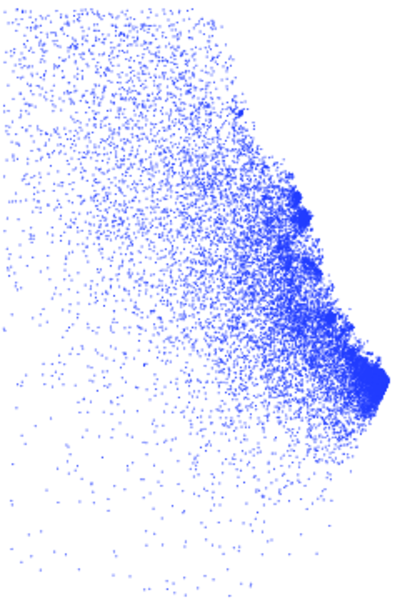

Spectral graph drawing based on the adjacency matrix

Spectral graph drawing based on the normalized adjacency matrix

Hop distribution

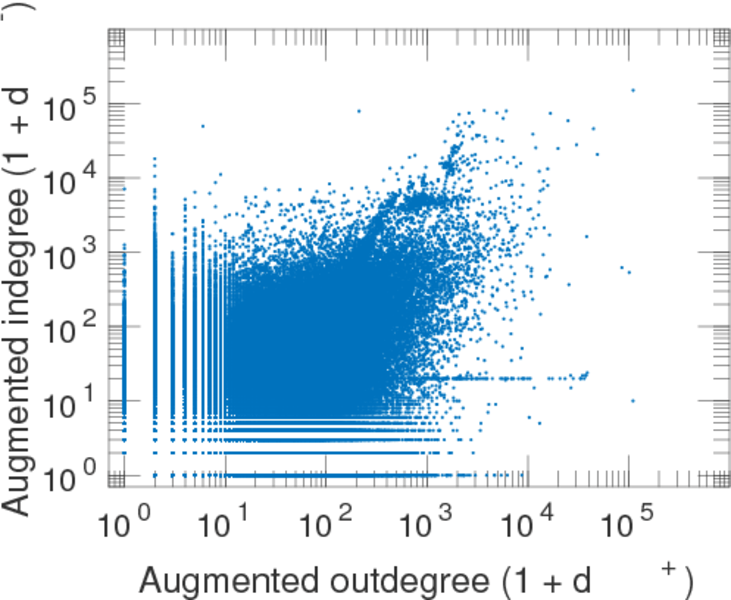

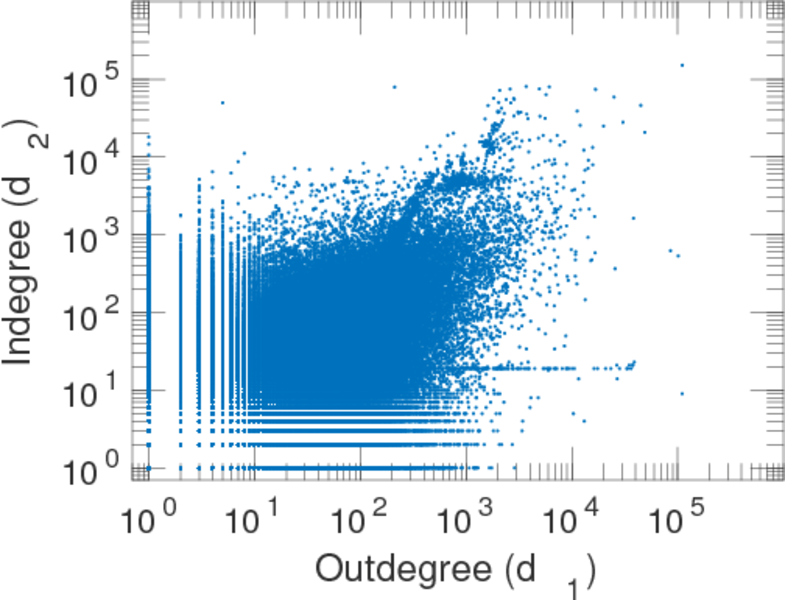

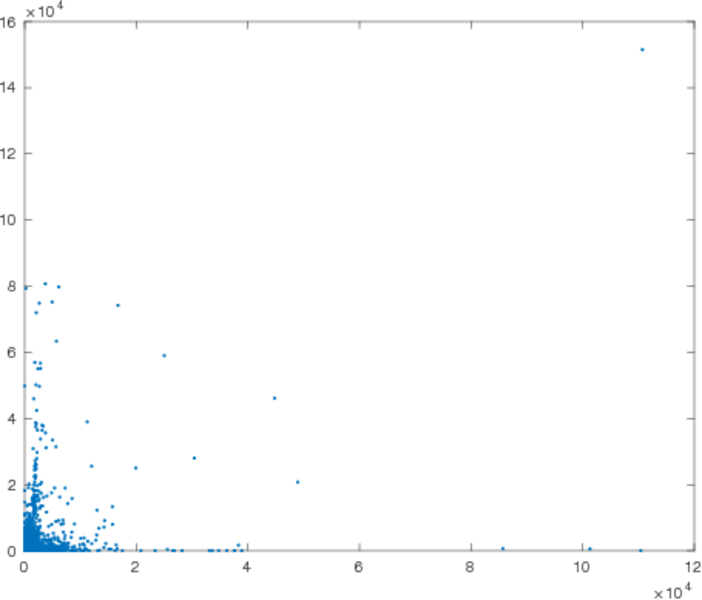

In/outdegree scatter plot

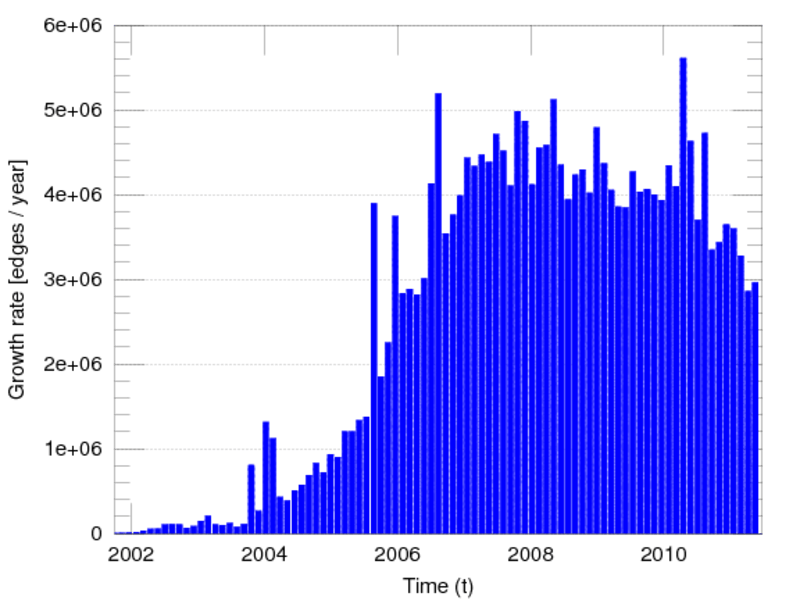

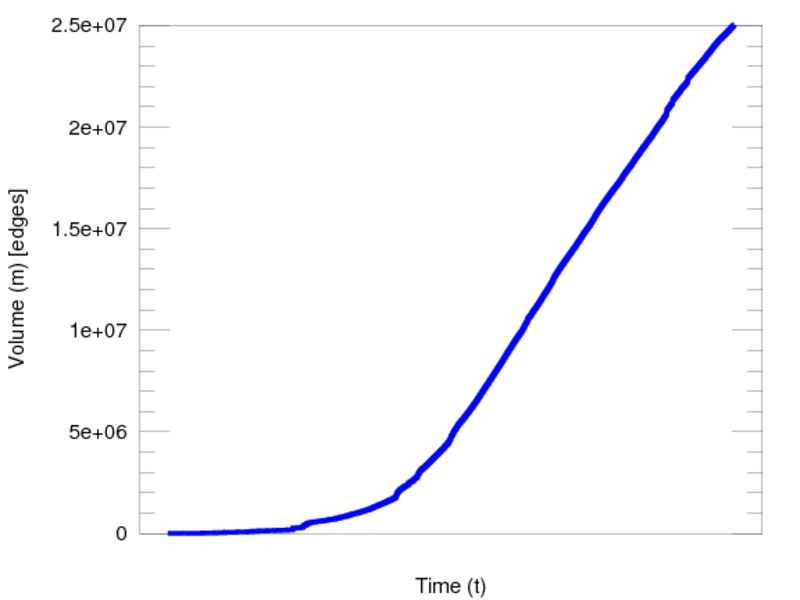

Temporal distribution

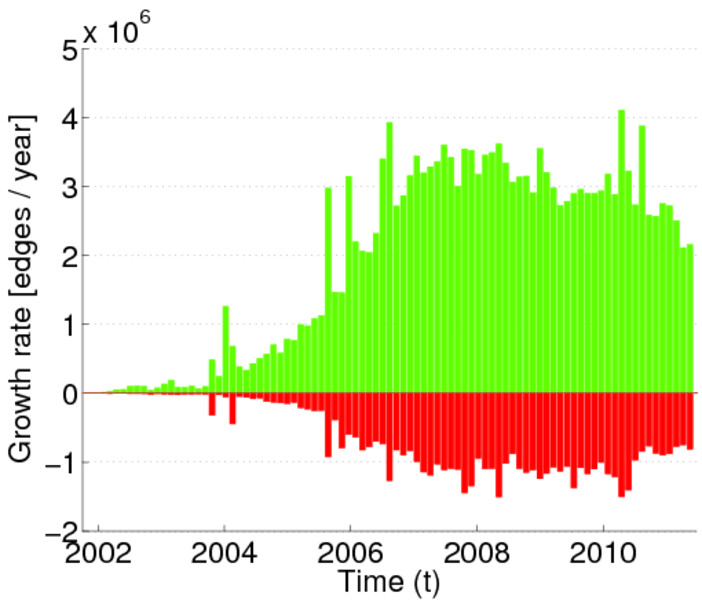

Signed temporal distribution

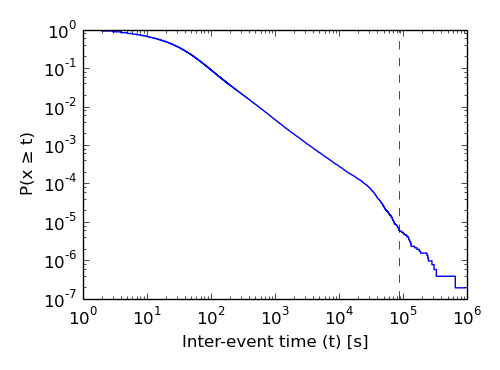

Inter-event distribution

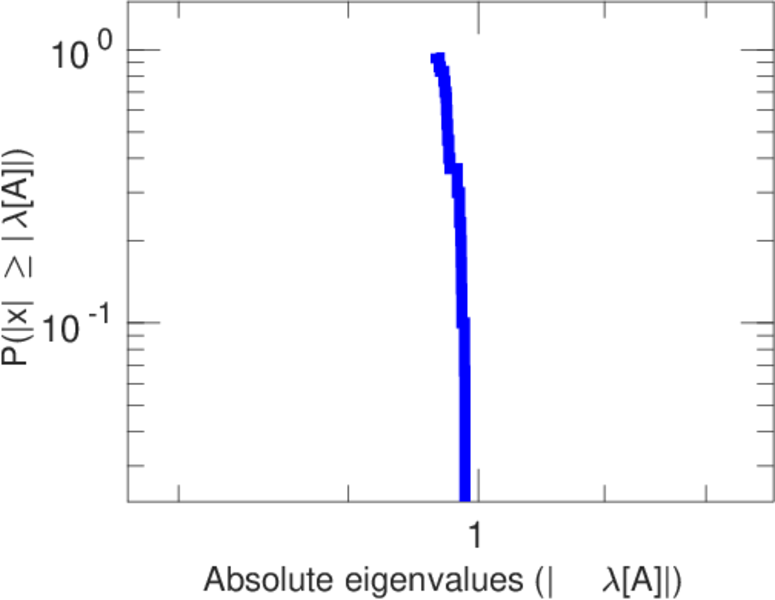

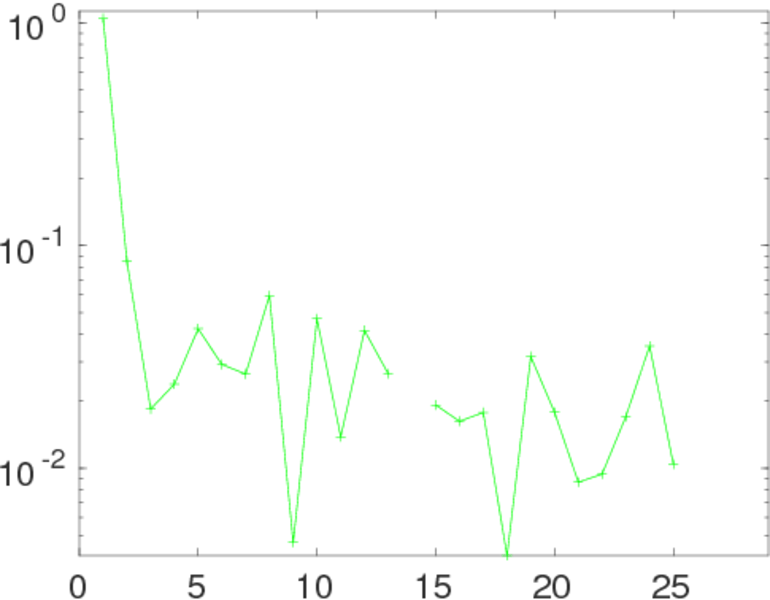

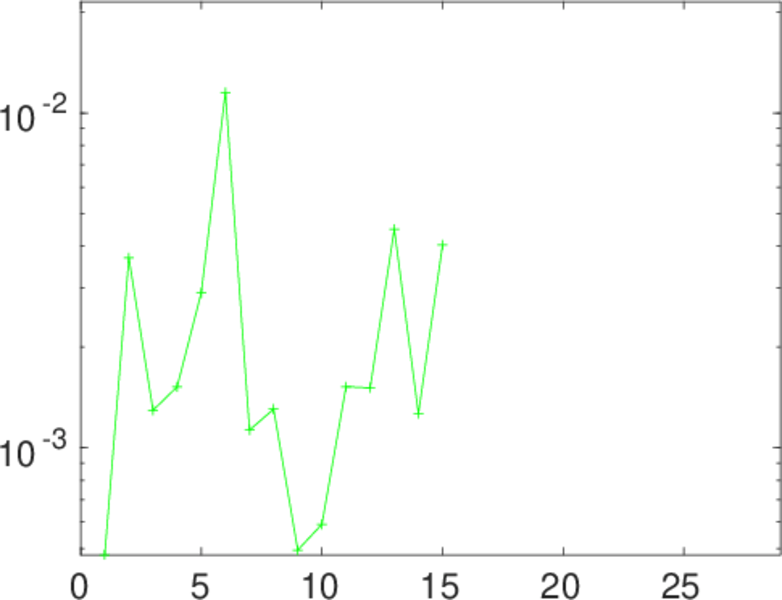

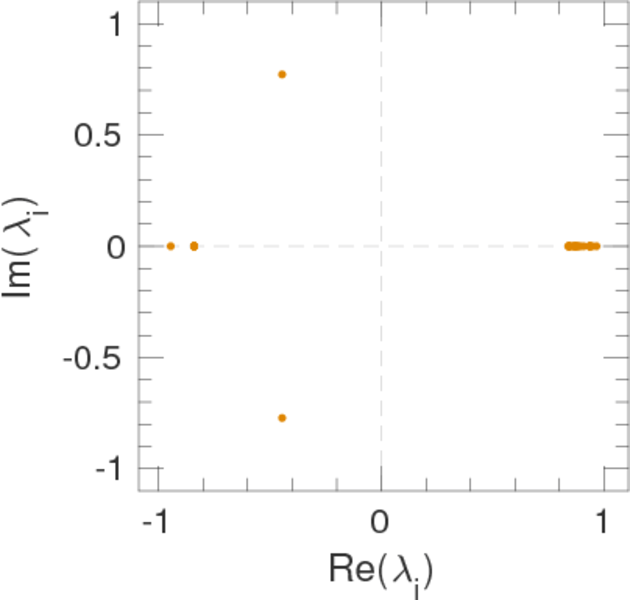

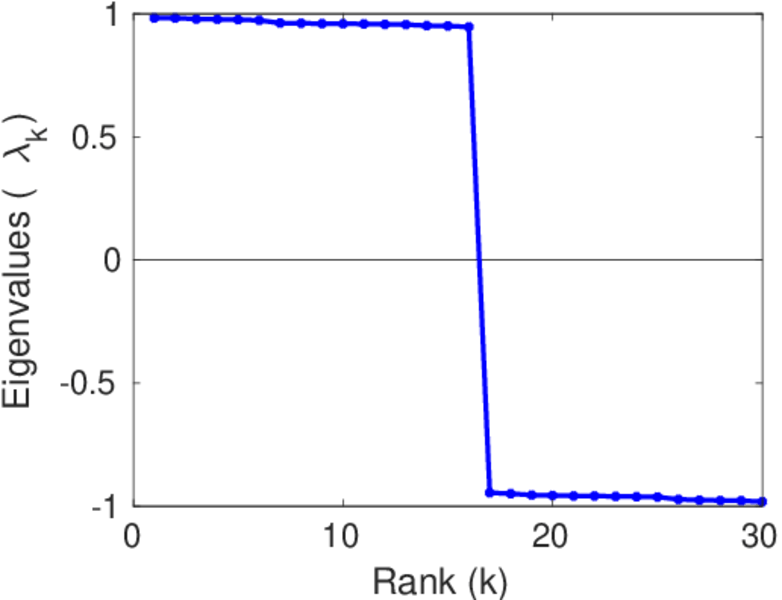

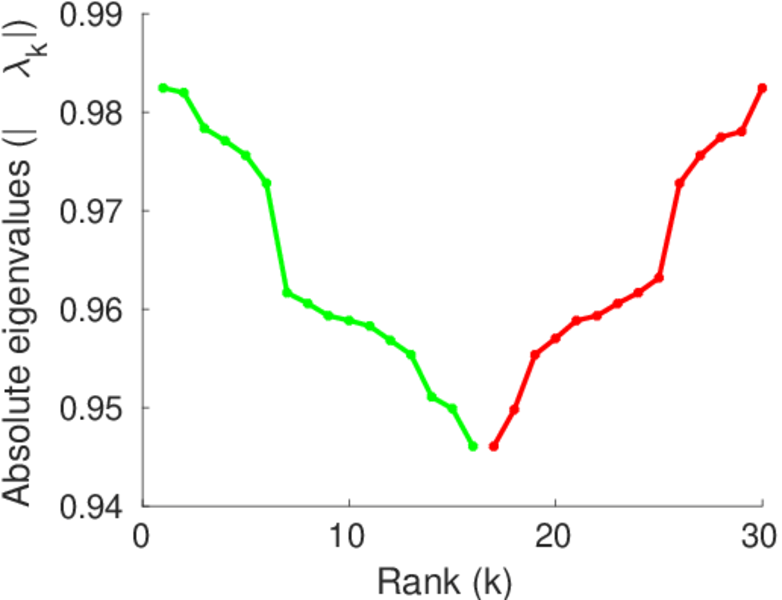

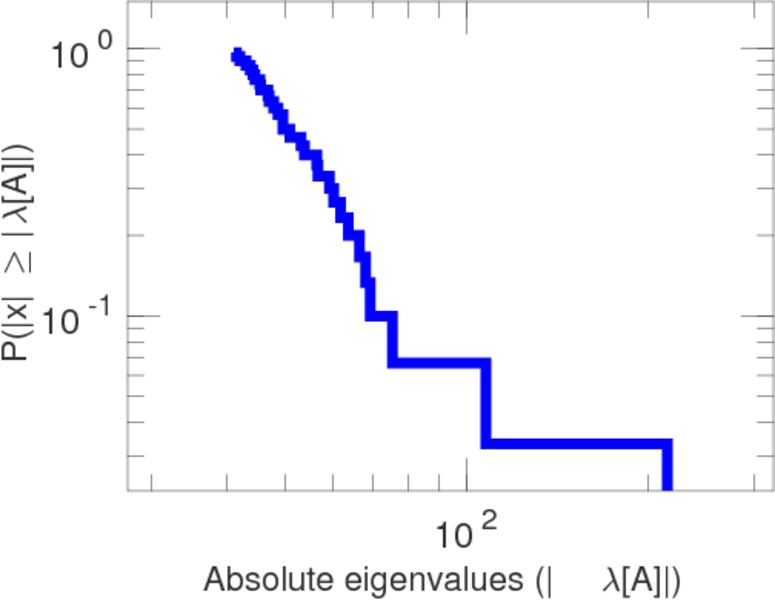

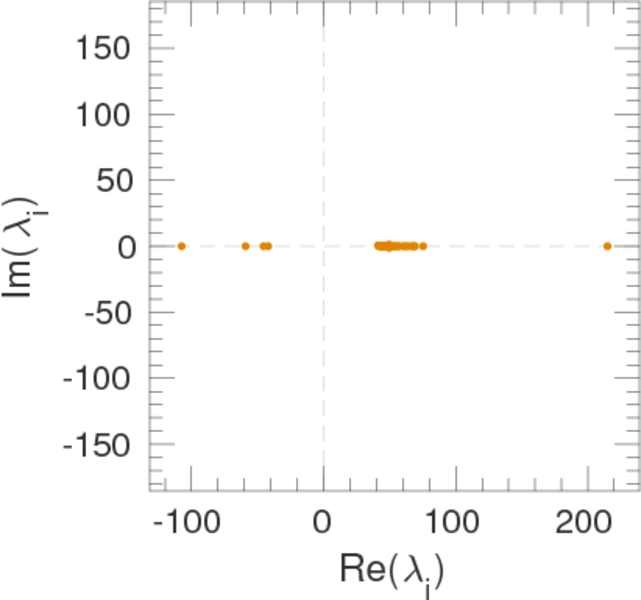

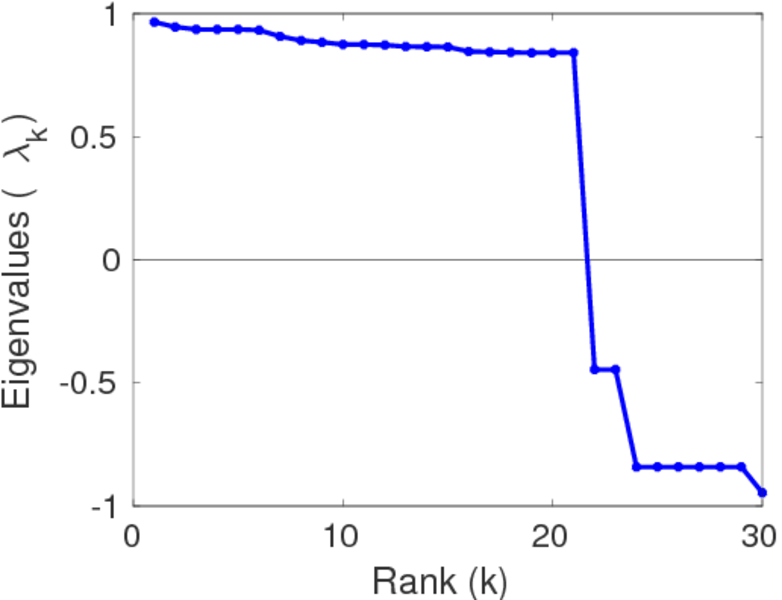

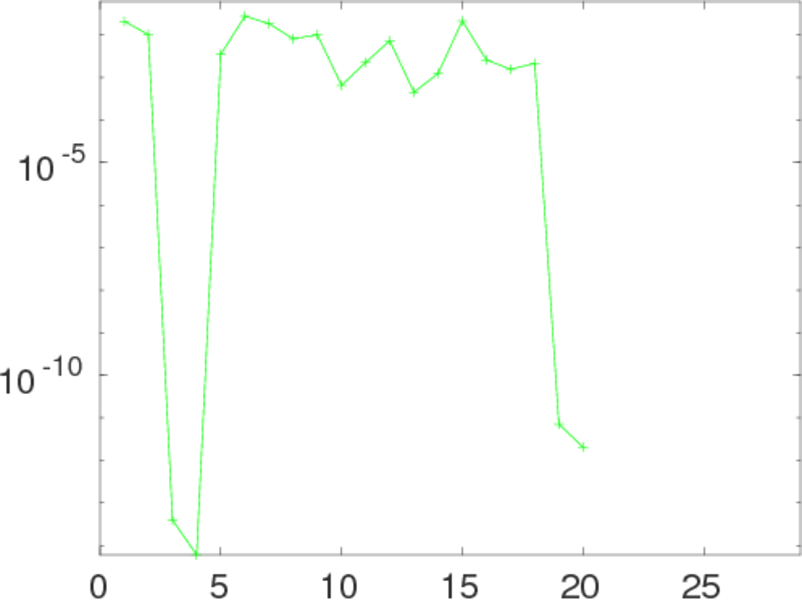

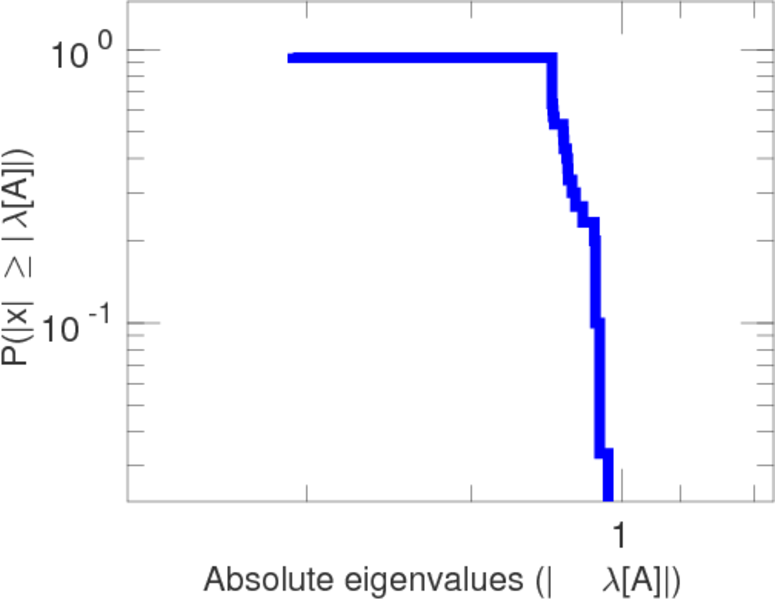

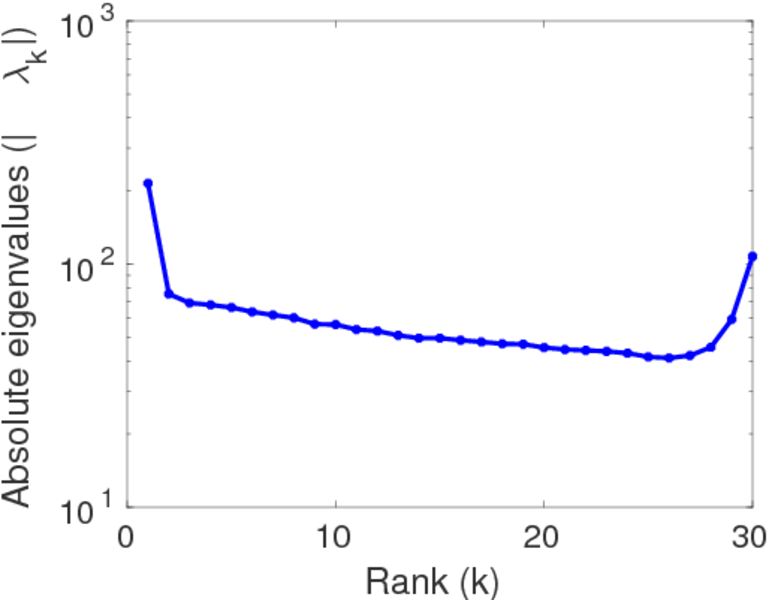

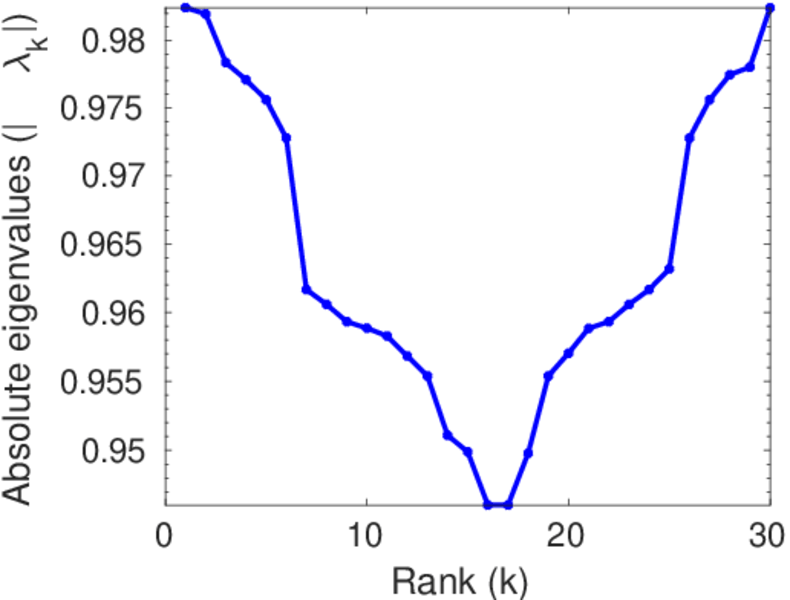

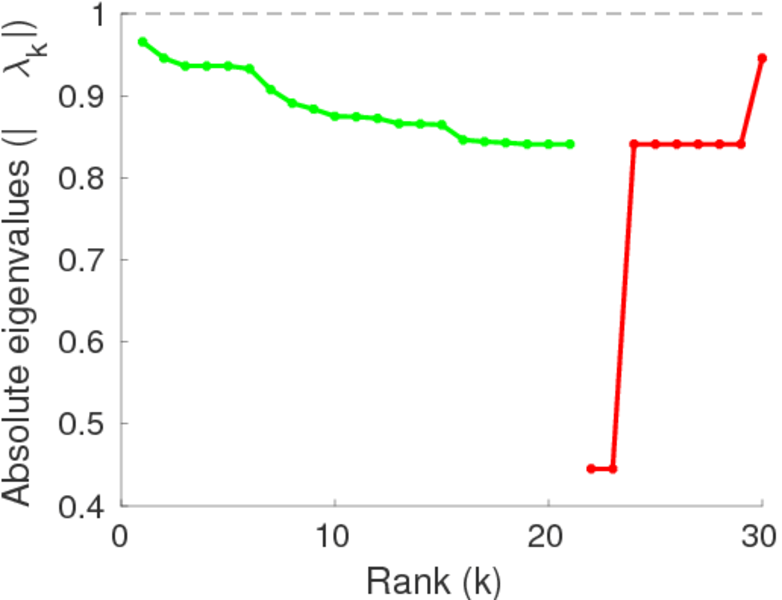

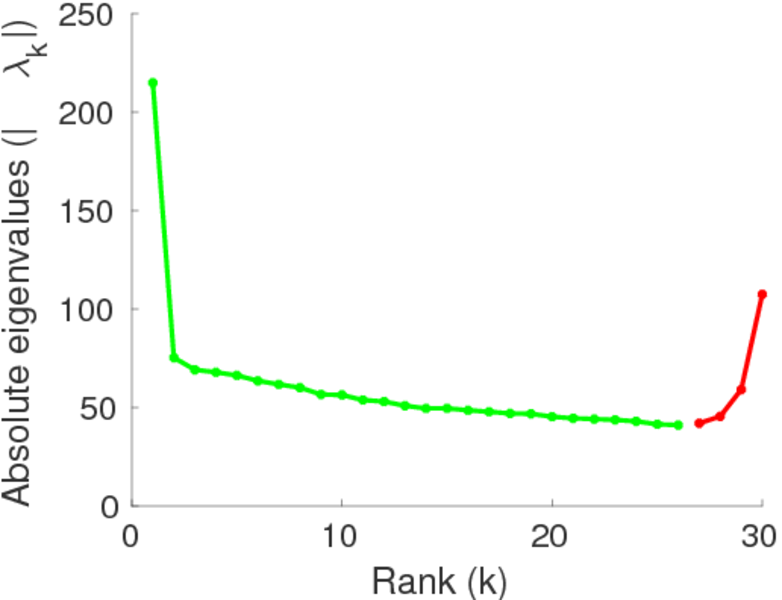

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
[2] Julia Preusse, Jérôme Kunegis, Matthias Thimm, Thomas Gottron, and Steffen Staab. Structural dynamics of knowledge networks. In Proc. Int. Conf. on Weblogs and Soc. Media, 2013.
