Wikipedia links (af)

This network consists of the wikilinks of the Wikipedia in the Afrikaans language (af). Nodes are Wikipedia articles, and directed edges are wikilinks, i.e., hyperlinks within one wiki. In the wiki source, these are indicated with [[double brackets]]. Only pages in the article namespace are included.

Metadata

CodeWaf
Internal namewikipedia_link_af
NameWikipedia links (af)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningWikilink
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =72,290
Volume m =2,019,724
Loop count l =98
Wedge count s =611,732,547
Claw count z =732,659,885,577
Cross count x =1,129,936,373,791,368
Triangle count t =35,947,997
Square count q =7,447,204,958
4-Tour count T4 =47,342,491,434
Maximum degree dmax =11,102
Maximum outdegree d+max =2,151
Maximum indegree dmax =10,533
Average degree d =55.878 4
Fill p =0.000 386 488
Size of LCC N =72,257
Size of LSCC Ns =56,850
Relative size of LSCC Nrs =0.786 416
Diameter δ =10
50-Percentile effective diameter δ0.5 =2.946 16
90-Percentile effective diameter δ0.9 =4.004 23
Median distance δM =3
Mean distance δm =3.507 49
Gini coefficient G =0.753 121
Balanced inequality ratio P =0.203 794
Outdegree balanced inequality ratio P+ =0.228 357
Indegree balanced inequality ratio P =0.176 049
Relative edge distribution entropy Her =0.890 582
Power law exponent γ =1.405 93
Tail power law exponent γt =2.101 00
Degree assortativity ρ =−0.091 217 9
Degree assortativity p-value pρ =0.000 00
Clustering coefficient c =0.176 293
Directed clustering coefficient c± =0.610 779
Operator 2-norm ν =368.893
Cyclic eigenvalue π =359.066
Spectral separation 1[A] / λ2[A]| =1.298 85
Reciprocity y =0.532 681
Normalized non-bipartivity bN =0.057 430 8
Spectral bipartite frustration bK =0.000 680 463
Controllability C =23,074
Relative controllability Cr =0.319 187

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

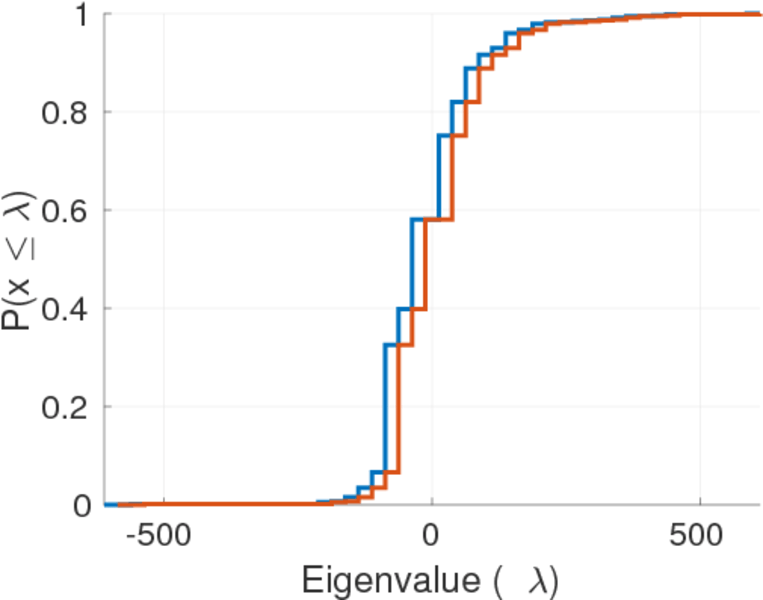

Spectral distribution of the adjacency matrix

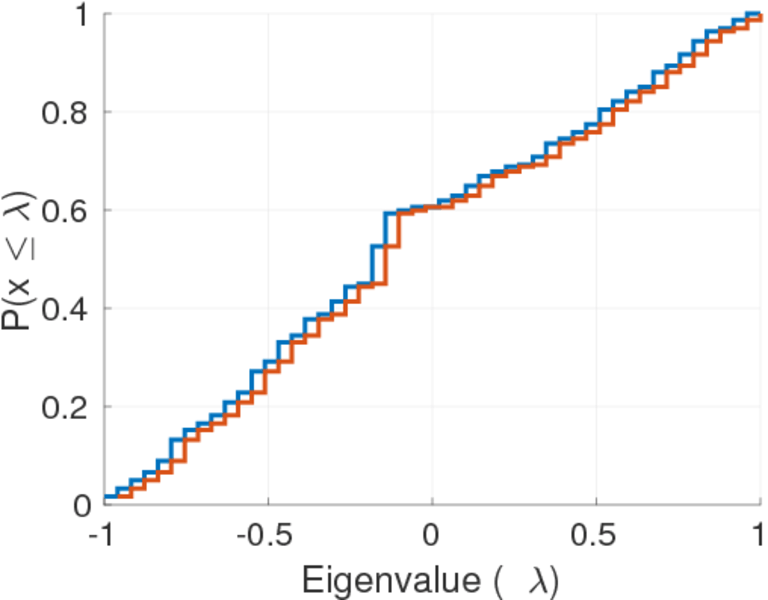

Spectral distribution of the normalized adjacency matrix

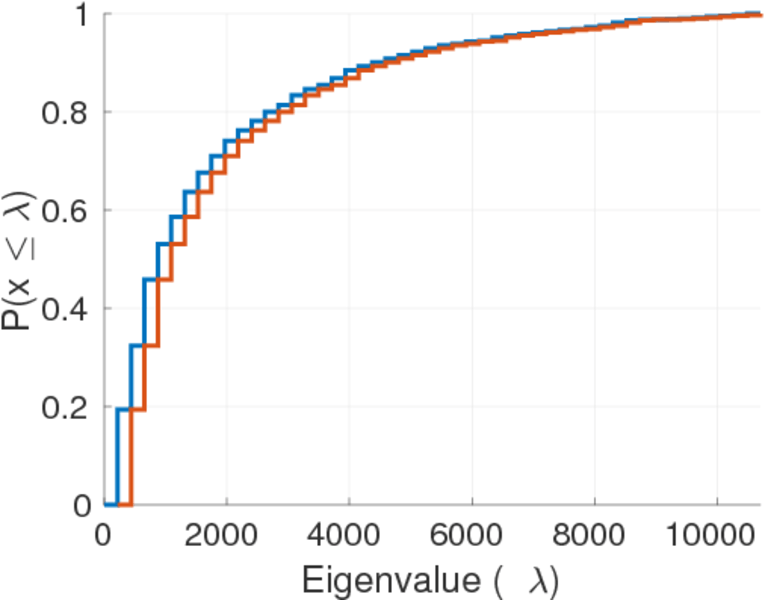

Spectral distribution of the Laplacian

Spectral graph drawing based on the adjacency matrix

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Delaunay graph drawing

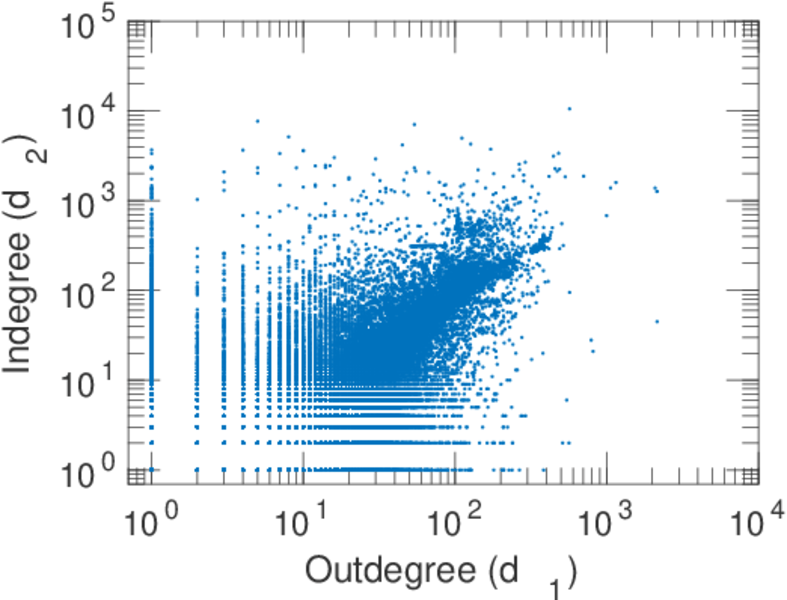

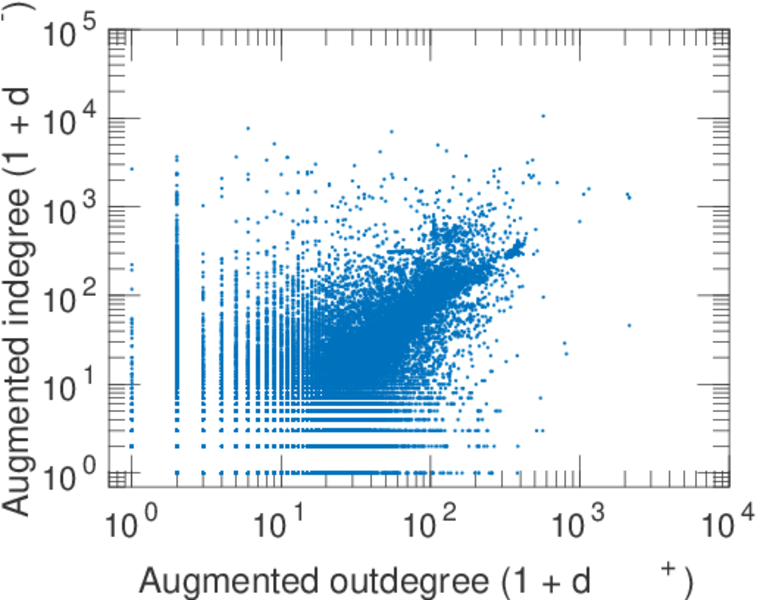

In/outdegree scatter plot

Clustering coefficient distribution

Average neighbor degree distribution

SynGraphy

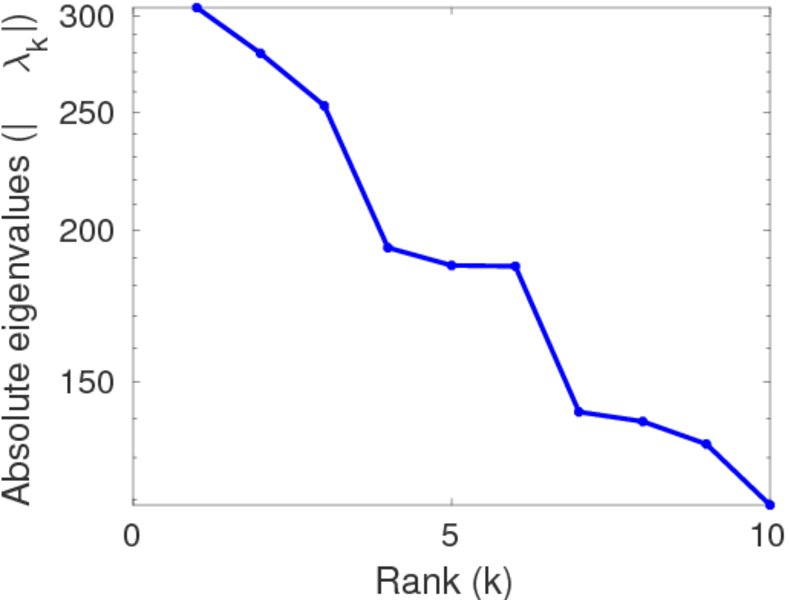

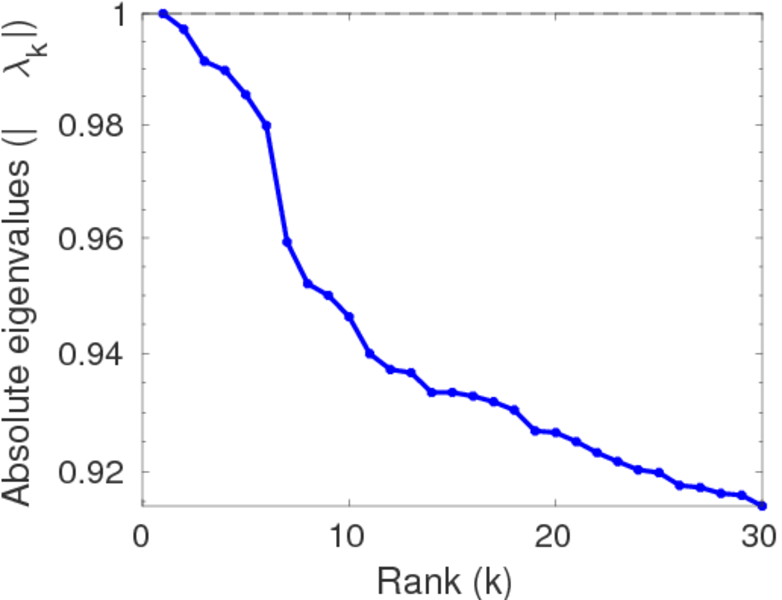

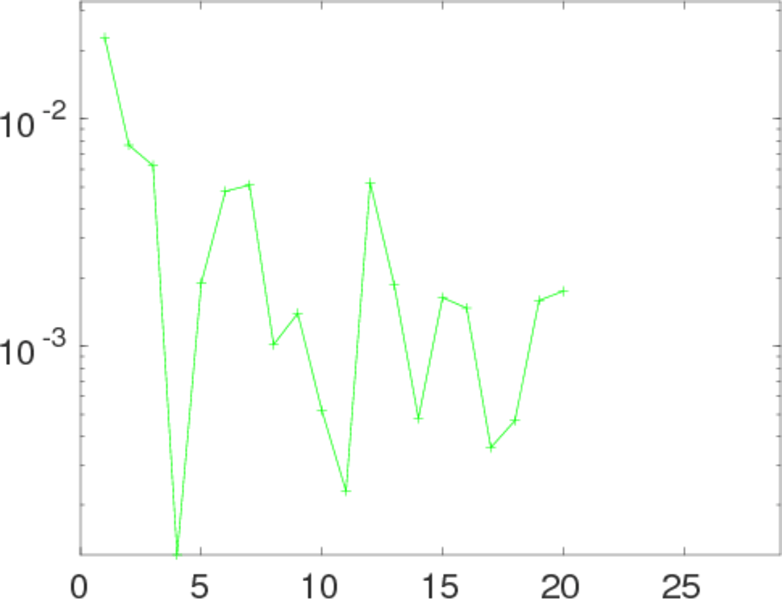

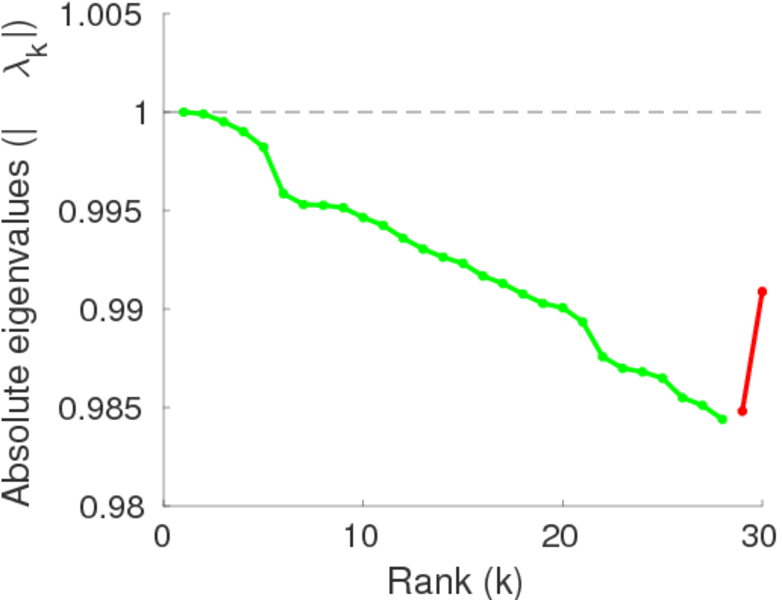

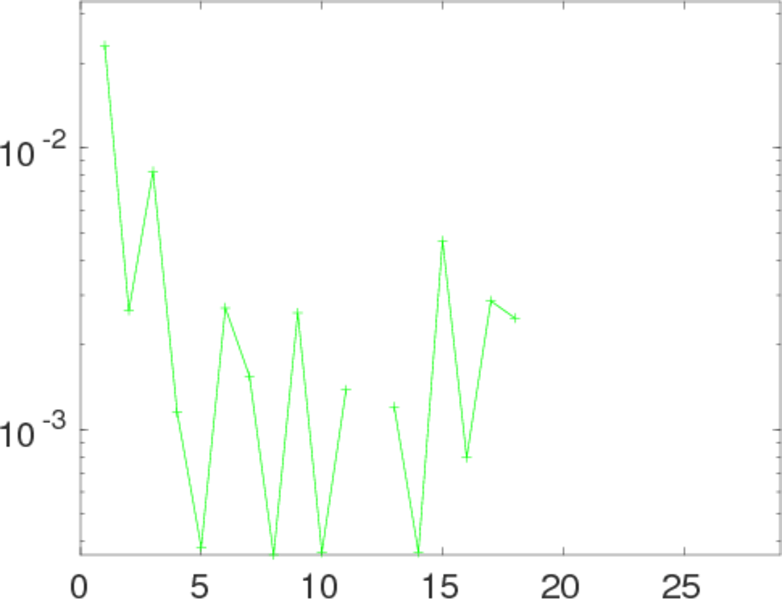

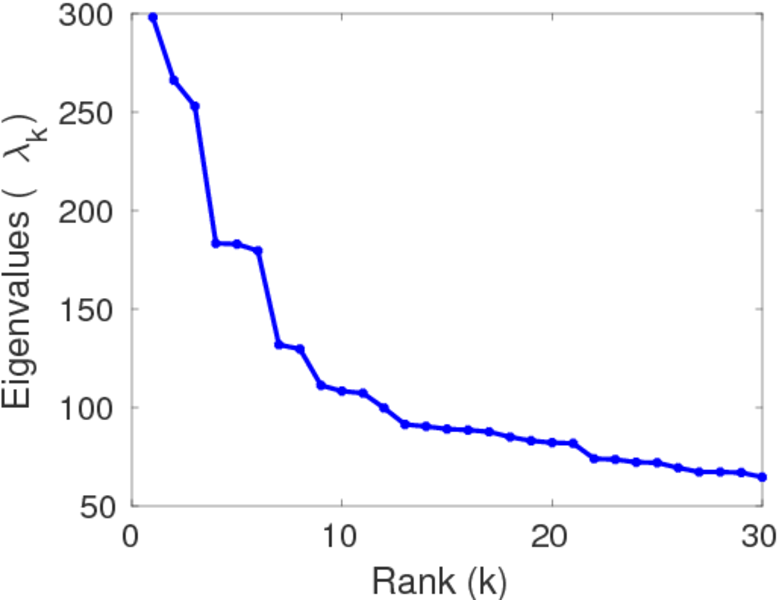

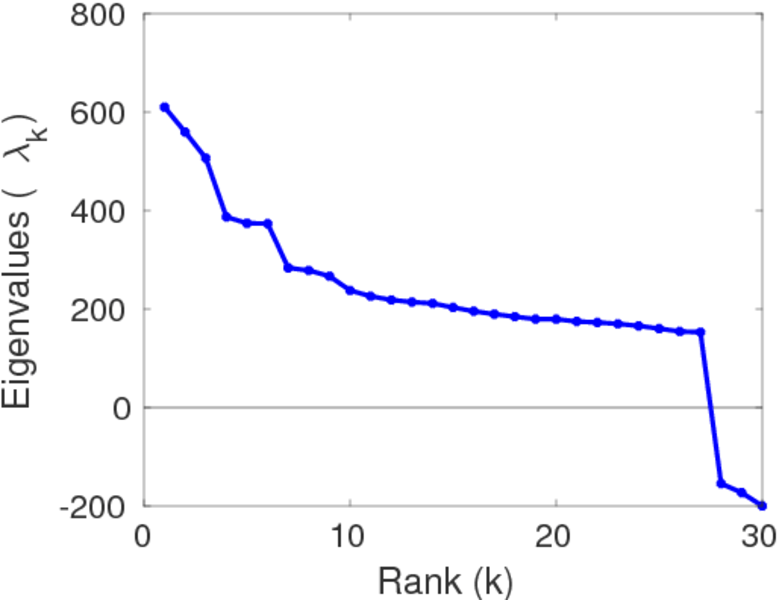

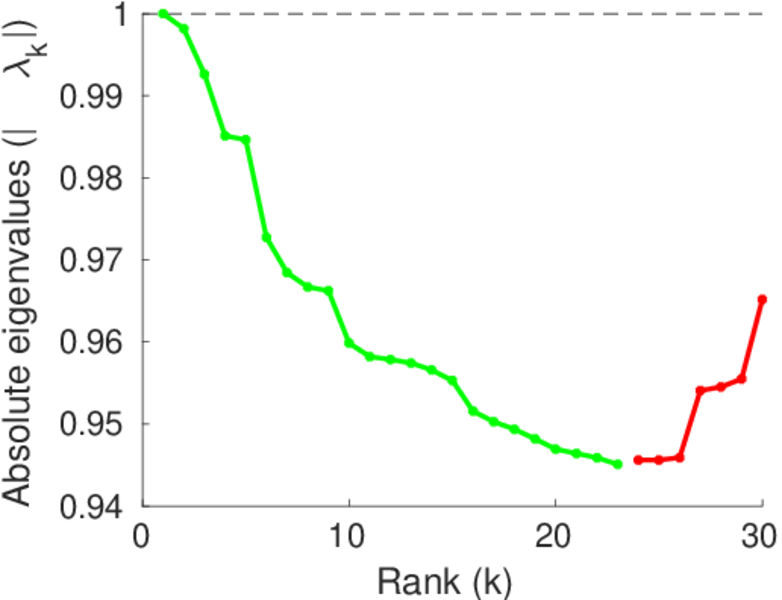

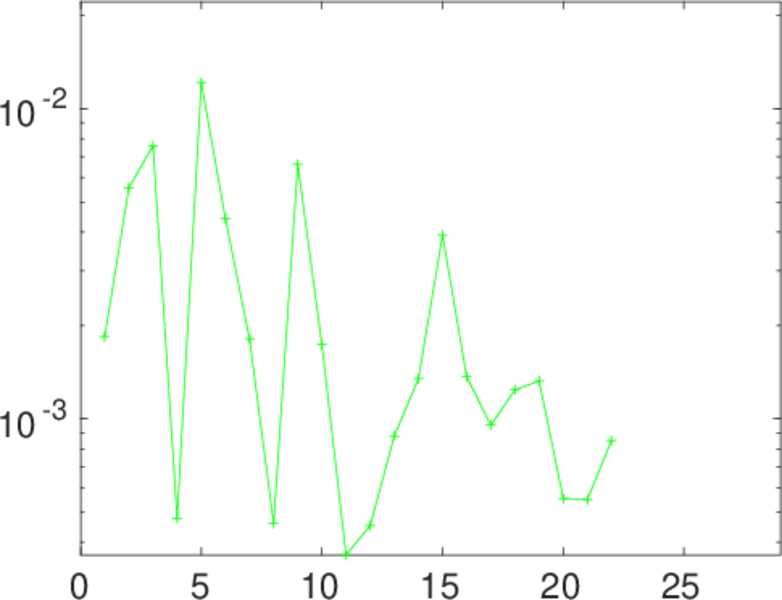

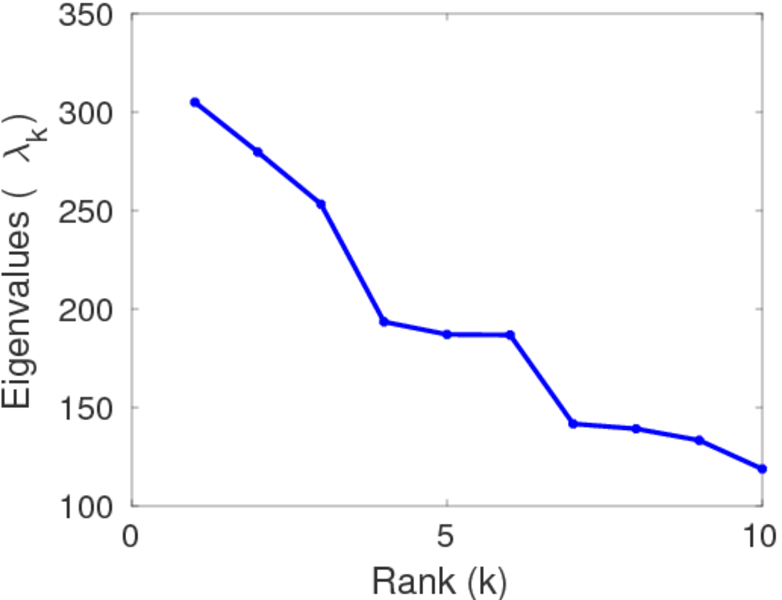

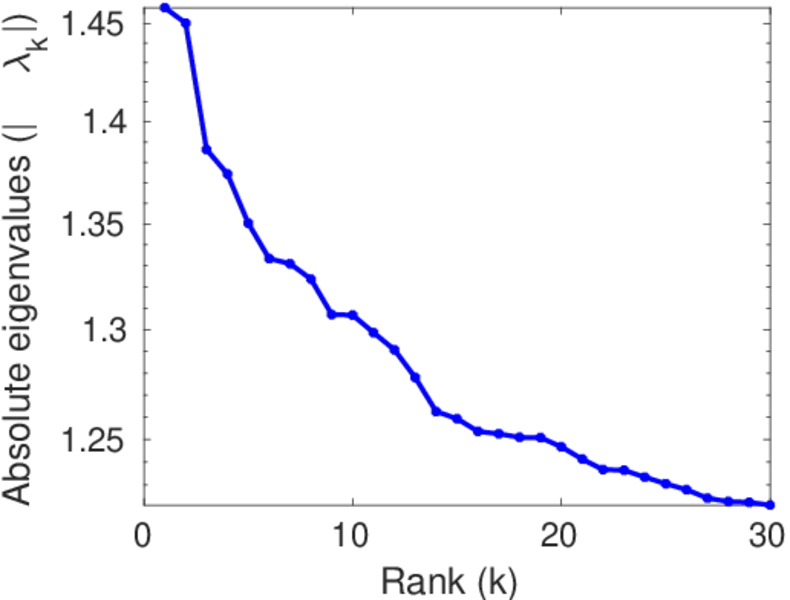

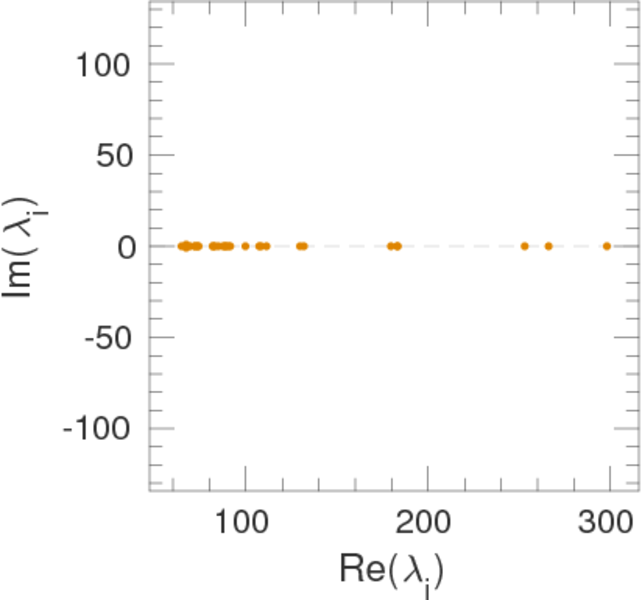

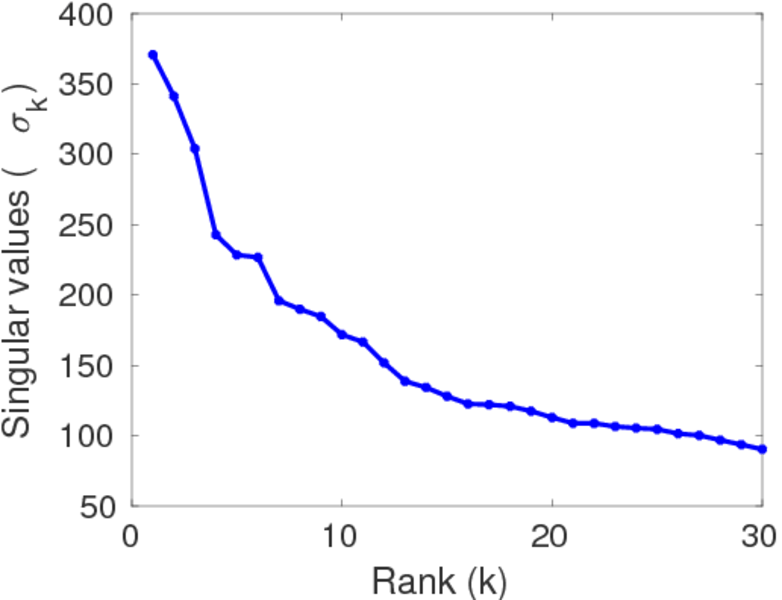

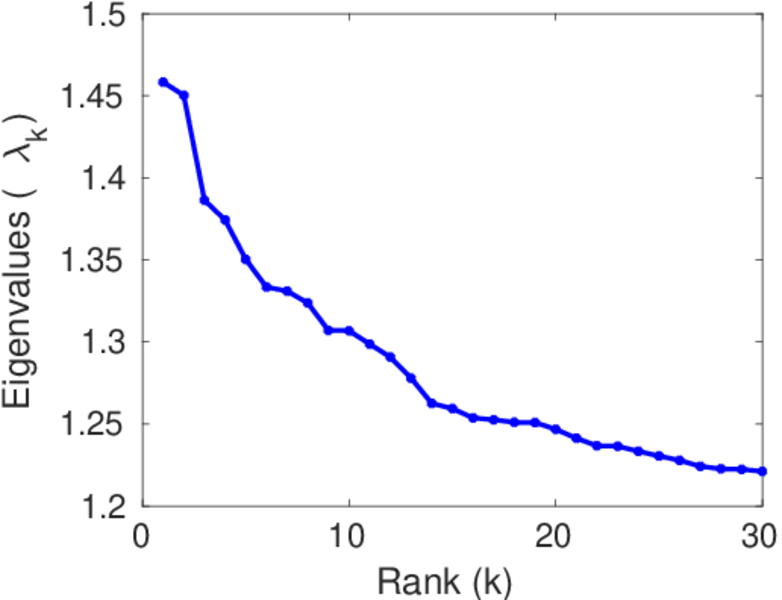

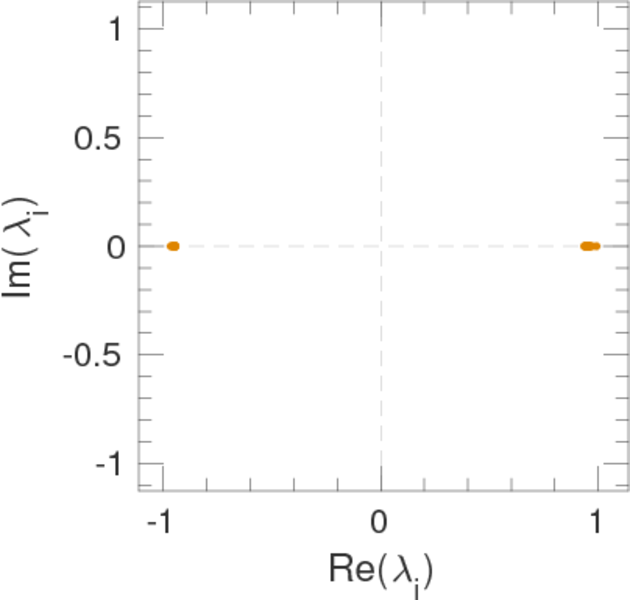

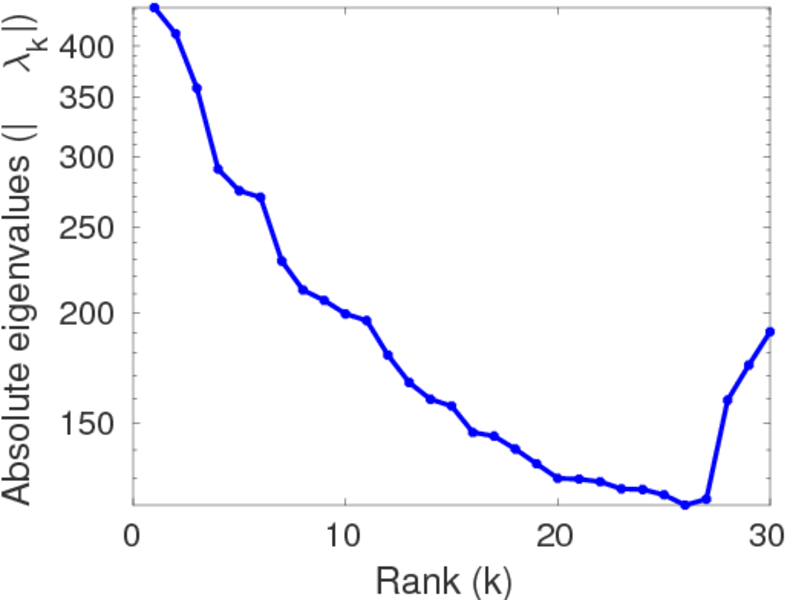

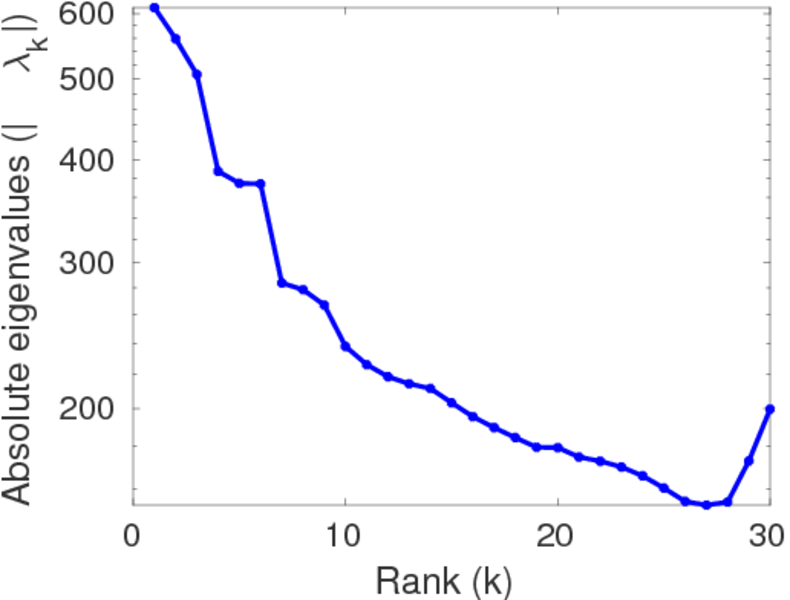

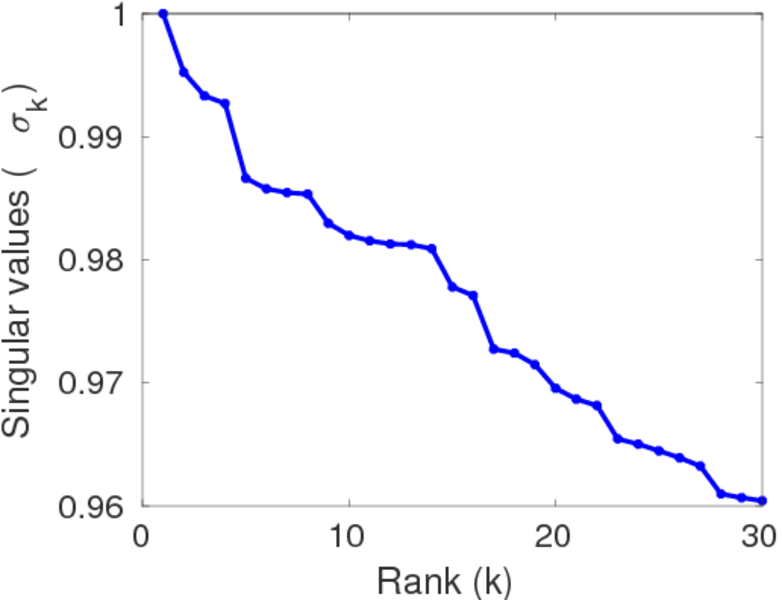

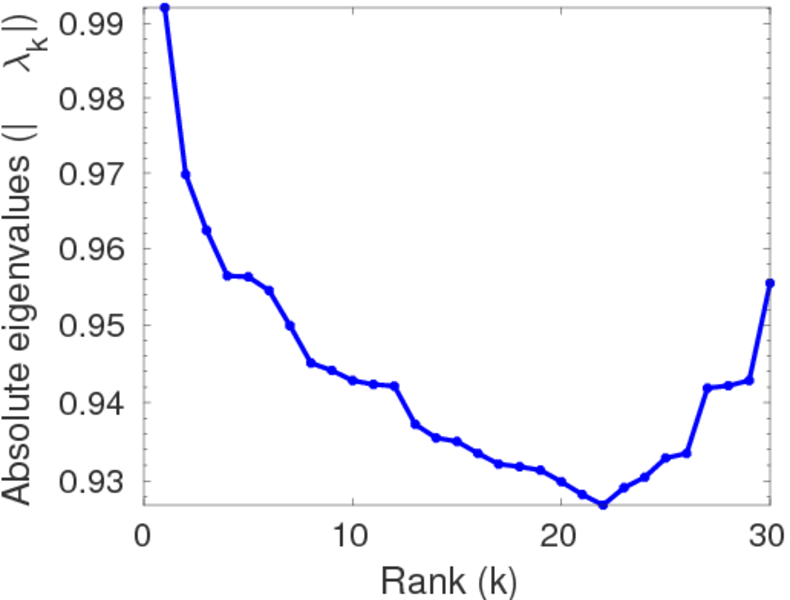

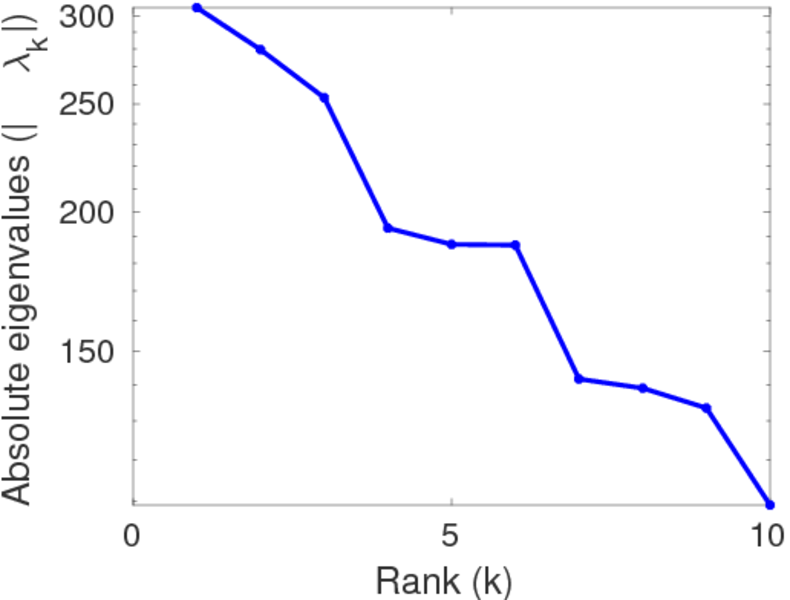

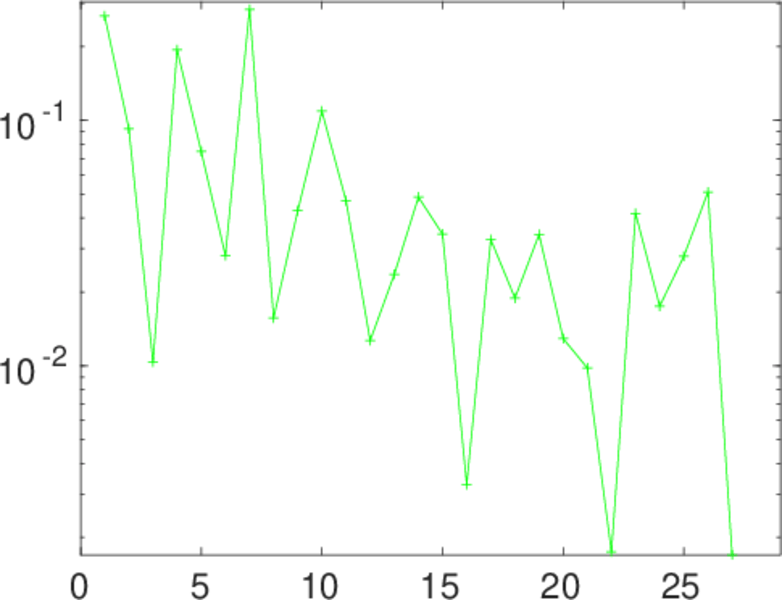

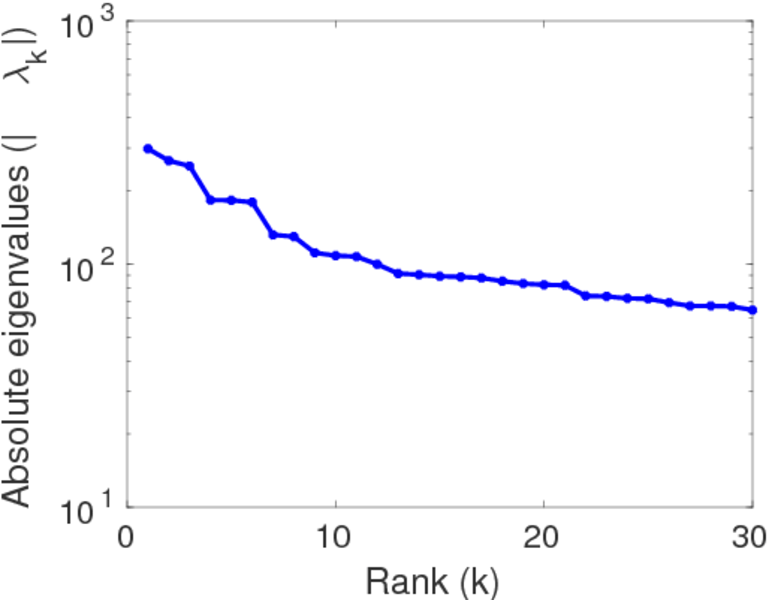

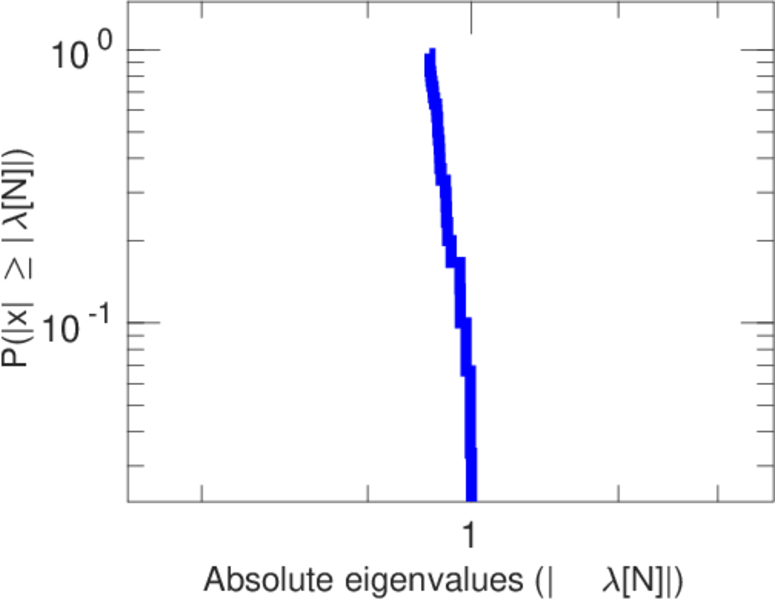

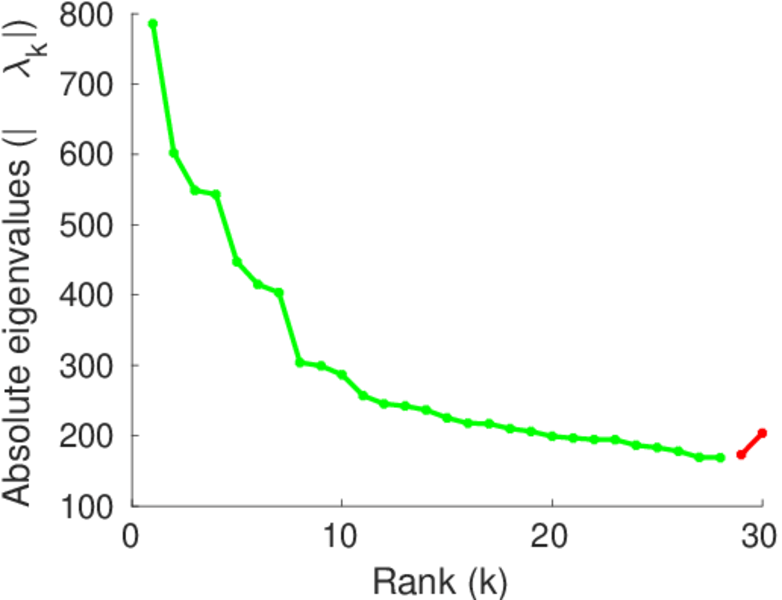

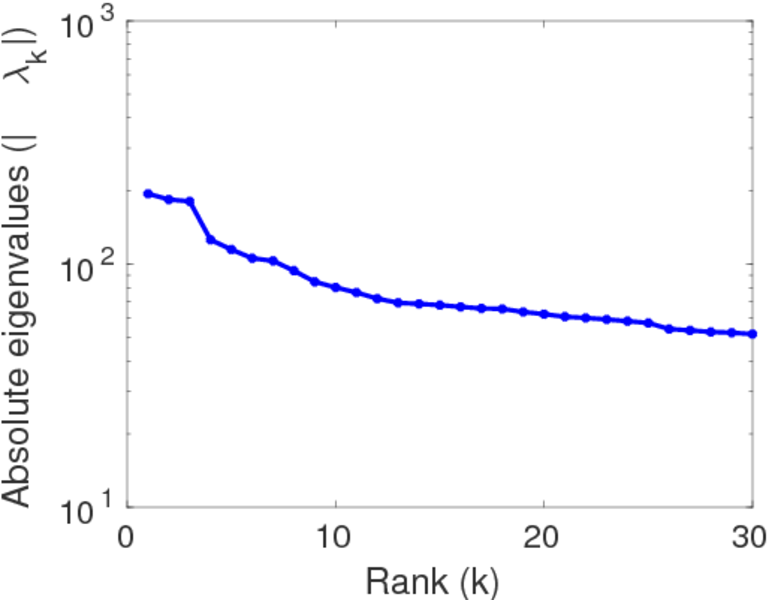

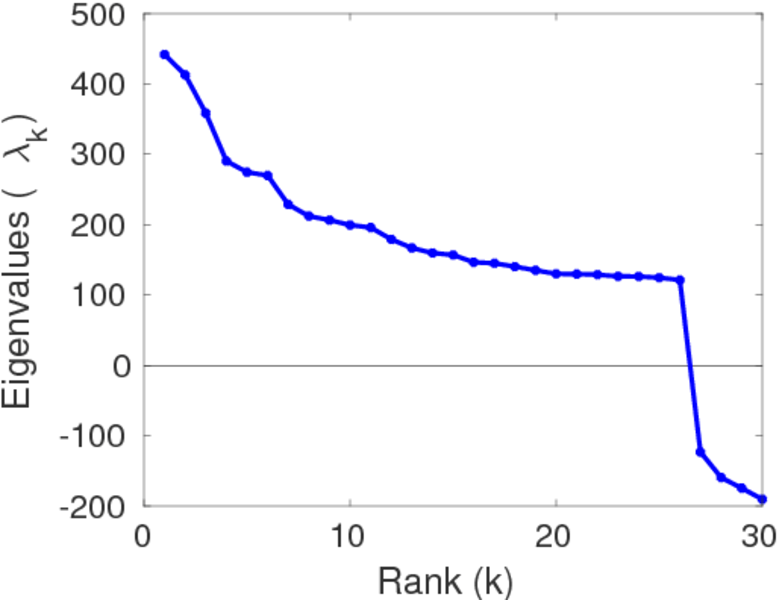

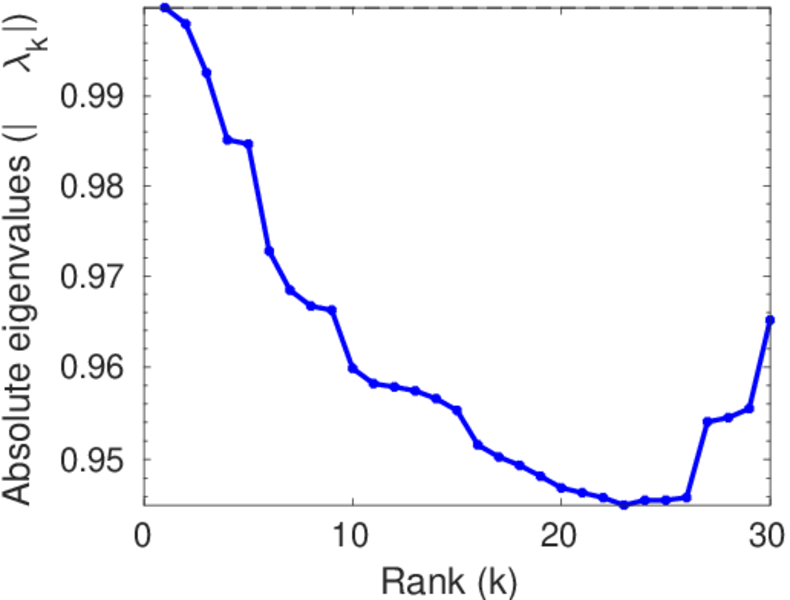

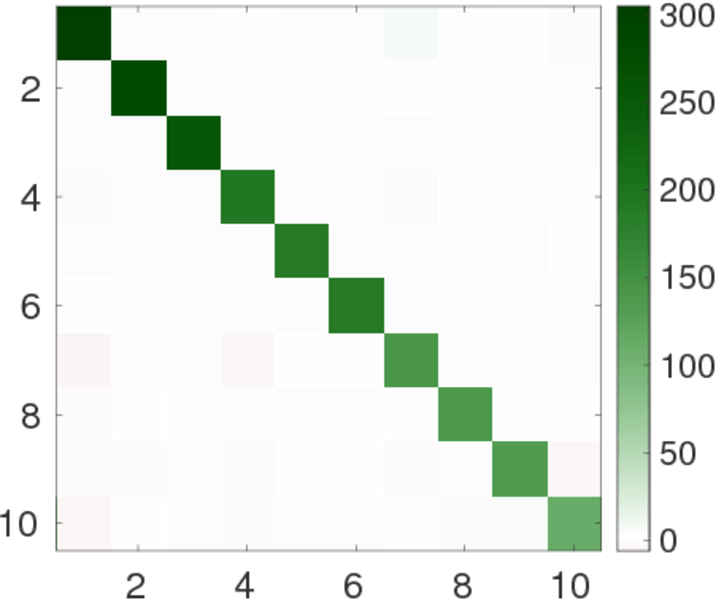

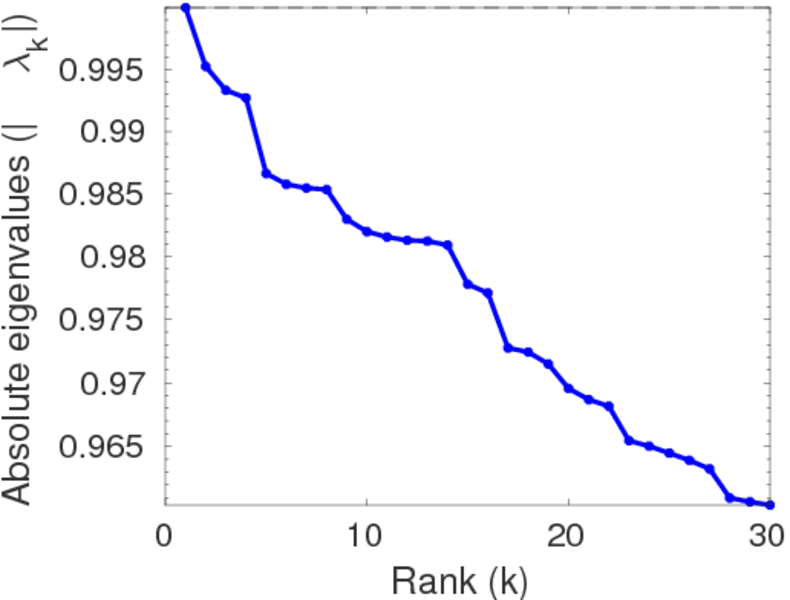

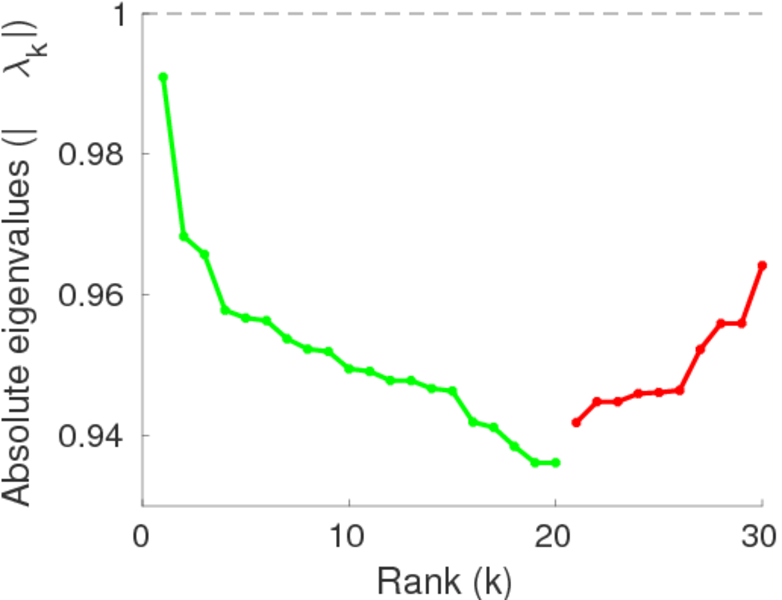

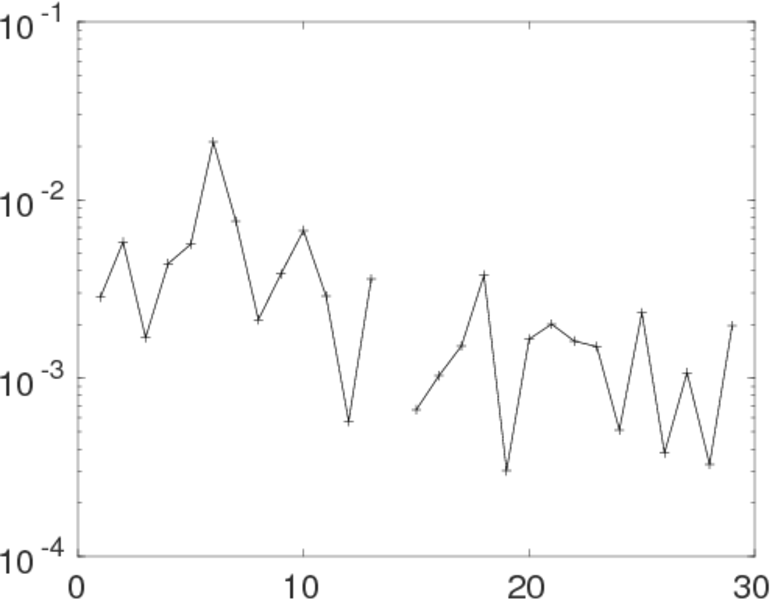

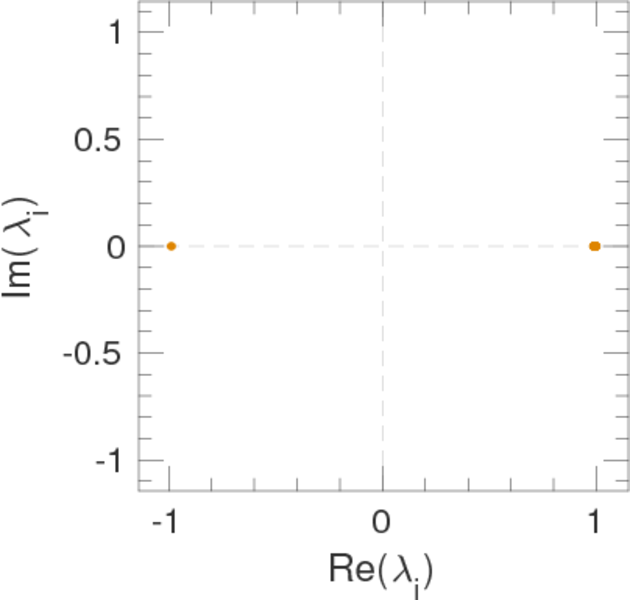

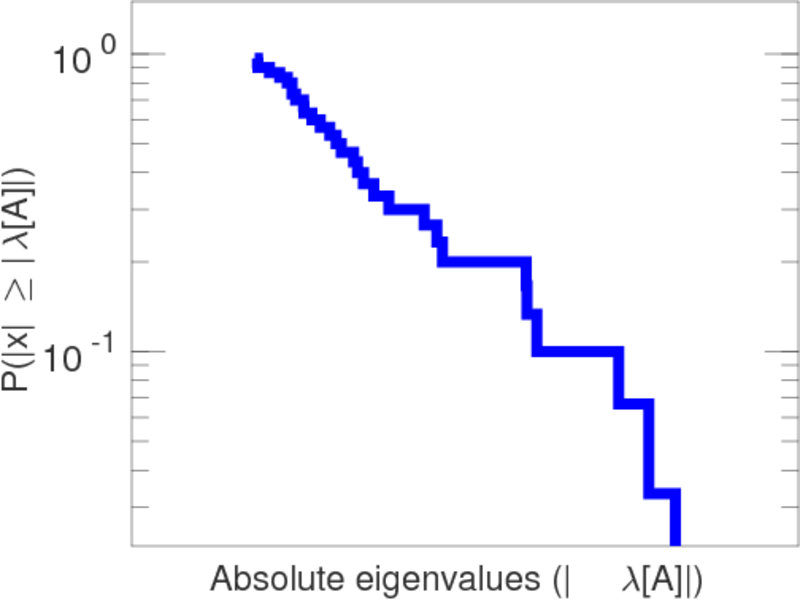

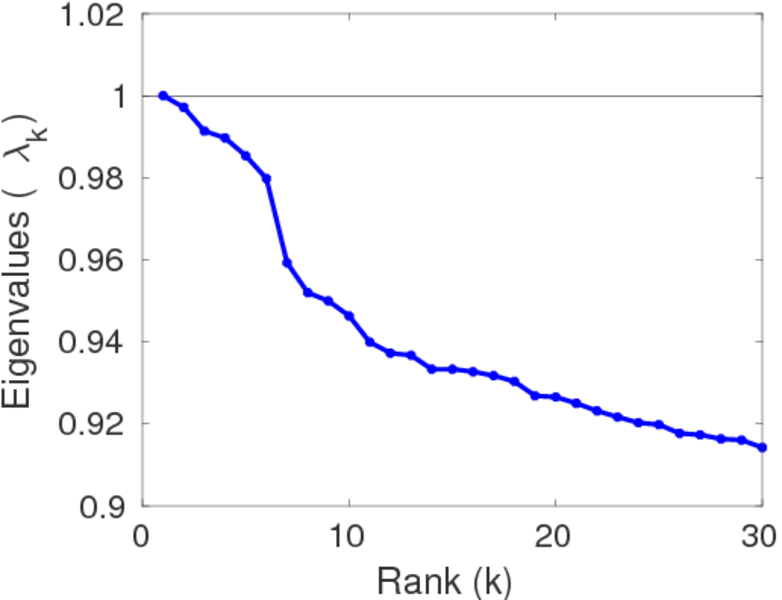

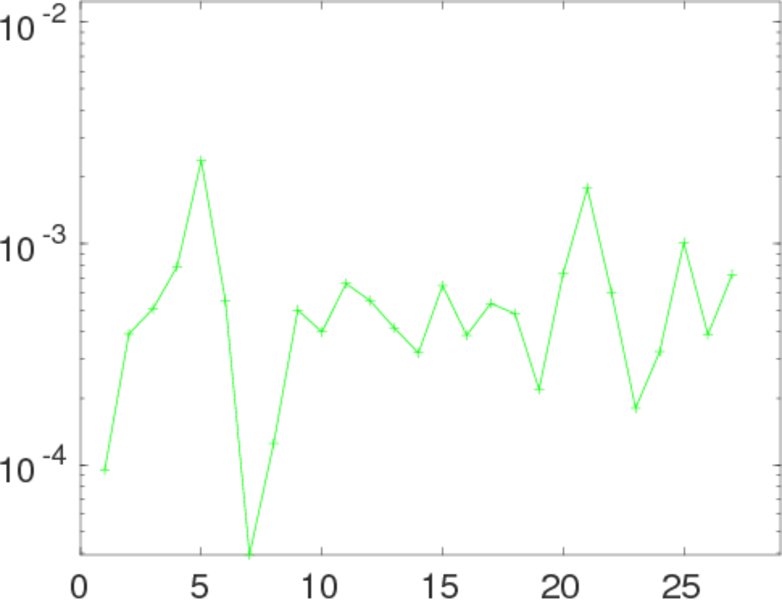

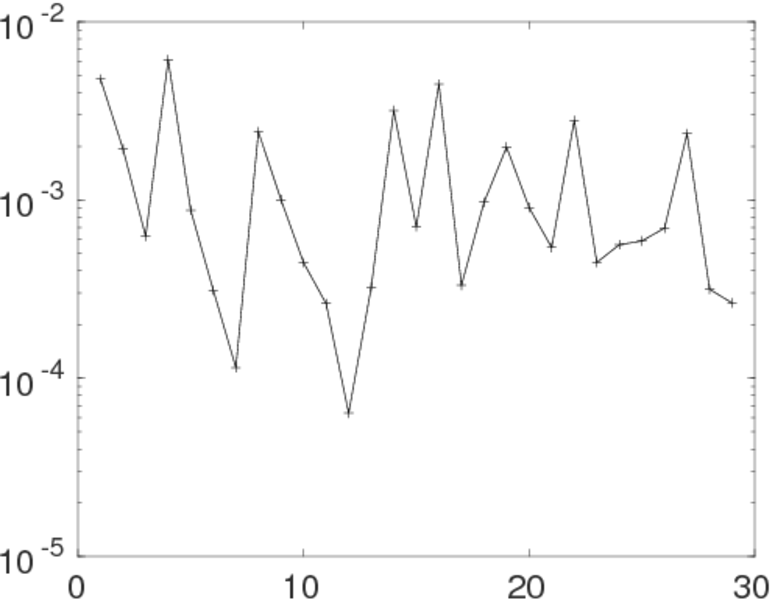

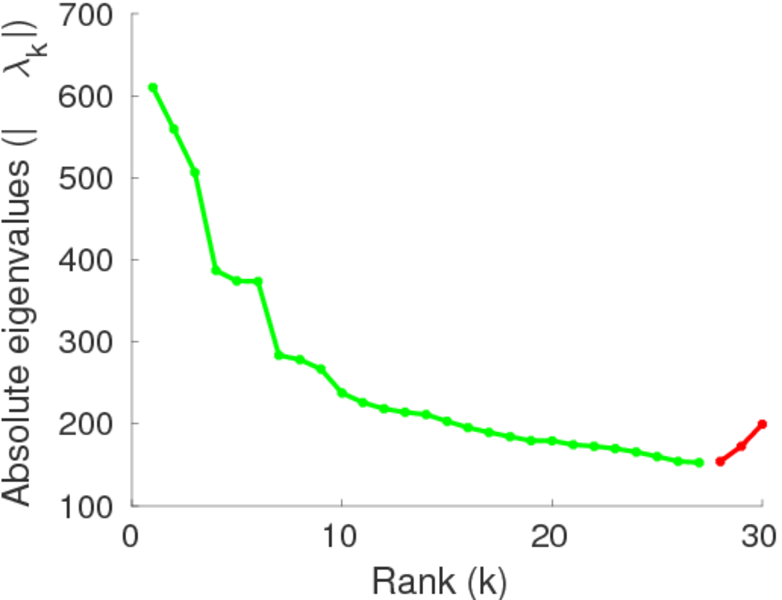

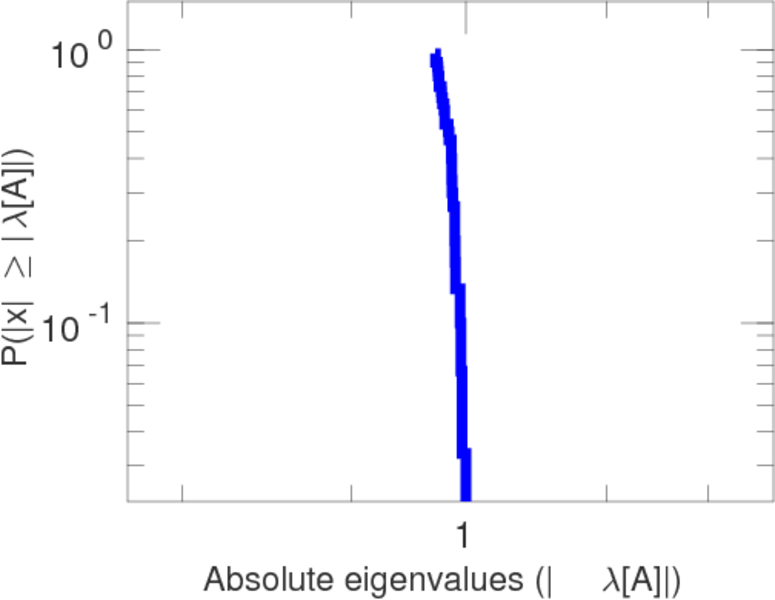

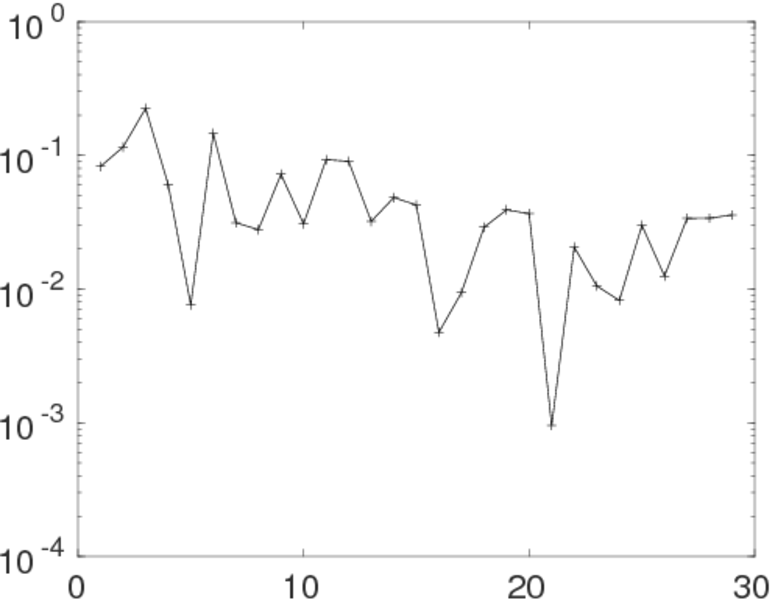

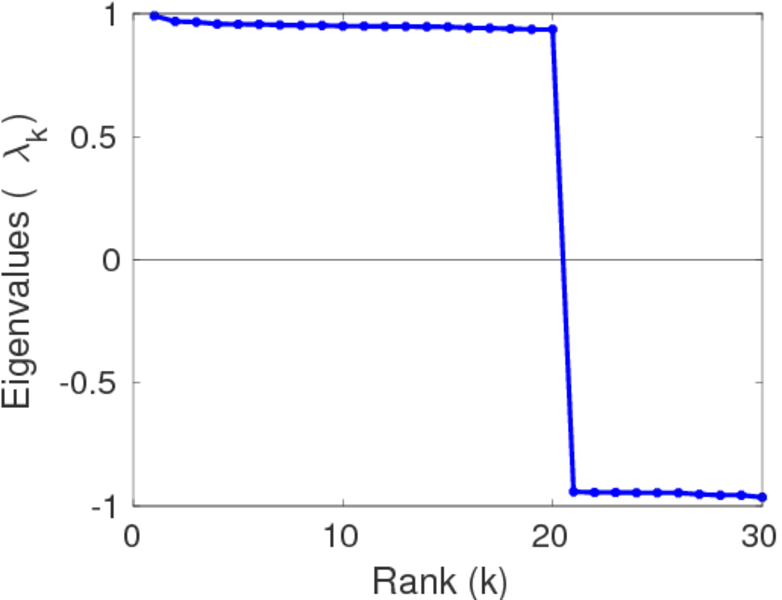

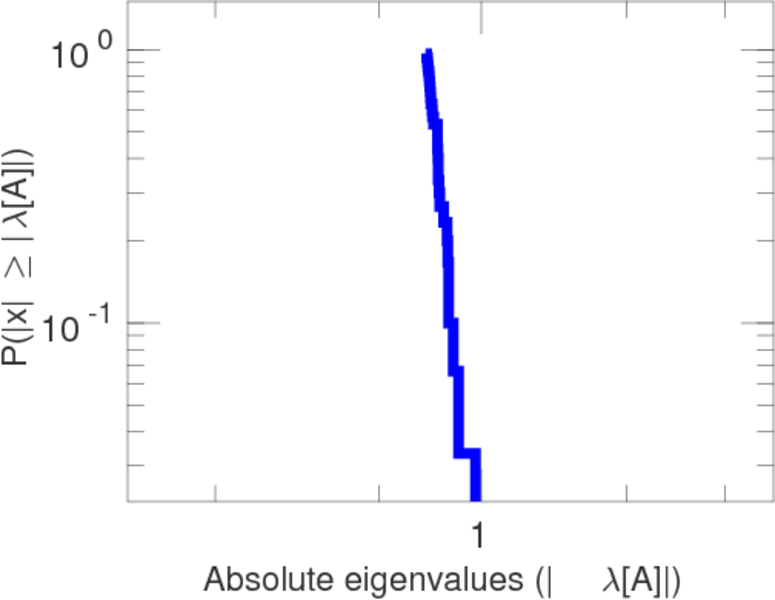

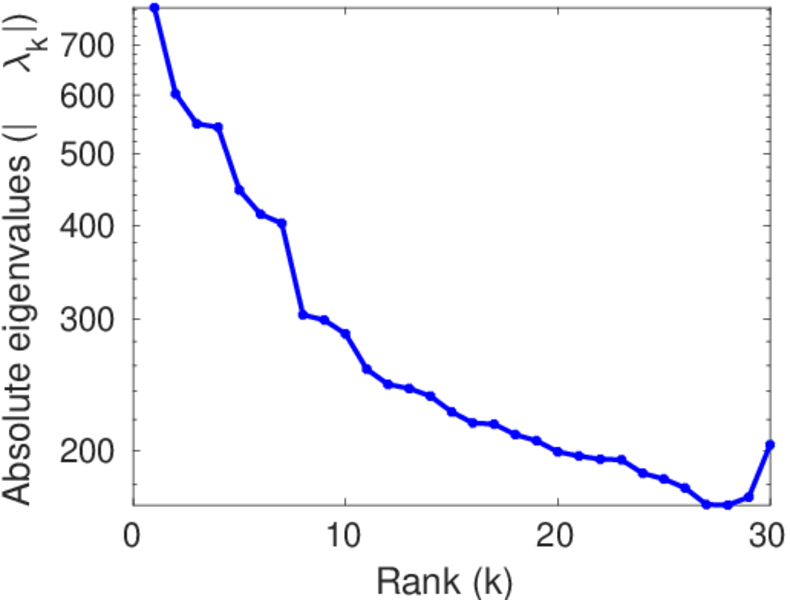

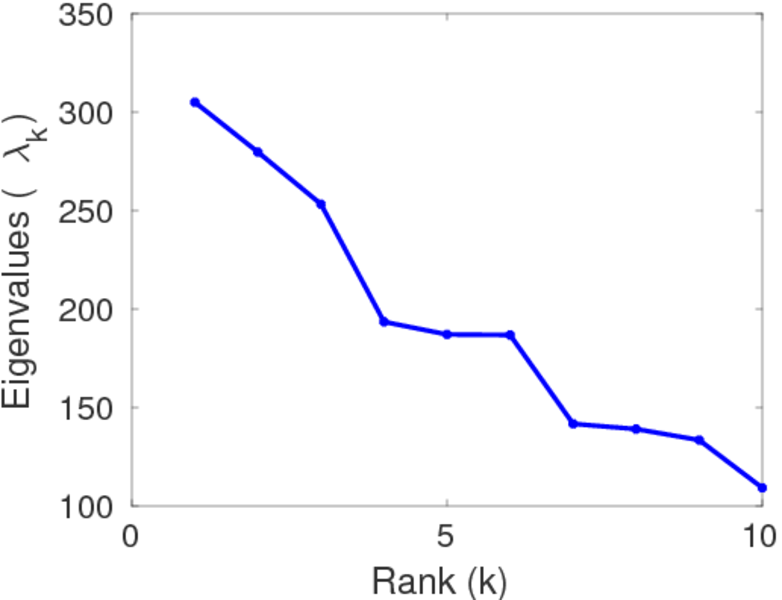

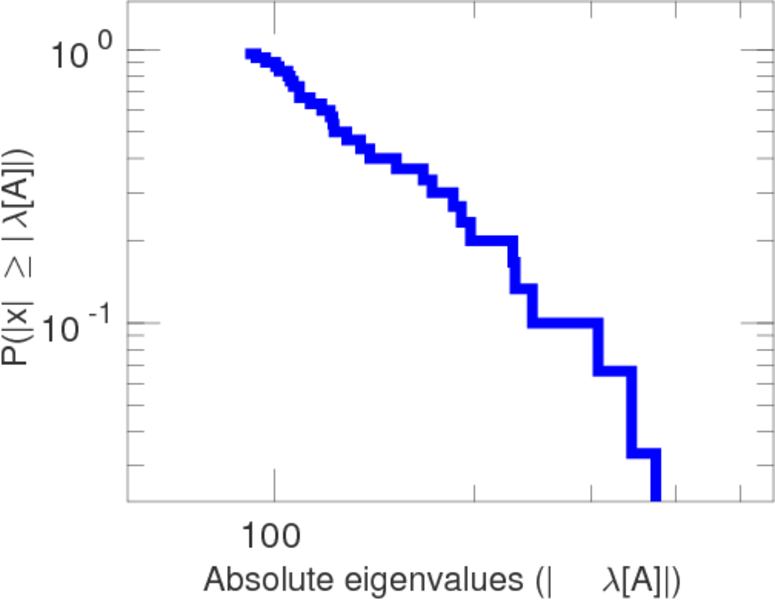

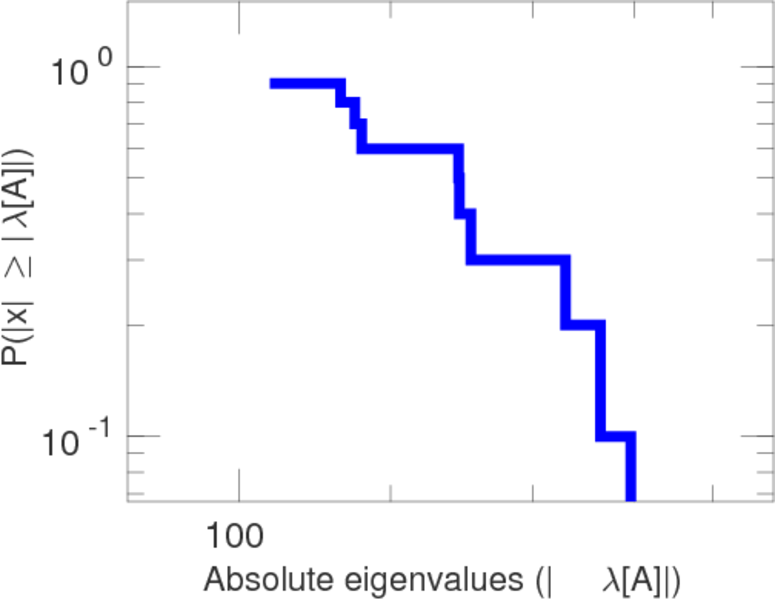

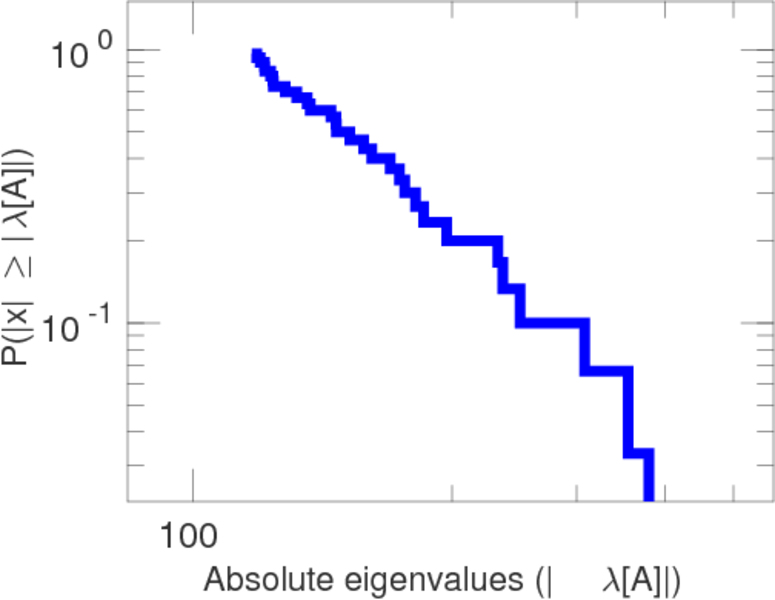

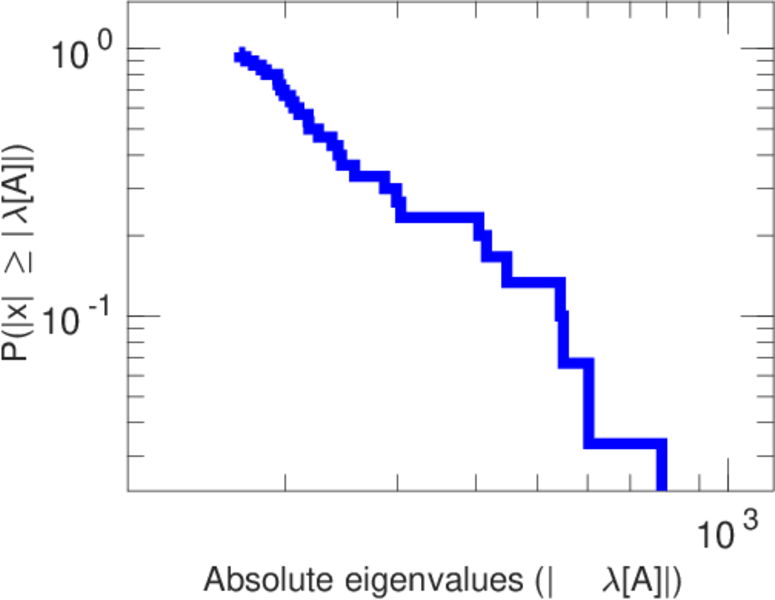

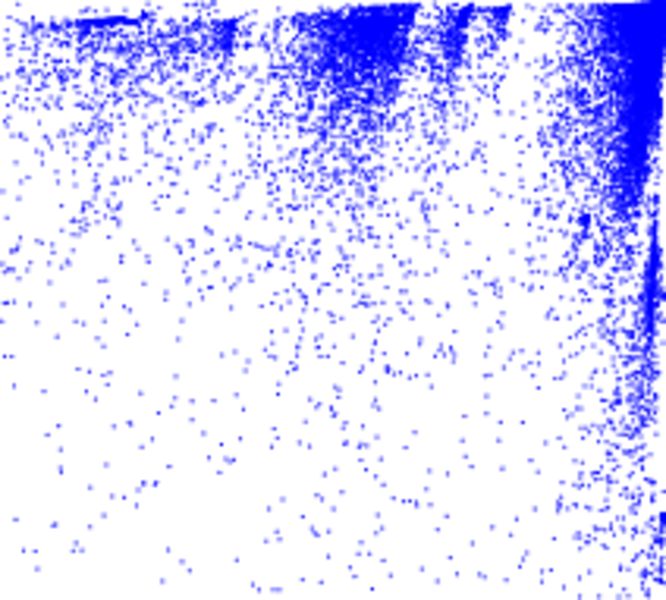

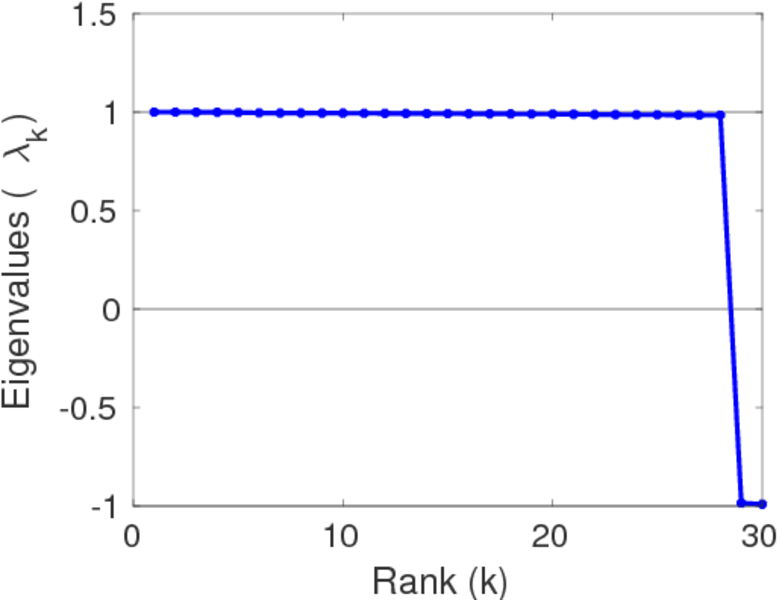

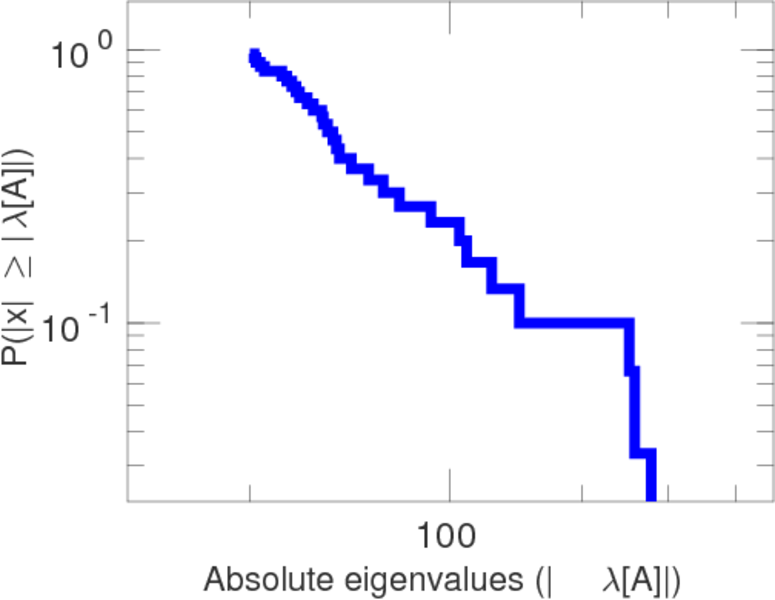

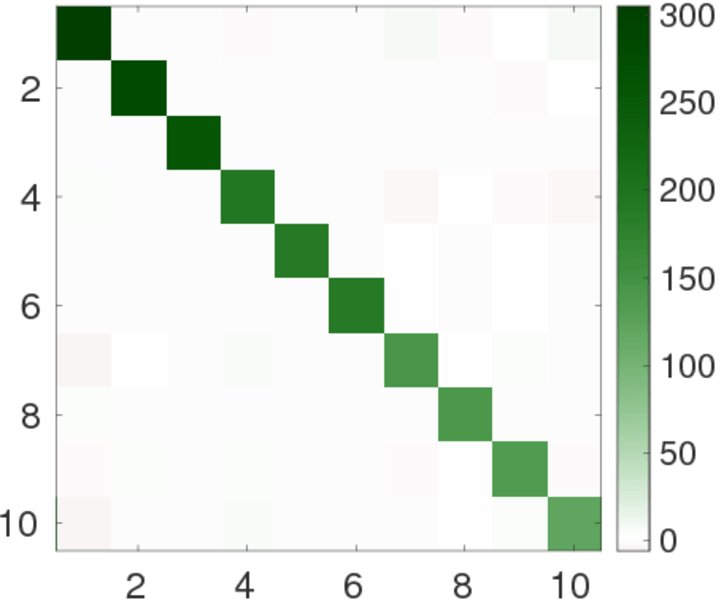

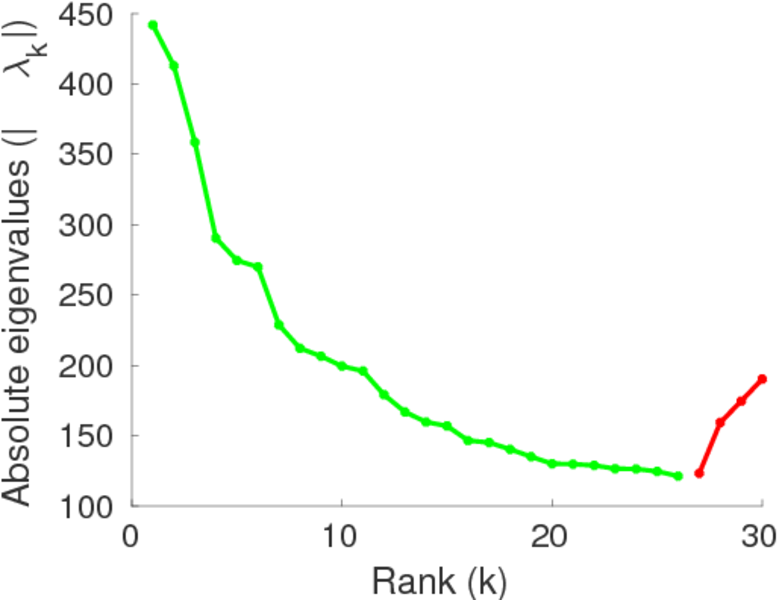

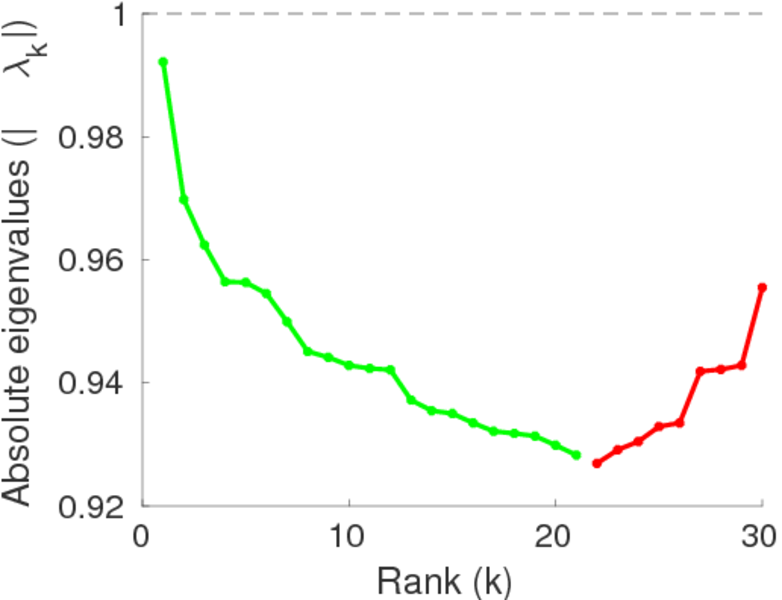

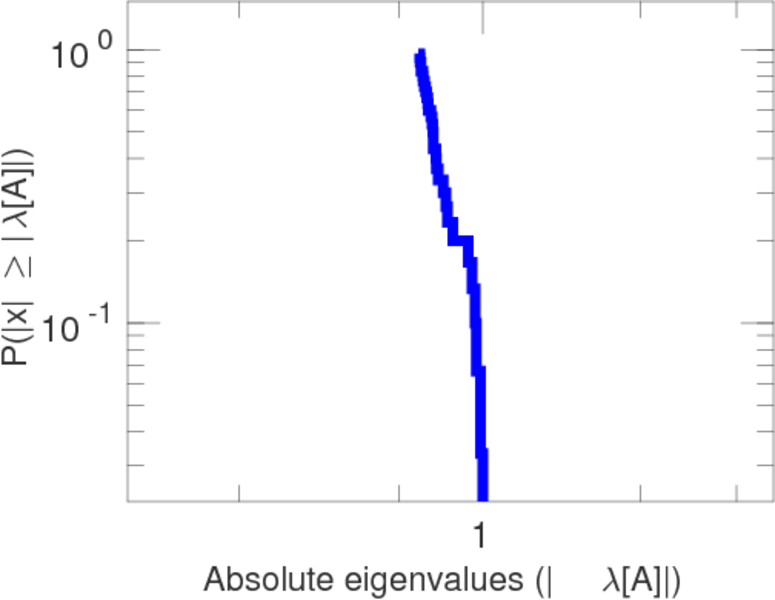

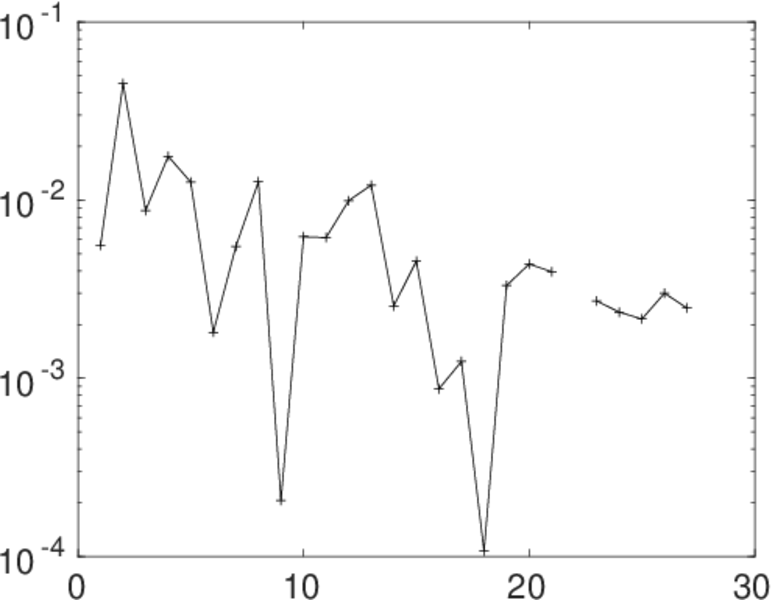

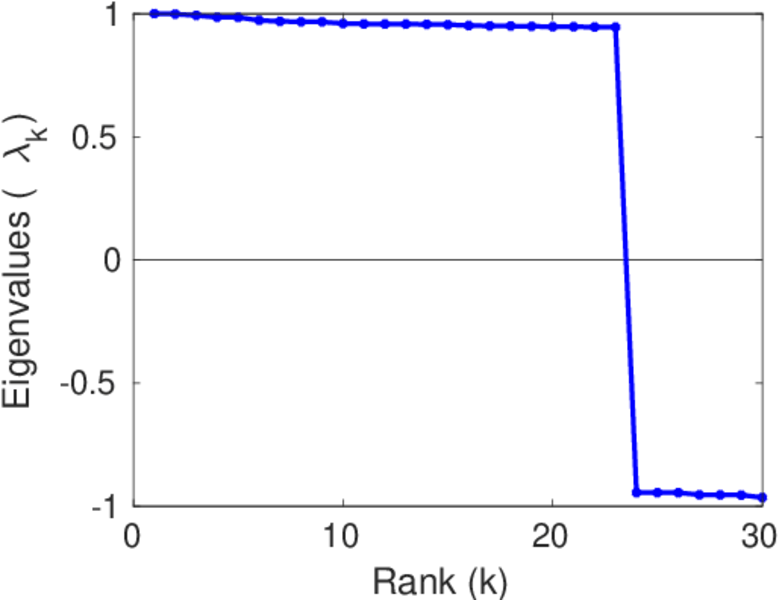

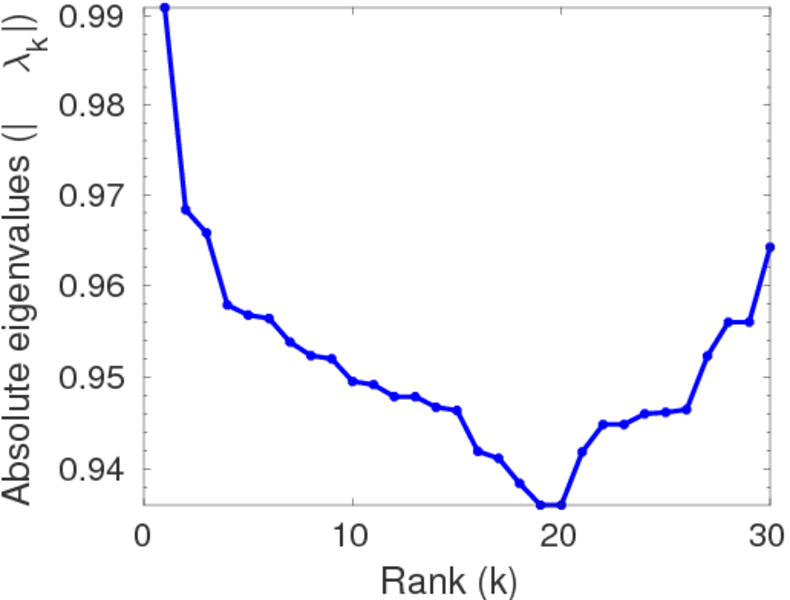

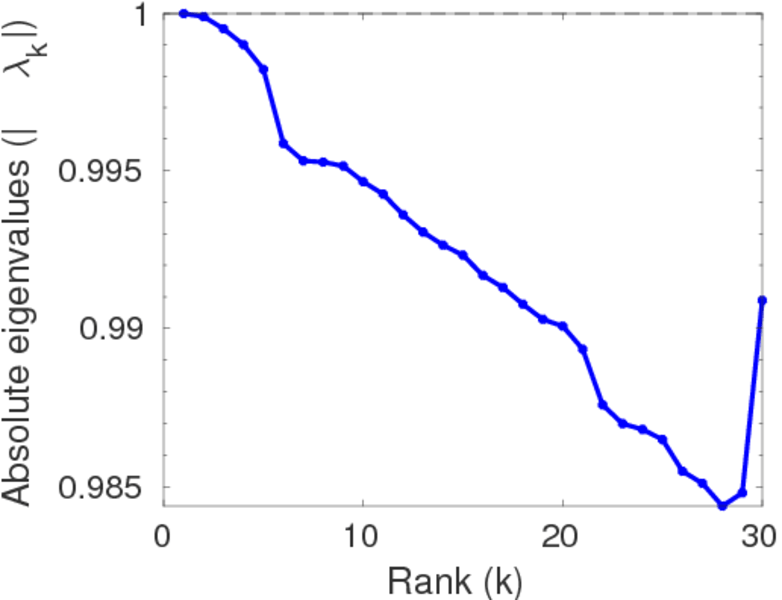

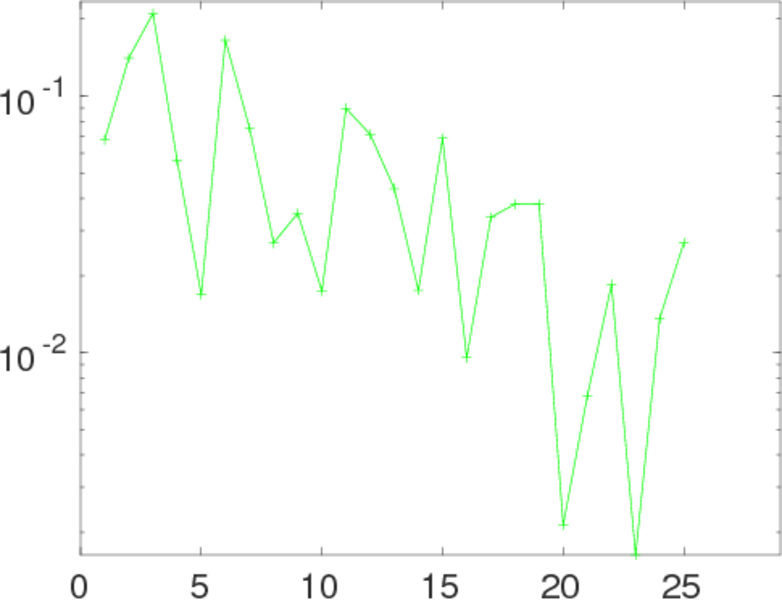

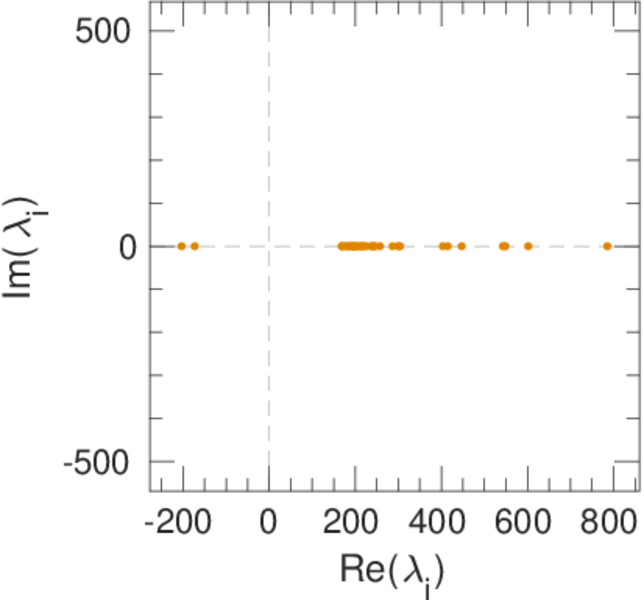

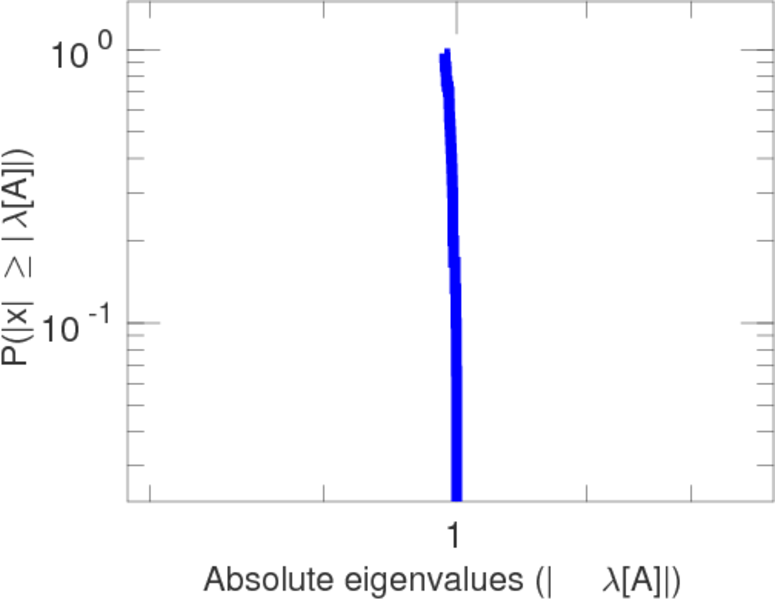

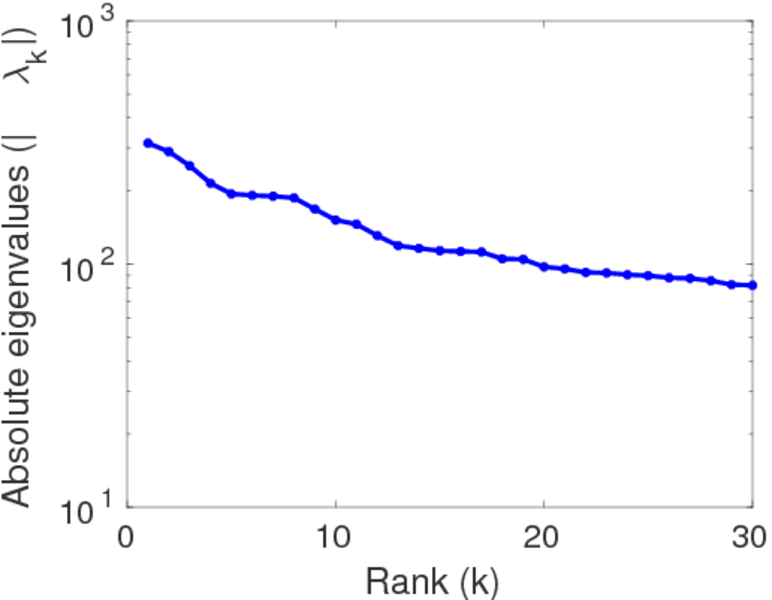

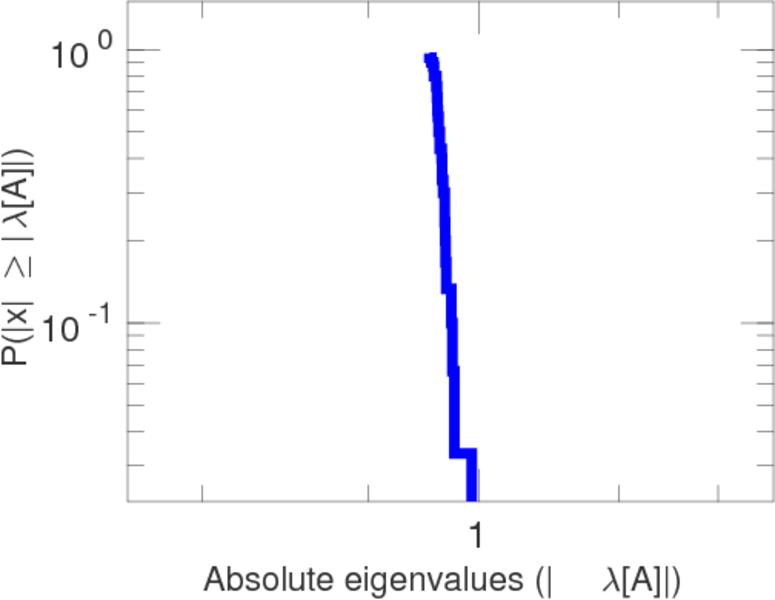

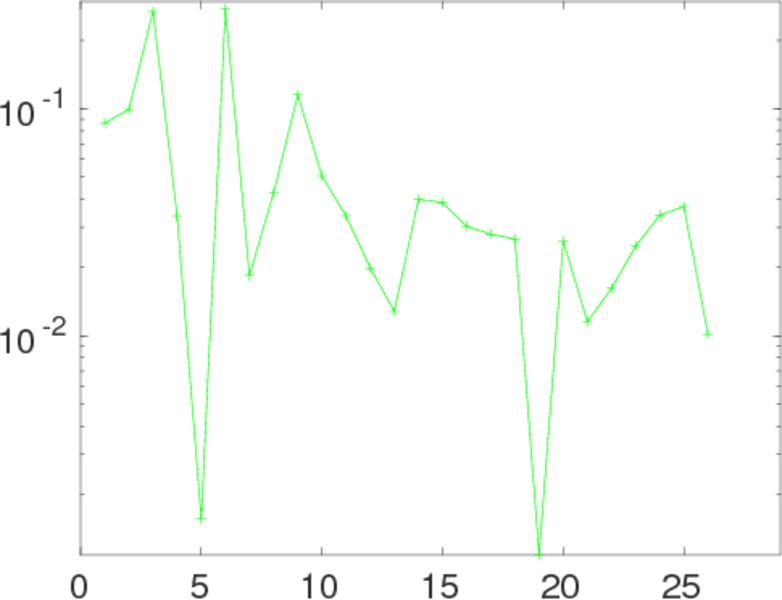

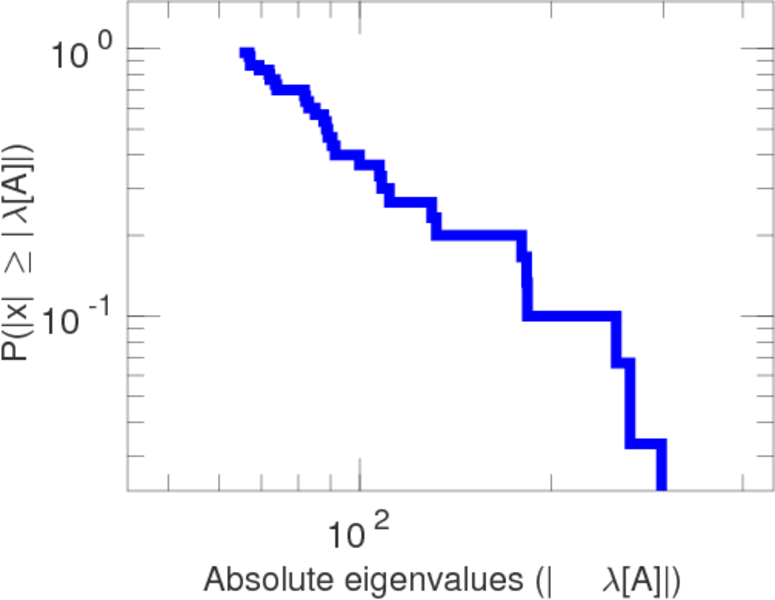

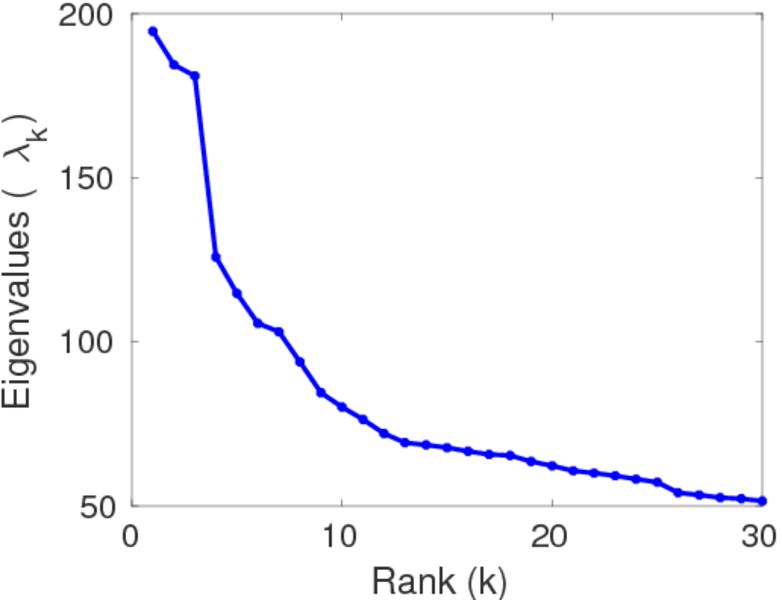

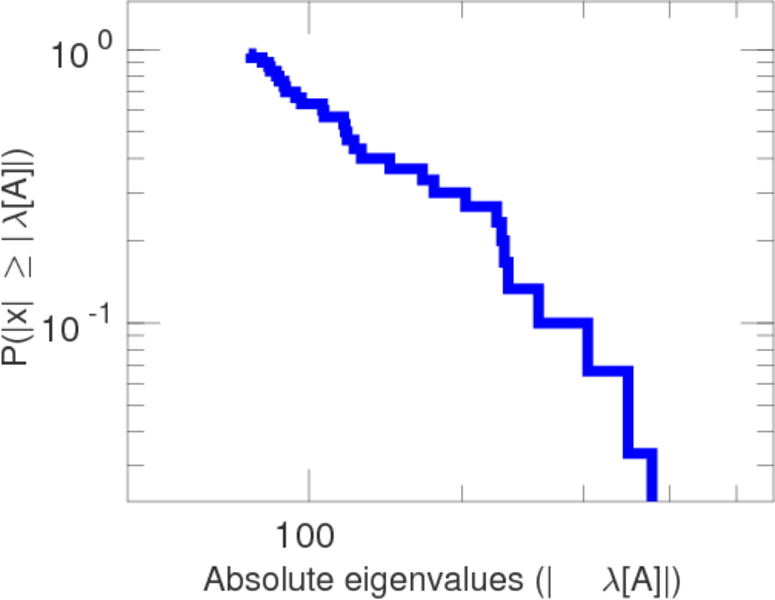

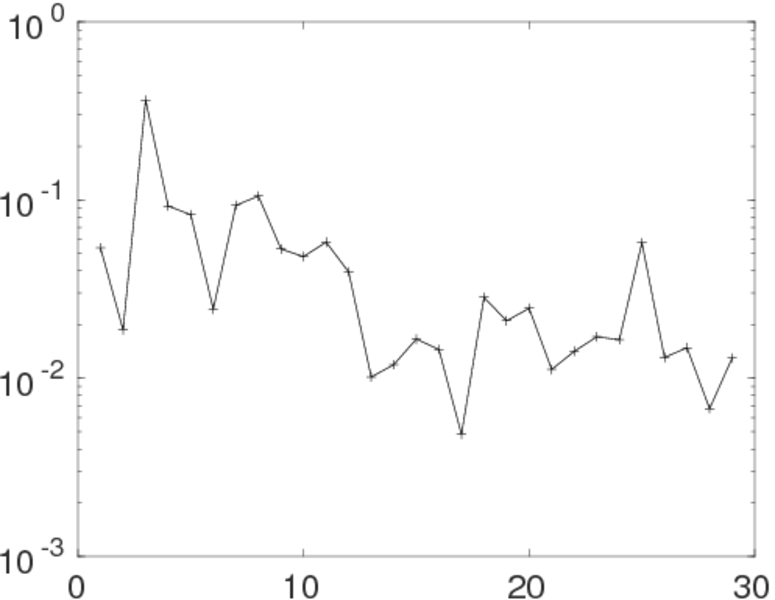

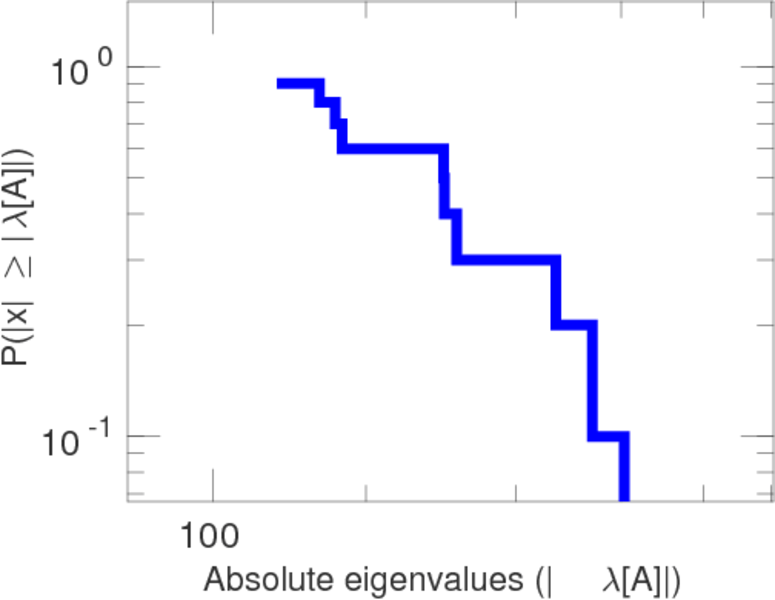

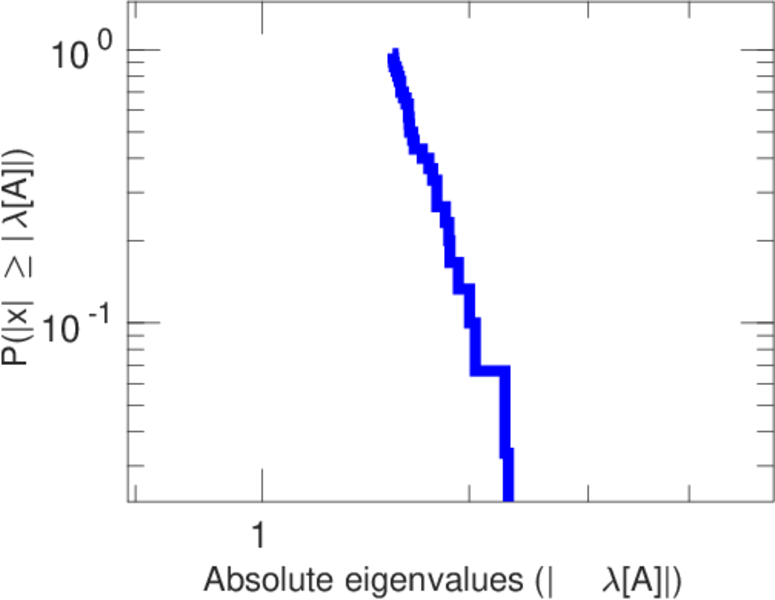

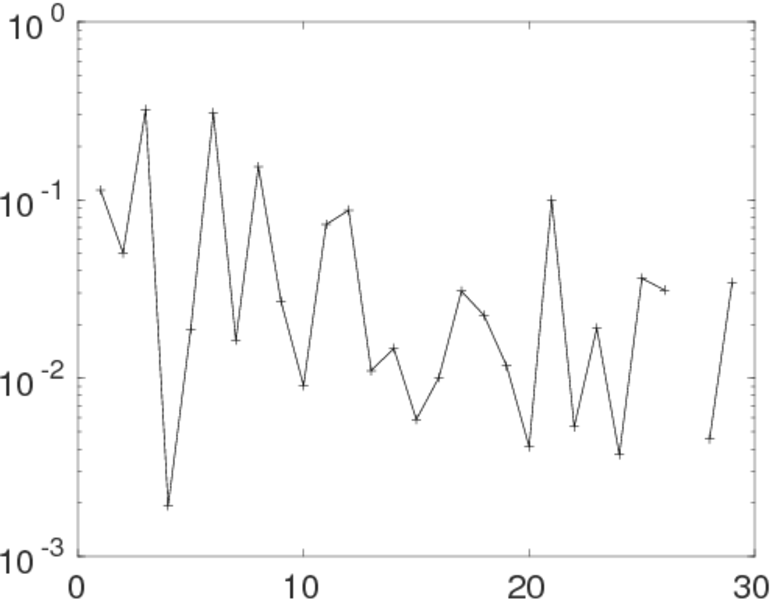

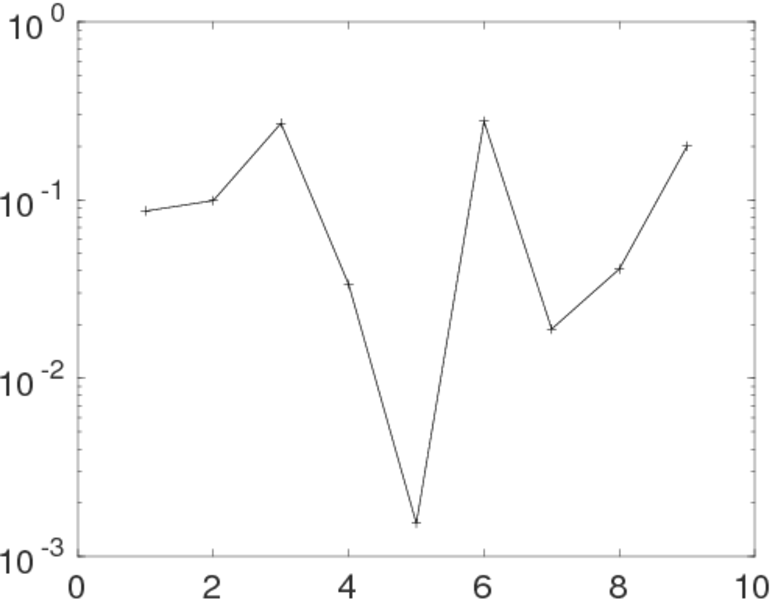

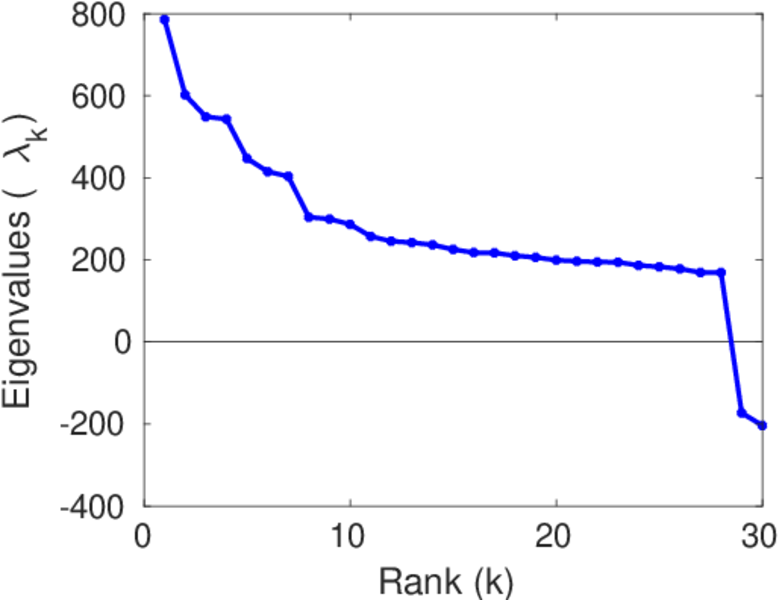

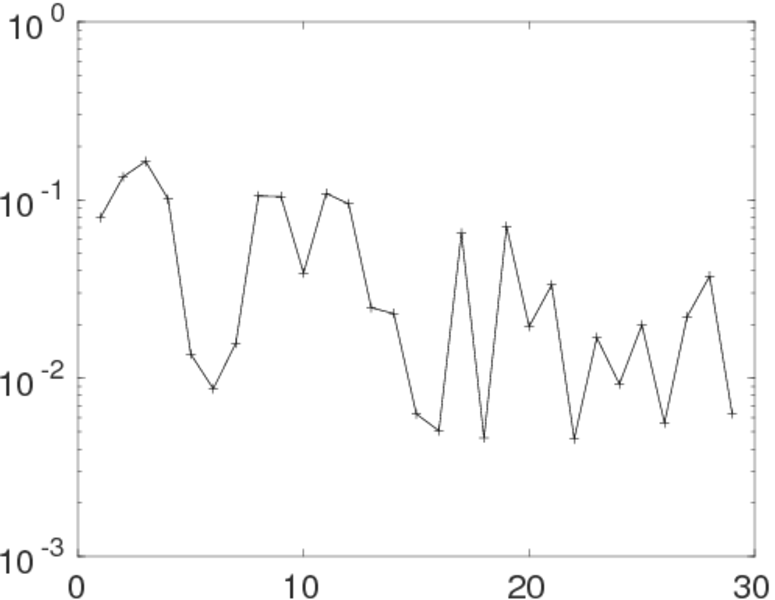

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
