Wikipedia links (an)

This network consists of the wikilinks of the Wikipedia in the Aragonese language (an). Nodes are Wikipedia articles, and directed edges are wikilinks, i.e., hyperlinks within one wiki. In the wiki source, these are indicated with [[double brackets]]. Only pages in the article namespace are included.

Metadata

CodeWan
Internal namewikipedia_link_an
NameWikipedia links (an)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningWikilink
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =56,485
Volume m =1,306,724
Loop count l =15
Wedge count s =1,245,984,407
Claw count z =2,997,409,548,602
Cross count x =7,094,334,861,474,512
Triangle count t =10,923,341
Square count q =8,273,742,939
4-Tour count T4 =71,176,072,278
Maximum degree dmax =13,084
Maximum outdegree d+max =809
Maximum indegree dmax =13,077
Average degree d =46.268 0
Fill p =0.000 409 560
Size of LCC N =56,481
Size of LSCC Ns =33,902
Relative size of LSCC Nrs =0.600 195
Diameter δ =9
50-Percentile effective diameter δ0.5 =2.796 26
90-Percentile effective diameter δ0.9 =3.870 58
Median distance δM =3
Mean distance δm =3.329 38
Gini coefficient G =0.738 427
Balanced inequality ratio P =0.214 874
Outdegree balanced inequality ratio P+ =0.238 386
Indegree balanced inequality ratio P =0.192 280
Relative edge distribution entropy Her =0.876 077
Power law exponent γ =1.445 87
Tail power law exponent γt =2.681 00
Tail power law exponent with p γ3 =2.681 00
p-value p =0.000 00
Outdegree tail power law exponent with p γ3,o =3.211 00
Outdegree p-value po =0.000 00
Indegree tail power law exponent with p γ3,i =2.141 00
Indegree p-value pi =0.000 00
Degree assortativity ρ =−0.164 826
Degree assortativity p-value pρ =0.000 00
Clustering coefficient c =0.026 300 5
Directed clustering coefficient c± =0.291 529
Operator 2-norm ν =404.996
Cyclic eigenvalue π =105.357
Spectral separation 1[A] / λ2[A]| =1.170 46
Reciprocity y =0.323 171
Non-bipartivity bA =0.145 635
Normalized non-bipartivity bN =0.075 946 9
Spectral bipartite frustration bK =0.000 887 565
Controllability C =23,283
Relative controllability Cr =0.412 198

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

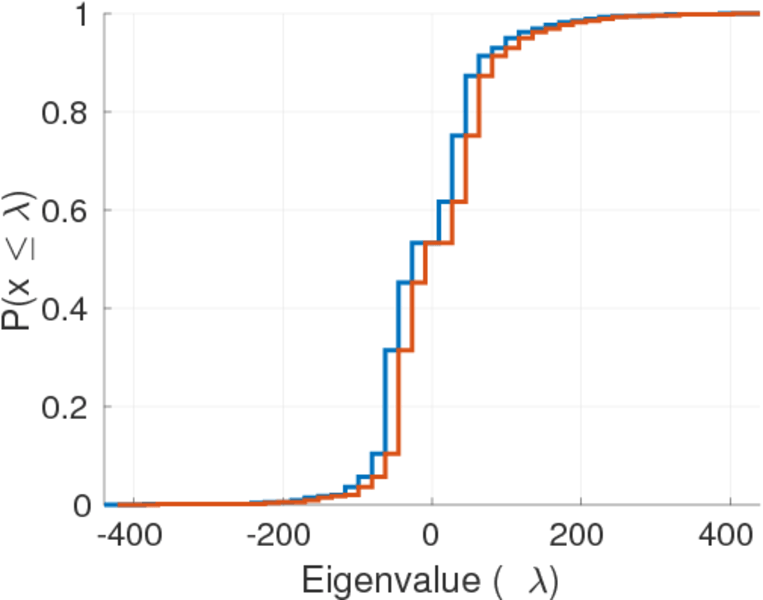

Spectral distribution of the adjacency matrix

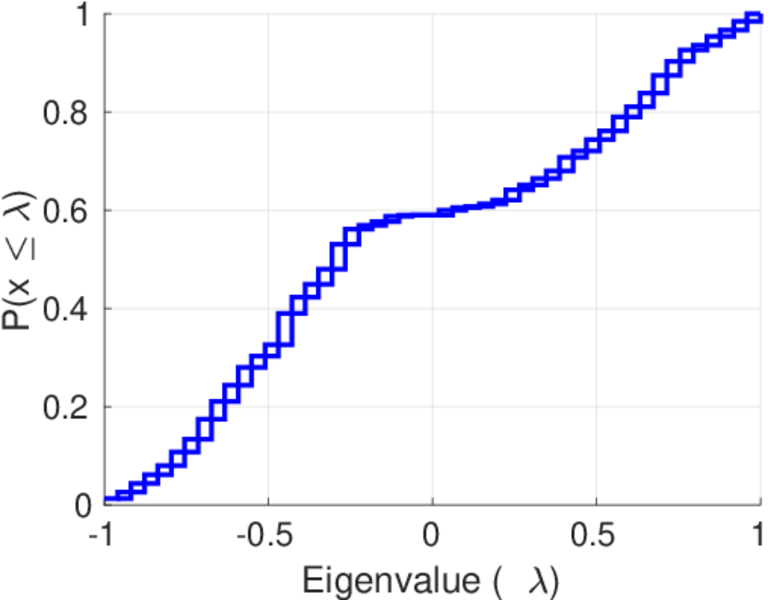

Spectral distribution of the normalized adjacency matrix

Spectral distribution of the Laplacian

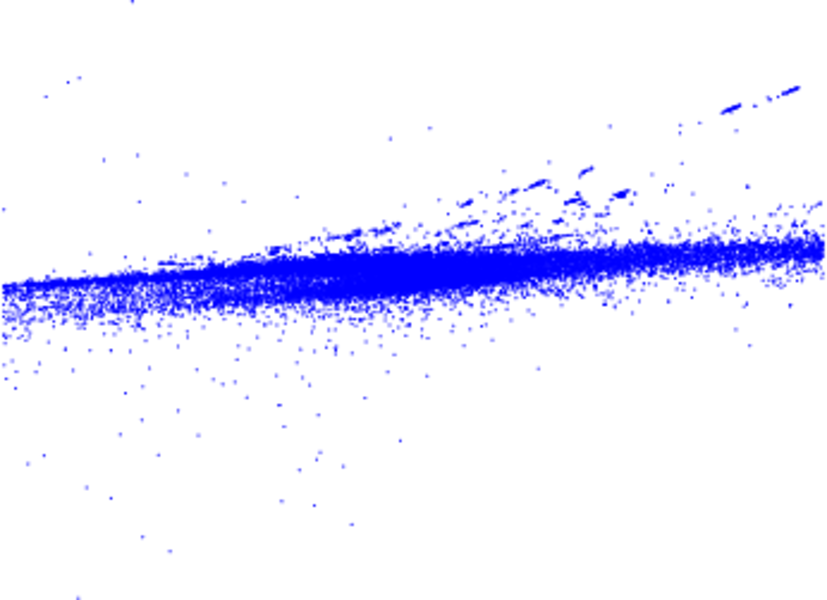

Spectral graph drawing based on the adjacency matrix

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Delaunay graph drawing

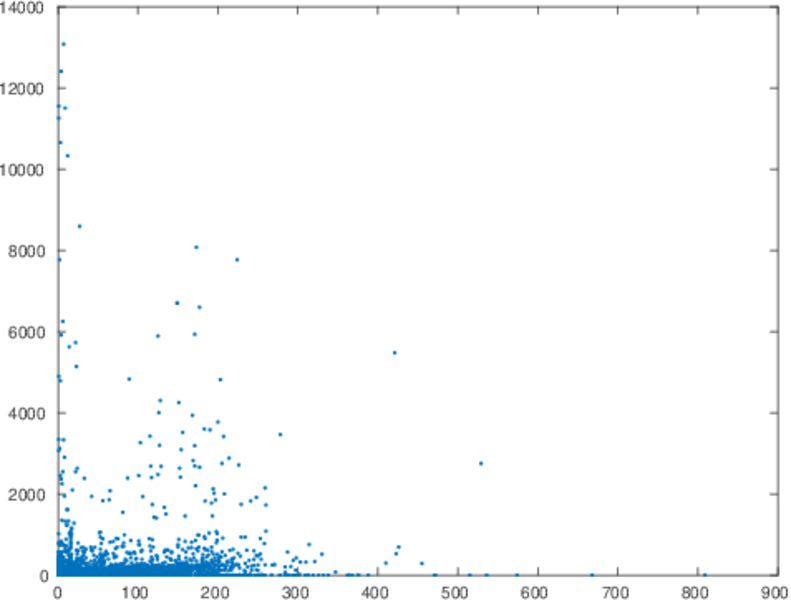

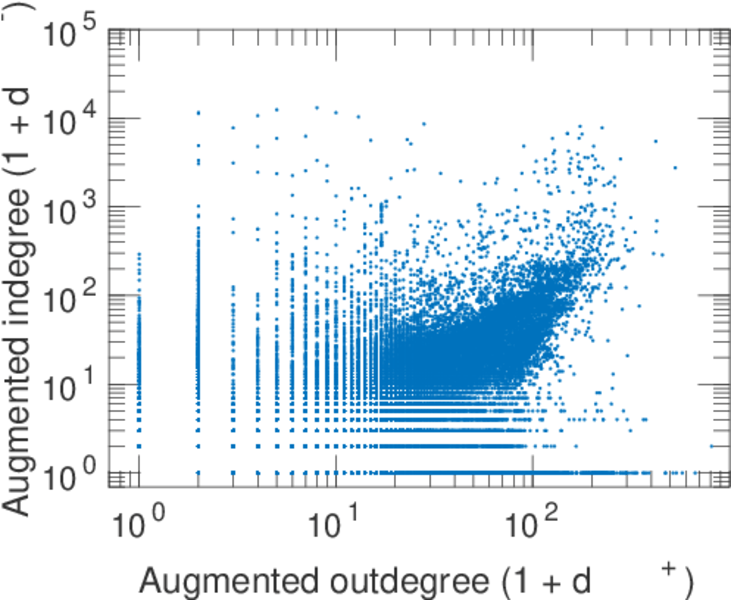

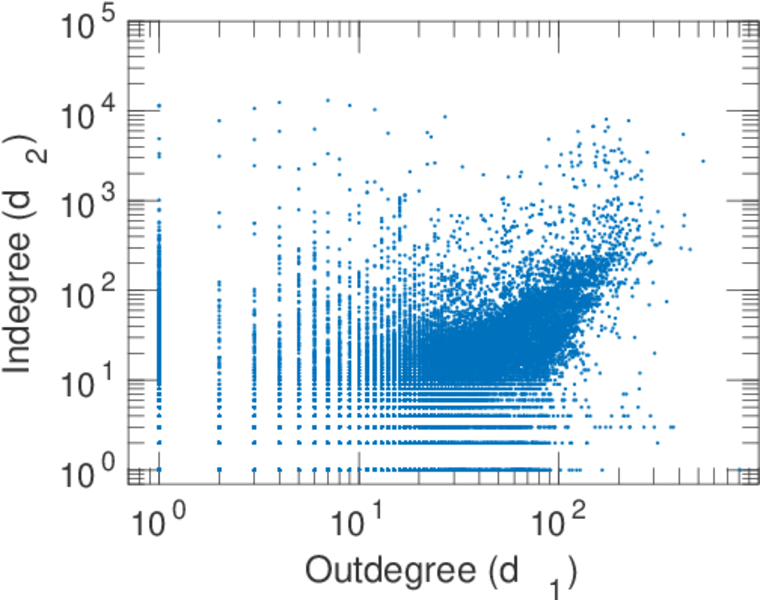

In/outdegree scatter plot

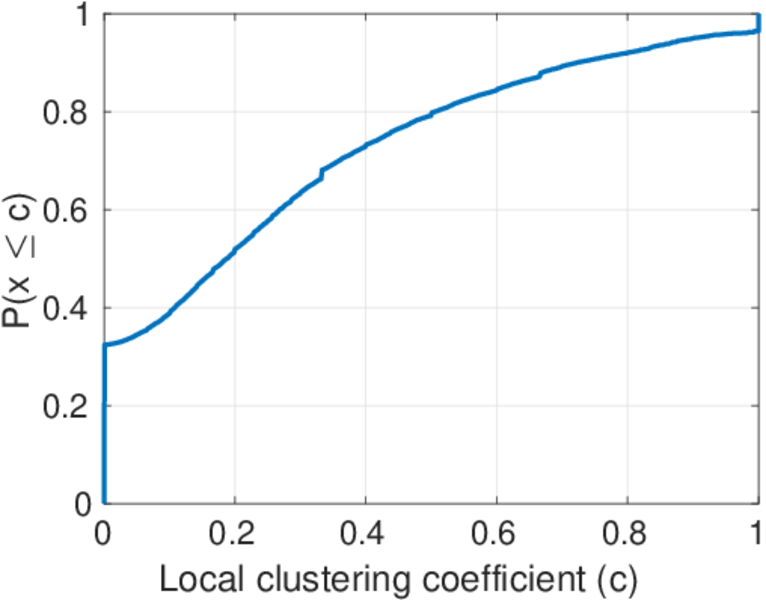

Clustering coefficient distribution

SynGraphy

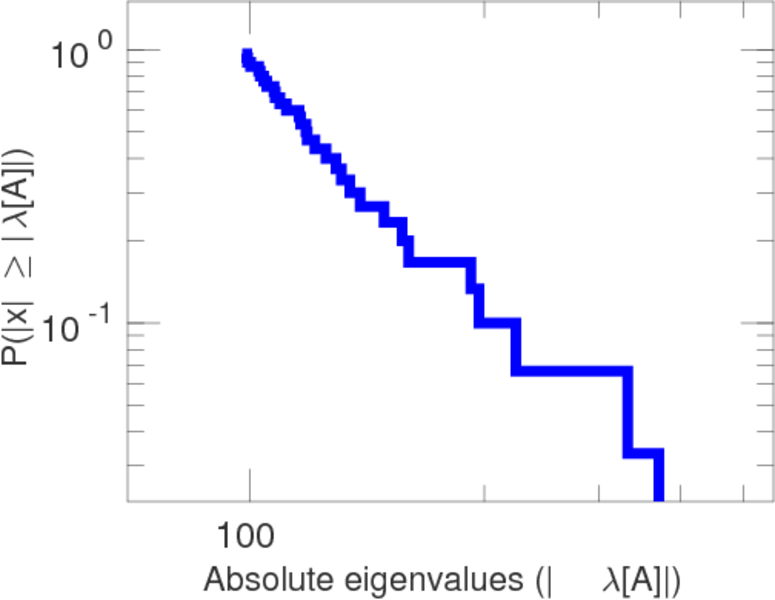

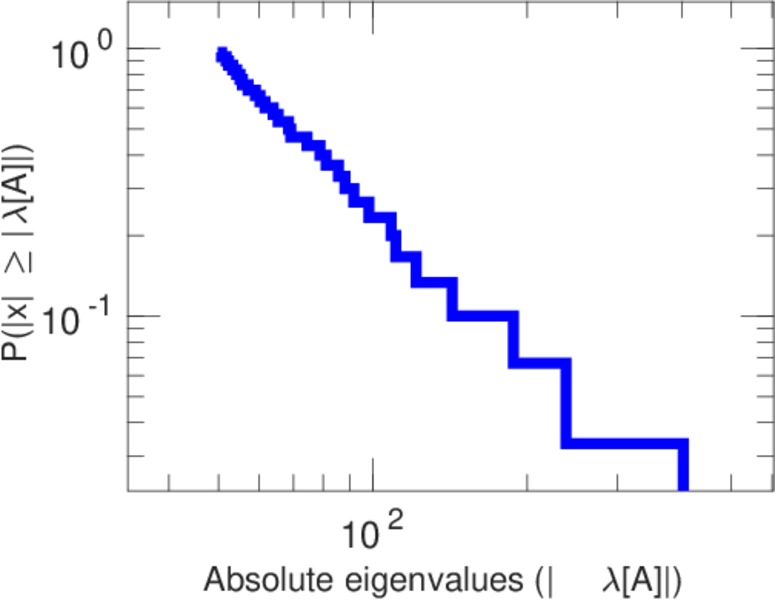

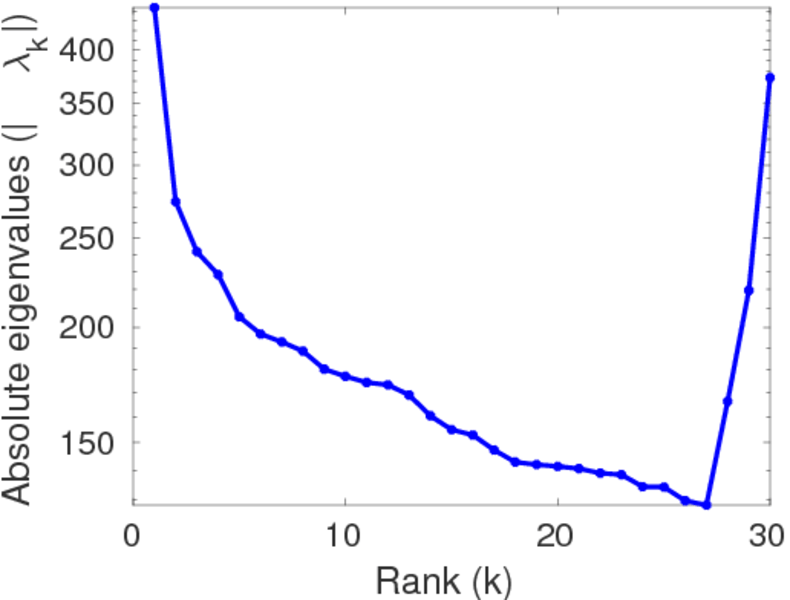

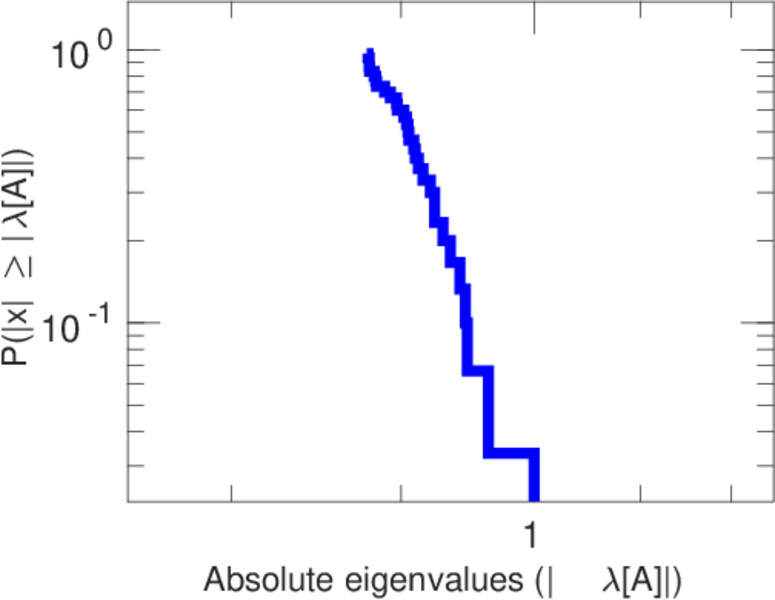

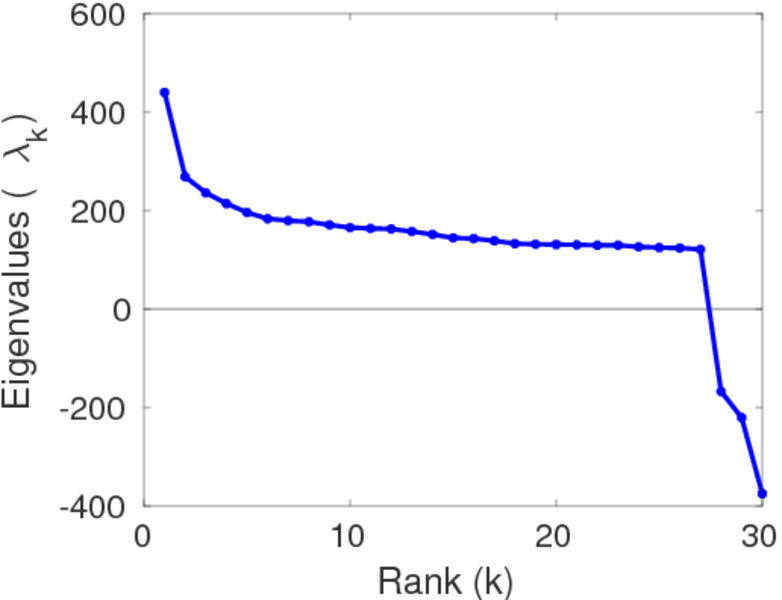

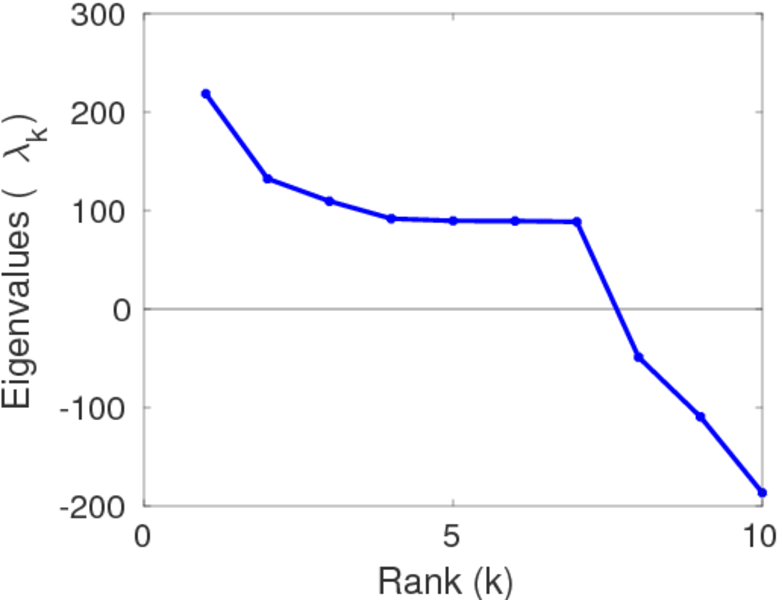

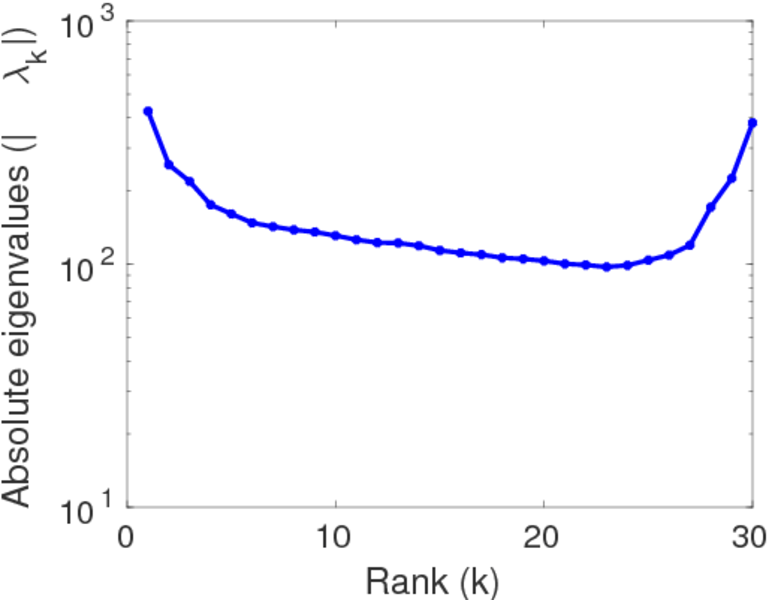

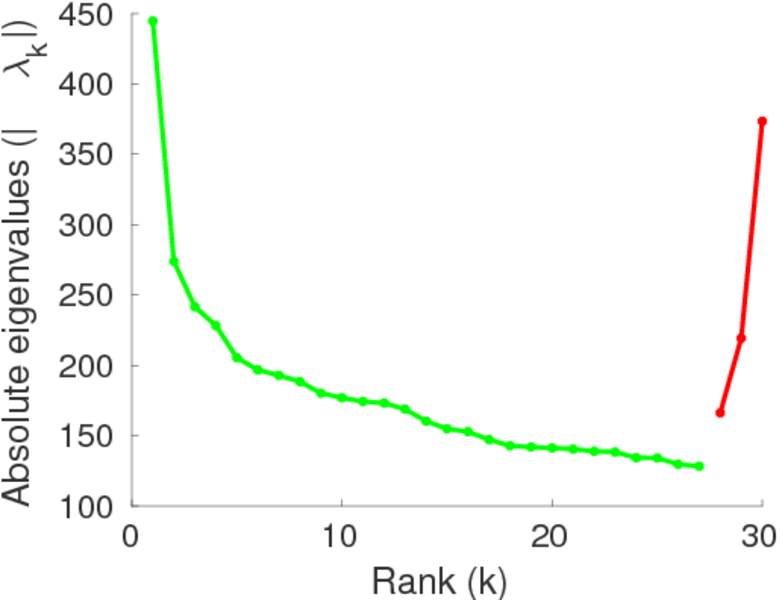

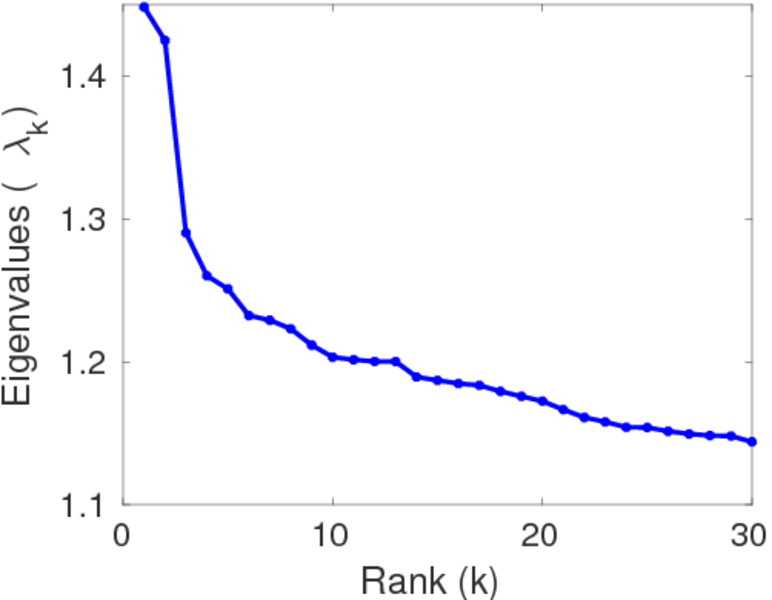

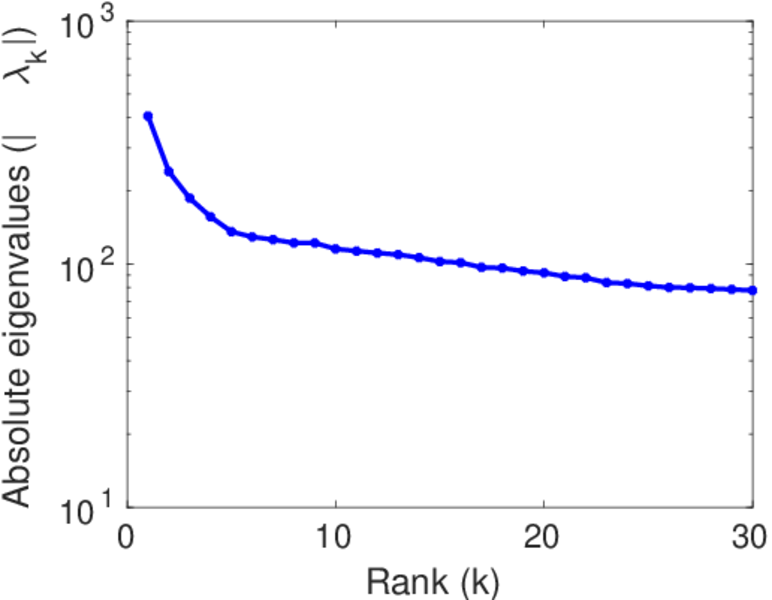

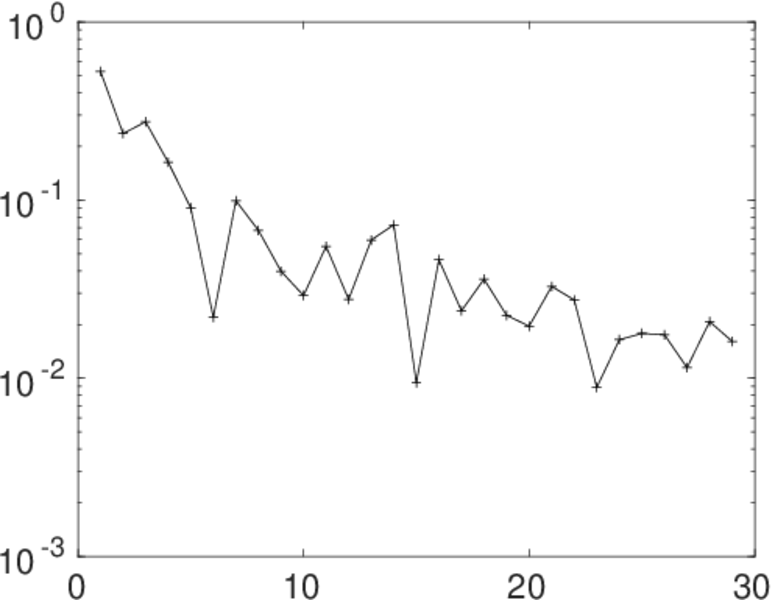

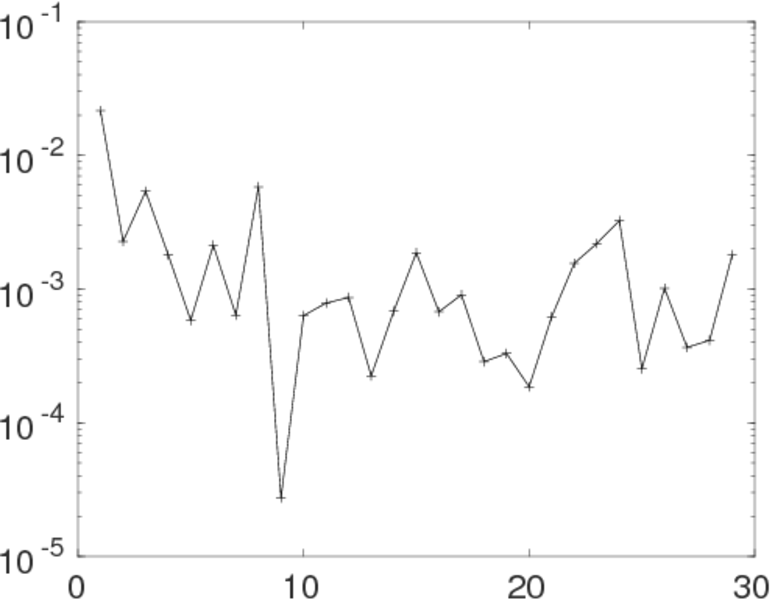

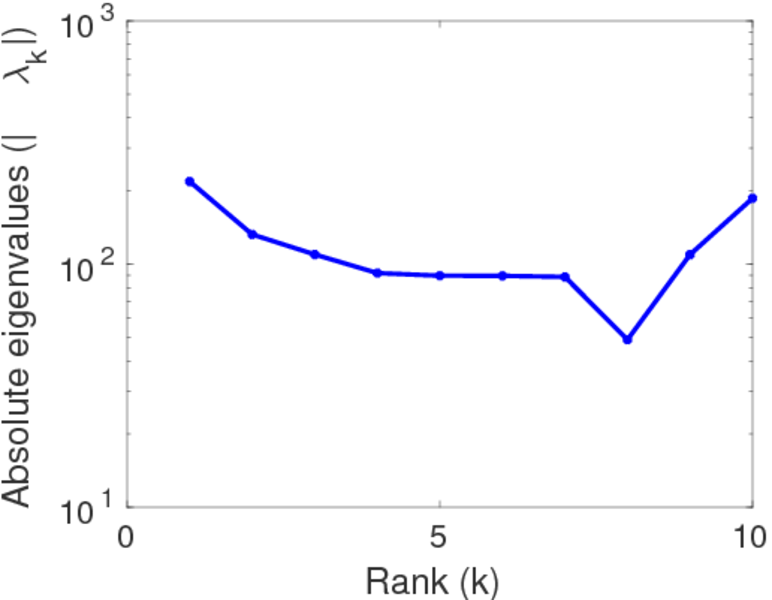

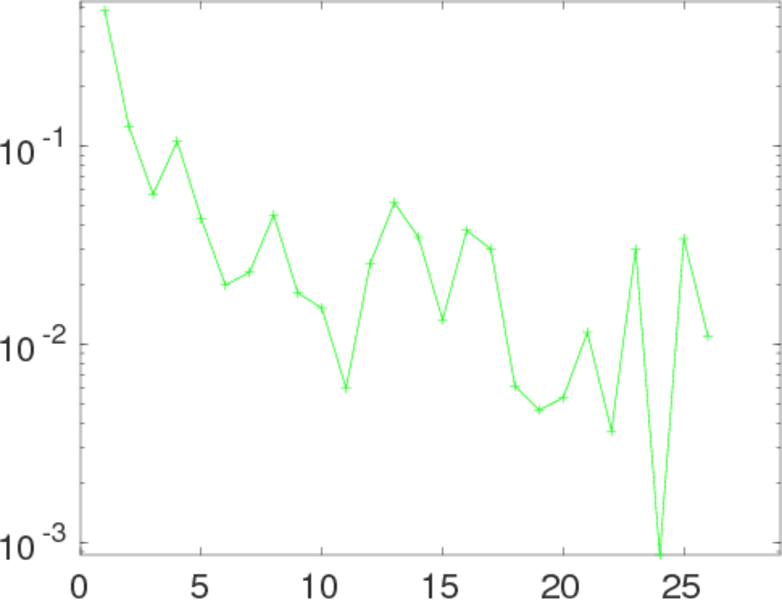

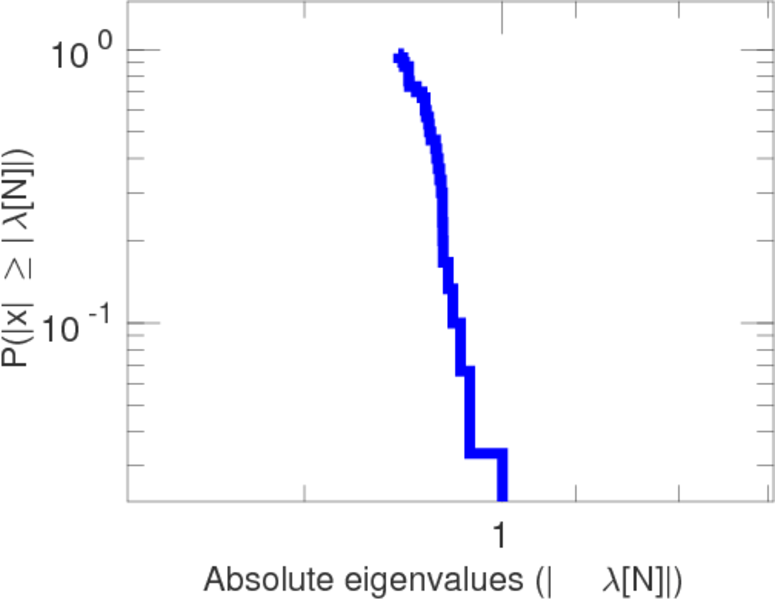

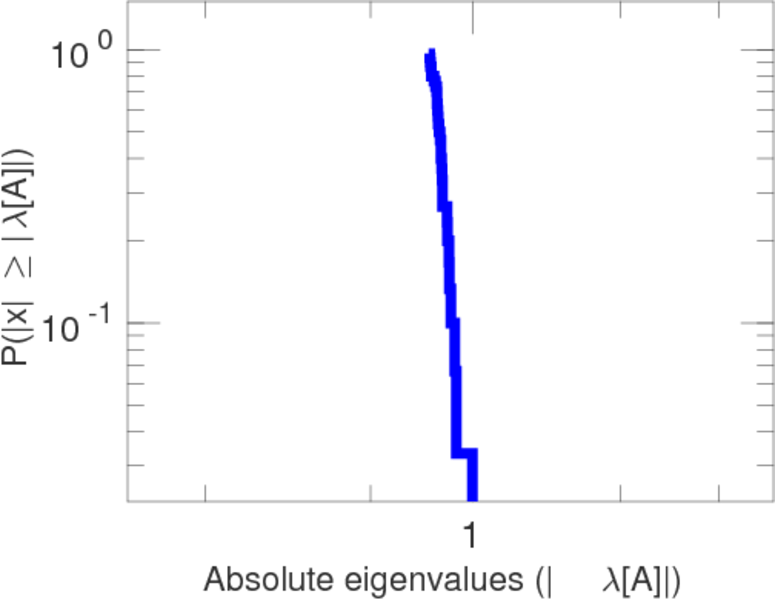

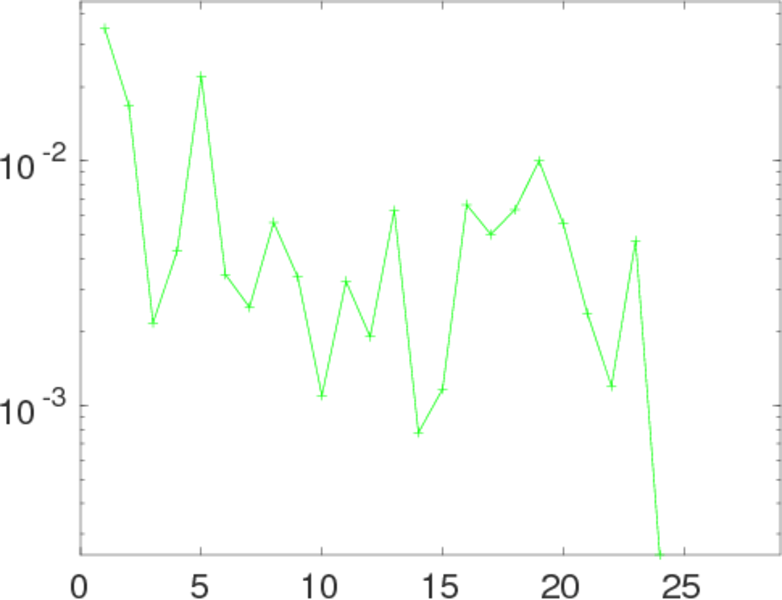

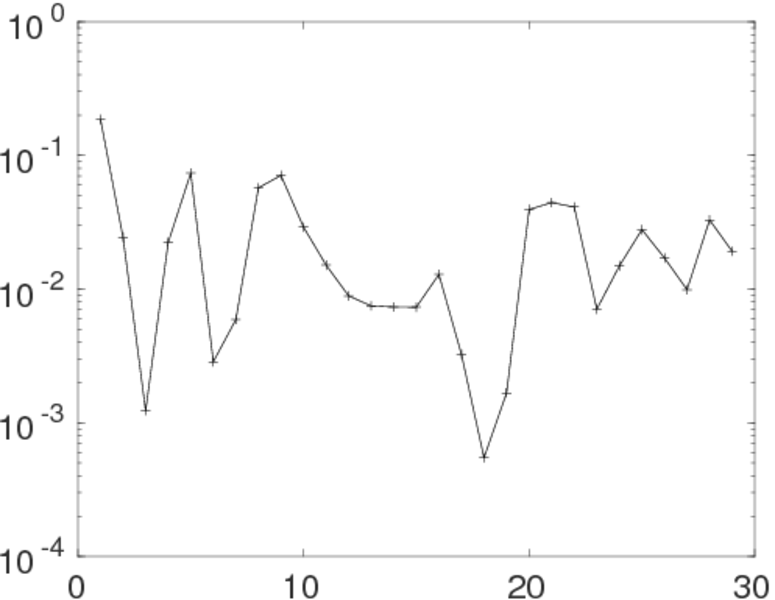

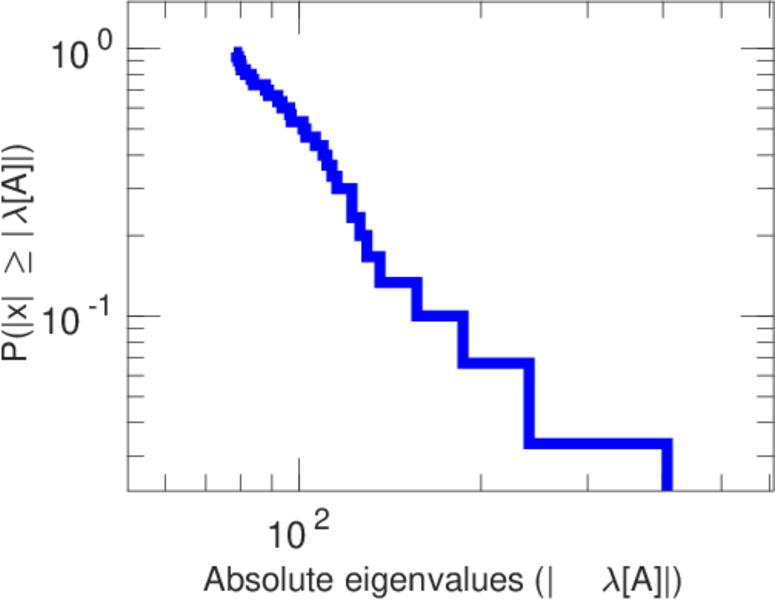

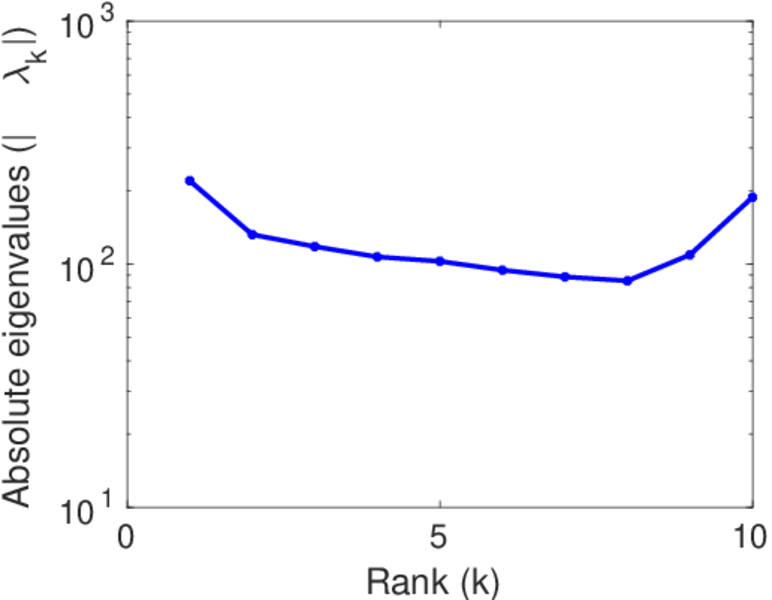

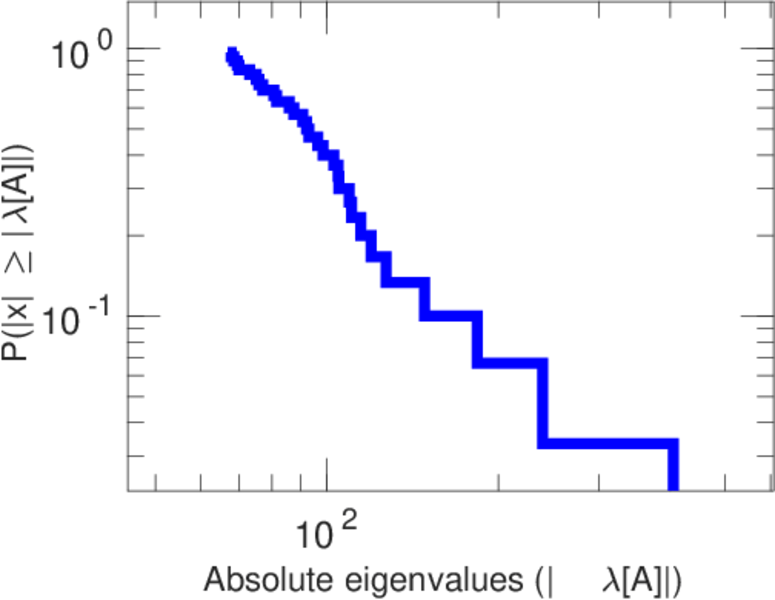

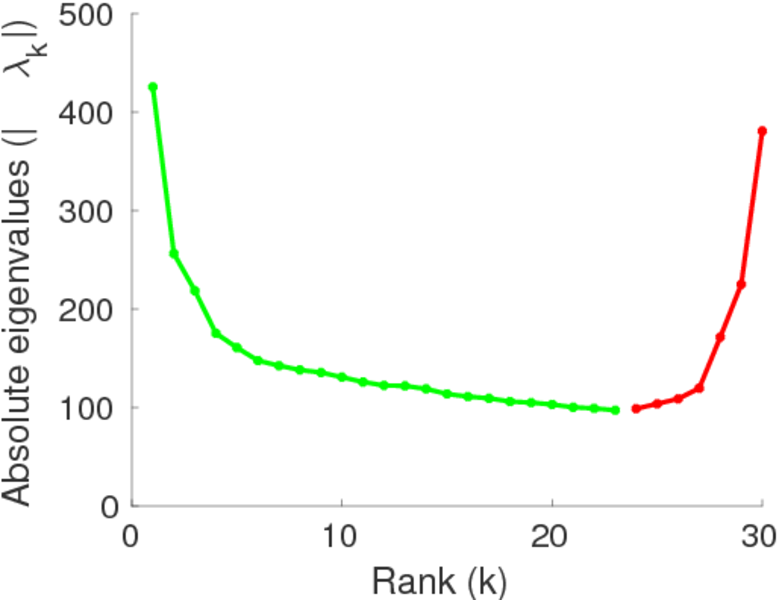

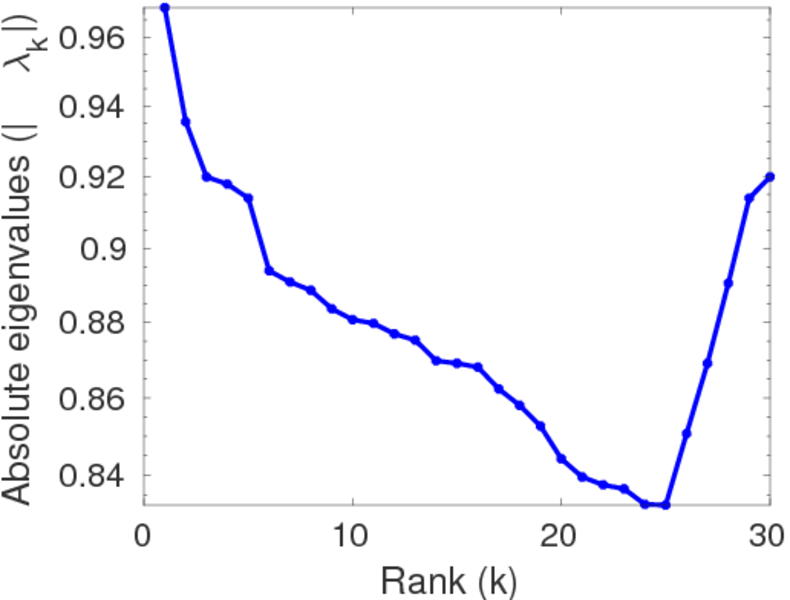

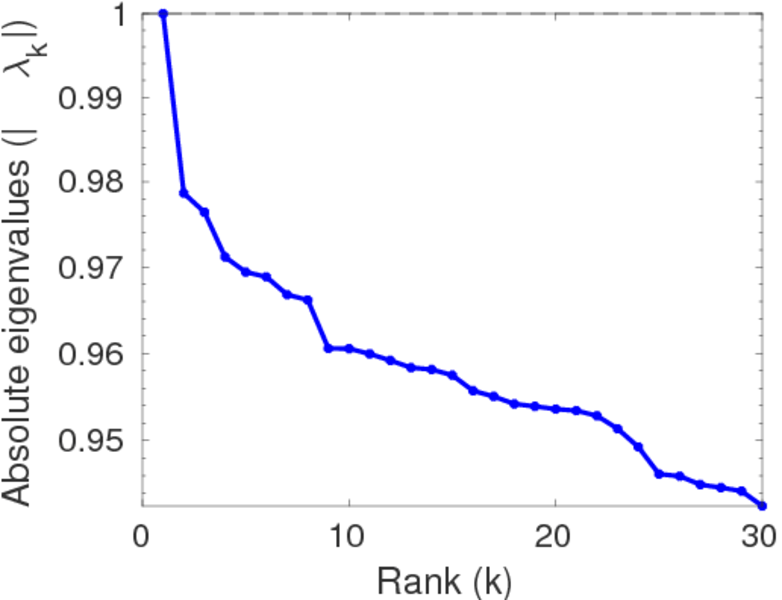

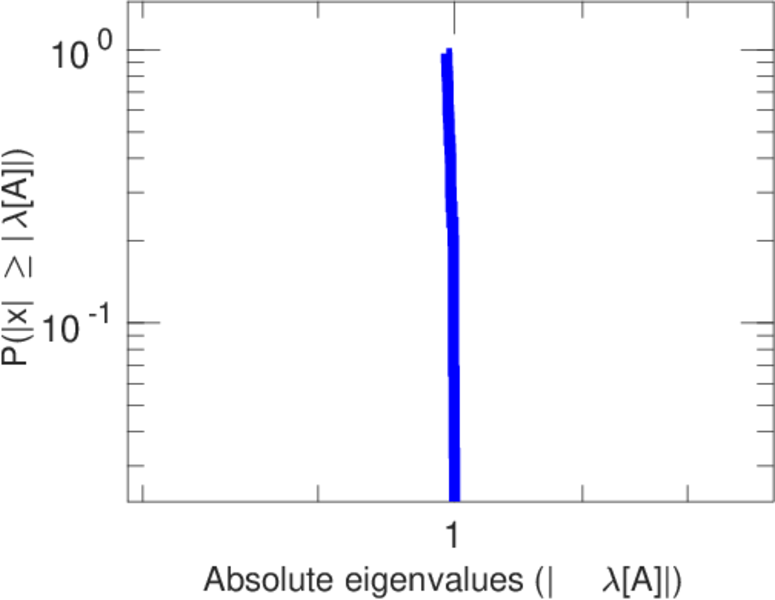

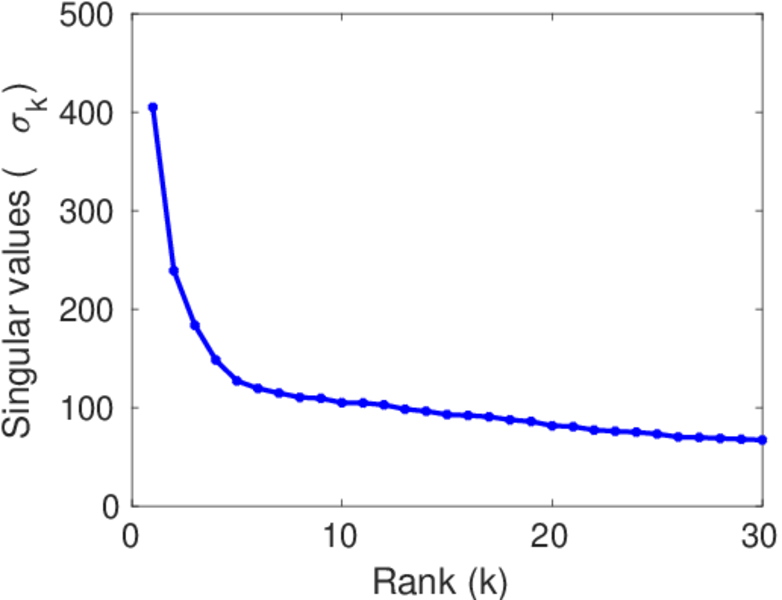

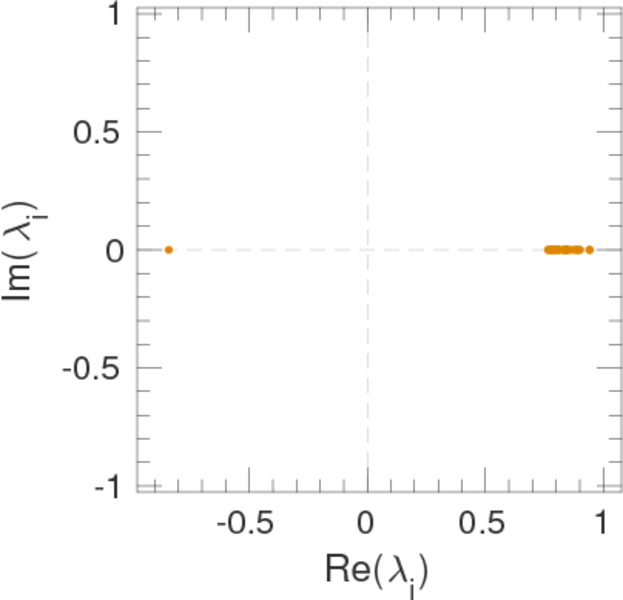

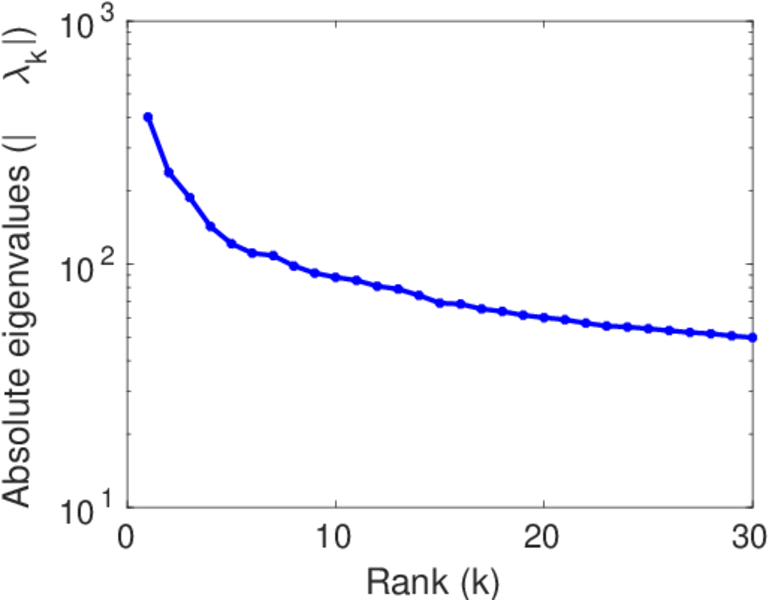

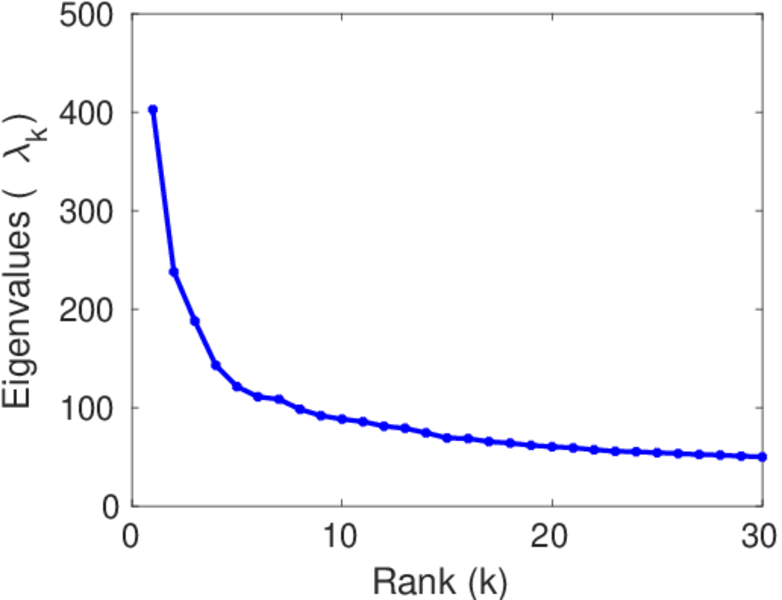

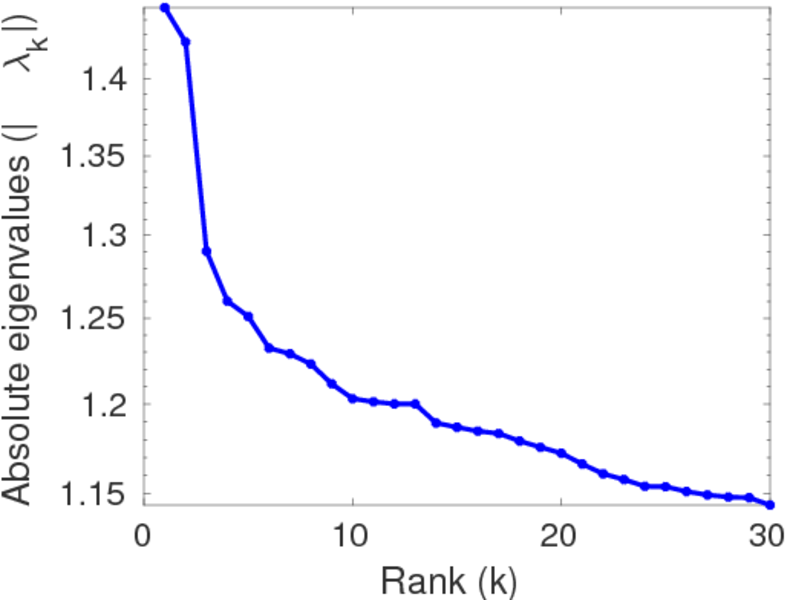

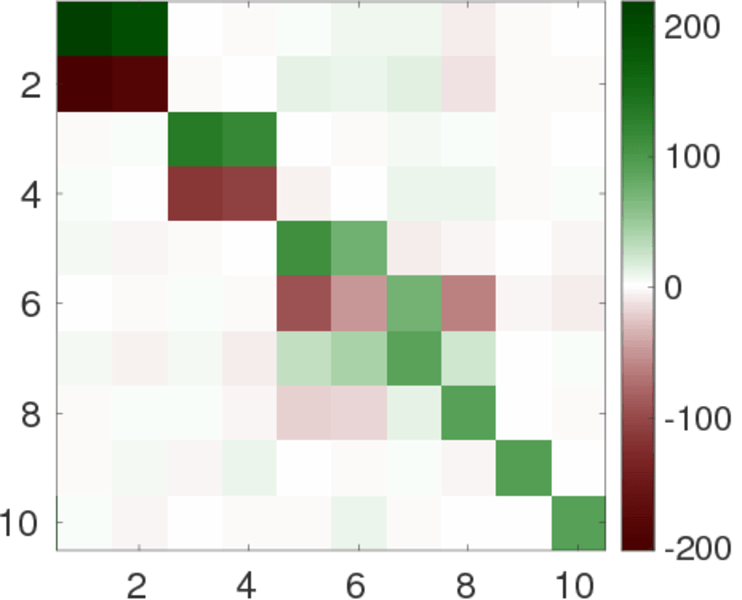

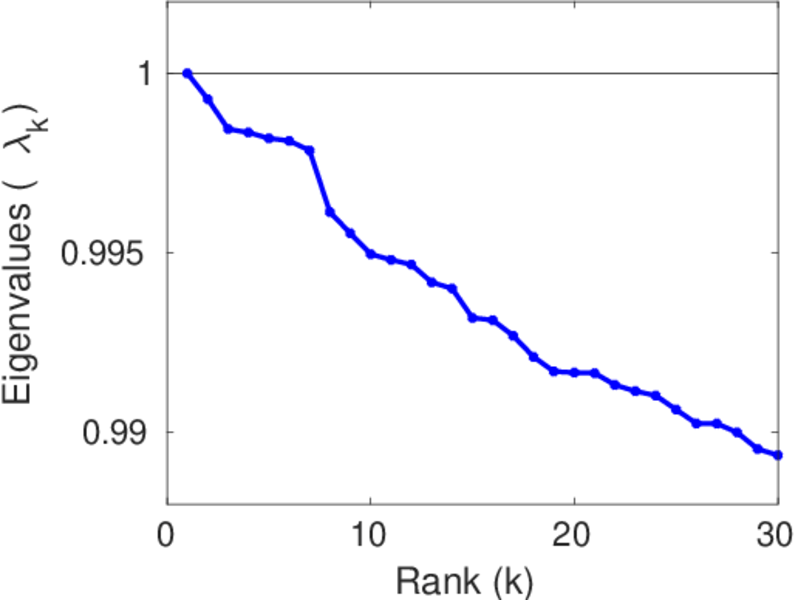

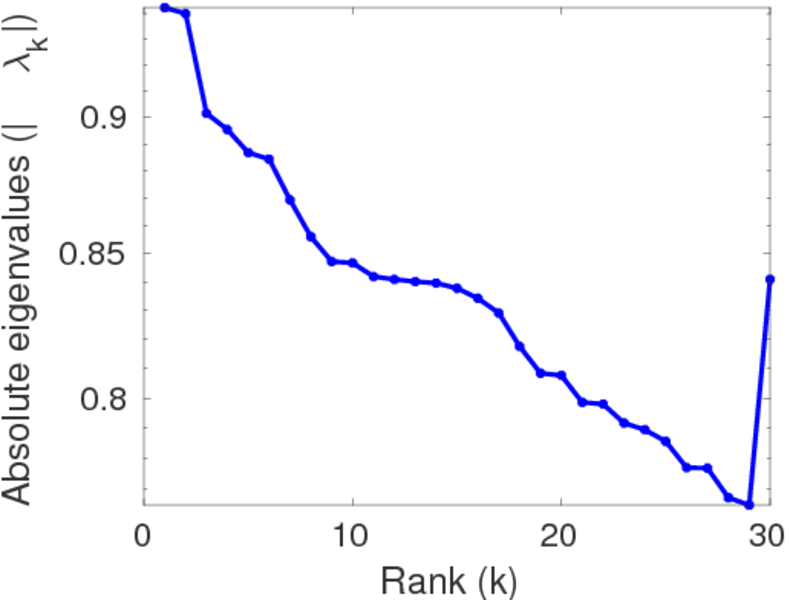

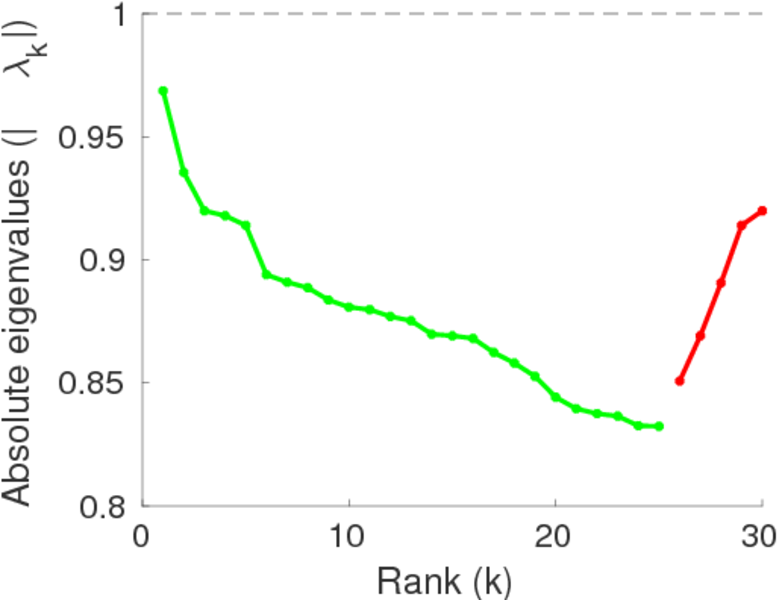

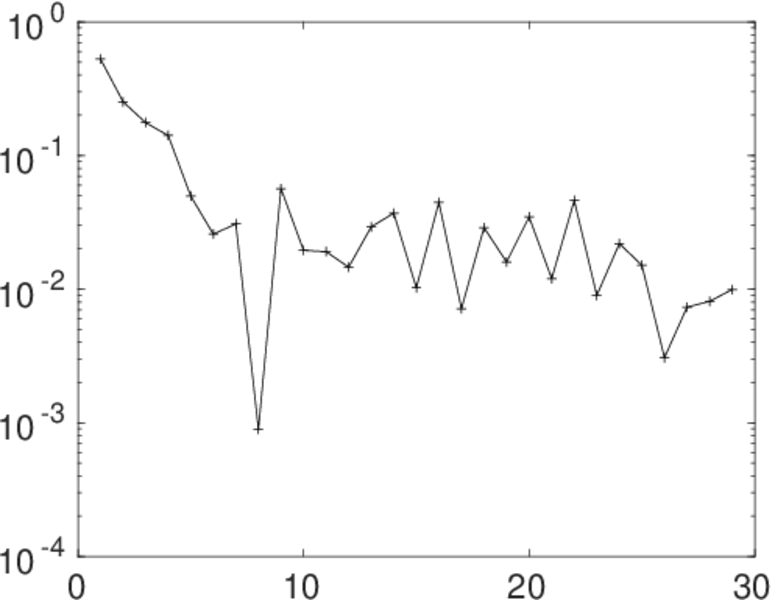

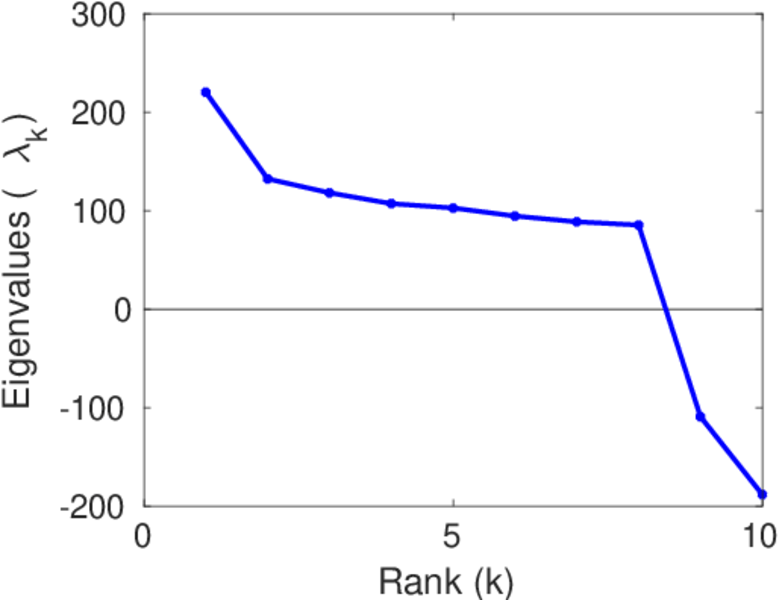

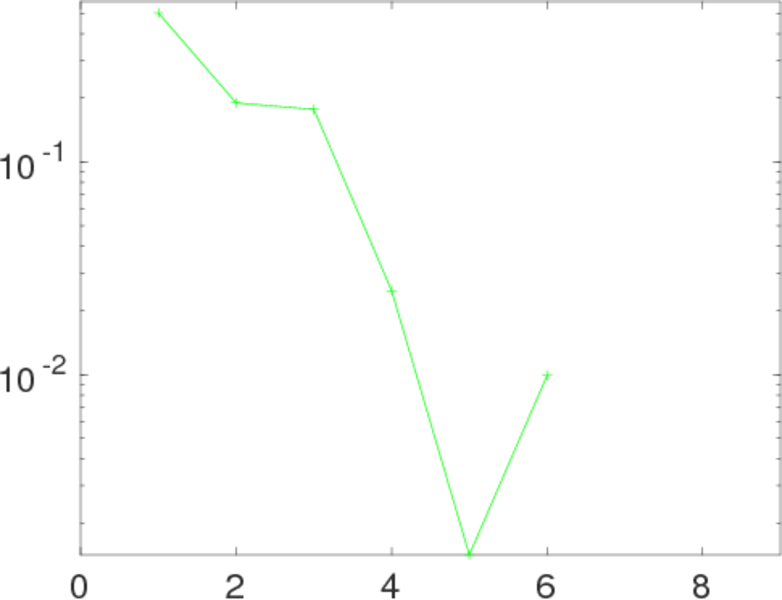

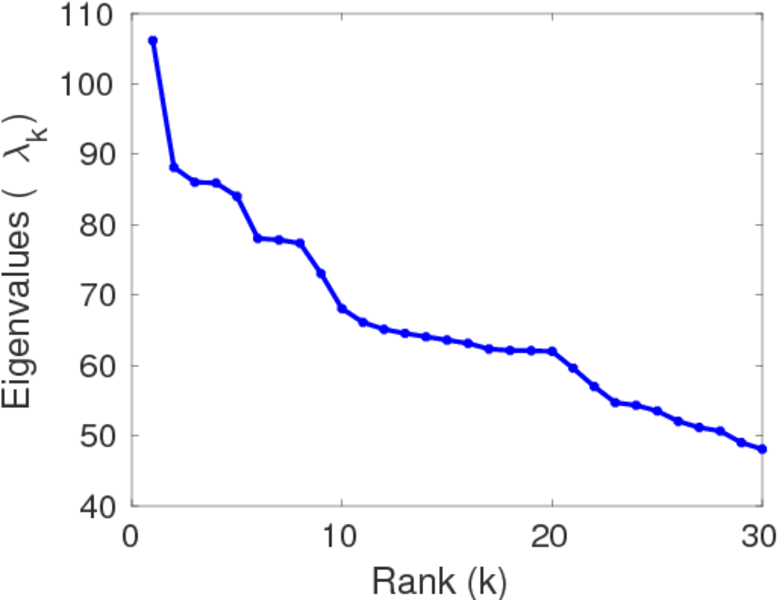

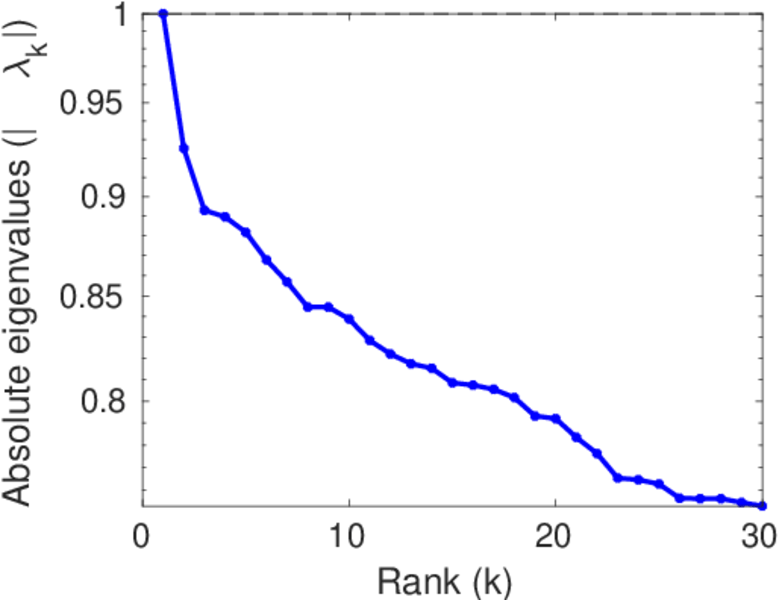

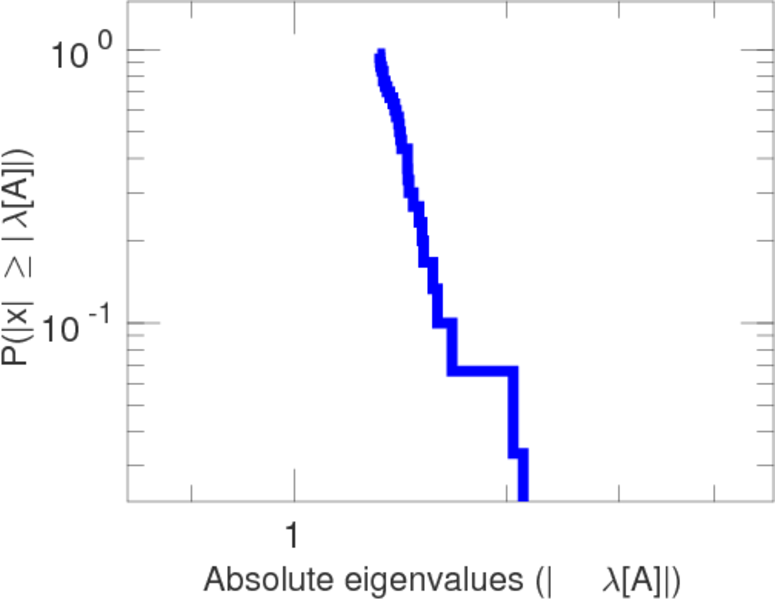

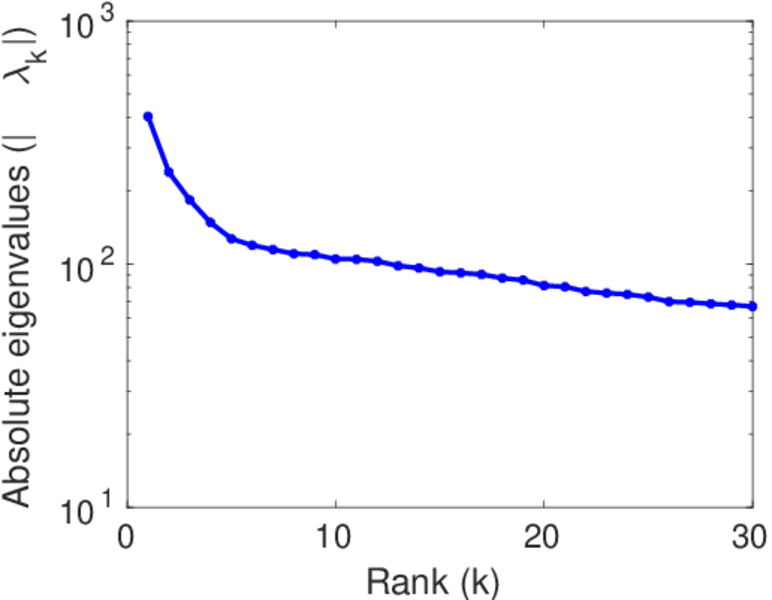

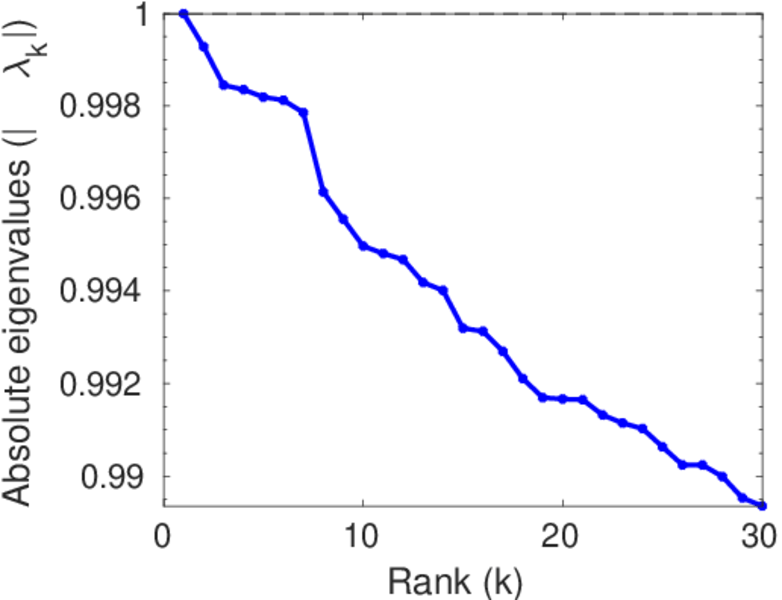

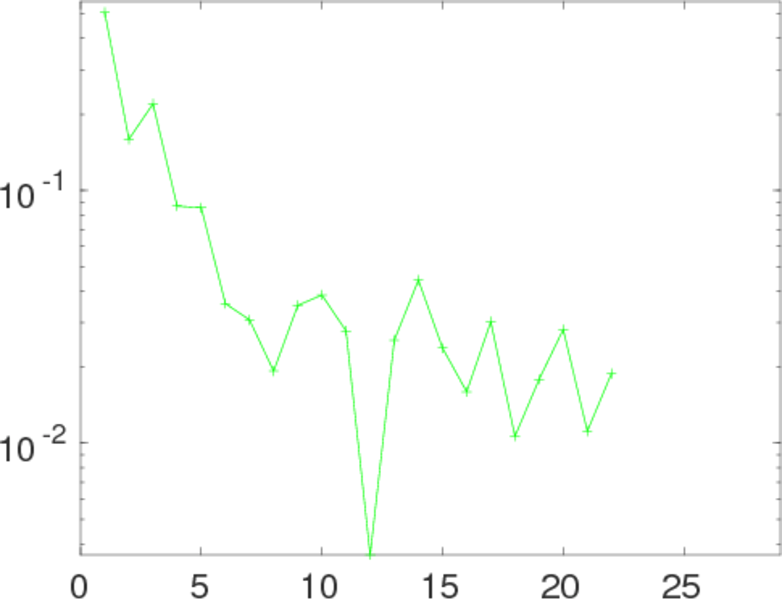

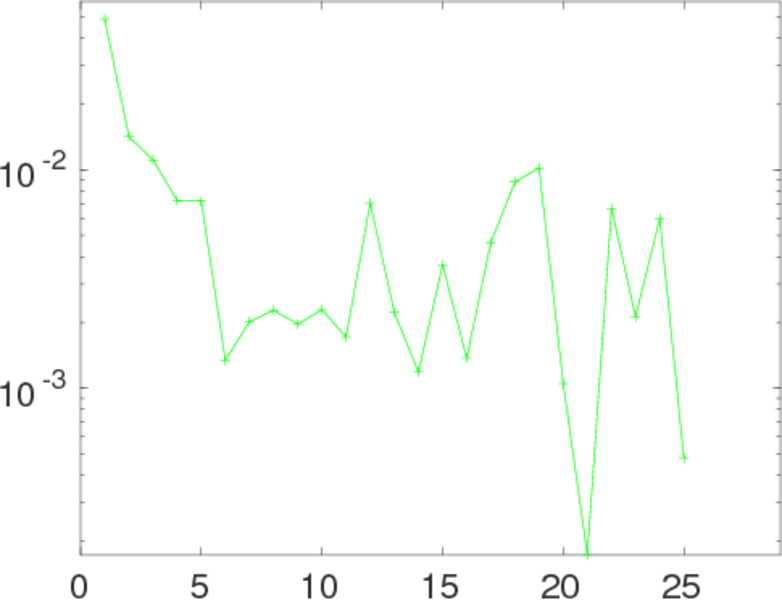

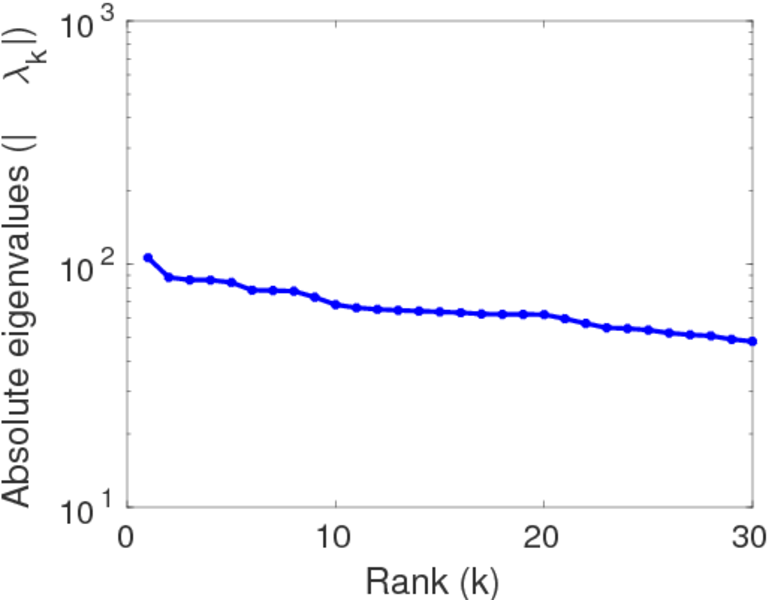

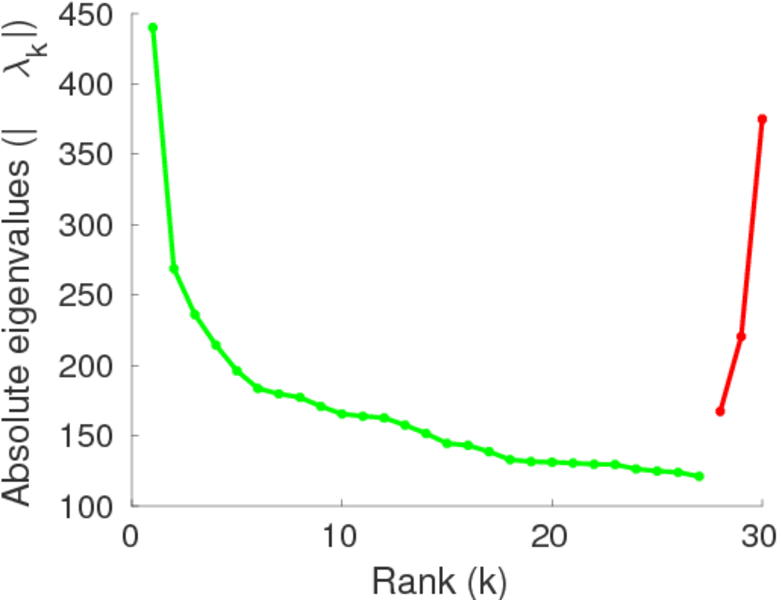

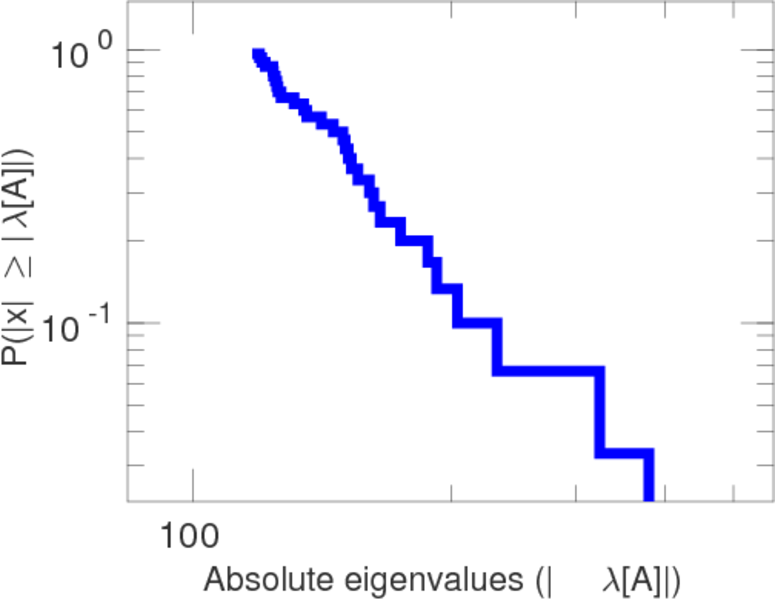

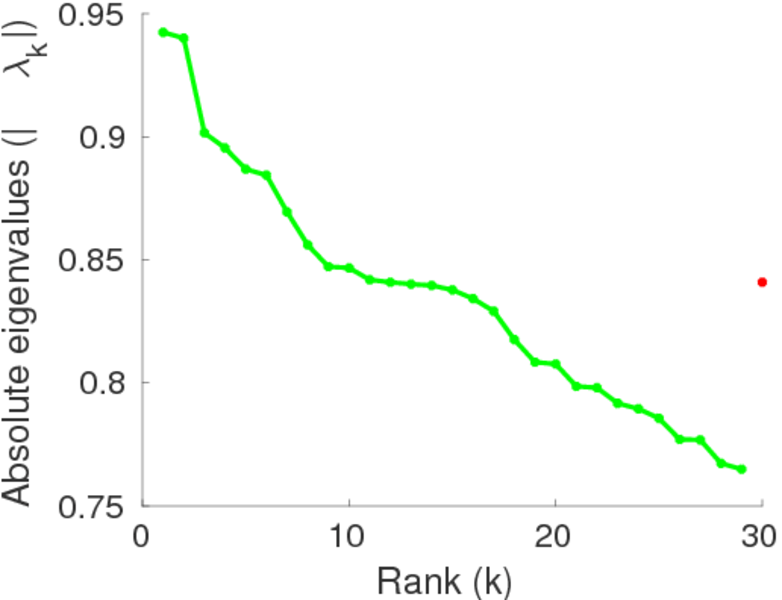

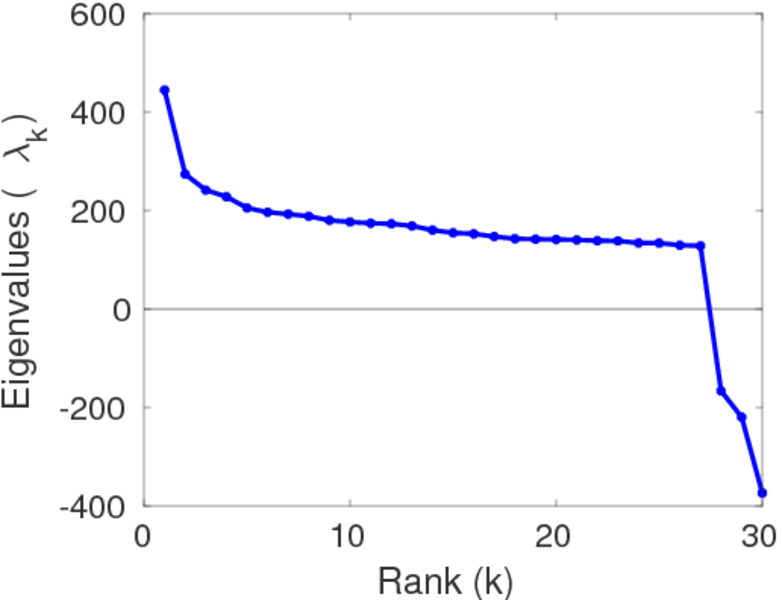

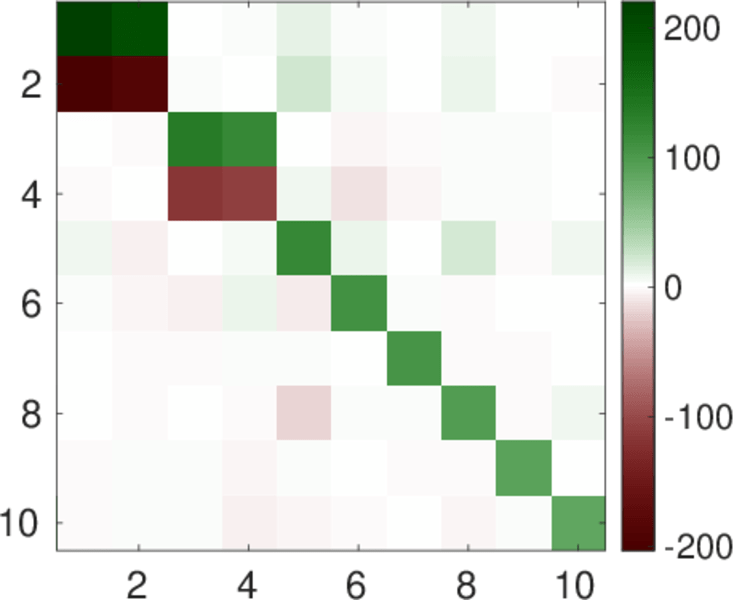

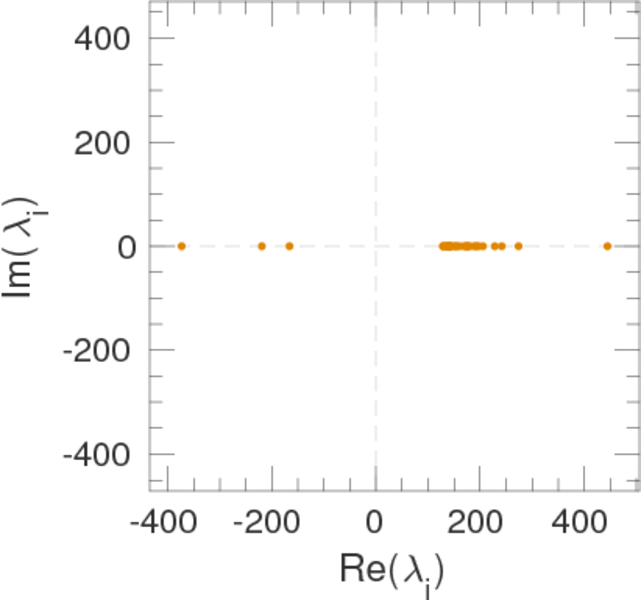

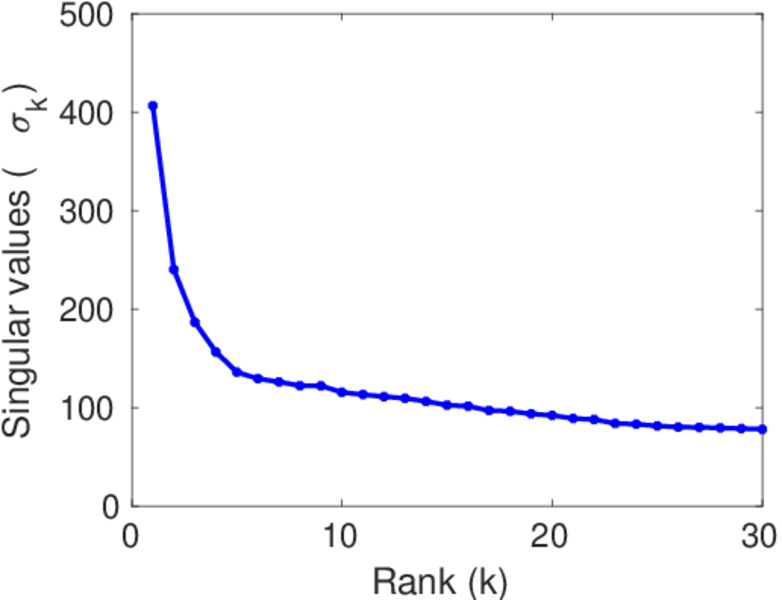

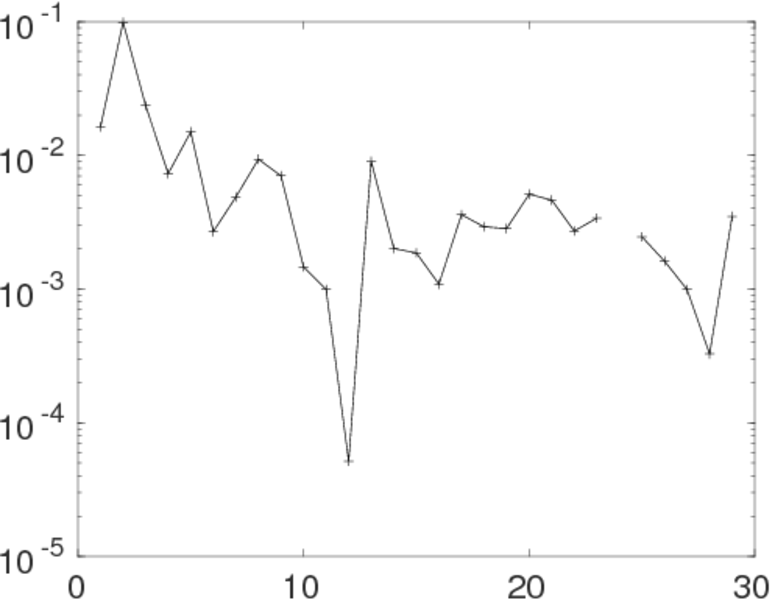

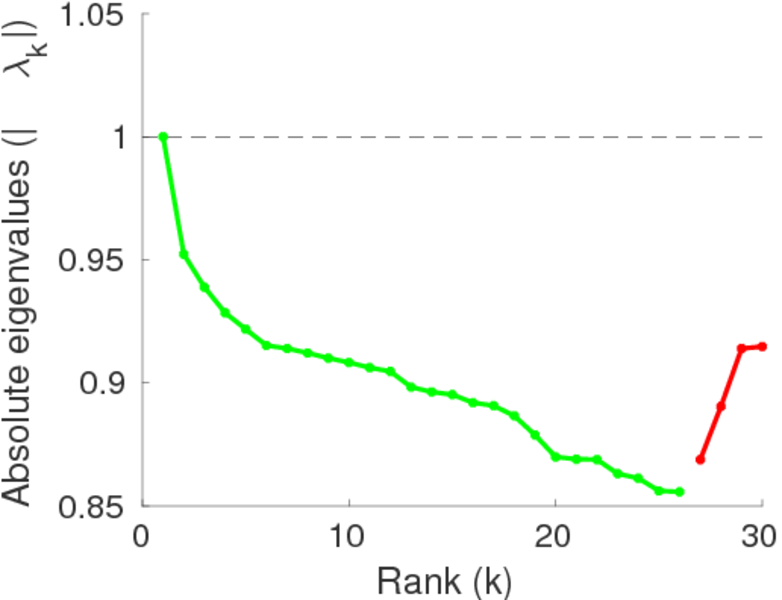

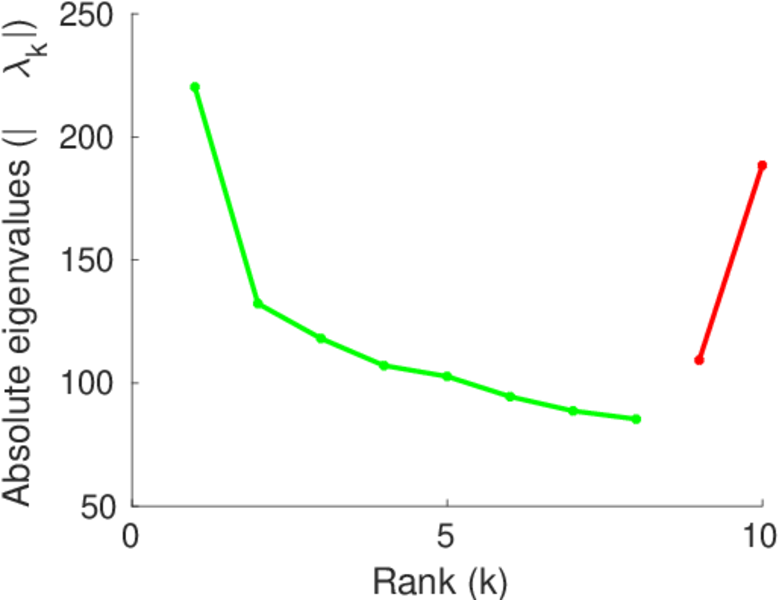

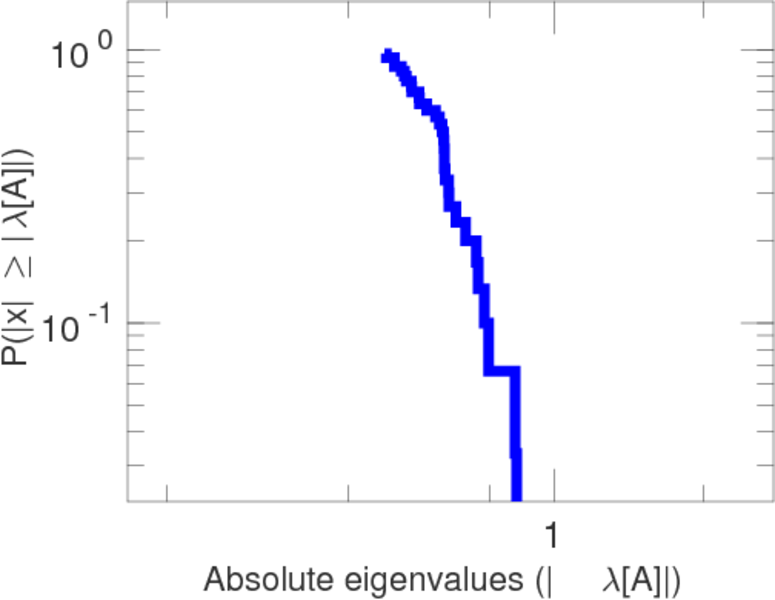

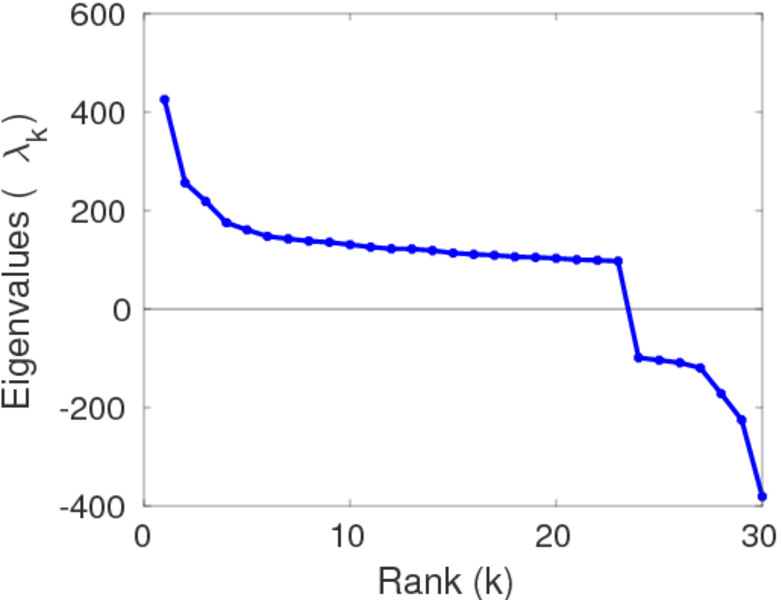

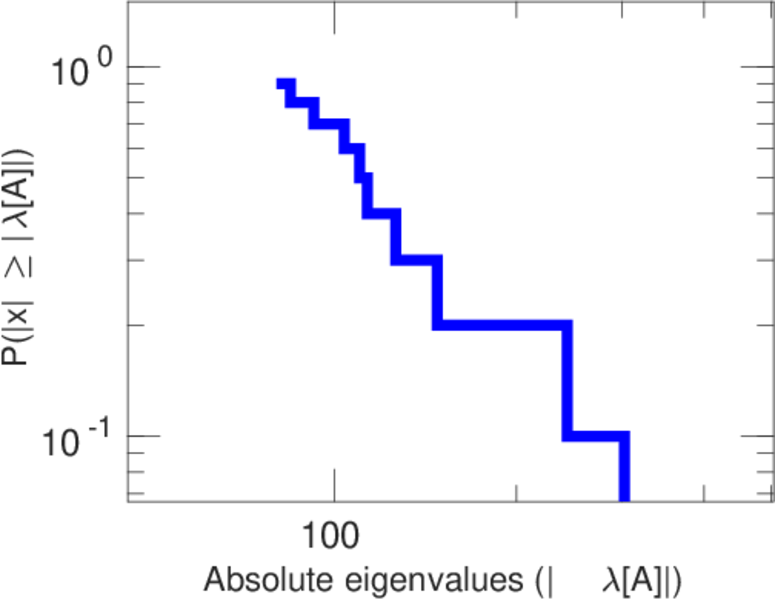

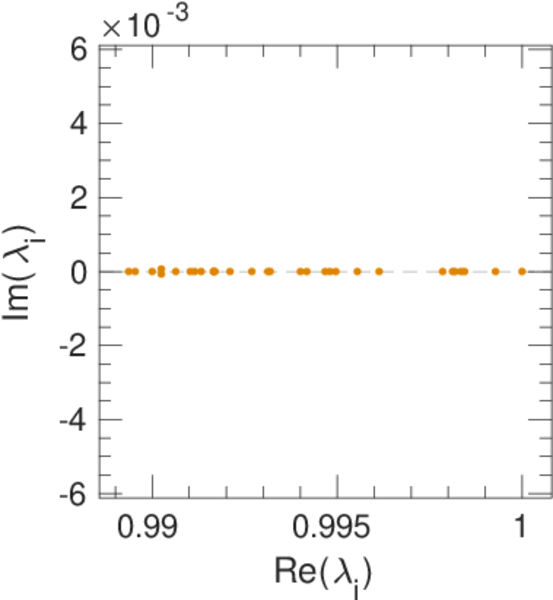

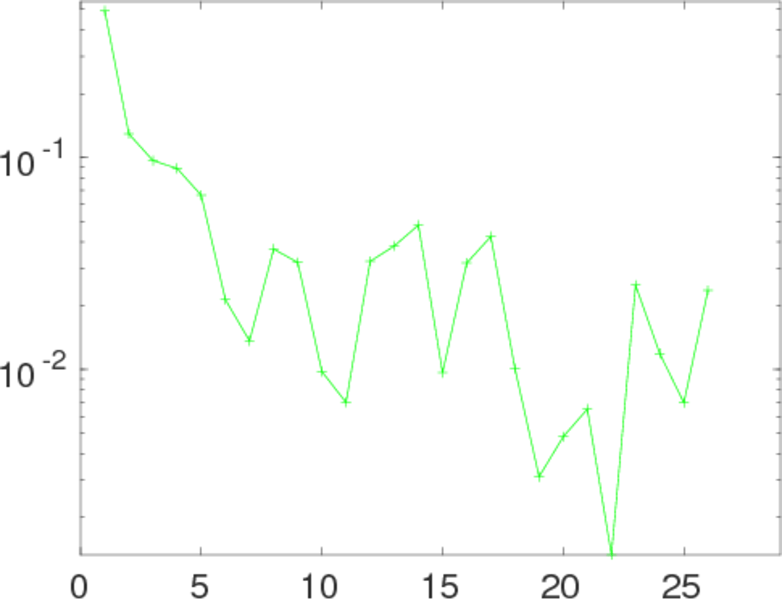

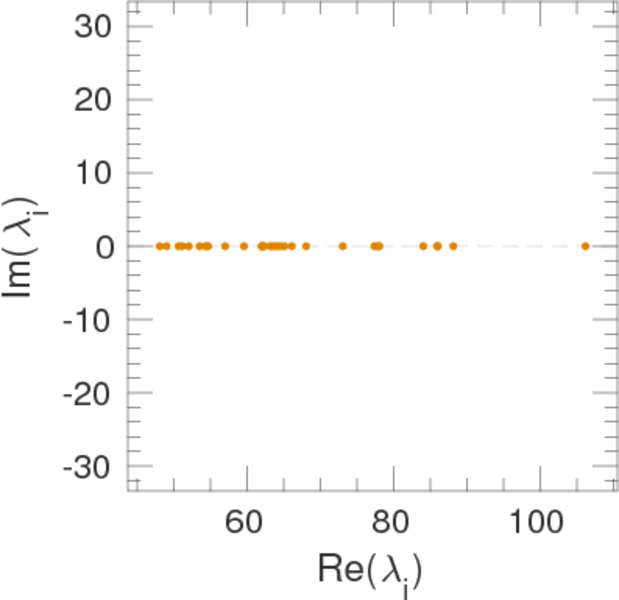

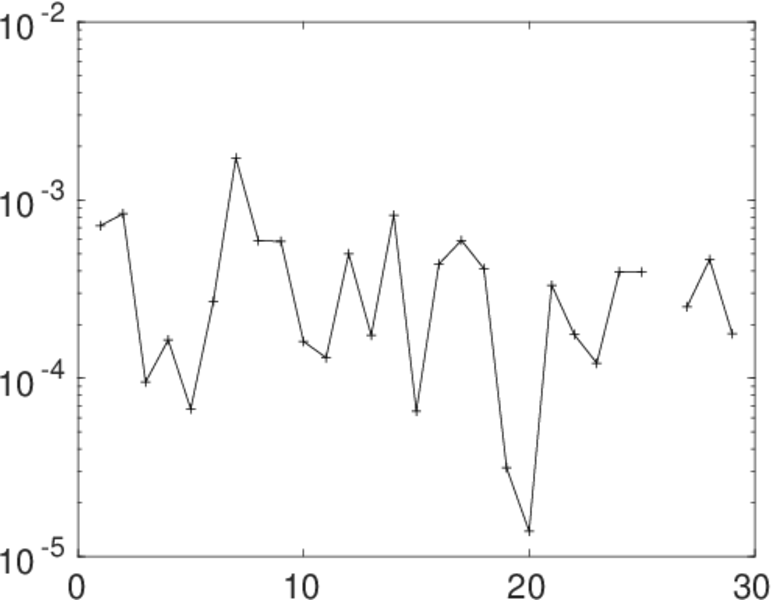

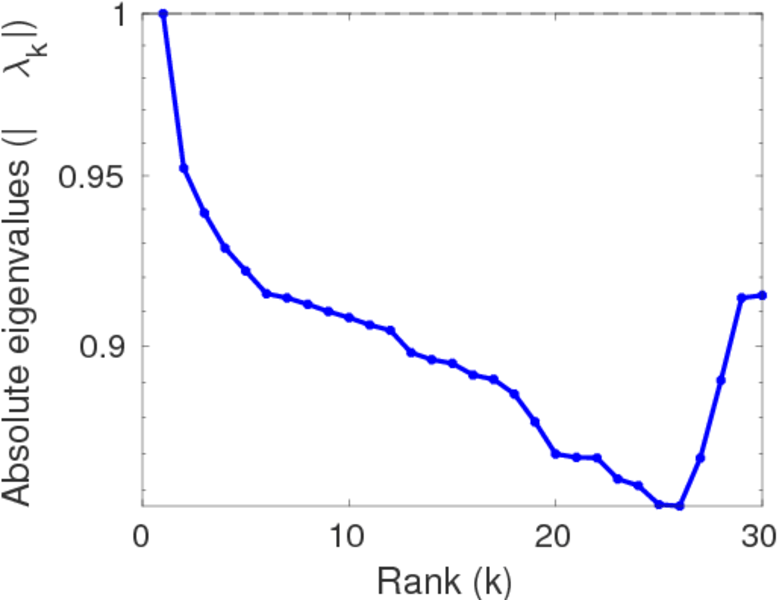

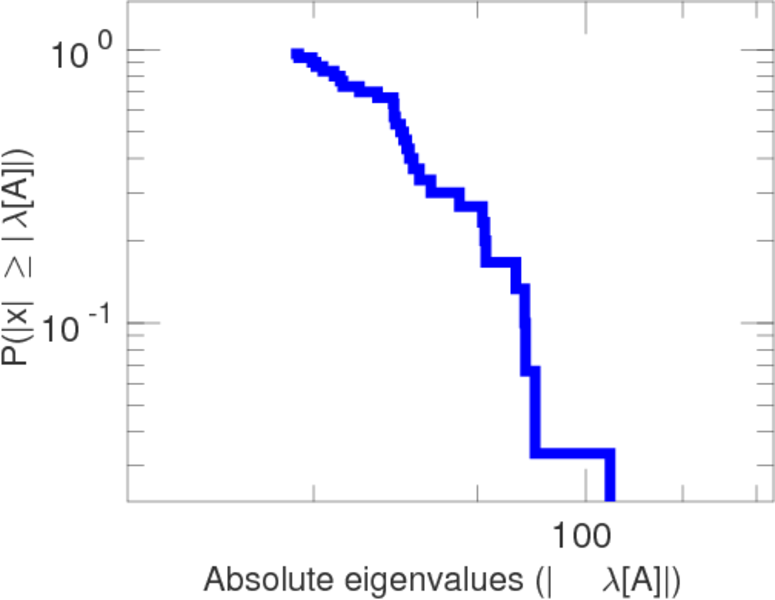

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
