Wikipedia links (arz)

This network consists of the wikilinks of the Wikipedia in the Egyptian Arabic language (arz). Nodes are Wikipedia articles, and directed edges are wikilinks, i.e., hyperlinks within one wiki. In the wiki source, these are indicated with [[double brackets]]. Only pages in the article namespace are included.

Metadata

CodeWarz
Internal namewikipedia_link_arz
NameWikipedia links (arz)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningWikilink
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =24,958
Volume m =502,048
Loop count l =4
Wedge count s =105,375,646
Claw count z =74,686,238,549
Cross count x =76,972,028,838,503
Triangle count t =16,028,116
Square count q =3,433,949,843
4-Tour count T4 =27,893,867,698
Maximum degree dmax =6,384
Maximum outdegree d+max =2,186
Maximum indegree dmax =6,383
Average degree d =40.231 4
Fill p =0.000 805 983
Size of LCC N =24,678
Size of LSCC Ns =16,555
Relative size of LSCC Nrs =0.663 314
Diameter δ =11
50-Percentile effective diameter δ0.5 =2.912 42
90-Percentile effective diameter δ0.9 =4.006 52
Median distance δM =3
Mean distance δm =3.468 88
Gini coefficient G =0.812 697
Balanced inequality ratio P =0.158 958
Outdegree balanced inequality ratio P+ =0.158 943
Indegree balanced inequality ratio P =0.159 827
Relative edge distribution entropy Her =0.853 045
Power law exponent γ =1.519 87
Tail power law exponent γt =1.591 00
Degree assortativity ρ =−0.042 299 3
Degree assortativity p-value pρ =2.048 39 × 10−300
In/outdegree correlation ρ± =+0.665 951
Clustering coefficient c =0.456 314
Directed clustering coefficient c± =0.796 496
Spectral norm α =505.198
Operator 2-norm ν =294.435
Cyclic eigenvalue π =220.008
Algebraic connectivity a =0.085 569 1
Spectral separation 1[A] / λ2[A]| =1.141 48
Reciprocity y =0.473 505
Non-bipartivity bA =0.799 376
Normalized non-bipartivity bN =0.055 940 9
Algebraic non-bipartivity χ =0.095 355 3
Spectral bipartite frustration bK =0.000 767 947
Controllability C =10,929
Relative controllability Cr =0.437 896

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

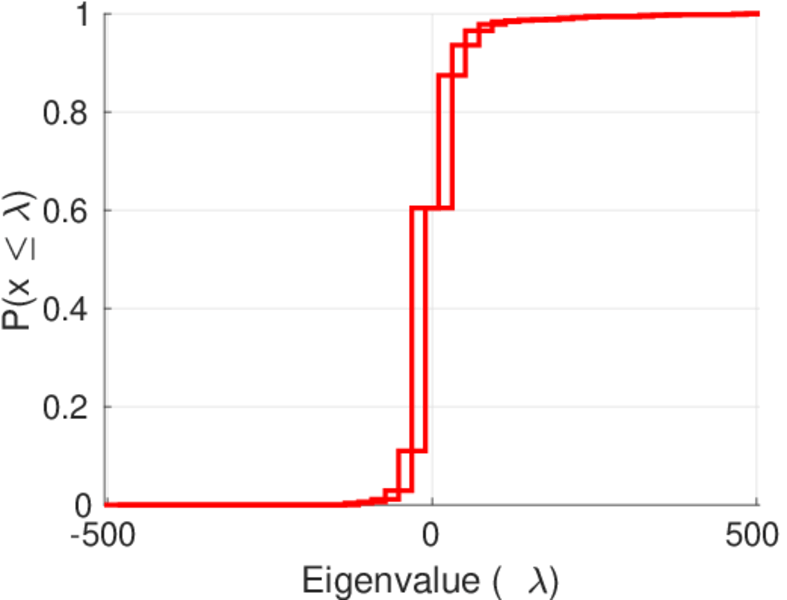

Spectral distribution of the adjacency matrix

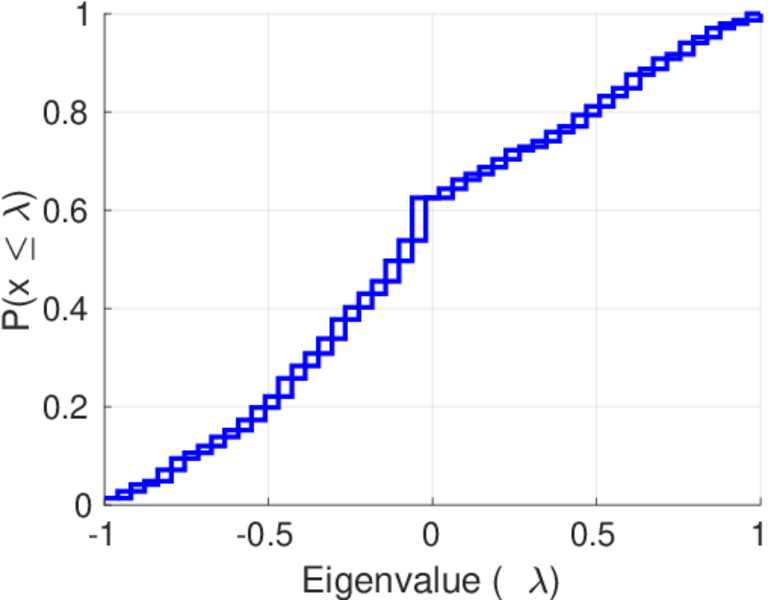

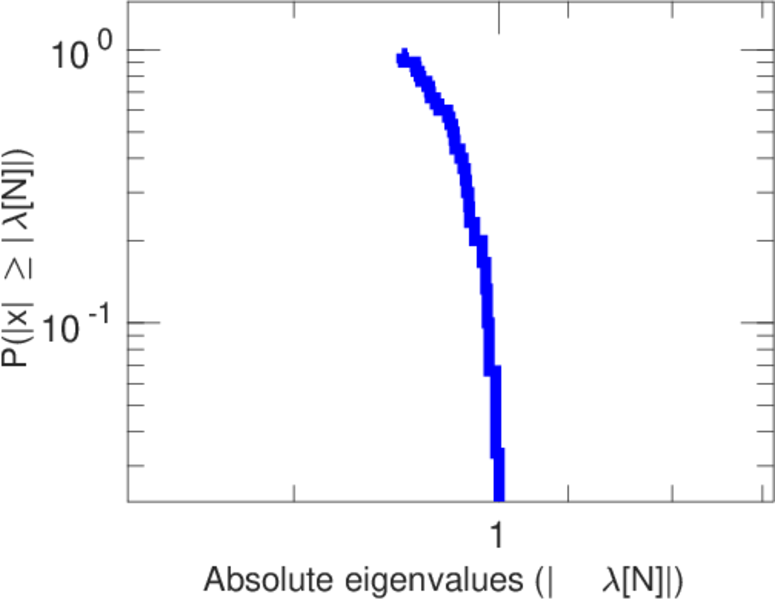

Spectral distribution of the normalized adjacency matrix

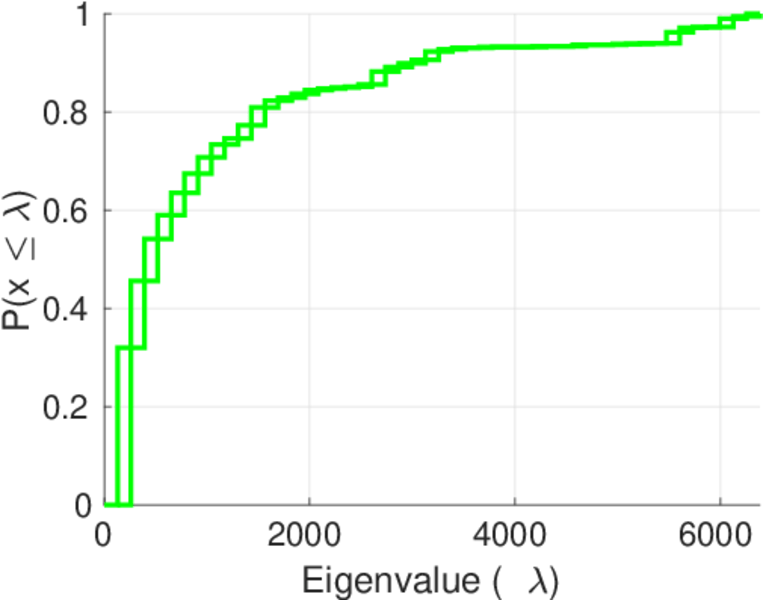

Spectral distribution of the Laplacian

Spectral graph drawing based on the adjacency matrix

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

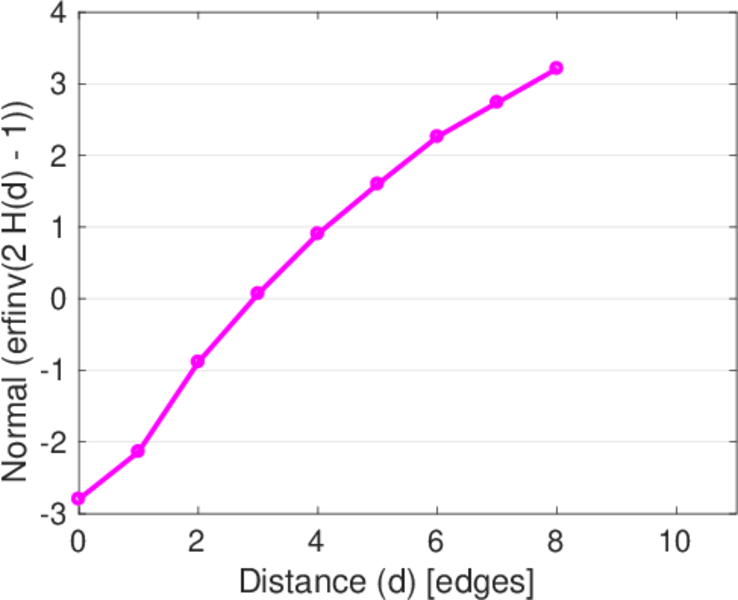

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

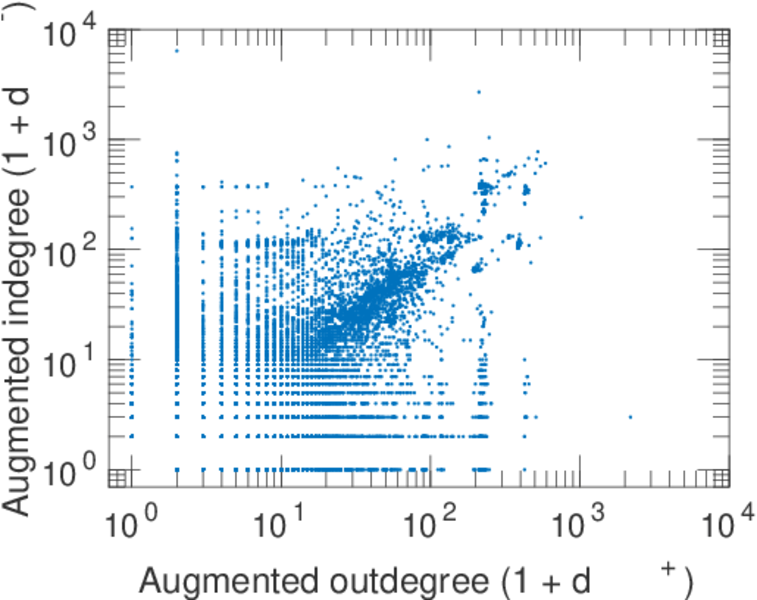

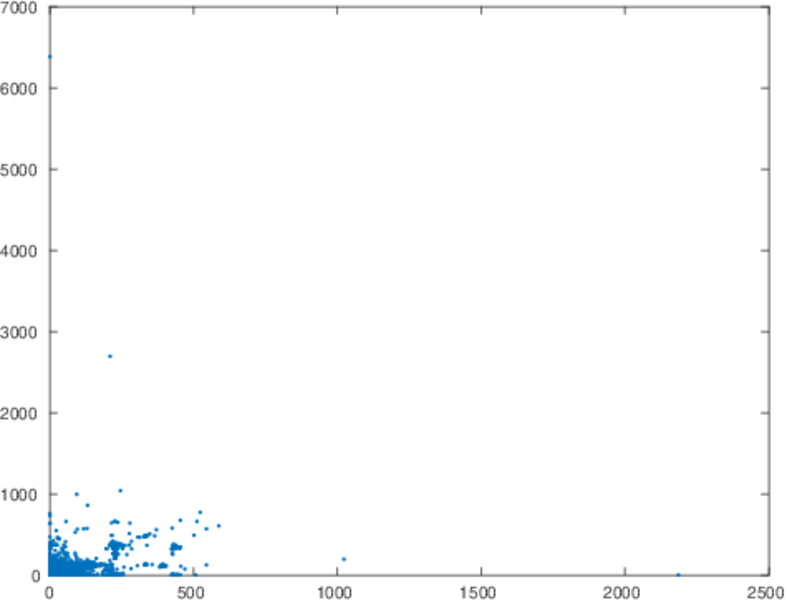

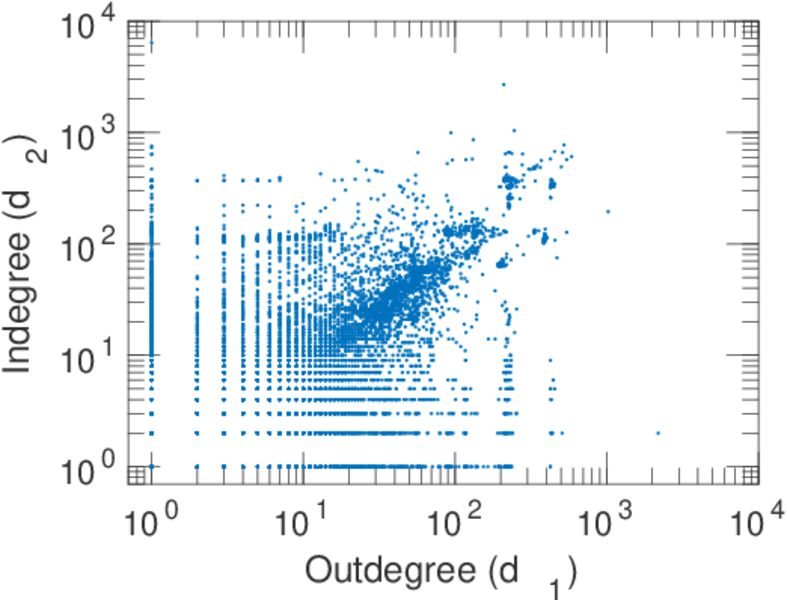

In/outdegree scatter plot

Clustering coefficient distribution

Average neighbor degree distribution

SynGraphy

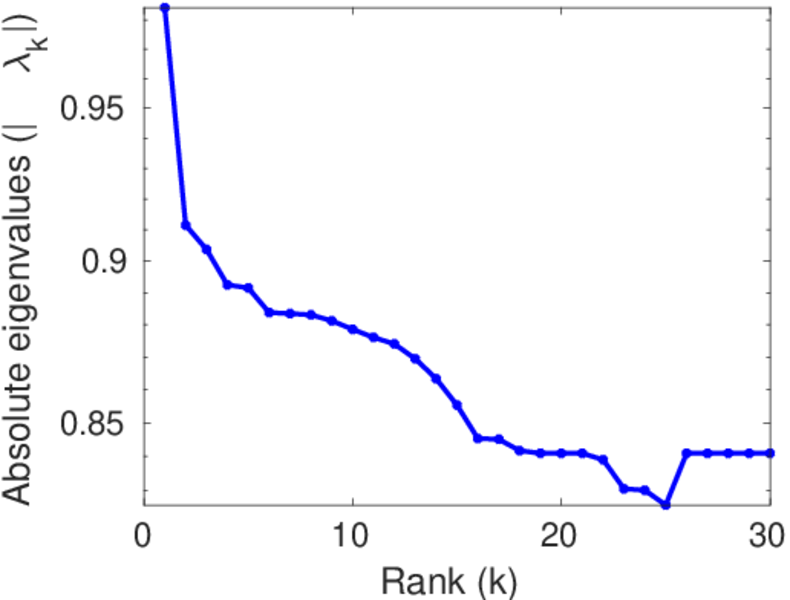

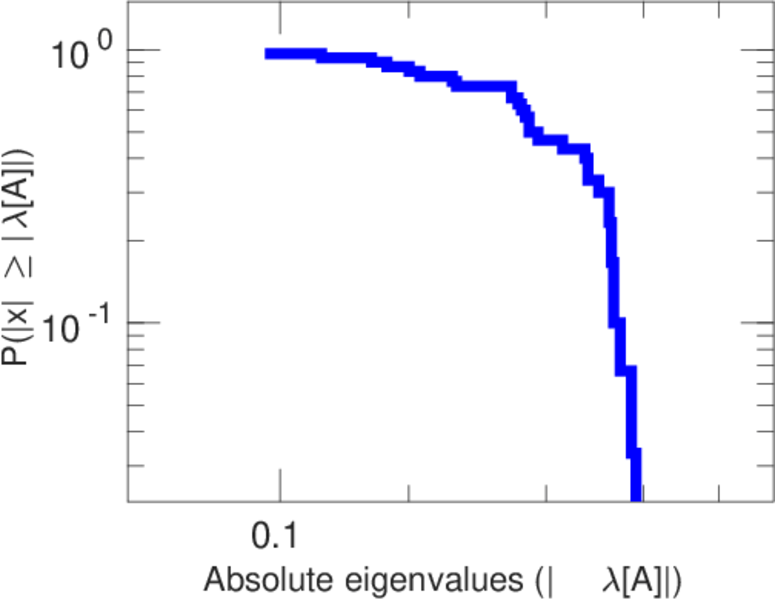

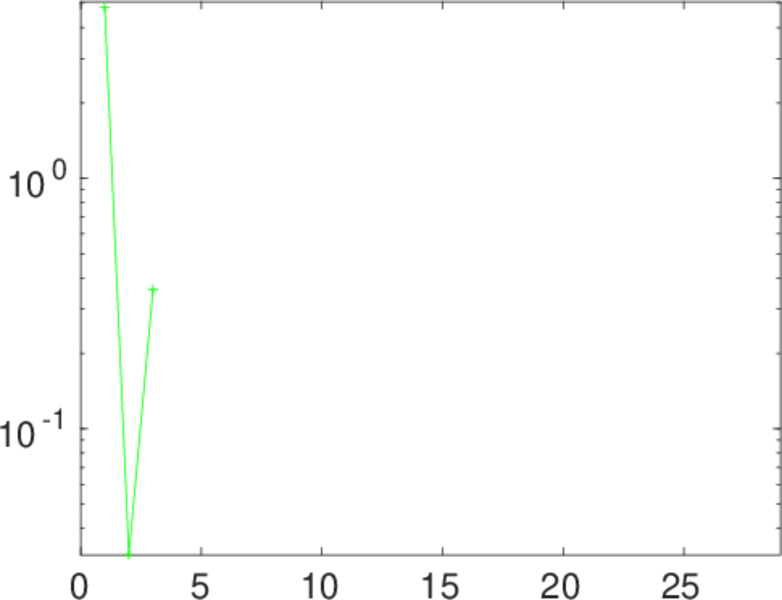

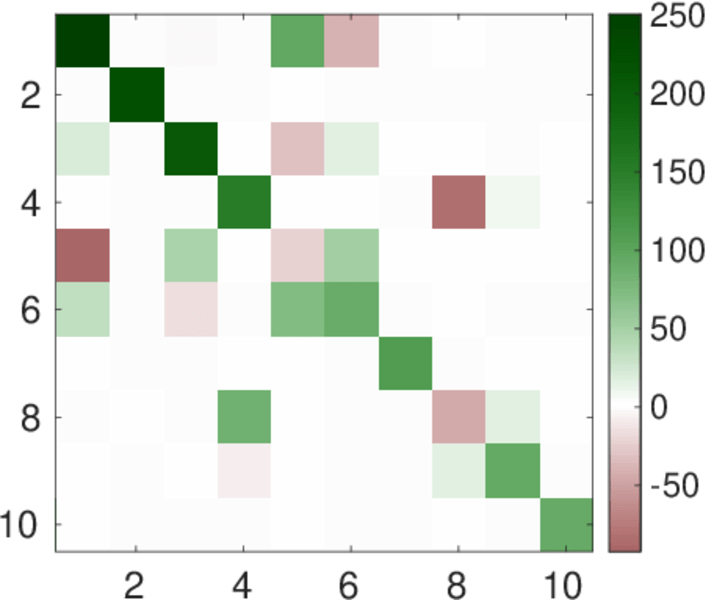

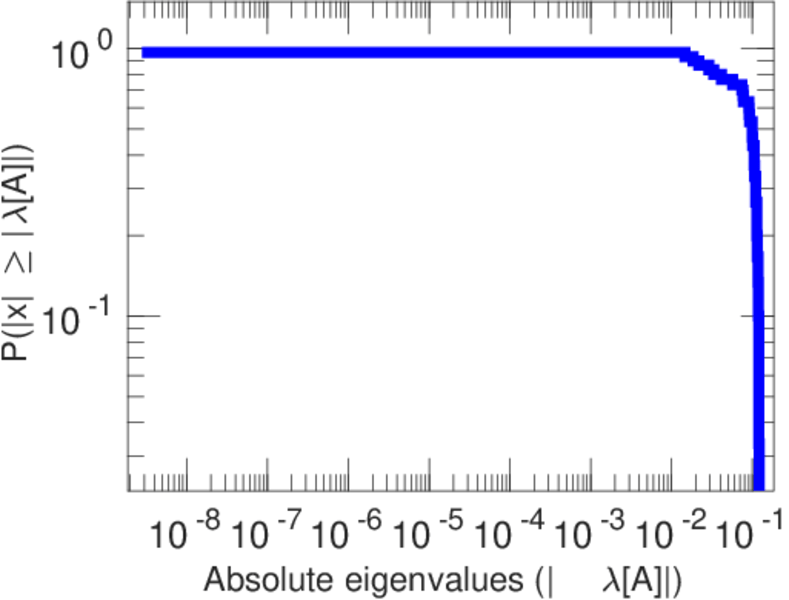

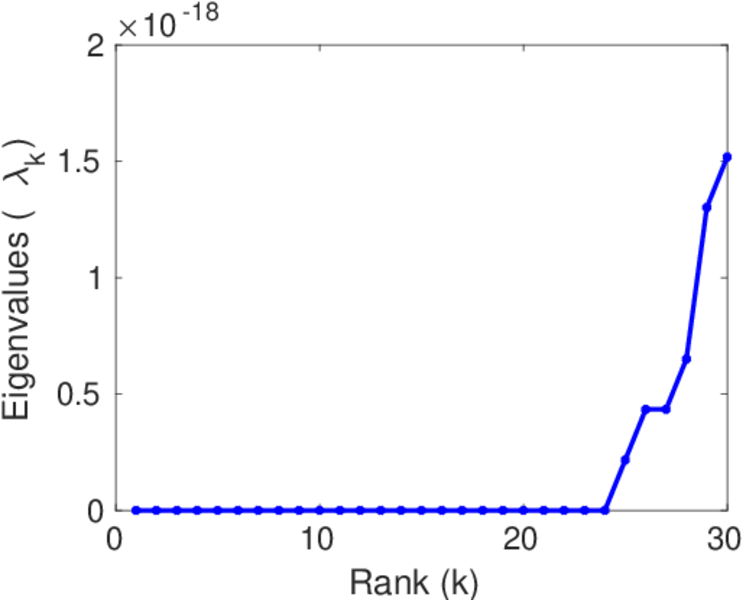

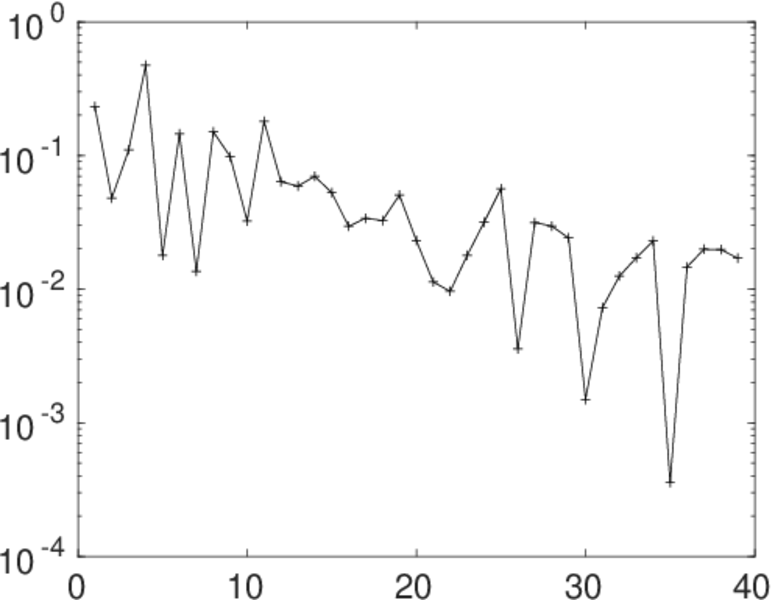

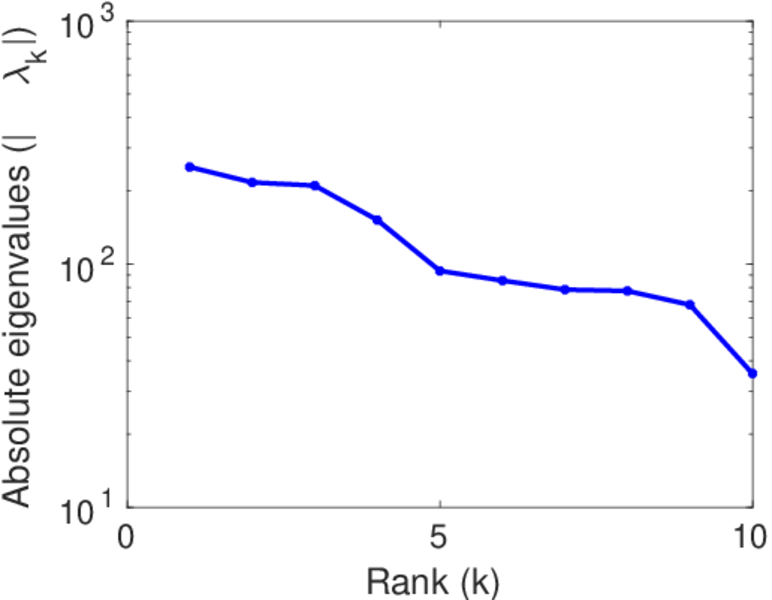

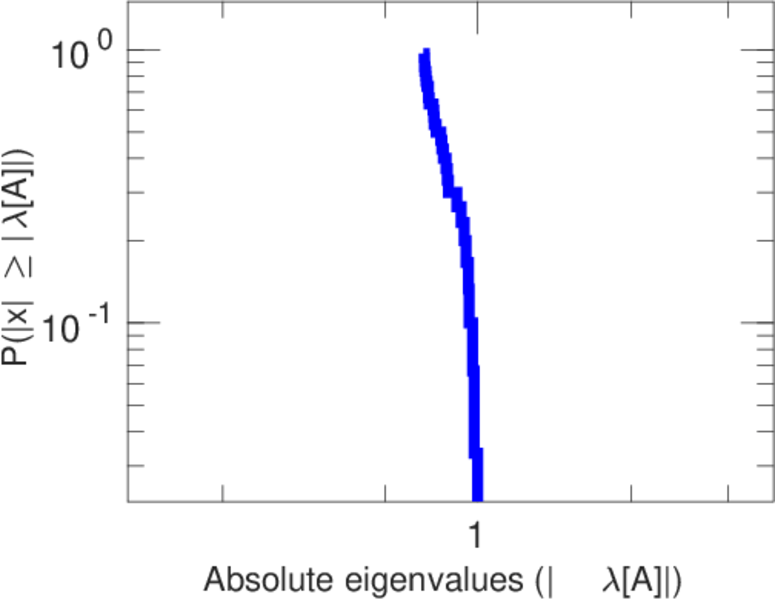

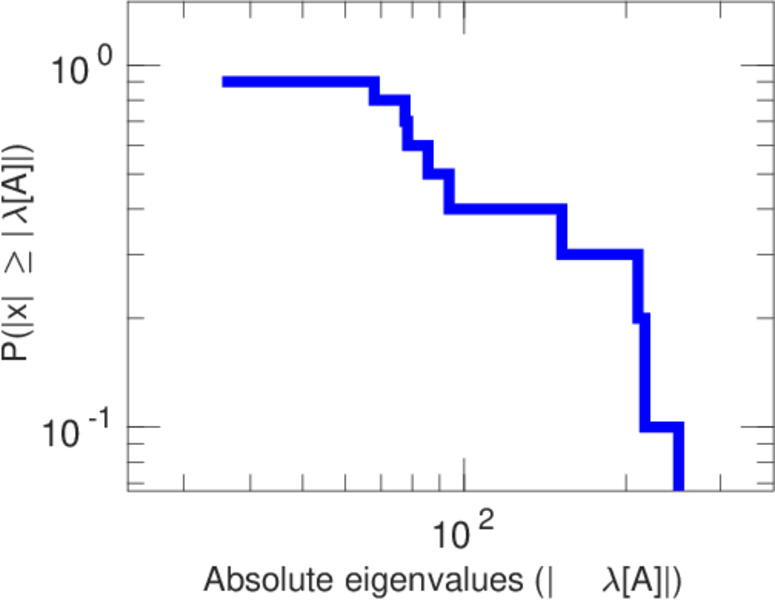

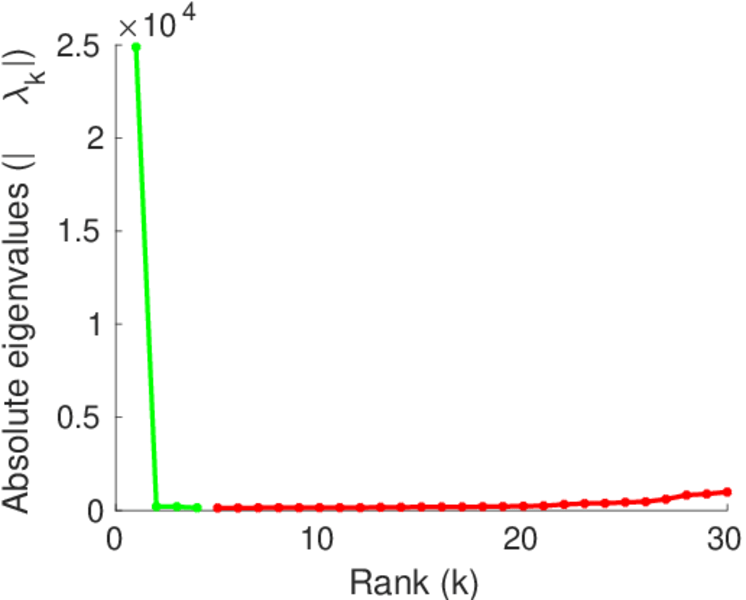

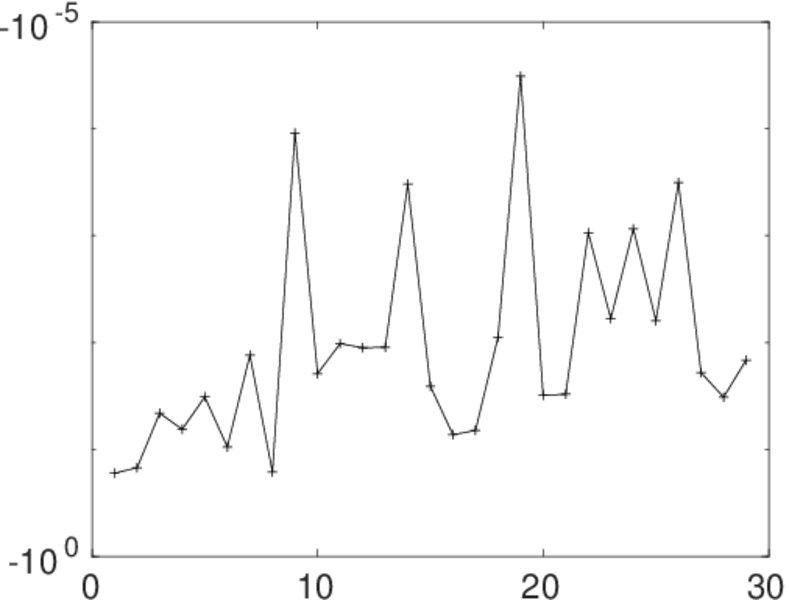

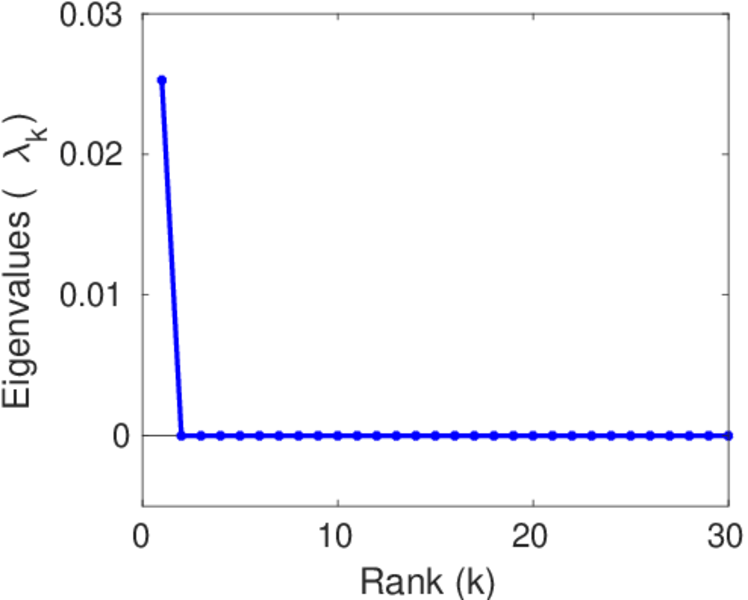

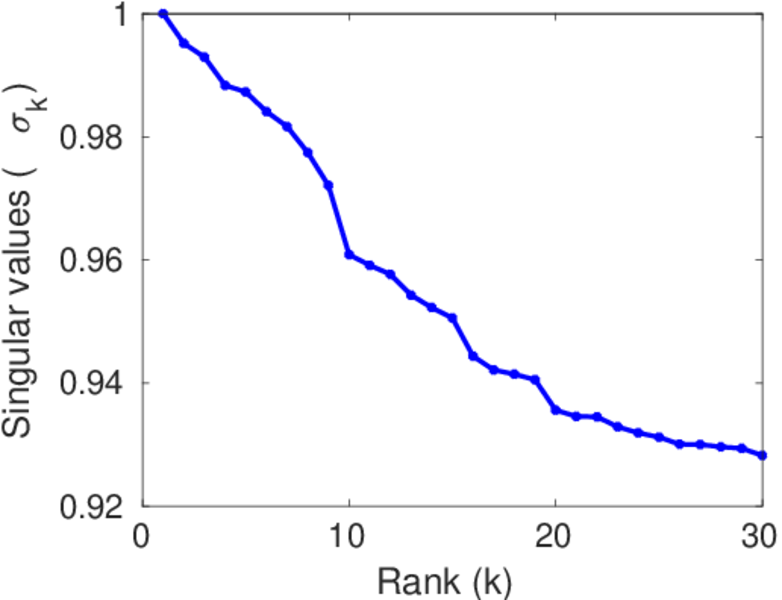

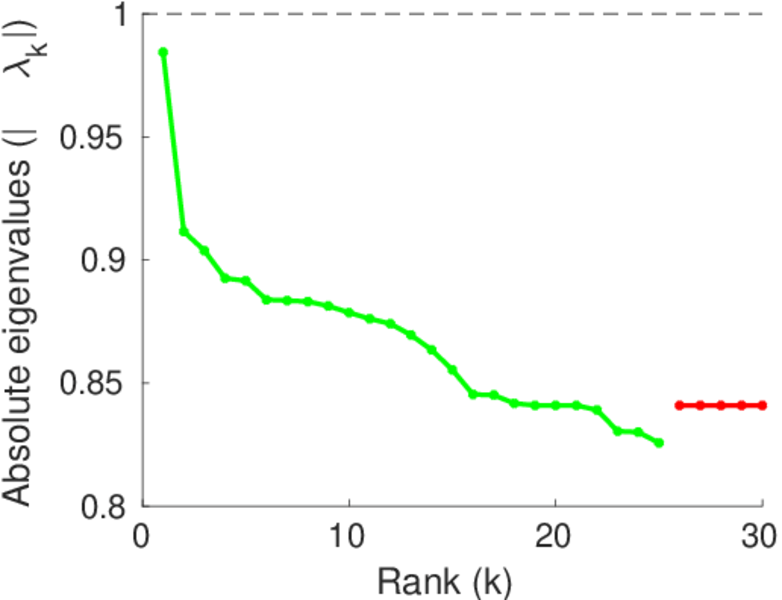

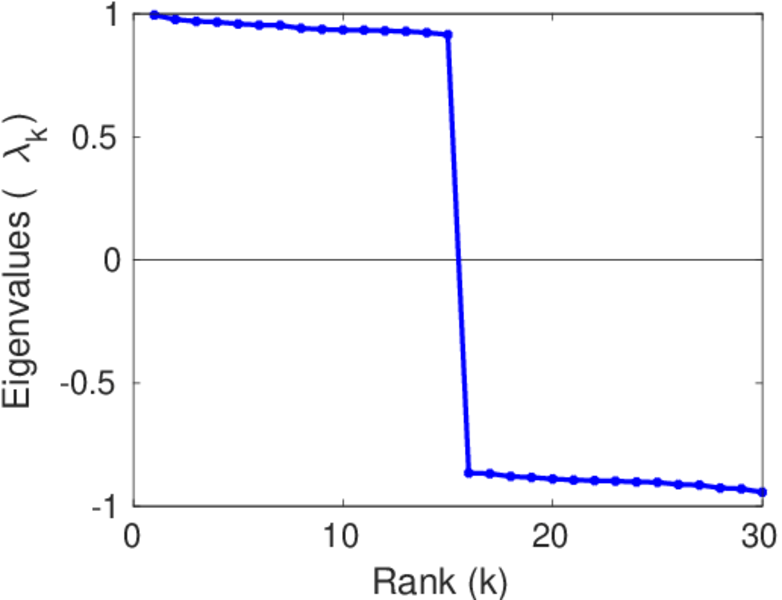

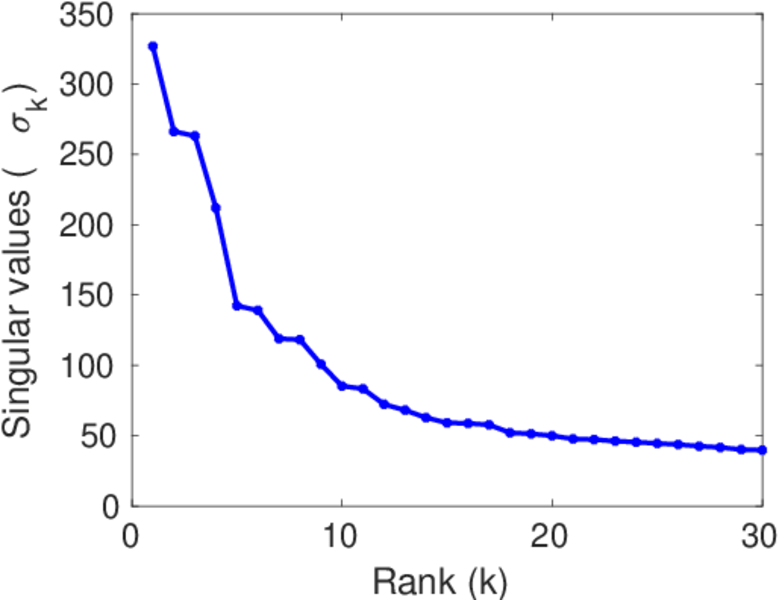

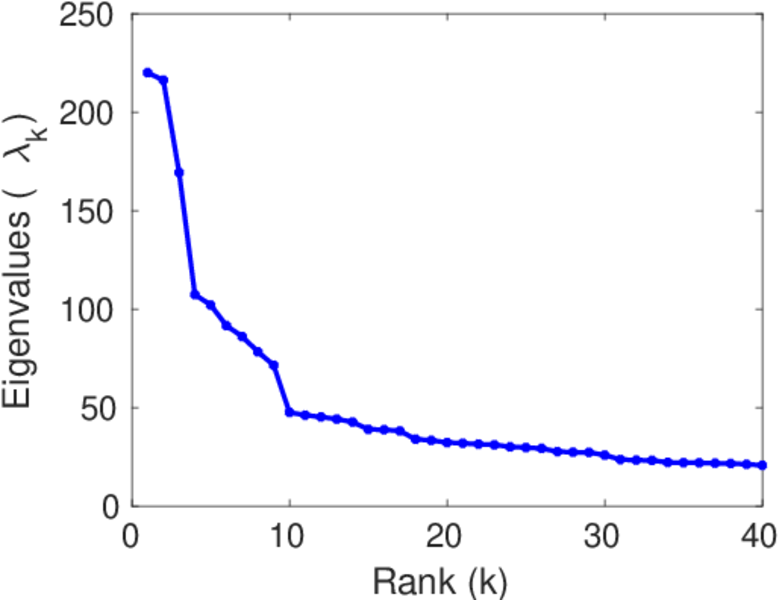

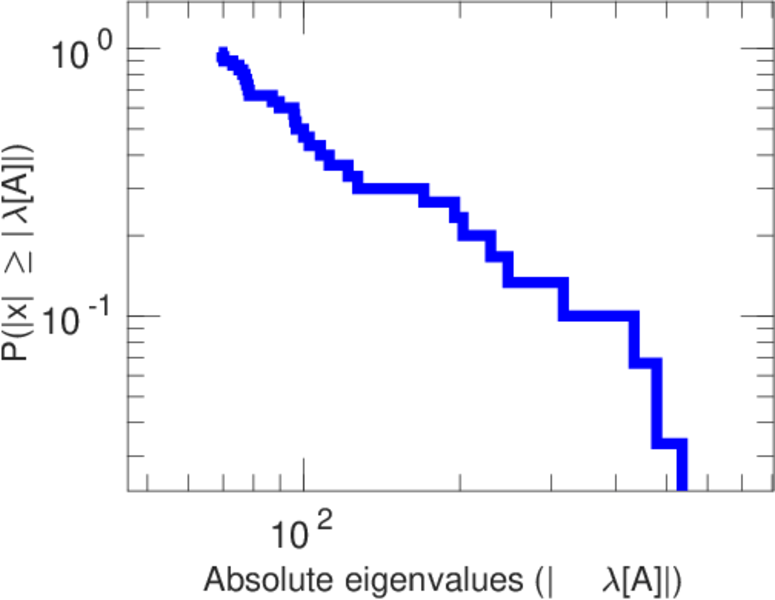

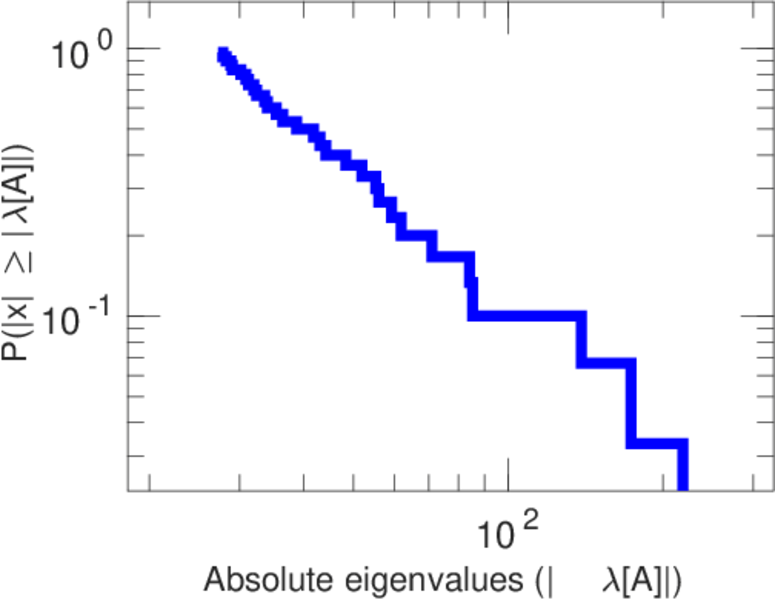

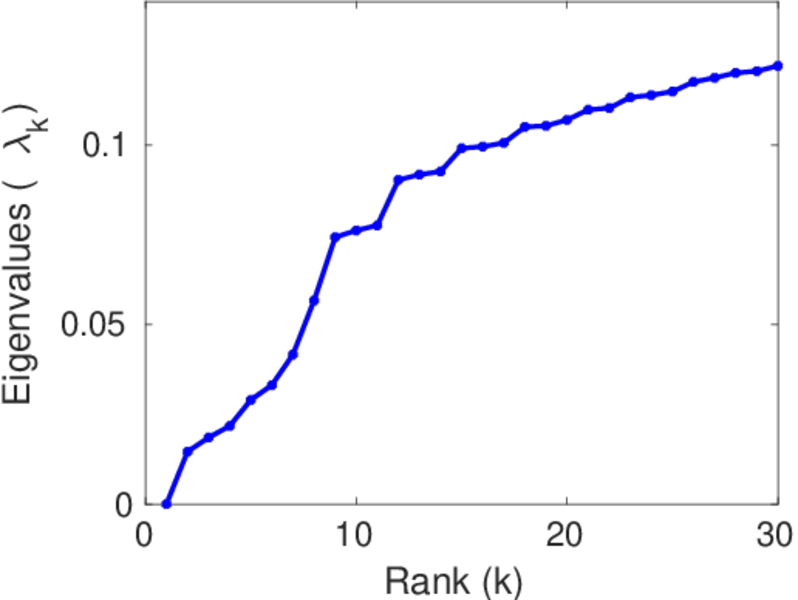

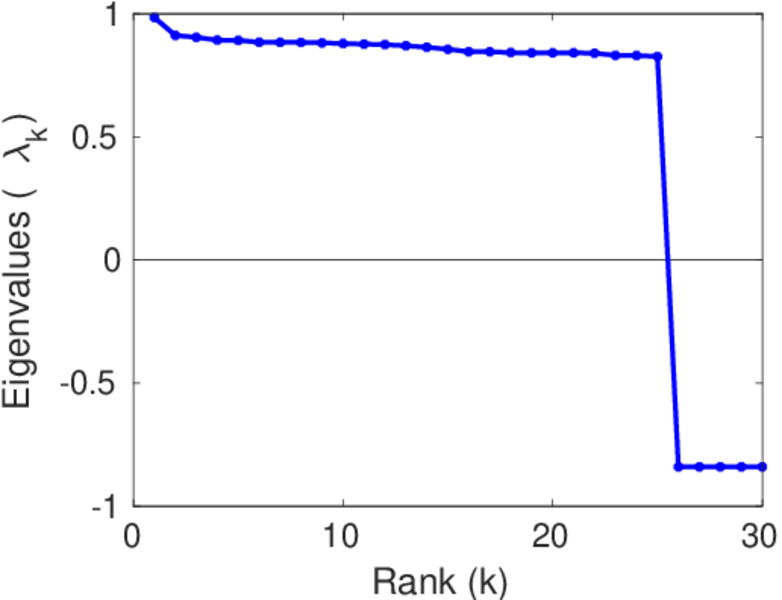

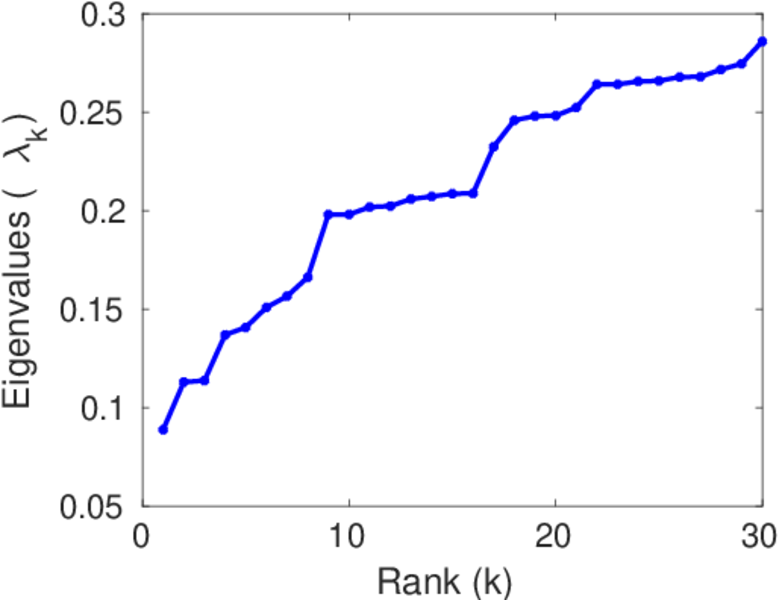

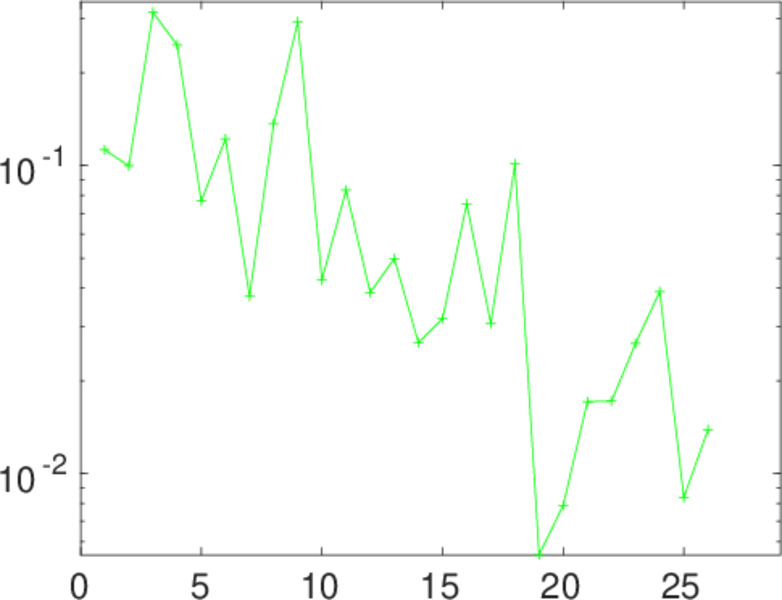

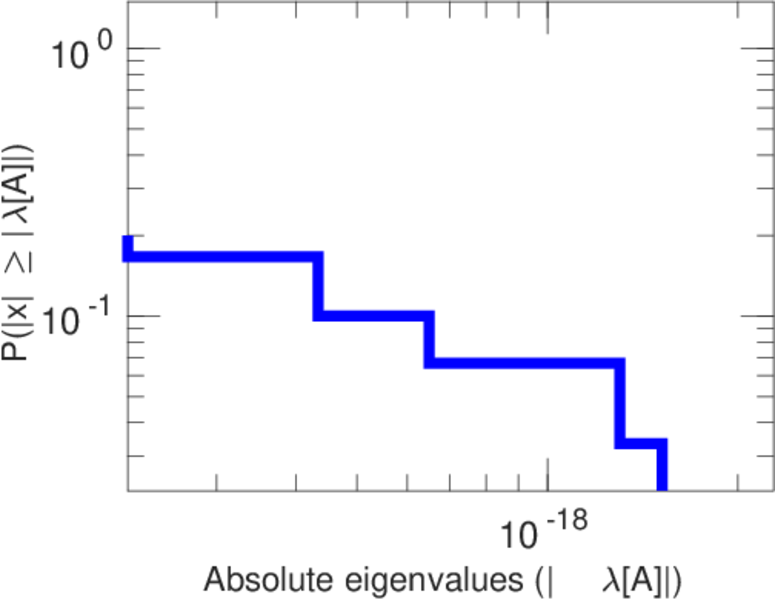

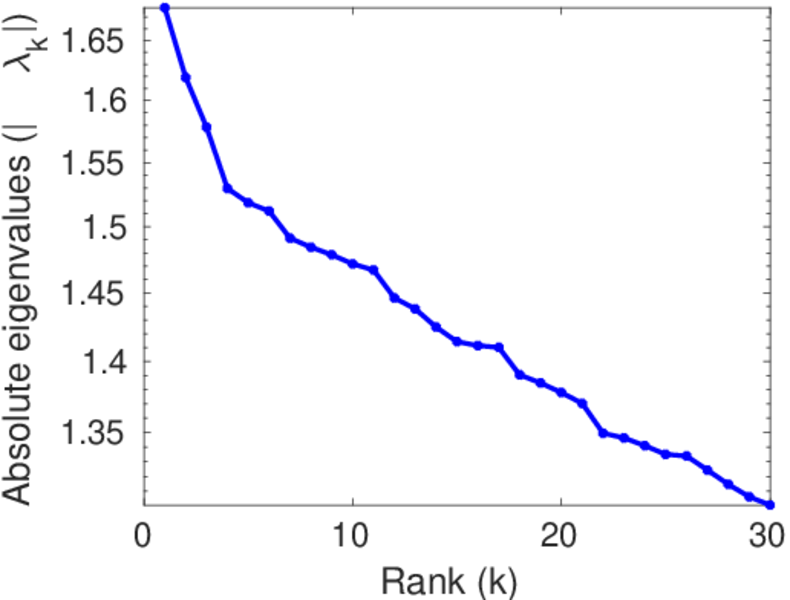

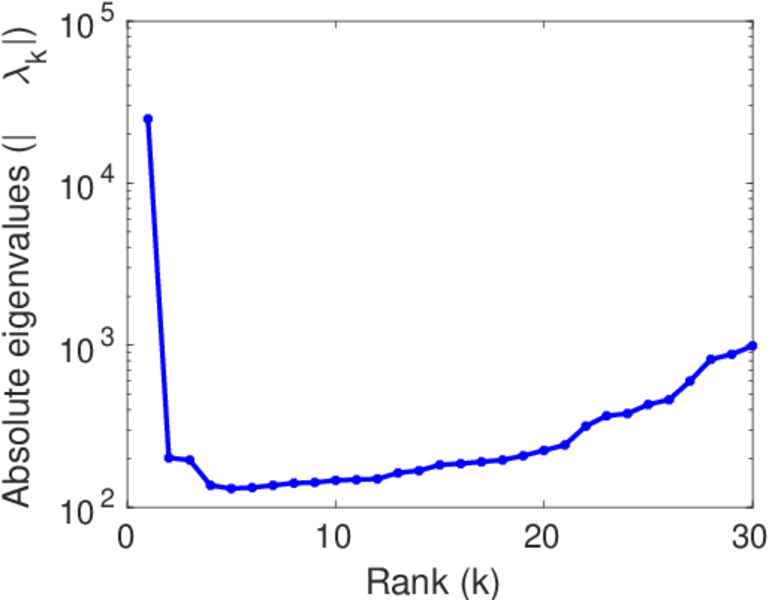

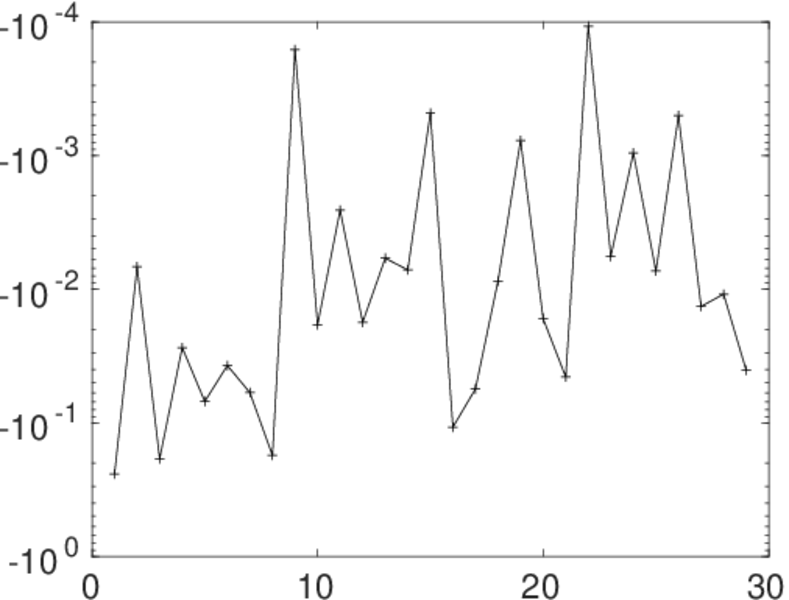

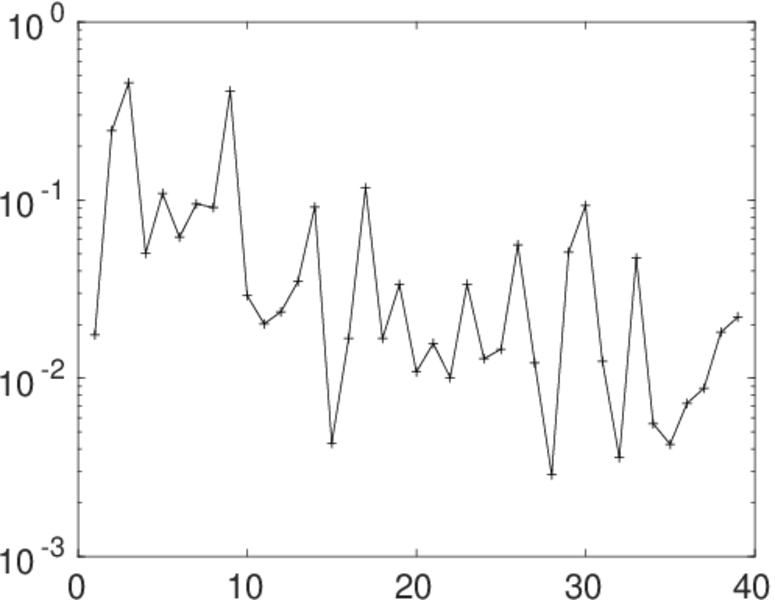

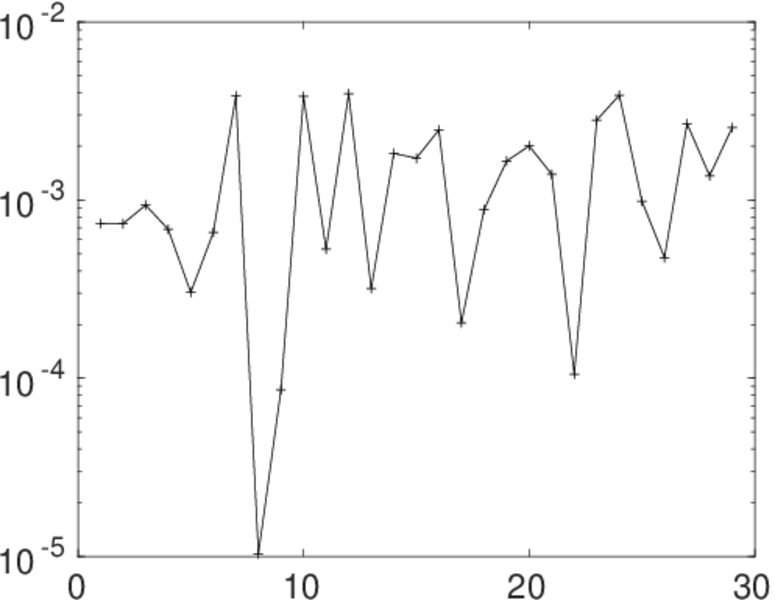

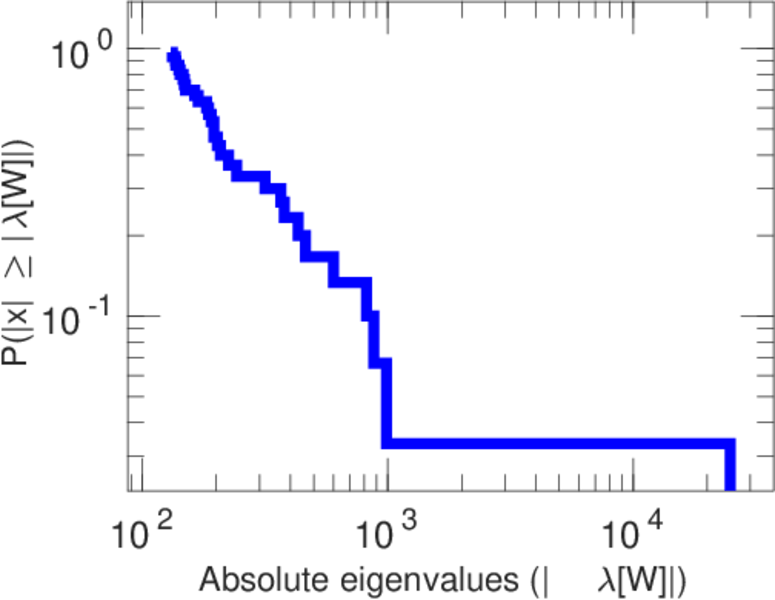

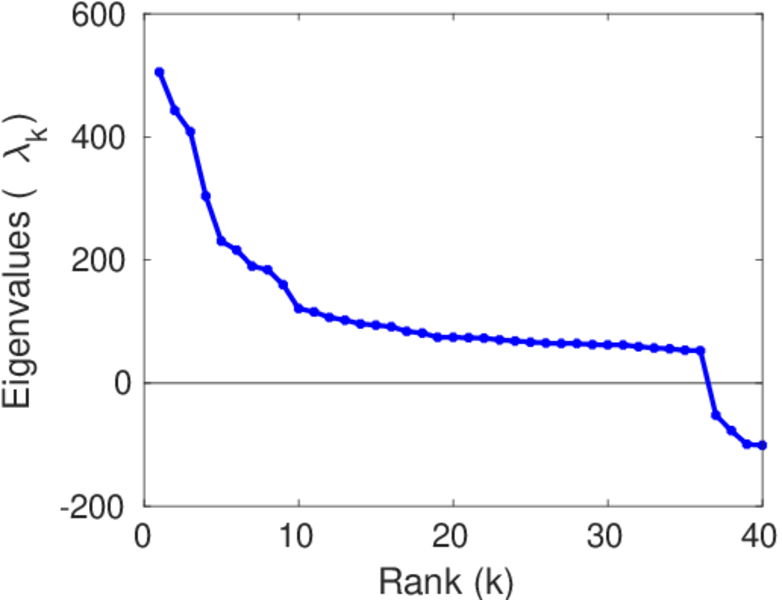

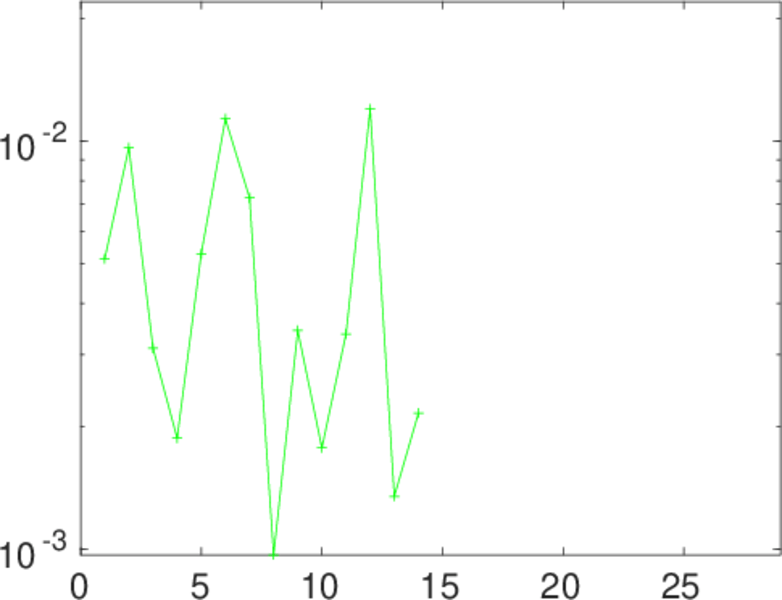

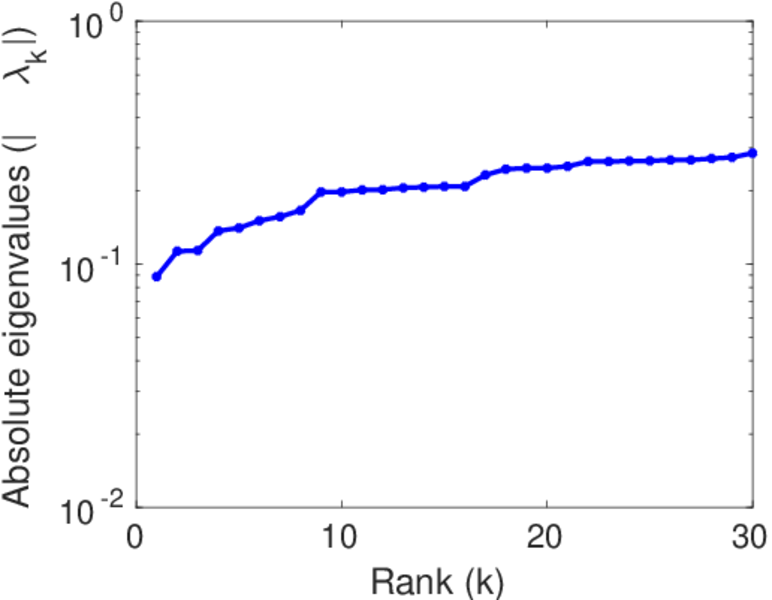

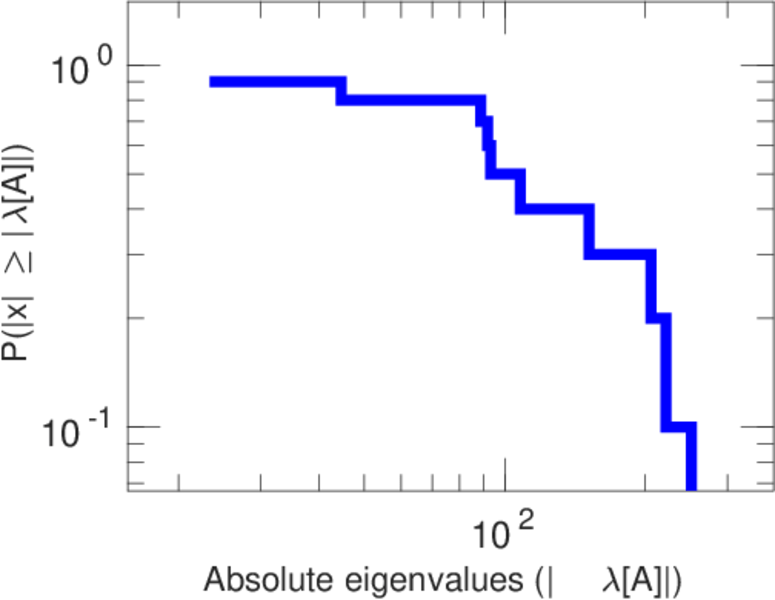

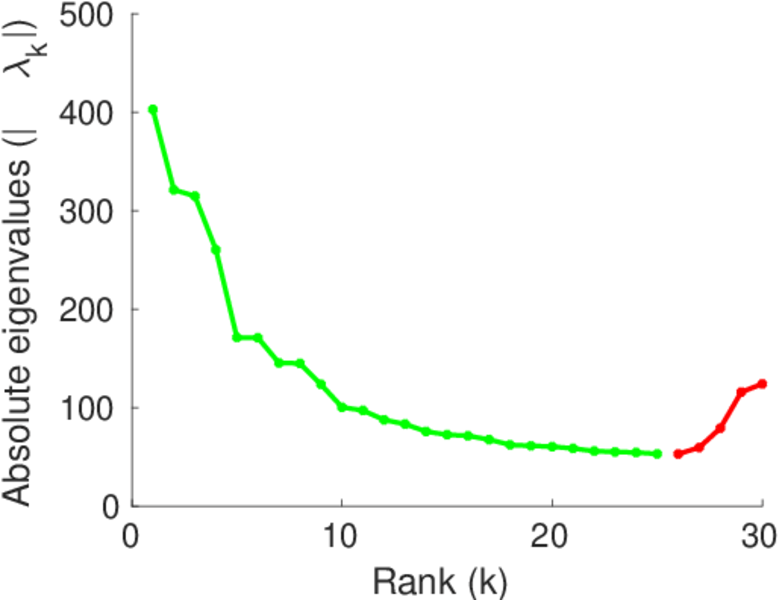

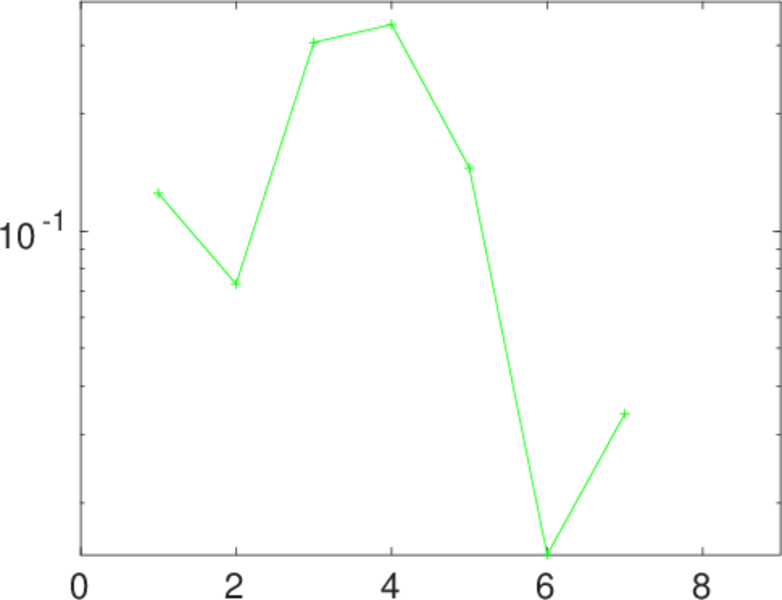

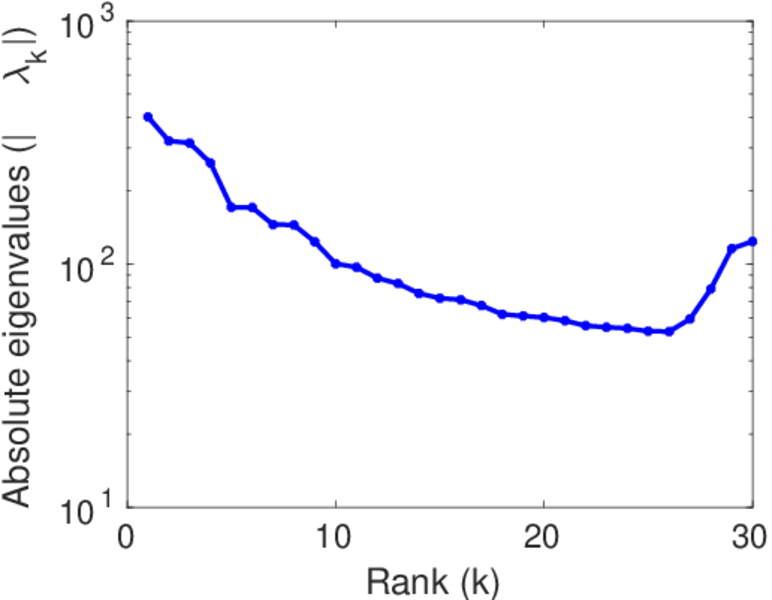

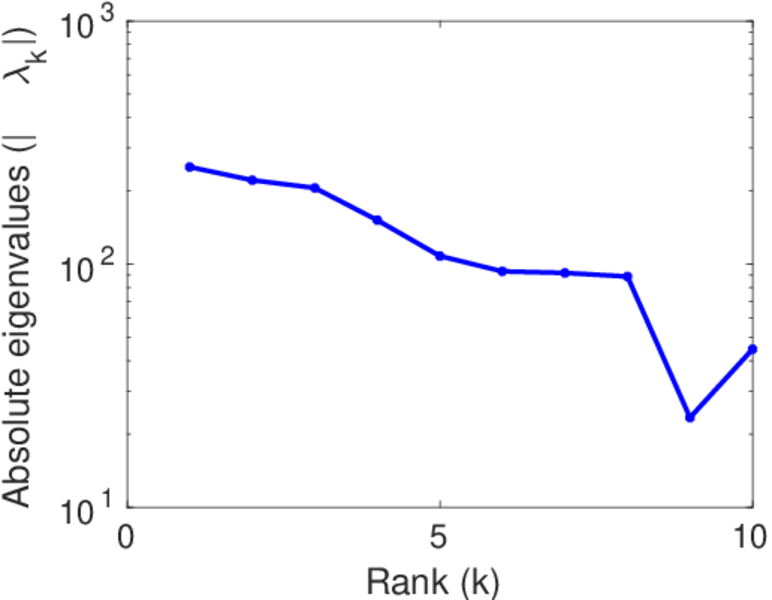

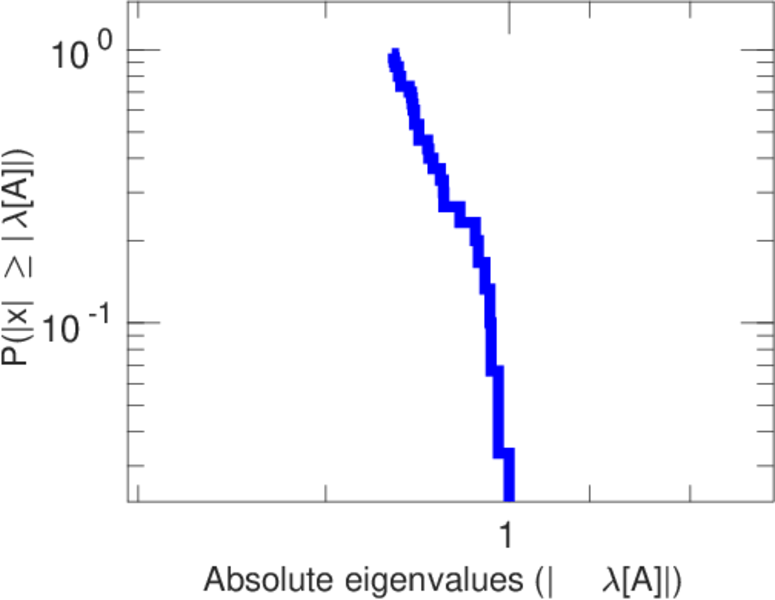

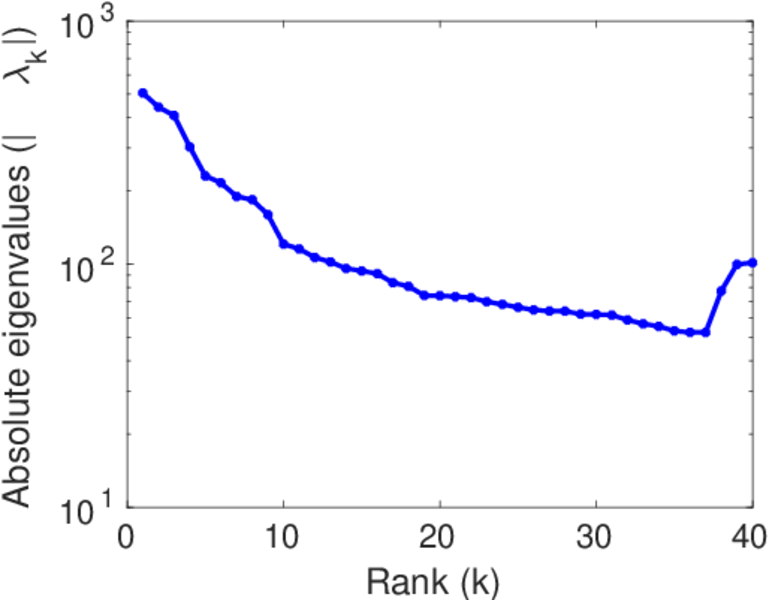

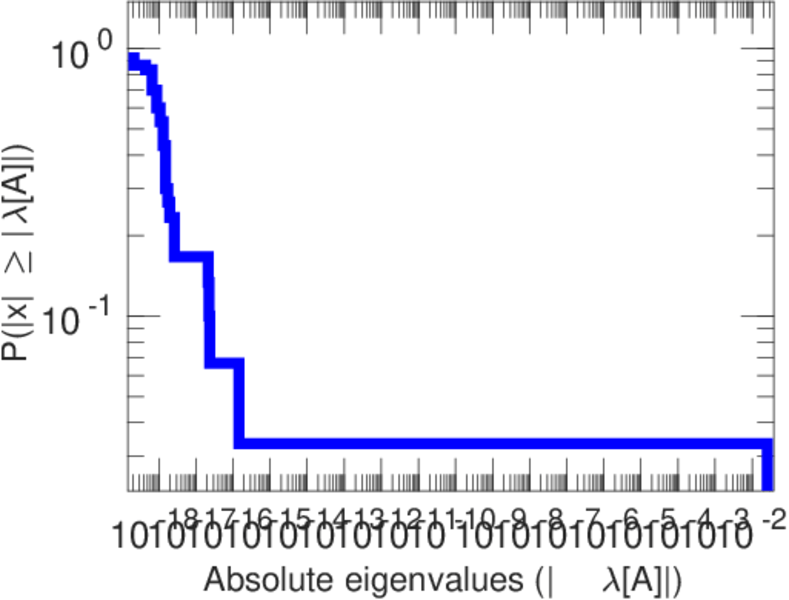

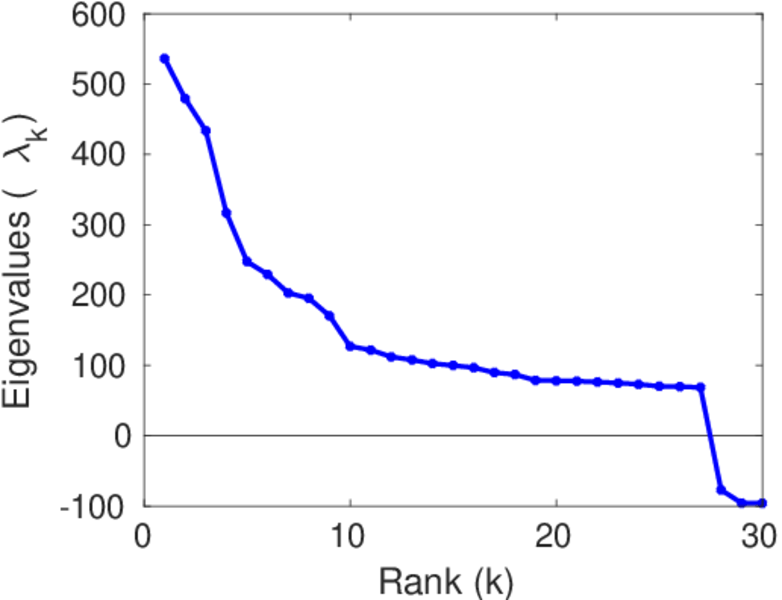

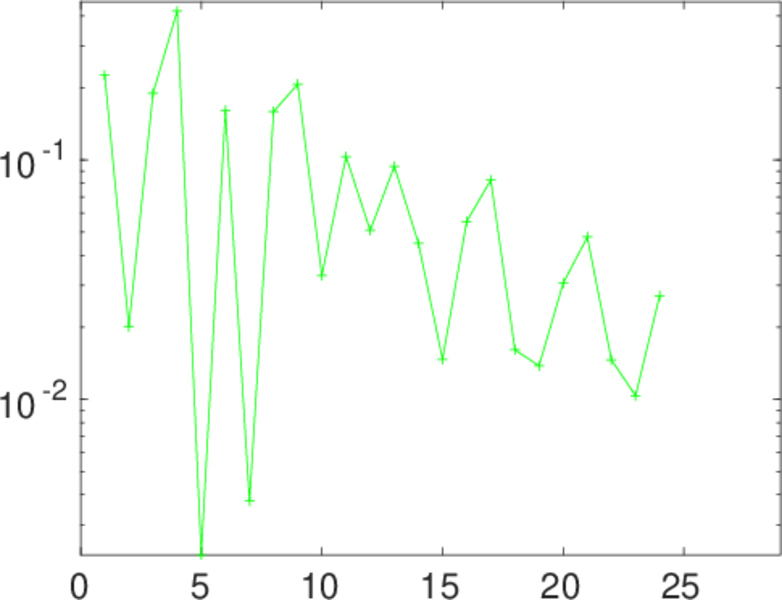

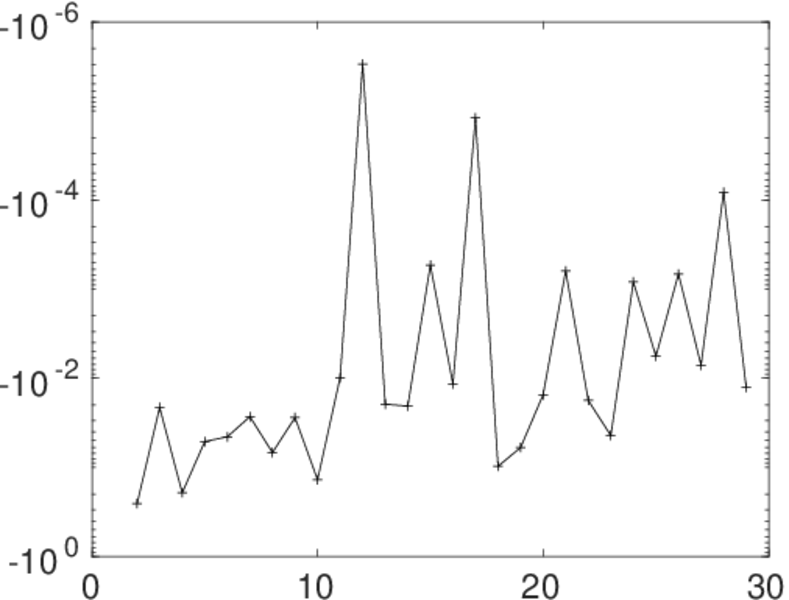

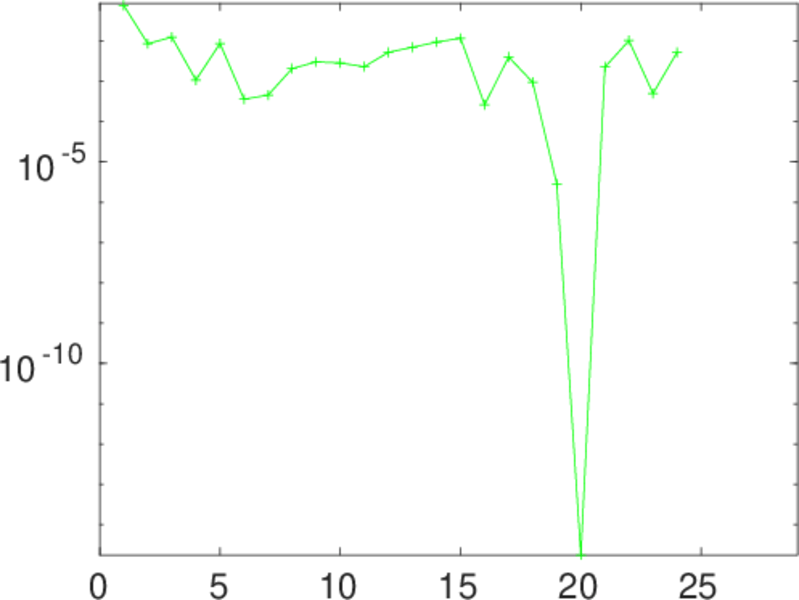

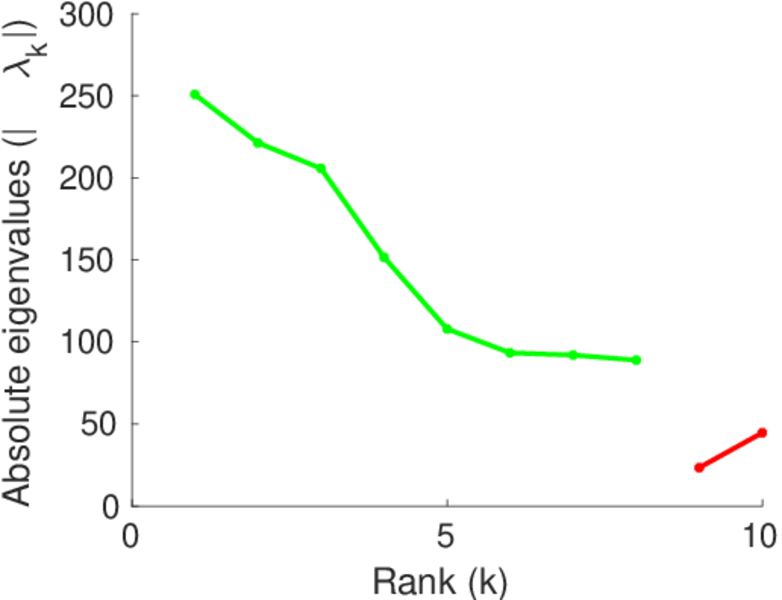

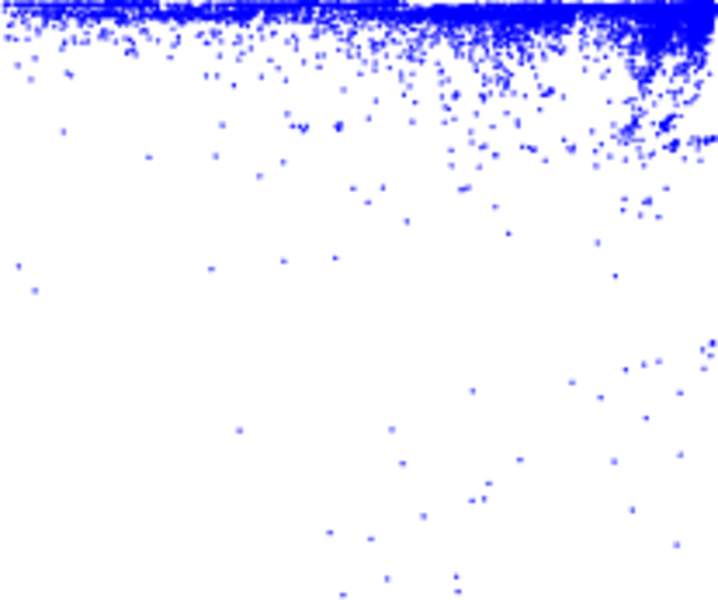

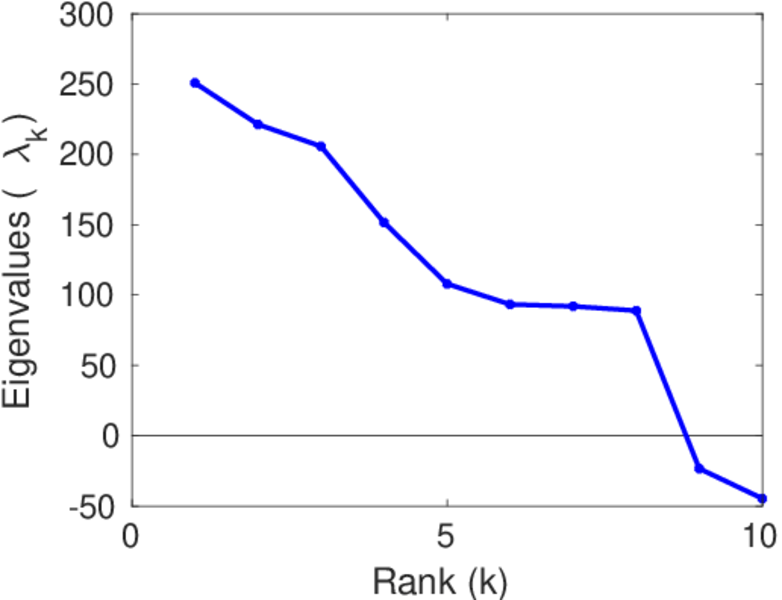

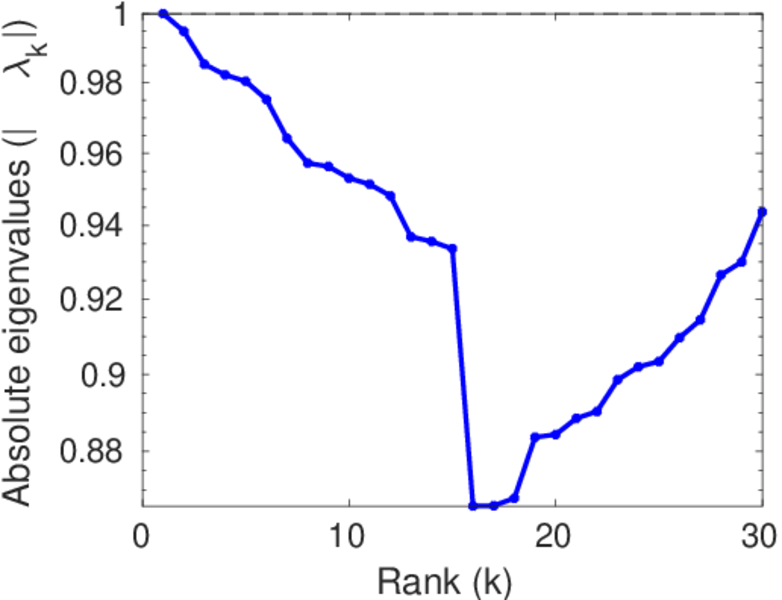

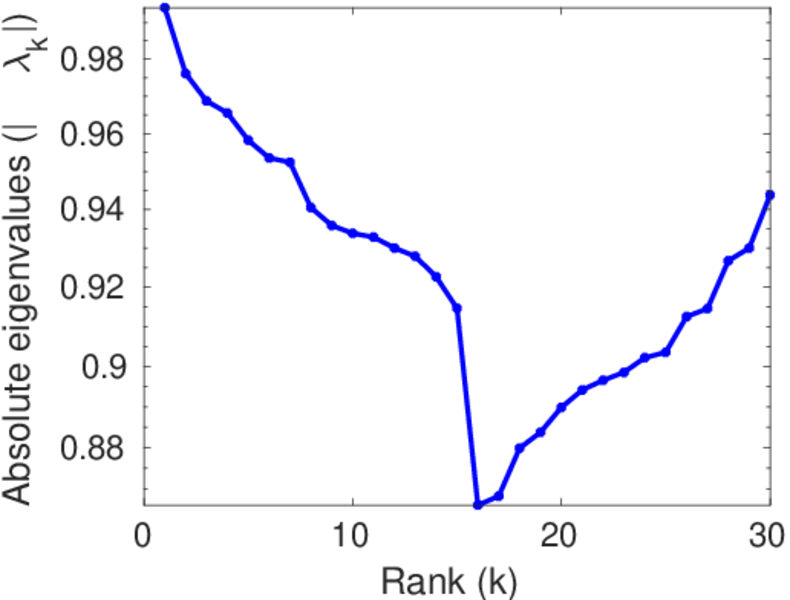

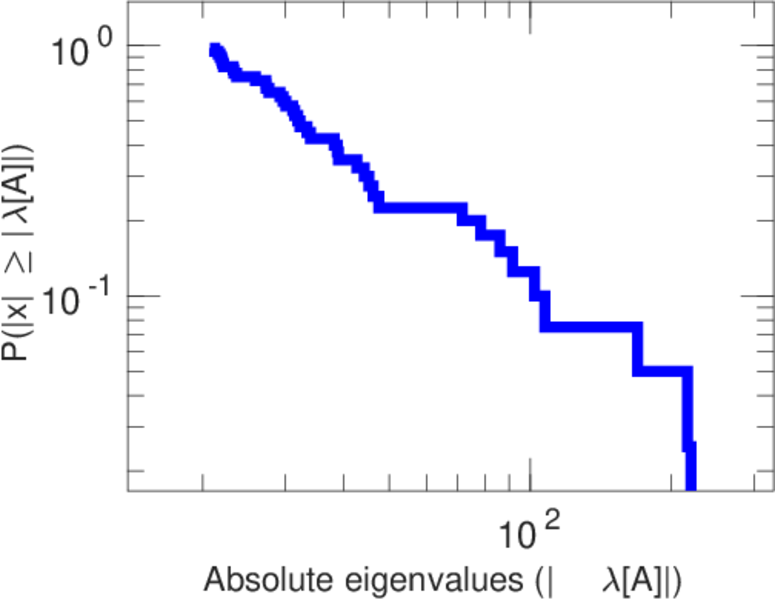

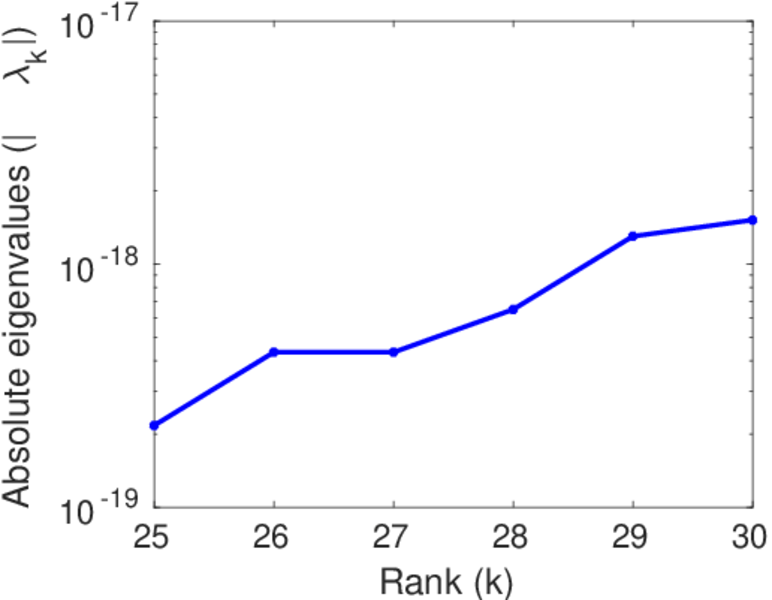

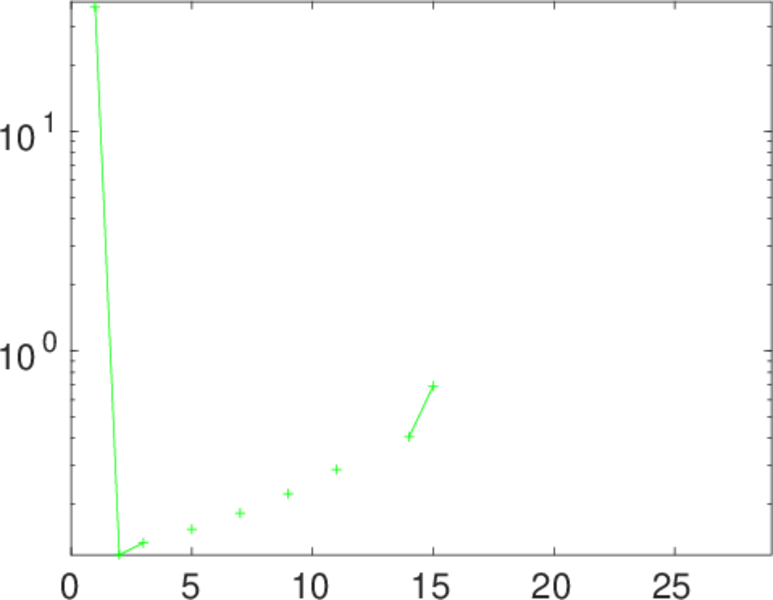

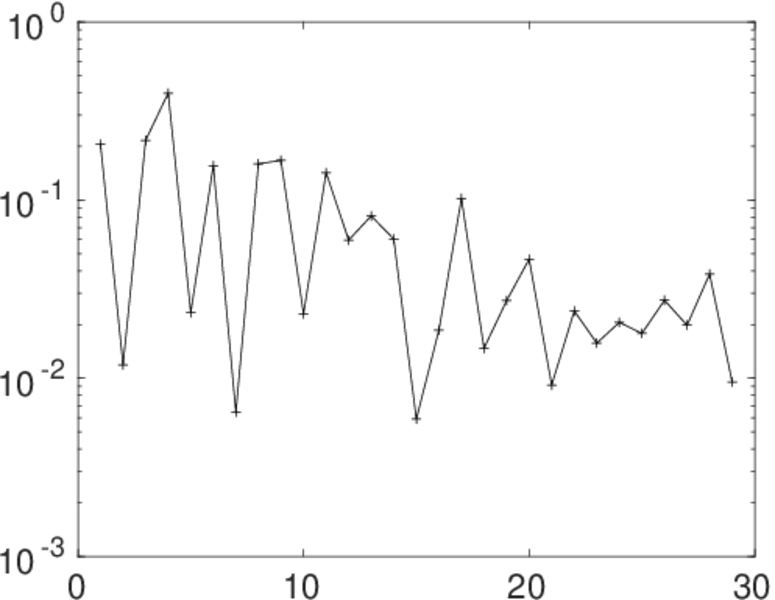

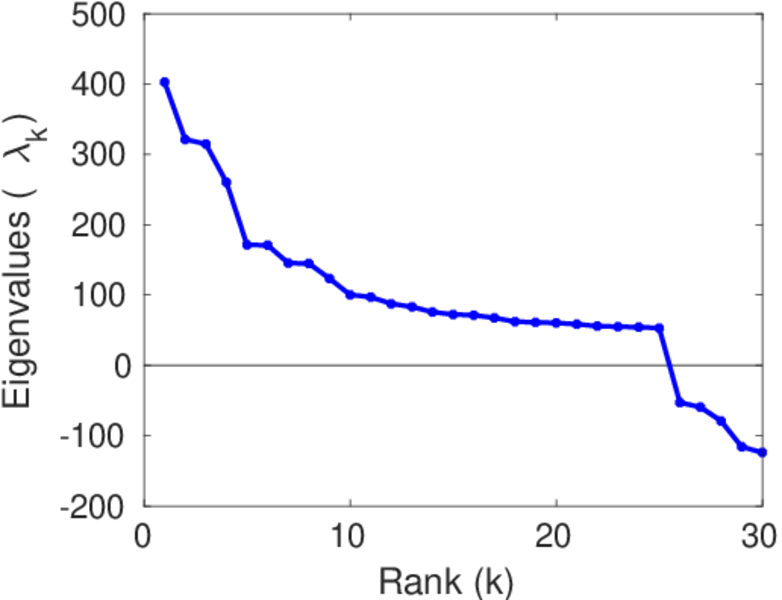

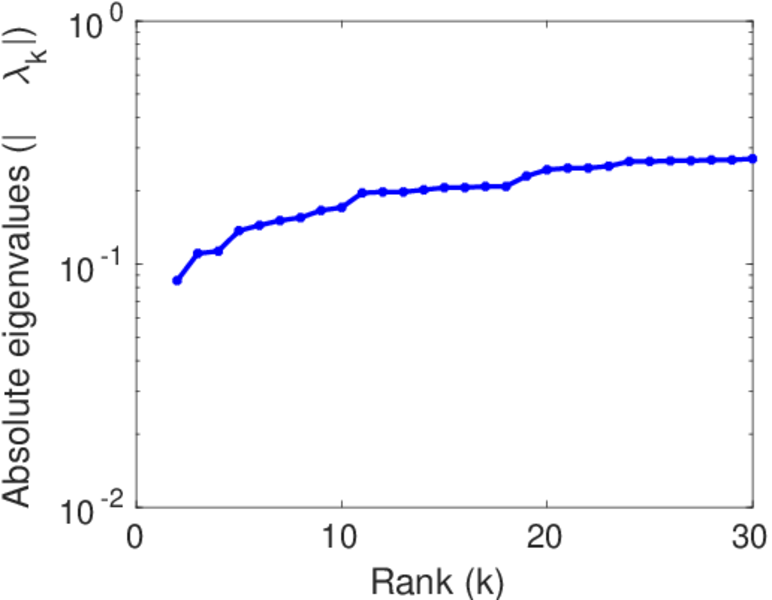

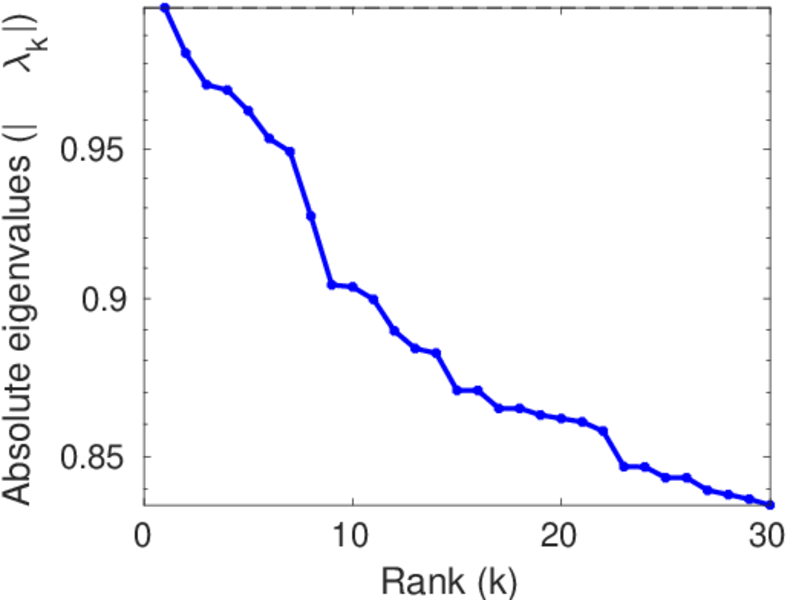

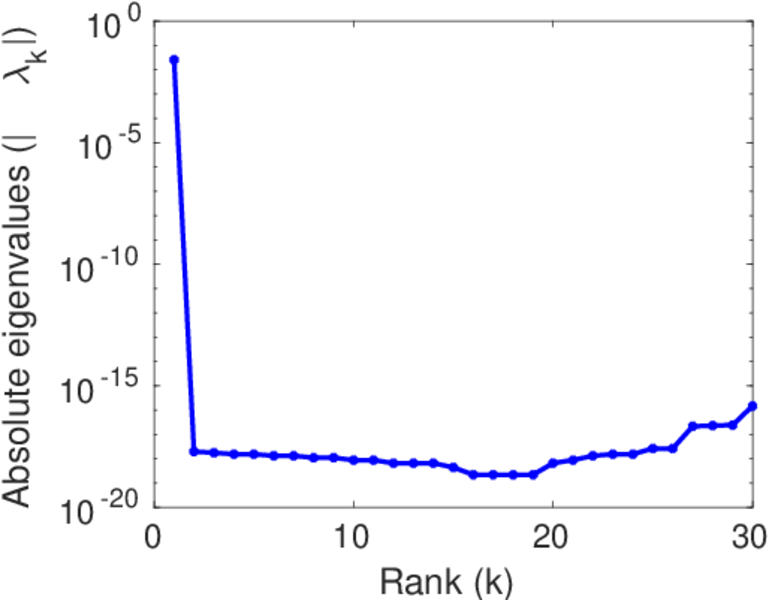

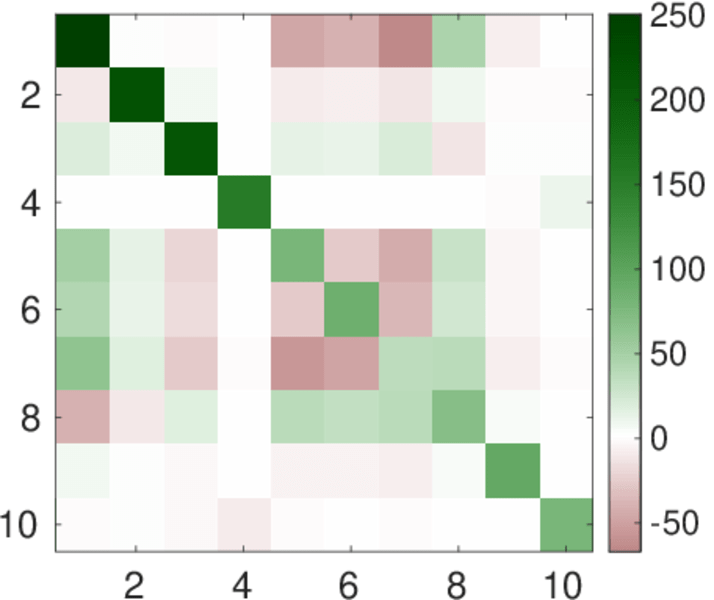

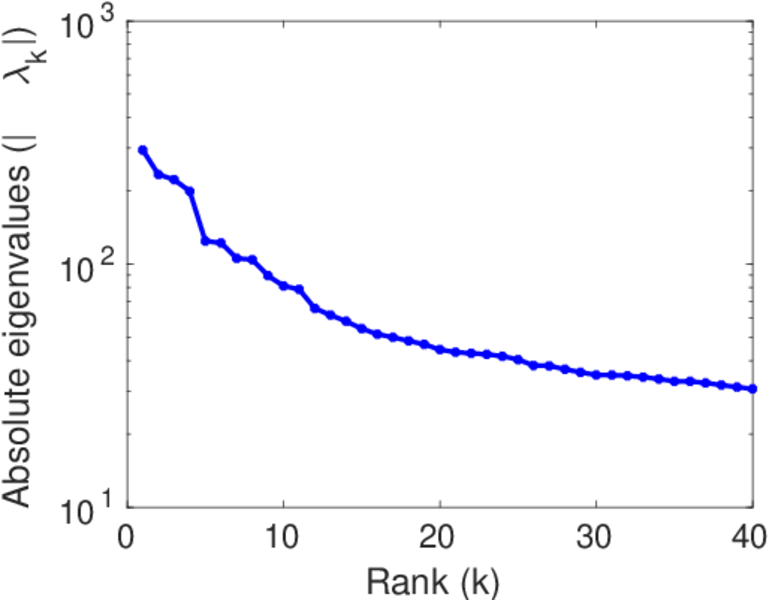

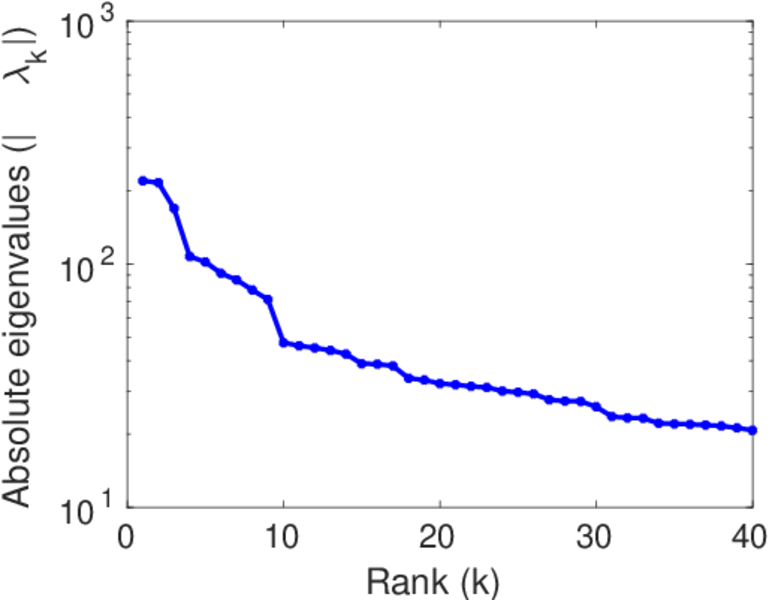

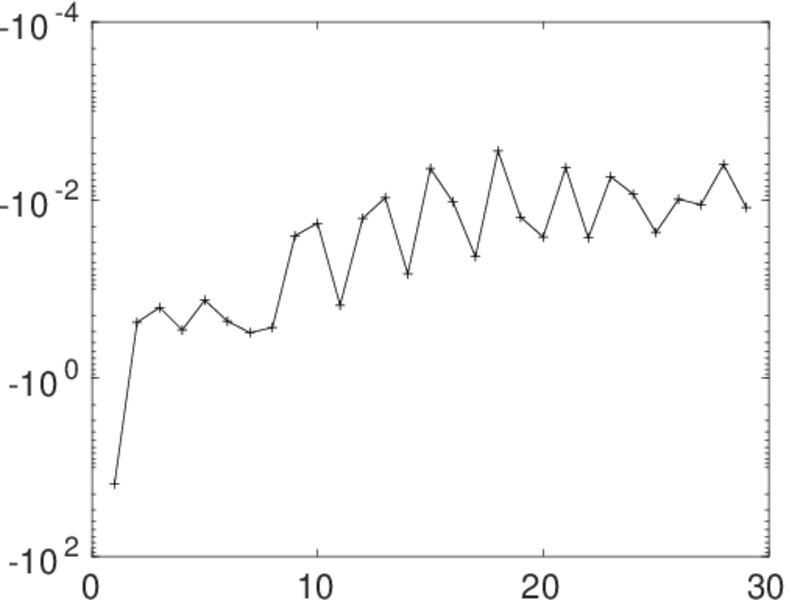

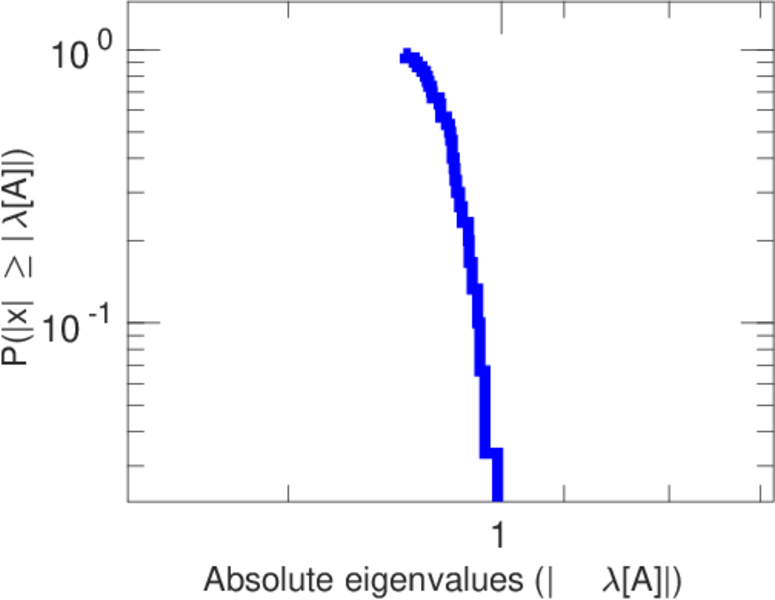

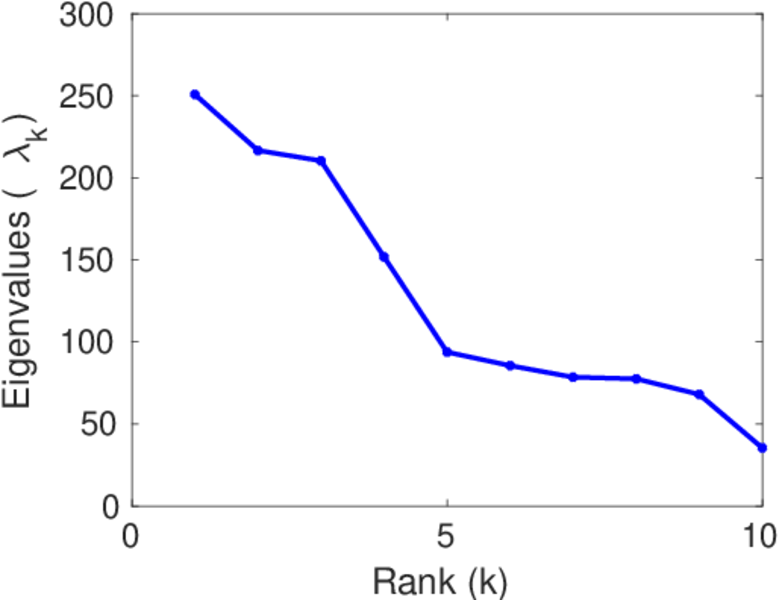

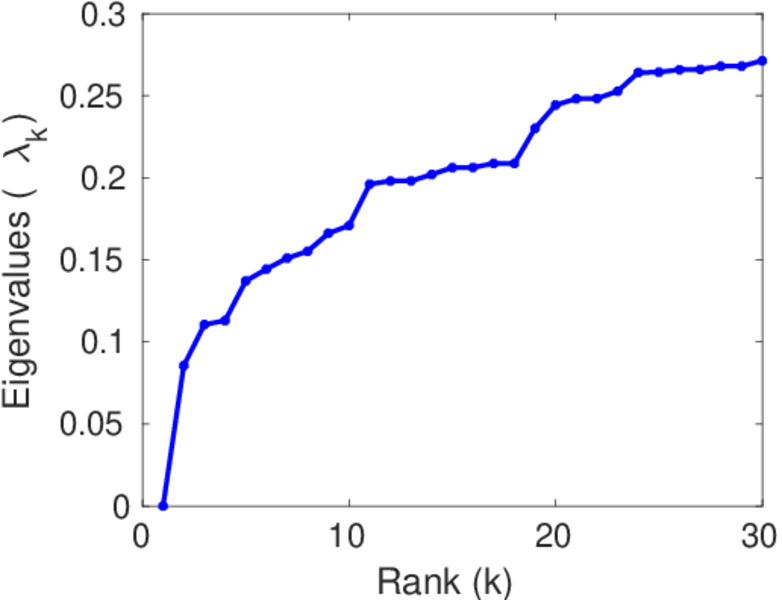

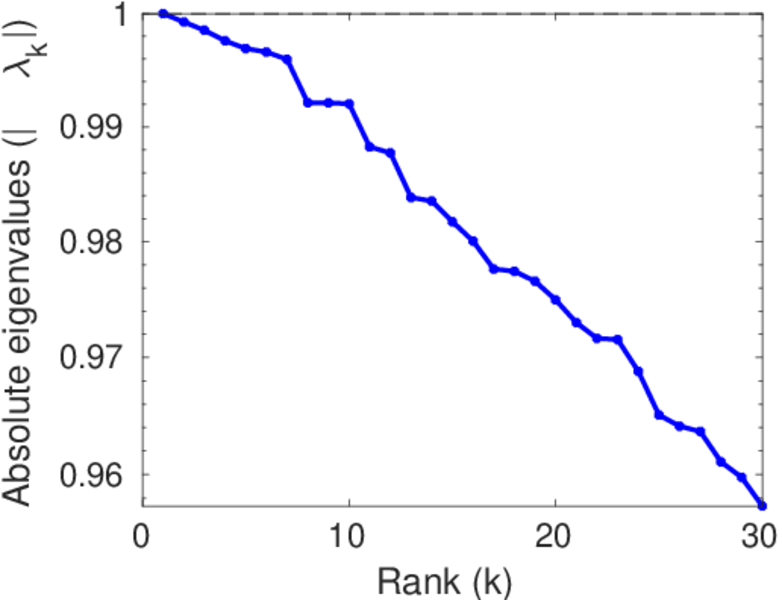

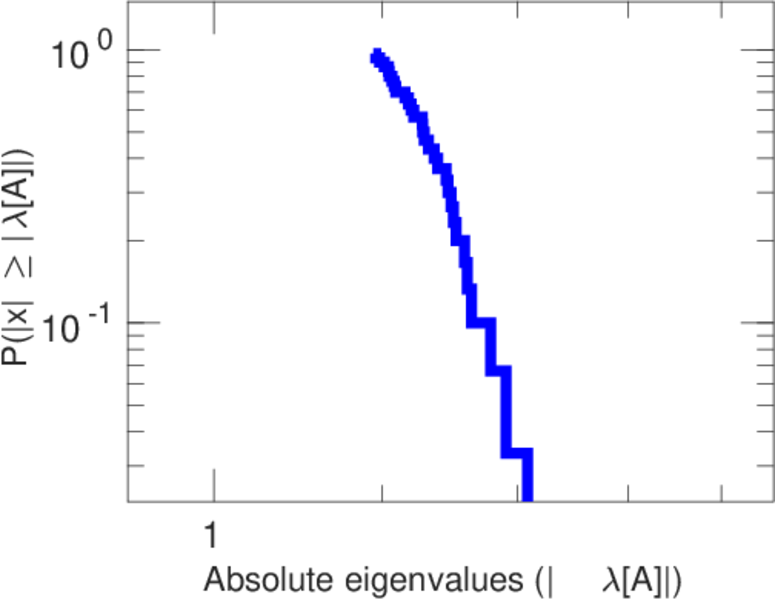

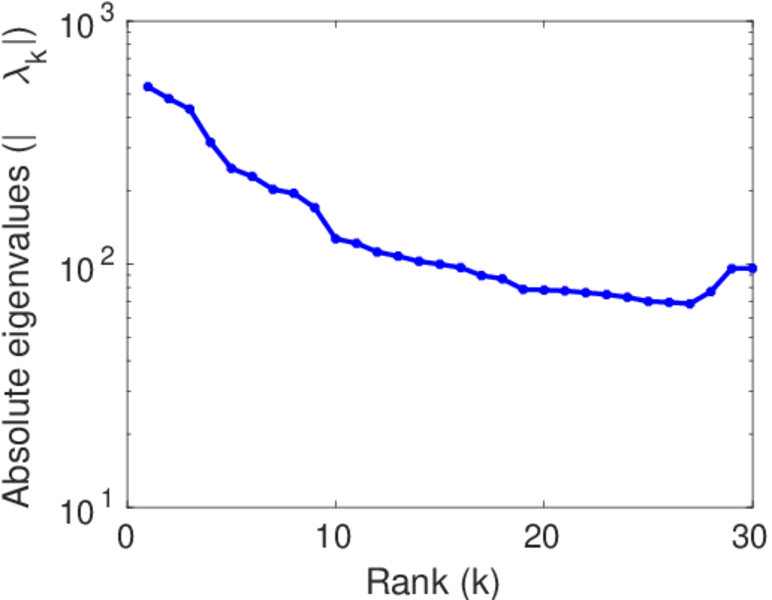

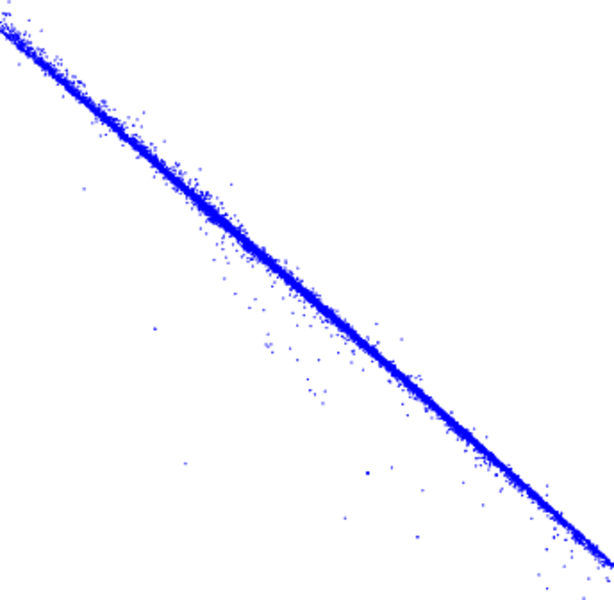

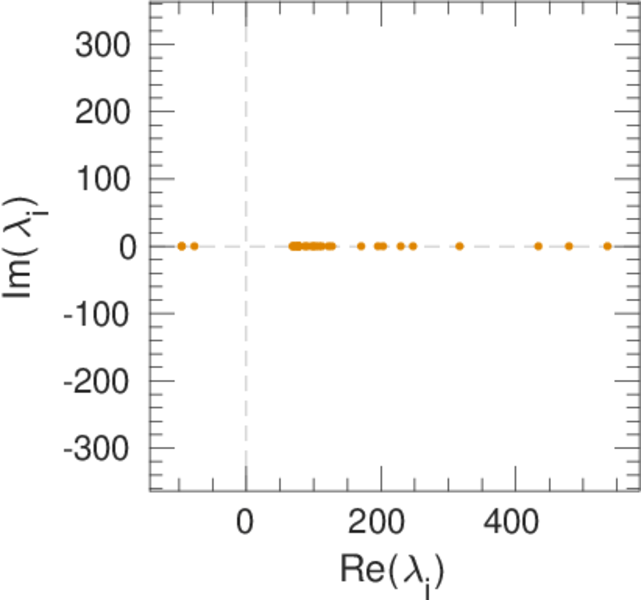

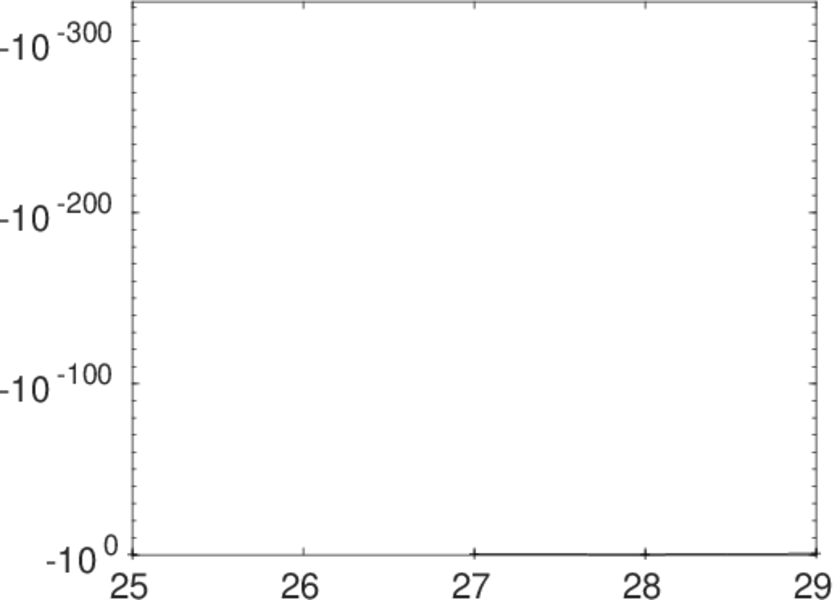

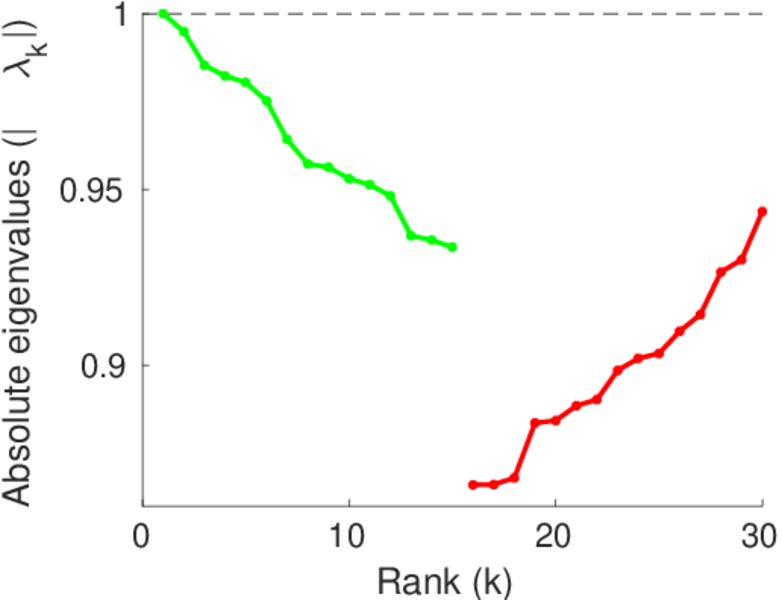

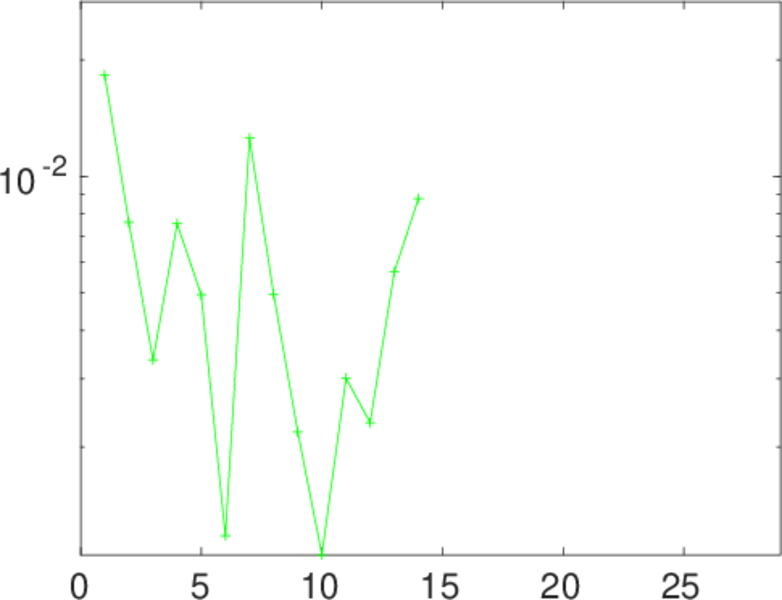

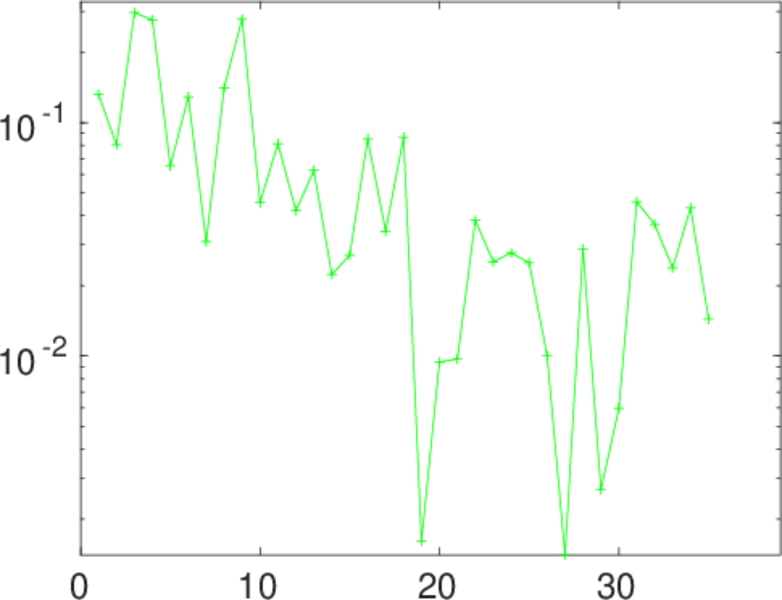

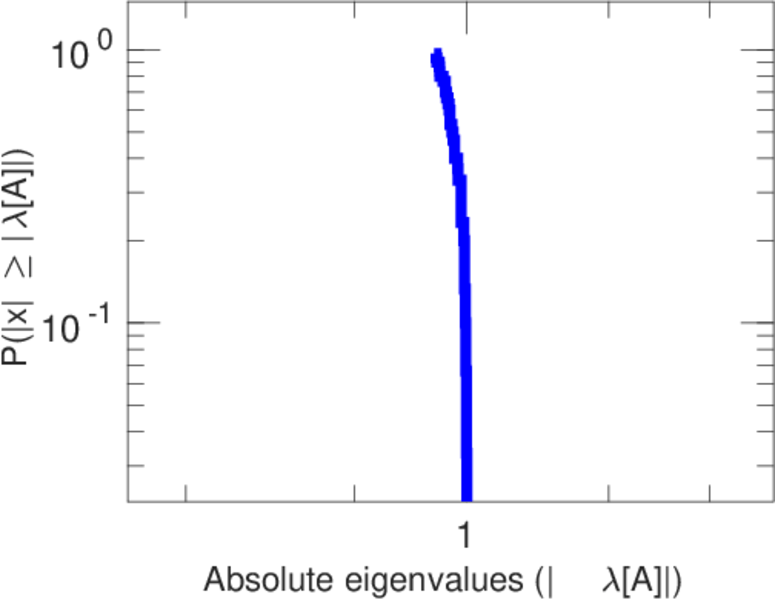

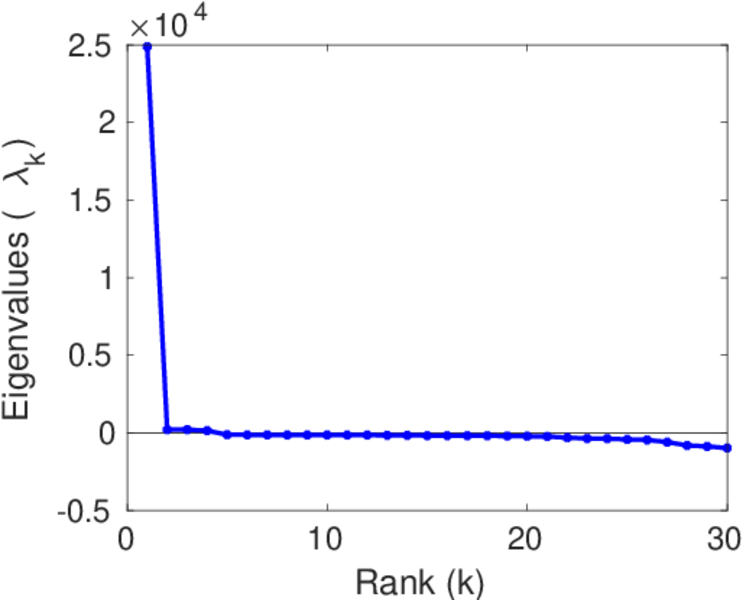

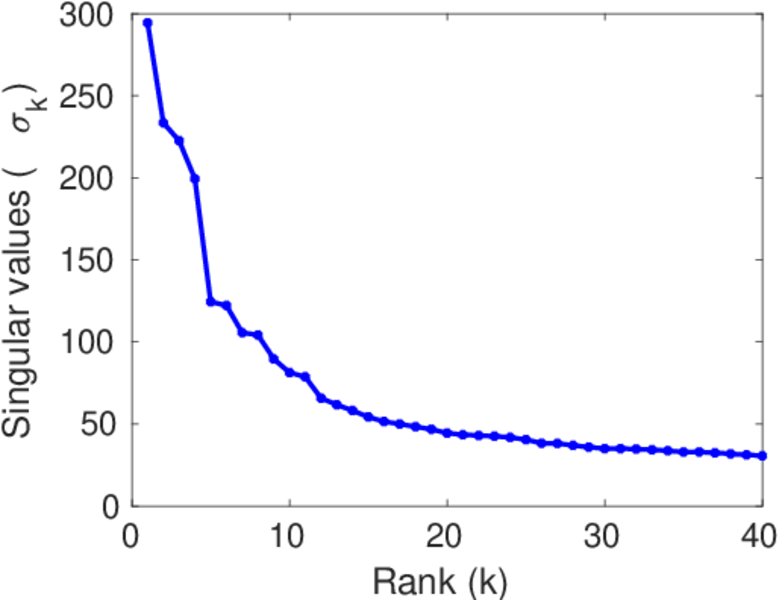

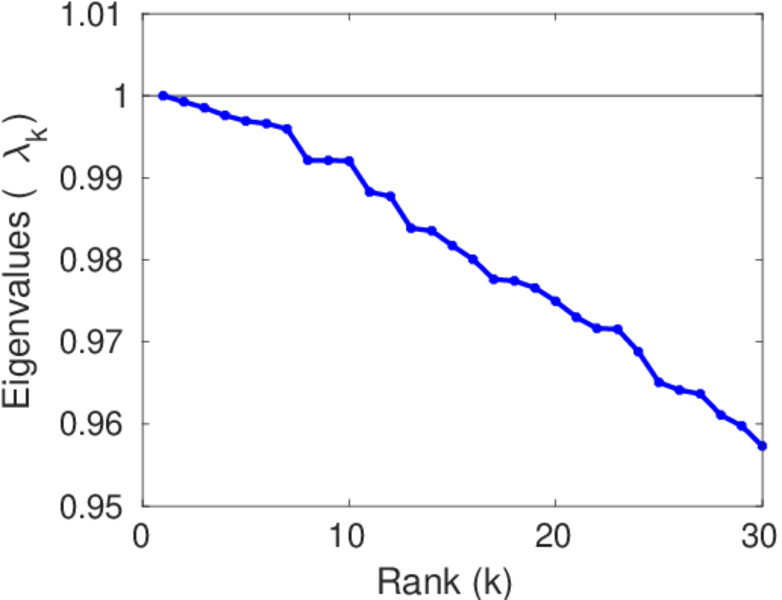

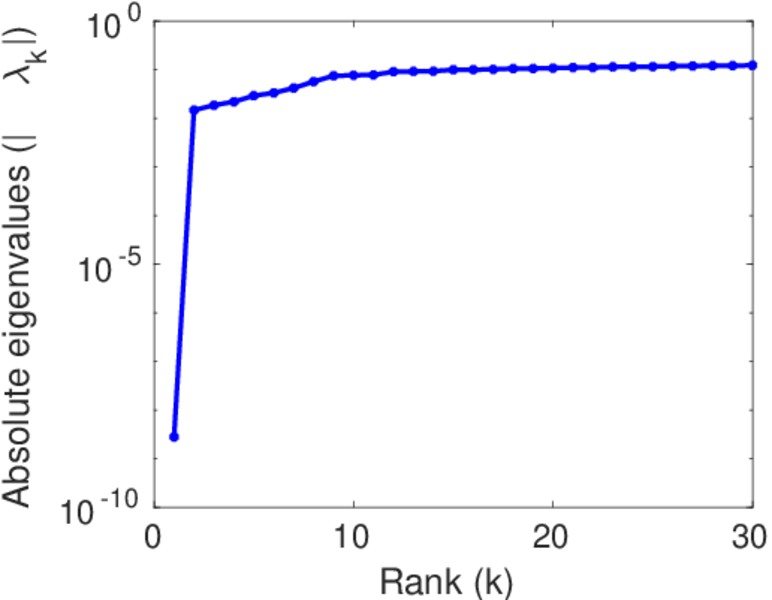

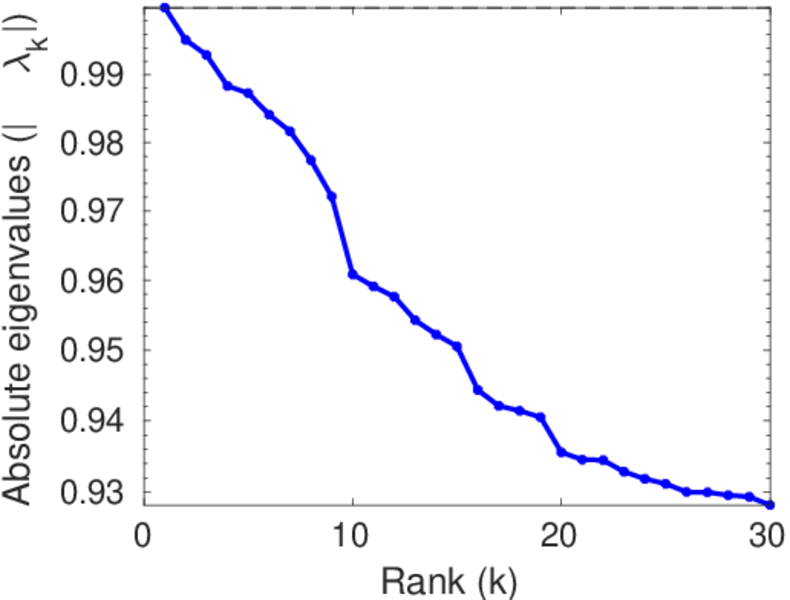

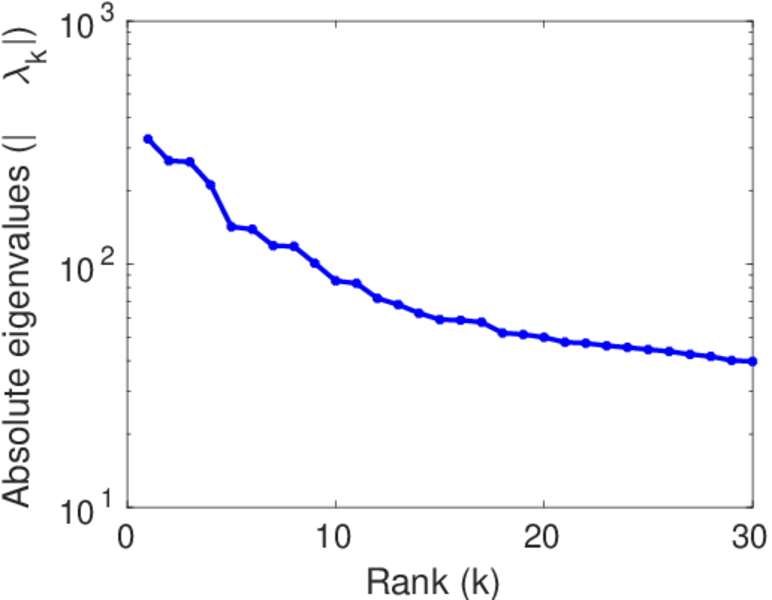

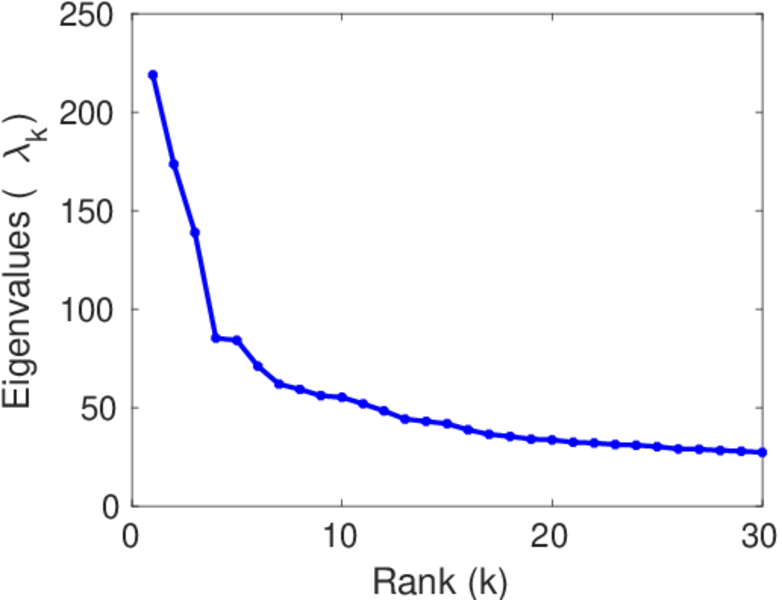

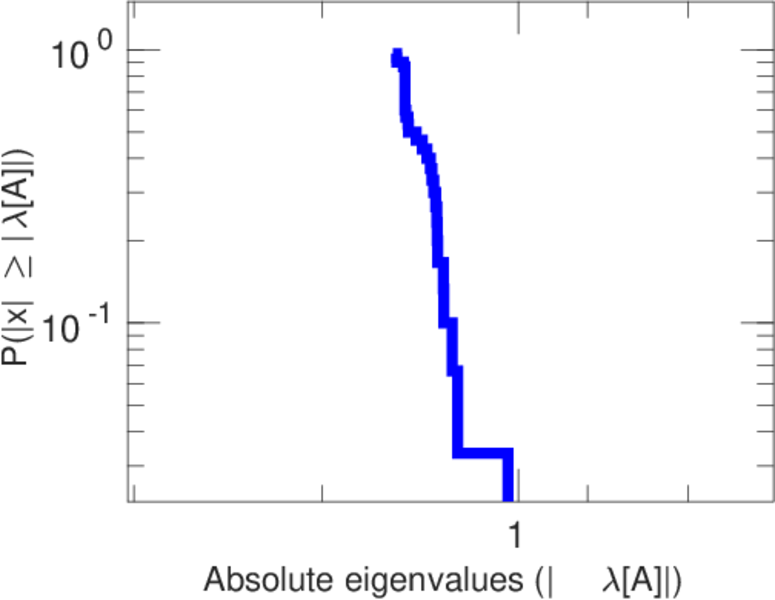

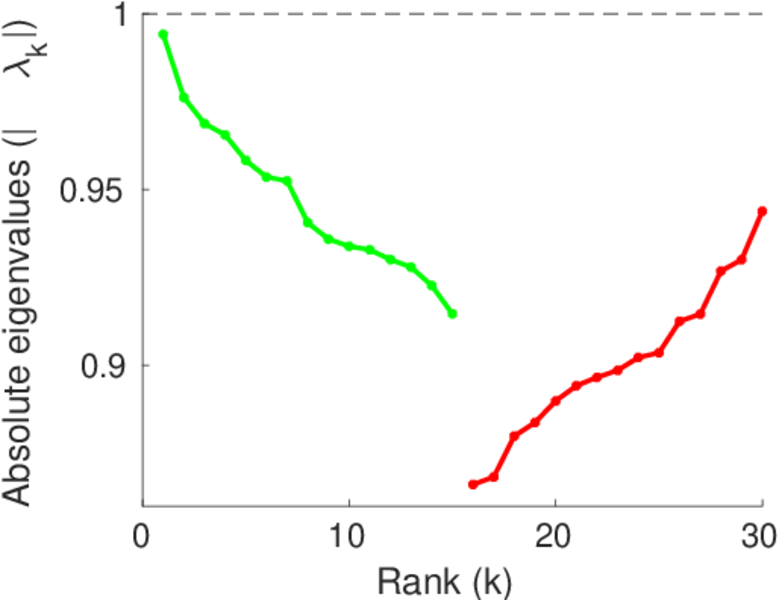

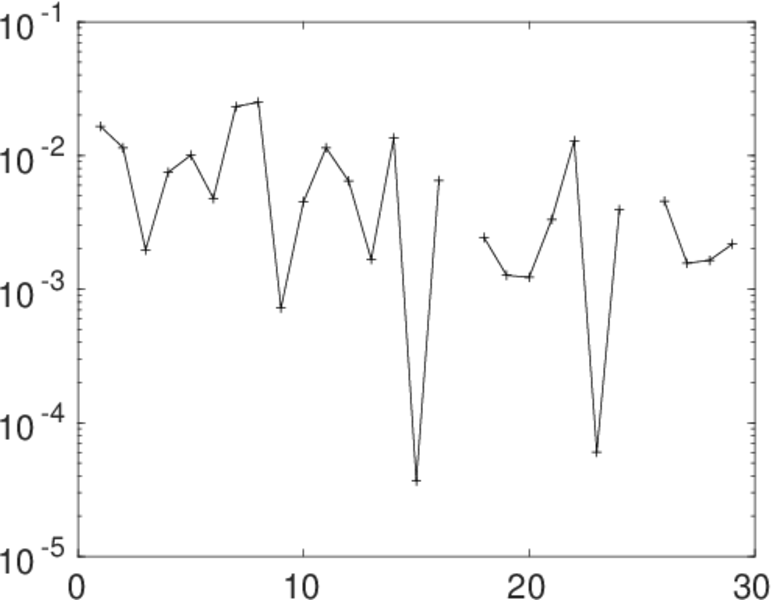

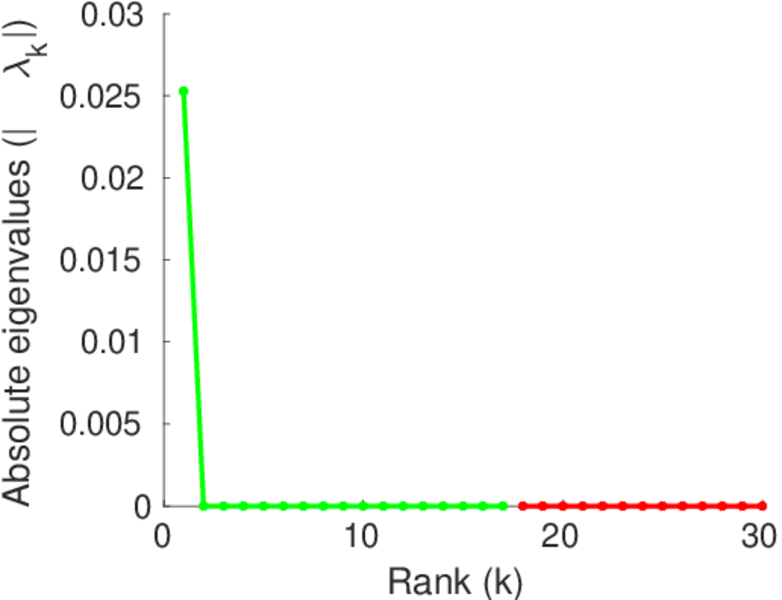

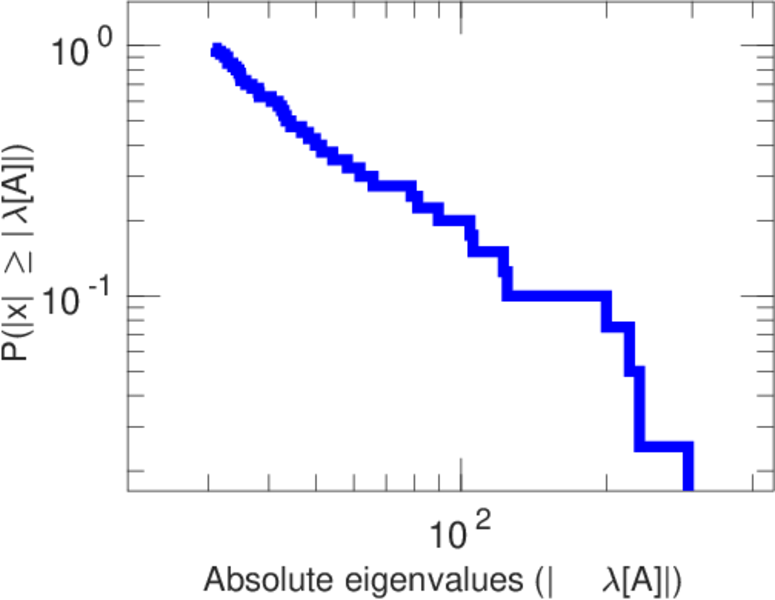

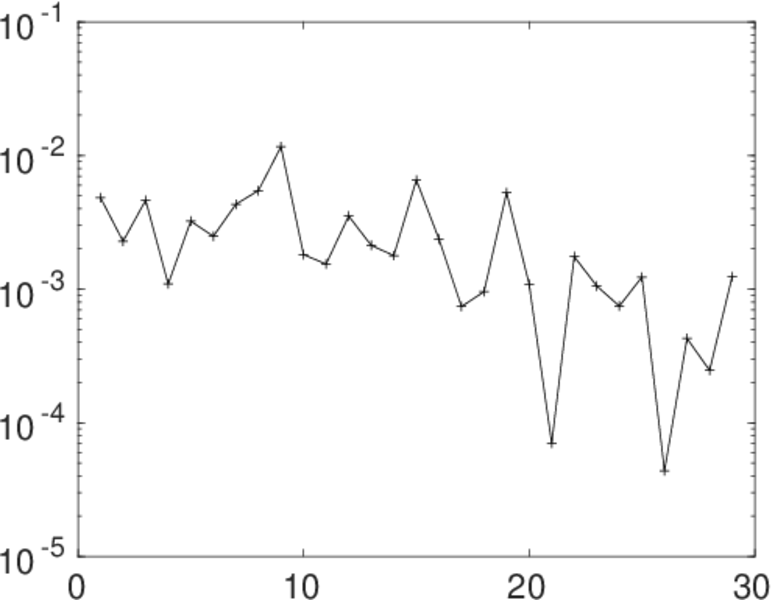

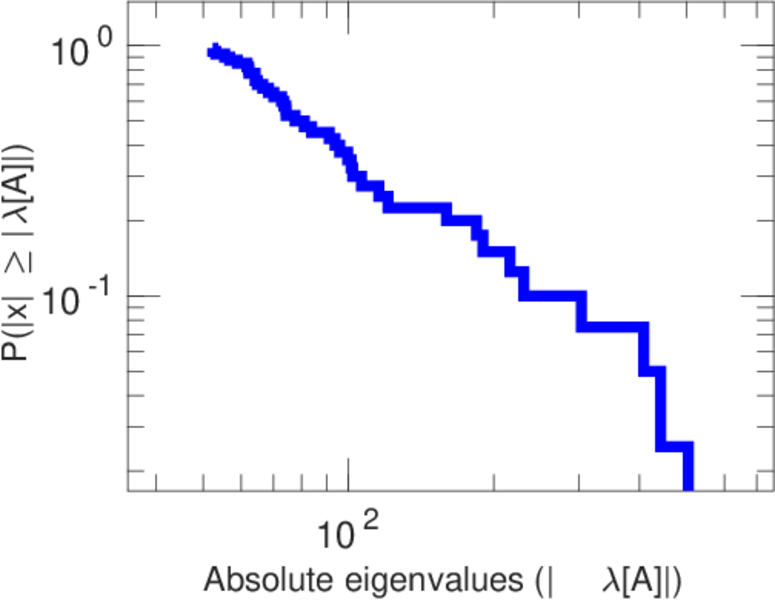

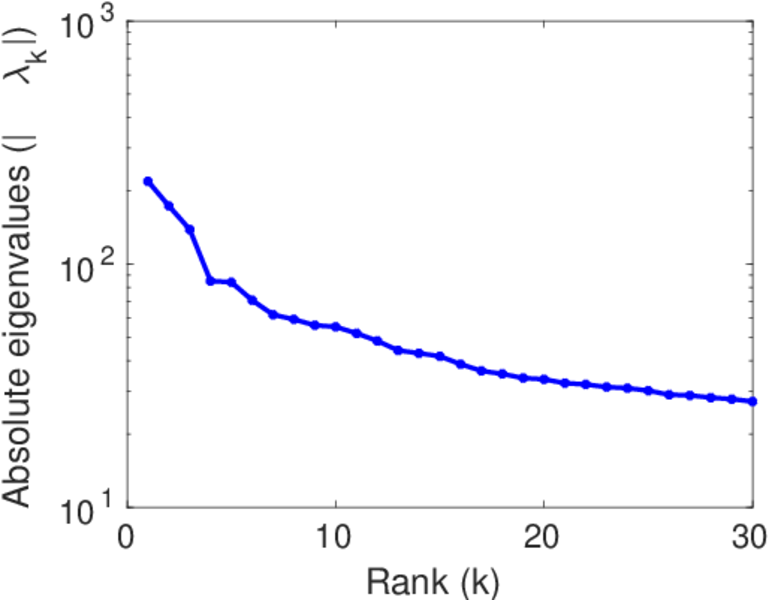

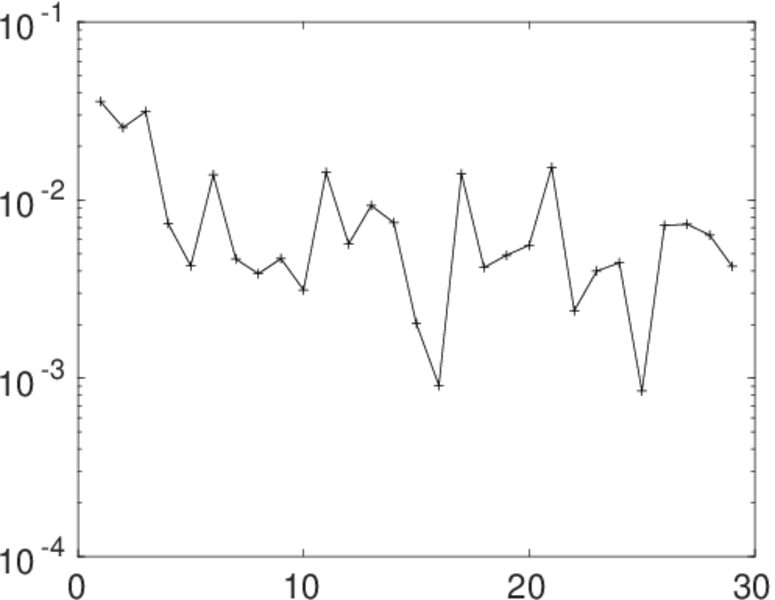

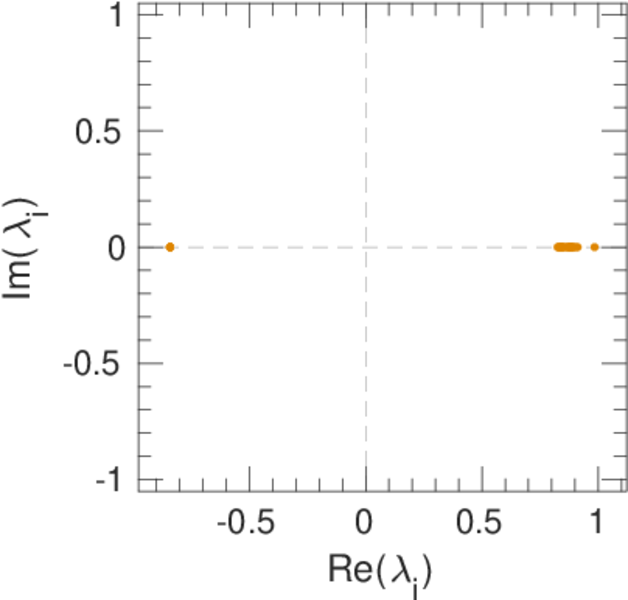

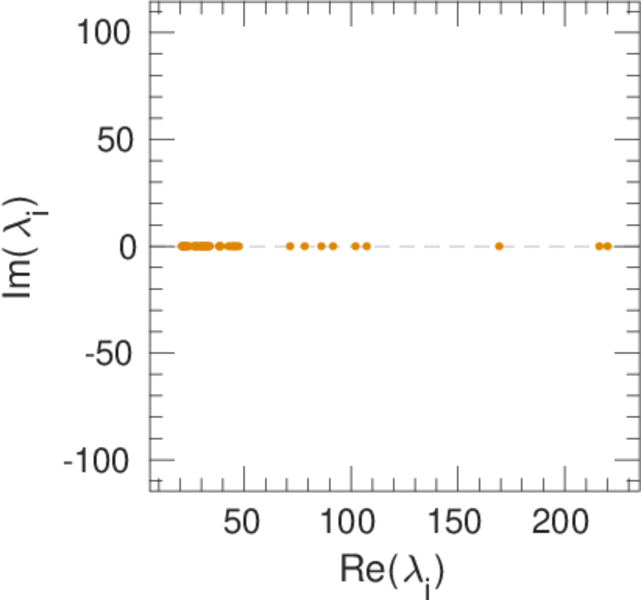

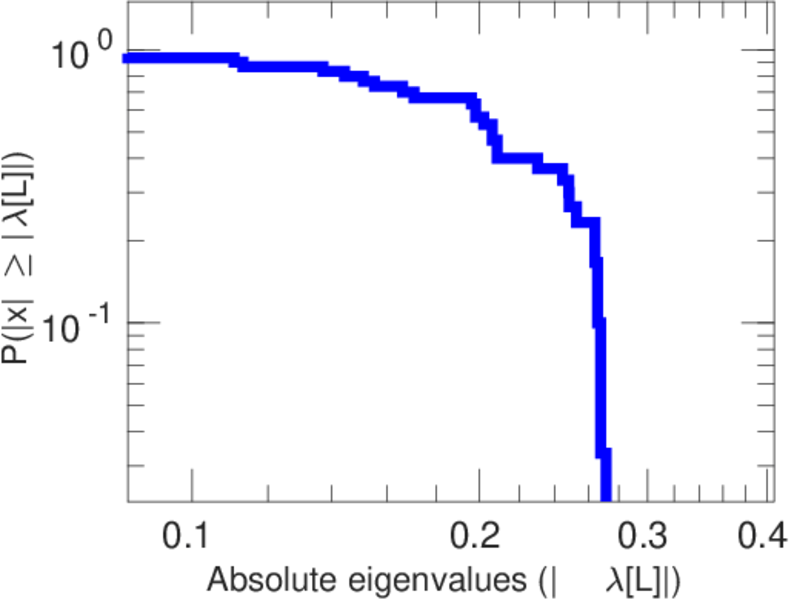

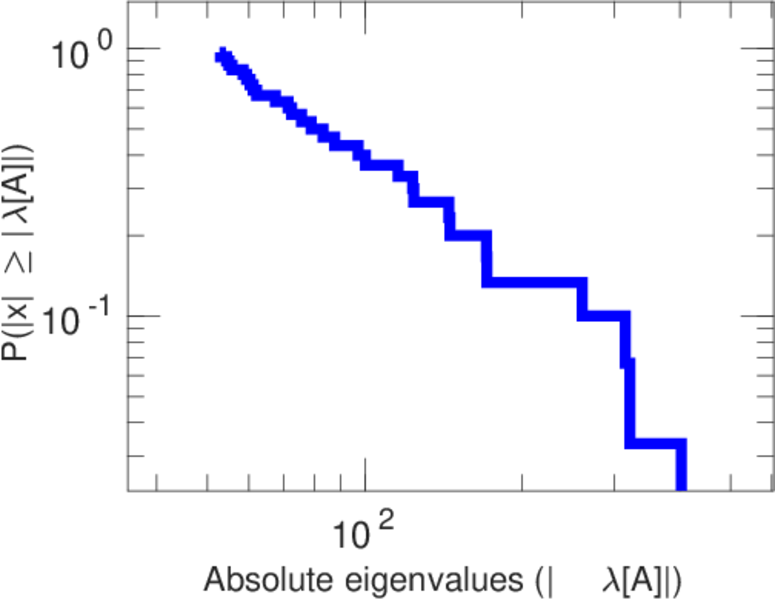

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
