Wikipedia links (bcl)

This network consists of the wikilinks of the Wikipedia in the Central Bikol language (bcl). Nodes are Wikipedia articles, and directed edges are wikilinks, i.e., hyperlinks within one wiki. In the wiki source, these are indicated with [[double brackets]]. Only pages in the article namespace are included.

Metadata

CodeWbcl
Internal namewikipedia_link_bcl
NameWikipedia links (bcl)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningWikilink
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =8,130
Volume m =349,496
Loop count l =5
Wedge count s =48,963,347
Claw count z =35,991,094,267
Cross count x =8,032,968,216,940
Triangle count t =12,048,575
Square count q =2,872,720,044
4-Tour count T4 =23,178,012,354
Maximum degree dmax =2,332
Maximum outdegree d+max =1,580
Maximum indegree dmax =2,291
Average degree d =85.976 9
Fill p =0.005 287 63
Size of LCC N =8,064
Size of LSCC Ns =5,520
Relative size of LSCC Nrs =0.678 967
Diameter δ =11
50-Percentile effective diameter δ0.5 =3.108 96
90-Percentile effective diameter δ0.9 =4.284 87
Median distance δM =4
Mean distance δm =3.558 96
Gini coefficient G =0.740 261
Balanced inequality ratio P =0.209 427
Outdegree balanced inequality ratio P+ =0.214 672
Indegree balanced inequality ratio P =0.227 204
Relative edge distribution entropy Her =0.877 350
Power law exponent γ =1.376 12
Tail power law exponent γt =2.051 00
Tail power law exponent with p γ3 =2.051 00
p-value p =0.000 00
Outdegree tail power law exponent with p γ3,o =2.021 00
Outdegree p-value po =0.000 00
Indegree tail power law exponent with p γ3,i =1.941 00
Indegree p-value pi =0.000 00
Degree assortativity ρ =+0.060 673 2
Degree assortativity p-value pρ =1.343 86 × 10−321
In/outdegree correlation ρ± =+0.833 491
Clustering coefficient c =0.738 220
Directed clustering coefficient c± =0.976 869
Spectral norm α =756.530
Operator 2-norm ν =379.500
Cyclic eigenvalue π =377.032
Algebraic connectivity a =0.097 813 9
Spectral separation 1[A] / λ2[A]| =2.453 60
Reciprocity y =0.859 446
Non-bipartivity bA =0.921 608
Normalized non-bipartivity bN =0.058 912 5
Algebraic non-bipartivity χ =0.097 819 1
Spectral bipartite frustration bK =0.000 494 812
Controllability C =2,262
Relative controllability Cr =0.278 229

Plots

Fruchterman–Reingold graph drawing

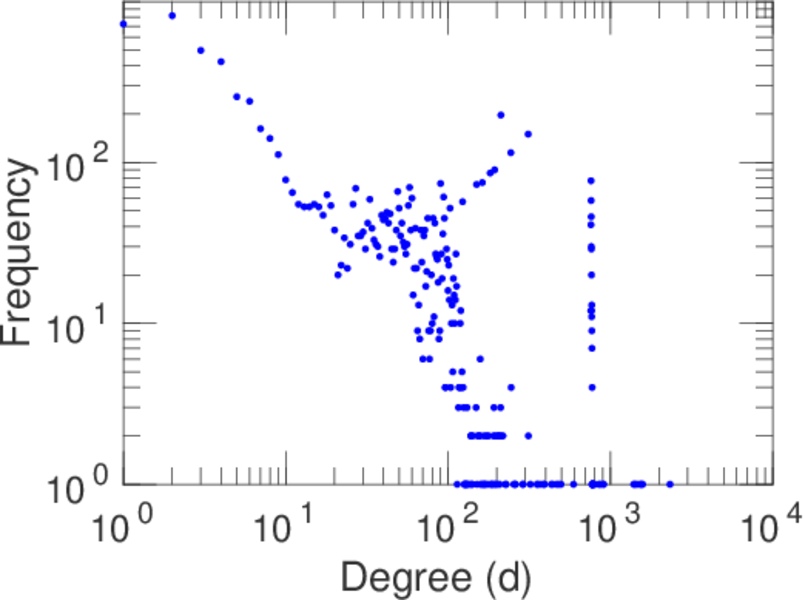

Degree distribution

Cumulative degree distribution

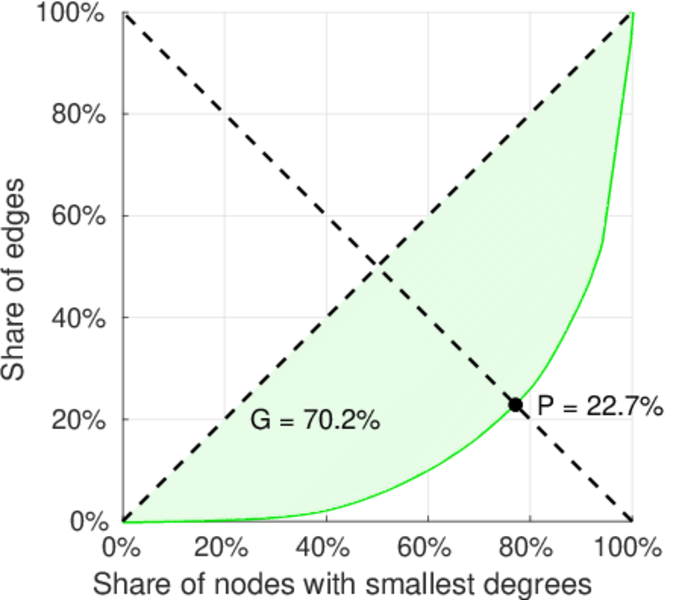

Lorenz curve

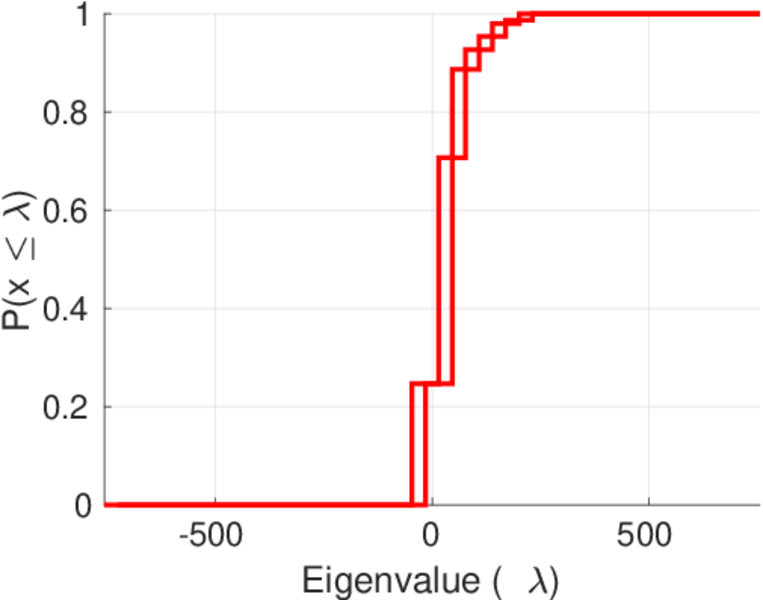

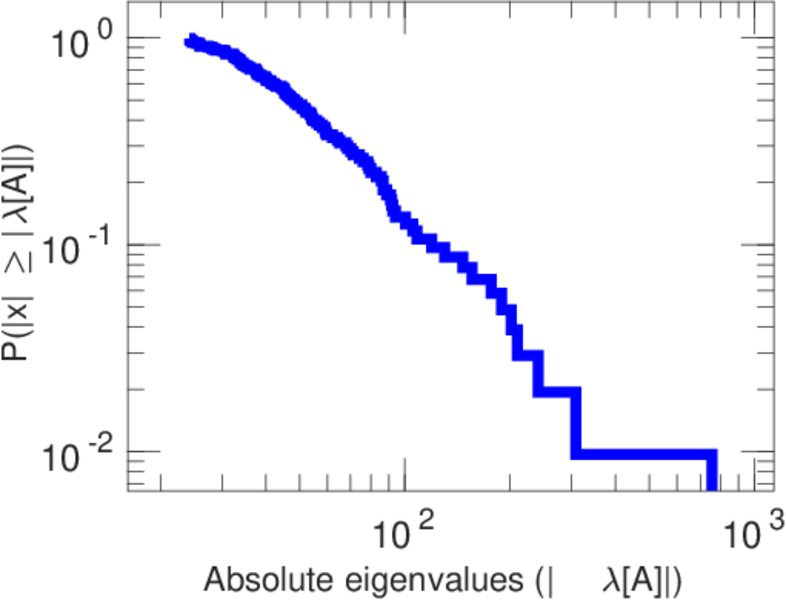

Spectral distribution of the adjacency matrix

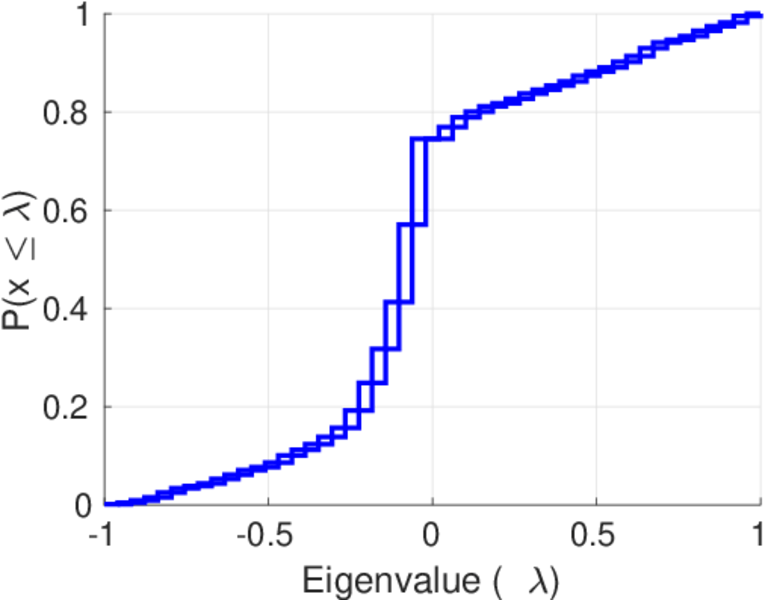

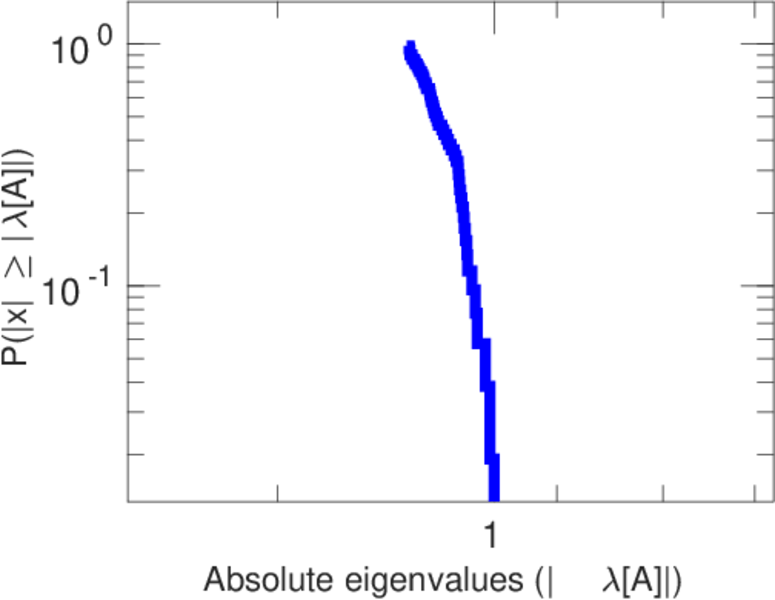

Spectral distribution of the normalized adjacency matrix

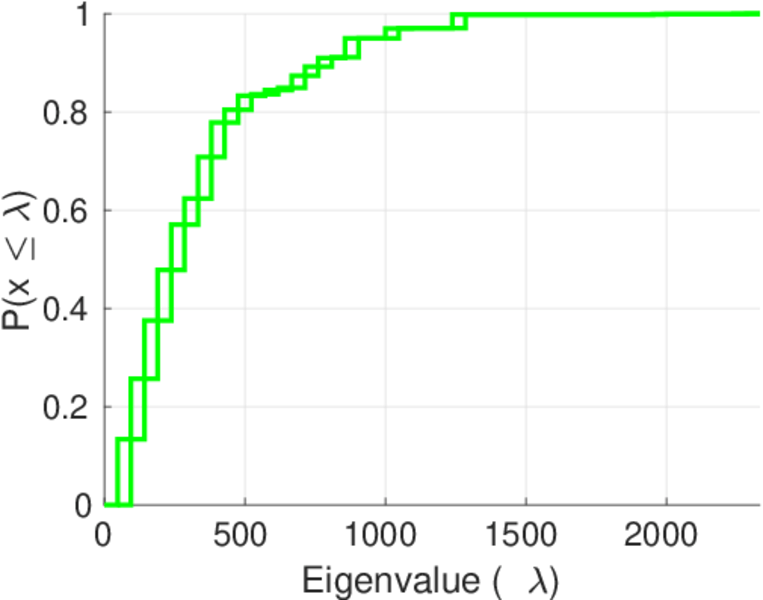

Spectral distribution of the Laplacian

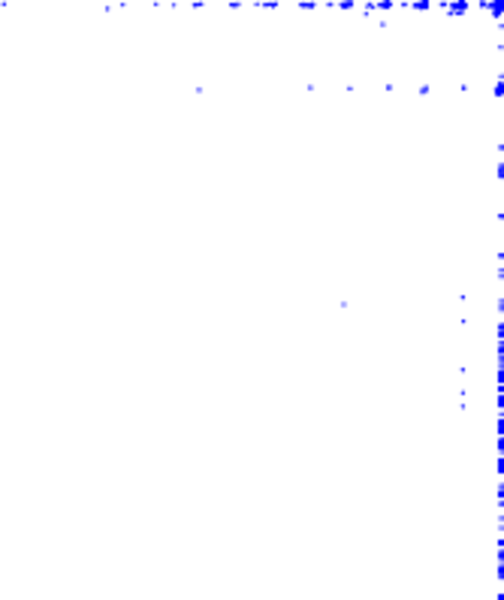

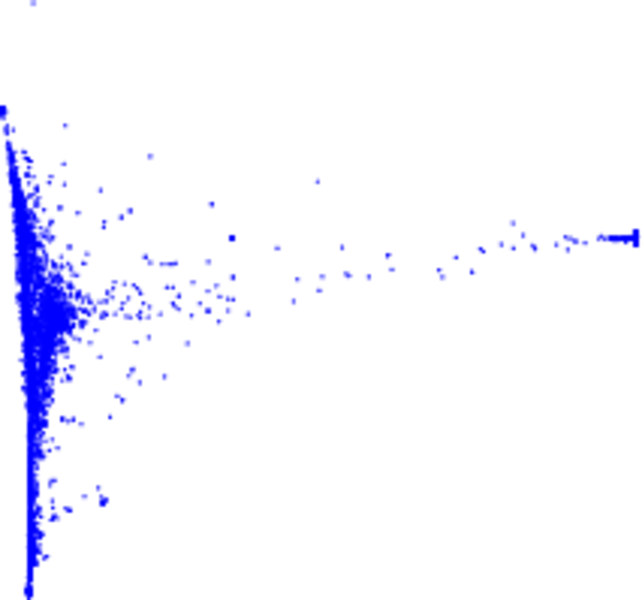

Spectral graph drawing based on the adjacency matrix

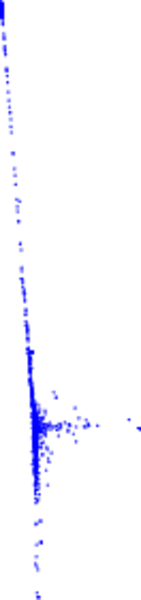

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

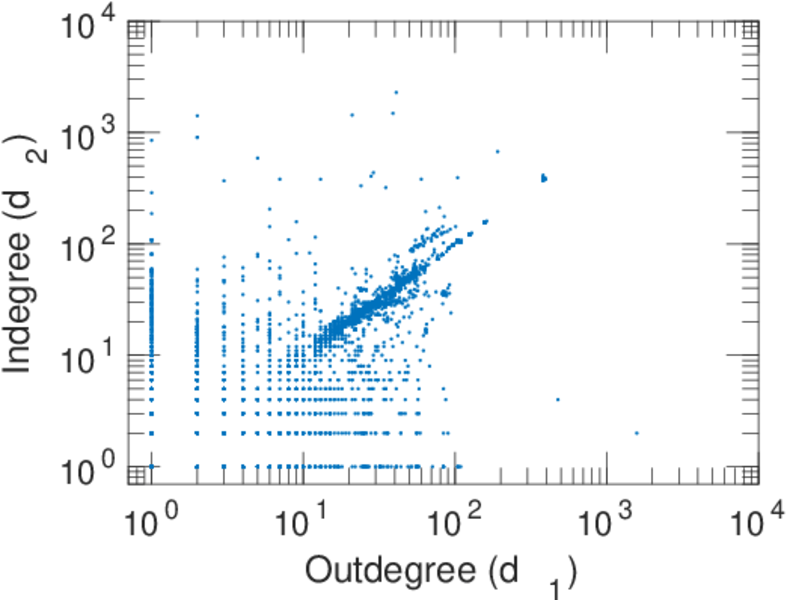

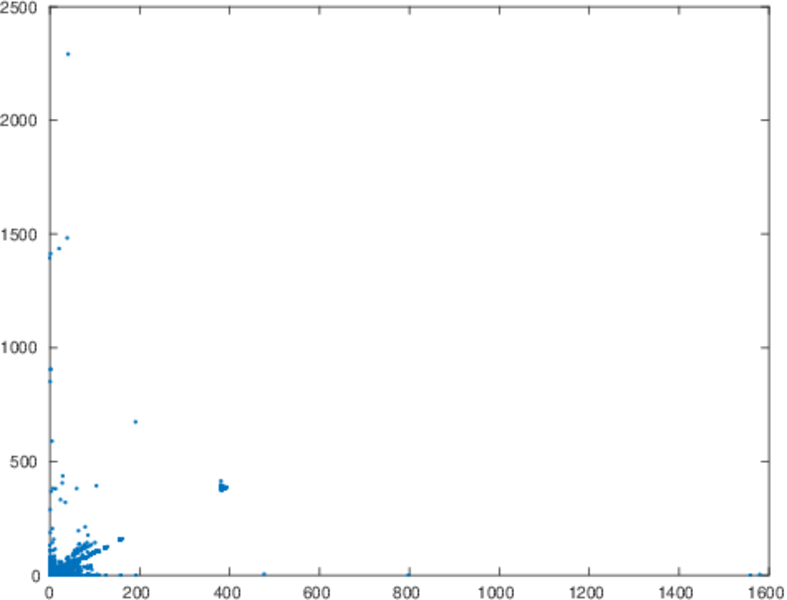

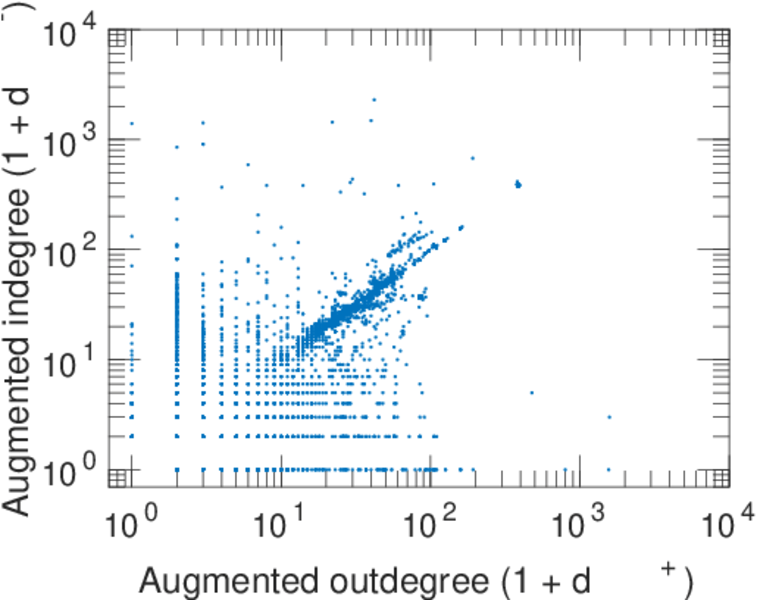

In/outdegree scatter plot

Clustering coefficient distribution

Average neighbor degree distribution

SynGraphy

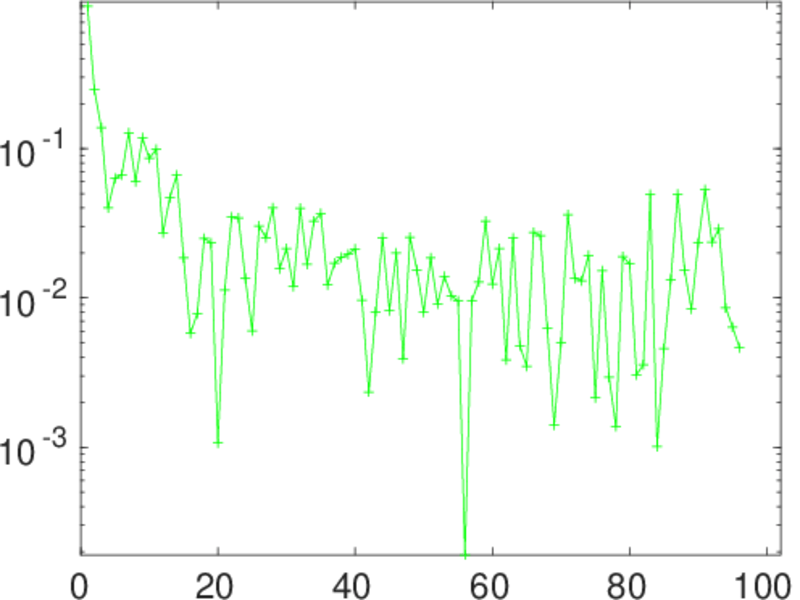

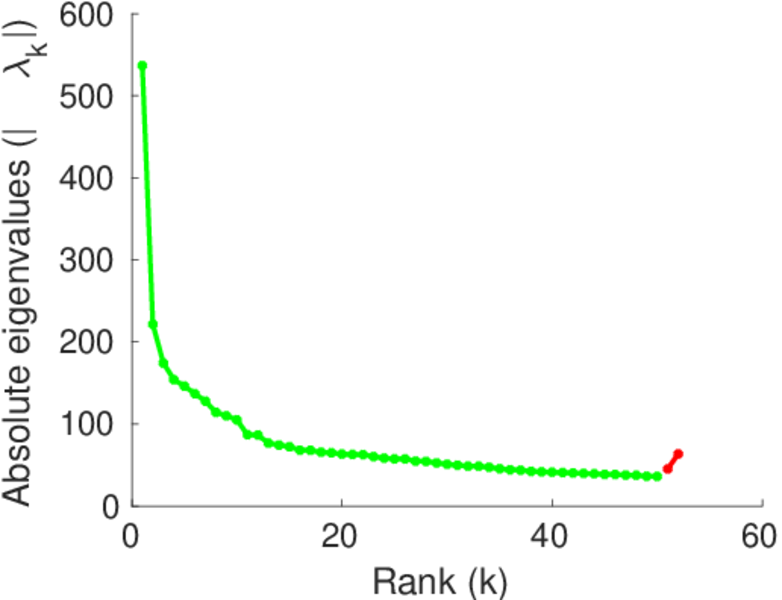

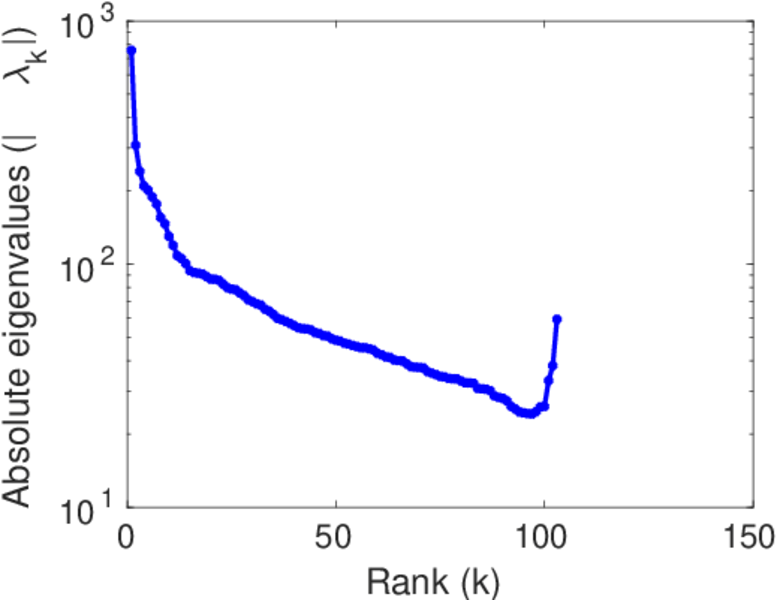

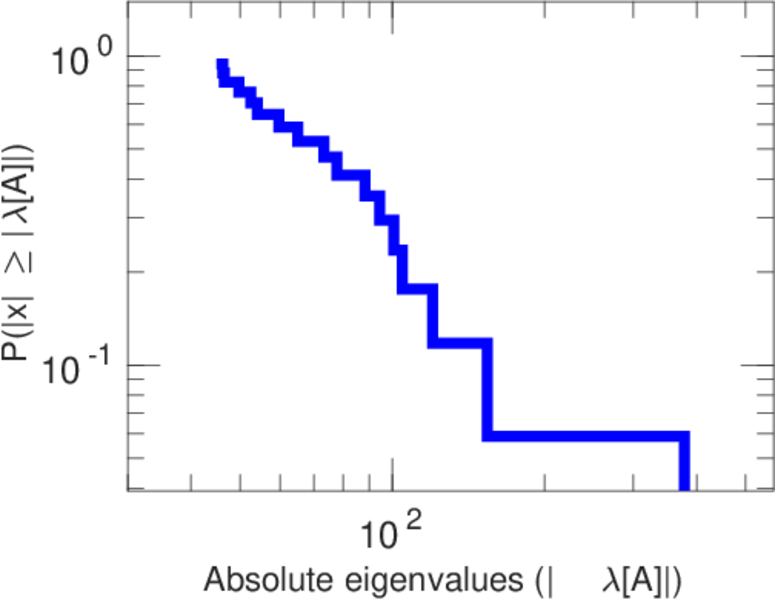

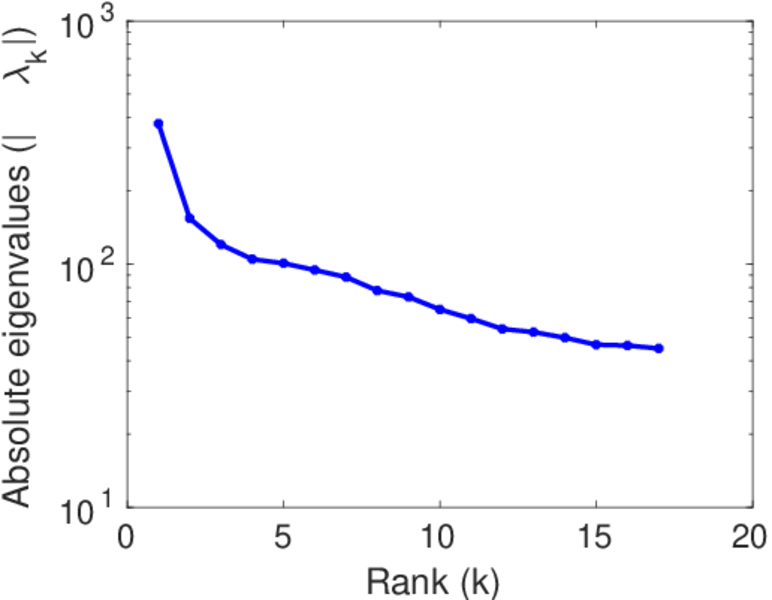

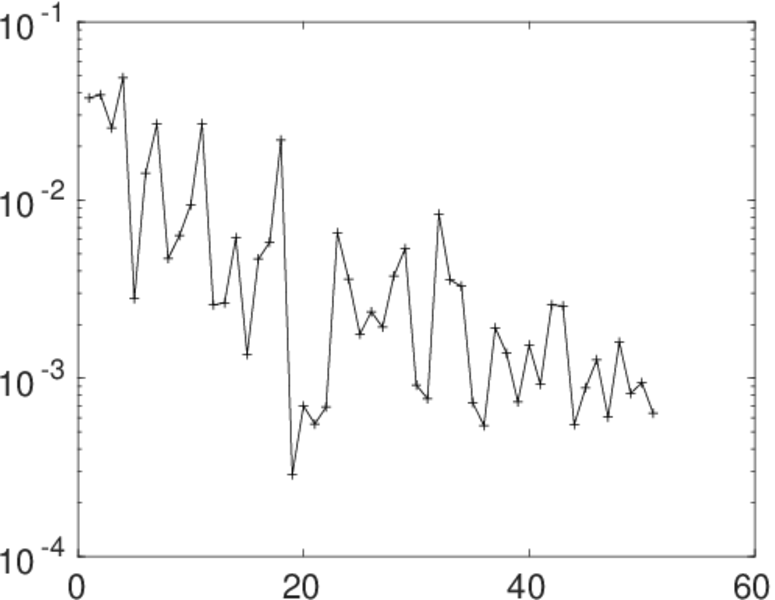

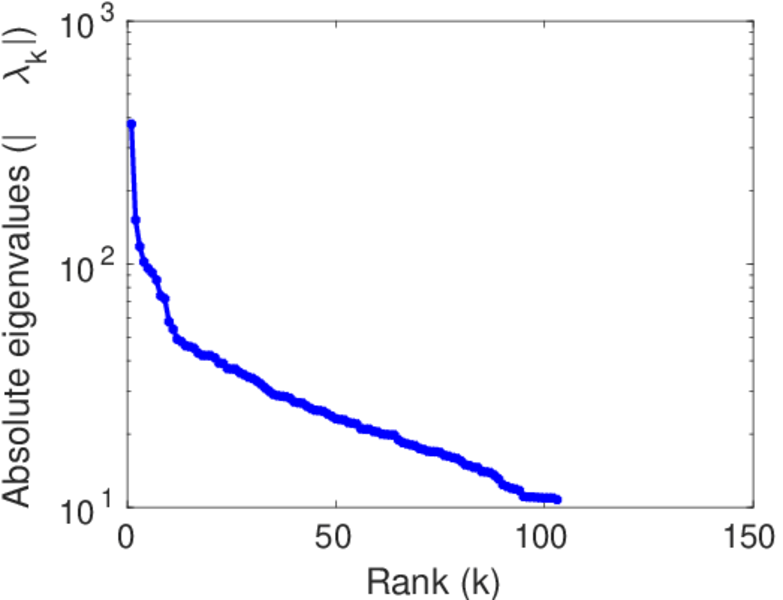

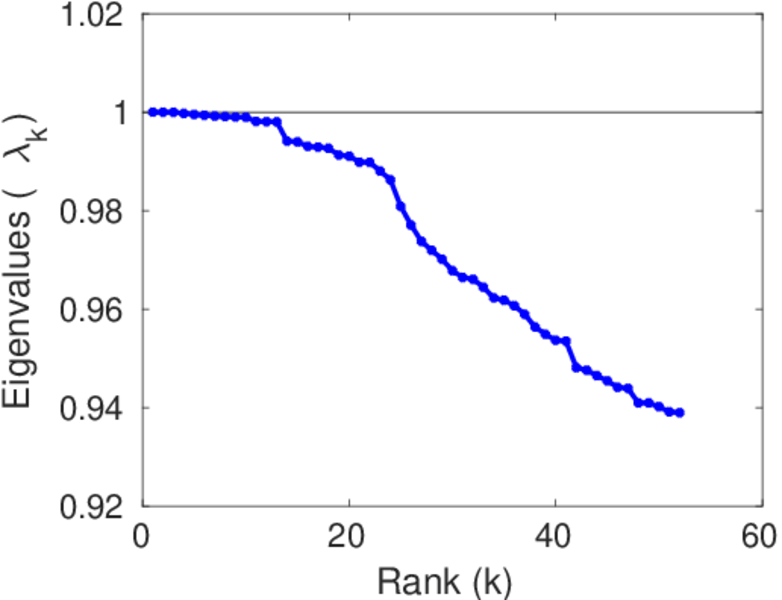

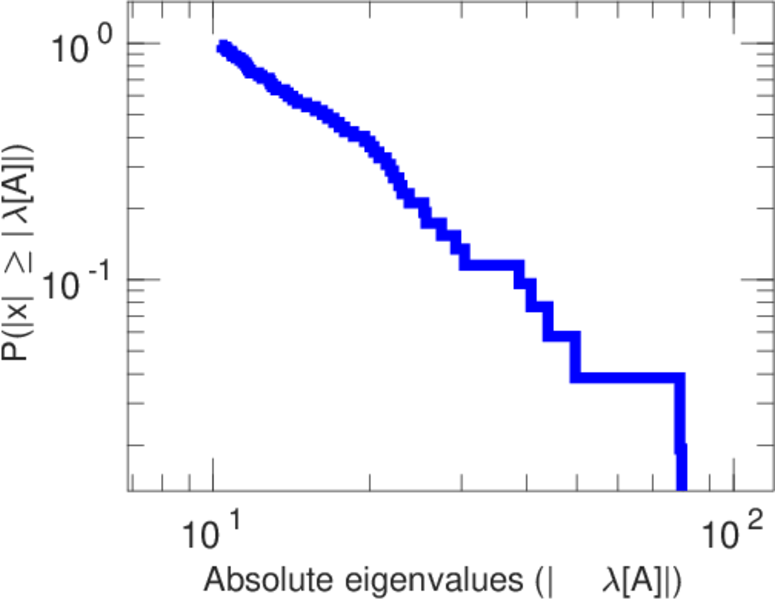

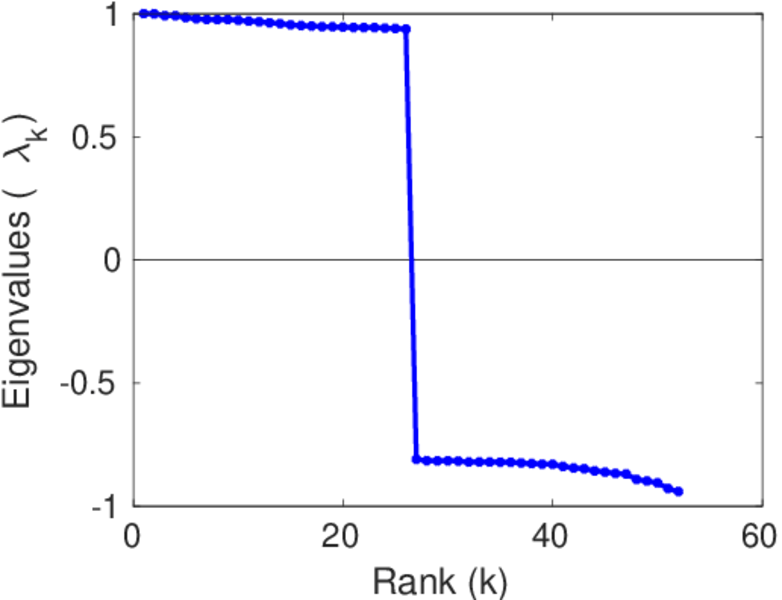

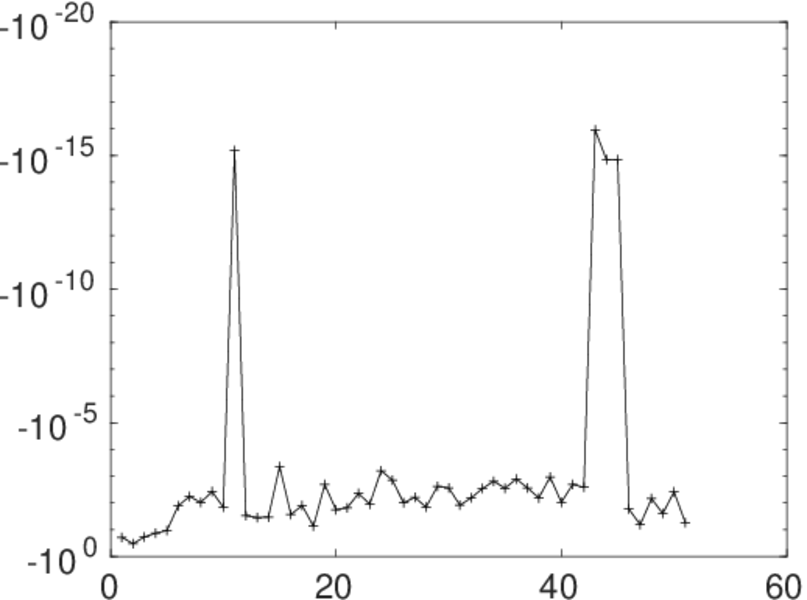

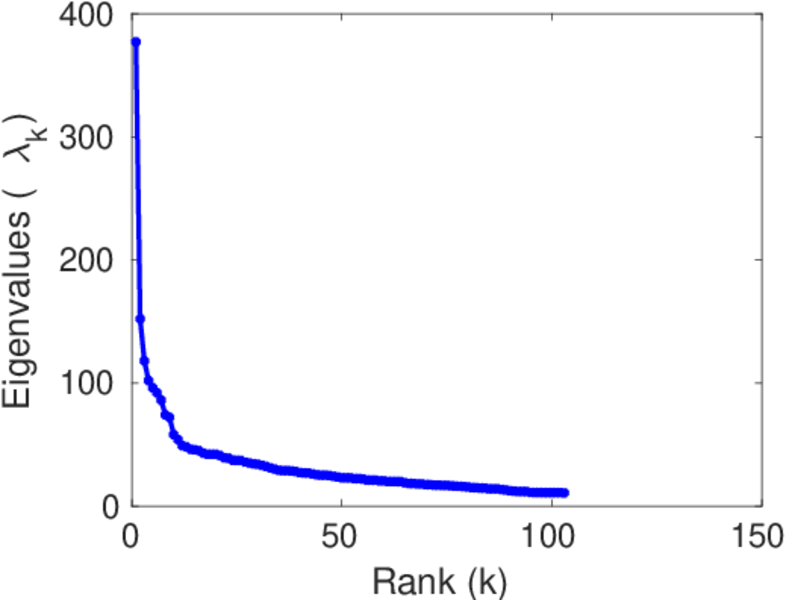

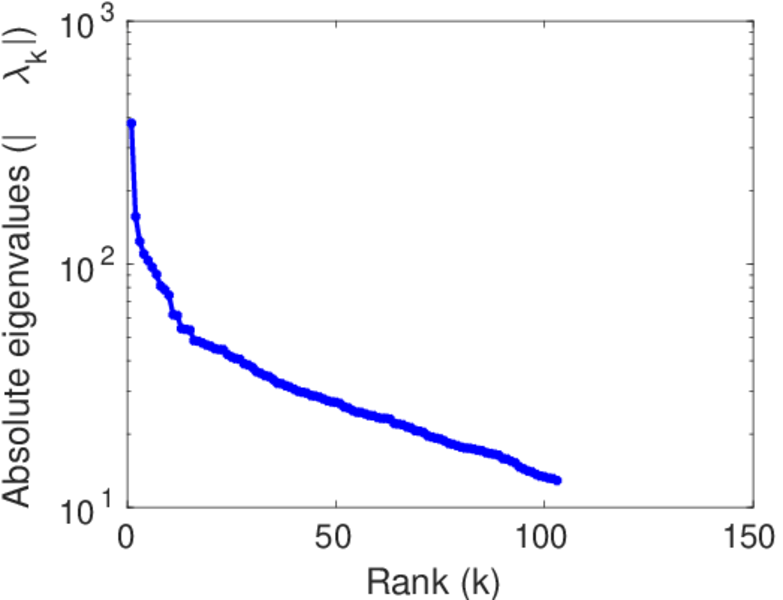

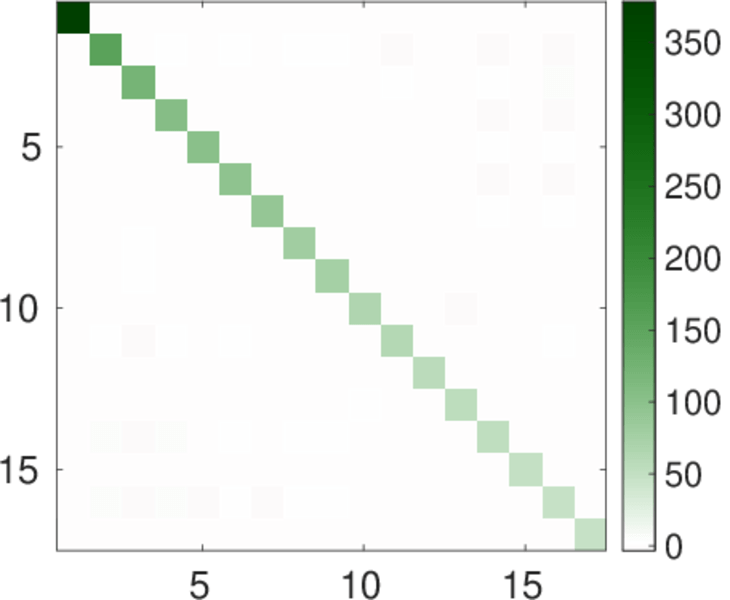

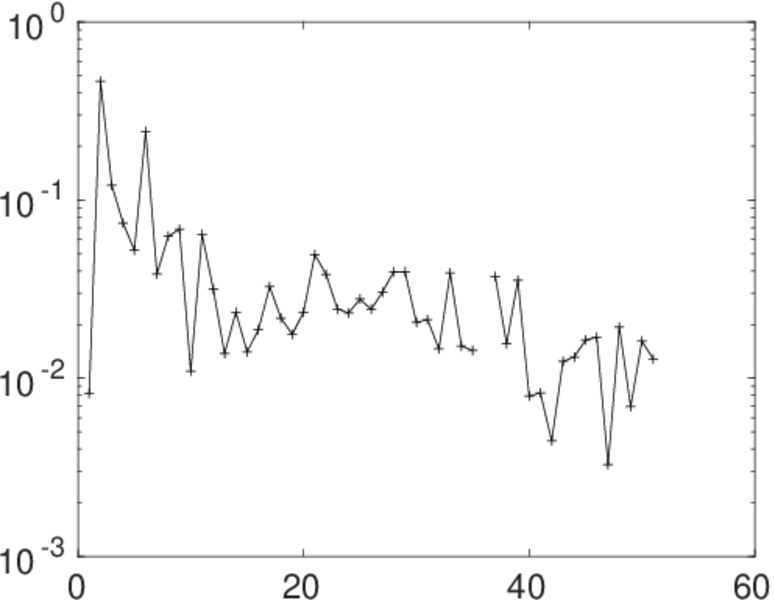

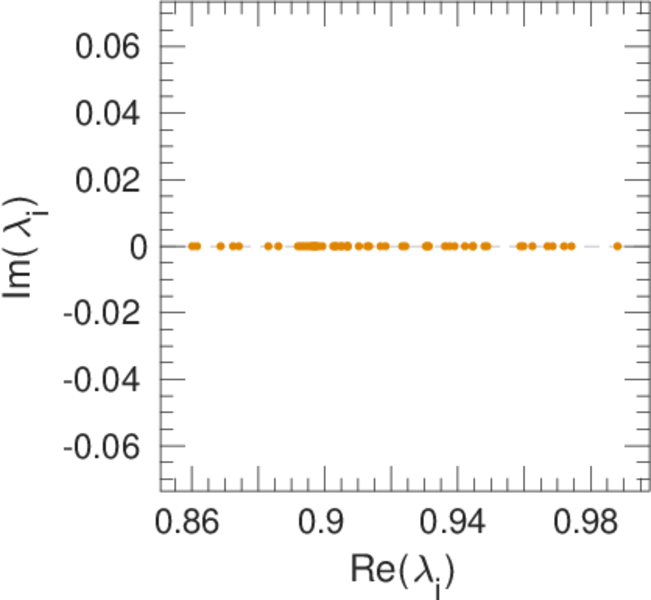

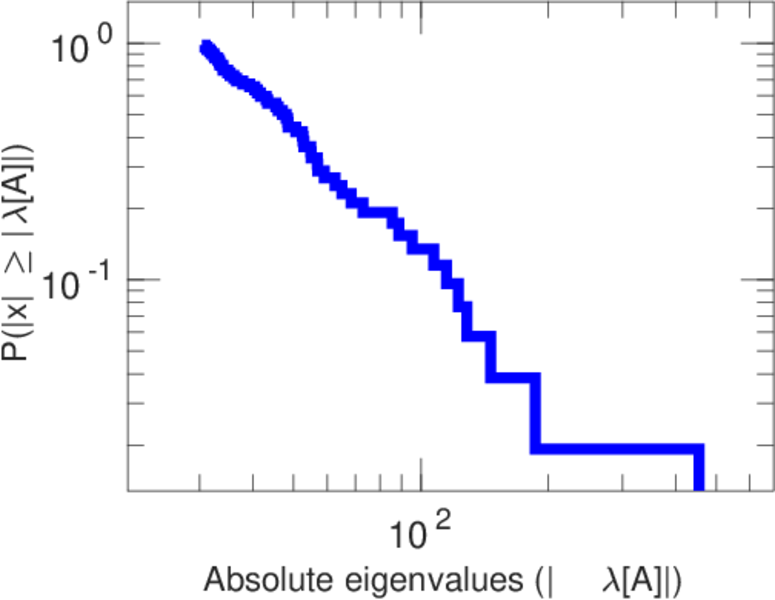

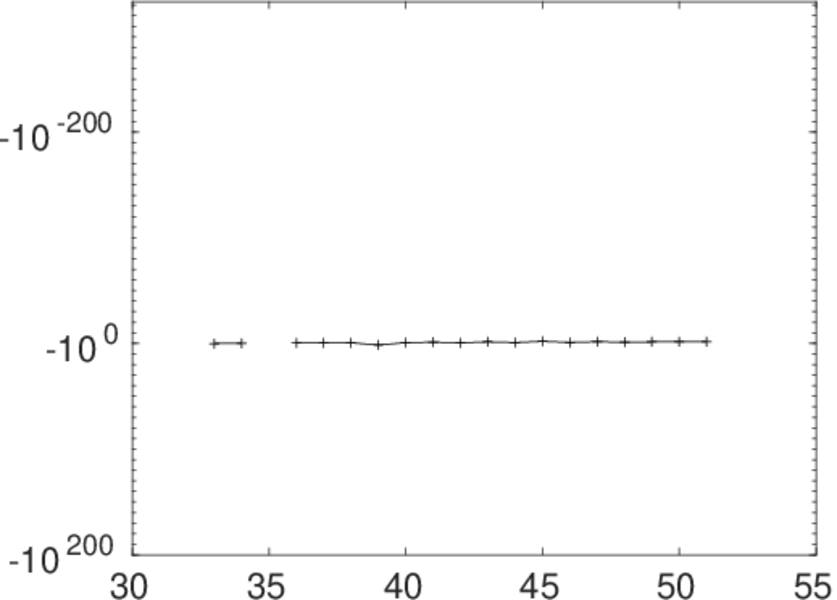

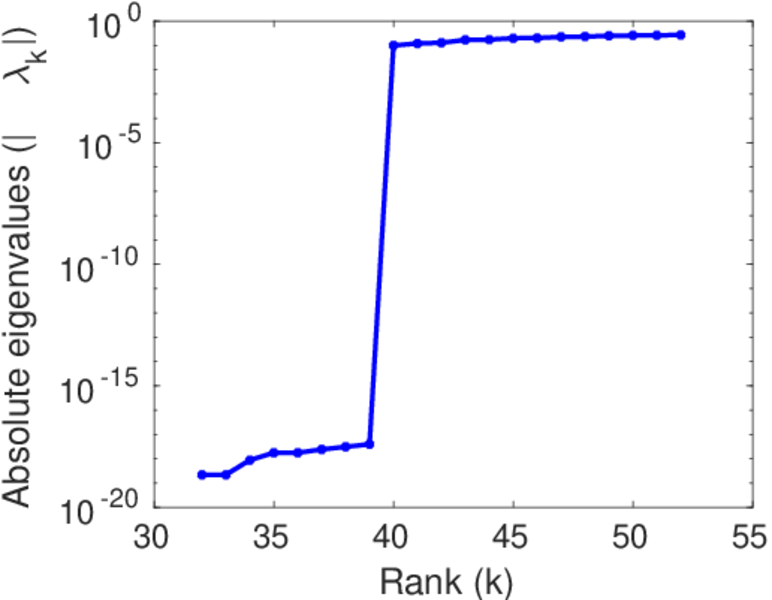

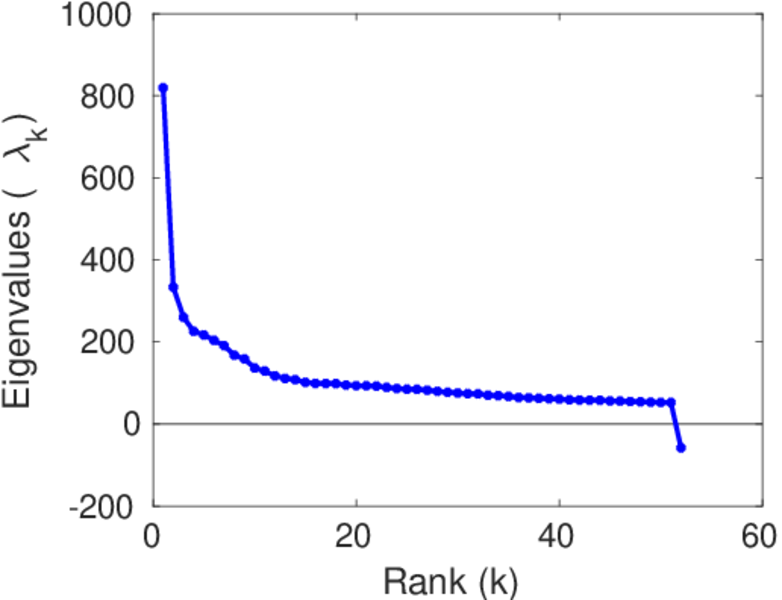

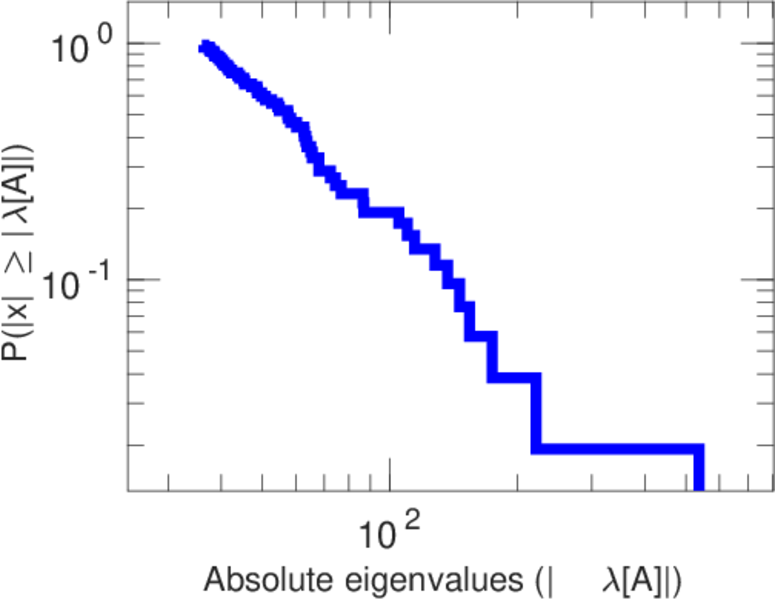

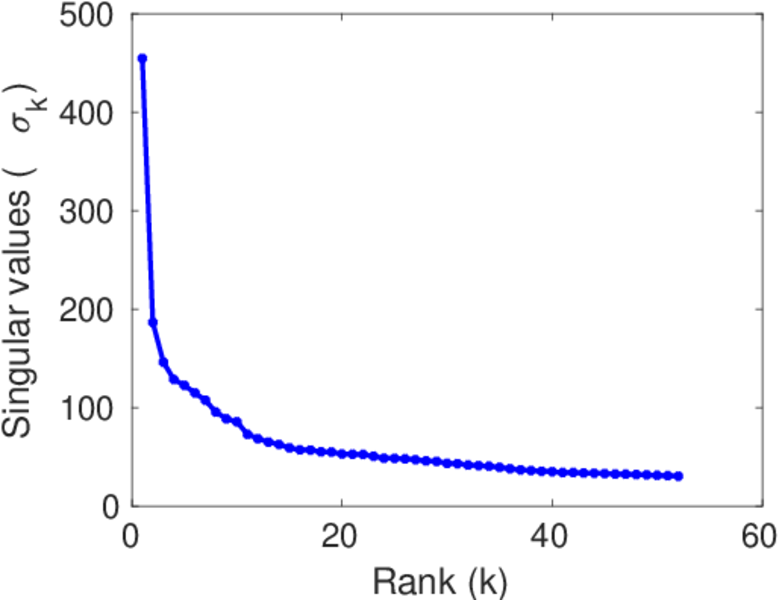

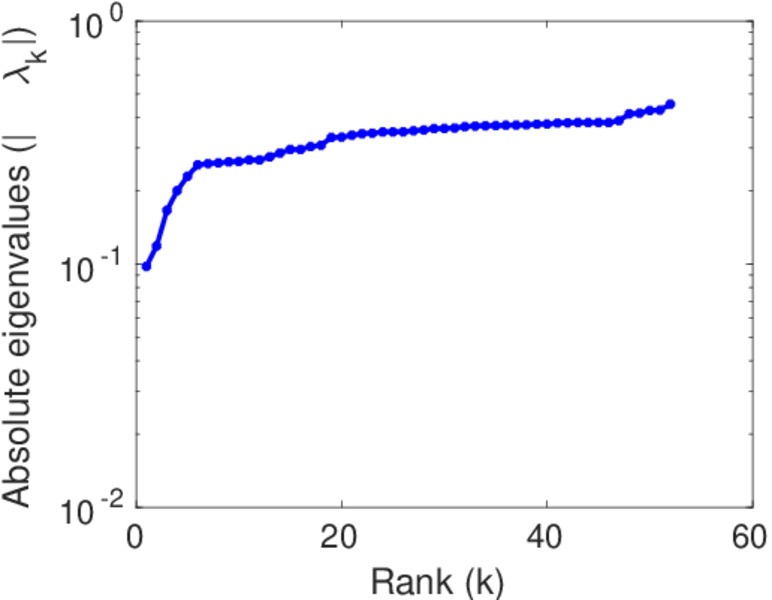

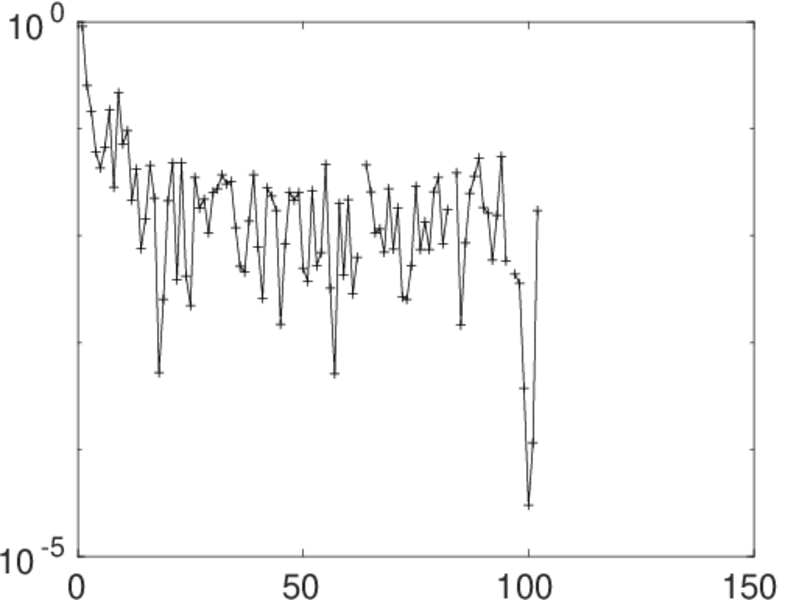

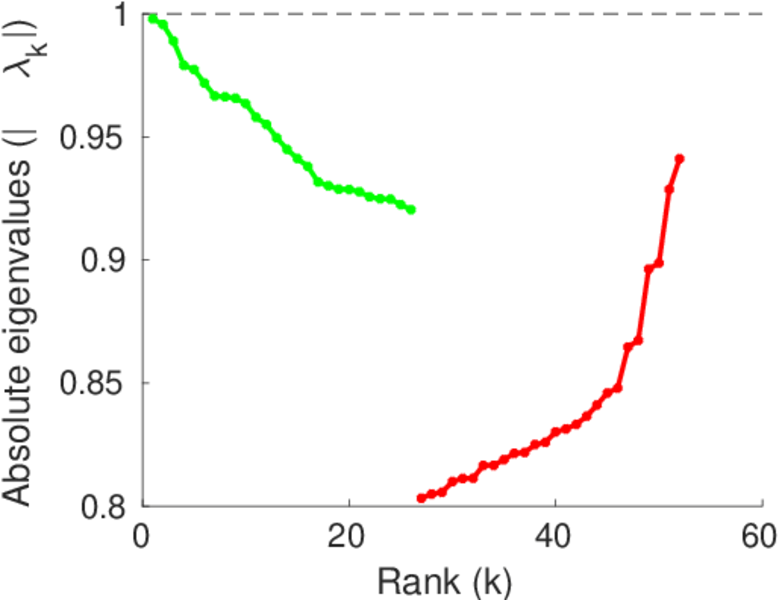

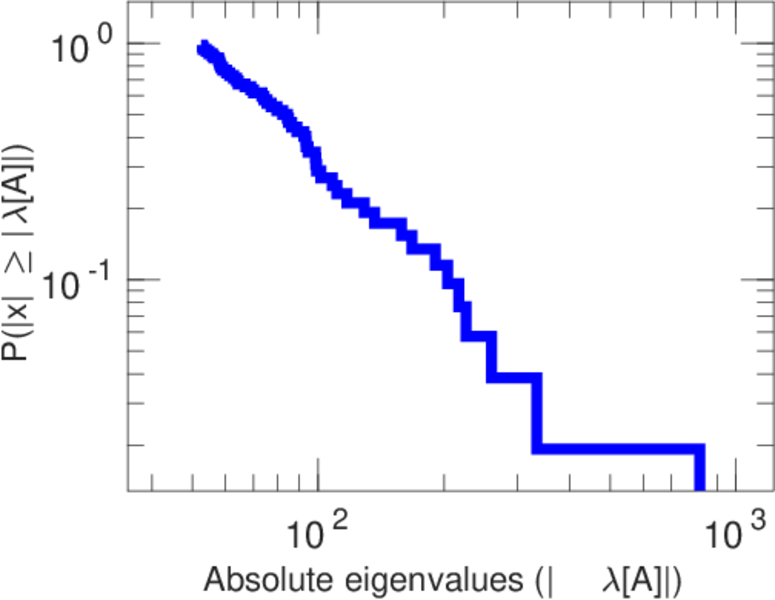

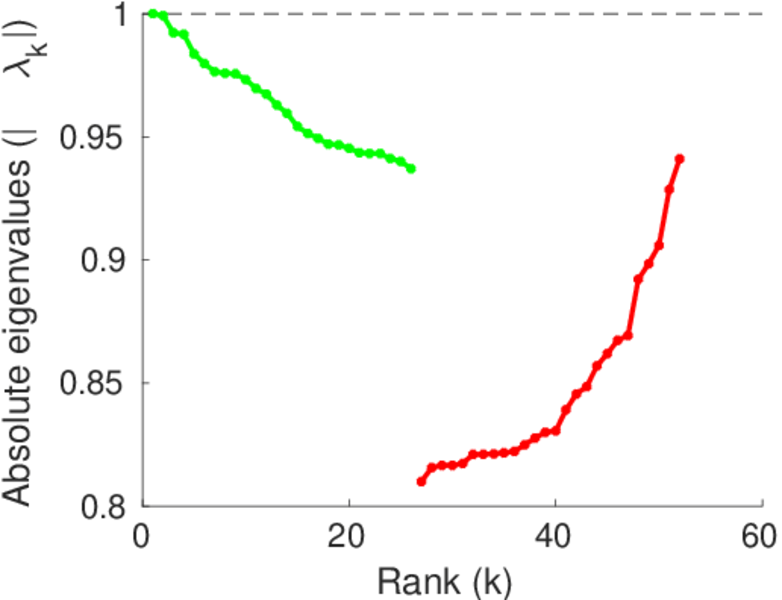

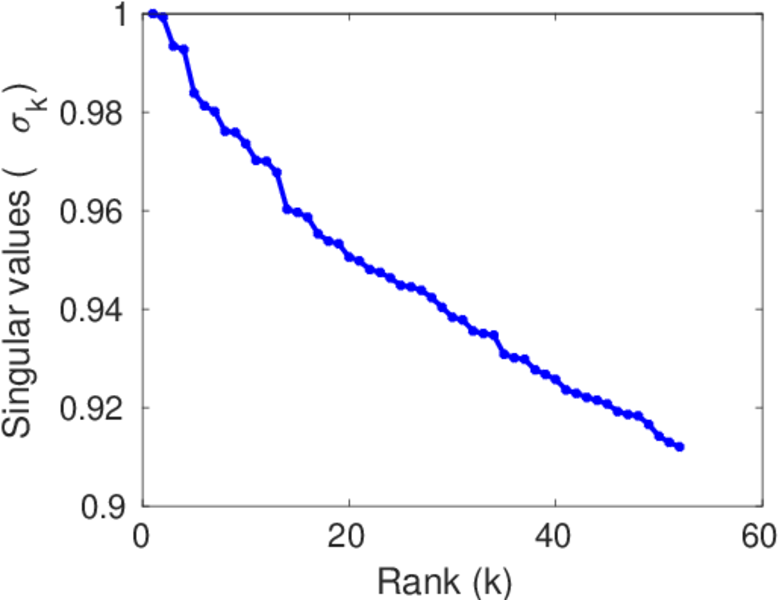

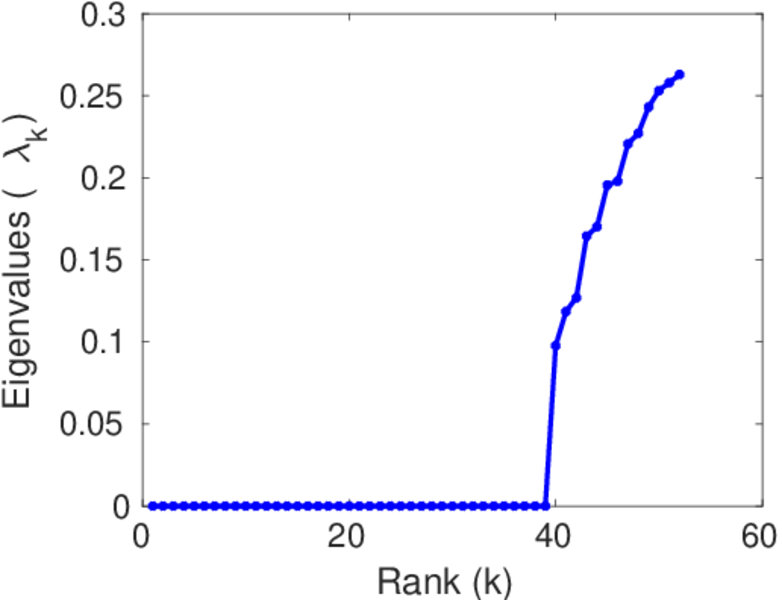

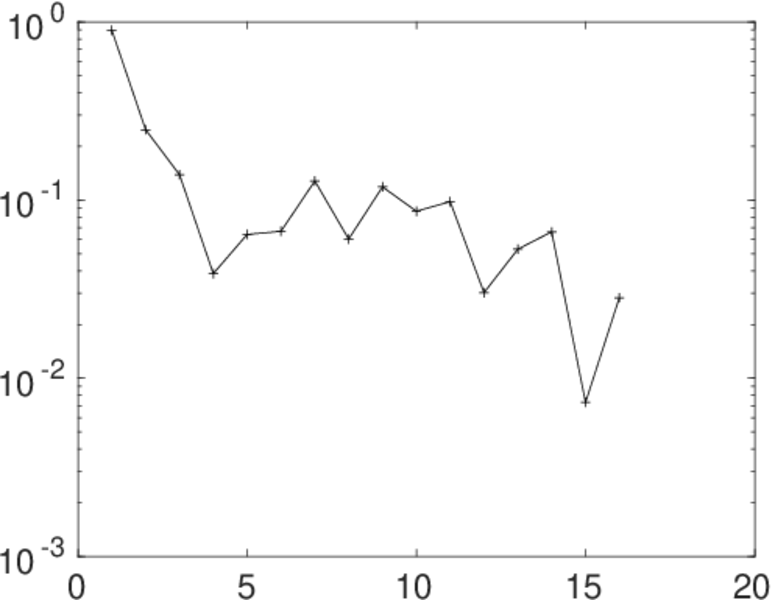

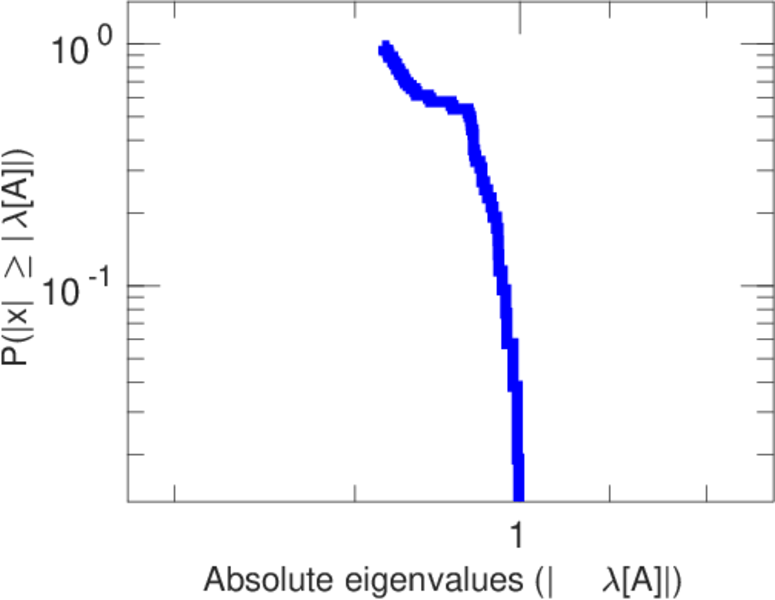

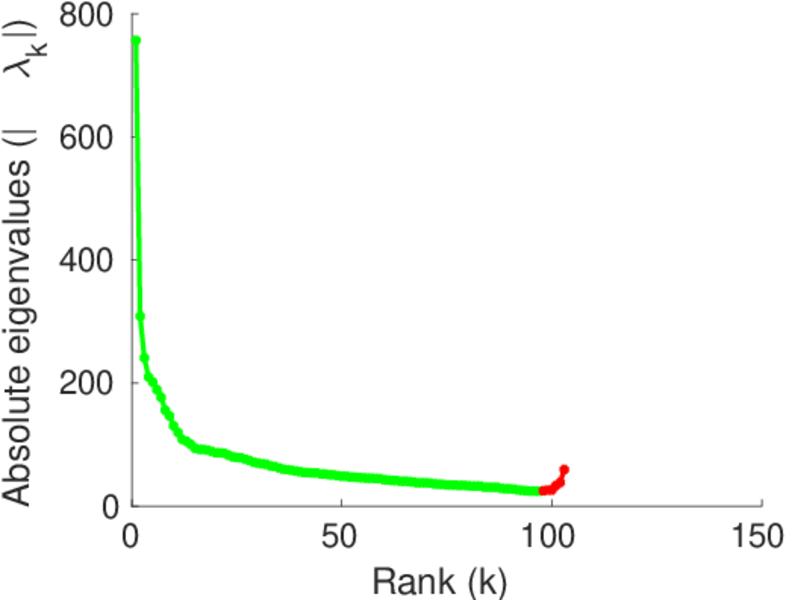

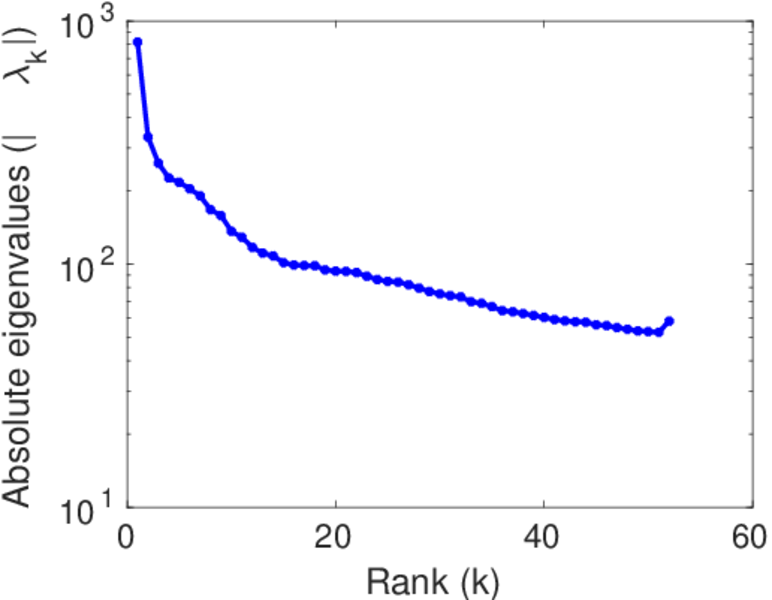

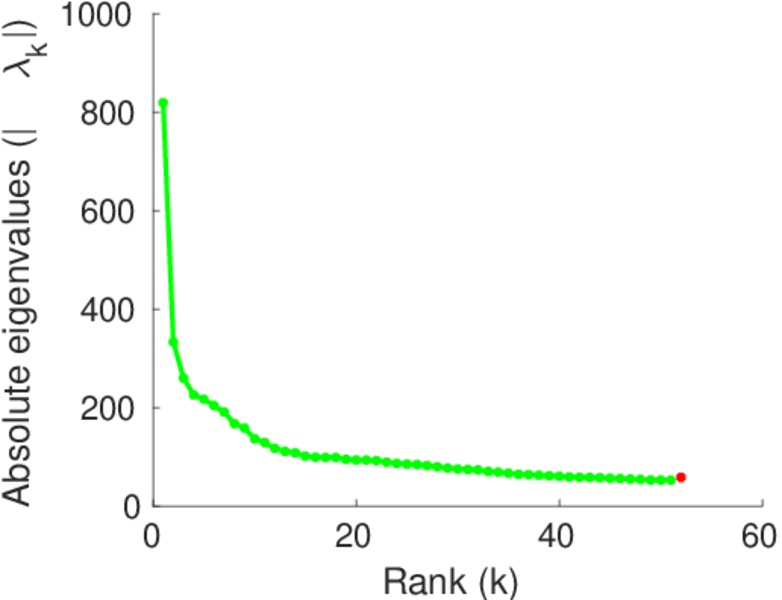

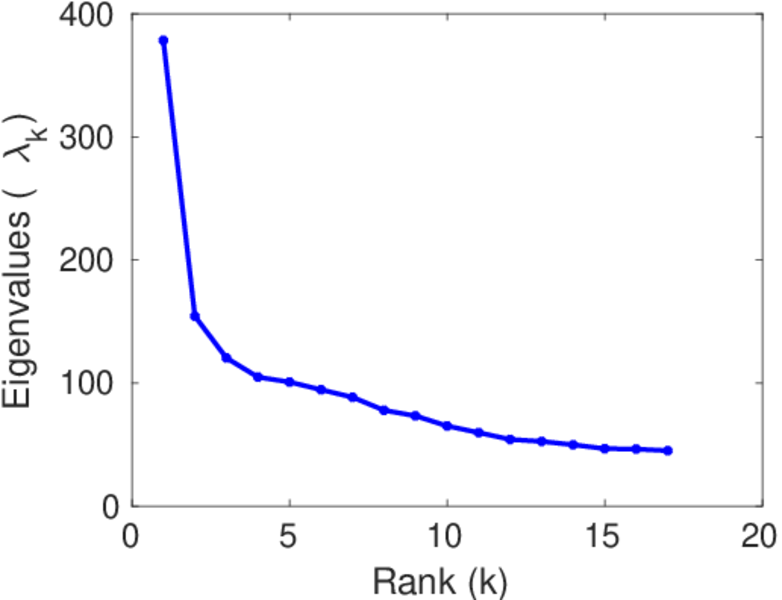

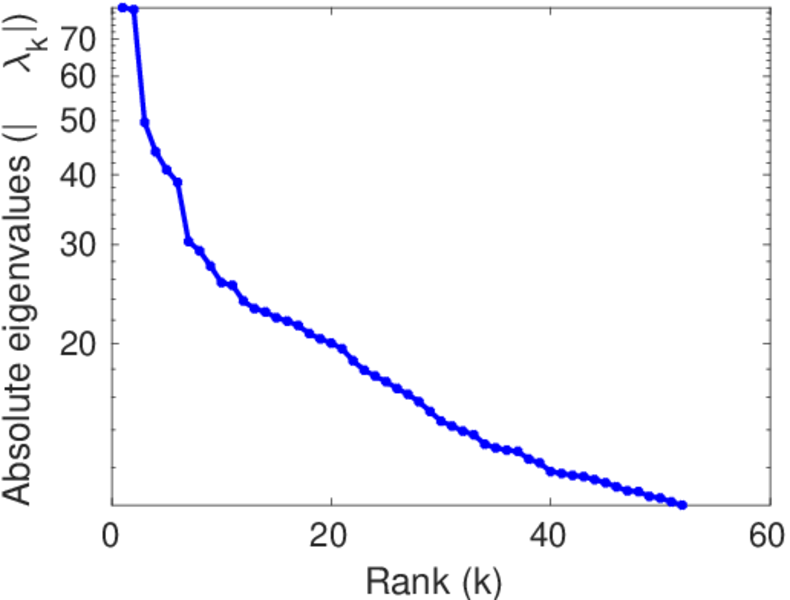

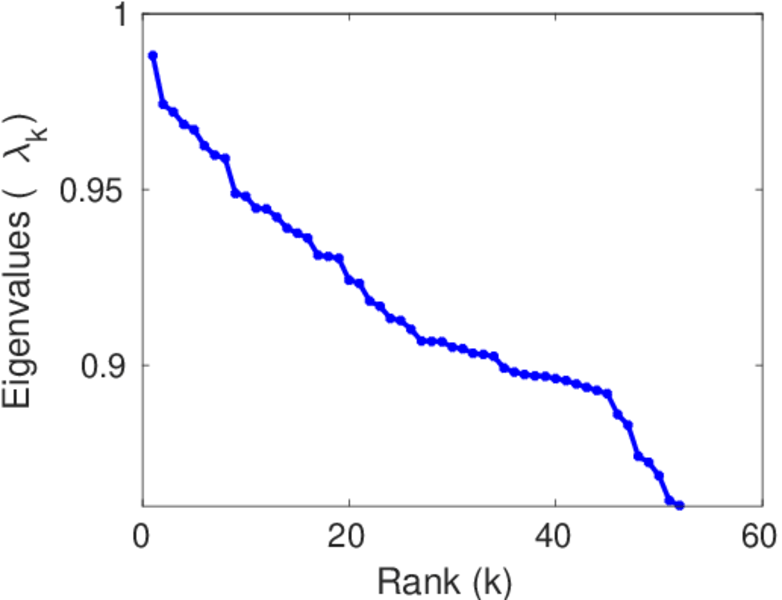

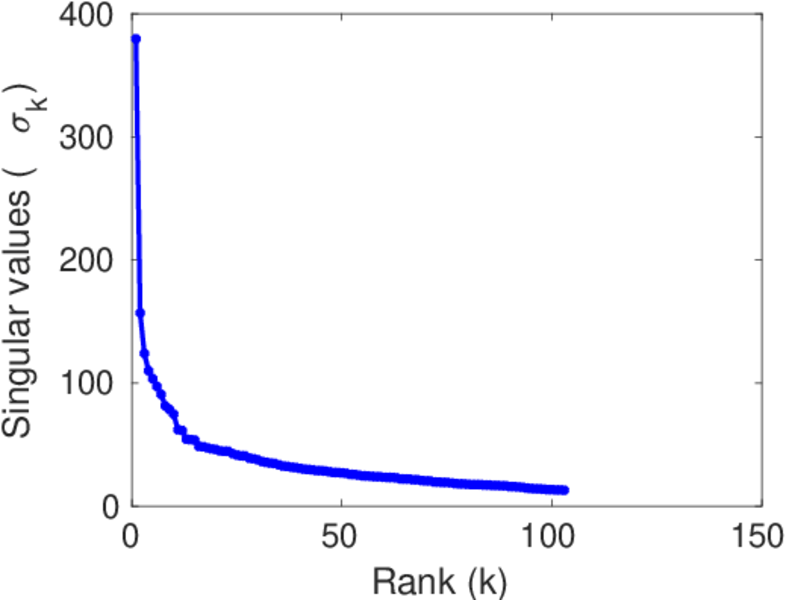

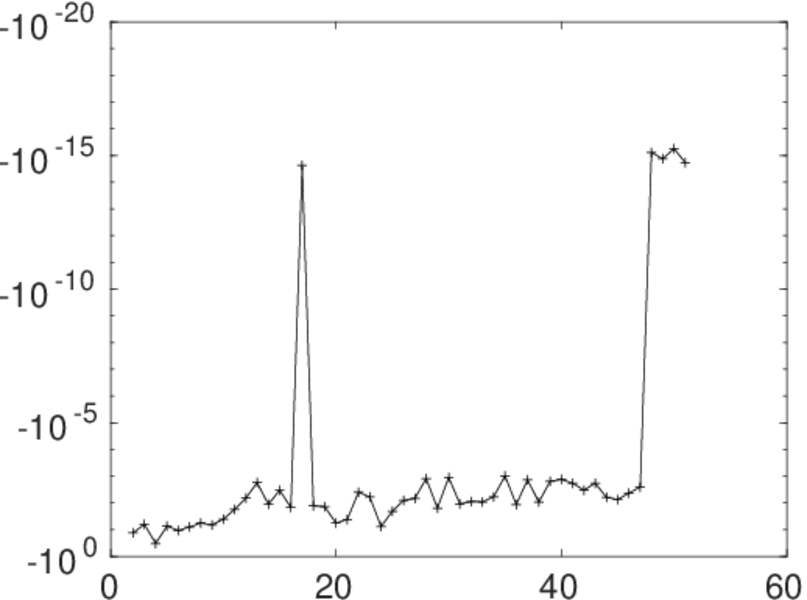

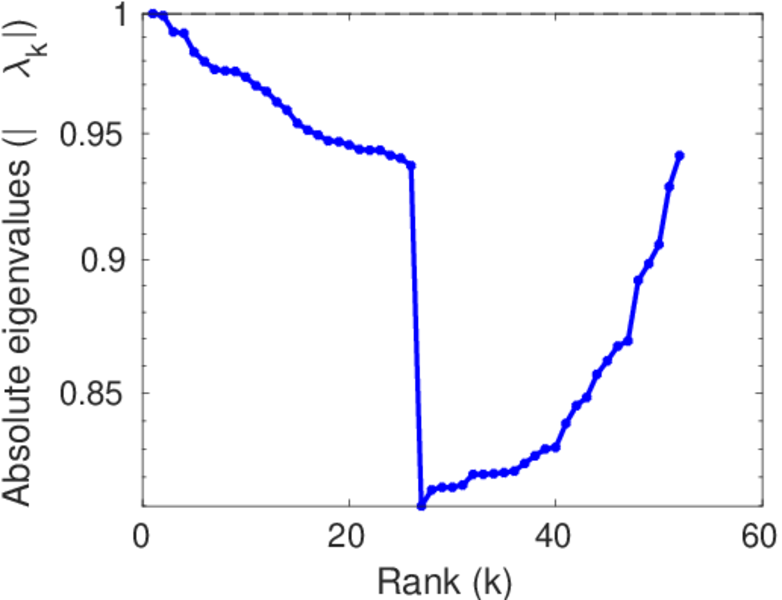

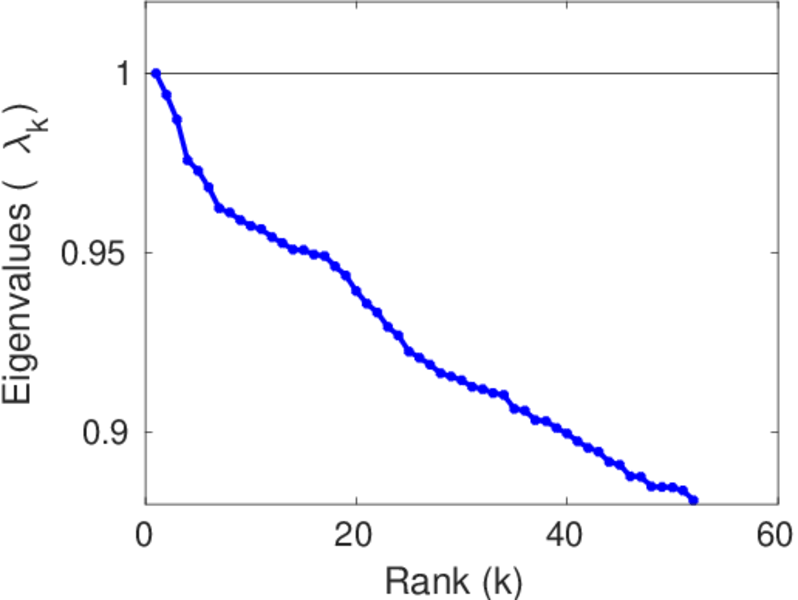

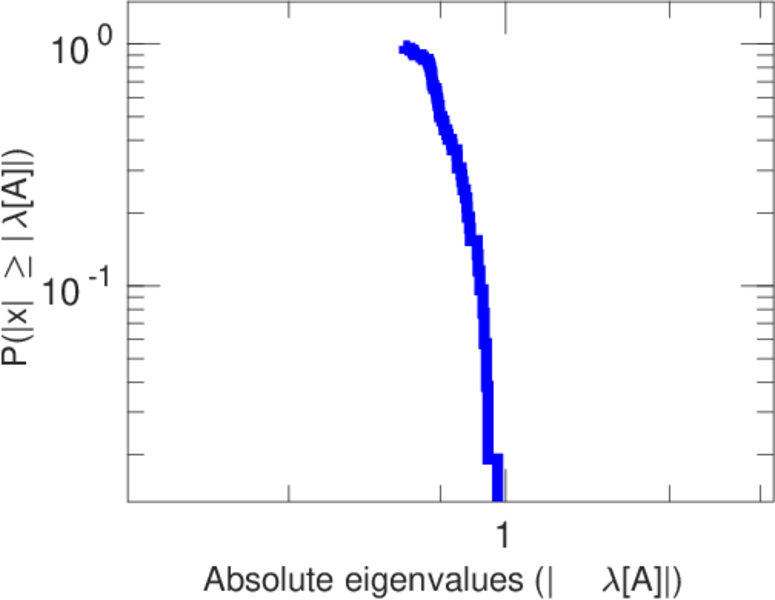

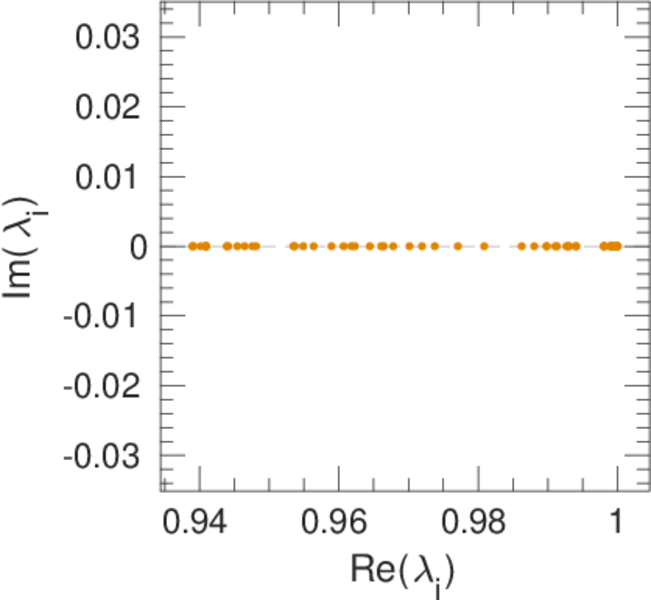

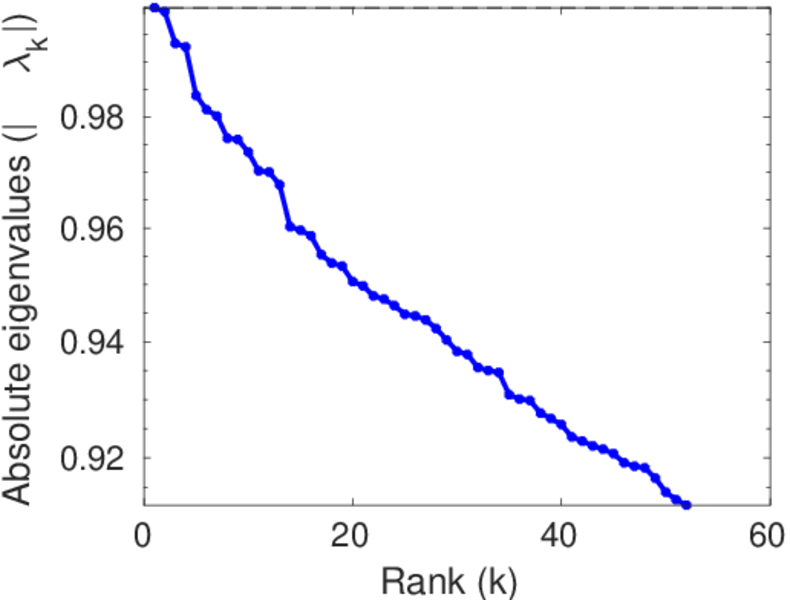

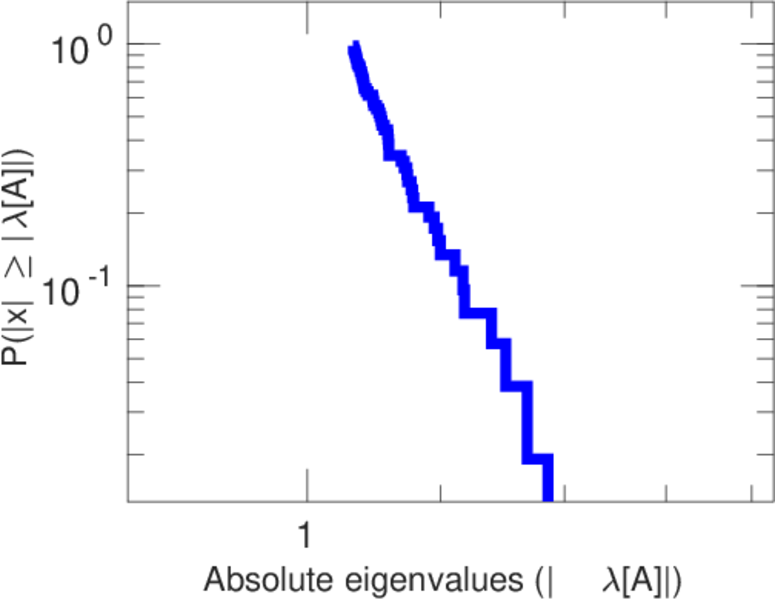

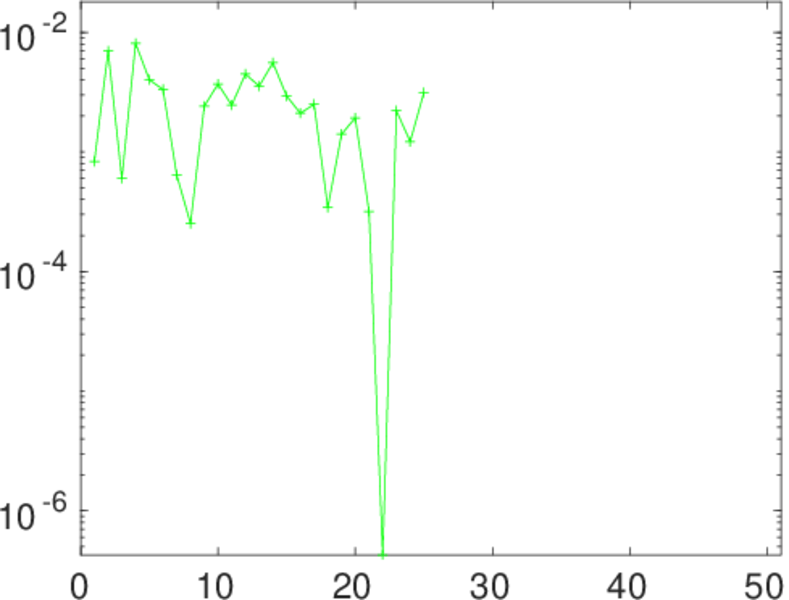

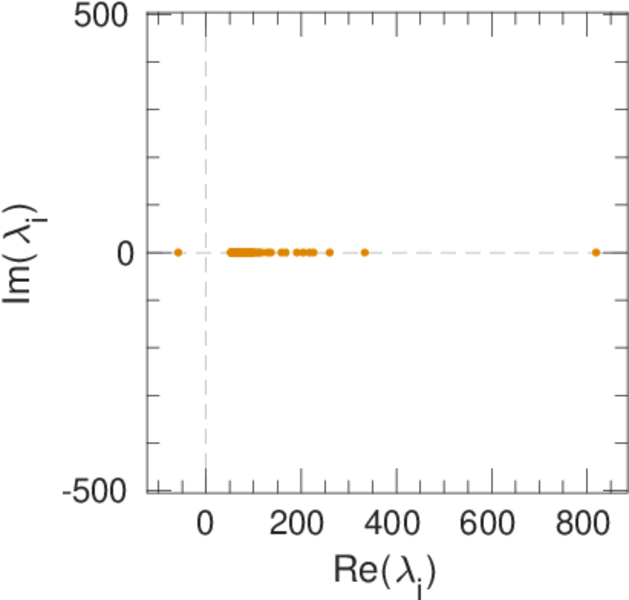

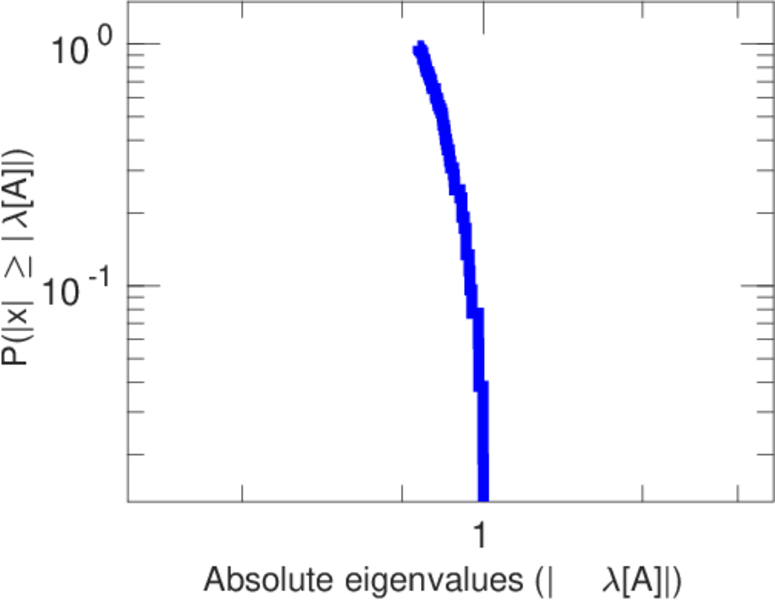

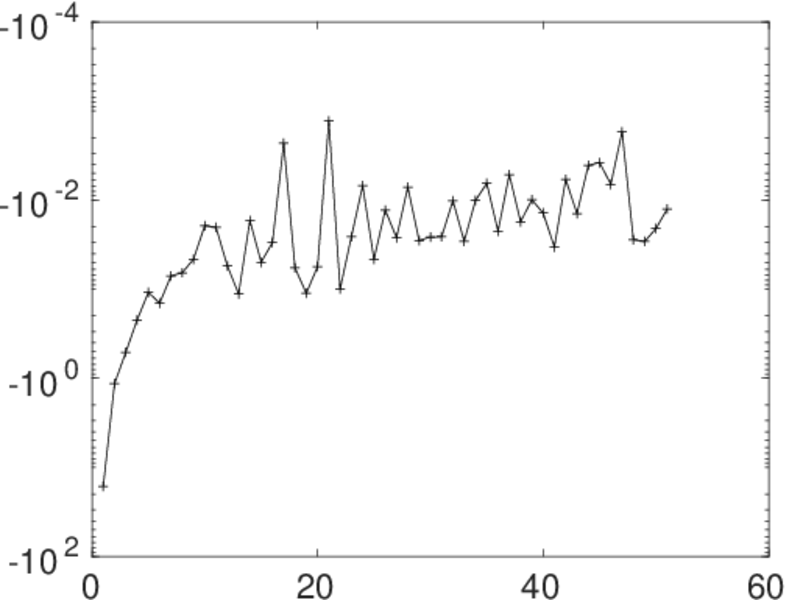

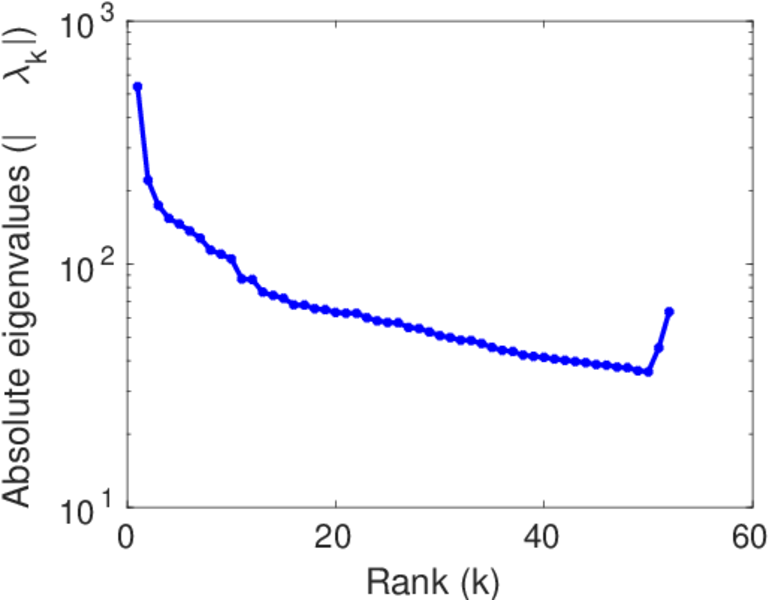

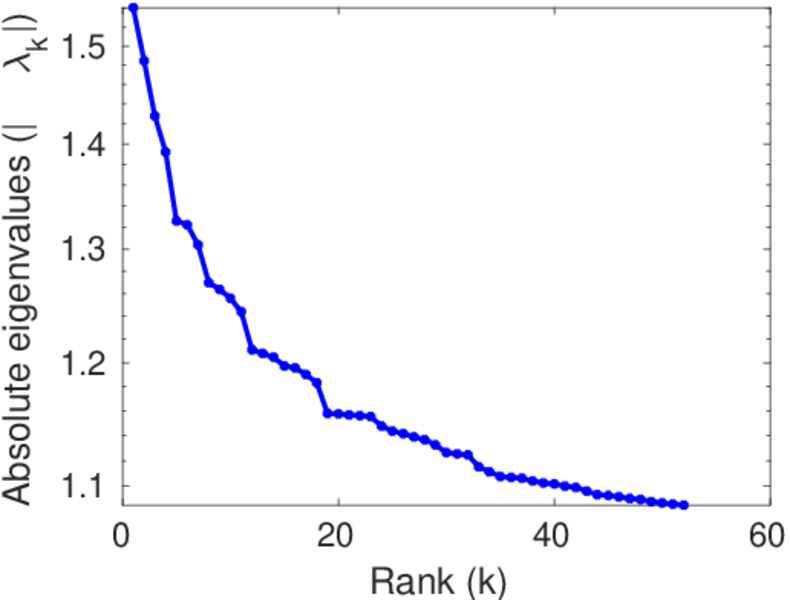

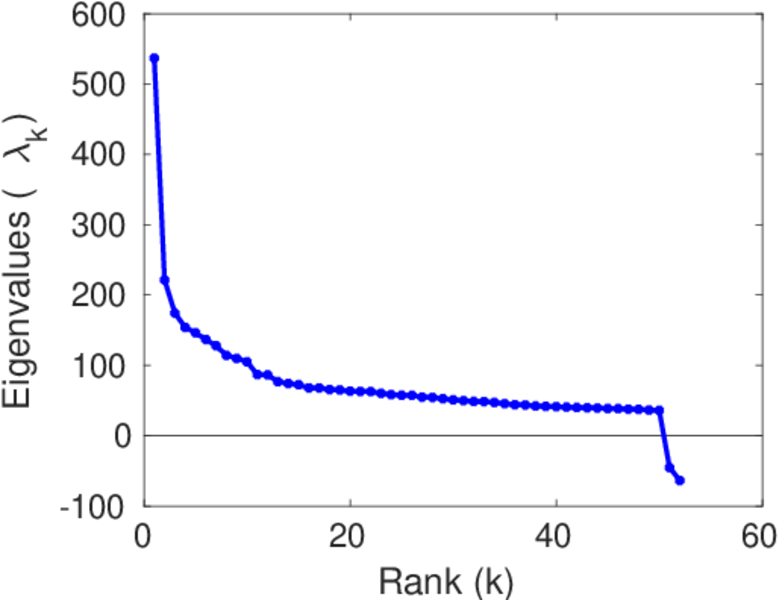

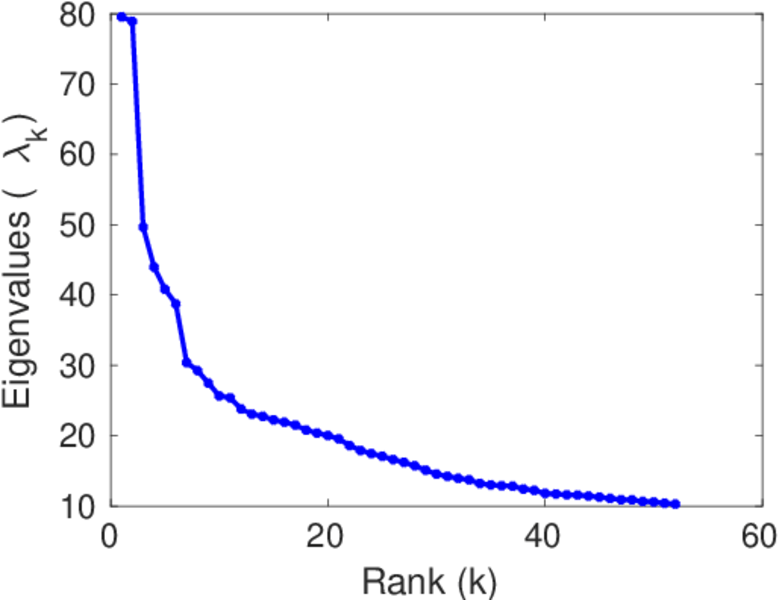

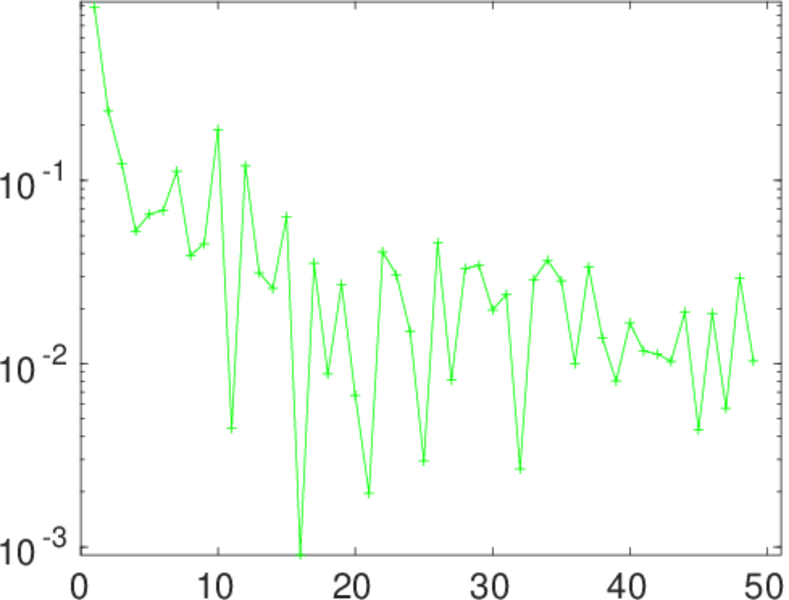

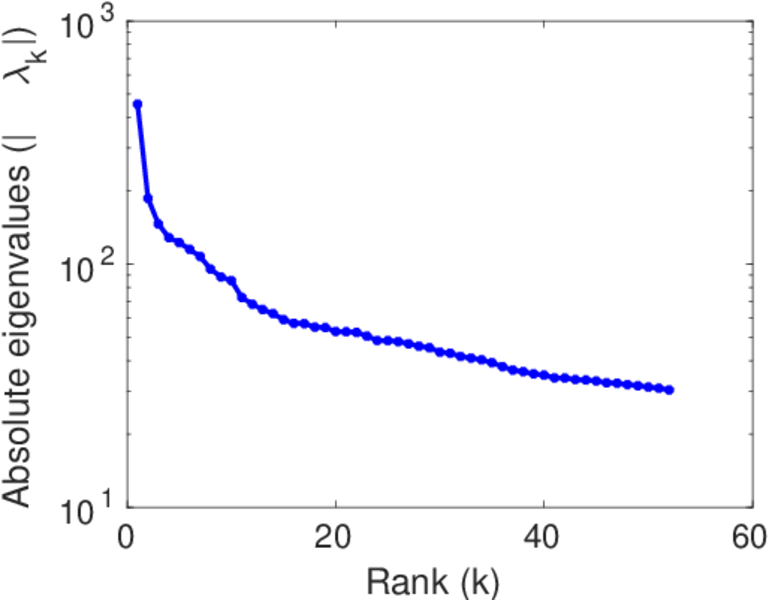

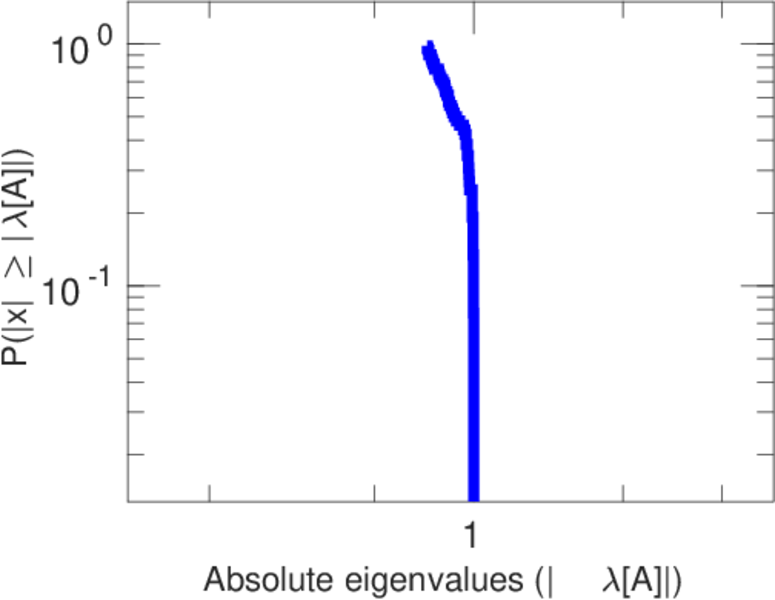

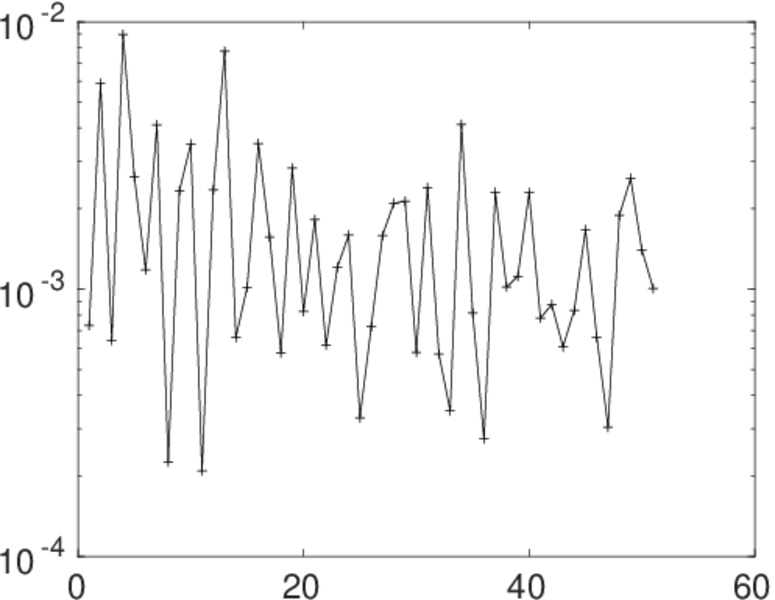

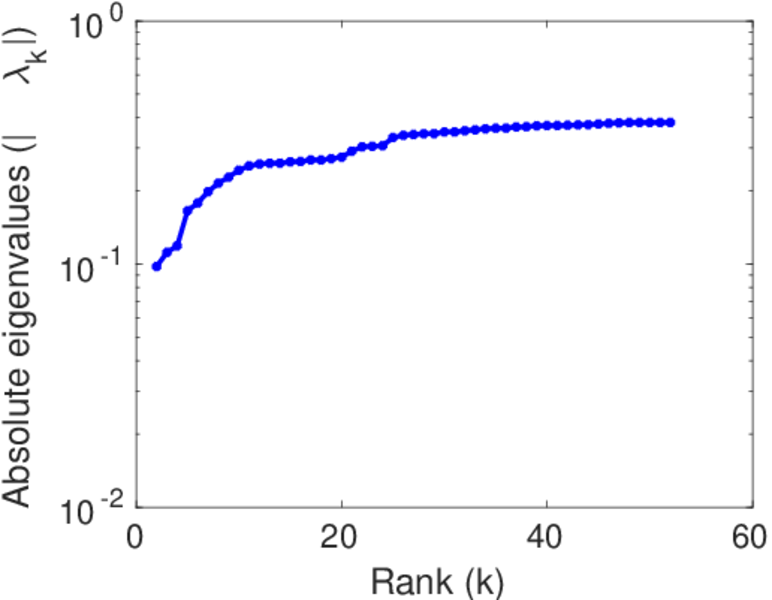

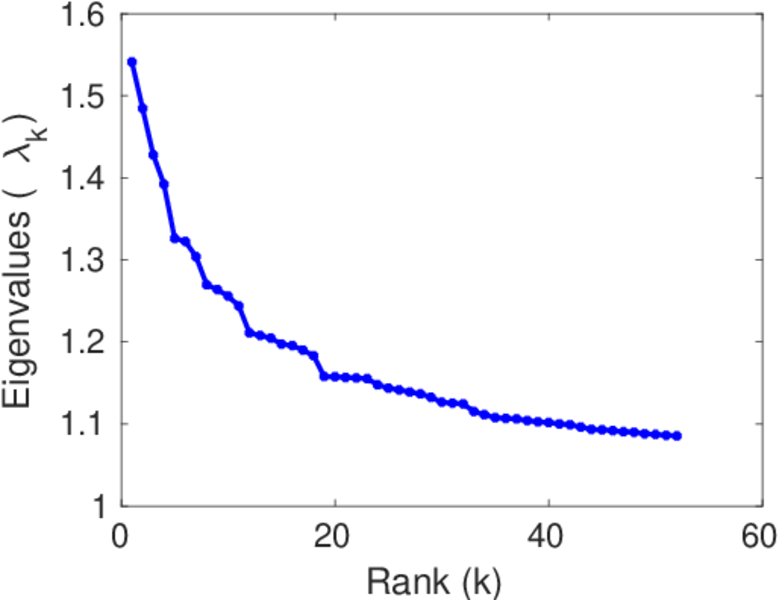

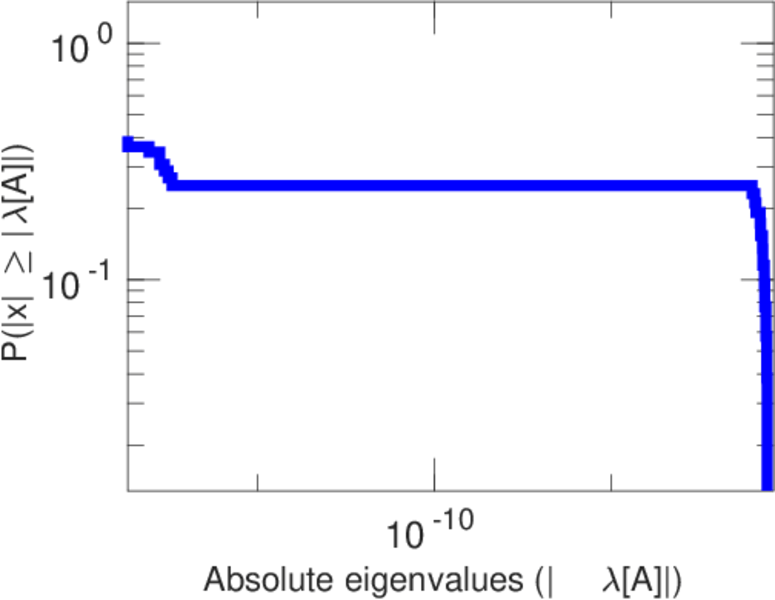

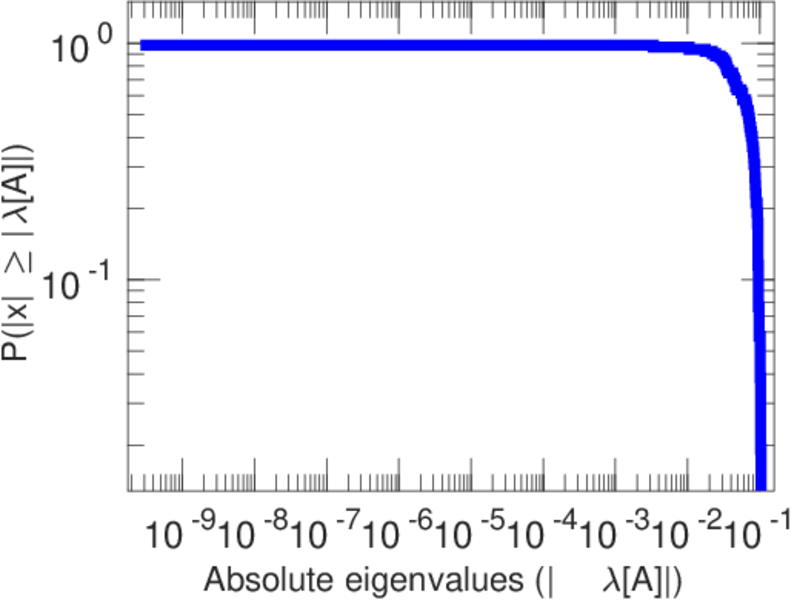

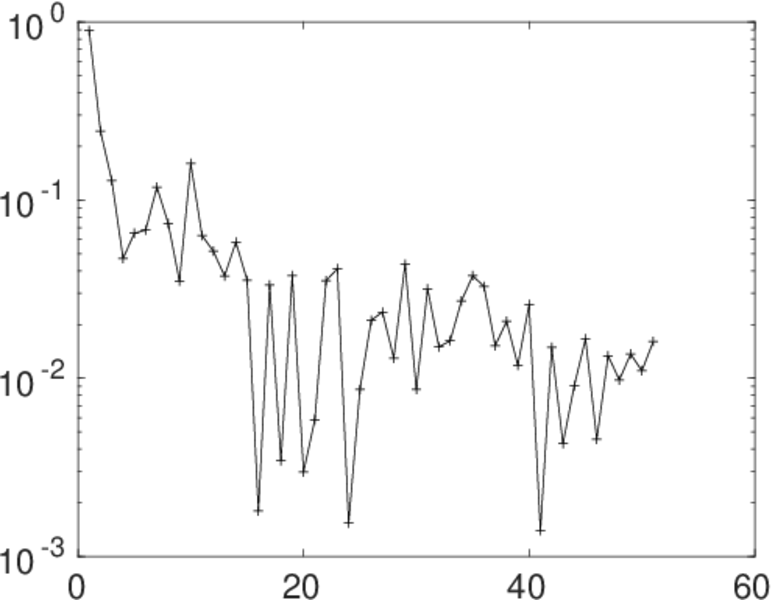

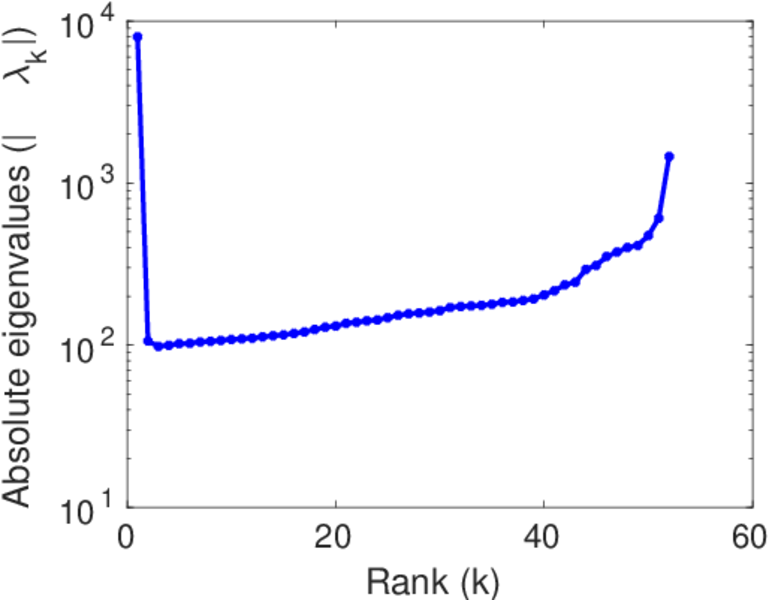

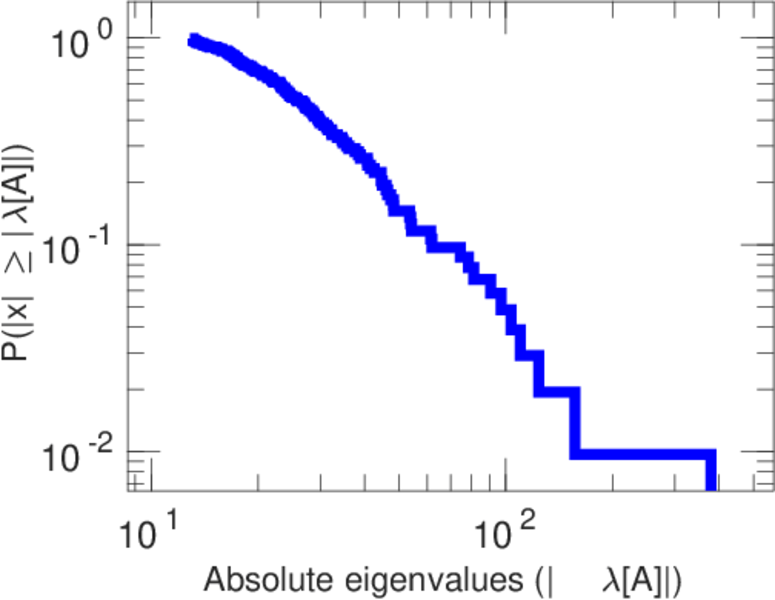

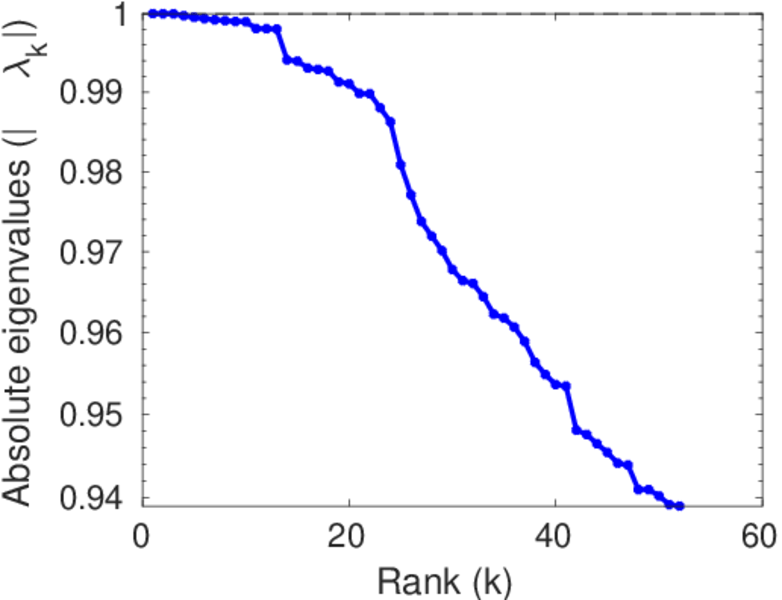

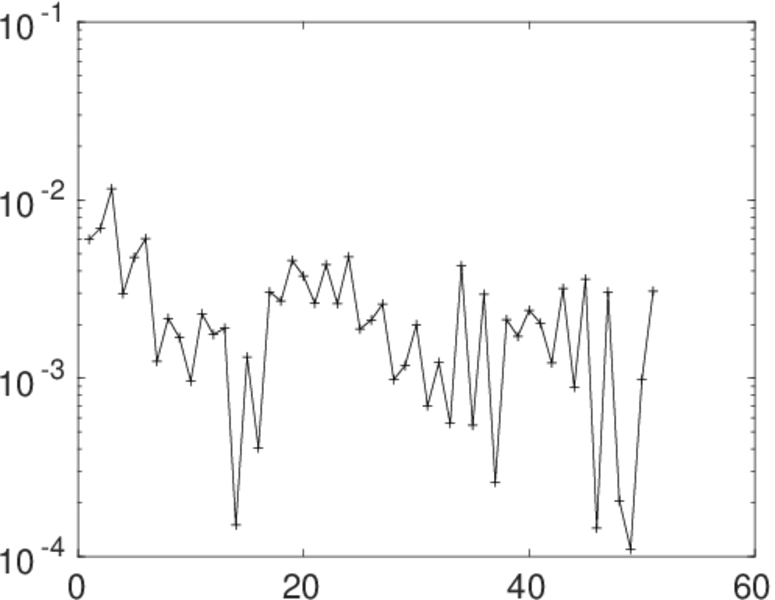

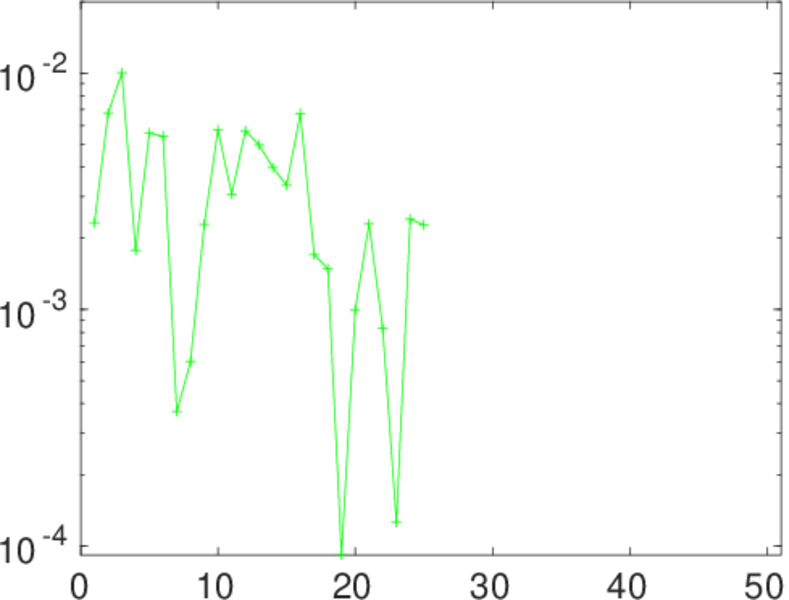

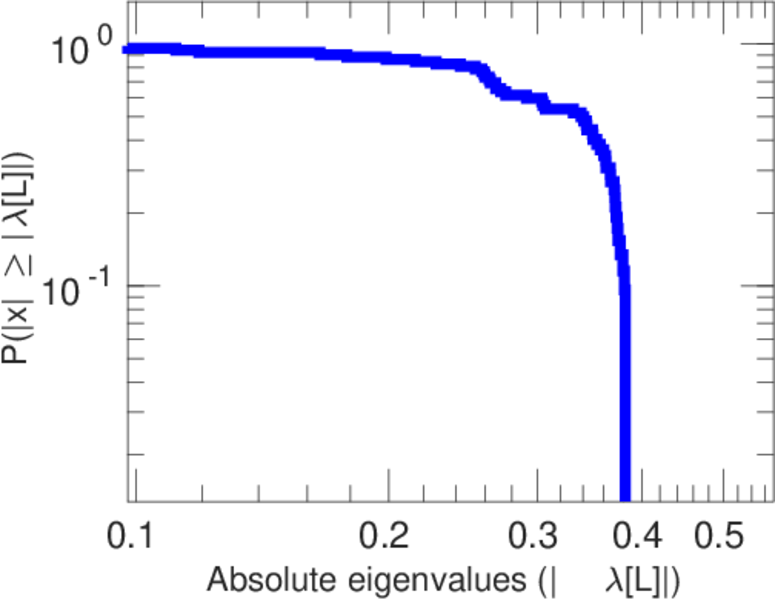

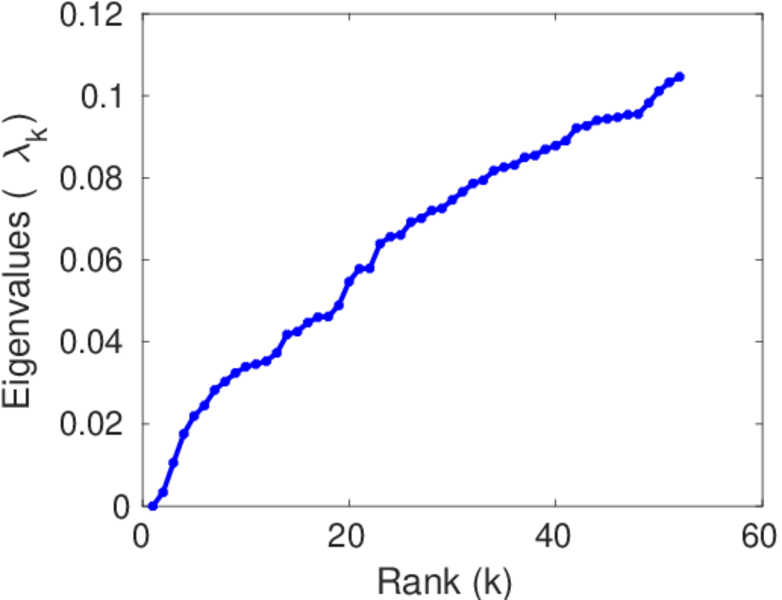

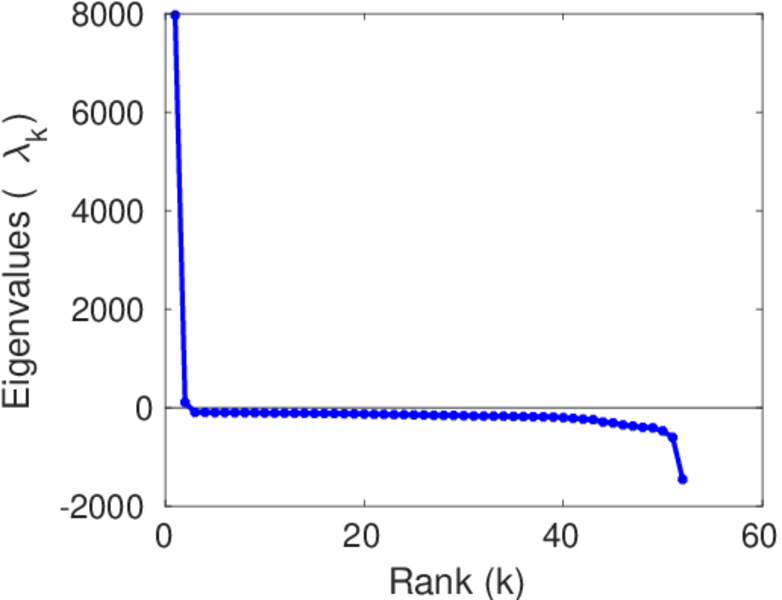

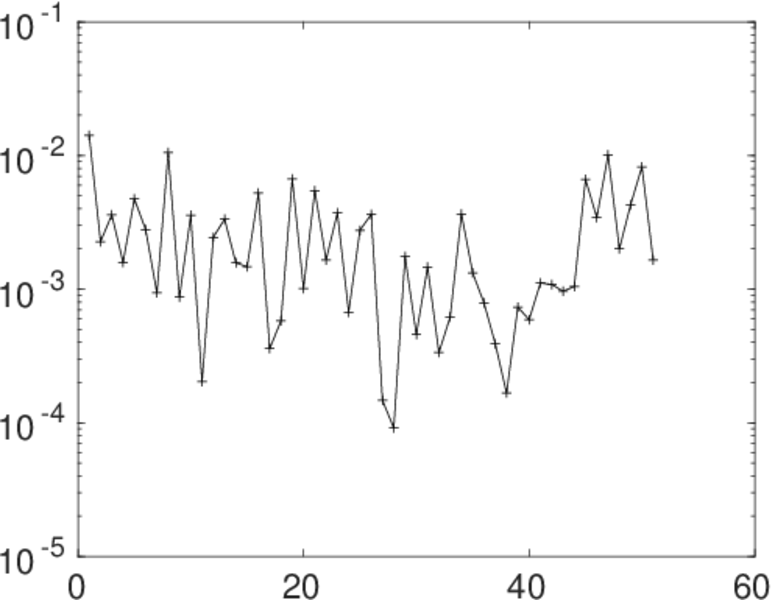

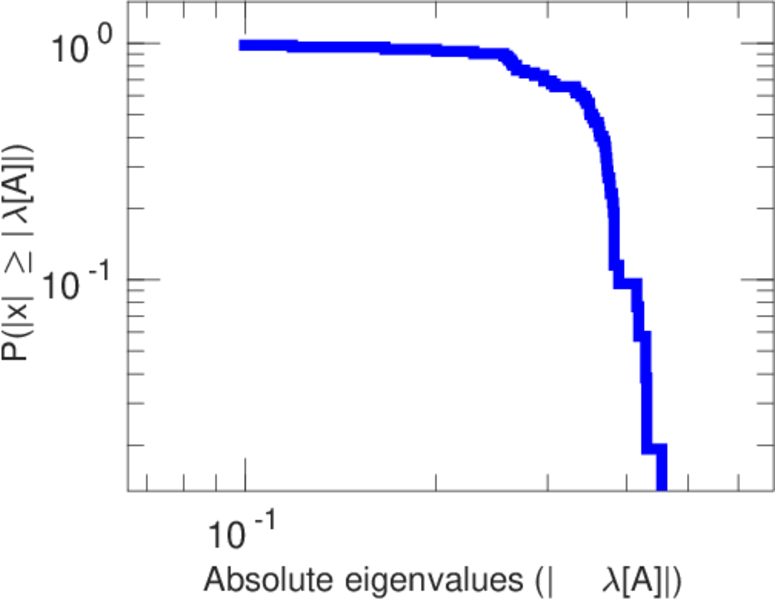

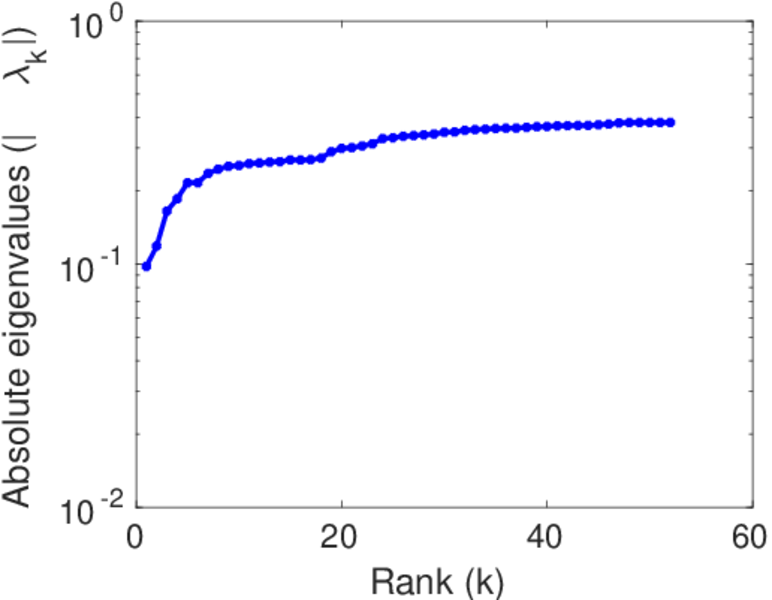

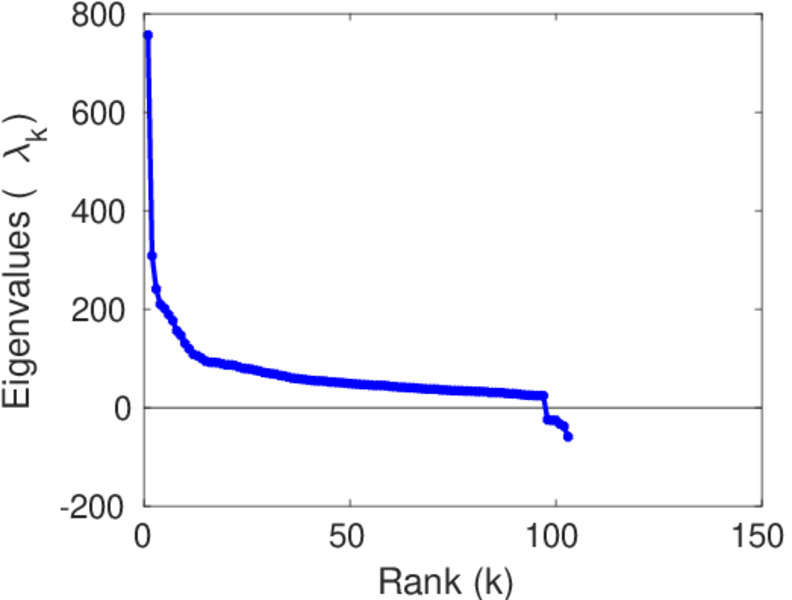

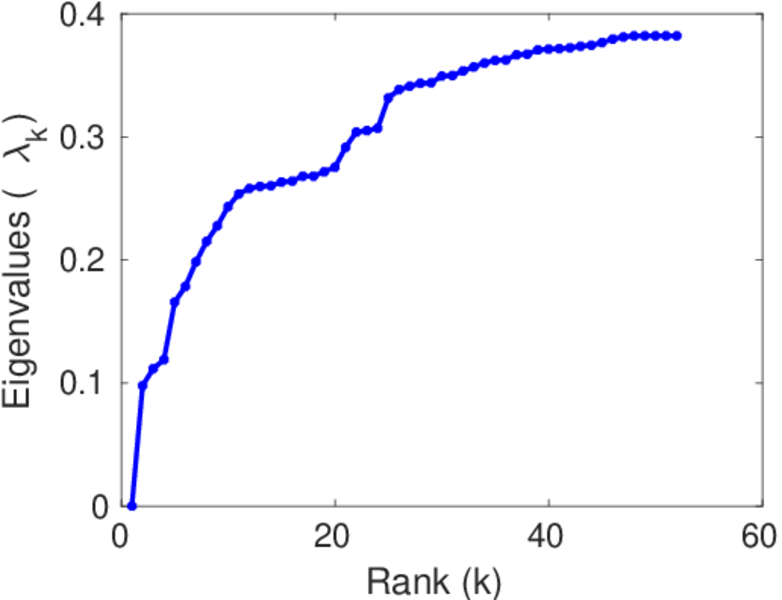

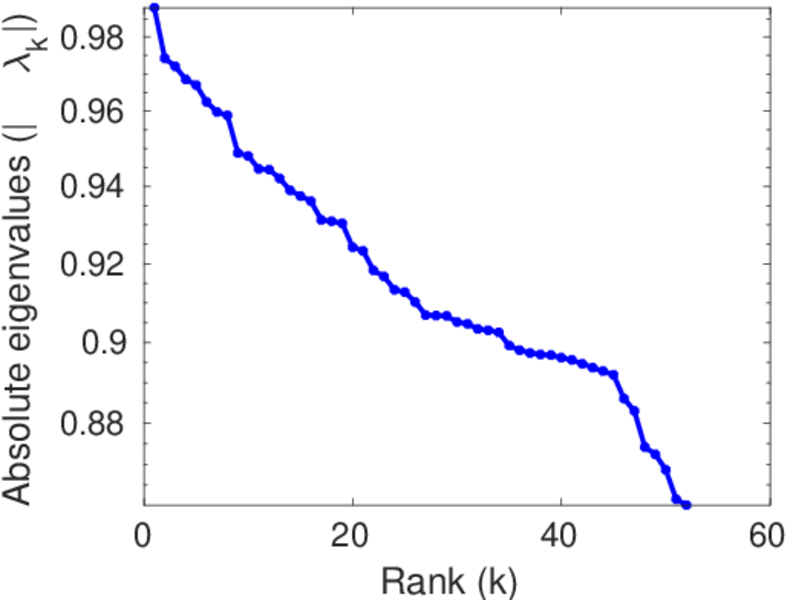

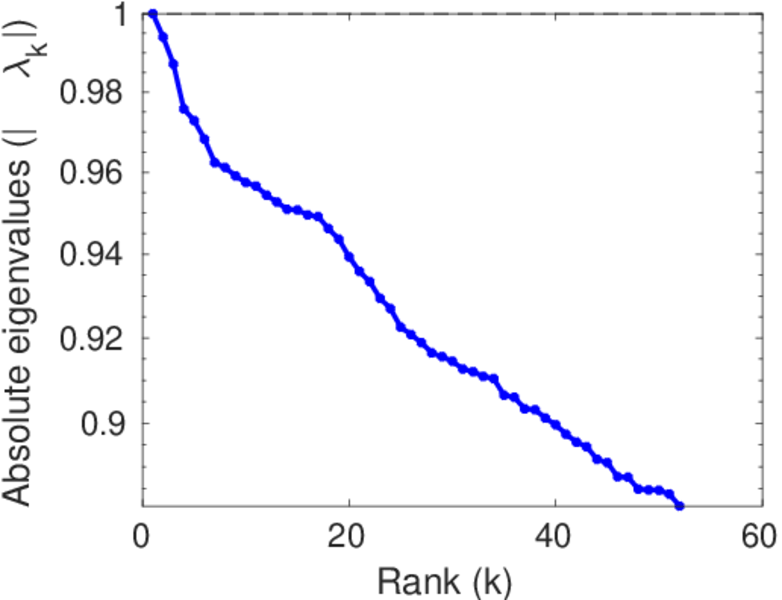

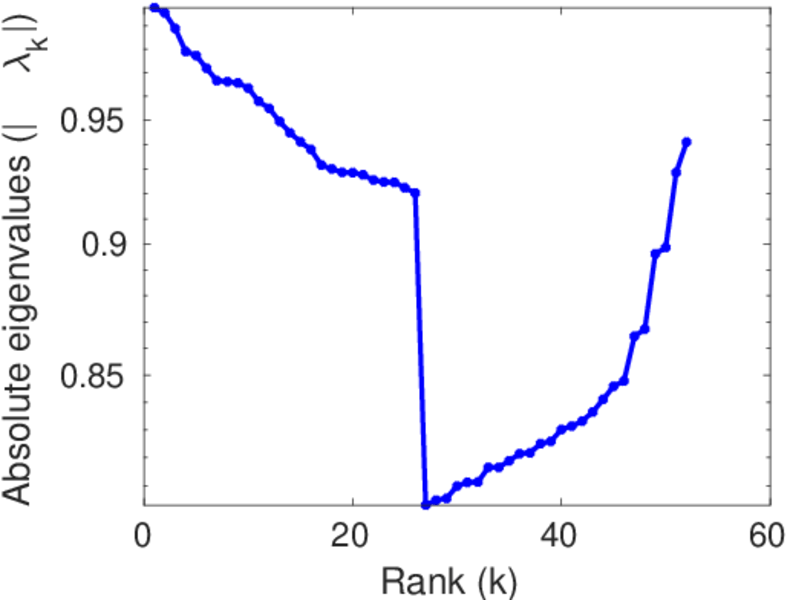

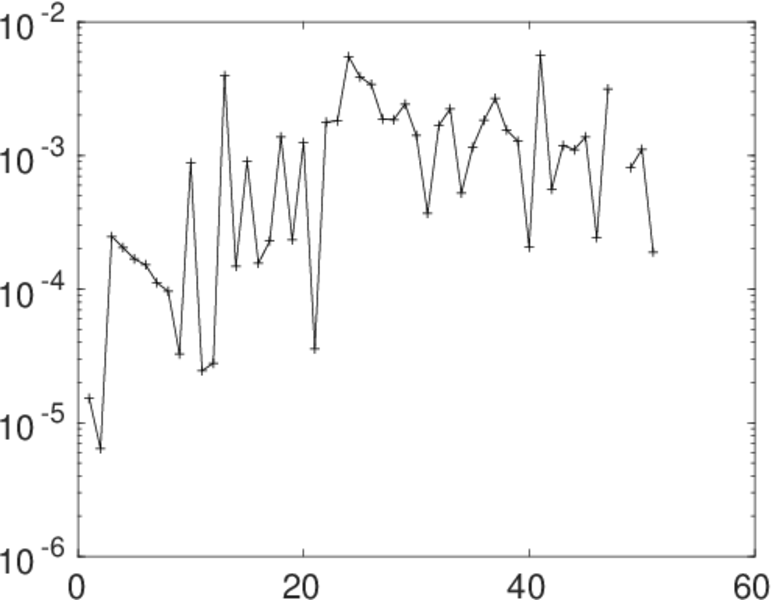

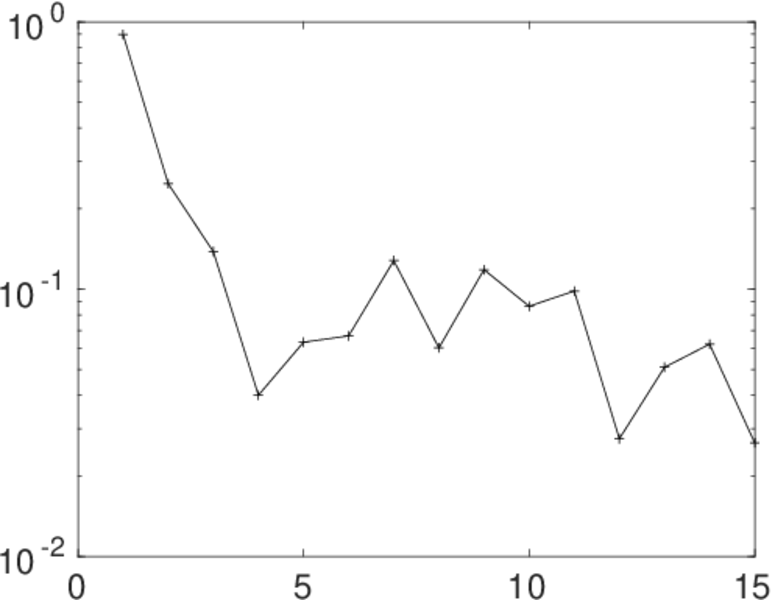

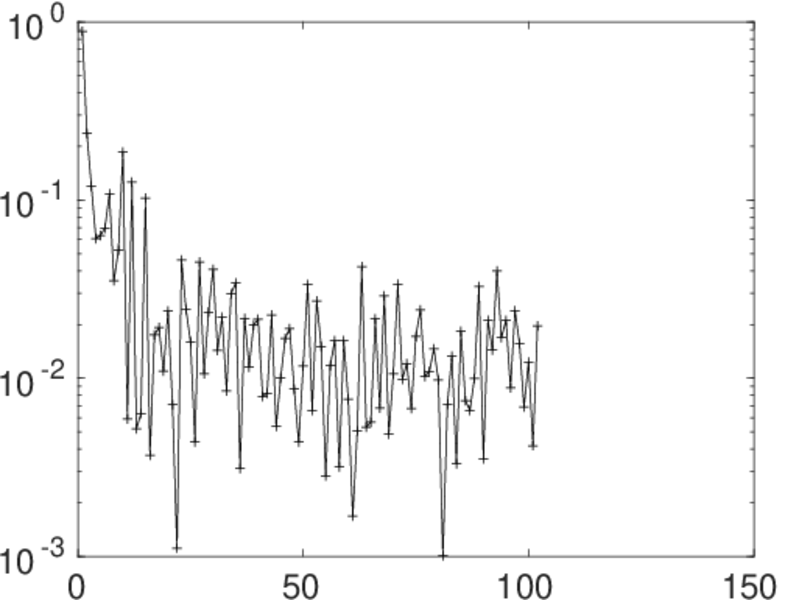

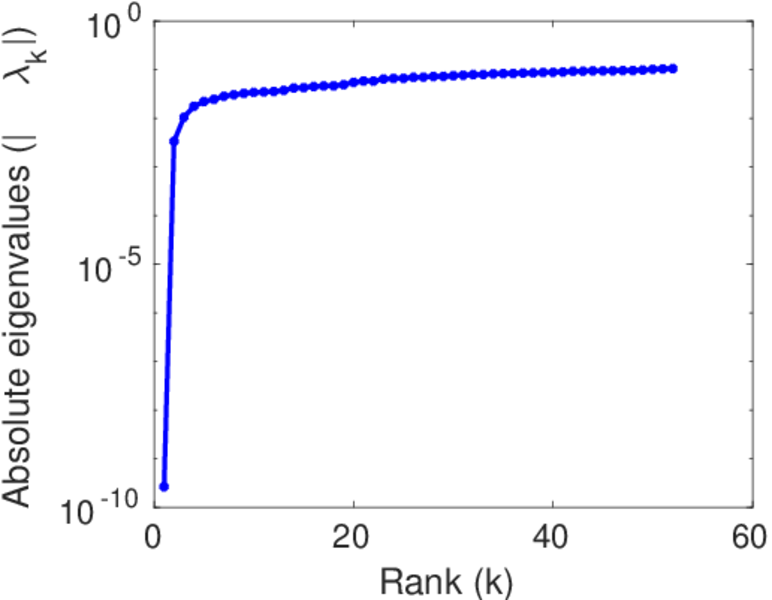

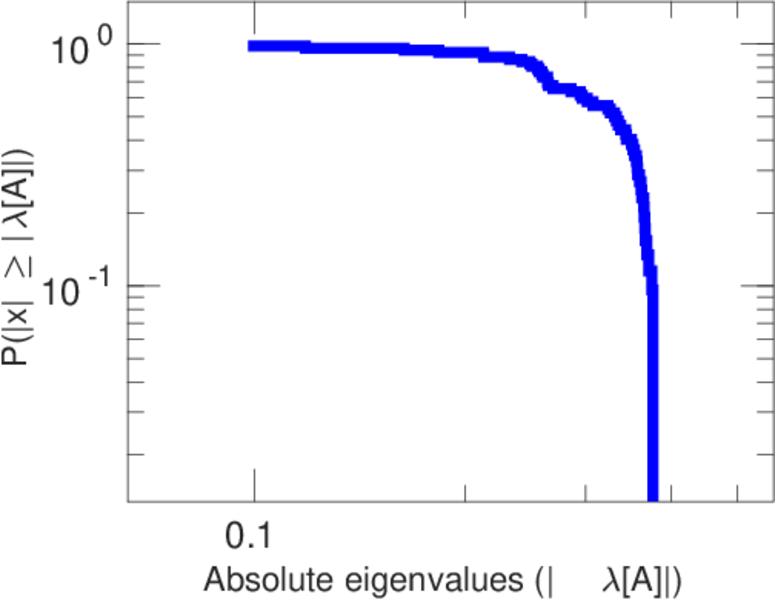

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
