Wikipedia links (io)

This network consists of the wikilinks of the Wikipedia in the Ido language (io). Nodes are Wikipedia articles, and directed edges are wikilinks, i.e., hyperlinks within one wiki. In the wiki source, these are indicated with [[double brackets]]. Only pages in the article namespace are included.


Internal namewikipedia_link_io
NameWikipedia links (io)
Data source
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Hyperlink network
Node meaningArticle
Edge meaningWikilink
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops


Size n =31,011
Volume m =805,095
Loop count l =2
Wedge count s =277,426,464
Claw count z =459,145,488,697
Cross count x =807,404,204,473,386
Triangle count t =12,959,367
Square count q =2,085,560,198
4-Tour count T4 =16,642,892,796
Maximum degree dmax =9,412
Maximum outdegree d+max =951
Maximum indegree dmax =9,254
Average degree d =51.923 2
Fill p =0.000 789 285
Size of LCC N =30,962
Size of LSCC Ns =25,005
Relative size of LSCC Nrs =0.814 044
Diameter δ =10
50-Percentile effective diameter δ0.5 =2.702 33
90-Percentile effective diameter δ0.9 =3.888 64
Median distance δM =3
Mean distance δm =3.268 79
Gini coefficient G =0.774 379
Balanced inequality ratio P =0.167 578
Outdegree balanced inequality ratio P+ =0.187 185
Indegree balanced inequality ratio P =0.154 112
Relative edge distribution entropy Her =0.867 028
Power law exponent γ =1.425 83
Tail power law exponent γt =1.781 00
Degree assortativity ρ =−0.099 560 0
Degree assortativity p-value pρ =0.000 00
In/outdegree correlation ρ± =+0.696 687
Clustering coefficient c =0.140 138
Directed clustering coefficient c± =0.615 520
Spectral norm α =420.885
Operator 2-norm ν =215.139
Cyclic eigenvalue π =209.235
Algebraic connectivity a =0.148 175
Reciprocity y =0.589 953
Non-bipartivity bA =0.505 786
Normalized non-bipartivity bN =0.062 142 9
Spectral bipartite frustration bK =0.001 022 40


Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

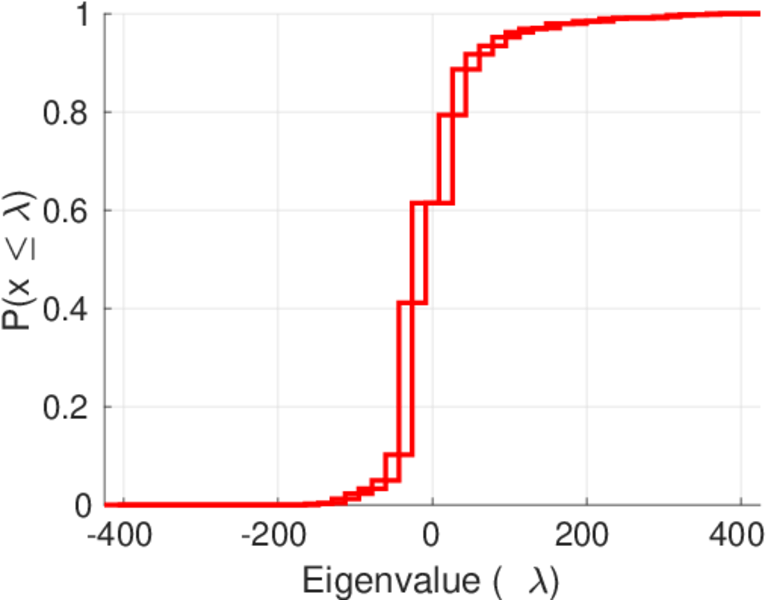

Spectral distribution of the adjacency matrix

Spectral distribution of the normalized adjacency matrix

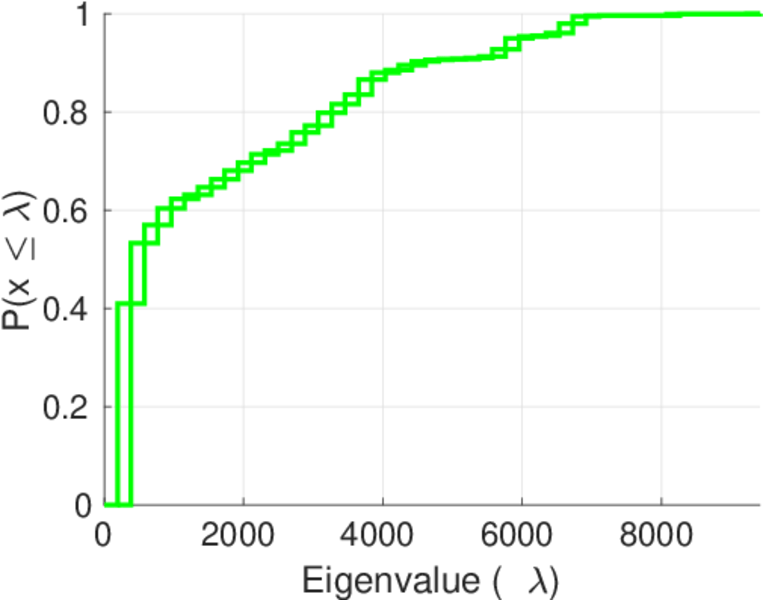

Spectral distribution of the Laplacian

Spectral graph drawing based on the adjacency matrix

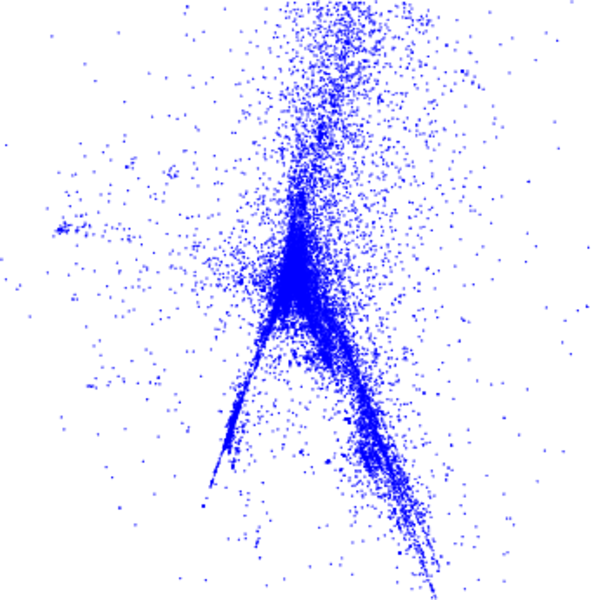

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

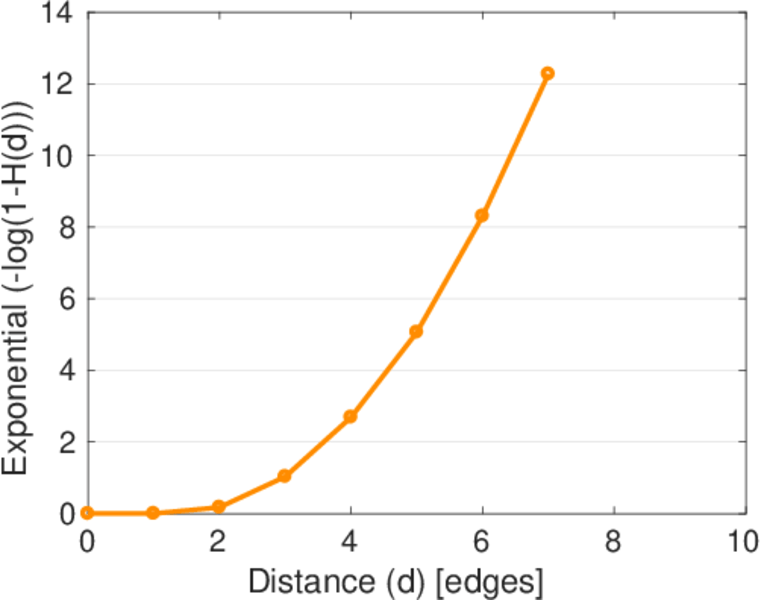

Hop distribution

Delaunay graph drawing

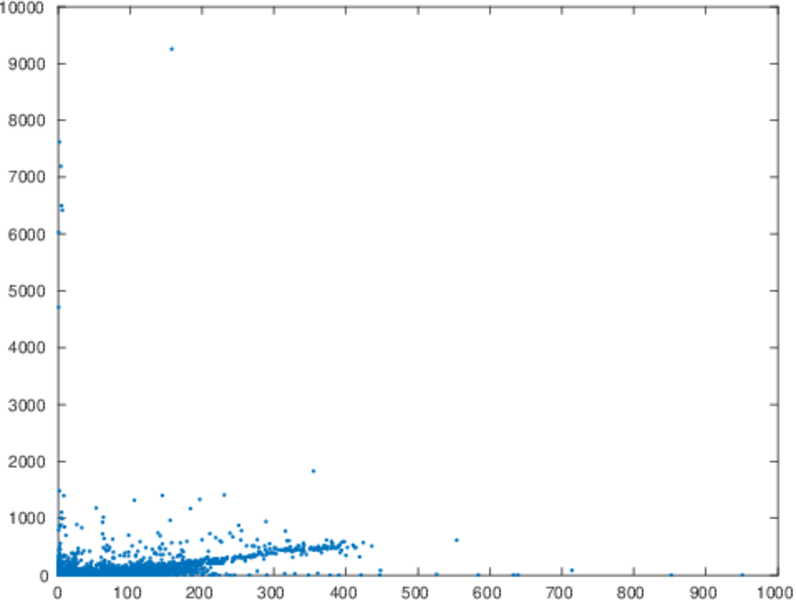

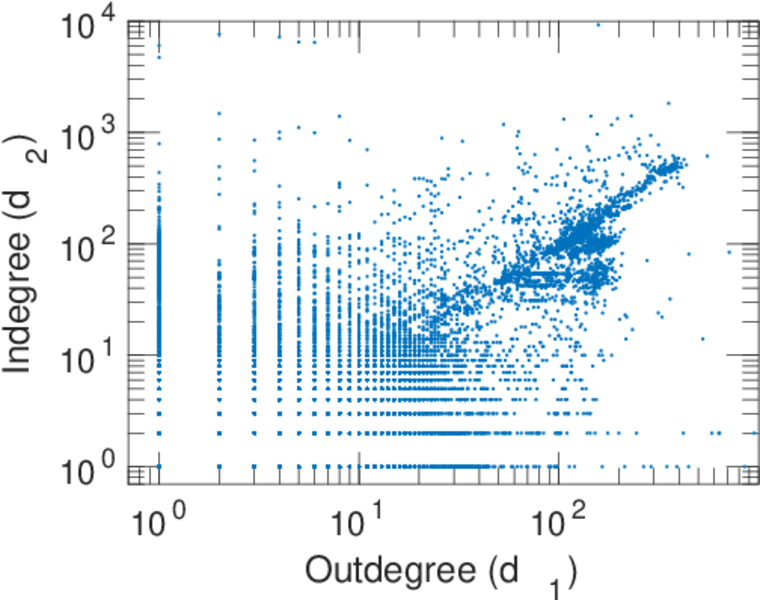

In/outdegree scatter plot

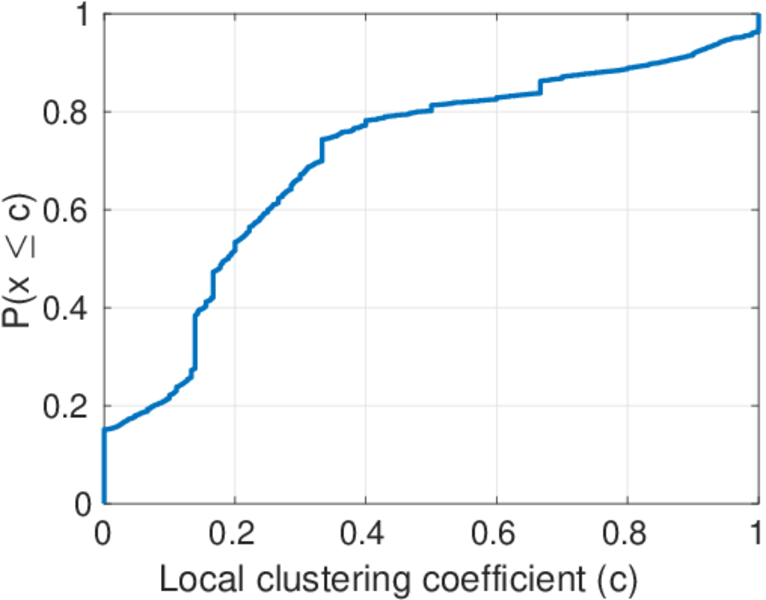

Clustering coefficient distribution

Average neighbor degree distribution

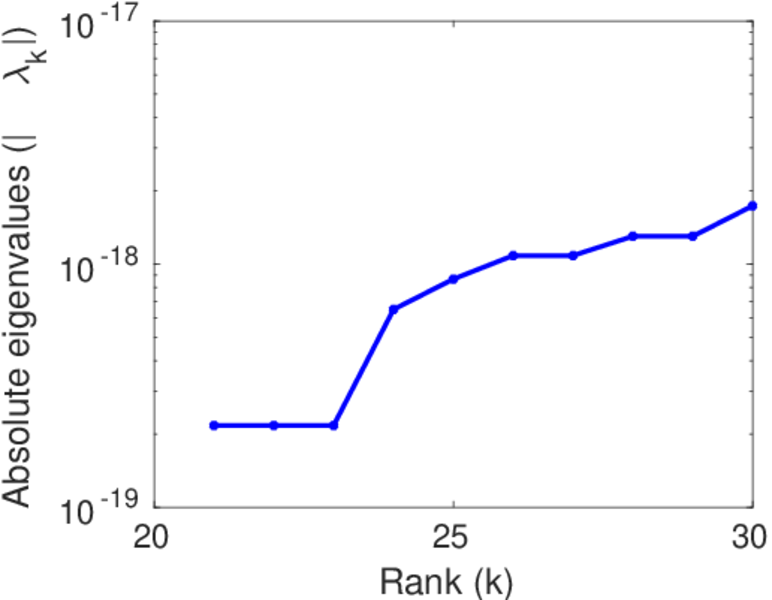

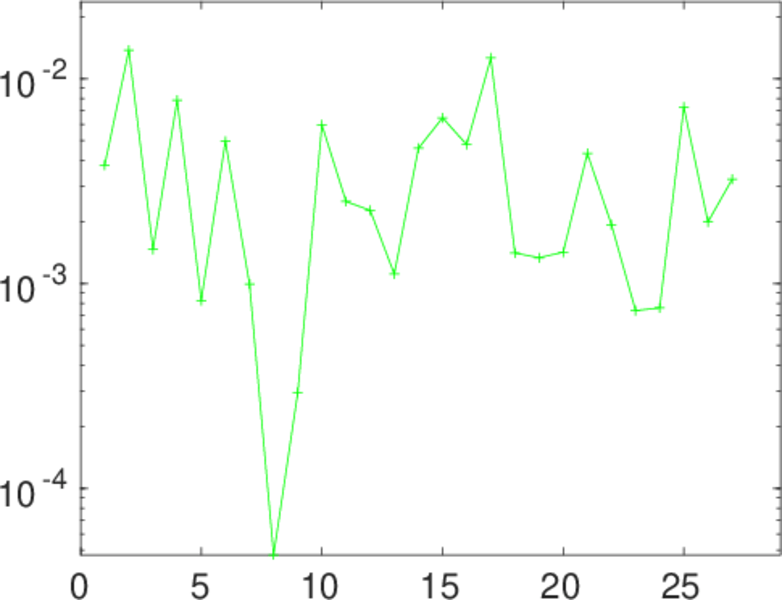

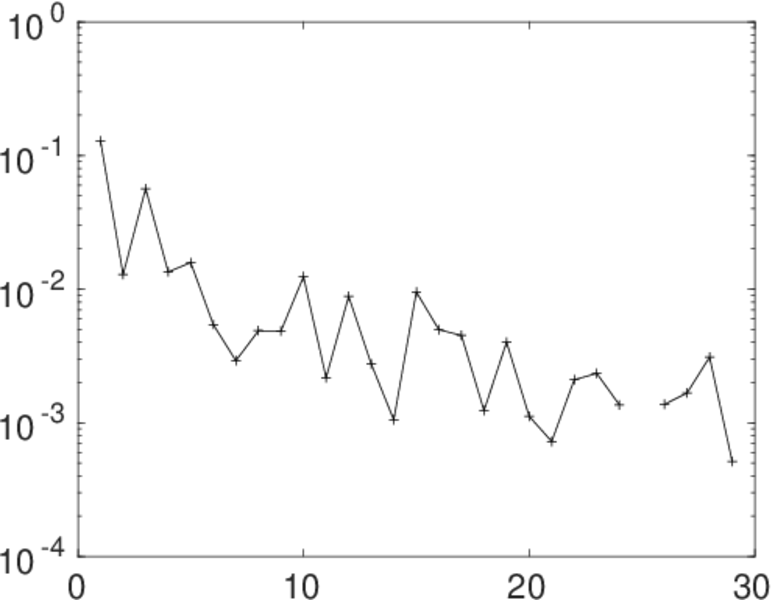

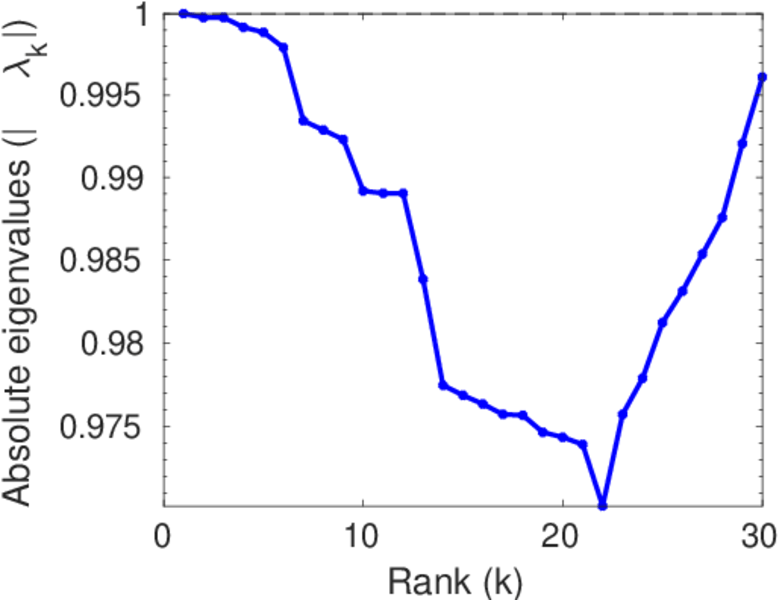

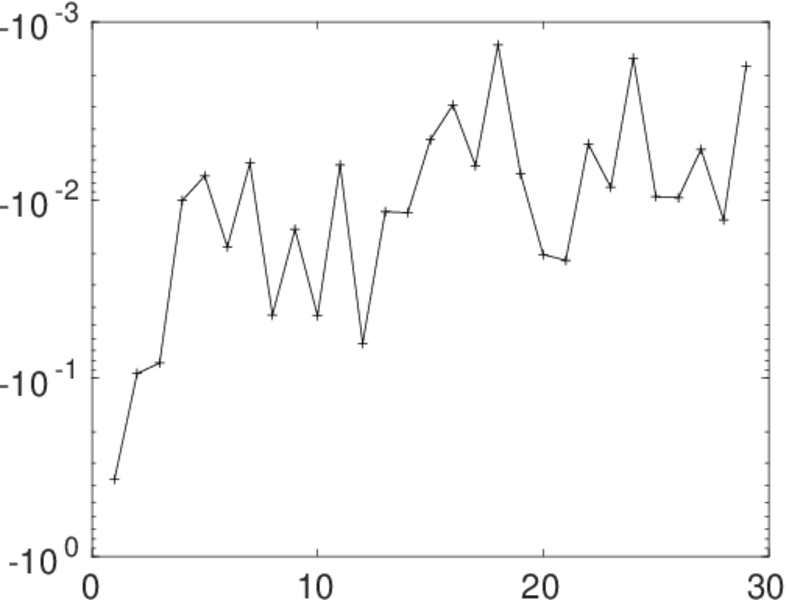

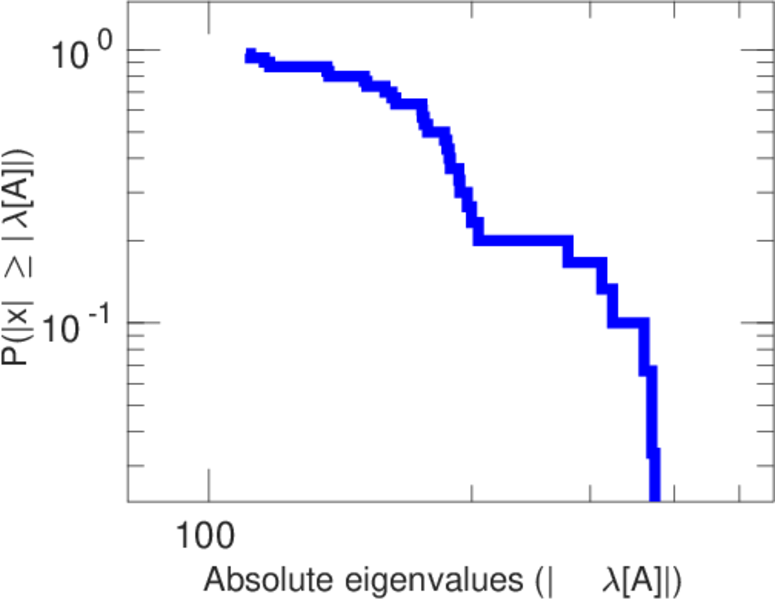

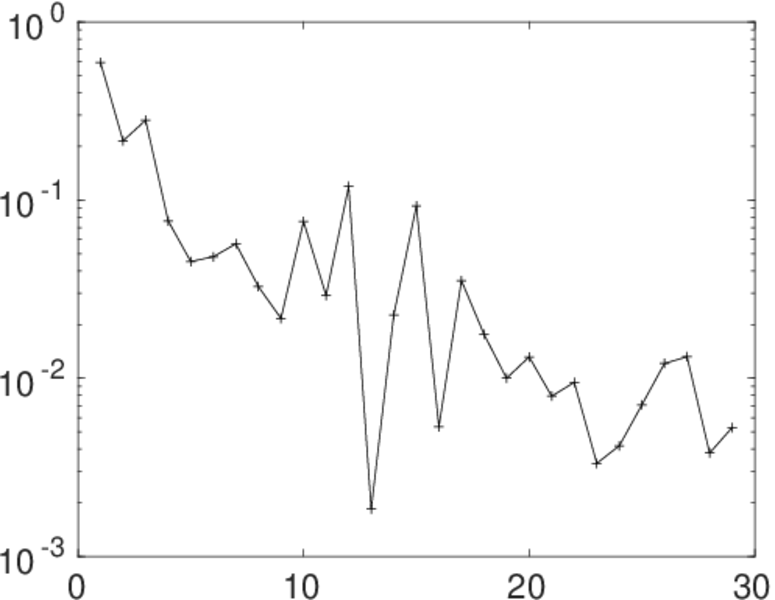

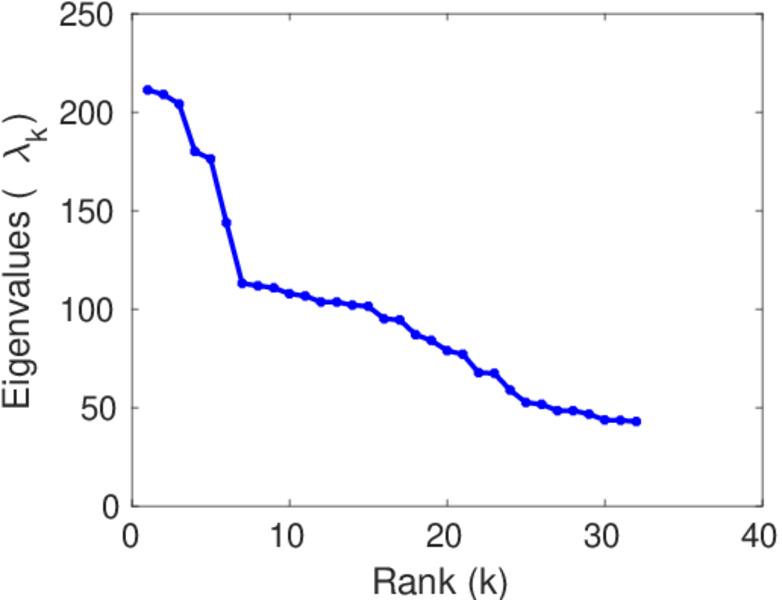

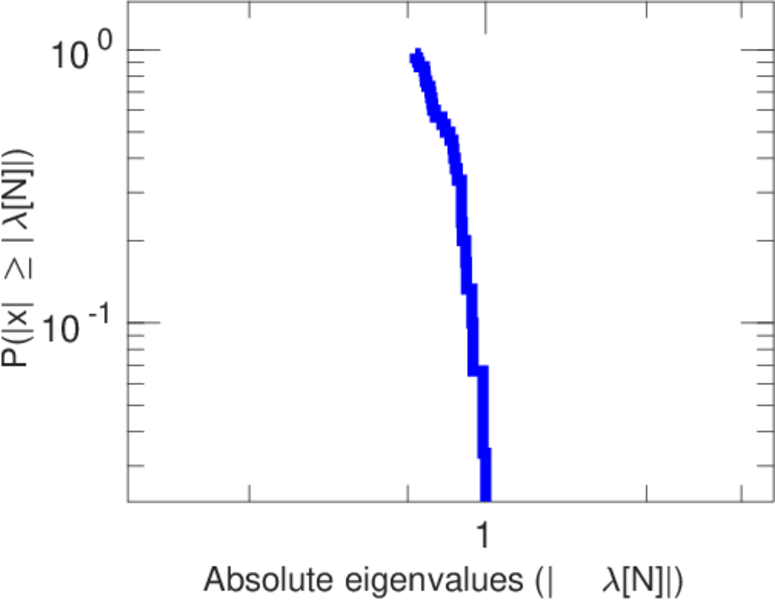

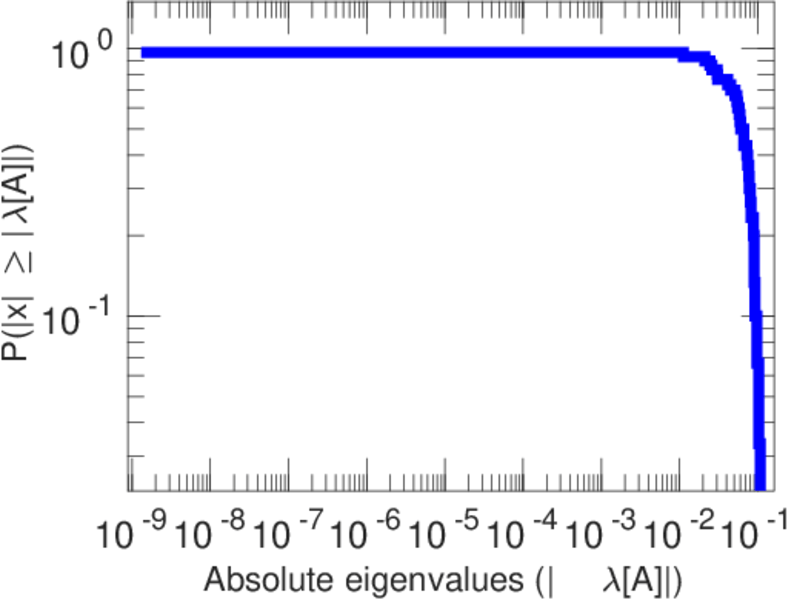

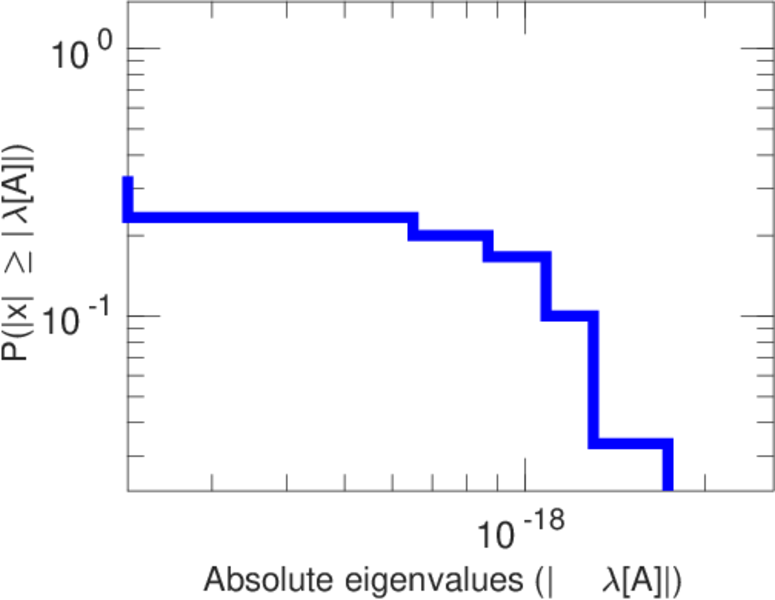

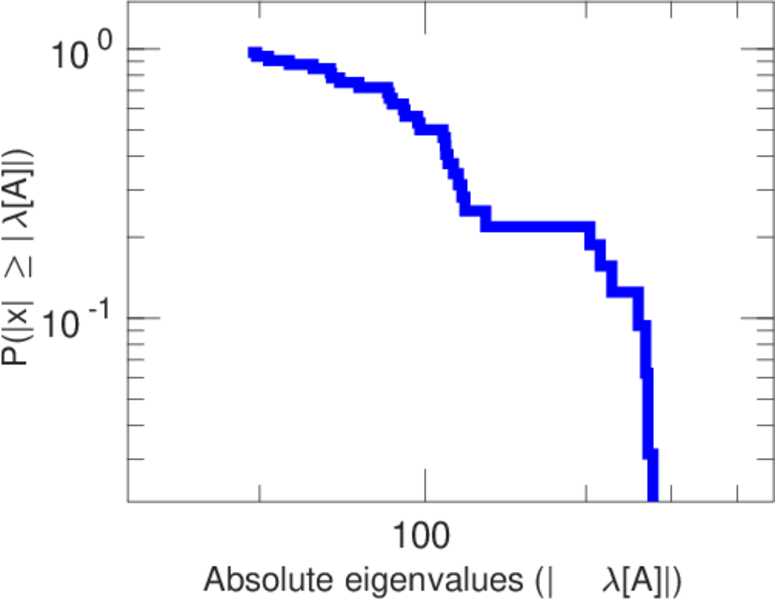

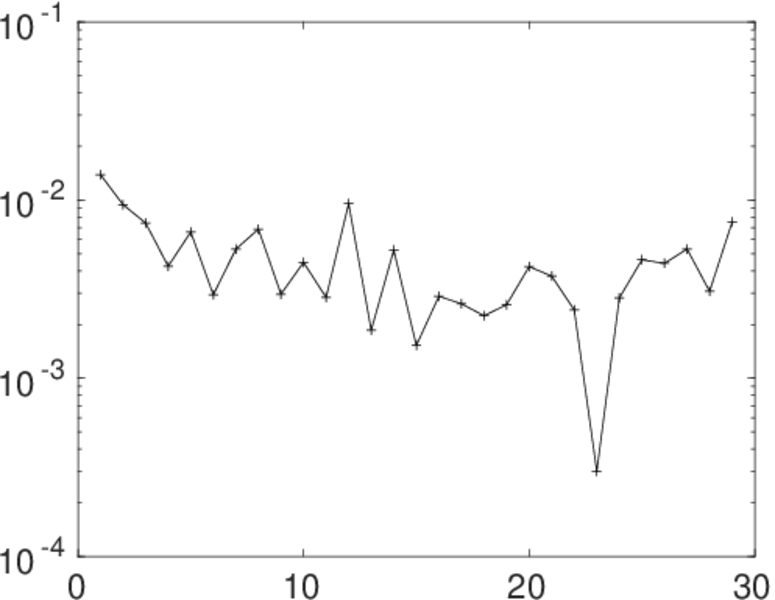

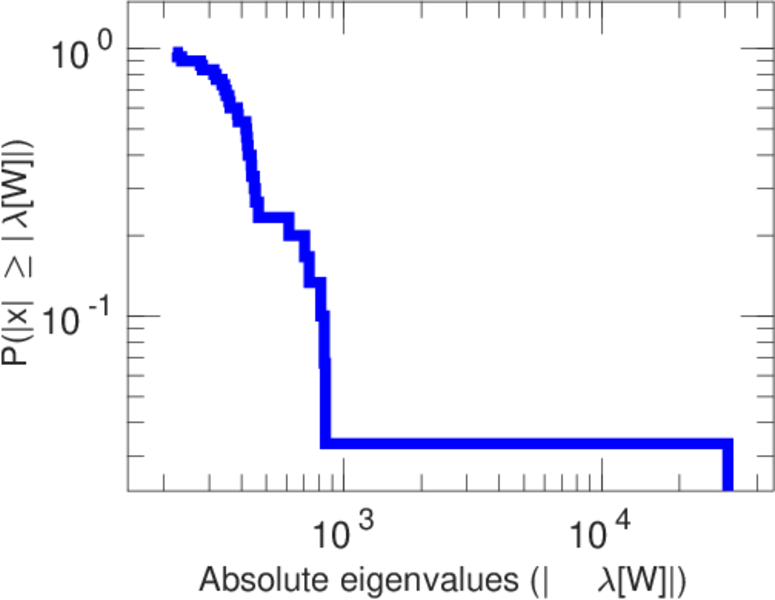

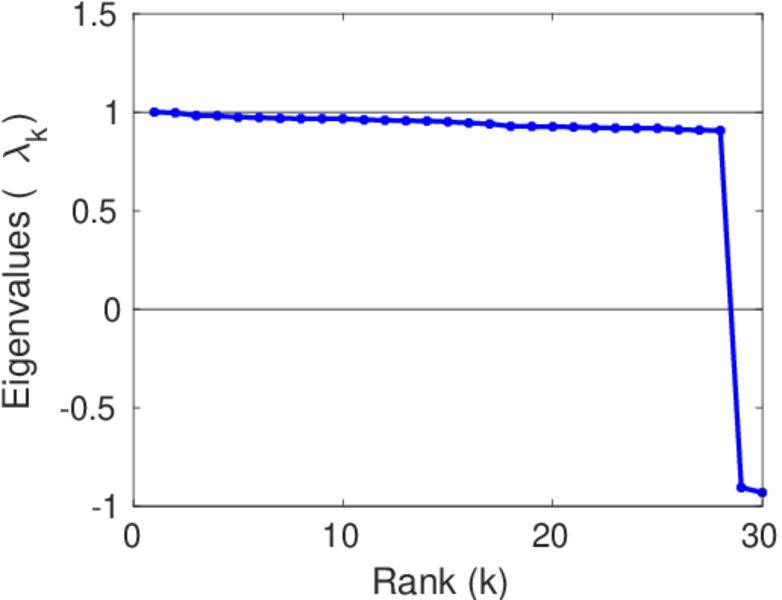

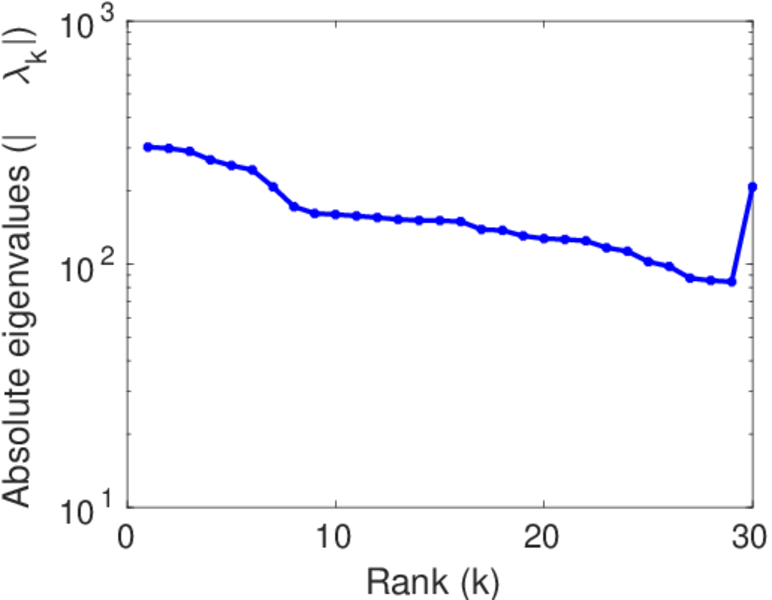

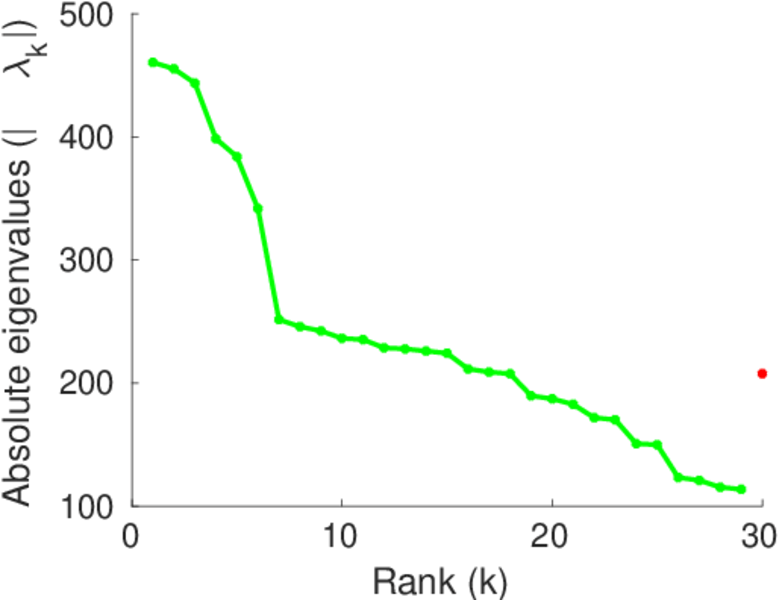

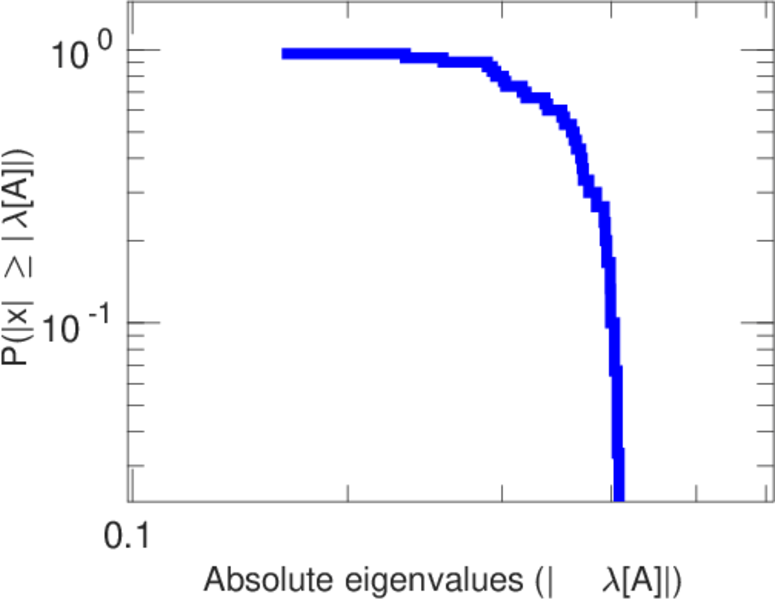

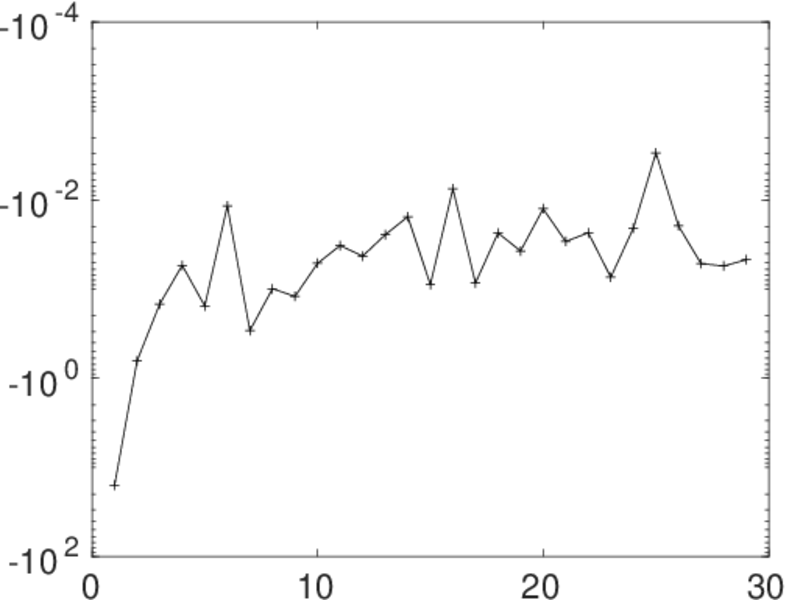

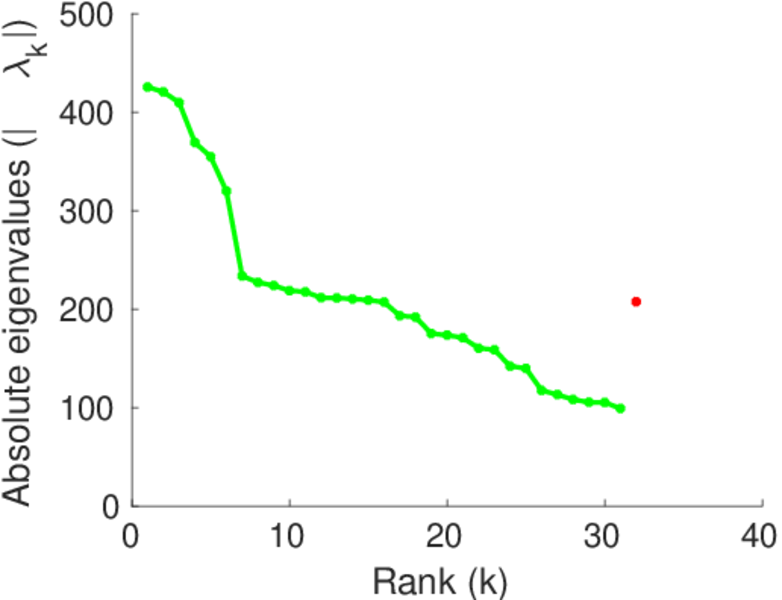

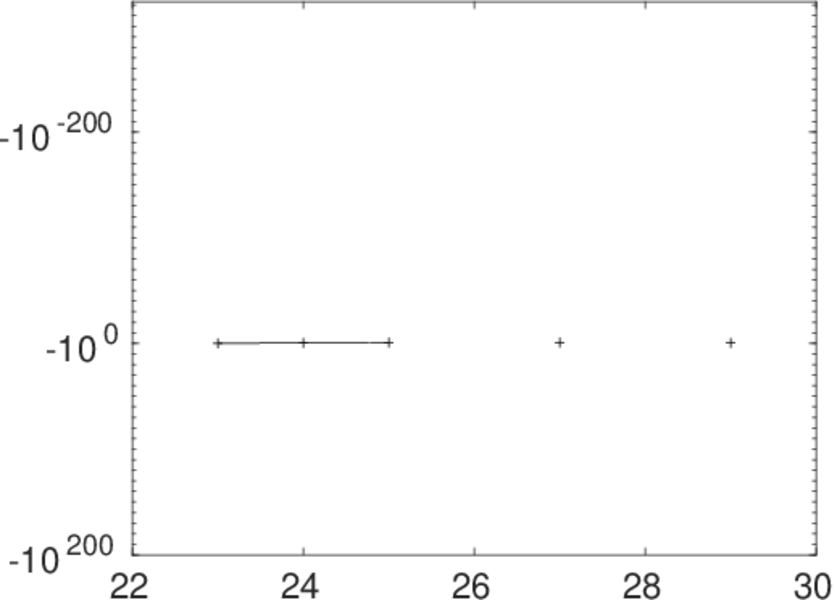

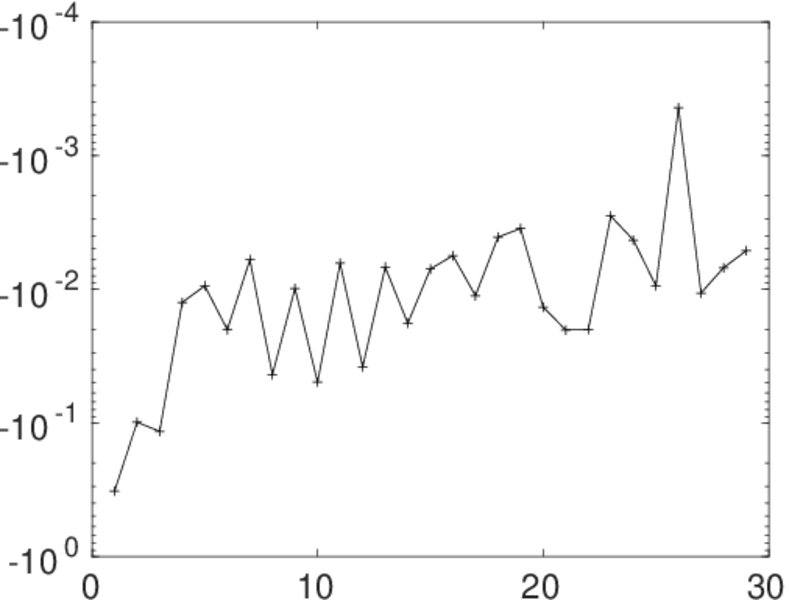

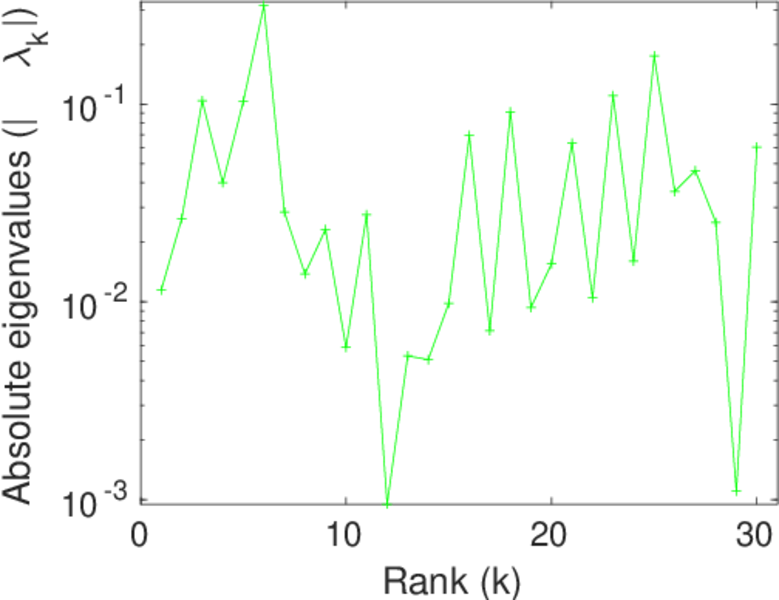

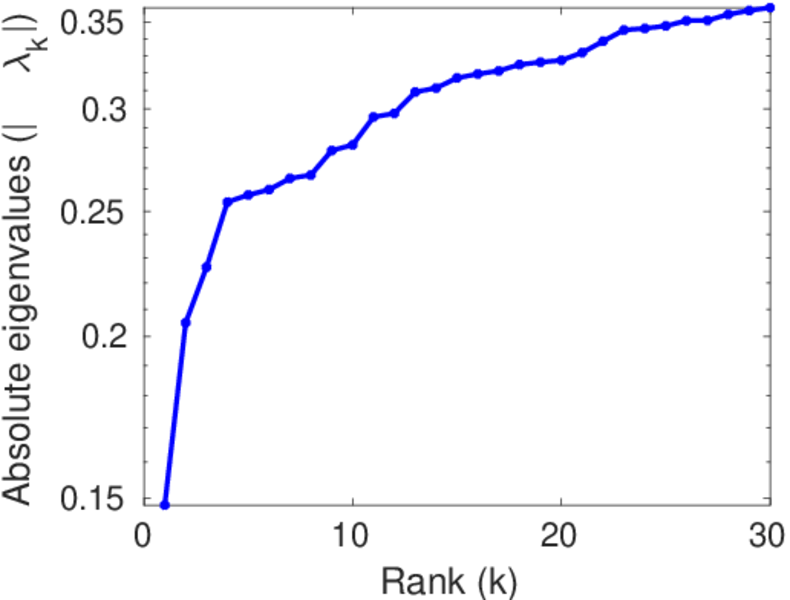

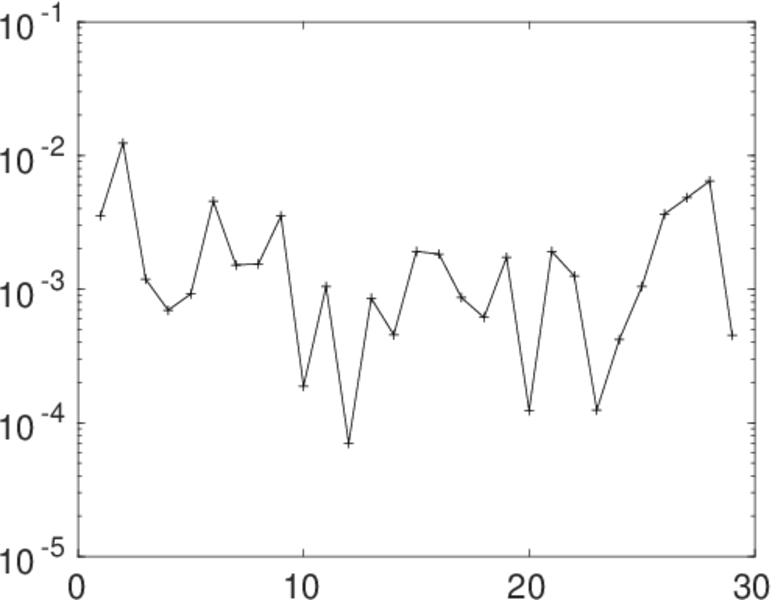

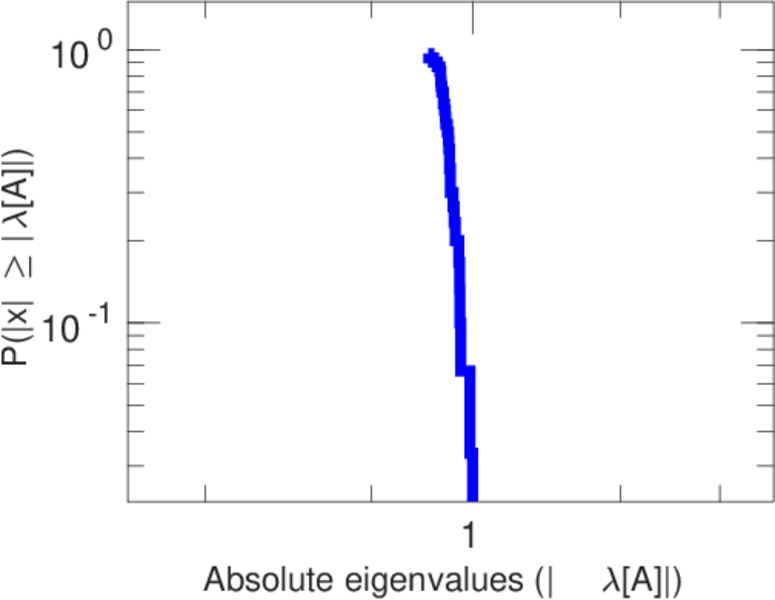

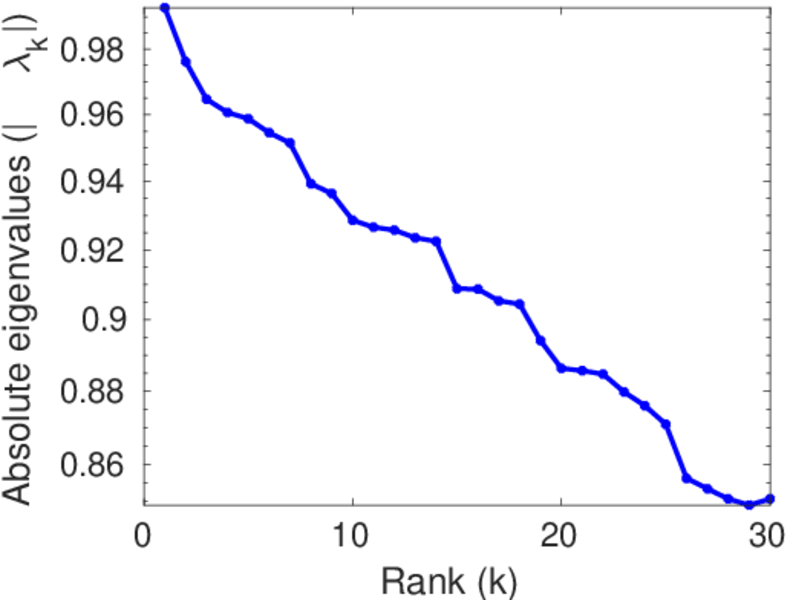

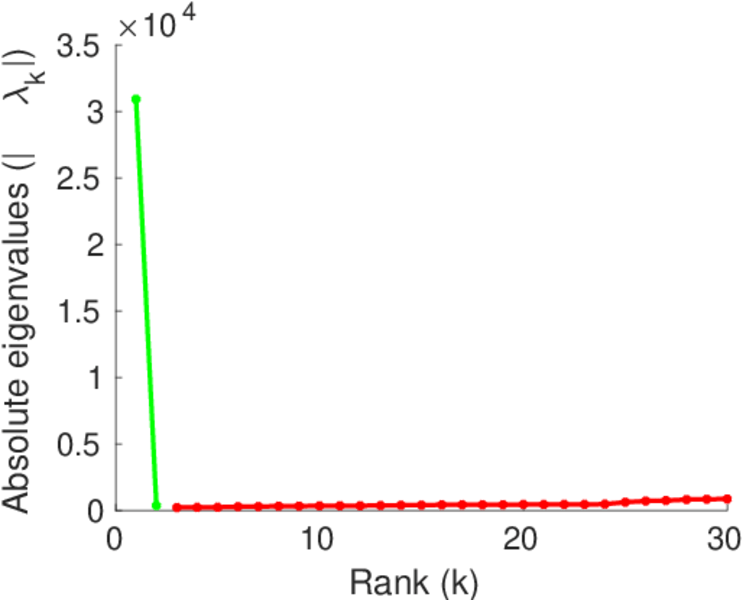

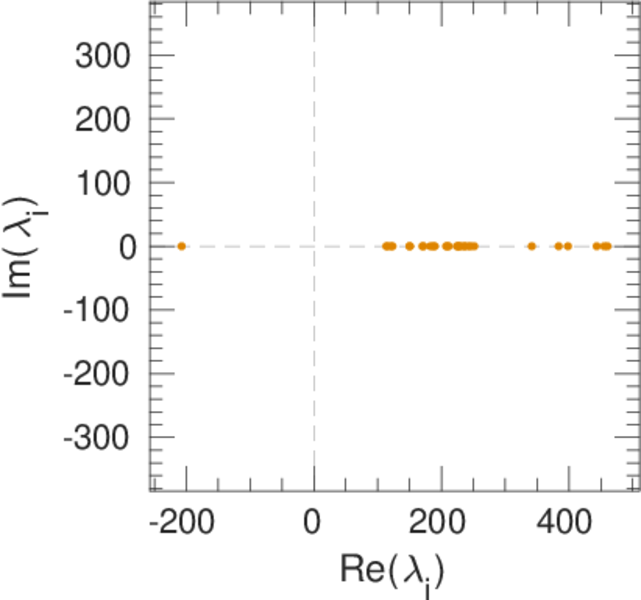

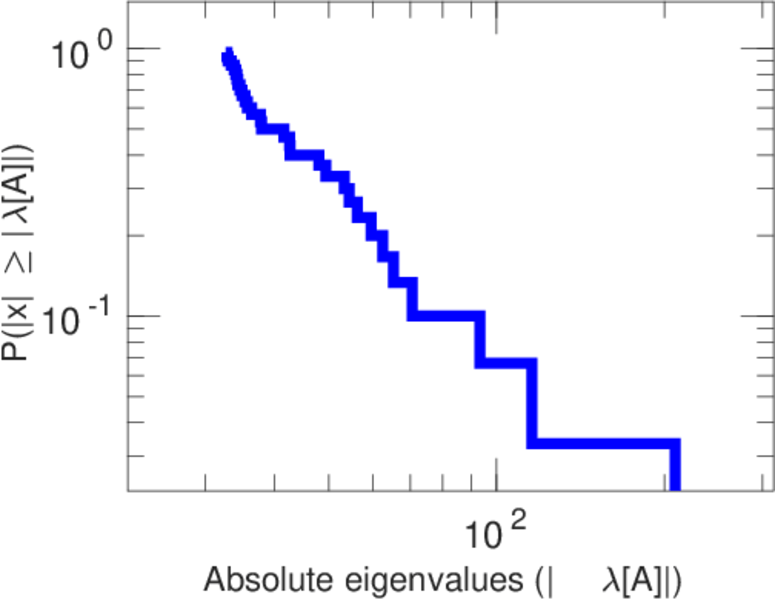

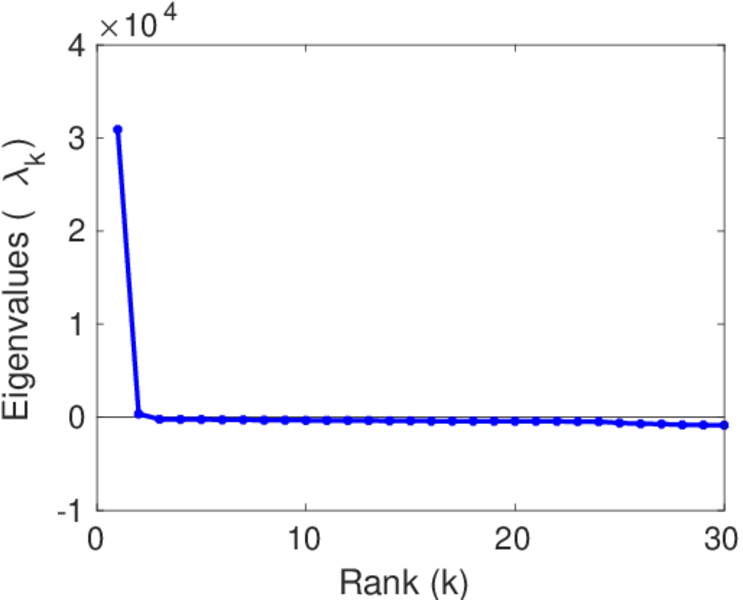

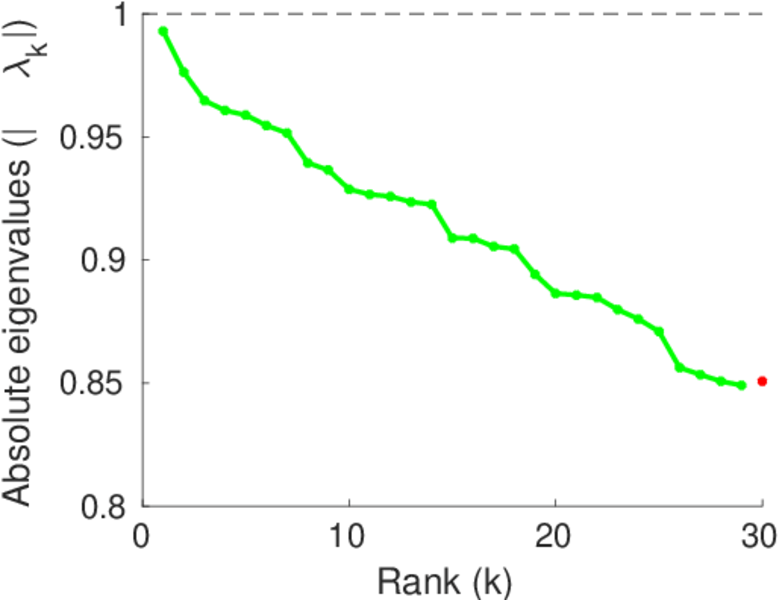

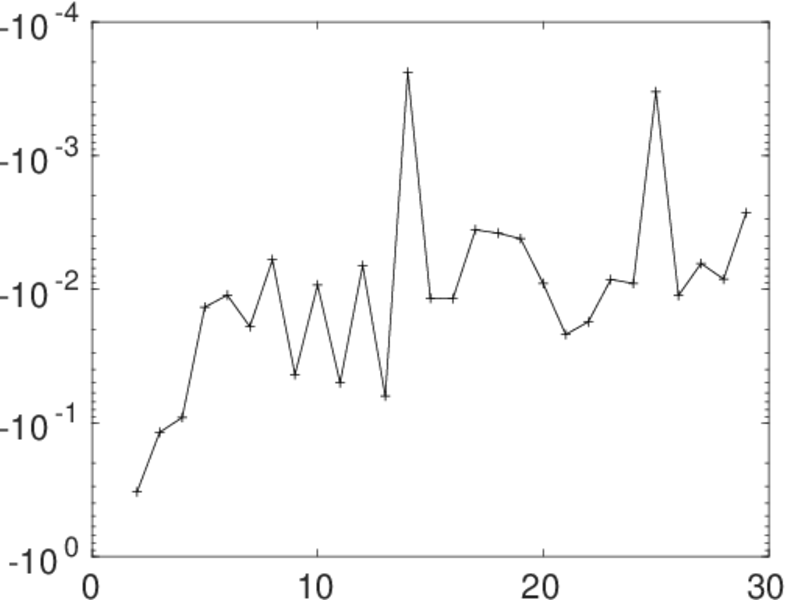

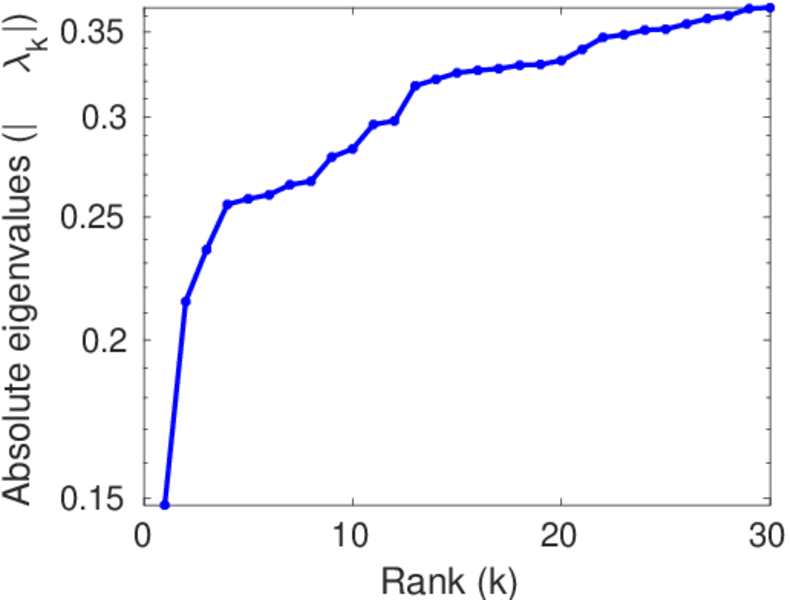

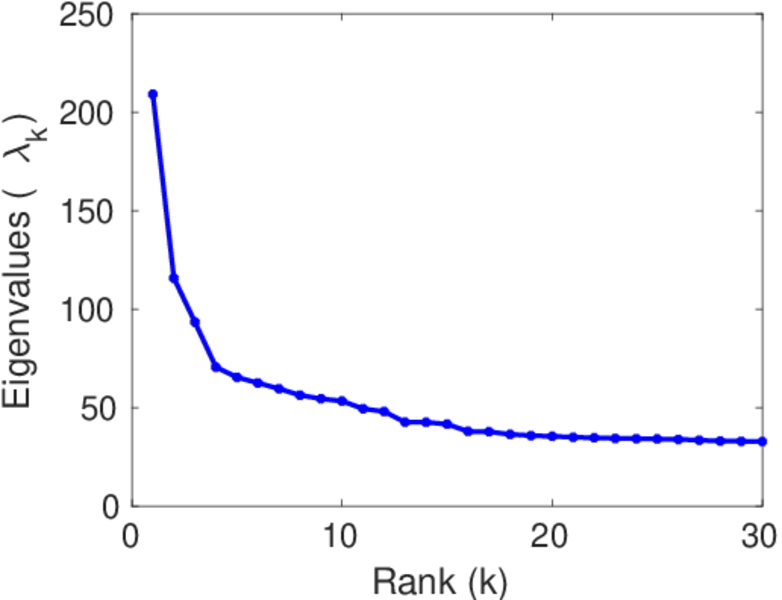

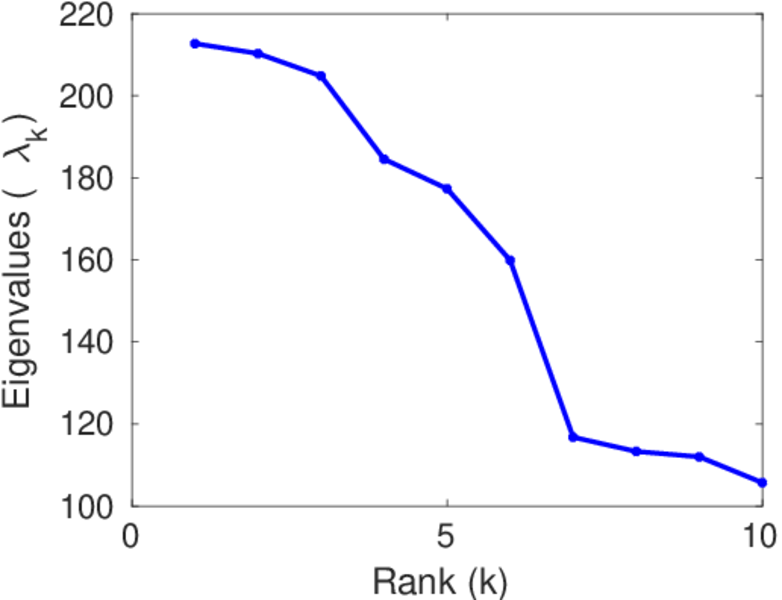

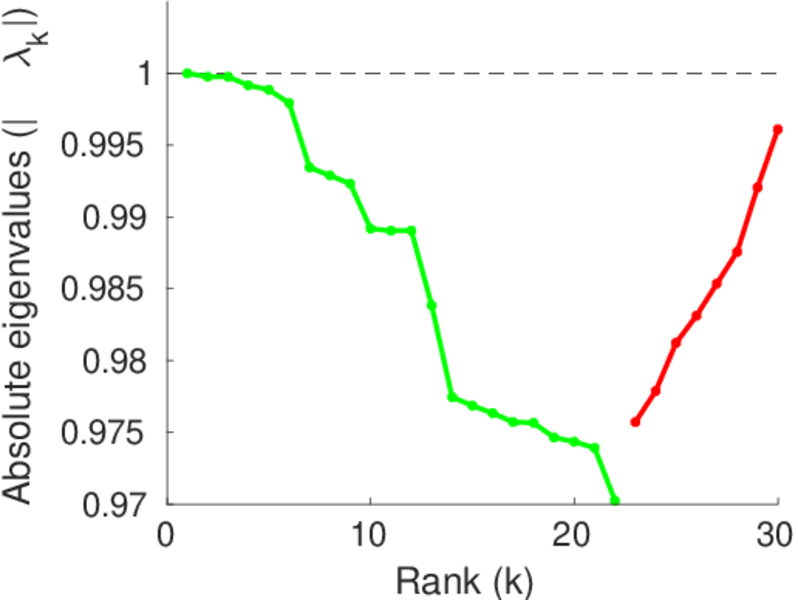

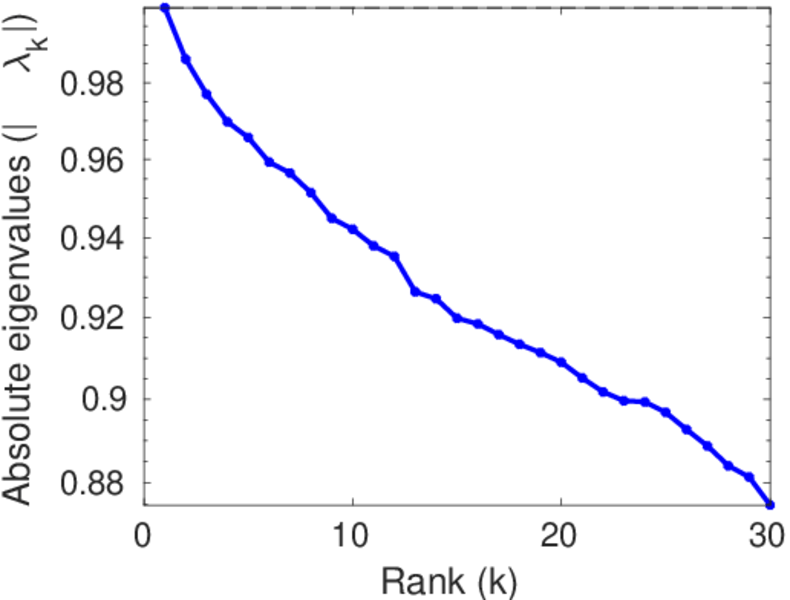

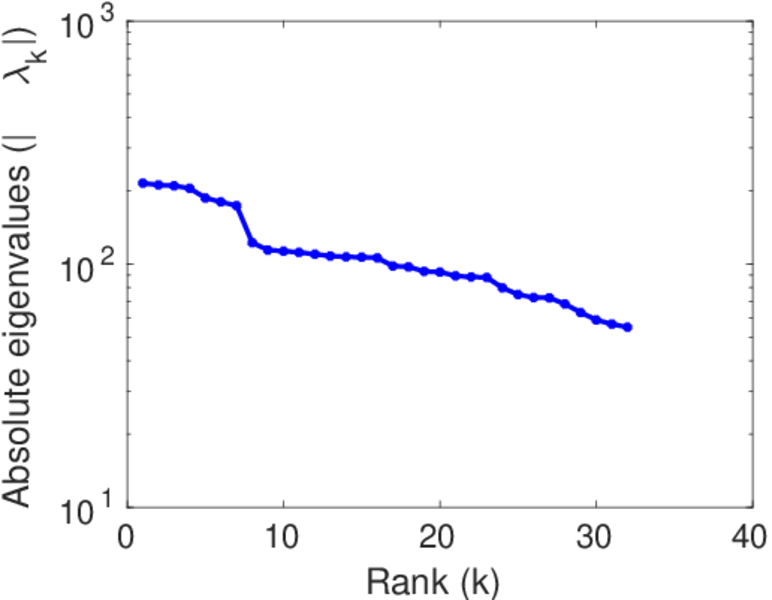

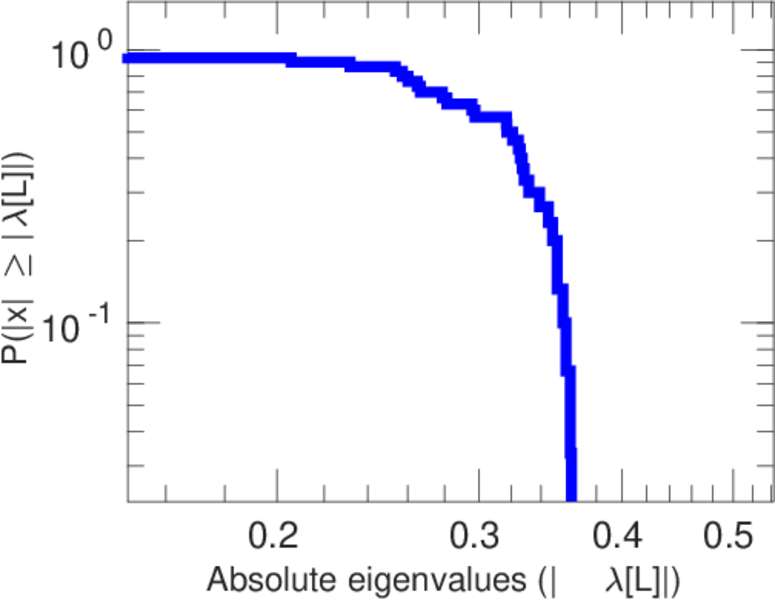

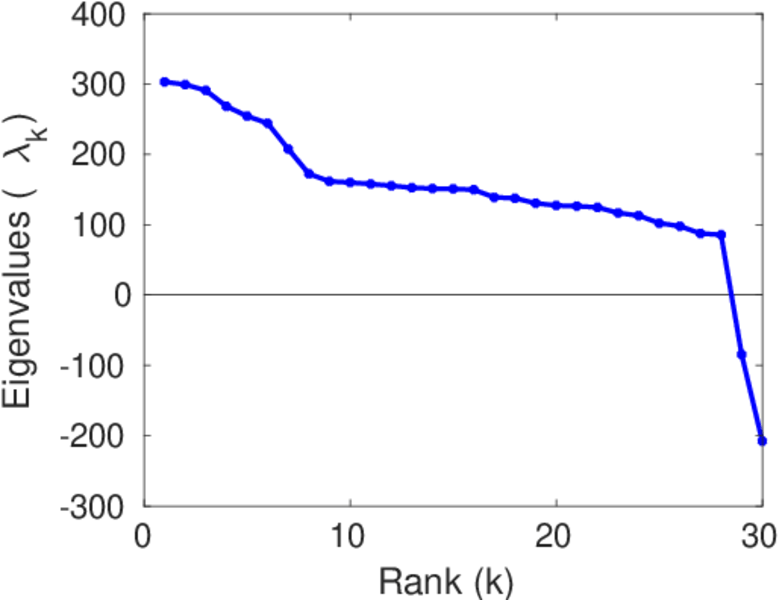

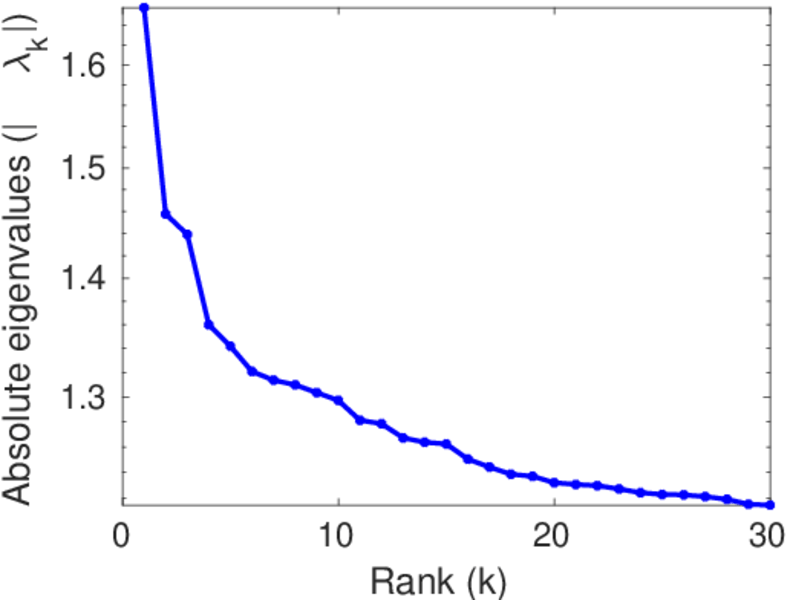

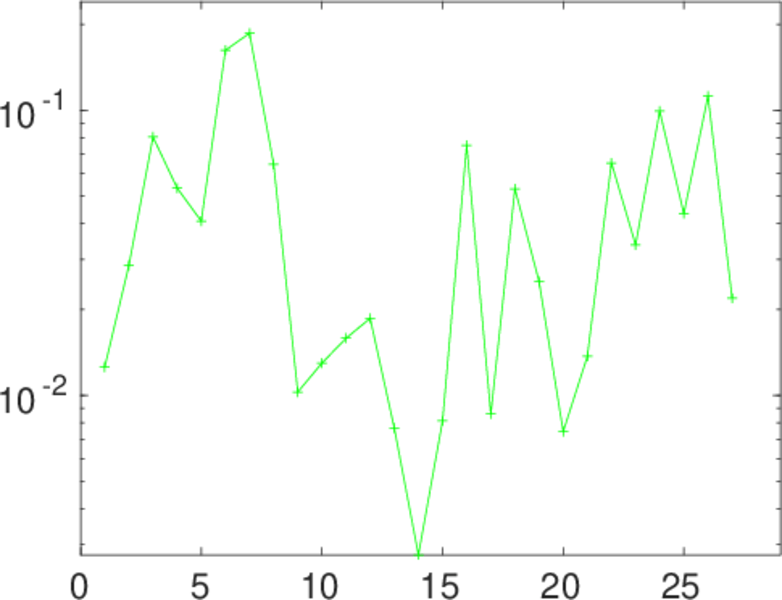

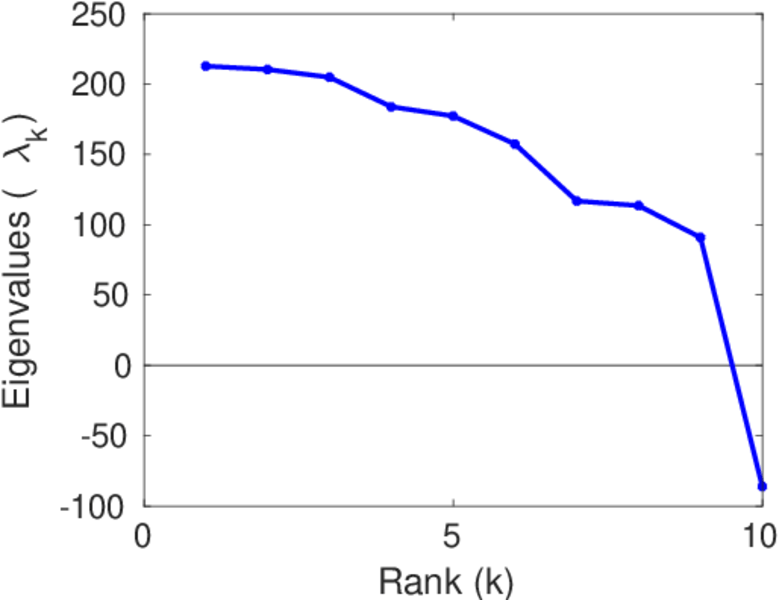

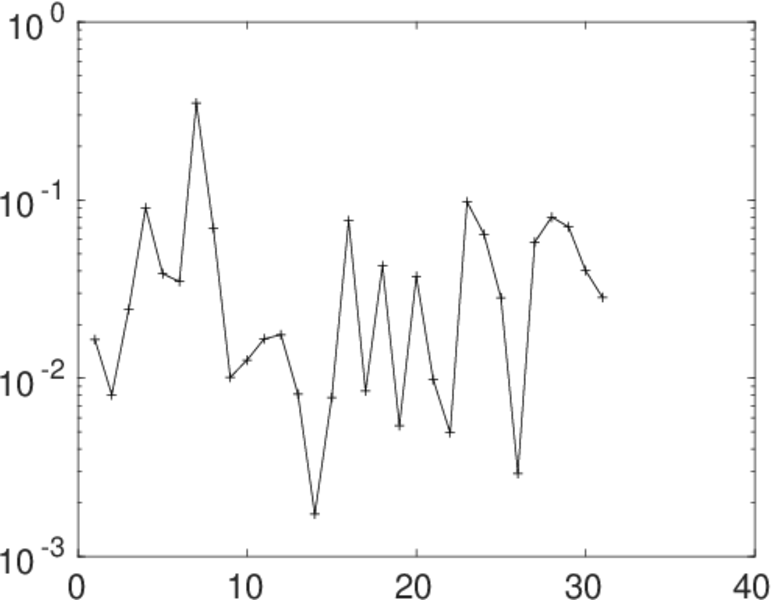

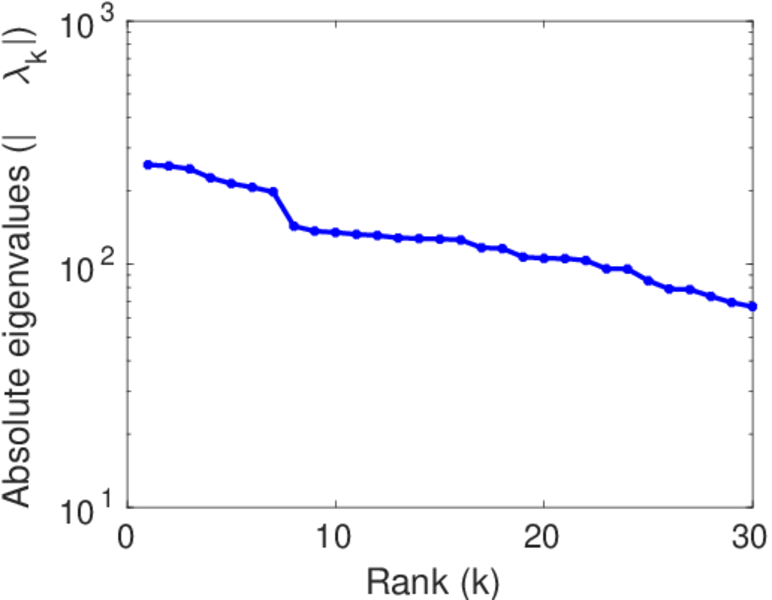

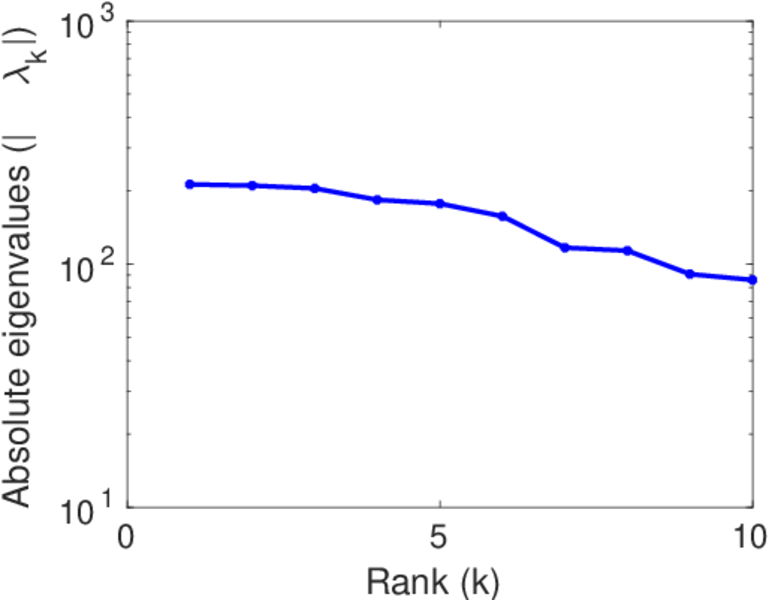

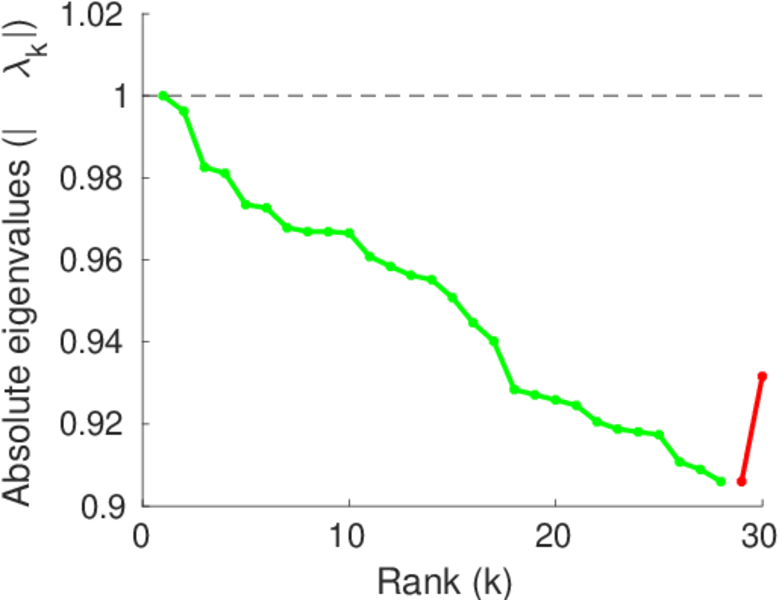

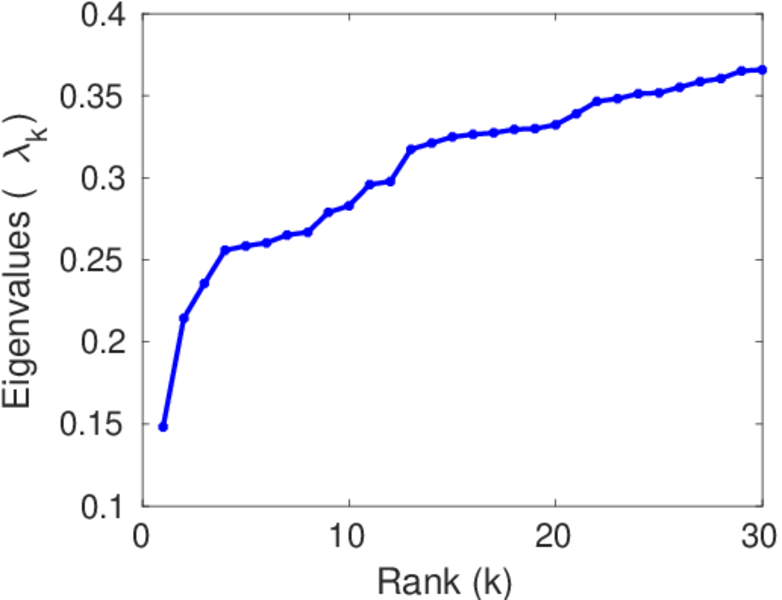

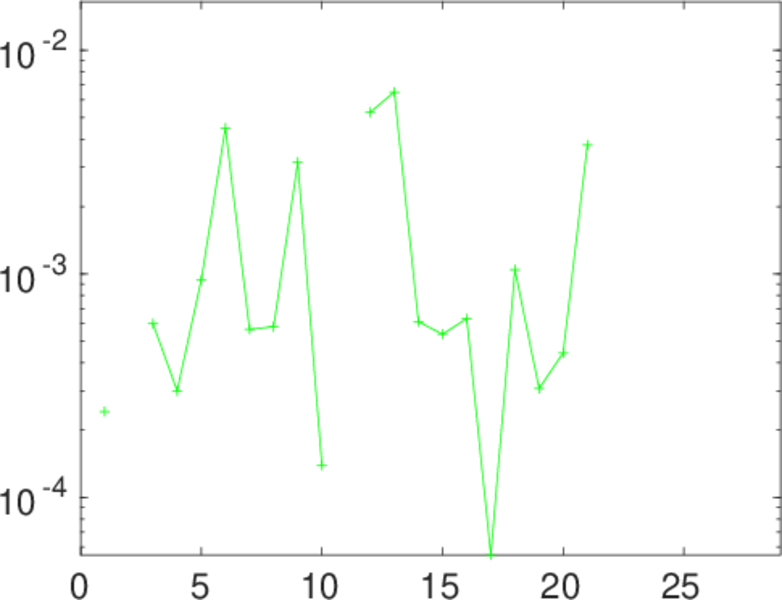

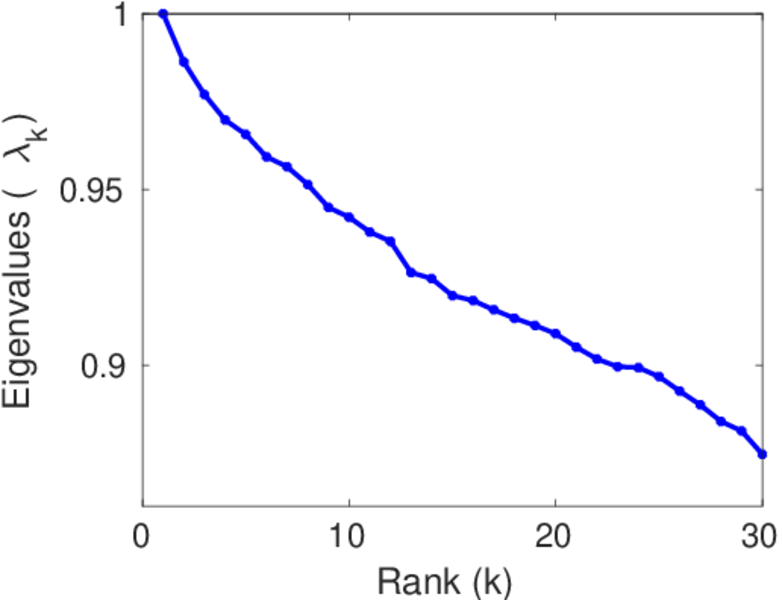

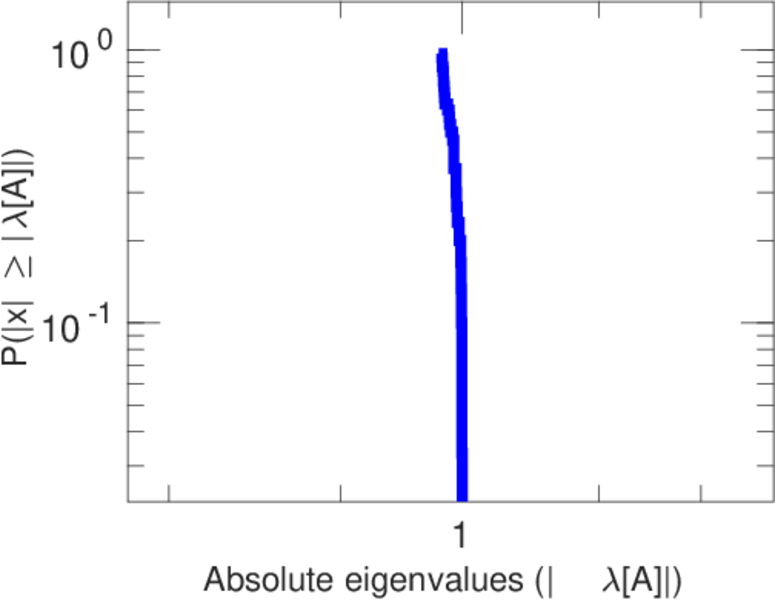

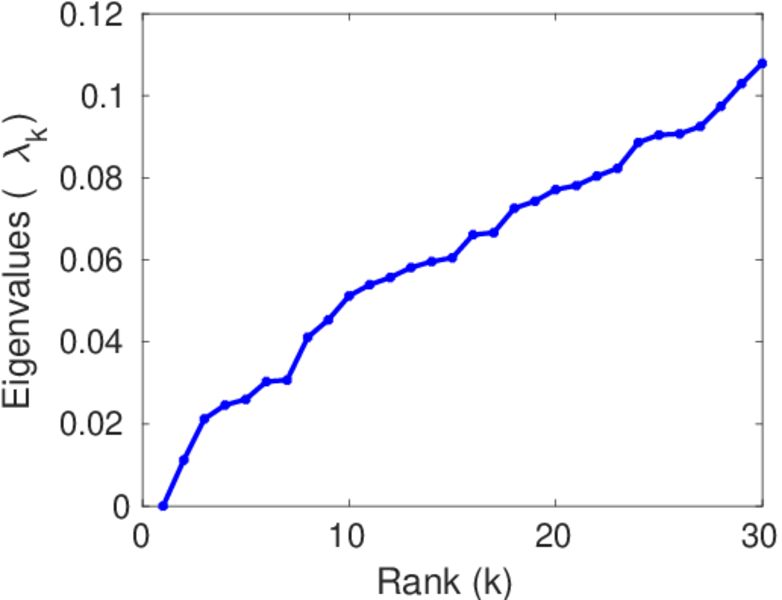

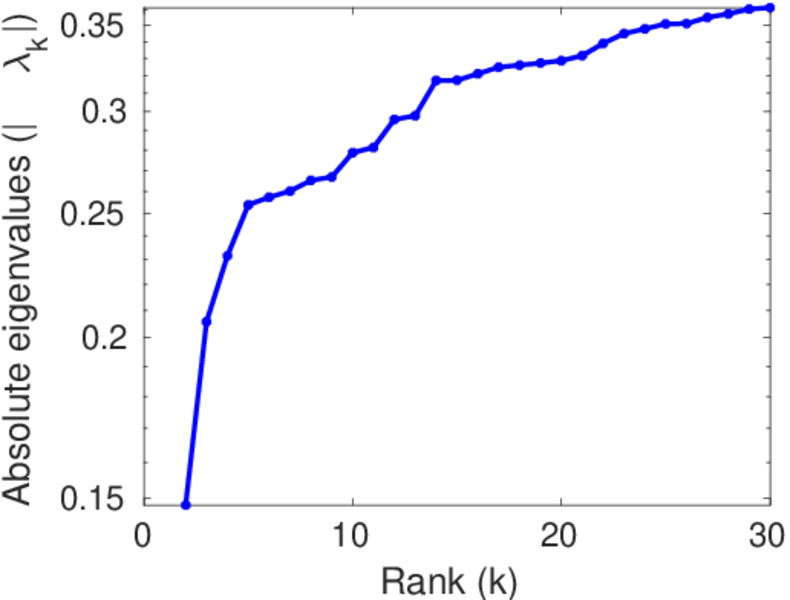

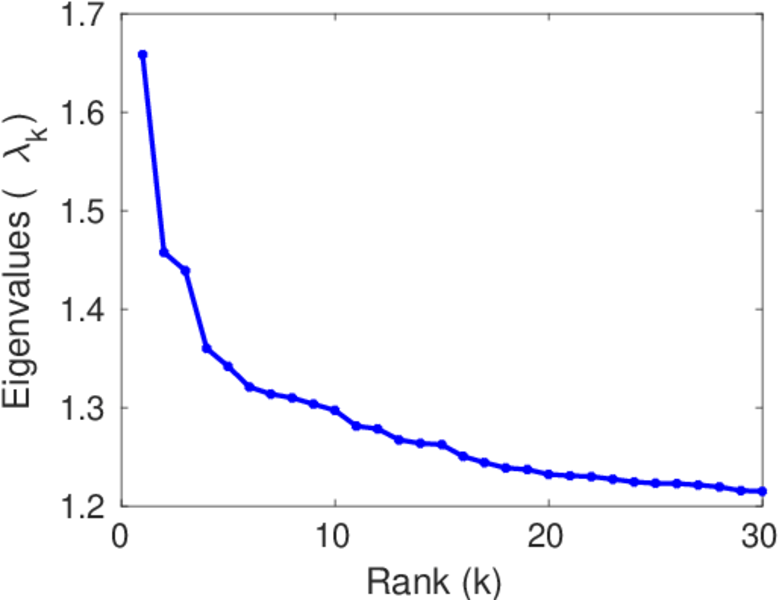

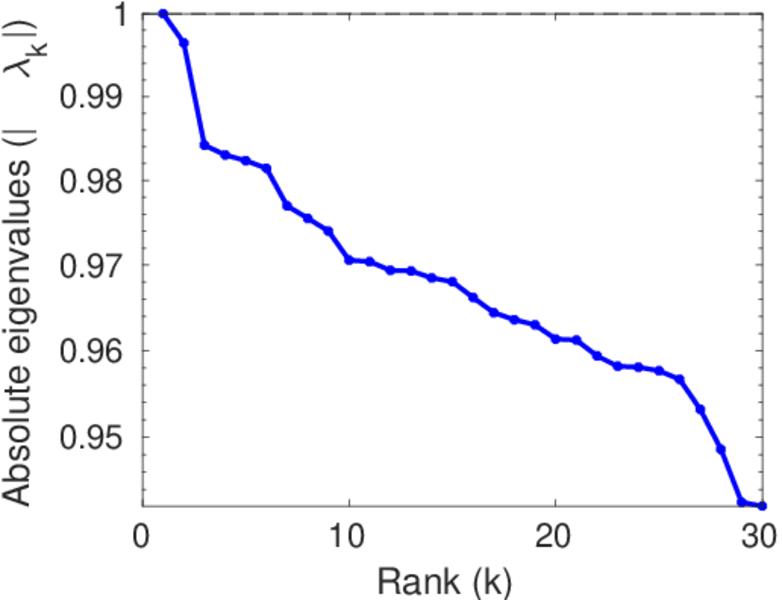

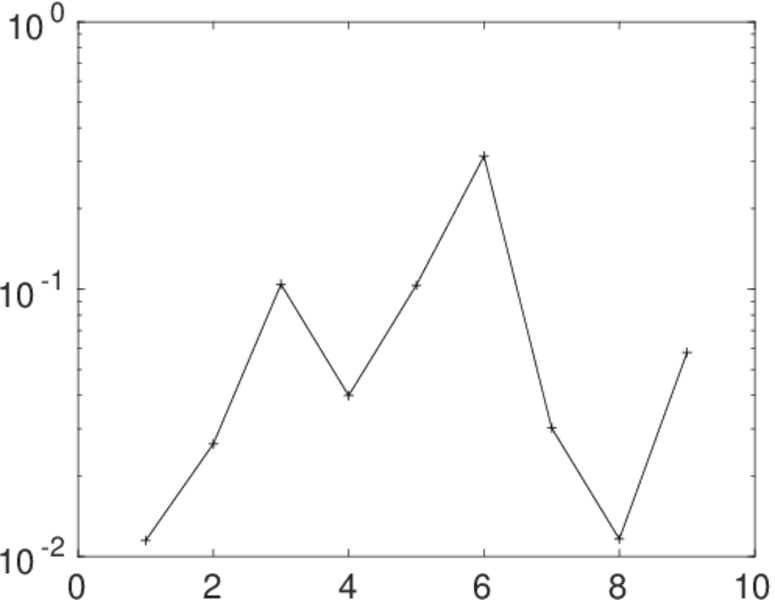

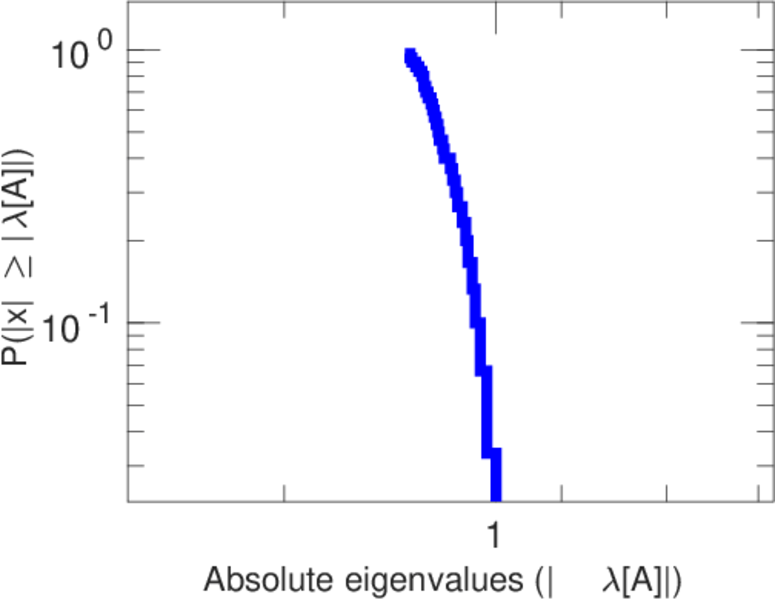

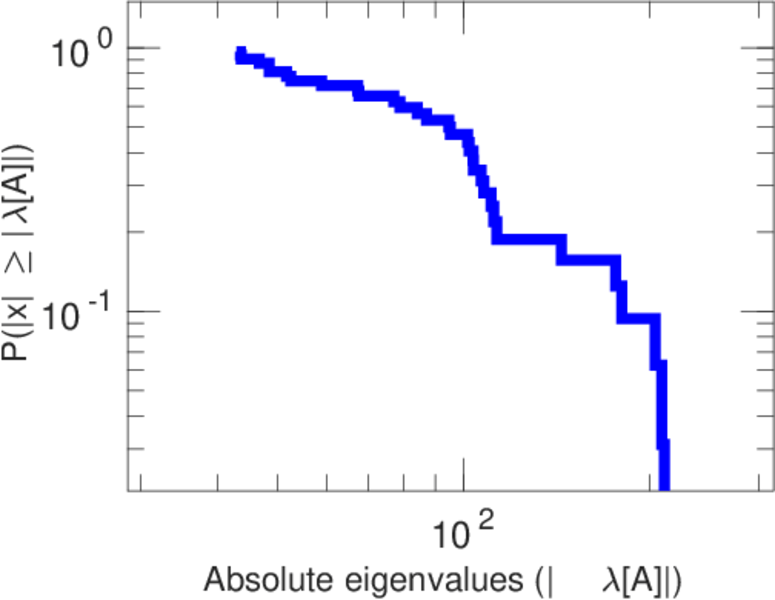

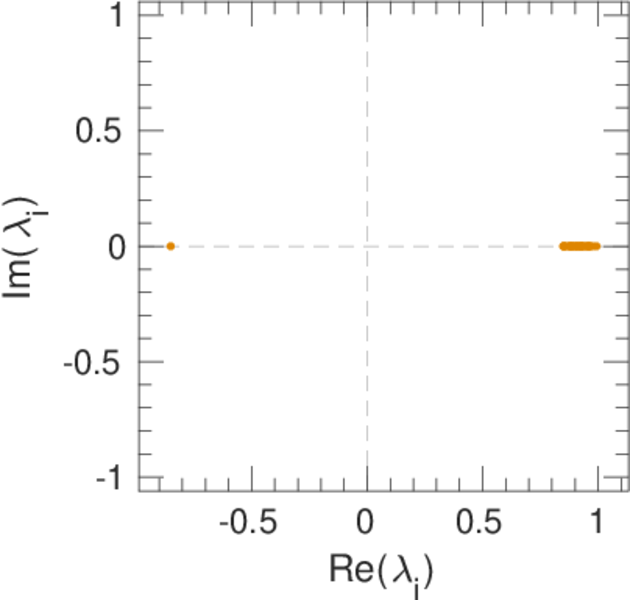

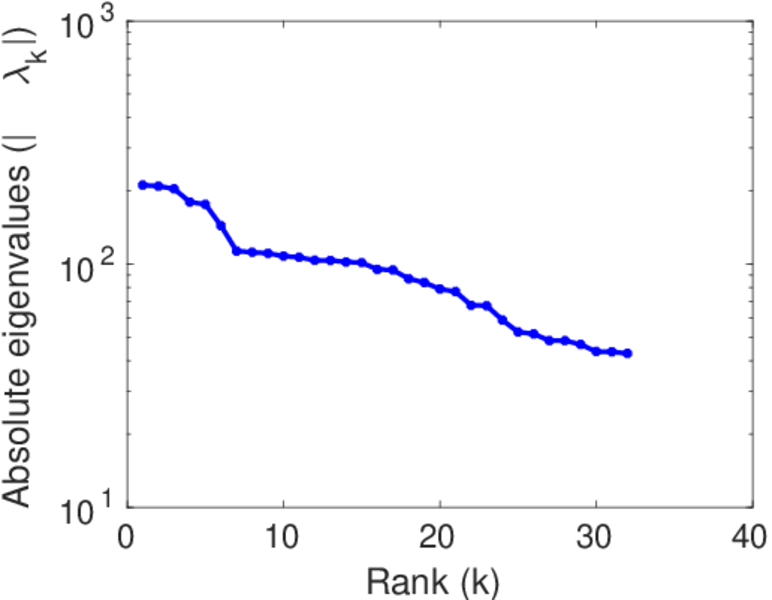

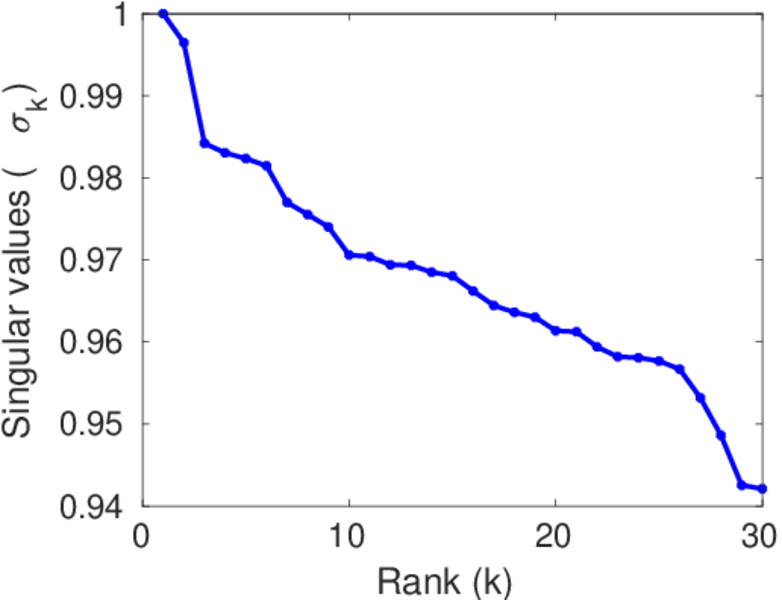

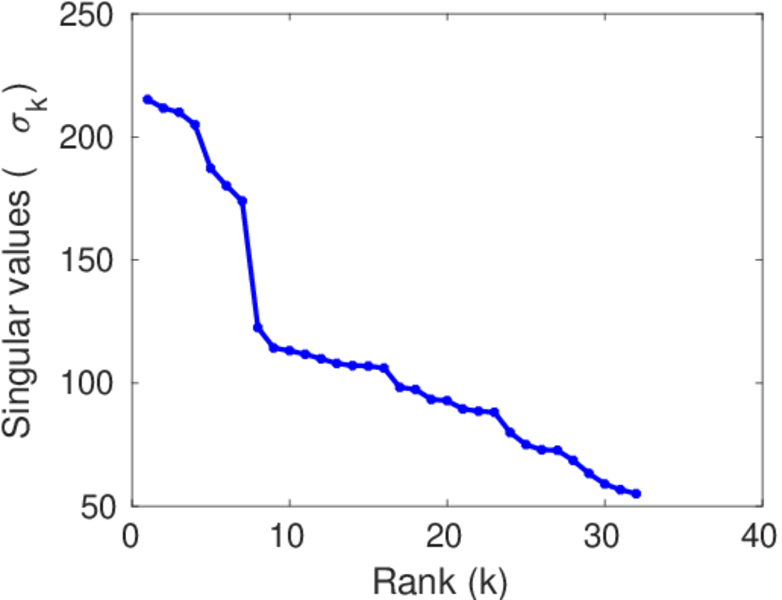

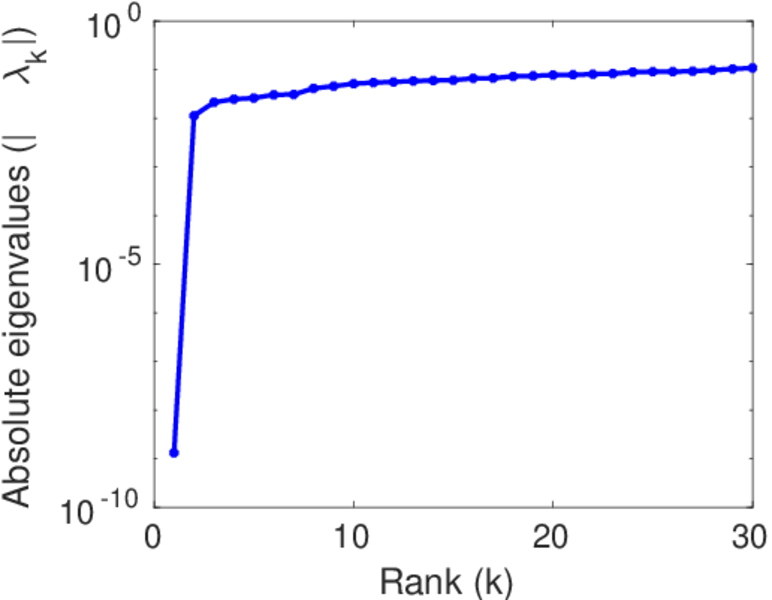

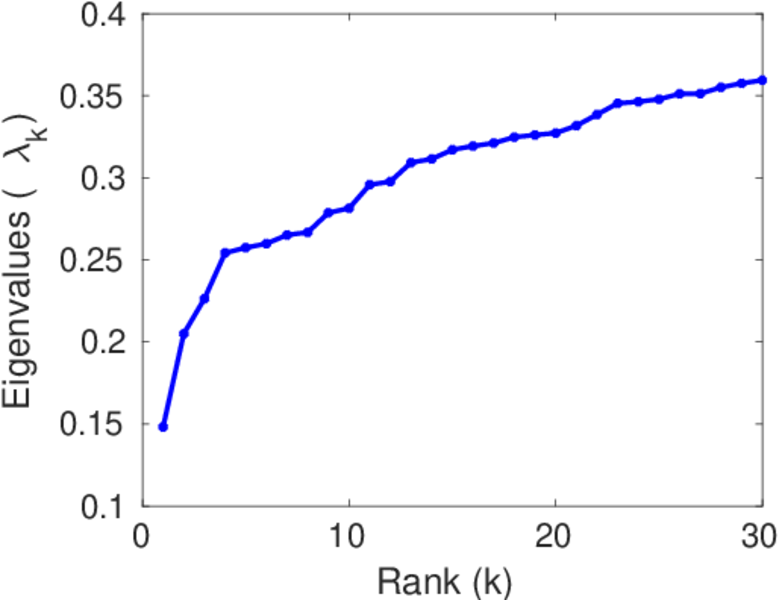

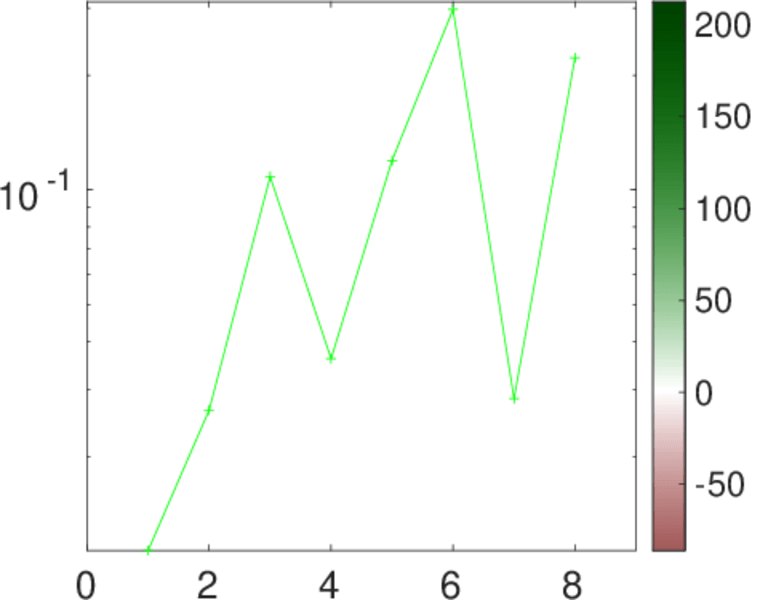

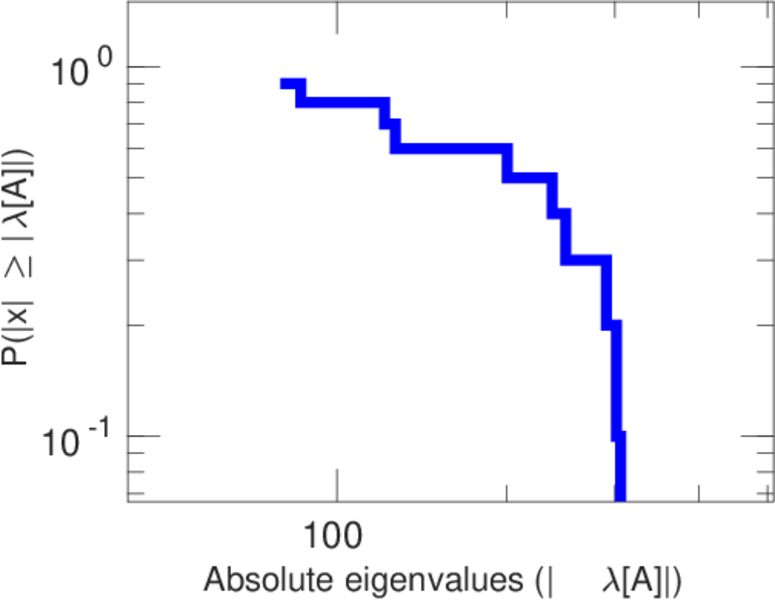

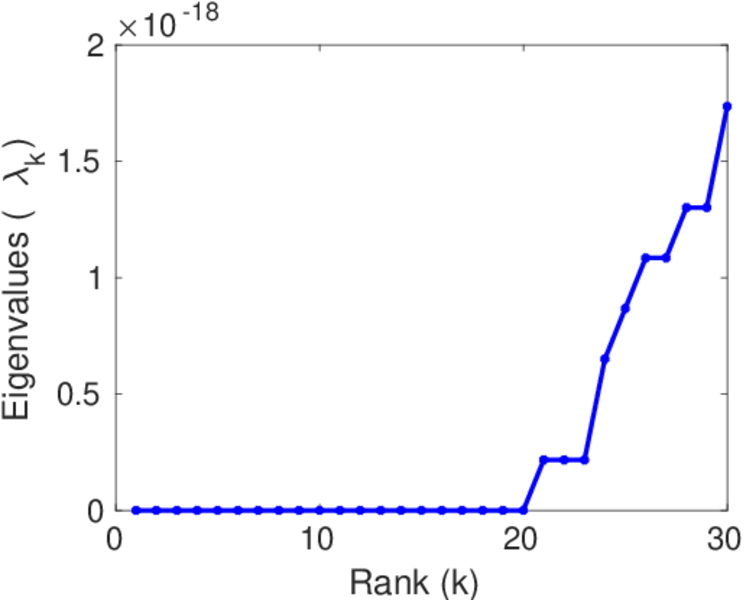

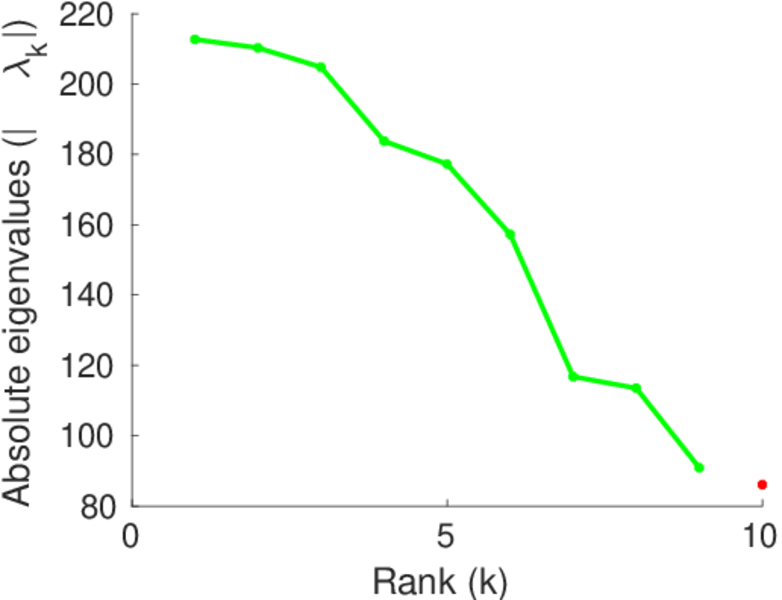

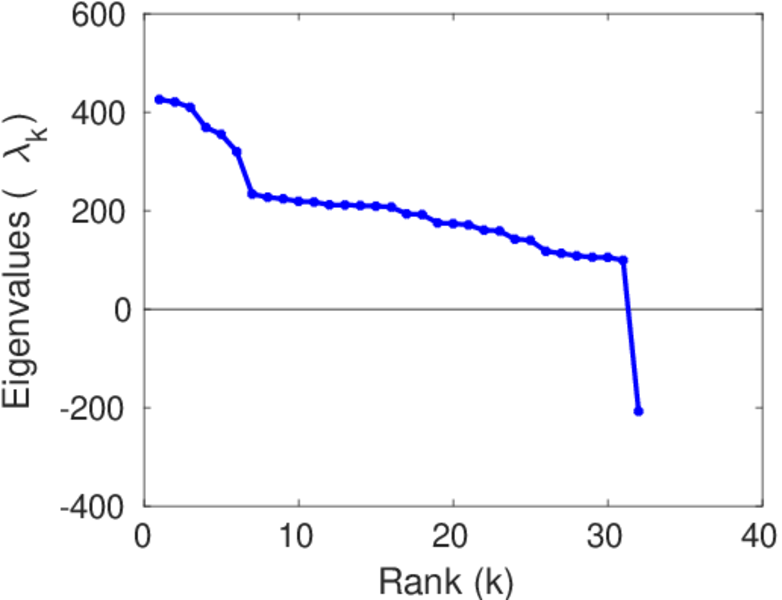

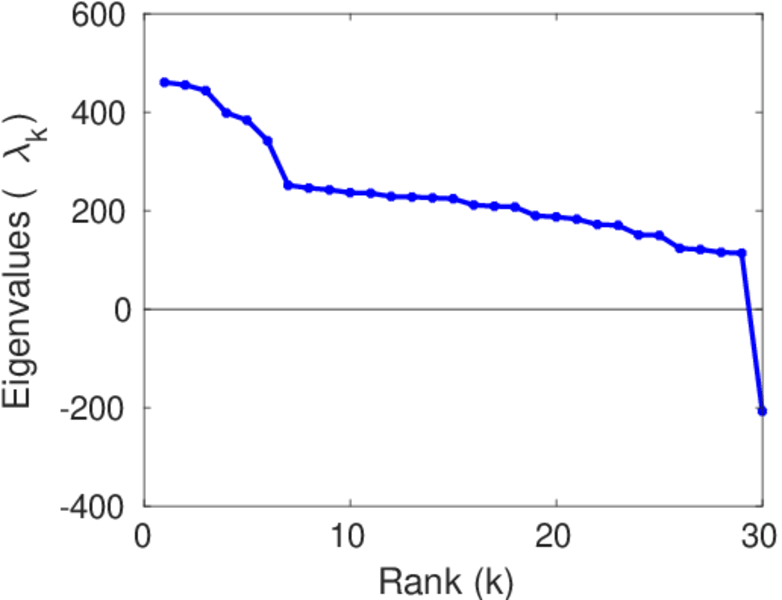

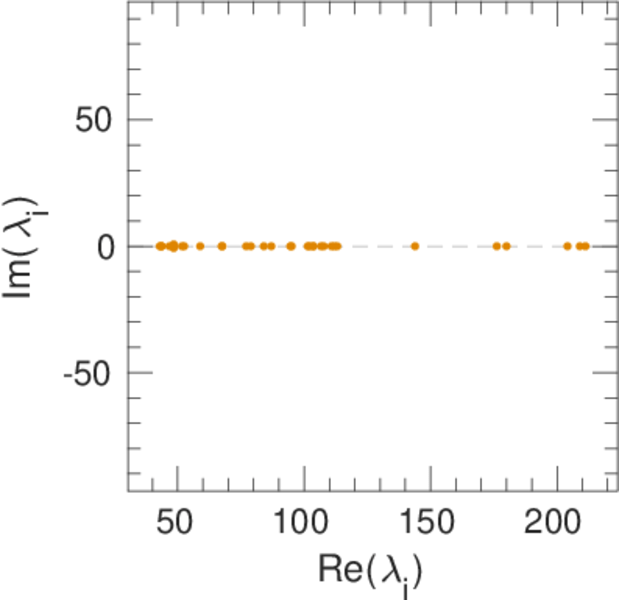

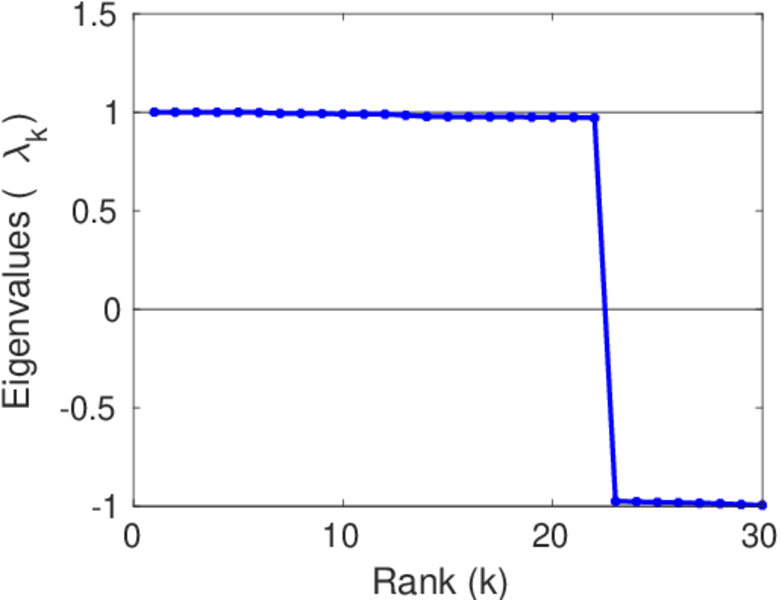

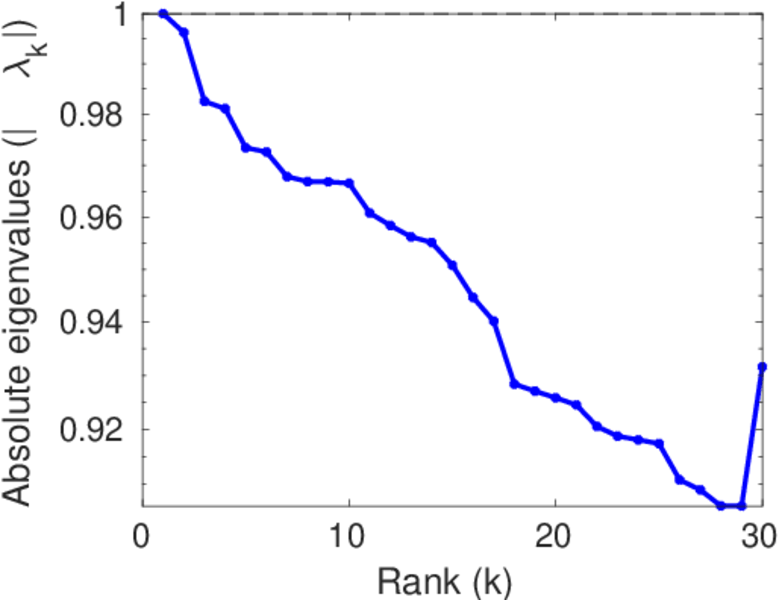

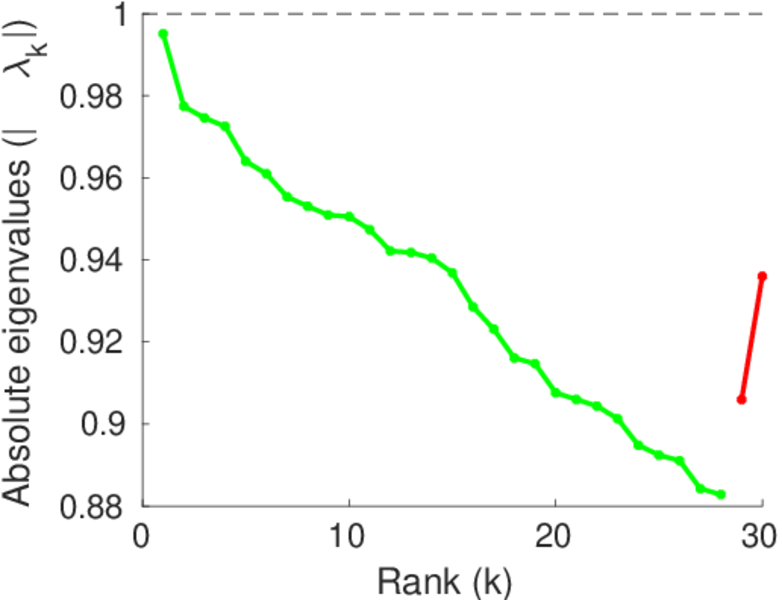

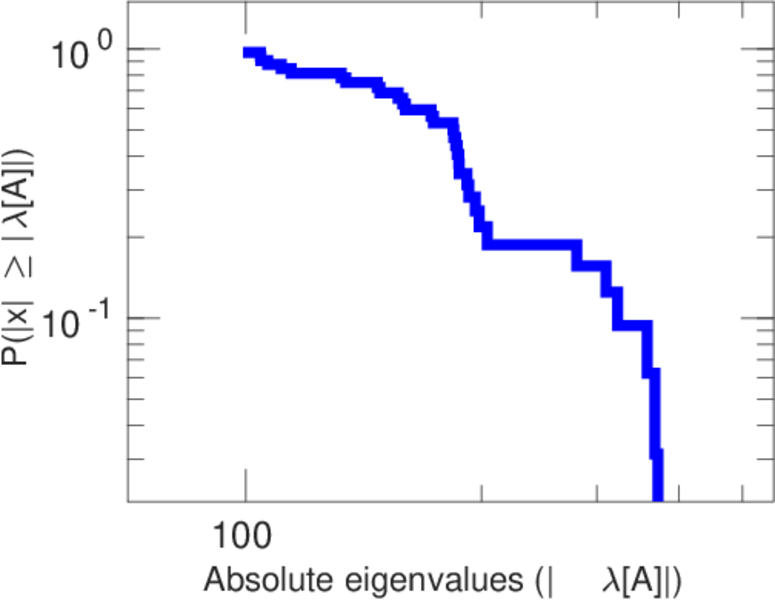

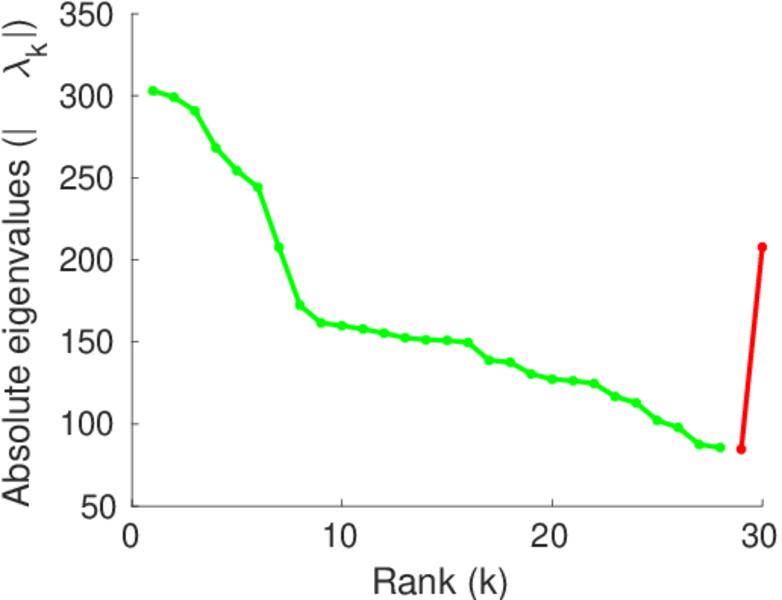

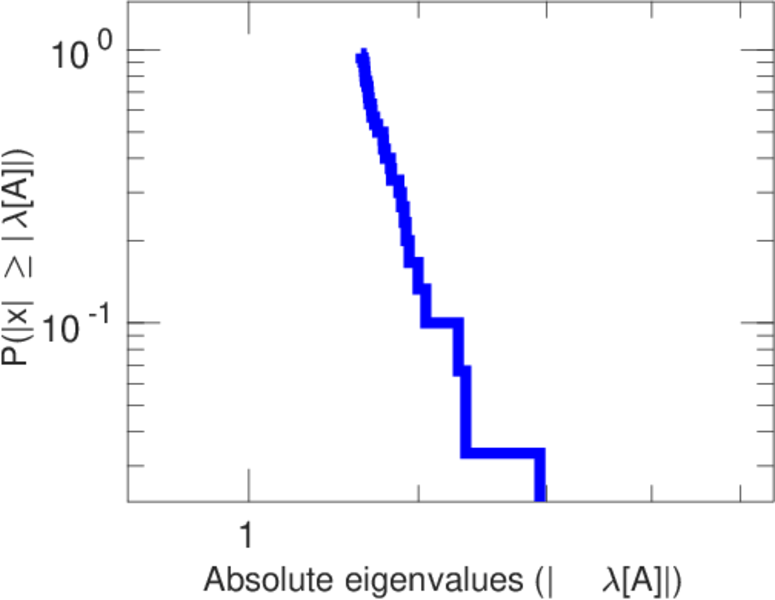

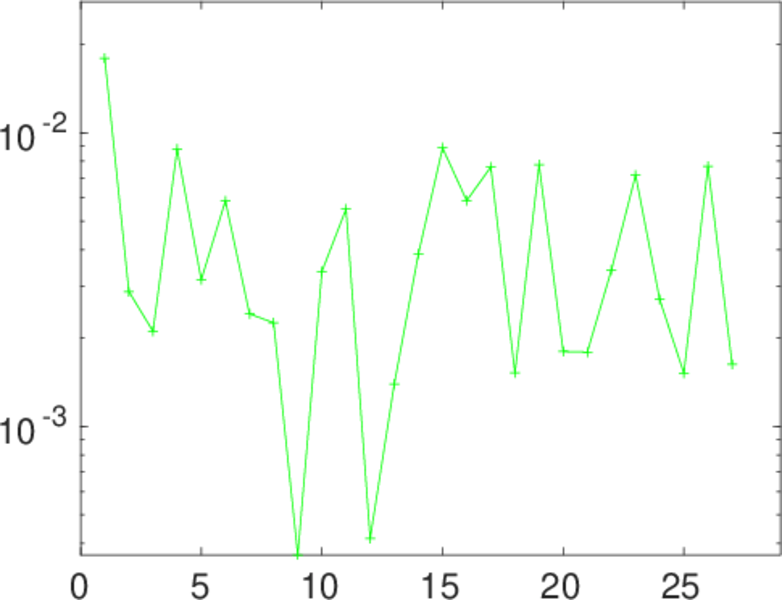

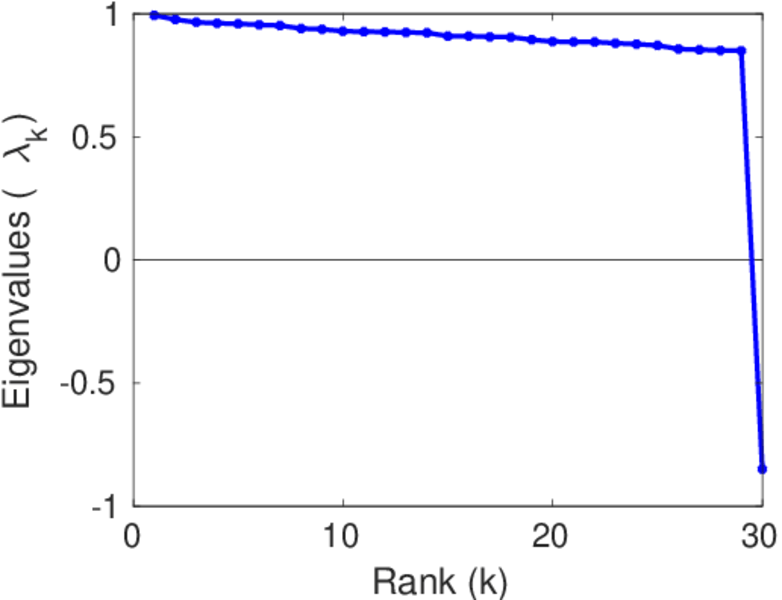

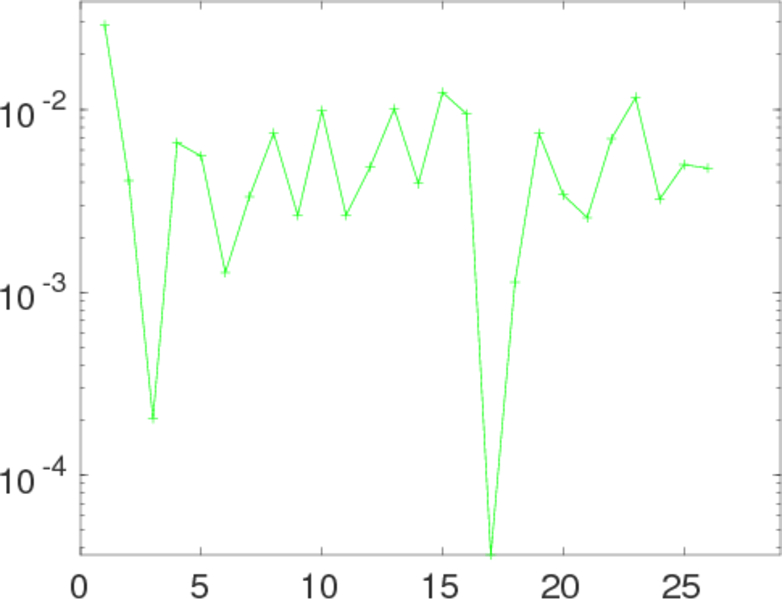

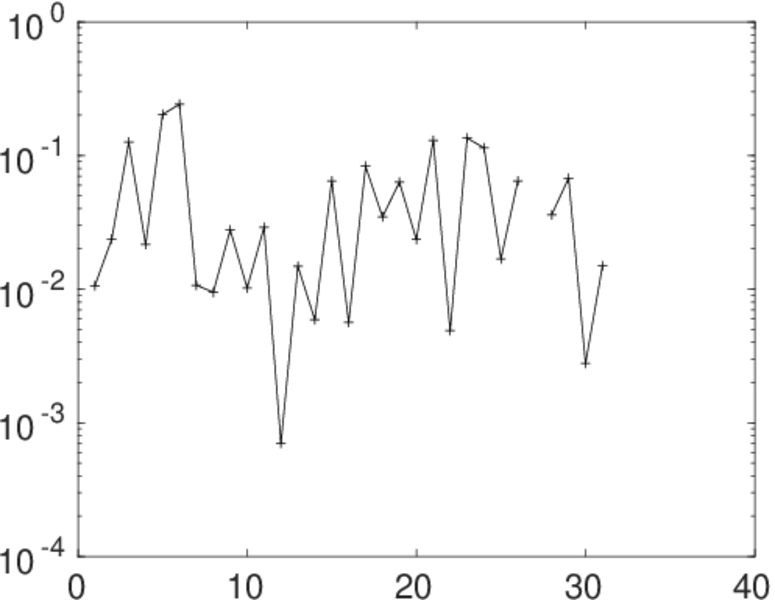

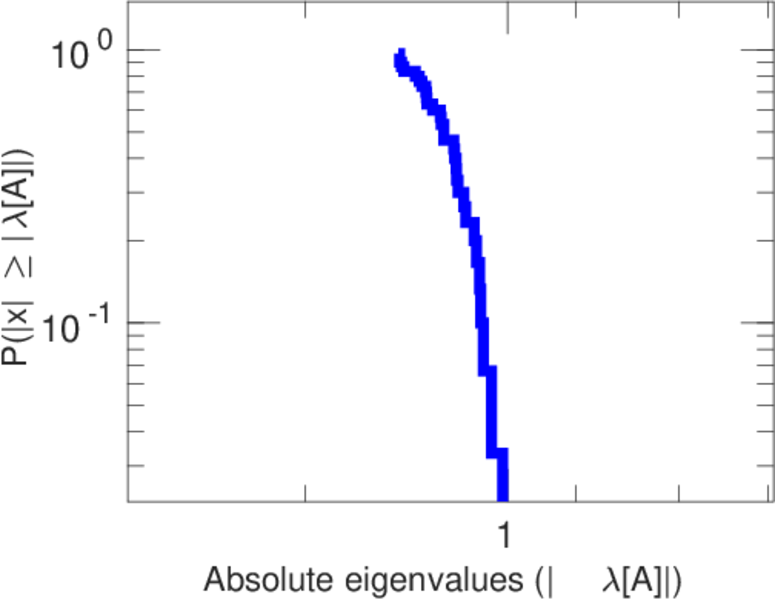

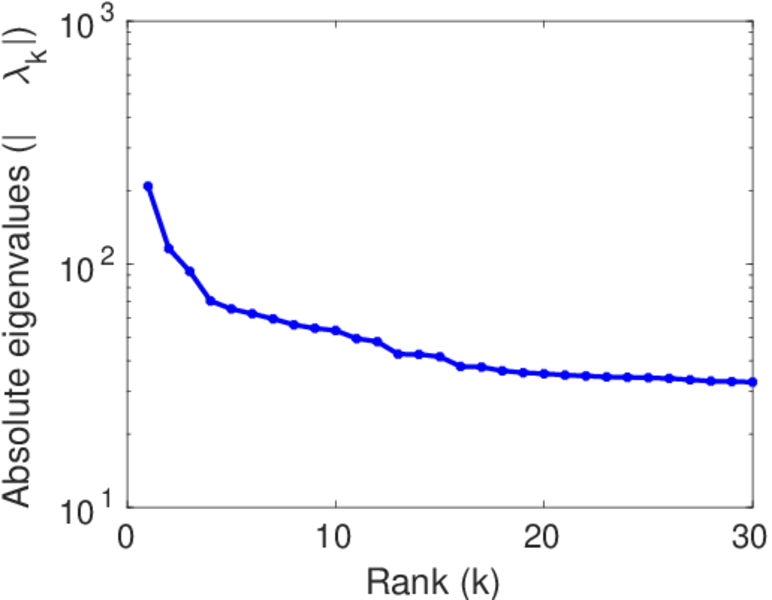

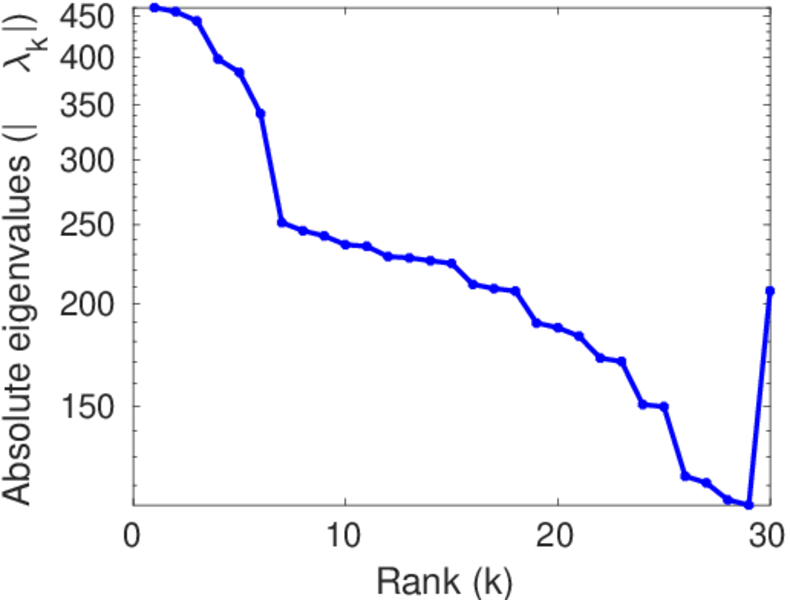

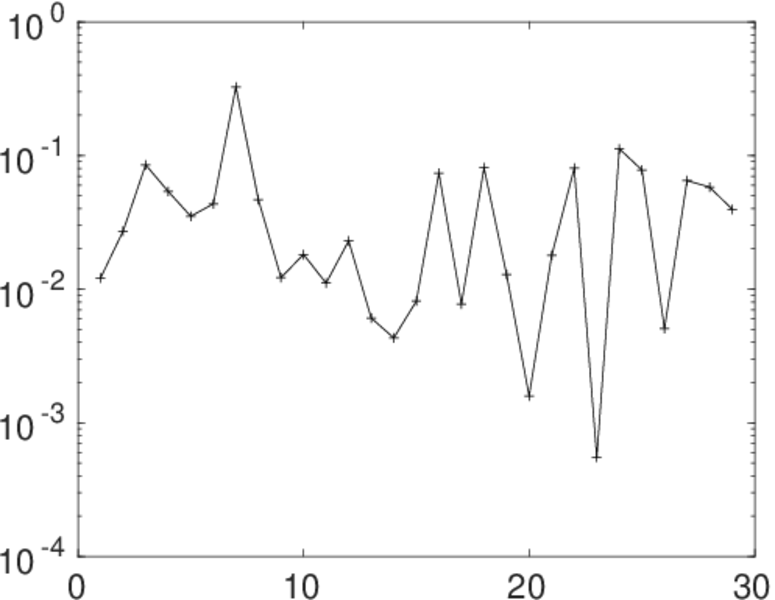

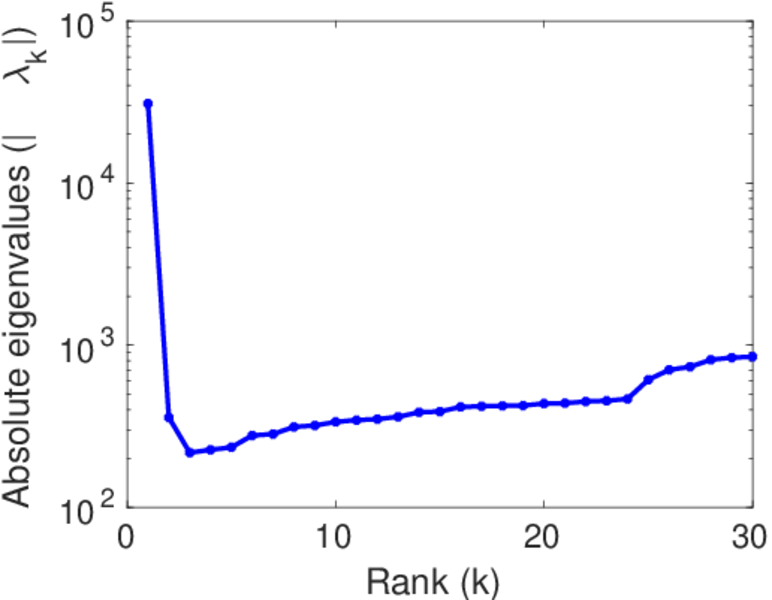

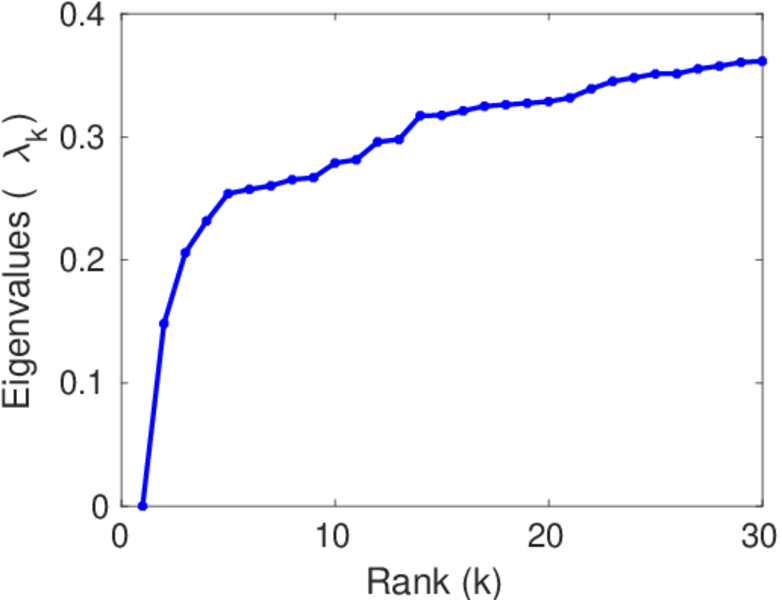

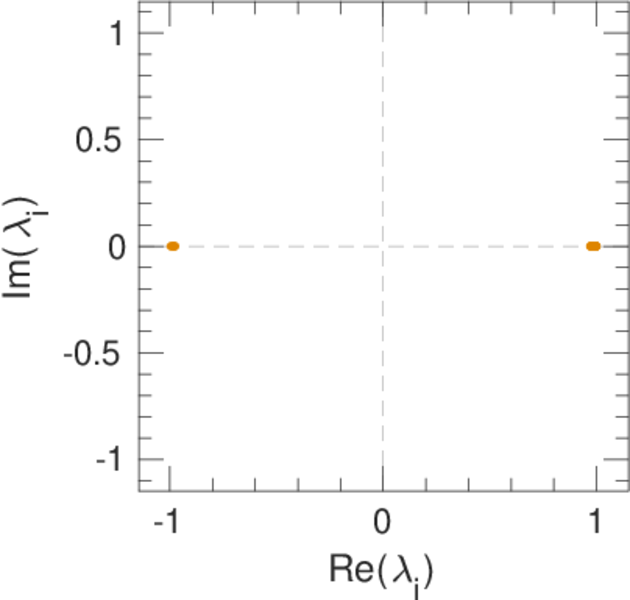

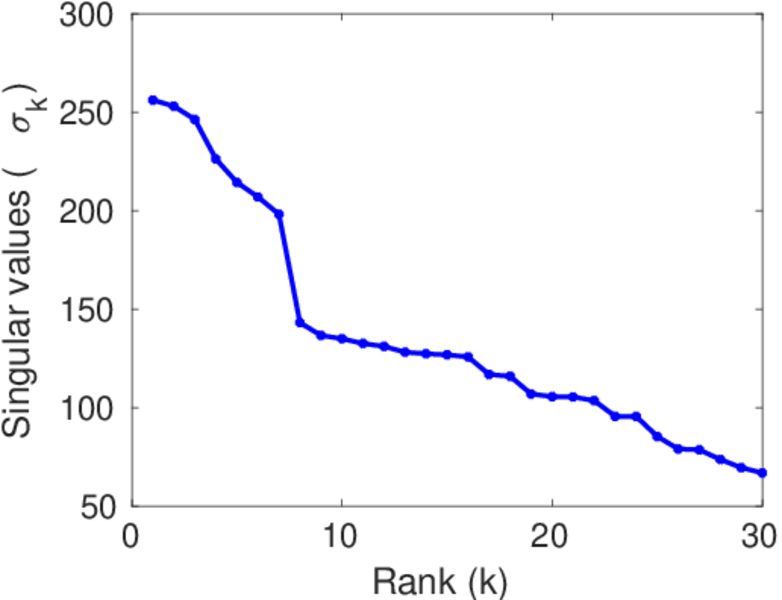

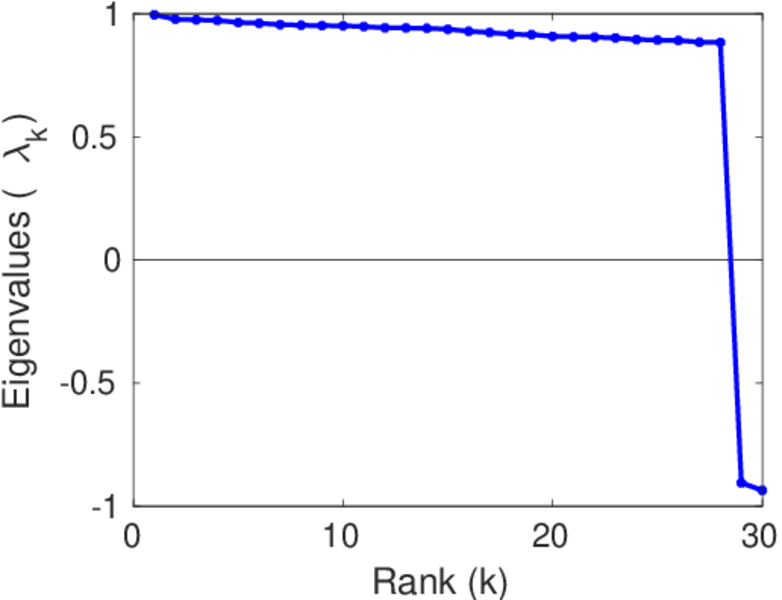

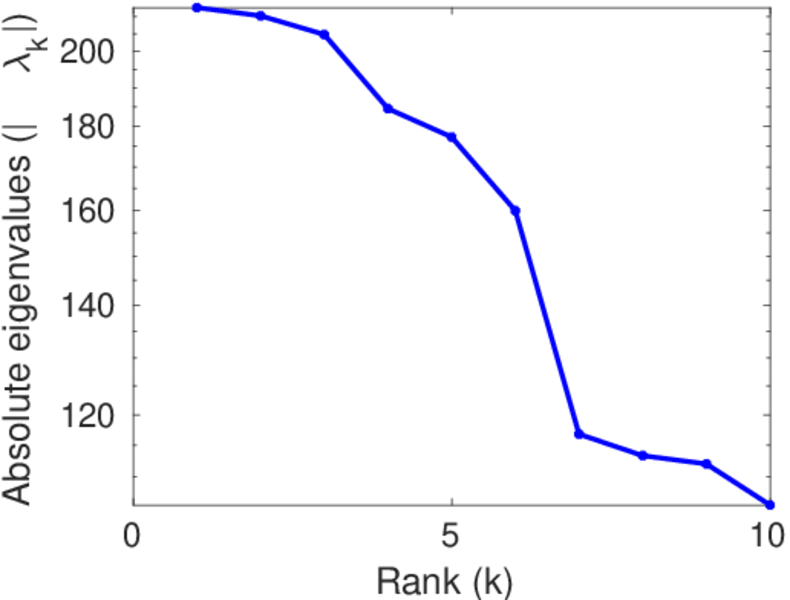

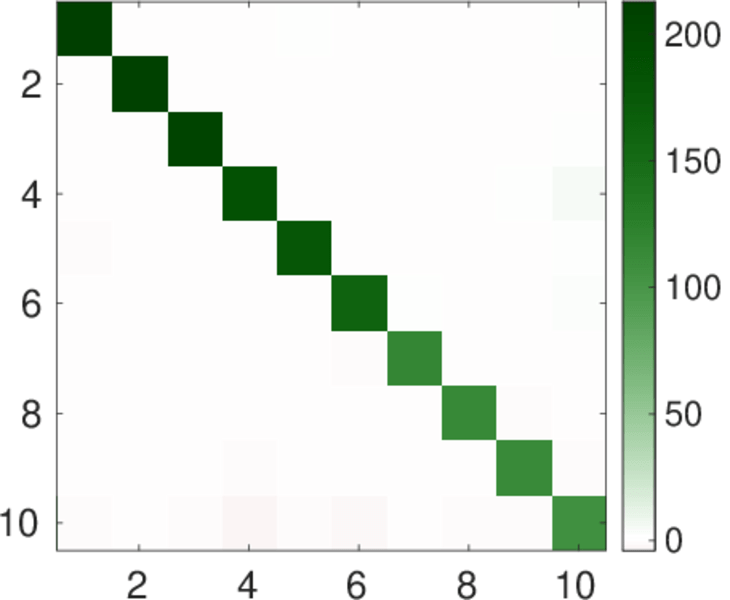

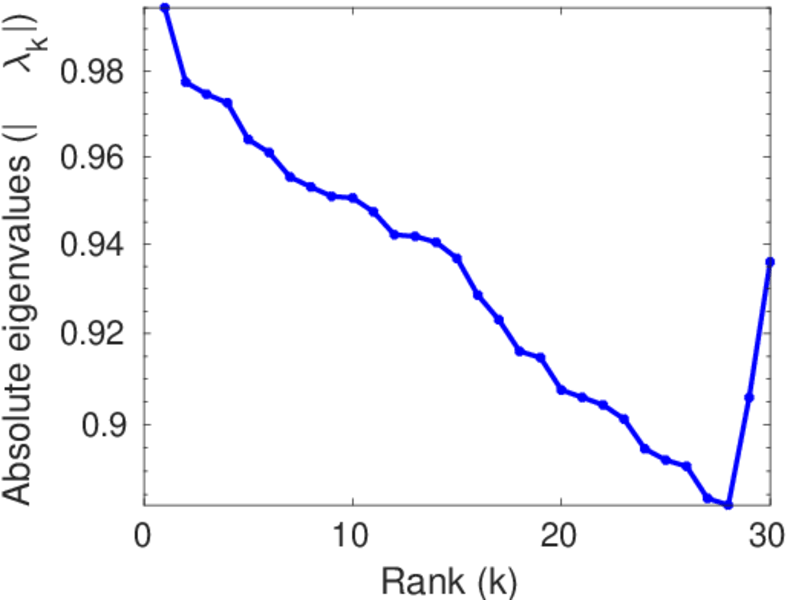

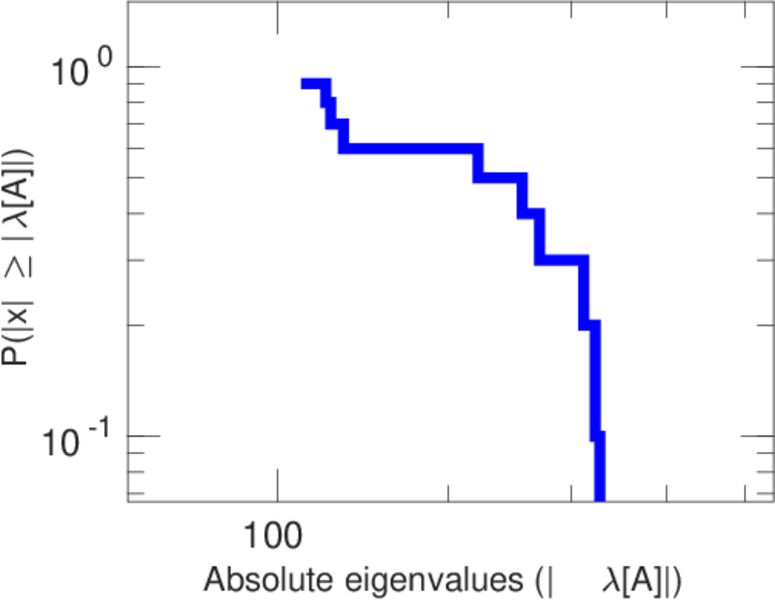

Matrix decompositions plots



[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
