Wikipedia links (jv)

This network consists of the wikilinks of the Wikipedia in the Javanese language (jv). Nodes are Wikipedia articles, and directed edges are wikilinks, i.e., hyperlinks within one wiki. In the wiki source, these are indicated with [[double brackets]]. Only pages in the article namespace are included.

Metadata

CodeWjv
Internal namewikipedia_link_jv
NameWikipedia links (jv)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningWikilink
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =72,453
Volume m =1,831,665
Loop count l =199
Wedge count s =2,130,027,011
Claw count z =9,358,479,276,985
Cross count x =45,426,897,664,299,768
Triangle count t =28,195,188
Square count q =19,533,551,906
4-Tour count T4 =221,334,701,674
Maximum degree dmax =26,576
Maximum outdegree d+max =2,022
Maximum indegree d−max =26,126
Average degree d =50.561 5
Fill p =0.000 348 926
Size of LCC N =72,363
Size of LSCC Ns =39,248
Relative size of LSCC Nrs =0.541 703
Diameter δ =10
50-Percentile effective diameter δ0.5 =2.750 64
90-Percentile effective diameter δ0.9 =3.898 63
Median distance δM =3
Mean distance δm =3.292 42
Gini coefficient G =0.675 105
Balanced inequality ratio P =0.243 828
Outdegree balanced inequality ratio P+ =0.254 758
Indegree balanced inequality ratio P− =0.185 329
Relative edge distribution entropy Her =0.891 678
Power law exponent γ =1.383 26
Degree assortativity ρ =−0.127 260
Degree assortativity p-value pρ =0.000 00
In/outdegree correlation ρ± =+0.522 367
Clustering coefficient c =0.039 711 0
Directed clustering coefficient c± =0.585 740
Spectral norm α =529.795
Operator 2-norm ν =462.768
Reciprocity y =0.298 002
Non-bipartivity bA =0.203 570
Spectral bipartite frustration bK =0.000 769 388
Controllability C =26,540
Relative controllability Cr =0.366 306

Plots

Degree distribution

Cumulative degree distribution

Lorenz curve

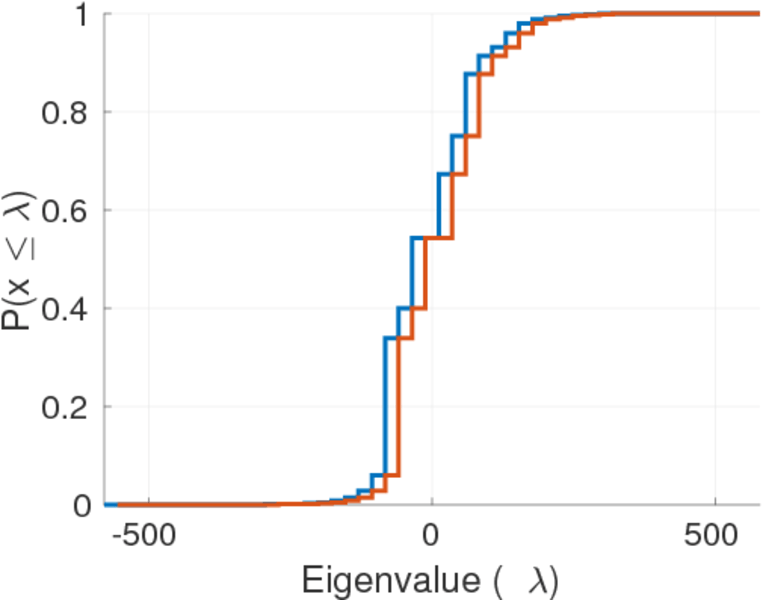

Spectral distribution of the adjacency matrix

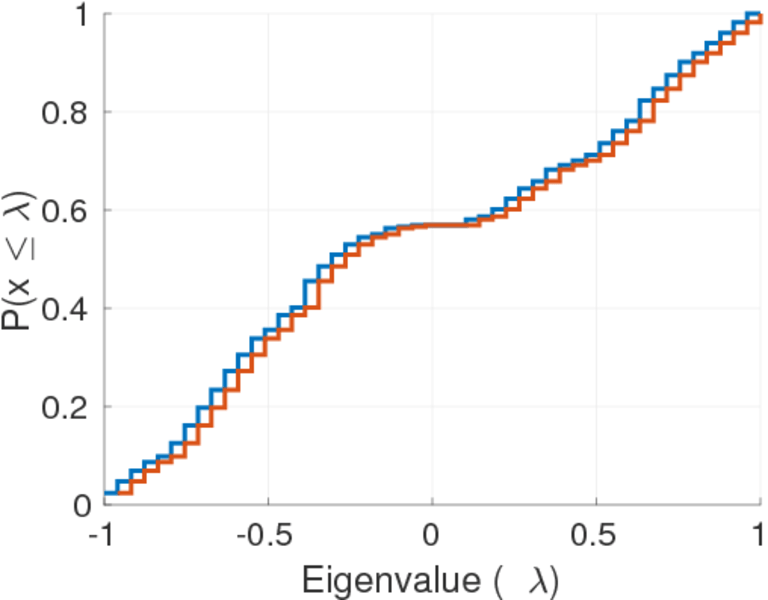

Spectral distribution of the normalized adjacency matrix

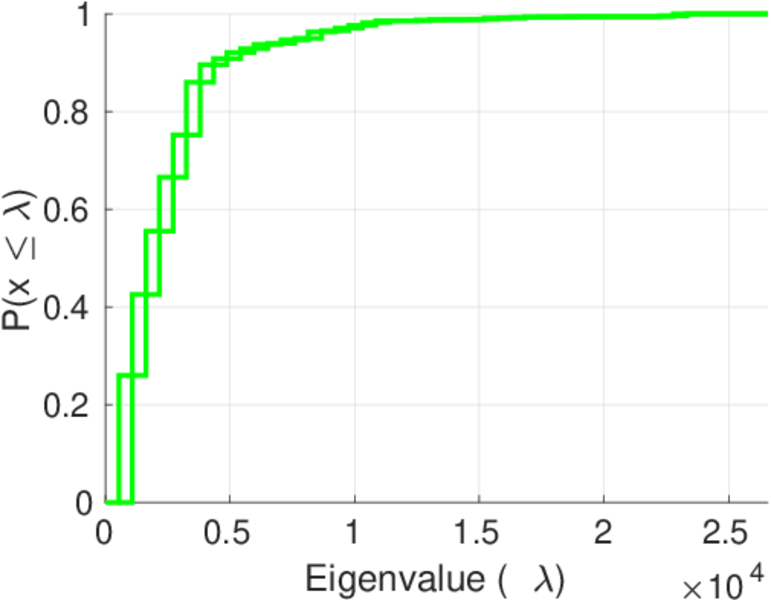

Spectral distribution of the Laplacian

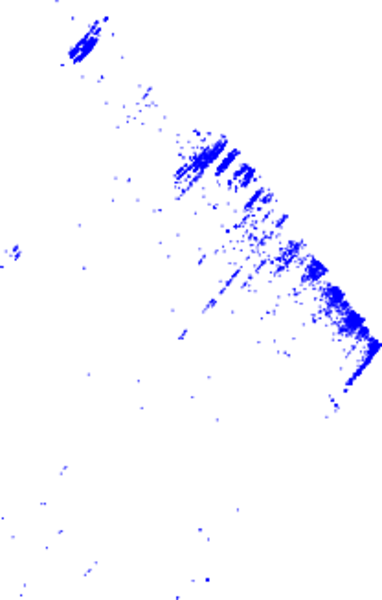

Spectral graph drawing based on the adjacency matrix

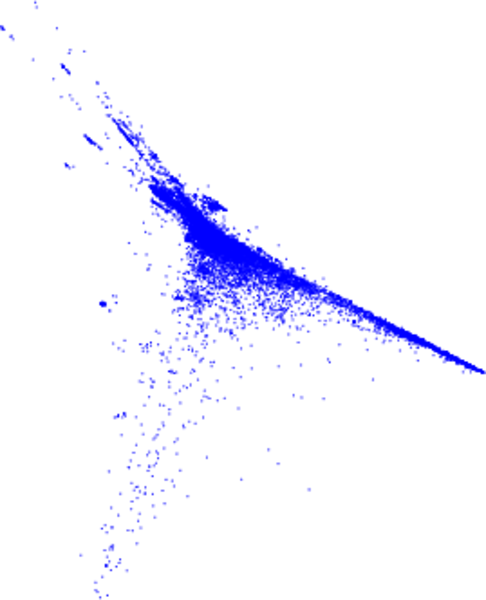

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Delaunay graph drawing

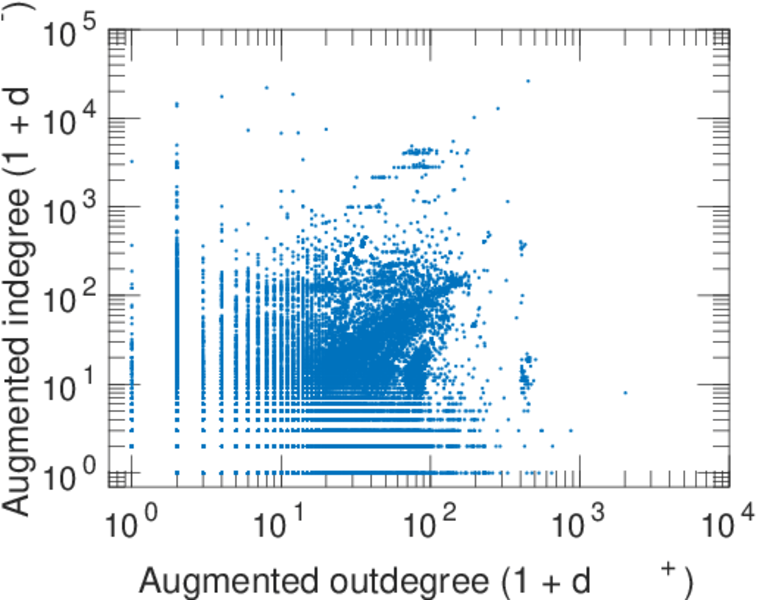

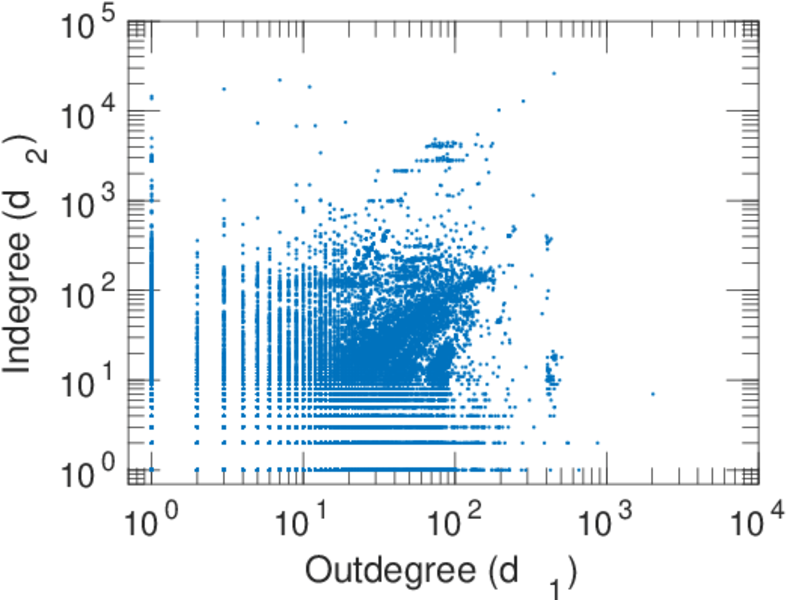

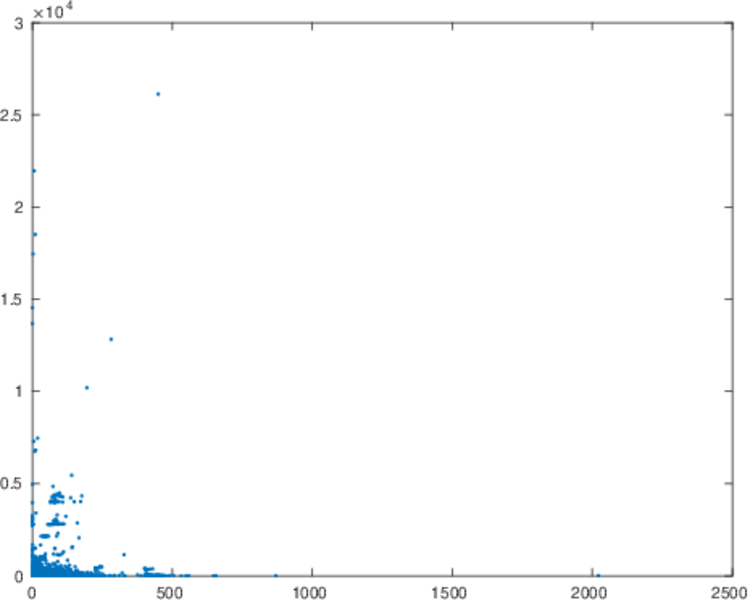

In/outdegree scatter plot

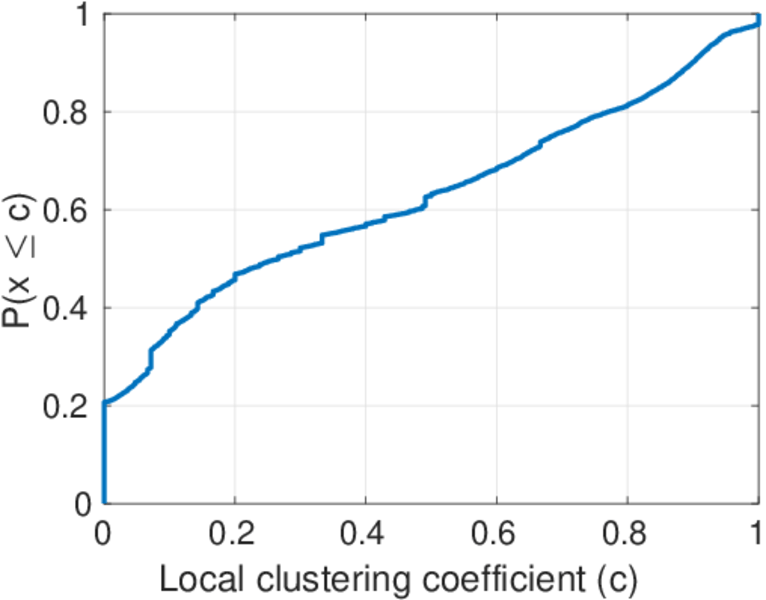

Clustering coefficient distribution

Average neighbor degree distribution

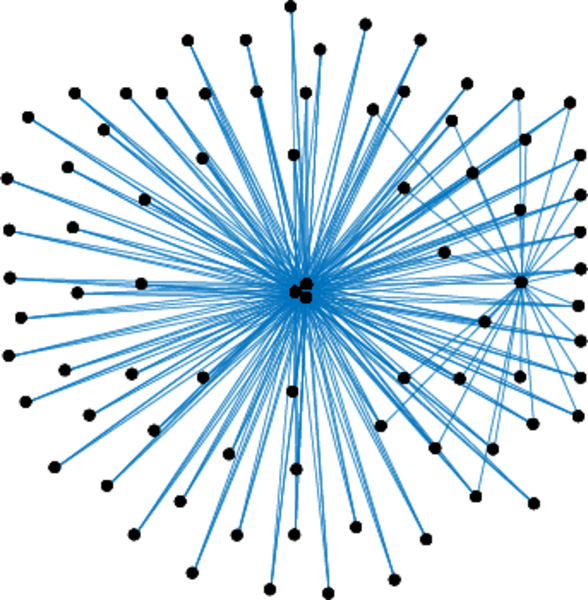

SynGraphy

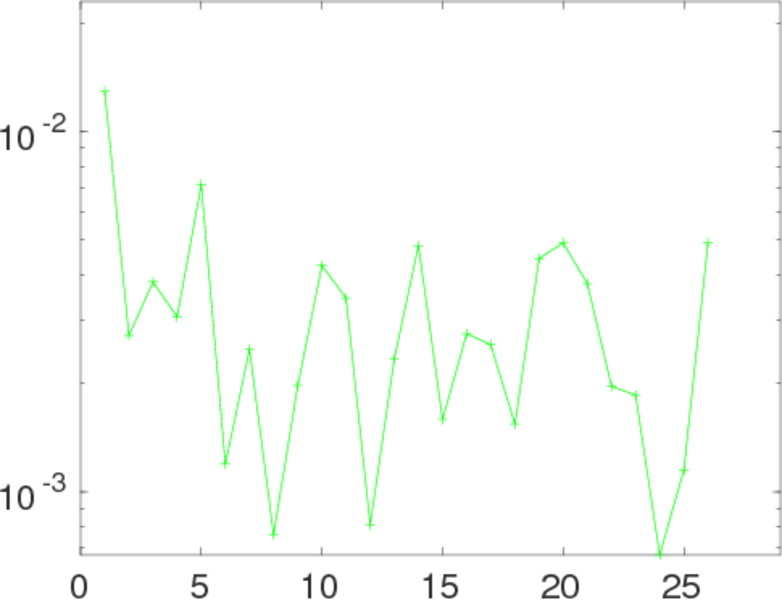

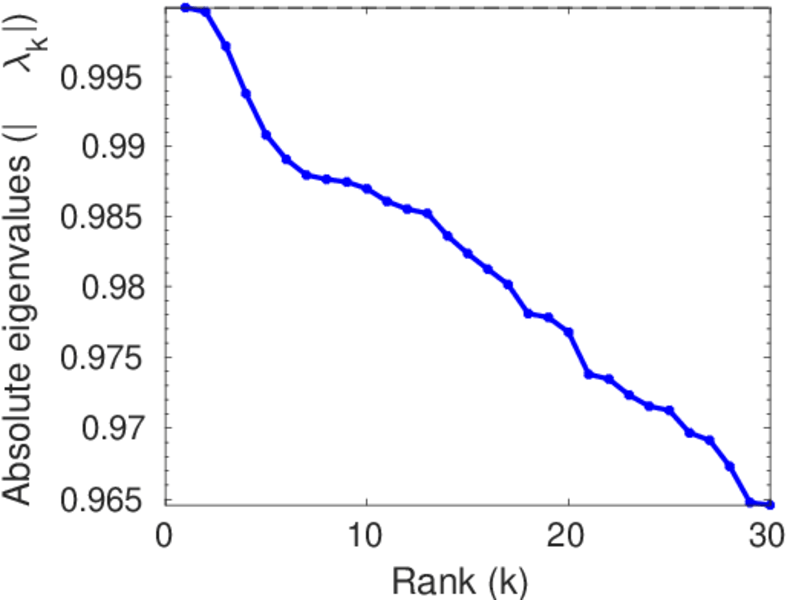

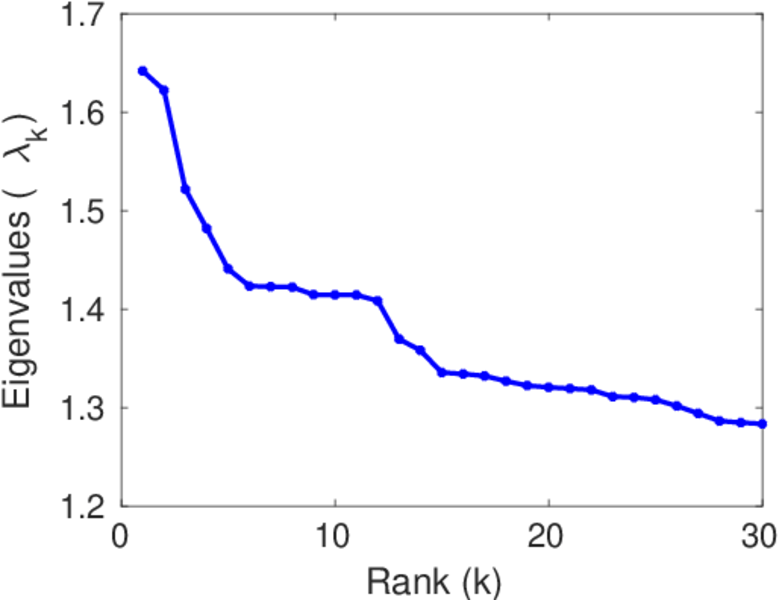

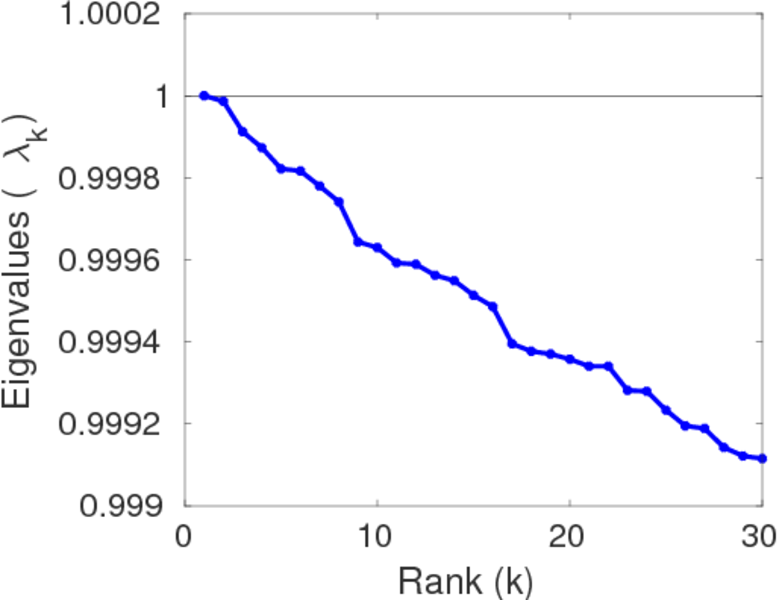

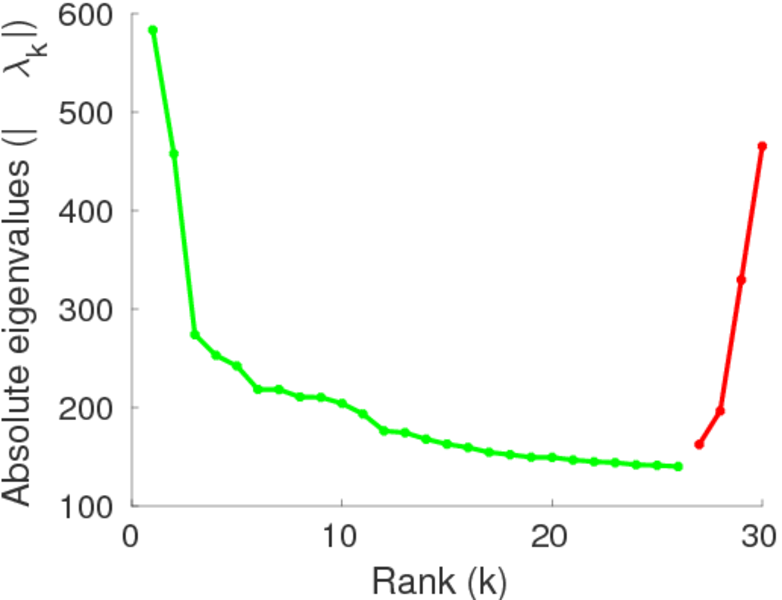

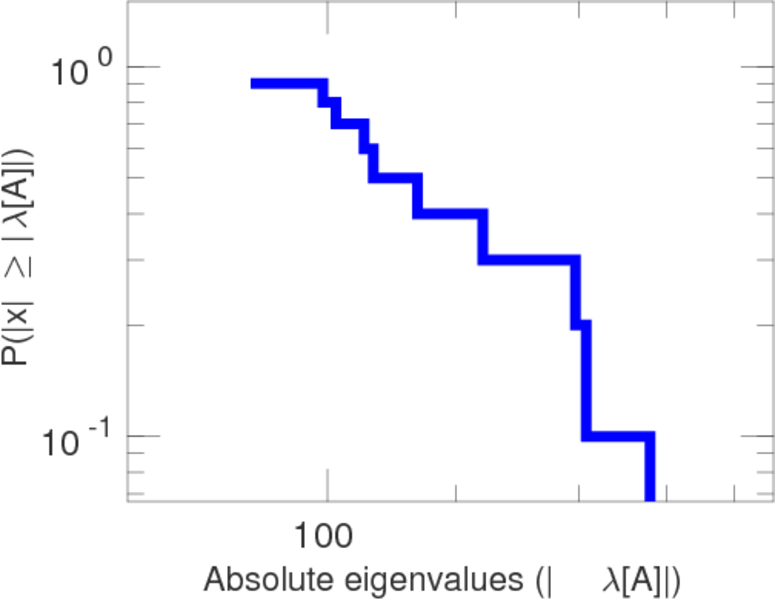

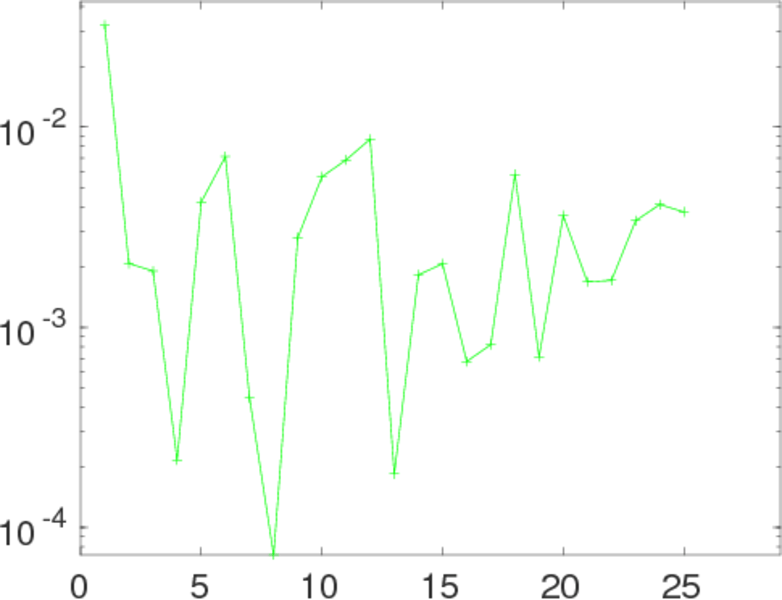

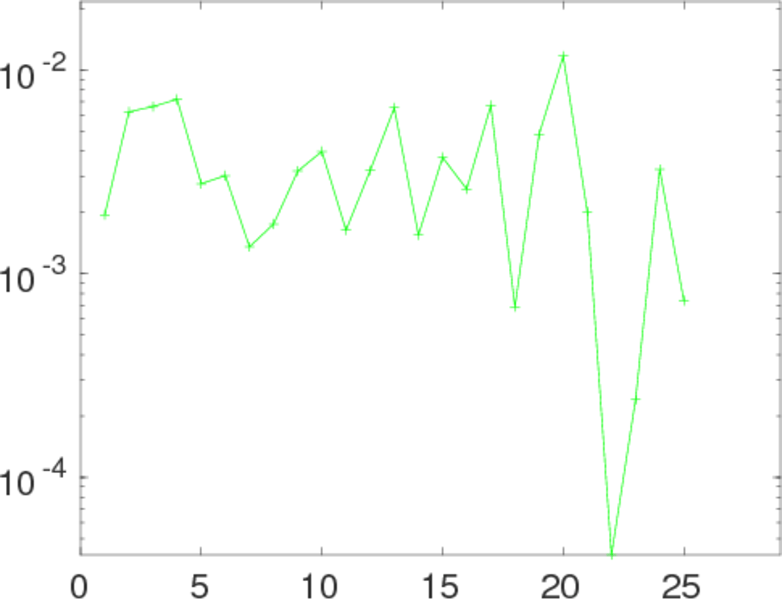

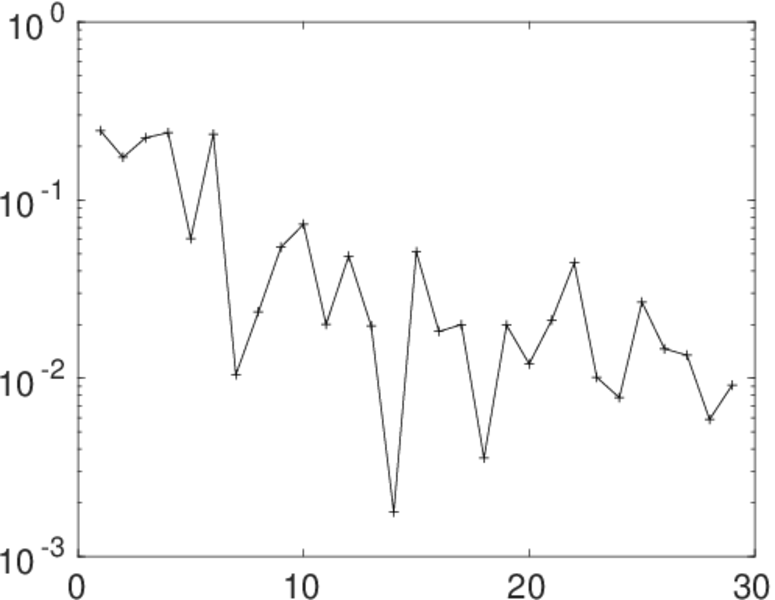

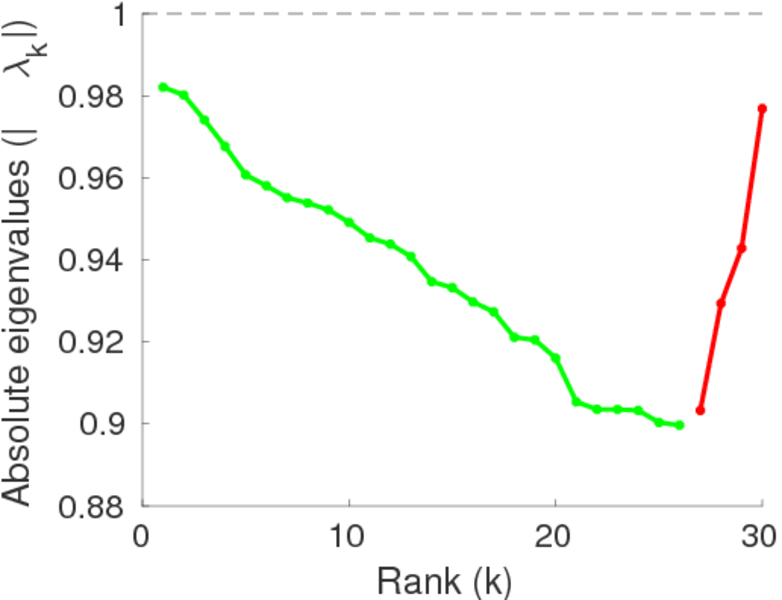

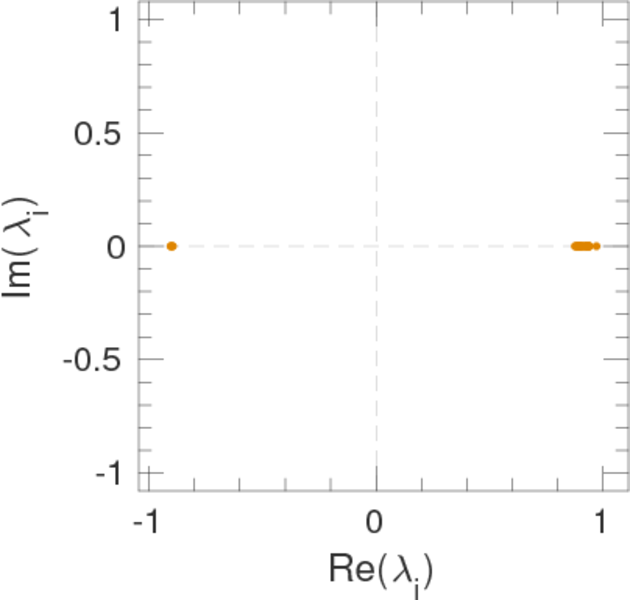

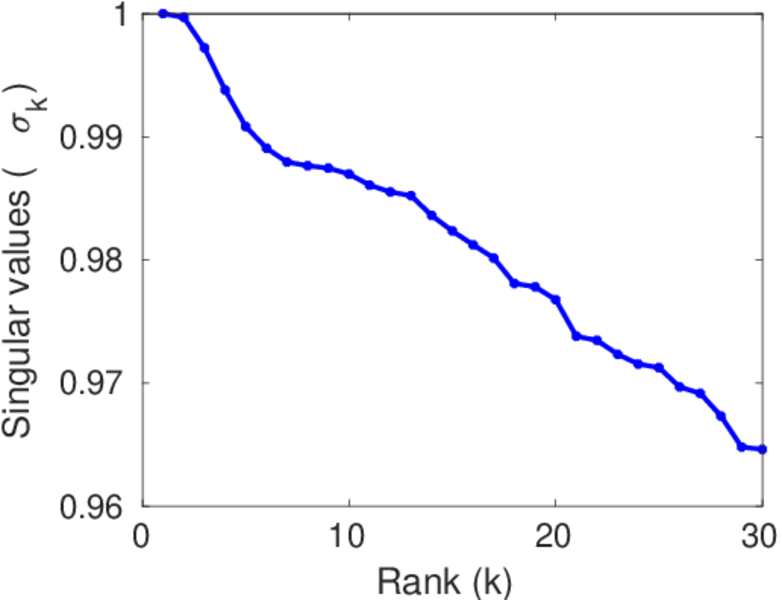

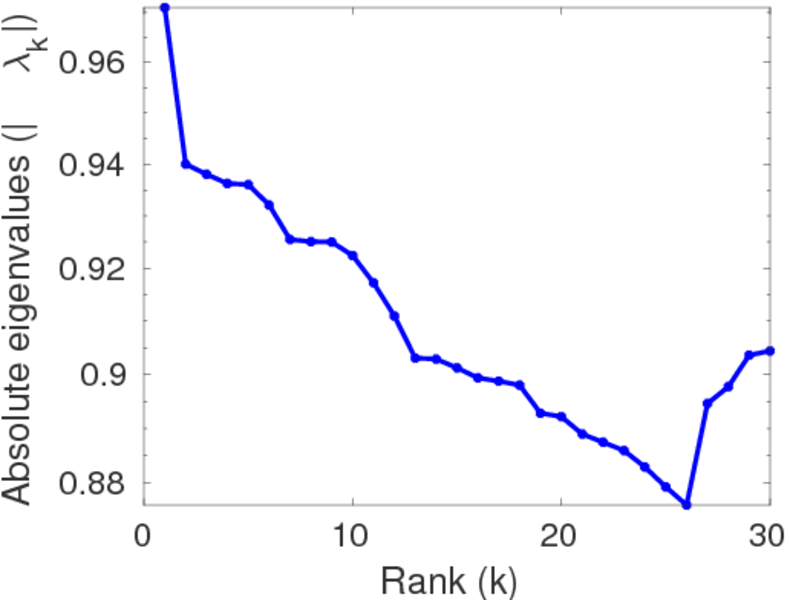

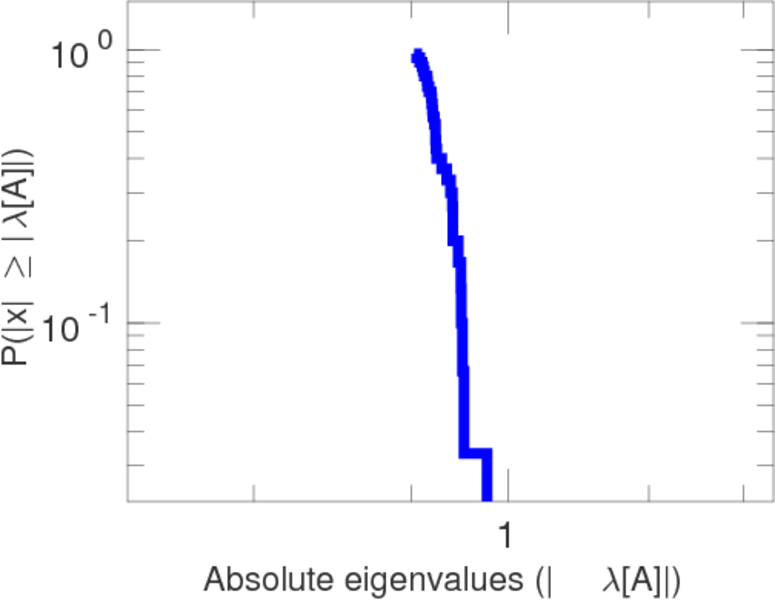

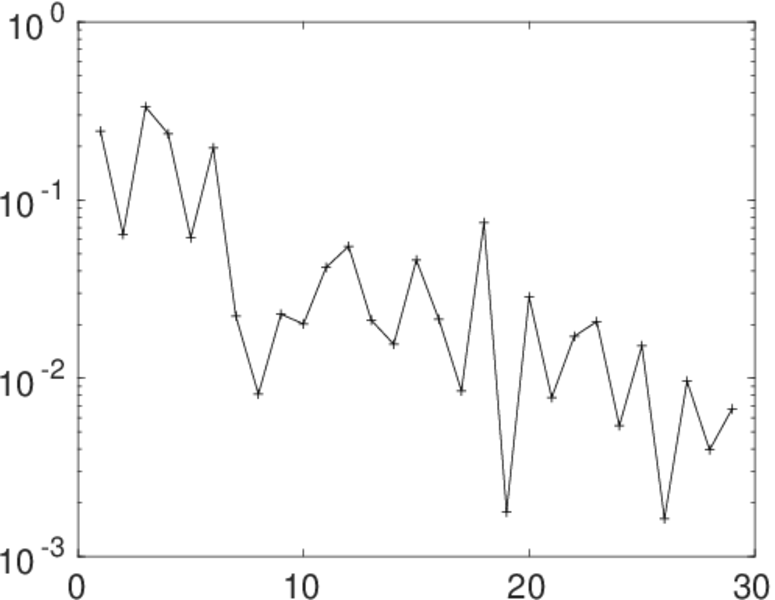

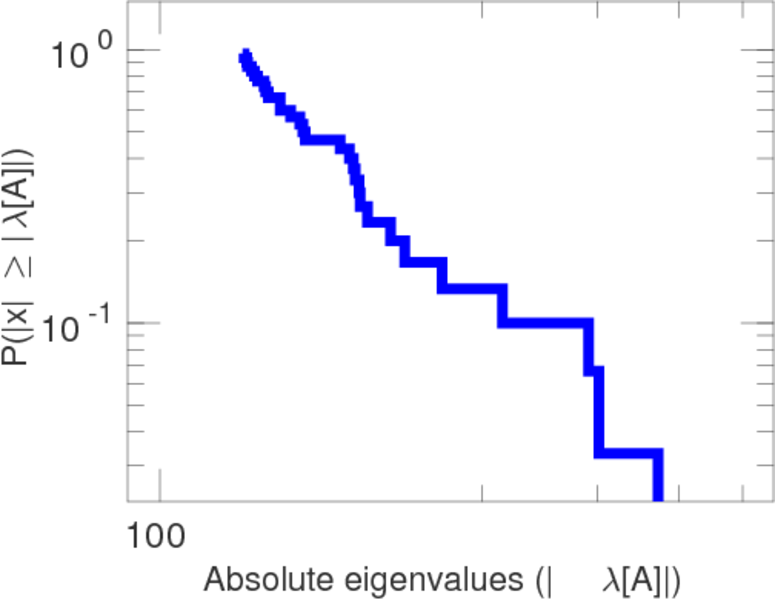

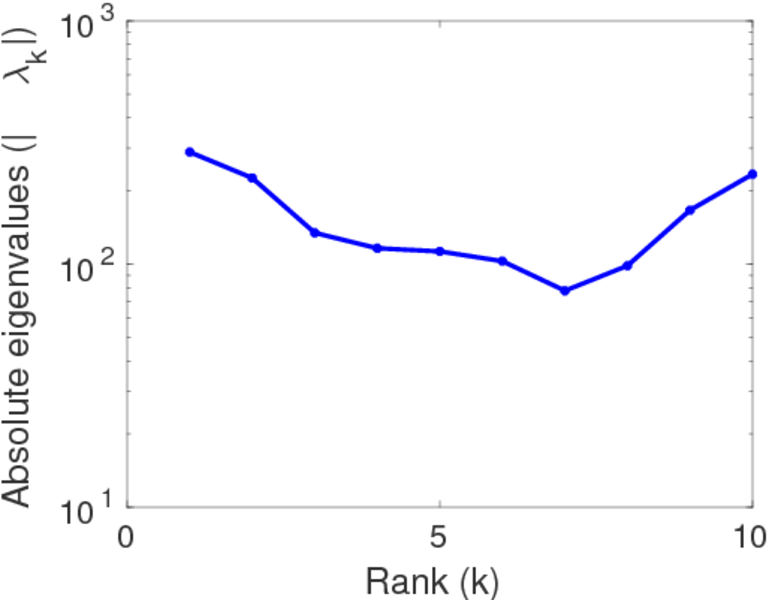

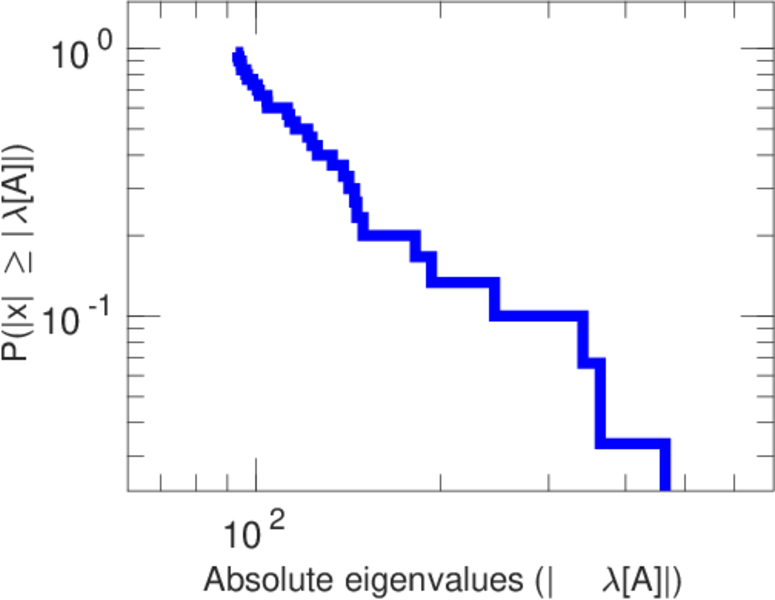

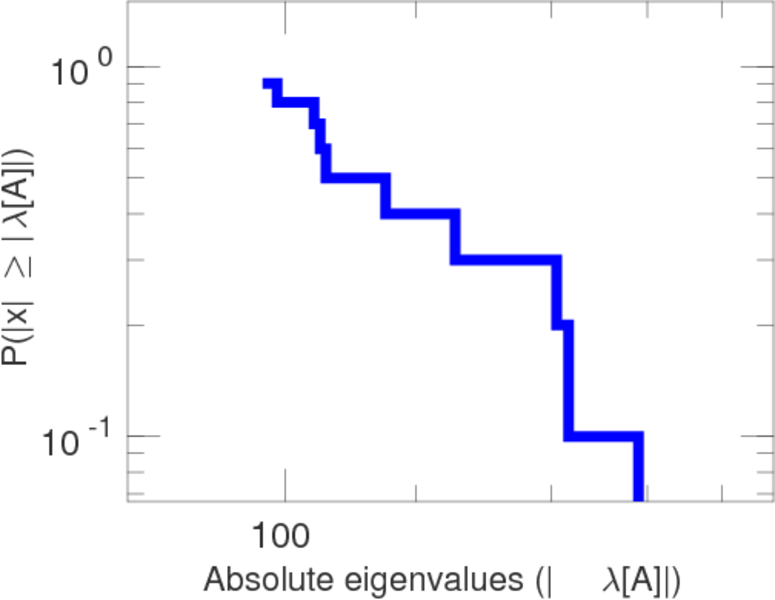

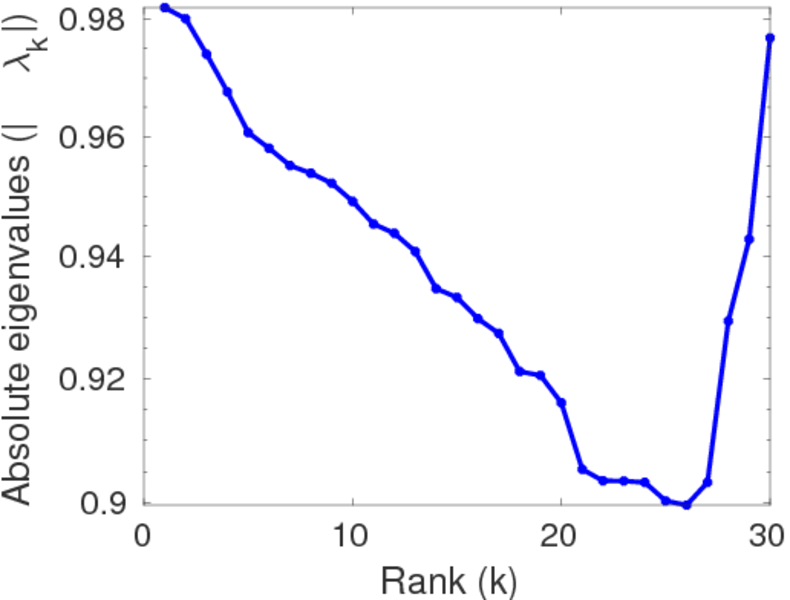

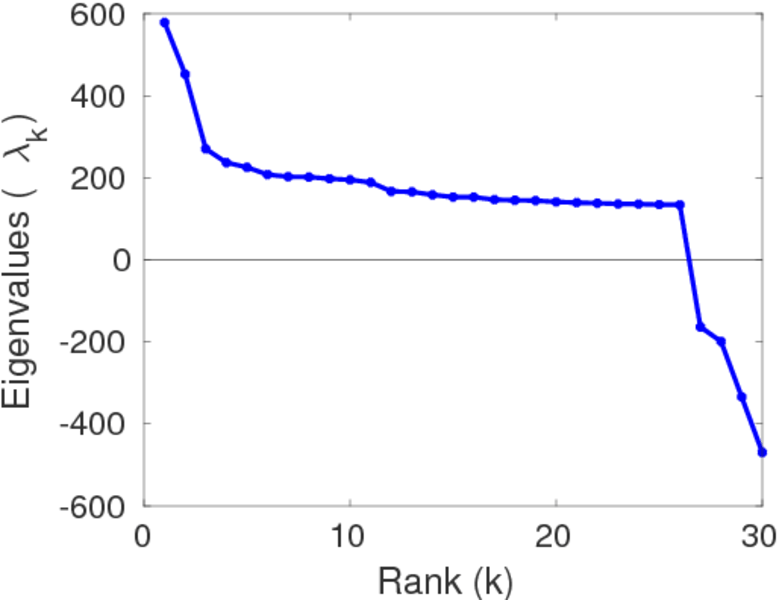

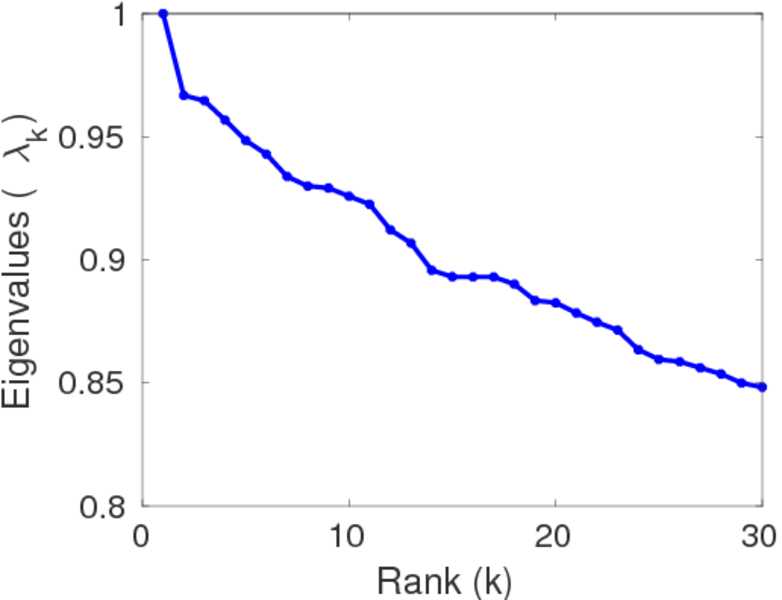

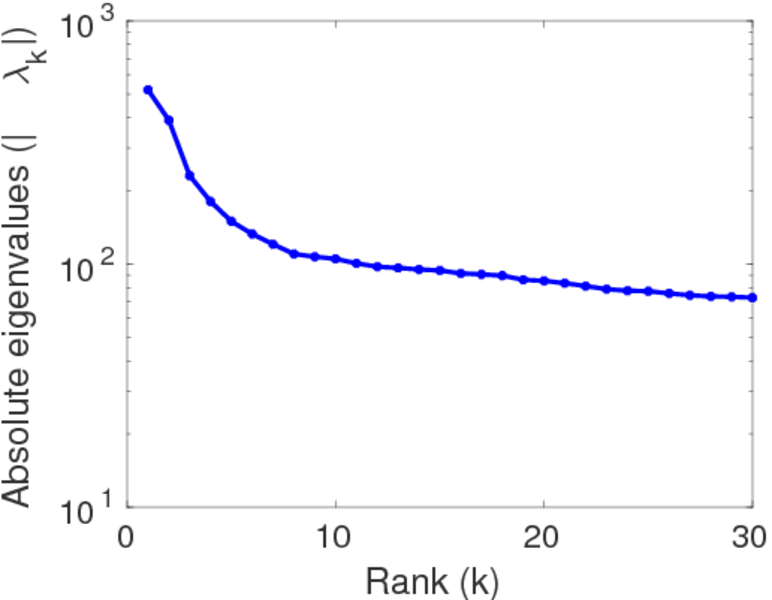

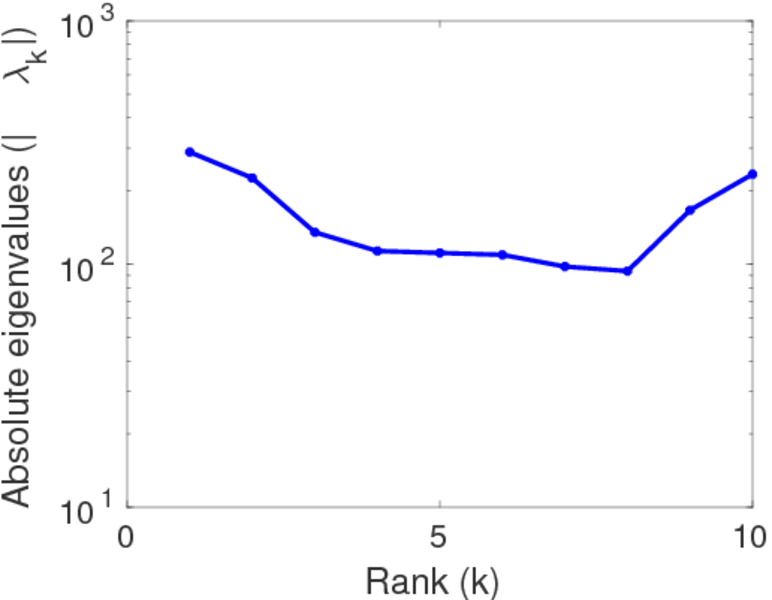

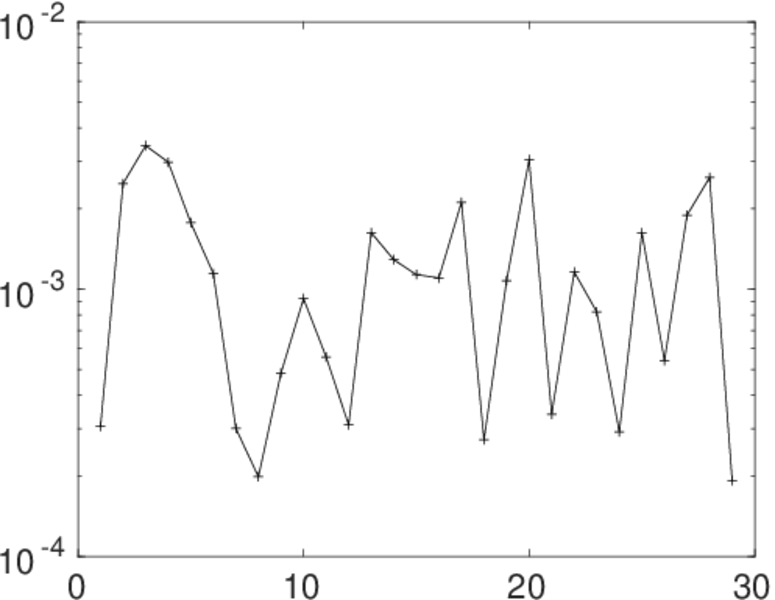

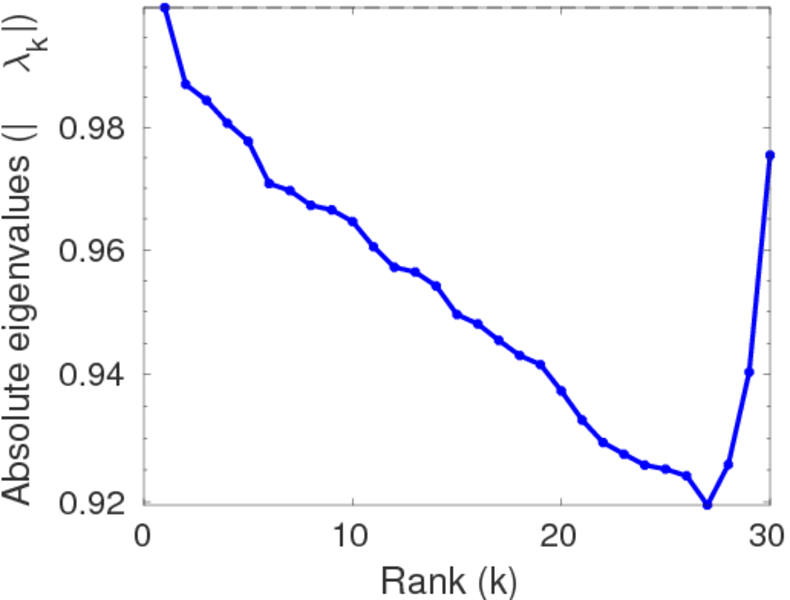

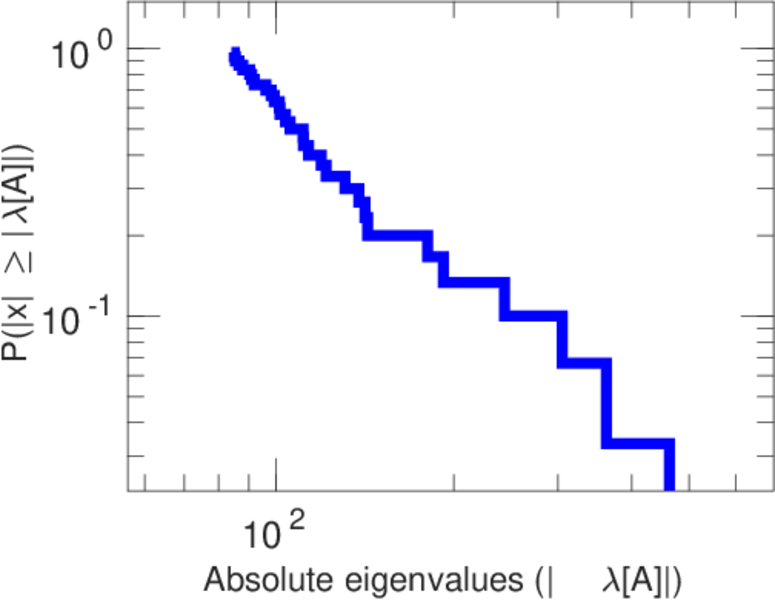

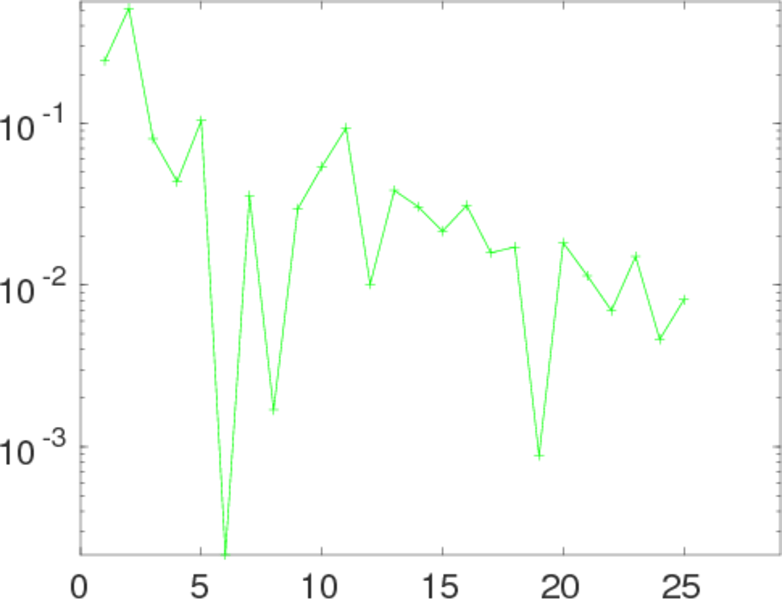

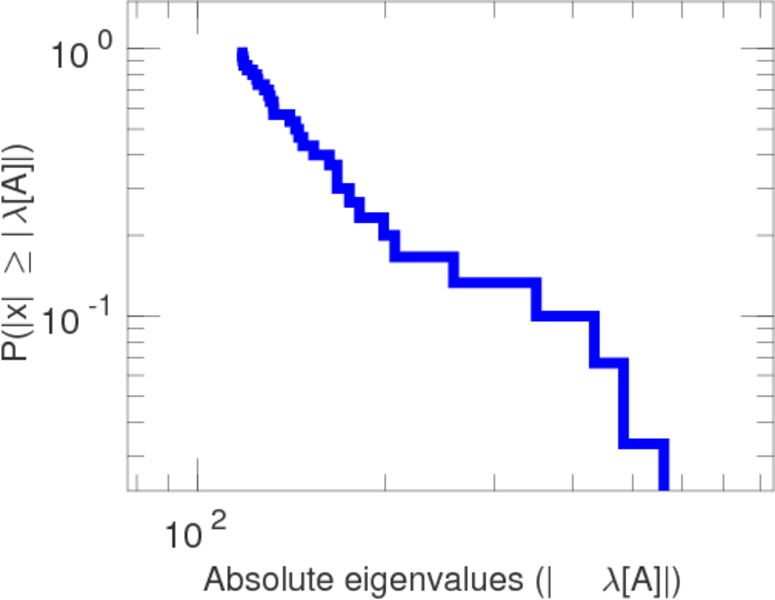

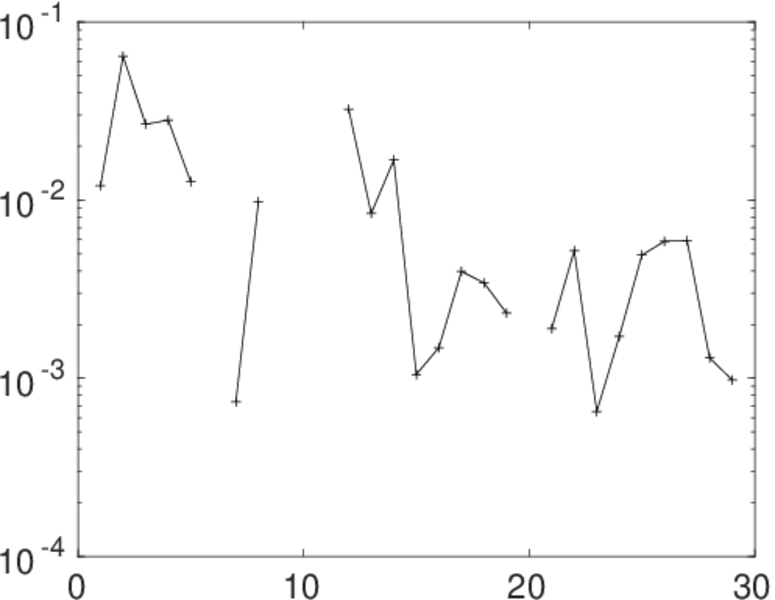

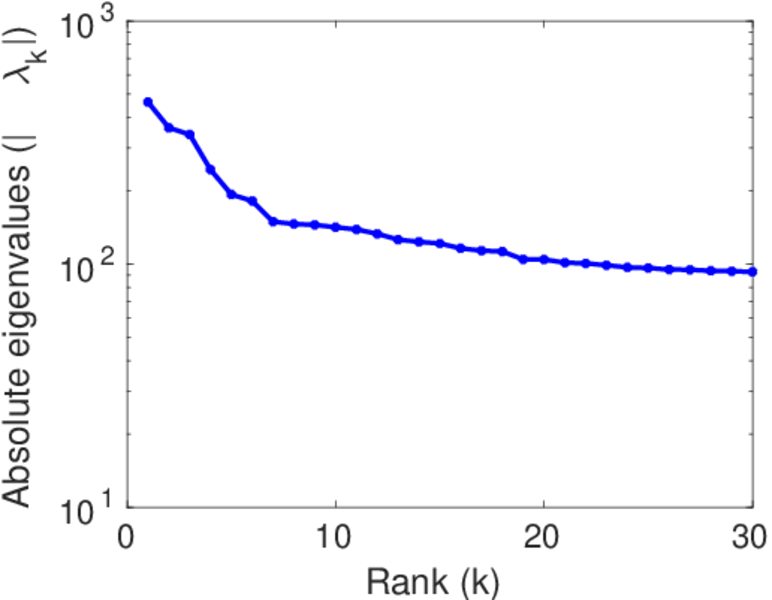

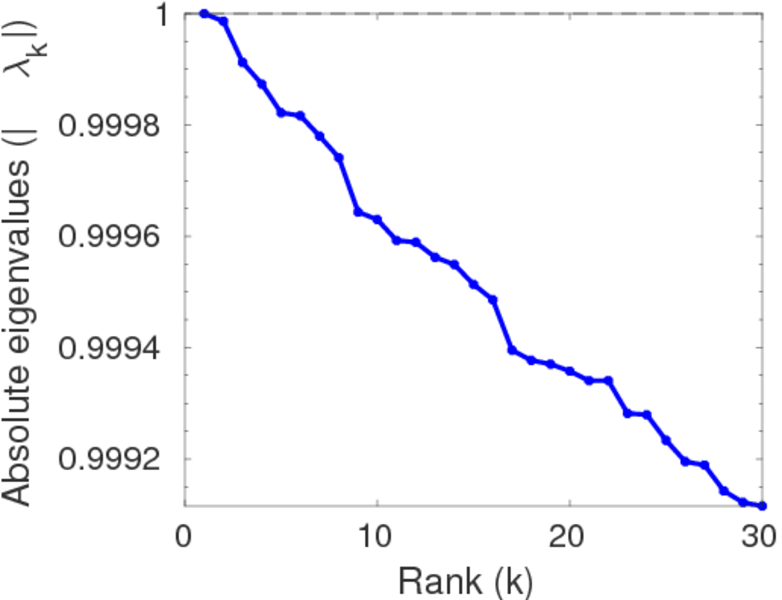

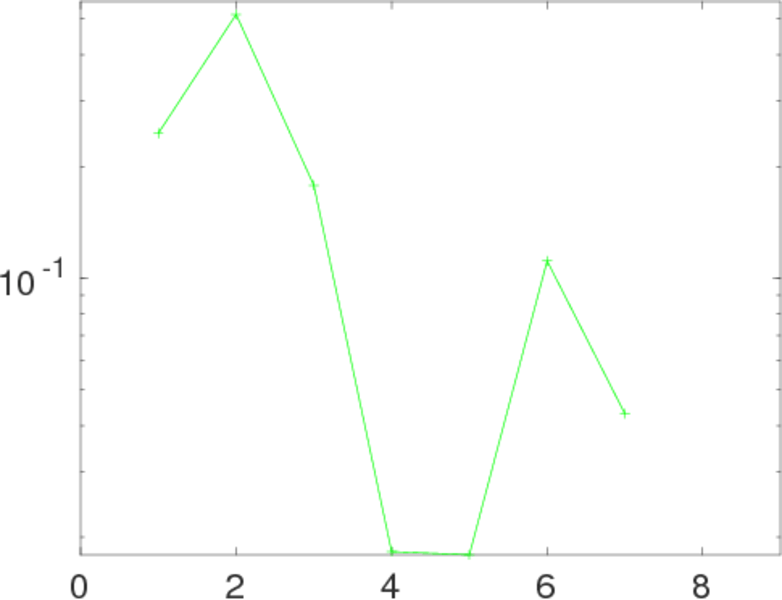

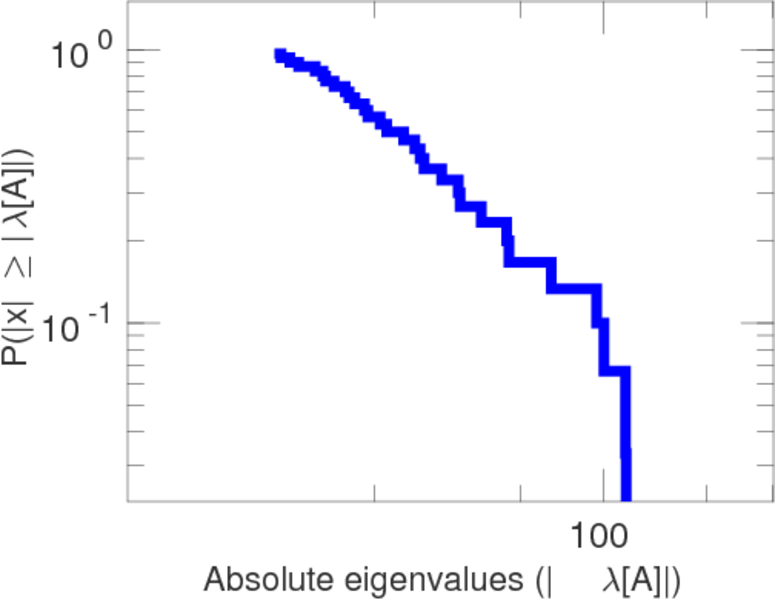

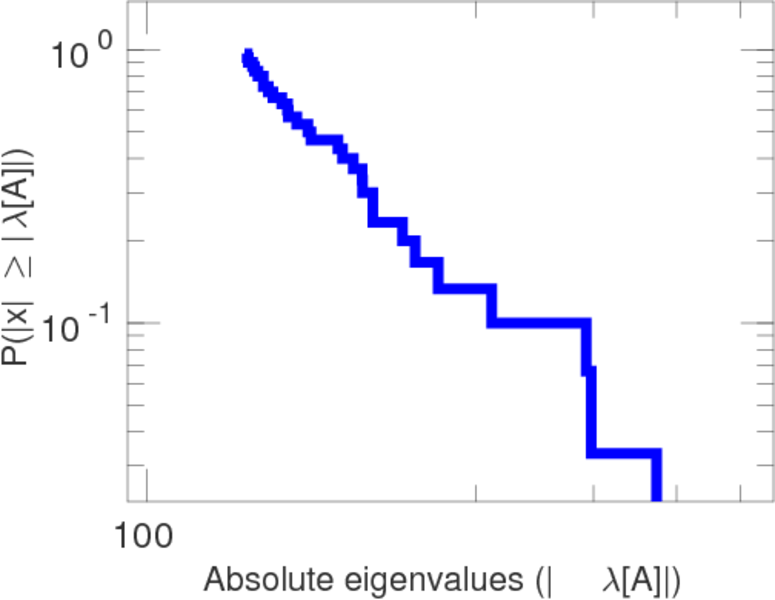

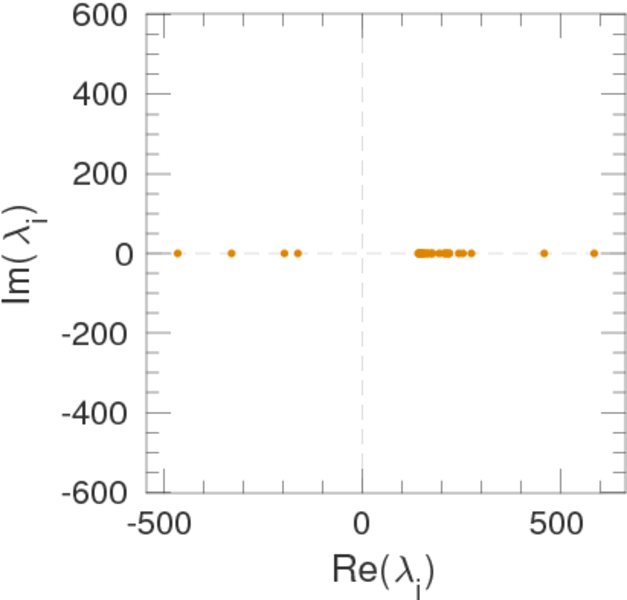

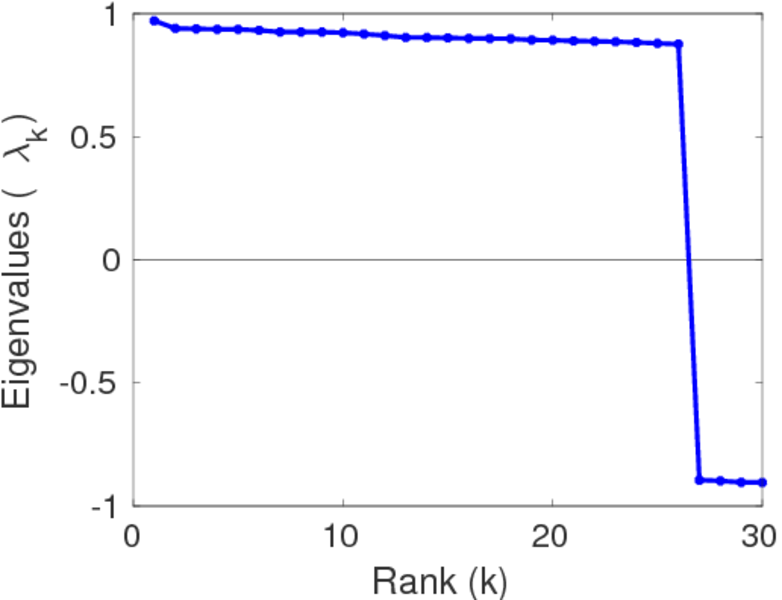

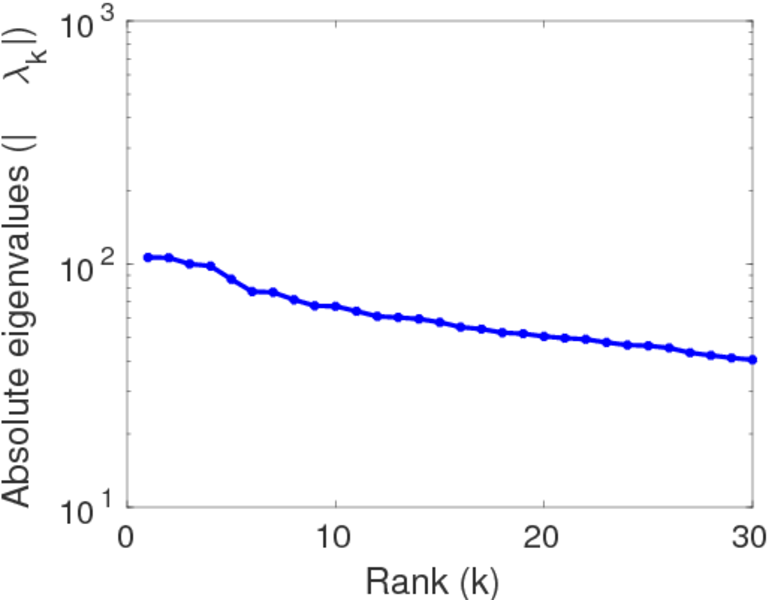

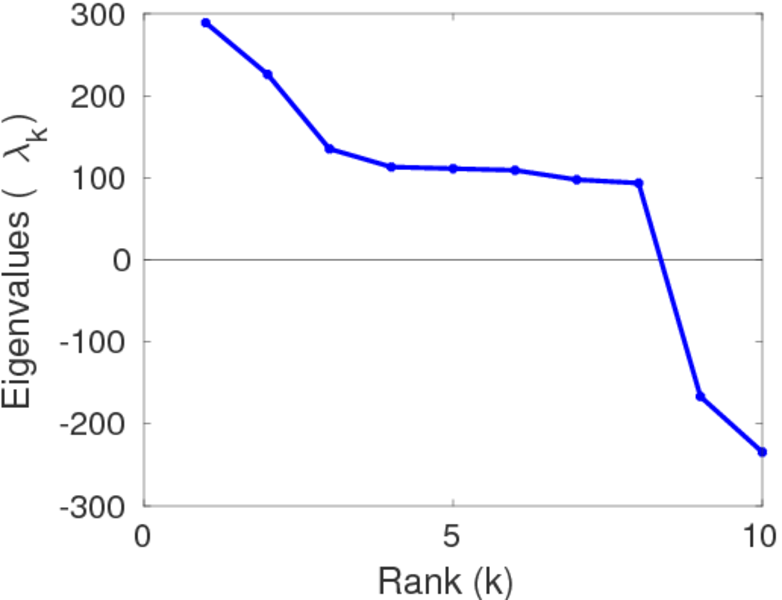

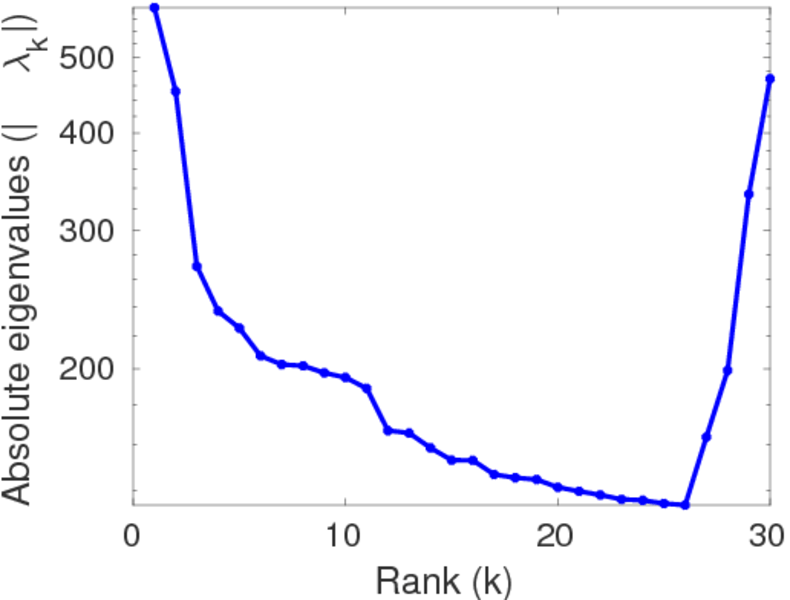

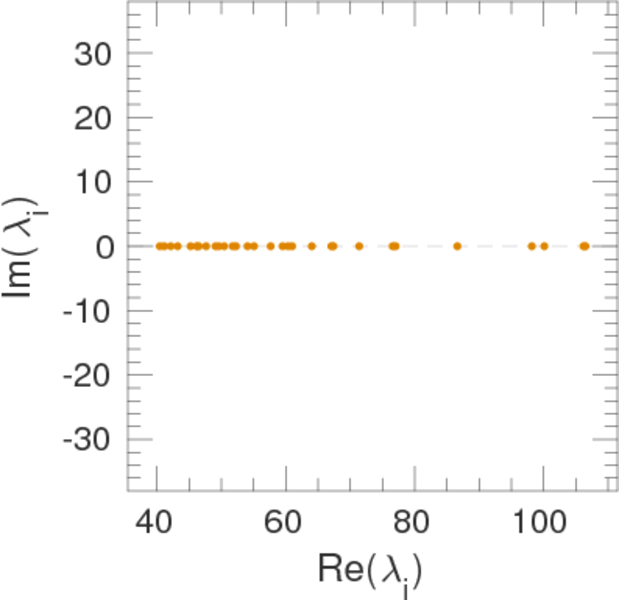

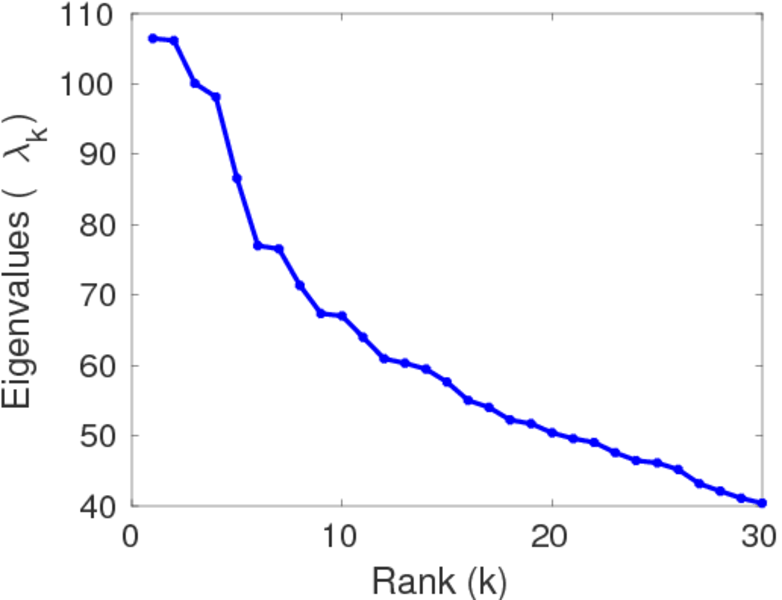

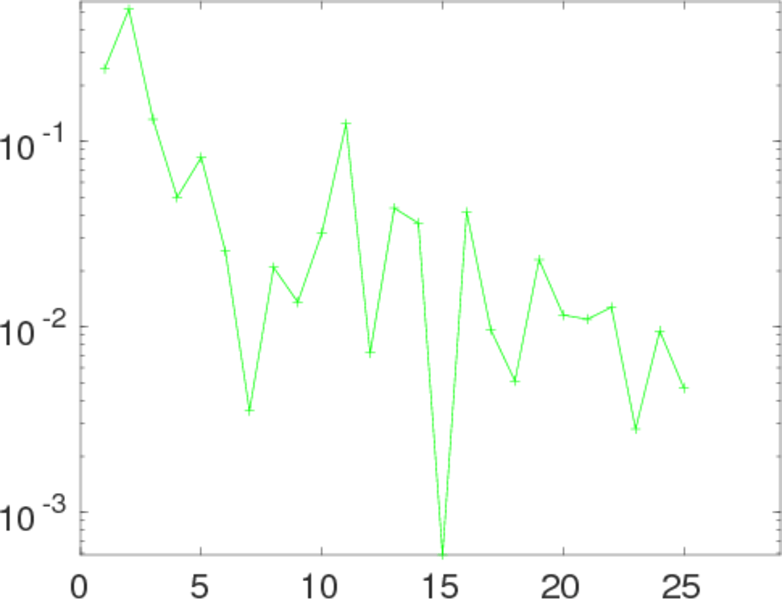

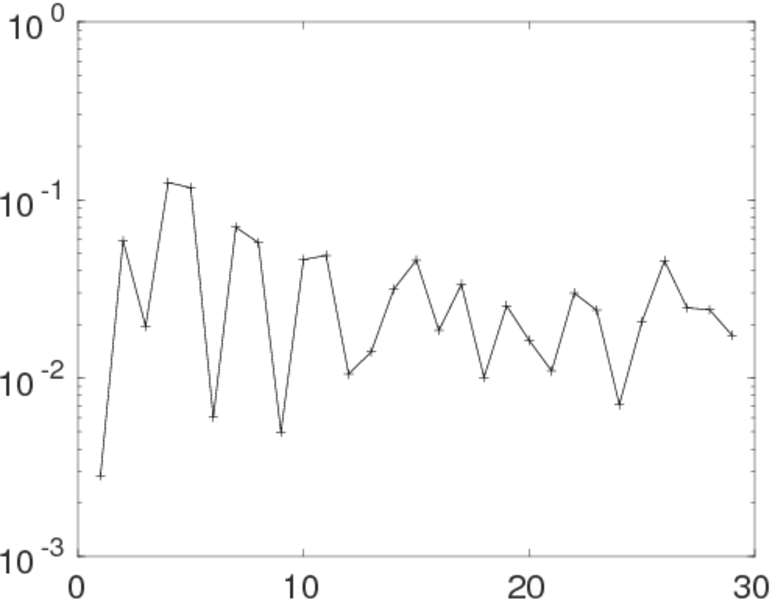

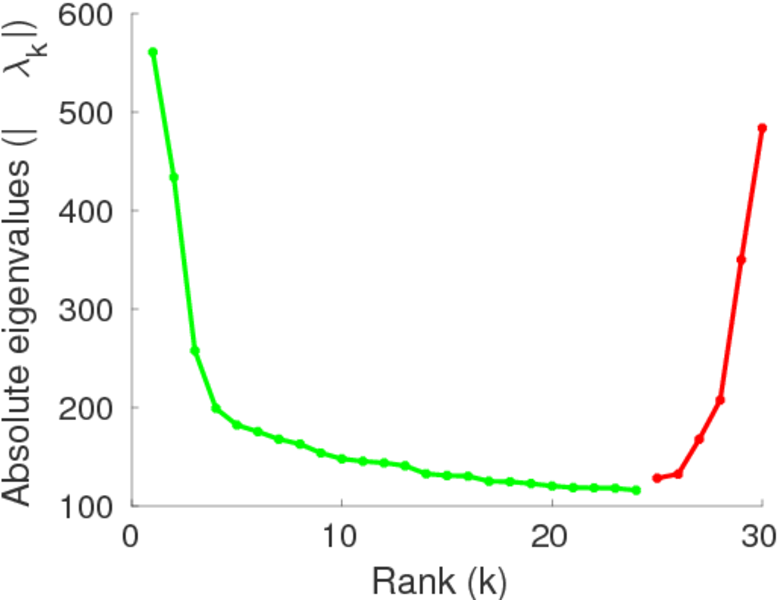

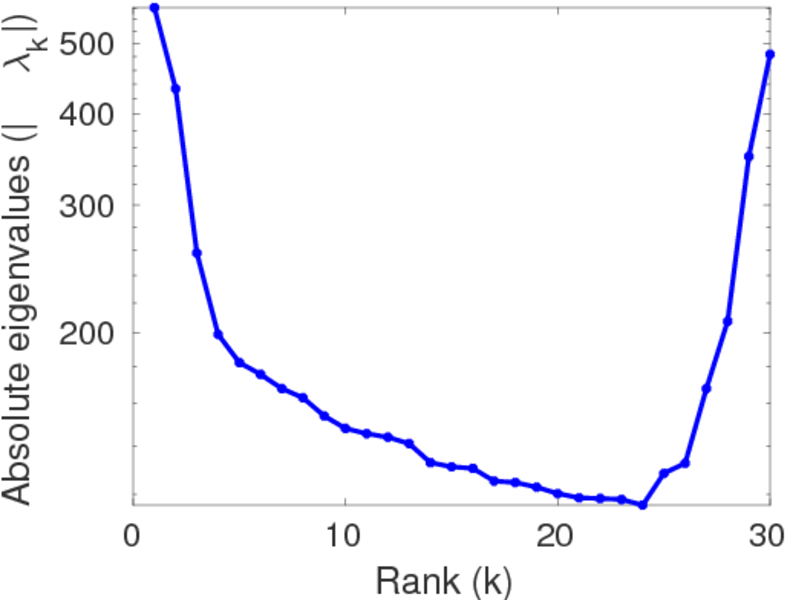

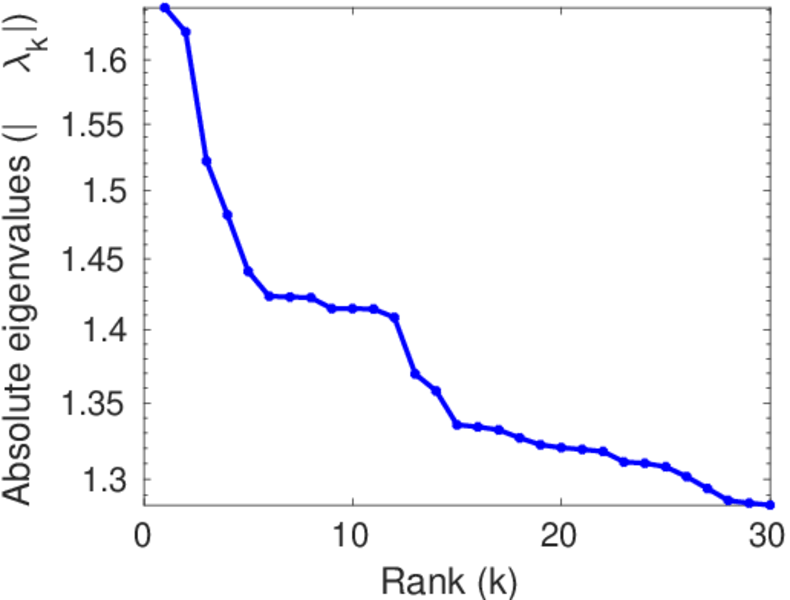

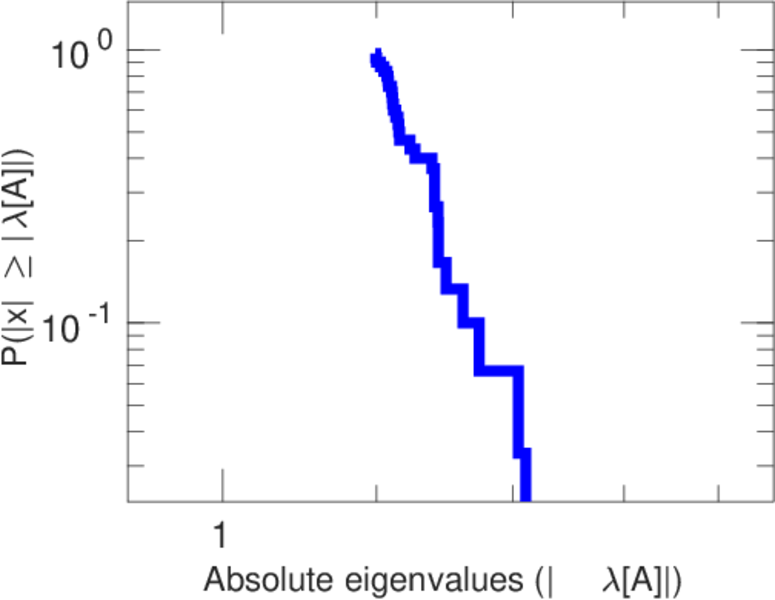

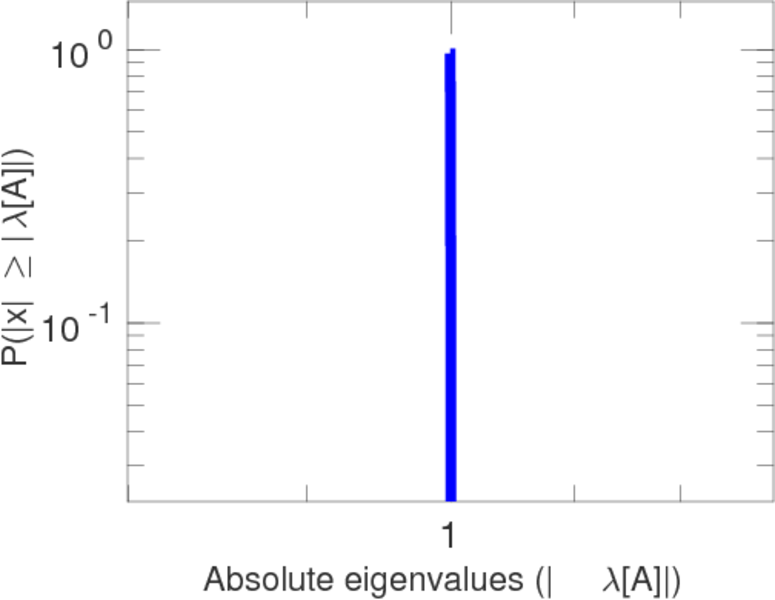

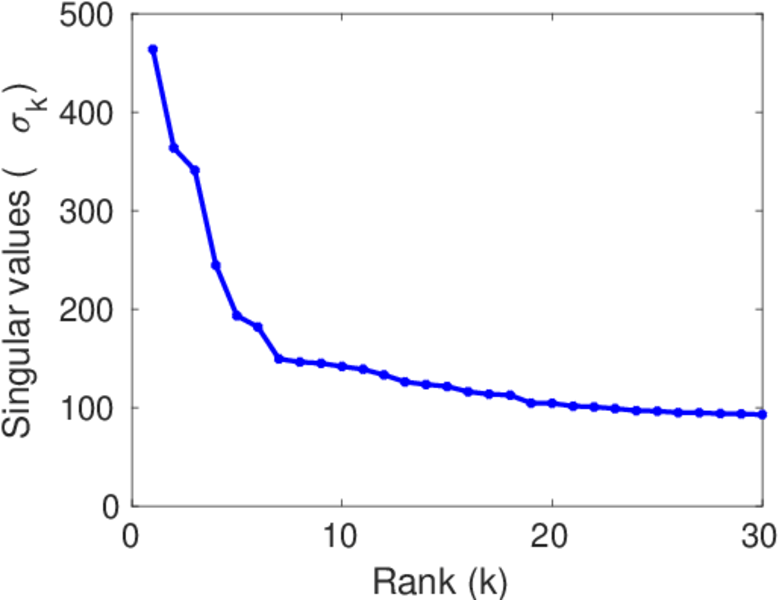

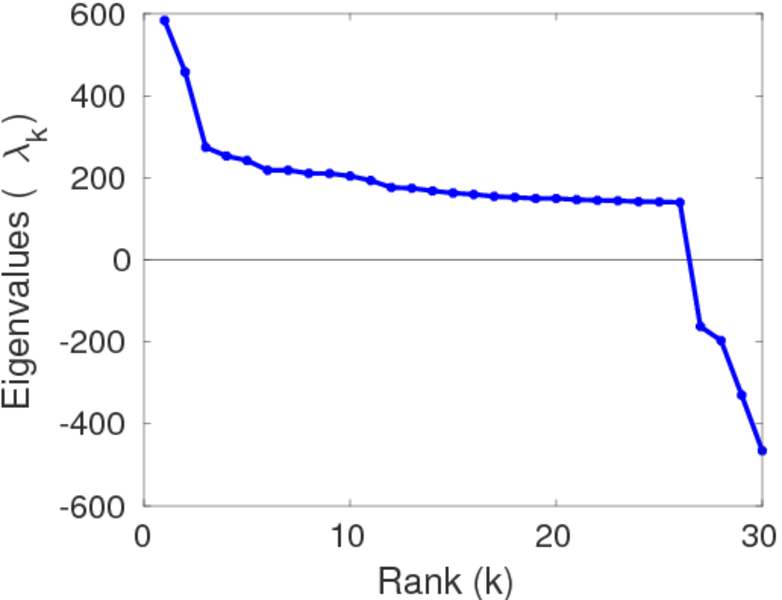

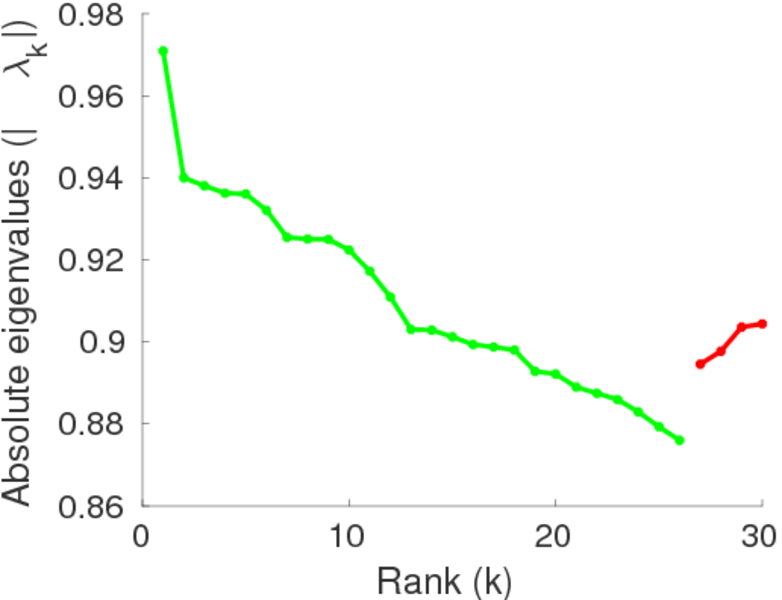

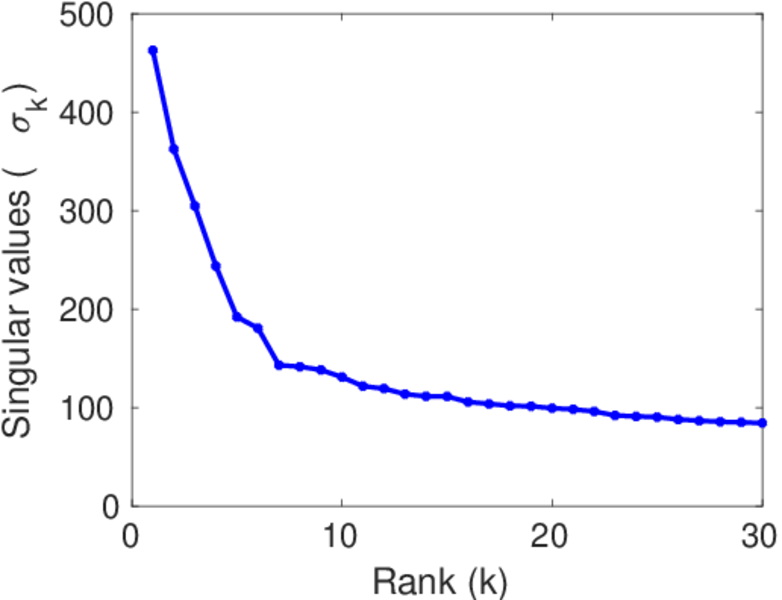

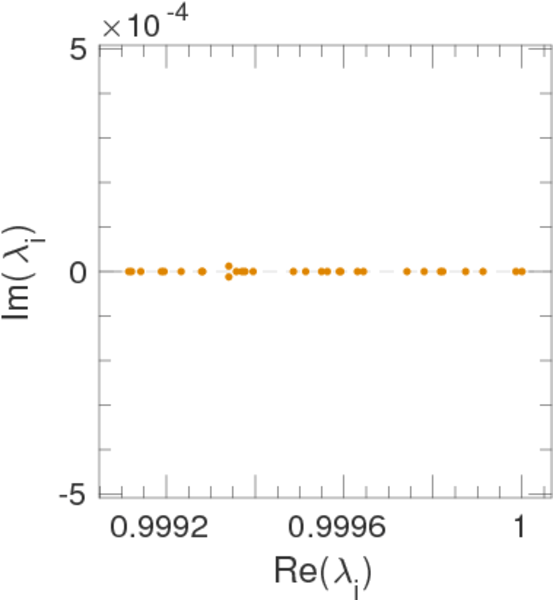

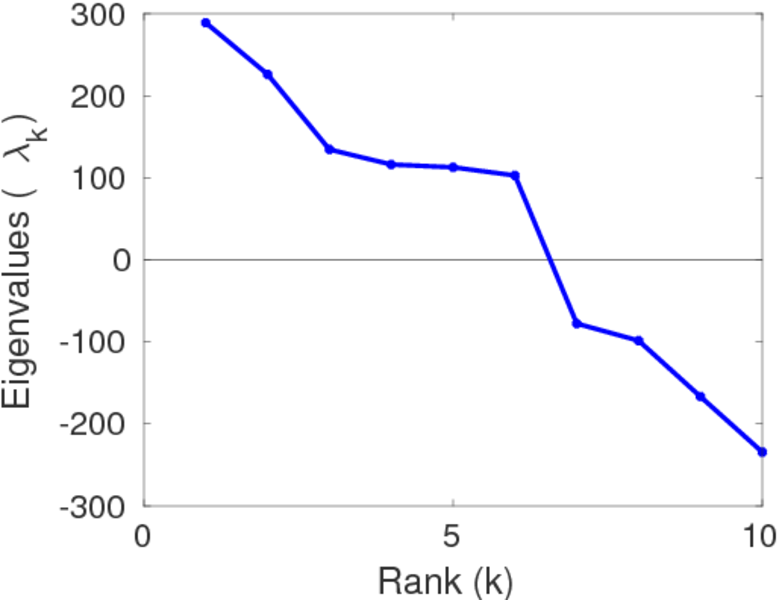

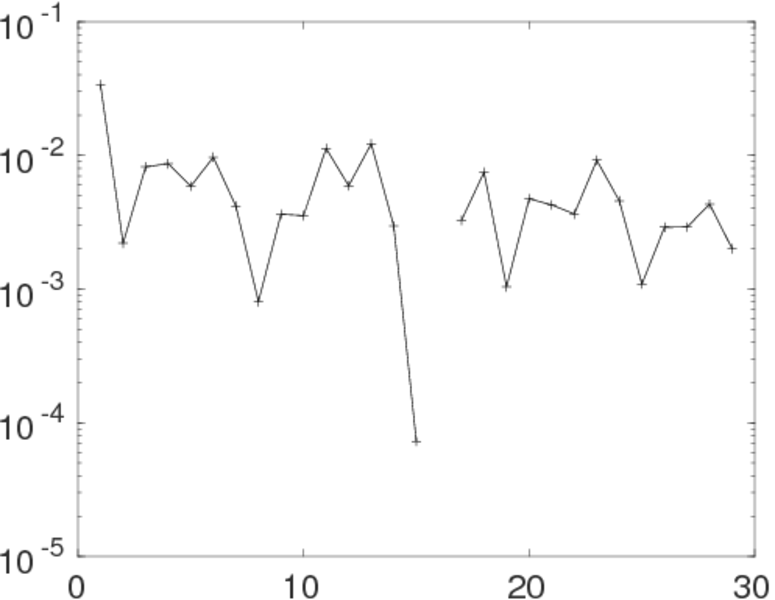

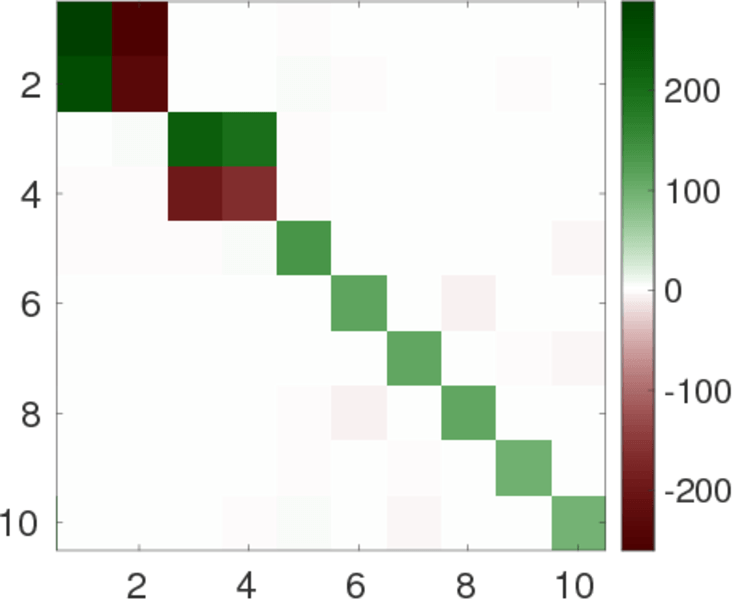

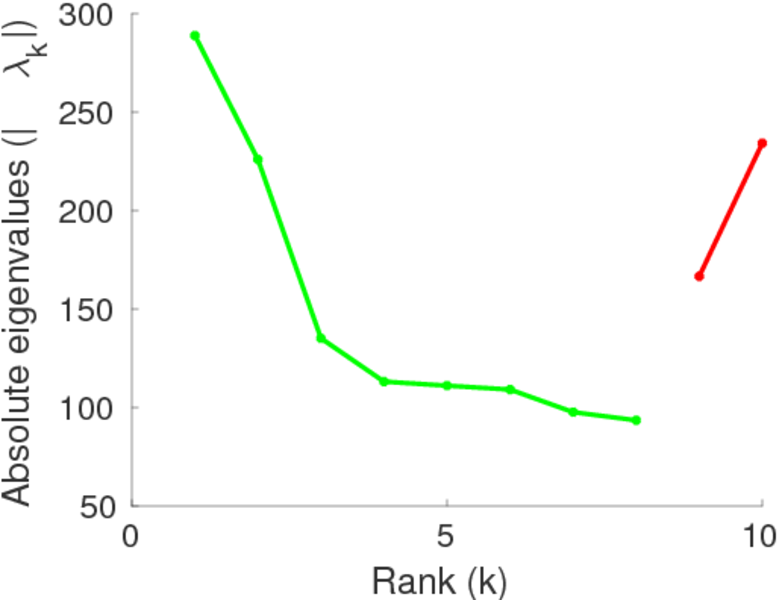

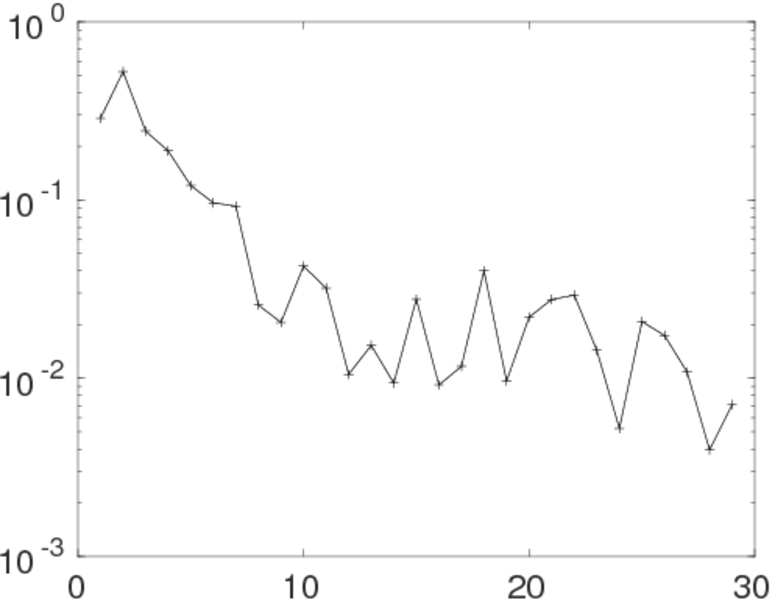

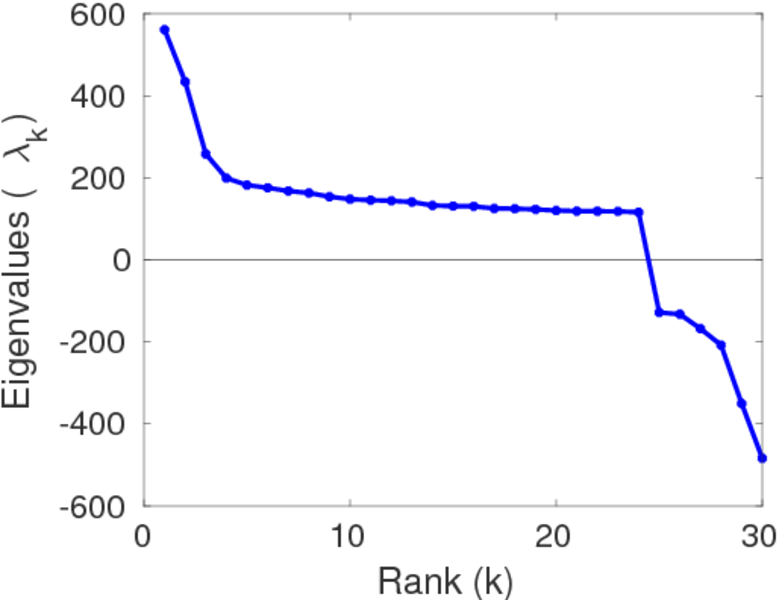

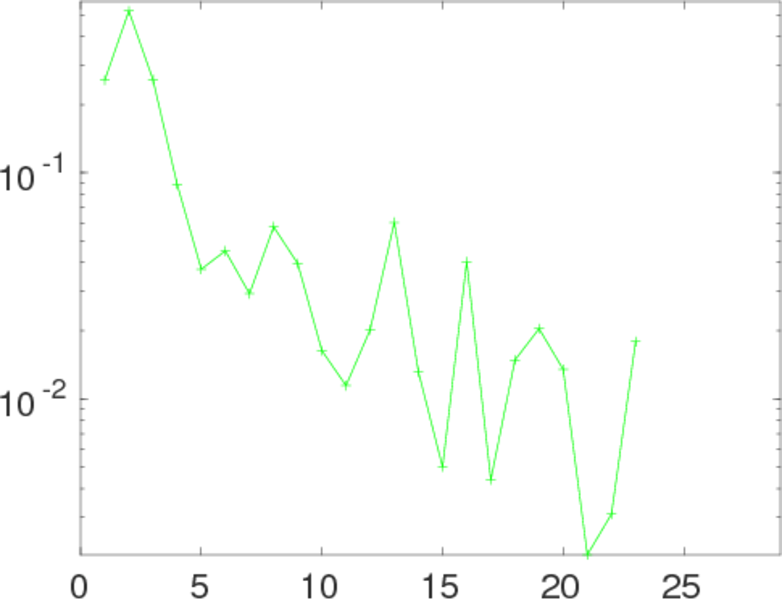

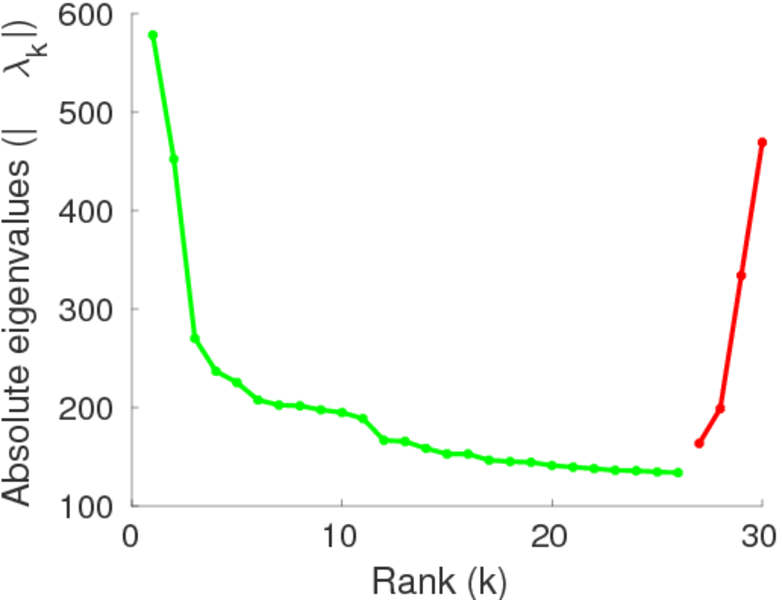

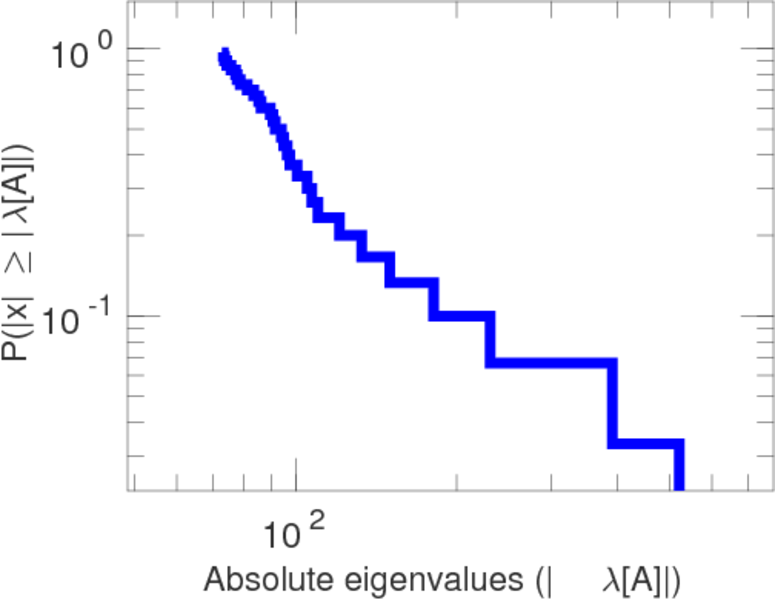

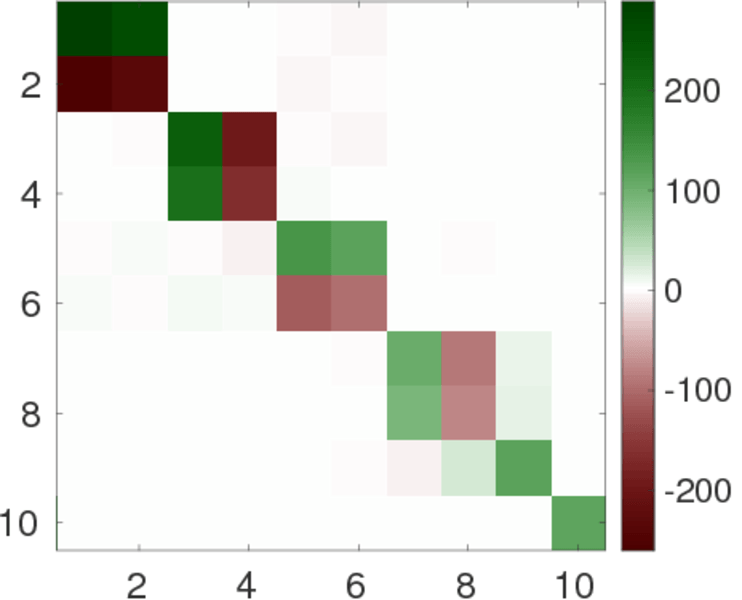

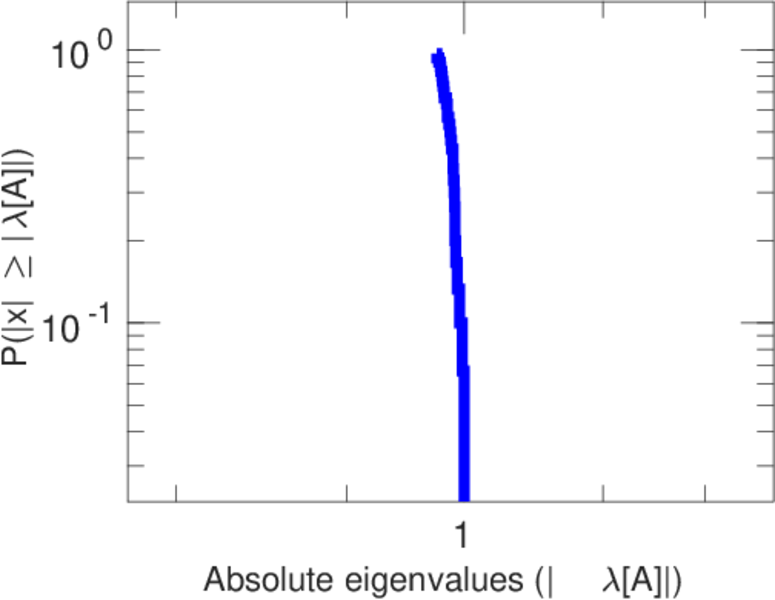

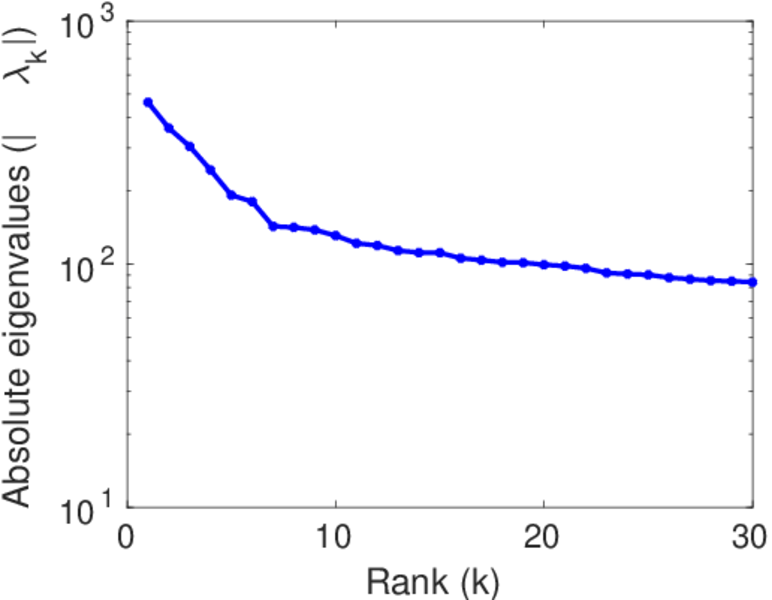

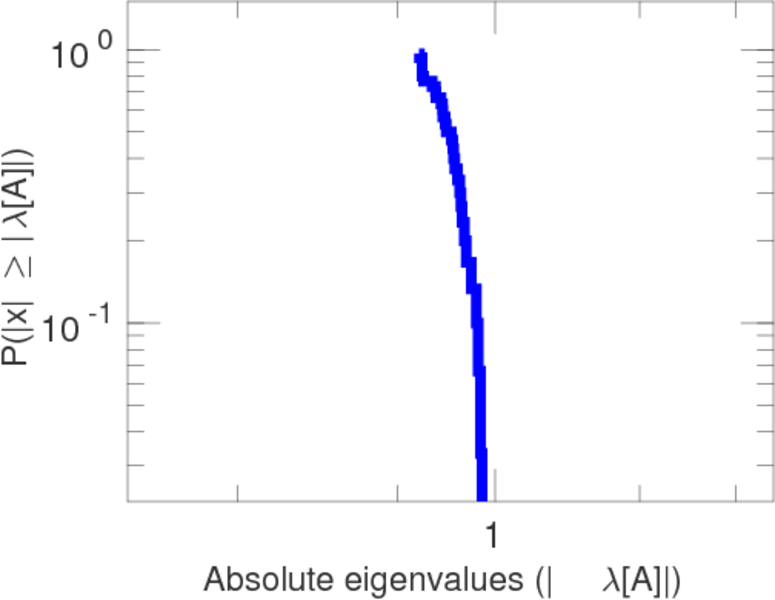

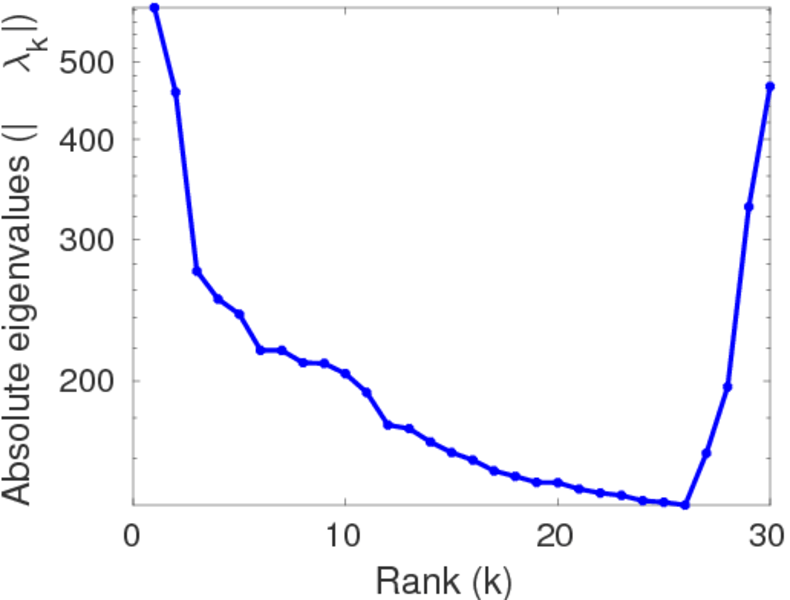

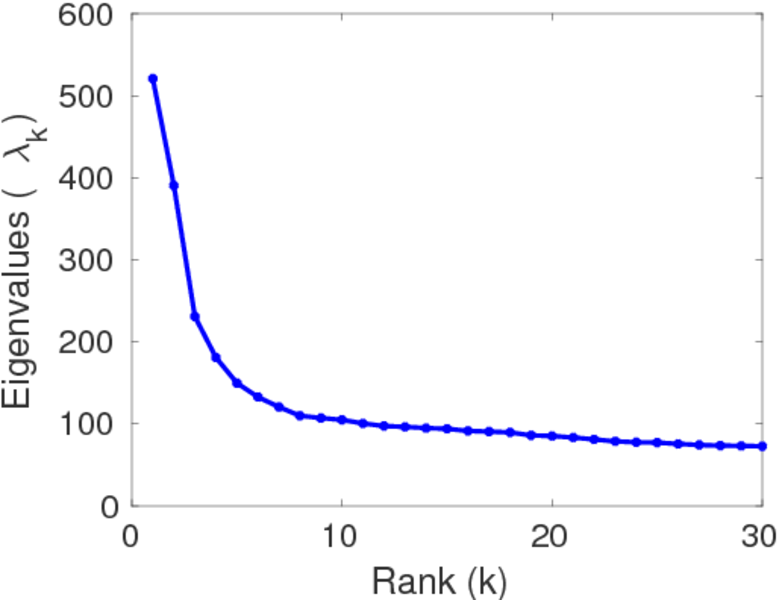

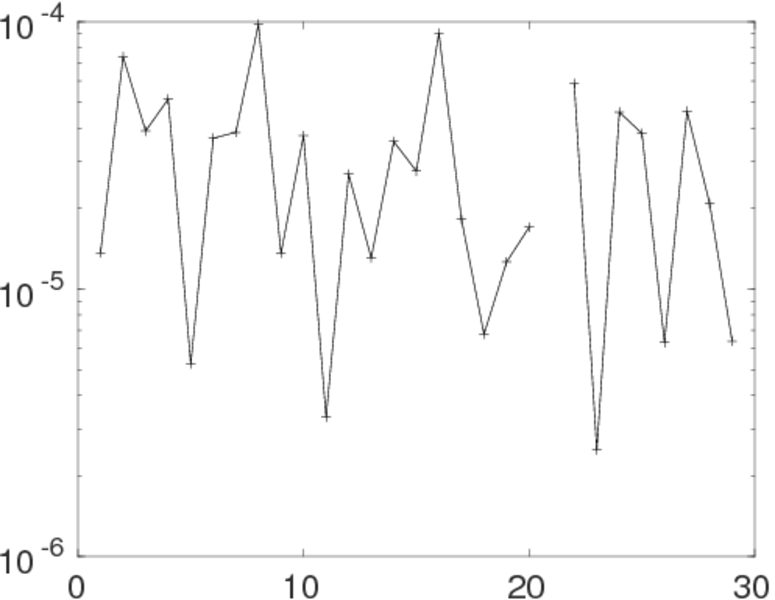

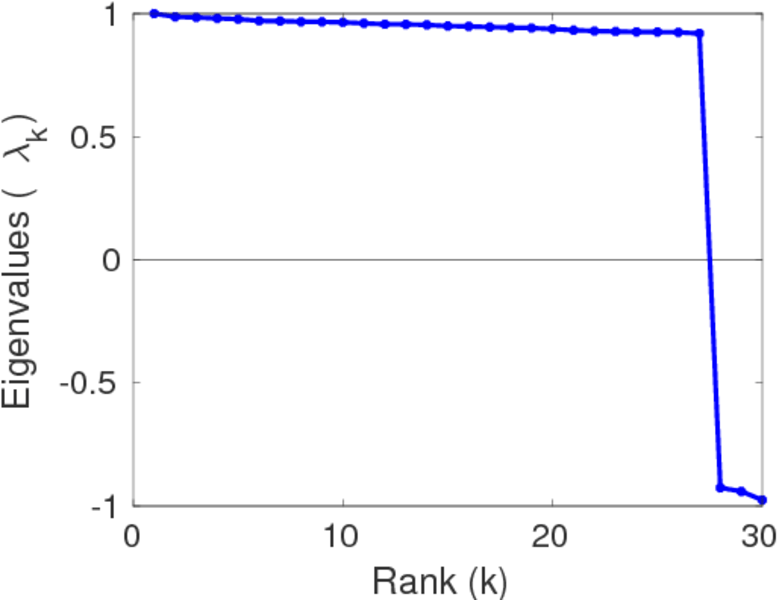

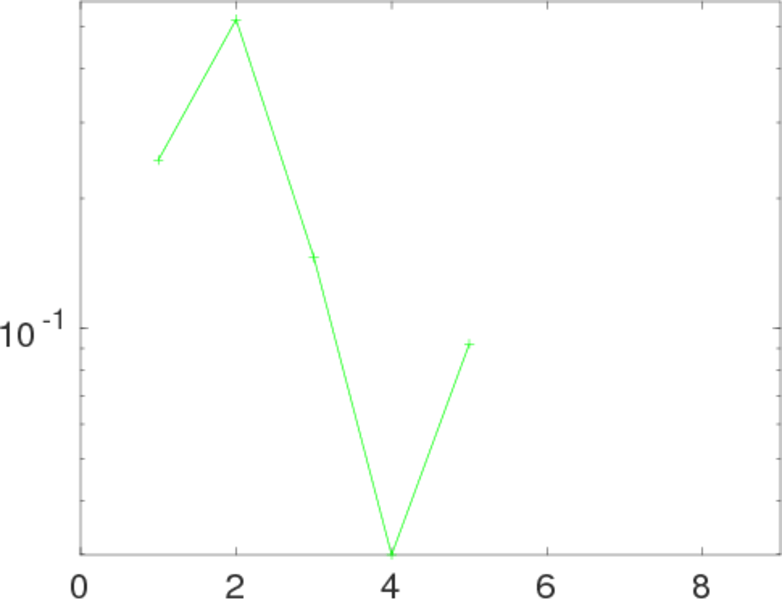

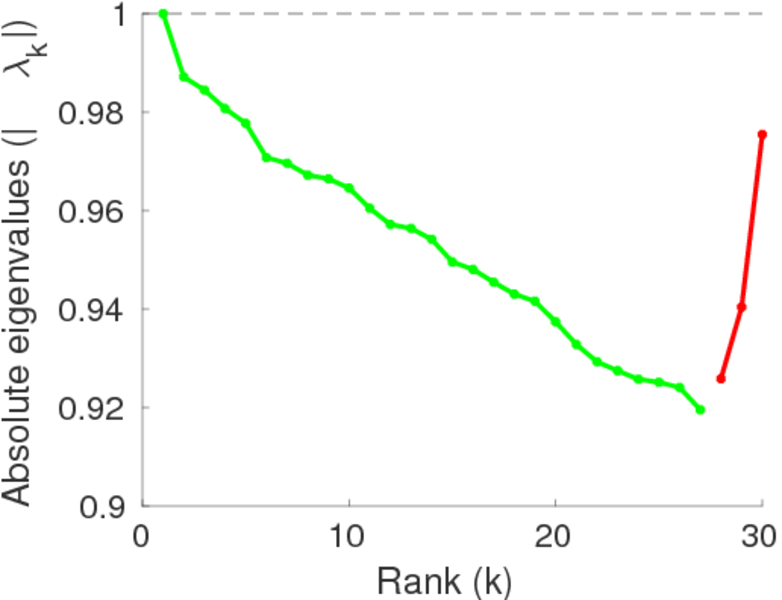

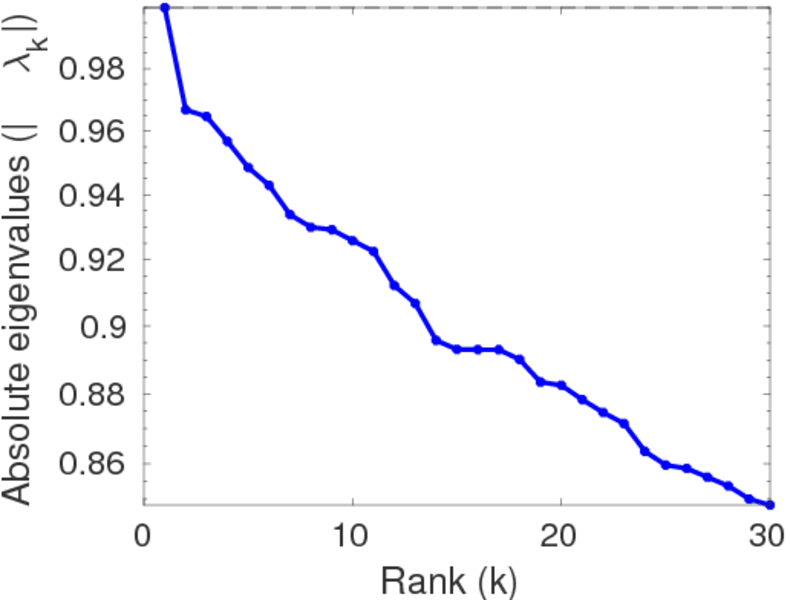

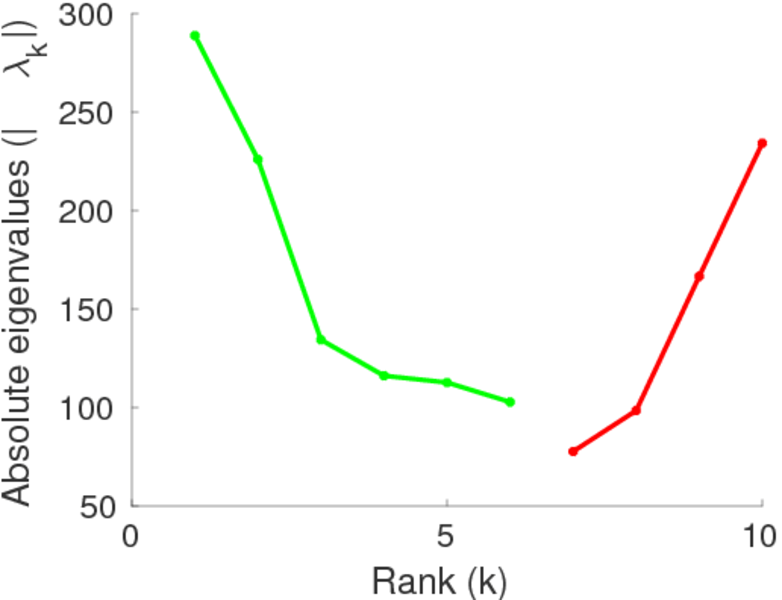

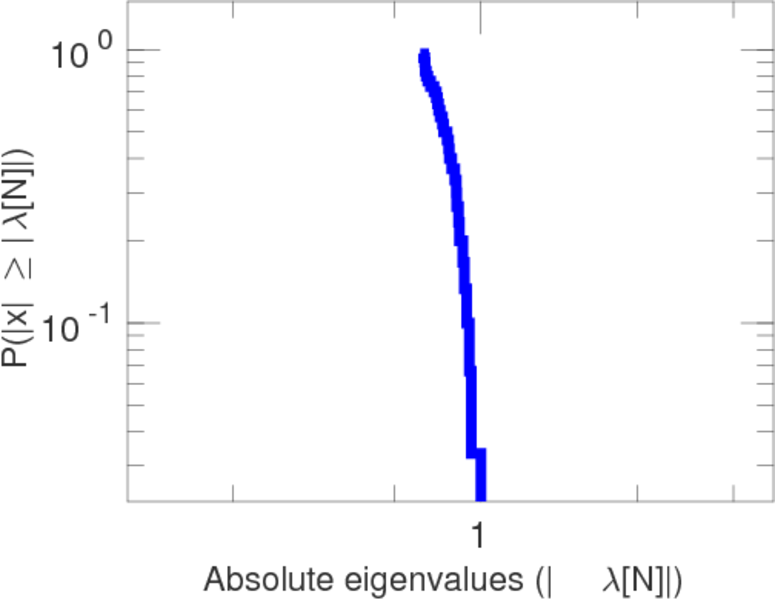

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
