Wikipedia links (map-bms)

This network consists of the wikilinks of the Wikipedia in the Basa Banyumasan language (map-bms). Nodes are Wikipedia articles, and directed edges are wikilinks, i.e., hyperlinks within one wiki. In the wiki source, these are indicated with [[double brackets]]. Only pages in the article namespace are included.

Metadata

CodeWmap-bms
Internal namewikipedia_link_map_bms
NameWikipedia links (map-bms)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningWikilink
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =14,162
Volume m =345,041
Loop count l =20
Wedge count s =409,875,248
Claw count z =1,143,426,945,994
Cross count x =2,651,285,844,657,954
Triangle count t =4,436,042
Square count q =1,916,323,811
4-Tour count T4 =16,970,631,724
Maximum degree dmax =10,041
Maximum outdegree d+max =1,912
Maximum indegree dmax =9,889
Average degree d =48.727 7
Fill p =0.001 720 37
Size of LCC N =14,111
Size of LSCC Ns =6,593
Relative size of LSCC Nrs =0.465 542
Diameter δ =10
50-Percentile effective diameter δ0.5 =1.943 10
90-Percentile effective diameter δ0.9 =3.724 52
Median distance δM =2
Mean distance δm =2.796 44
Gini coefficient G =0.657 796
Balanced inequality ratio P =0.251 866
Outdegree balanced inequality ratio P+ =0.318 901
Indegree balanced inequality ratio P =0.201 741
Relative edge distribution entropy Her =0.872 546
Power law exponent γ =1.354 89
Tail power law exponent γt =2.601 00
Tail power law exponent with p γ3 =2.601 00
p-value p =0.000 00
Outdegree tail power law exponent with p γ3,o =3.151 00
Outdegree p-value po =0.000 00
Indegree tail power law exponent with p γ3,i =2.061 00
Indegree p-value pi =0.000 00
Degree assortativity ρ =−0.212 925
Degree assortativity p-value pρ =0.000 00
In/outdegree correlation ρ± =+0.508 119
Clustering coefficient c =0.032 468 7
Directed clustering coefficient c± =0.777 033
Spectral norm α =426.590
Operator 2-norm ν =283.381
Cyclic eigenvalue π =212.031
Algebraic connectivity a =0.084 354 5
Spectral separation 1[A] / λ2[A]| =1.396 63
Reciprocity y =0.434 203
Non-bipartivity bA =0.379 700
Normalized non-bipartivity bN =0.039 431 9
Algebraic non-bipartivity χ =0.076 848 3
Spectral bipartite frustration bK =0.000 501 884
Controllability C =7,521
Relative controllability Cr =0.531 069

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

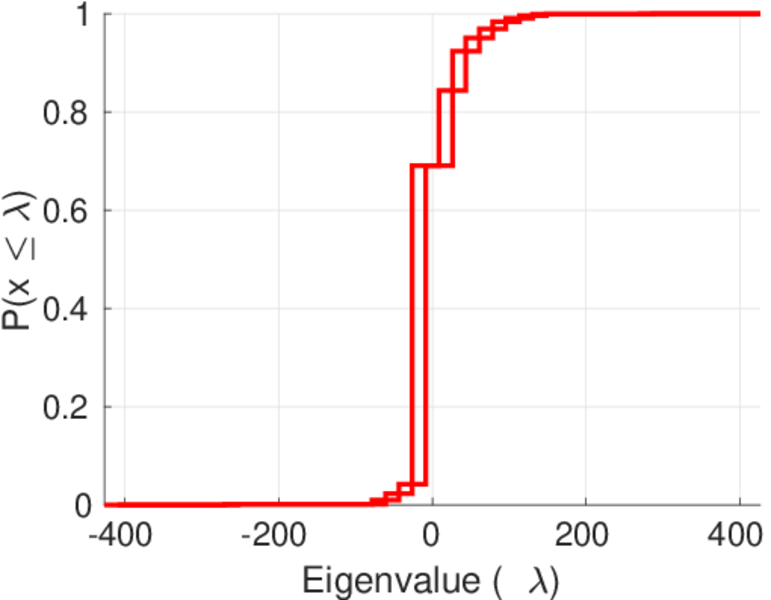

Spectral distribution of the adjacency matrix

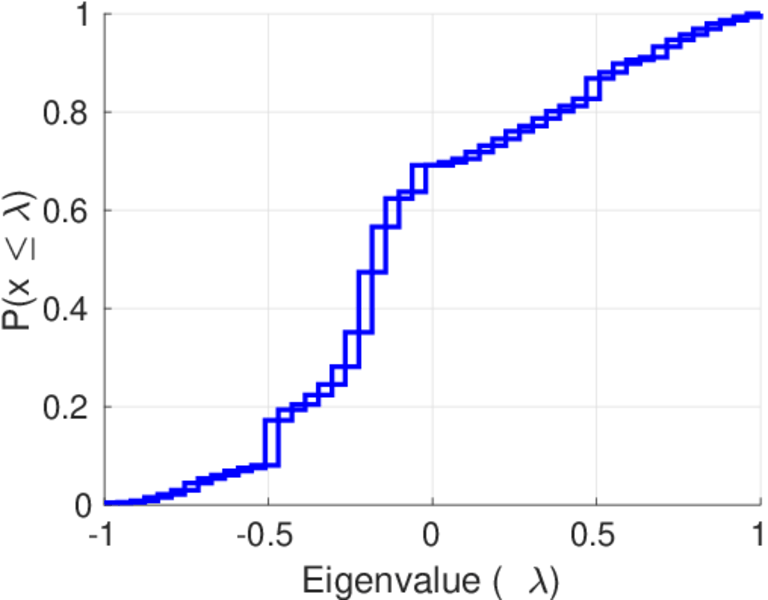

Spectral distribution of the normalized adjacency matrix

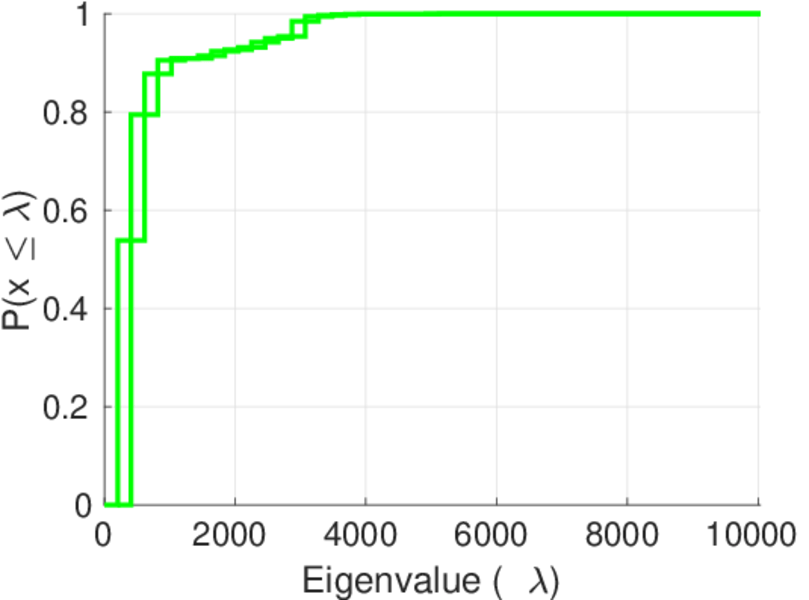

Spectral distribution of the Laplacian

Spectral graph drawing based on the adjacency matrix

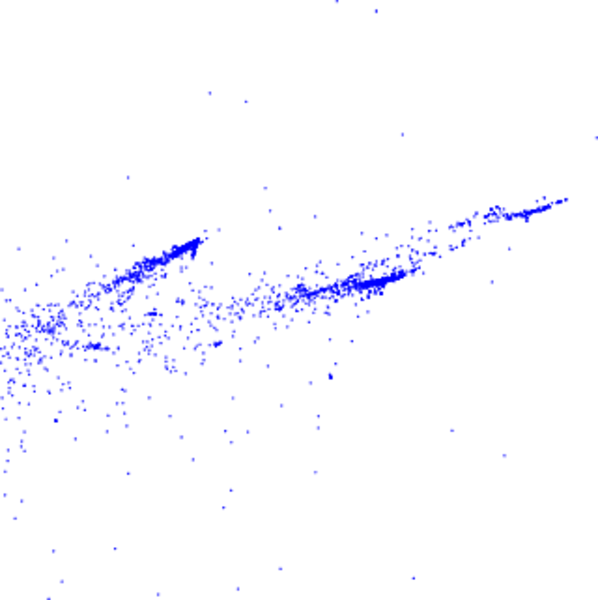

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

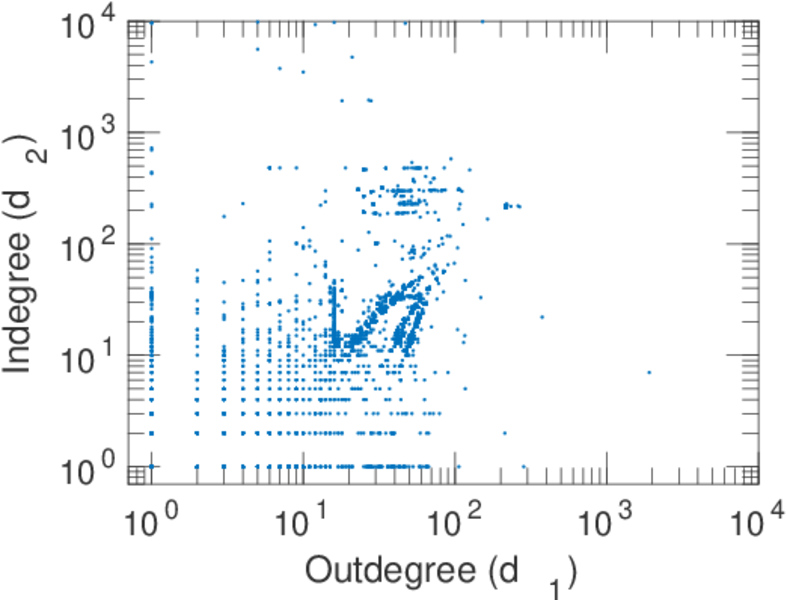

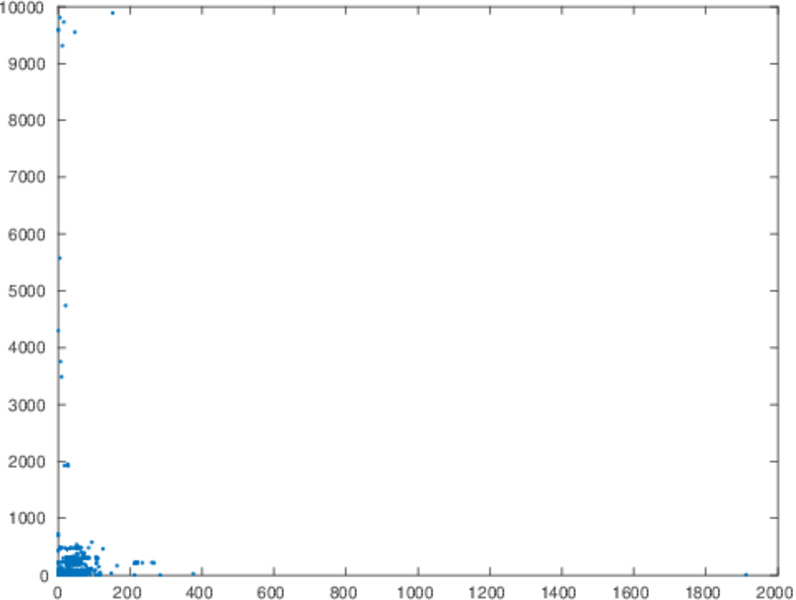

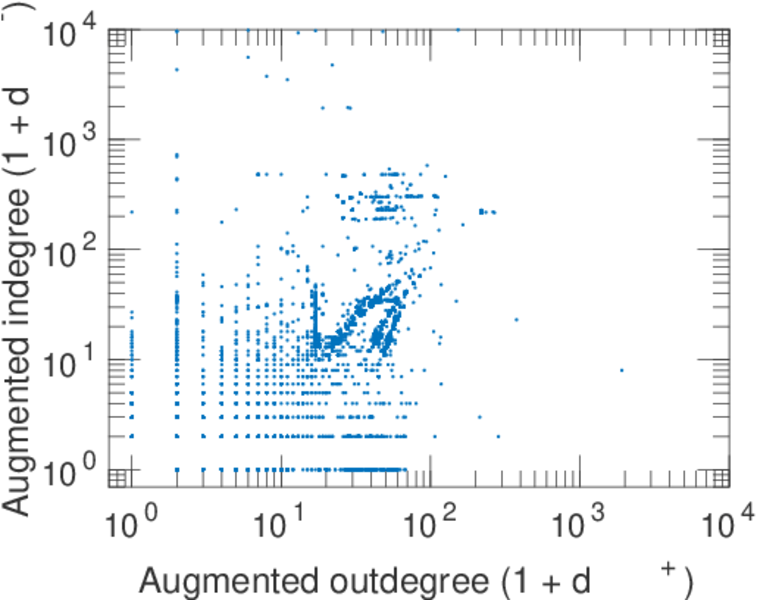

In/outdegree scatter plot

Clustering coefficient distribution

Average neighbor degree distribution

SynGraphy

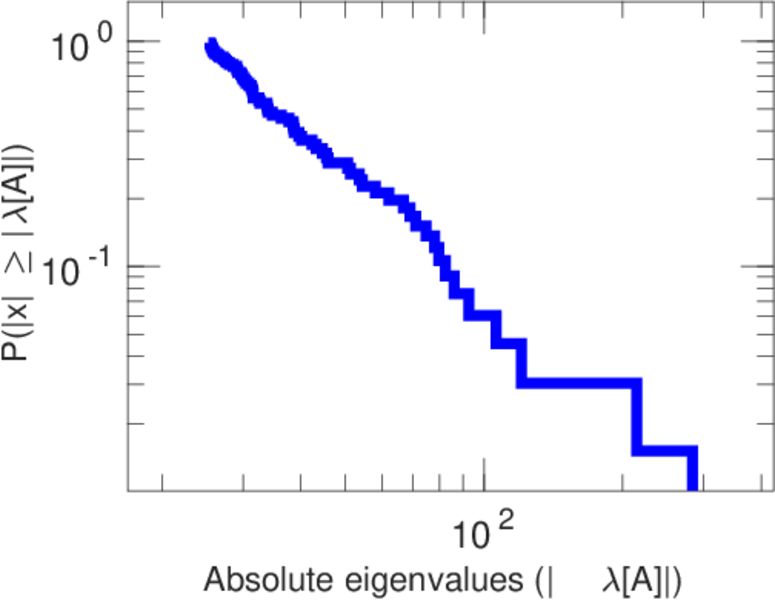

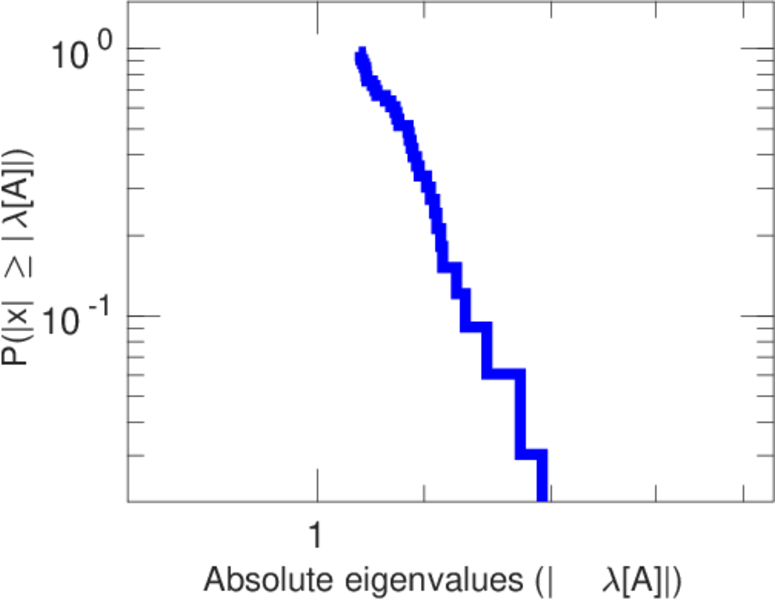

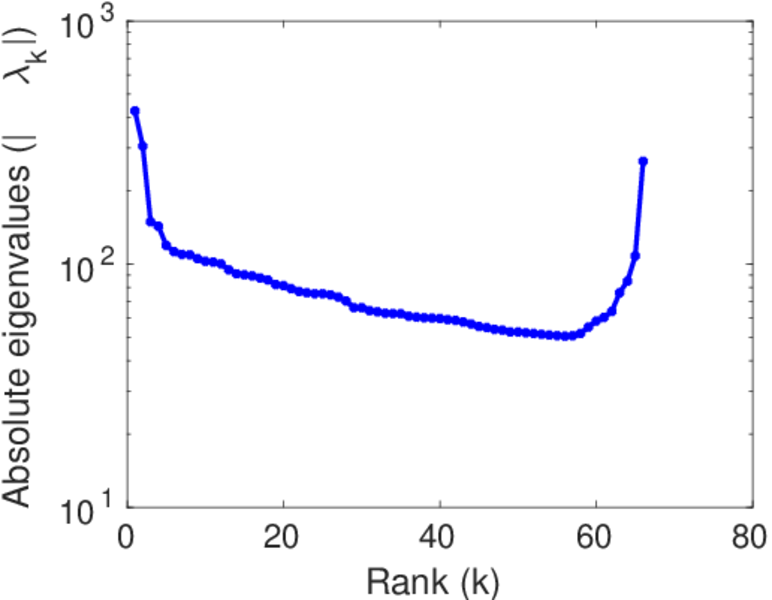

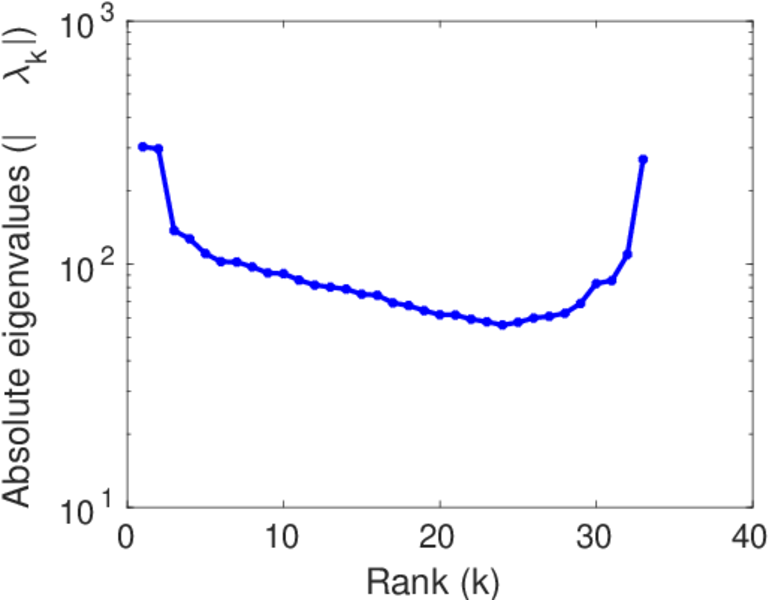

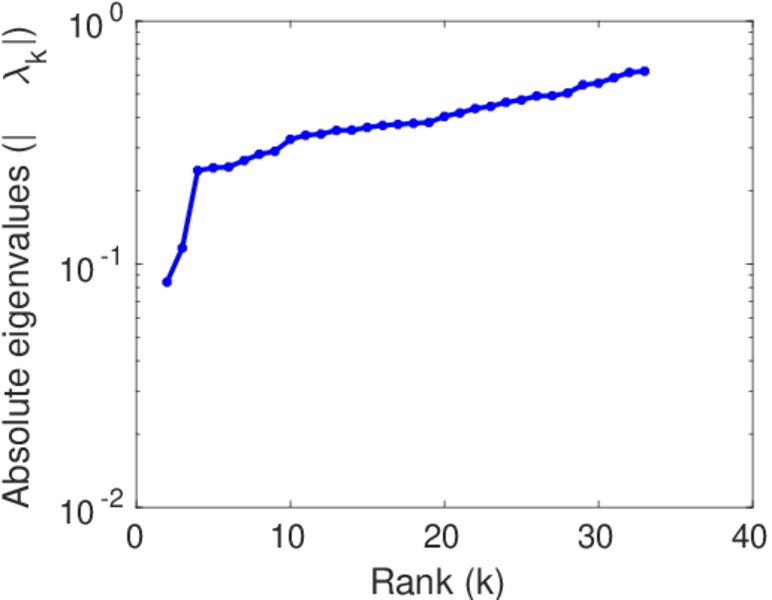

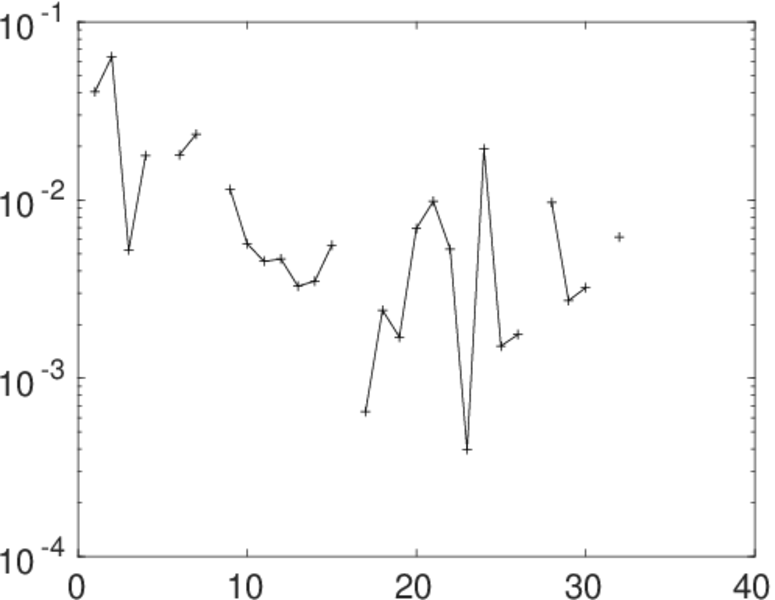

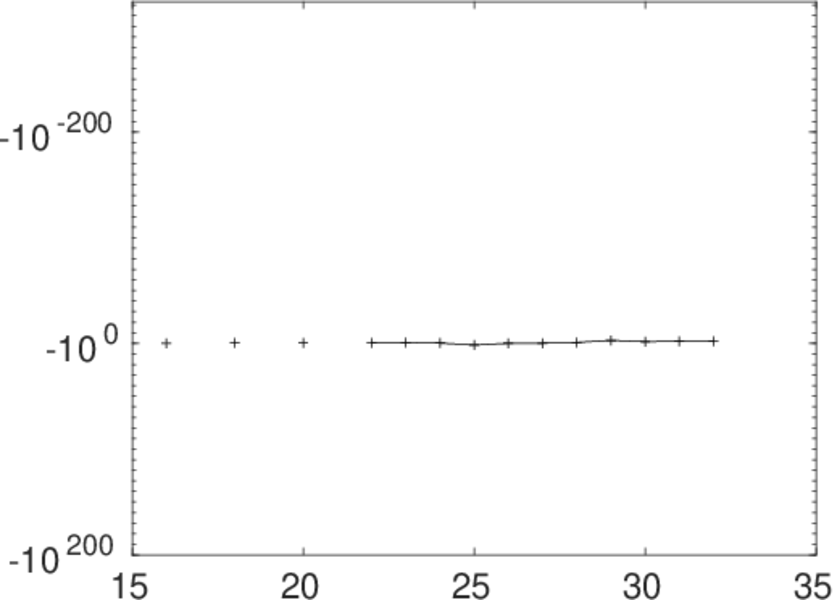

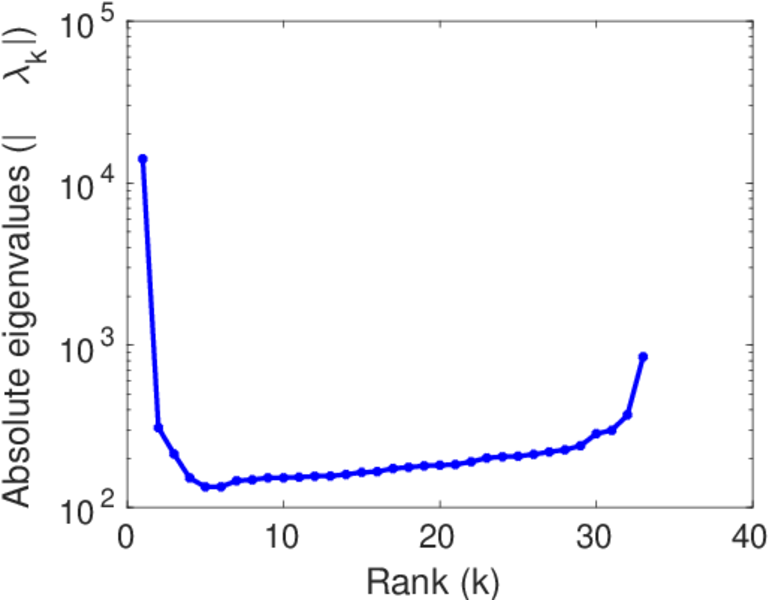

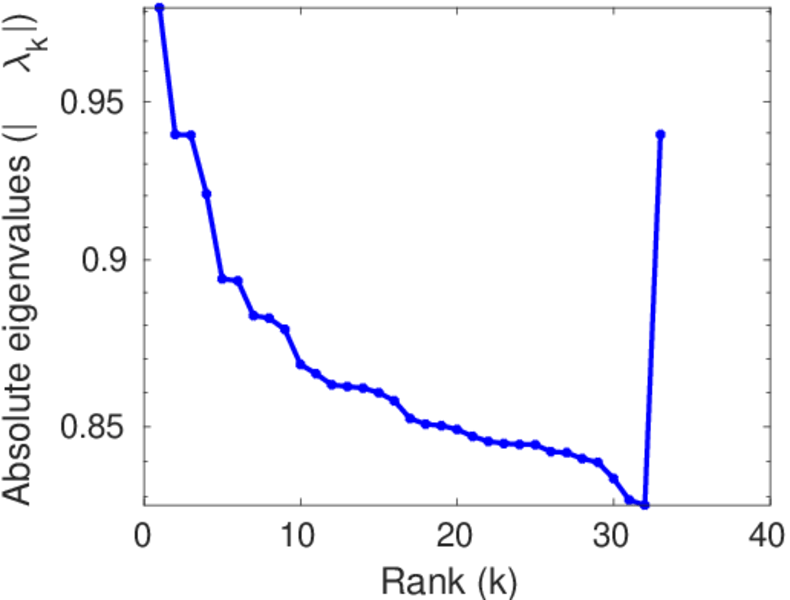

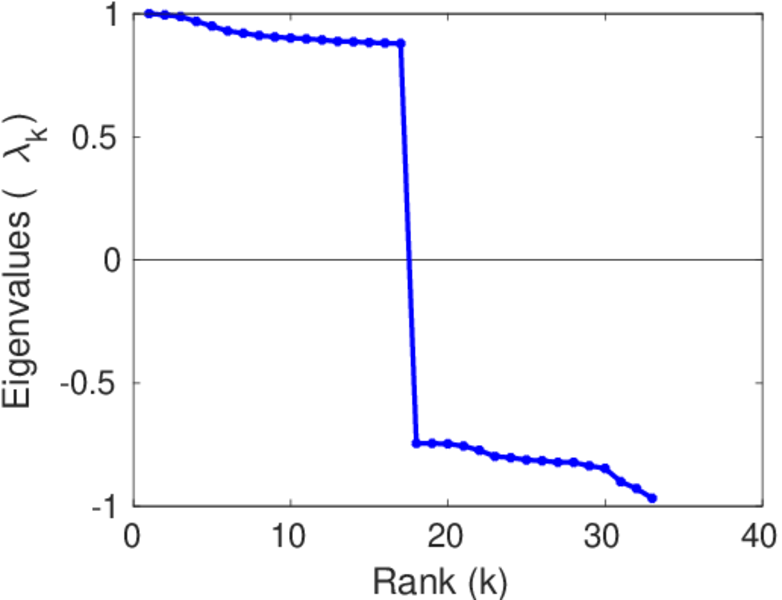

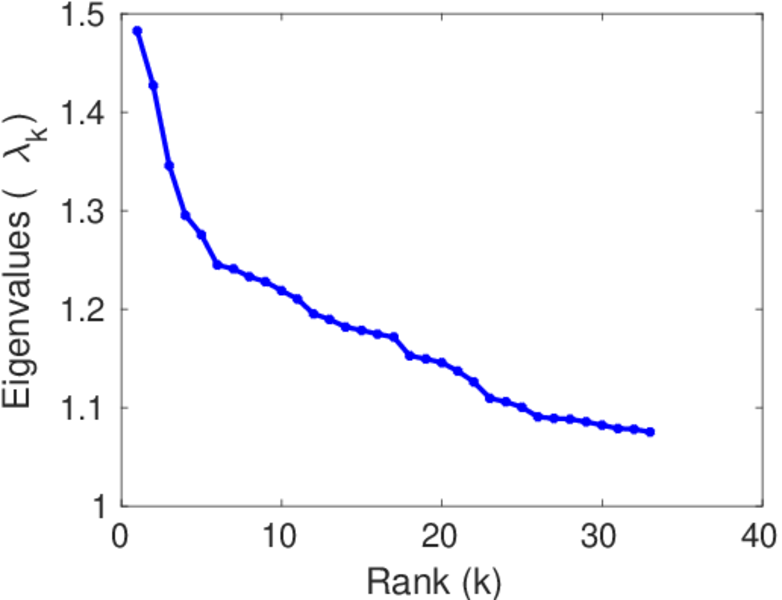

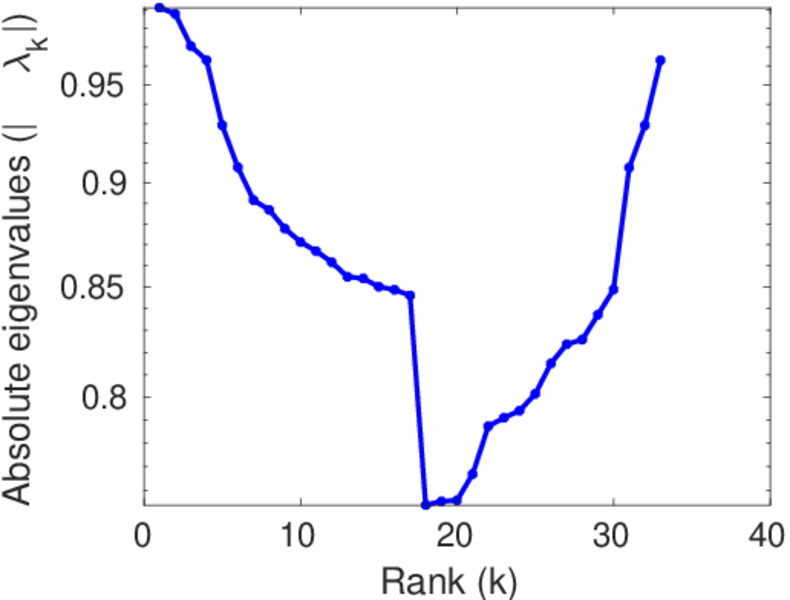

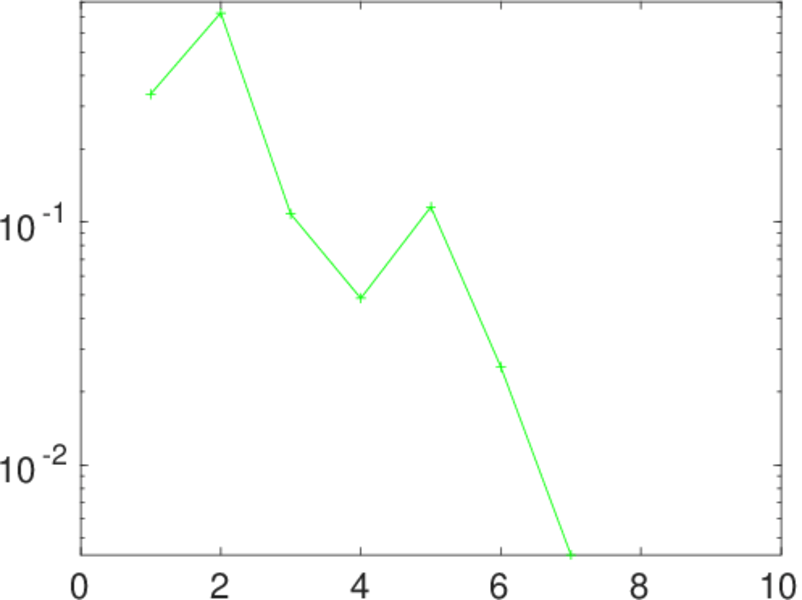

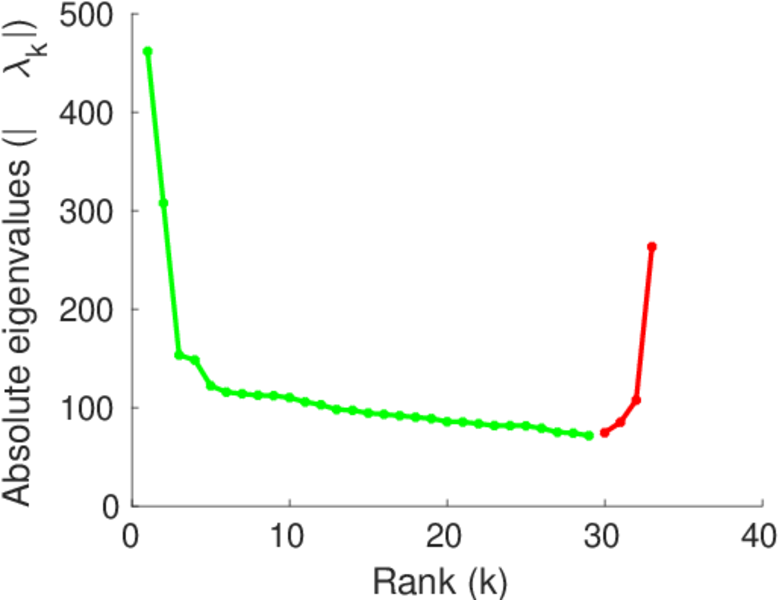

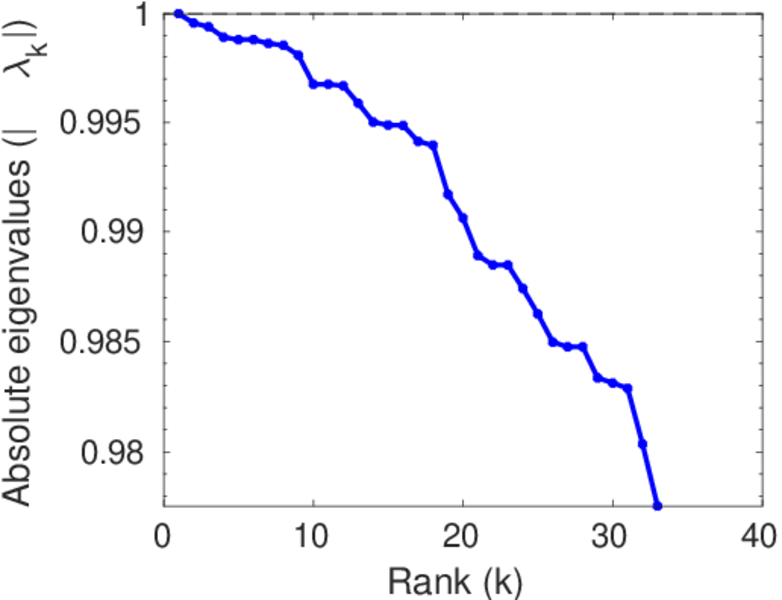

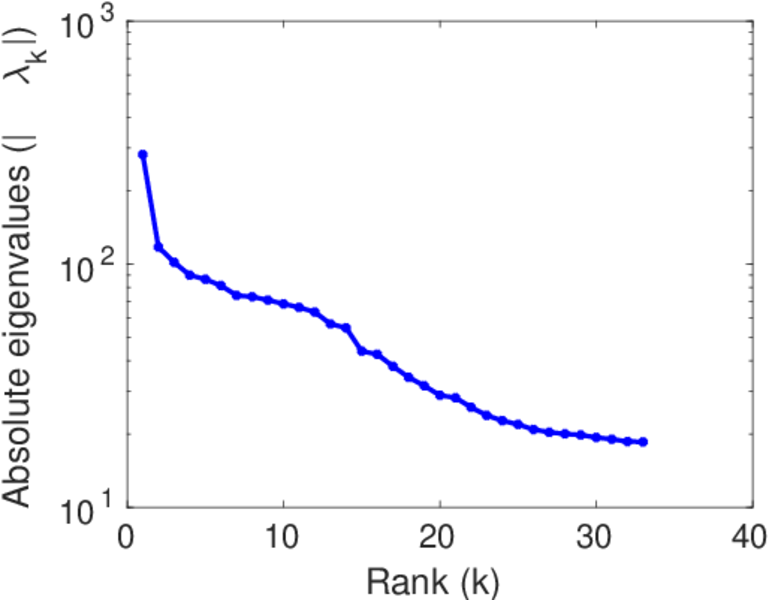

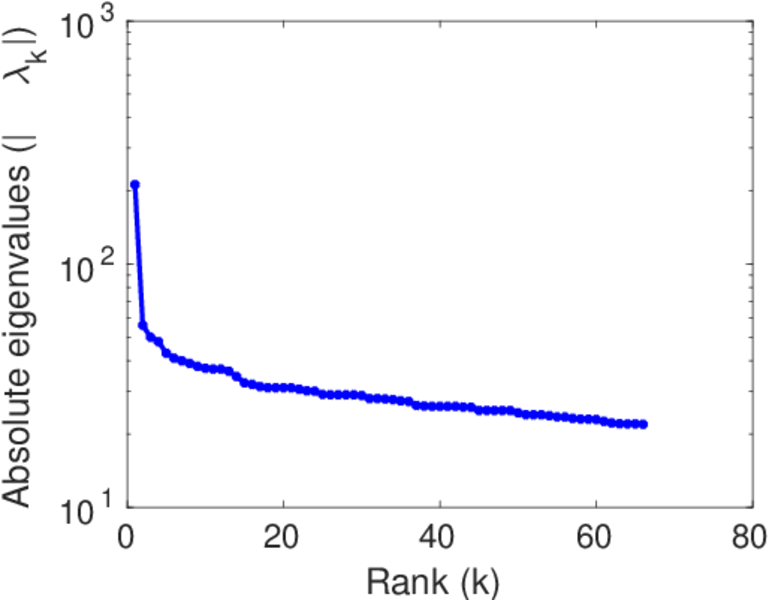

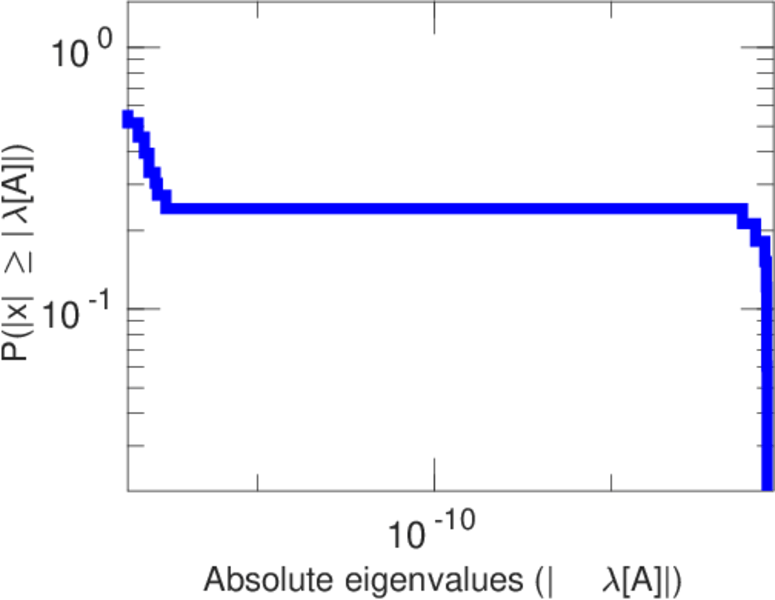

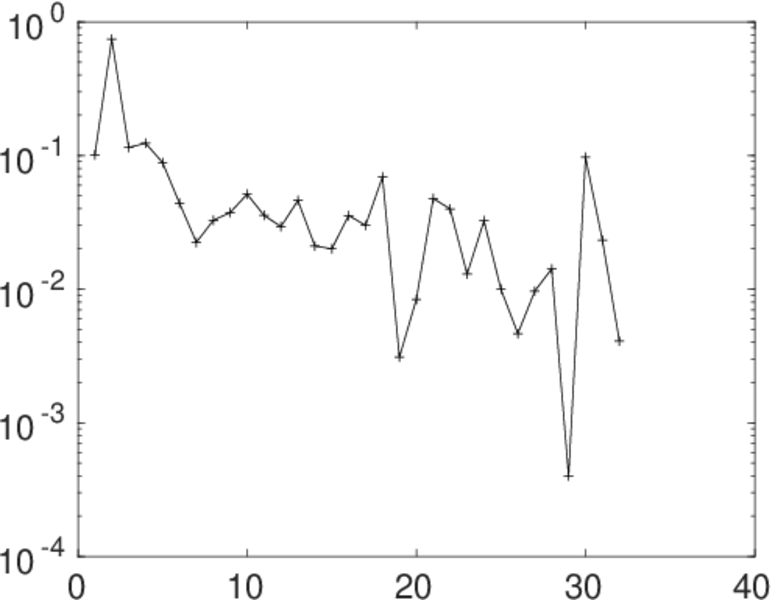

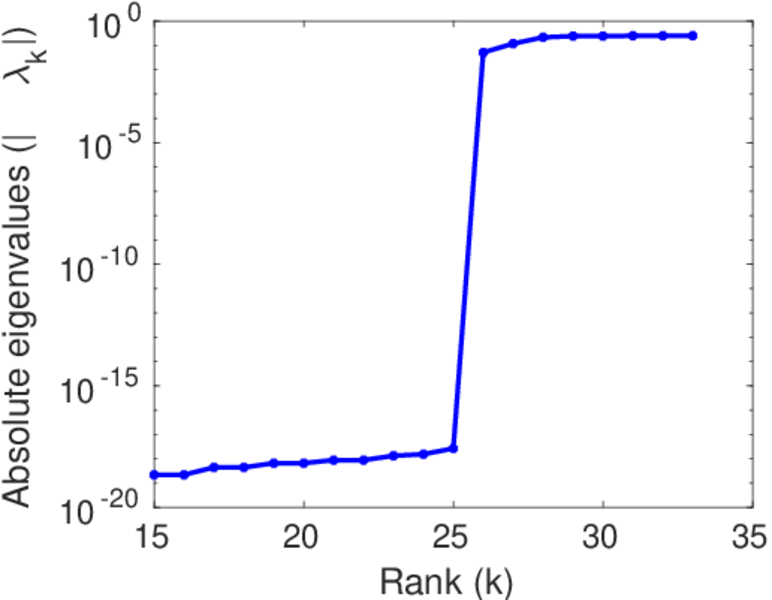

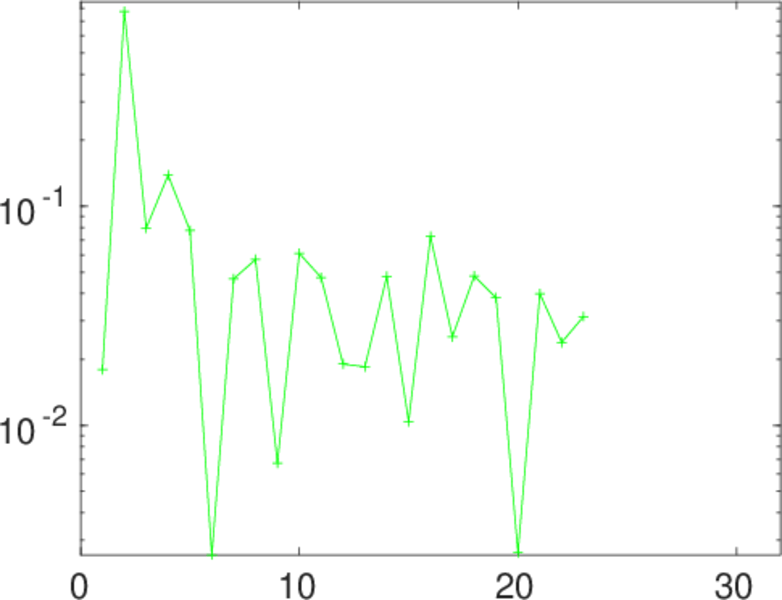

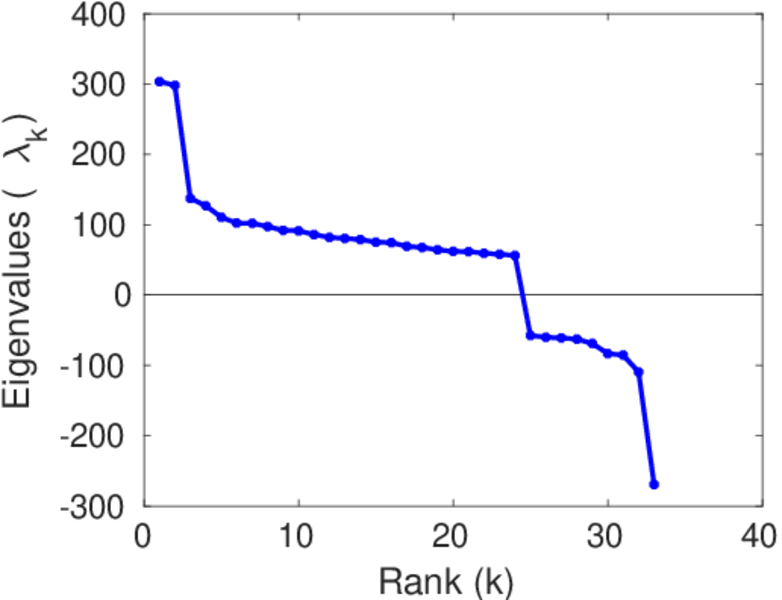

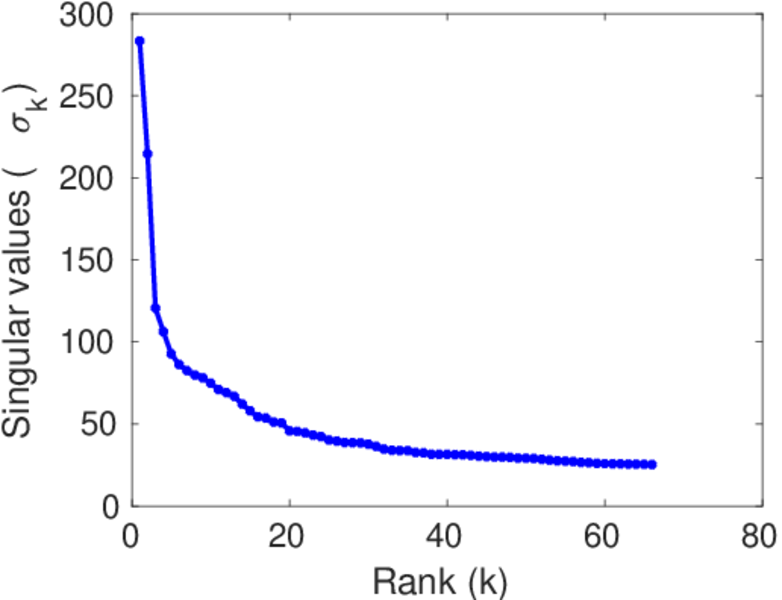

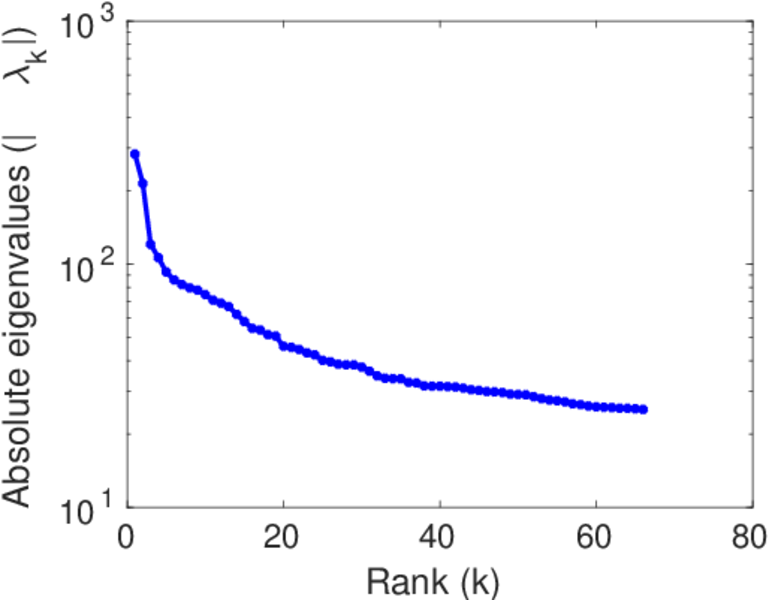

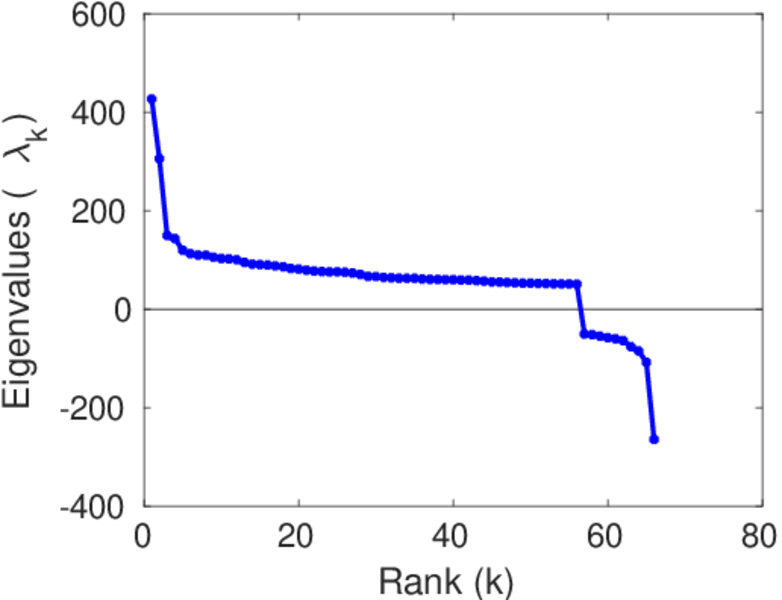

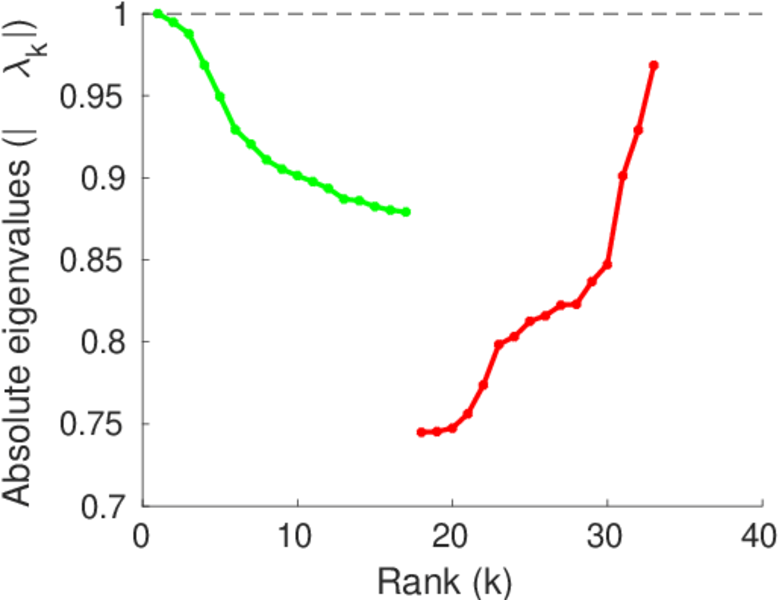

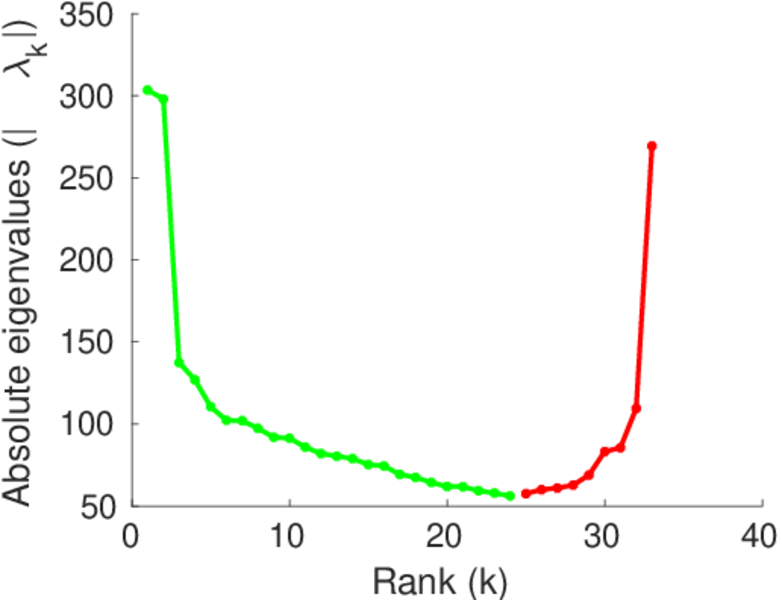

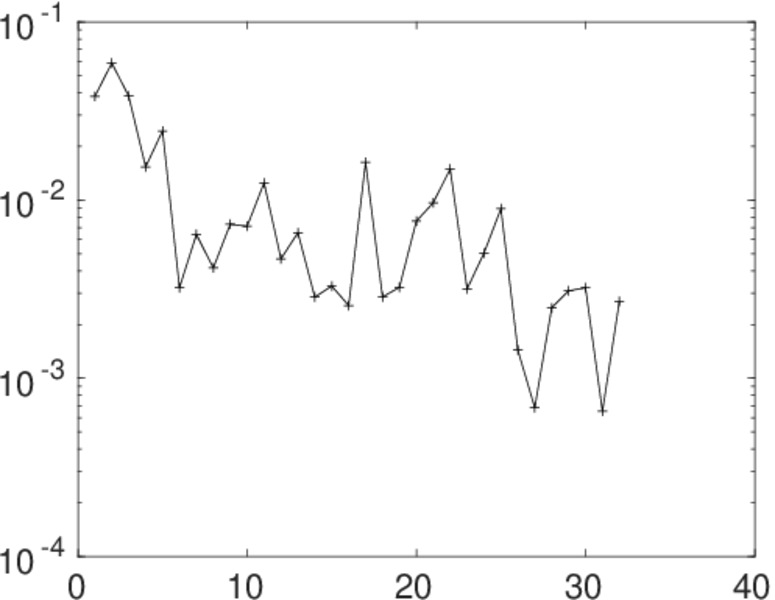

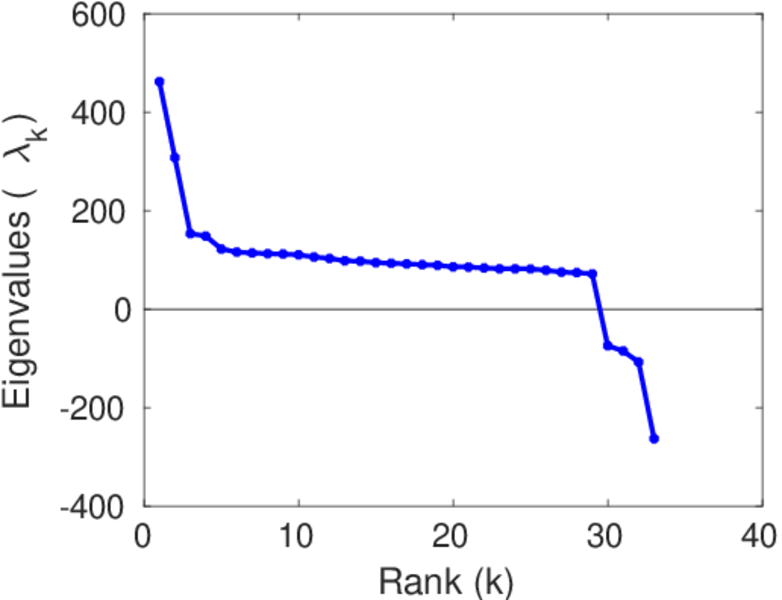

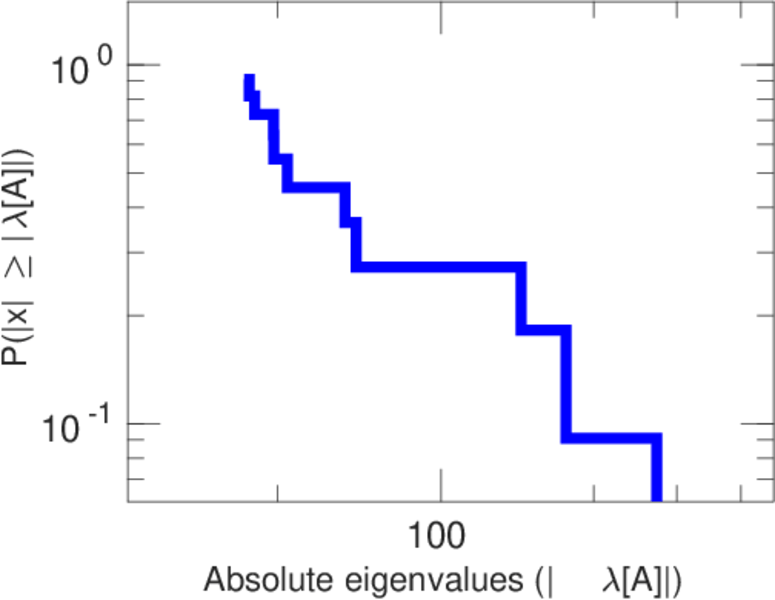

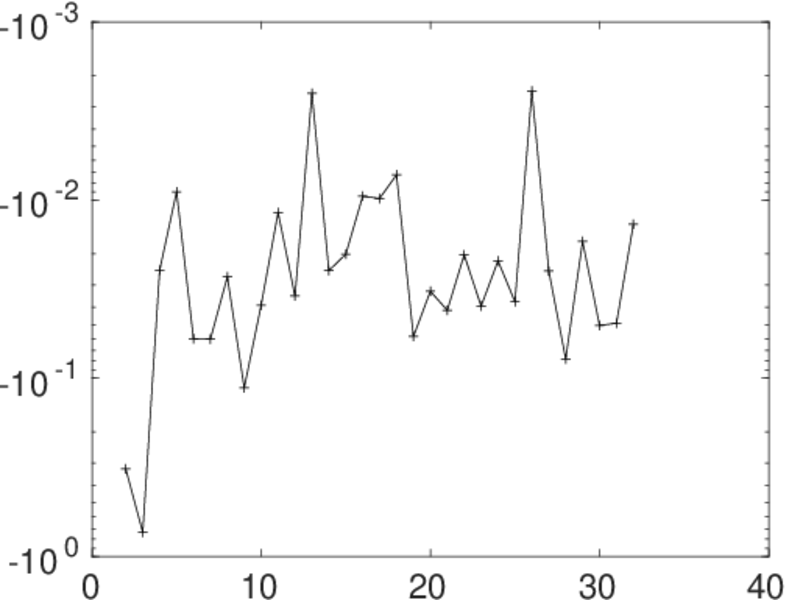

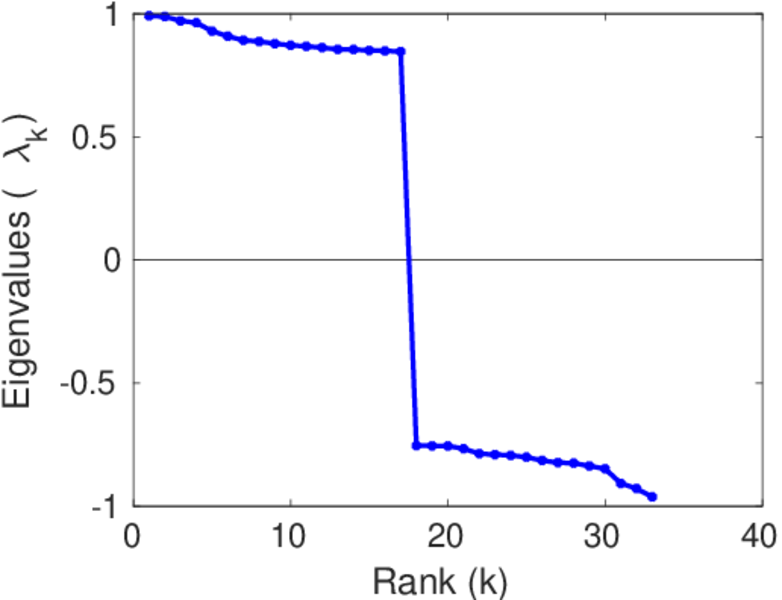

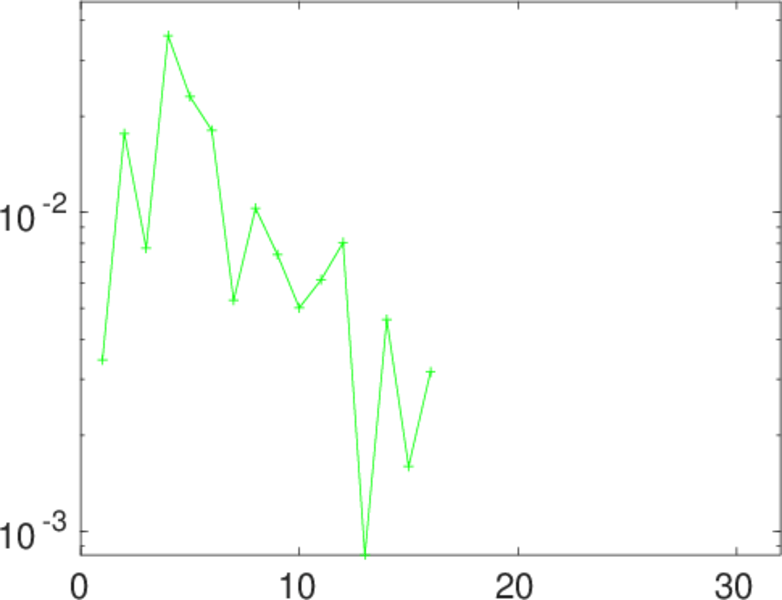

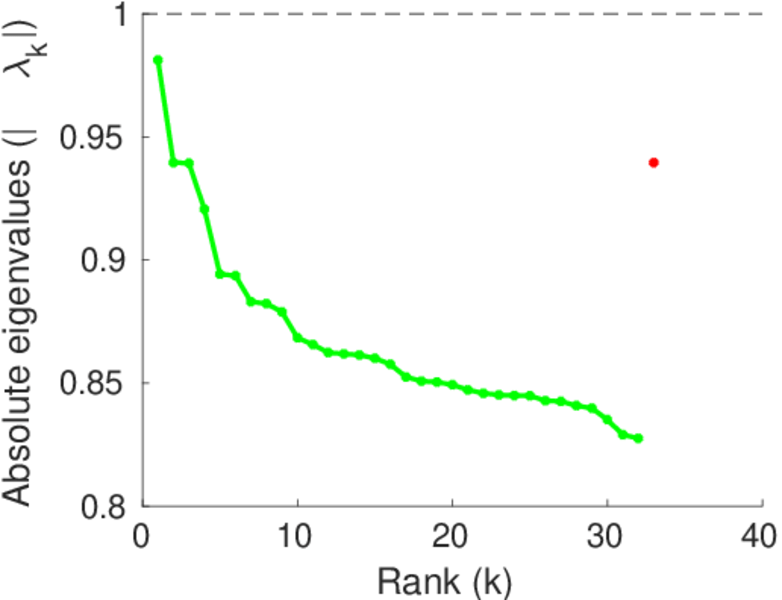

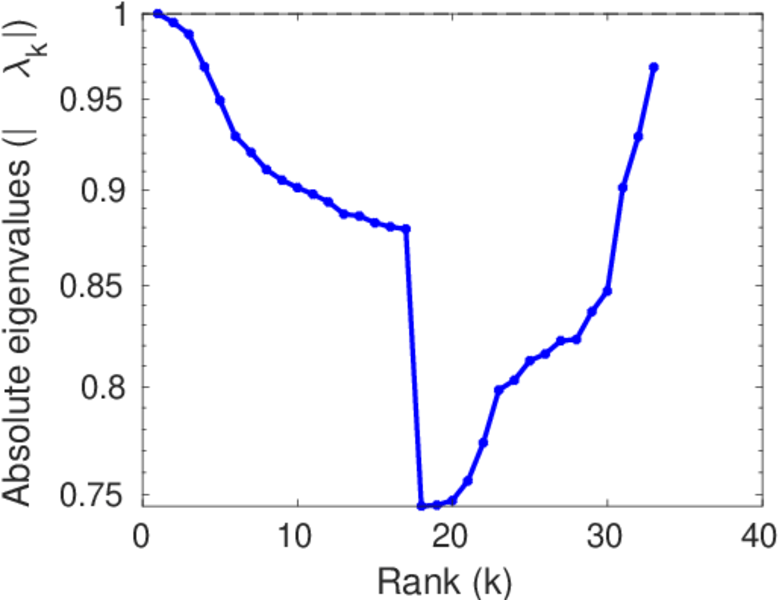

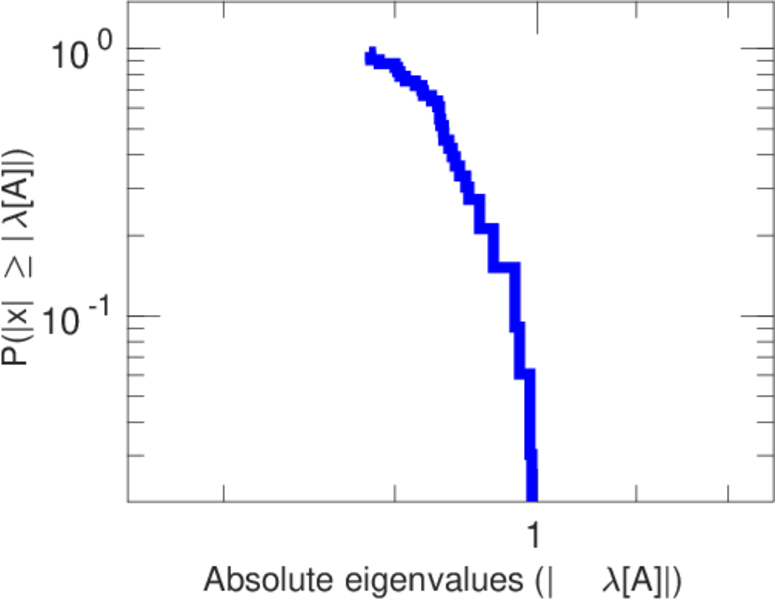

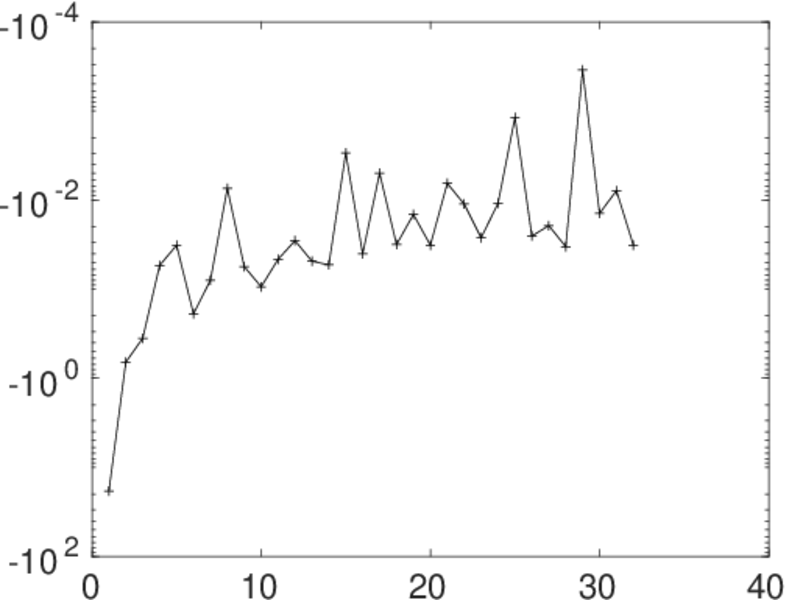

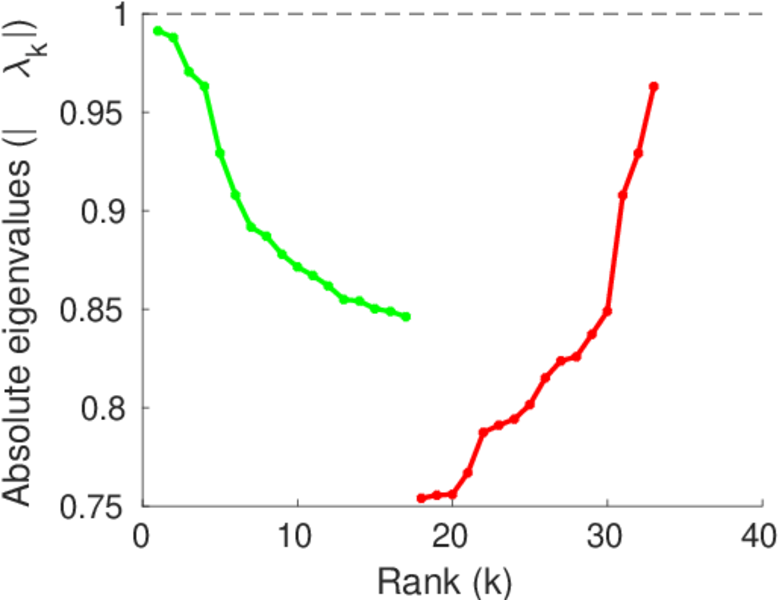

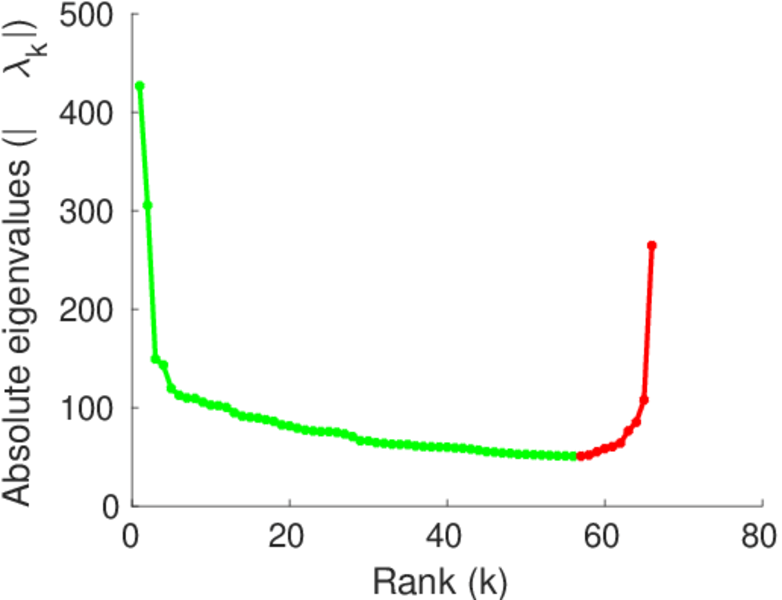

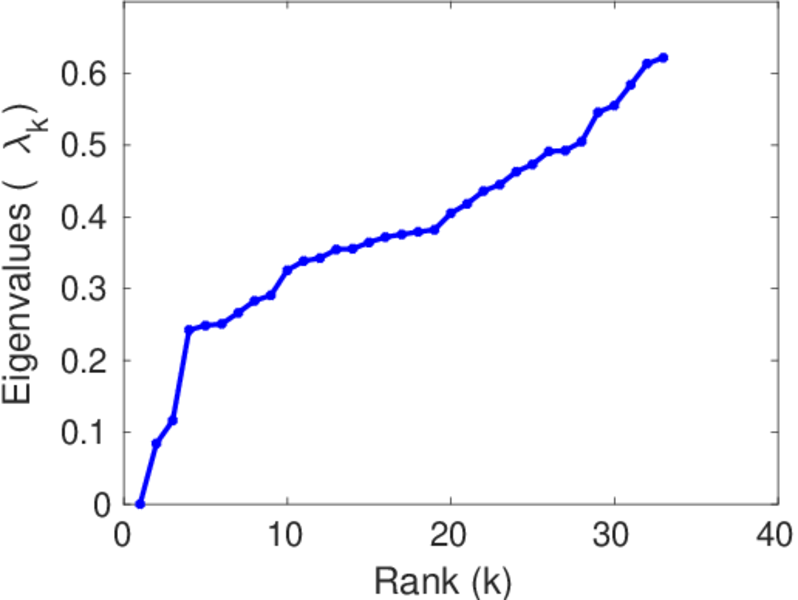

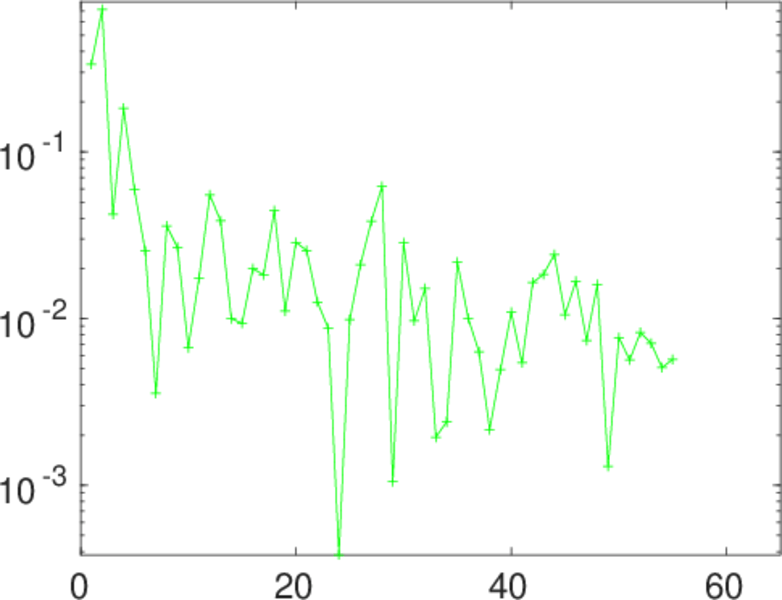

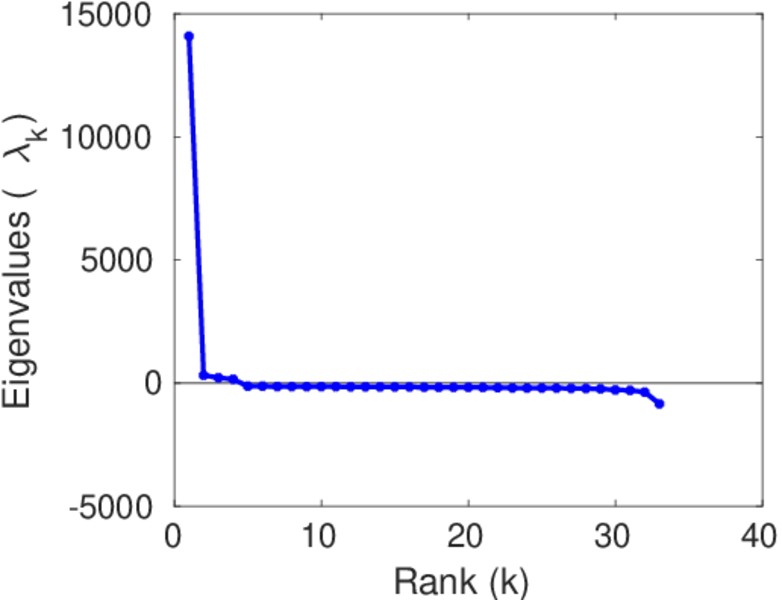

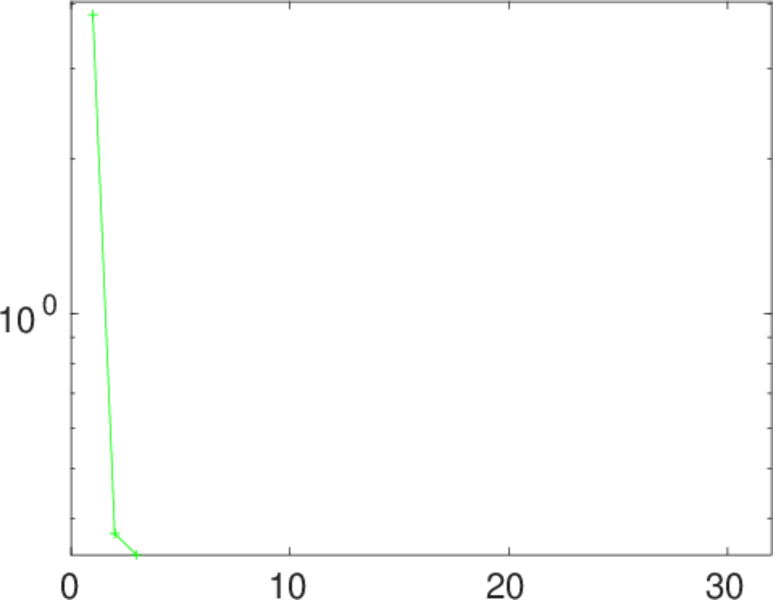

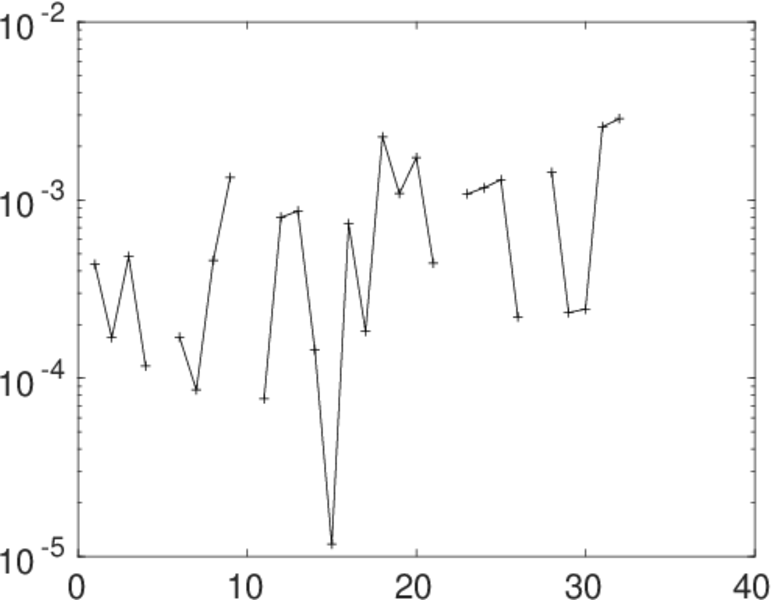

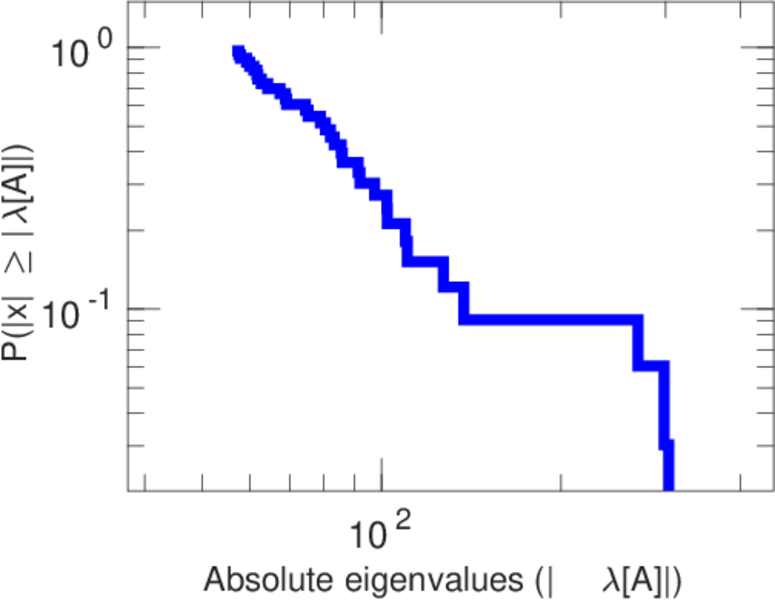

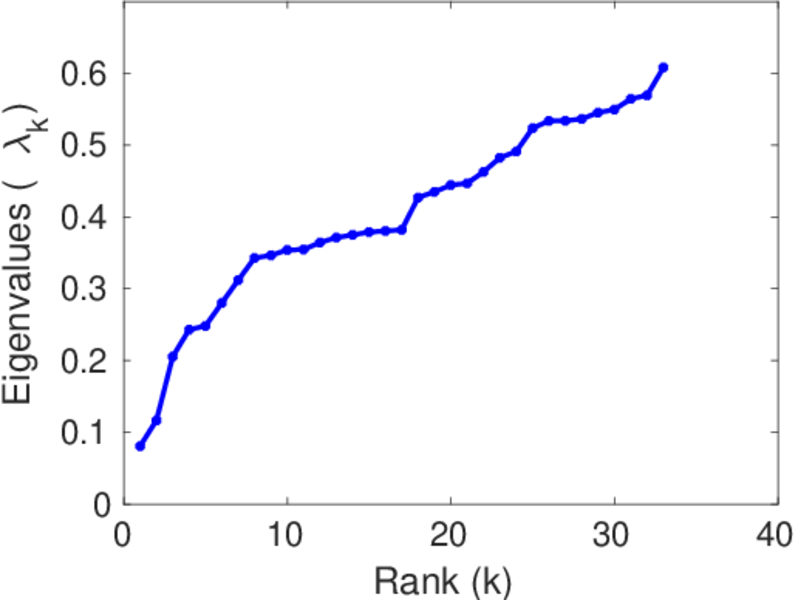

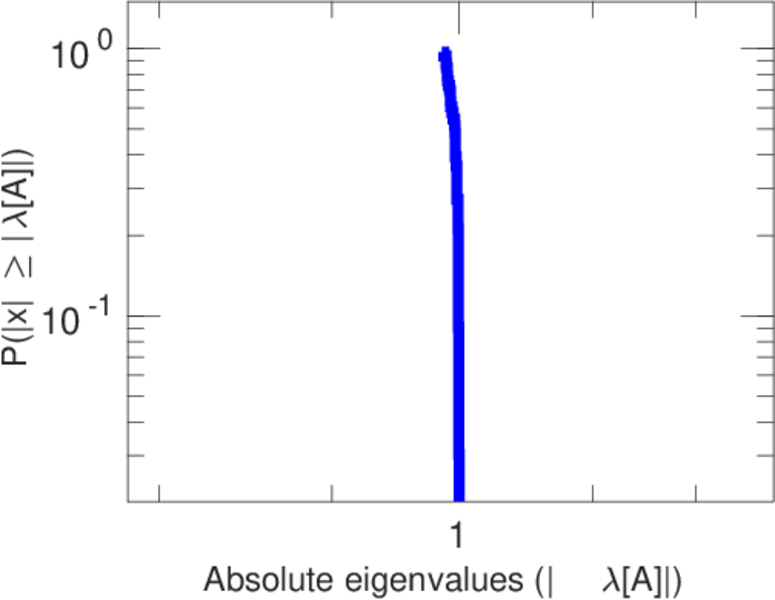

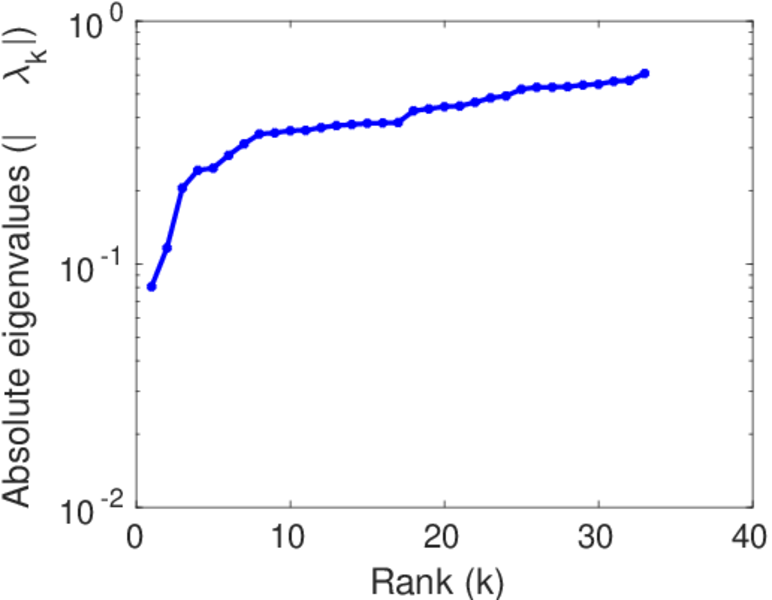

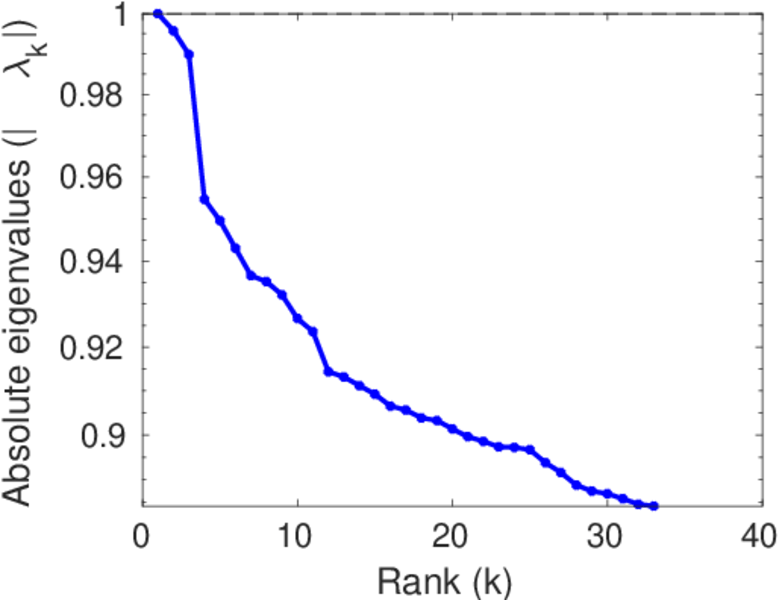

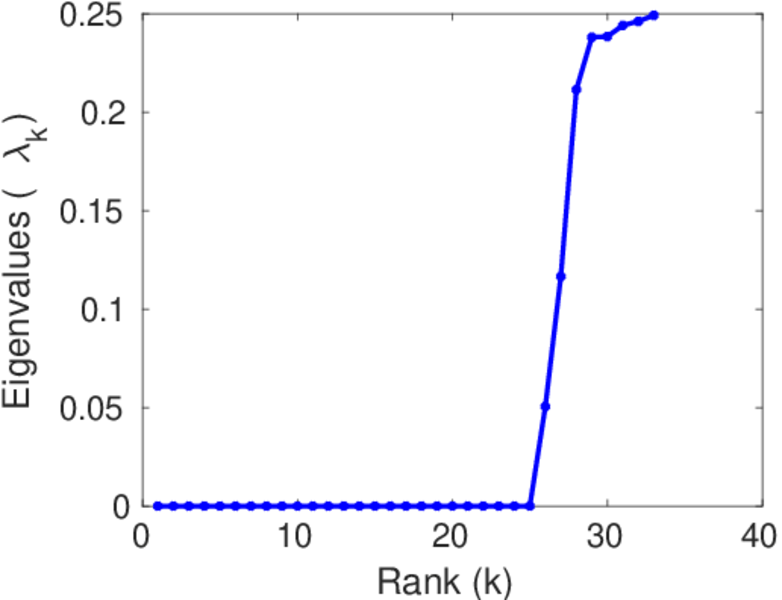

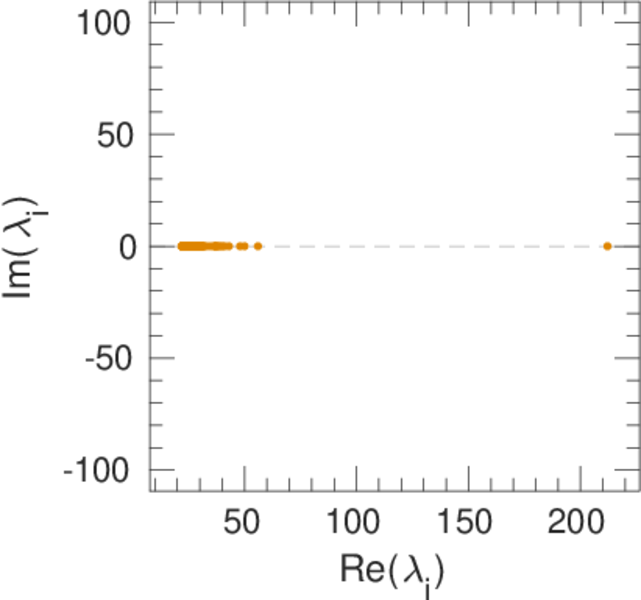

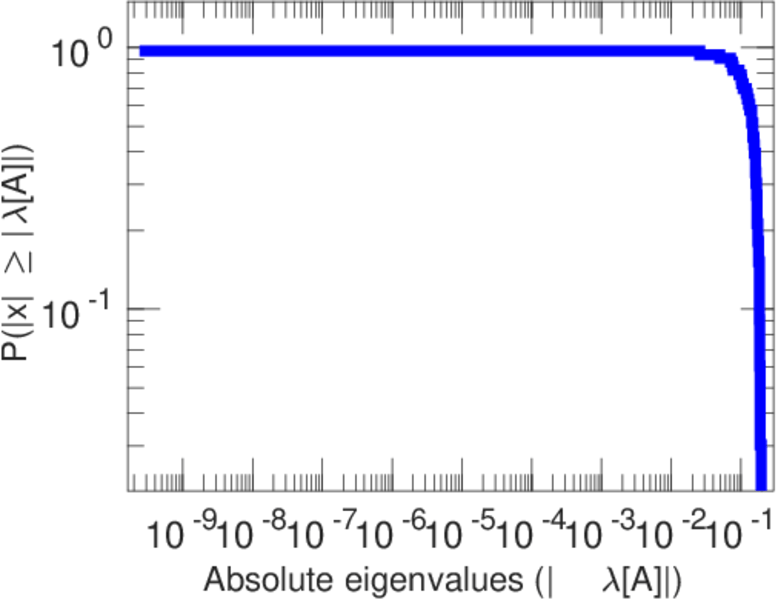

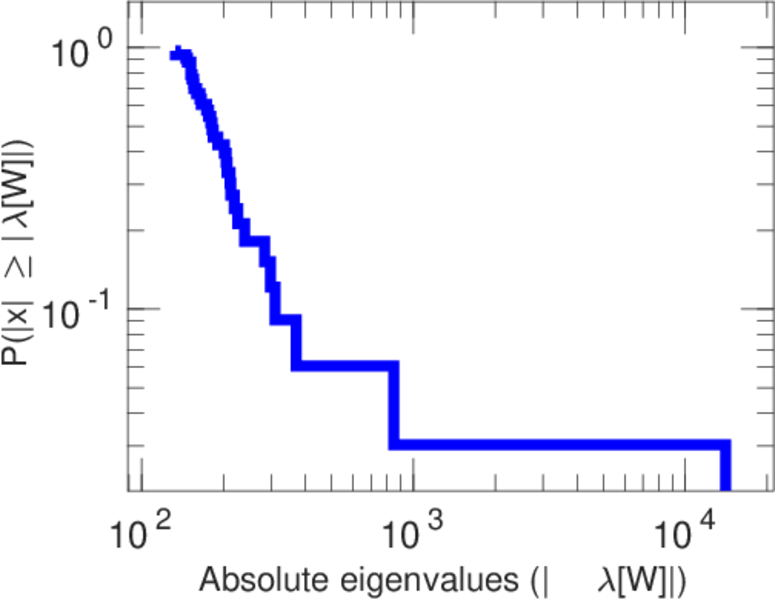

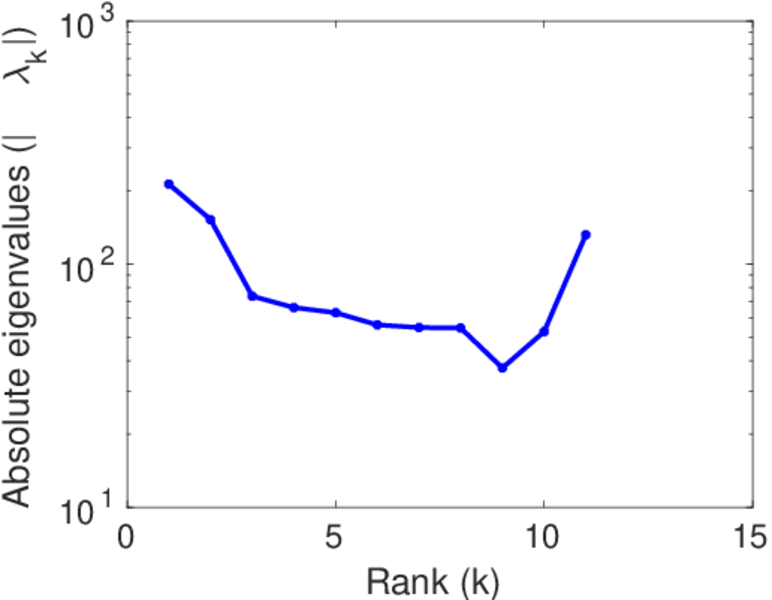

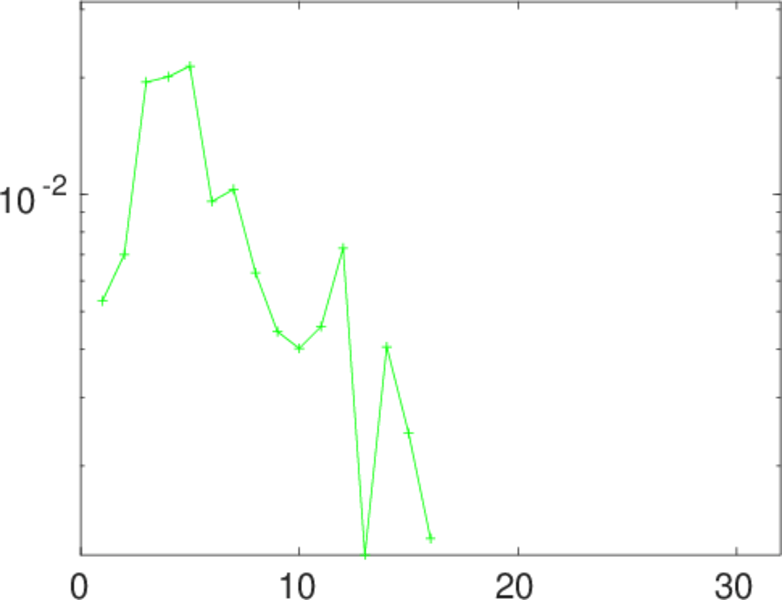

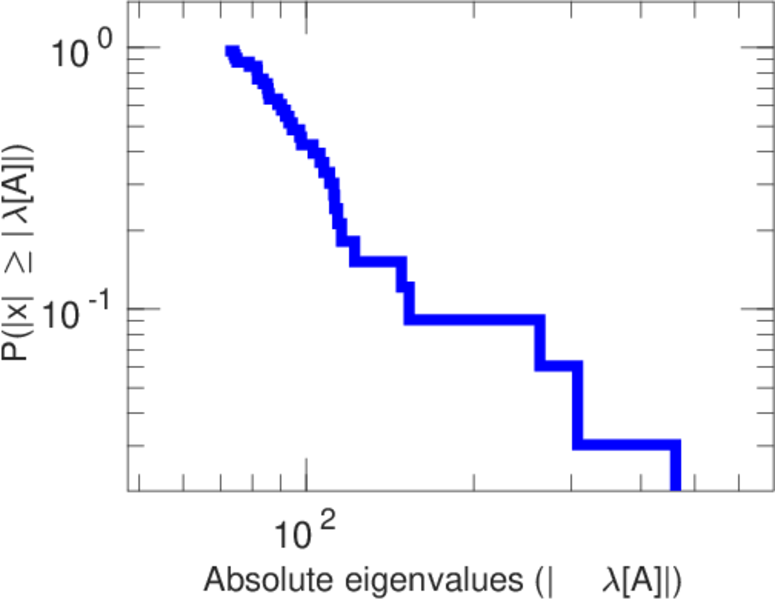

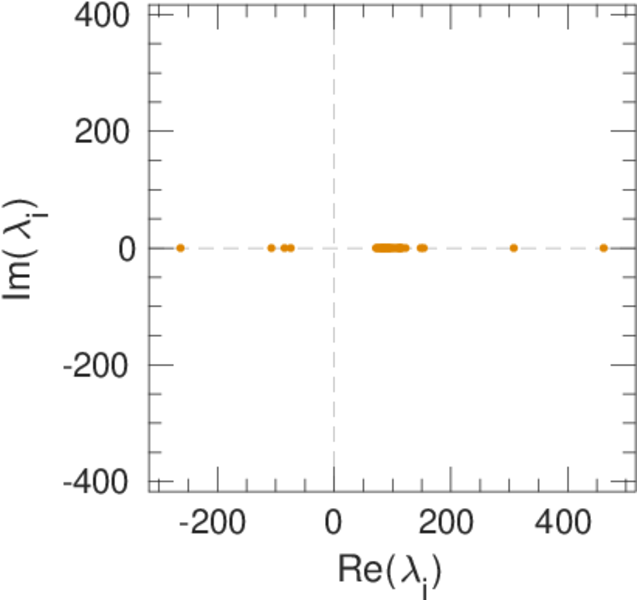

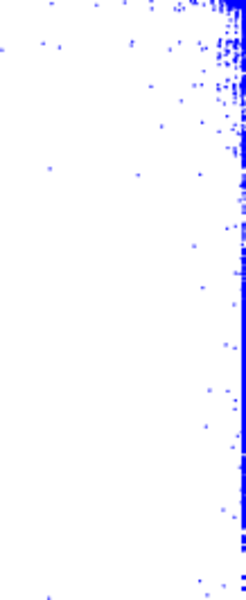

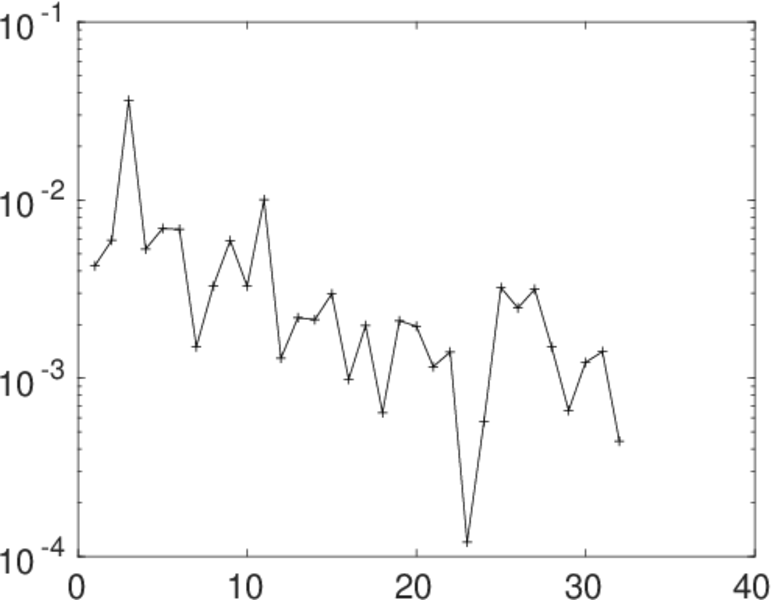

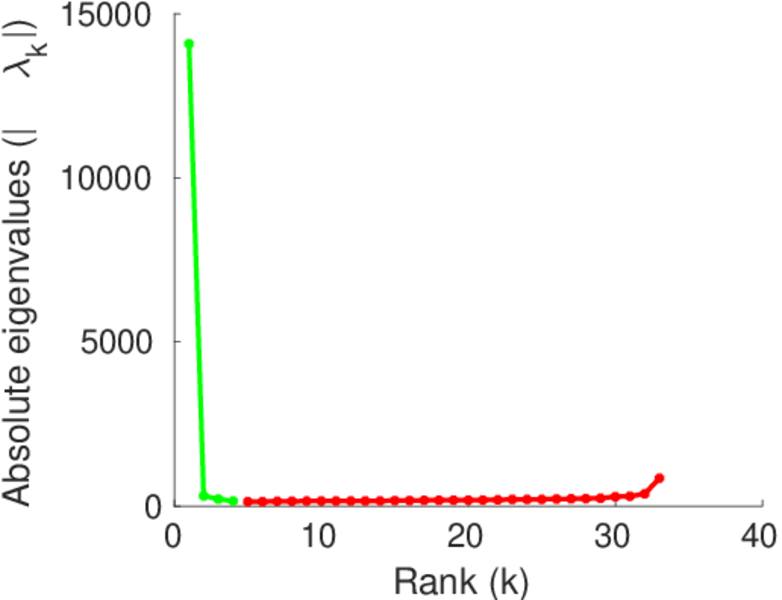

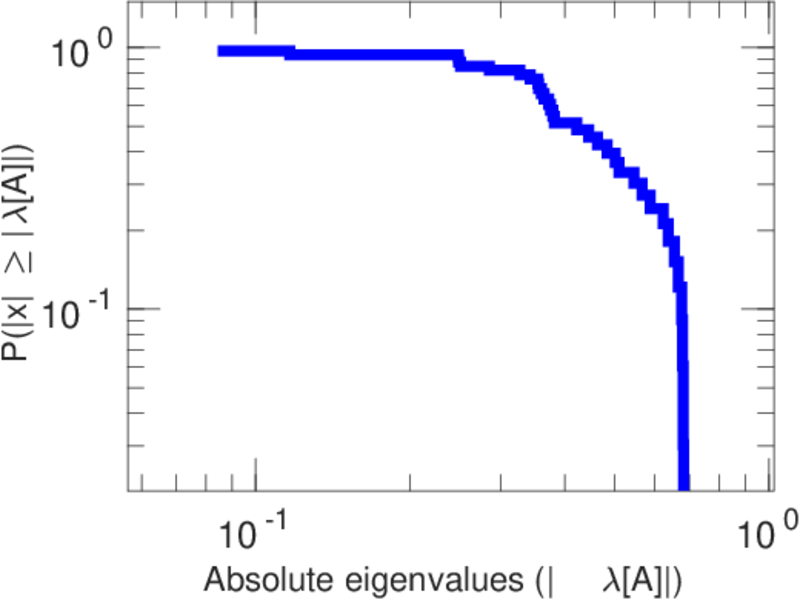

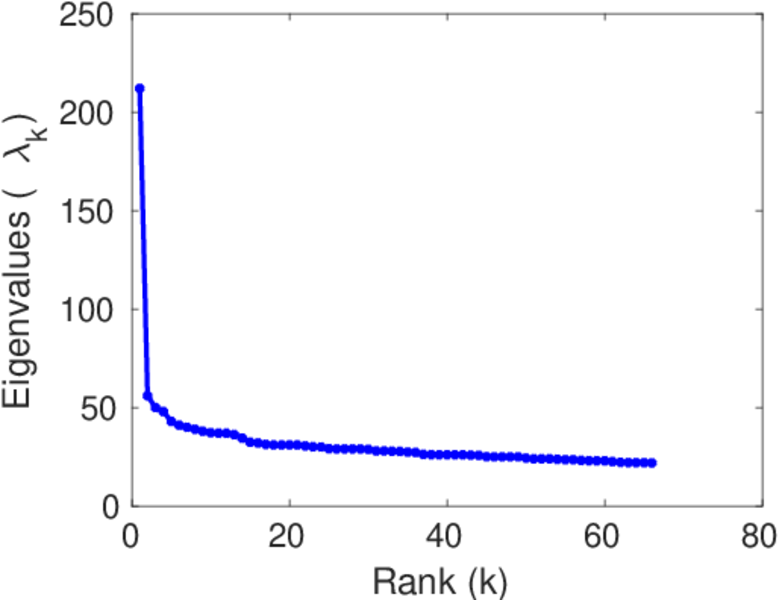

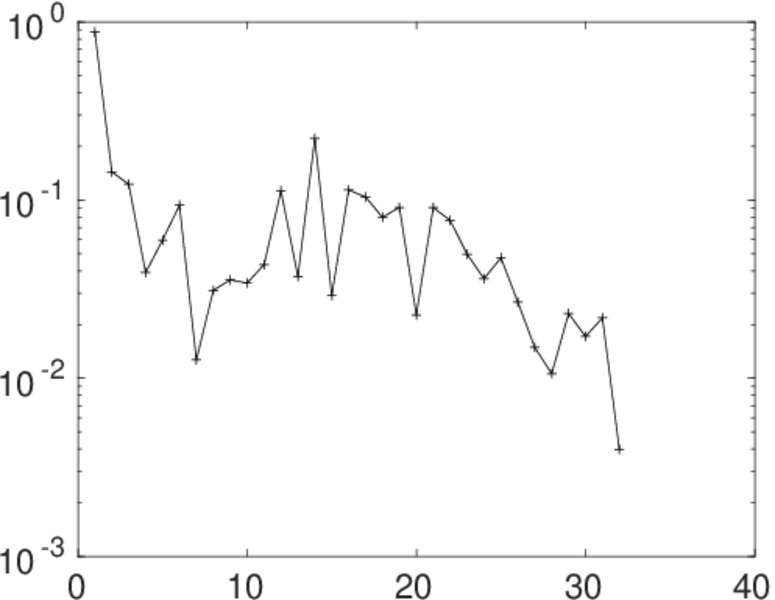

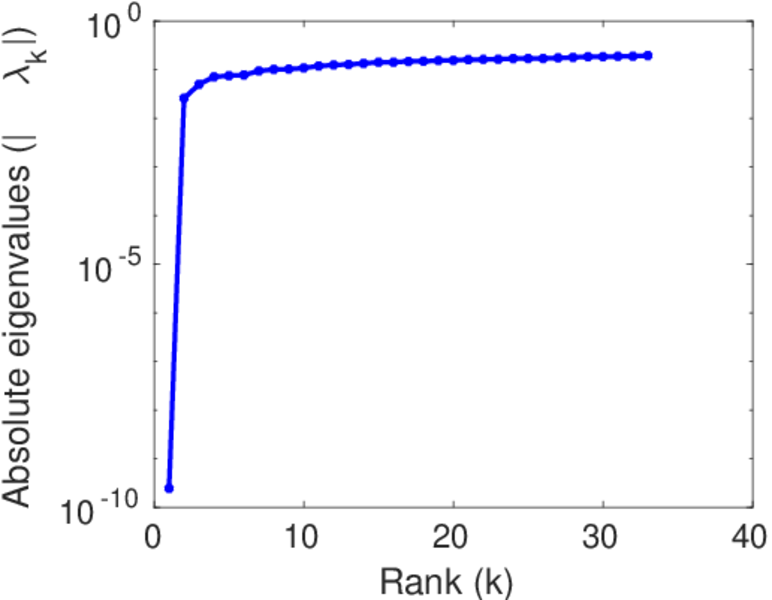

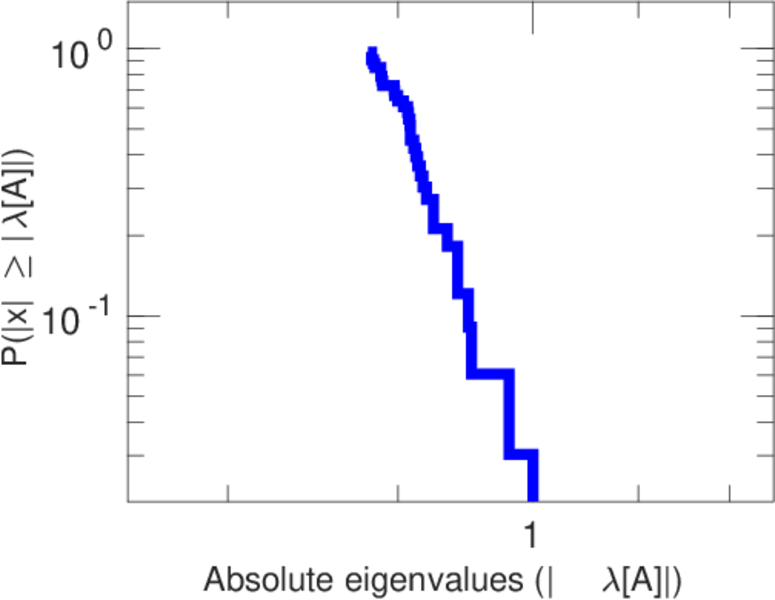

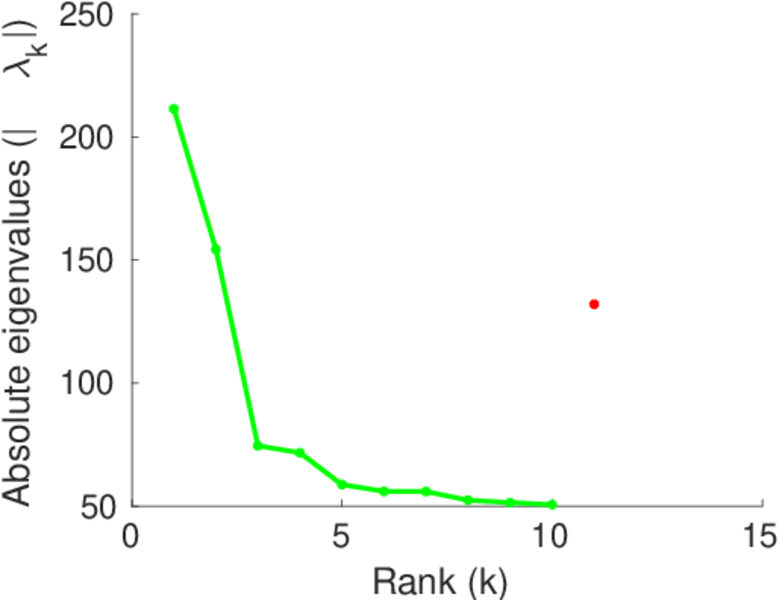

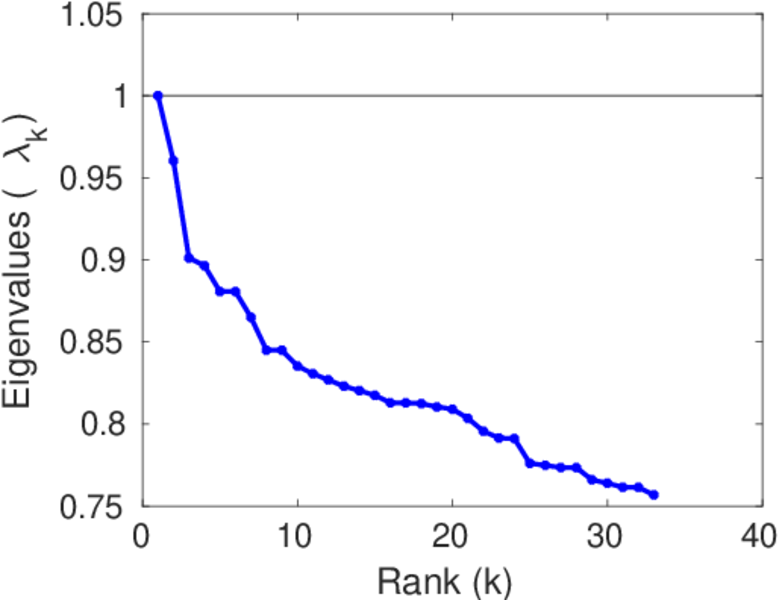

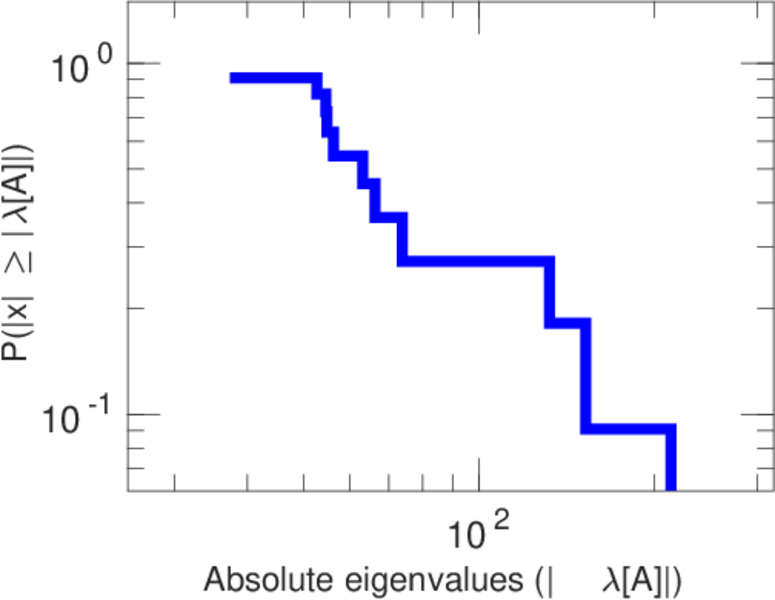

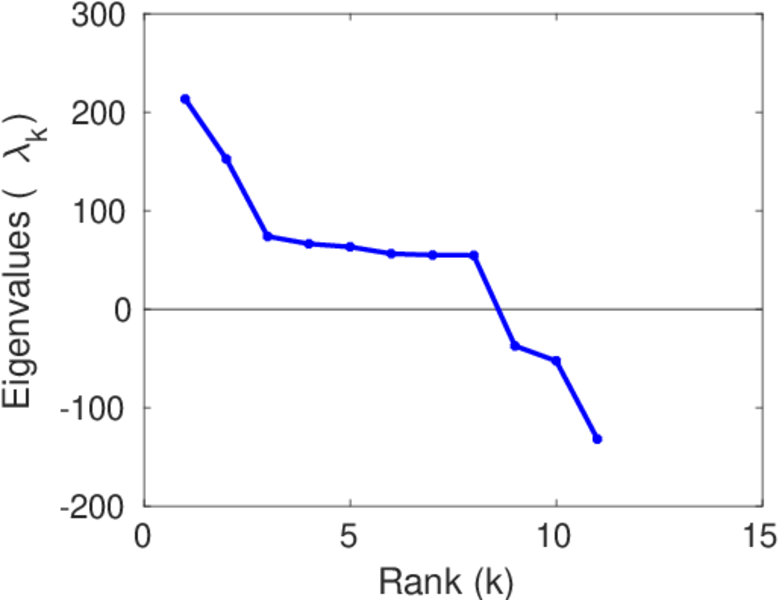

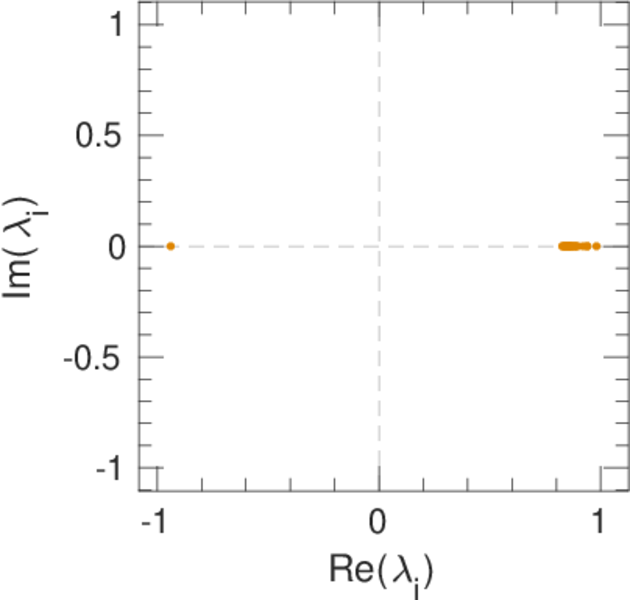

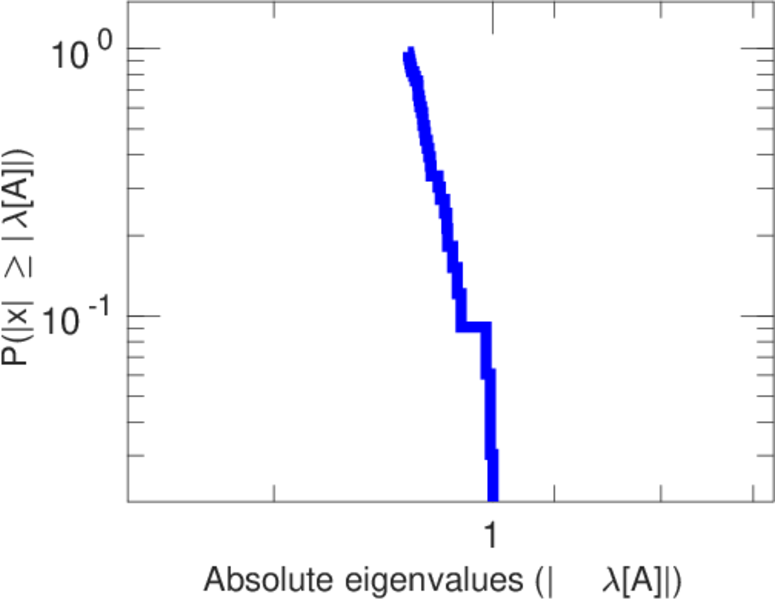

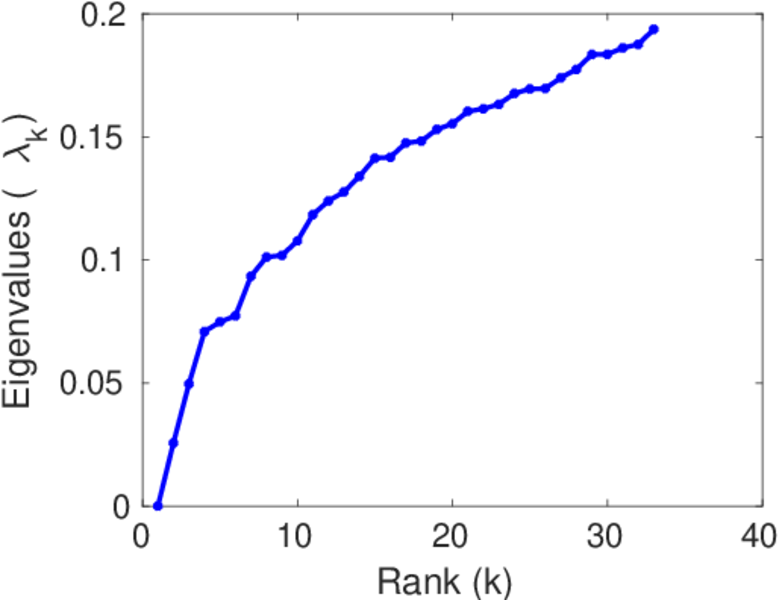

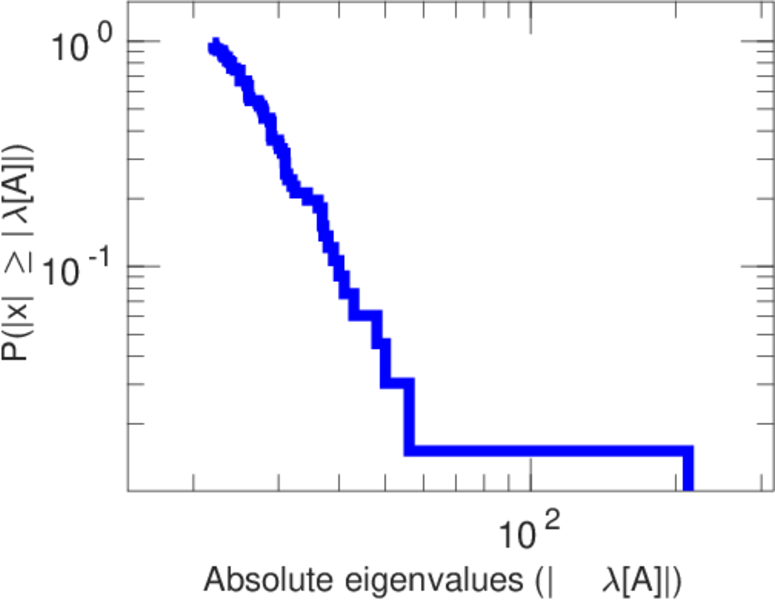

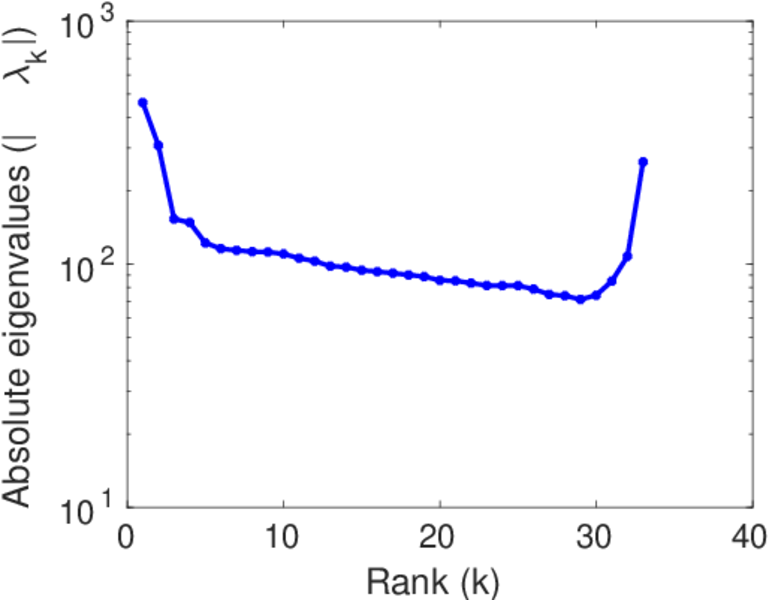

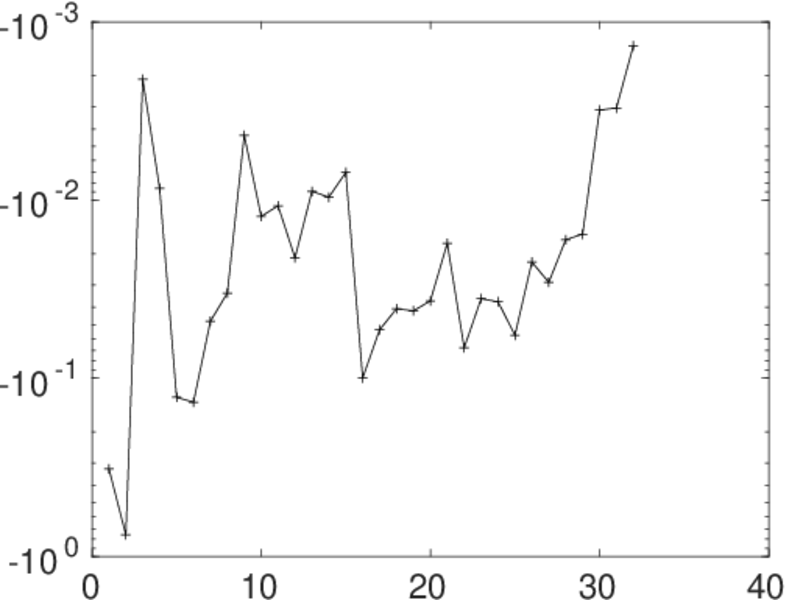

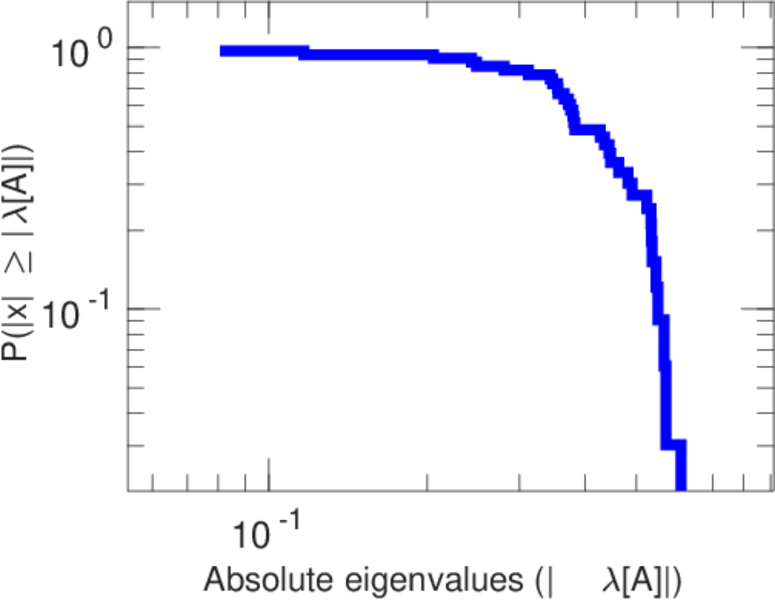

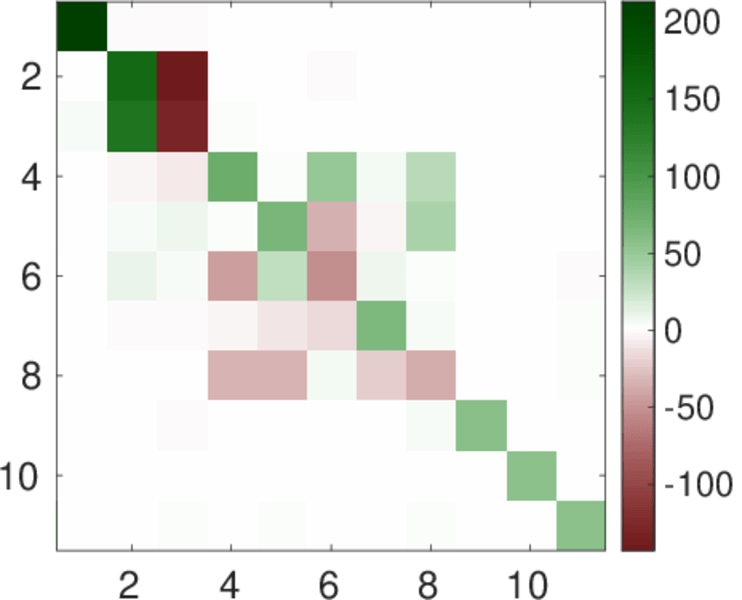

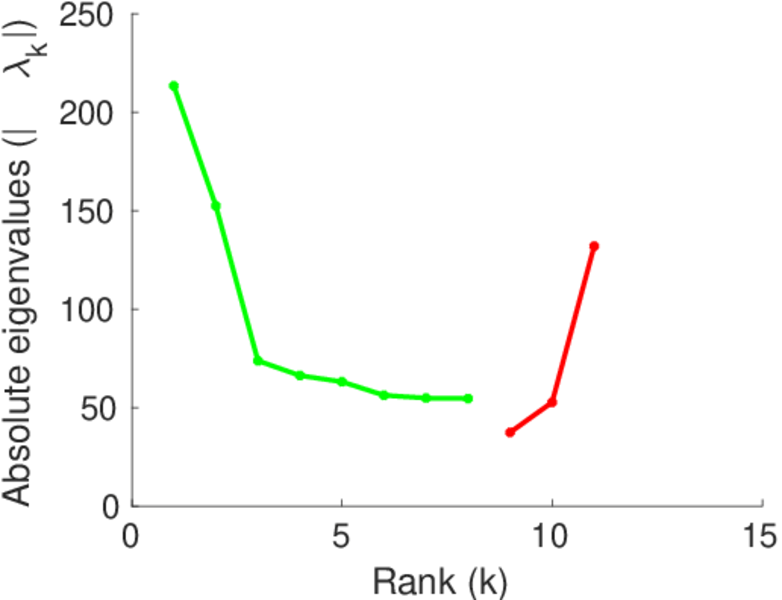

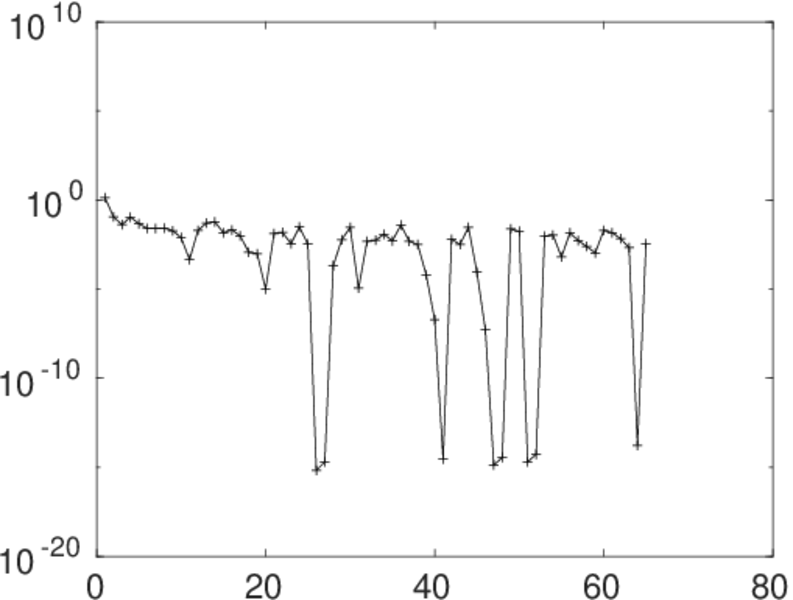

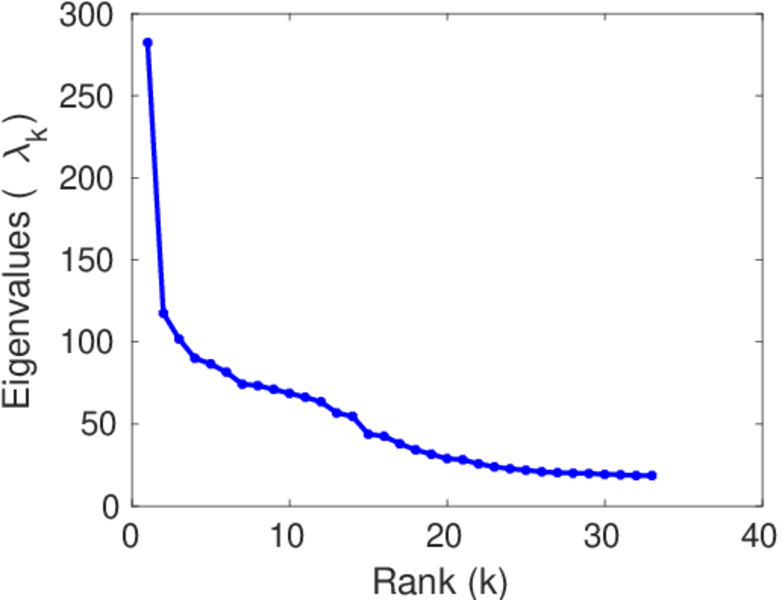

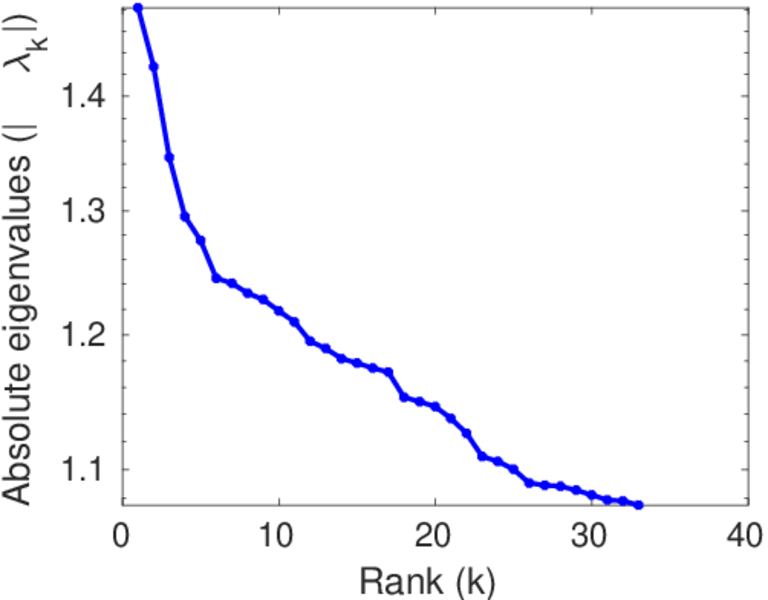

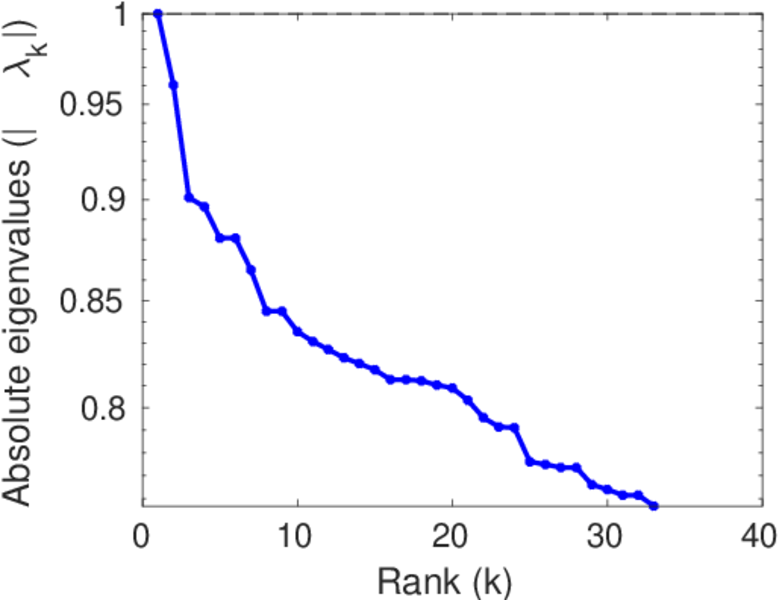

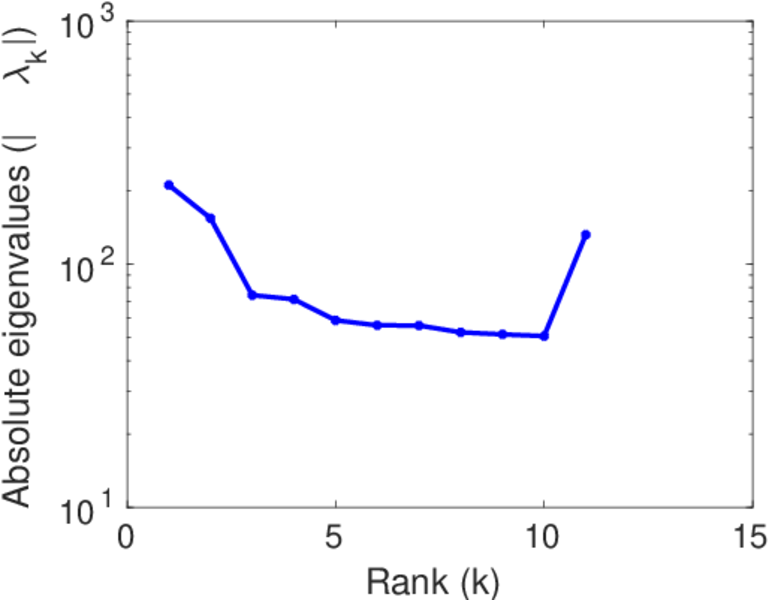

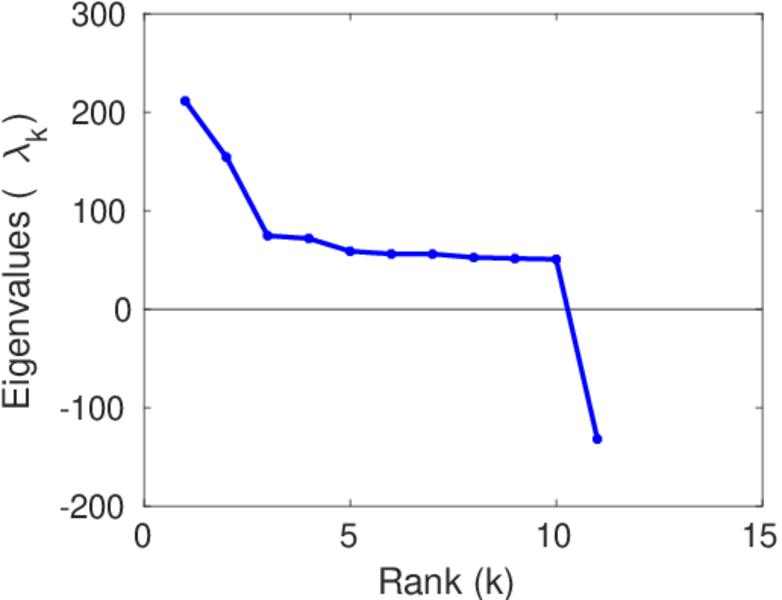

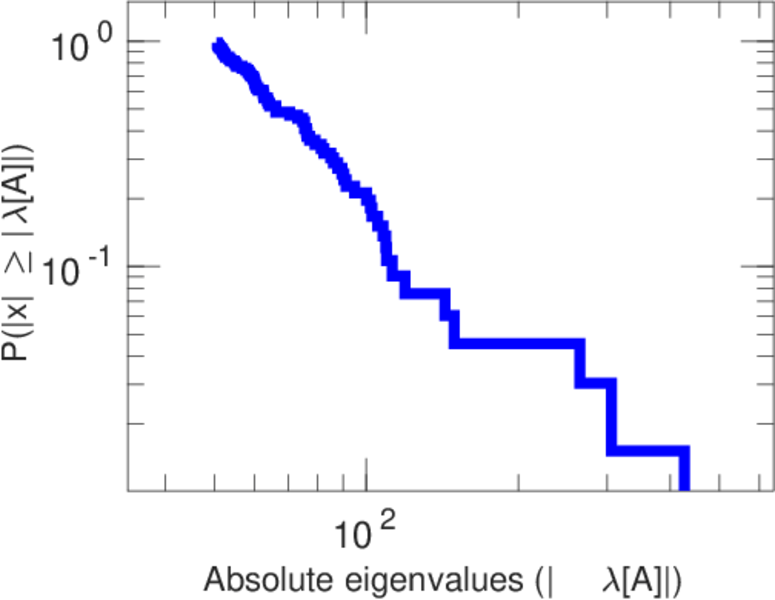

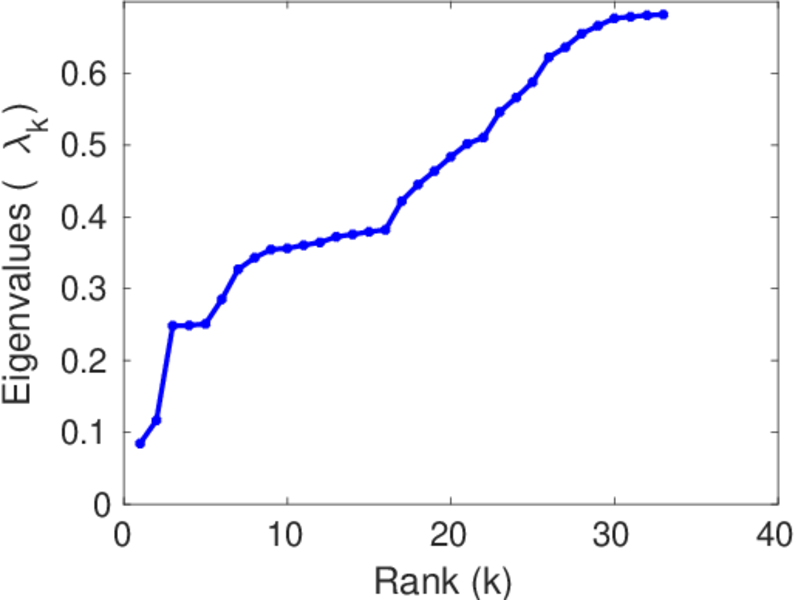

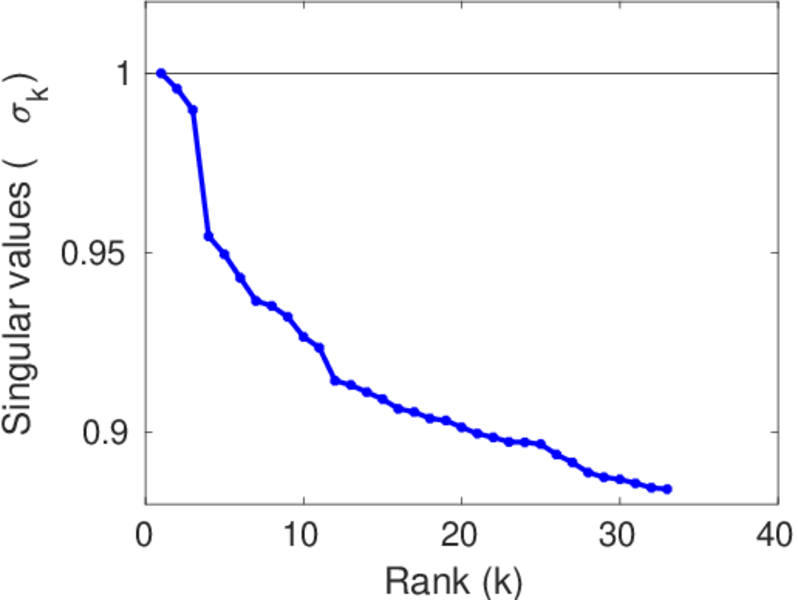

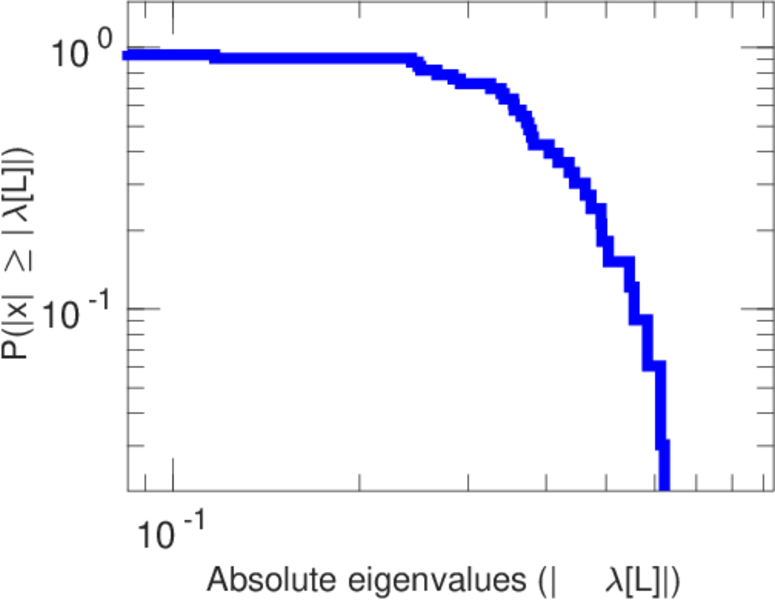

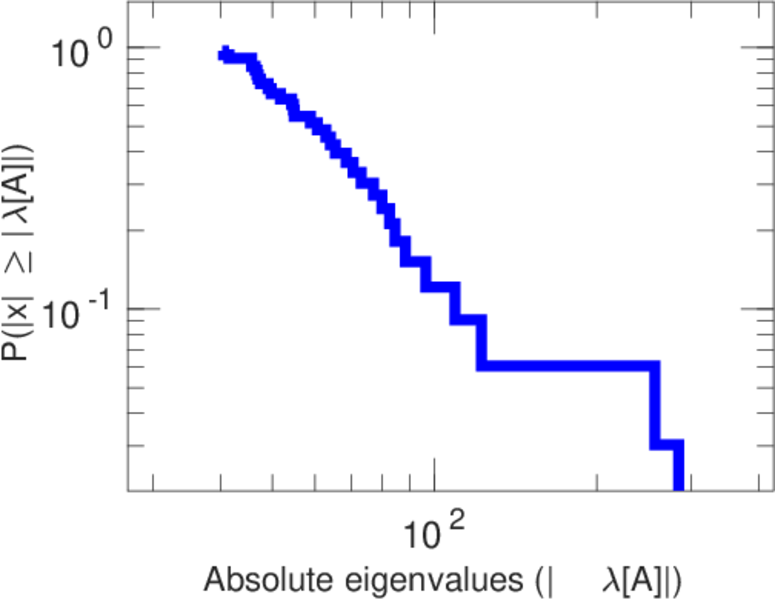

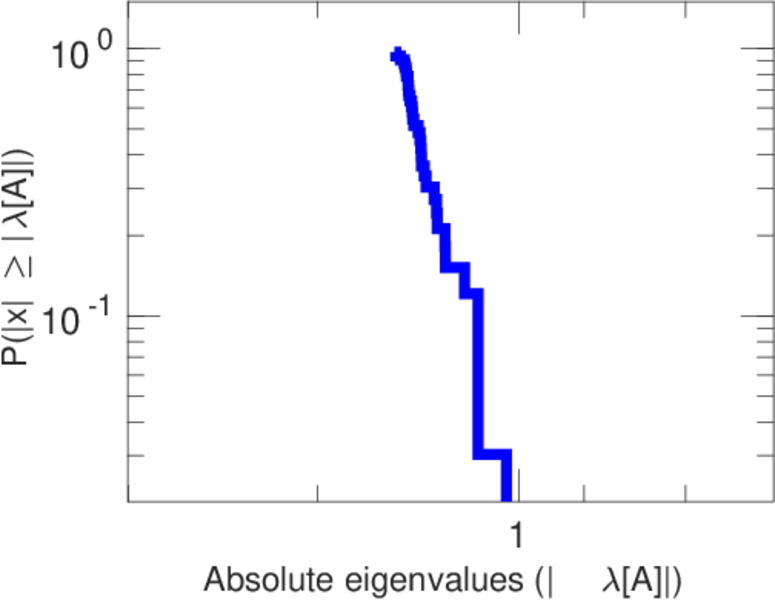

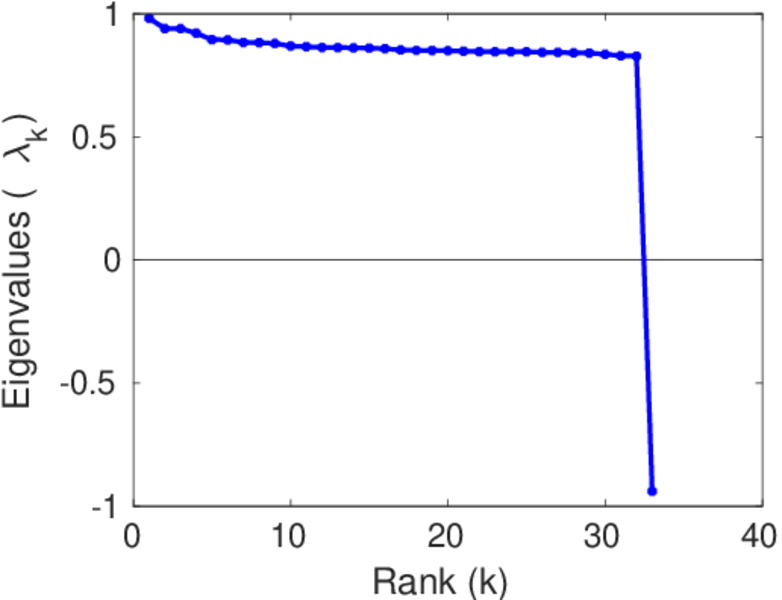

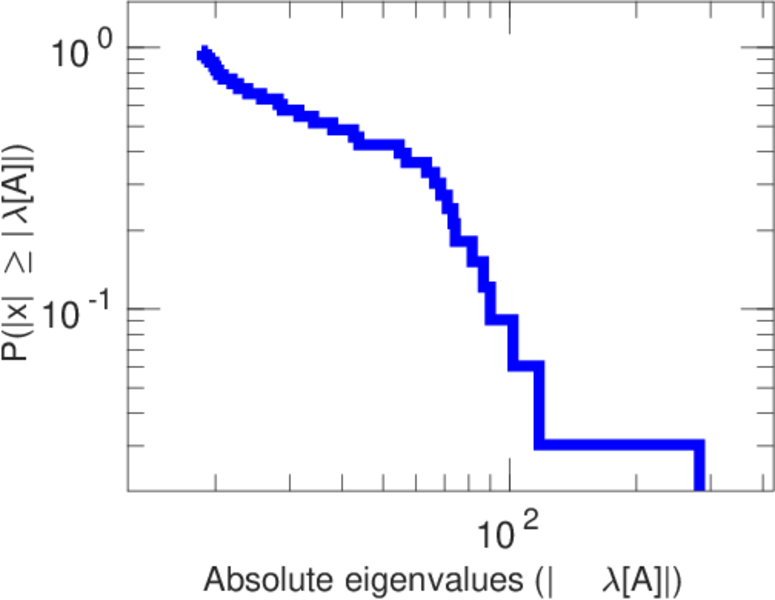

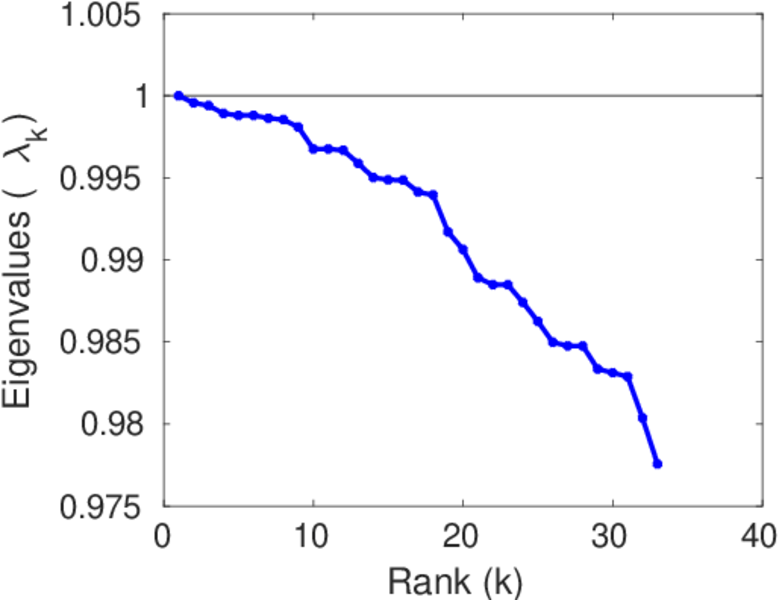

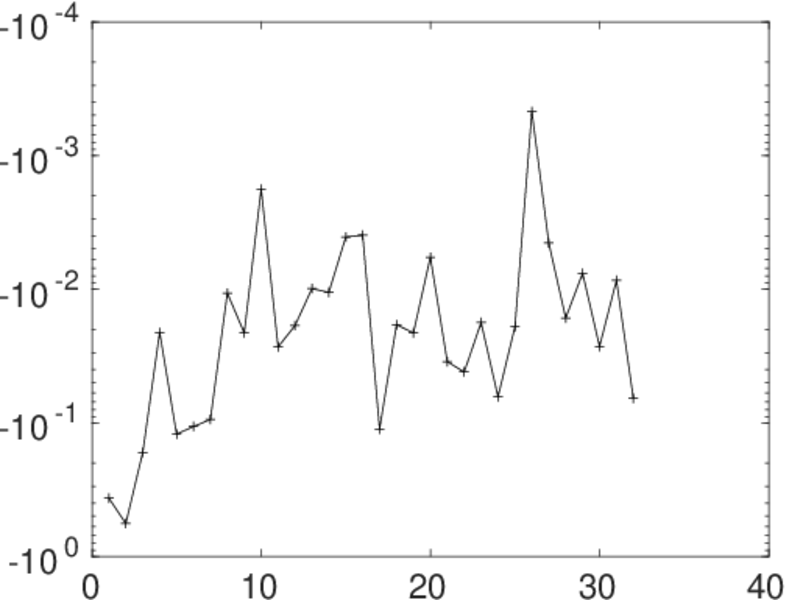

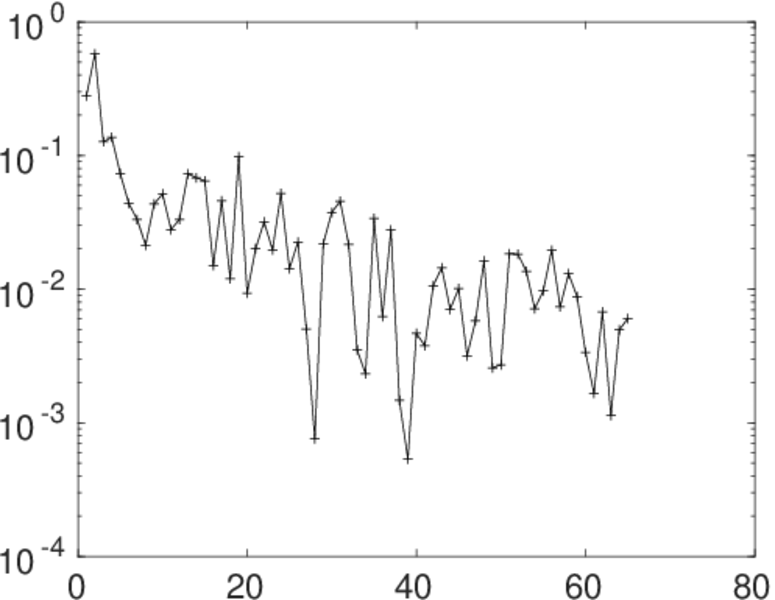

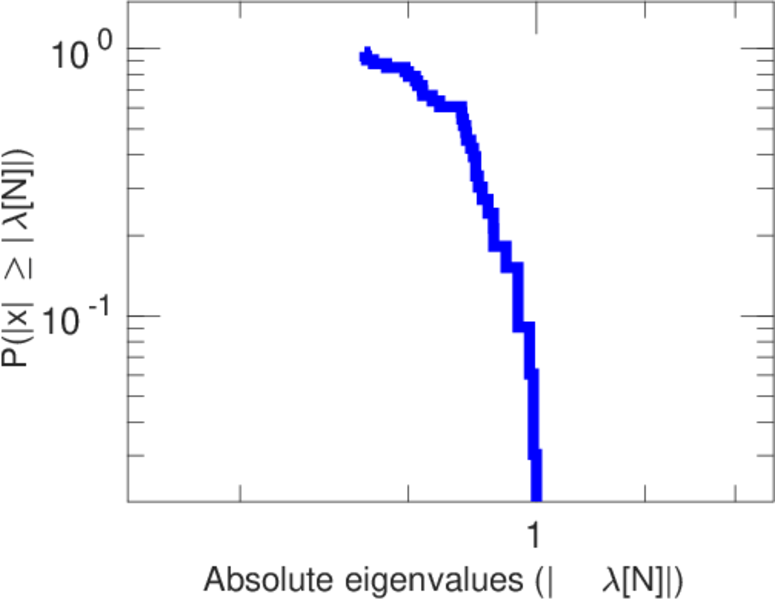

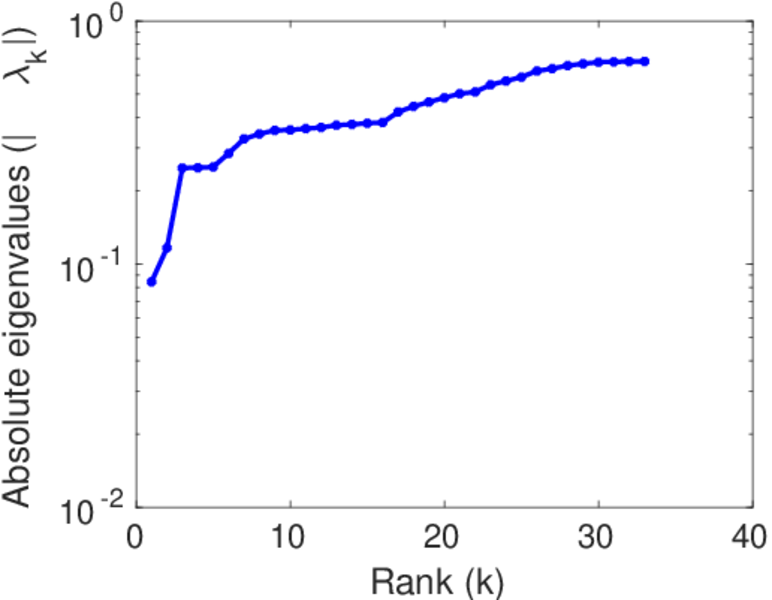

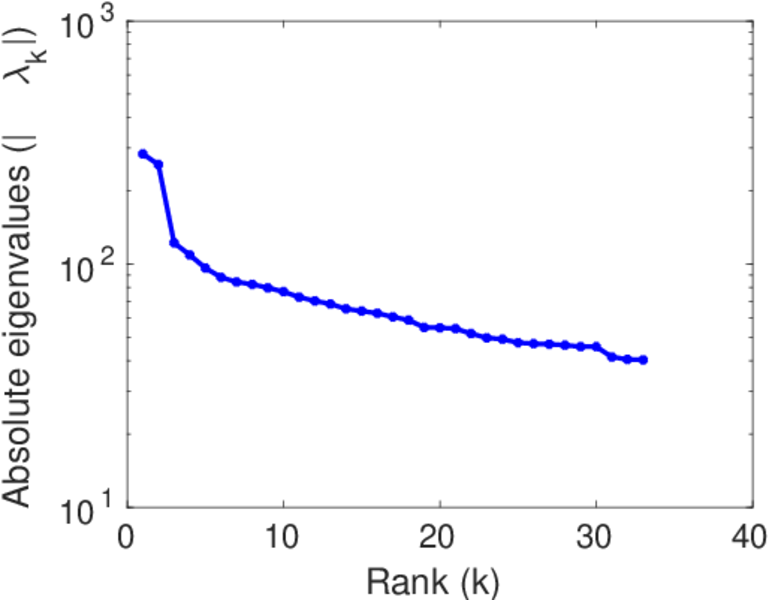

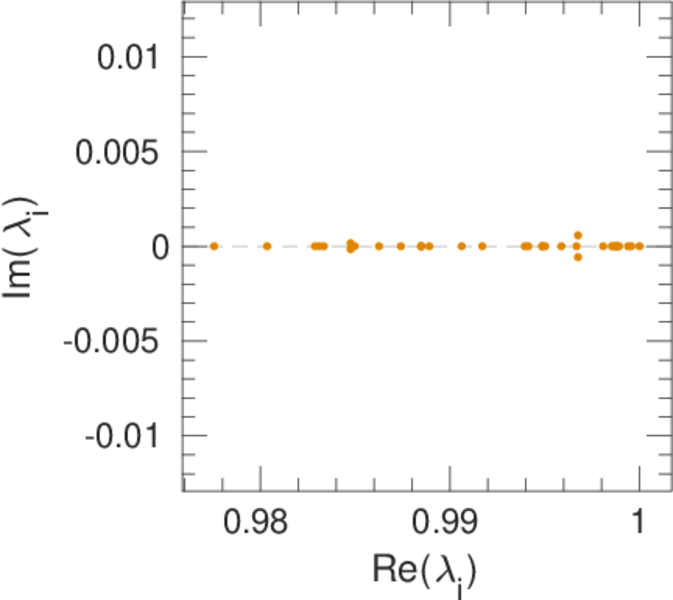

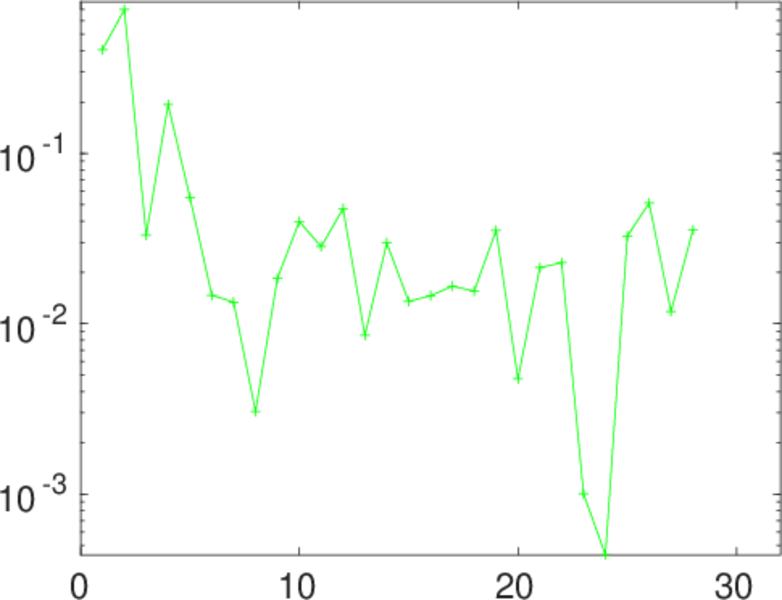

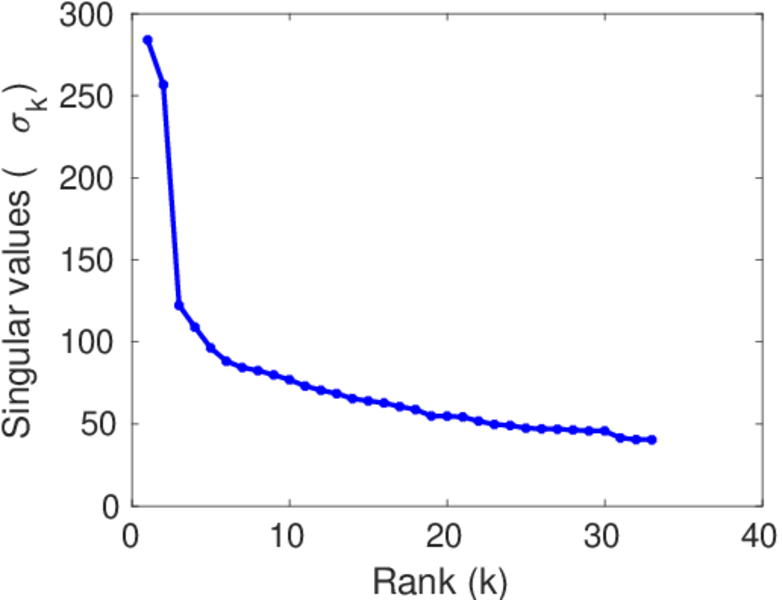

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
