Wikipedia links (nds-nl)

This network consists of the wikilinks of the Wikipedia in the Low Saxon language (nds-nl). Nodes are Wikipedia articles, and directed edges are wikilinks, i.e., hyperlinks within one wiki. In the wiki source, these are indicated with [[double brackets]]. Only pages in the article namespace are included.

Metadata

CodeWnds-nl
Internal namewikipedia_link_nds_nl
NameWikipedia links (nds-nl)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningWikilink
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =10,453
Volume m =140,501
Loop count l =3
Wedge count s =10,704,846
Claw count z =1,720,597,074
Cross count x =269,153,978,647
Triangle count t =601,740
Square count q =28,218,710
4-Tour count T4 =268,786,932
Maximum degree dmax =1,299
Maximum outdegree d+max =423
Maximum indegree dmax =1,228
Average degree d =26.882 4
Fill p =0.001 285 87
Size of LCC N =10,450
Size of LSCC Ns =7,855
Relative size of LSCC Nrs =0.751 459
Diameter δ =8
50-Percentile effective diameter δ0.5 =3.074 96
90-Percentile effective diameter δ0.9 =4.107 58
Median distance δM =4
Mean distance δm =3.568 38
Gini coefficient G =0.659 855
Balanced inequality ratio P =0.252 582
Outdegree balanced inequality ratio P+ =0.264 076
Indegree balanced inequality ratio P =0.240 084
Relative edge distribution entropy Her =0.909 496
Power law exponent γ =1.471 30
Tail power law exponent γt =3.001 00
Tail power law exponent with p γ3 =3.001 00
p-value p =0.000 00
Outdegree tail power law exponent with p γ3,o =3.841 00
Outdegree p-value po =0.000 00
Indegree tail power law exponent with p γ3,i =2.871 00
Indegree p-value pi =0.000 00
Degree assortativity ρ =−0.102 168
Degree assortativity p-value pρ =0.000 00
In/outdegree correlation ρ± =+0.700 130
Clustering coefficient c =0.168 636
Directed clustering coefficient c± =0.386 386
Spectral norm α =129.266
Operator 2-norm ν =79.451 8
Cyclic eigenvalue π =55.165 4
Algebraic connectivity a =0.193 570
Spectral separation 1[A] / λ2[A]| =1.126 25
Reciprocity y =0.449 328
Non-bipartivity bA =0.635 182
Normalized non-bipartivity bN =0.129 765
Algebraic non-bipartivity χ =0.193 378
Spectral bipartite frustration bK =0.002 318 82
Controllability C =2,930
Relative controllability Cr =0.280 302

Plots

Fruchterman–Reingold graph drawing

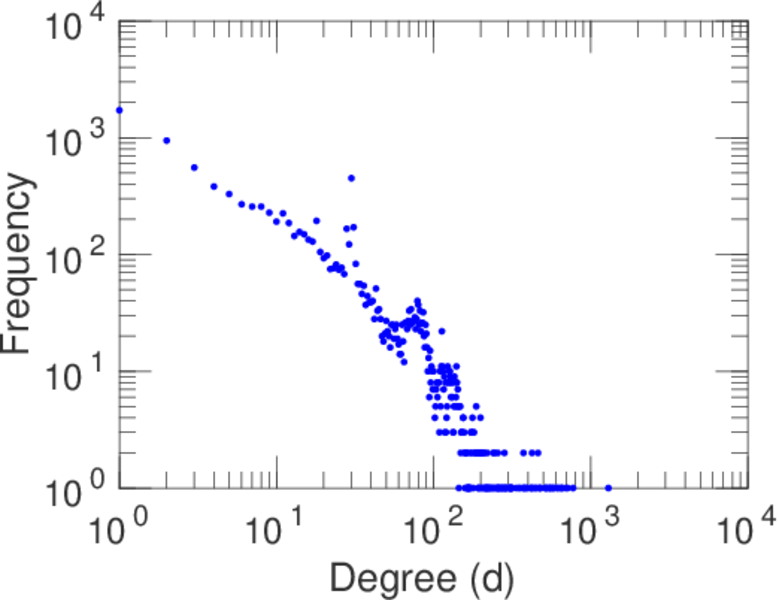

Degree distribution

Cumulative degree distribution

Lorenz curve

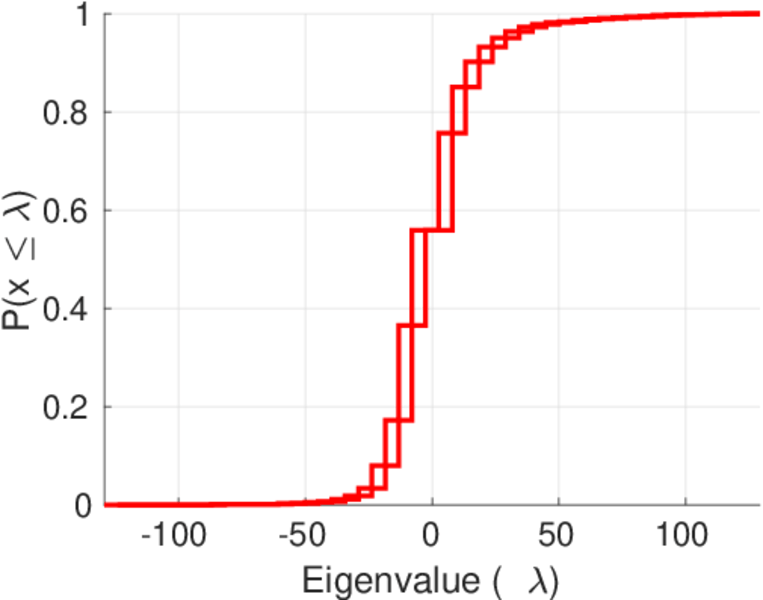

Spectral distribution of the adjacency matrix

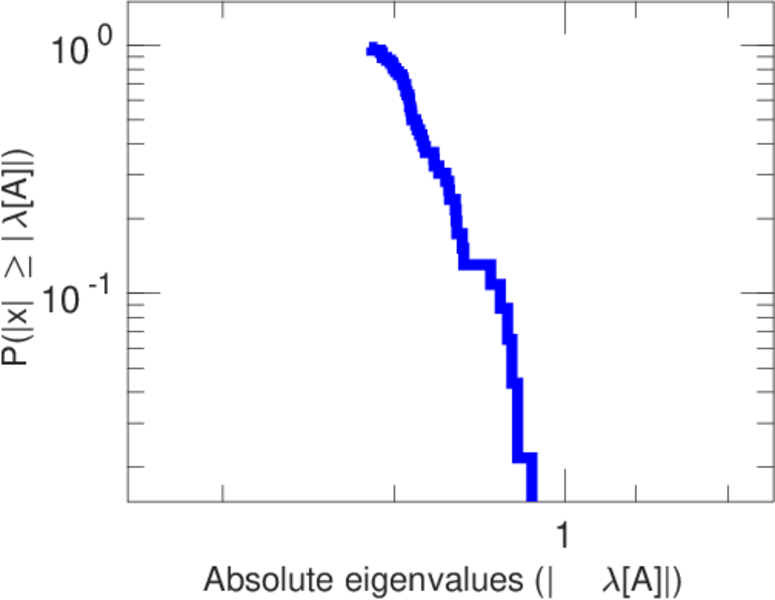

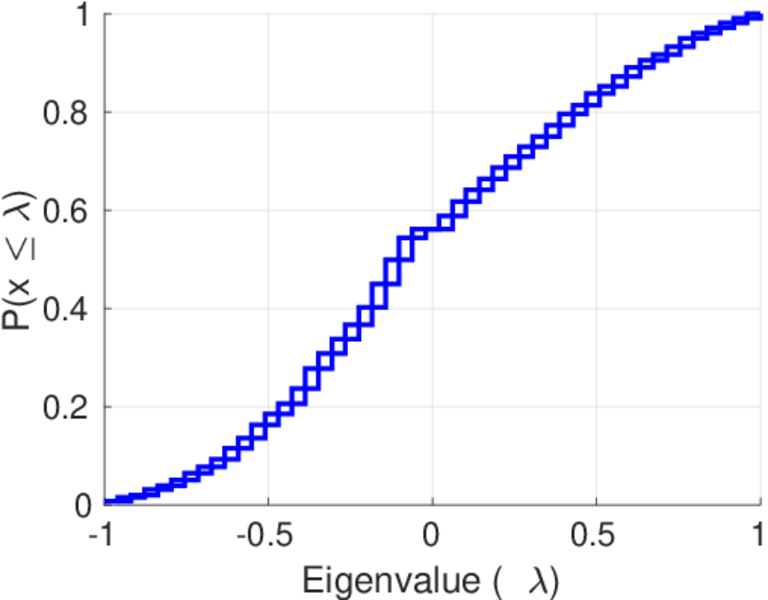

Spectral distribution of the normalized adjacency matrix

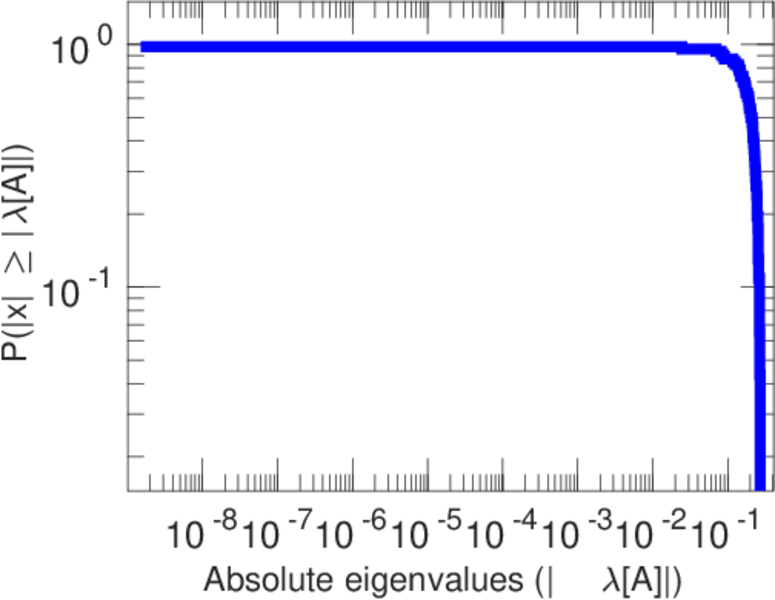

Spectral distribution of the Laplacian

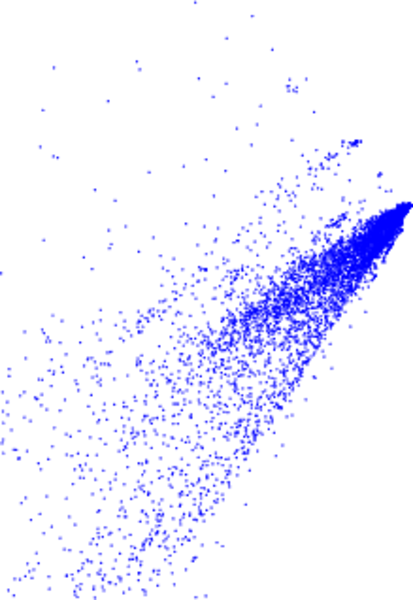

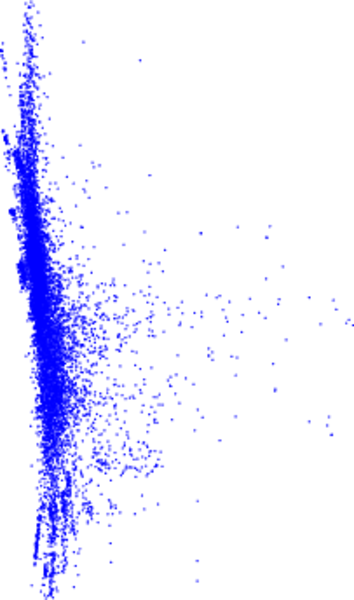

Spectral graph drawing based on the adjacency matrix

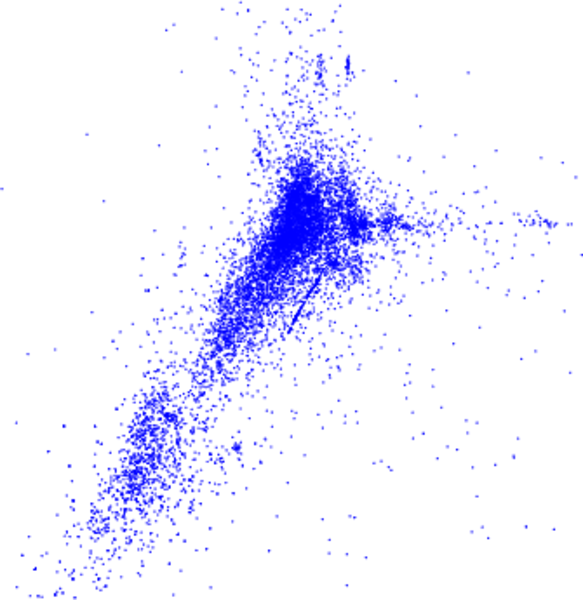

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

In/outdegree scatter plot

Clustering coefficient distribution

Average neighbor degree distribution

SynGraphy

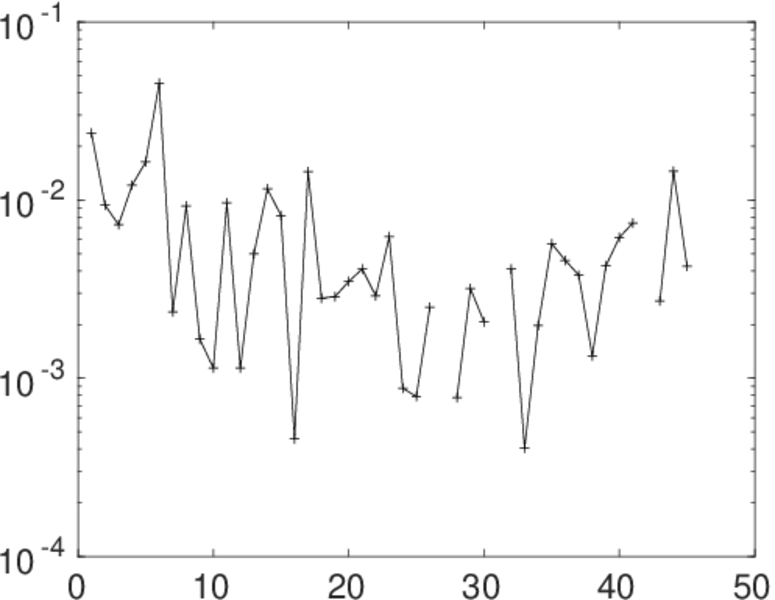

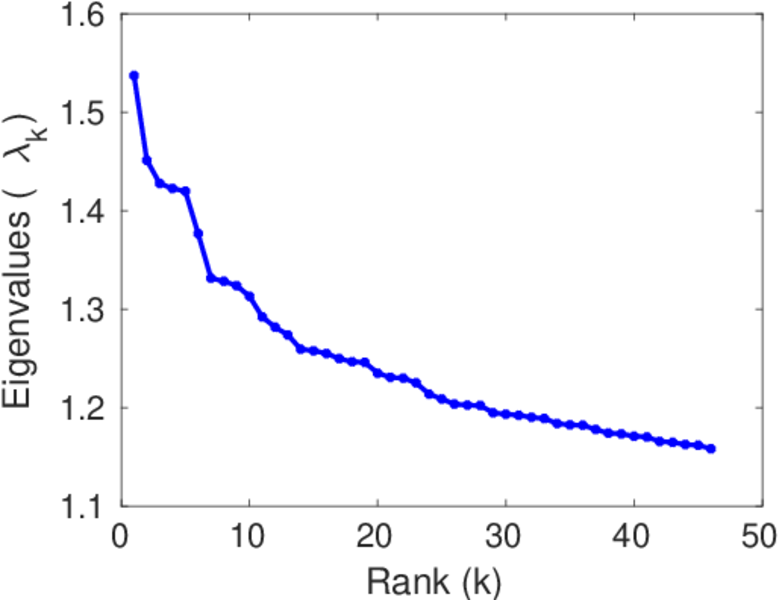

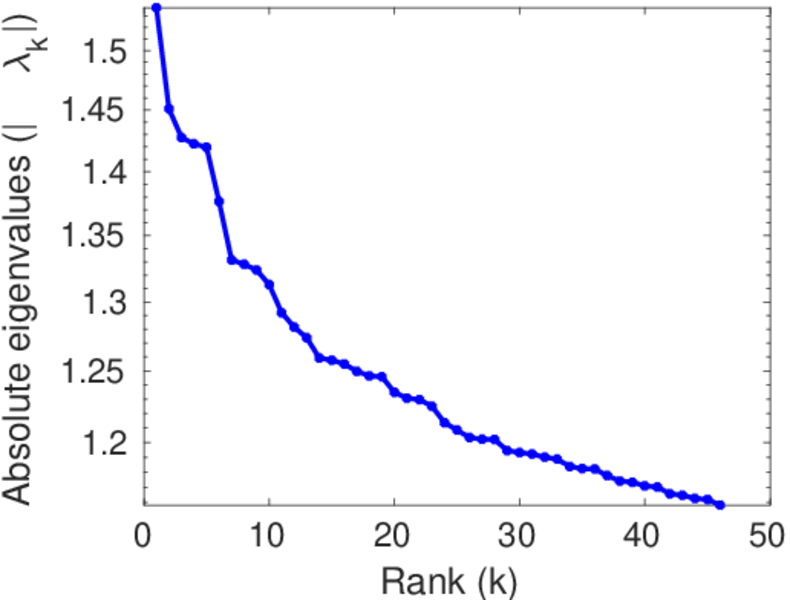

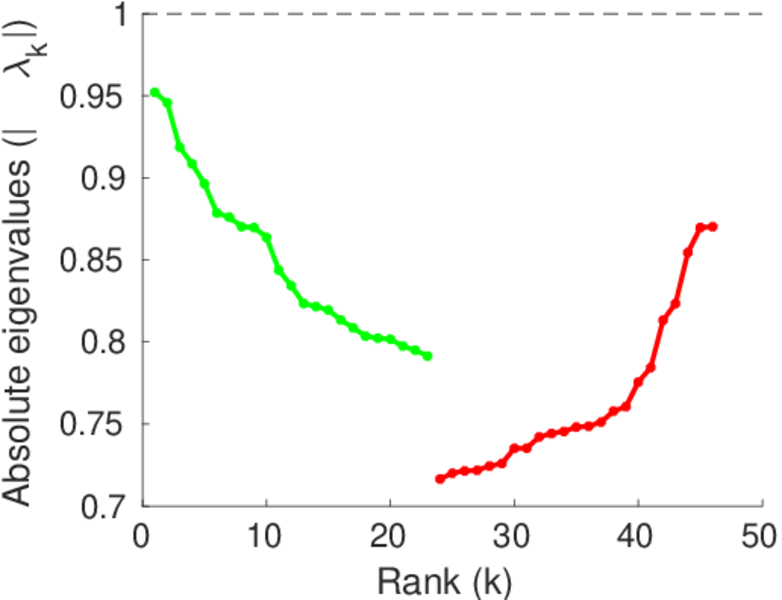

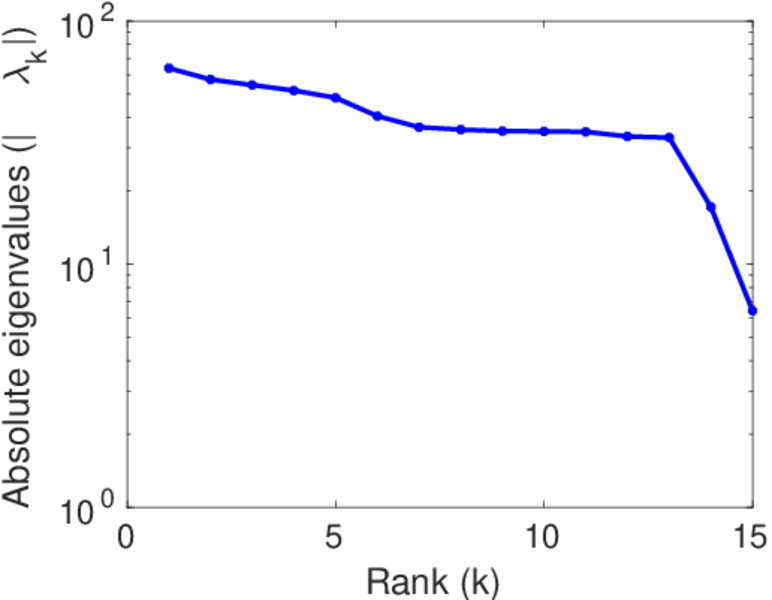

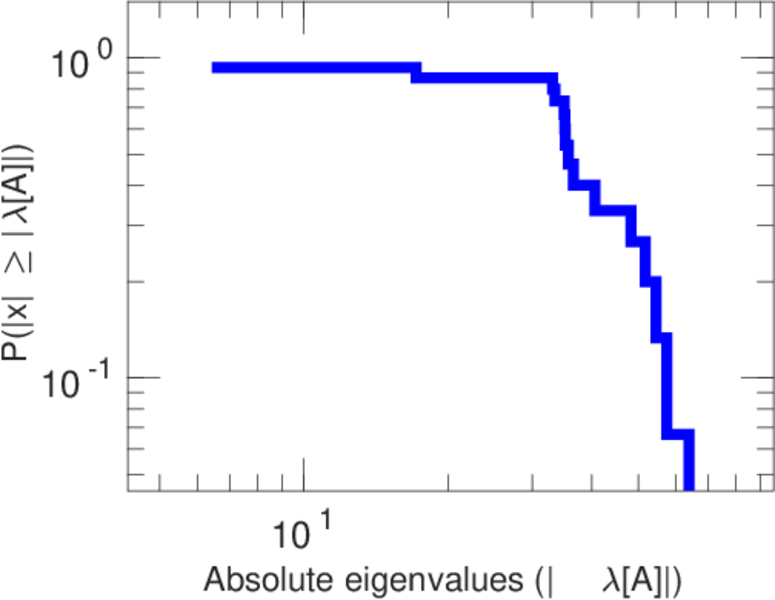

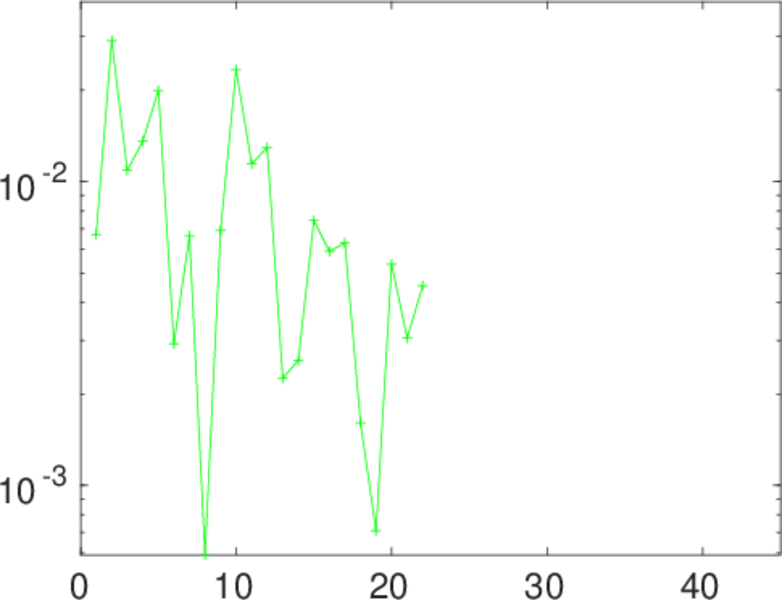

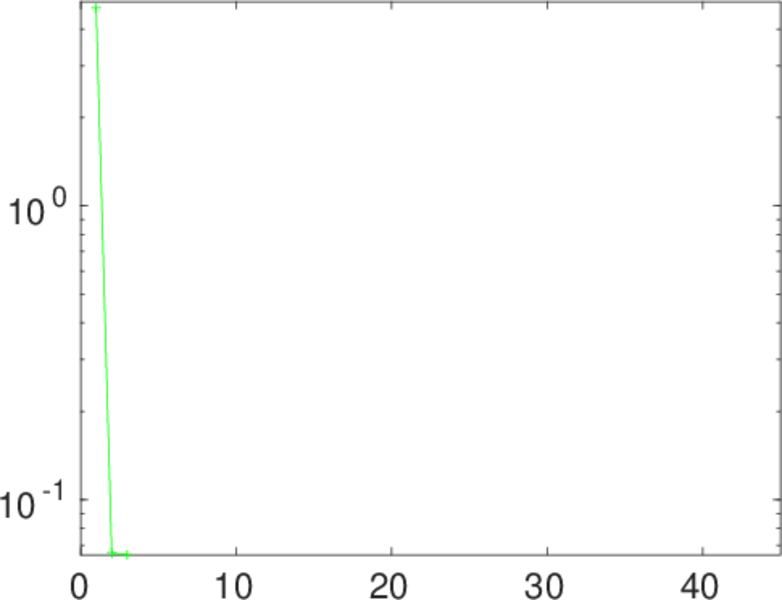

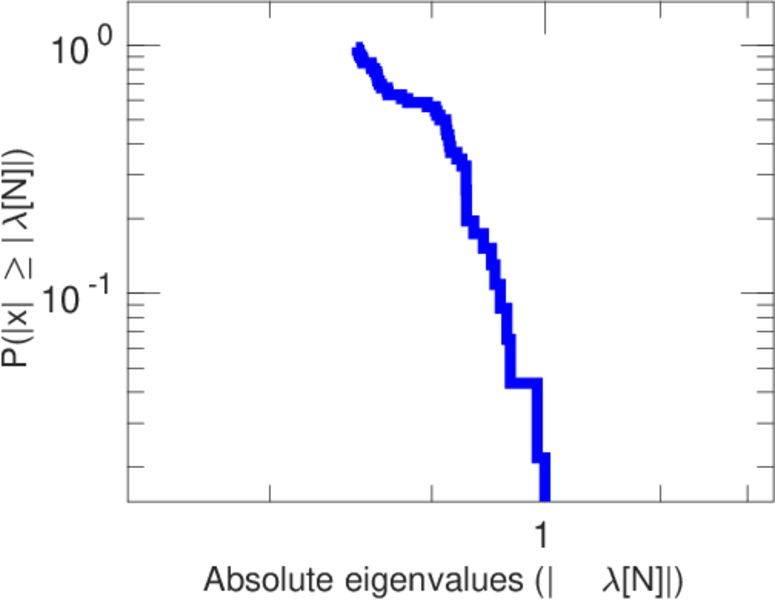

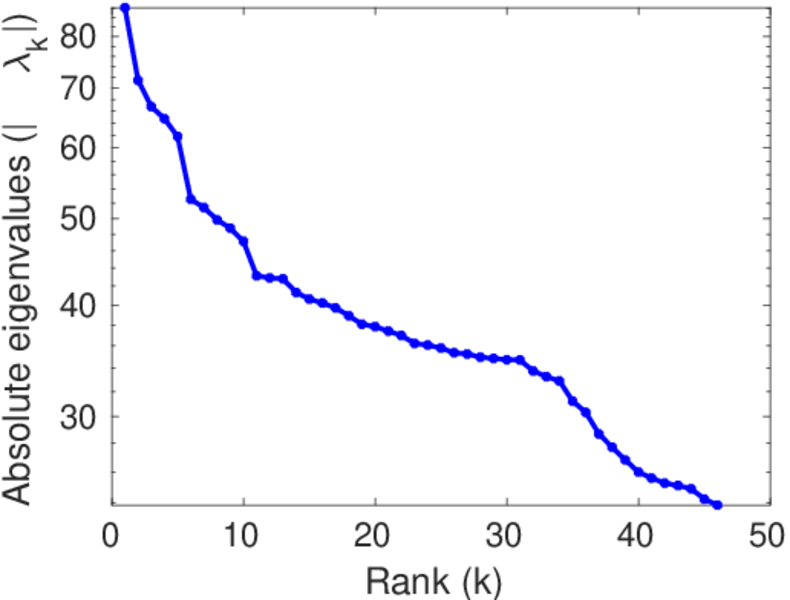

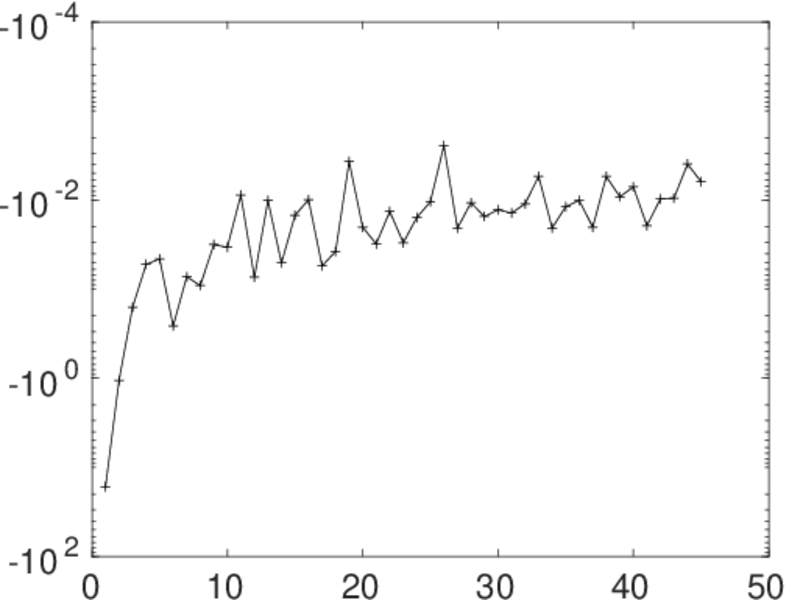

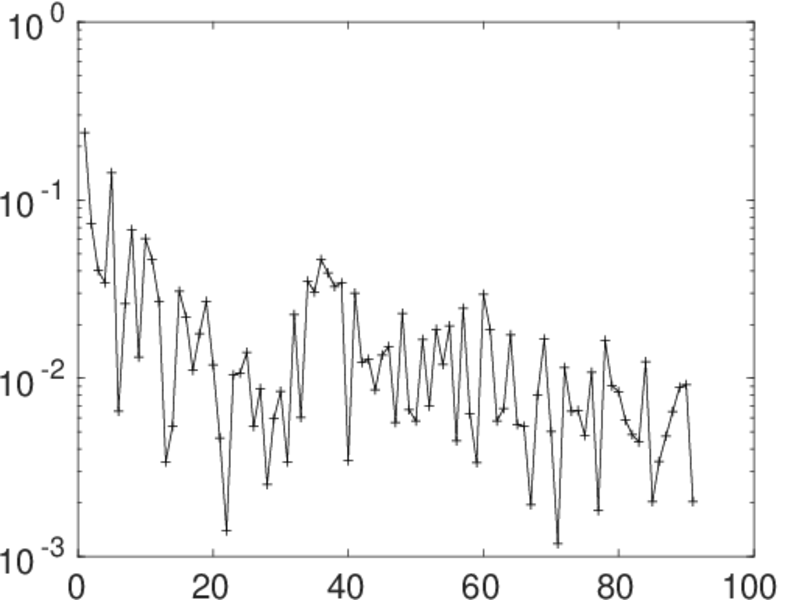

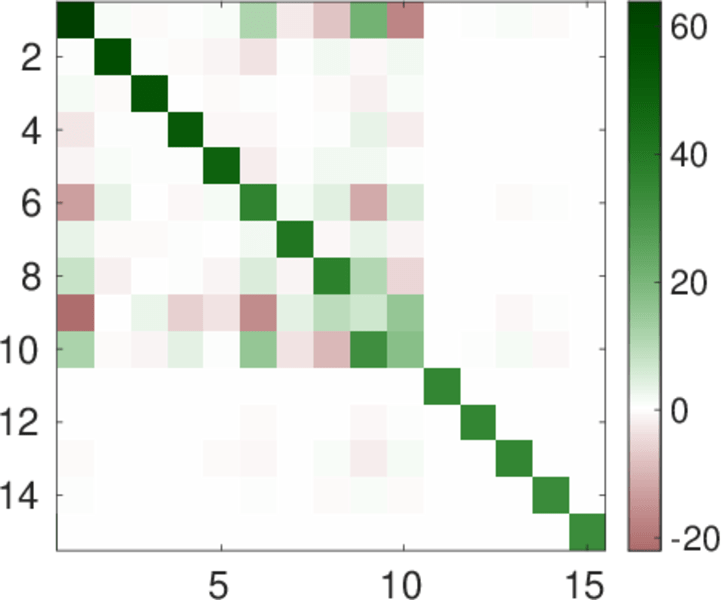

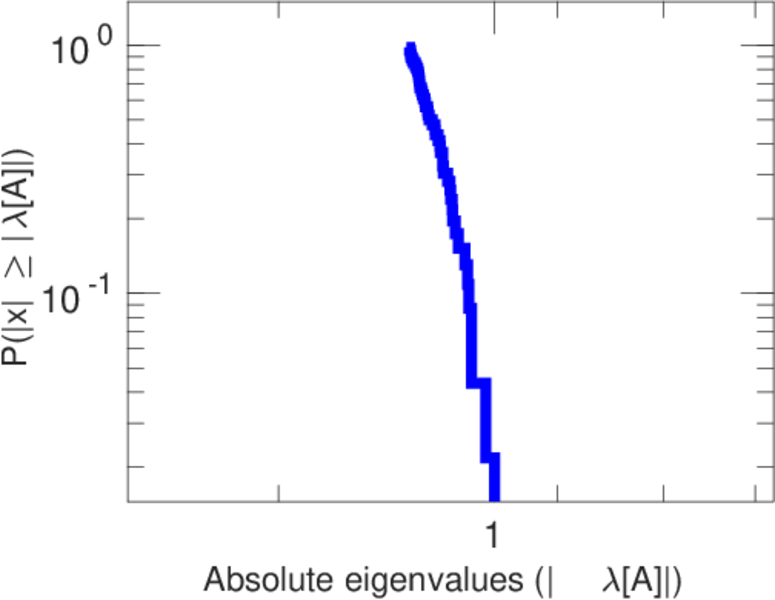

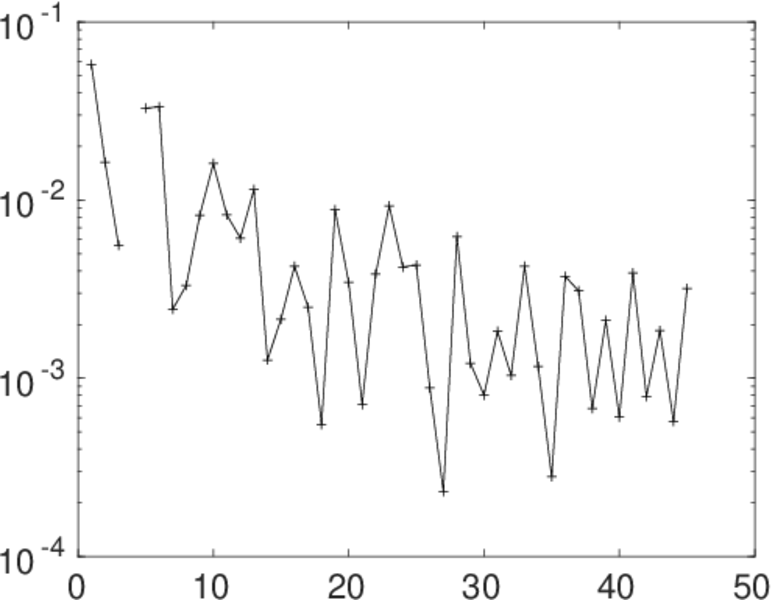

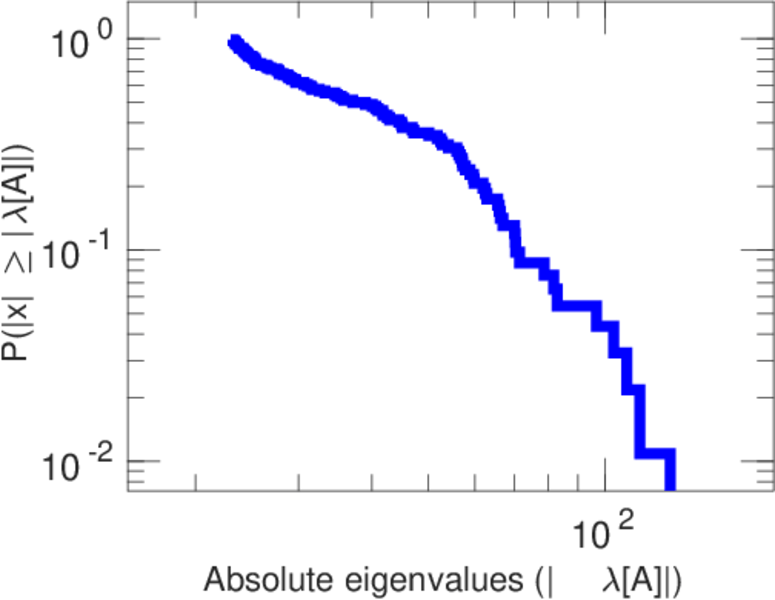

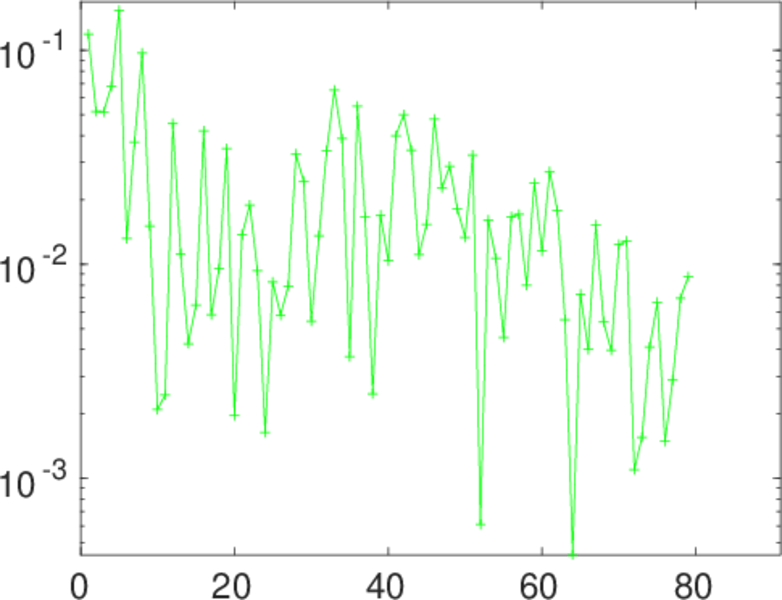

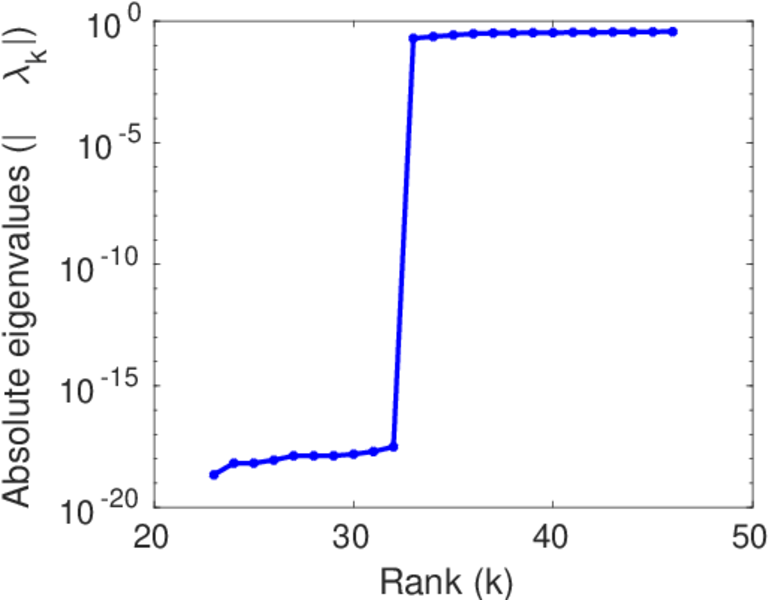

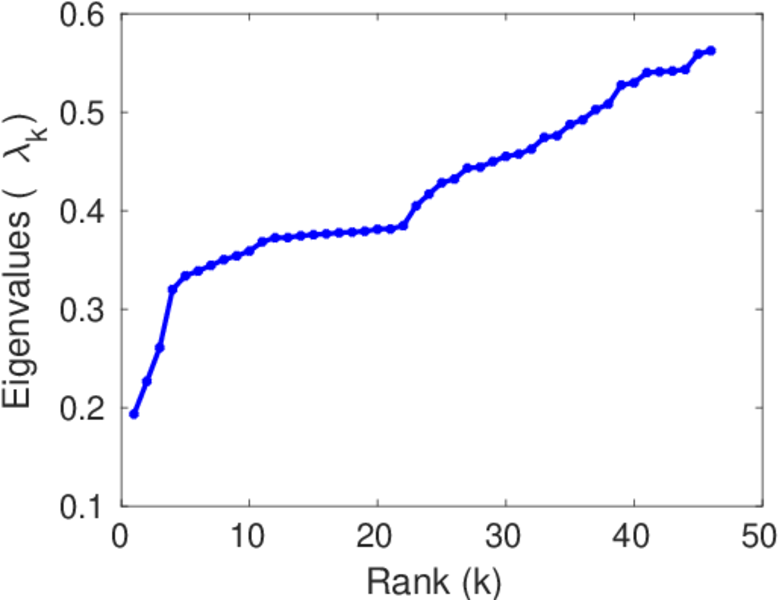

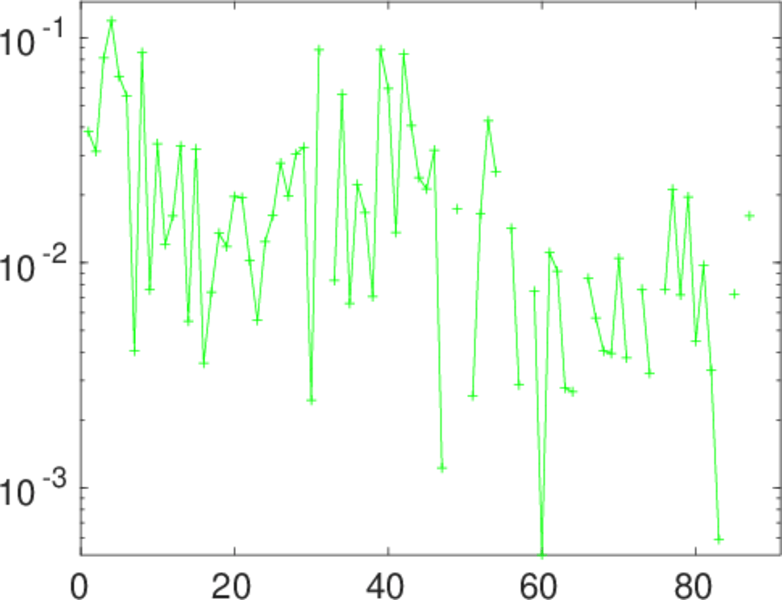

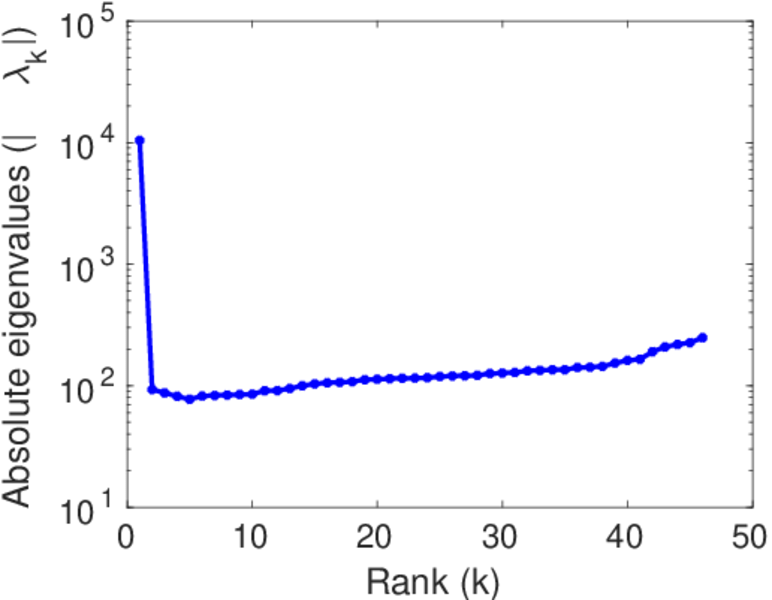

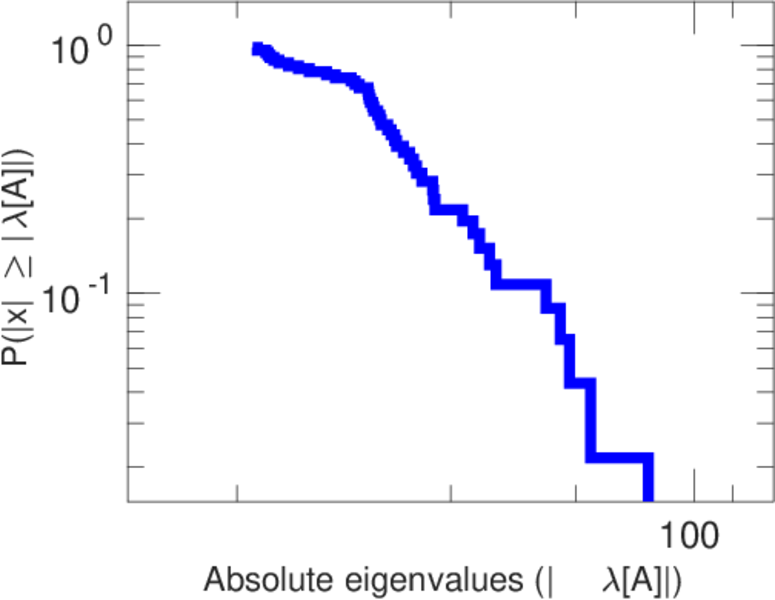

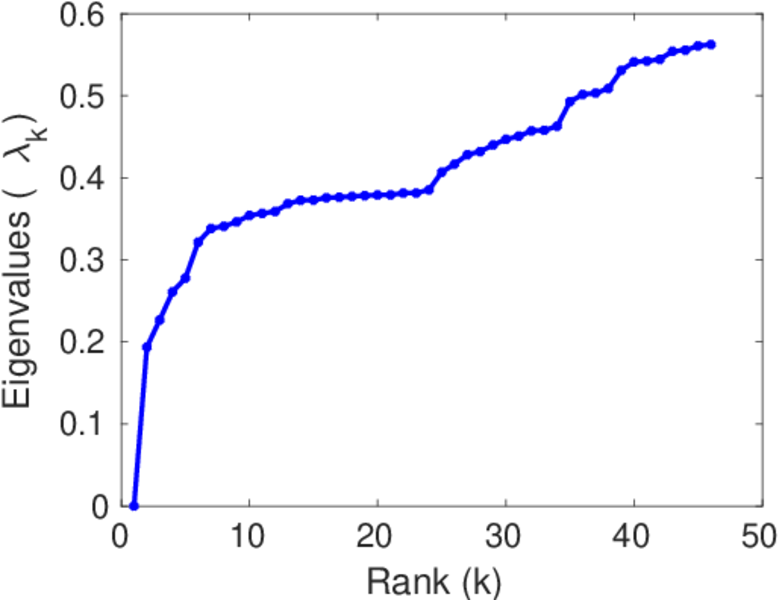

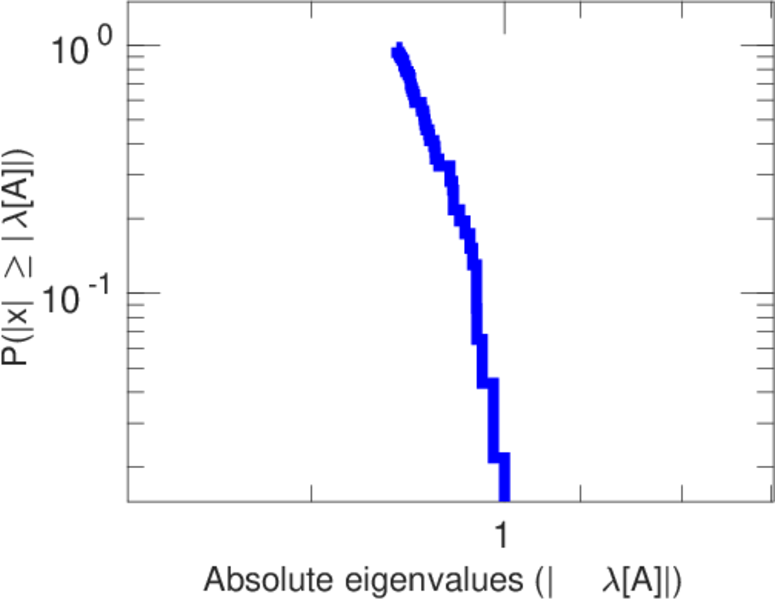

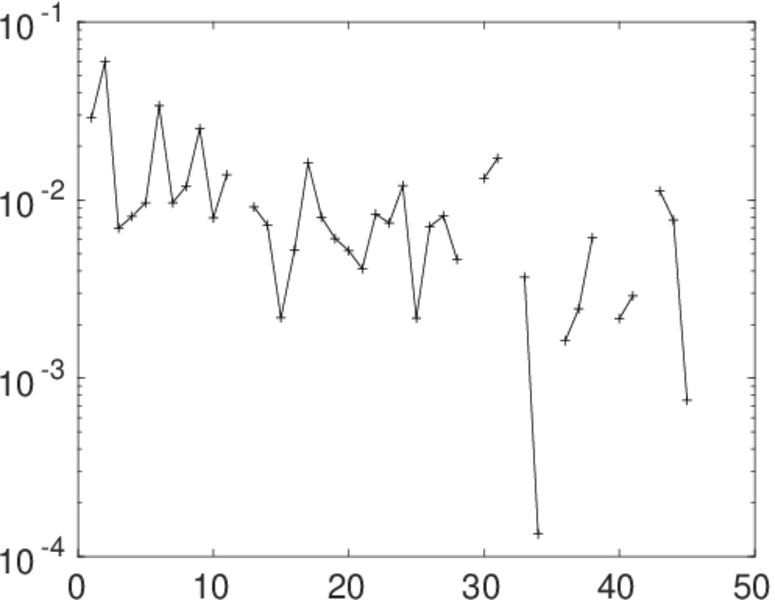

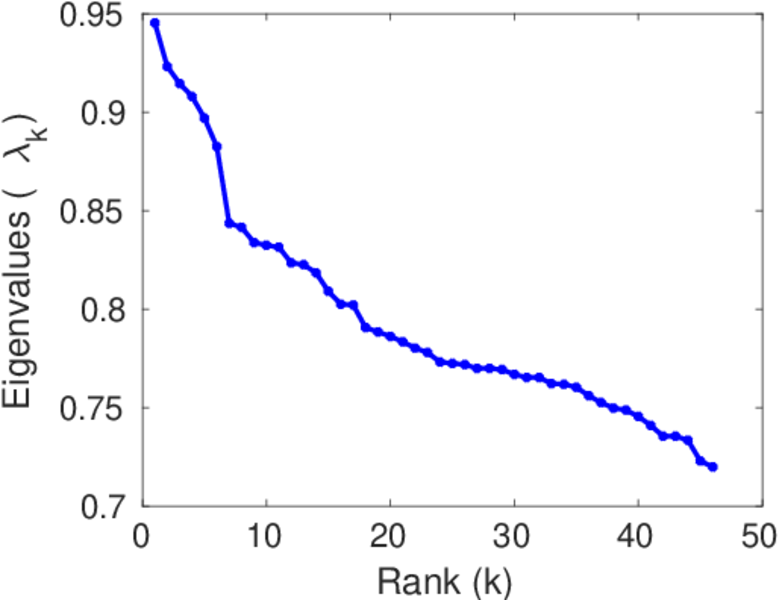

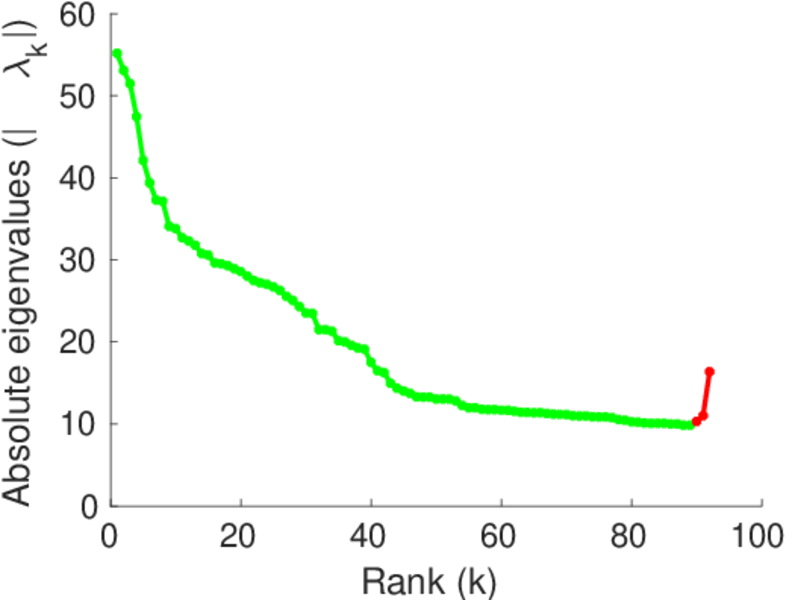

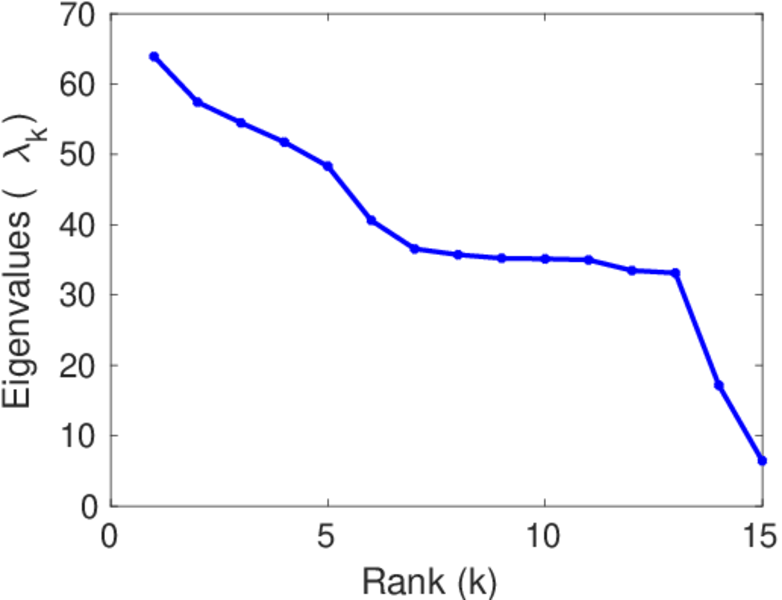

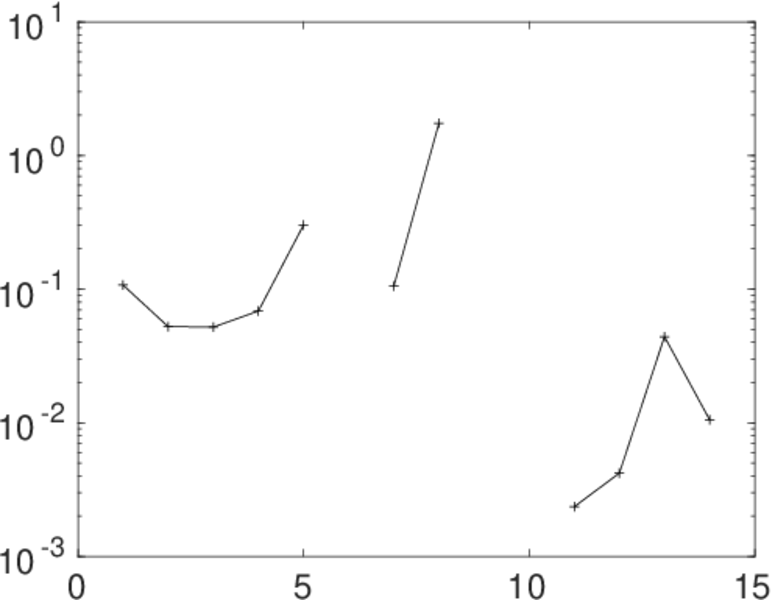

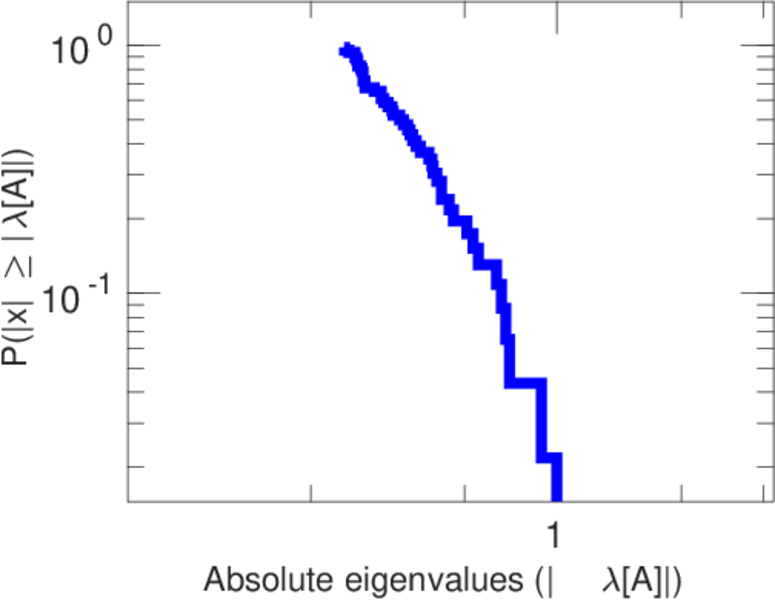

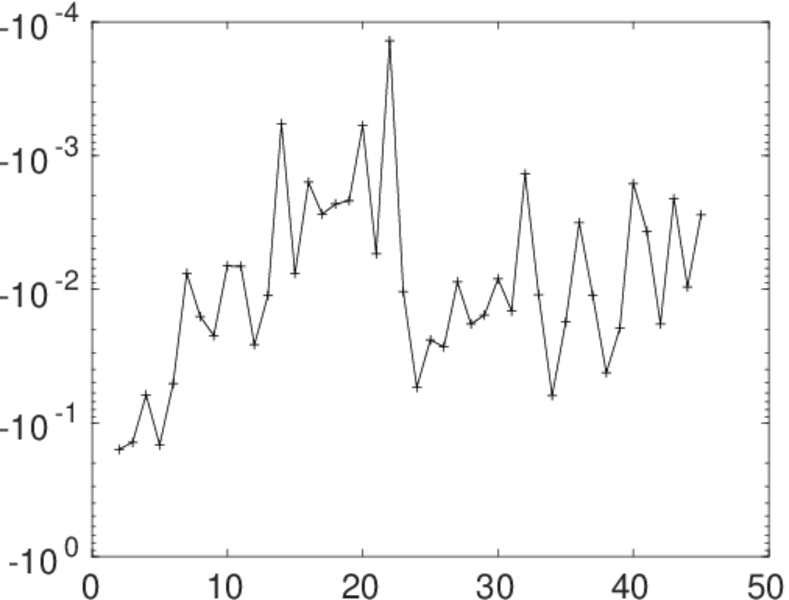

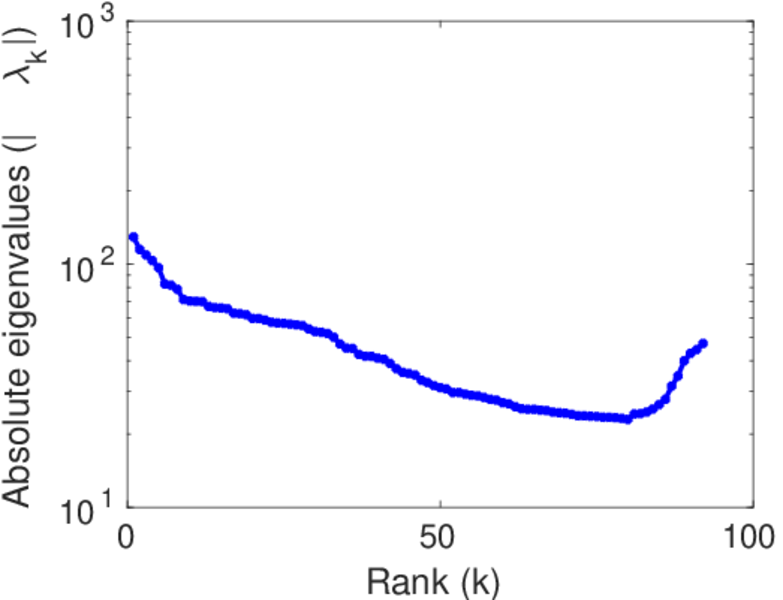

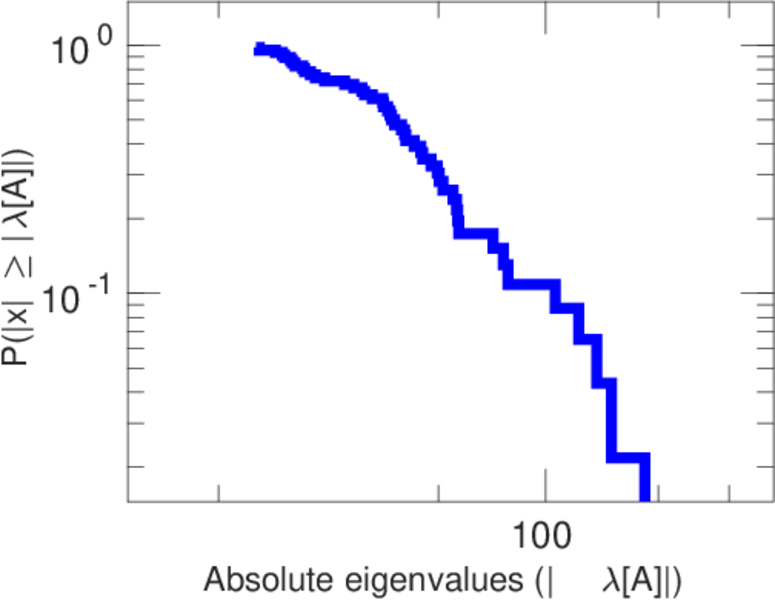

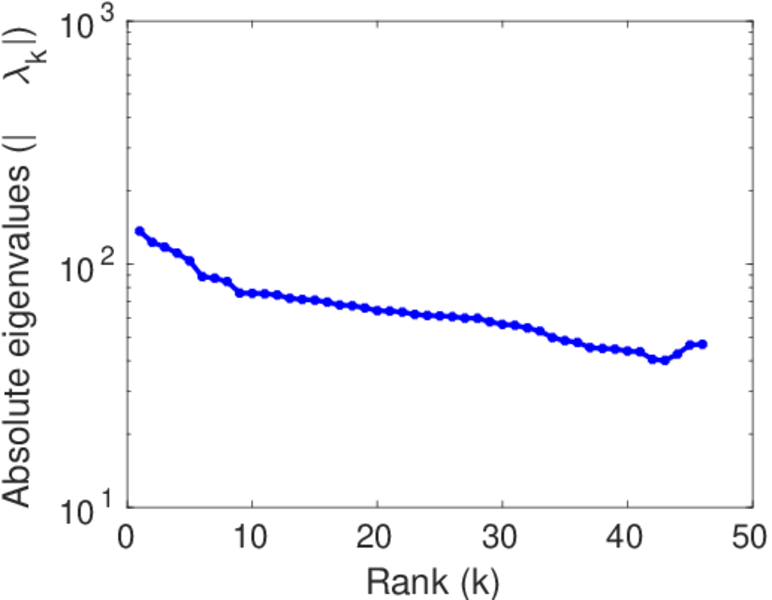

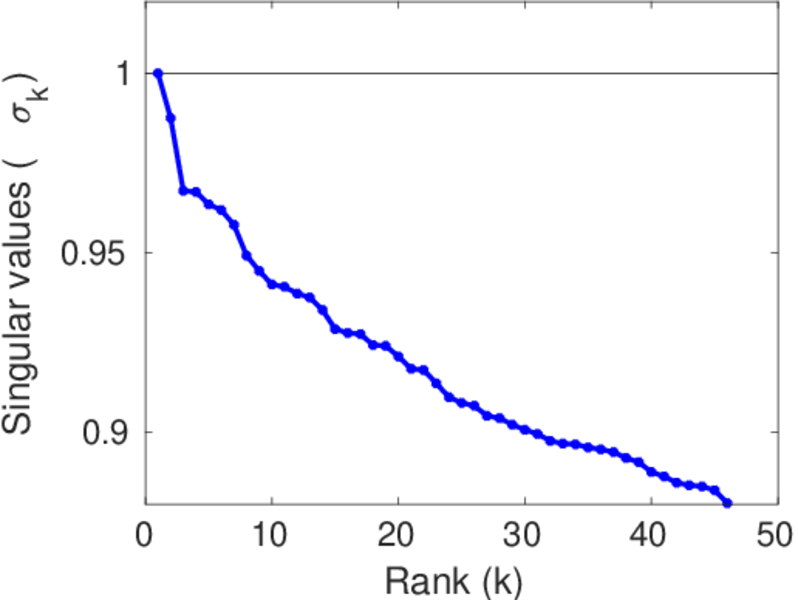

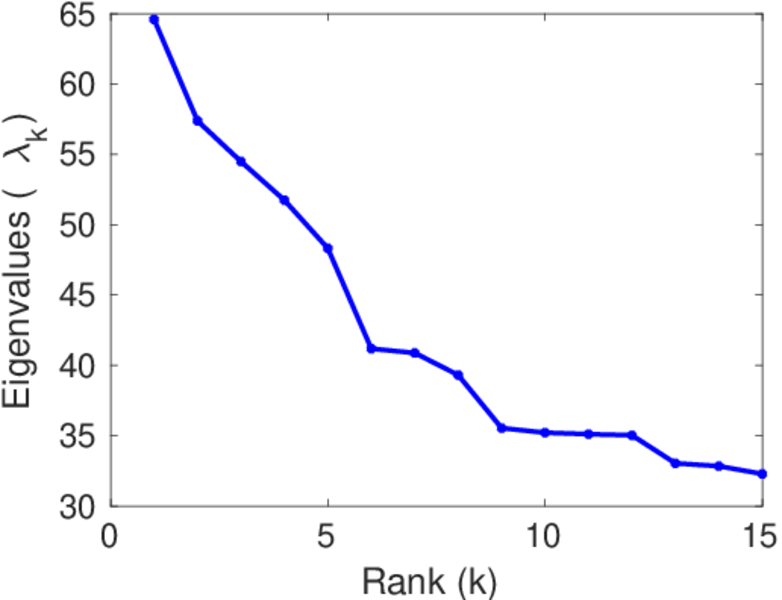

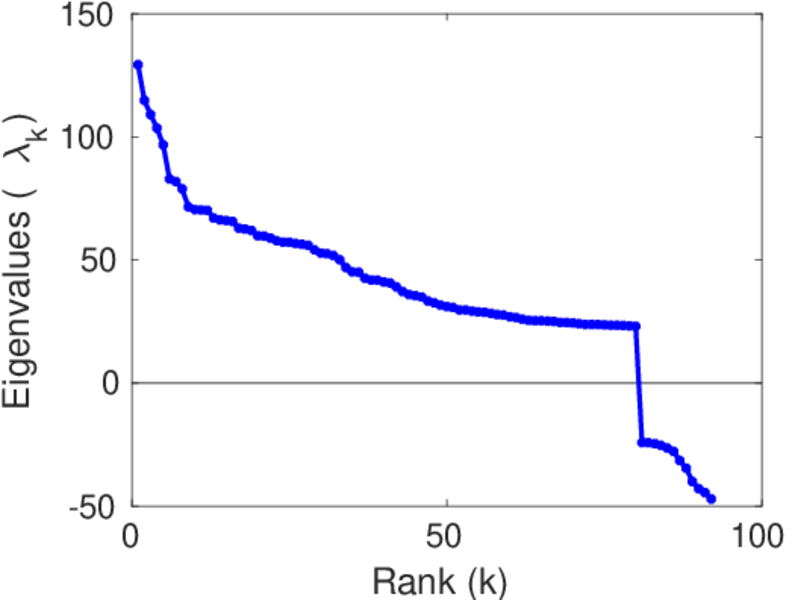

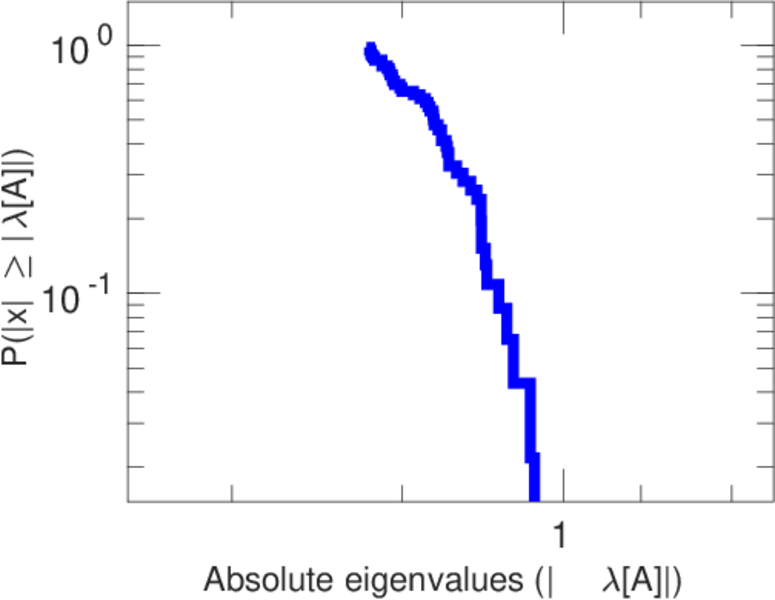

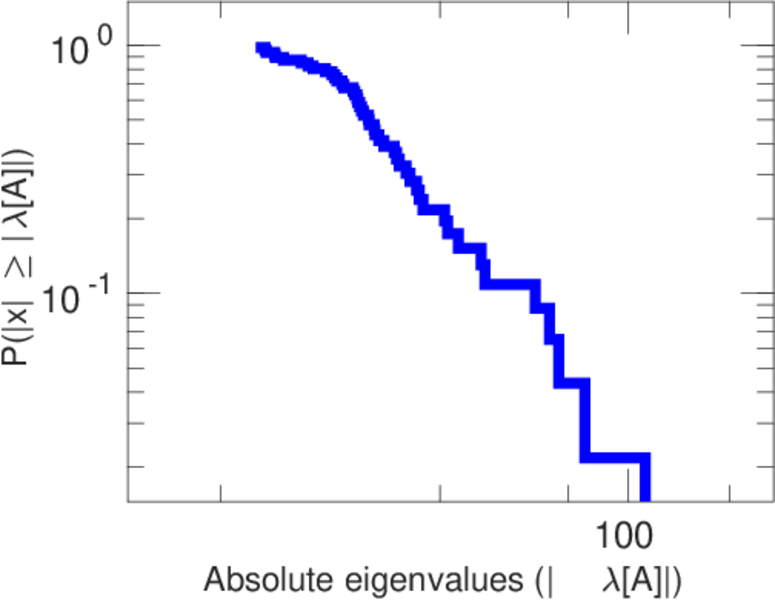

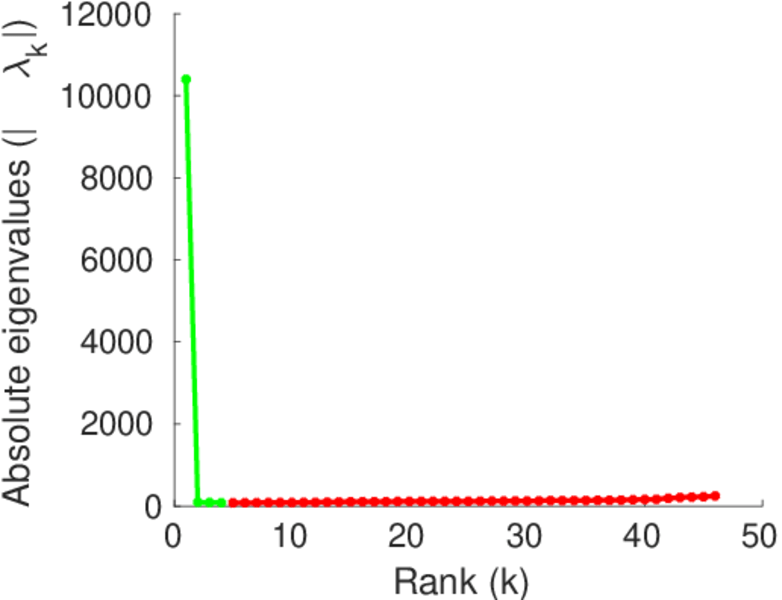

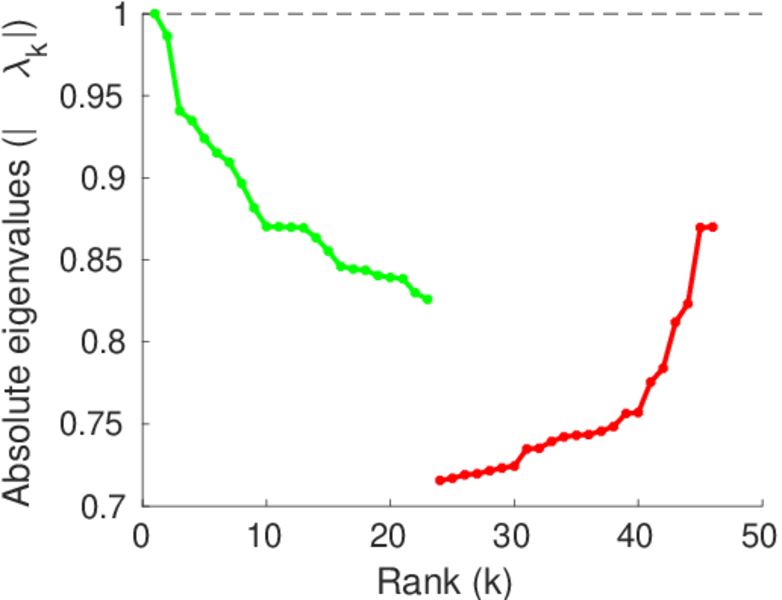

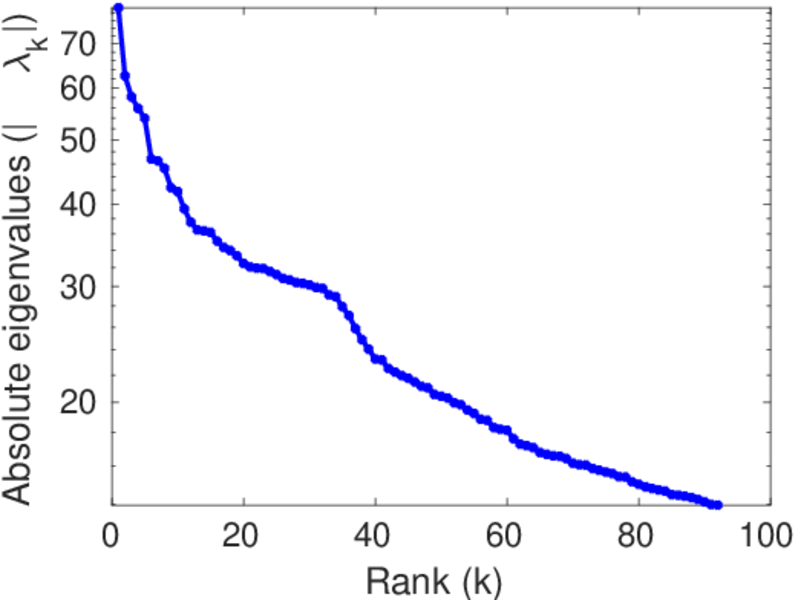

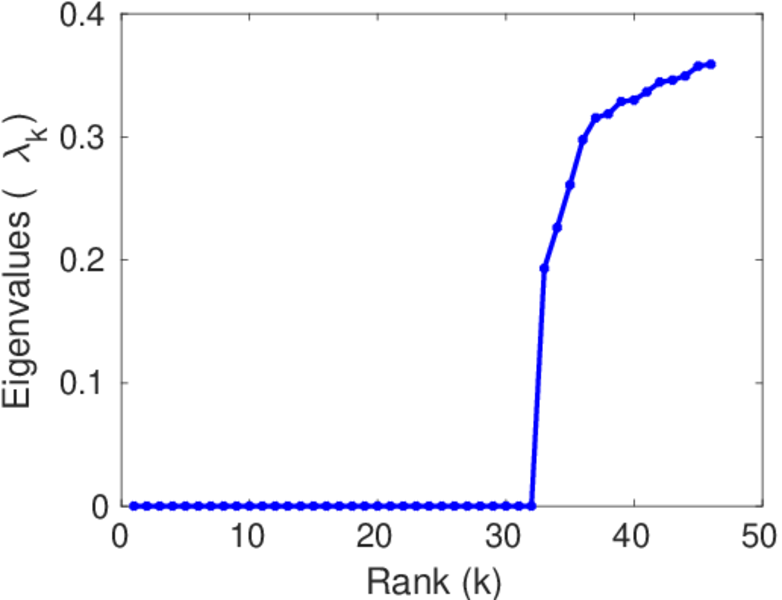

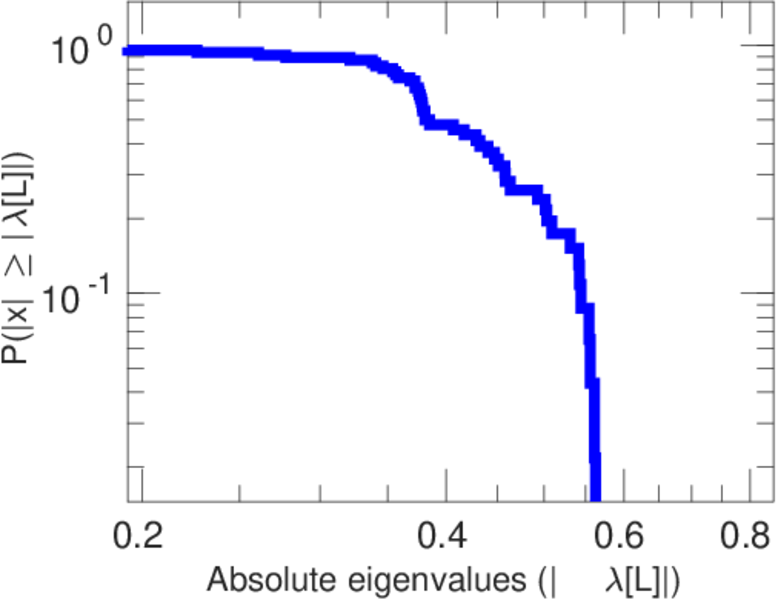

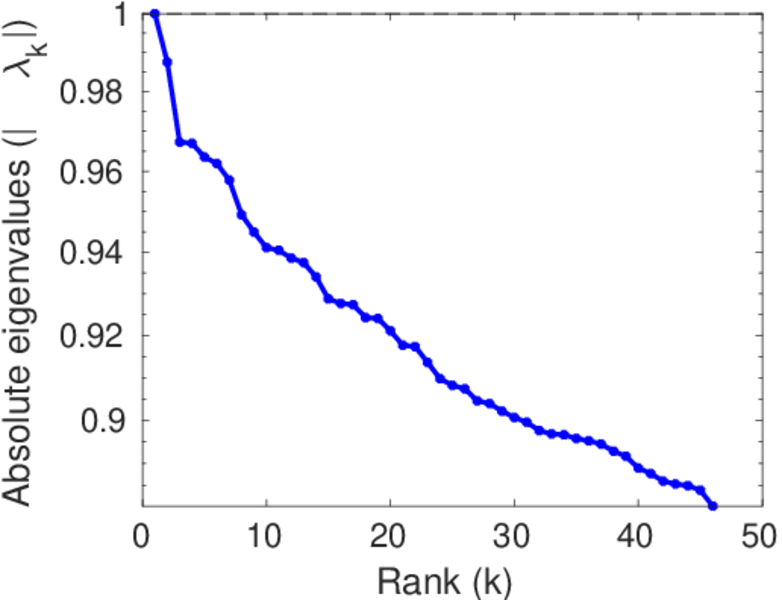

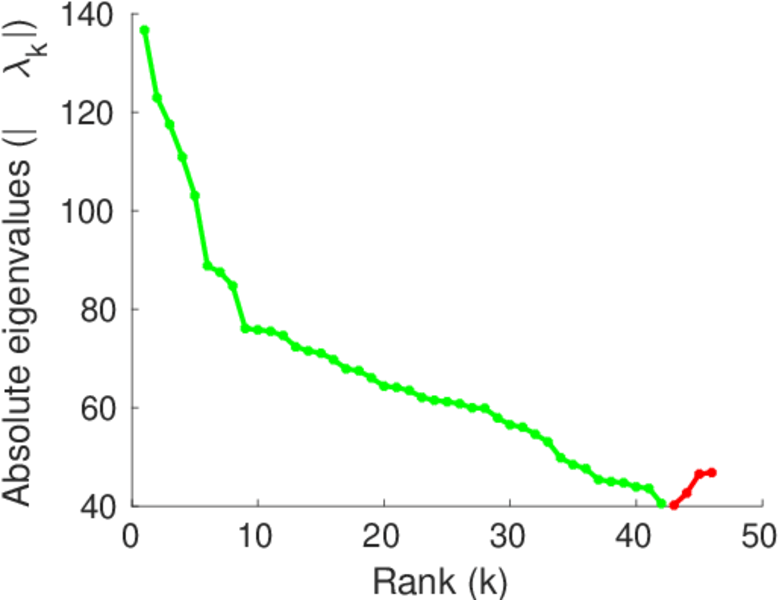

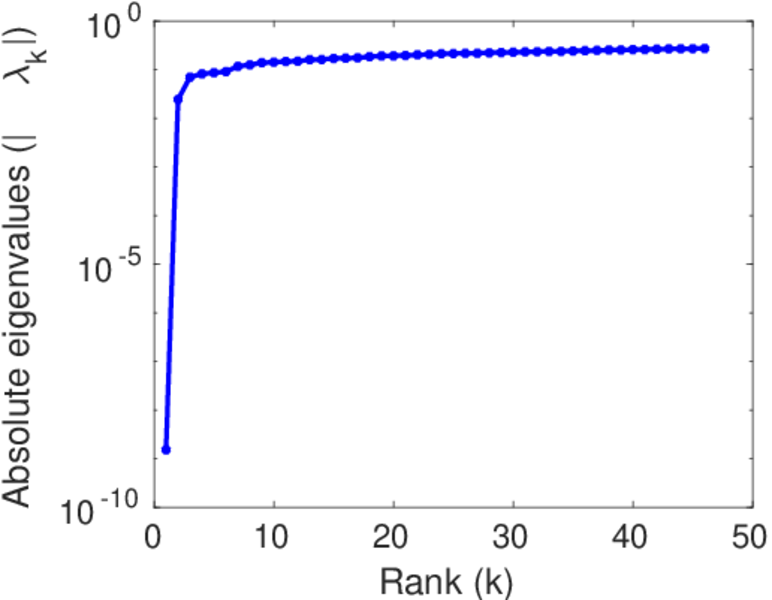

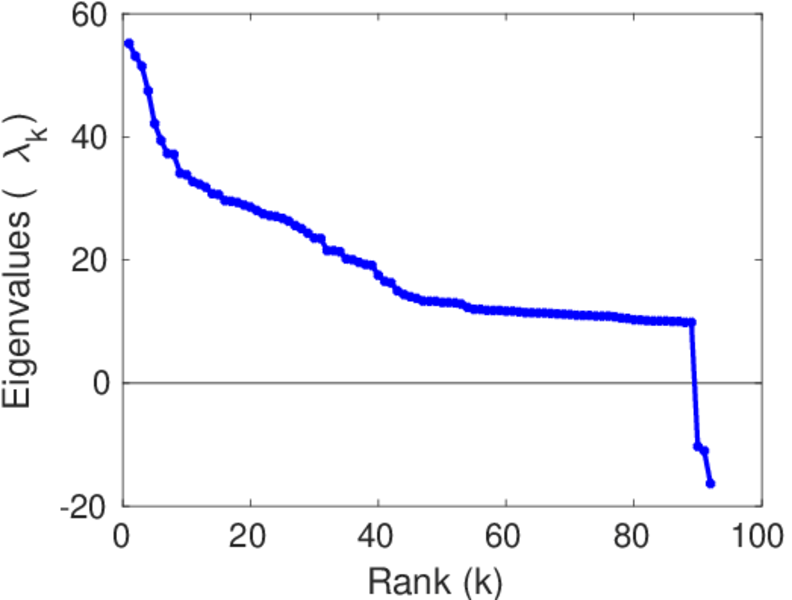

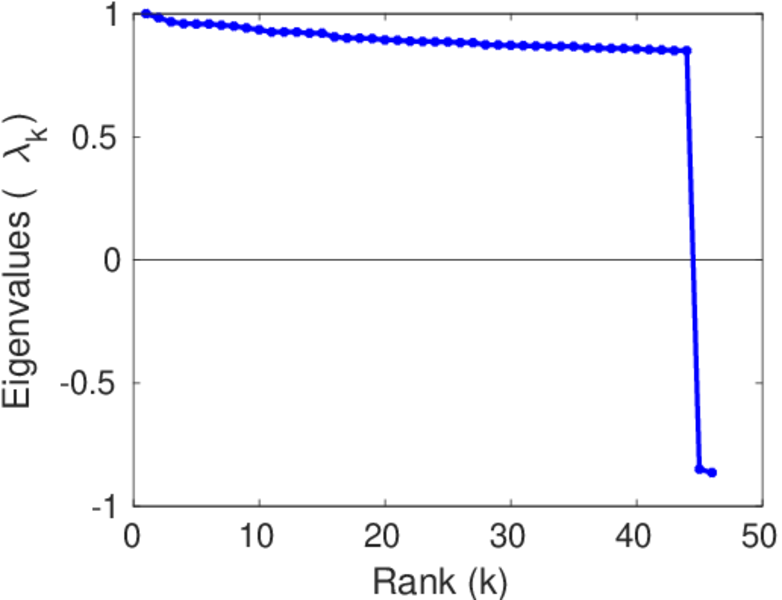

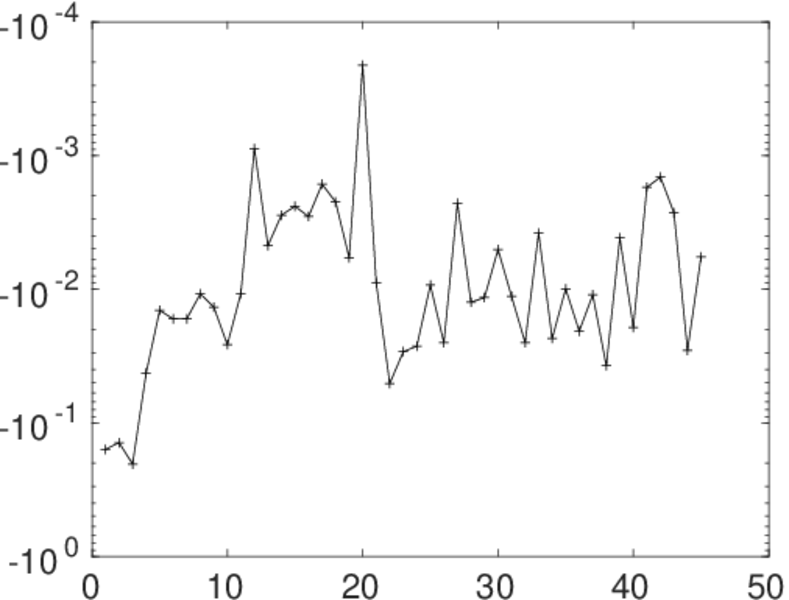

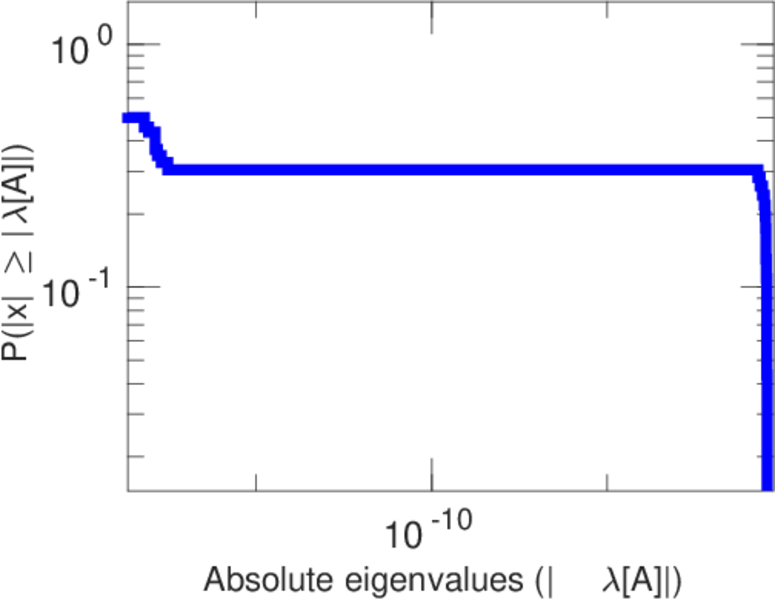

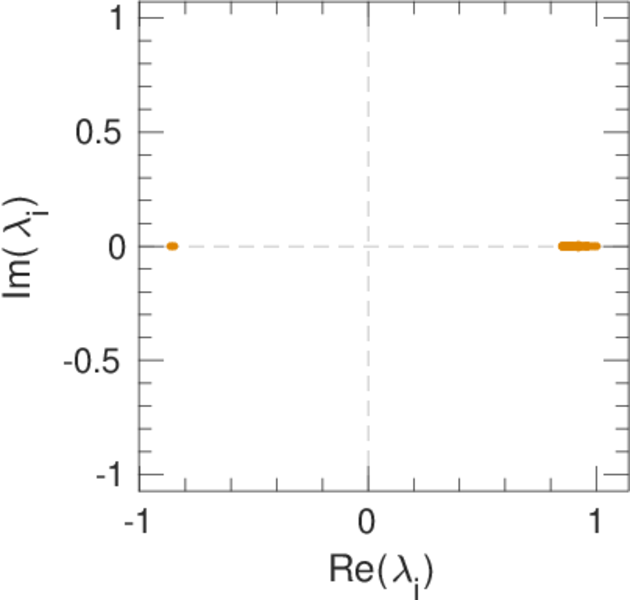

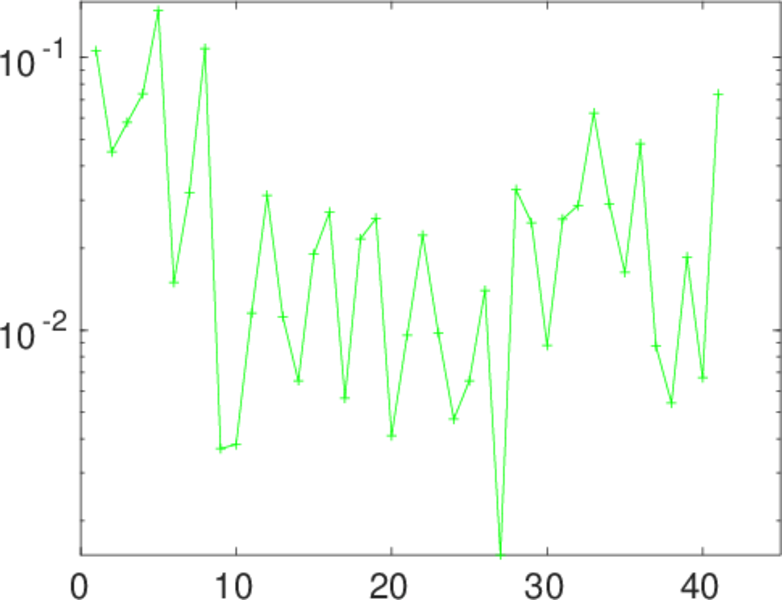

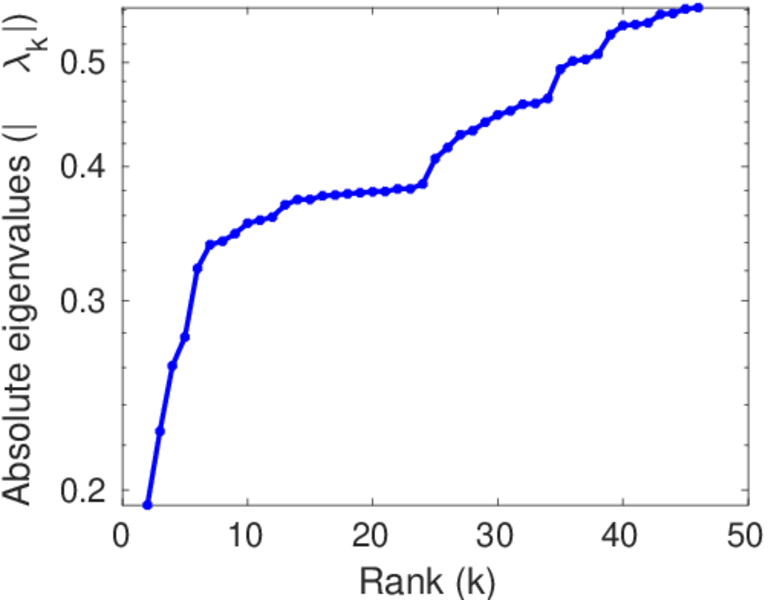

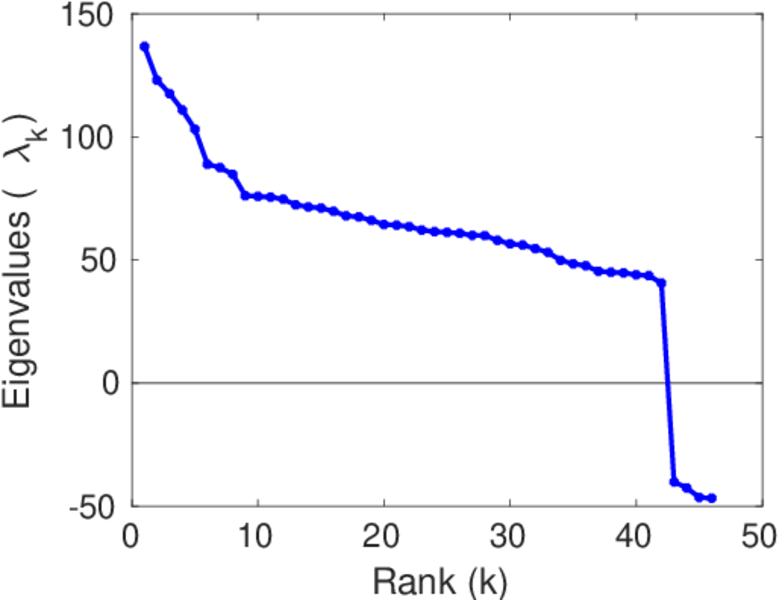

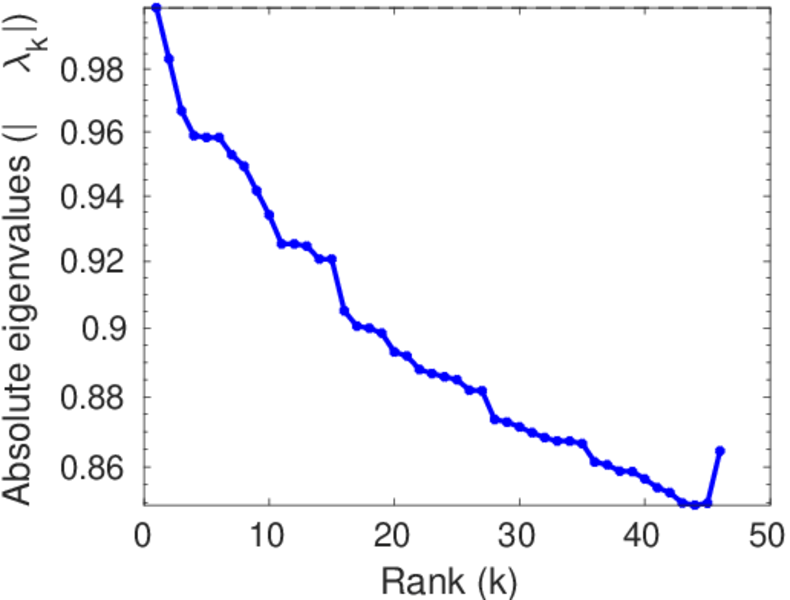

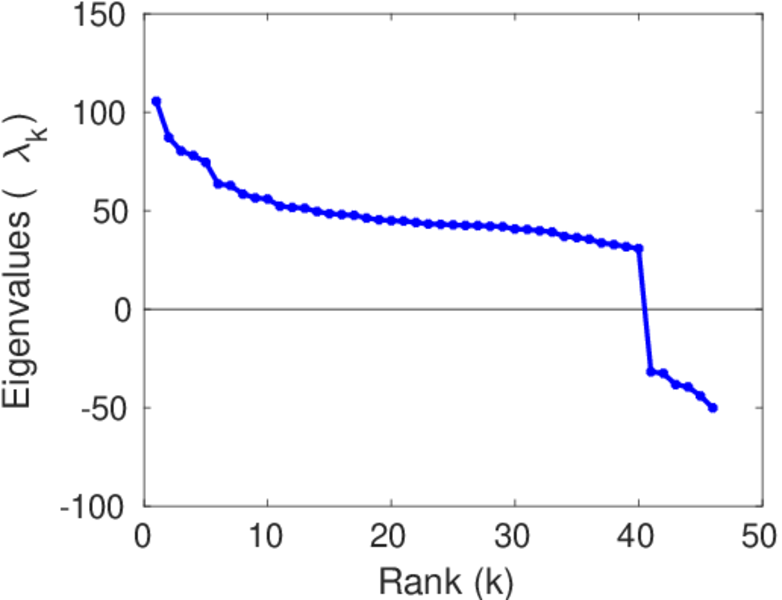

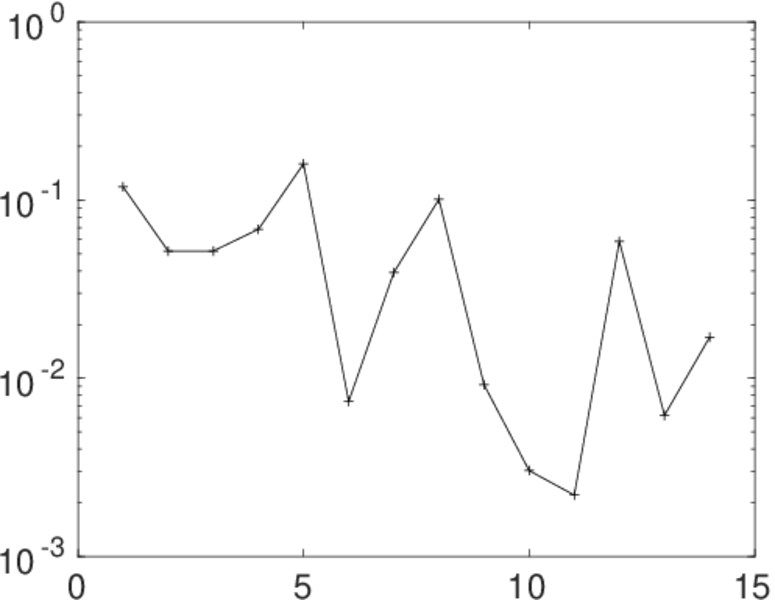

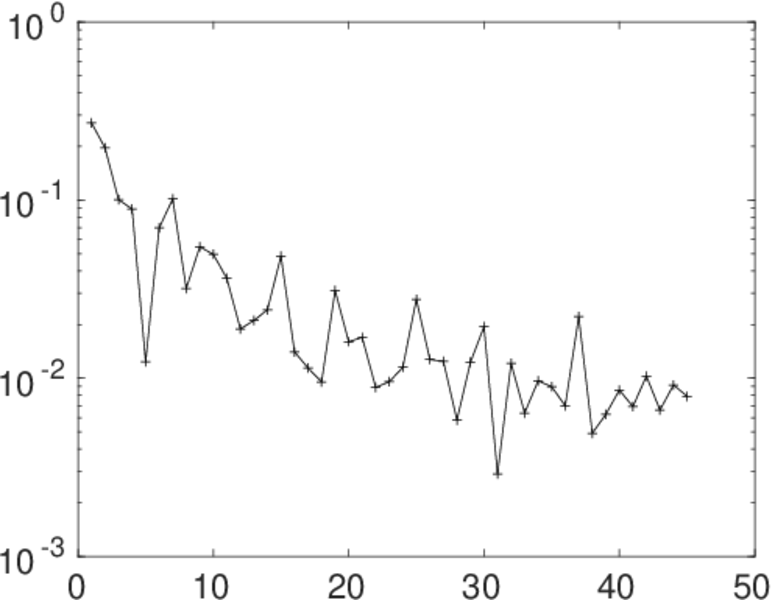

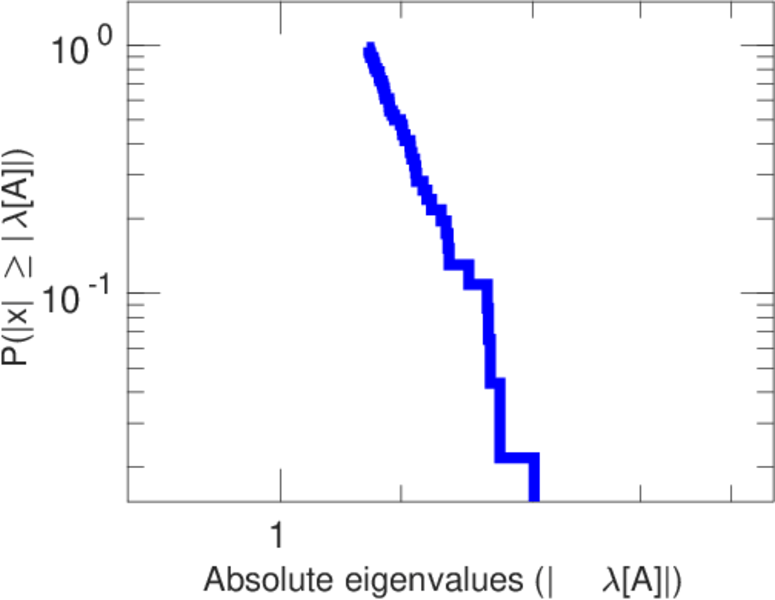

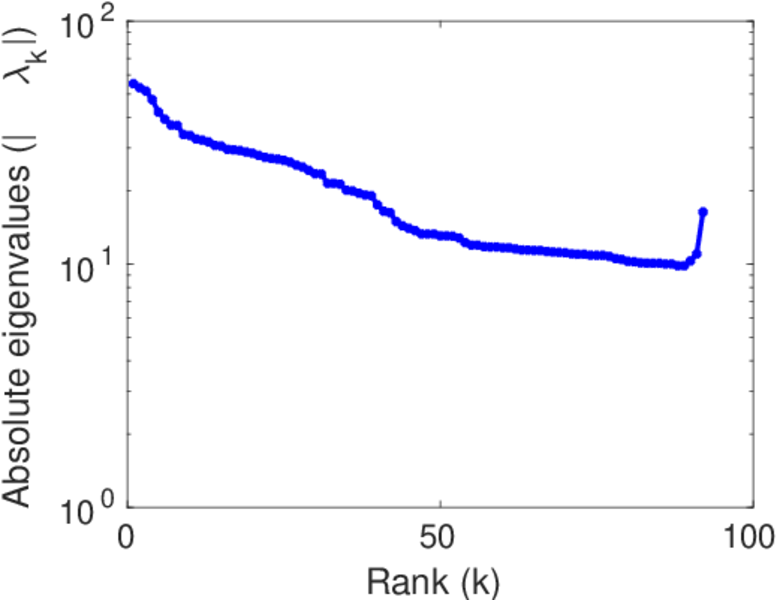

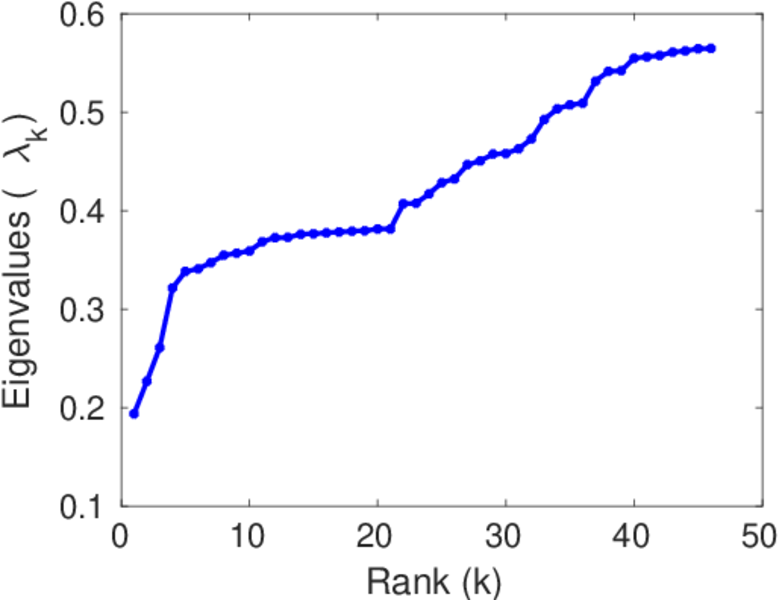

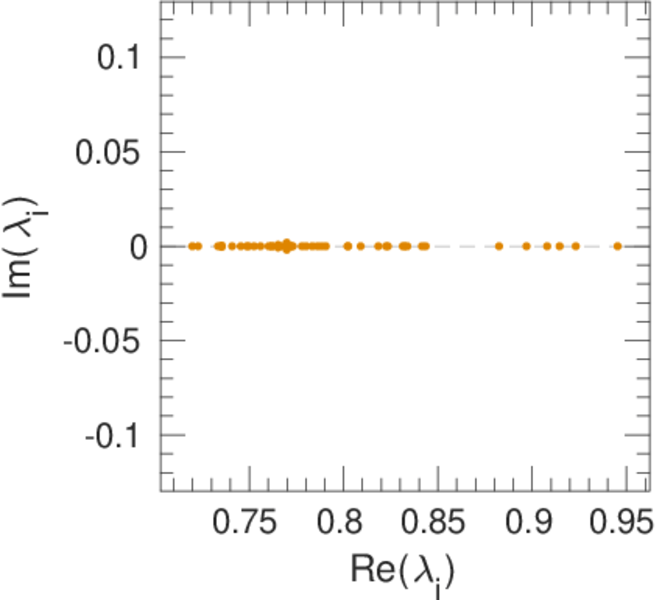

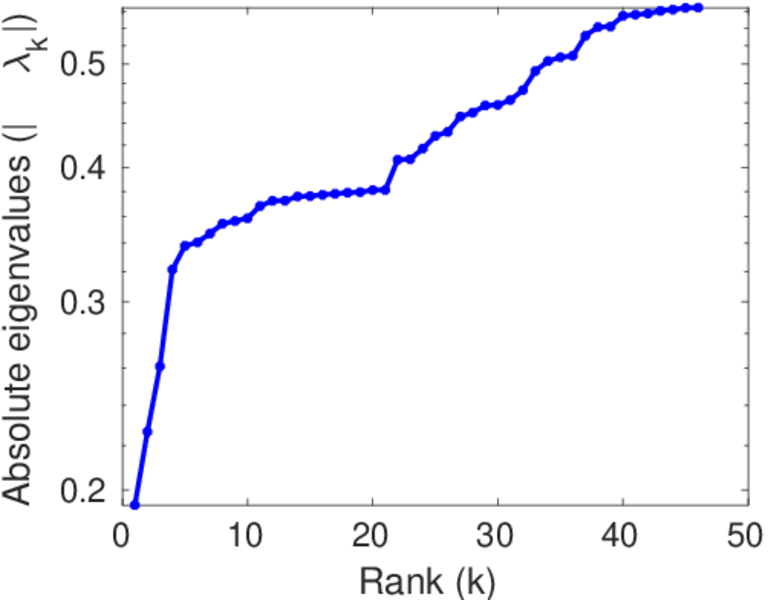

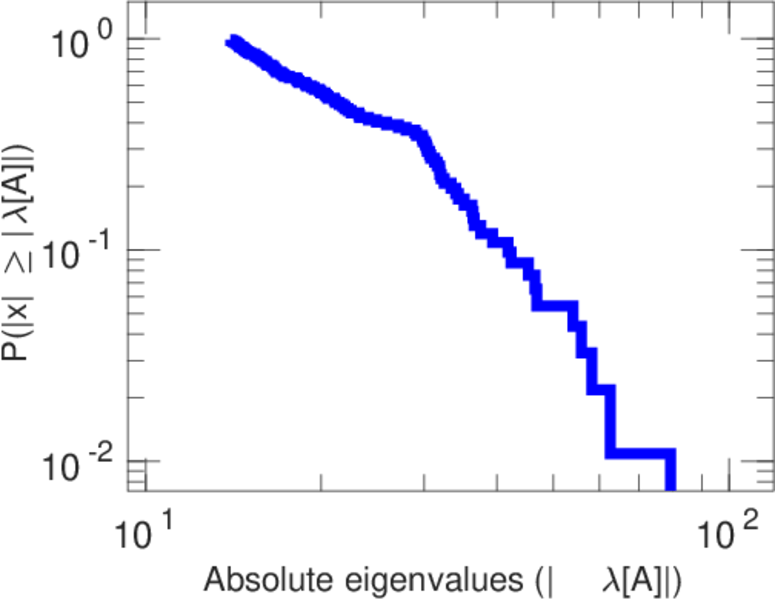

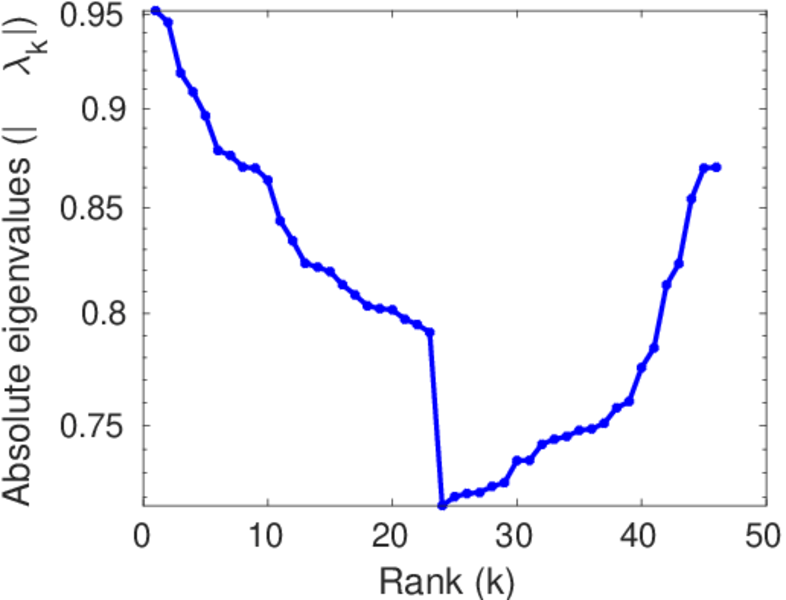

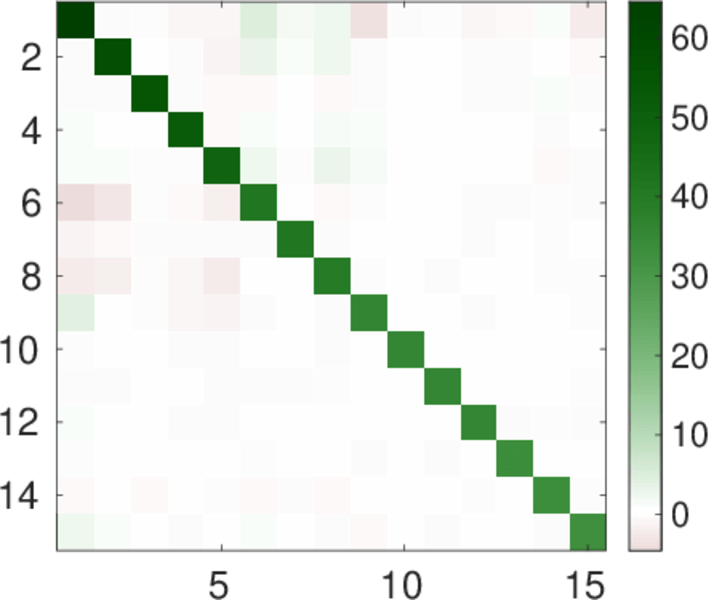

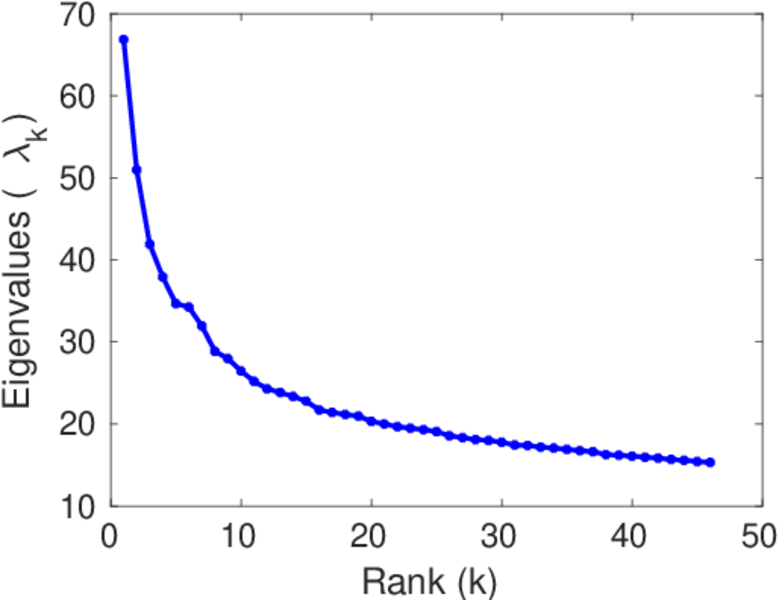

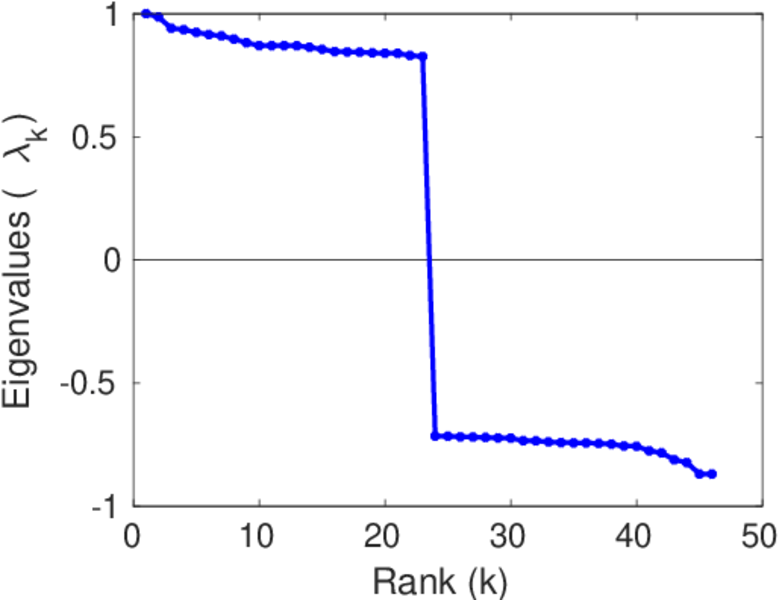

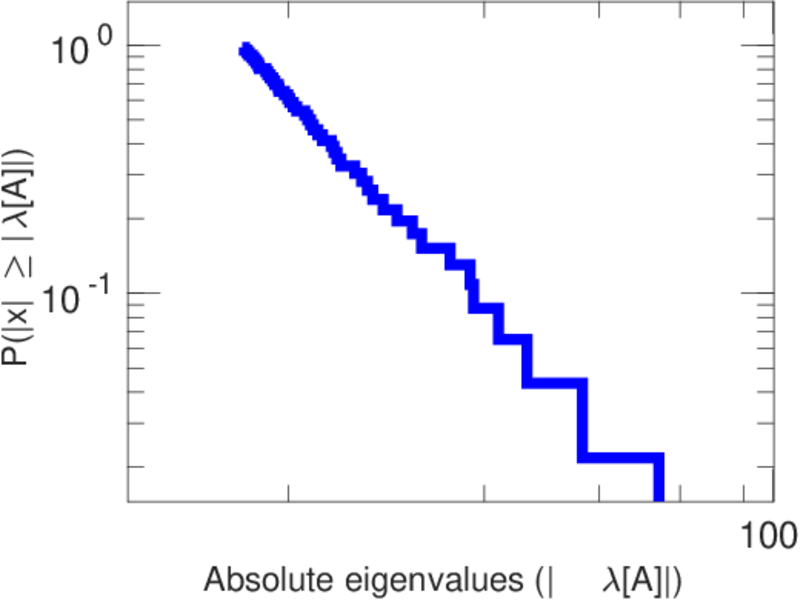

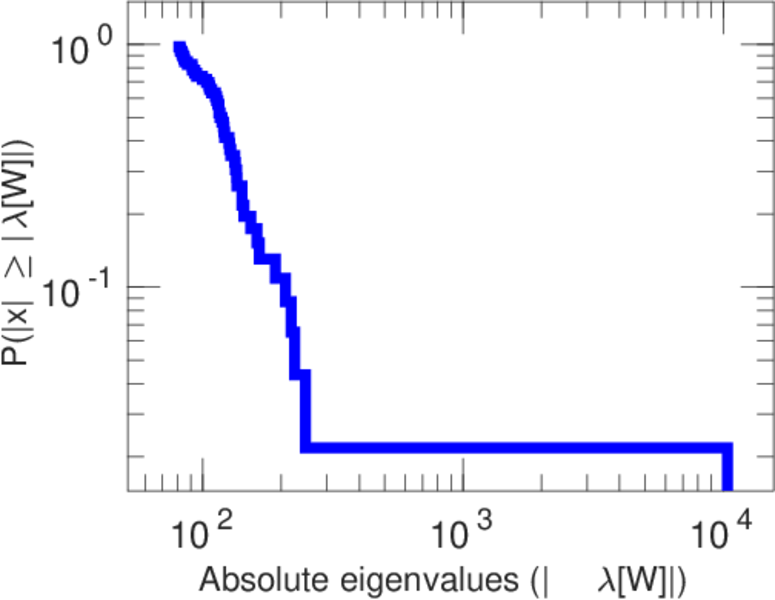

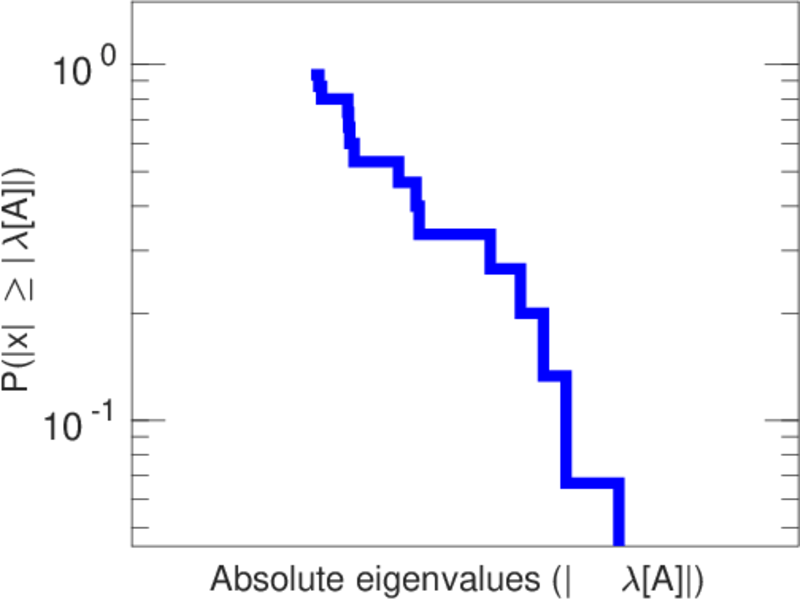

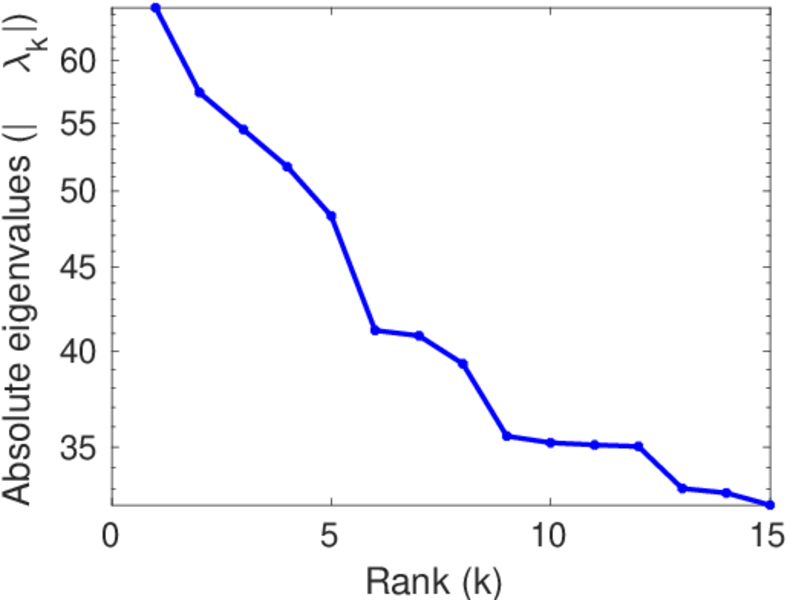

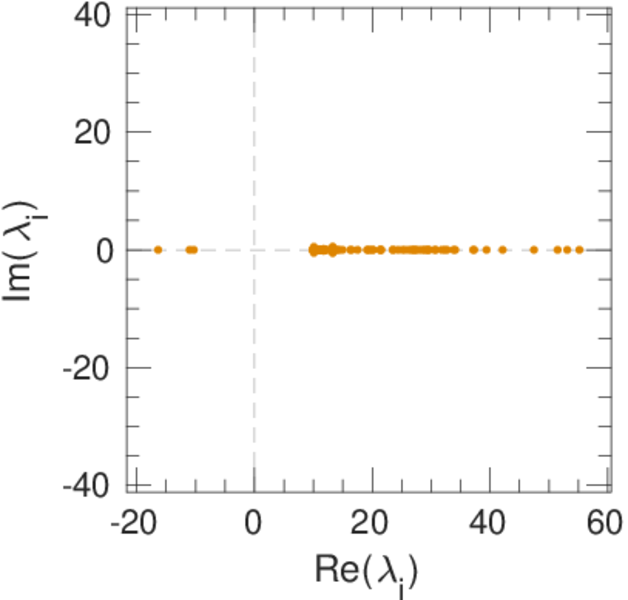

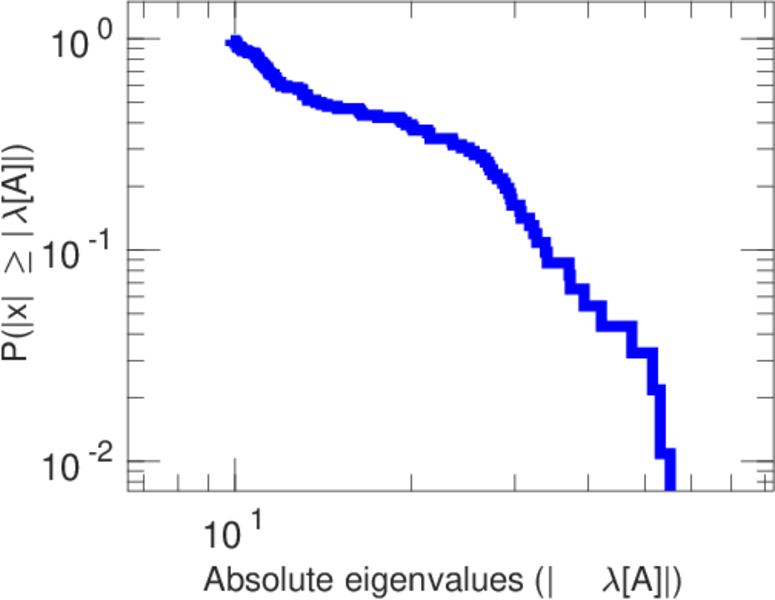

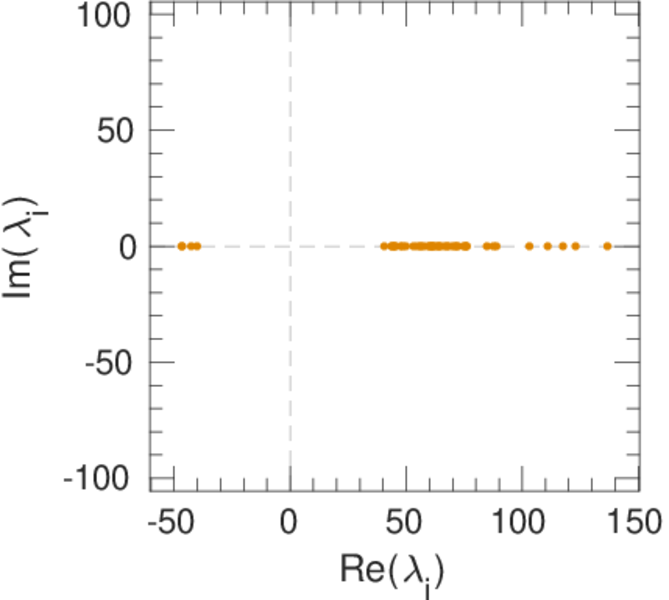

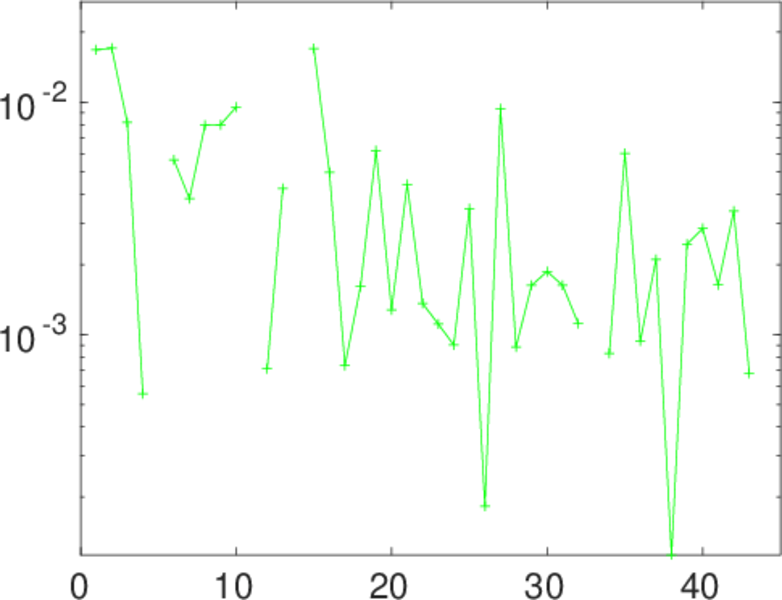

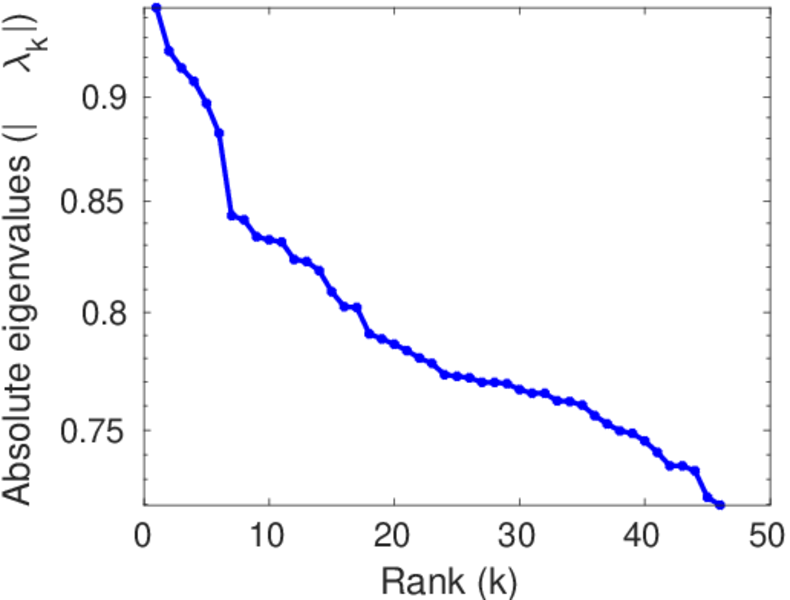

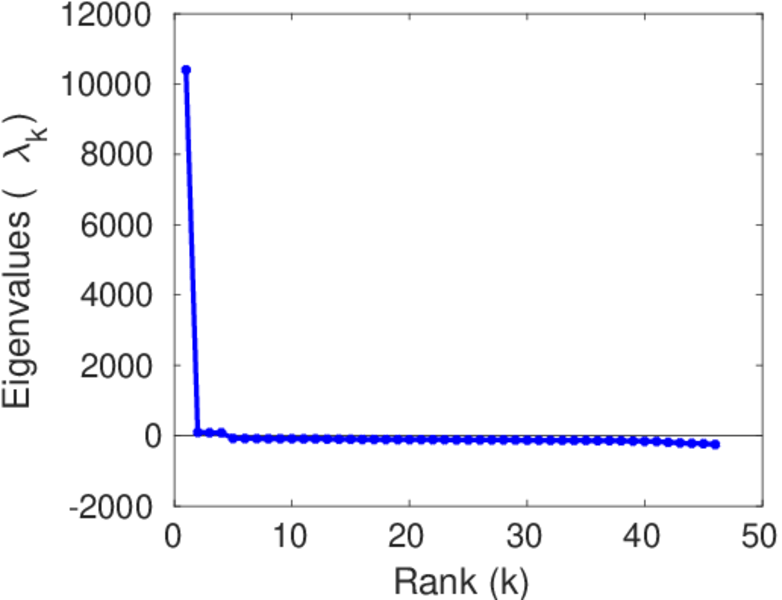

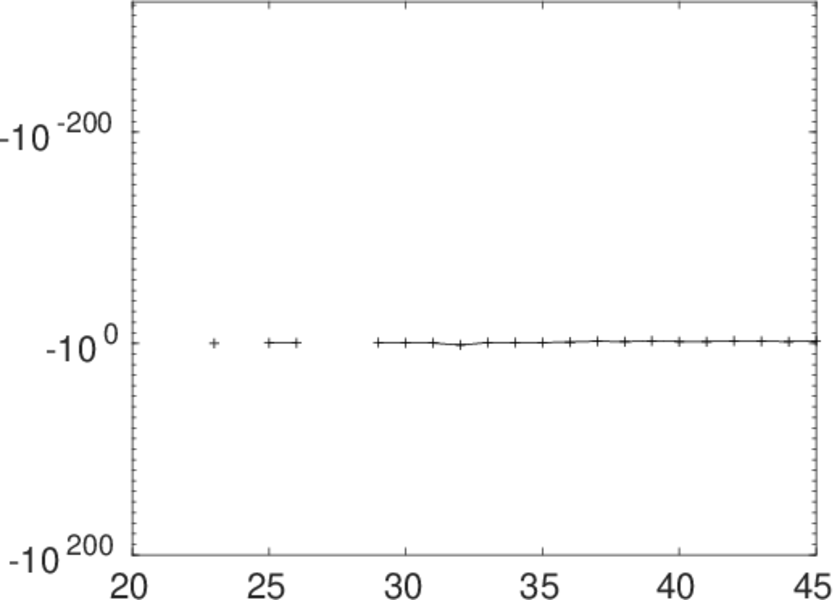

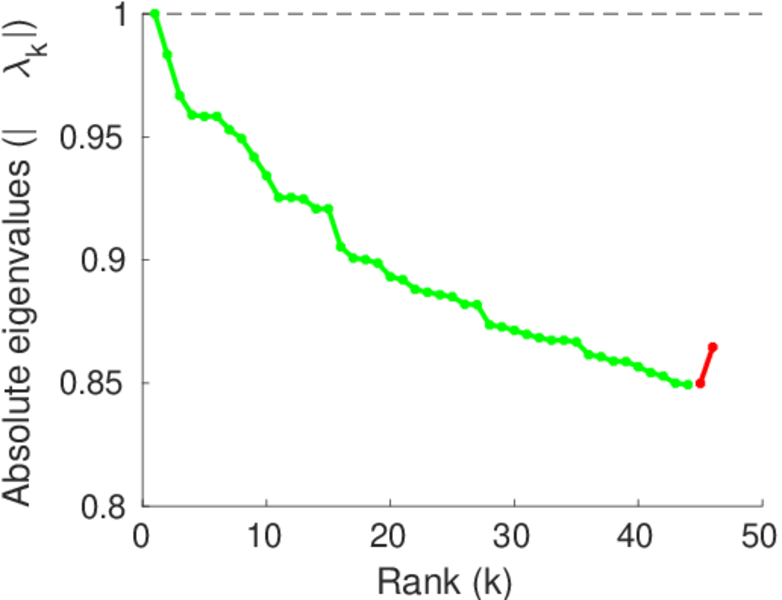

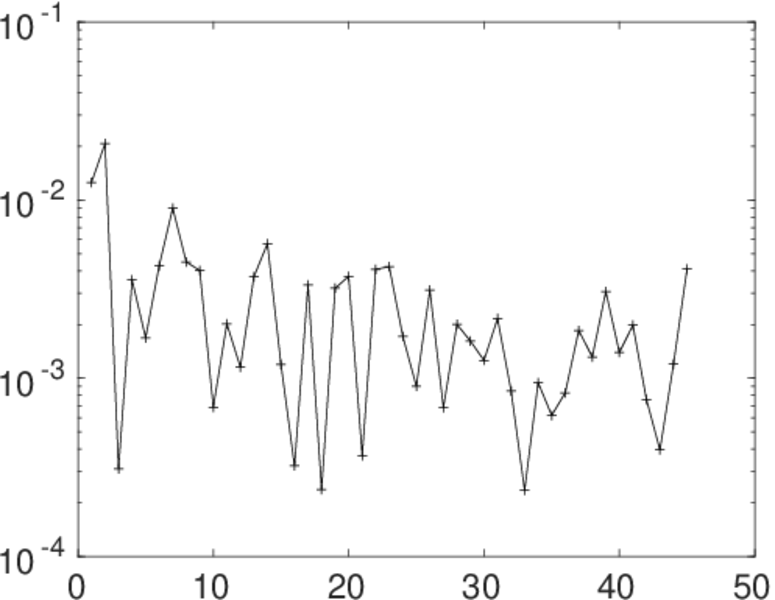

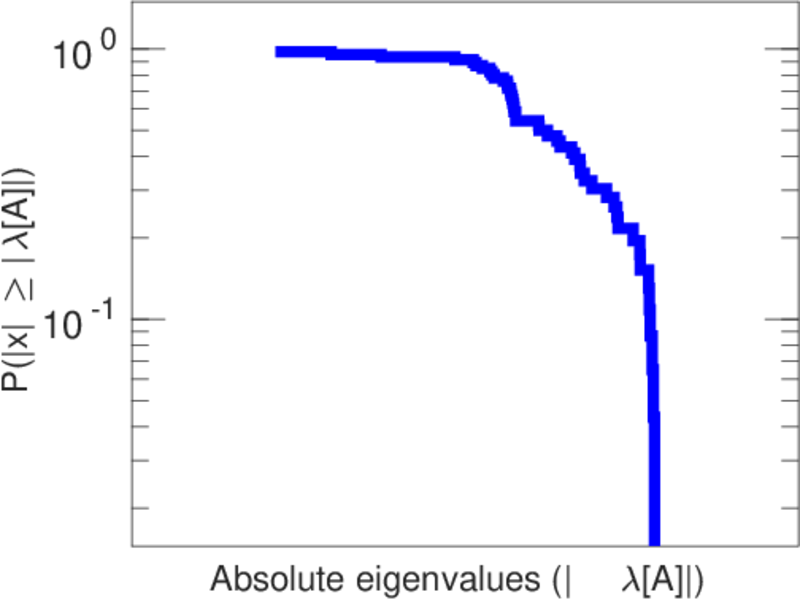

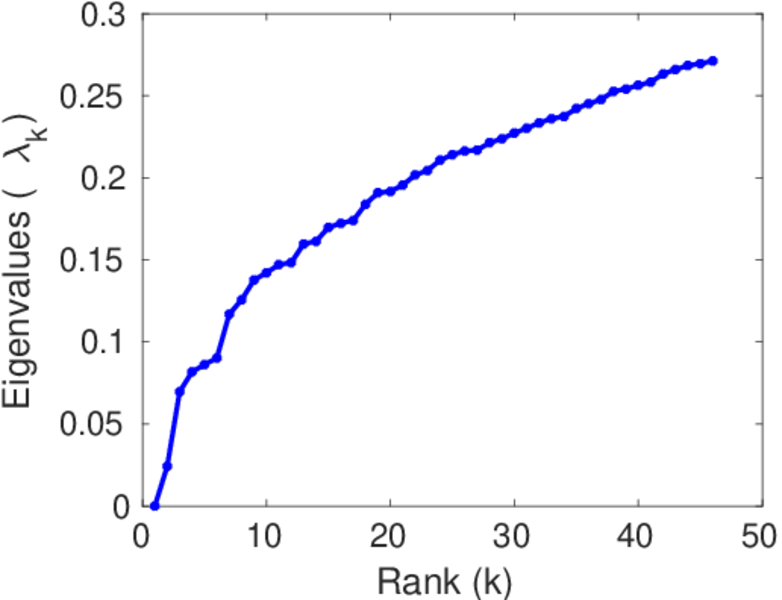

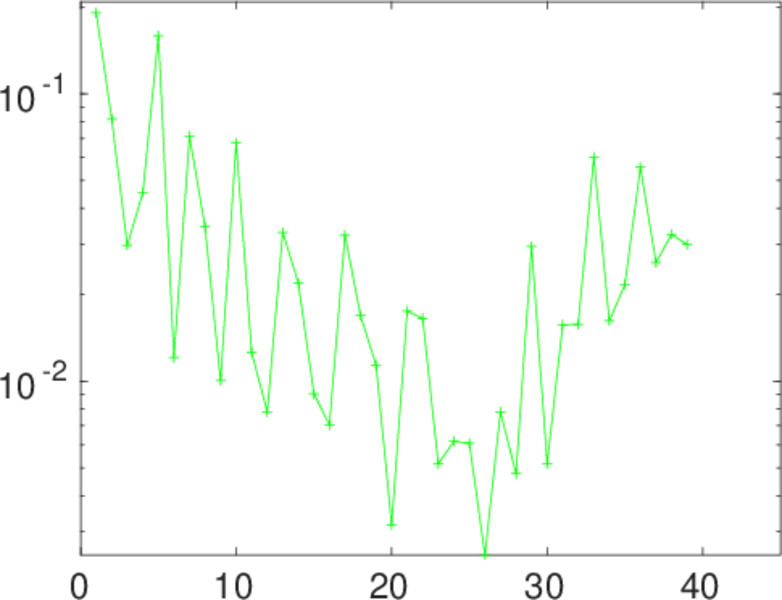

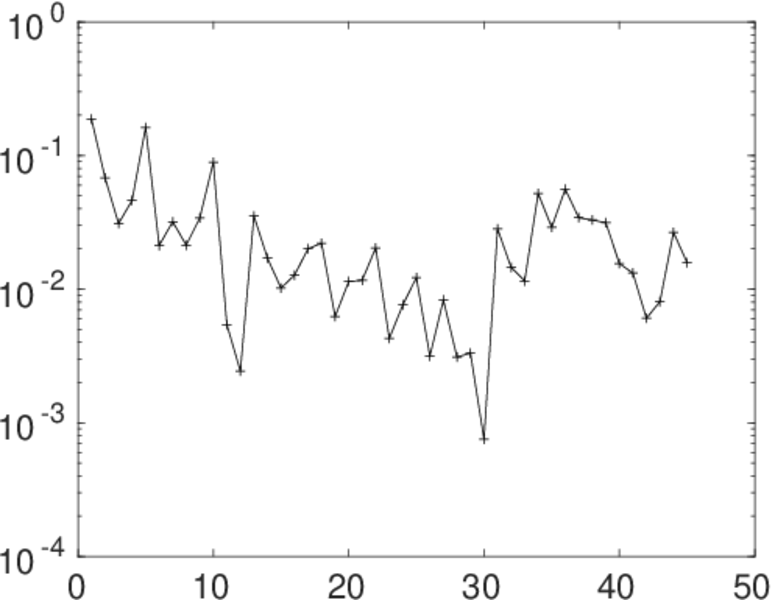

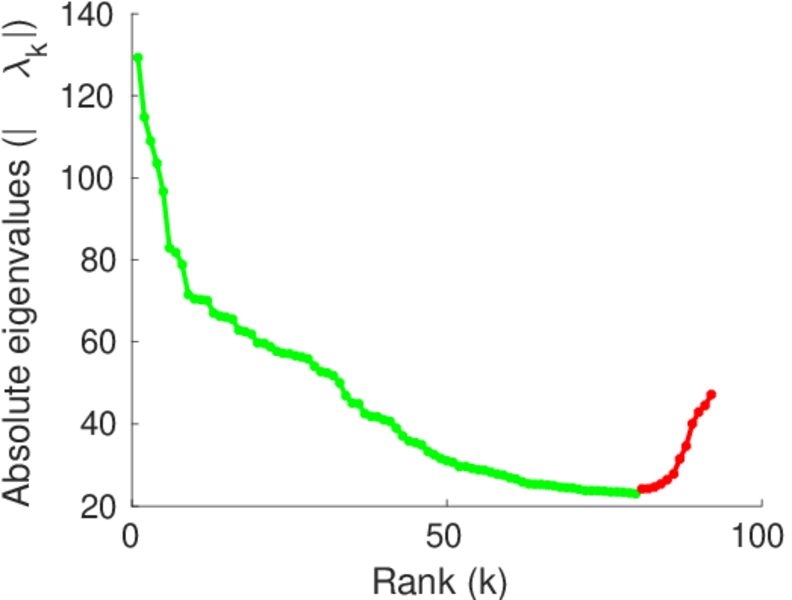

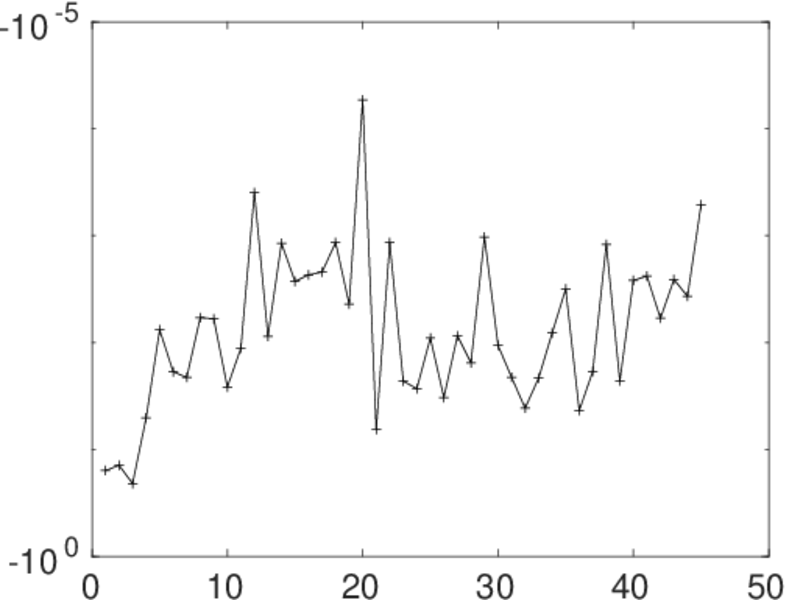

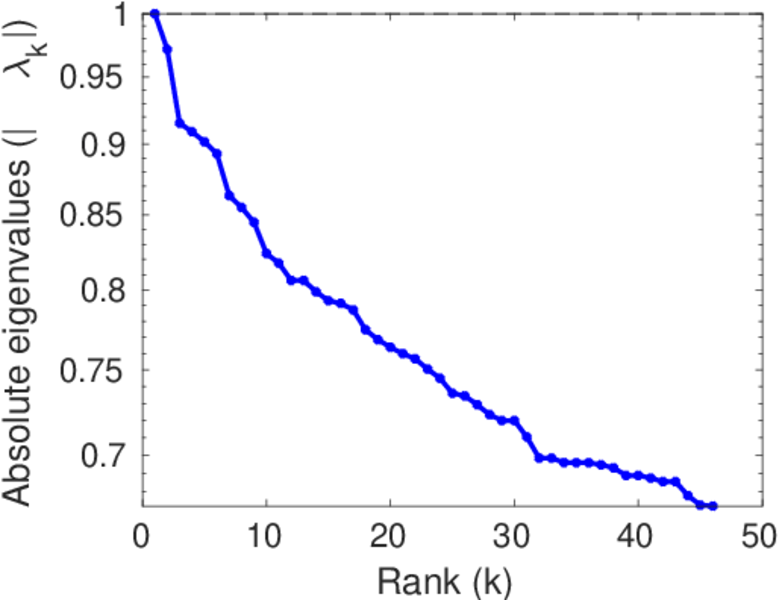

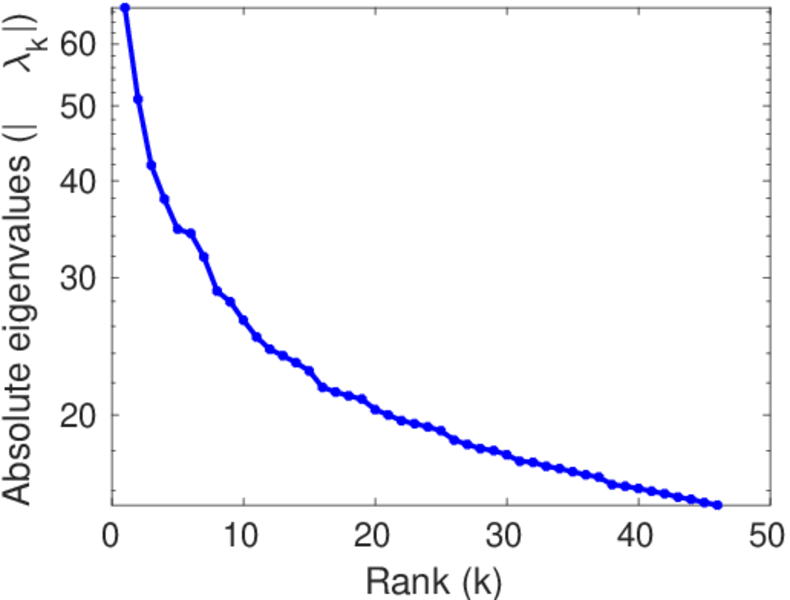

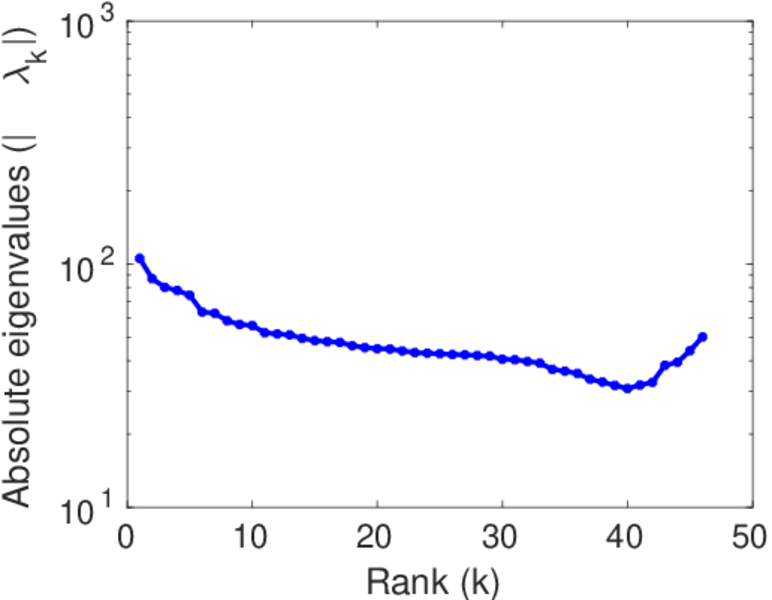

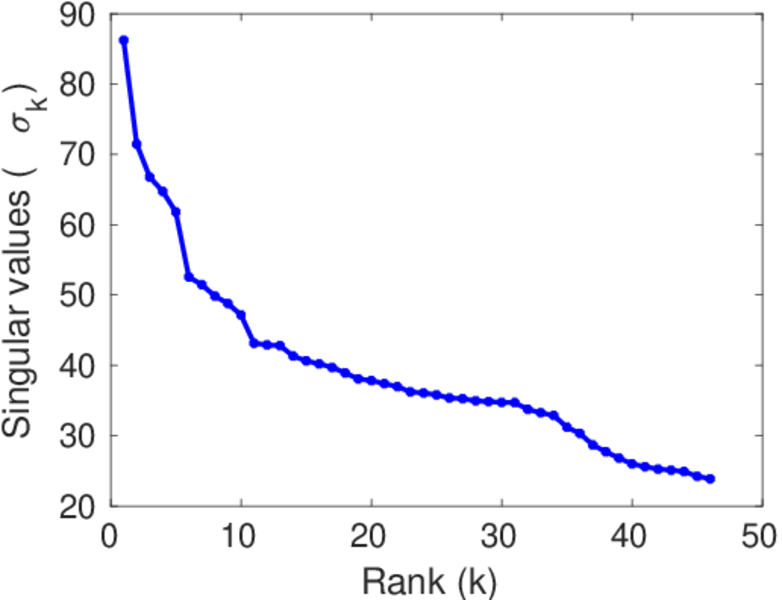

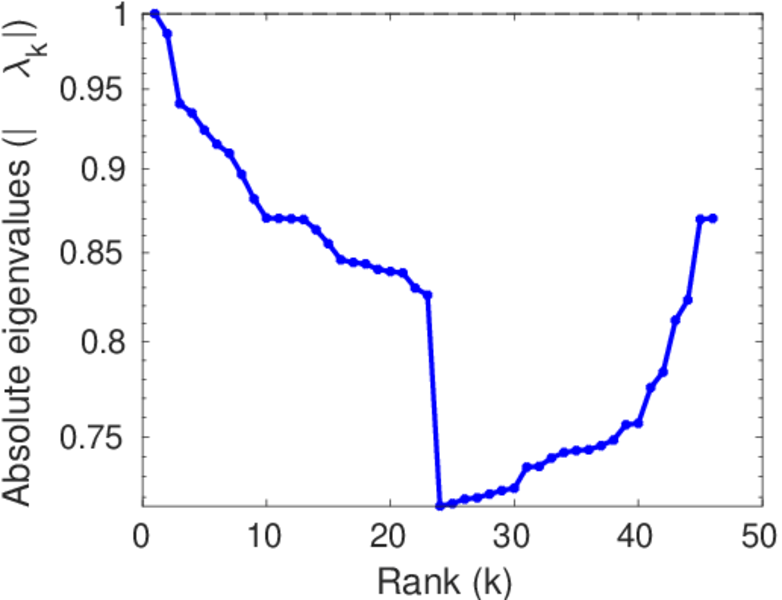

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
