Wikipedia links (nso)

This network consists of the wikilinks of the Wikipedia in the Northern Sotho language (nso). Nodes are Wikipedia articles, and directed edges are wikilinks, i.e., hyperlinks within one wiki. In the wiki source, these are indicated with [[double brackets]]. Only pages in the article namespace are included.

Metadata

CodeWnso
Internal namewikipedia_link_nso
NameWikipedia links (nso)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningWikilink
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =8,152
Volume m =455,809
Loop count l =1
Wedge count s =102,765,470
Claw count z =77,307,410,887
Cross count x =37,232,457,971,664
Triangle count t =14,051,759
Square count q =3,271,249,354
4-Tour count T4 =26,581,646,682
Maximum degree dmax =4,340
Maximum outdegree d+max =2,024
Maximum indegree dmax =2,700
Average degree d =111.828
Fill p =0.006 858 90
Size of LCC N =8,150
Size of LSCC Ns =6,875
Relative size of LSCC Nrs =0.843 351
Diameter δ =11
50-Percentile effective diameter δ0.5 =2.792 62
90-Percentile effective diameter δ0.9 =3.945 08
Median distance δM =3
Mean distance δm =3.265 99
Gini coefficient G =0.638 560
Balanced inequality ratio P =0.247 004
Outdegree balanced inequality ratio P+ =0.279 240
Indegree balanced inequality ratio P =0.207 692
Relative edge distribution entropy Her =0.908 676
Power law exponent γ =1.277 89
Tail power law exponent γt =2.001 00
Tail power law exponent with p γ3 =2.001 00
p-value p =0.000 00
Outdegree tail power law exponent with p γ3,o =2.091 00
Outdegree p-value po =0.000 00
Indegree tail power law exponent with p γ3,i =1.851 00
Indegree p-value pi =0.000 00
Degree assortativity ρ =−0.213 258
Degree assortativity p-value pρ =0.000 00
In/outdegree correlation ρ± =+0.649 839
Clustering coefficient c =0.410 209
Directed clustering coefficient c± =0.895 346
Spectral norm α =726.252
Operator 2-norm ν =367.571
Cyclic eigenvalue π =358.516
Algebraic connectivity a =0.057 825 9
Spectral separation 1[A] / λ2[A]| =1.810 01
Reciprocity y =0.705 662
Non-bipartivity bA =0.798 693
Normalized non-bipartivity bN =0.073 494 8
Algebraic non-bipartivity χ =0.137 680
Spectral bipartite frustration bK =0.000 475 488
Controllability C =684
Relative controllability Cr =0.083 905 8

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

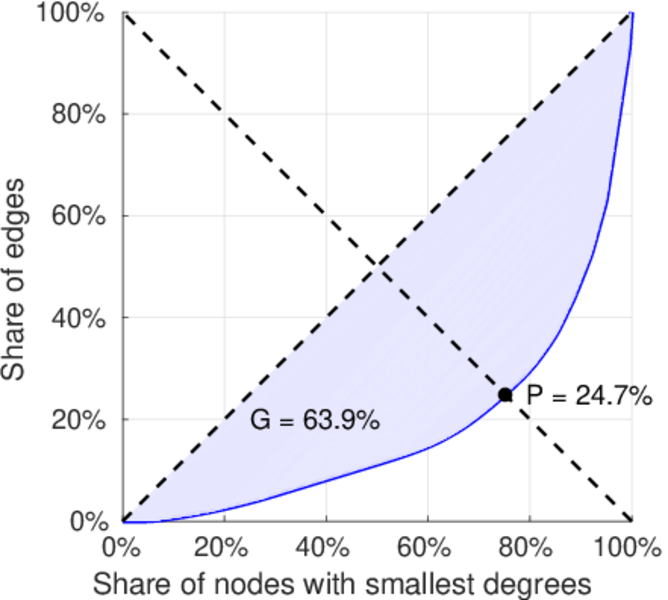

Lorenz curve

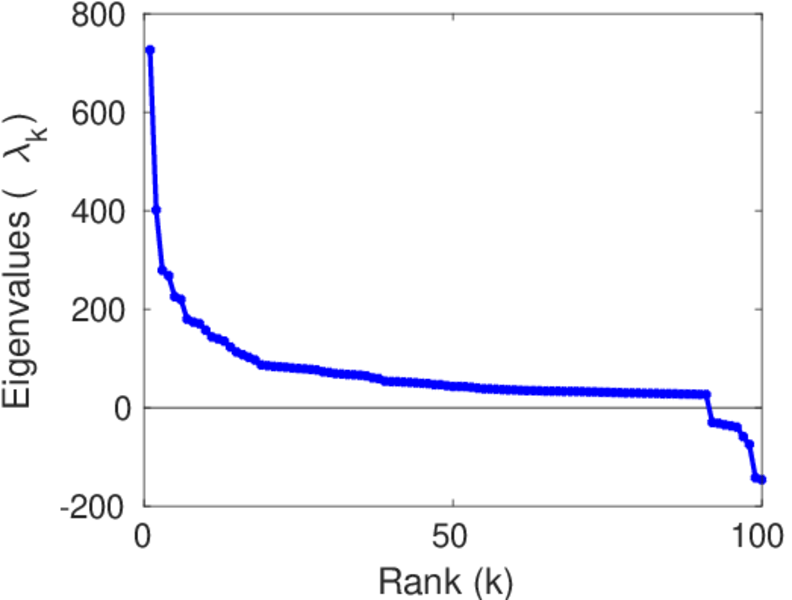

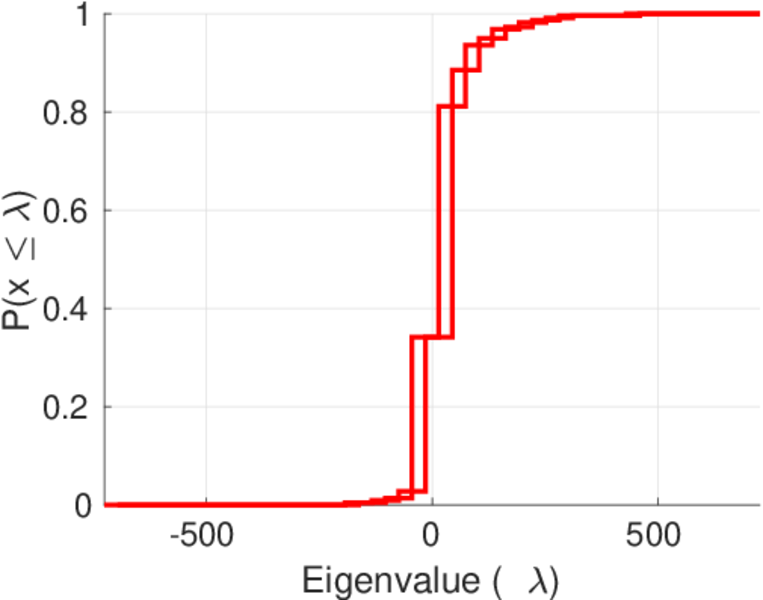

Spectral distribution of the adjacency matrix

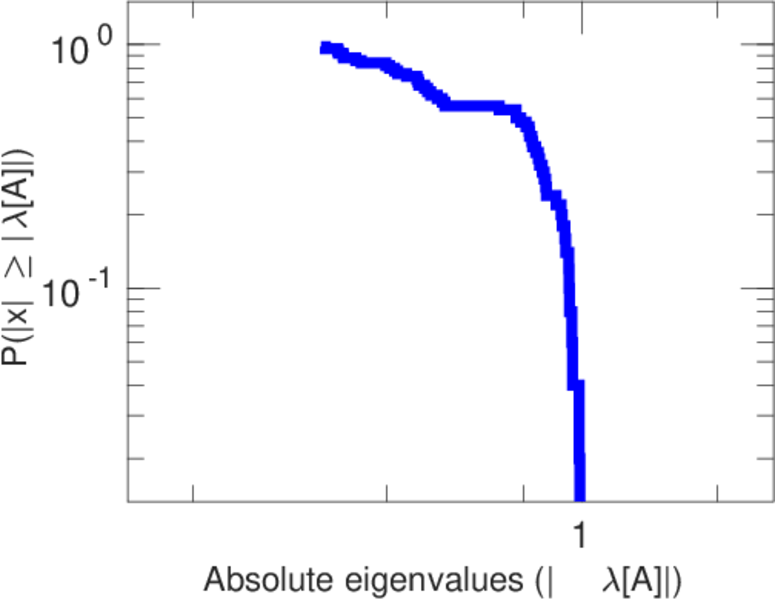

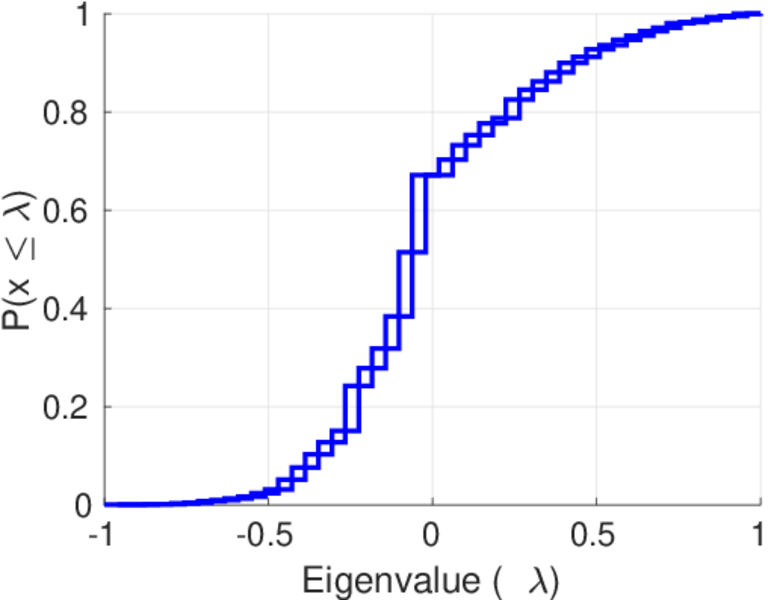

Spectral distribution of the normalized adjacency matrix

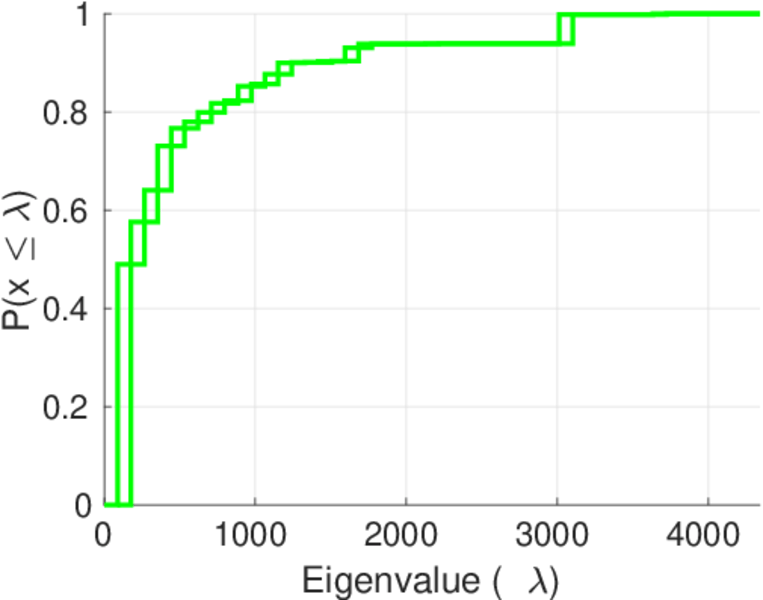

Spectral distribution of the Laplacian

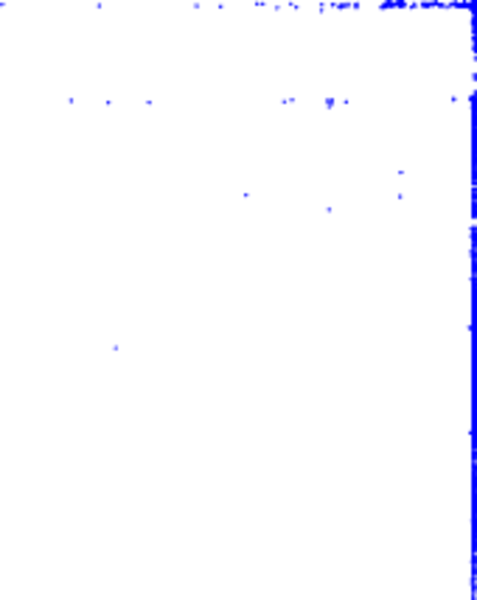

Spectral graph drawing based on the adjacency matrix

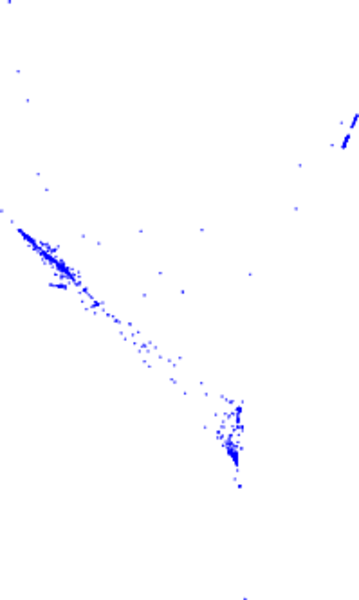

Spectral graph drawing based on the Laplacian

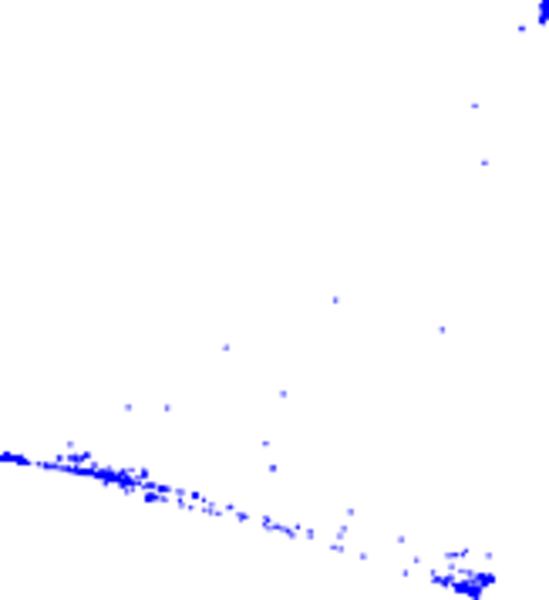

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

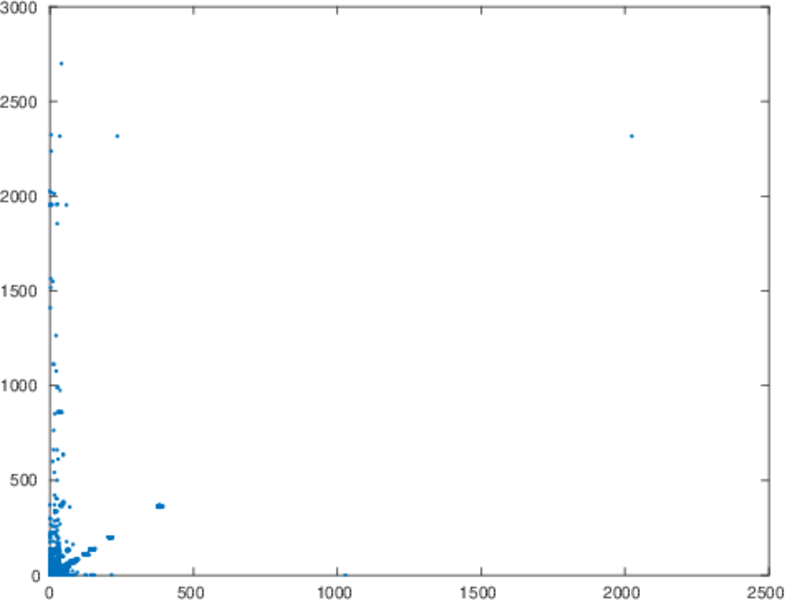

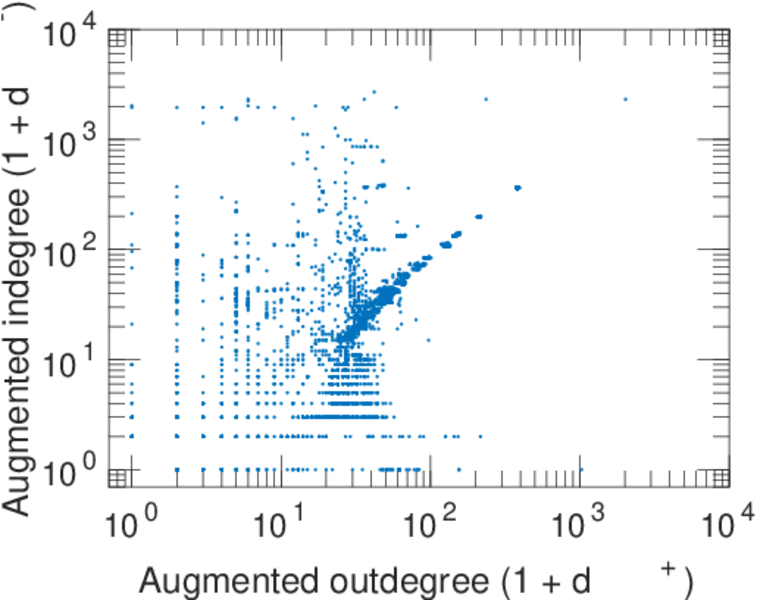

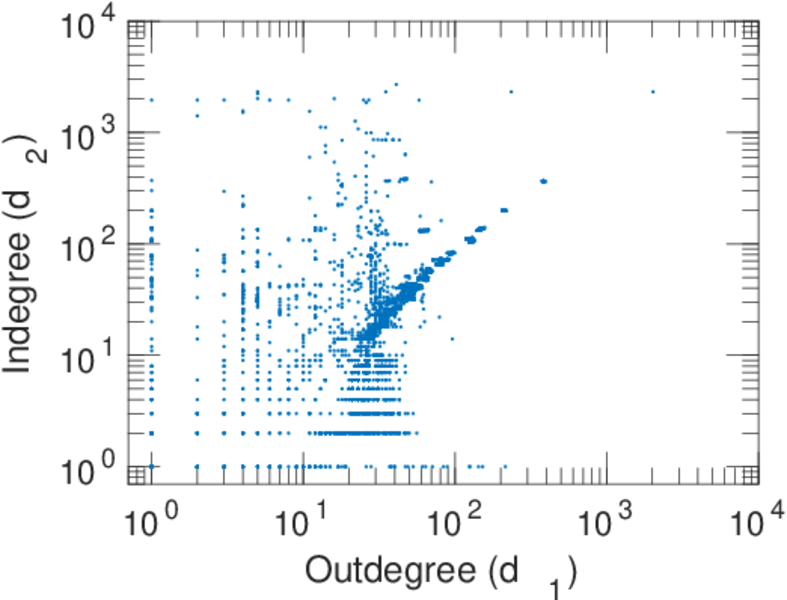

In/outdegree scatter plot

Clustering coefficient distribution

Average neighbor degree distribution

SynGraphy

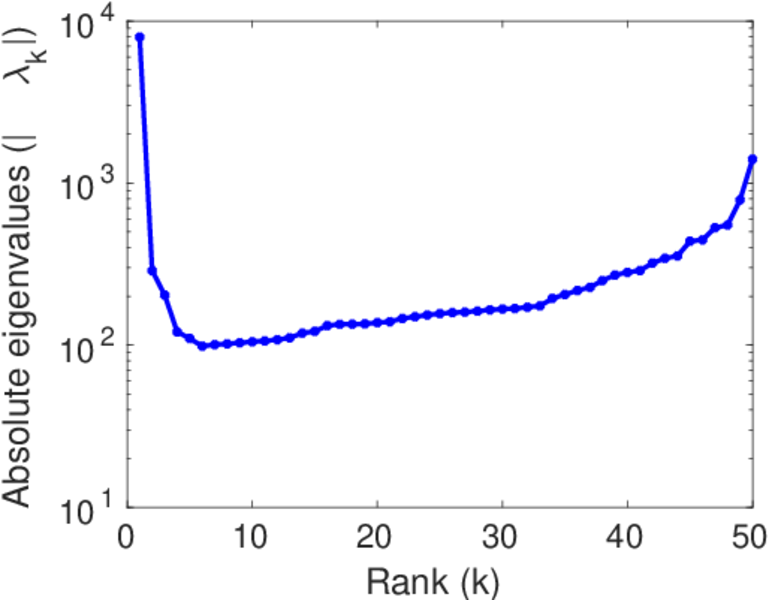

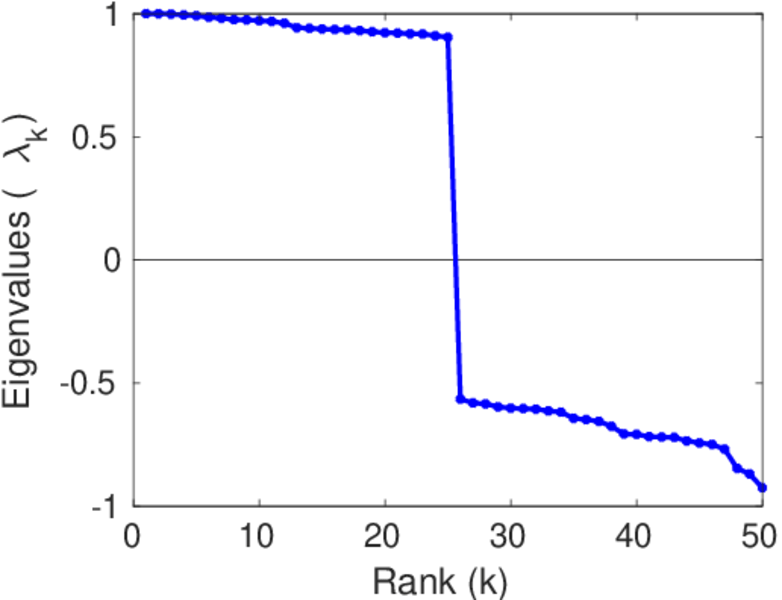

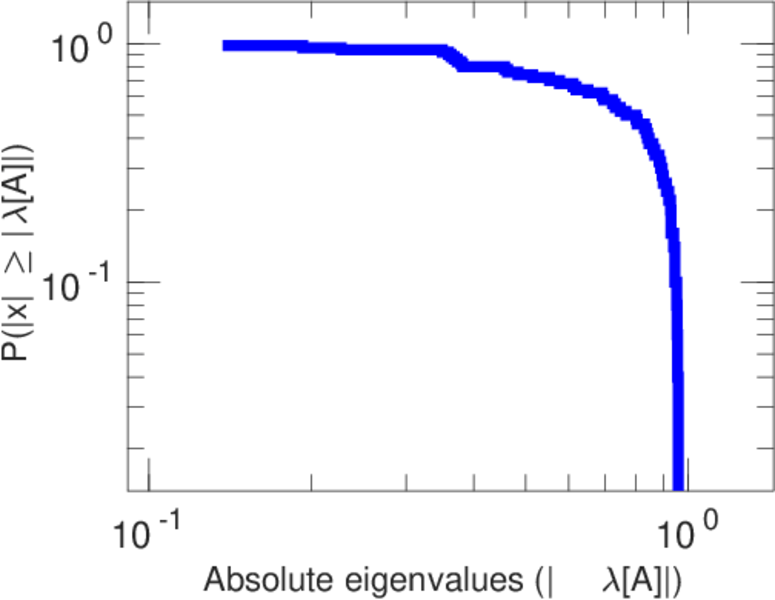

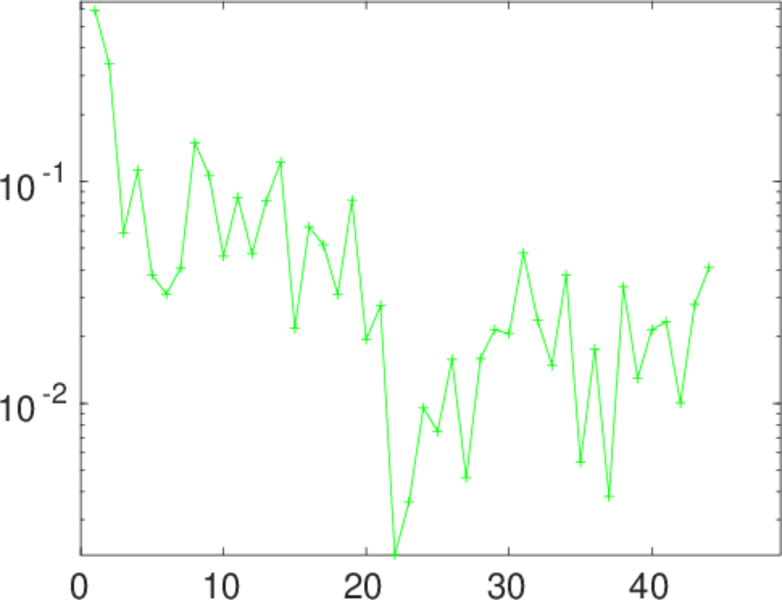

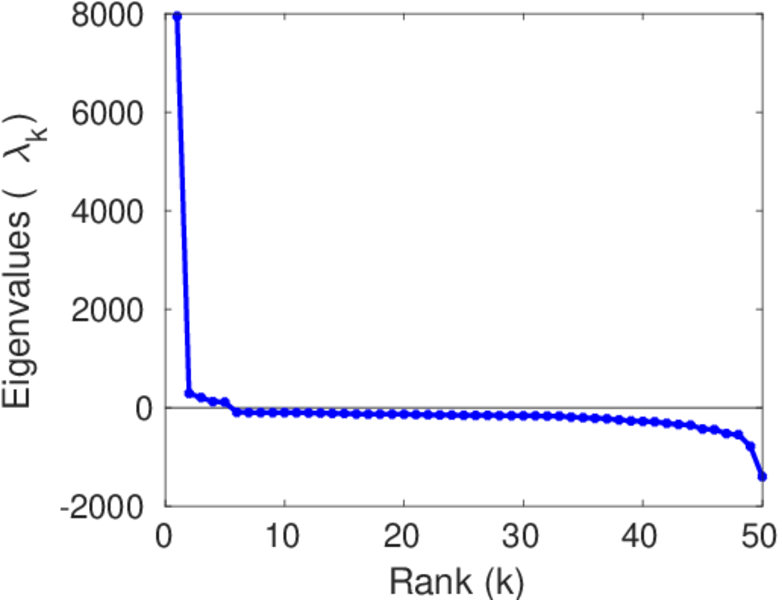

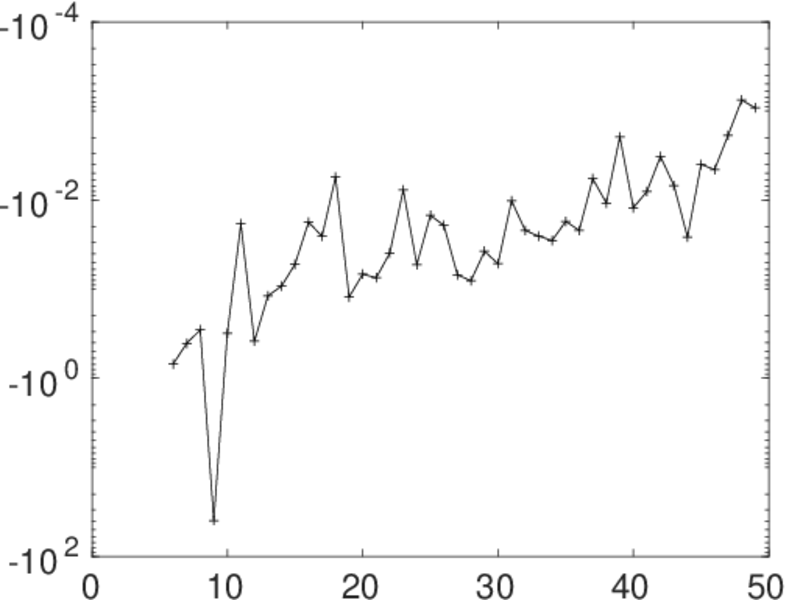

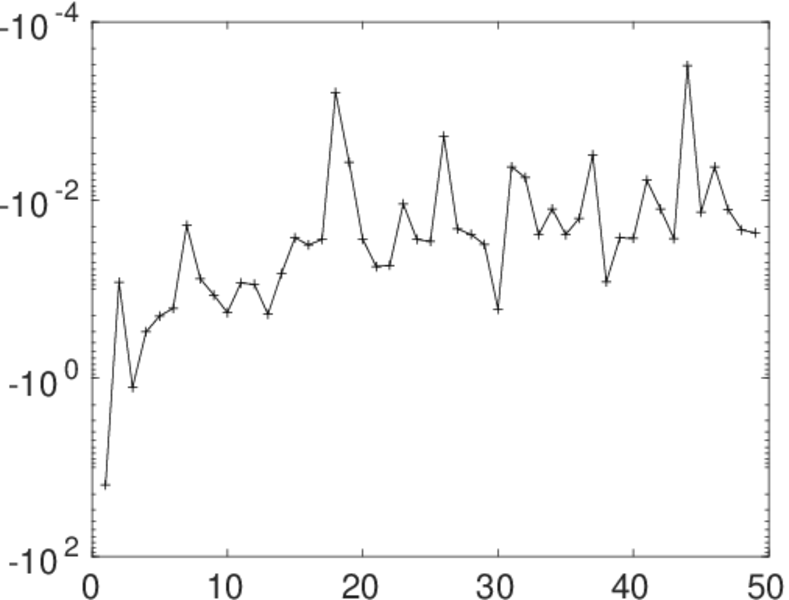

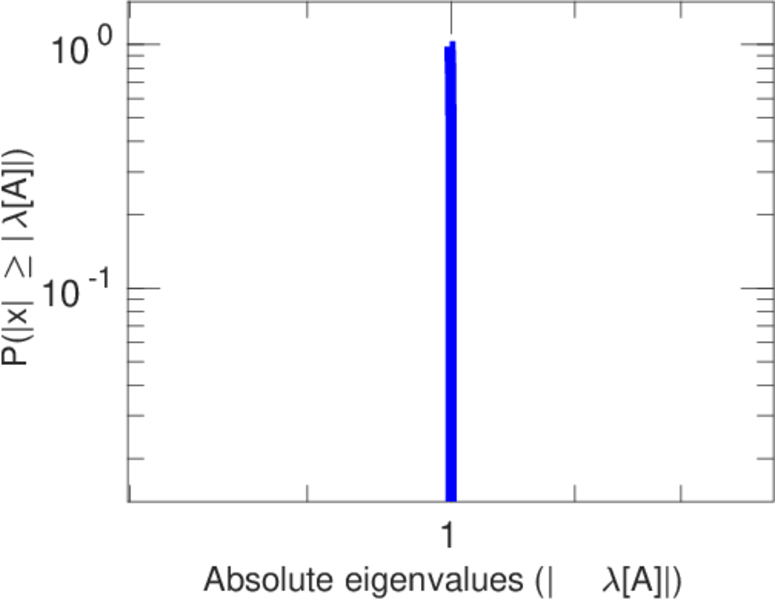

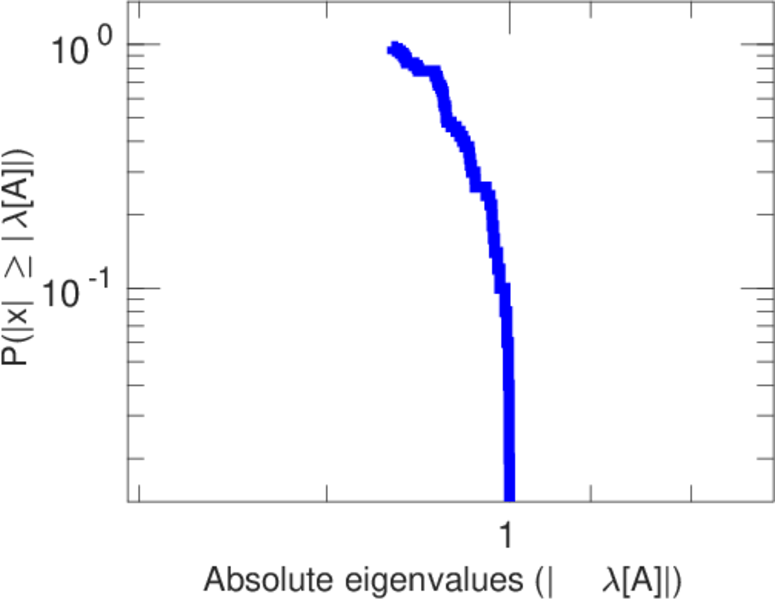

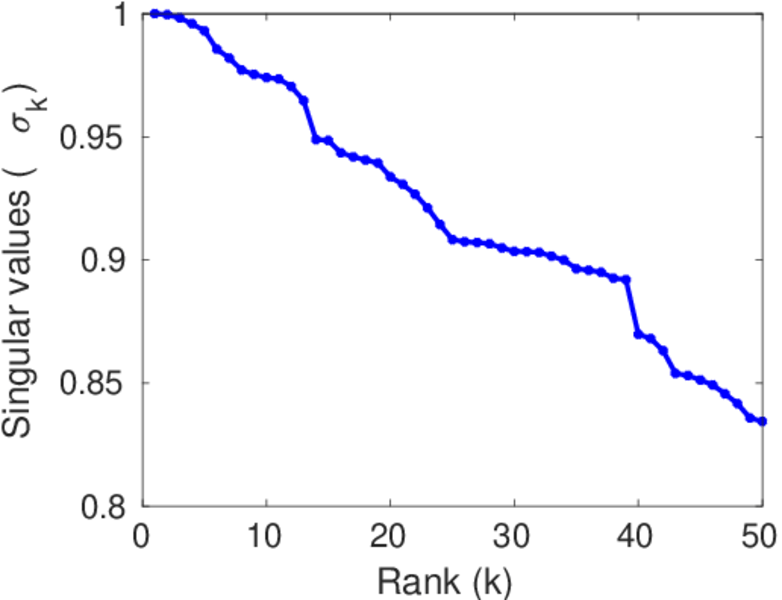

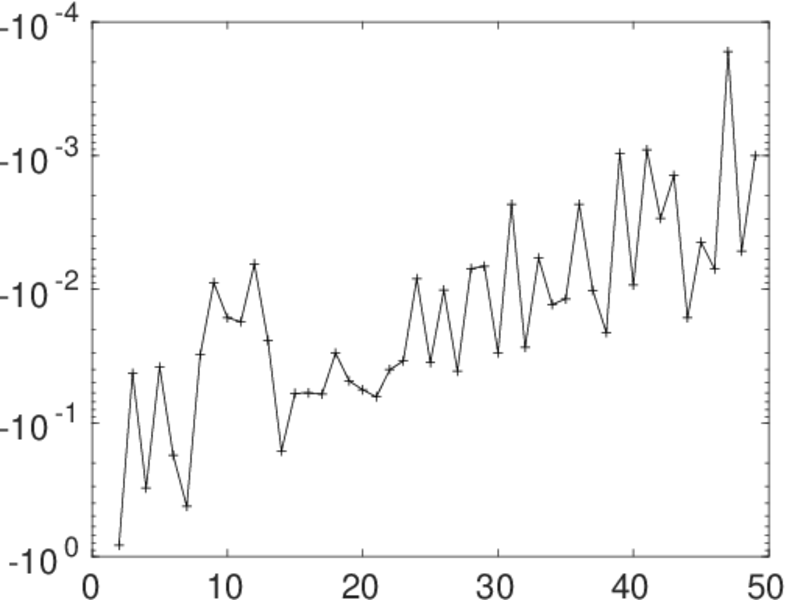

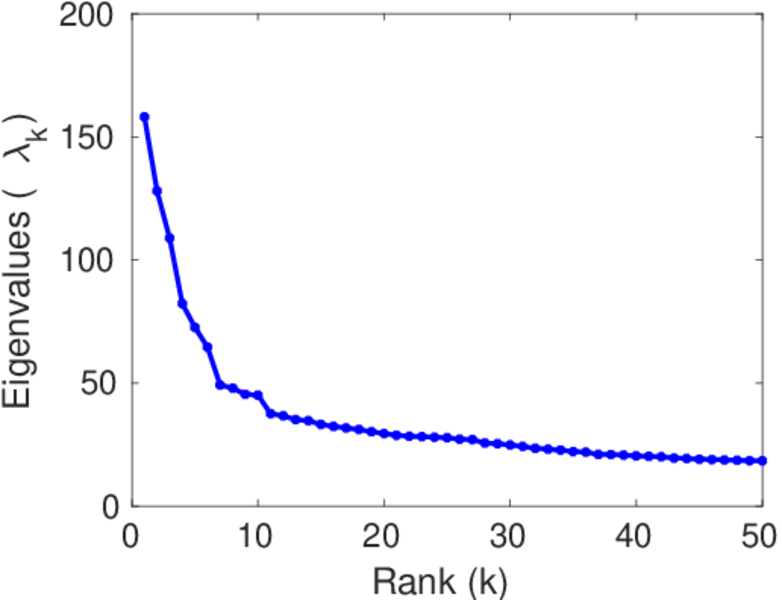

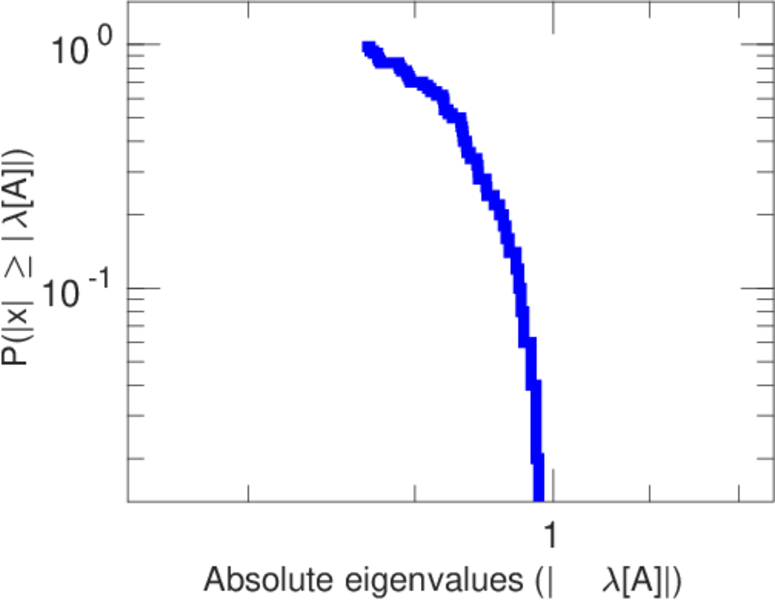

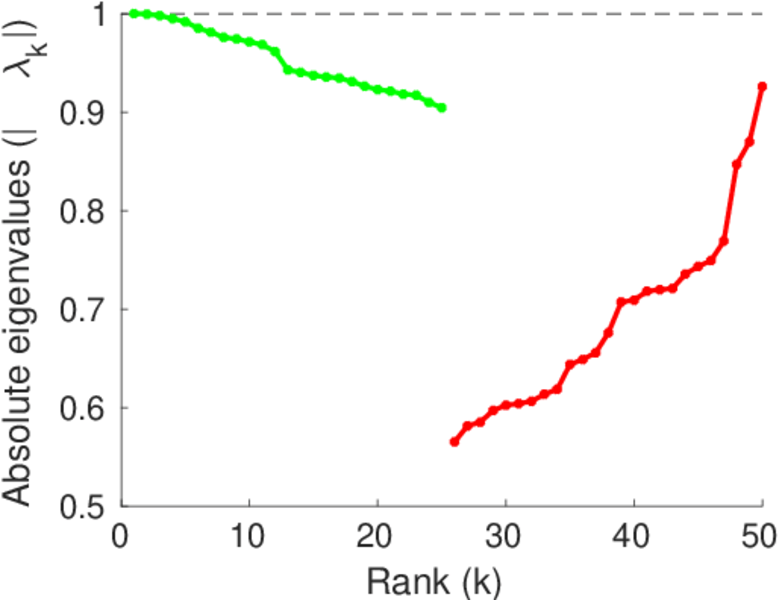

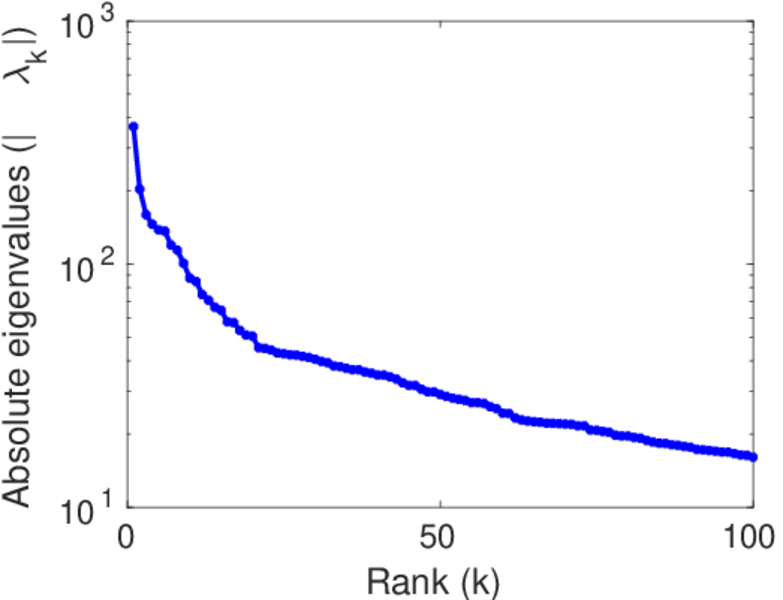

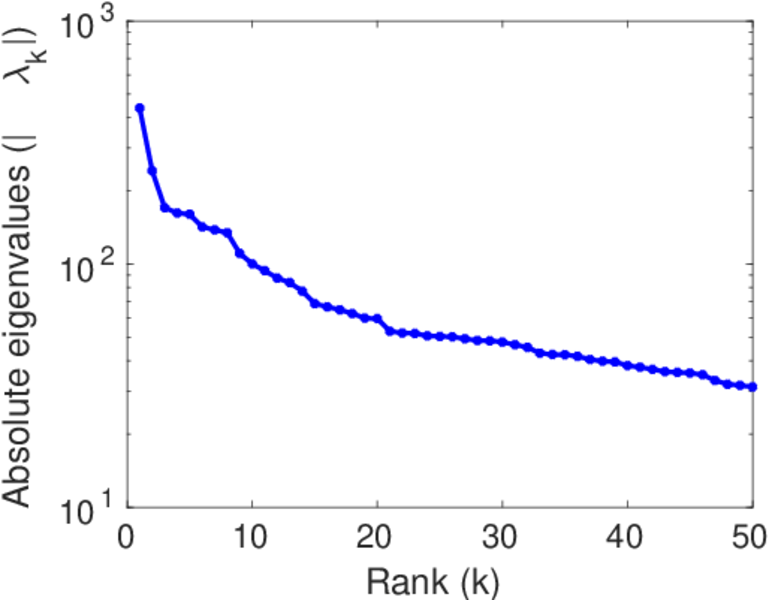

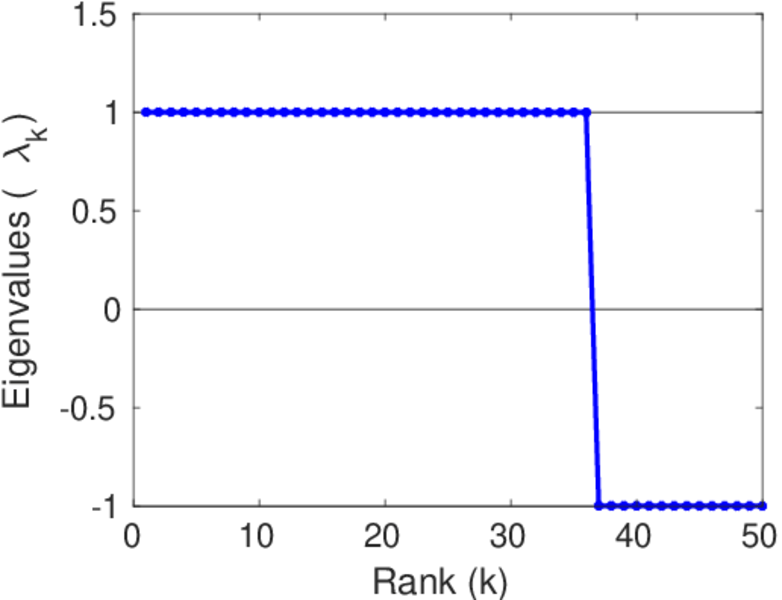

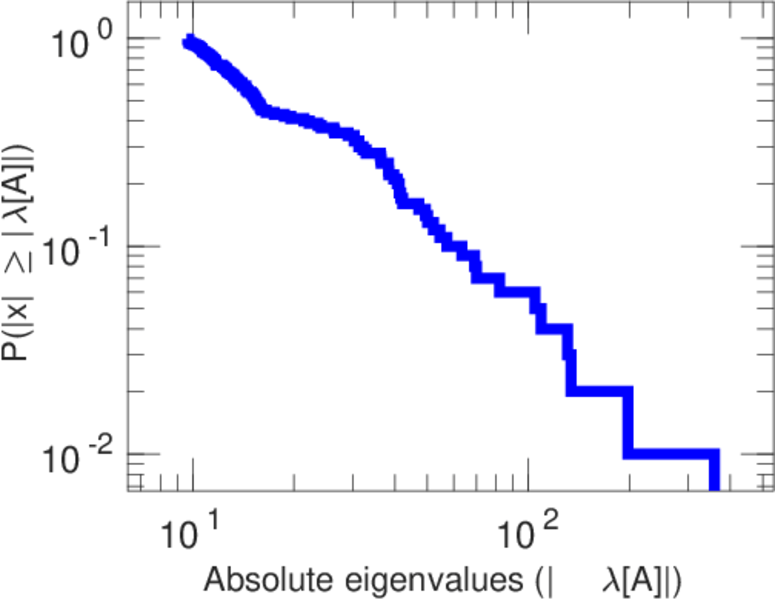

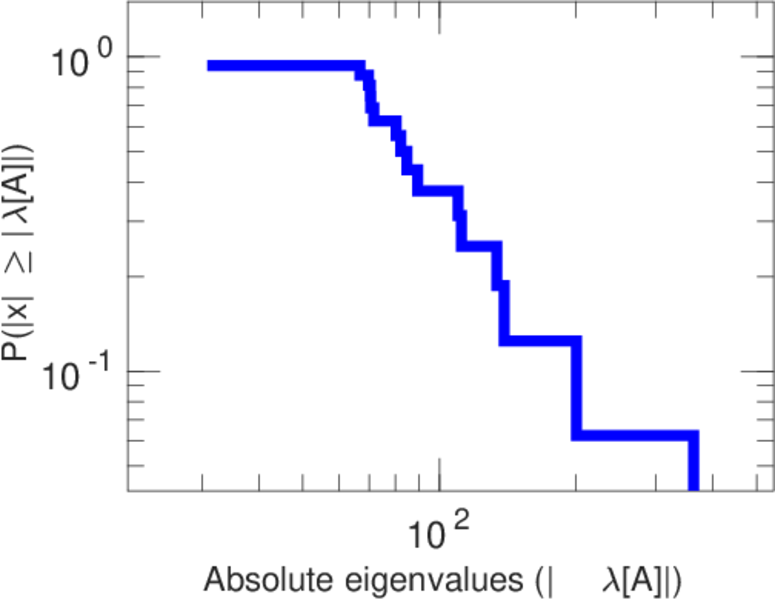

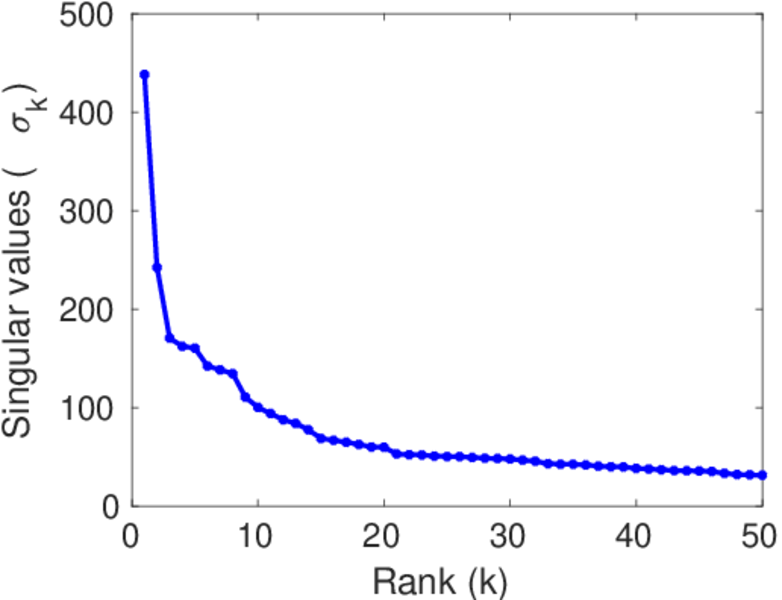

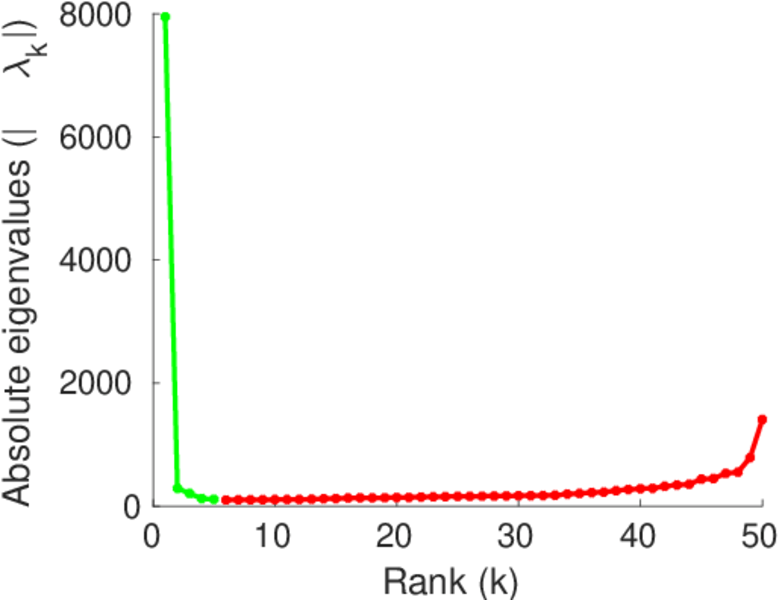

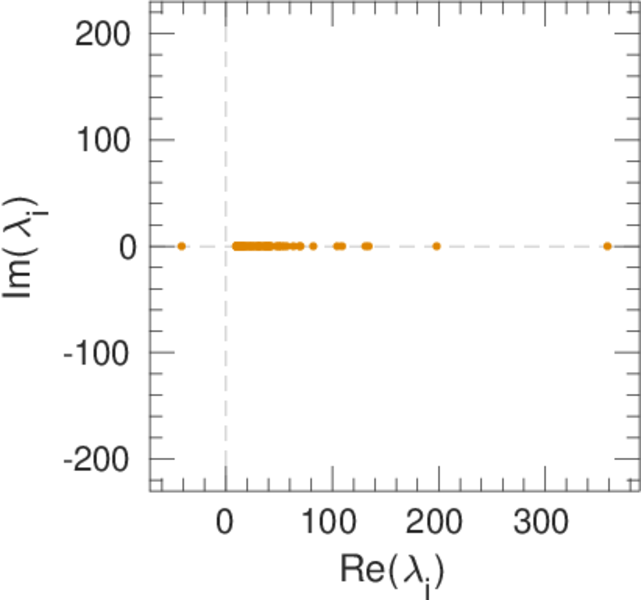

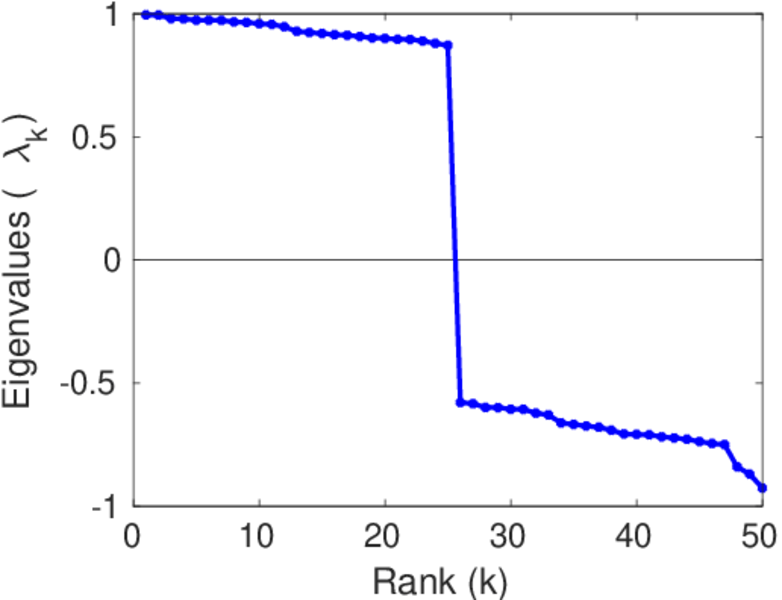

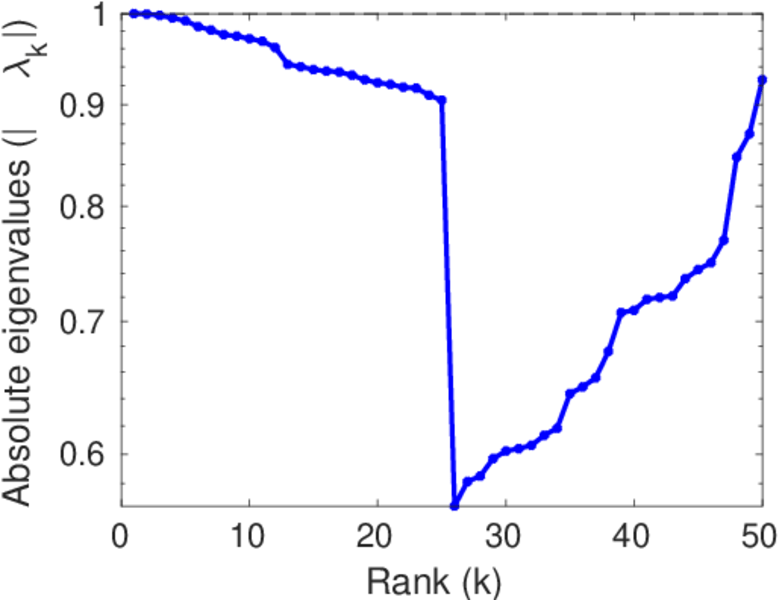

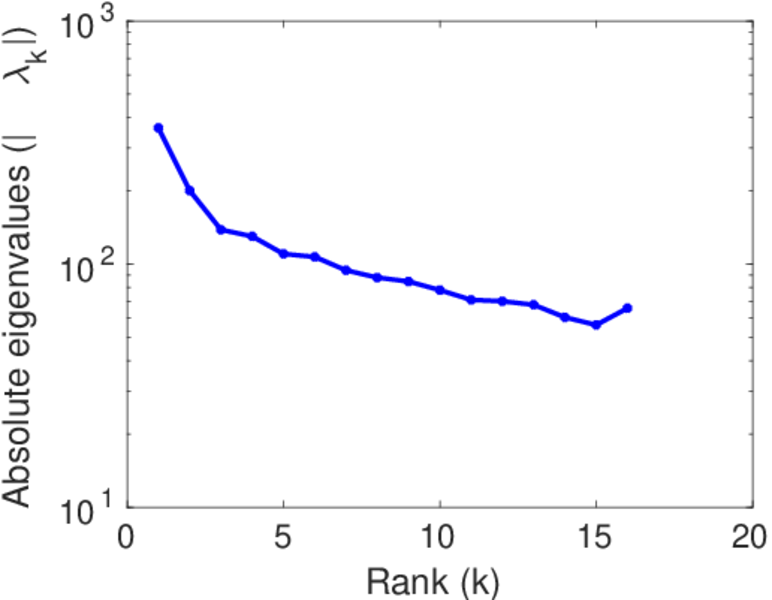

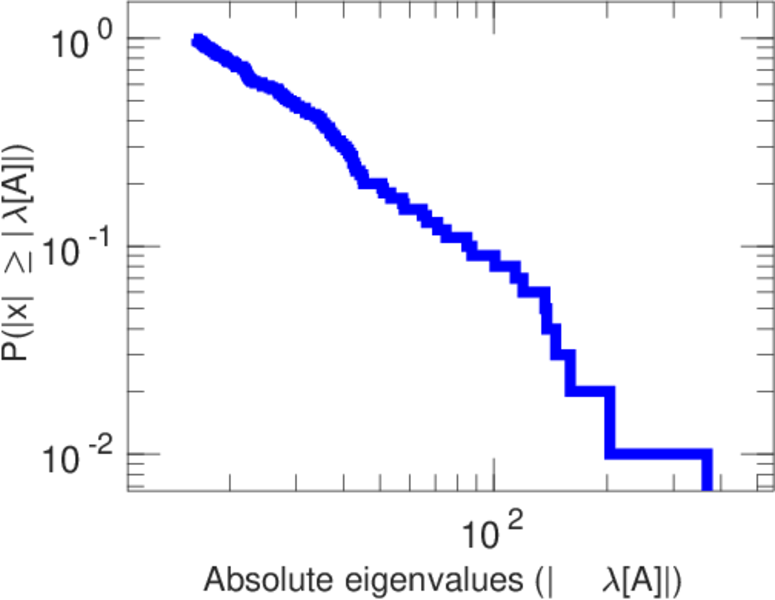

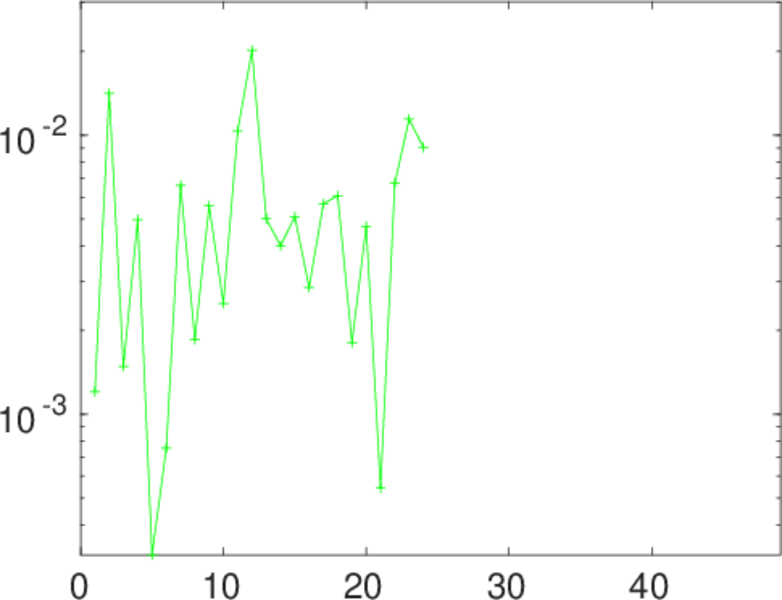

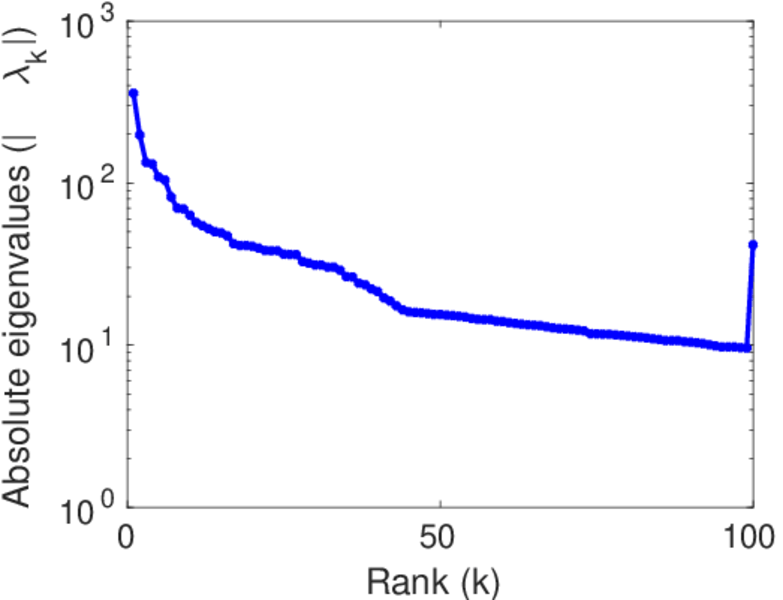

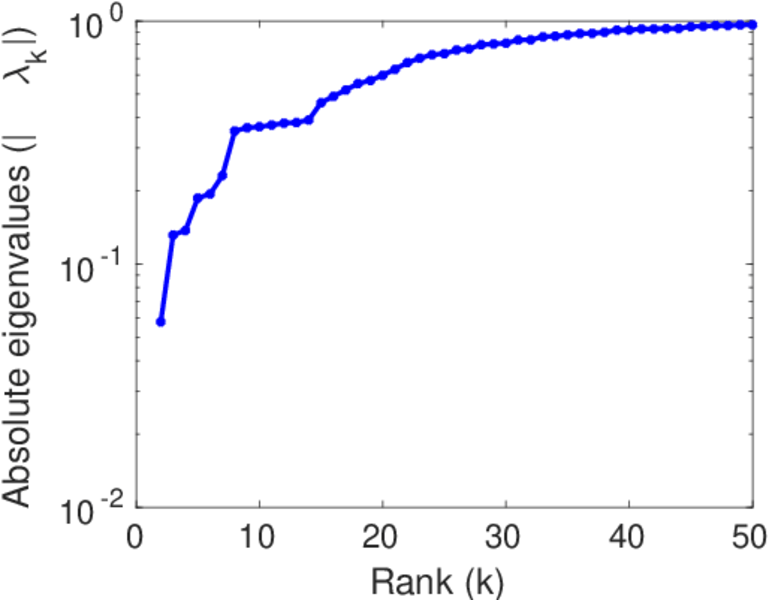

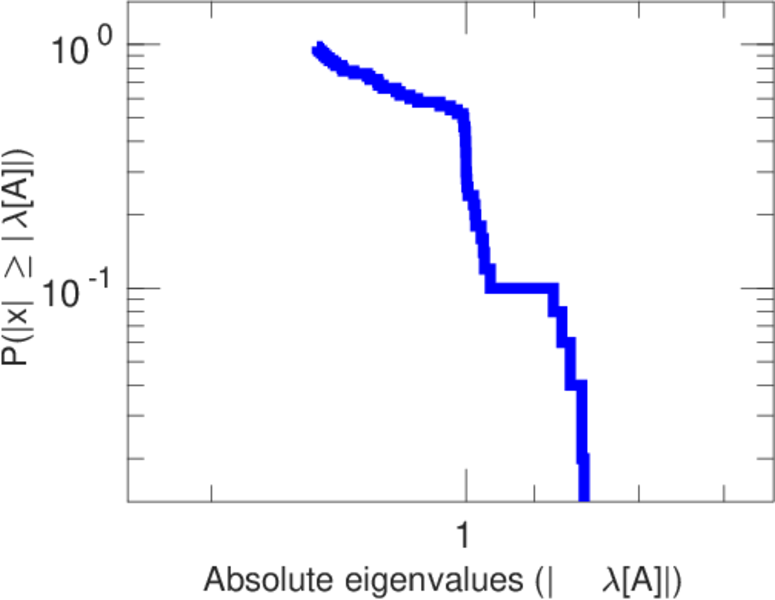

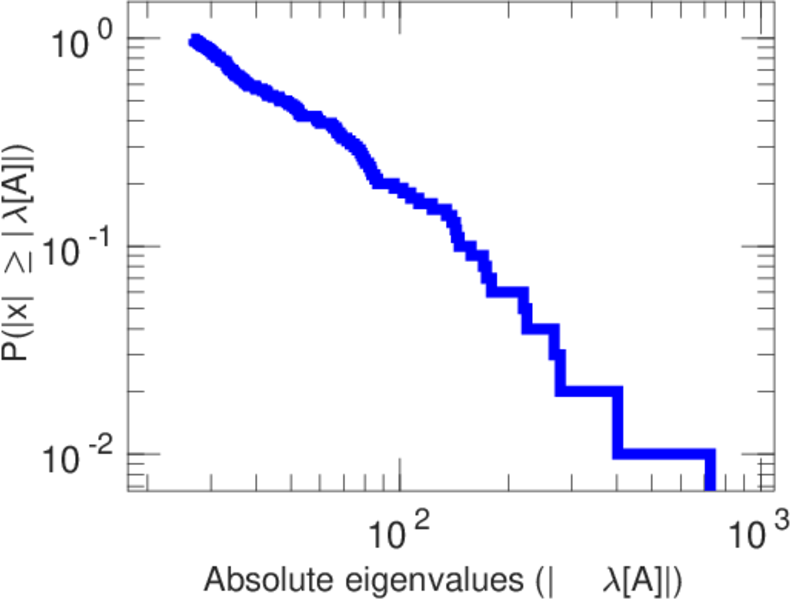

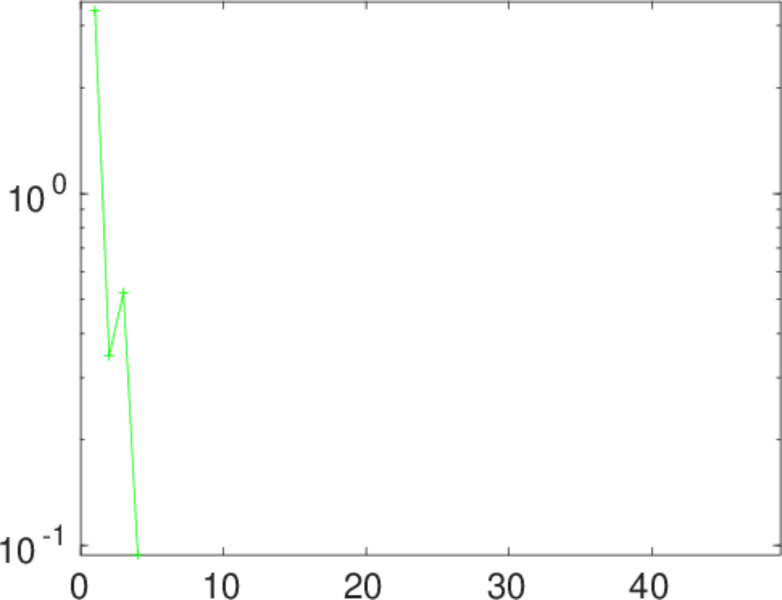

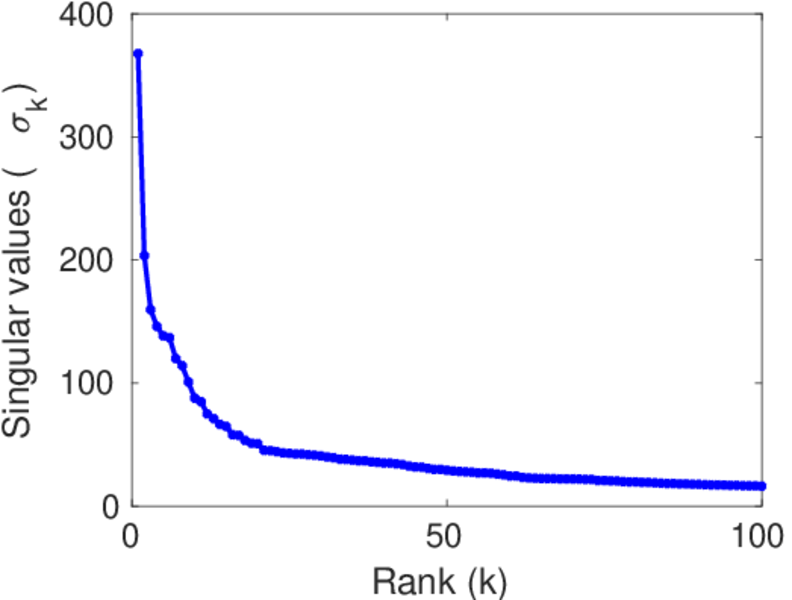

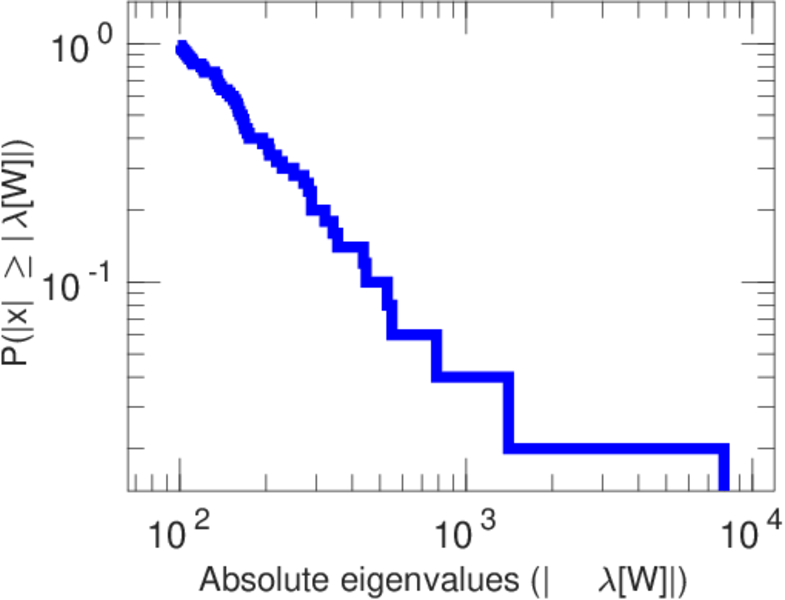

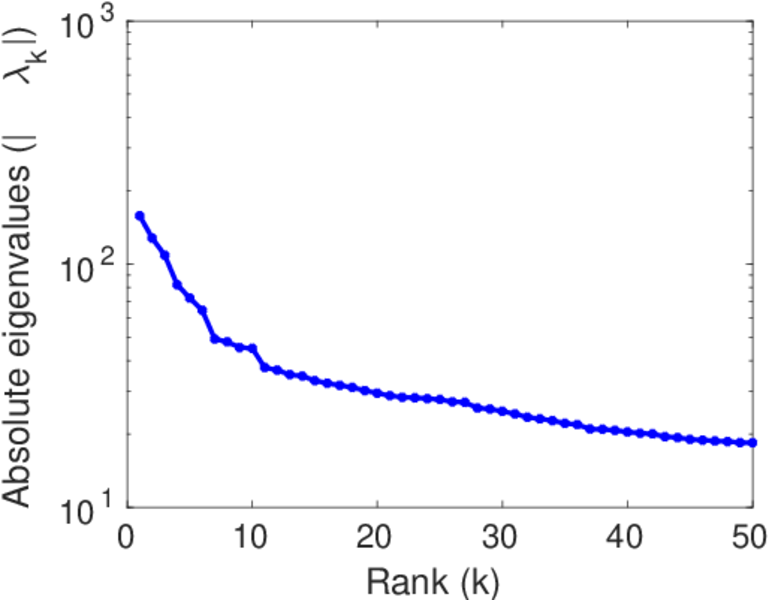

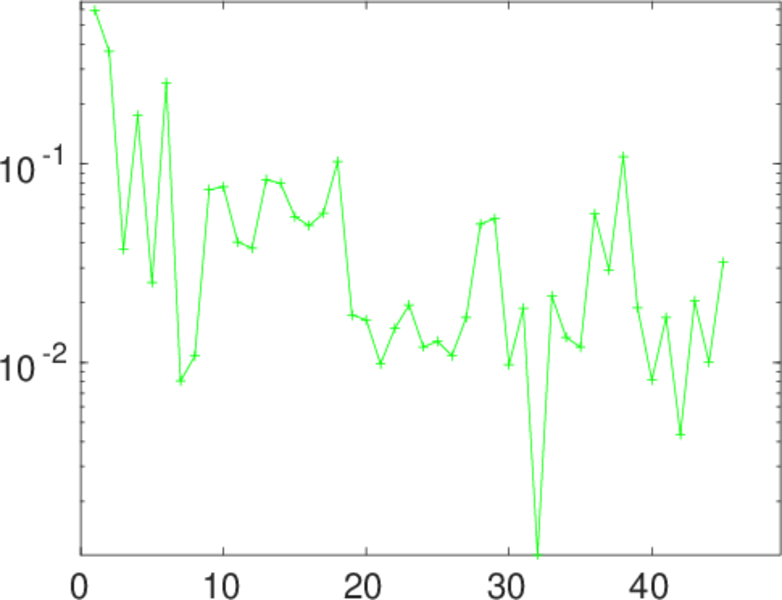

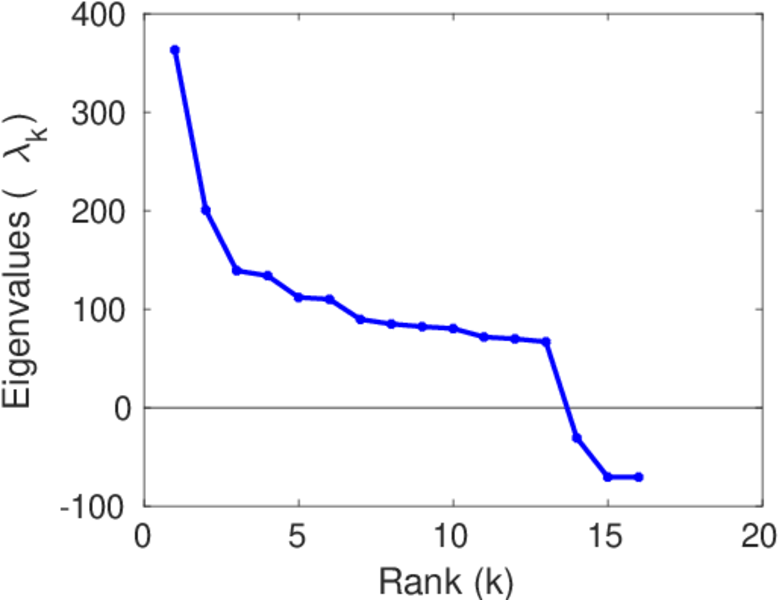

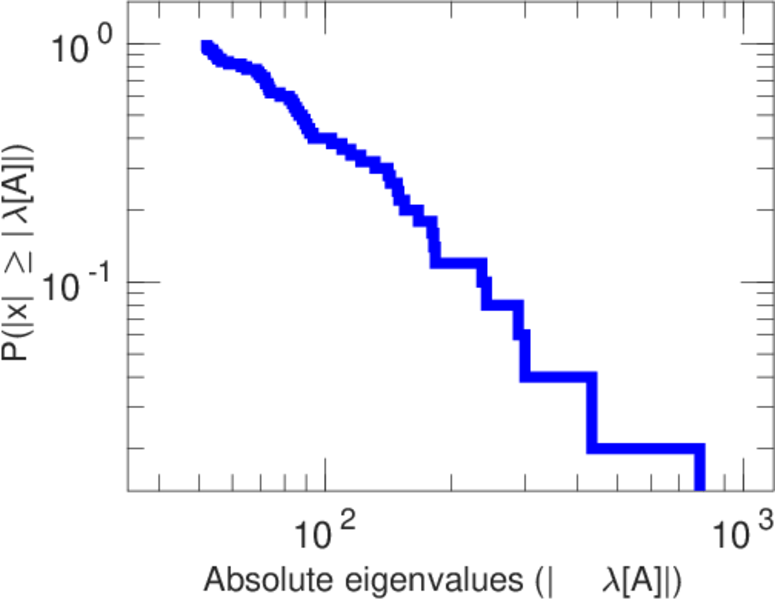

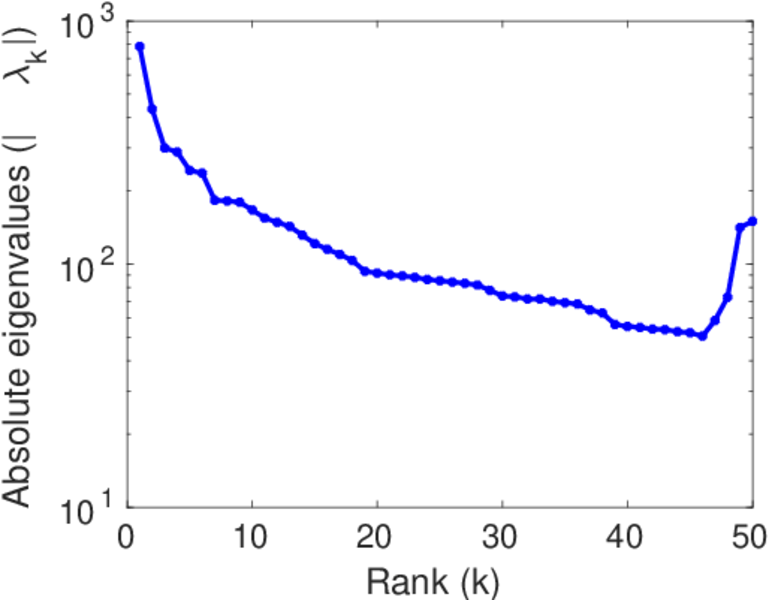

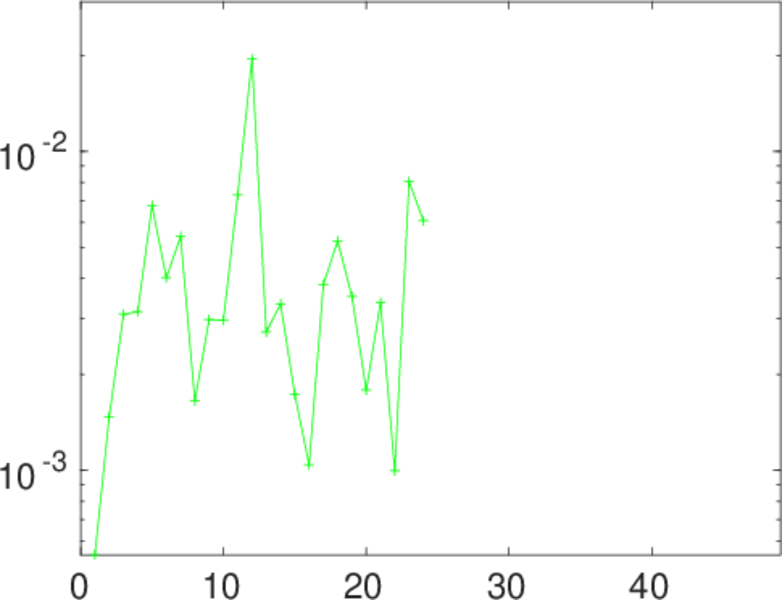

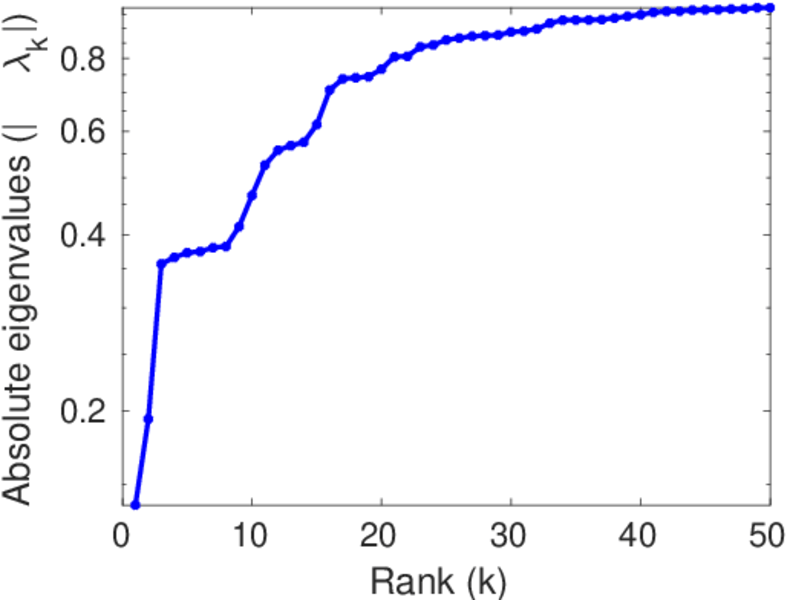

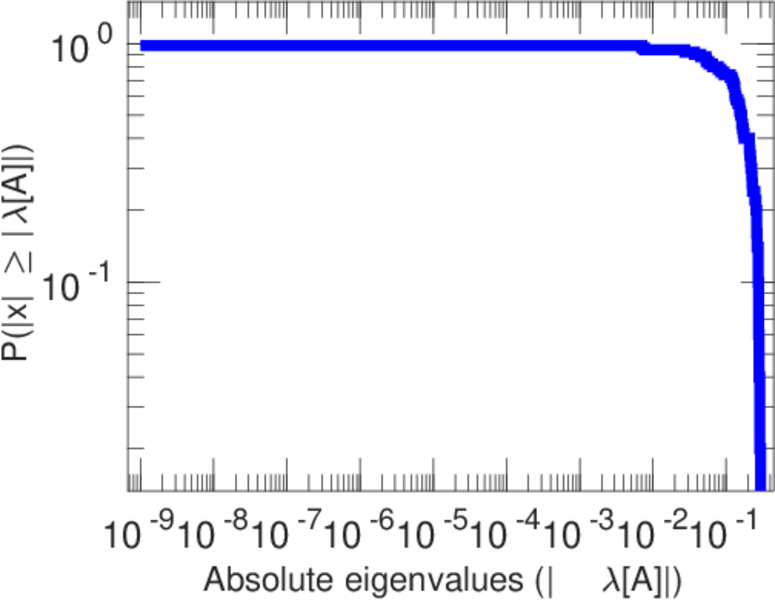

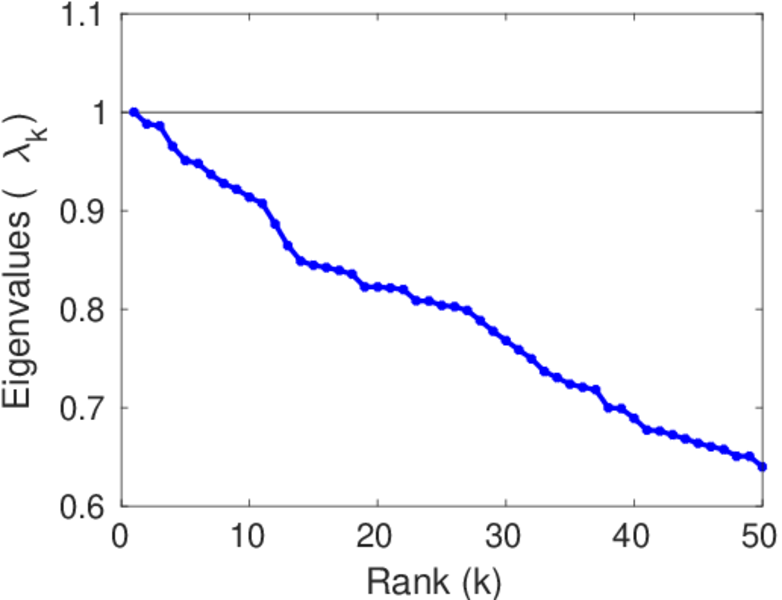

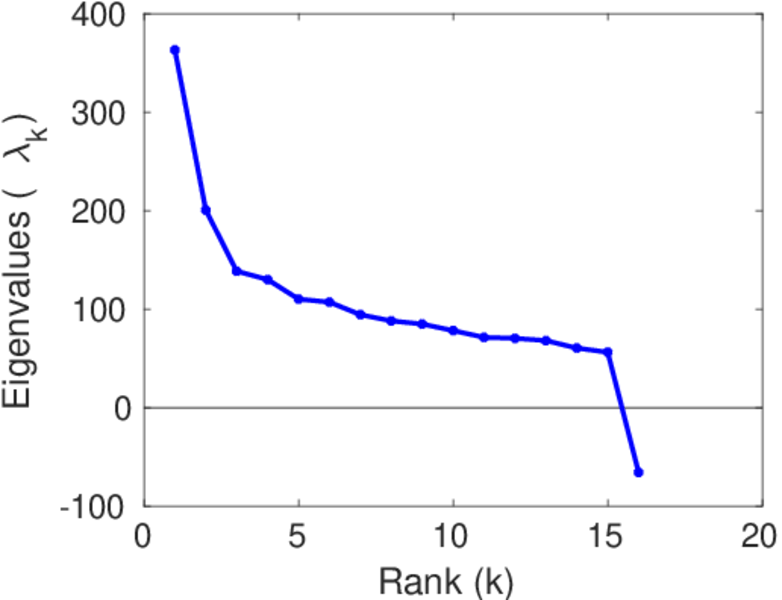

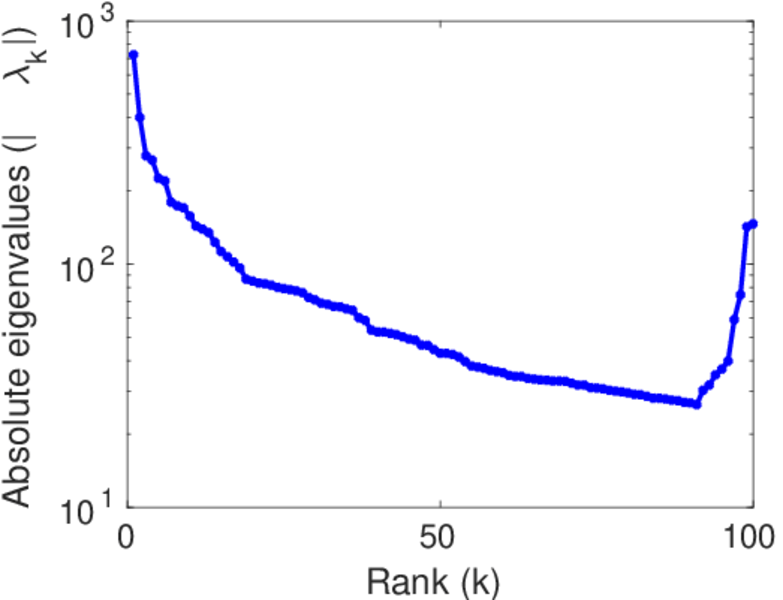

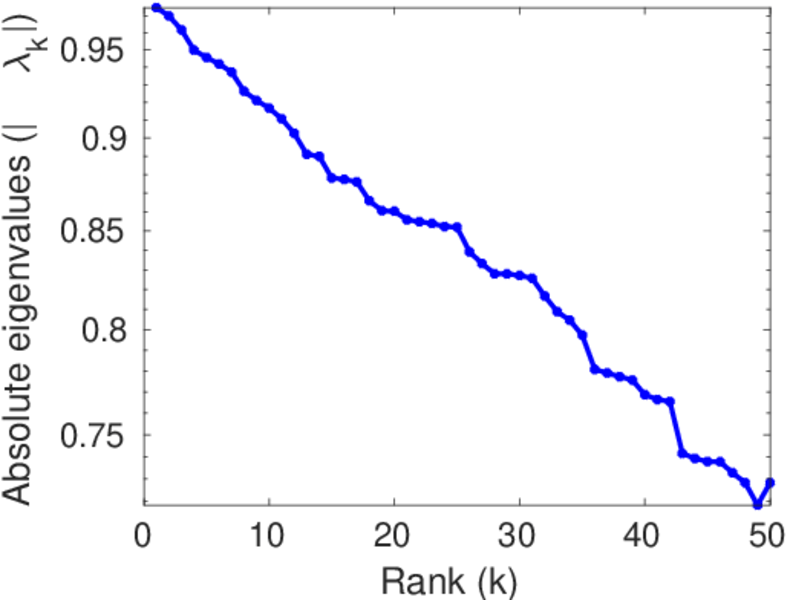

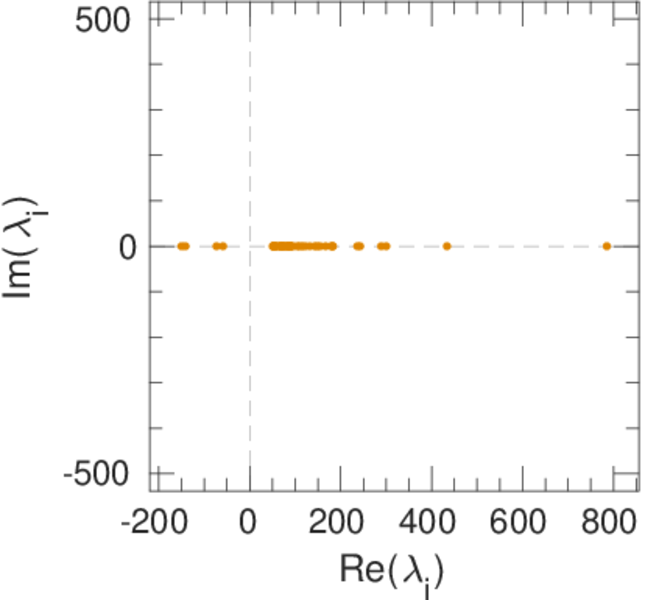

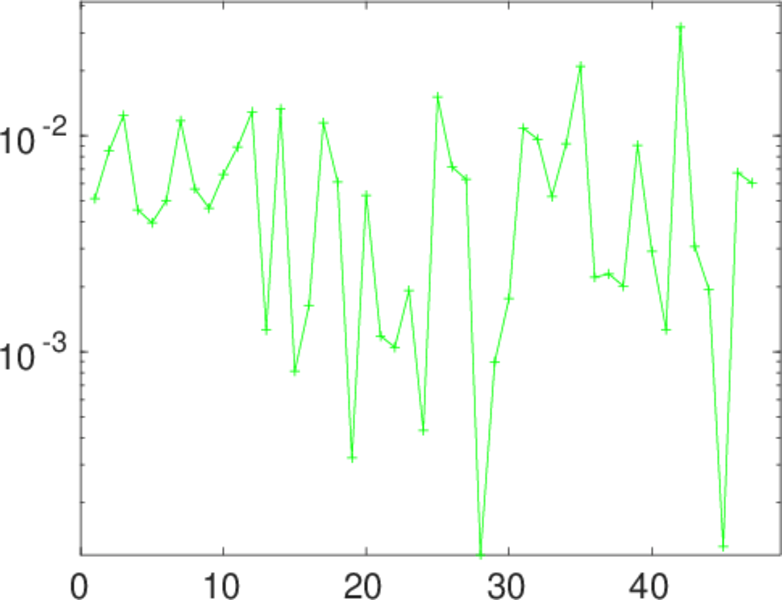

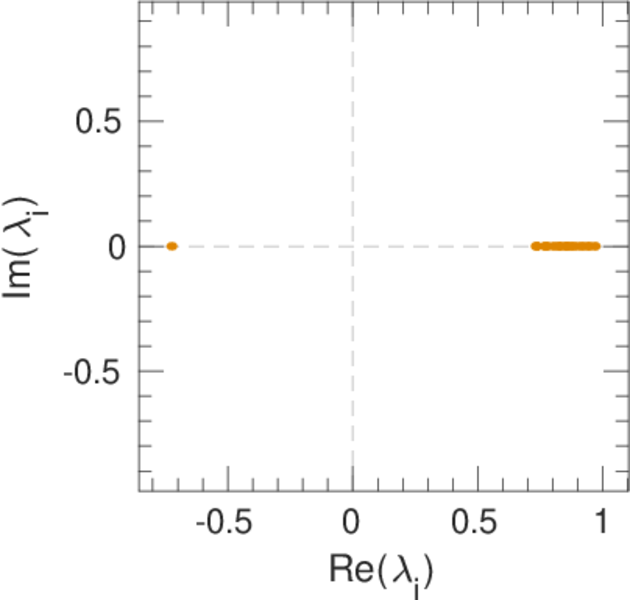

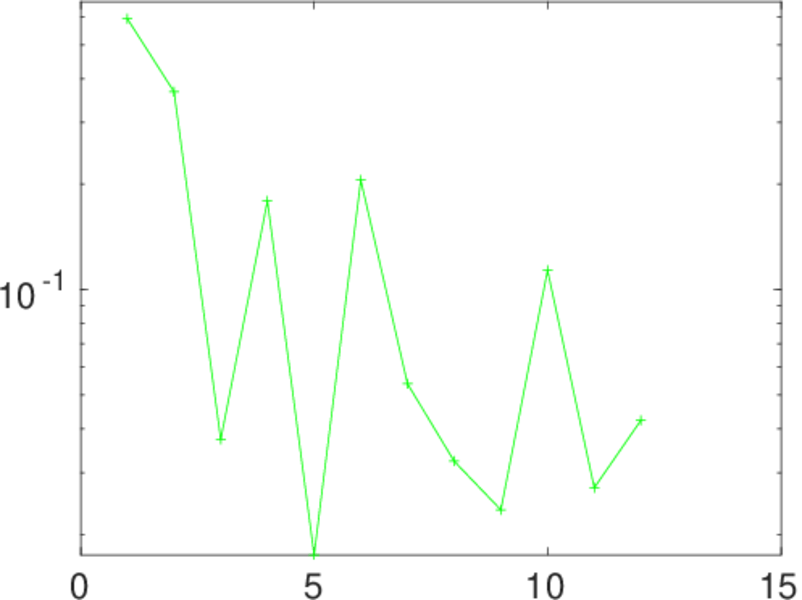

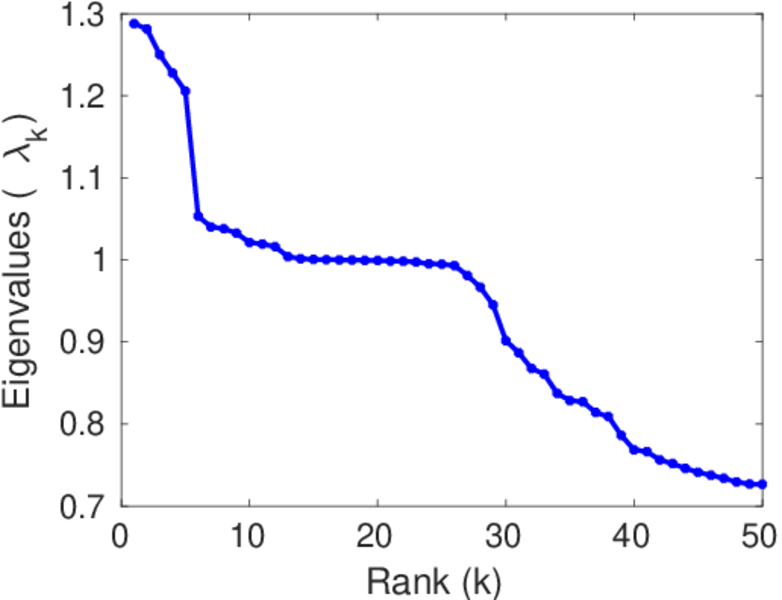

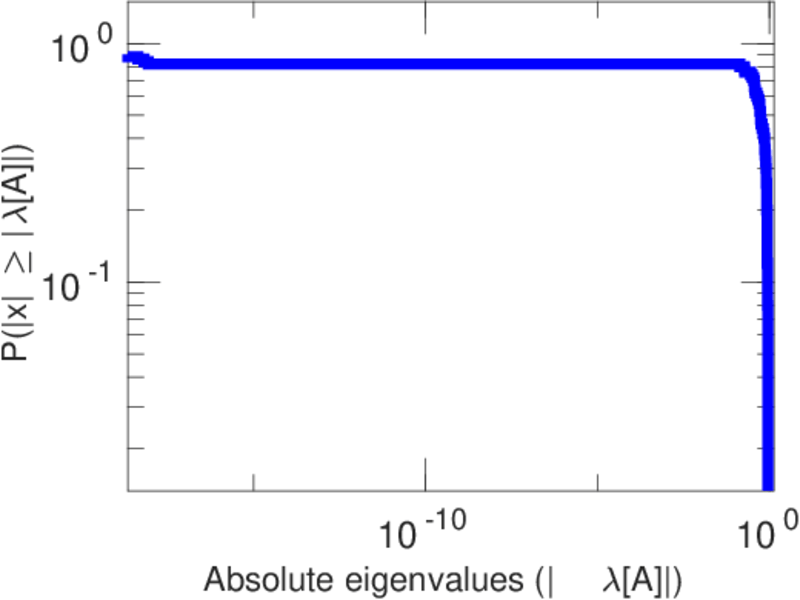

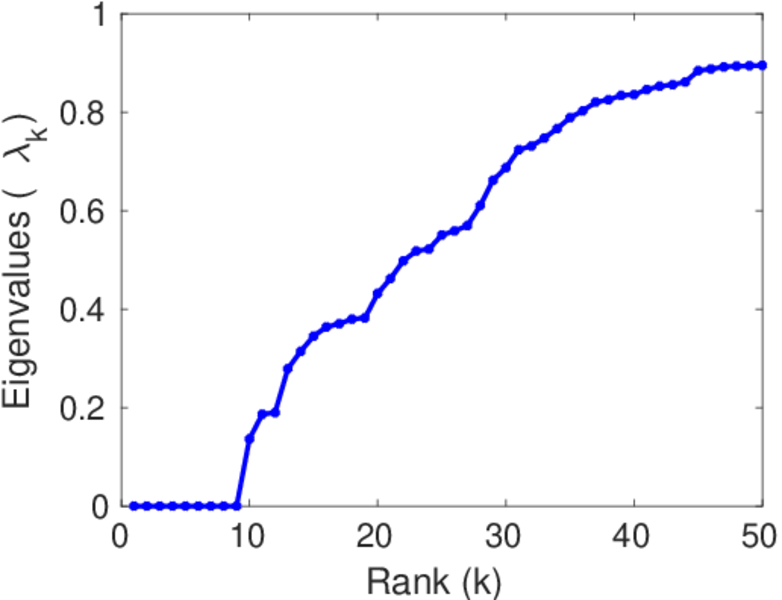

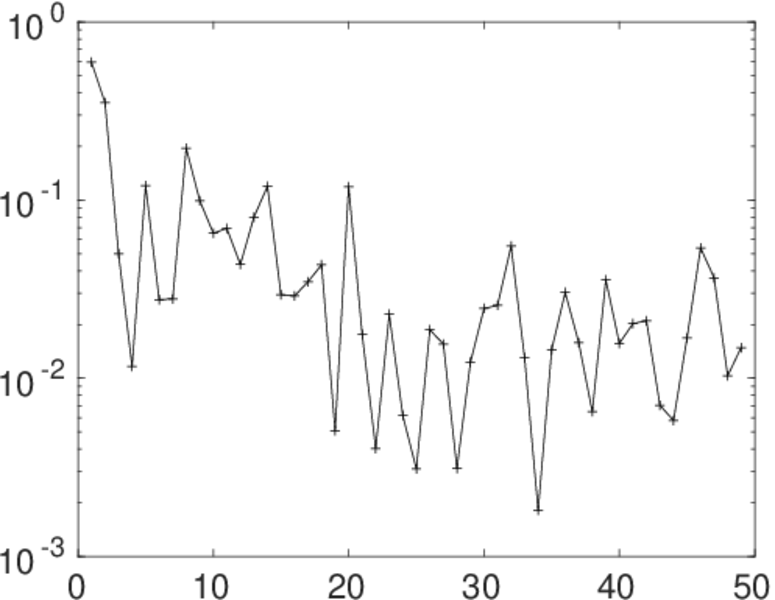

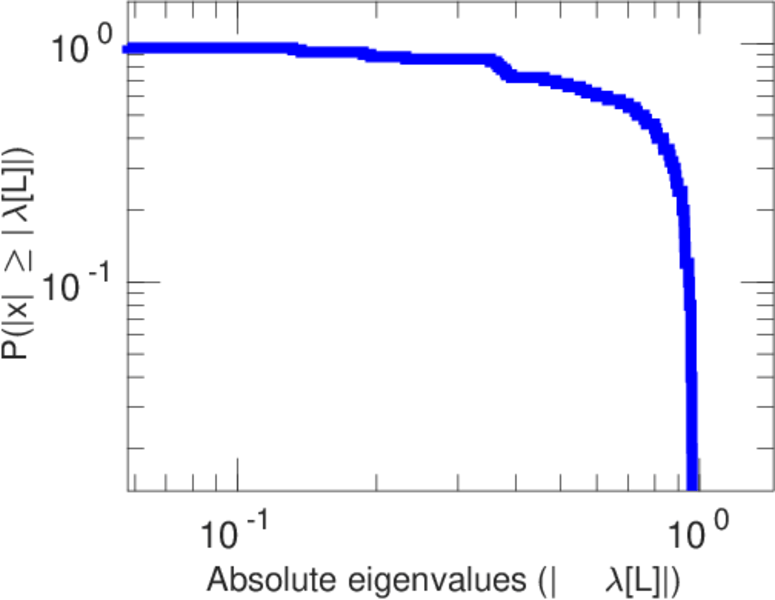

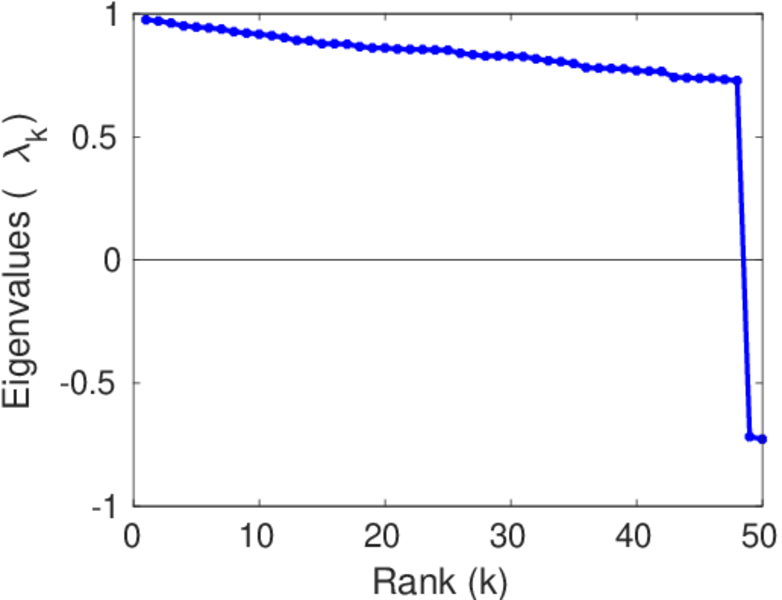

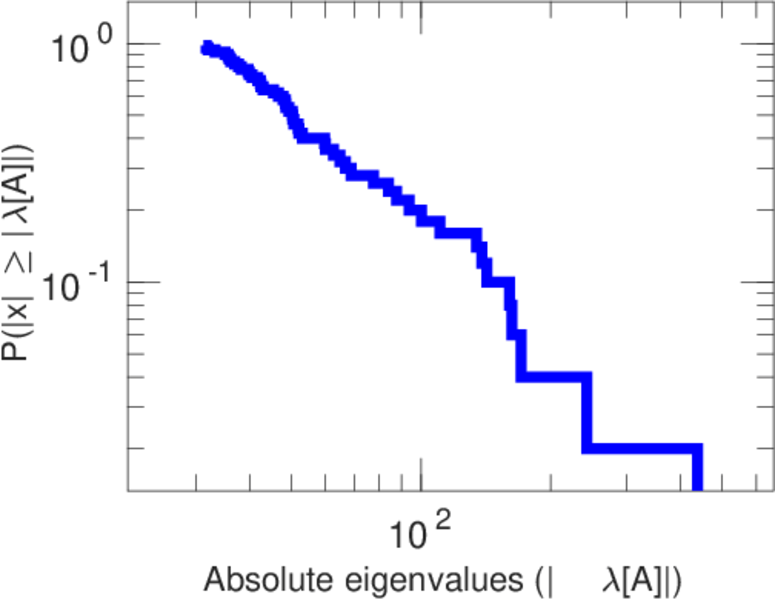

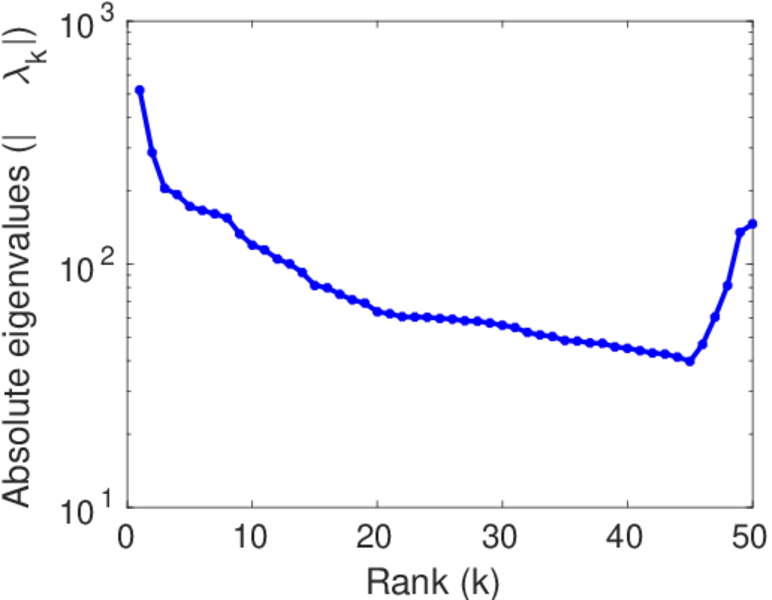

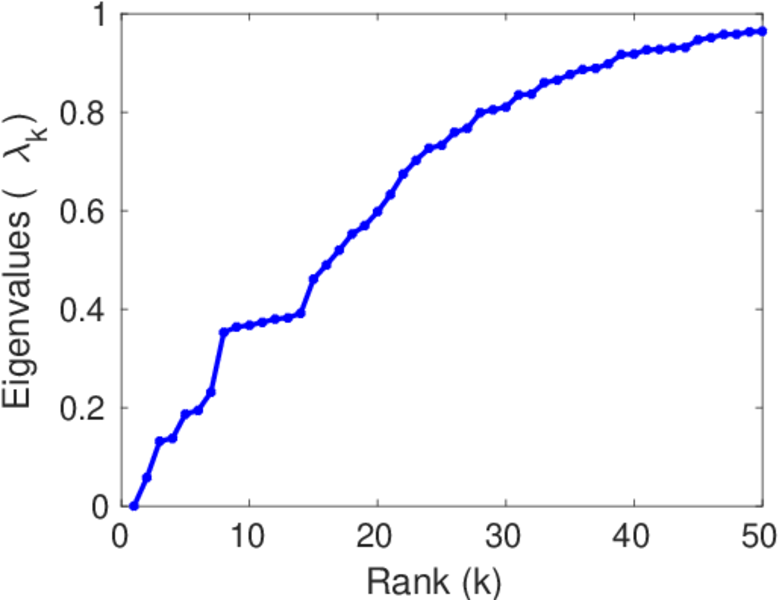

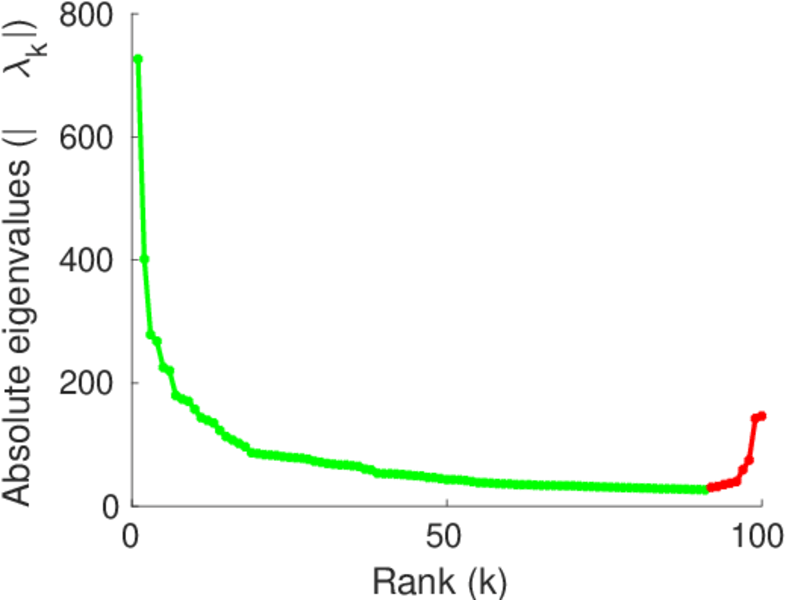

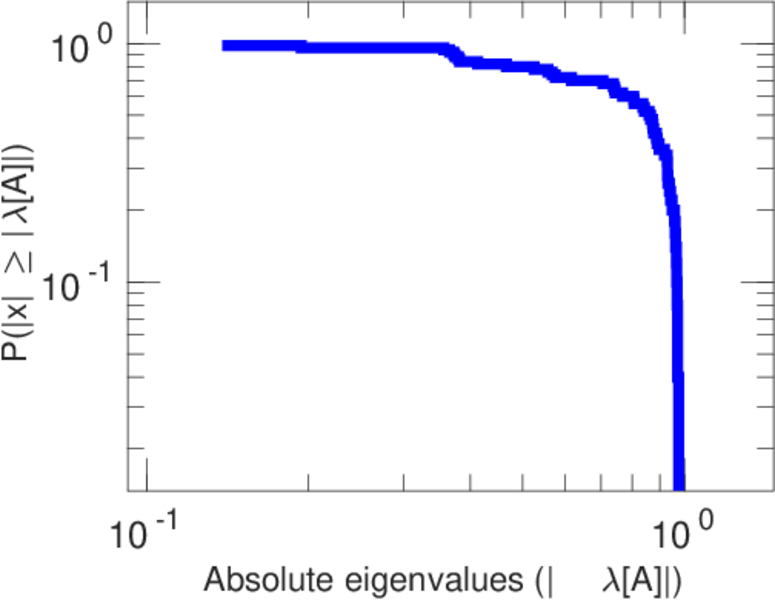

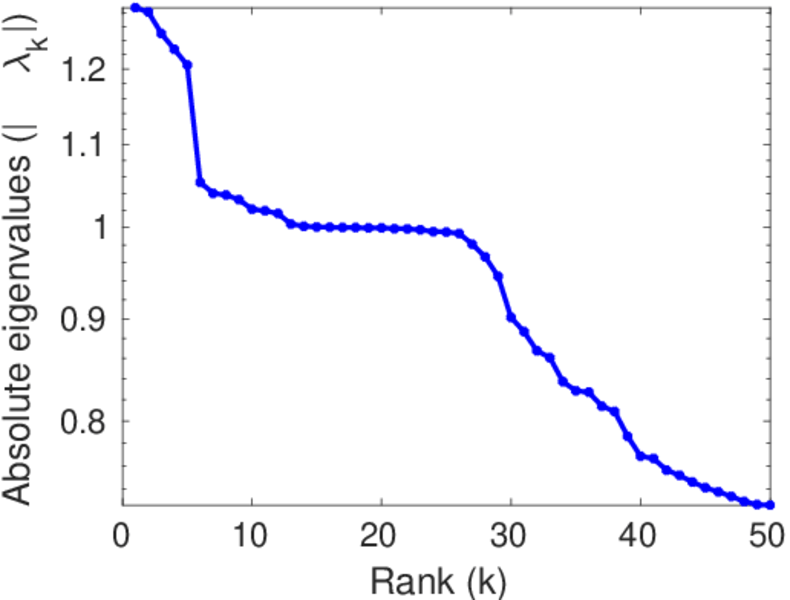

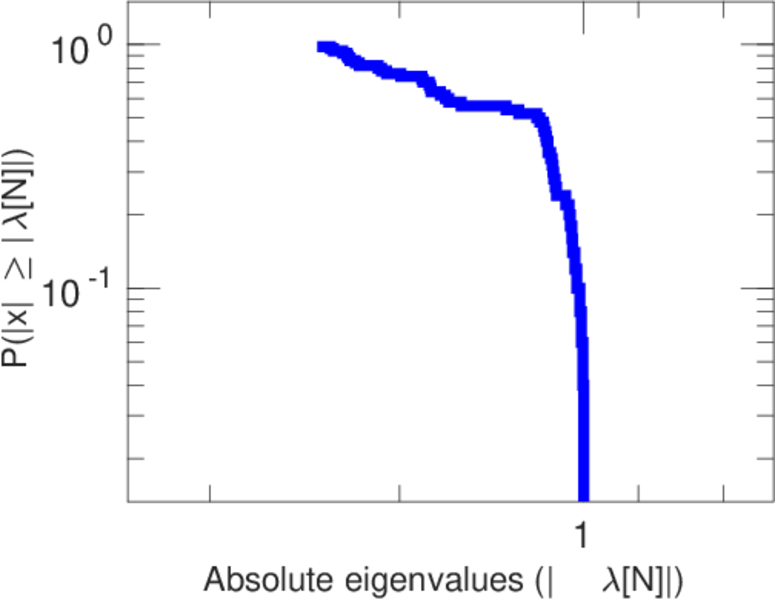

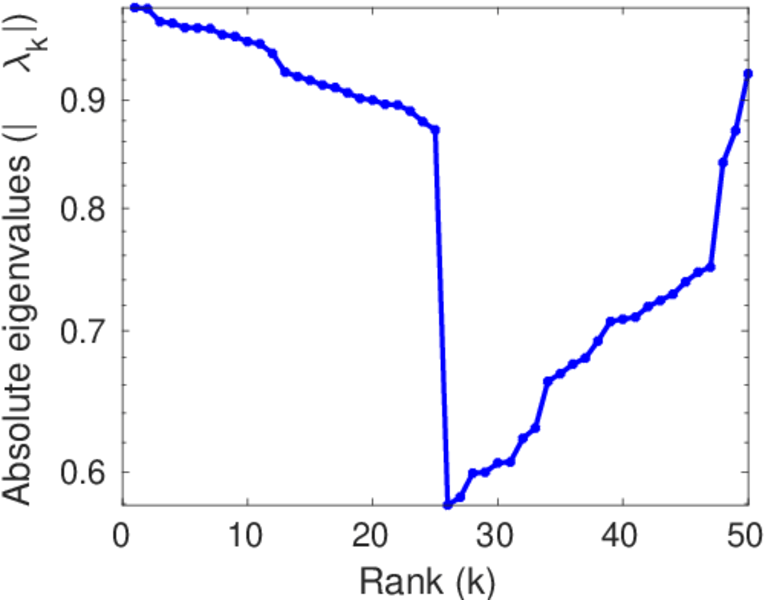

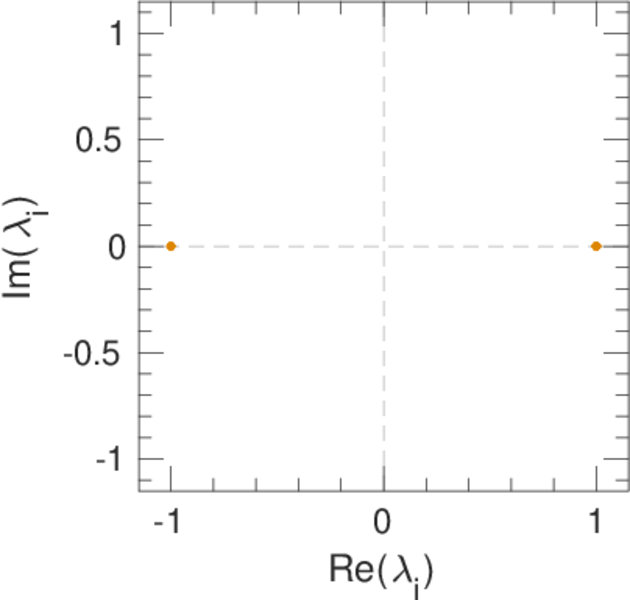

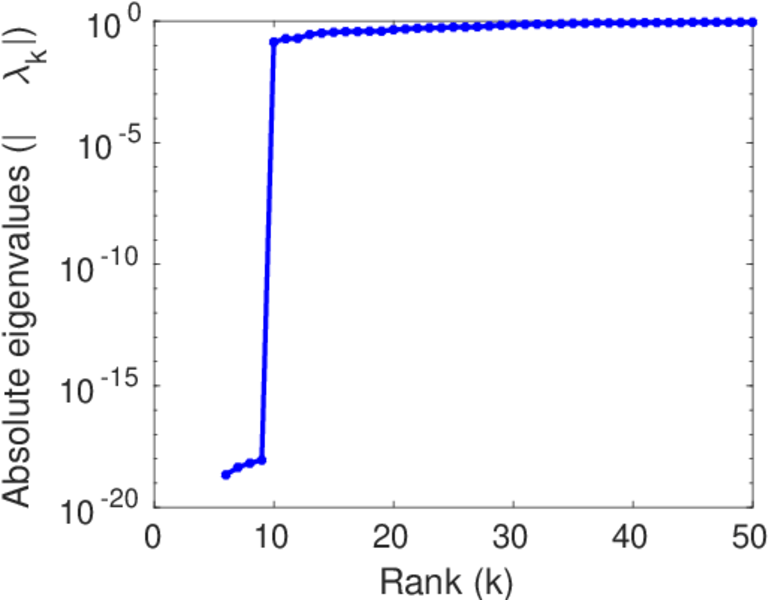

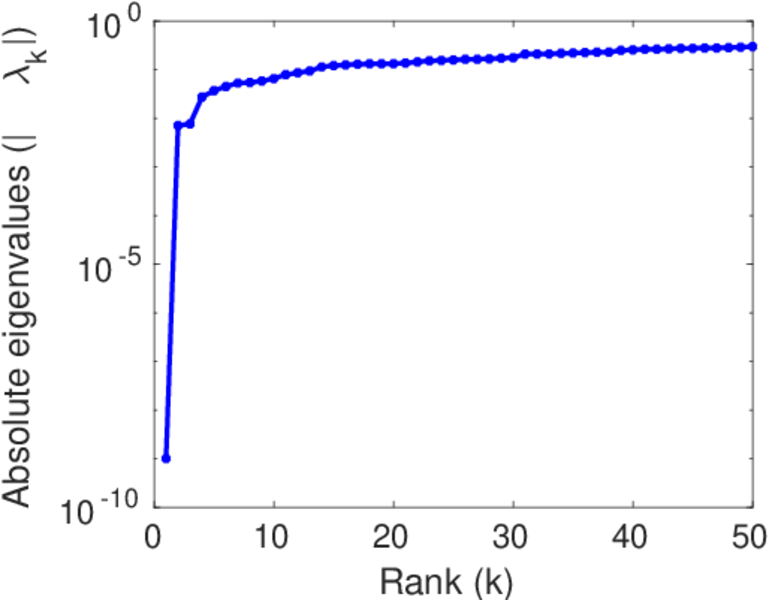

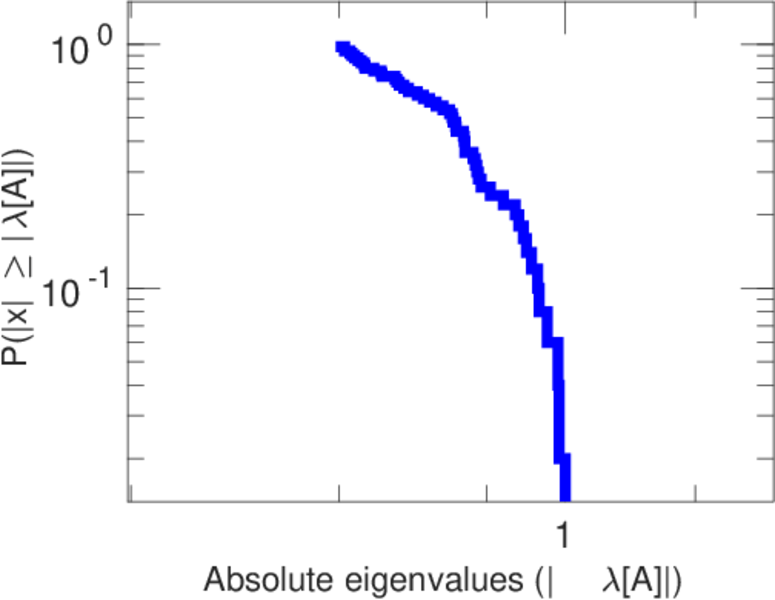

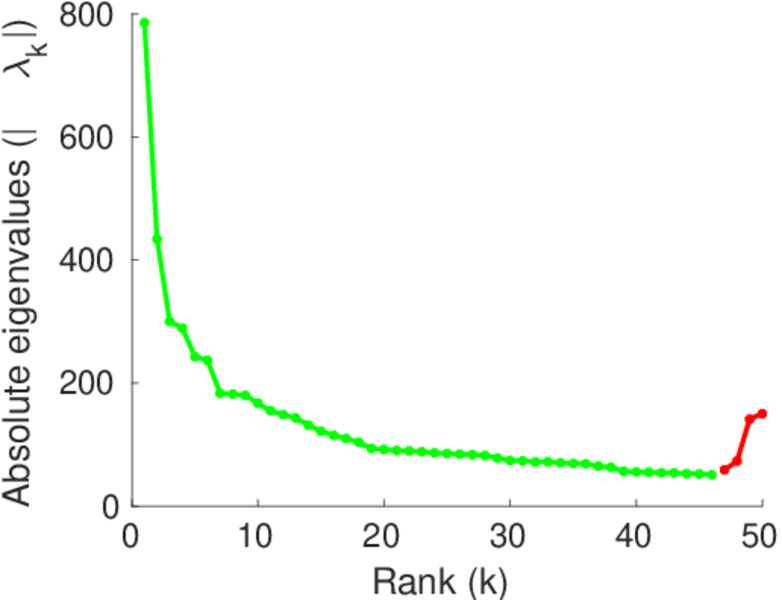

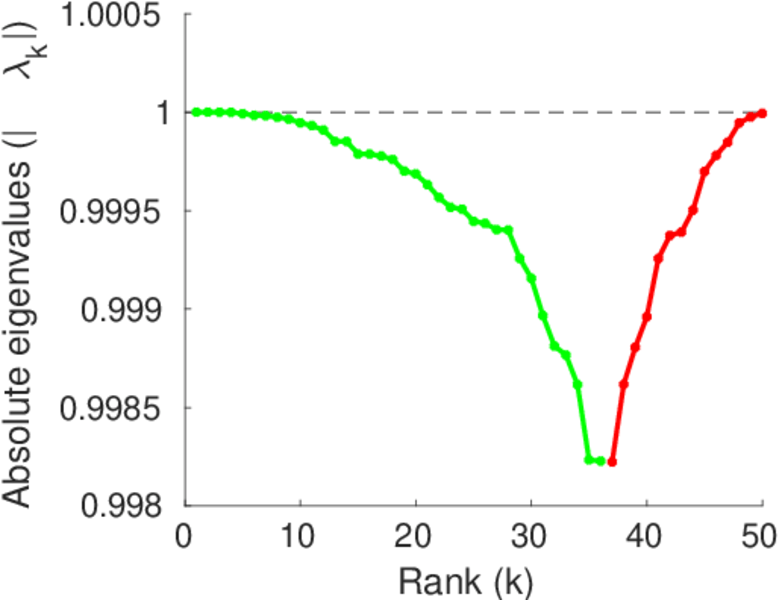

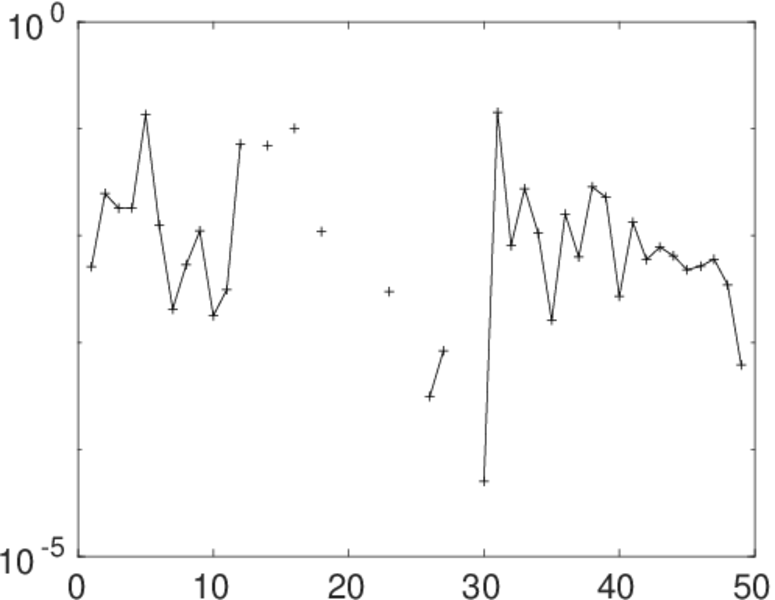

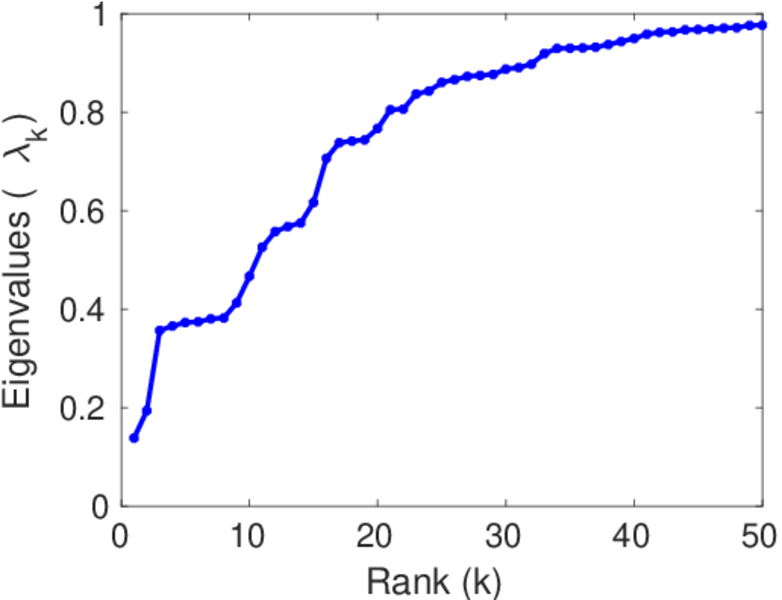

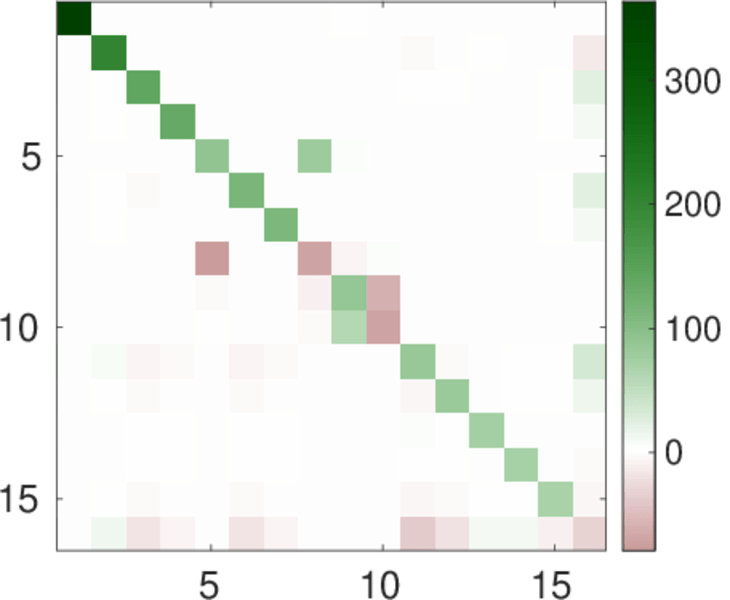

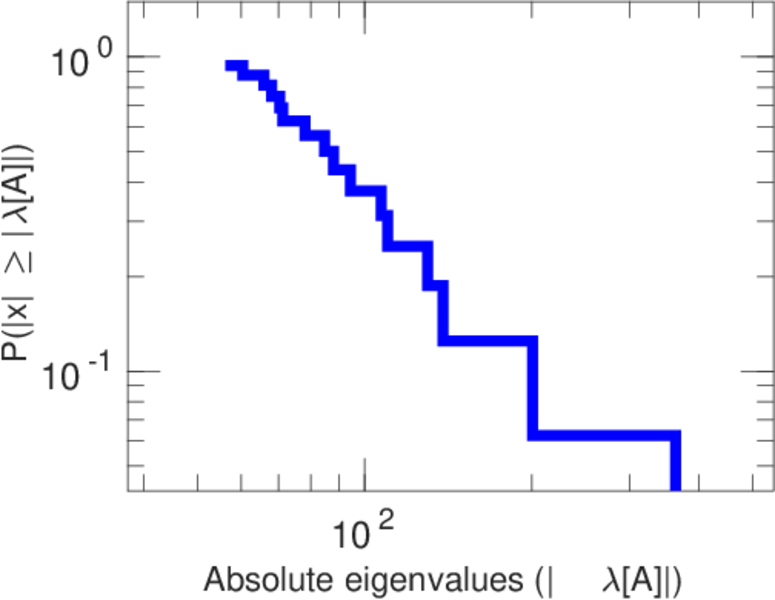

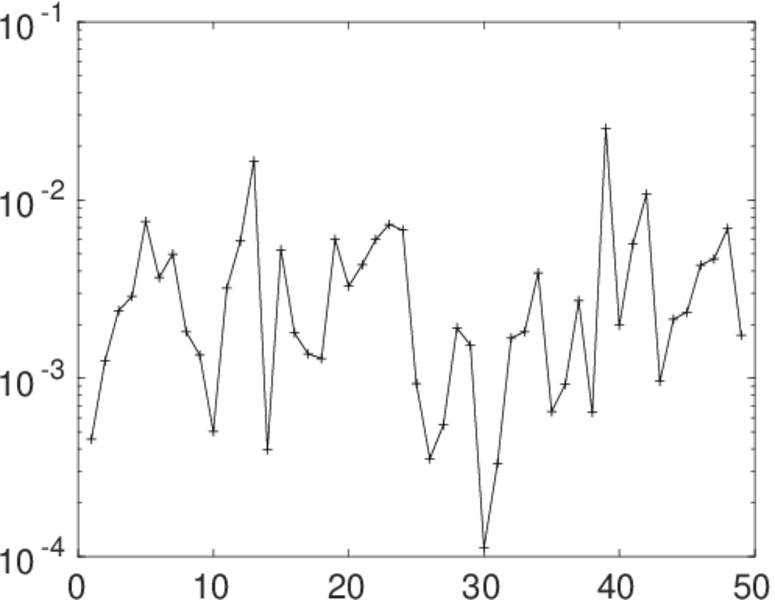

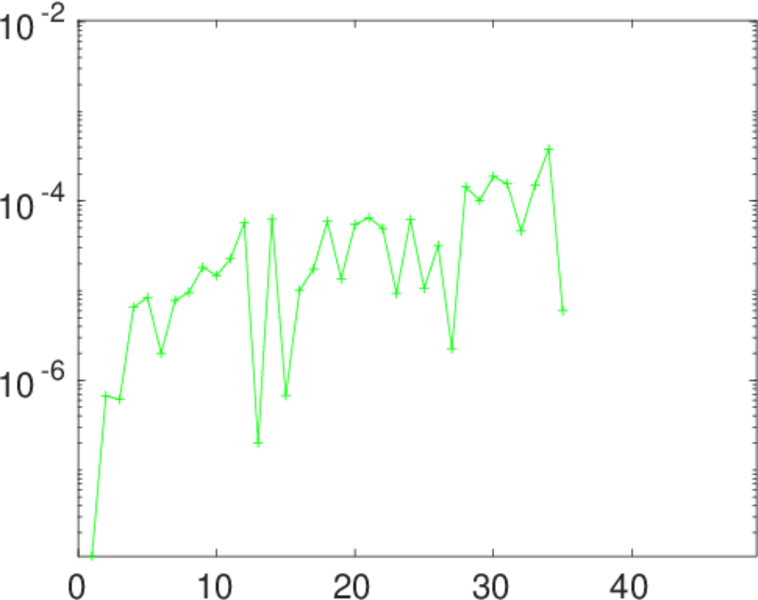

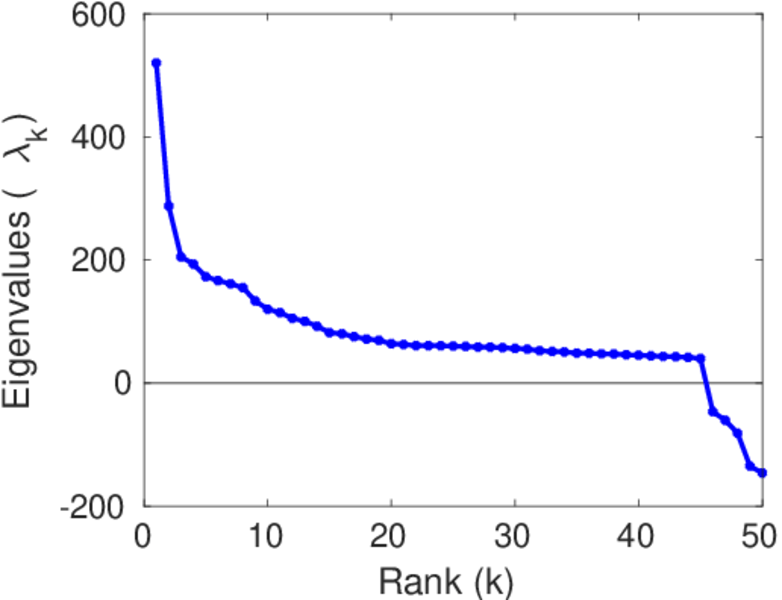

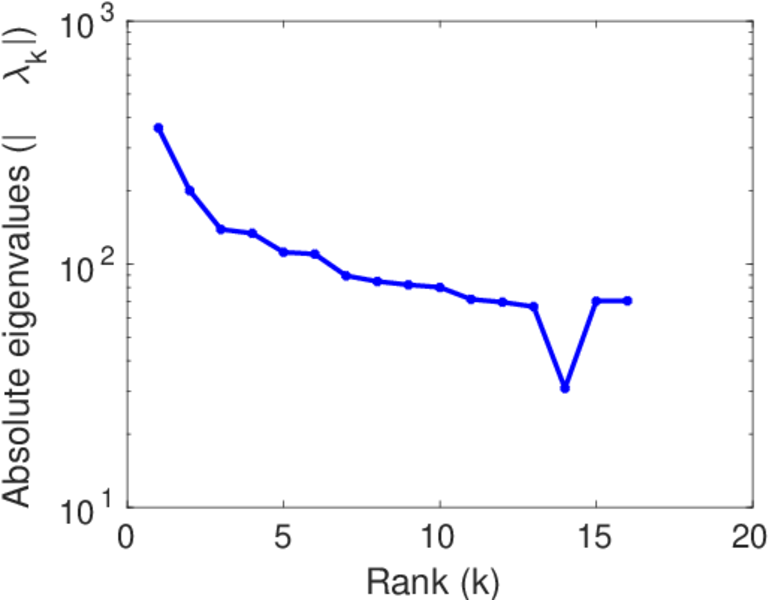

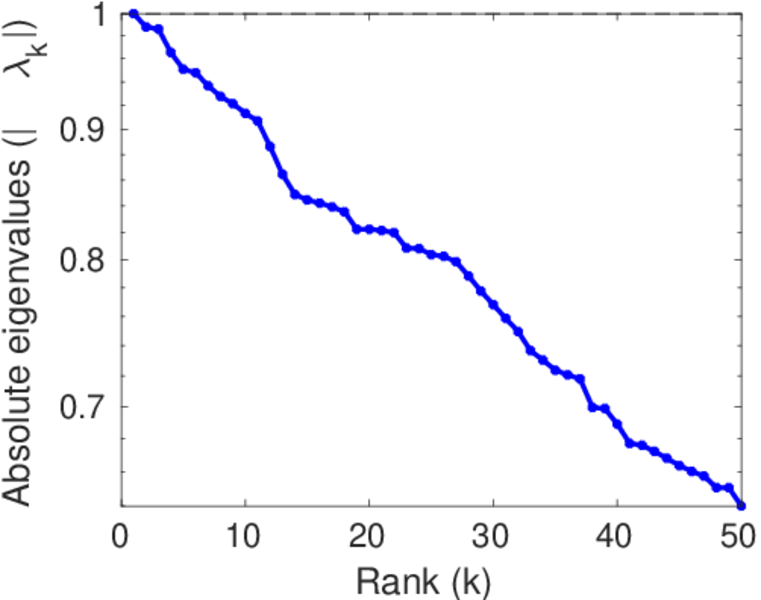

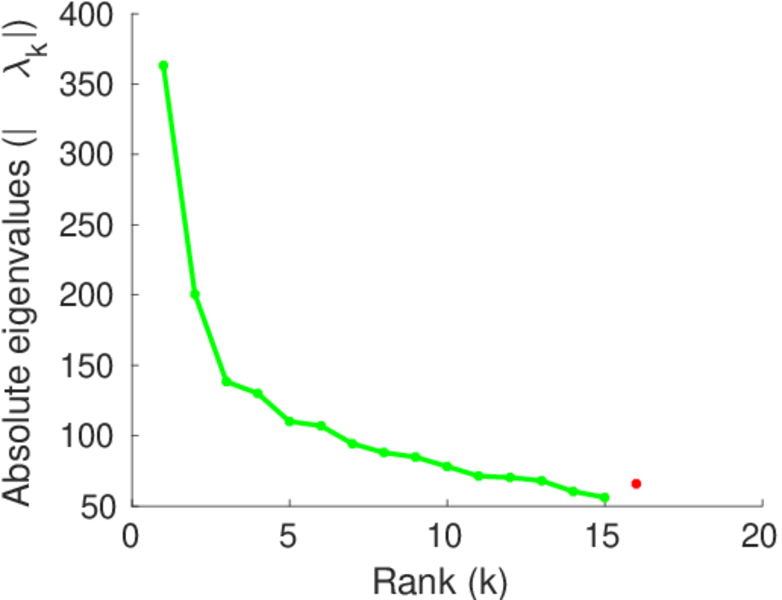

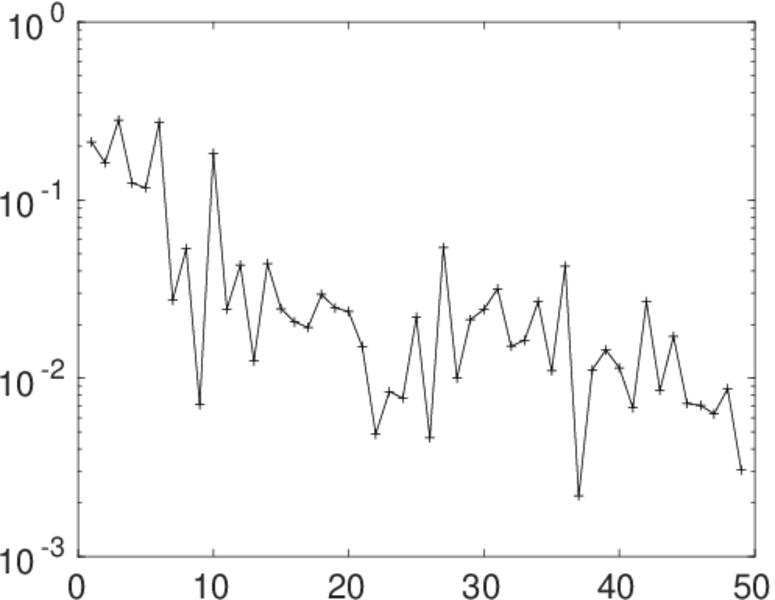

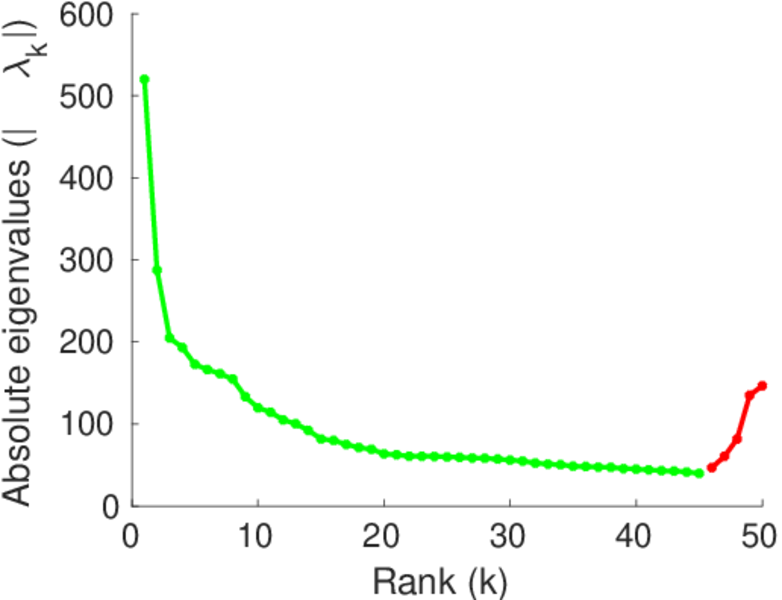

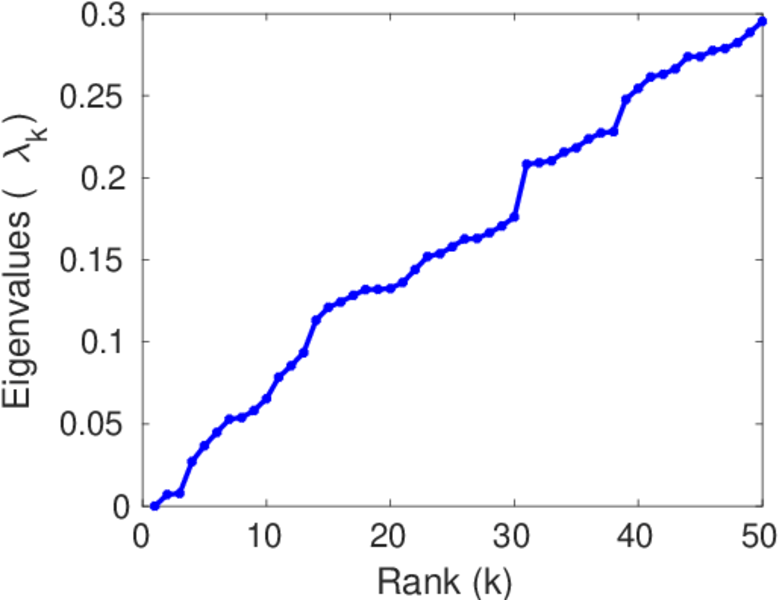

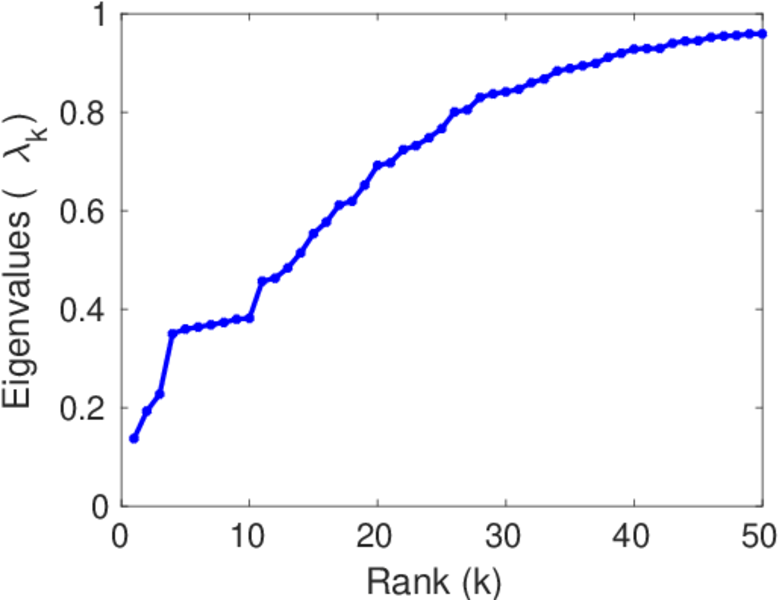

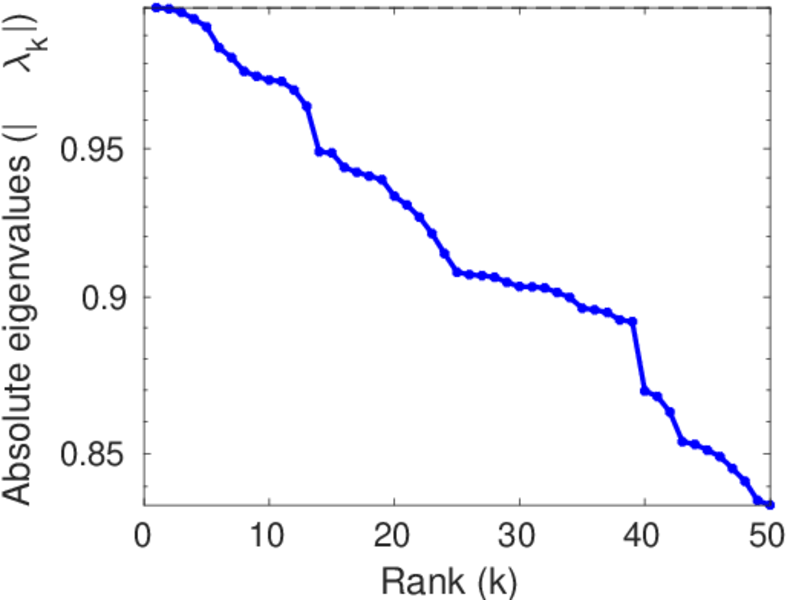

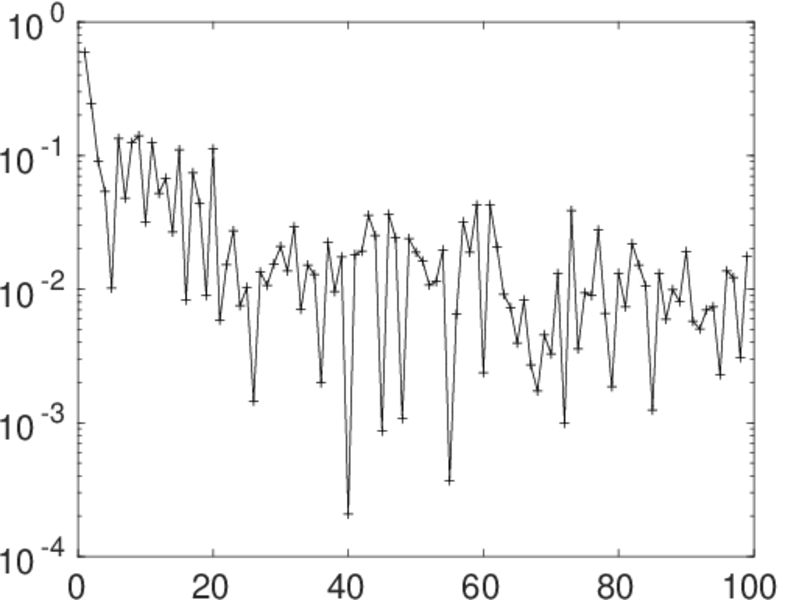

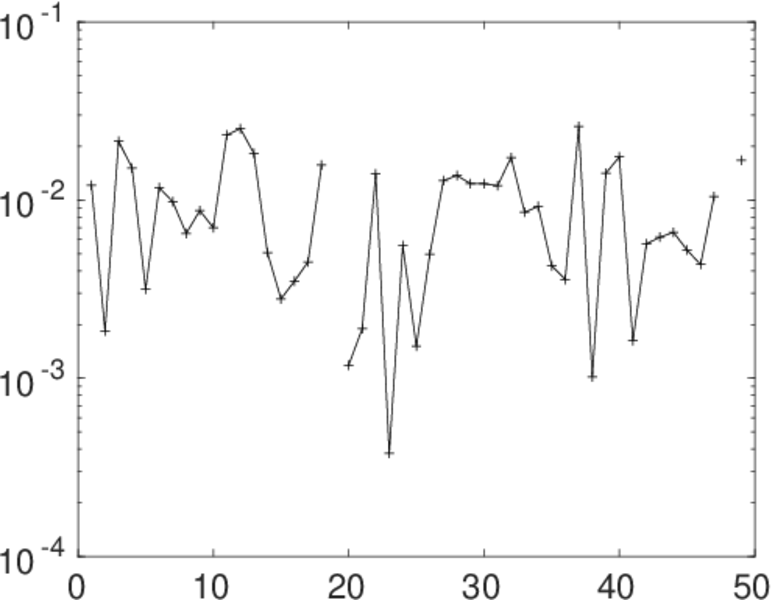

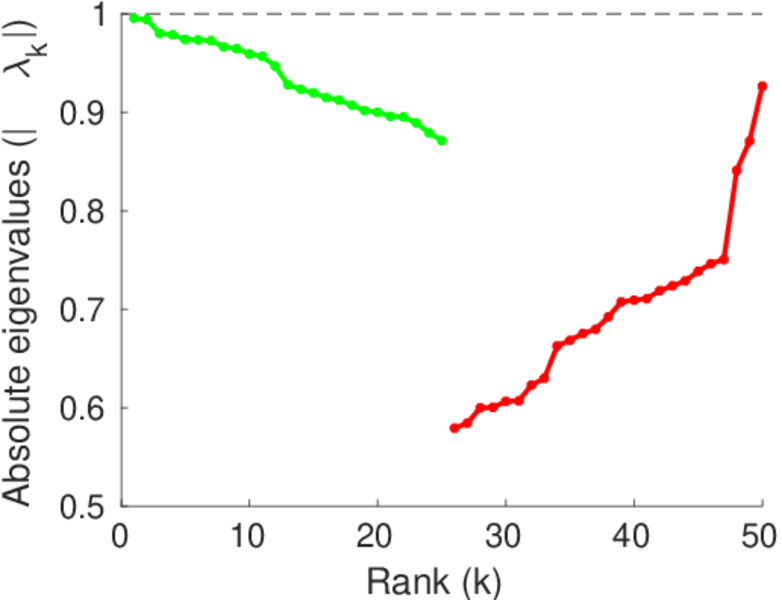

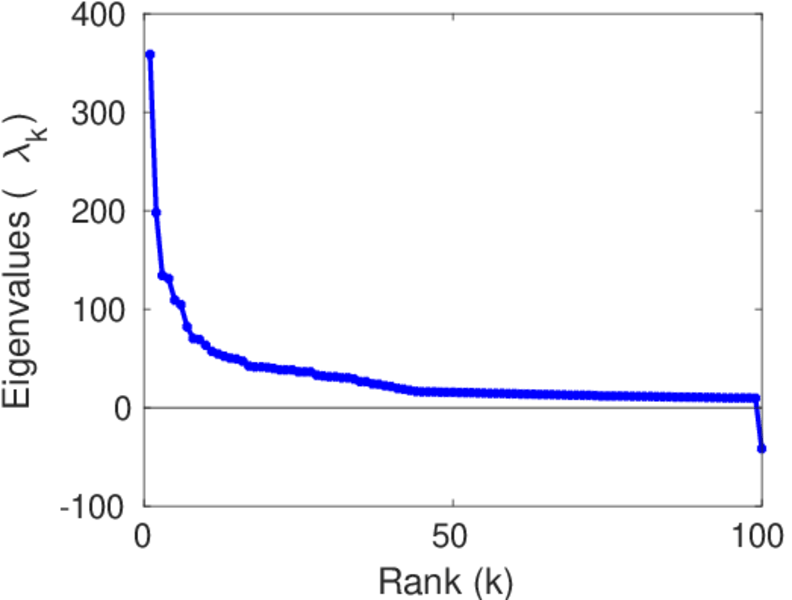

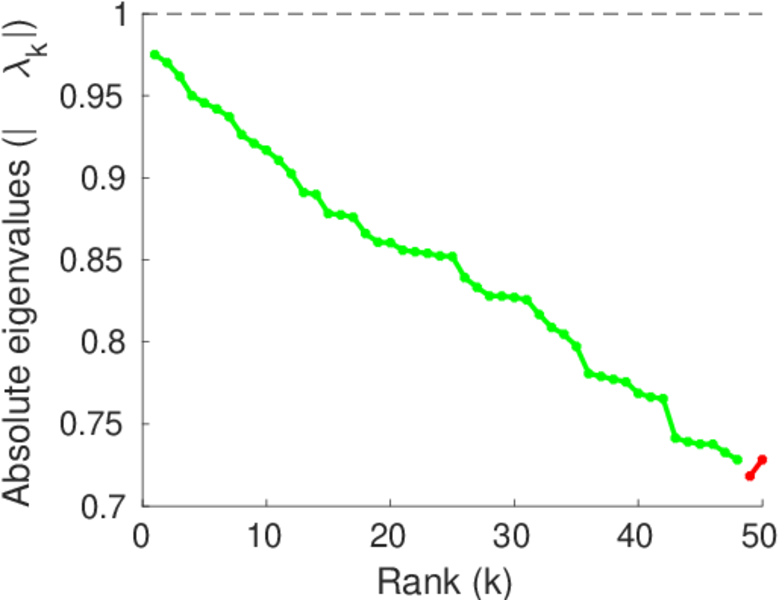

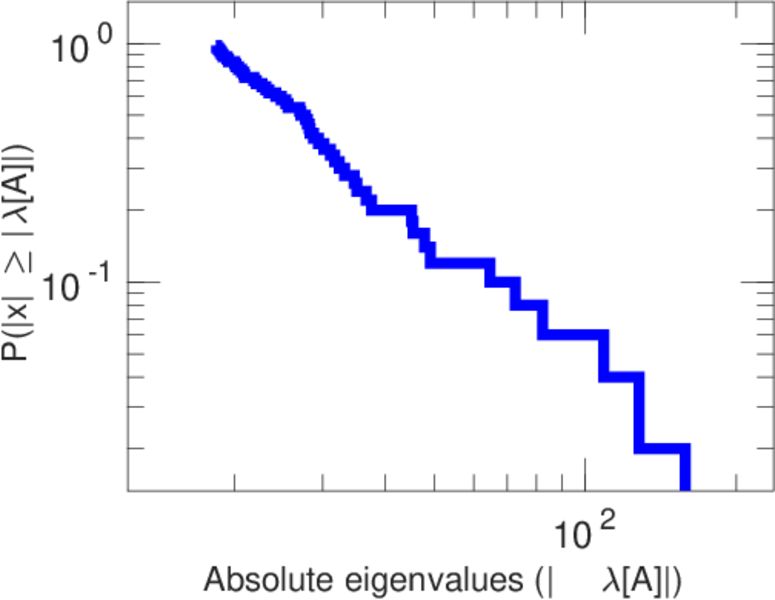

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
