Wikipedia links (pms)

This network consists of the wikilinks of the Wikipedia in the Piedmontese language (pms). Nodes are Wikipedia articles, and directed edges are wikilinks, i.e., hyperlinks within one wiki. In the wiki source, these are indicated with [[double brackets]]. Only pages in the article namespace are included.

Metadata

CodeWpms
Internal namewikipedia_link_pms
NameWikipedia links (pms)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningWikilink
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =67,205
Volume m =569,036
Loop count l =3
Wedge count s =5,227,582,024
Claw count z =71,827,411,630,676
Cross count x =871,232,667,869,401,600
Triangle count t =1,129,980
Square count q =12,322,196,055
4-Tour count T4 =119,488,961,080
Maximum degree dmax =62,772
Maximum outdegree d+max =1,487
Maximum indegree dmax =62,701
Average degree d =16.934 3
Fill p =0.000 125 990
Size of LCC N =67,205
Size of LSCC Ns =19,892
Relative size of LSCC Nrs =0.295 990
Diameter δ =6
50-Percentile effective diameter δ0.5 =1.571 09
90-Percentile effective diameter δ0.9 =2.204 42
Median distance δM =2
Mean distance δm =2.128 47
Gini coefficient G =0.618 833
Balanced inequality ratio P =0.286 669
Outdegree balanced inequality ratio P+ =0.387 014
Indegree balanced inequality ratio P =0.107 958
Relative edge distribution entropy Her =0.787 138
Power law exponent γ =1.501 51
Tail power law exponent γt =1.871 00
Tail power law exponent with p γ3 =1.871 00
p-value p =0.001 000 00
Outdegree tail power law exponent with p γ3,o =3.001 00
Outdegree p-value po =0.000 00
Indegree tail power law exponent with p γ3,i =1.771 00
Indegree p-value pi =0.000 00
Degree assortativity ρ =−0.313 047
Degree assortativity p-value pρ =0.000 00
In/outdegree correlation ρ± =+0.139 620
Clustering coefficient c =0.000 648 472
Directed clustering coefficient c± =0.099 485 2
Spectral norm α =493.353
Operator 2-norm ν =490.423
Cyclic eigenvalue π =50.000 0
Algebraic connectivity a =0.237 909
Spectral separation 1[A] / λ2[A]| =1.010 63
Reciprocity y =0.129 210
Non-bipartivity bA =0.010 514 8
Normalized non-bipartivity bN =0.043 992 6
Algebraic non-bipartivity χ =0.237 926
Spectral bipartite frustration bK =0.003 755 07
Controllability C =50,031
Relative controllability Cr =0.744 454

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

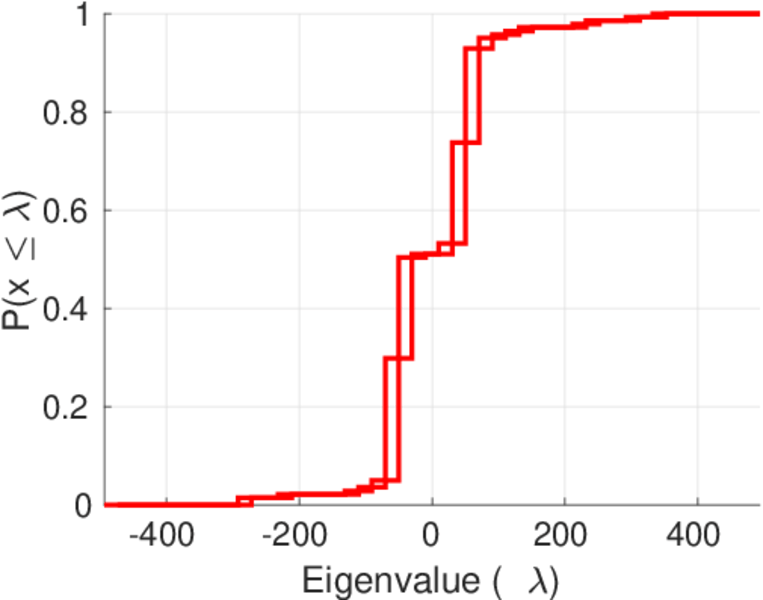

Spectral distribution of the adjacency matrix

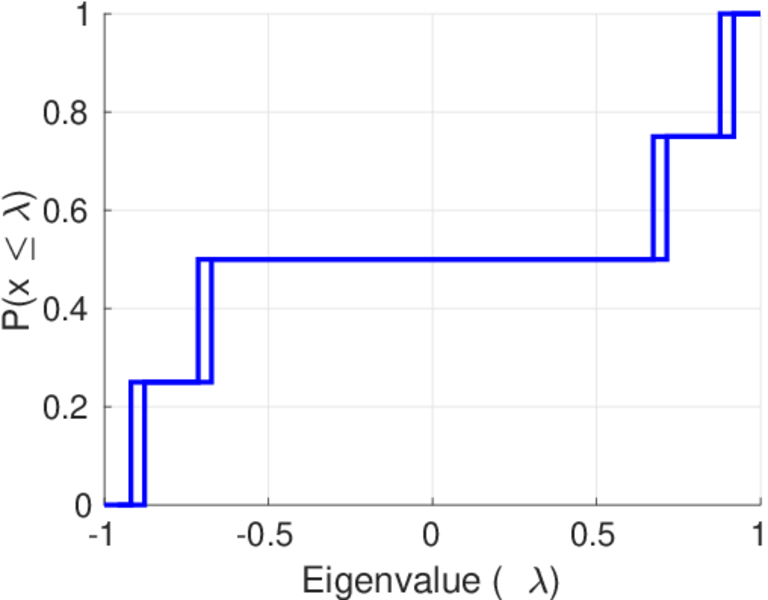

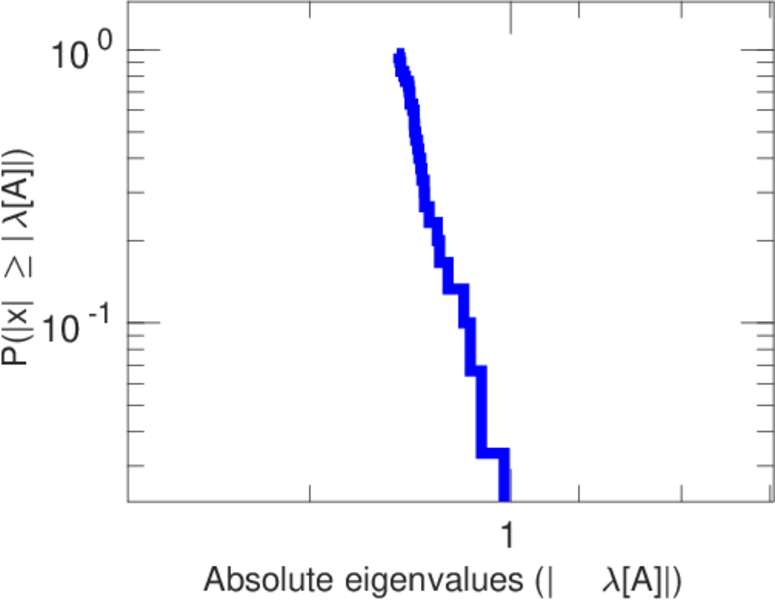

Spectral distribution of the normalized adjacency matrix

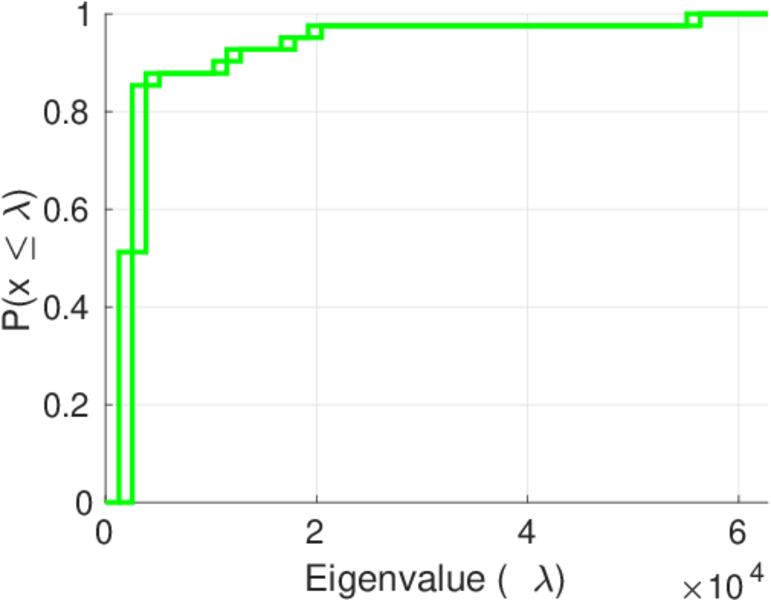

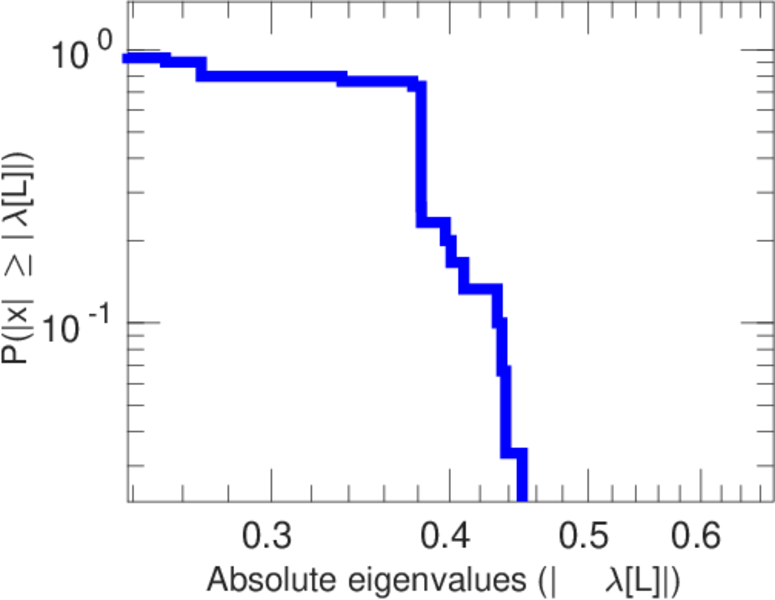

Spectral distribution of the Laplacian

Spectral graph drawing based on the adjacency matrix

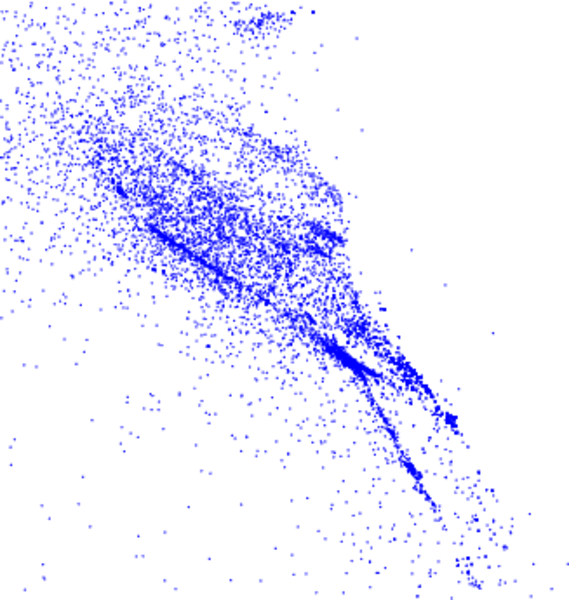

Spectral graph drawing based on the Laplacian

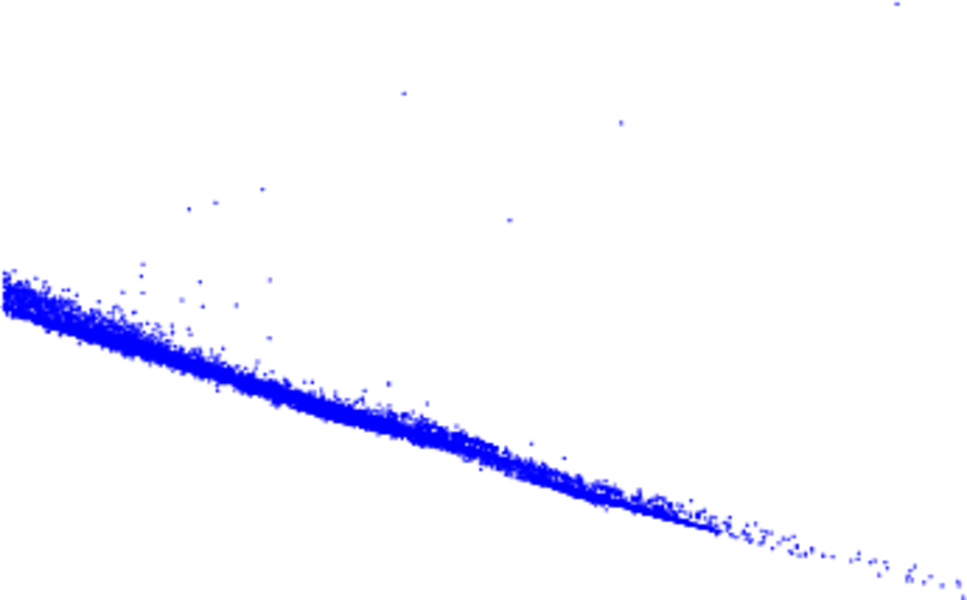

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

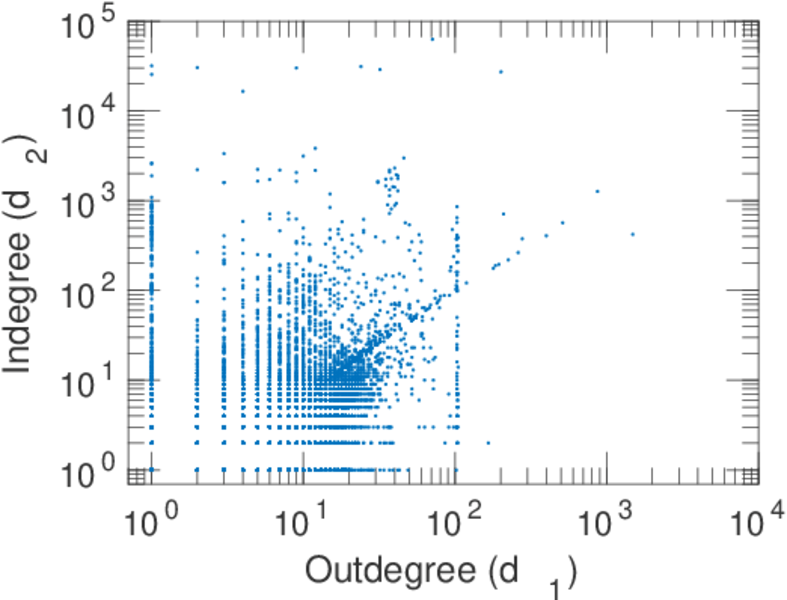

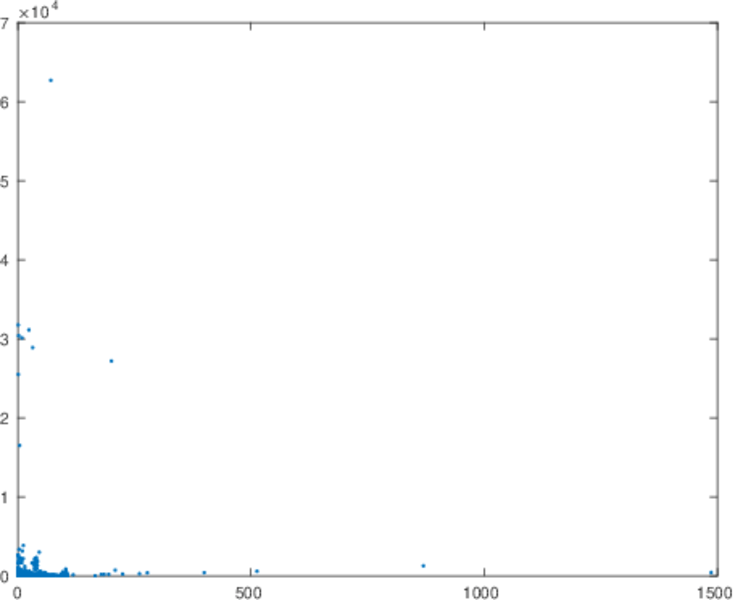

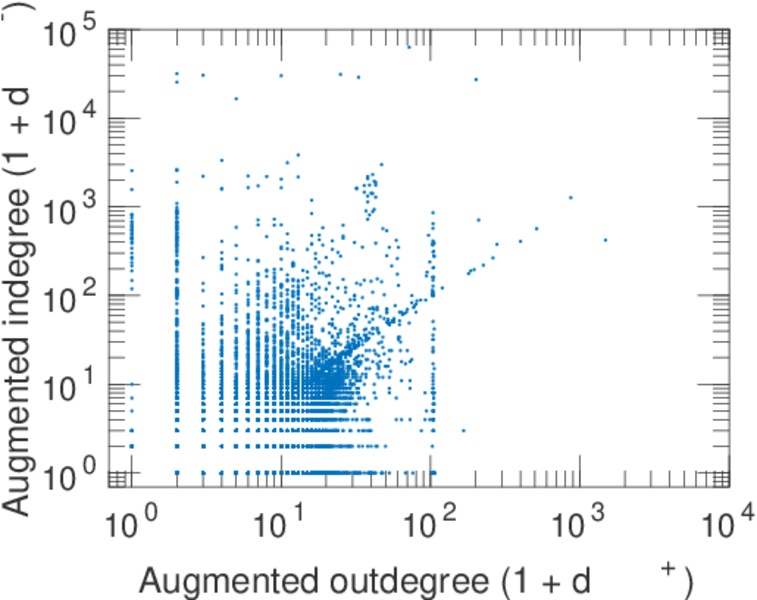

In/outdegree scatter plot

Clustering coefficient distribution

Average neighbor degree distribution

SynGraphy

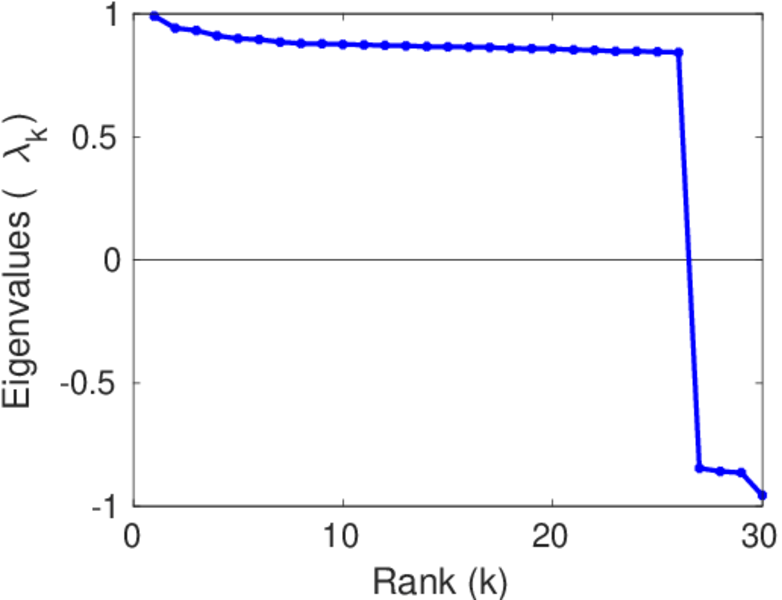

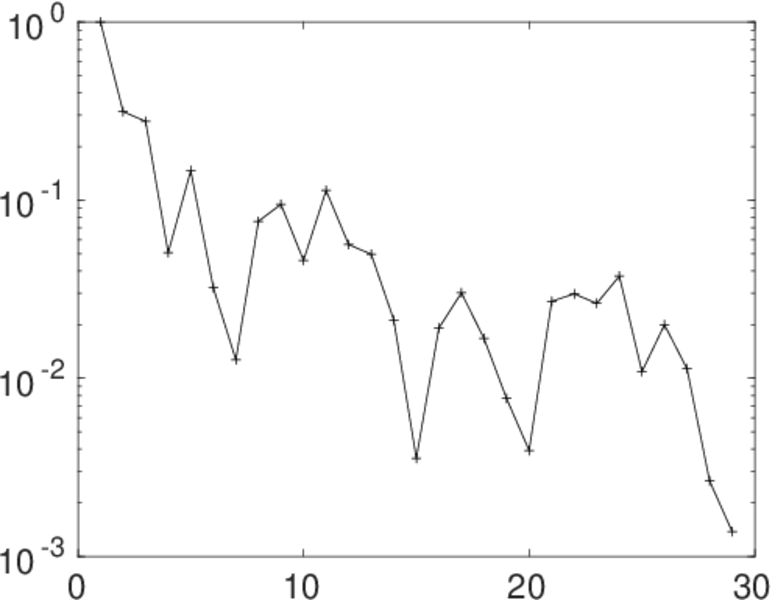

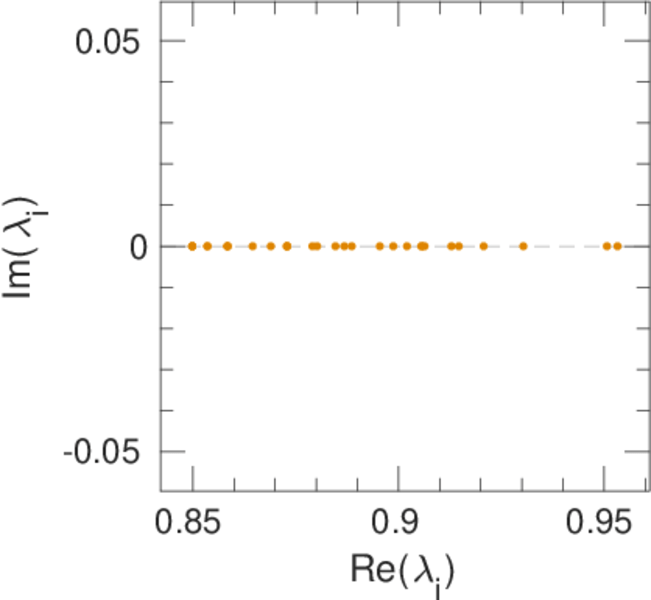

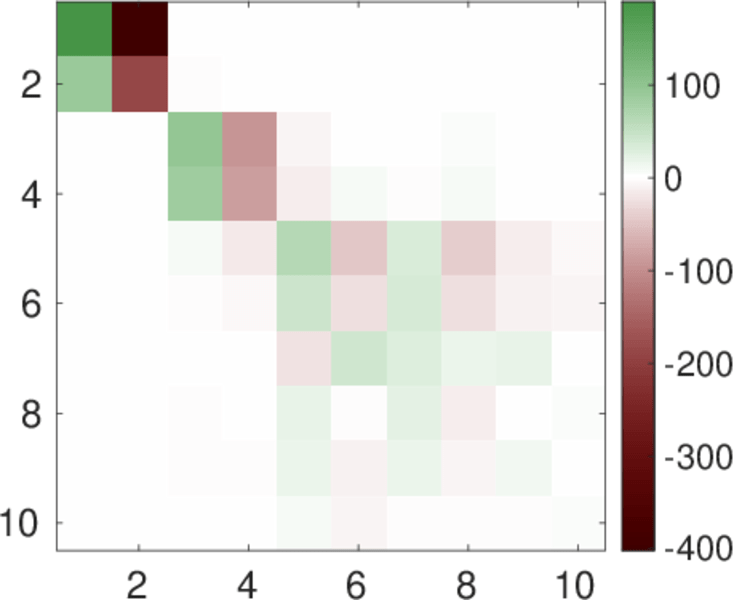

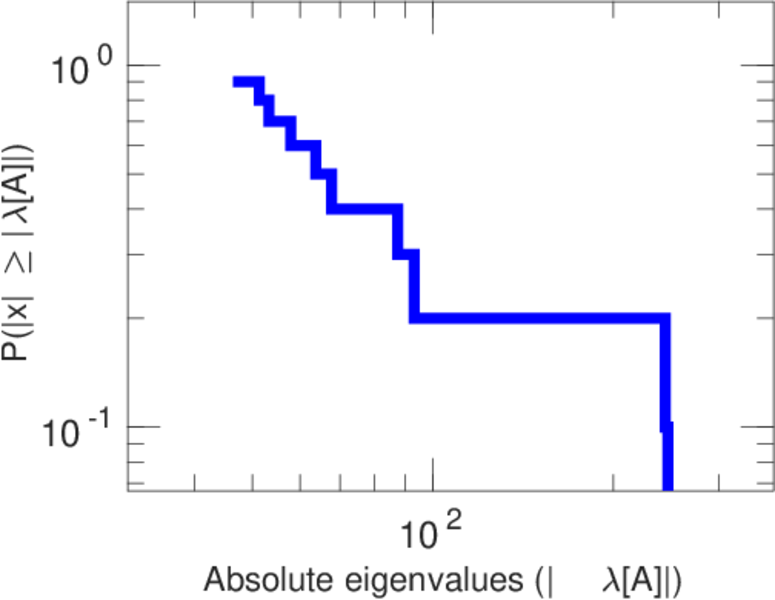

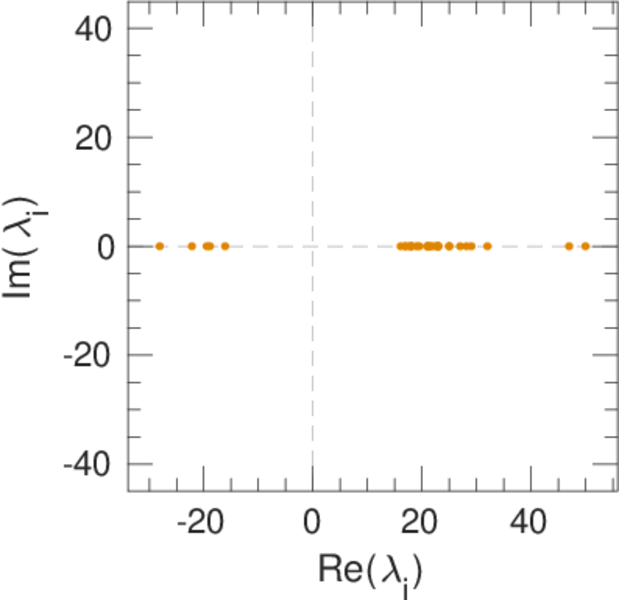

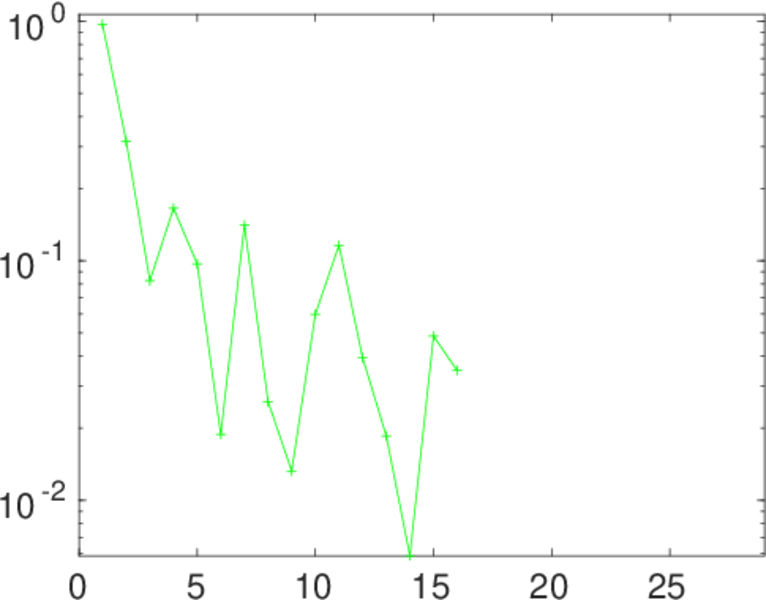

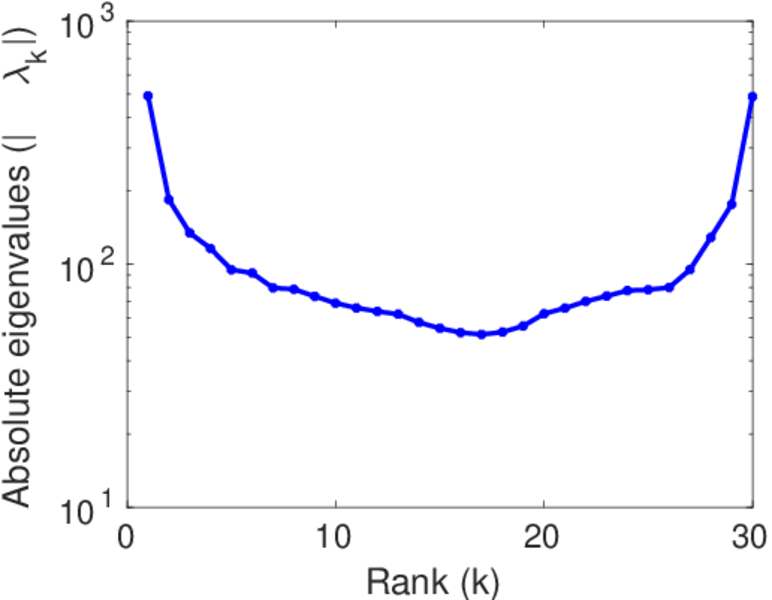

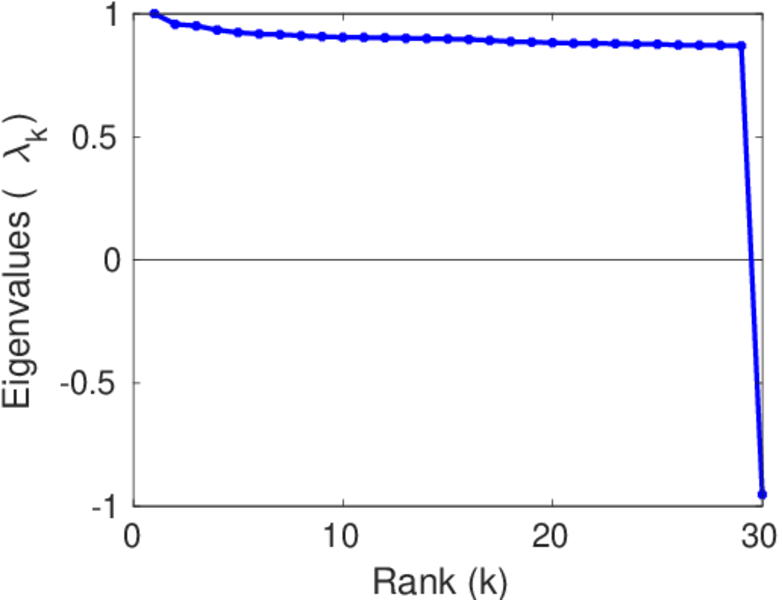

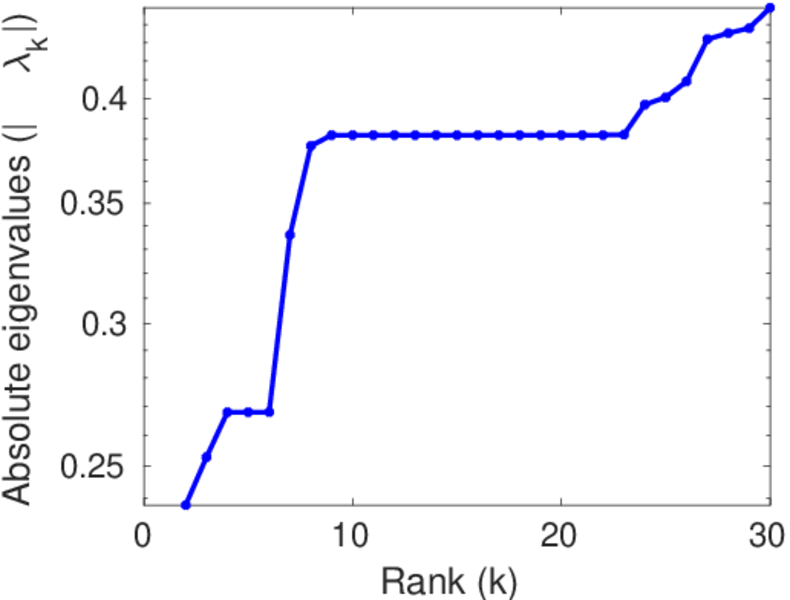

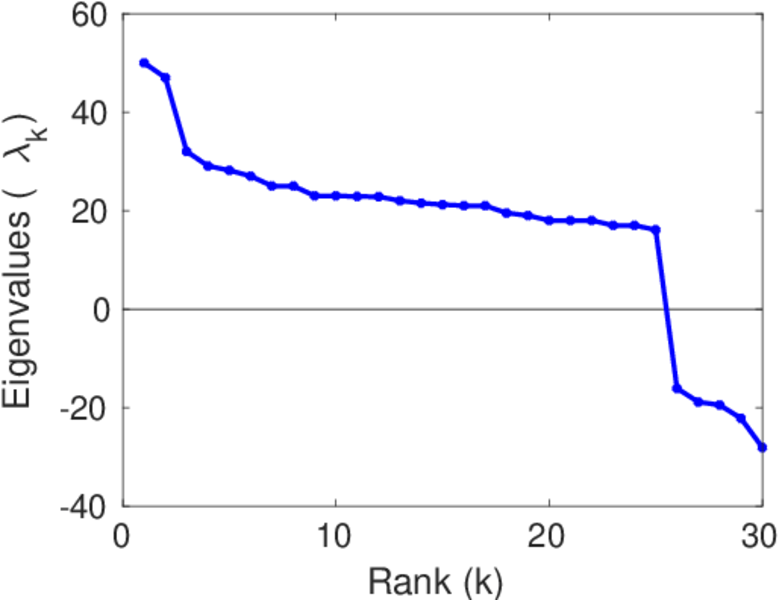

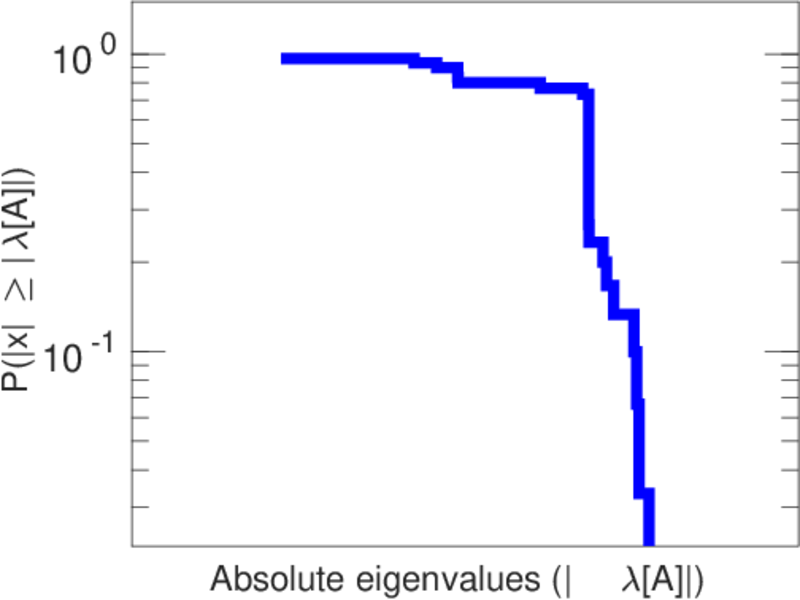

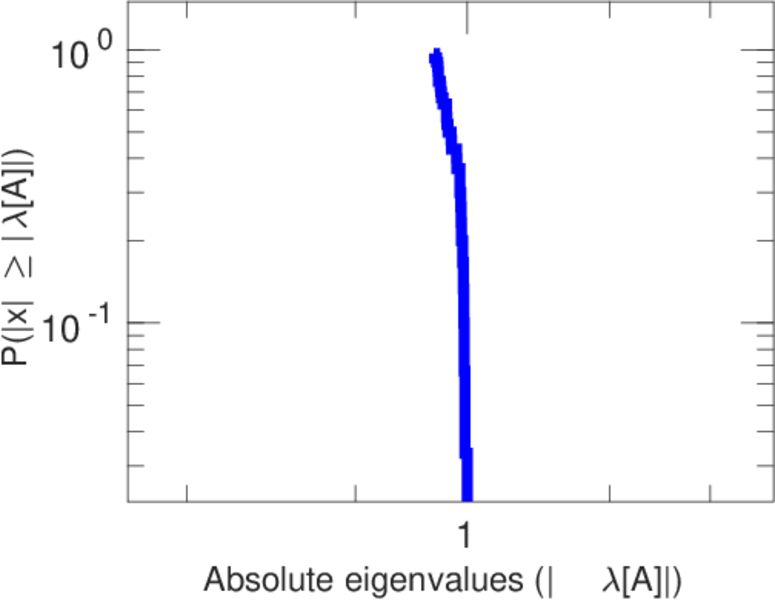

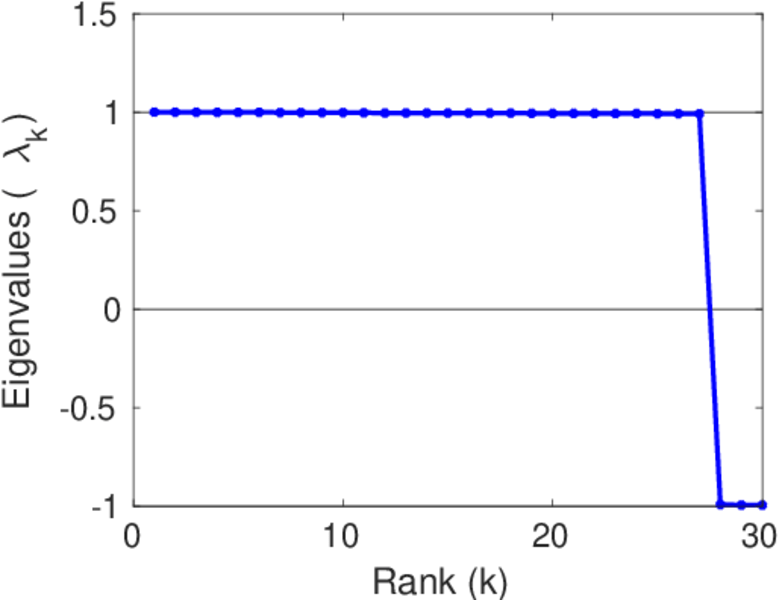

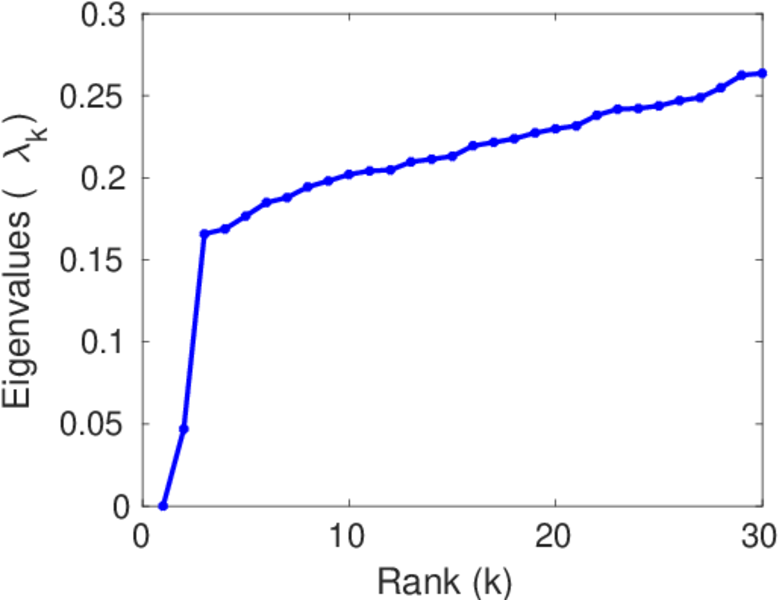

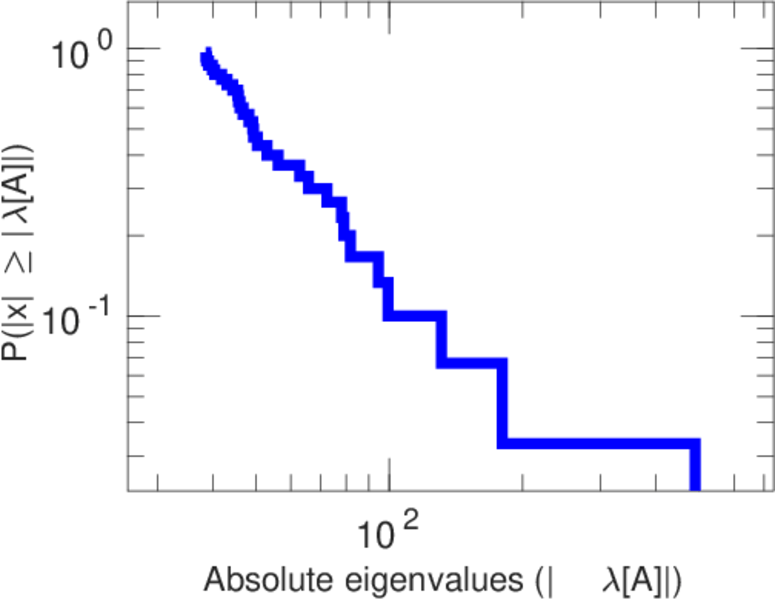

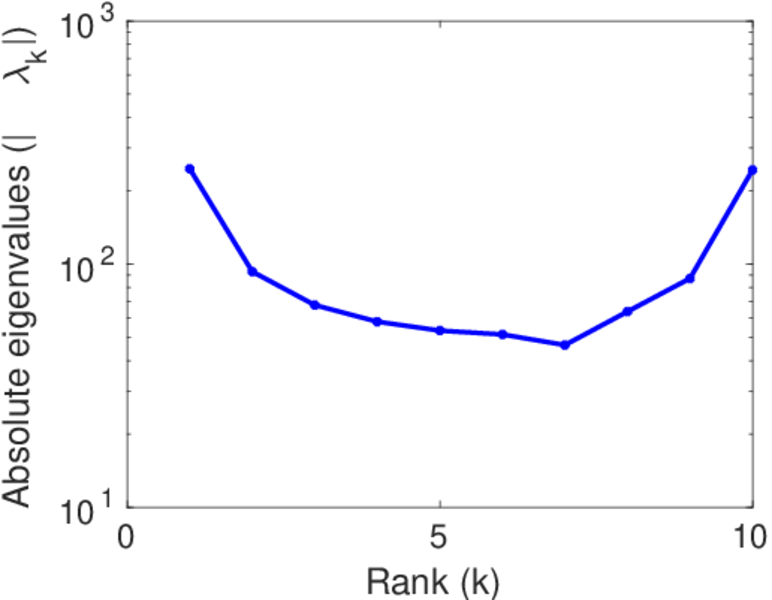

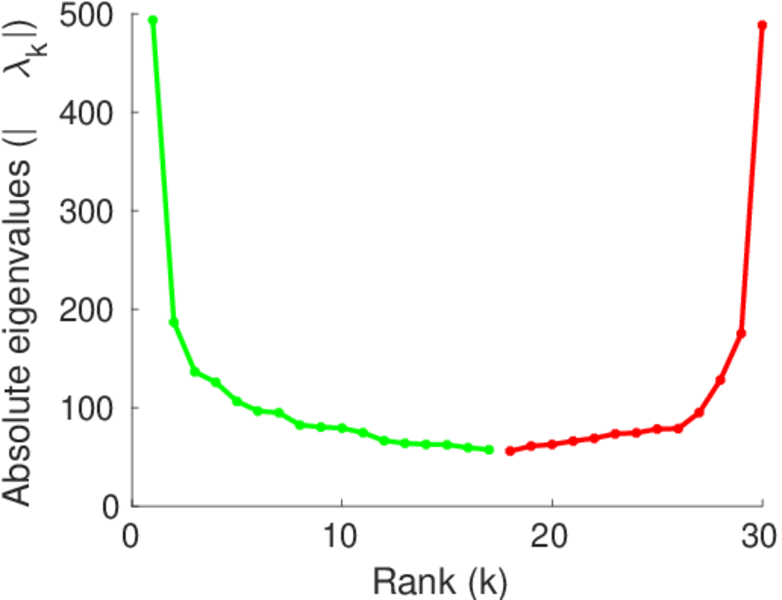

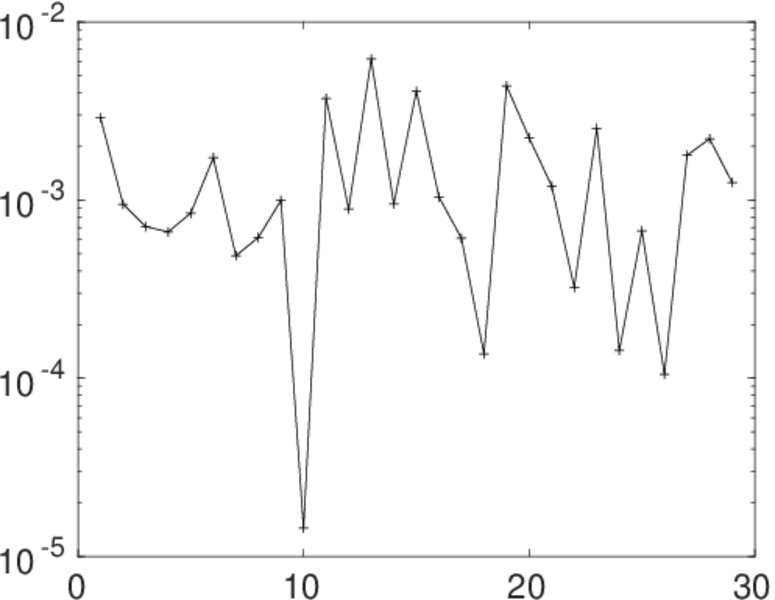

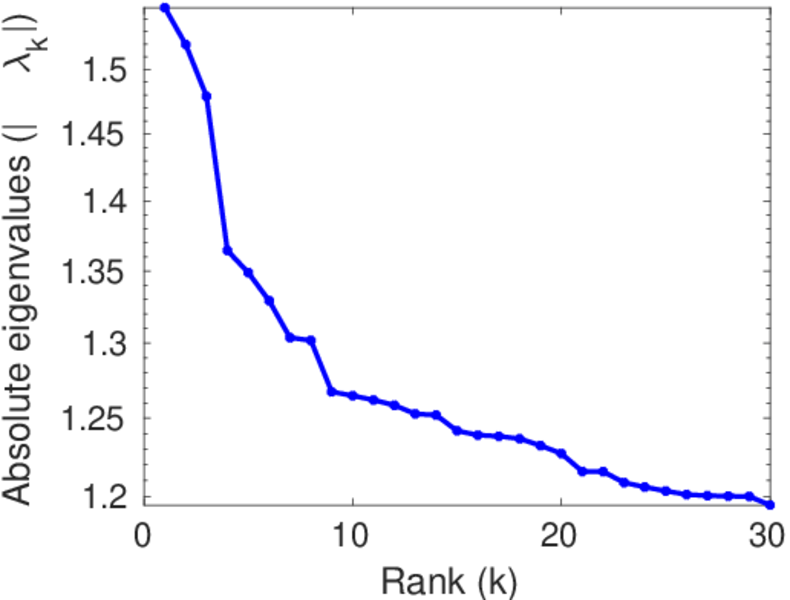

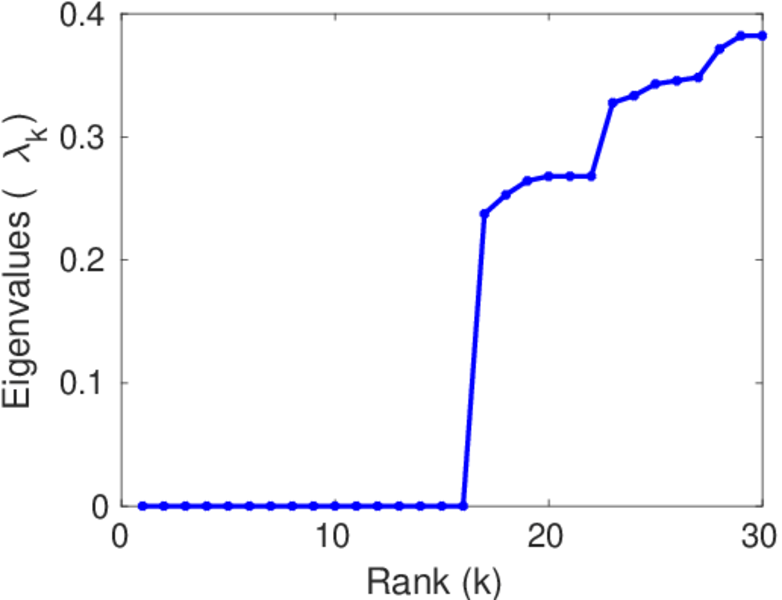

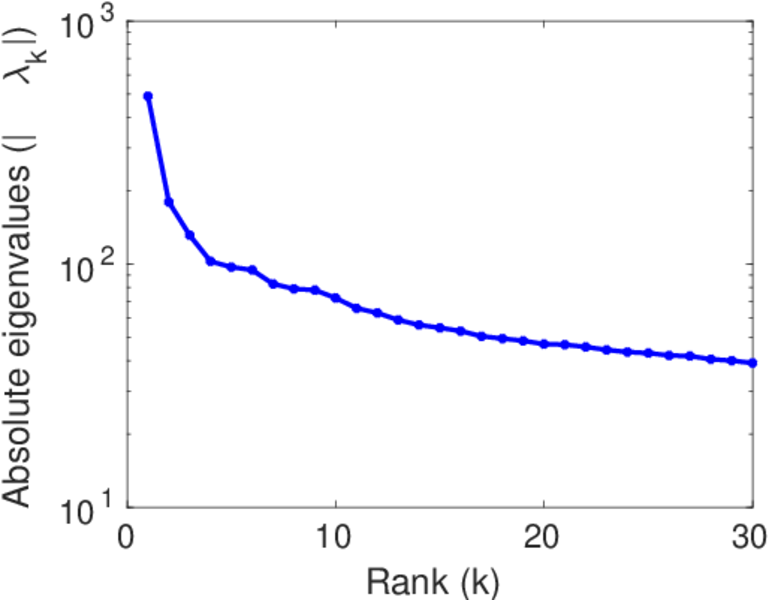

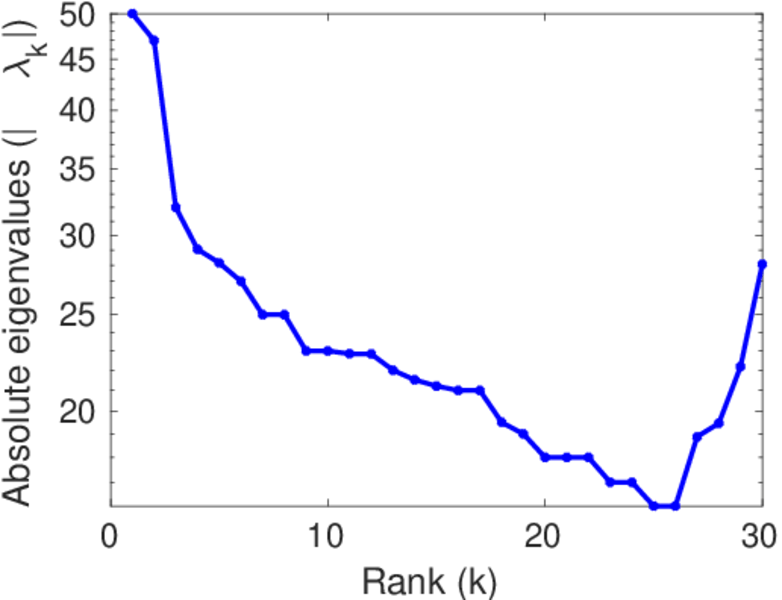

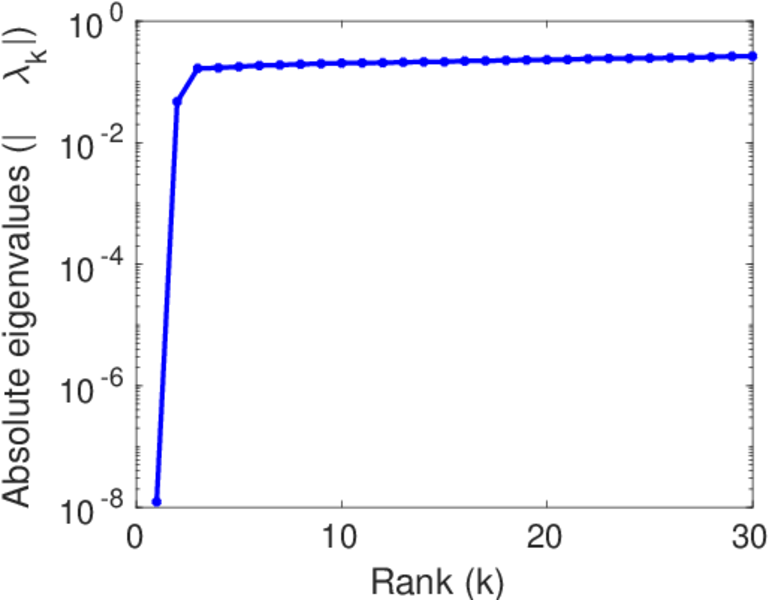

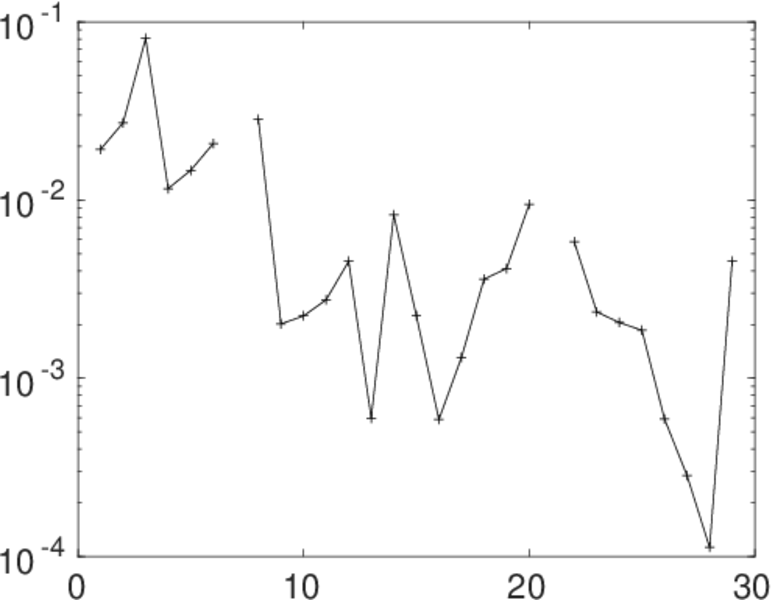

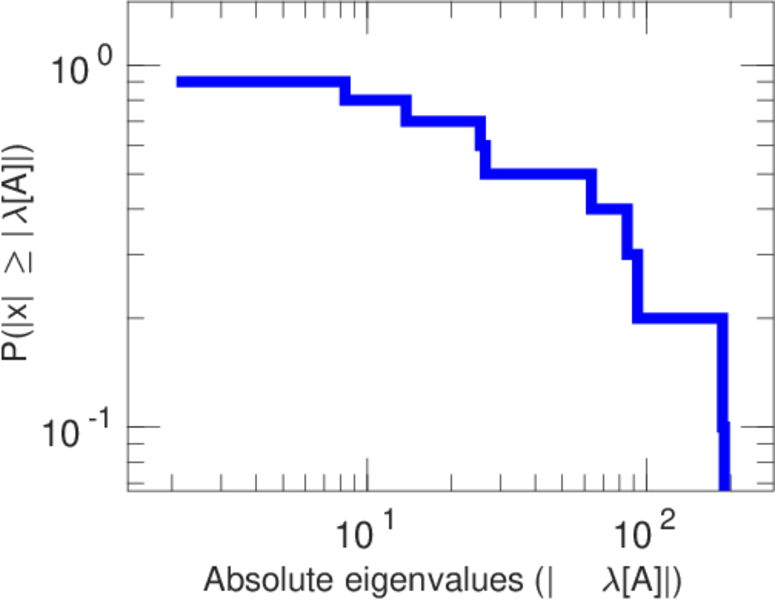

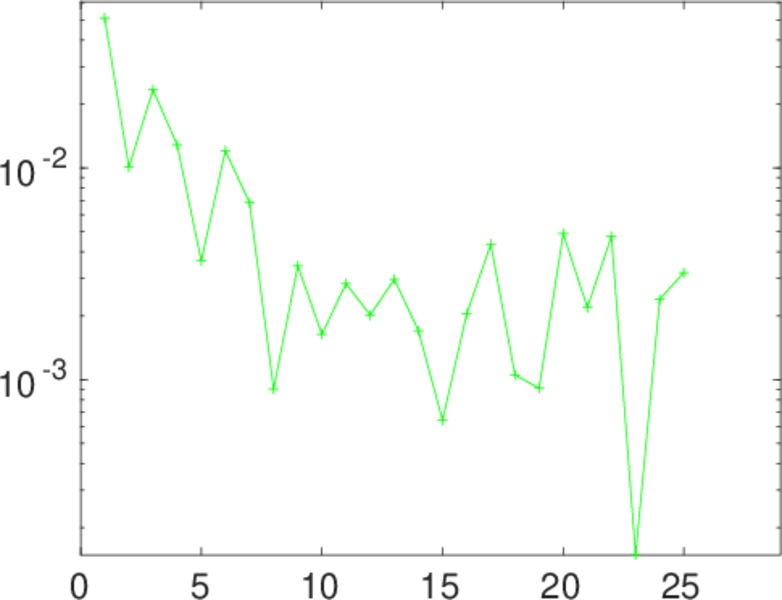

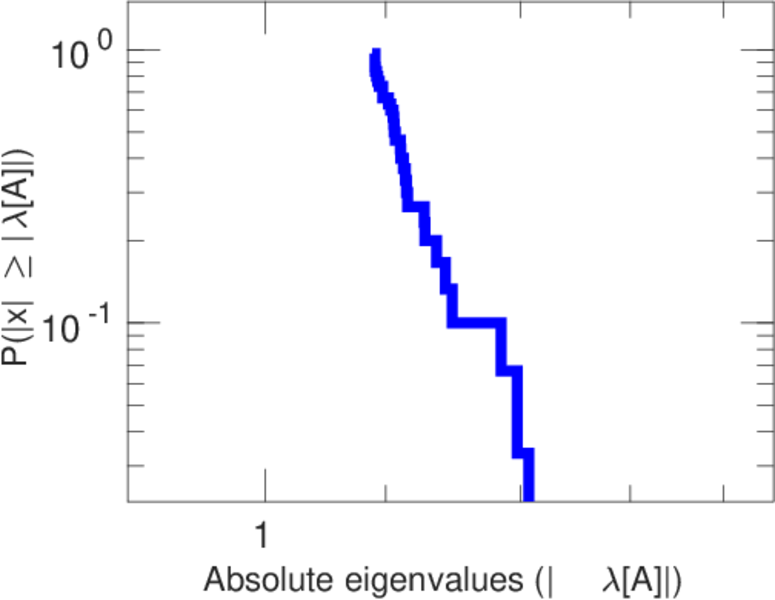

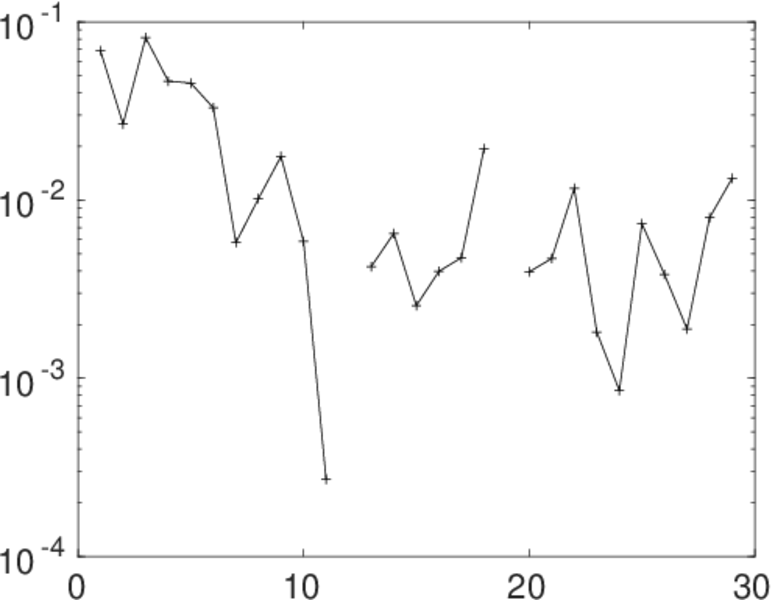

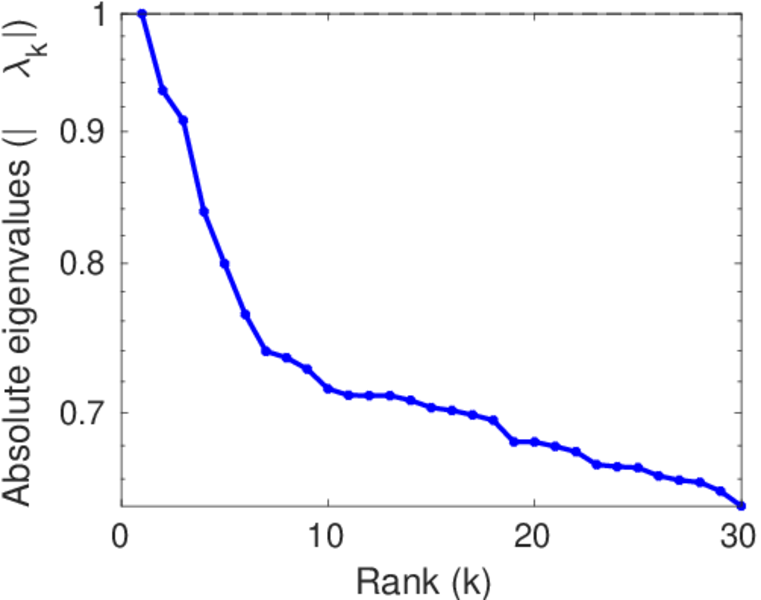

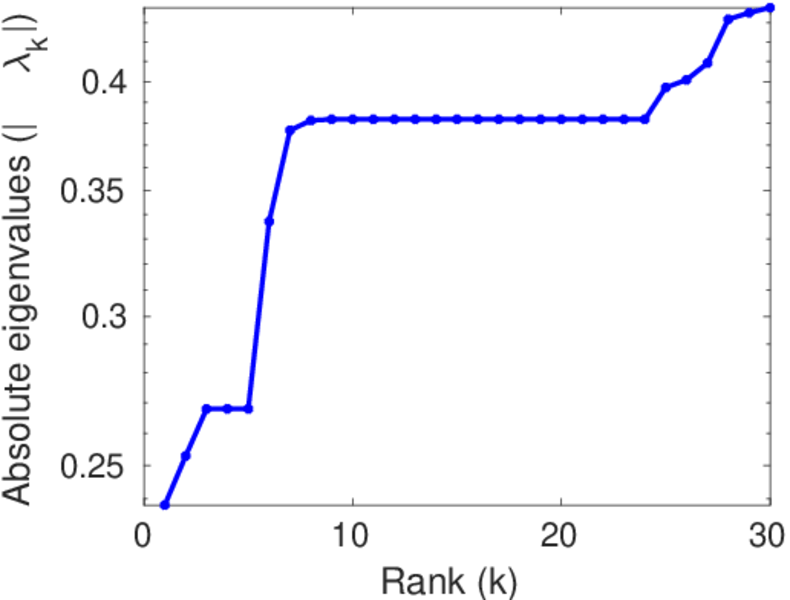

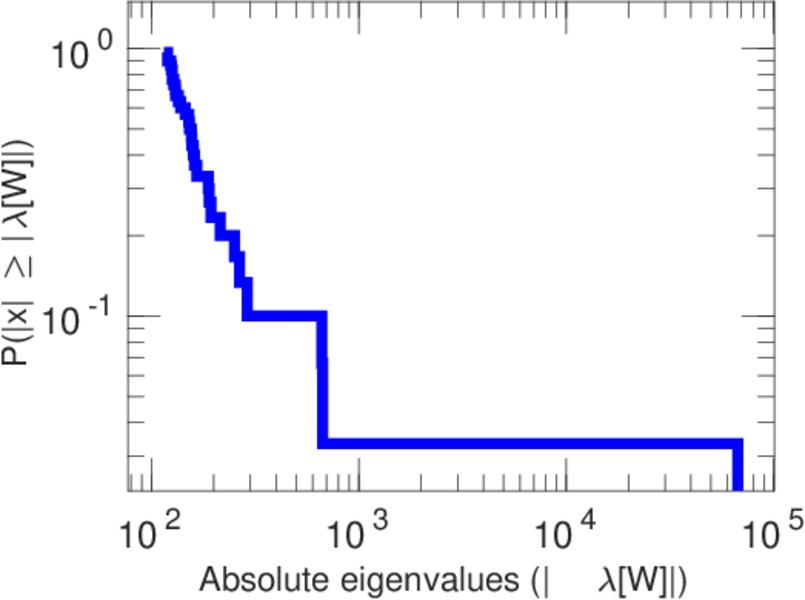

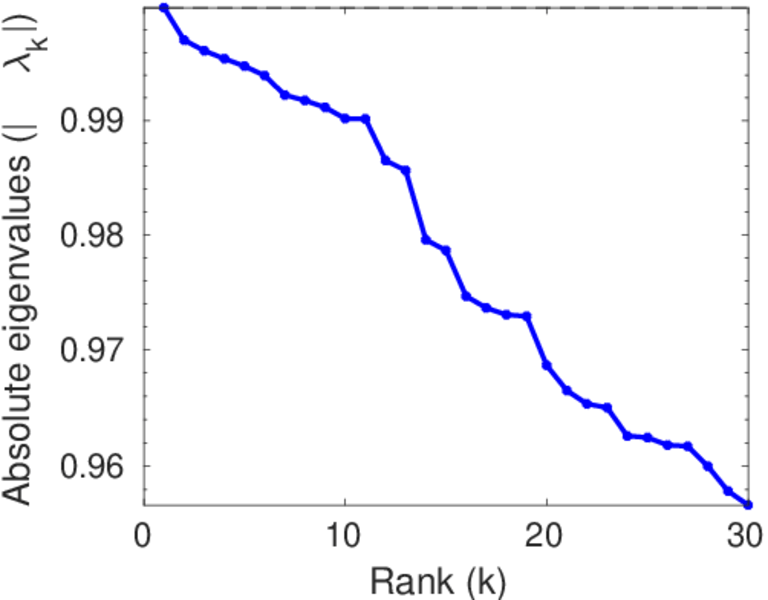

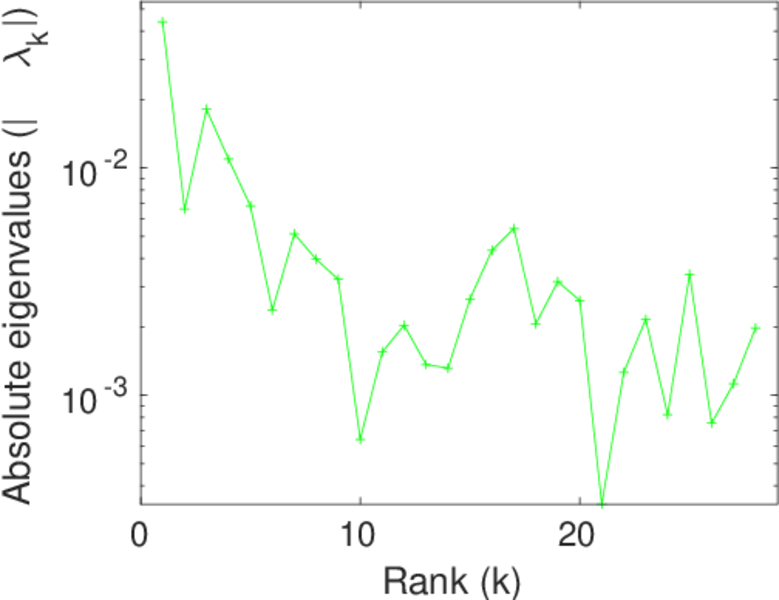

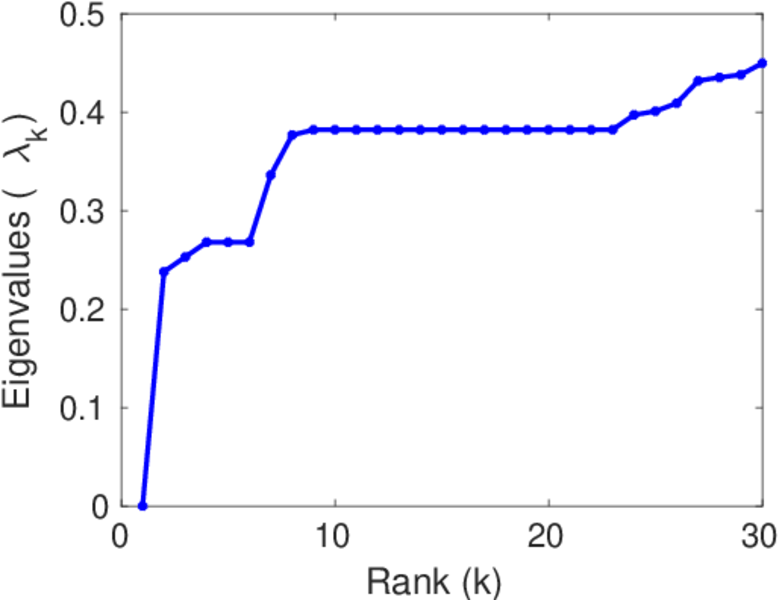

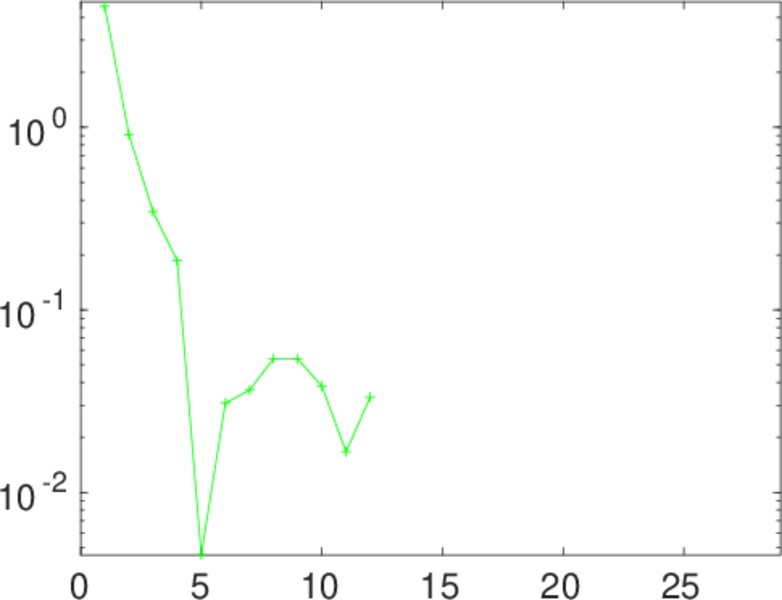

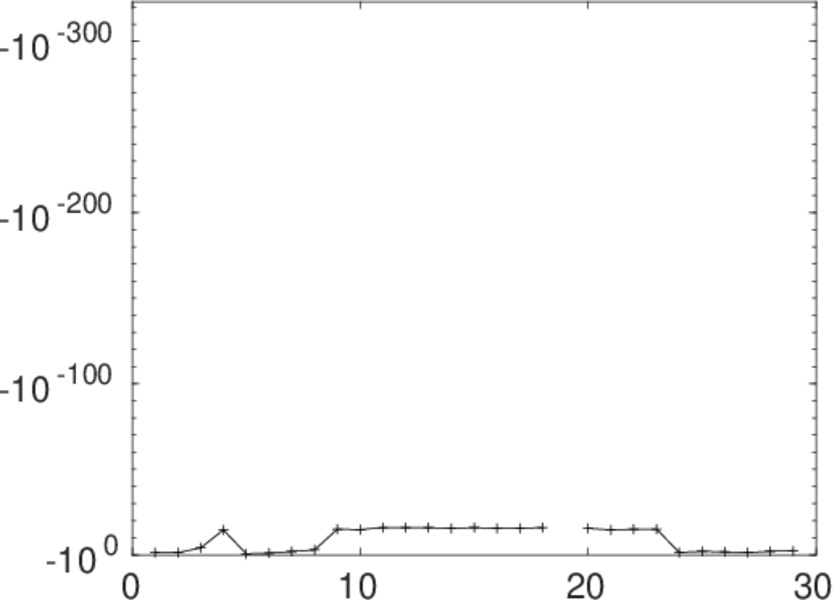

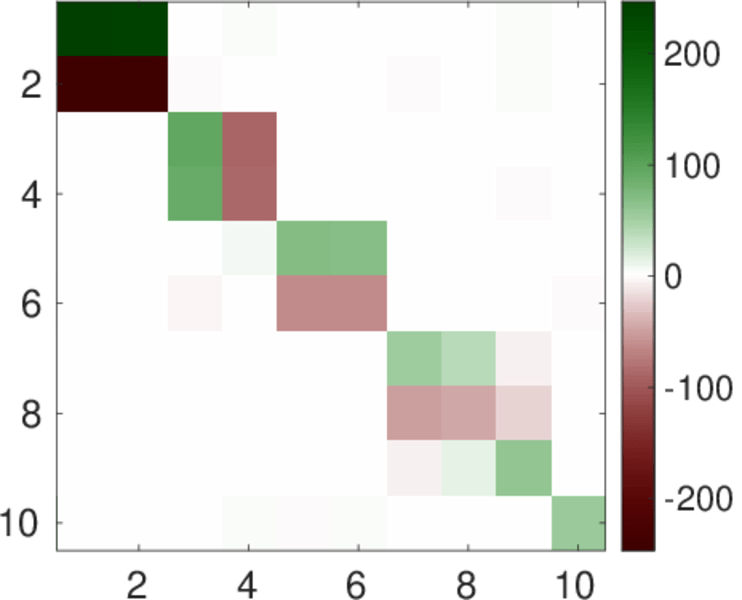

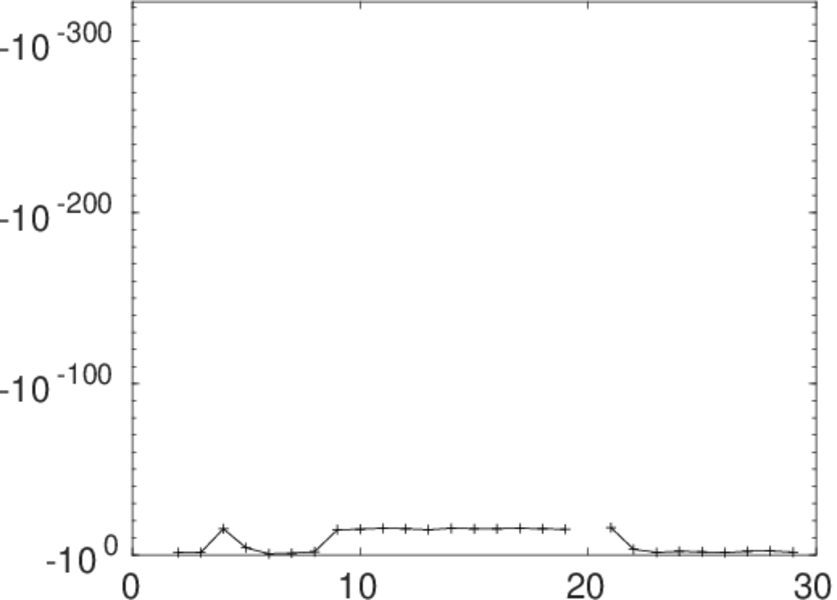

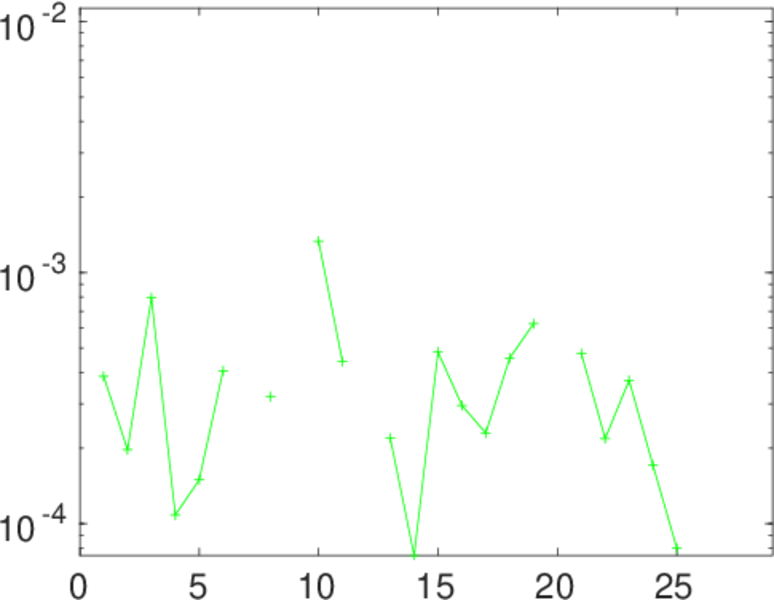

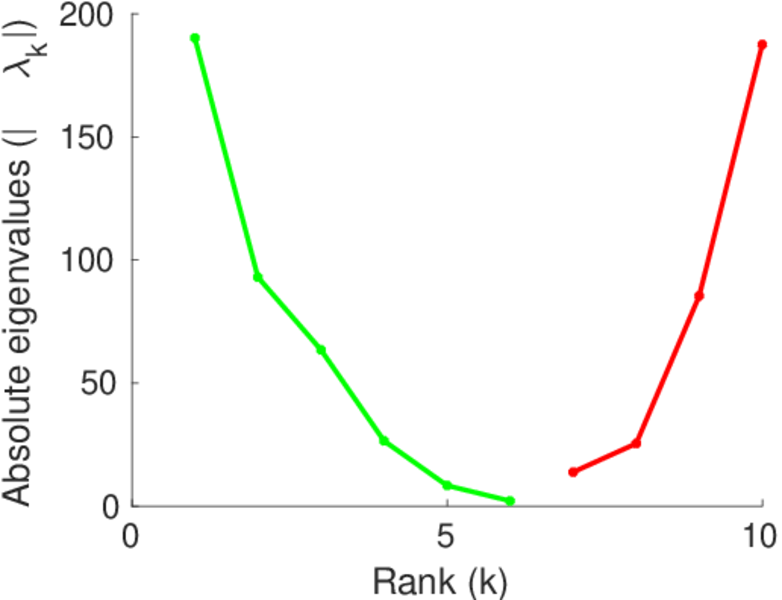

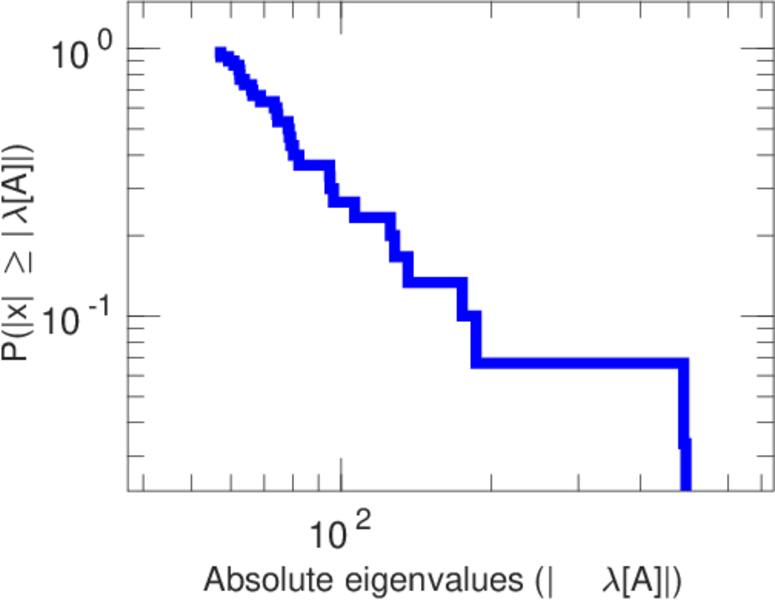

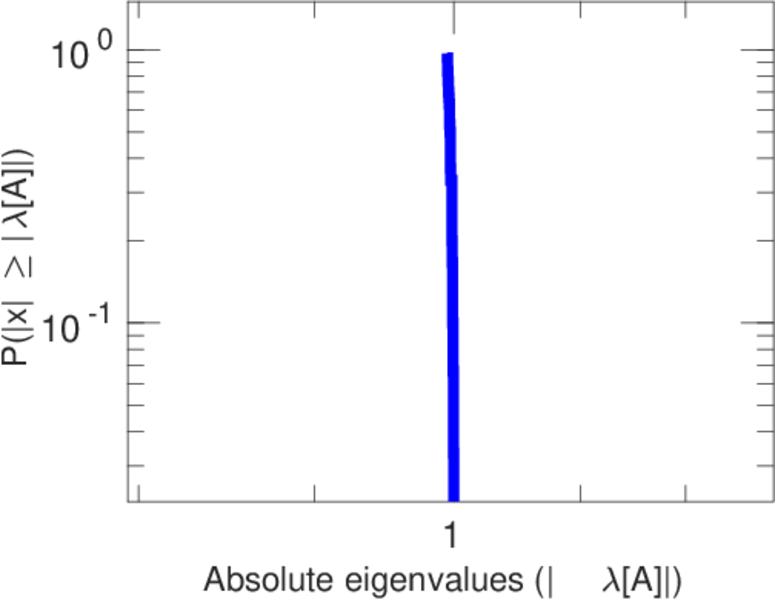

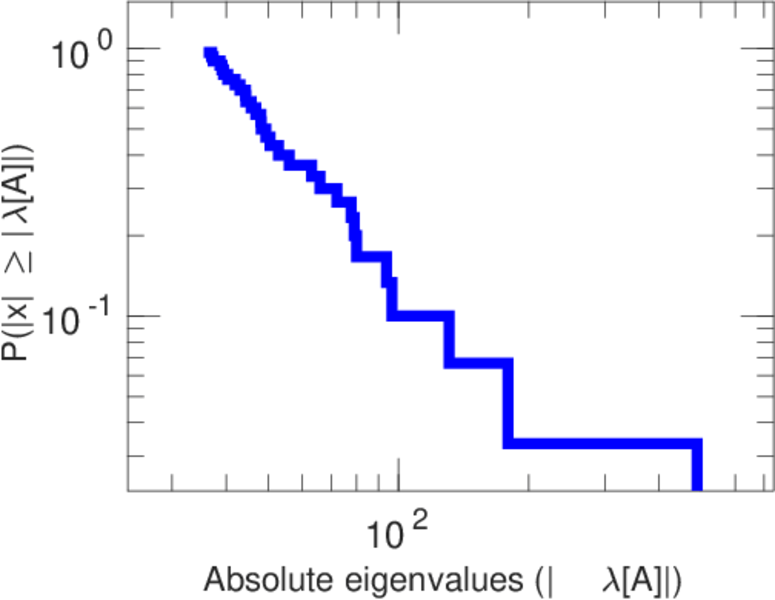

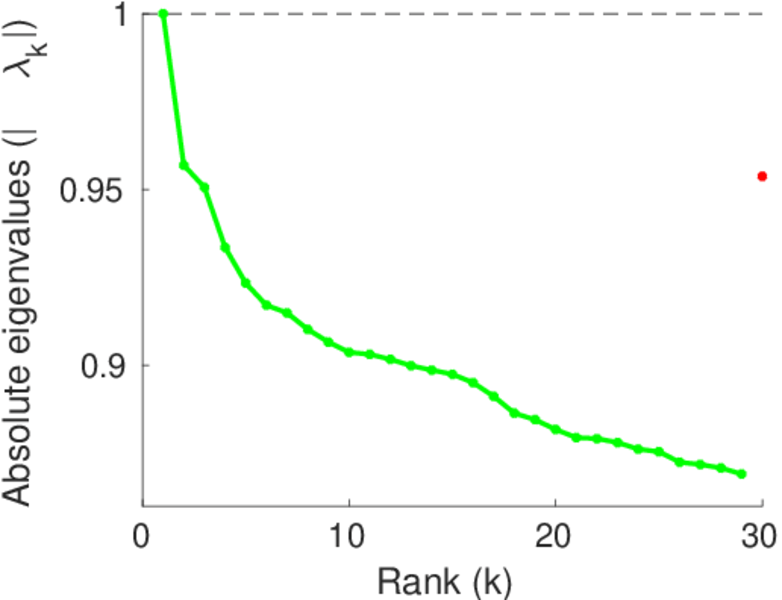

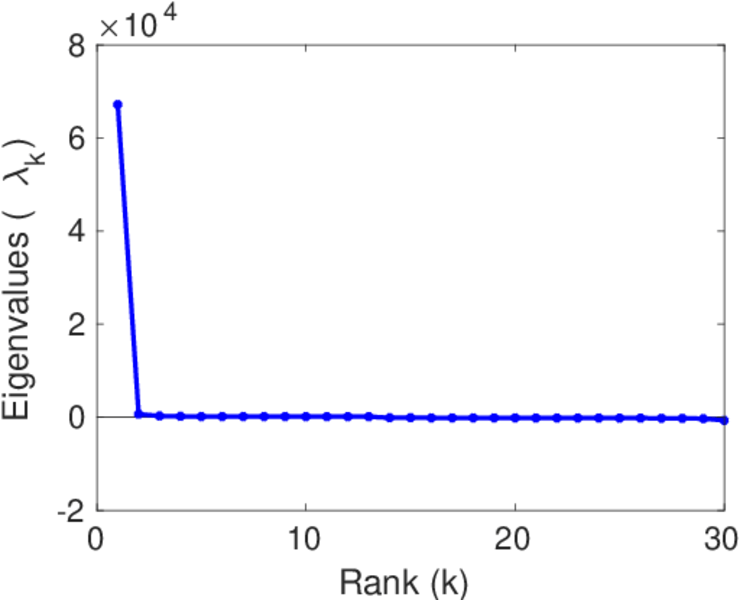

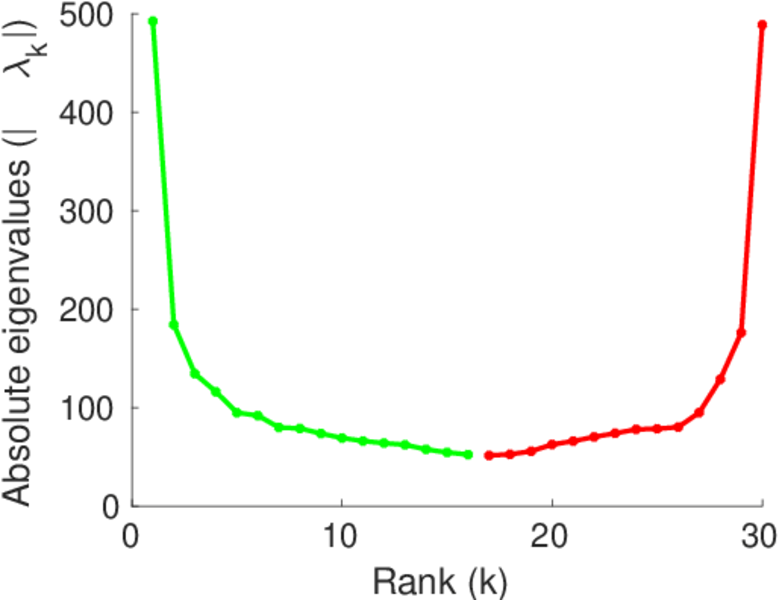

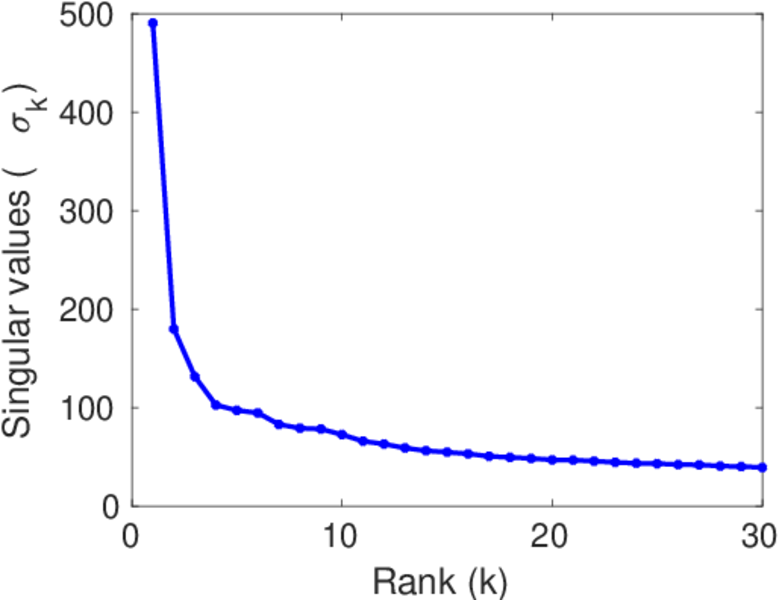

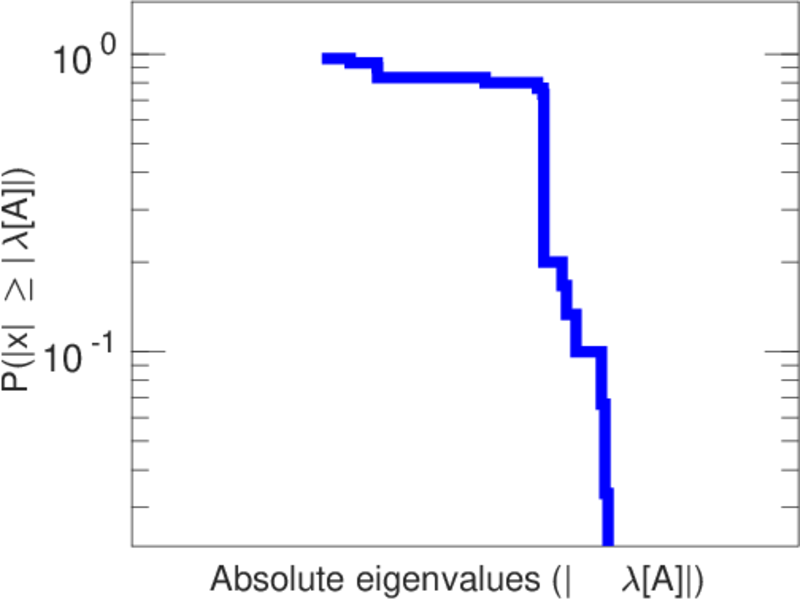

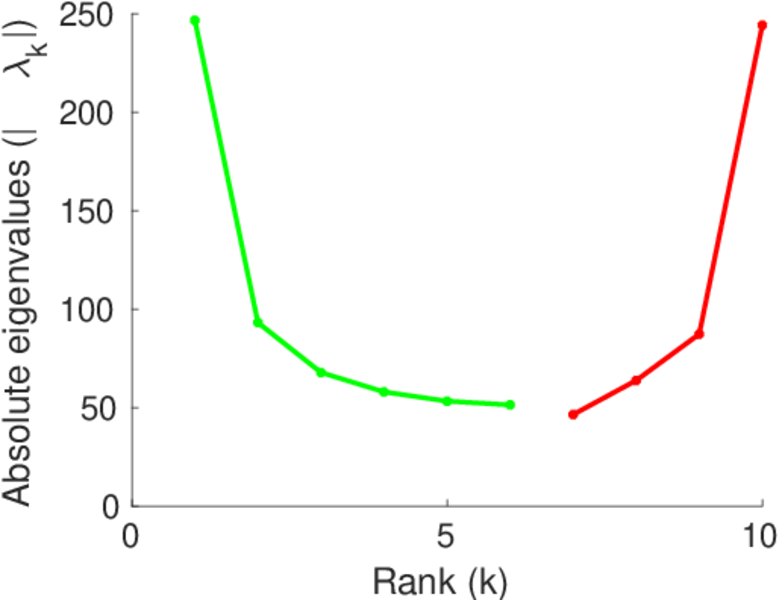

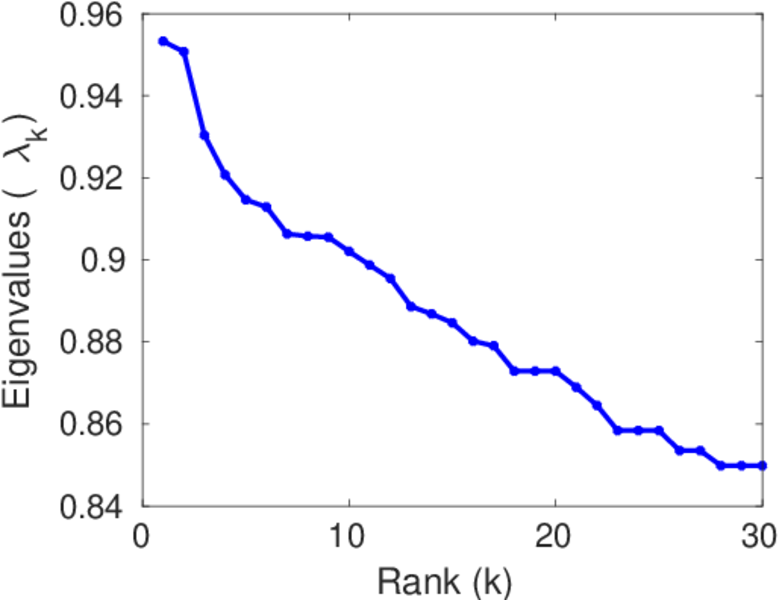

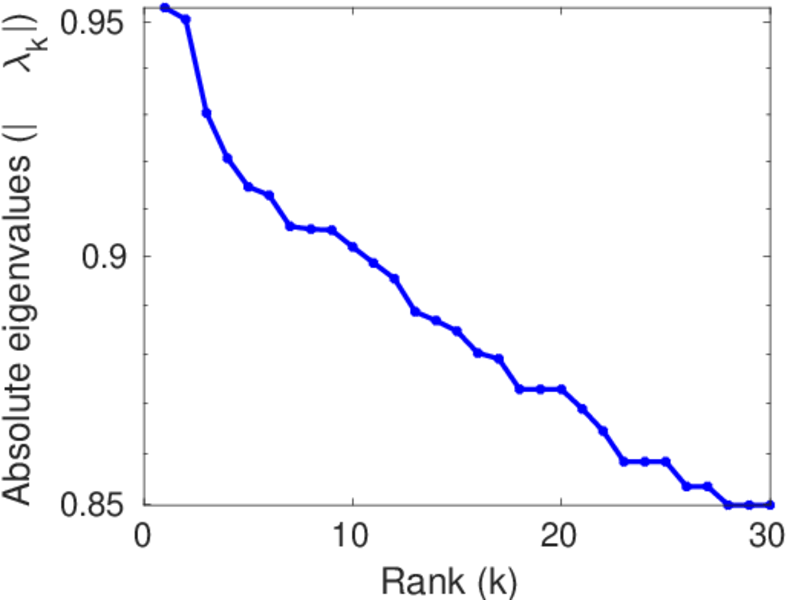

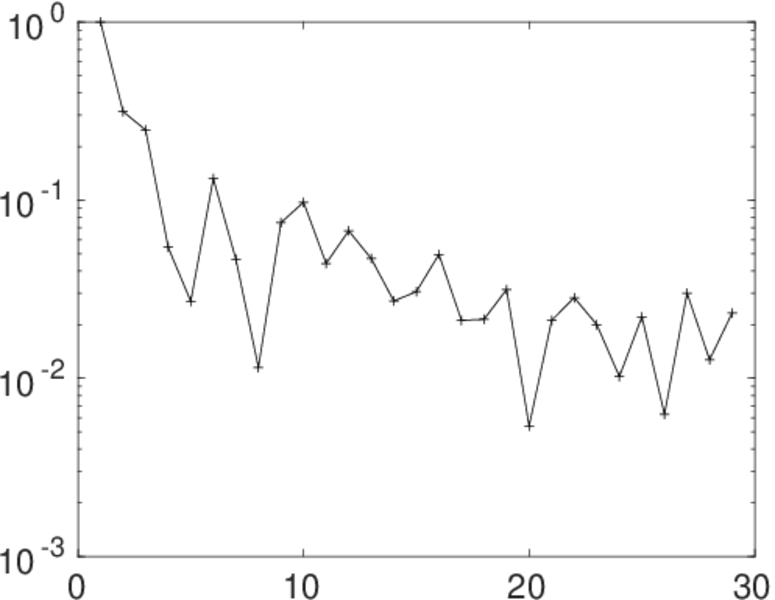

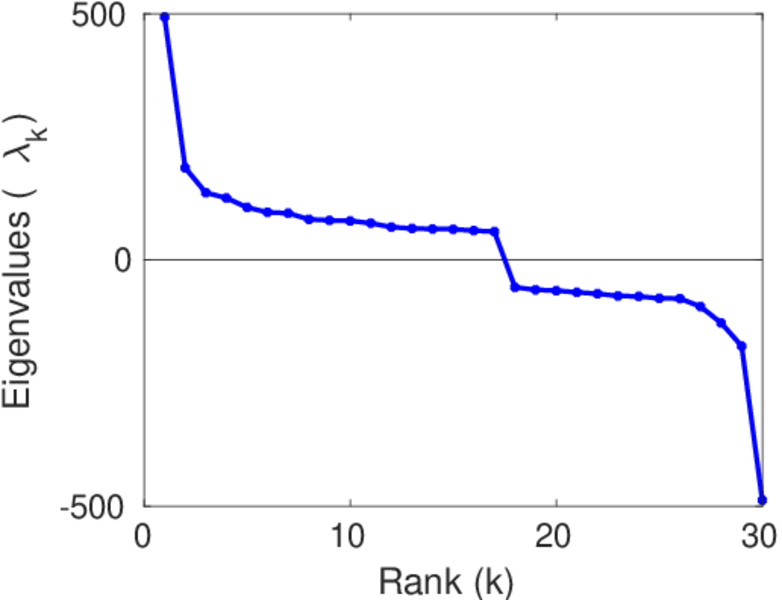

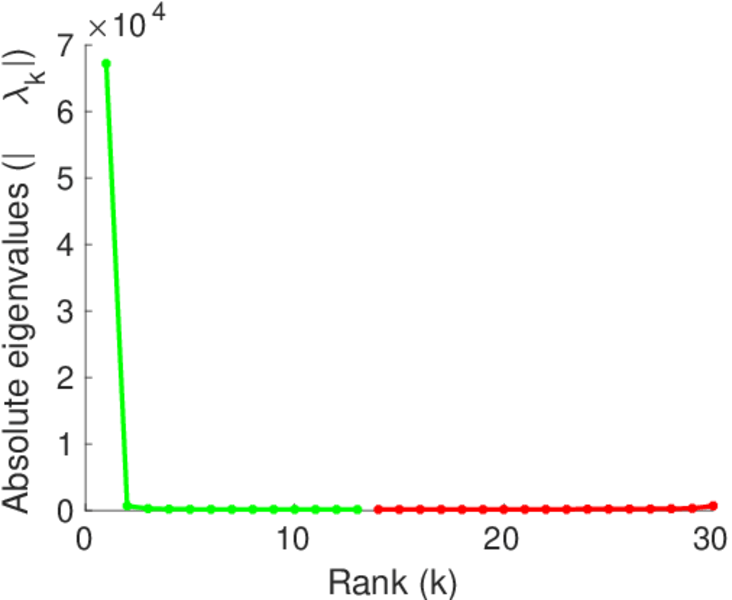

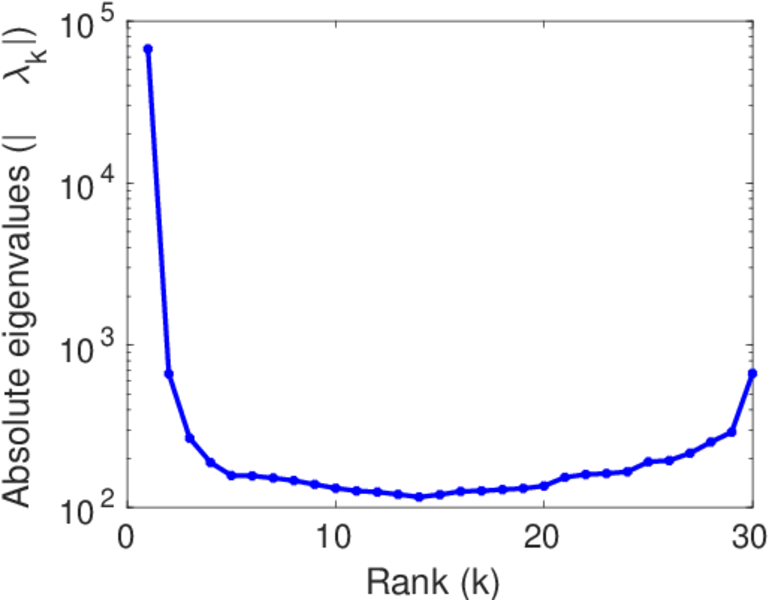

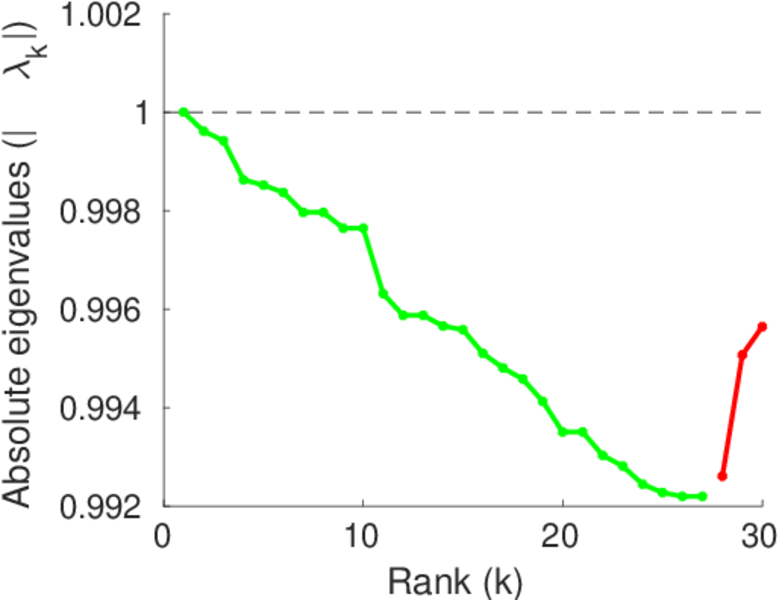

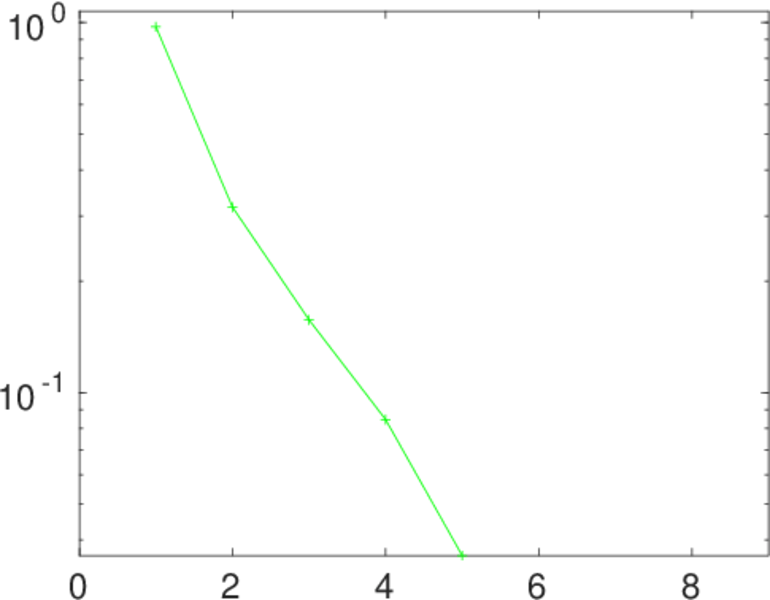

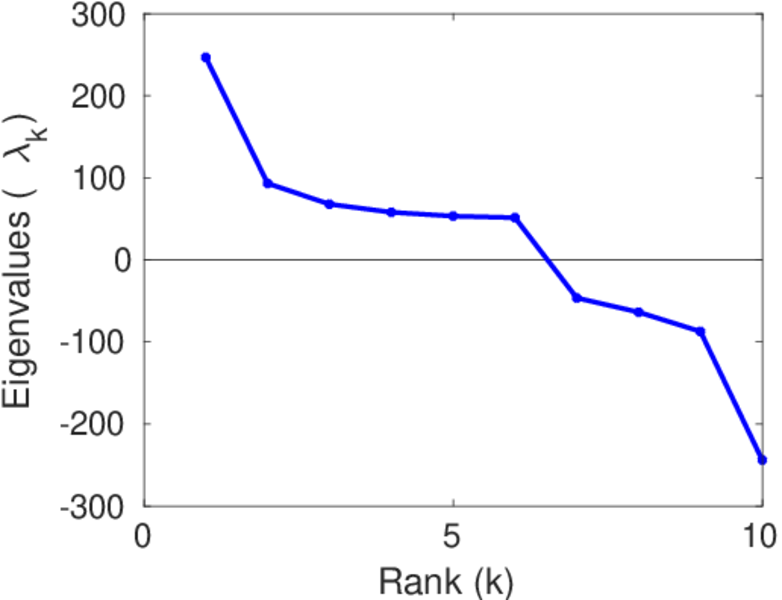

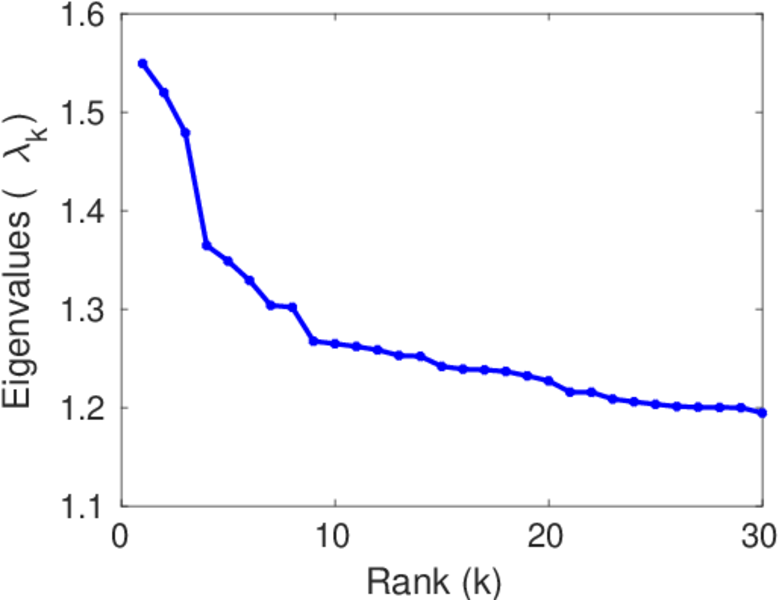

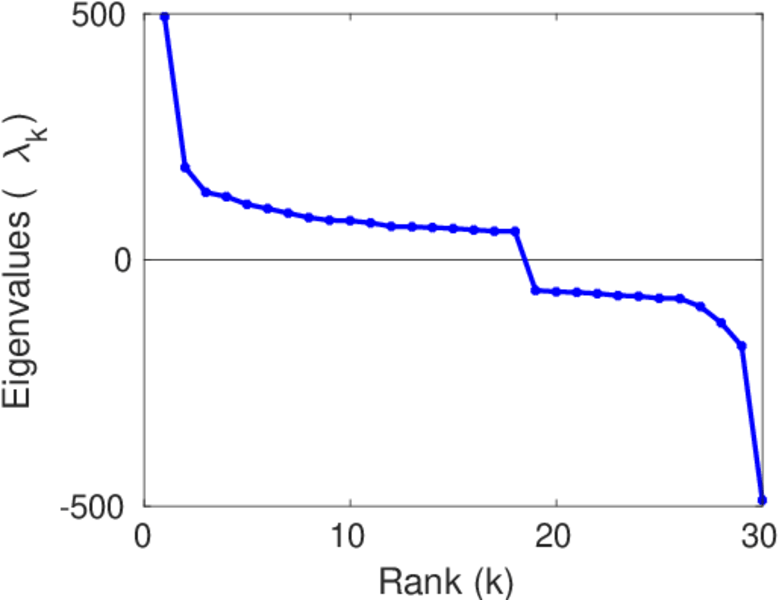

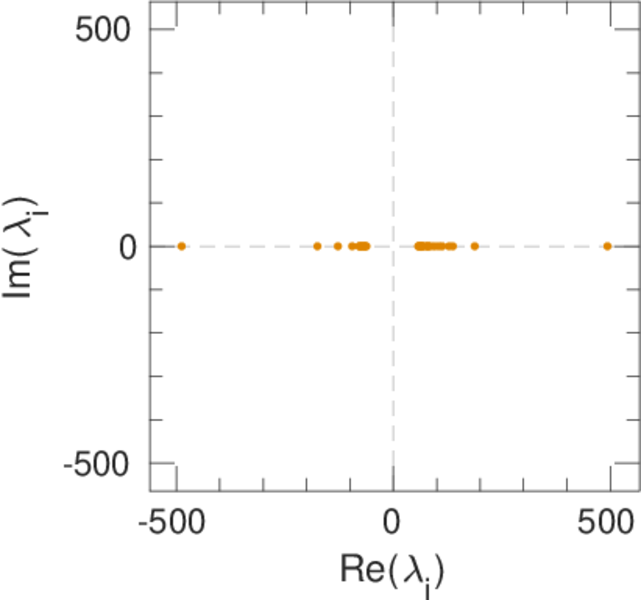

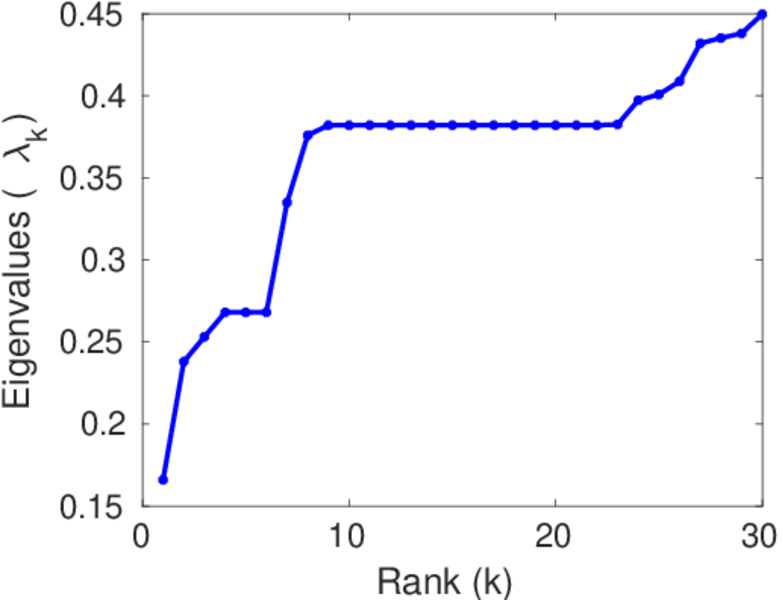

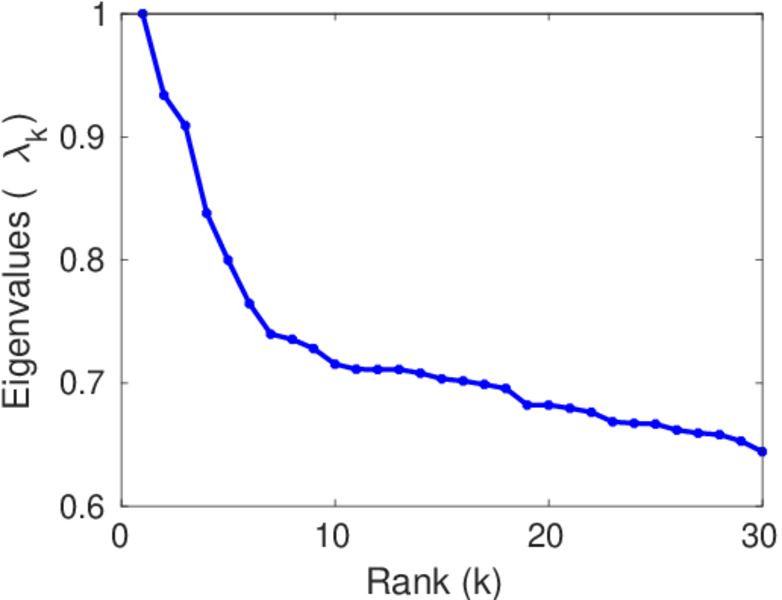

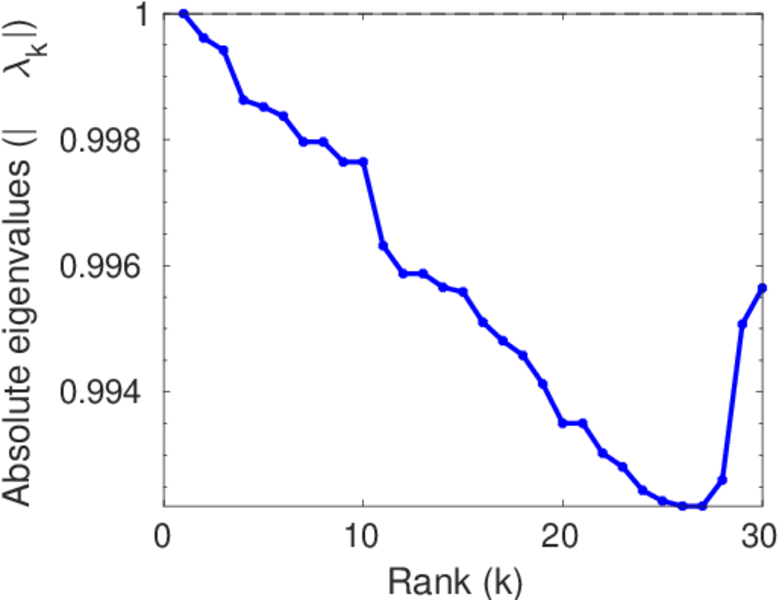

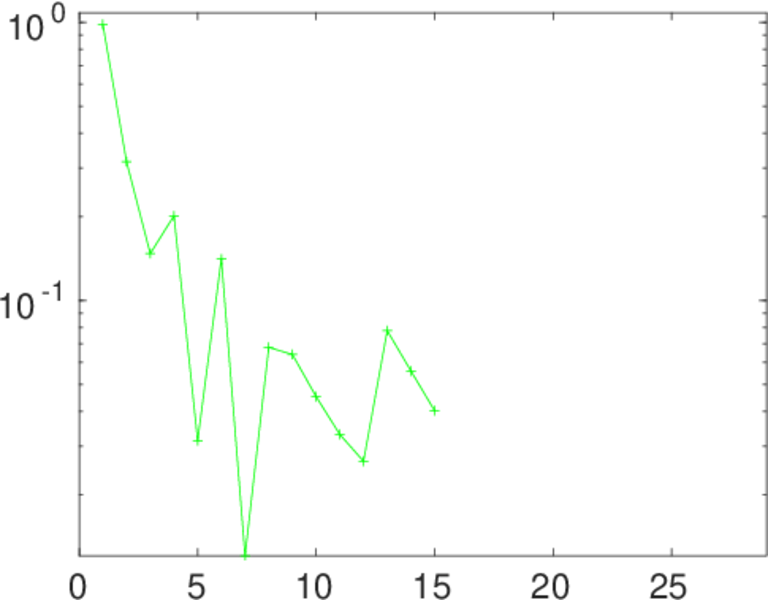

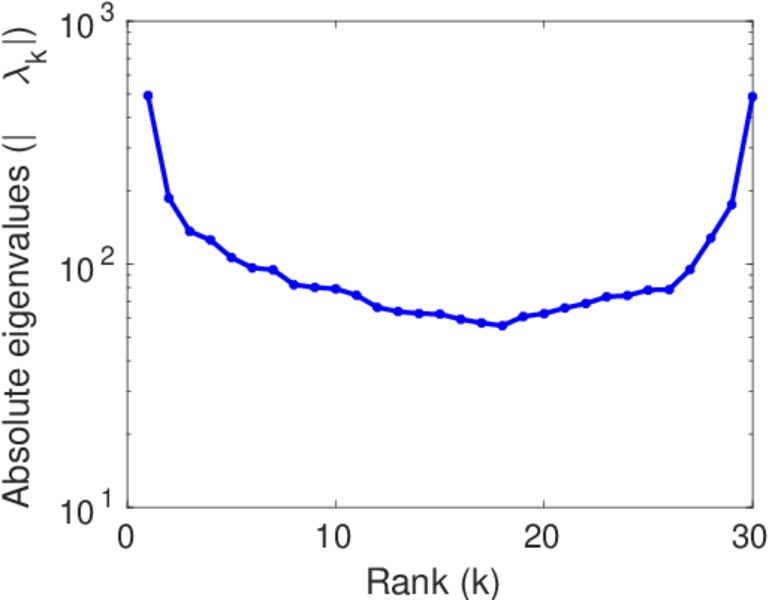

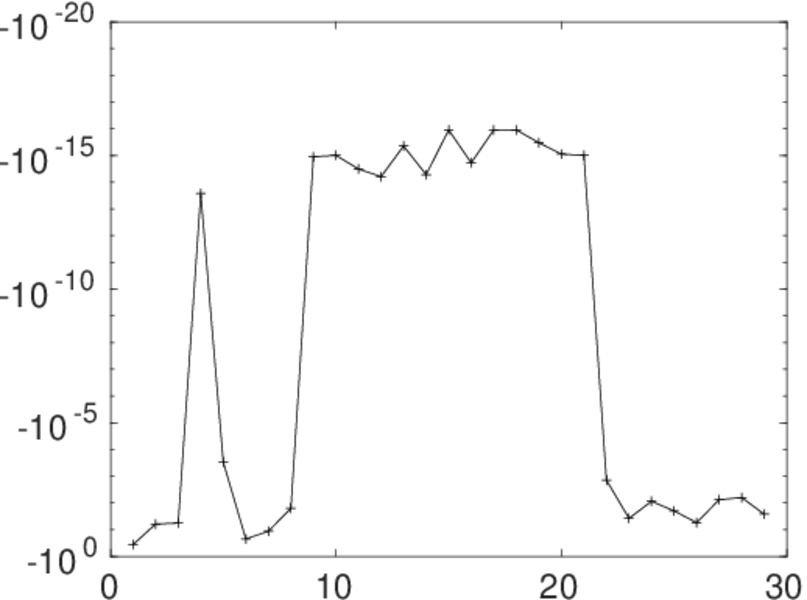

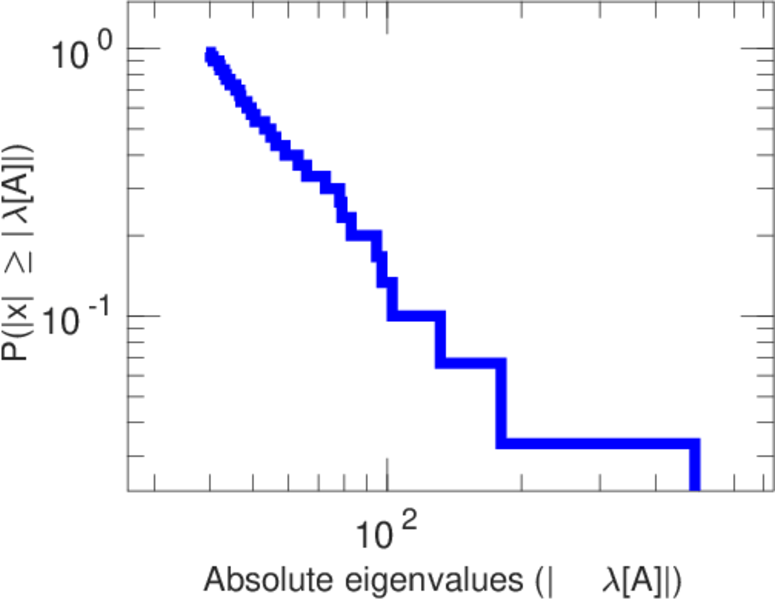

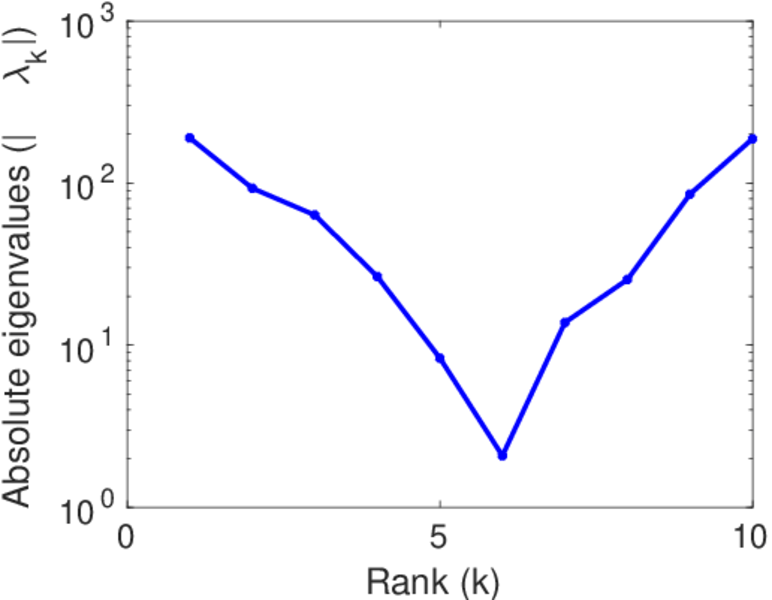

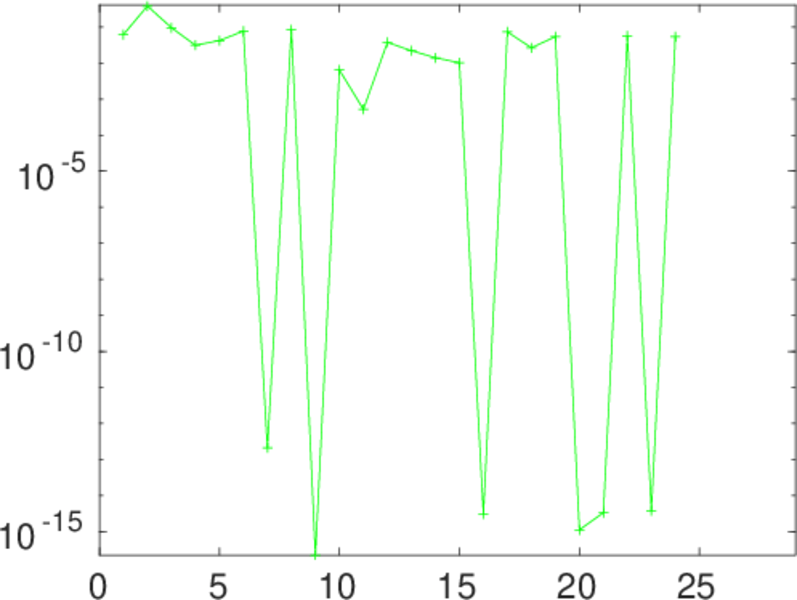

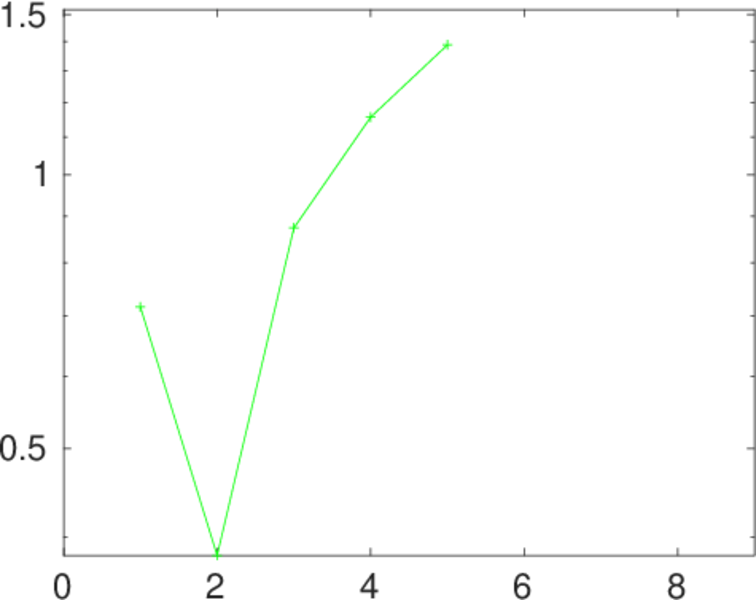

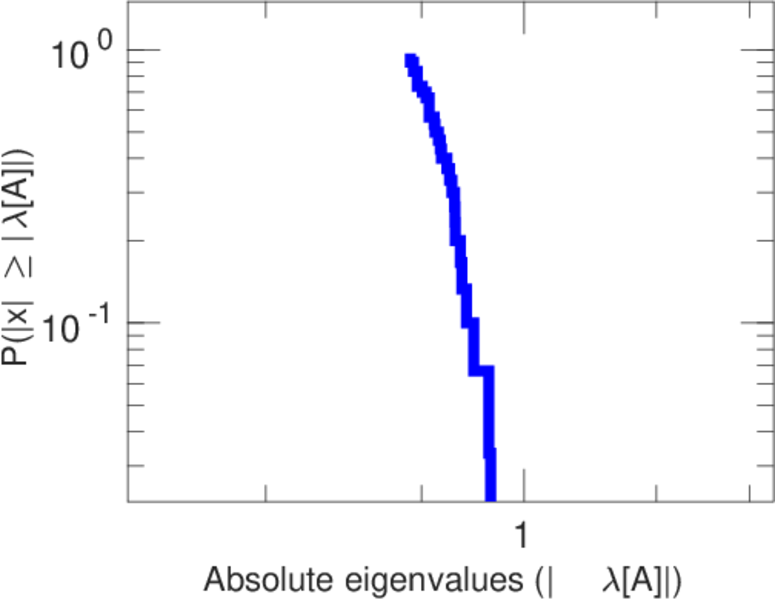

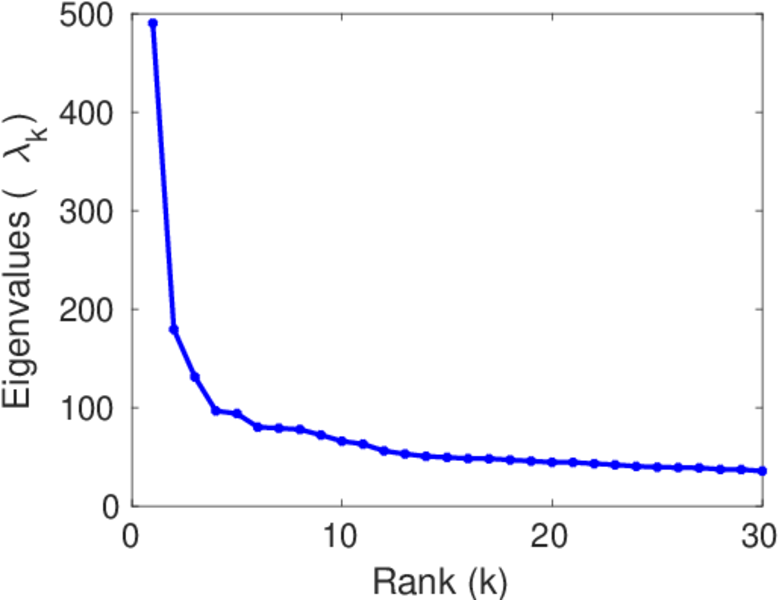

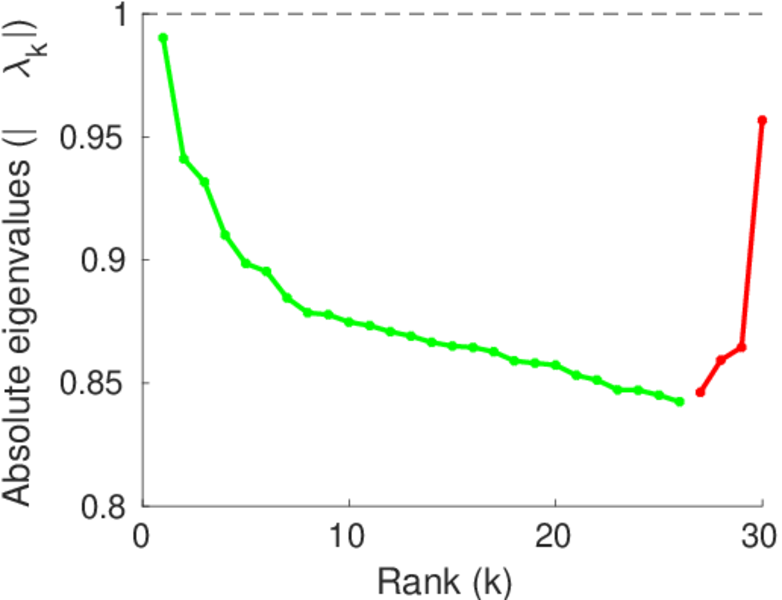

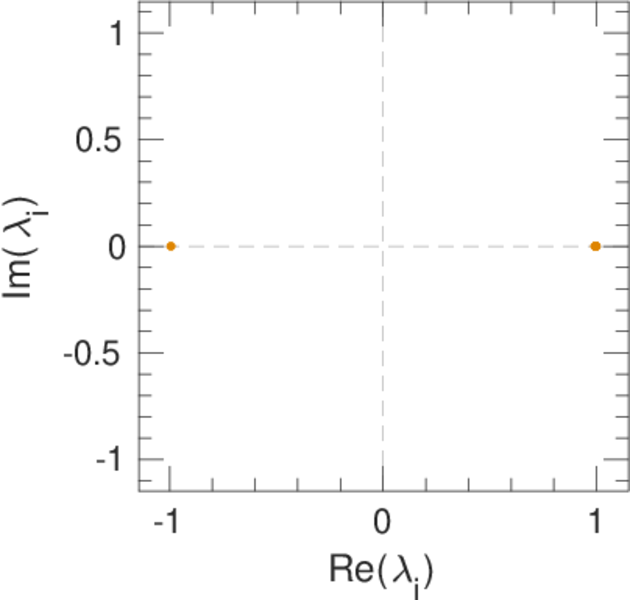

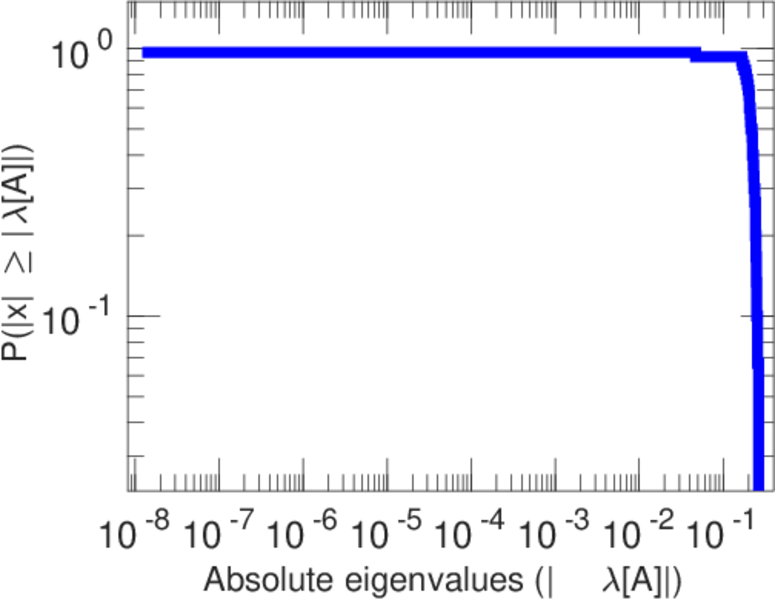

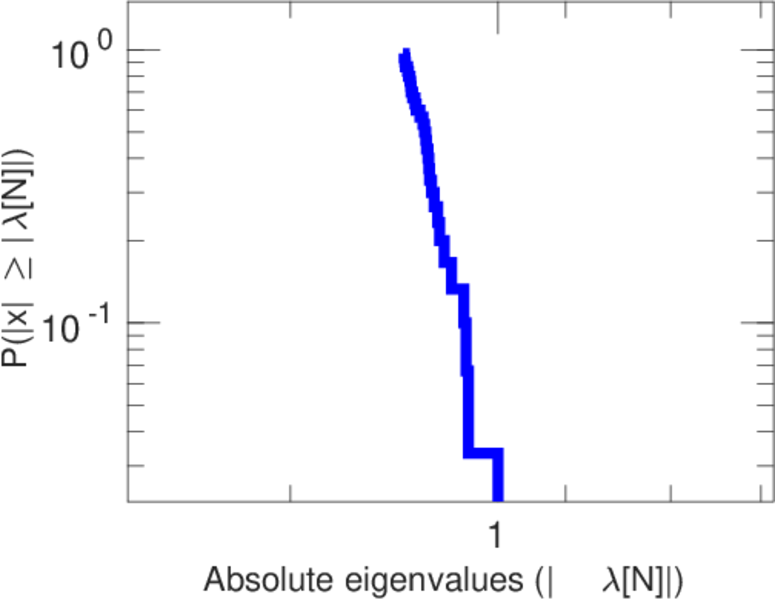

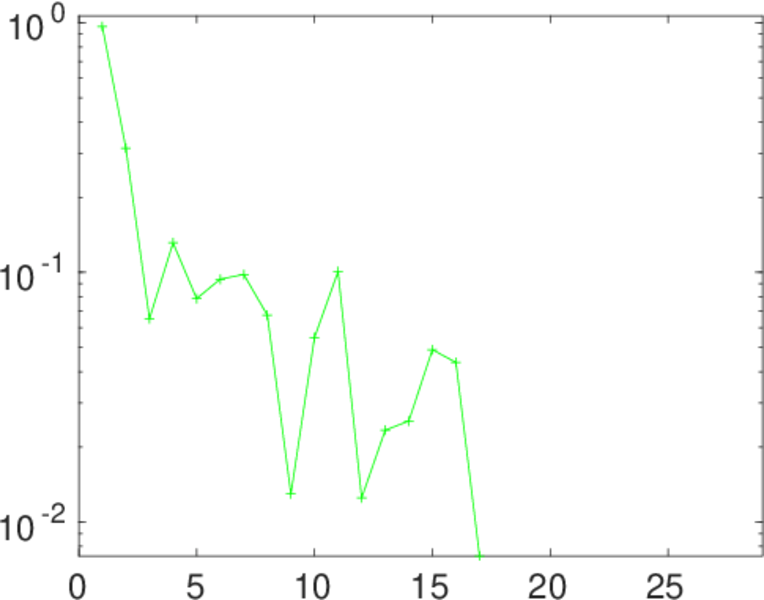

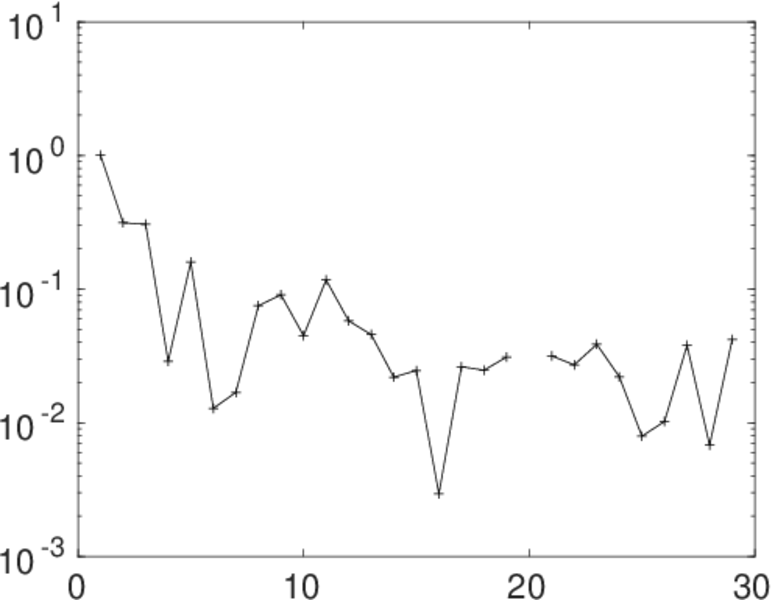

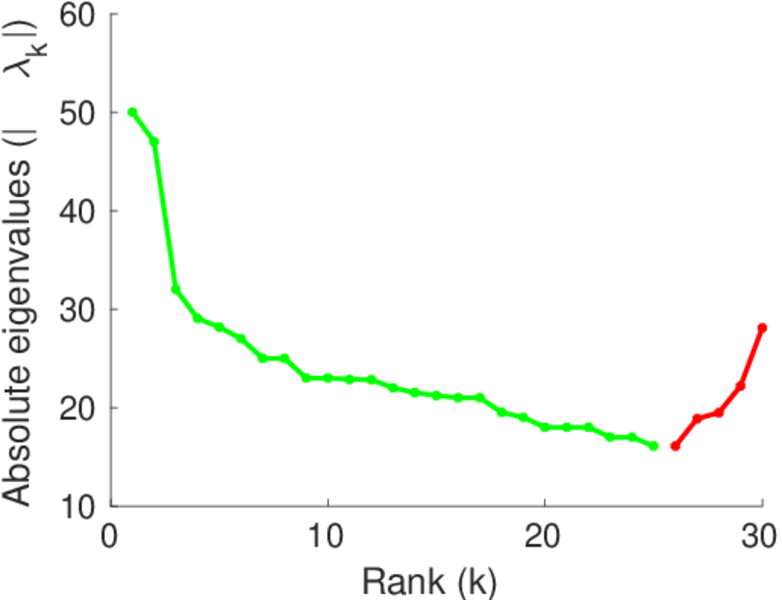

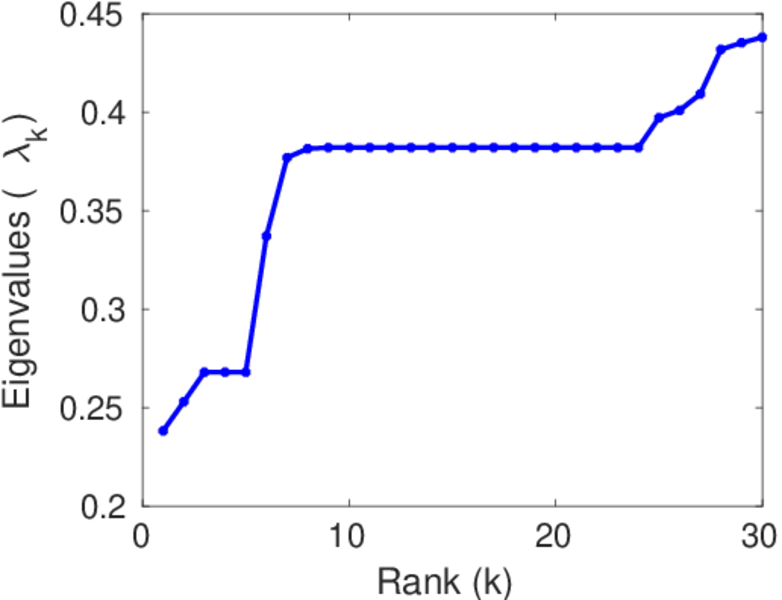

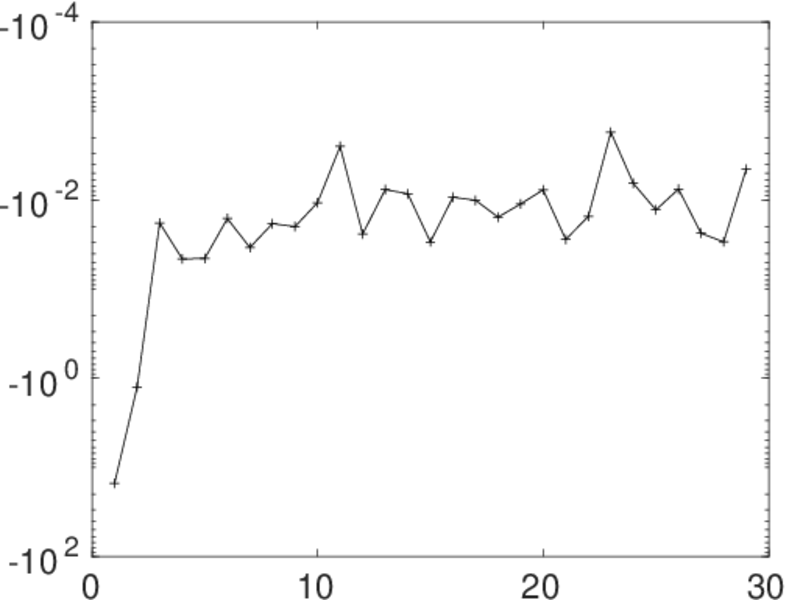

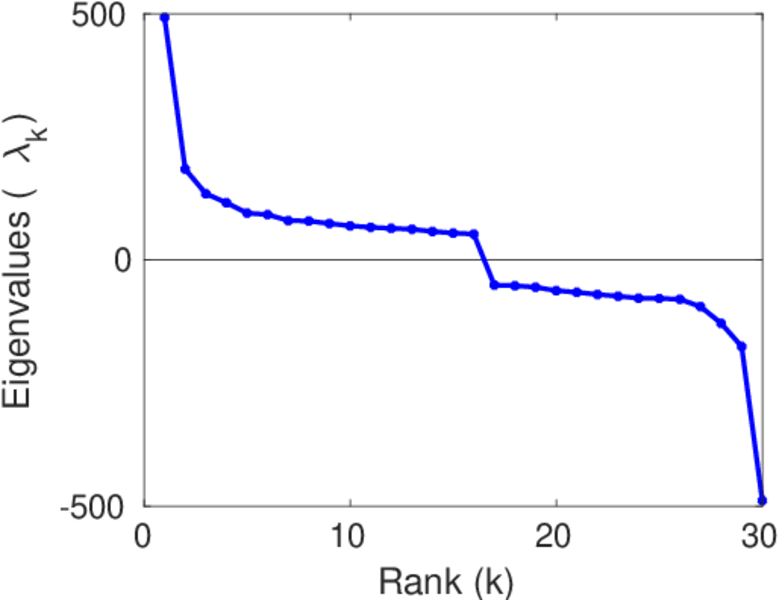

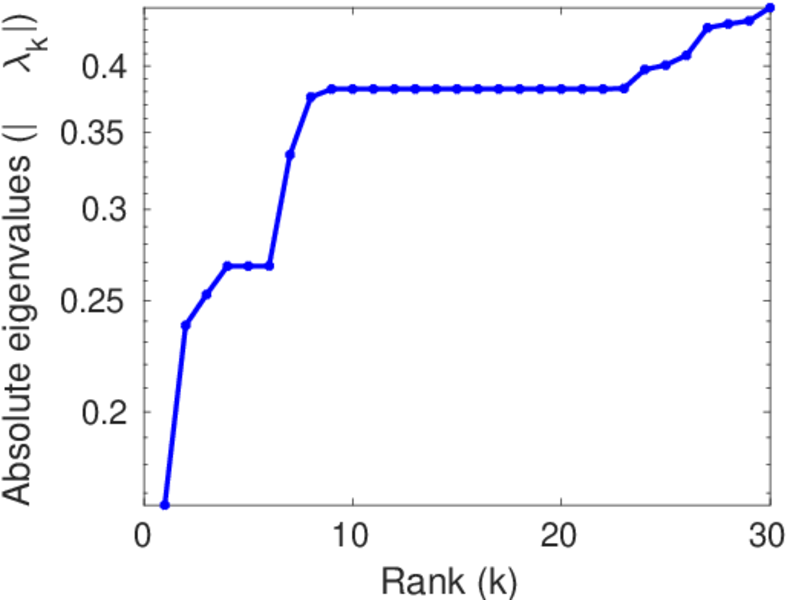

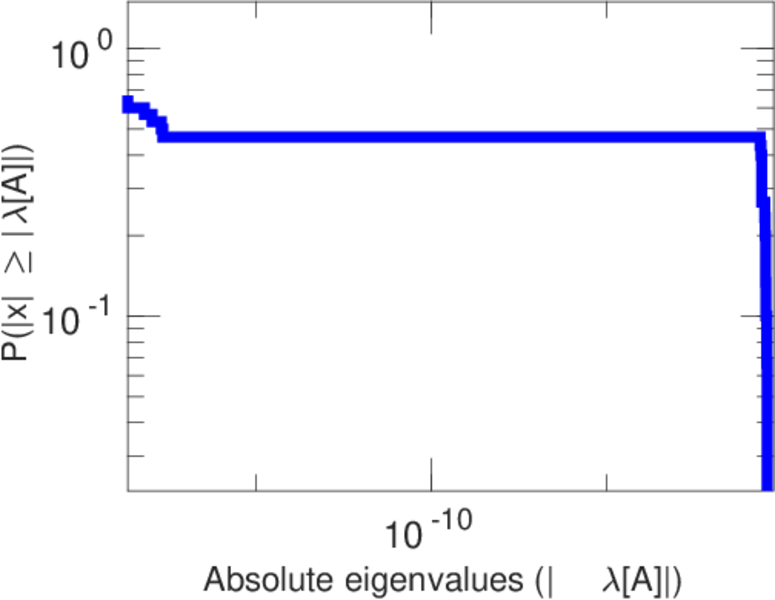

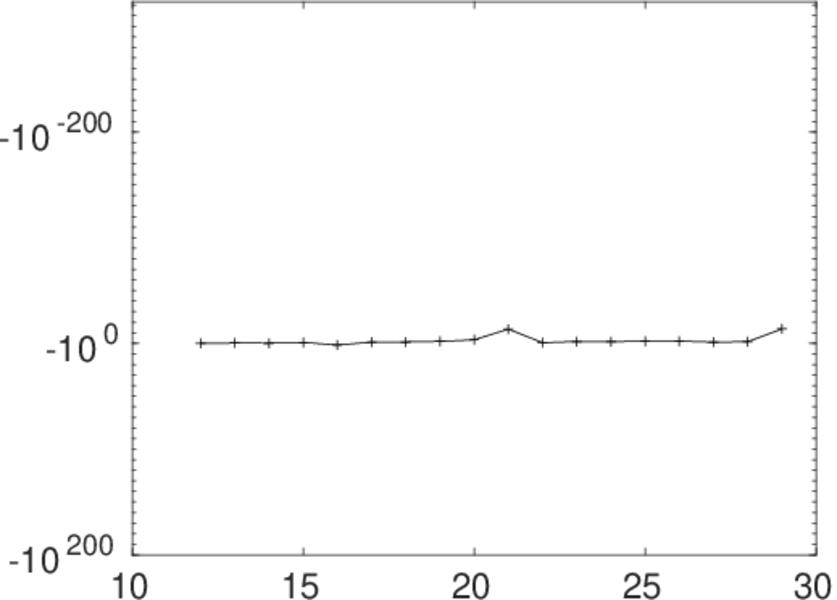

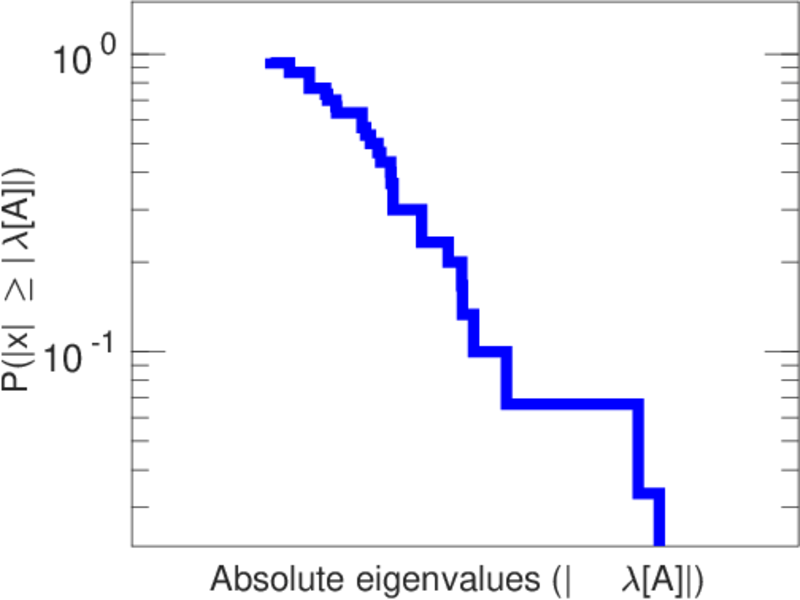

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
