Wikipedia links (vo)

This network consists of the wikilinks of the Wikipedia in the Volapük language (vo). Nodes are Wikipedia articles, and directed edges are wikilinks, i.e., hyperlinks within one wiki. In the wiki source, these are indicated with [[double brackets]]. Only pages in the article namespace are included.

Metadata

CodeWvo
Internal namewikipedia_link_vo
NameWikipedia links (vo)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningWikilink
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =242,046
Volume m =761,034
Loop count l =2
Wedge count s =10,075,128,352
Claw count z =278,930,268,453,196
Cross count x =6,223,346,749,115,456,512
Triangle count t =1,985,412
Square count q =5,905,528,926
4-Tour count T4 =87,546,092,288
Maximum degree dmax =94,726
Maximum outdegree d+max =2,224
Maximum indegree dmax =94,725
Average degree d =6.288 34
Fill p =1.299 00 × 10−5
Size of LCC N =242,014
Size of LSCC Ns =8,380
Relative size of LSCC Nrs =0.034 621 5
Diameter δ =10
50-Percentile effective diameter δ0.5 =2.686 64
90-Percentile effective diameter δ0.9 =3.831 58
Median distance δM =3
Mean distance δm =3.223 85
Gini coefficient G =0.718 910
Balanced inequality ratio P =0.226 732
Outdegree balanced inequality ratio P+ =0.309 610
Indegree balanced inequality ratio P =0.169 581
Relative edge distribution entropy Her =0.783 666
Power law exponent γ =2.233 38
Tail power law exponent γt =2.511 00
Tail power law exponent with p γ3 =2.511 00
p-value p =0.000 00
Outdegree tail power law exponent with p γ3,o =2.301 00
Outdegree p-value po =0.000 00
Indegree tail power law exponent with p γ3,i =2.491 00
Indegree p-value pi =0.000 00
Degree assortativity ρ =−0.219 512
Degree assortativity p-value pρ =0.000 00
In/outdegree correlation ρ± =+0.664 939
Clustering coefficient c =0.000 591 182
Directed clustering coefficient c± =0.337 596
Spectral norm α =450.701
Operator 2-norm ν =449.408
Cyclic eigenvalue π =133.031
Algebraic connectivity a =0.052 658 0
Spectral separation 1[A] / λ2[A]| =1.004 81
Reciprocity y =0.229 417
Non-bipartivity bA =0.004 784 22
Normalized non-bipartivity bN =0.026 913 2
Algebraic non-bipartivity χ =0.052 711 2
Spectral bipartite frustration bK =0.002 366 89
Controllability C =189,354
Relative controllability Cr =0.782 306

Plots

Fruchterman–Reingold graph drawing

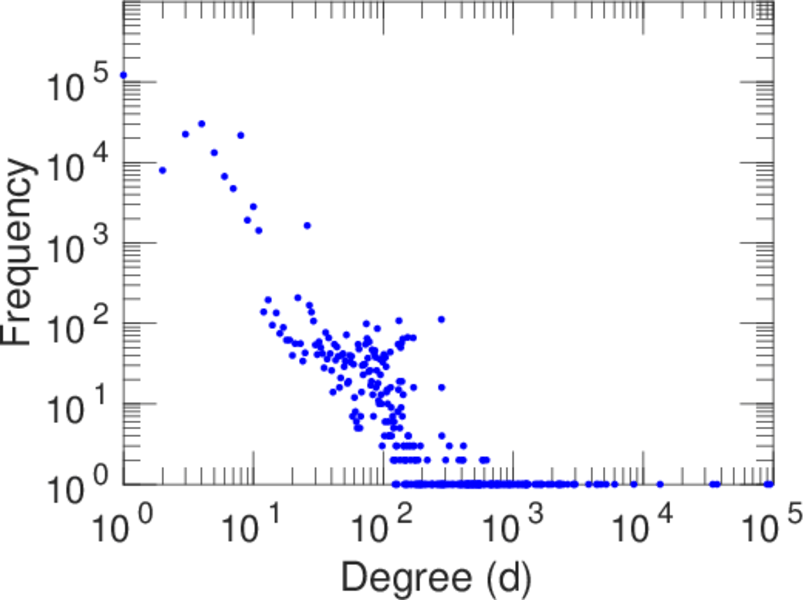

Degree distribution

Cumulative degree distribution

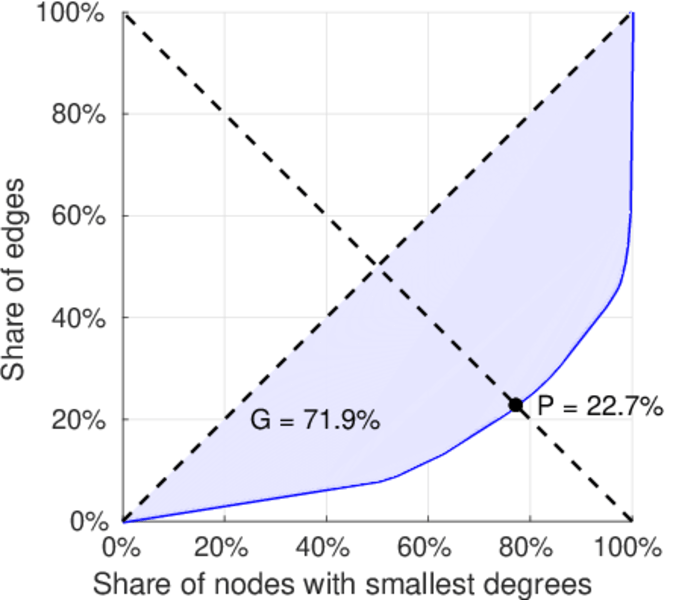

Lorenz curve

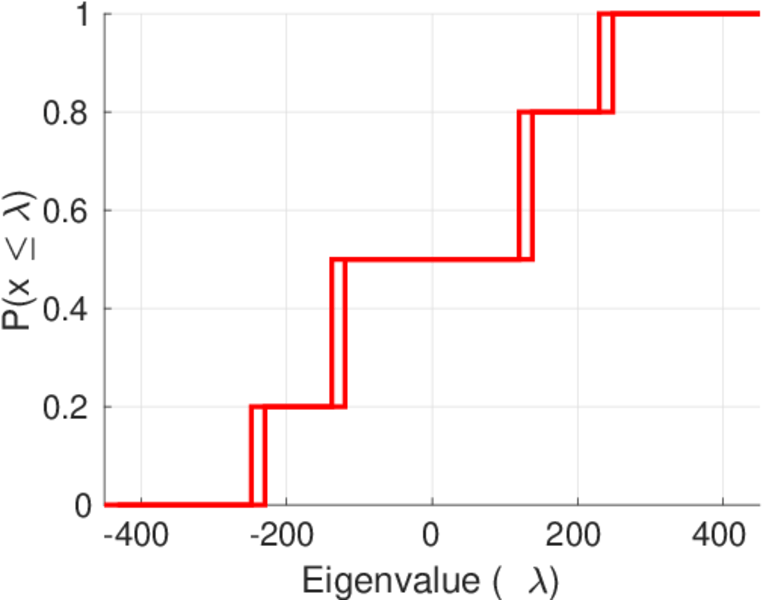

Spectral distribution of the adjacency matrix

Spectral distribution of the normalized adjacency matrix

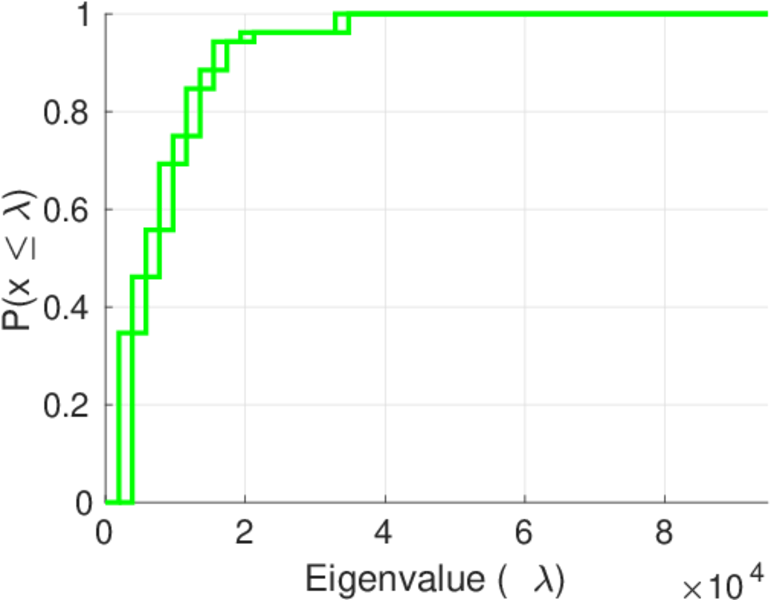

Spectral distribution of the Laplacian

Spectral graph drawing based on the adjacency matrix

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Delaunay graph drawing

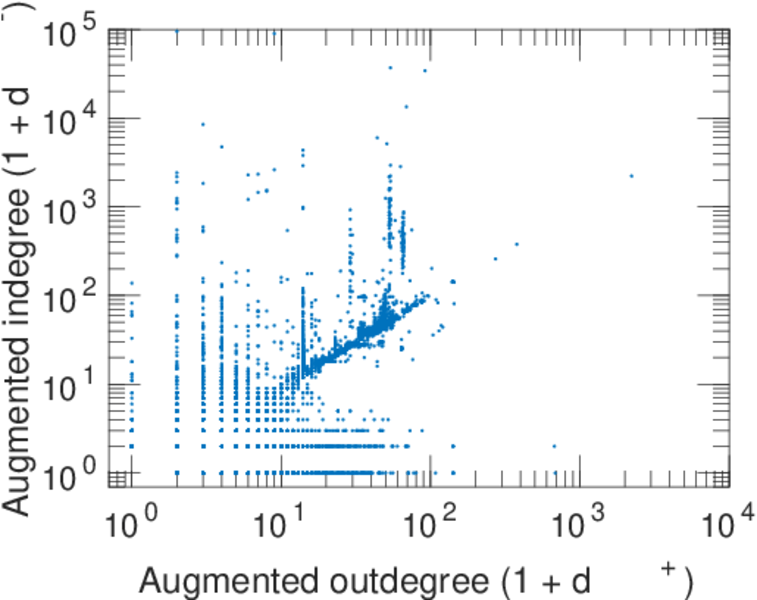

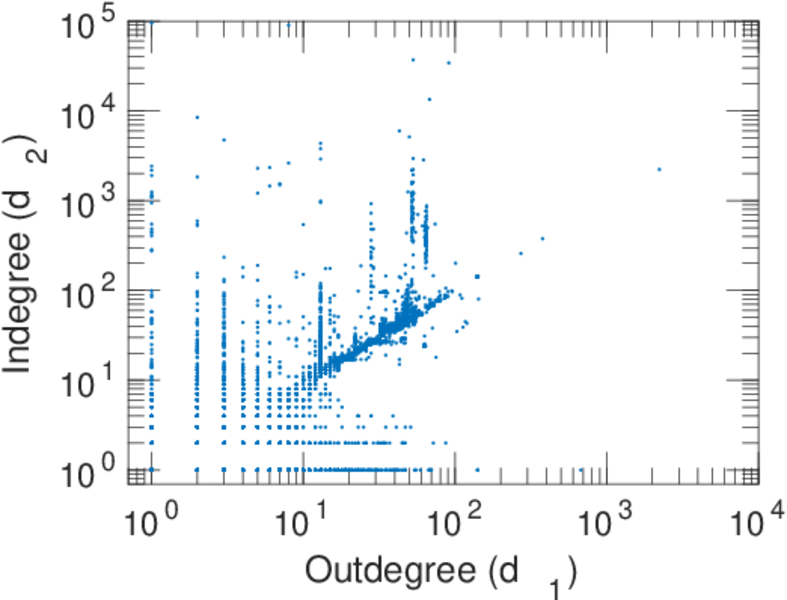

In/outdegree scatter plot

Clustering coefficient distribution

Average neighbor degree distribution

SynGraphy

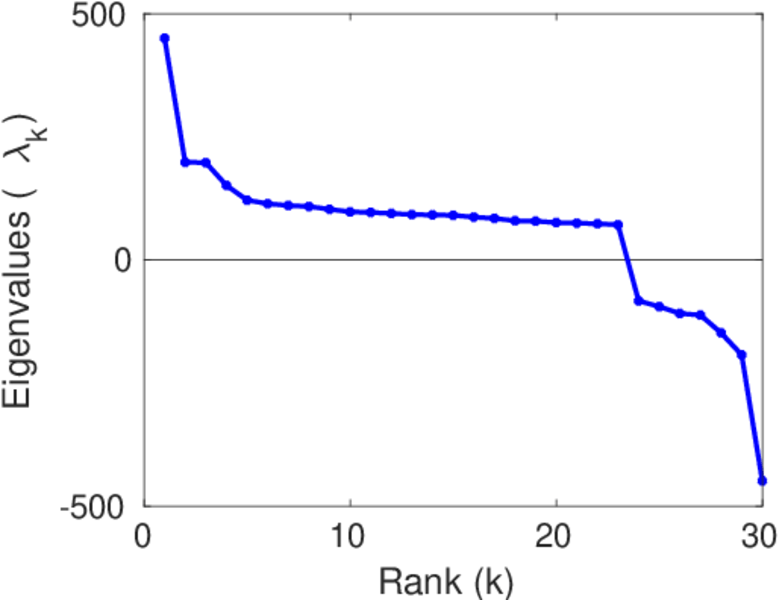

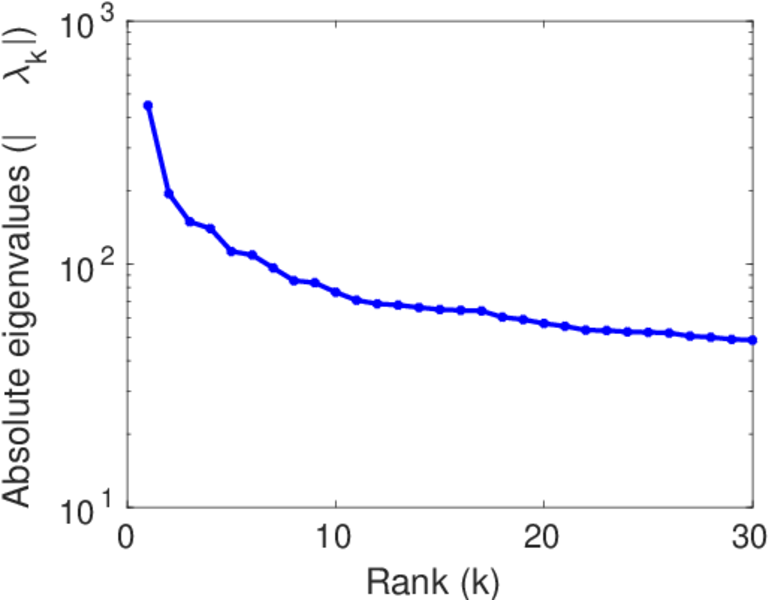

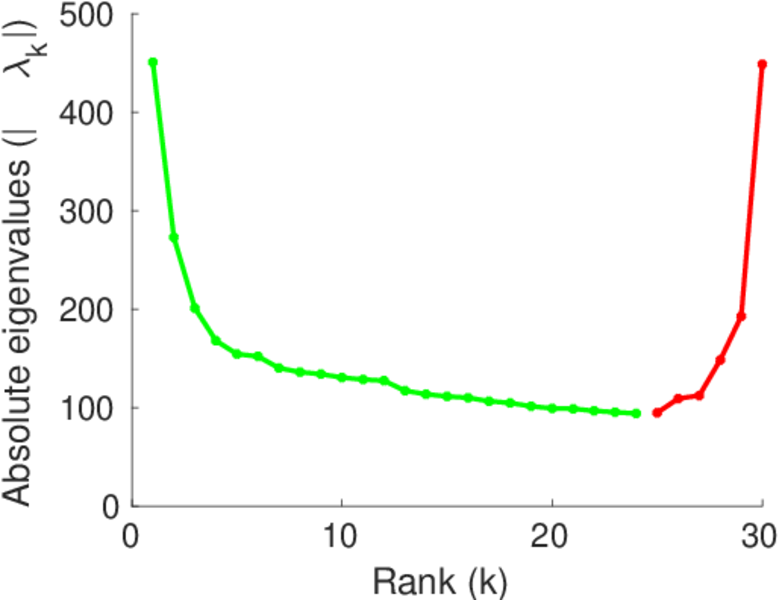

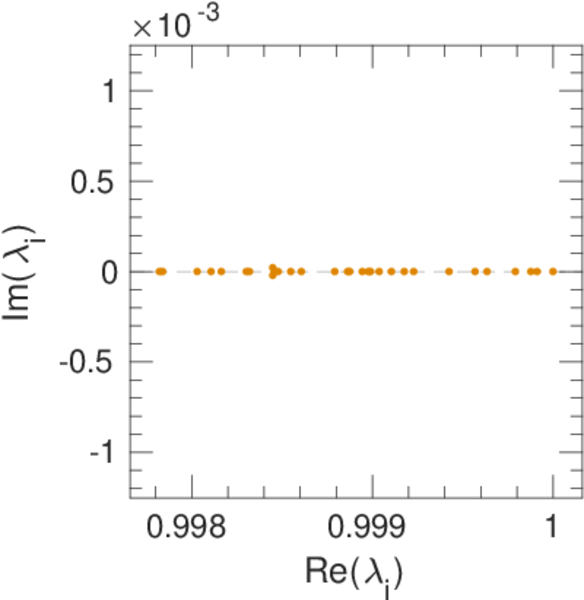

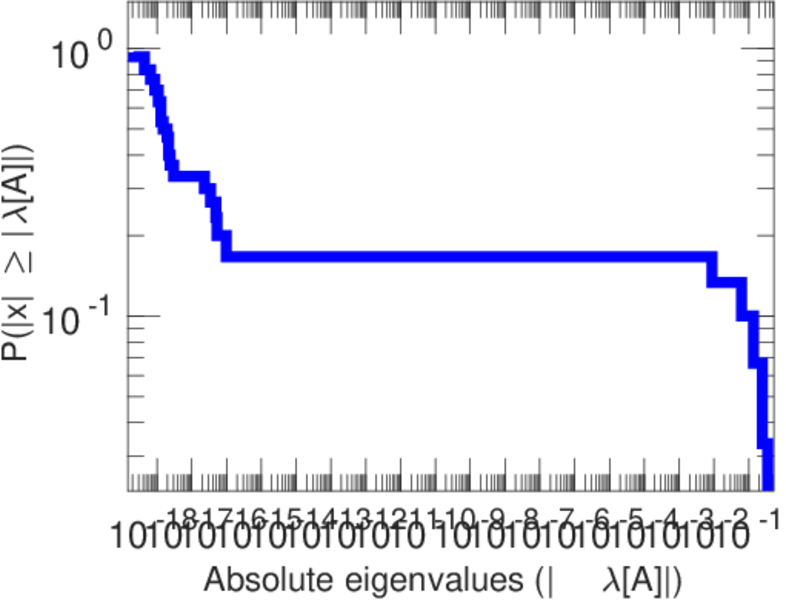

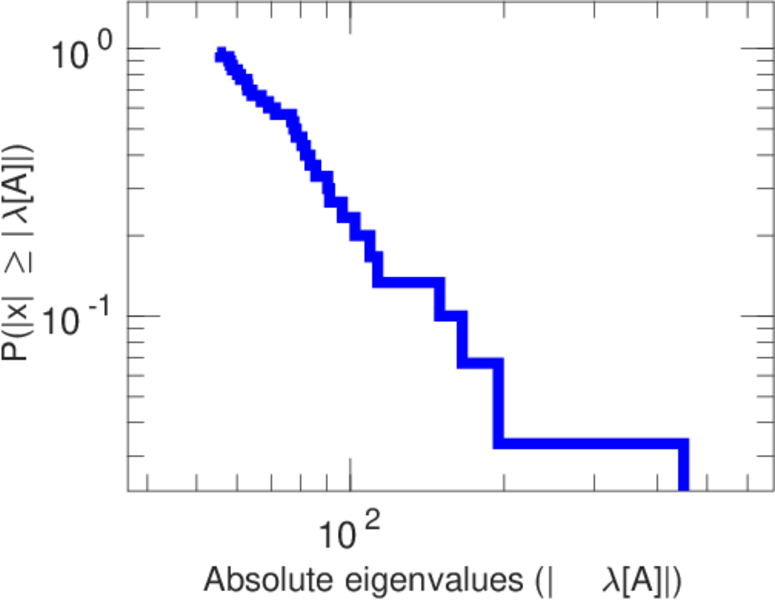

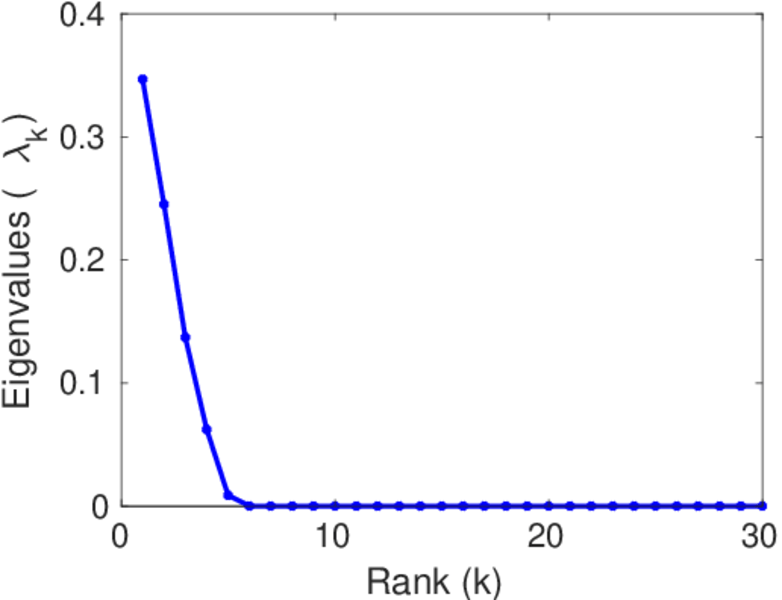

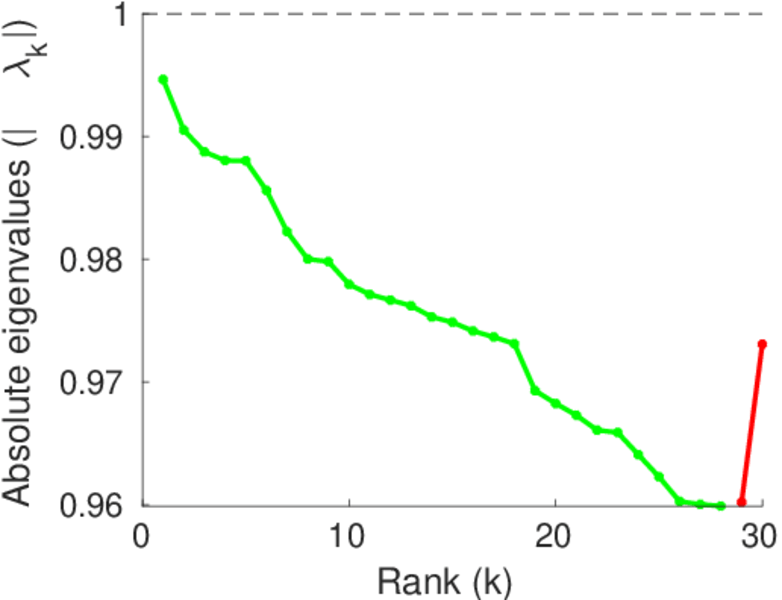

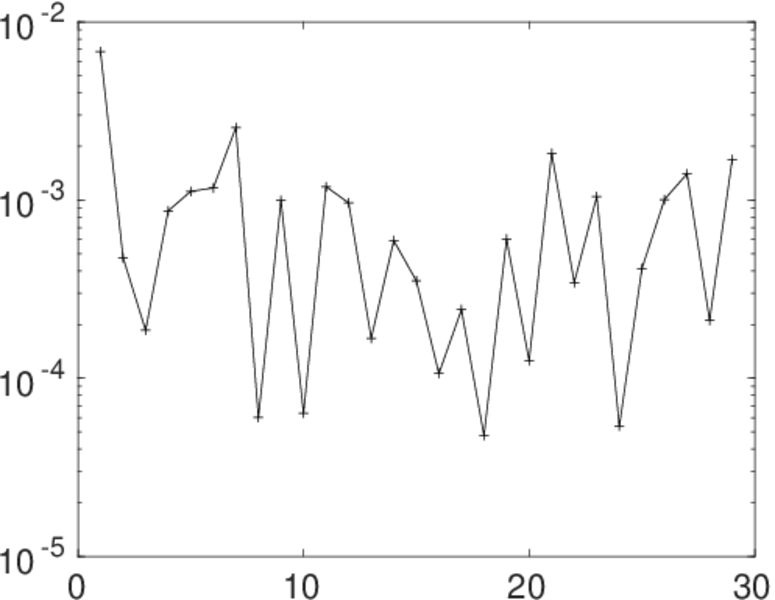

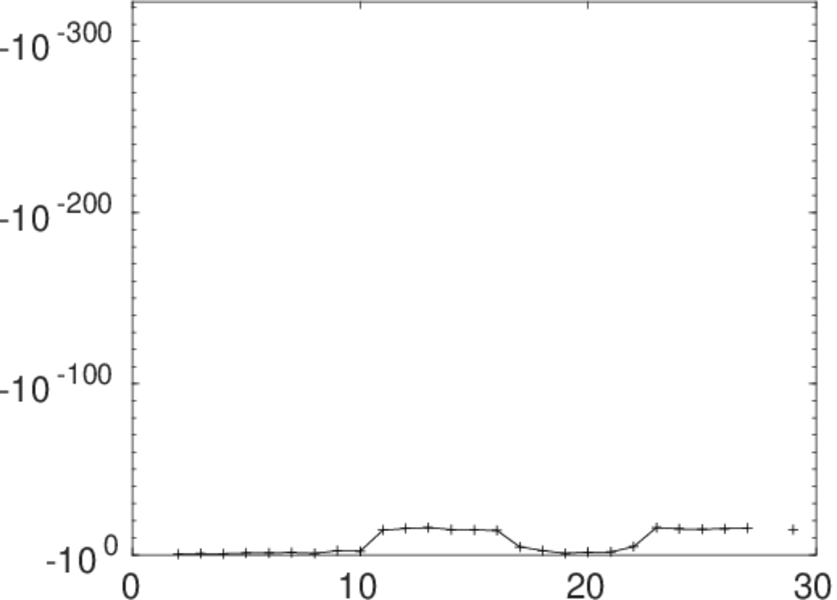

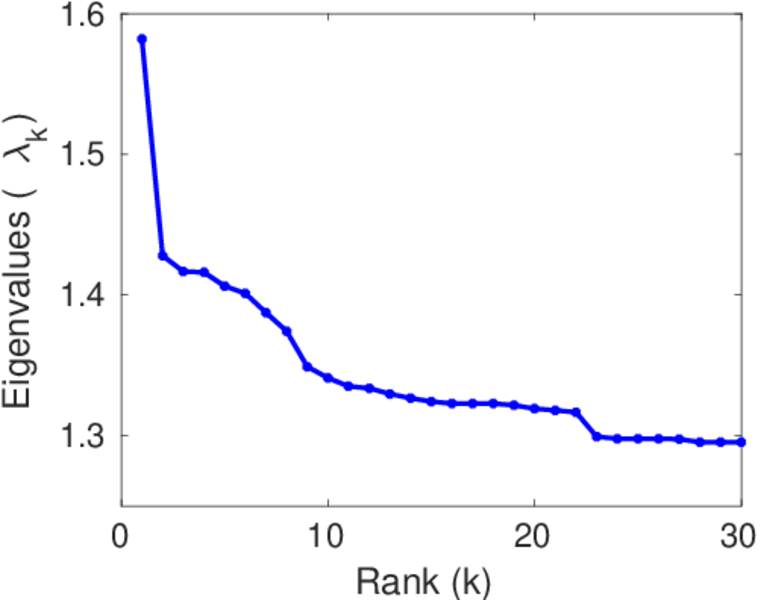

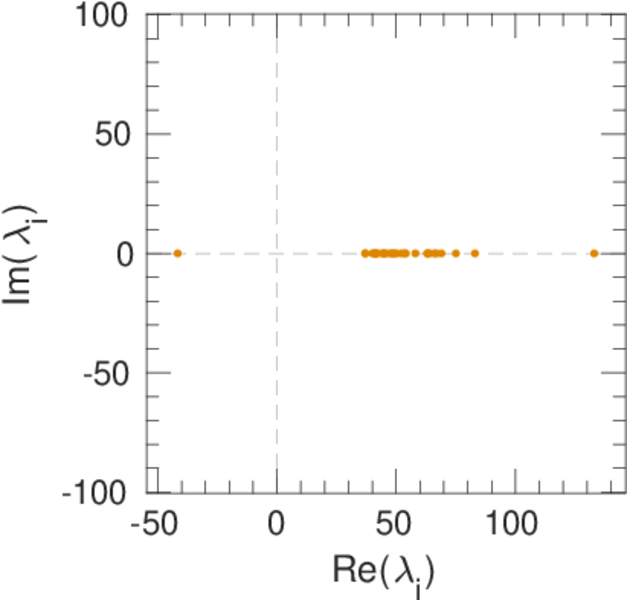

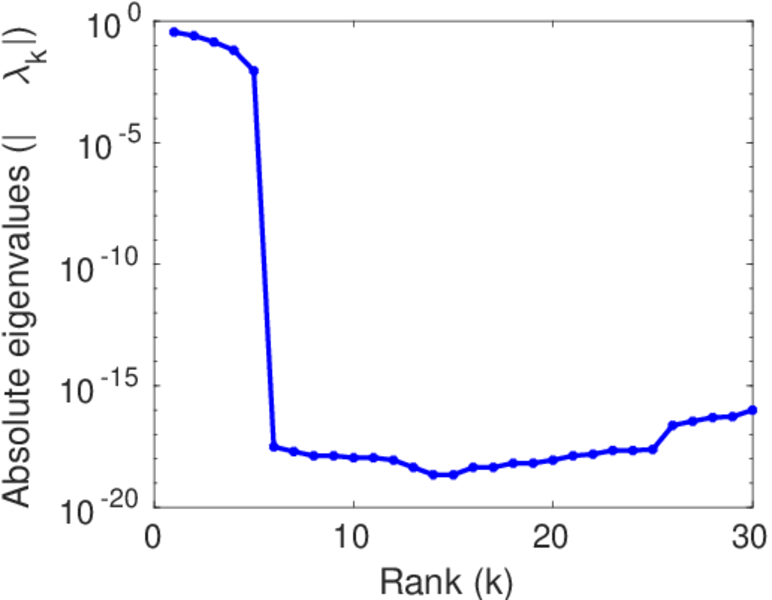

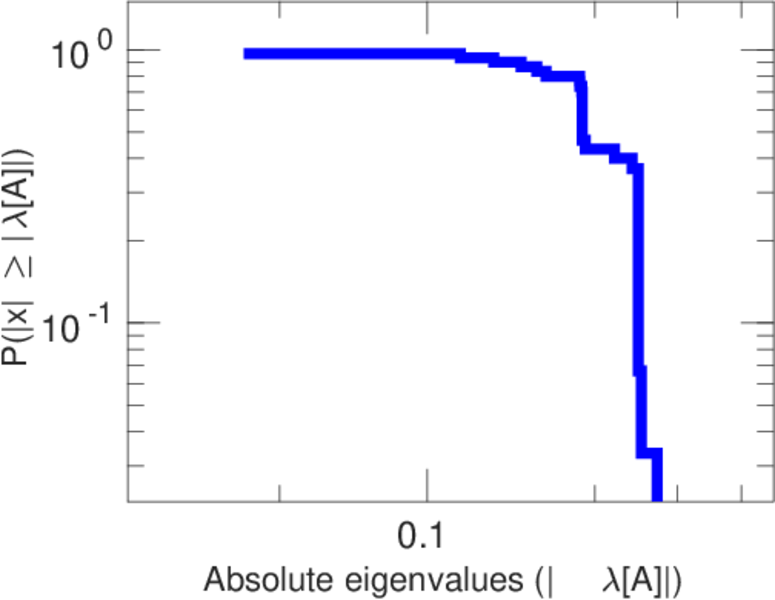

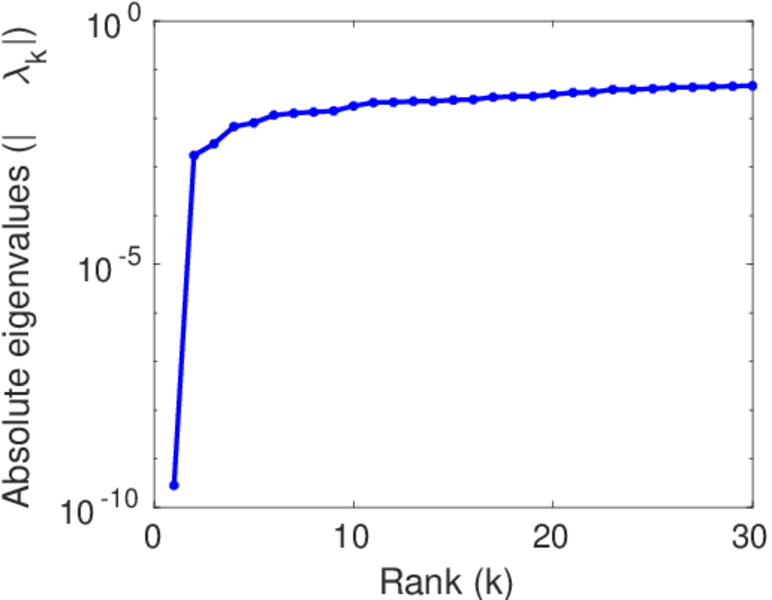

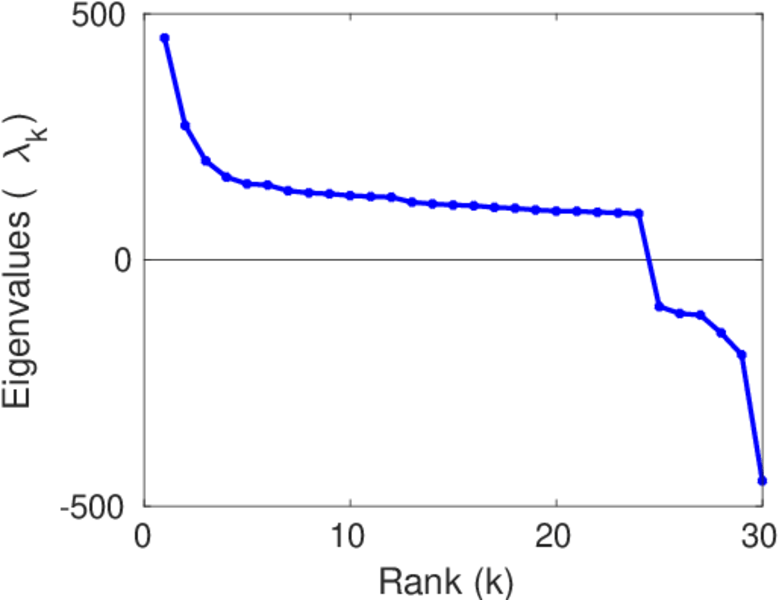

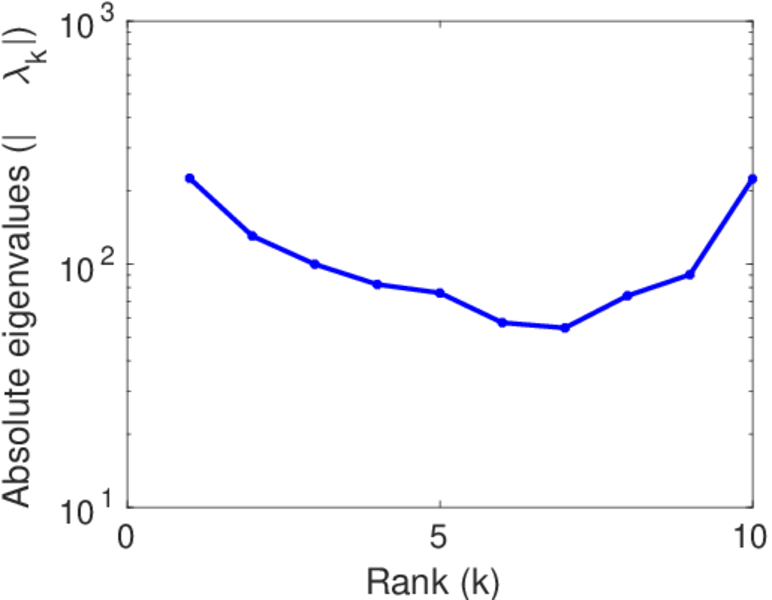

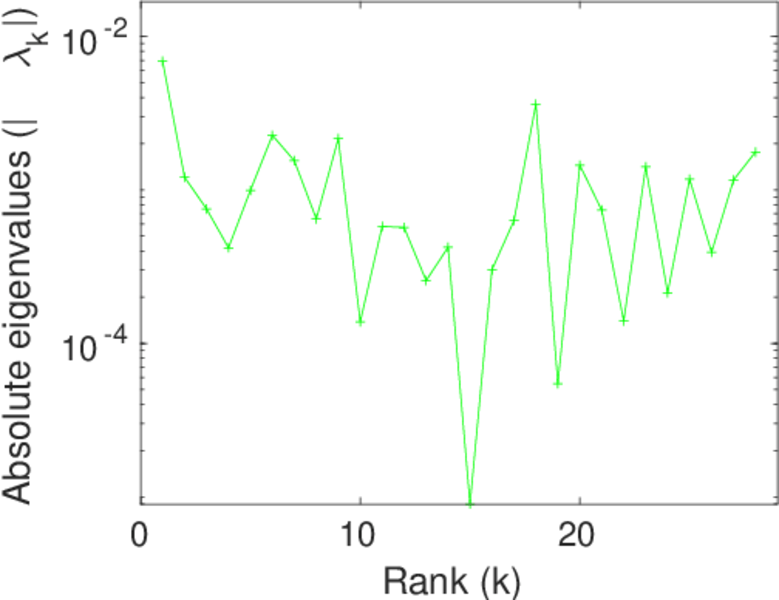

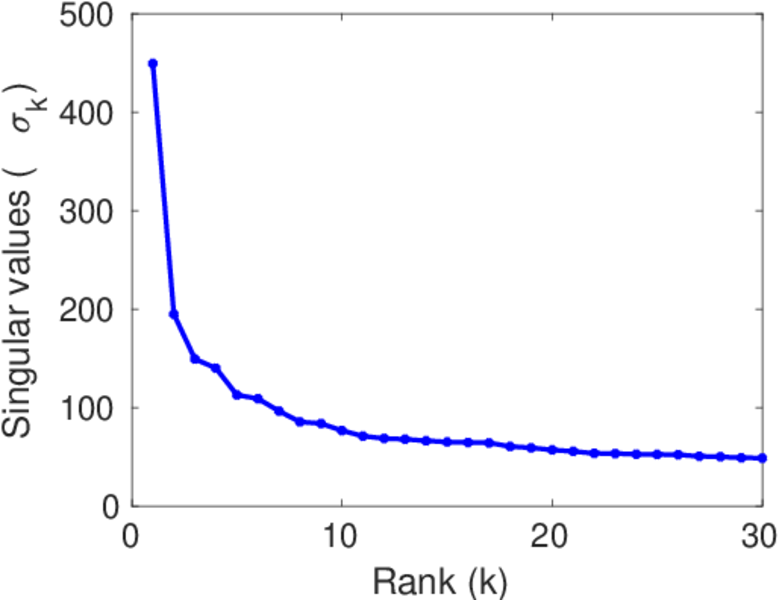

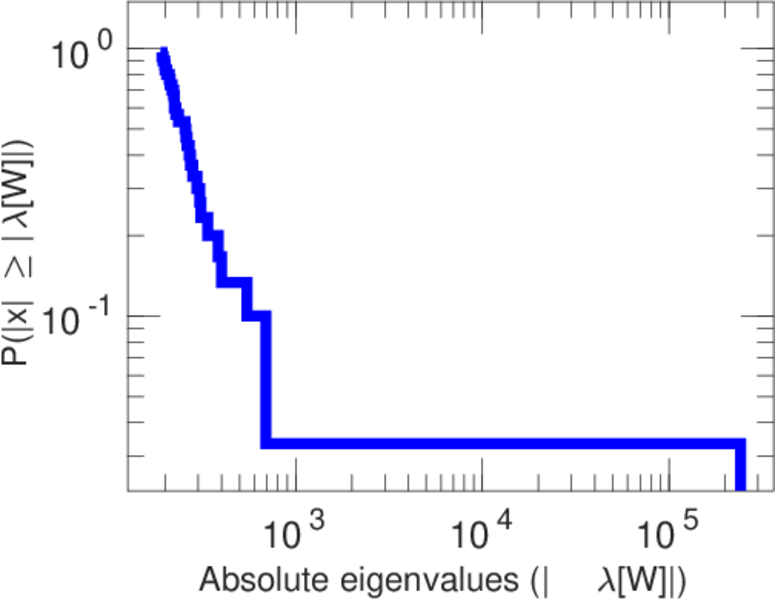

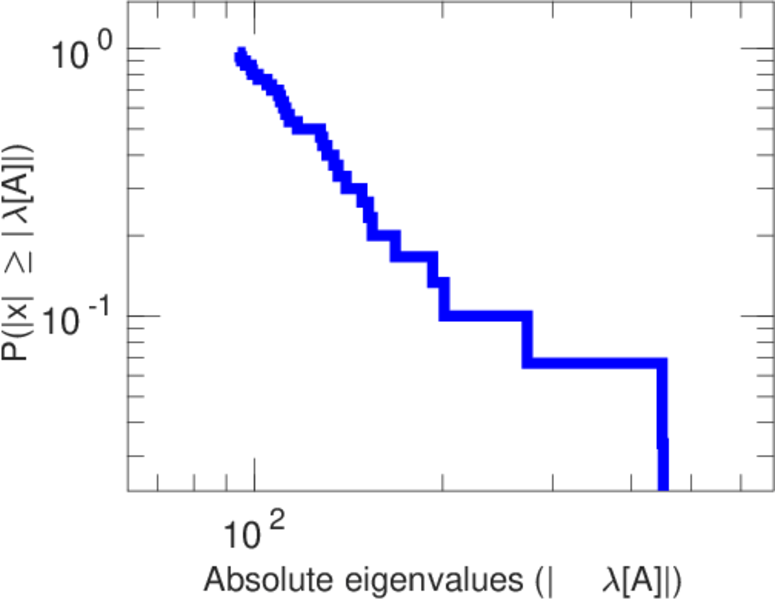

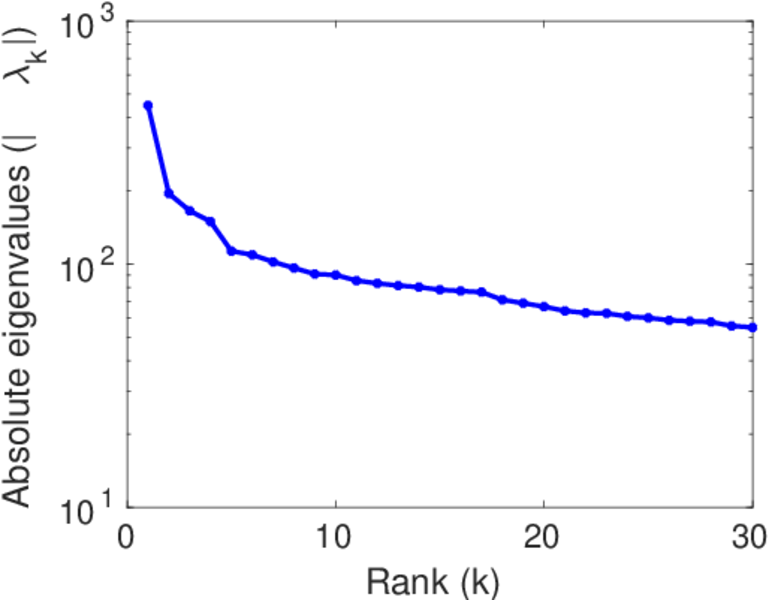

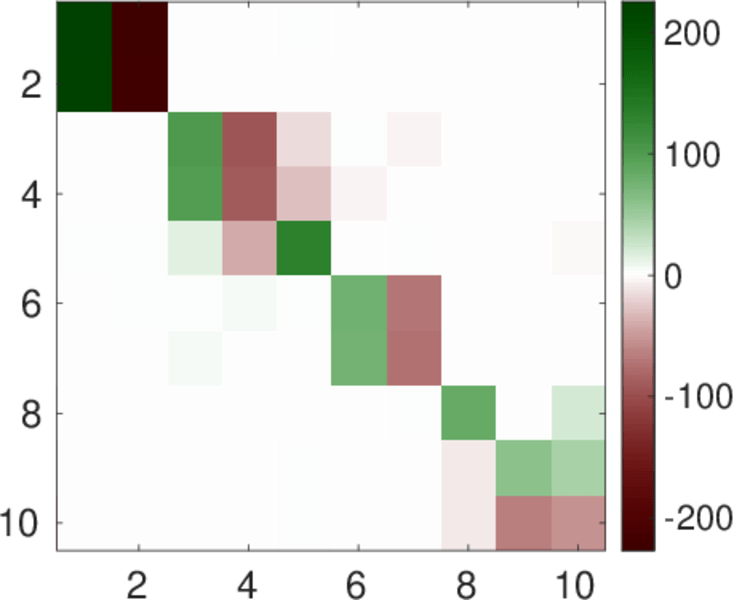

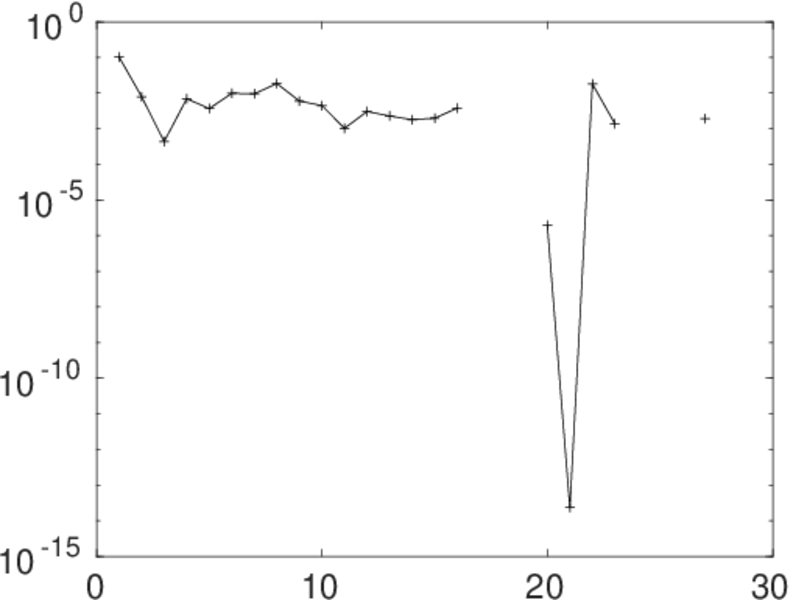

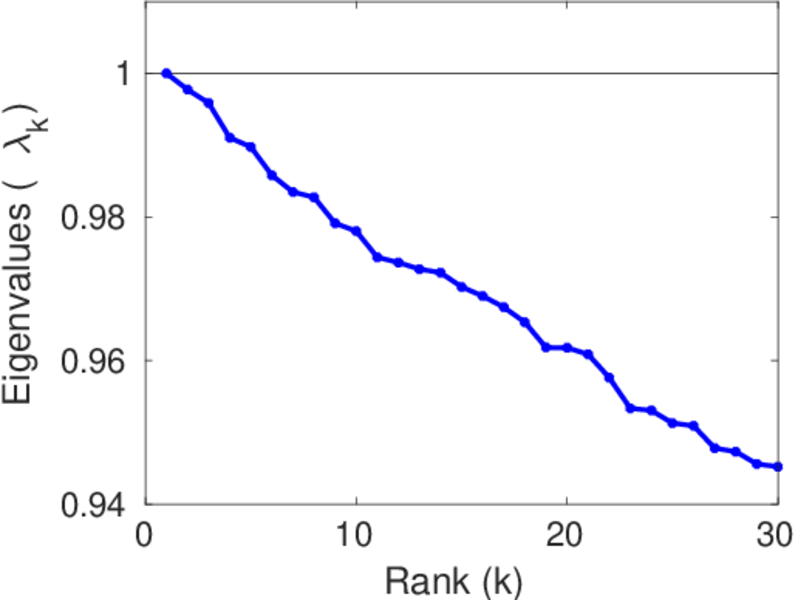

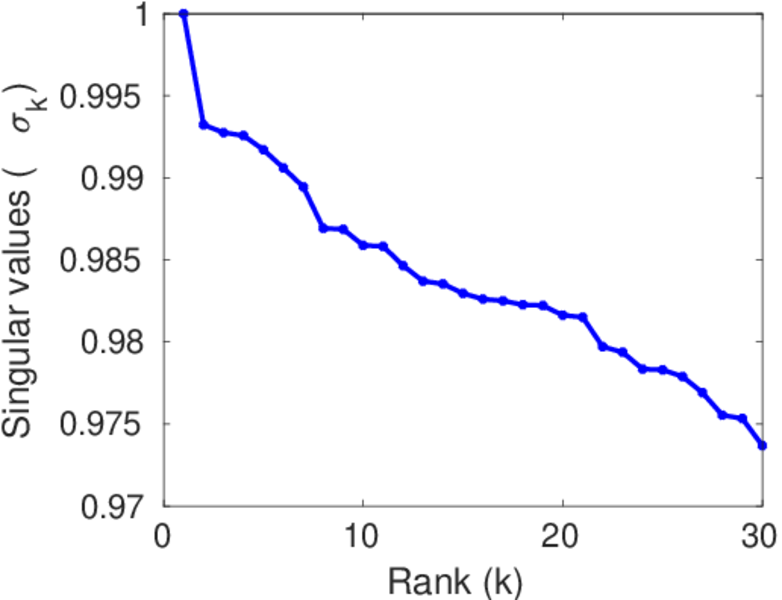

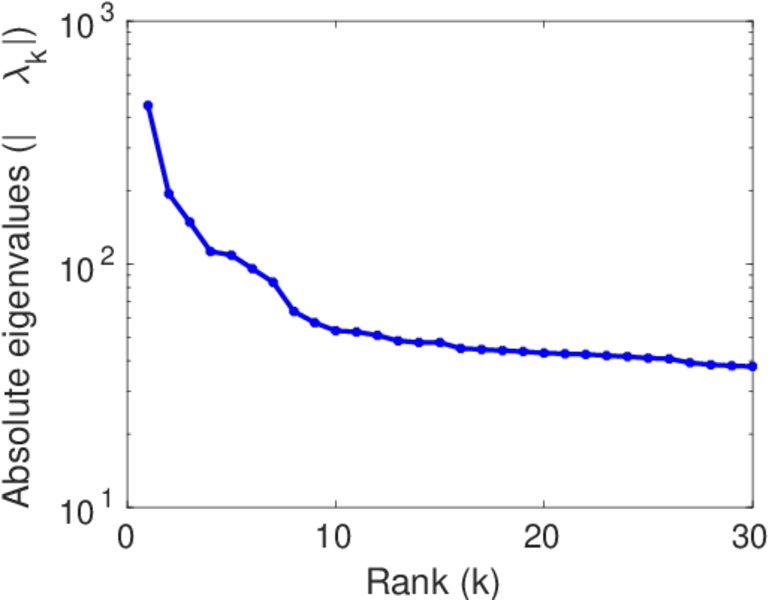

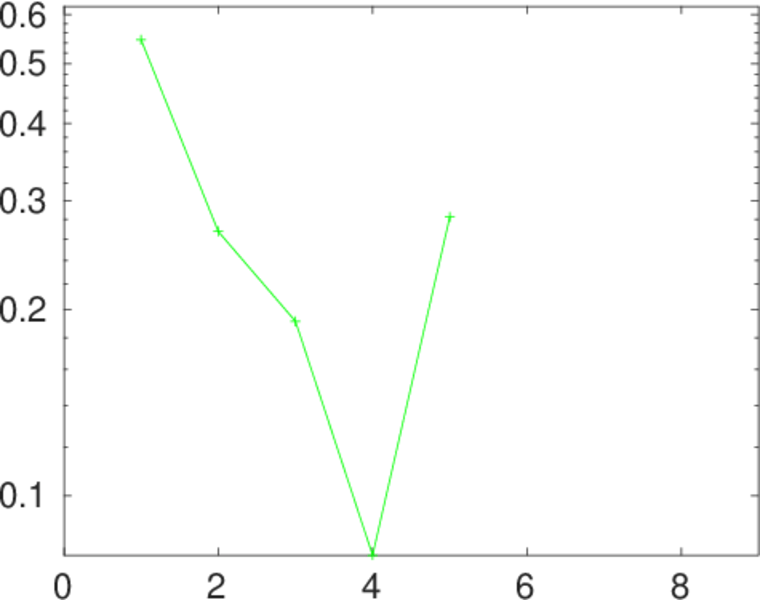

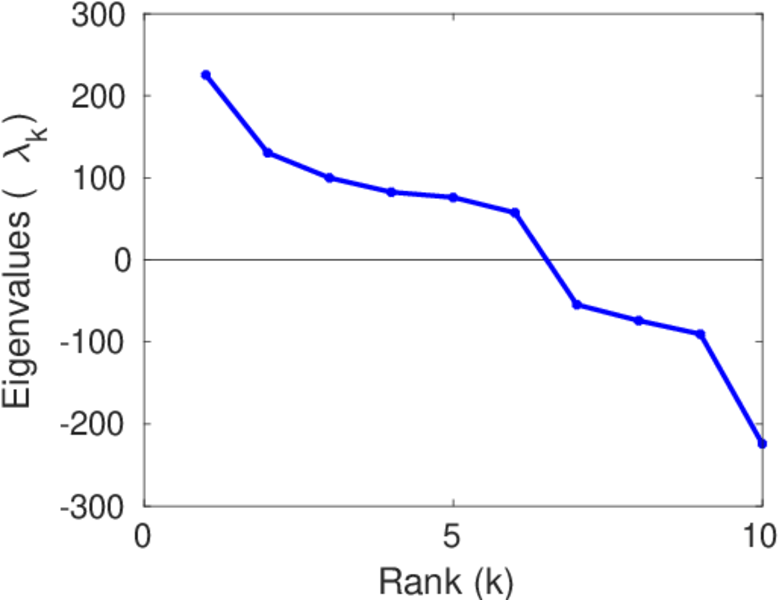

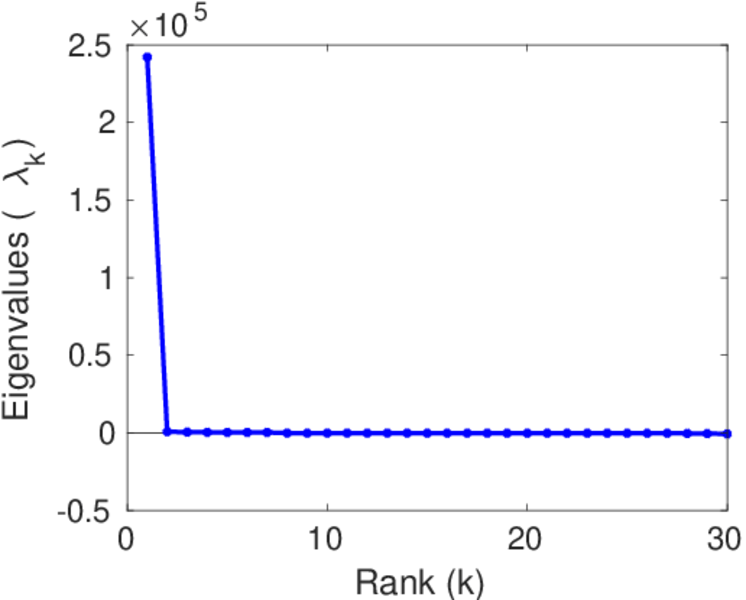

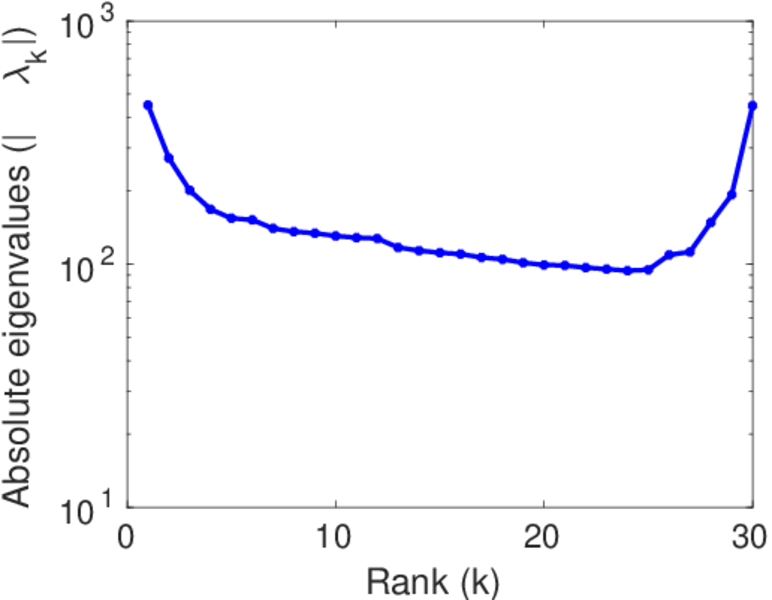

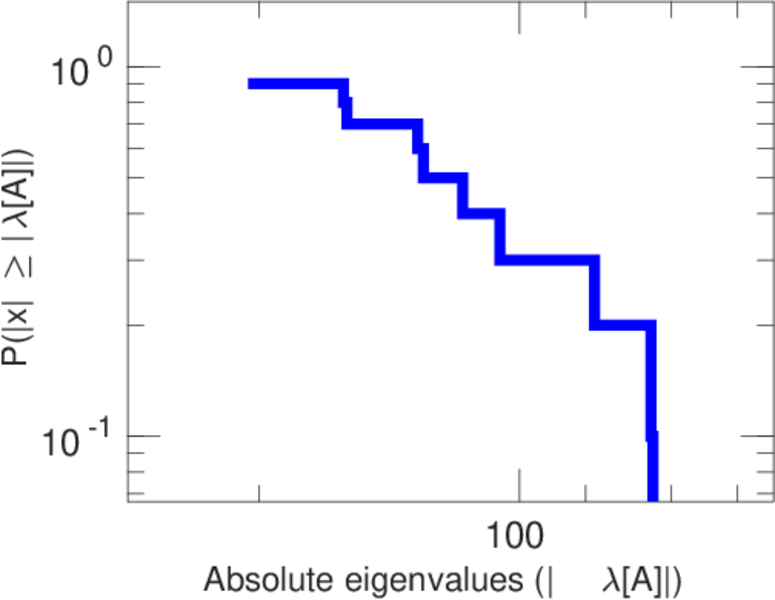

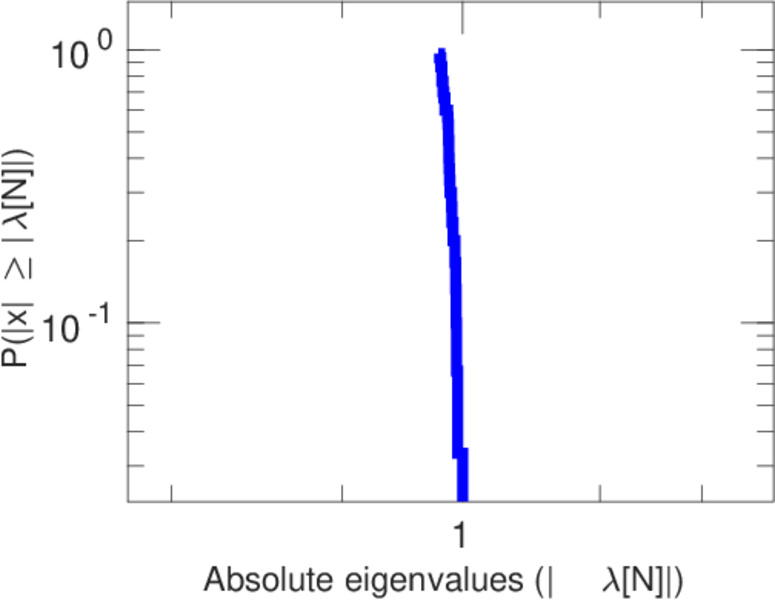

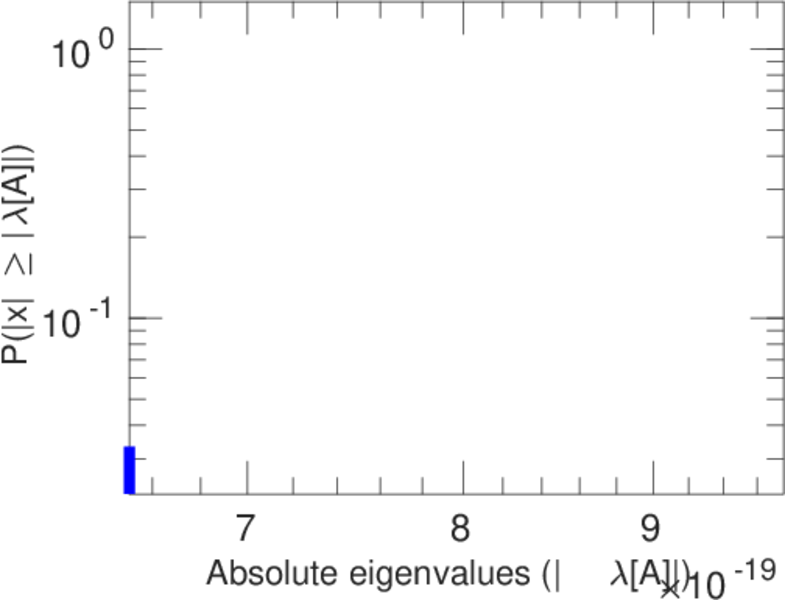

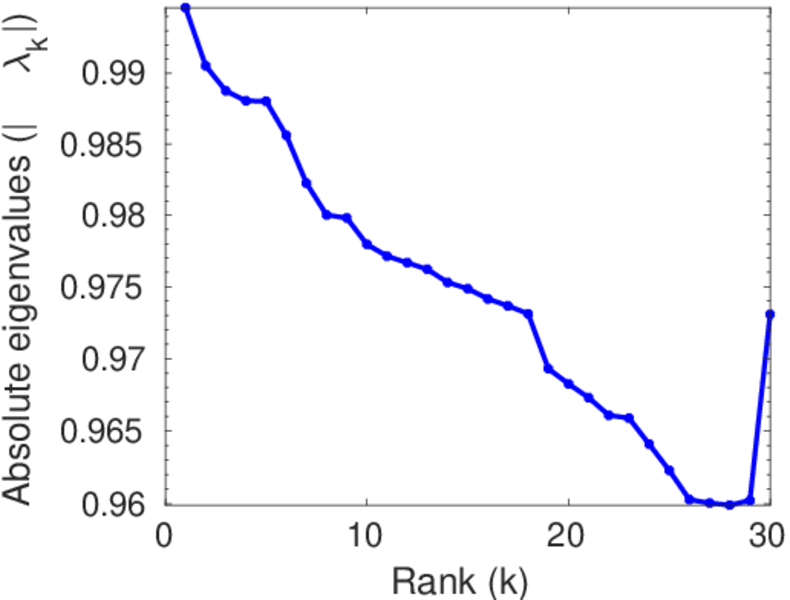

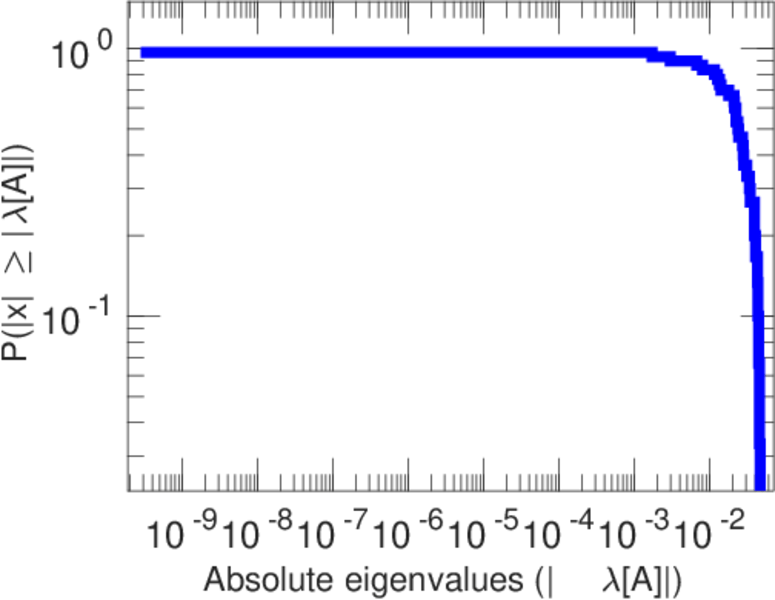

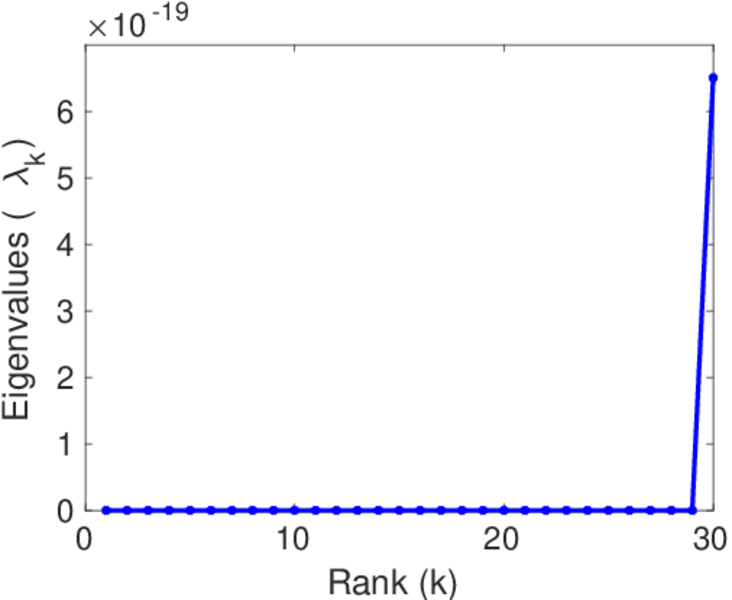

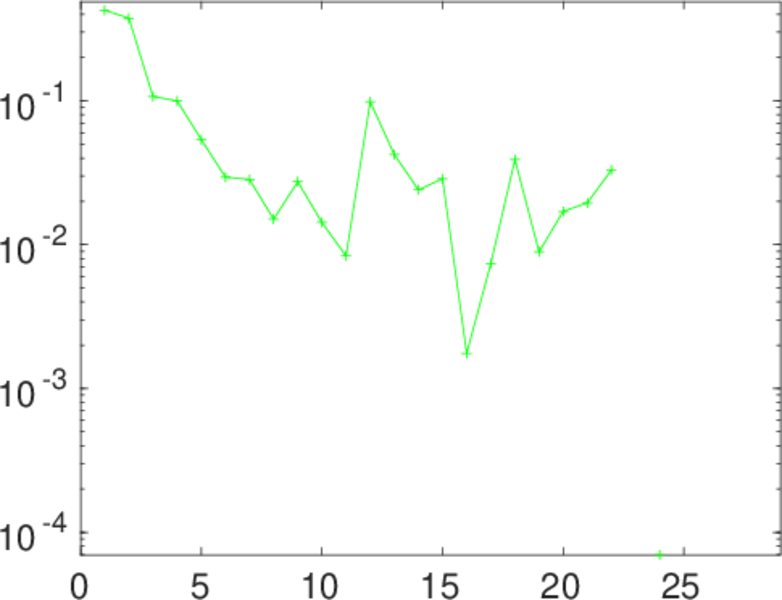

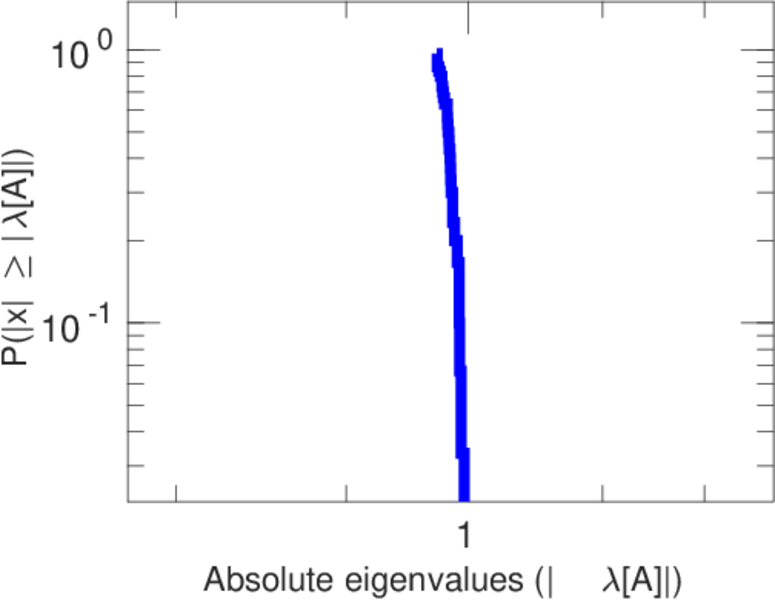

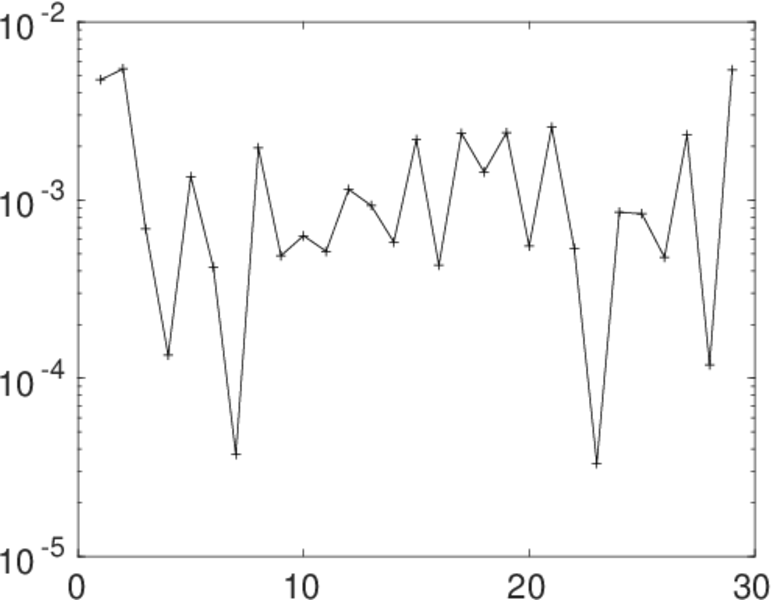

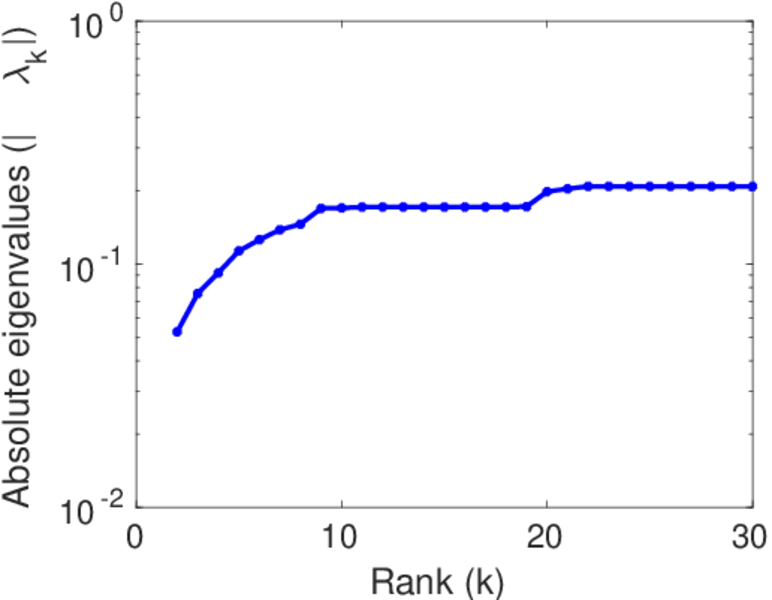

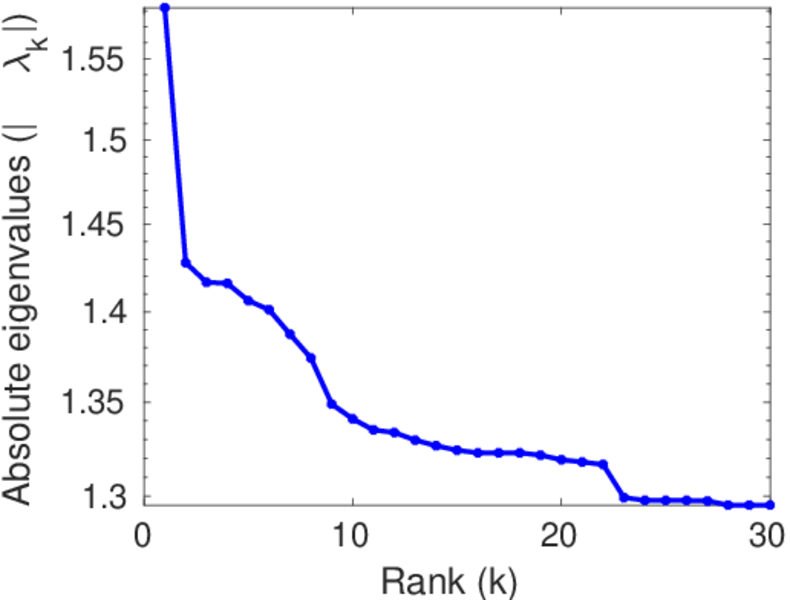

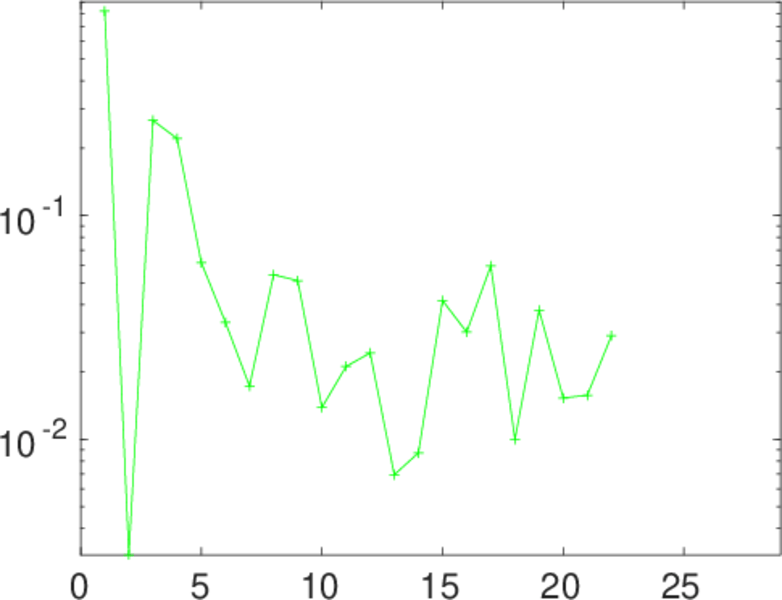

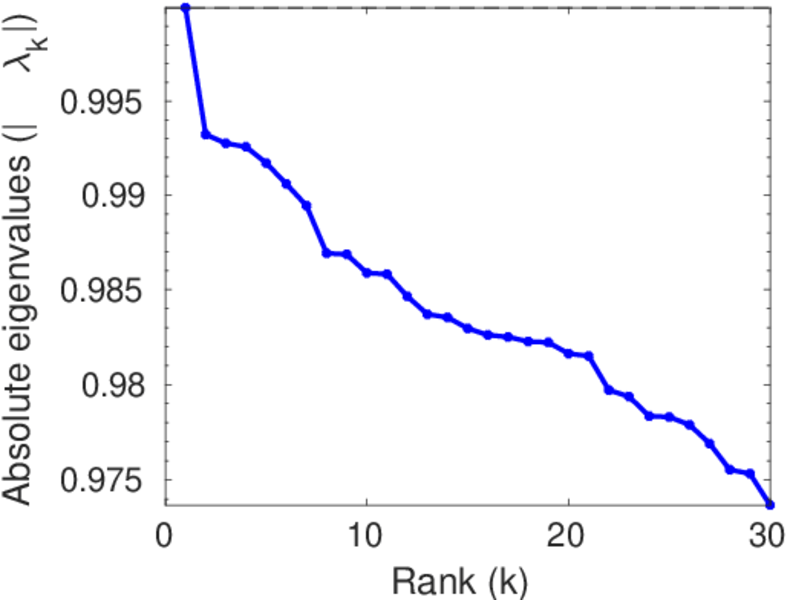

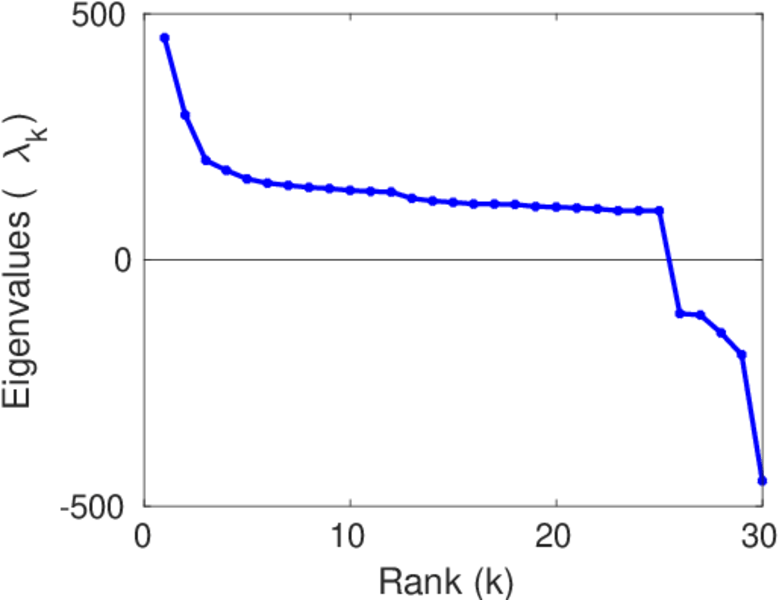

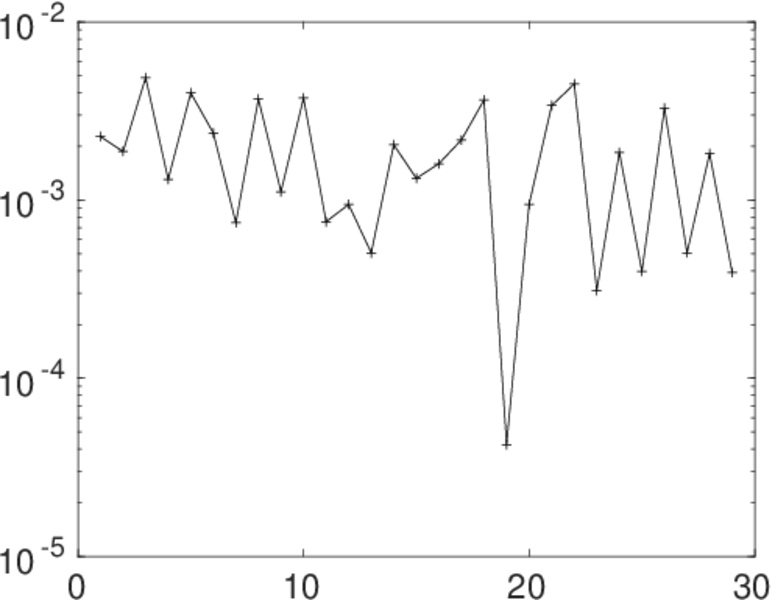

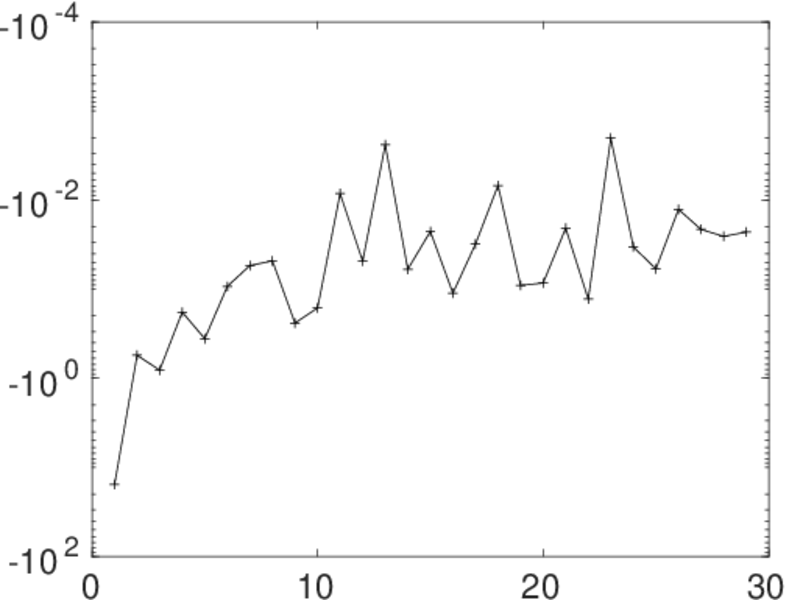

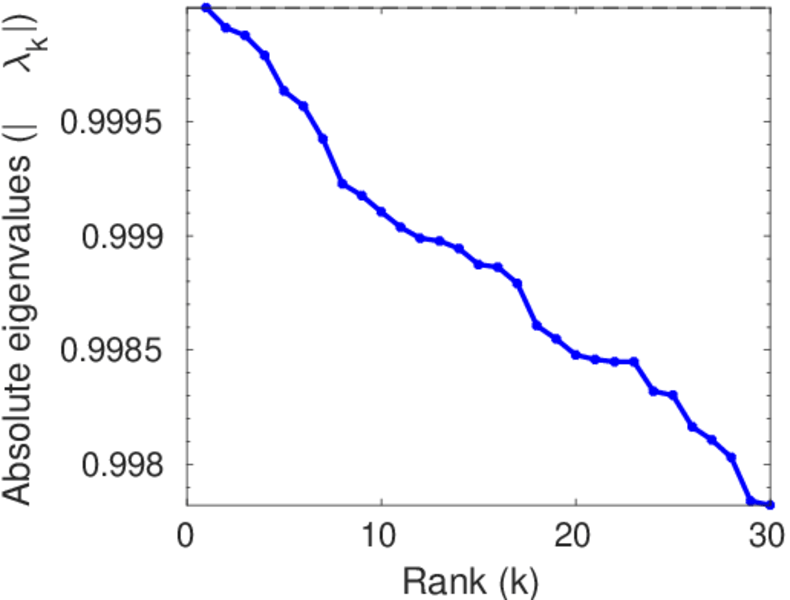

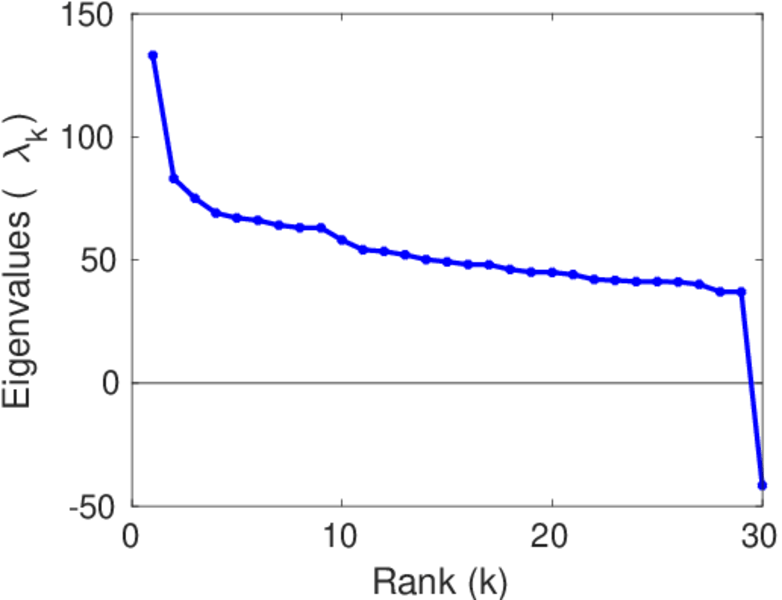

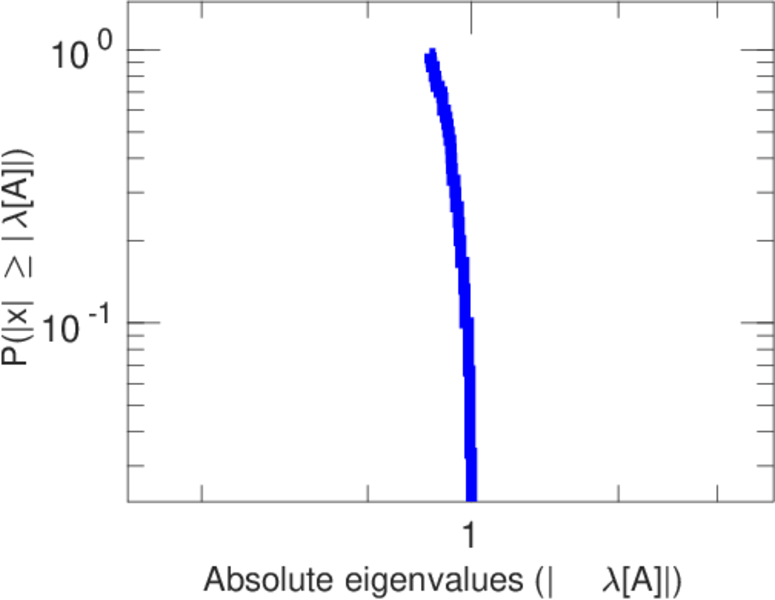

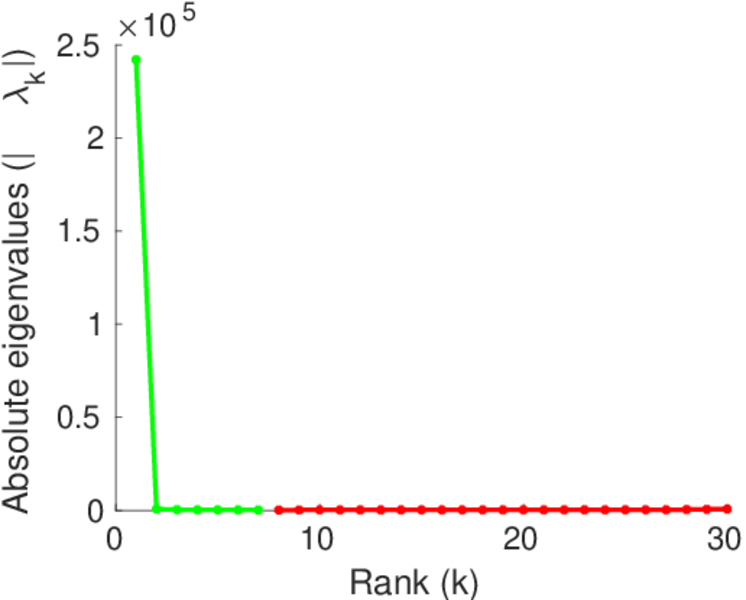

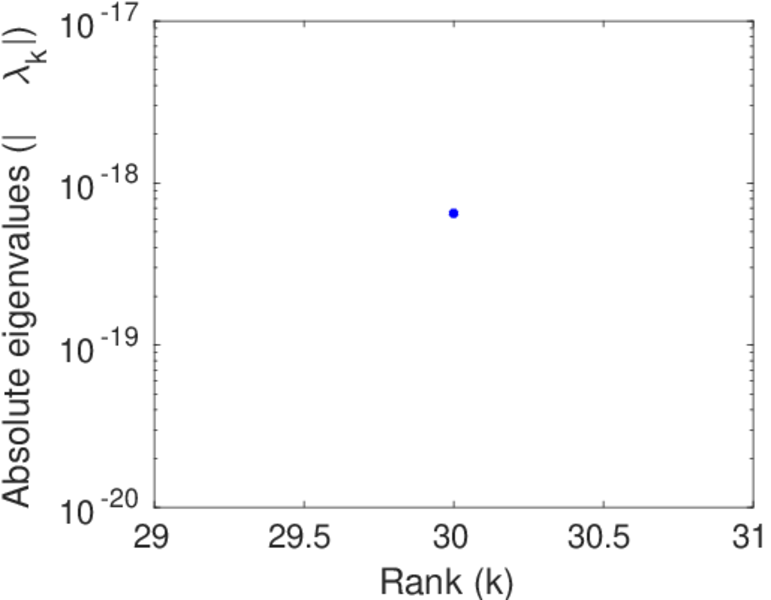

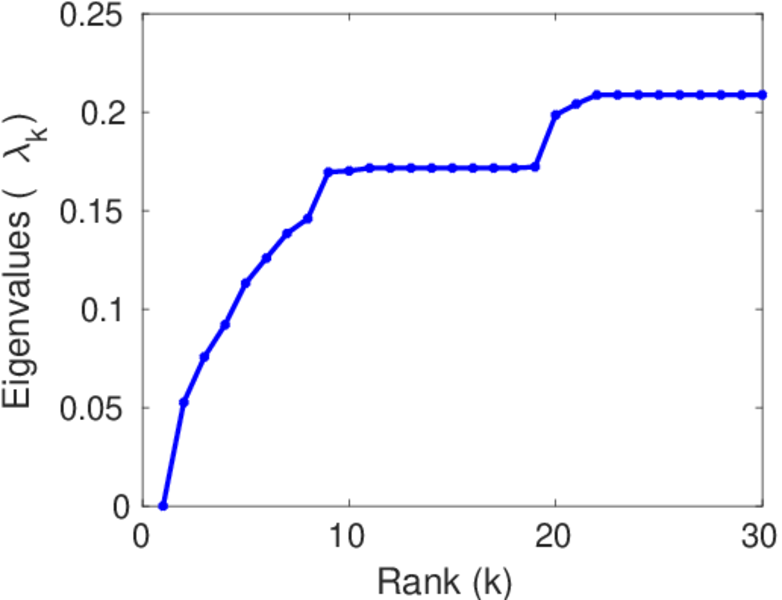

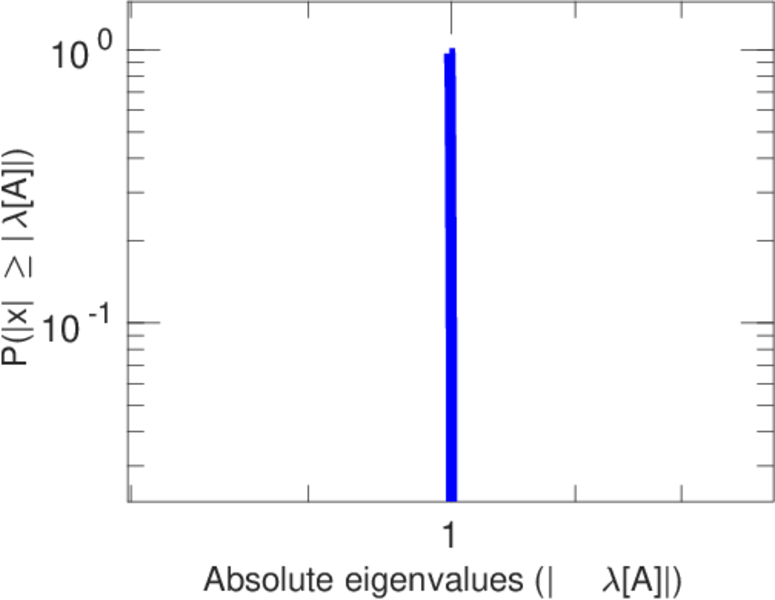

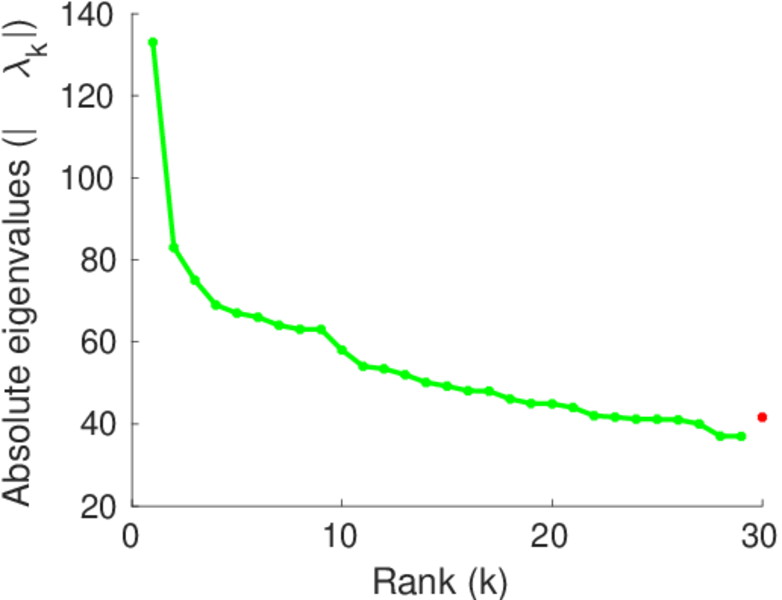

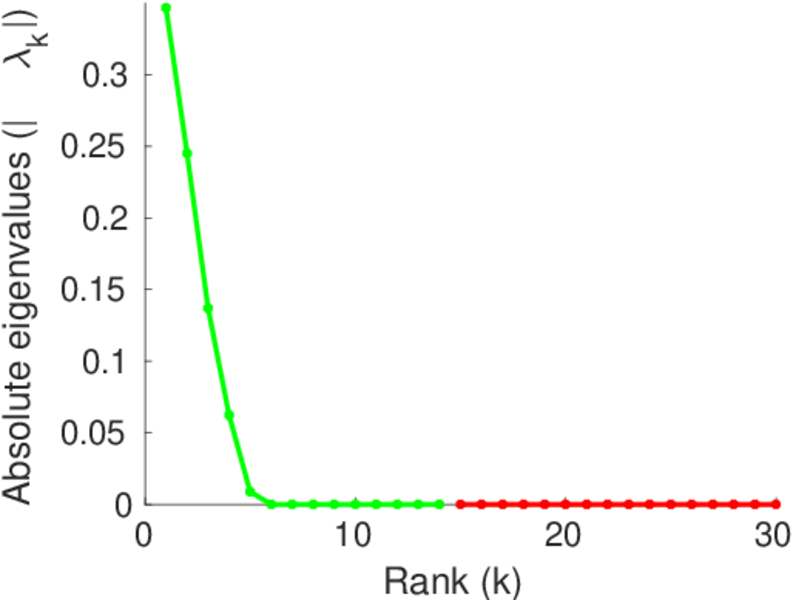

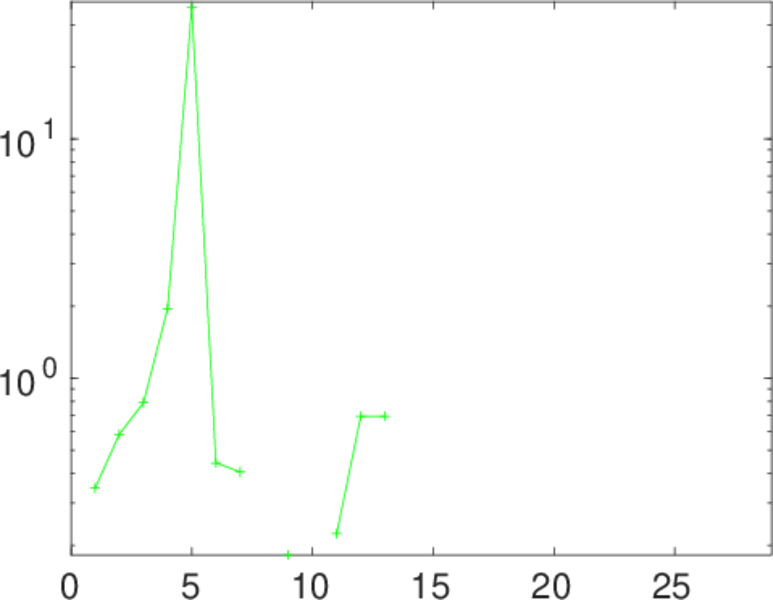

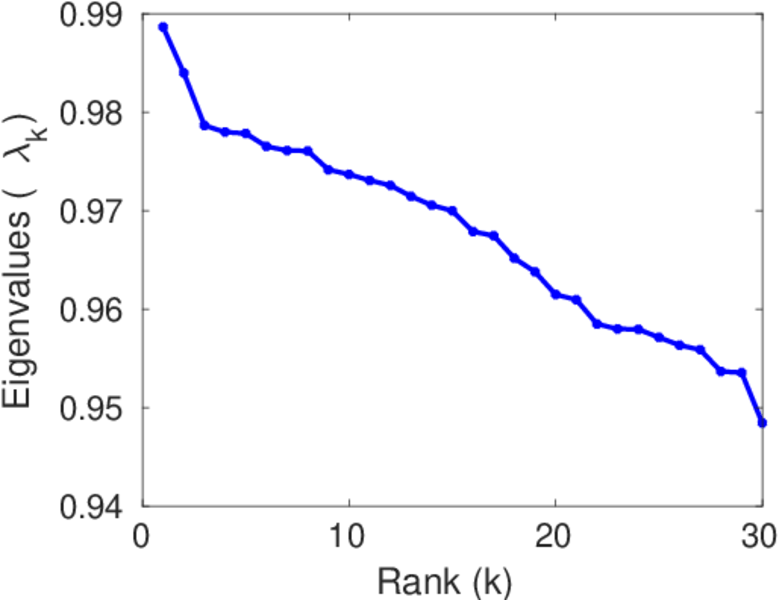

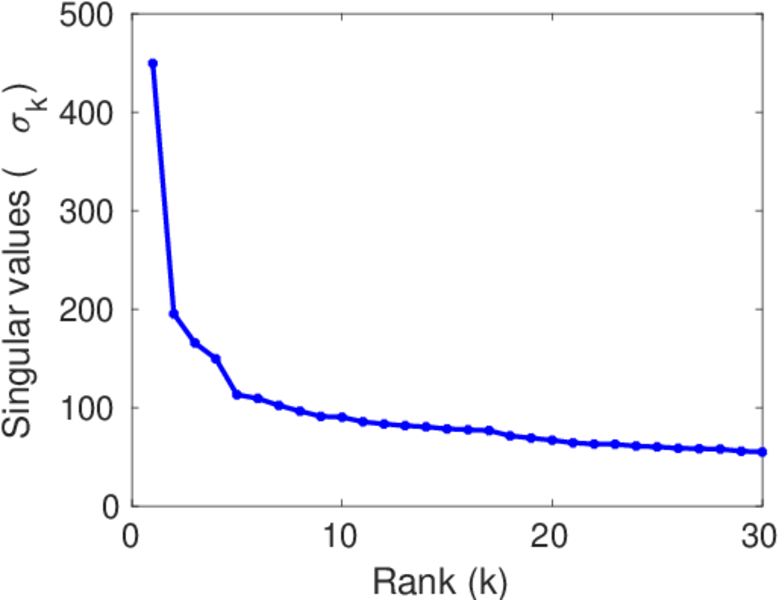

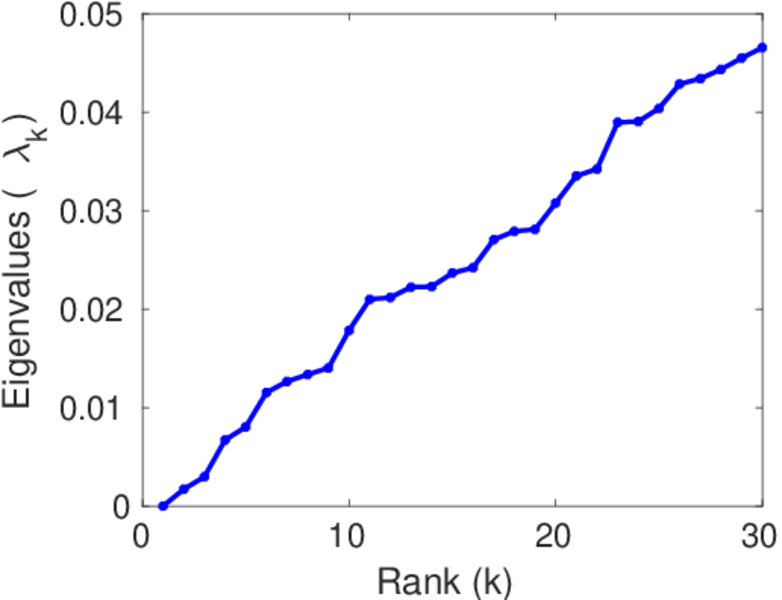

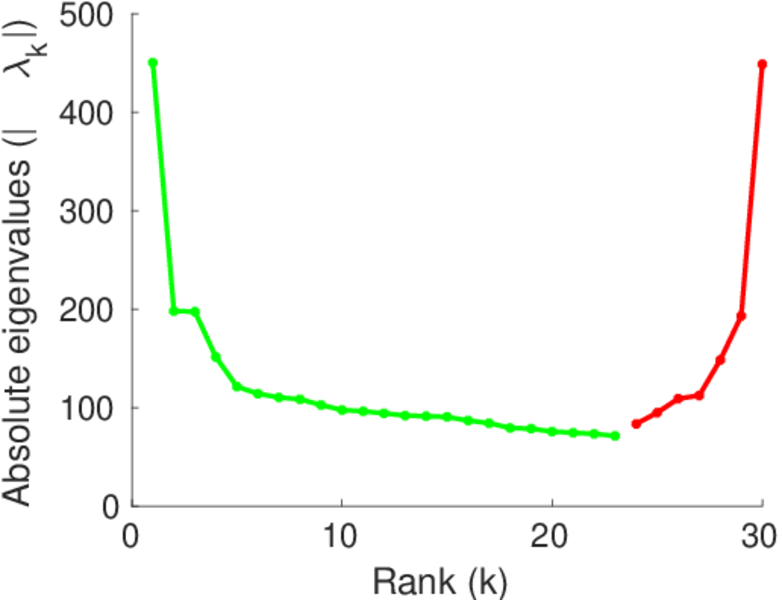

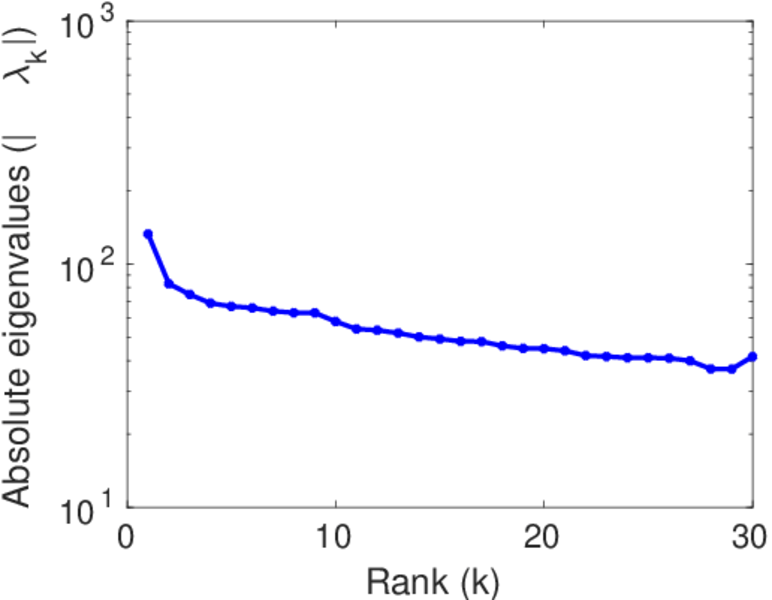

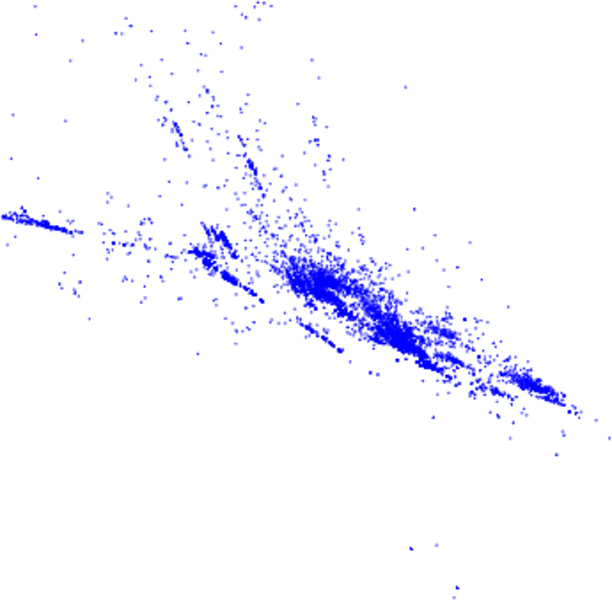

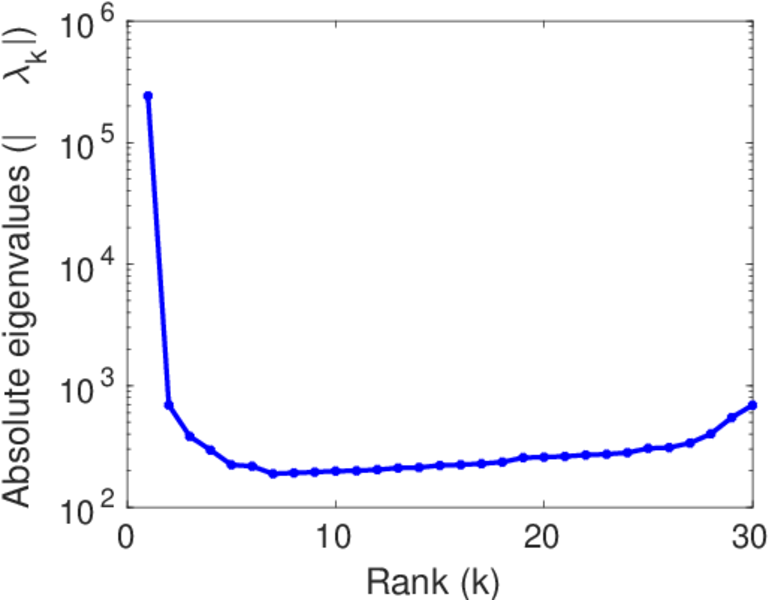

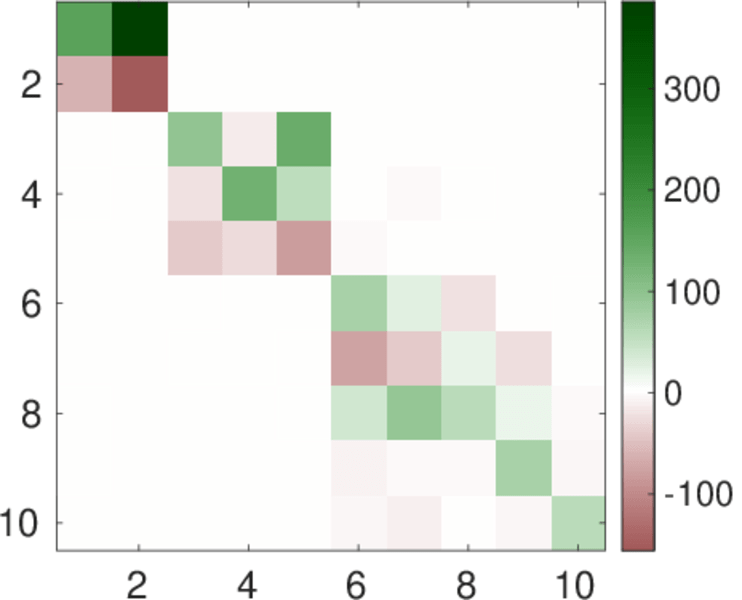

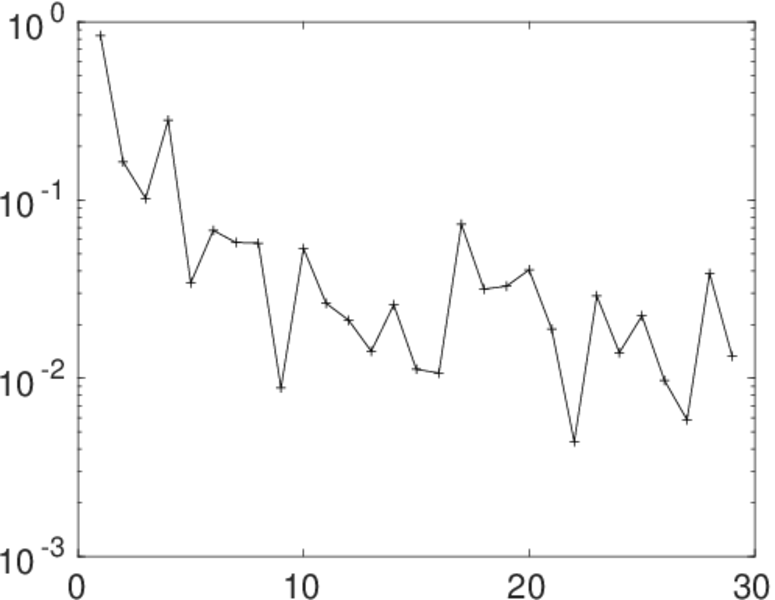

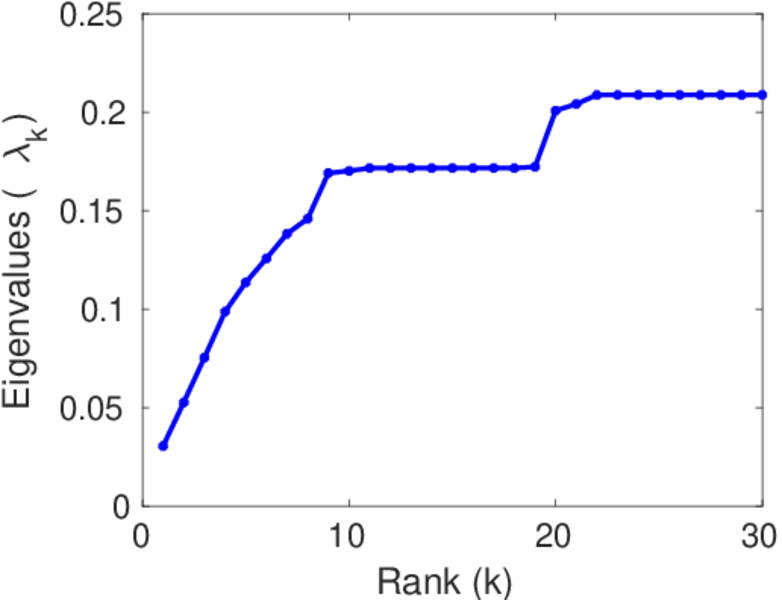

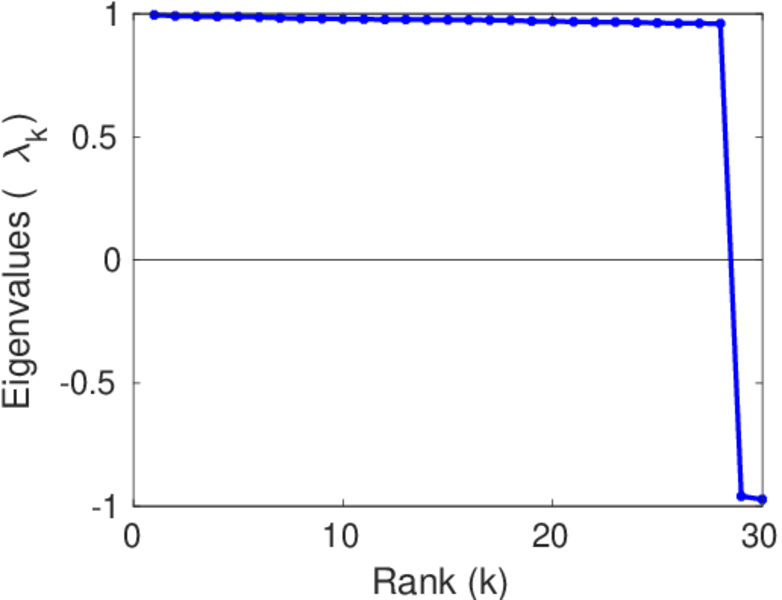

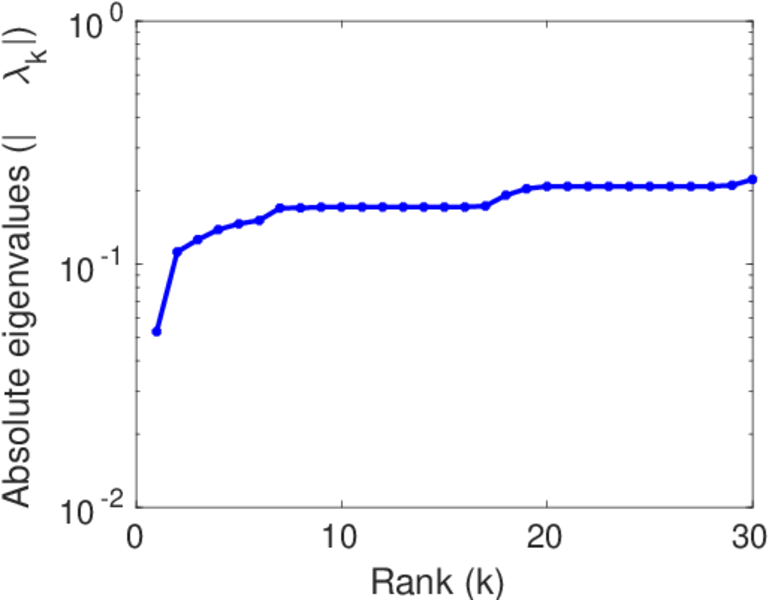

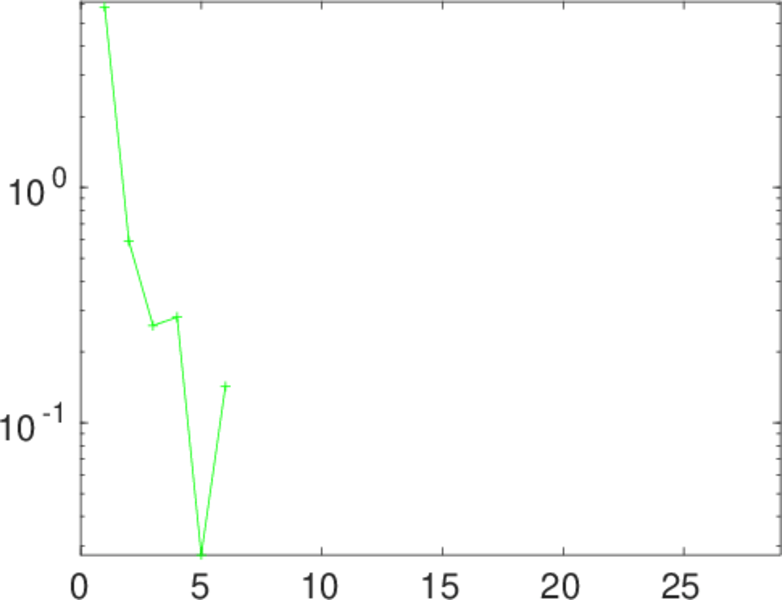

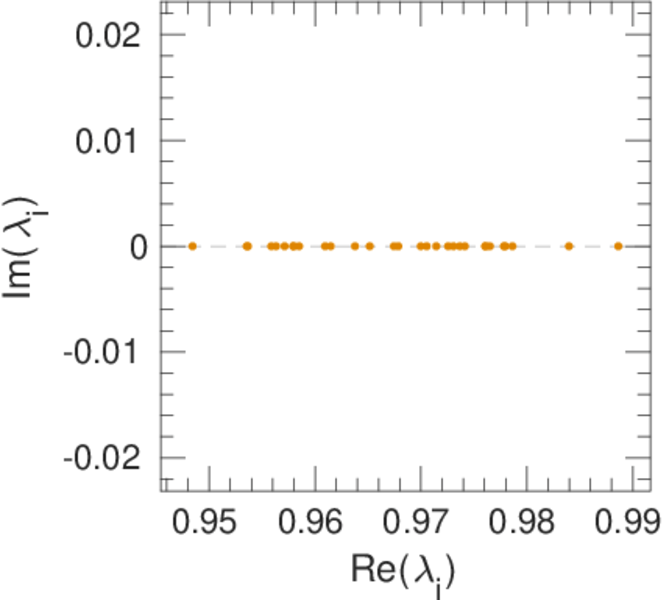

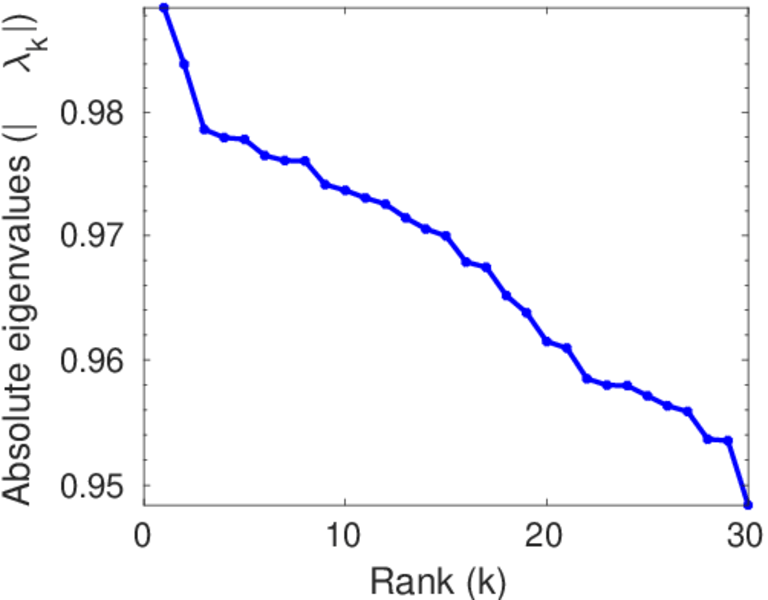

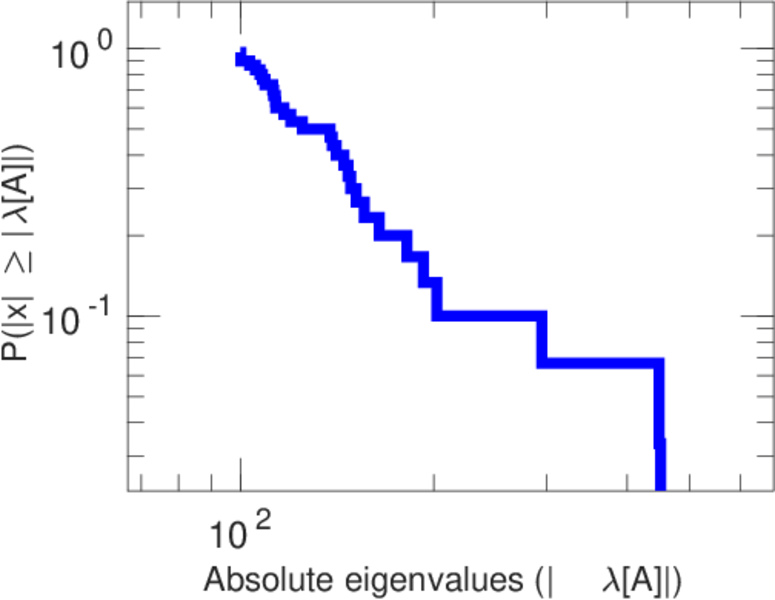

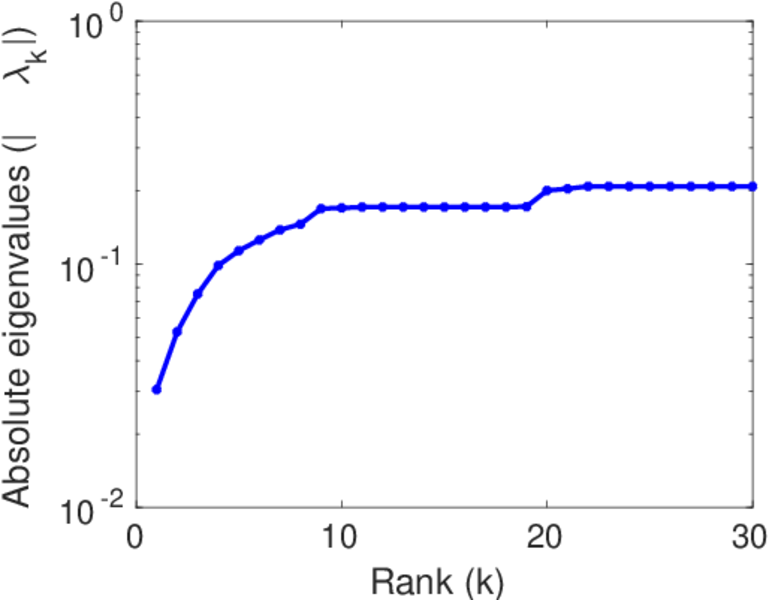

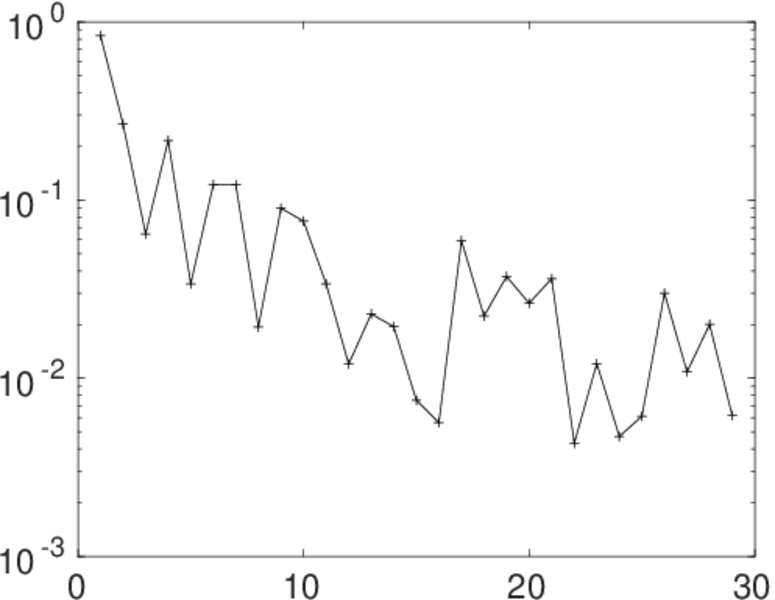

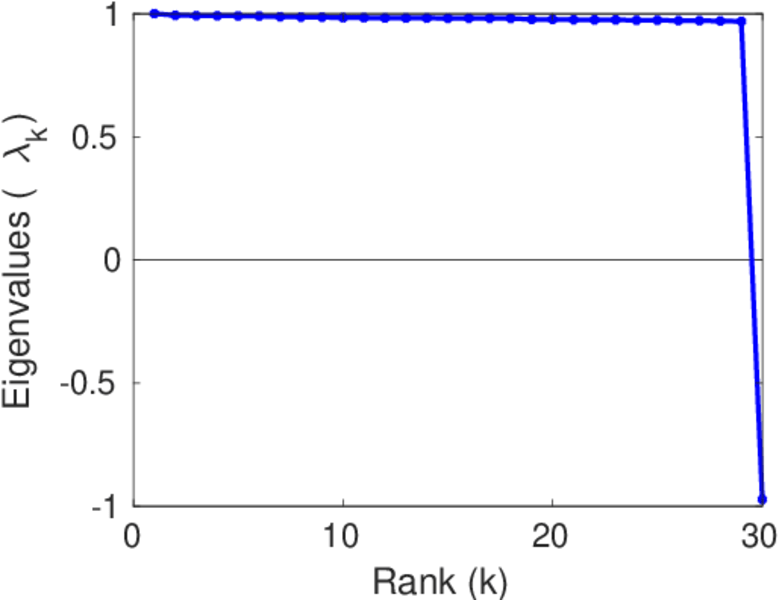

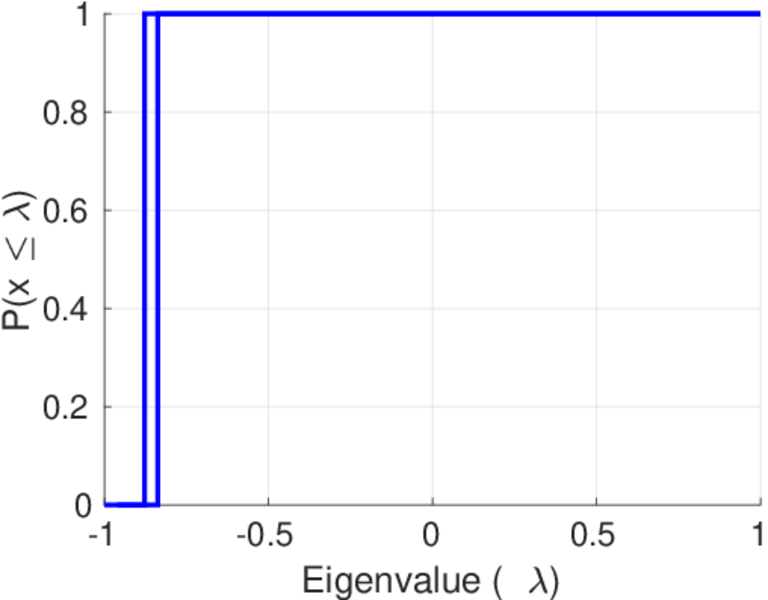

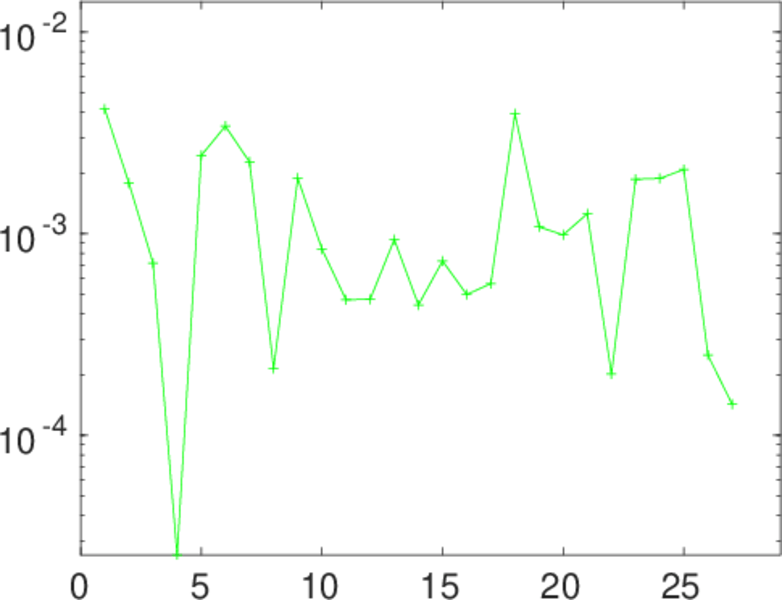

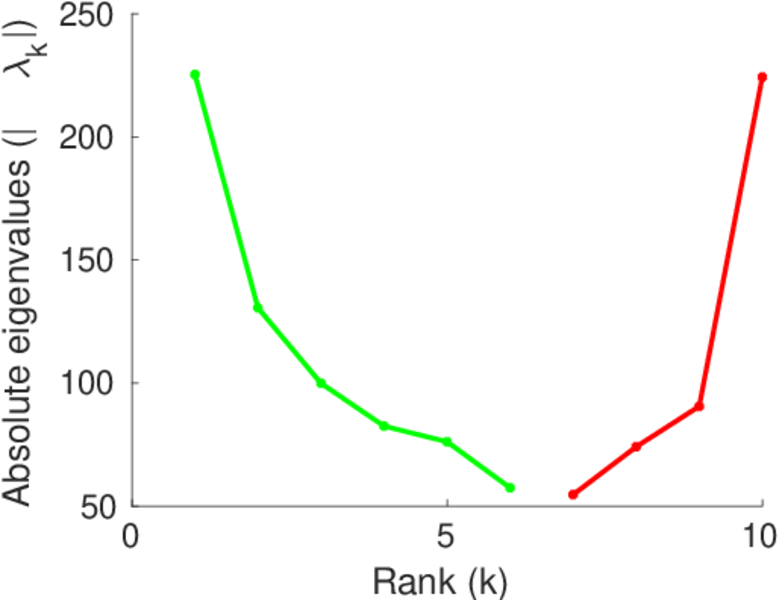

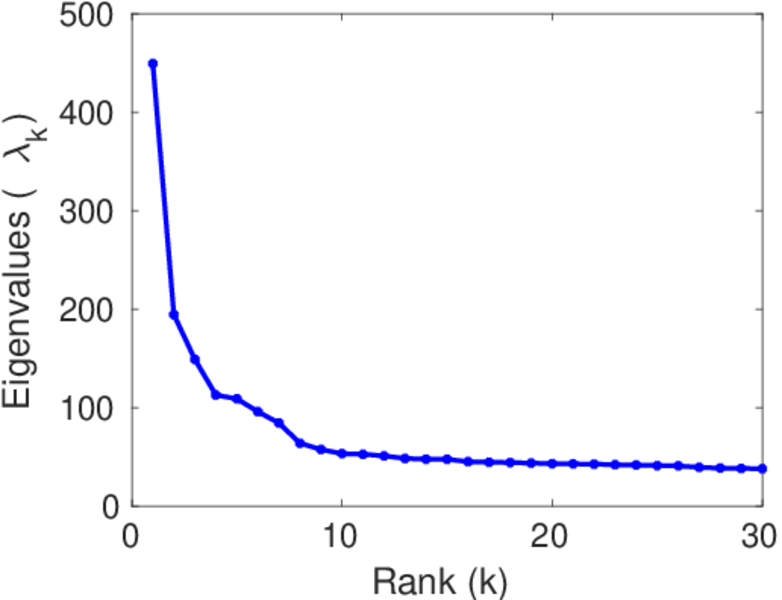

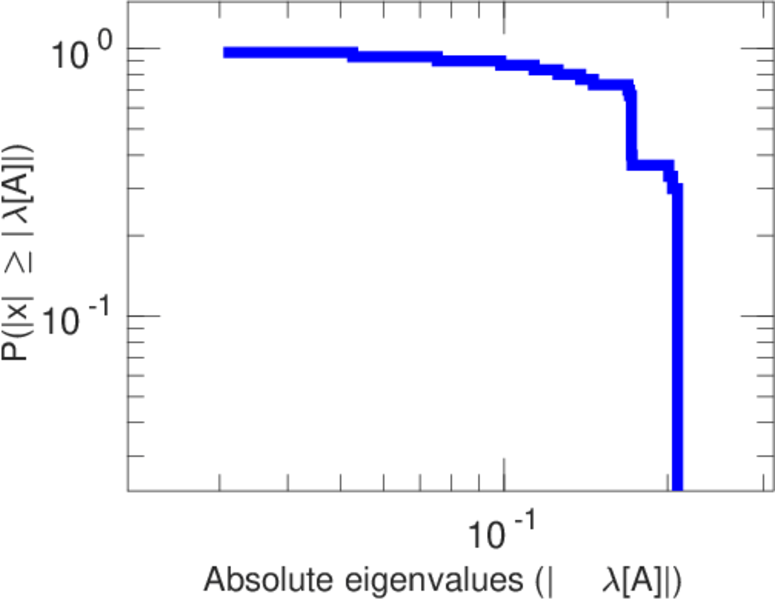

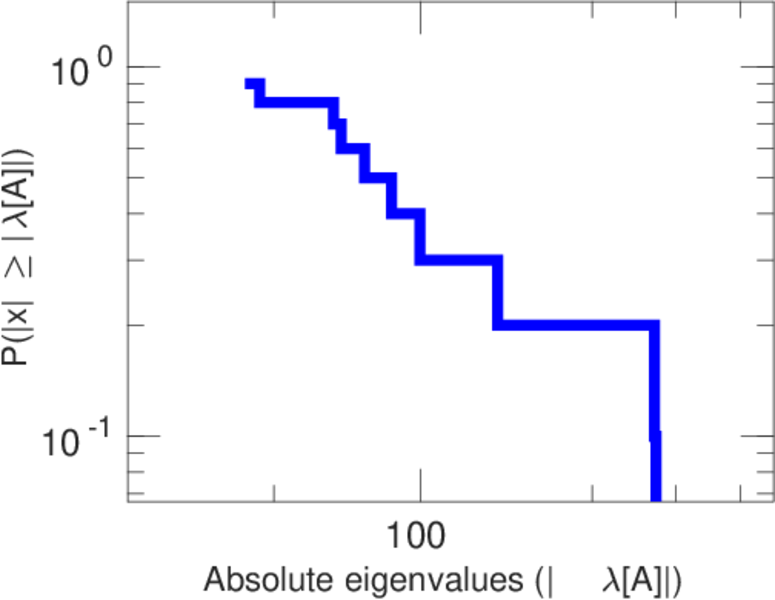

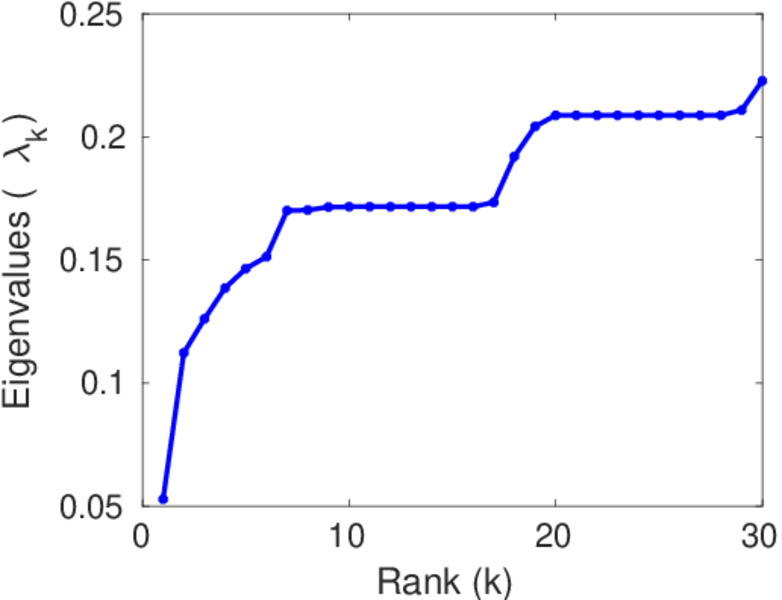

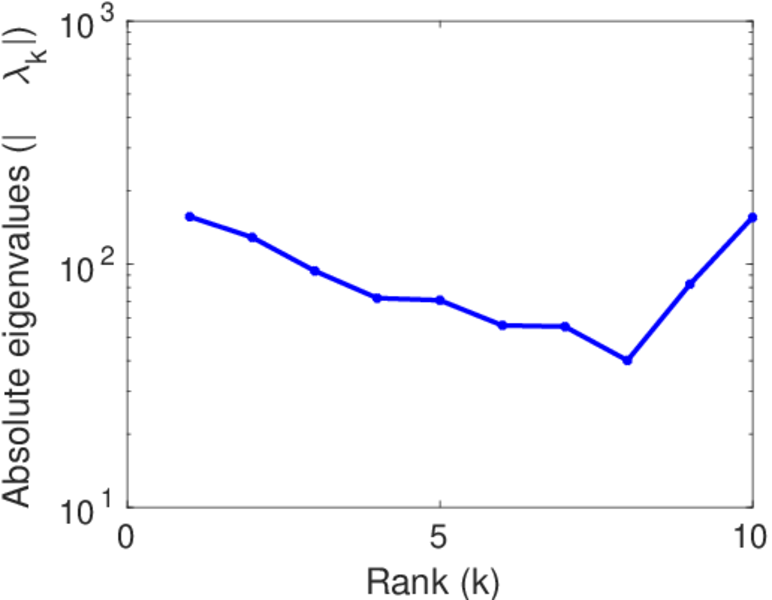

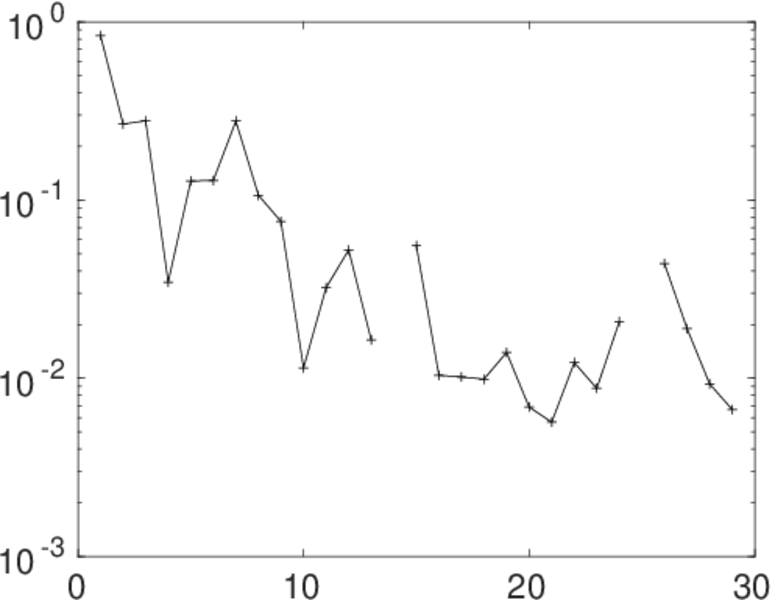

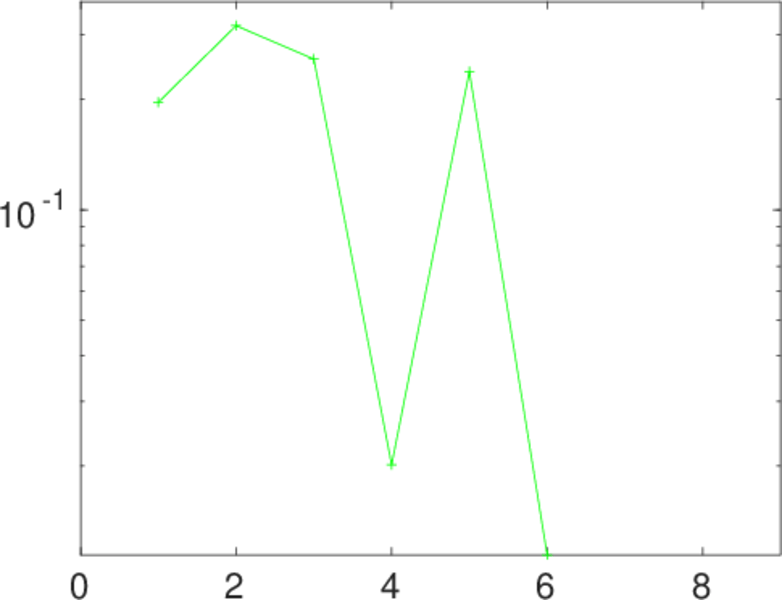

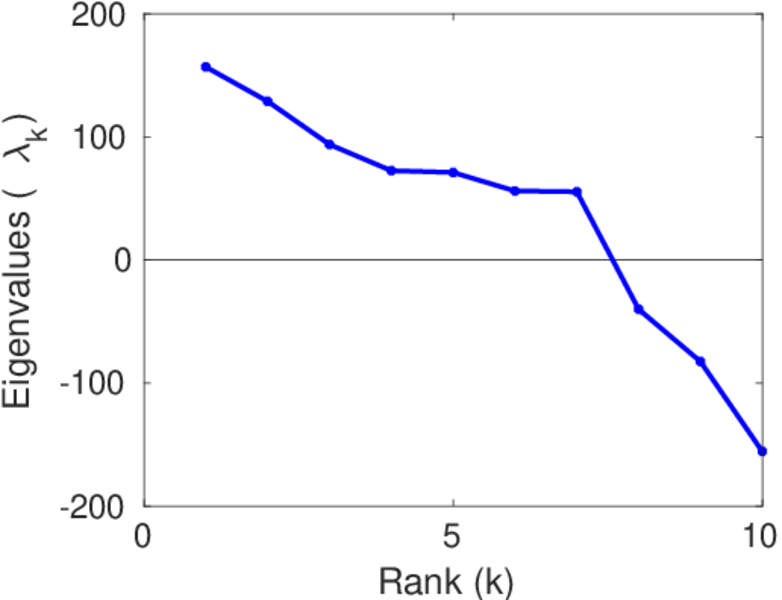

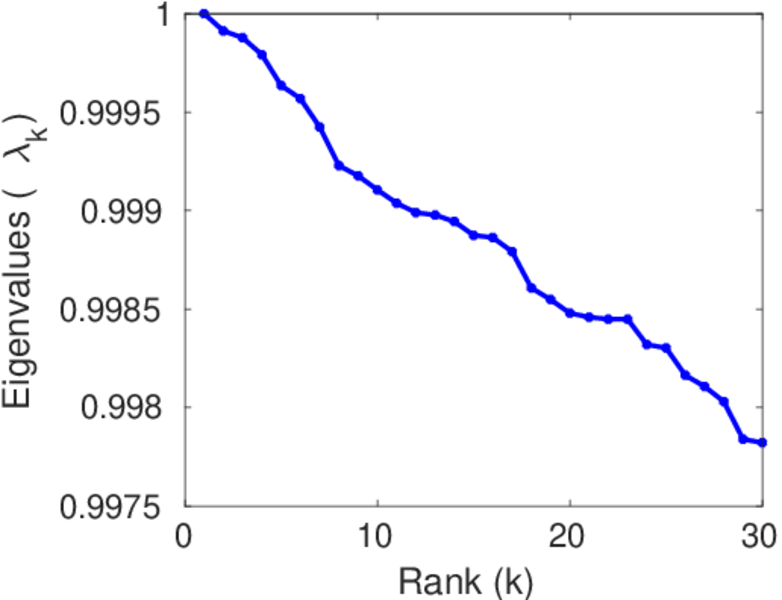

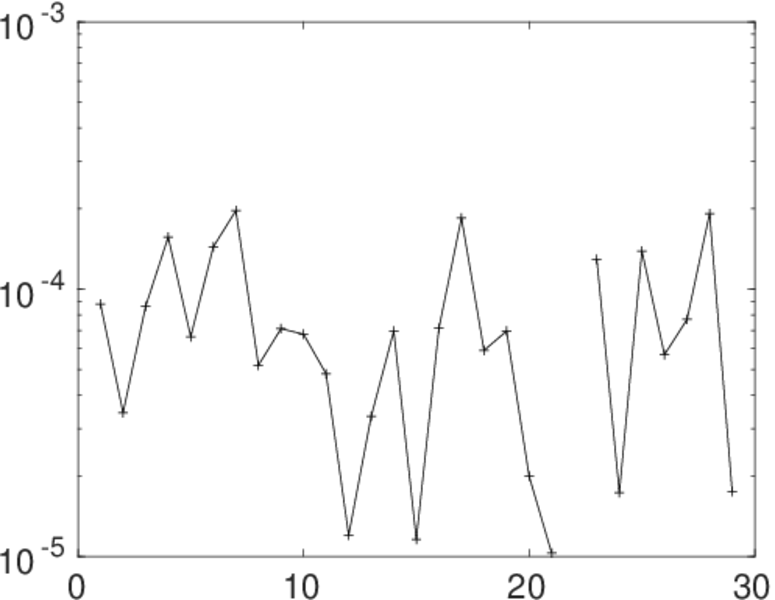

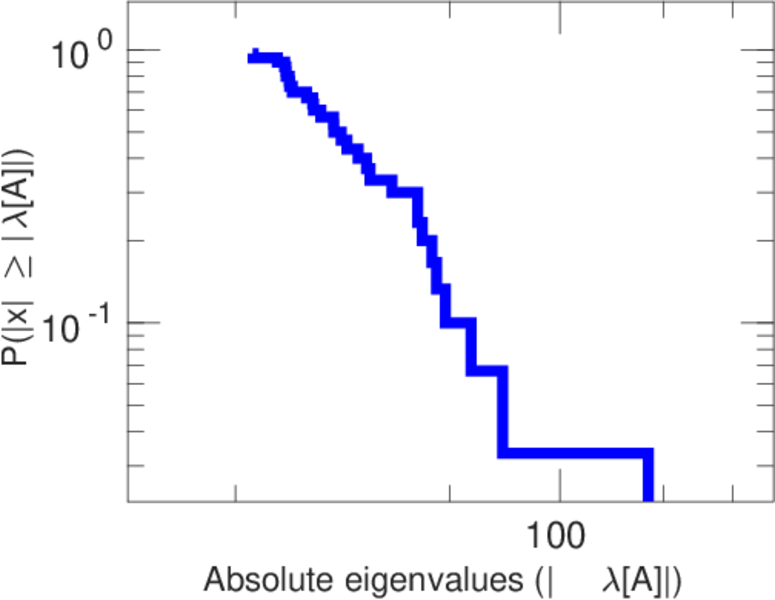

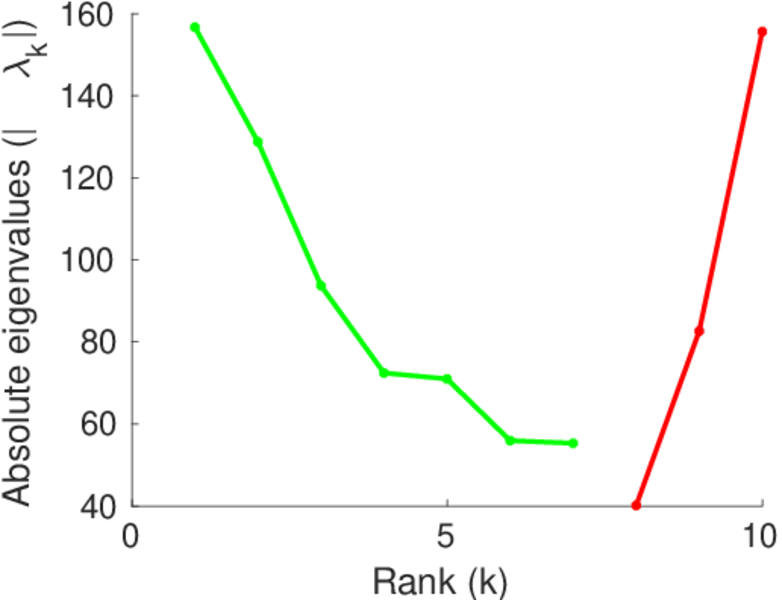

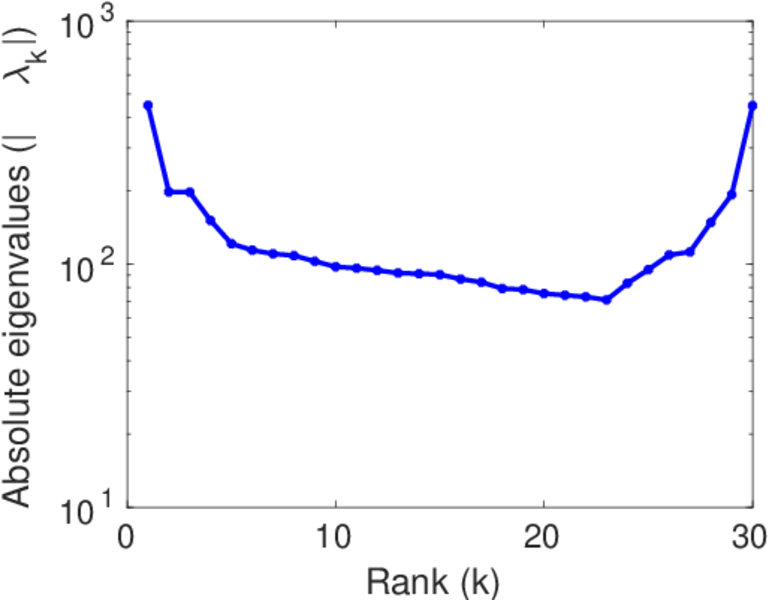

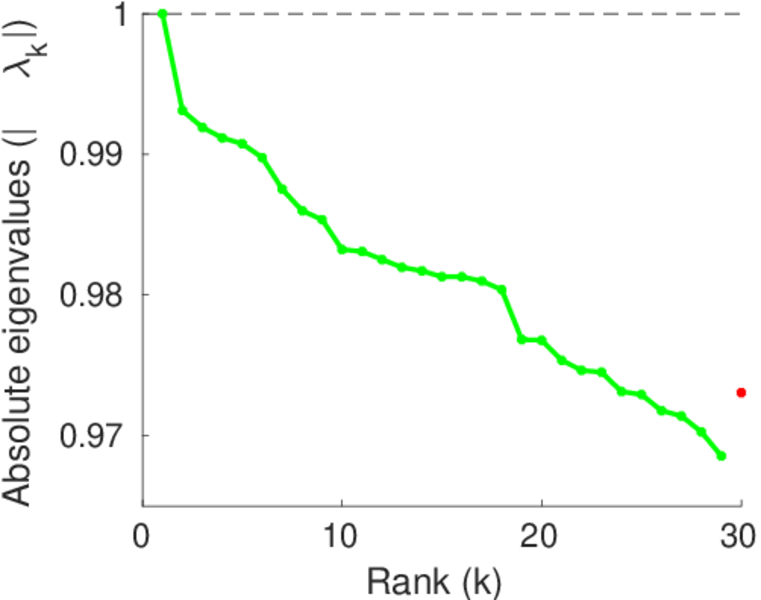

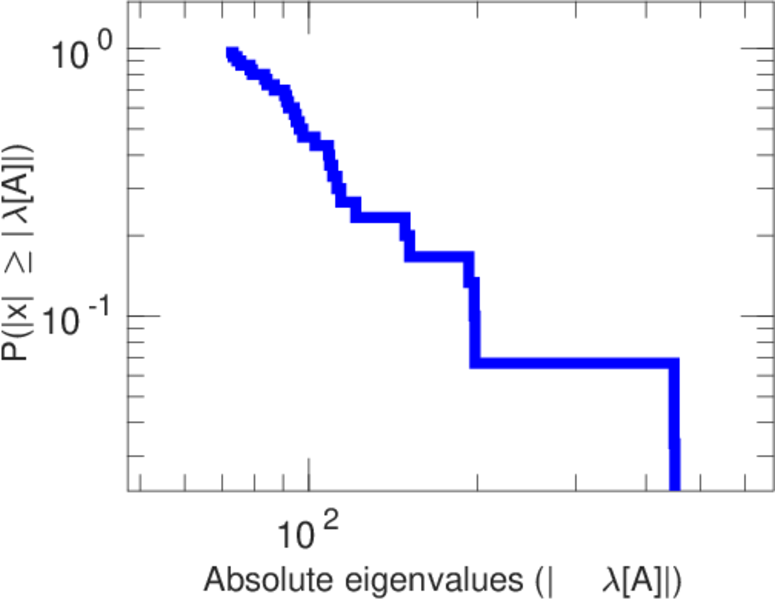

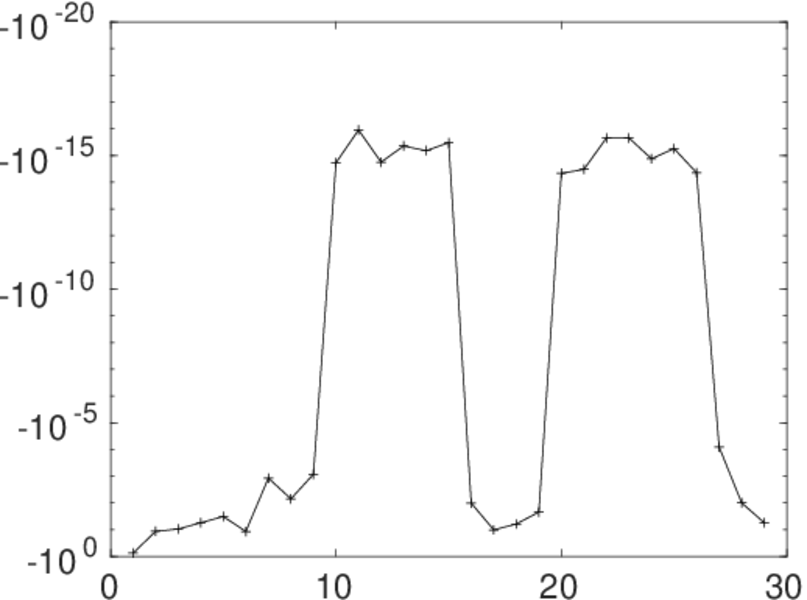

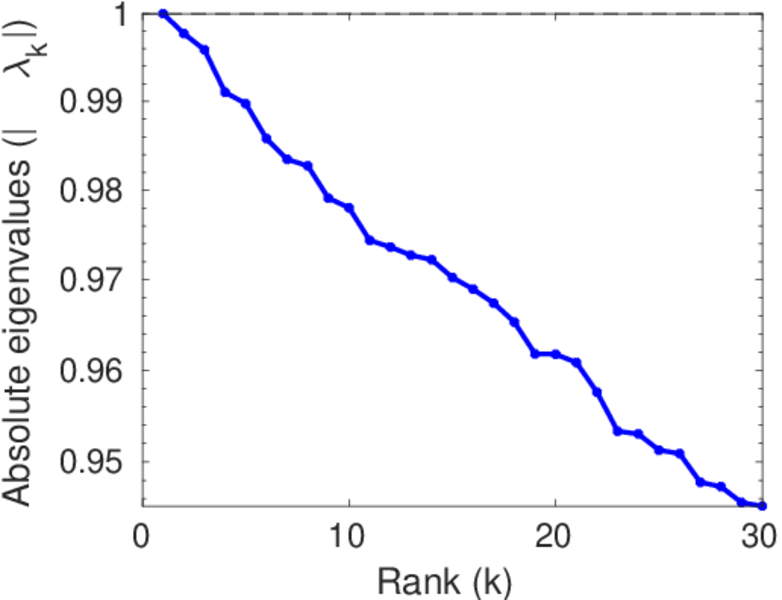

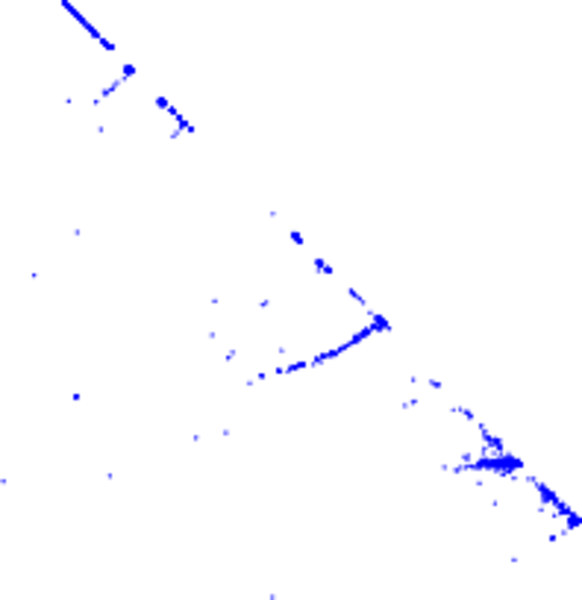

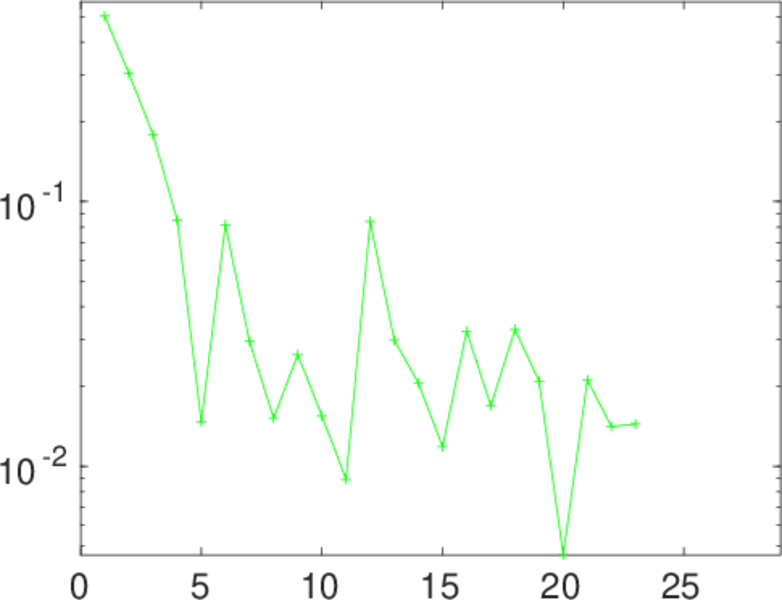

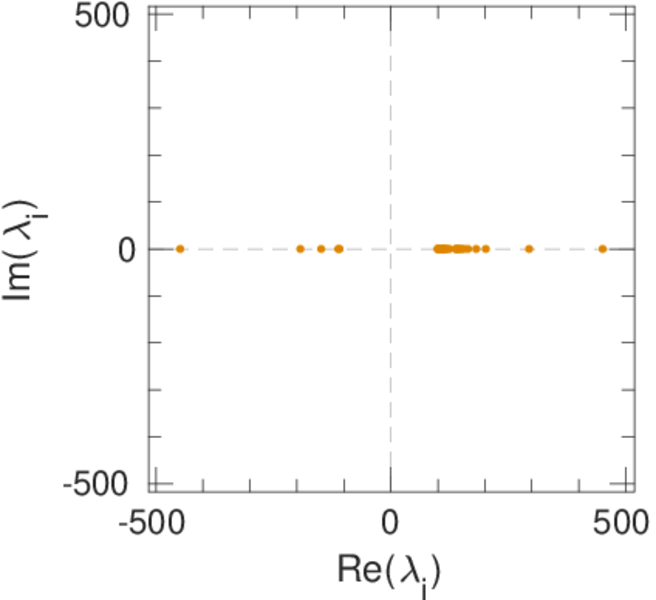

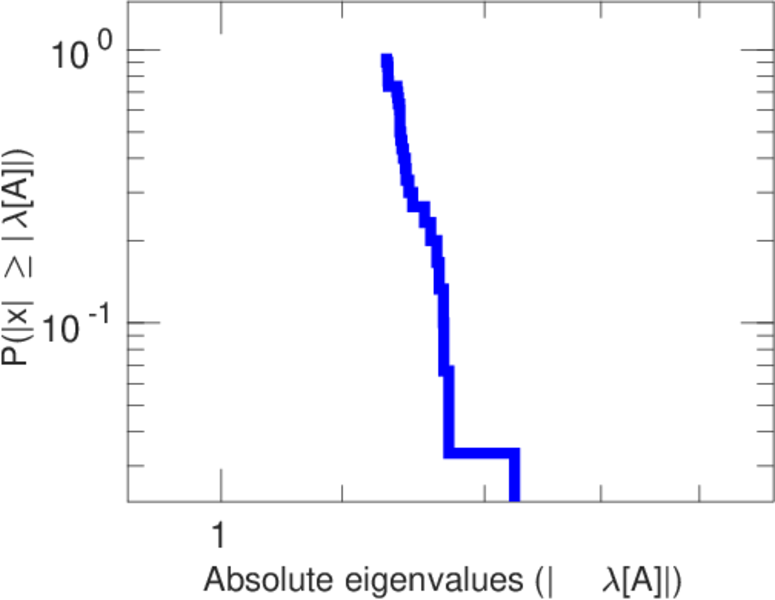

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
