Wikipedia links (wa)

This network consists of the wikilinks of the Wikipedia in the Walloon language (wa). Nodes are Wikipedia articles, and directed edges are wikilinks, i.e., hyperlinks within one wiki. In the wiki source, these are indicated with [[double brackets]]. Only pages in the article namespace are included.

Metadata

CodeWwa
Internal namewikipedia_link_wa
NameWikipedia links (wa)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningWikilink
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =29,021
Volume m =162,508
Loop count l =4,088
Wedge count s =20,112,268
Claw count z =16,504,500,779
Cross count x =16,730,953,715,810
Triangle count t =224,456
Square count q =13,443,834
4-Tour count T4 =188,281,228
Maximum degree dmax =4,454
Maximum outdegree d+max =1,035
Maximum indegree dmax =4,432
Average degree d =11.199 3
Fill p =0.000 192 952
Size of LCC N =28,982
Size of LSCC Ns =22,528
Relative size of LSCC Nrs =0.776 265
Diameter δ =10
50-Percentile effective diameter δ0.5 =3.438 14
90-Percentile effective diameter δ0.9 =4.586 86
Median distance δM =4
Mean distance δm =3.918 80
Gini coefficient G =0.651 714
Balanced inequality ratio P =0.248 929
Outdegree balanced inequality ratio P+ =0.238 524
Indegree balanced inequality ratio P =0.247 545
Relative edge distribution entropy Her =0.904 905
Power law exponent γ =1.653 18
Tail power law exponent γt =2.771 00
Tail power law exponent with p γ3 =2.771 00
p-value p =0.007 000 00
Outdegree tail power law exponent with p γ3,o =3.121 00
Outdegree p-value po =0.004 000 00
Indegree tail power law exponent with p γ3,i =2.271 00
Indegree p-value pi =0.000 00
Degree assortativity ρ =−0.049 197 2
Degree assortativity p-value pρ =2.318 92 × 10−150
In/outdegree correlation ρ± =+0.554 939
Clustering coefficient c =0.033 480 5
Directed clustering coefficient c± =0.191 487
Spectral norm α =112.689
Operator 2-norm ν =72.767 7
Cyclic eigenvalue π =51.987 3
Algebraic connectivity a =0.153 976
Spectral separation 1[A] / λ2[A]| =1.281 29
Reciprocity y =0.242 720
Non-bipartivity bA =0.399 425
Normalized non-bipartivity bN =0.079 907 2
Algebraic non-bipartivity χ =0.154 233
Spectral bipartite frustration bK =0.003 858 60
Controllability C =11,913
Relative controllability Cr =0.410 496

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

Spectral distribution of the adjacency matrix

Spectral distribution of the normalized adjacency matrix

Spectral distribution of the Laplacian

Spectral graph drawing based on the adjacency matrix

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

In/outdegree scatter plot

Clustering coefficient distribution

Average neighbor degree distribution

SynGraphy

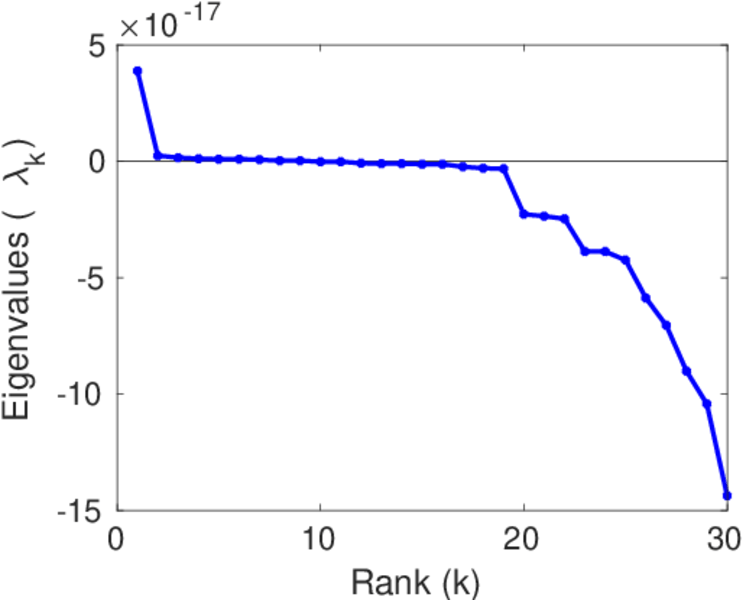

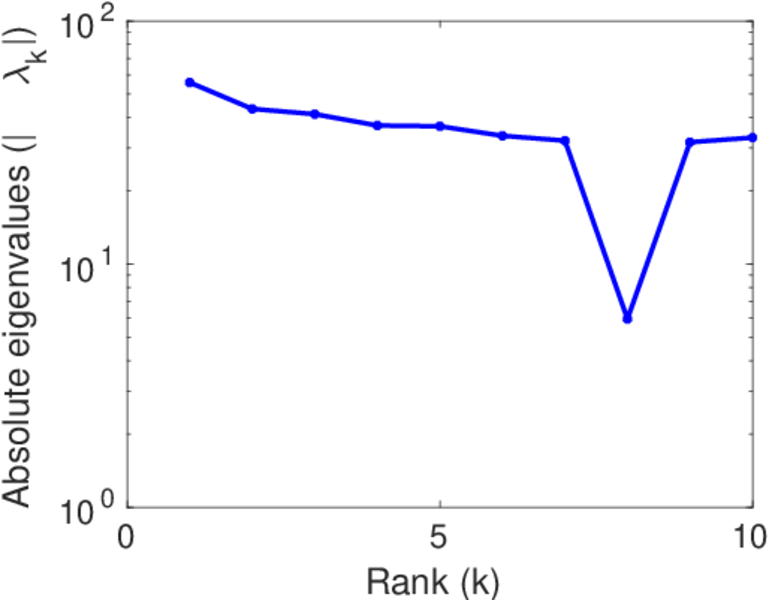

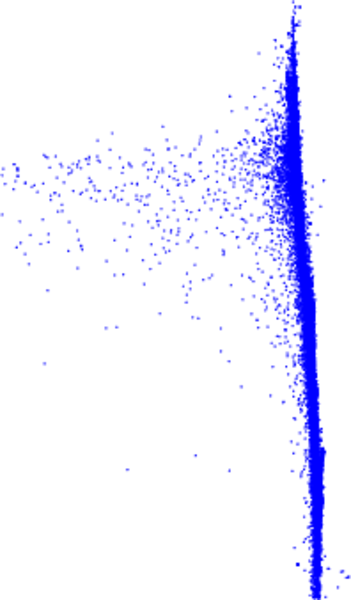

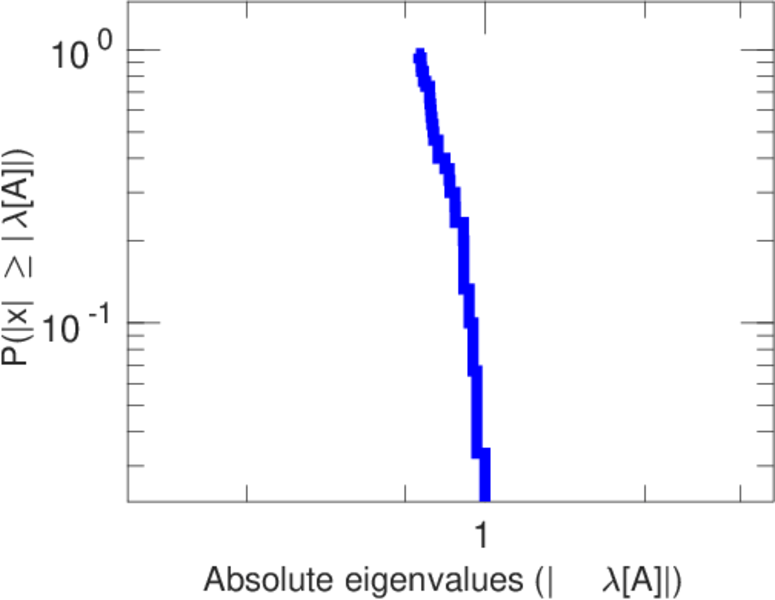

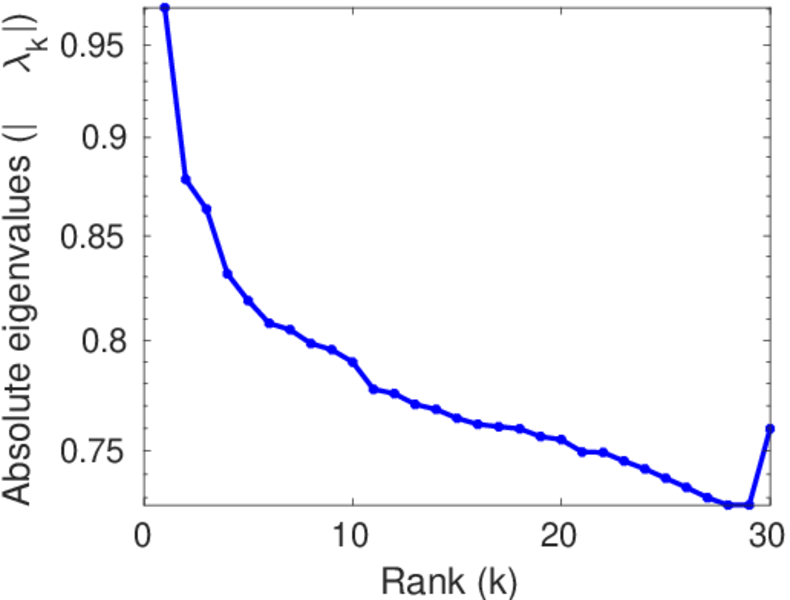

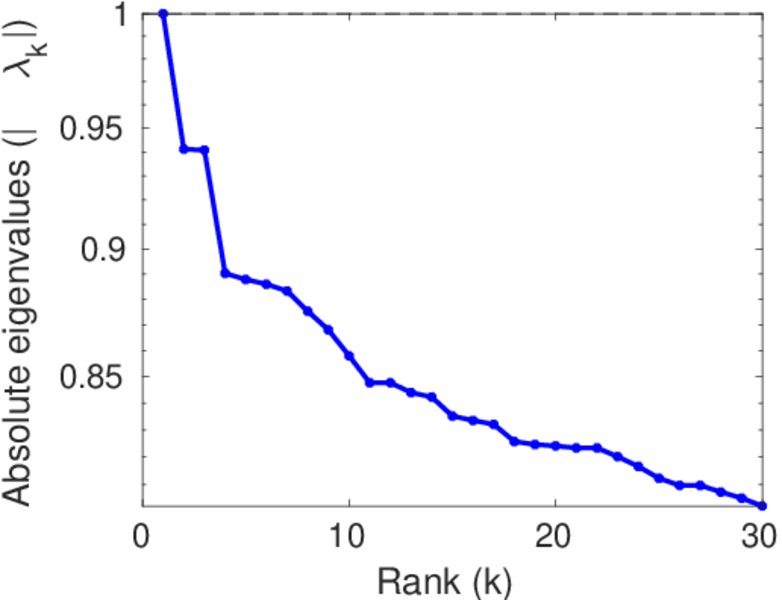

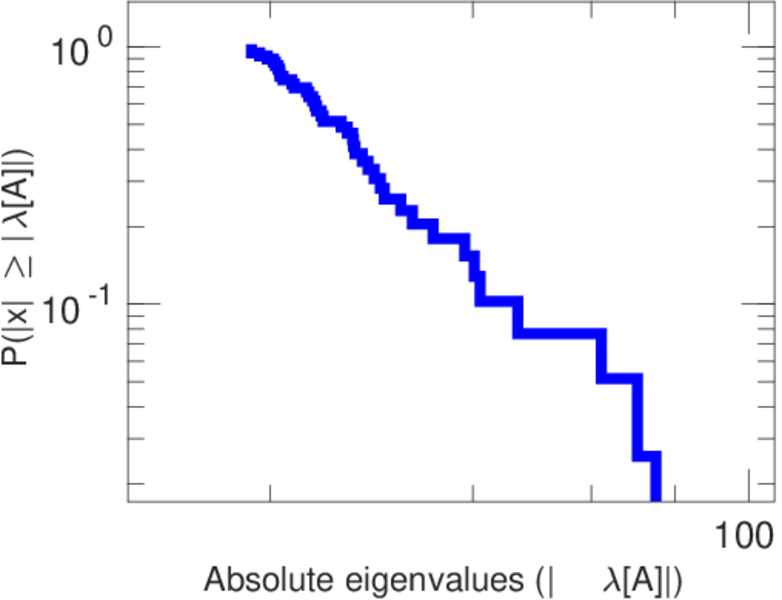

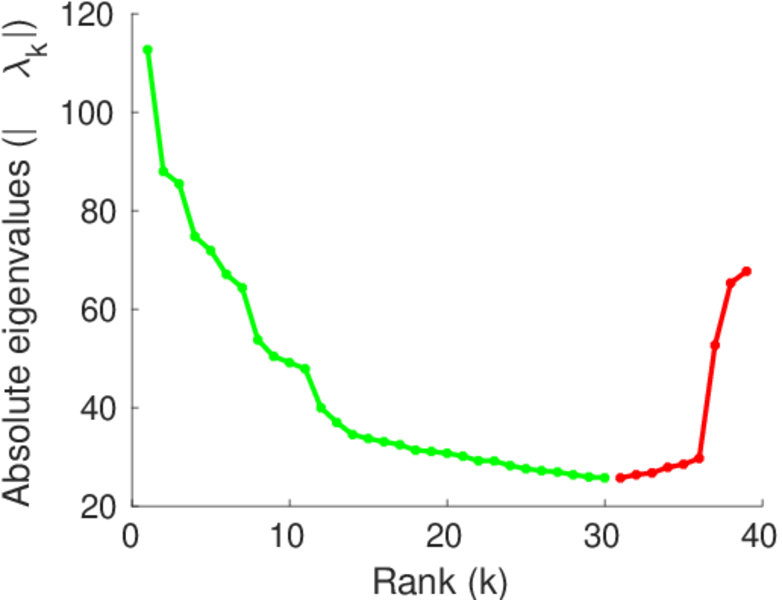

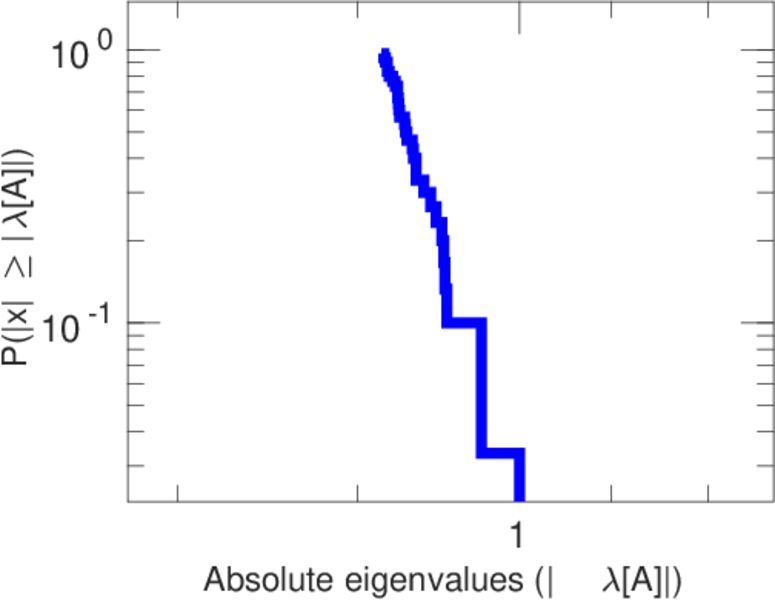

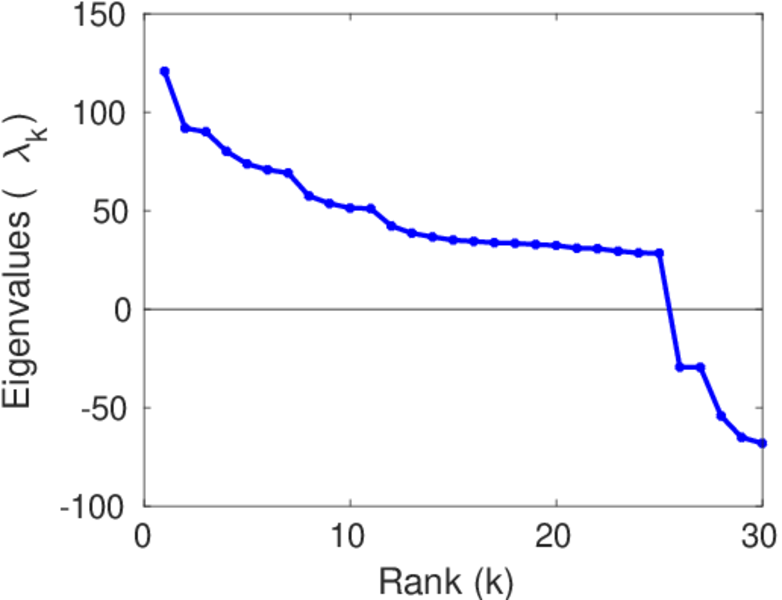

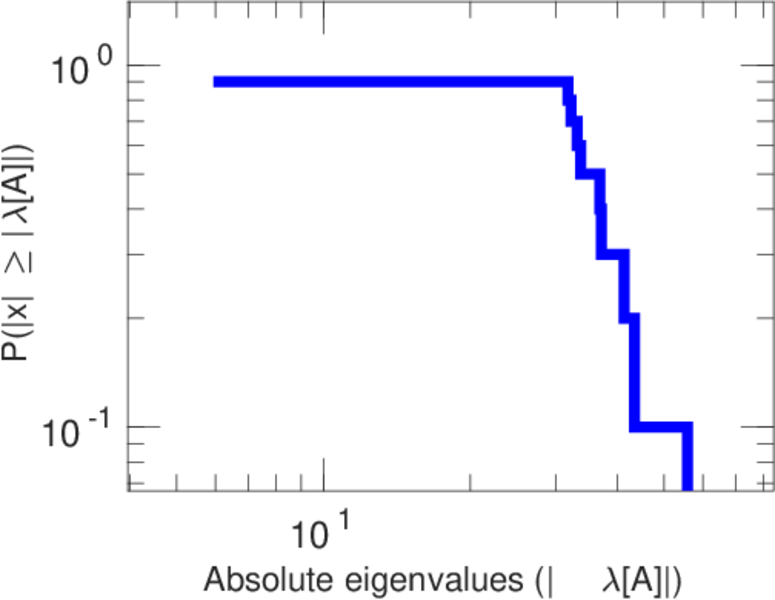

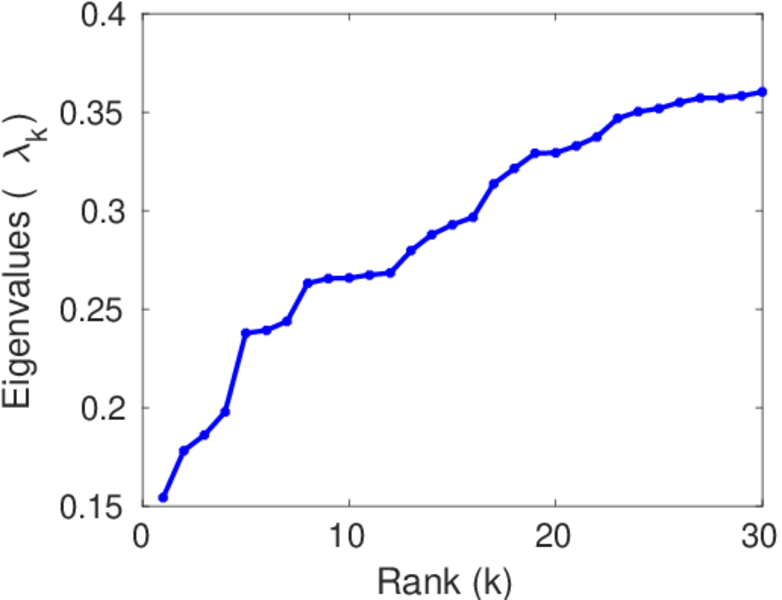

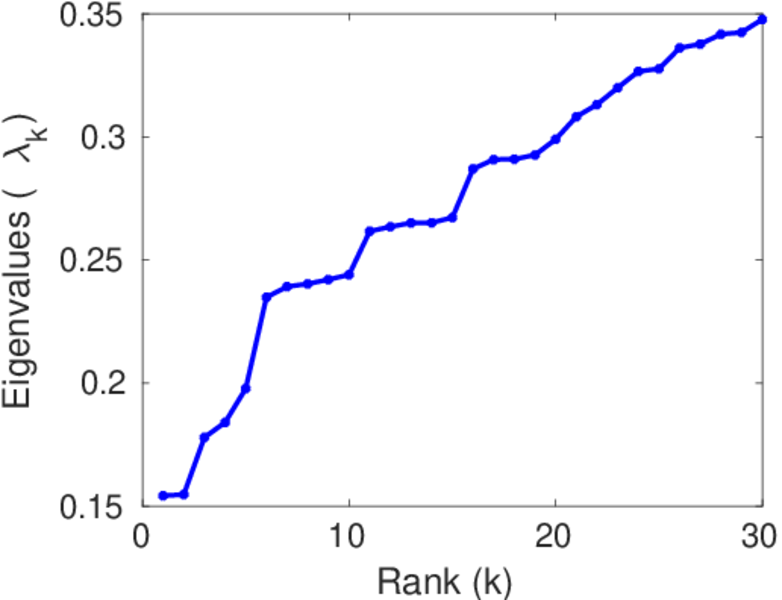

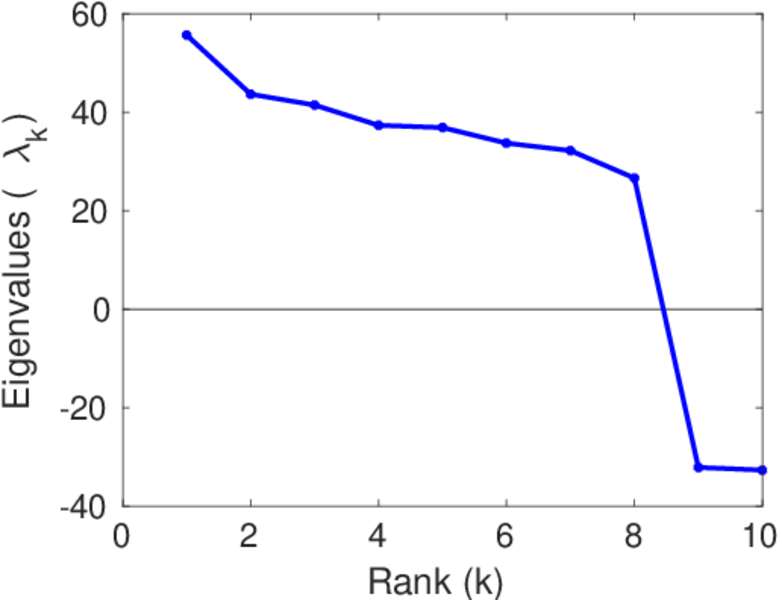

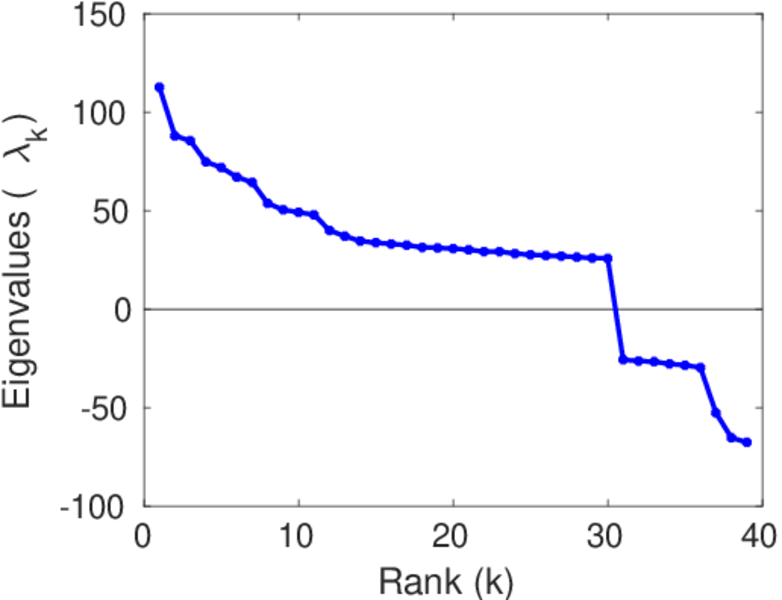

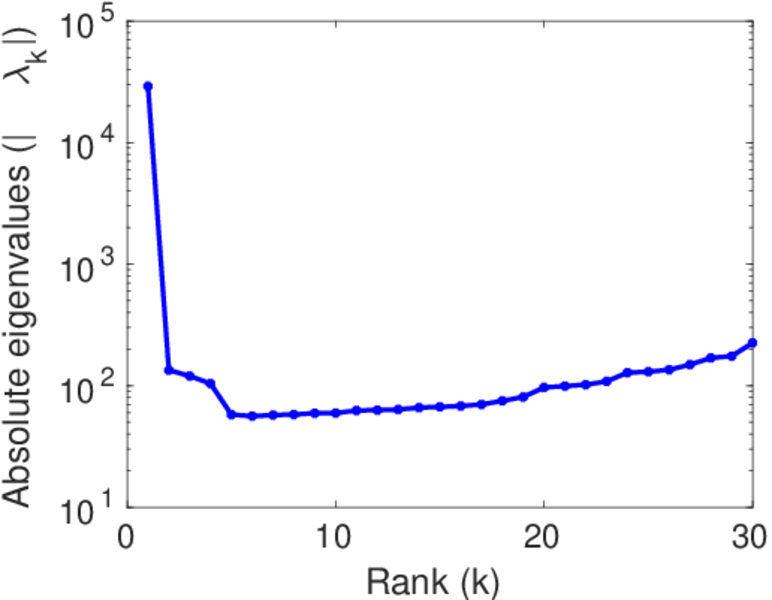

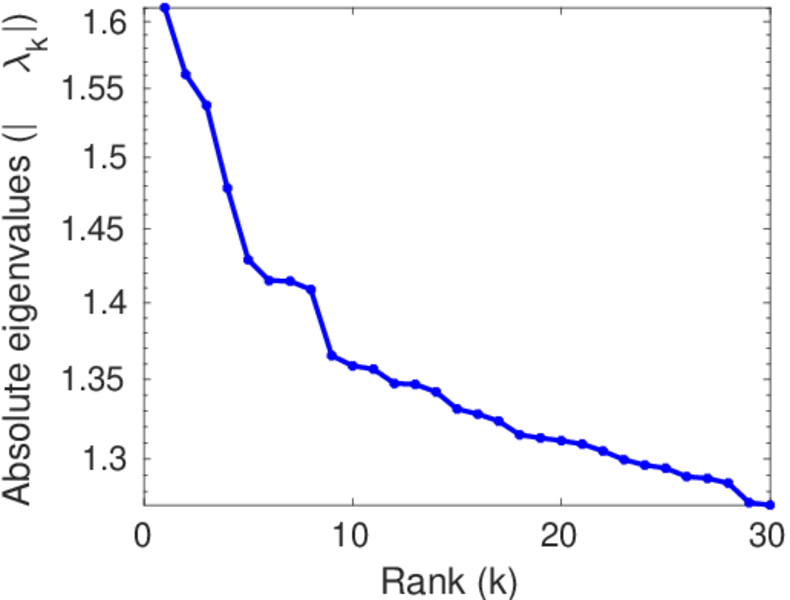

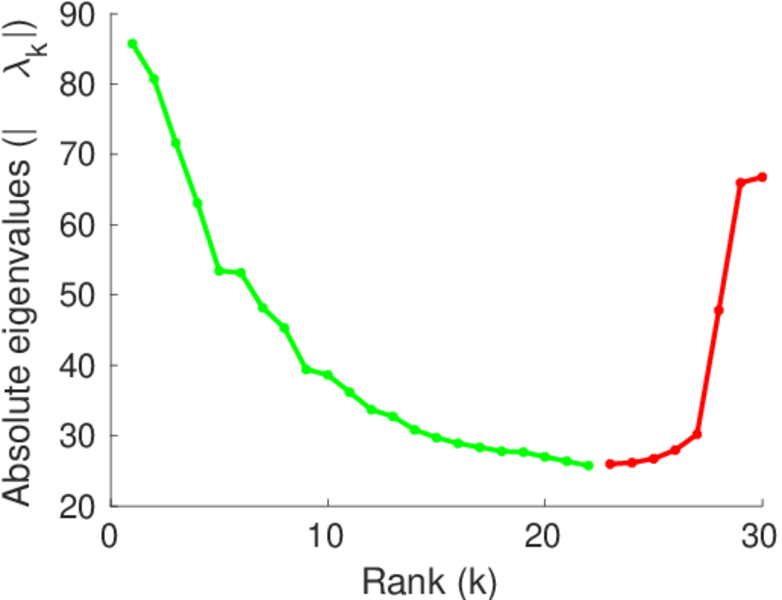

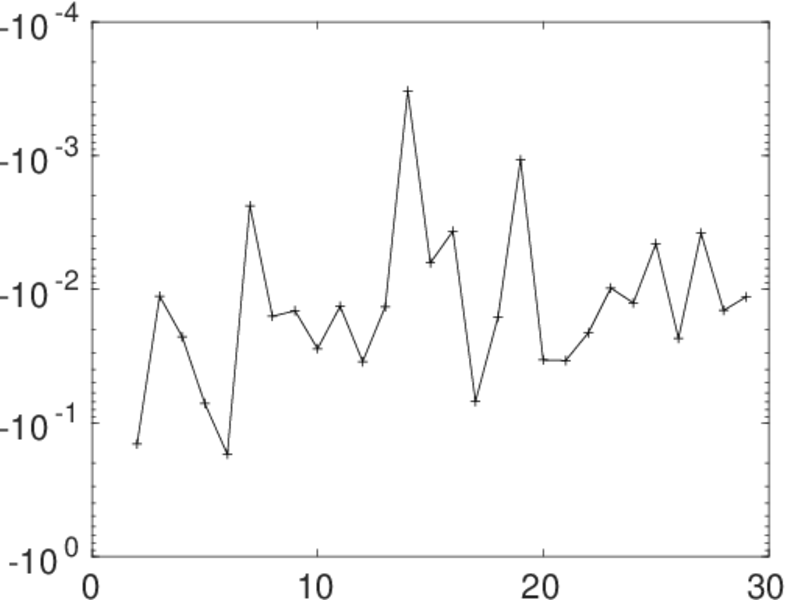

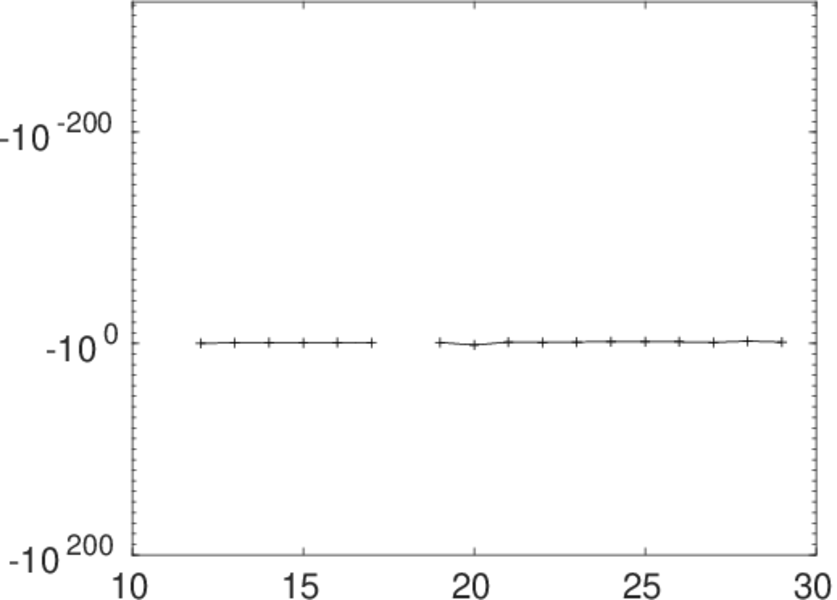

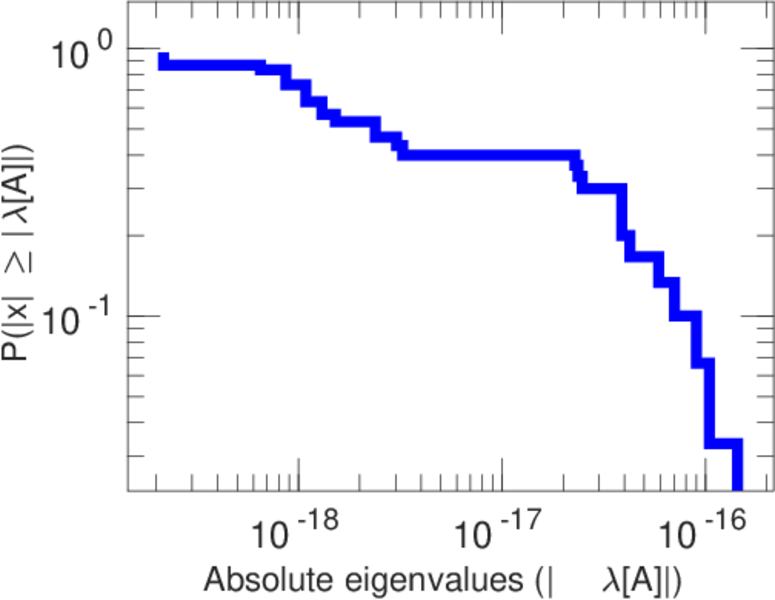

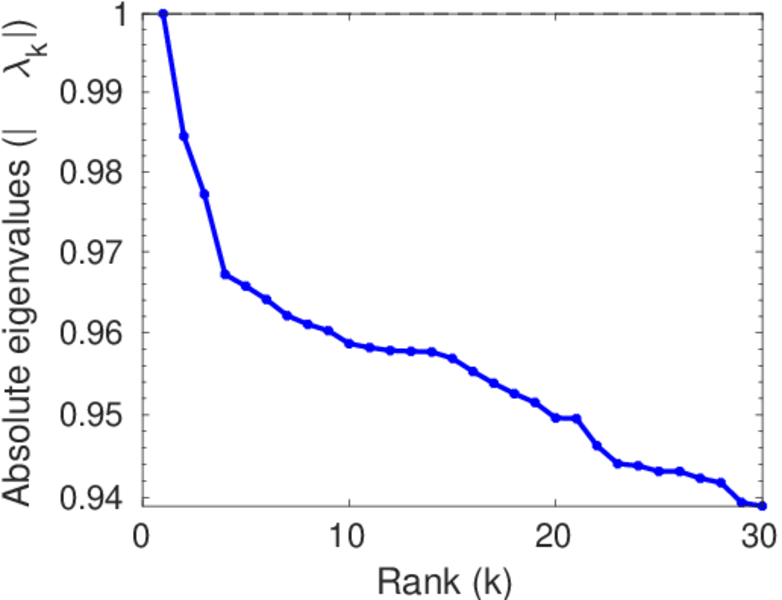

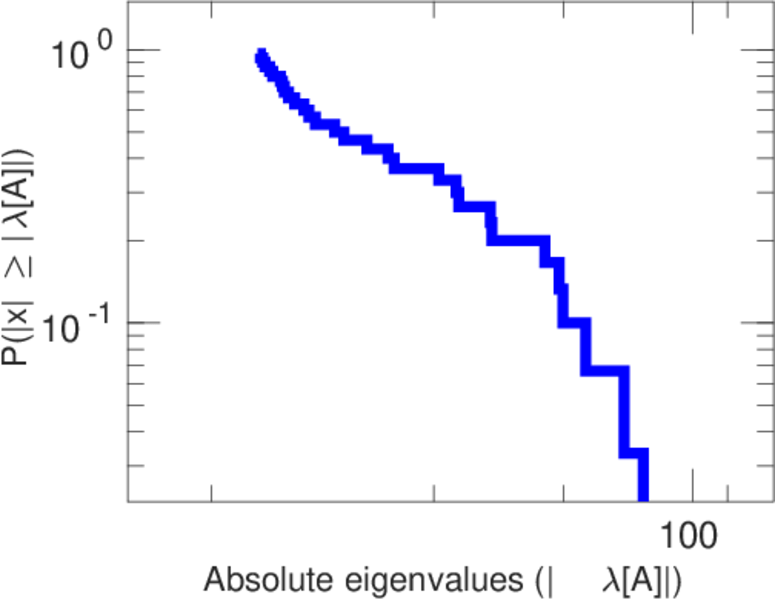

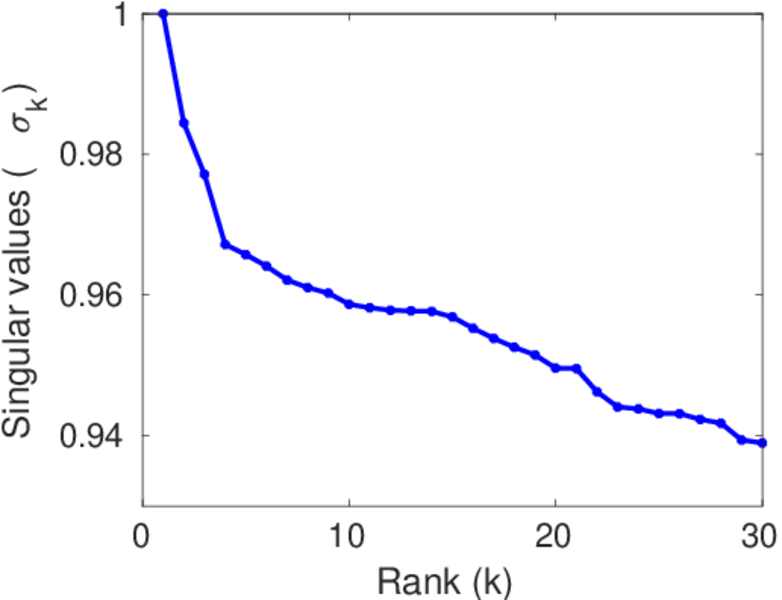

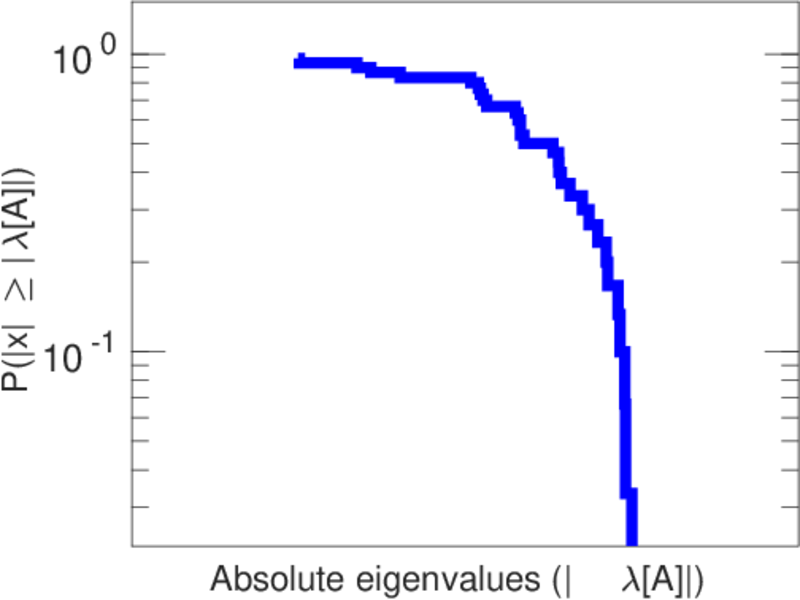

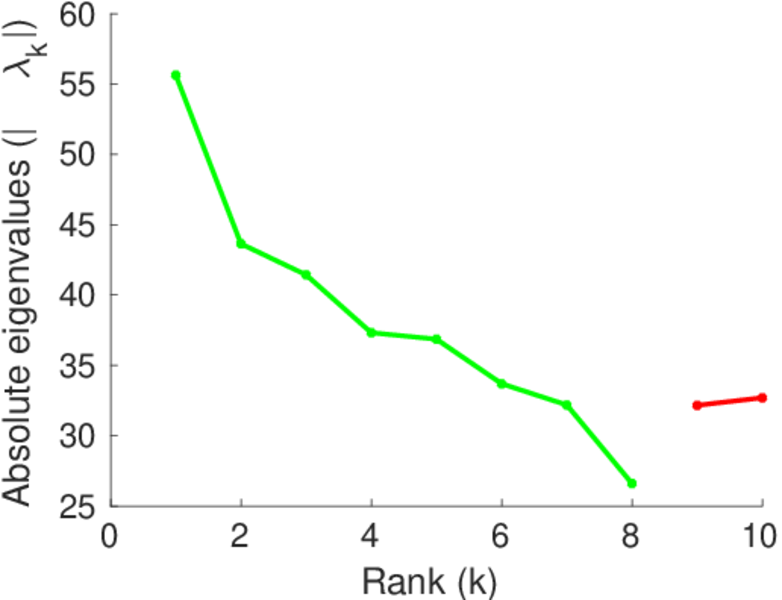

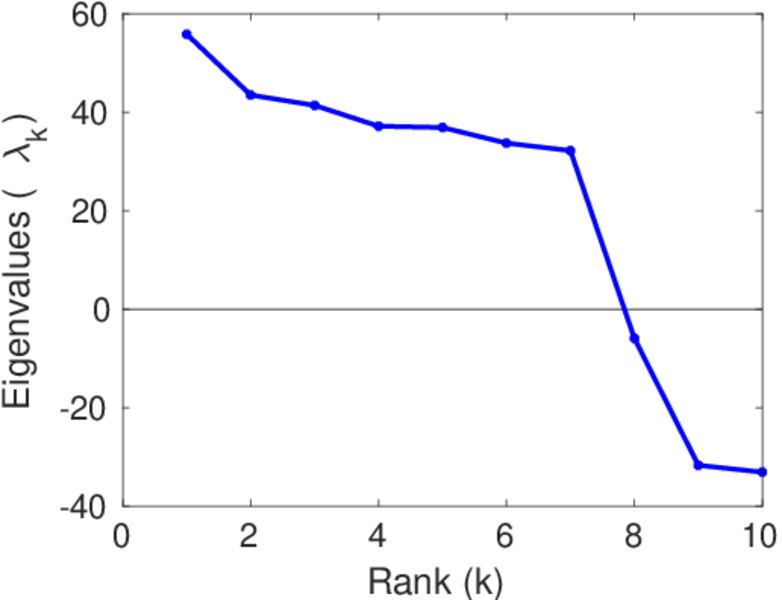

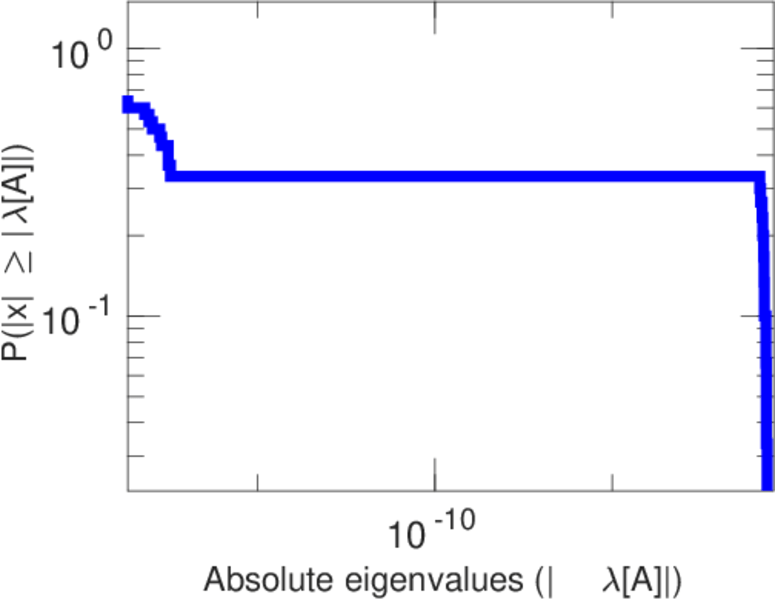

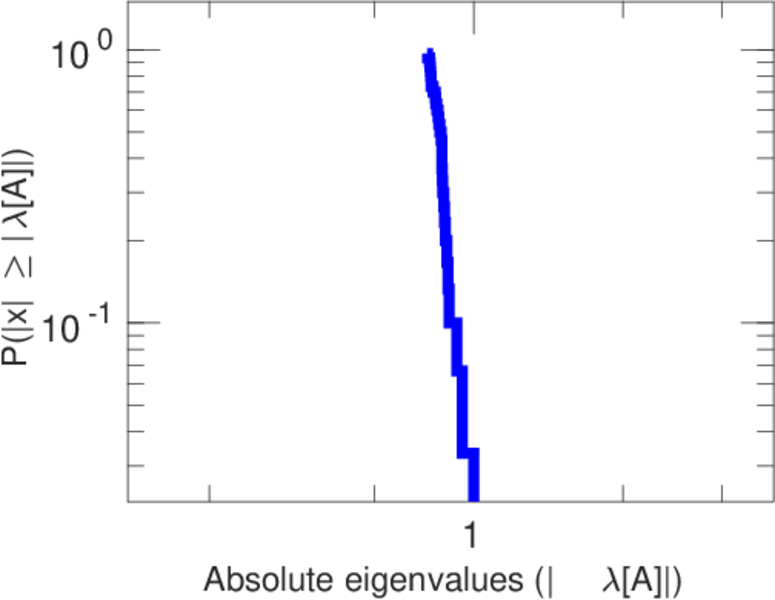

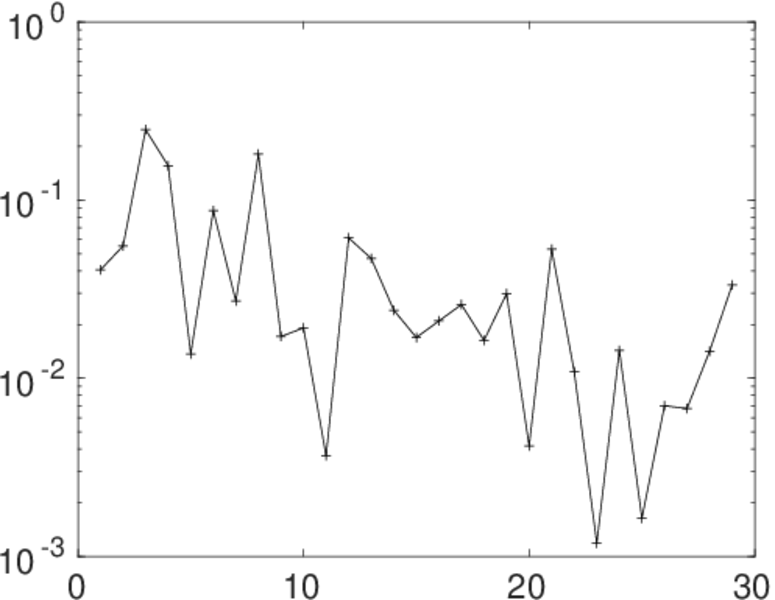

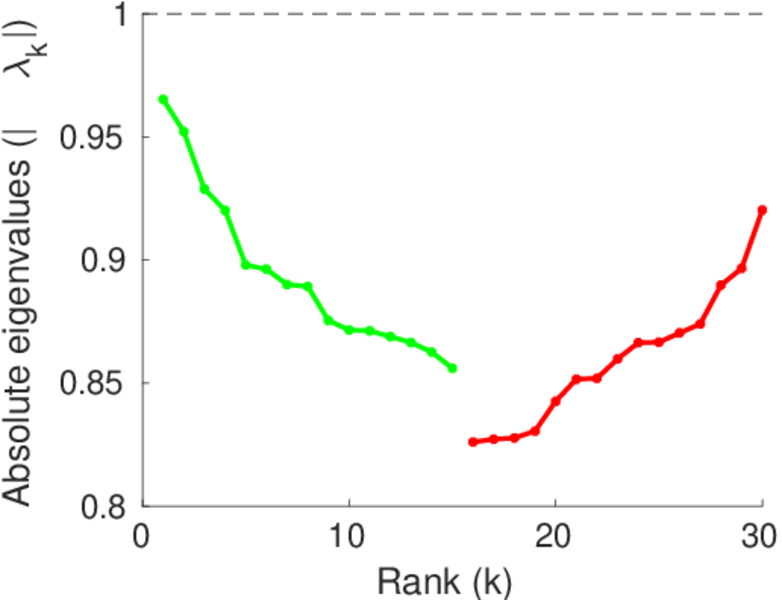

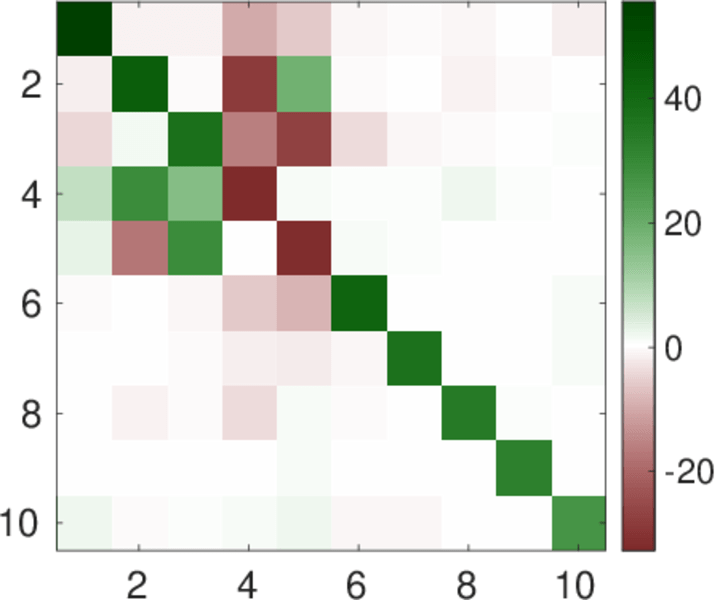

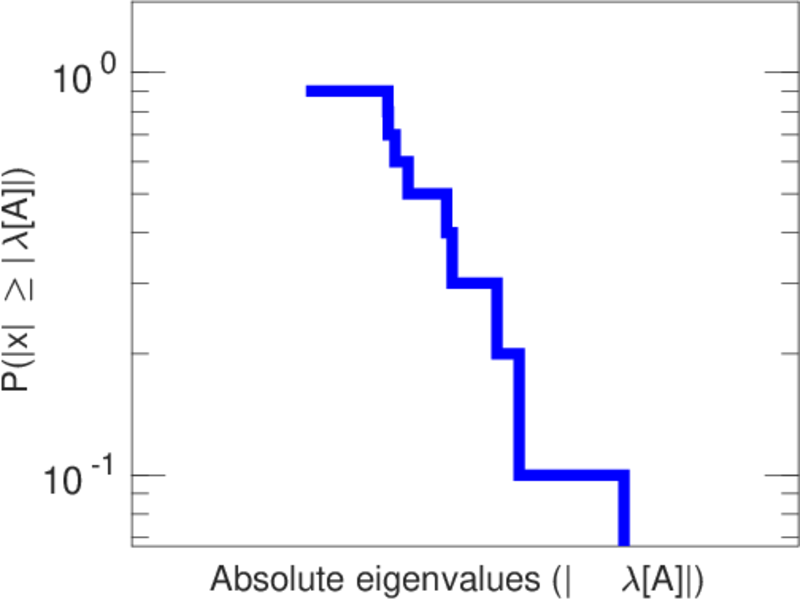

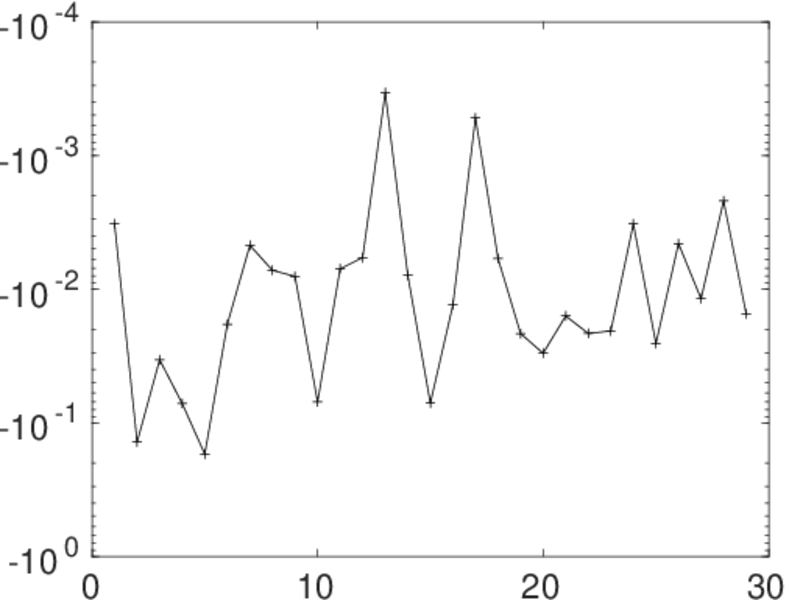

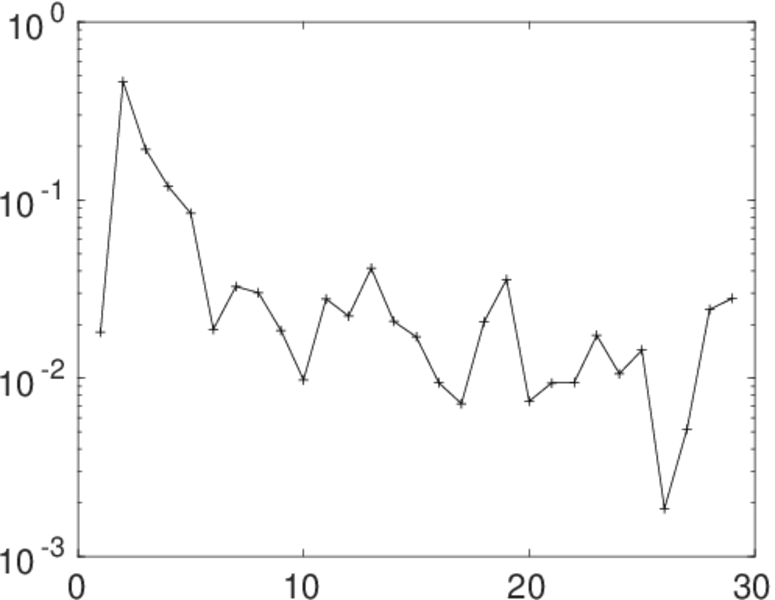

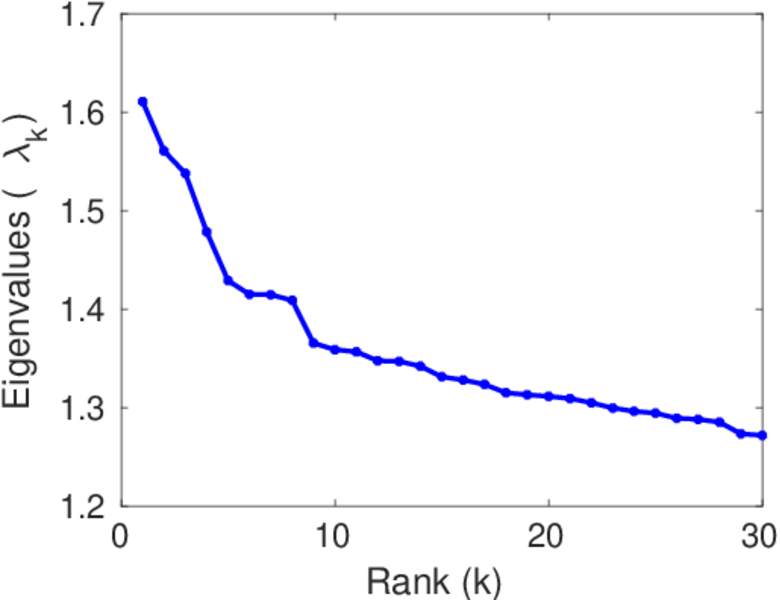

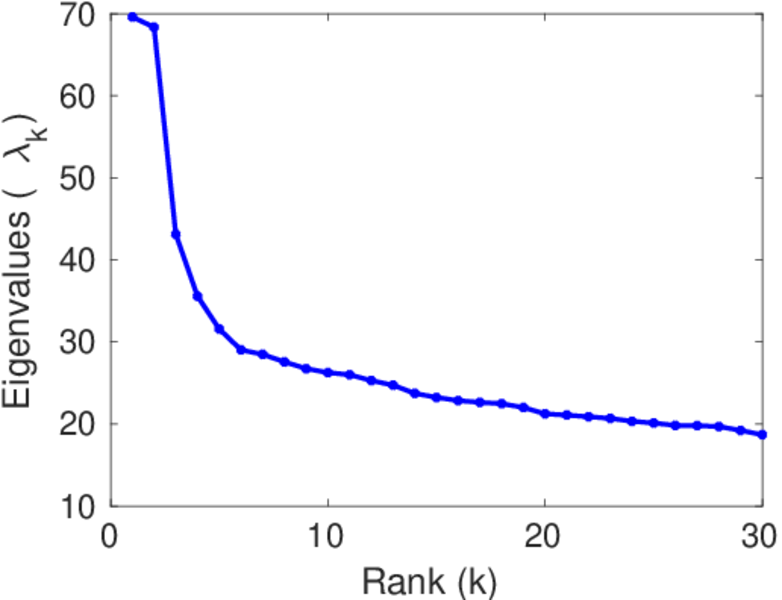

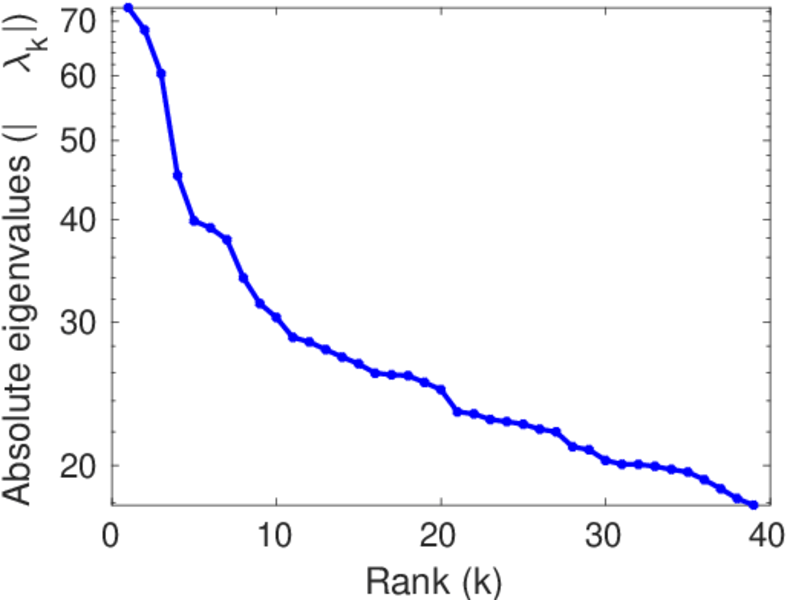

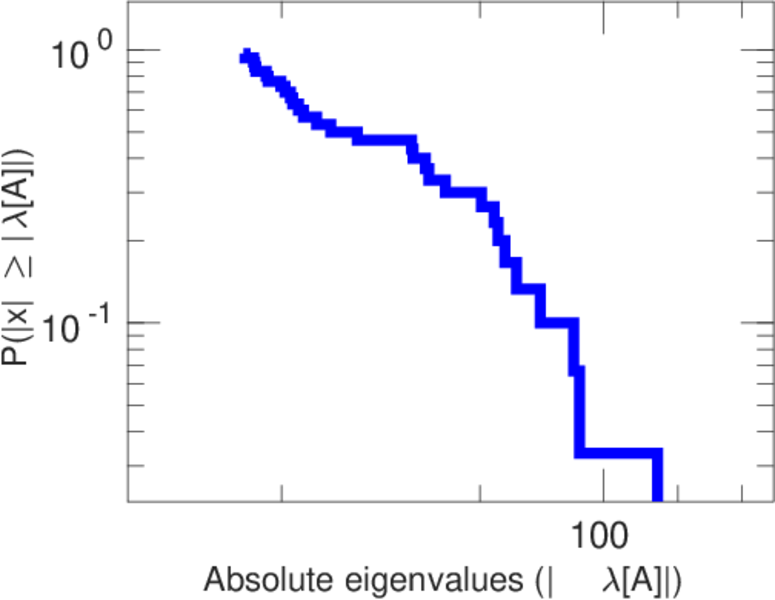

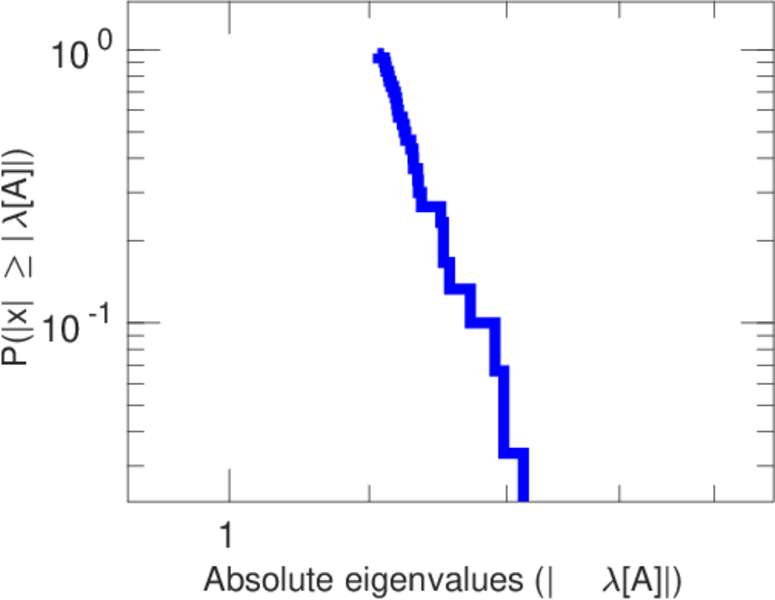

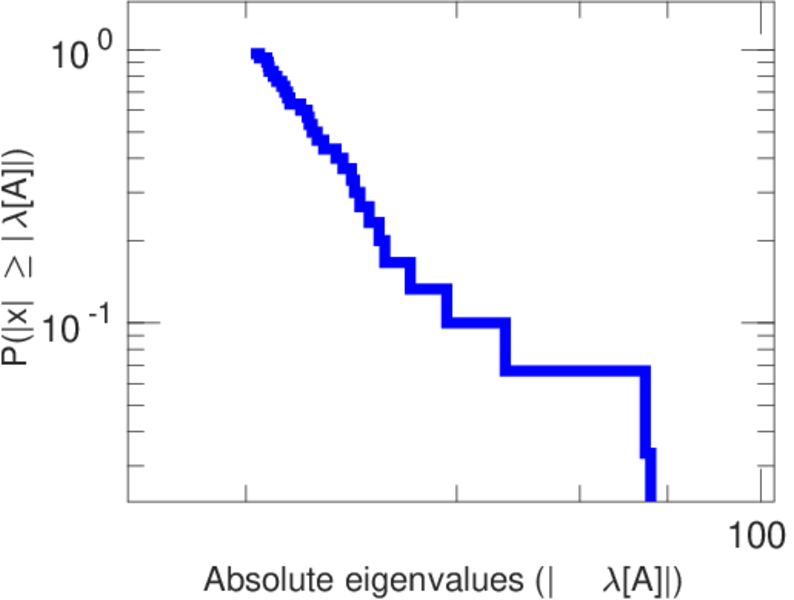

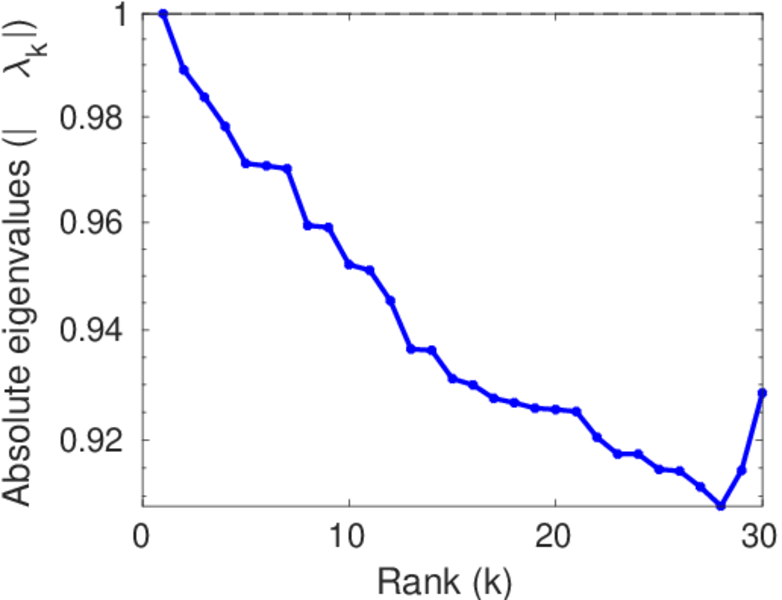

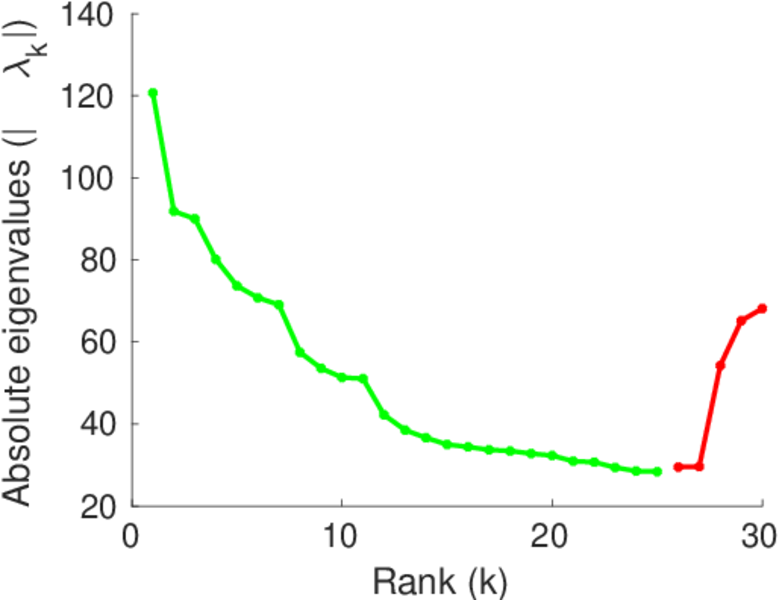

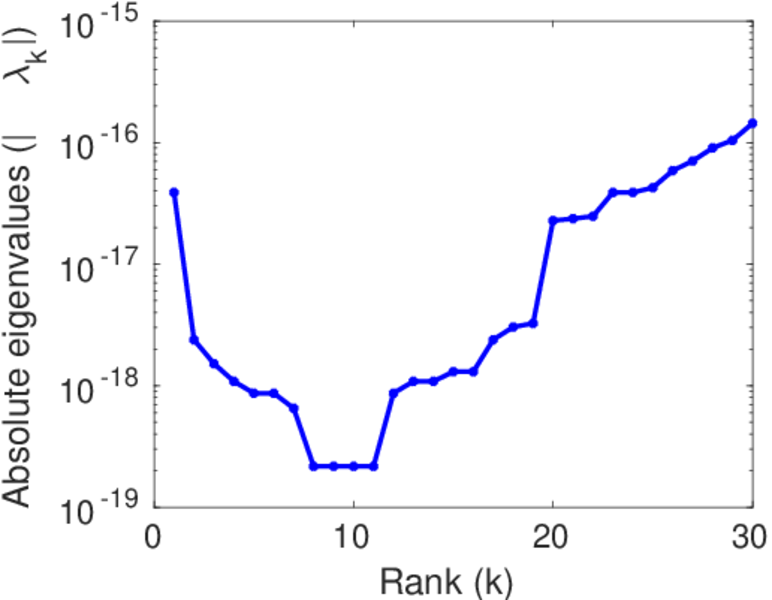

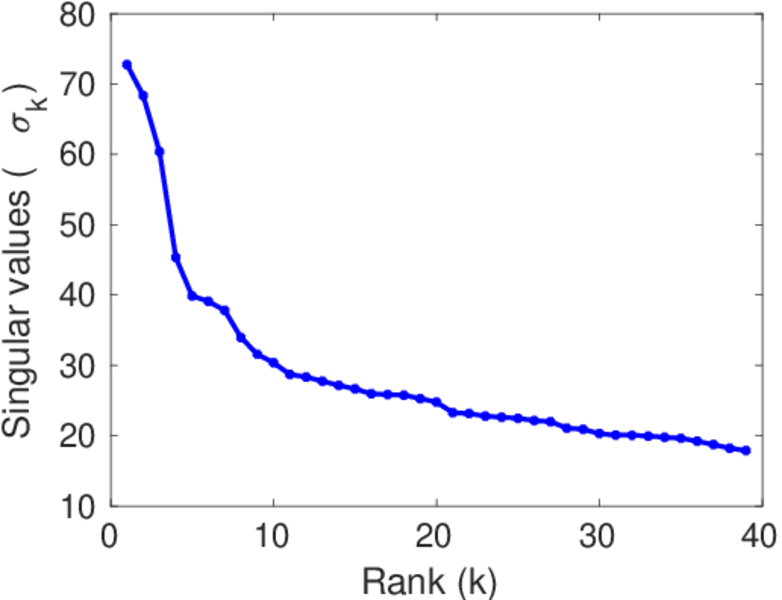

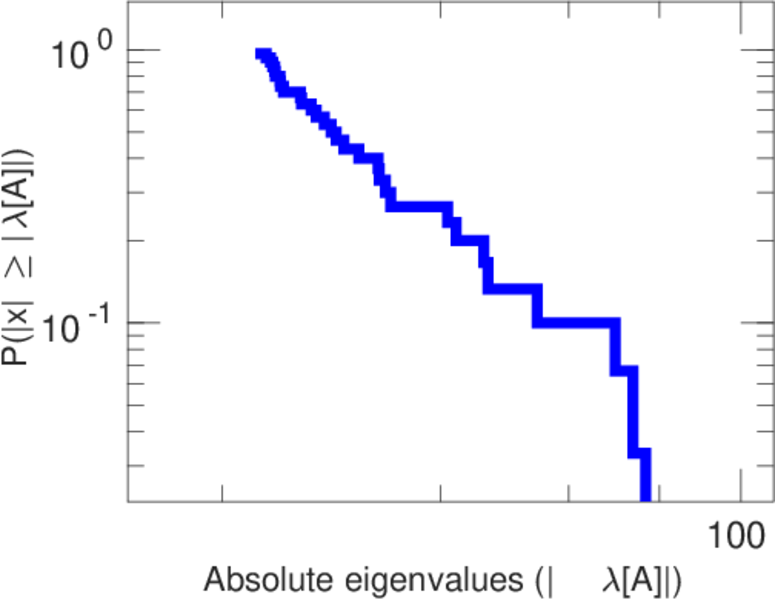

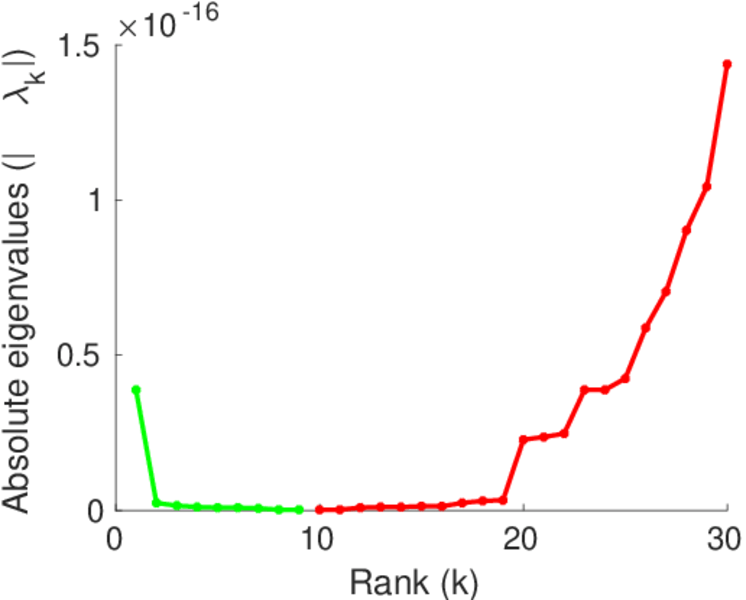

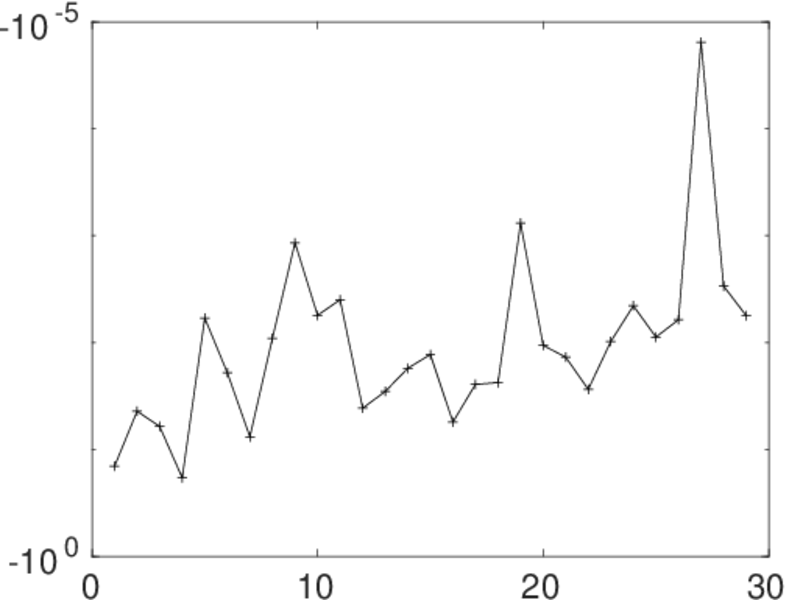

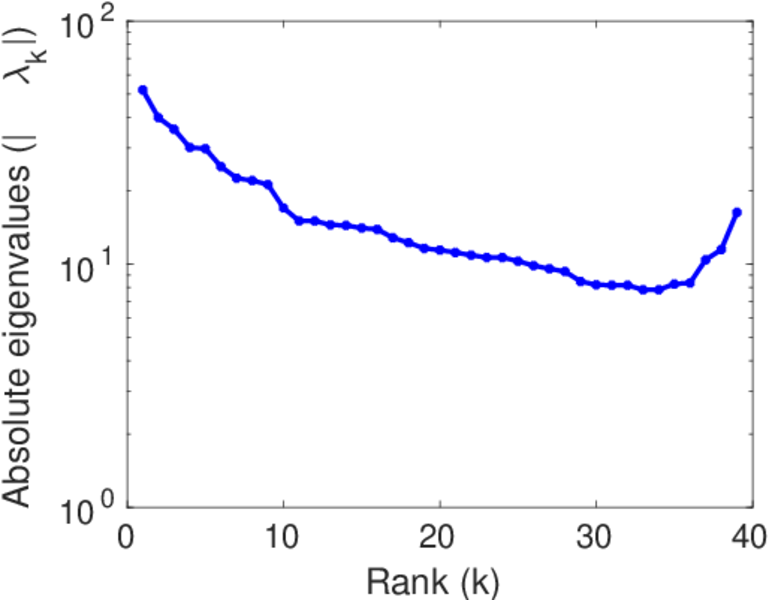

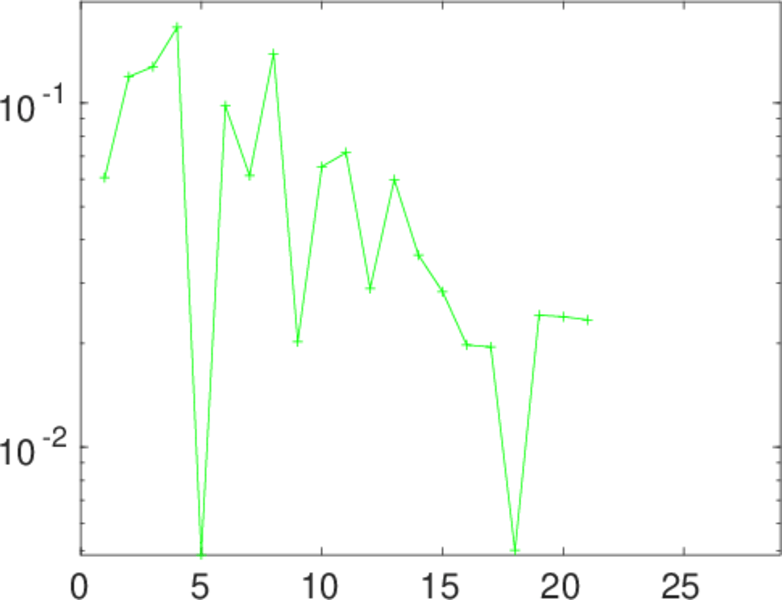

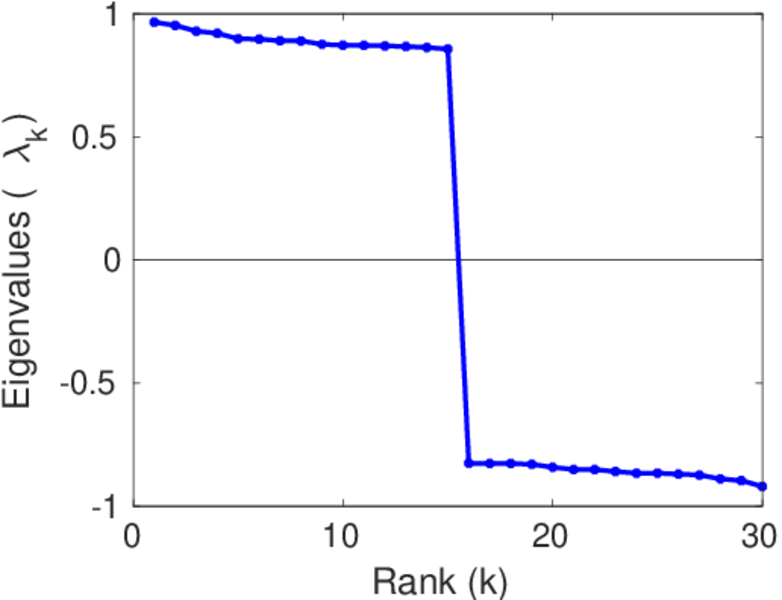

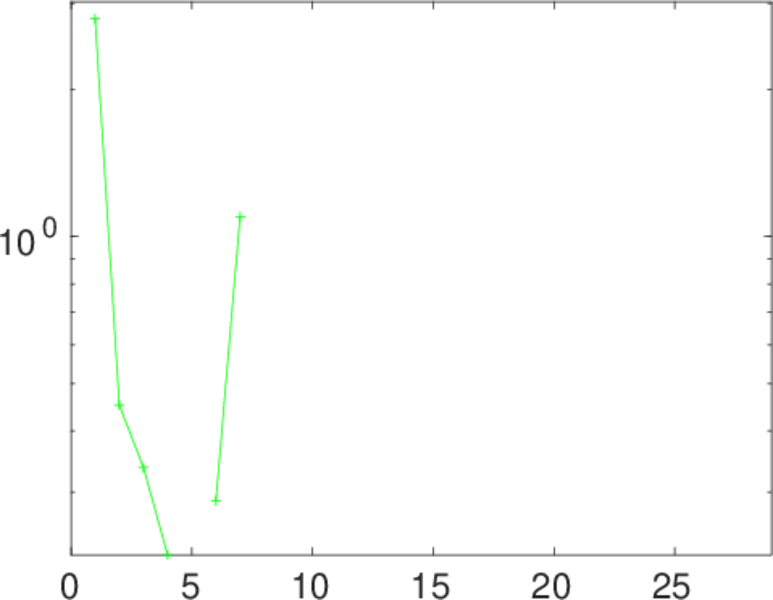

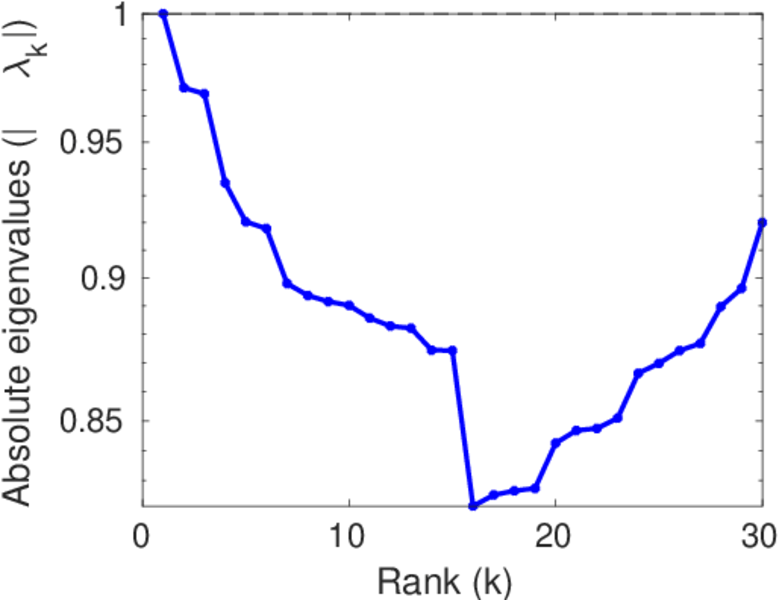

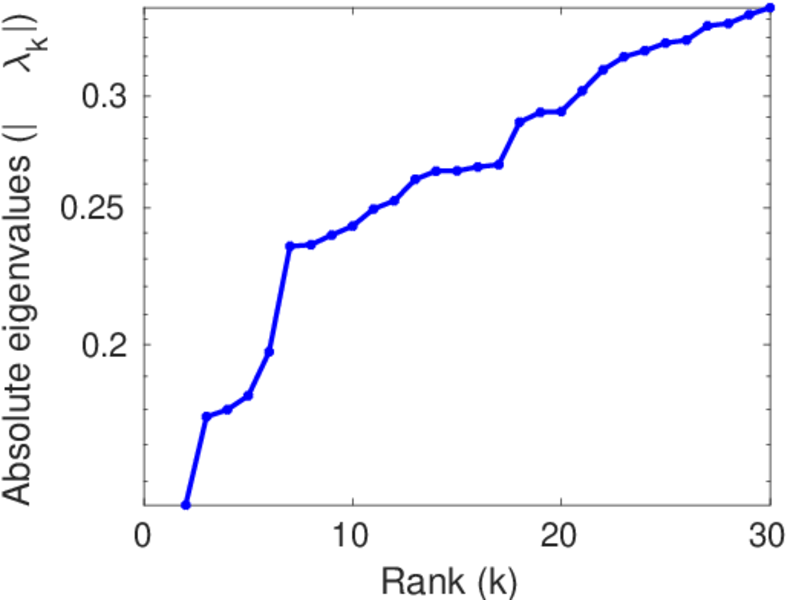

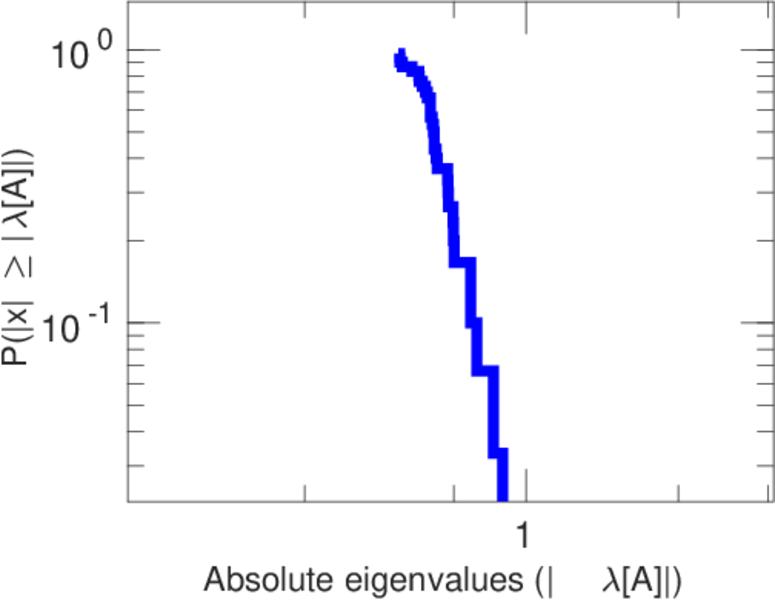

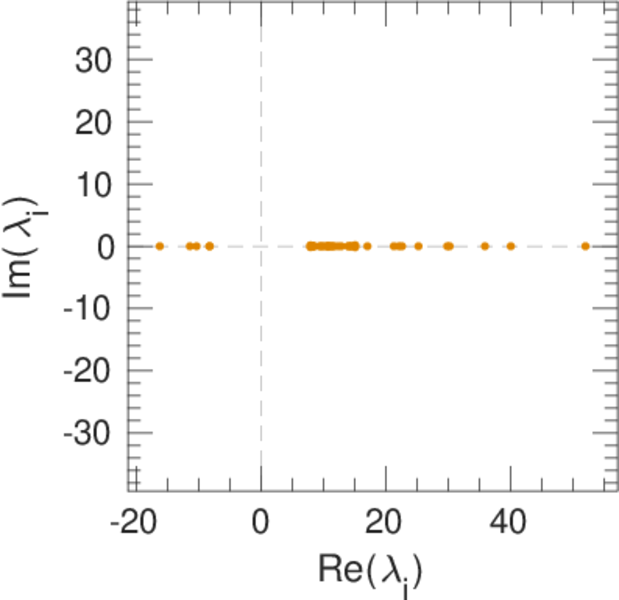

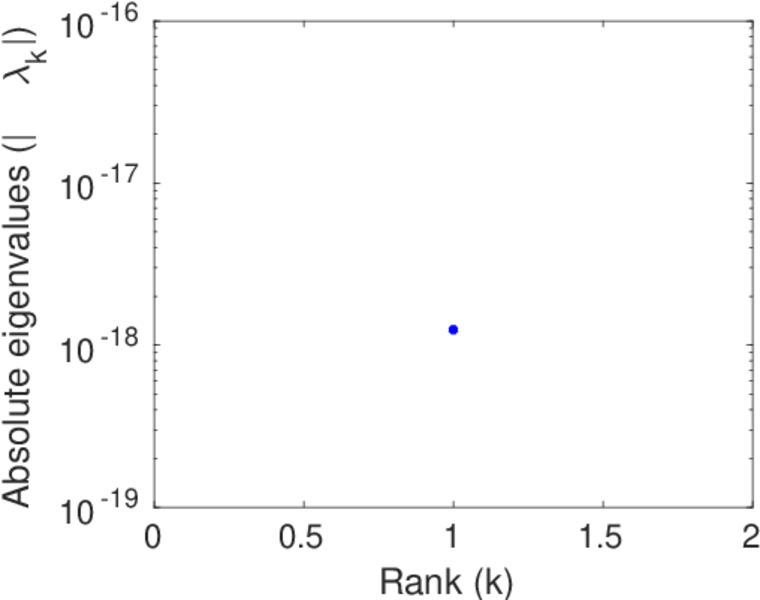

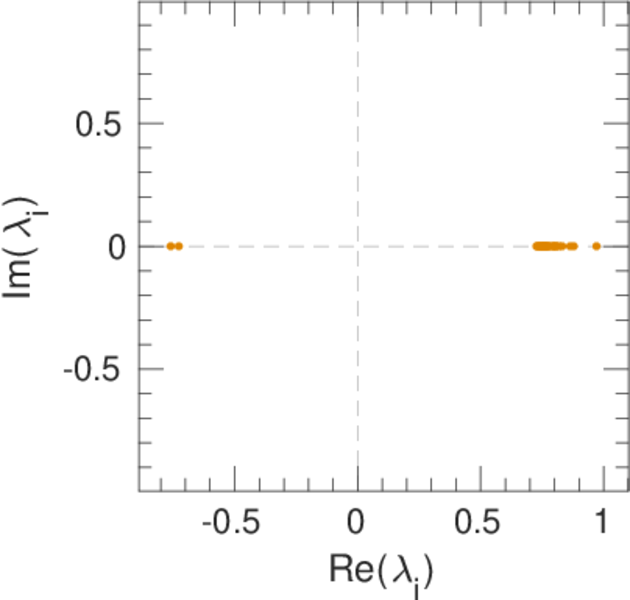

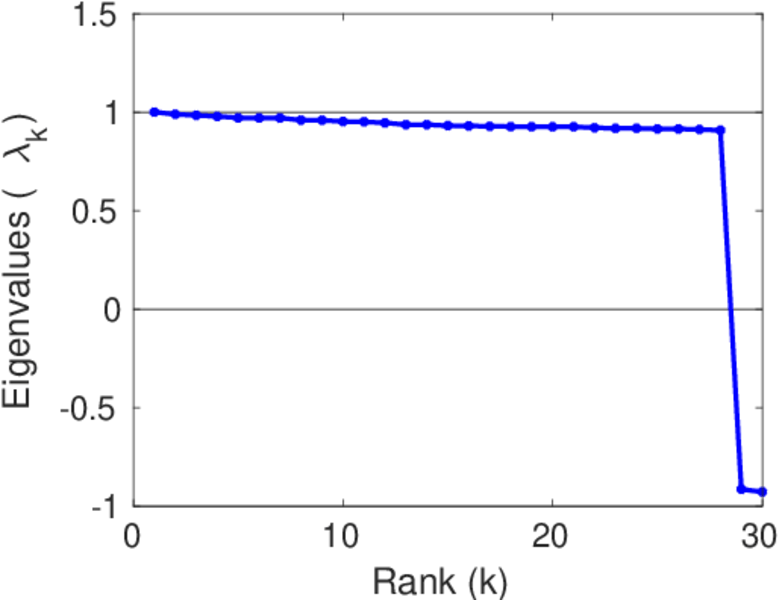

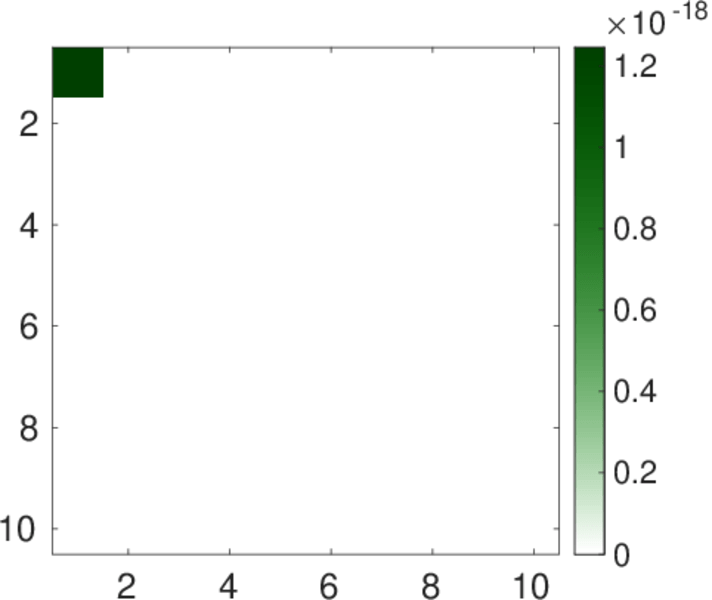

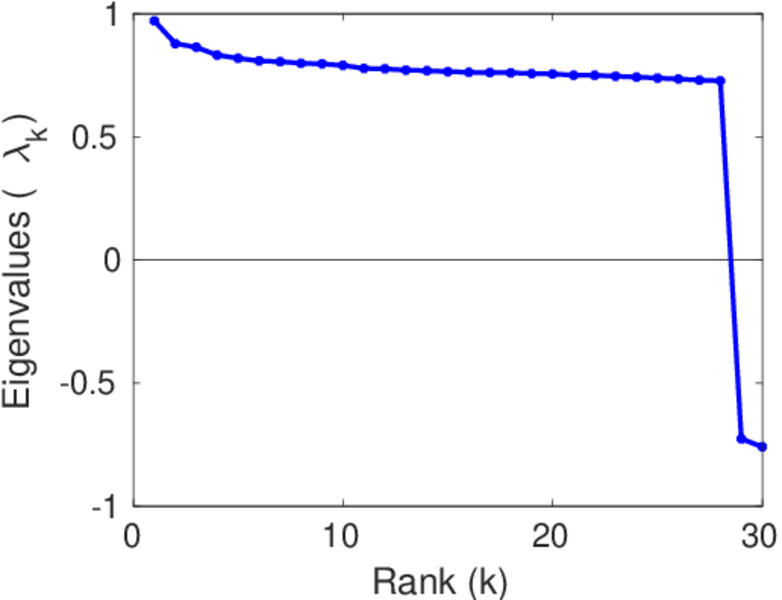

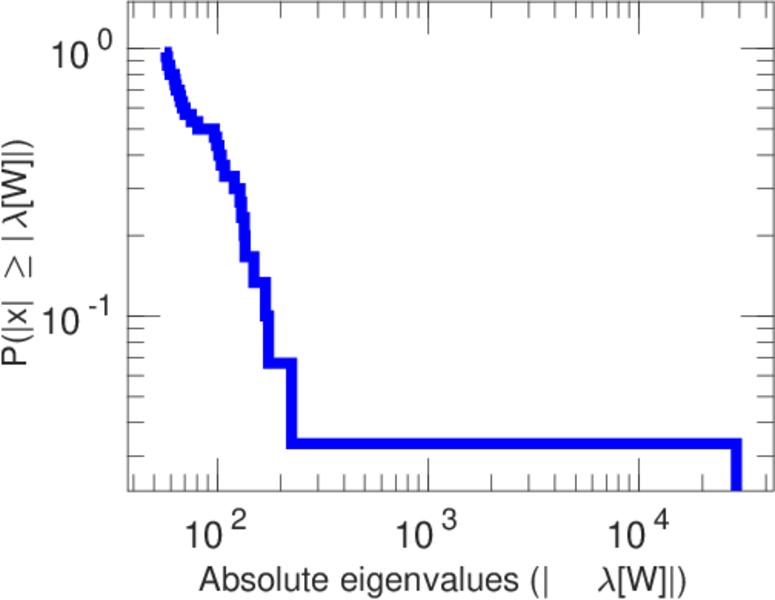

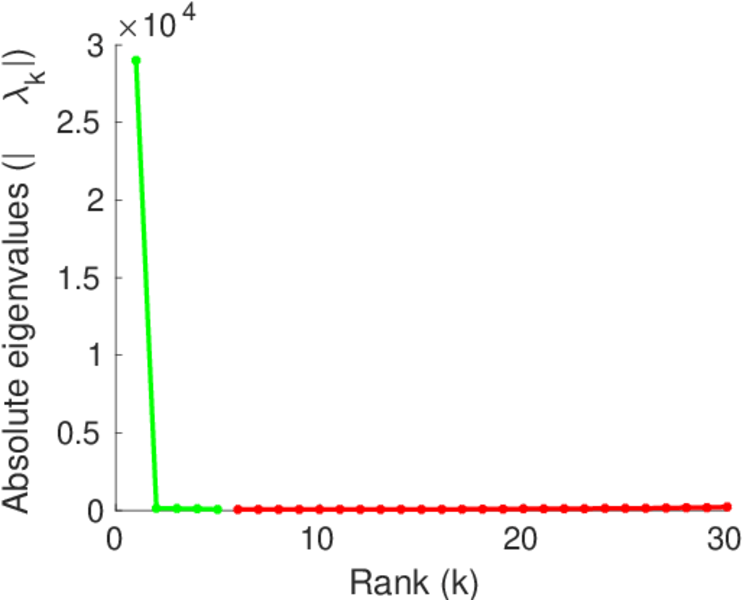

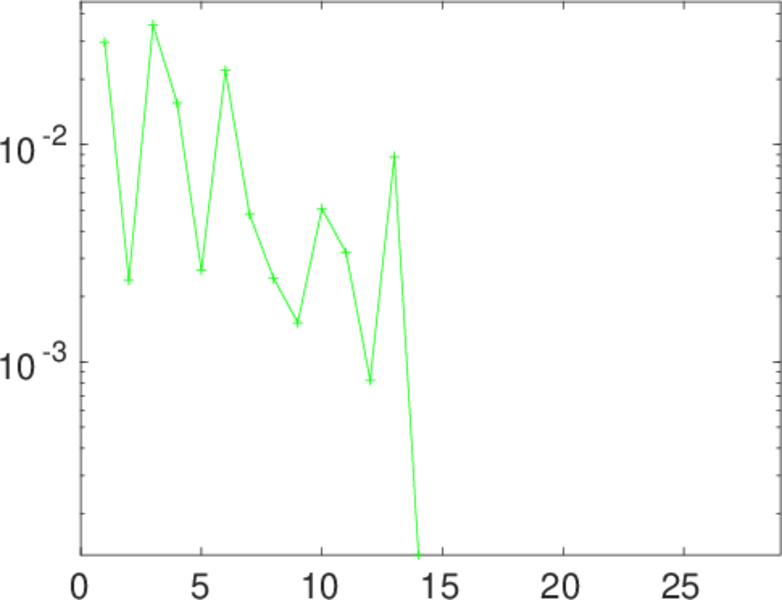

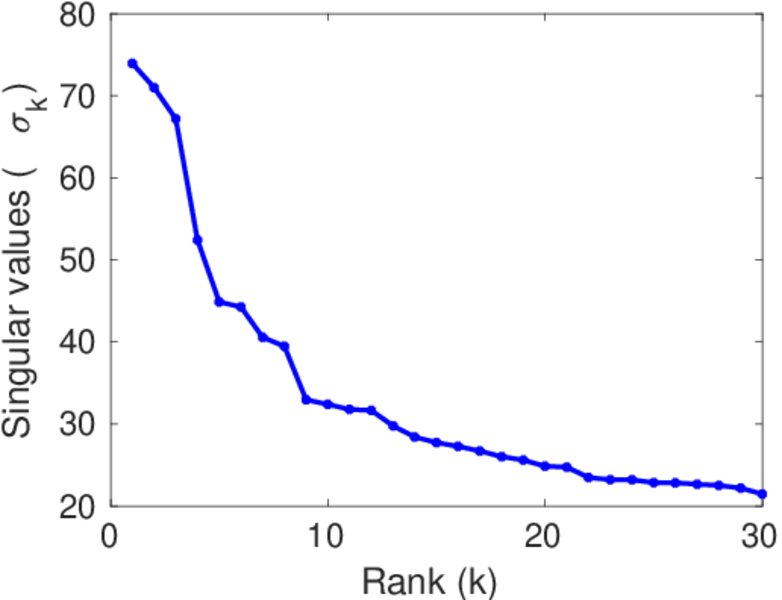

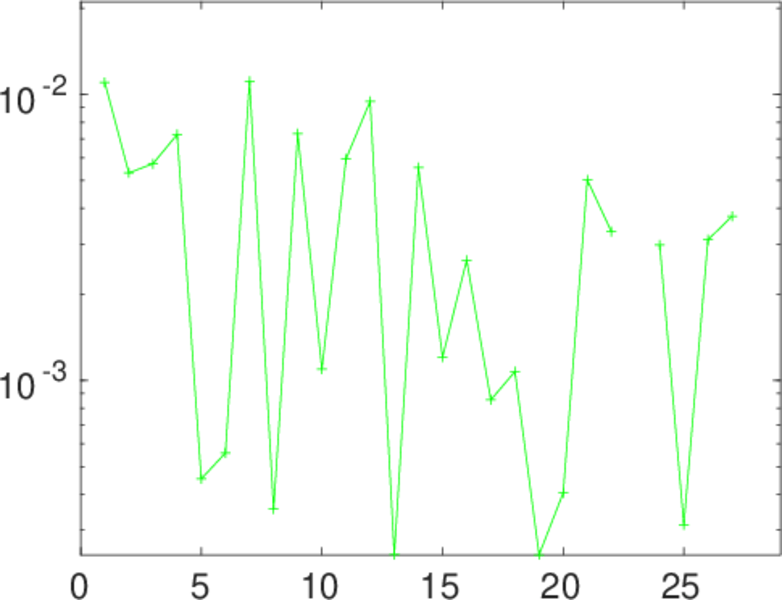

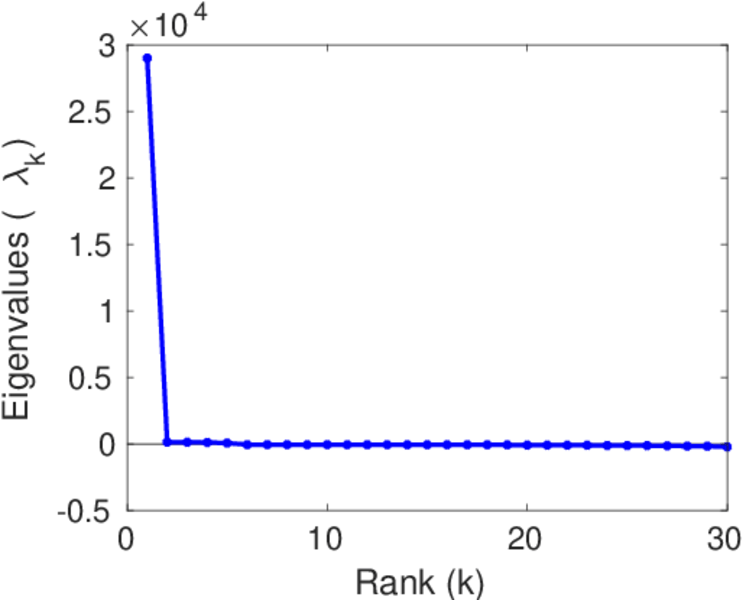

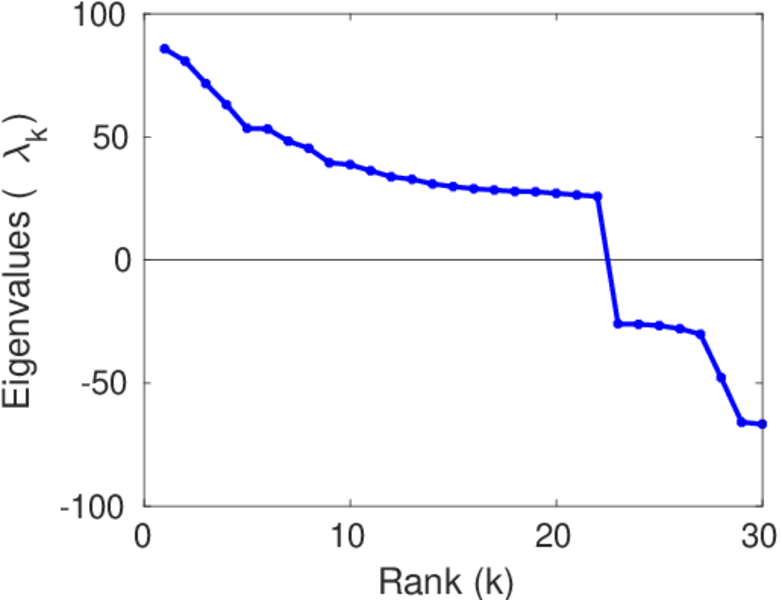

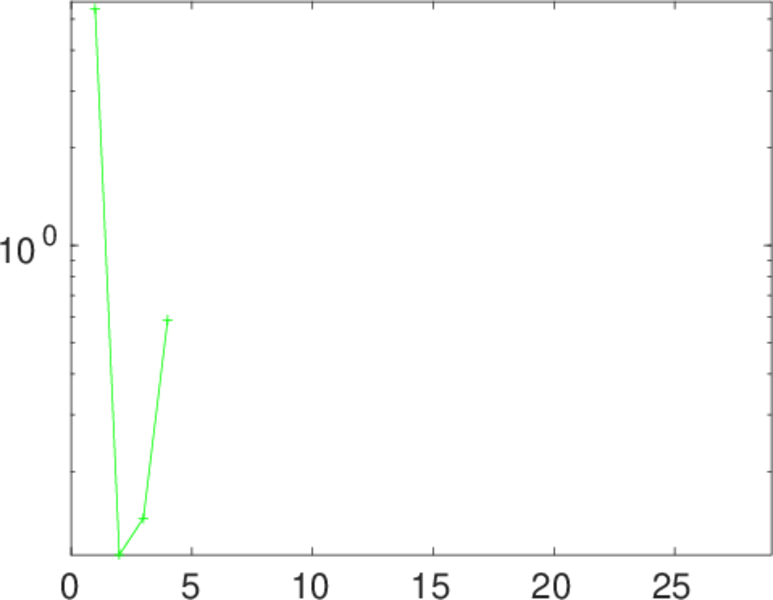

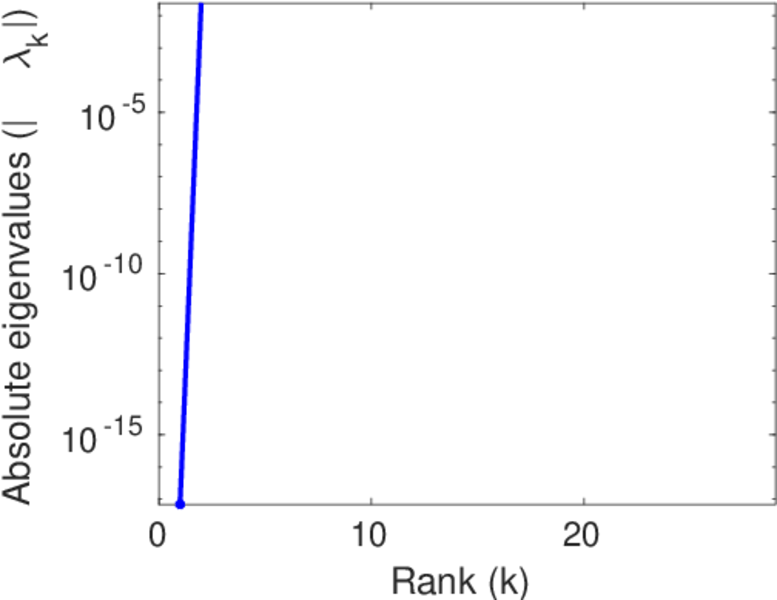

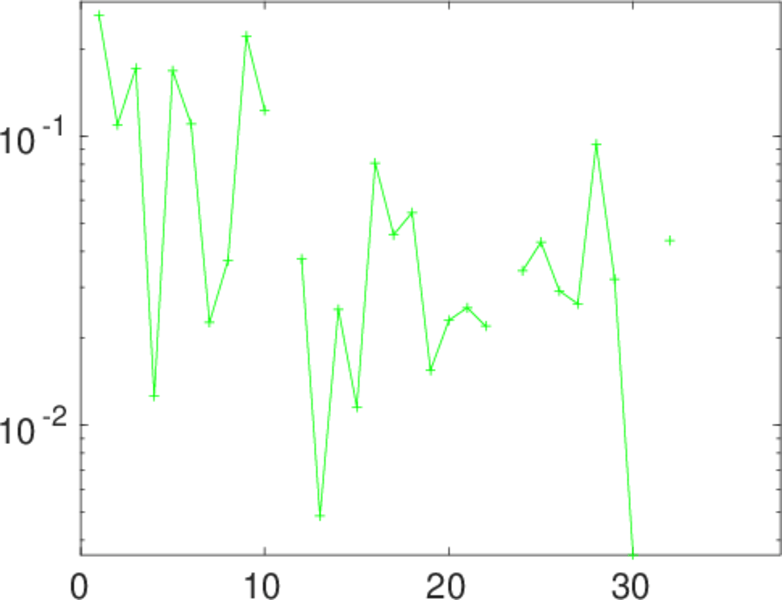

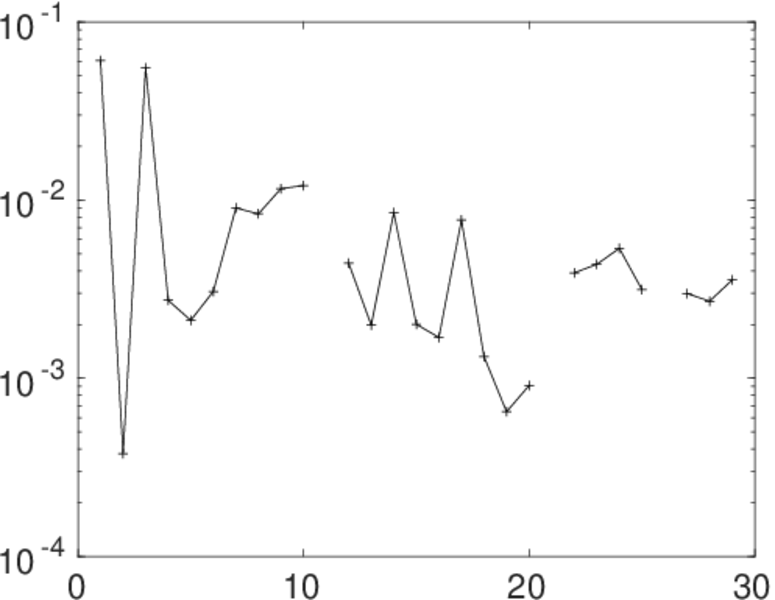

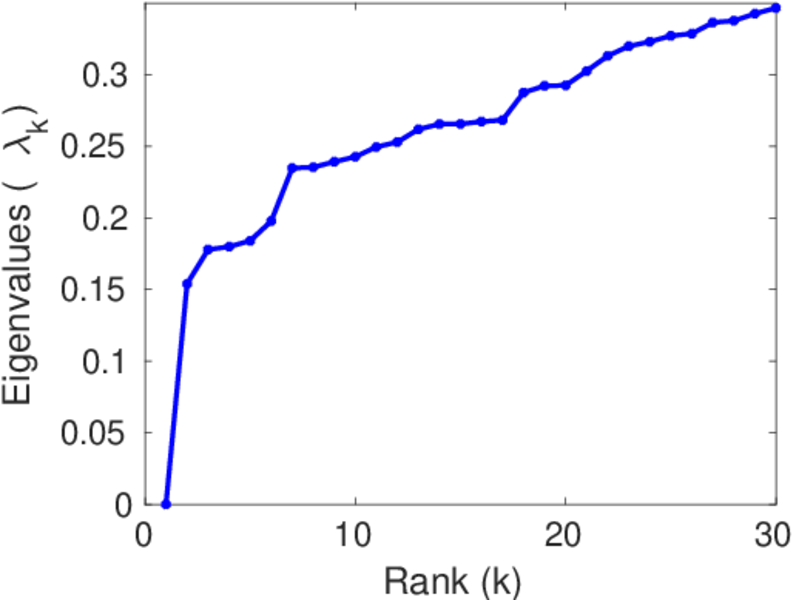

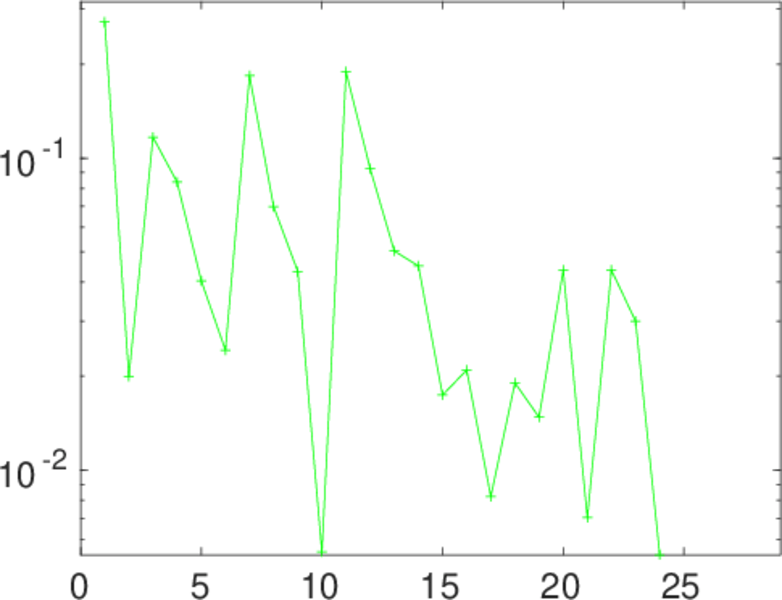

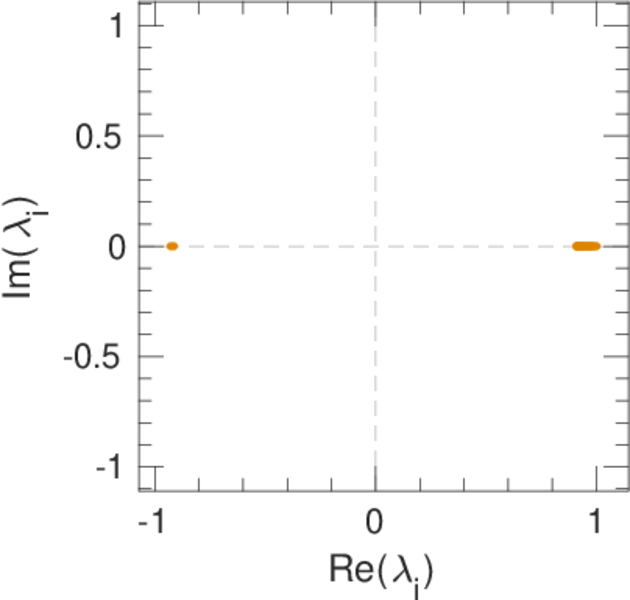

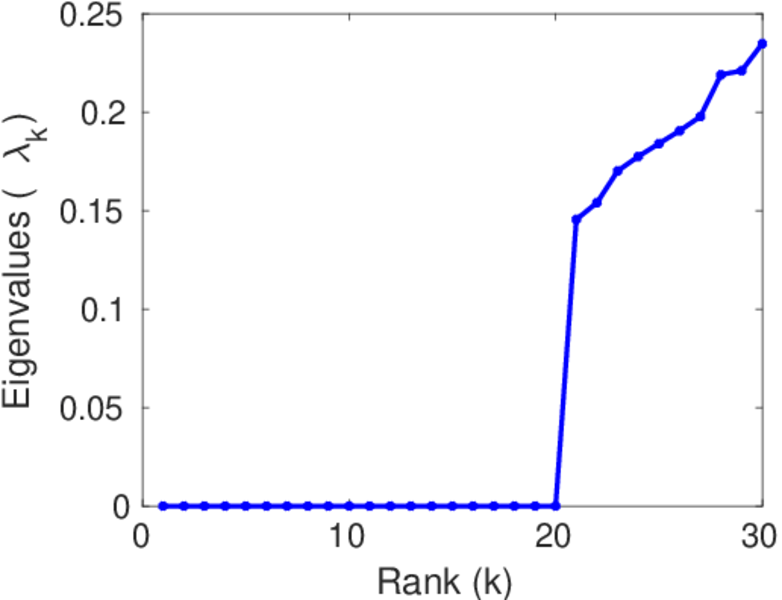

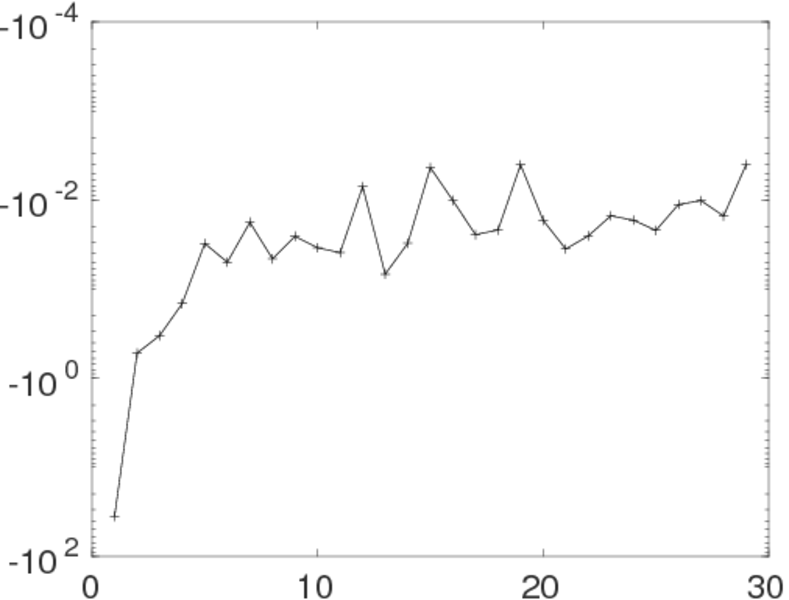

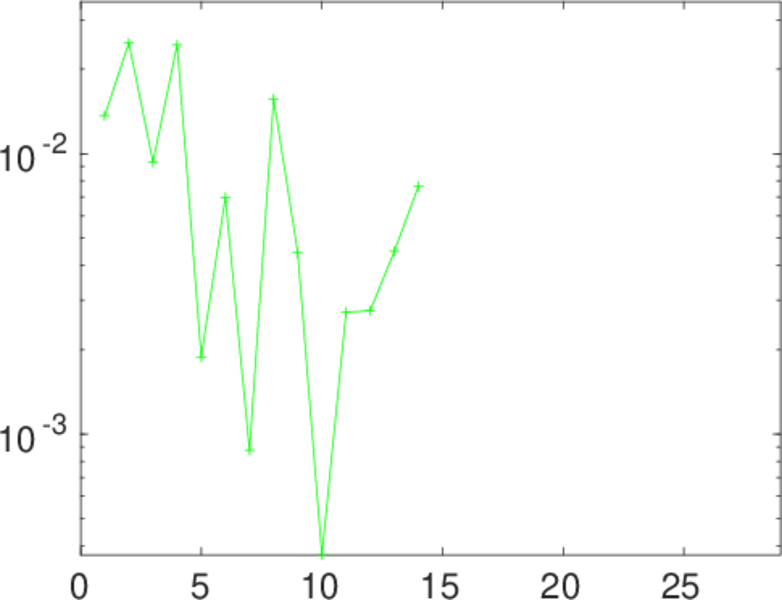

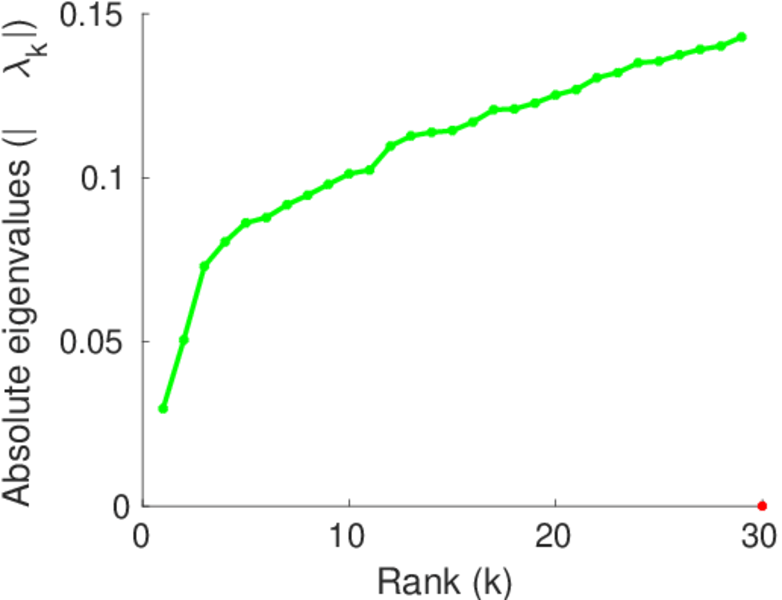

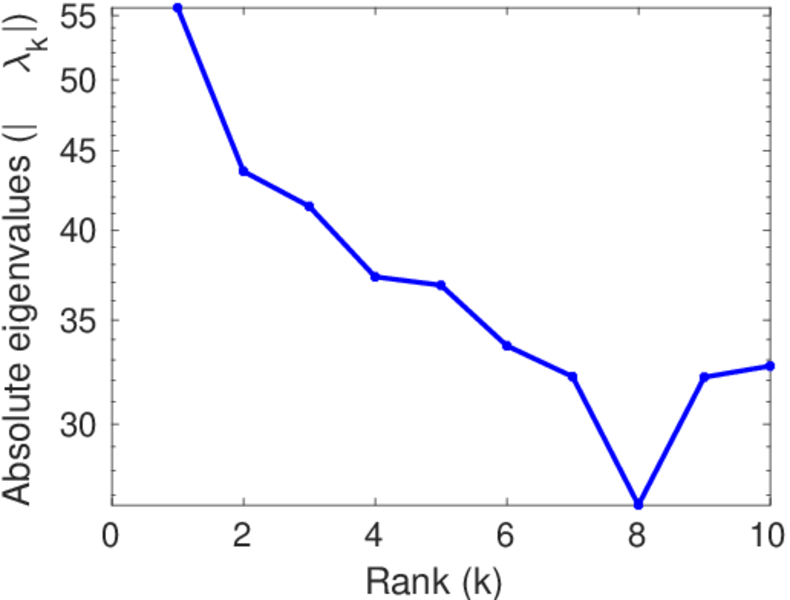

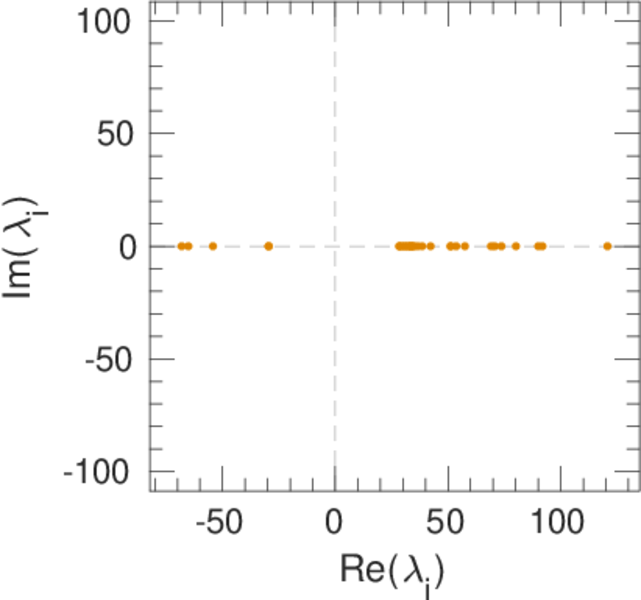

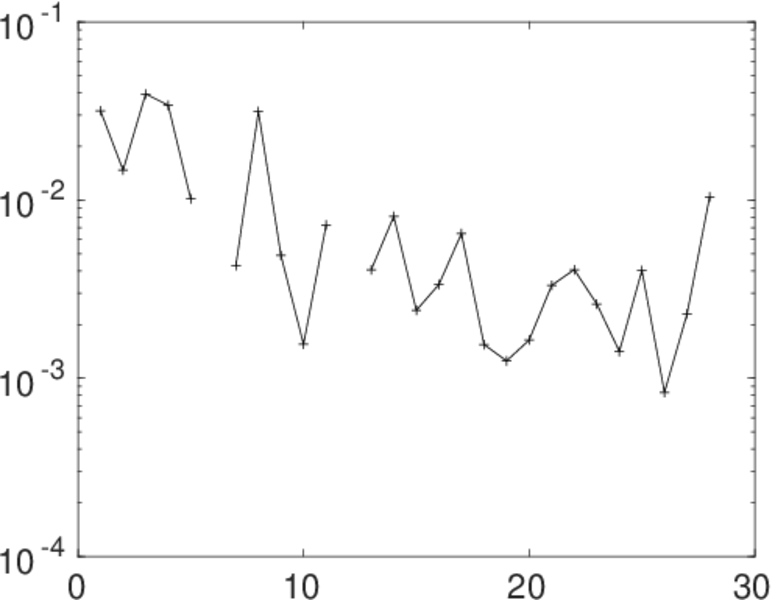

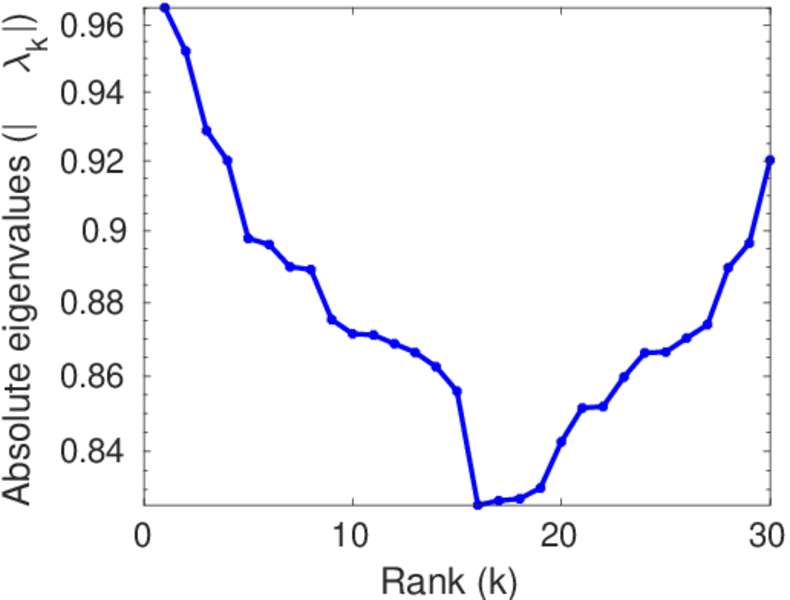

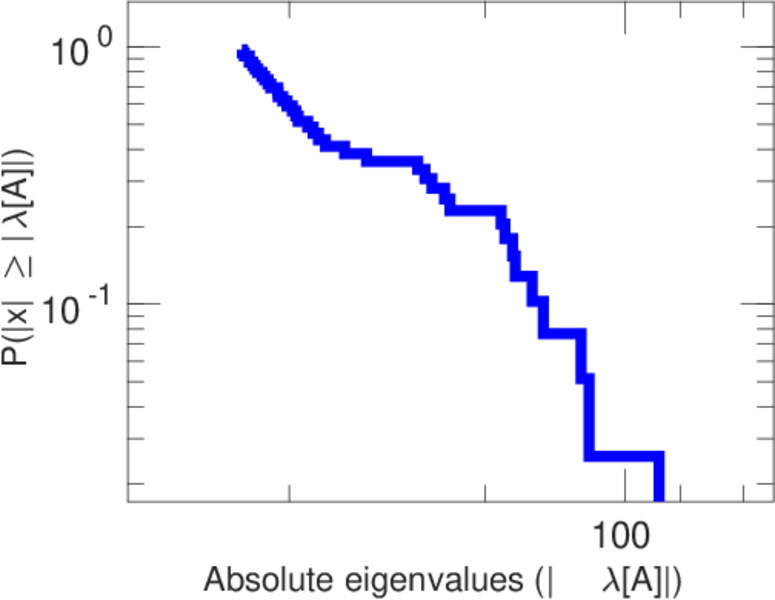

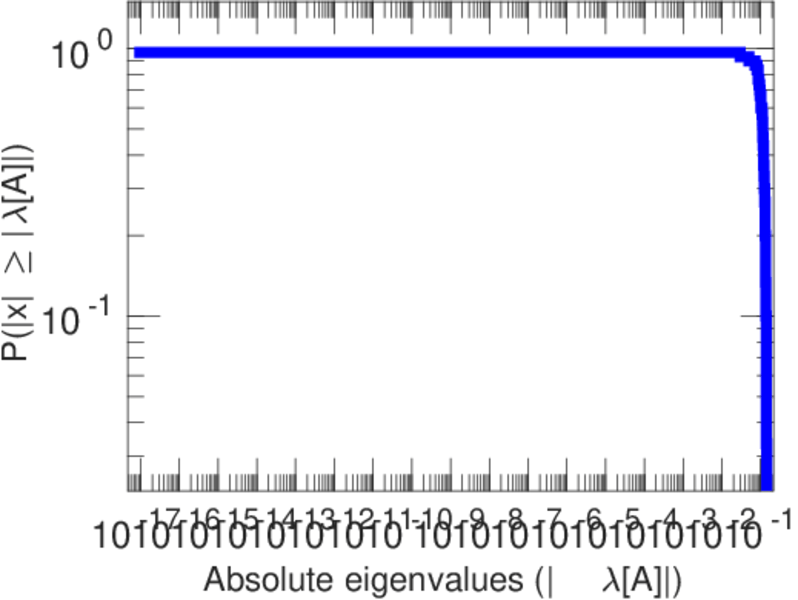

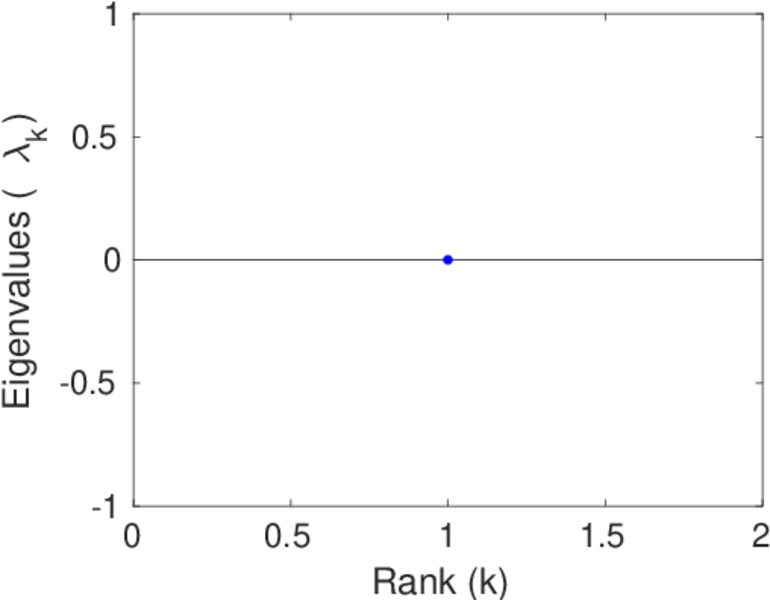

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
