Baidu related

These are "related to" links between articles of the Chinese online encyclopedia Baidu (百度百科, http://baike.baidu.com/). The graph does contain 52 instances of duplicate edge pairs, i.e., two directed edges between the same two nodes, with the same orientation. We do not know whether these 52 pairs are an error in the extraction of the network, or represent cases where a pages is specified multiple times as a related page for a given page. In any case, the duplicates were not removed from the dataset, and hence this is a network with multiple edges.

Metadata

CodeBAr
Internal namezhishi-baidu-relatedpages
NameBaidu related
Data sourcehttp://zhishi.me/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningConnection
Network formatUnipartite, directed
Edge typeUnweighted, multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =415,641
Volume m =3,284,387
Unique edge count m̿ =3,284,335
Loop count l =18
Wedge count s =64,694,677,166
Claw count z =2,731,400,041,814,389
Cross count x =8.672 01 × 1019
Triangle count t =14,287,651
Square count q =235,529,921,685
4-Tour count T4 =2,143,022,830,232
Maximum degree dmax =127,090
Maximum outdegree d+max =426
Maximum indegree dmax =127,035
Average degree d =15.804 0
Fill p =1.901 13 × 10−5
Average edge multiplicity m̃ =1.000 02
Size of LCC N =372,840
Size of LSCC Ns =208,222
Relative size of LSCC Nrs =0.500 966
Diameter δ =32
50-Percentile effective diameter δ0.5 =5.699 48
90-Percentile effective diameter δ0.9 =8.538 50
Mean distance δm =6.109 45
Gini coefficient G =0.640 156
Balanced inequality ratio P =0.258 736
Outdegree balanced inequality ratio P+ =0.328 845
Indegree balanced inequality ratio P =0.206 672
Relative edge distribution entropy Her =0.850 948
Power law exponent γ =1.631 14
Tail power law exponent γt =2.601 00
Degree assortativity ρ =−0.274 014
Degree assortativity p-value pρ =0.000 00
In/outdegree correlation ρ± =+0.302 947
Clustering coefficient c =0.000 662 542
Directed clustering coefficient c± =0.311 056
Spectral norm α =1,008.37
Operator 2-norm ν =1,007.86
Cyclic eigenvalue π =167.975
Algebraic connectivity a =0.001 359 15
Reciprocity y =0.554 317
Non-bipartivity bA =0.000 992 180
Normalized non-bipartivity bN =0.000 756 745
Spectral bipartite frustration bK =0.000 183 288

Plots

Degree distribution

Cumulative degree distribution

Lorenz curve

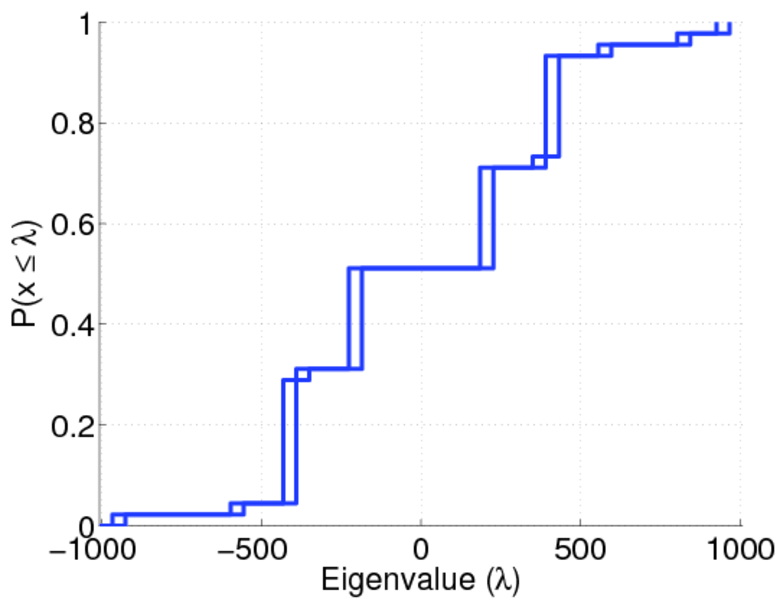

Spectral distribution of the adjacency matrix

Spectral distribution of the normalized adjacency matrix

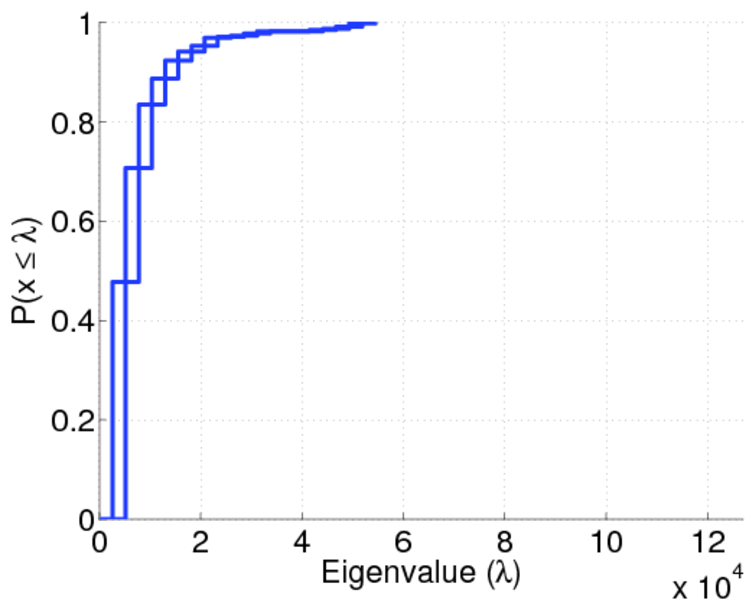

Spectral distribution of the Laplacian

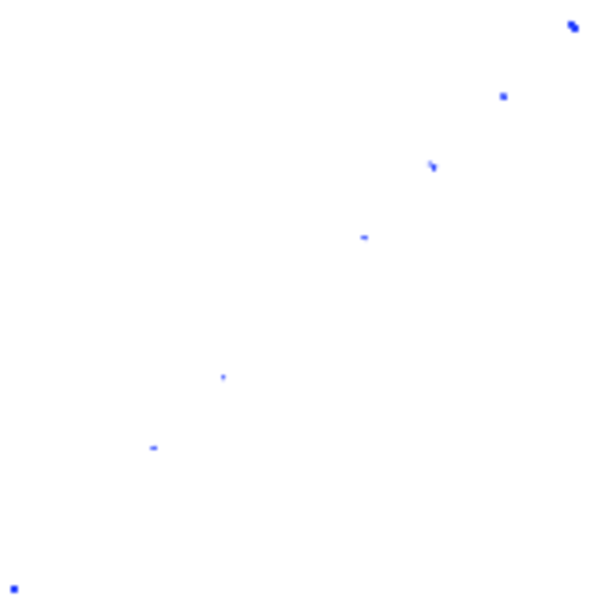

Spectral graph drawing based on the adjacency matrix

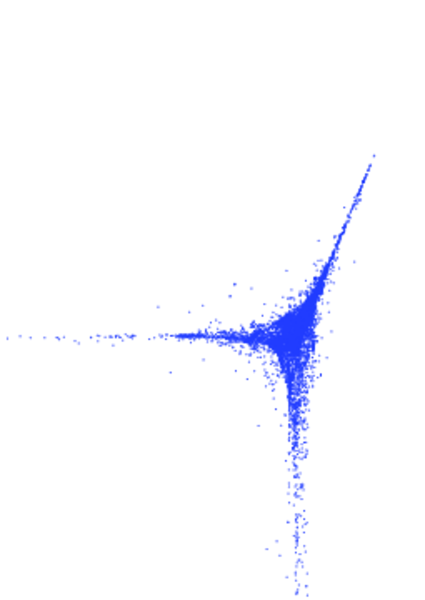

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Hop distribution

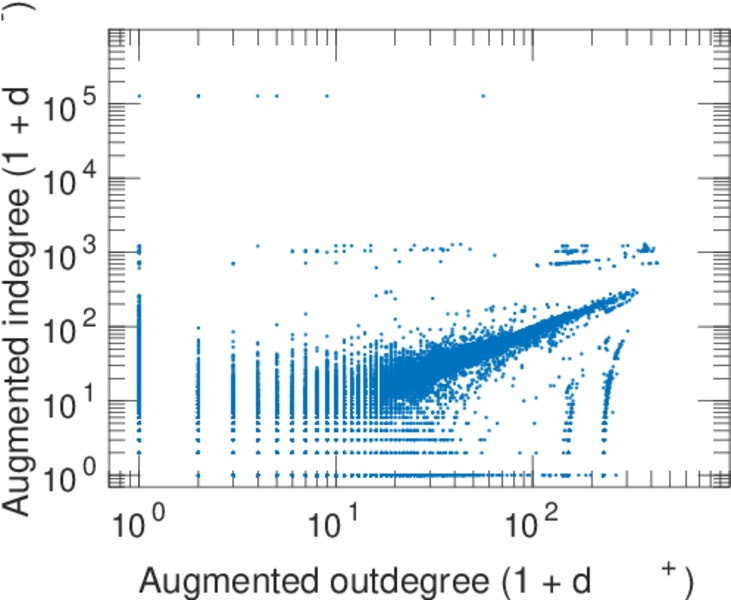

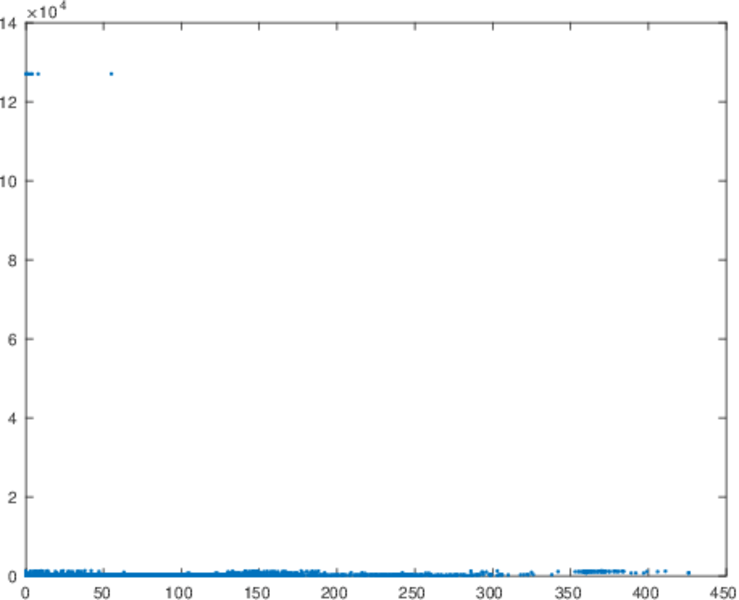

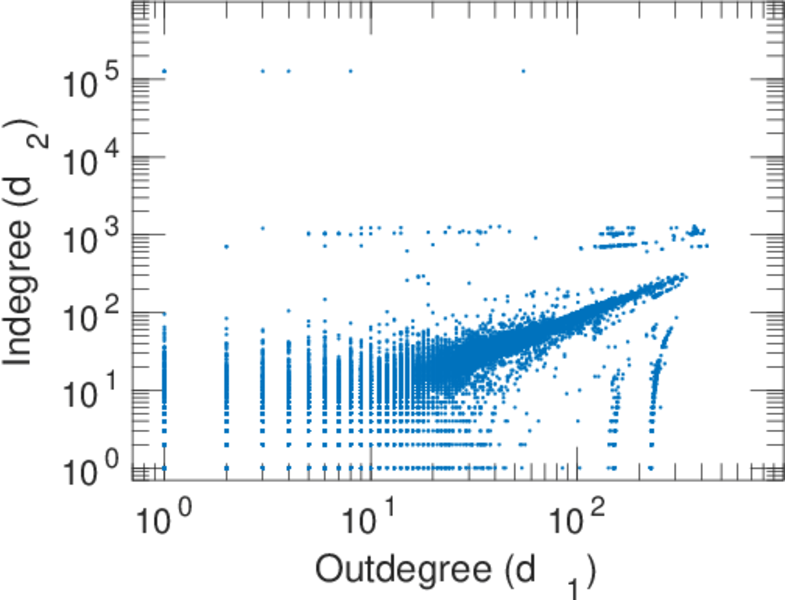

In/outdegree scatter plot

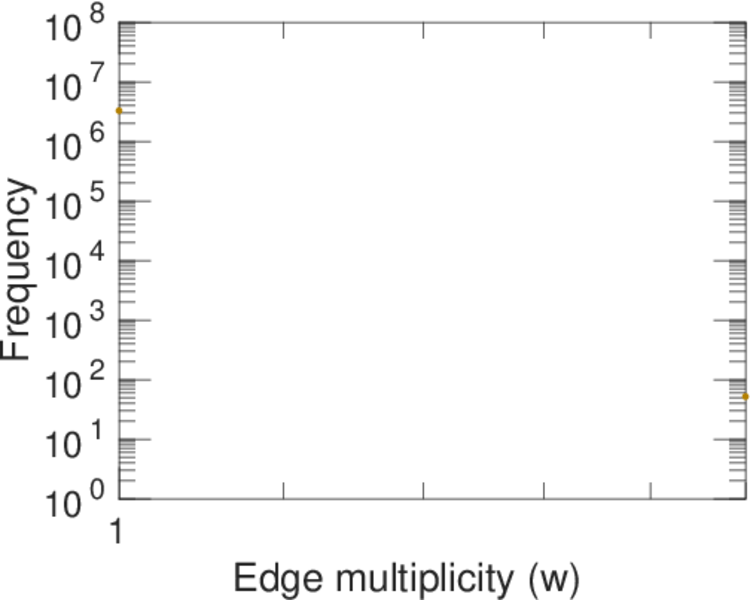

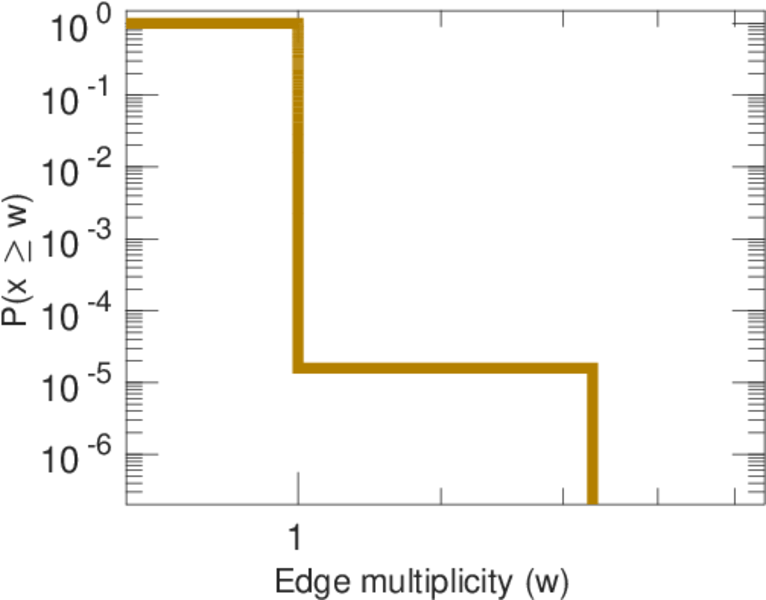

Edge weight/multiplicity distribution

Clustering coefficient distribution

SynGraphy

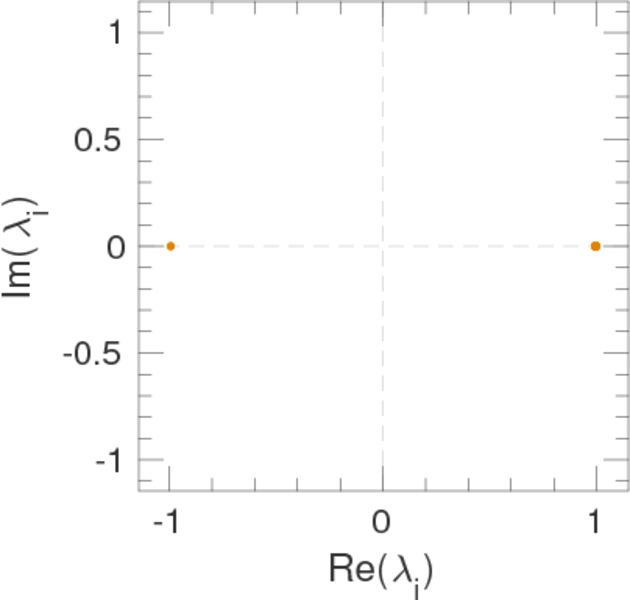

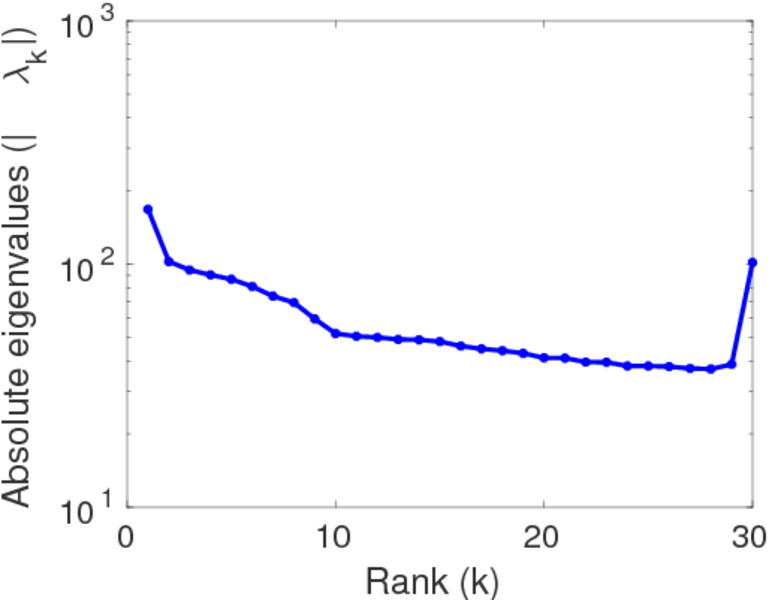

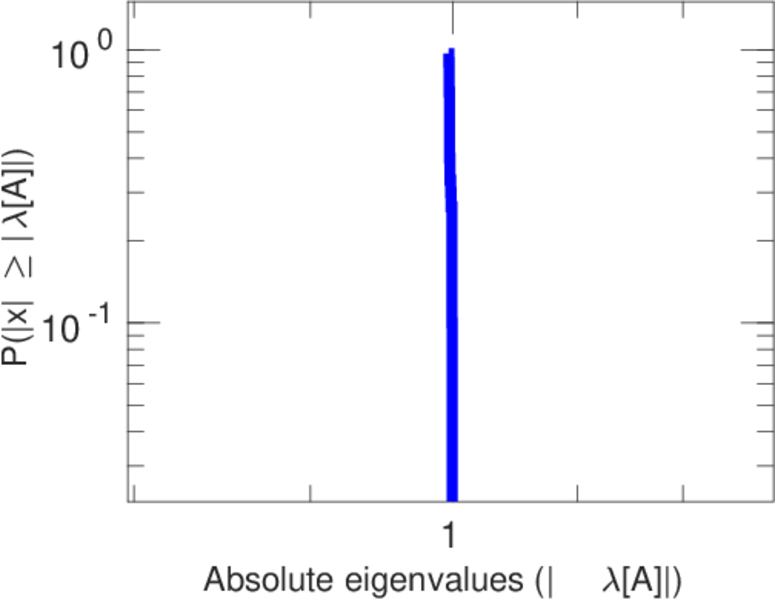

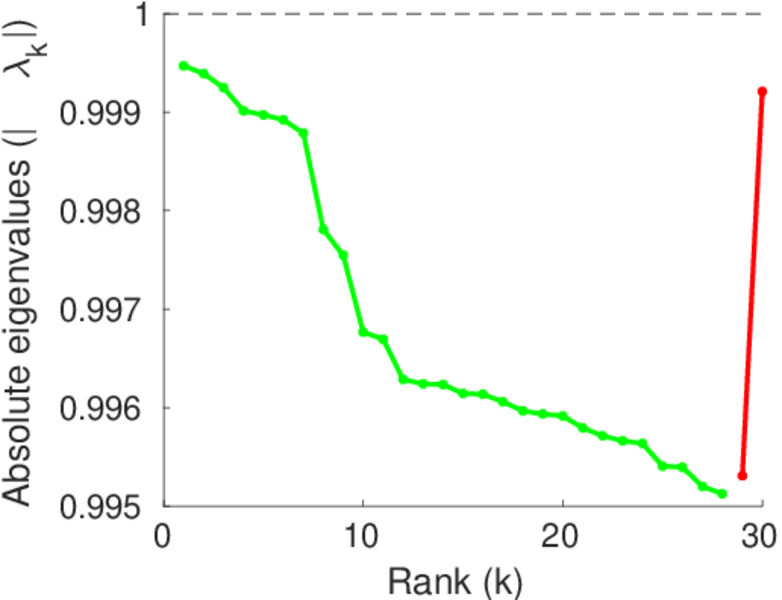

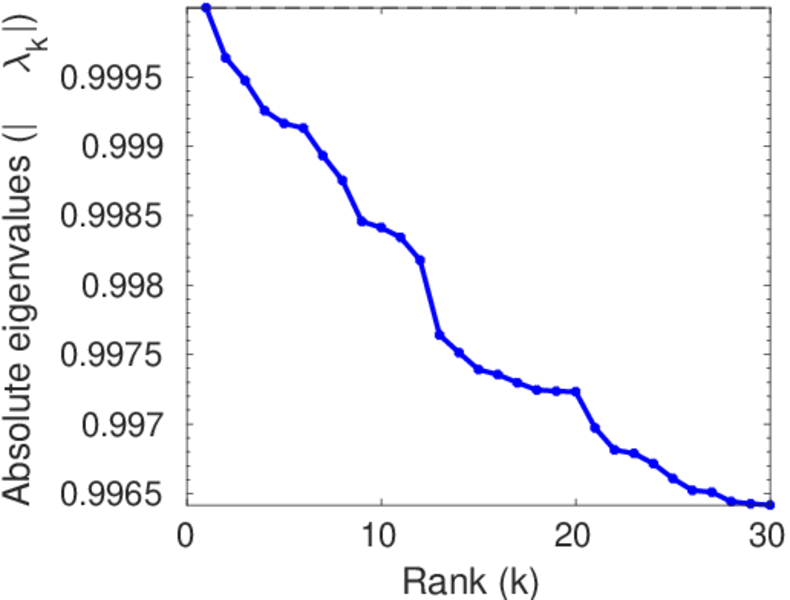

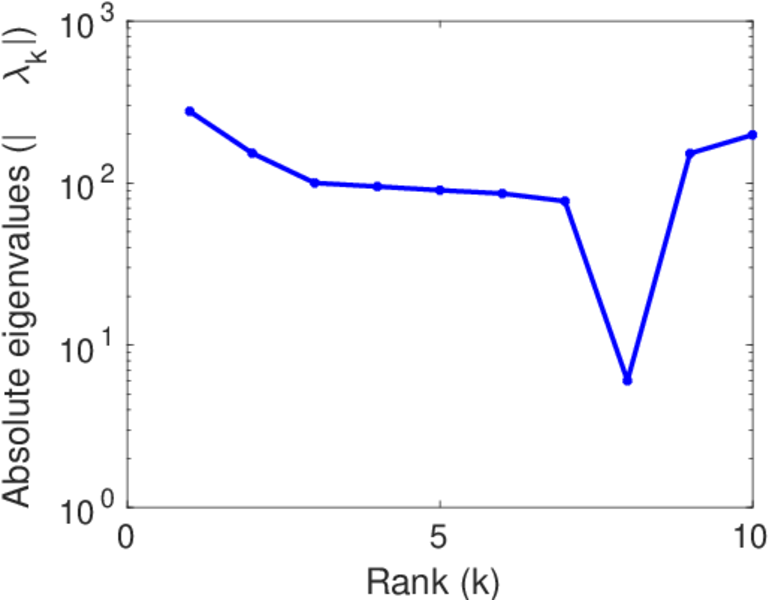

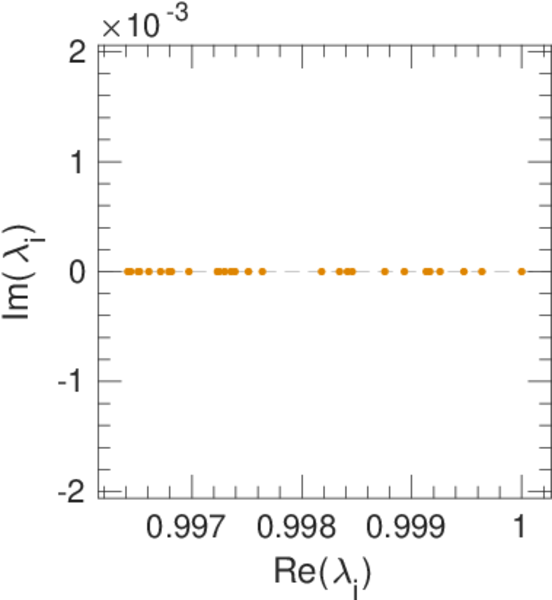

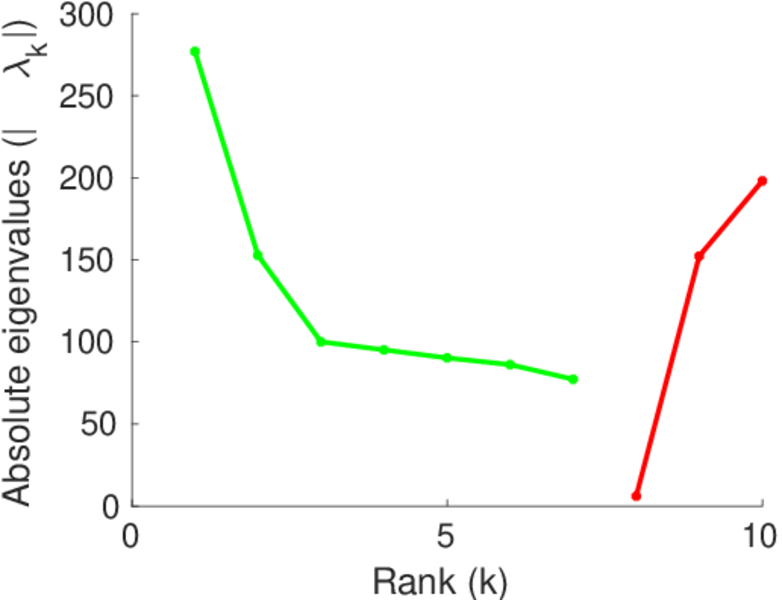

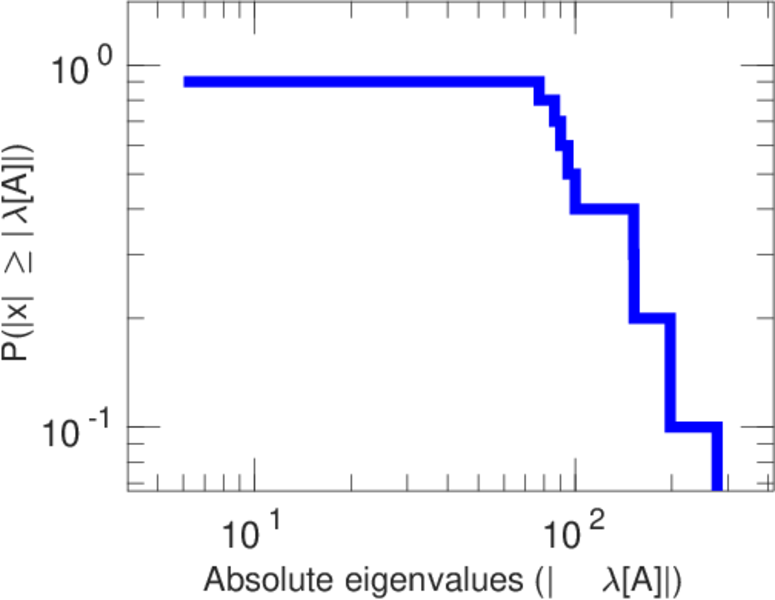

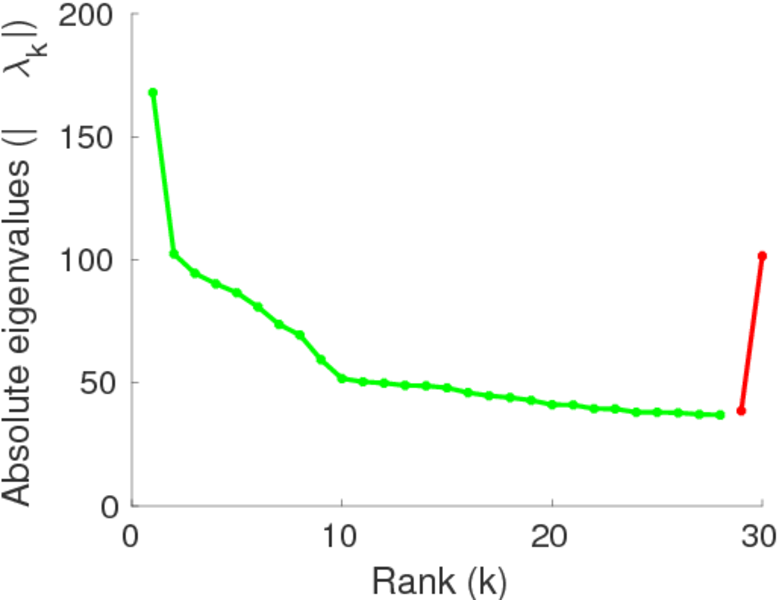

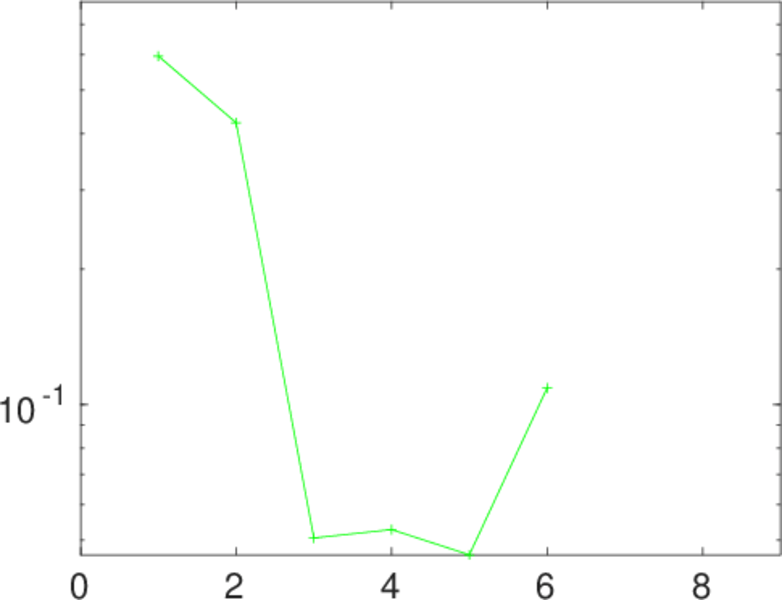

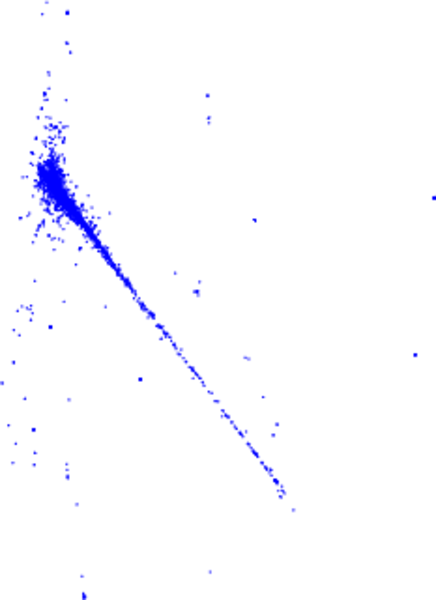

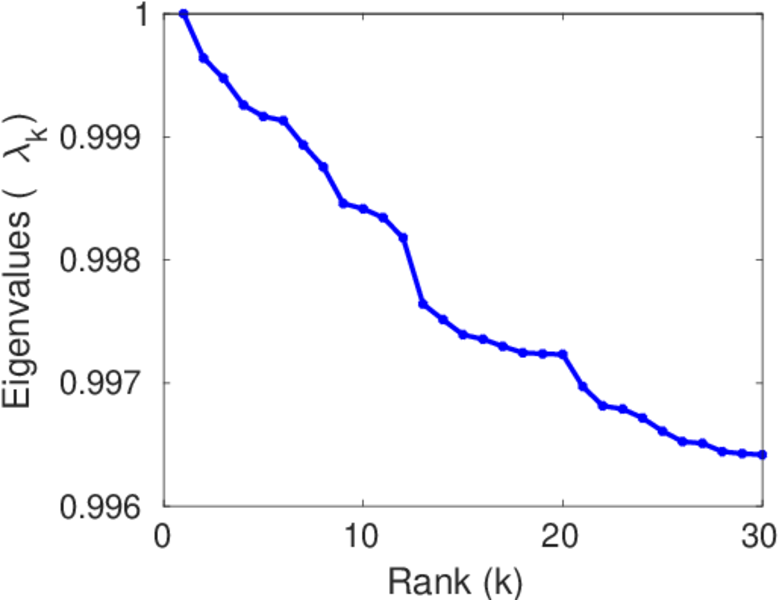

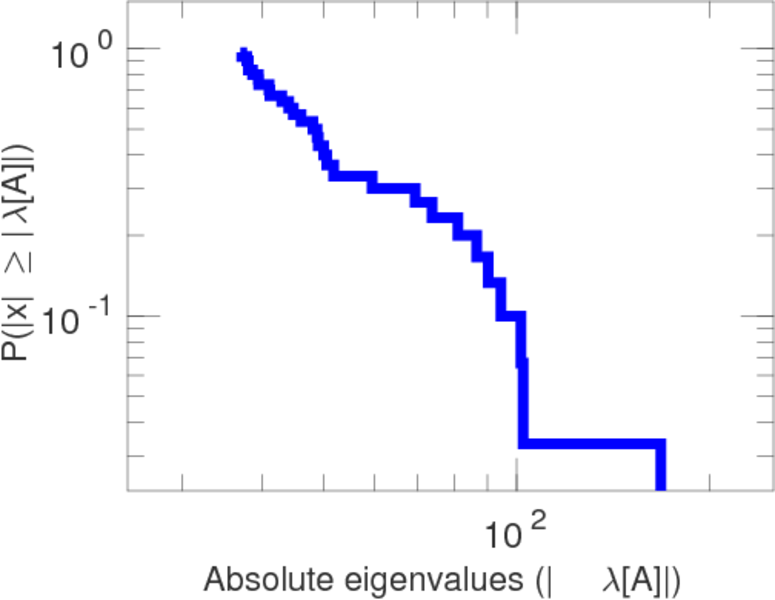

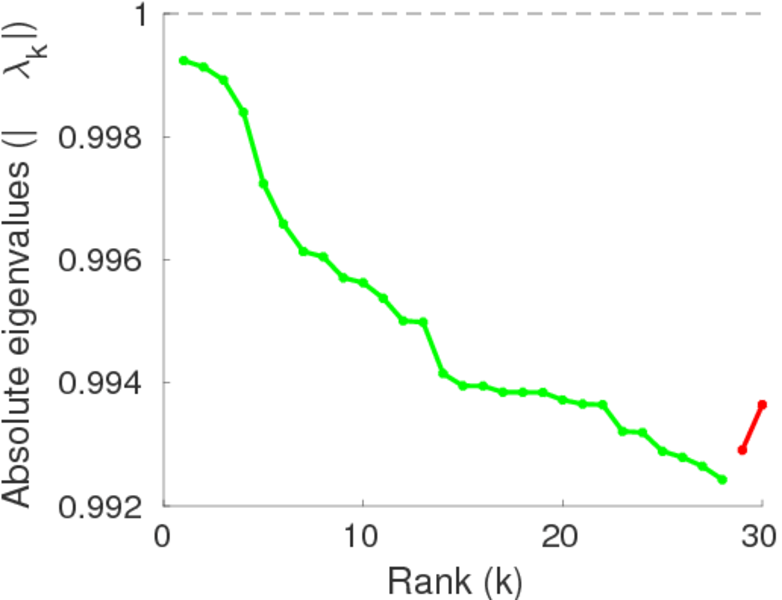

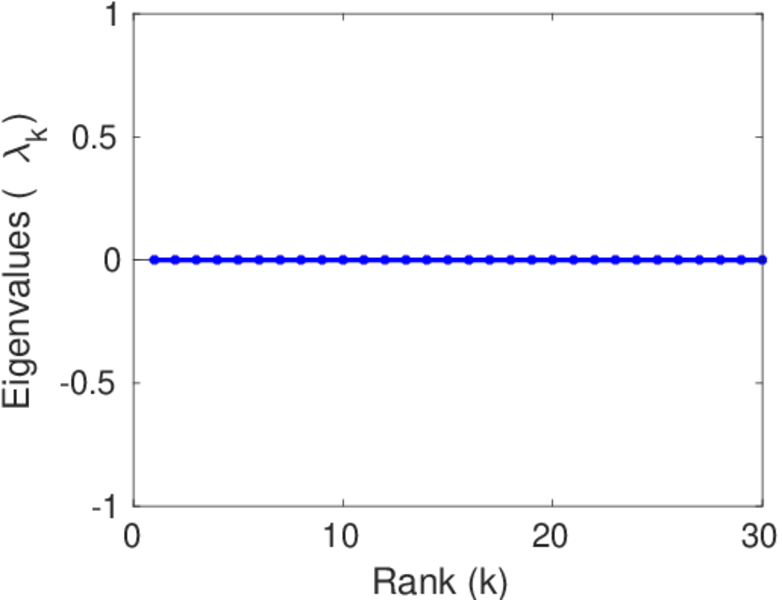

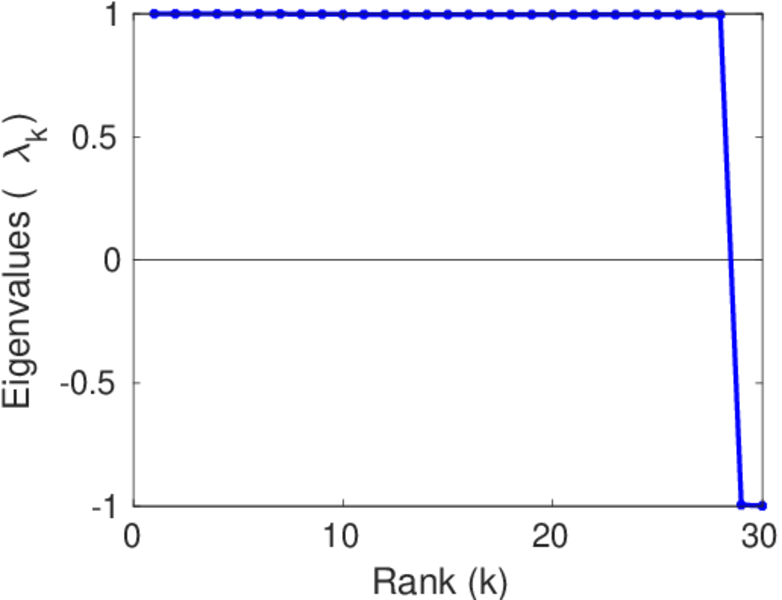

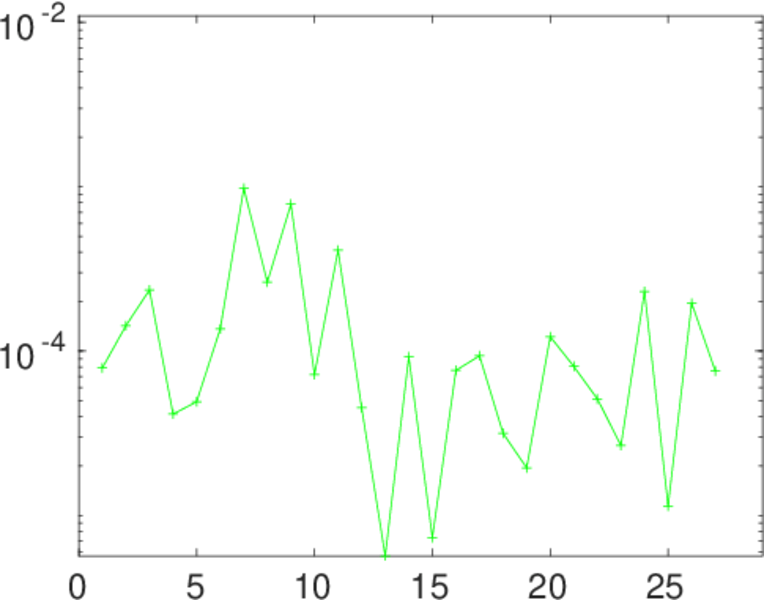

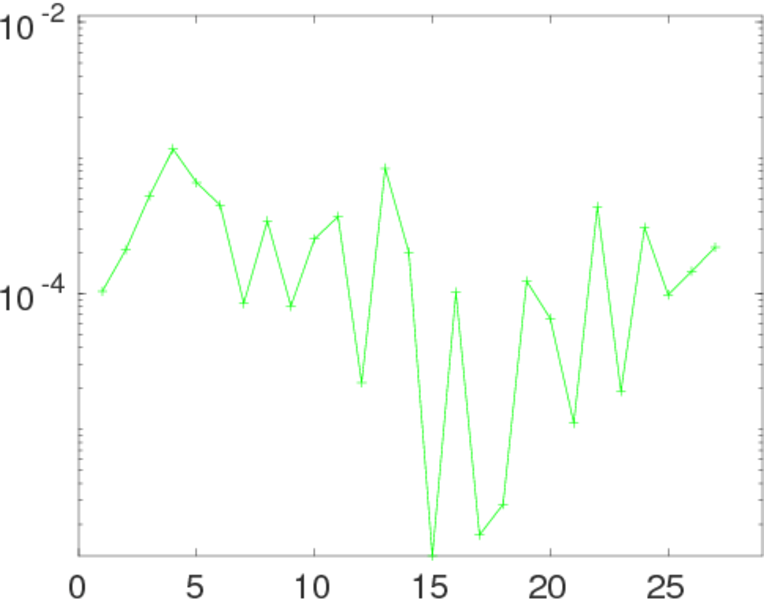

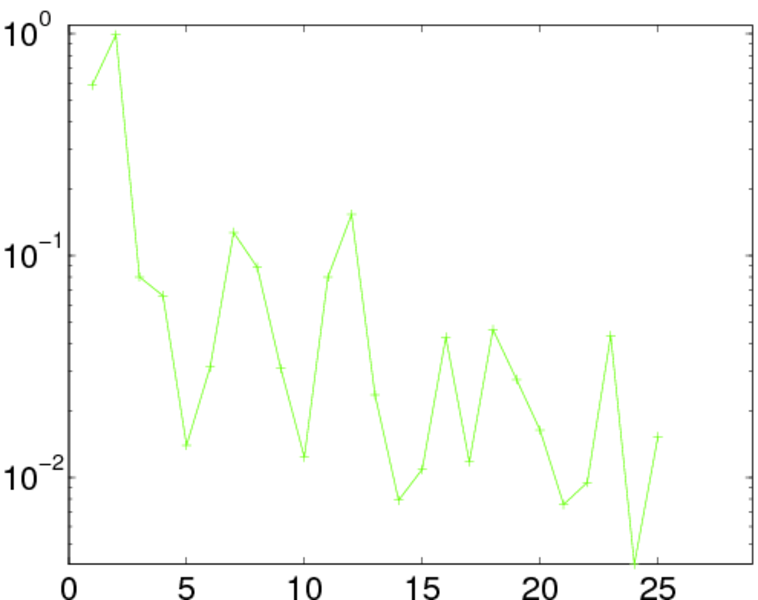

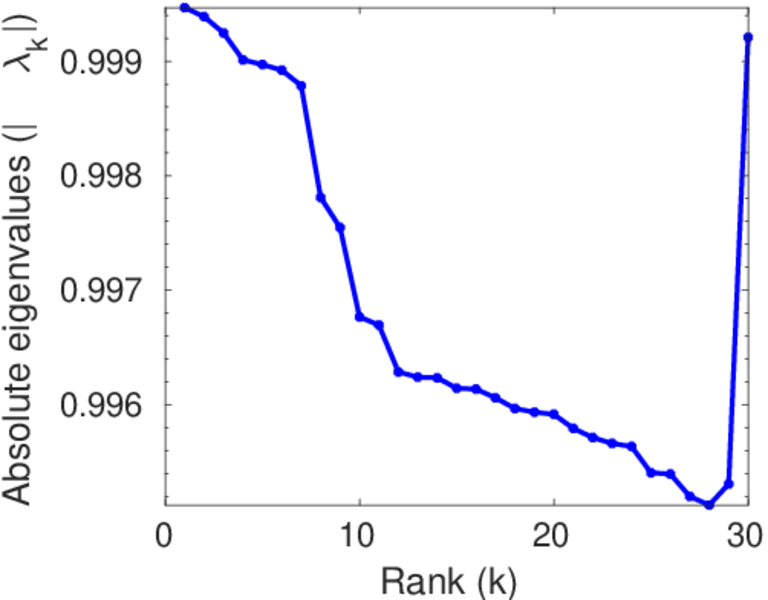

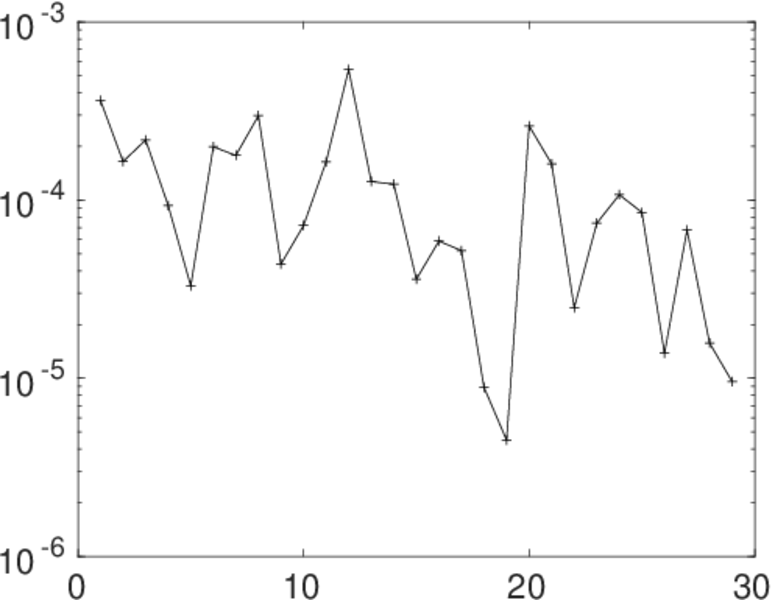

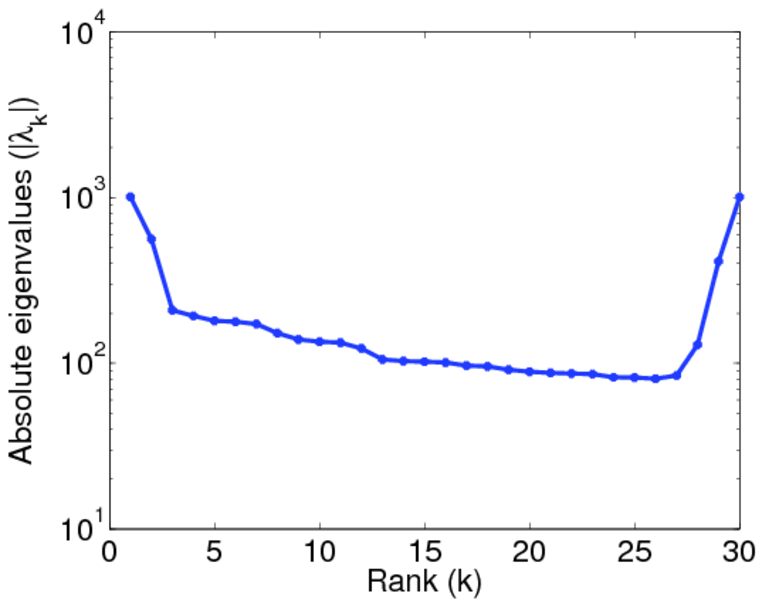

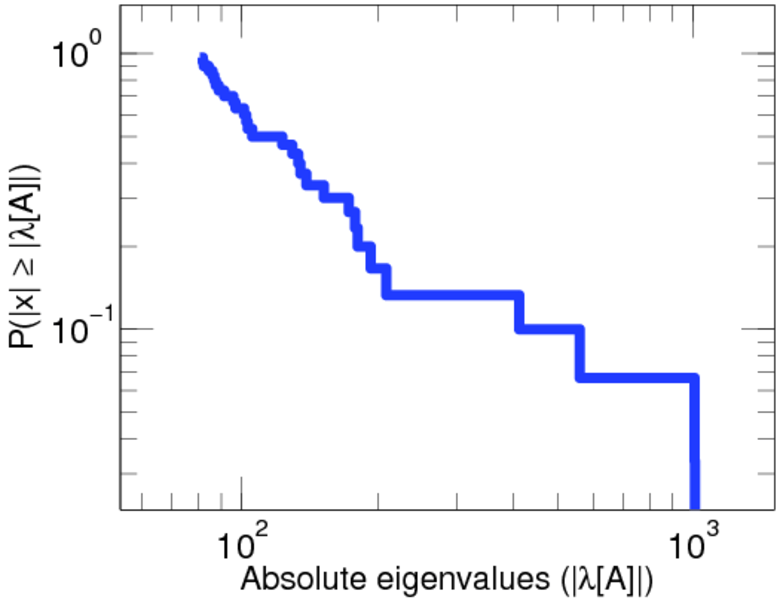

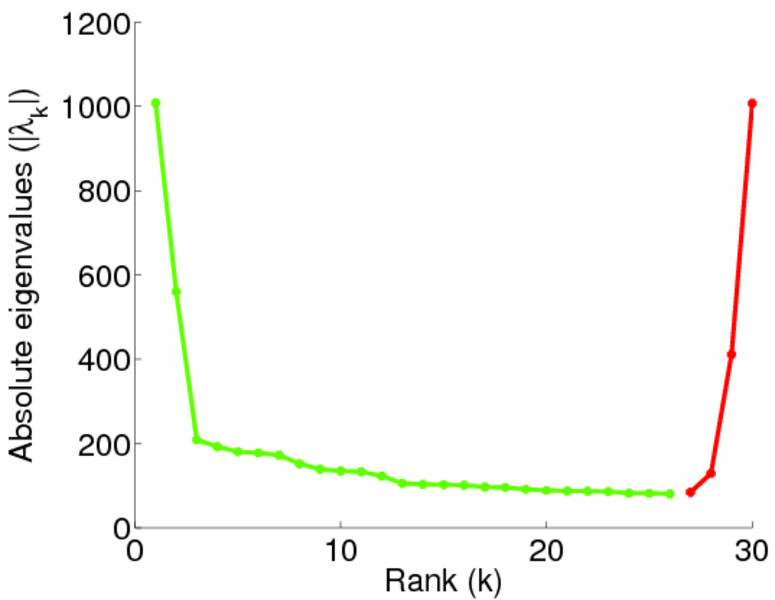

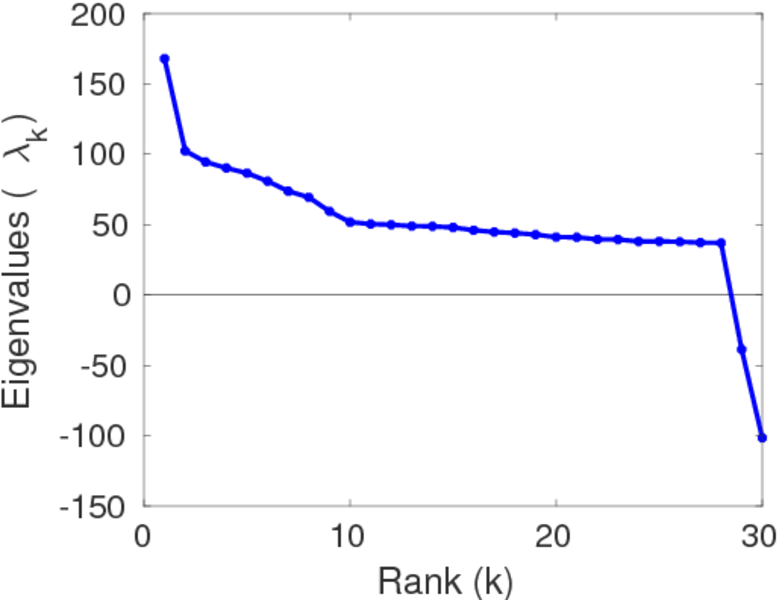

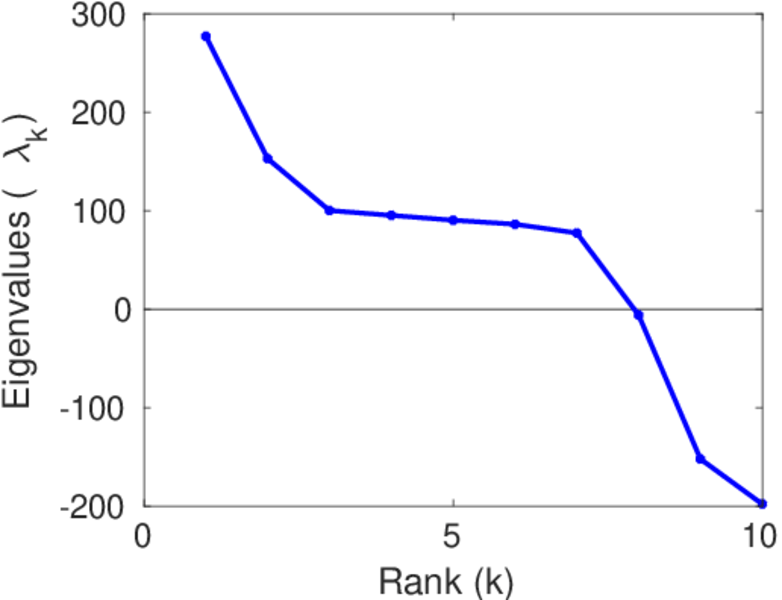

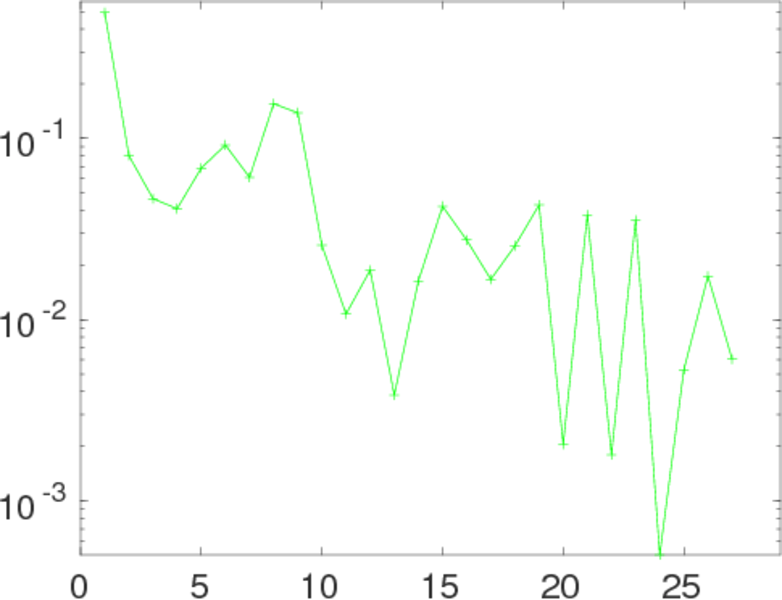

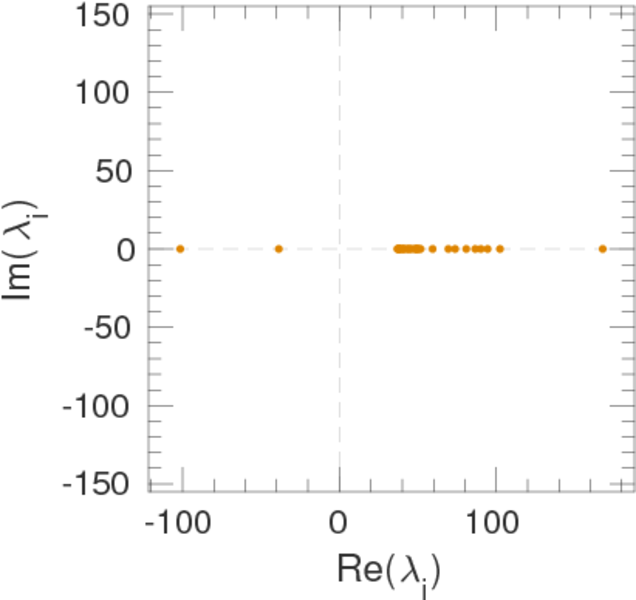

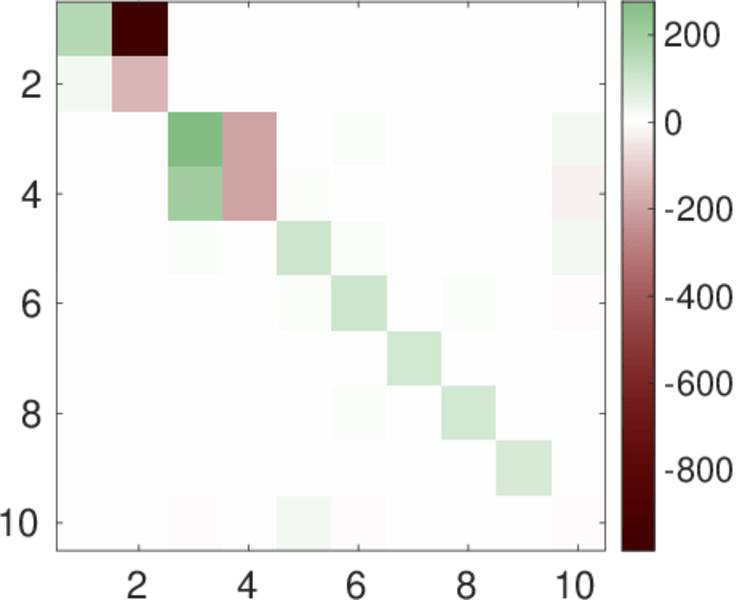

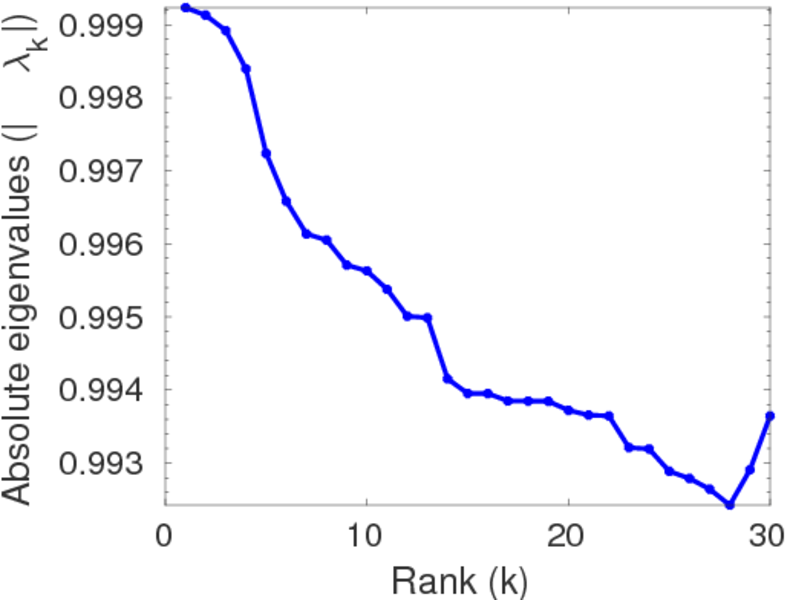

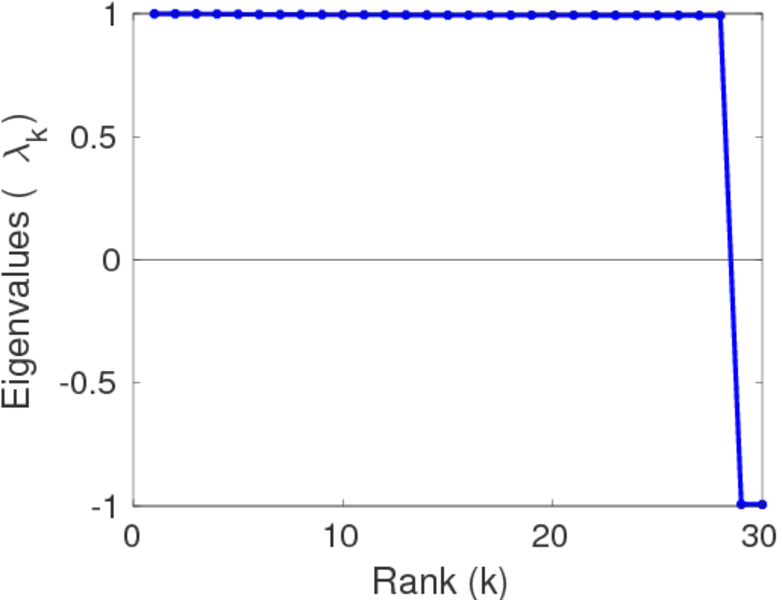

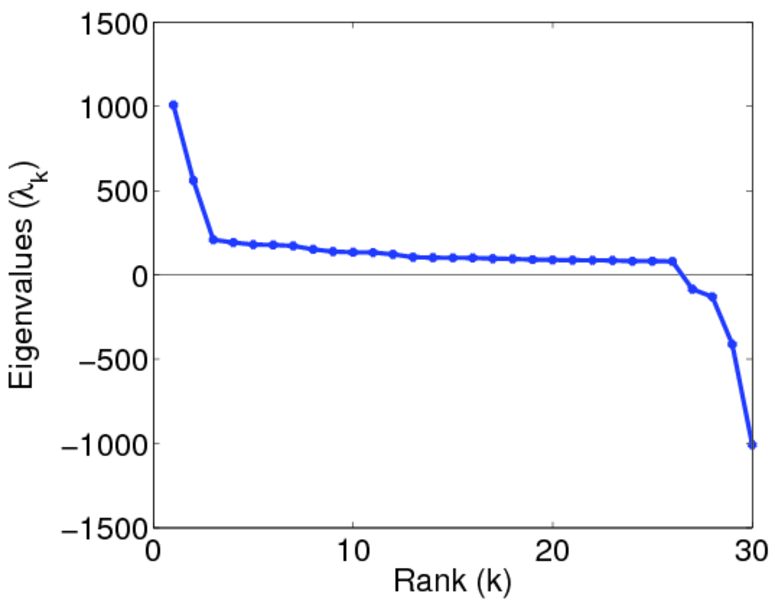

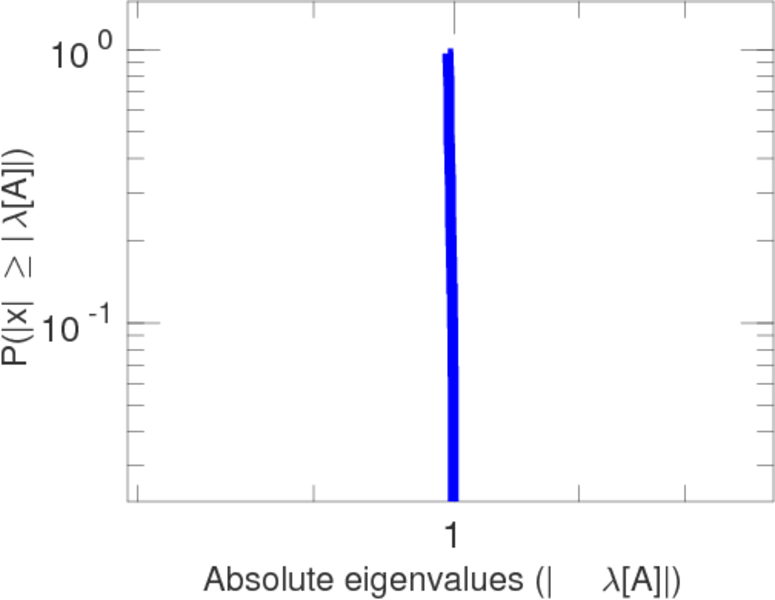

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
[2] Xing Niu, Xinruo Sun, Haofen Wang, Shu Rong, Guilin Qi, and Yong Yu. Zhishi.me – weaving Chinese linking open data. In Proc. Int. Semant. Web Conf., pages 205–220, 2011.
