Hudong related

These are "related to" links between articles of the Chinese online encyclopedia Hudong (互动百科, http://www.hudong.com/).

Metadata

CodeHUr
Internal namezhishi-hudong-relatedpages
NameHudong related
Data sourcehttp://zhishi.me/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Hyperlink network
Node meaningArticle
Edge meaningConnection
Network formatUnipartite, directed
Edge typeUnweighted, no multiple edges
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =2,452,715
Volume m =18,854,882
Loop count l =253
Wedge count s =30,913,972,903
Claw count z =1,439,170,549,054,194
Cross count x =7.261 69 × 1019
Triangle count t =12,028,700
Square count q =3,135,310,038
4-Tour count T4 =148,775,753,434
Maximum degree dmax =204,287
Maximum outdegree d+max =21
Maximum indegree d−max =204,277
Average degree d =15.374 7
Fill p =3.134 22 × 10−6
Size of LCC N =2,415,542
Size of LSCC Ns =185,668
Relative size of LSCC Nrs =0.075 699 0
Diameter δ =108
50-Percentile effective diameter δ0.5 =3.739 96
90-Percentile effective diameter δ0.9 =4.956 19
Median distance δM =4
Mean distance δm =4.405 86
Gini coefficient G =0.554 999
Balanced inequality ratio P =0.316 654
Outdegree balanced inequality ratio P+ =0.455 350
Indegree balanced inequality ratio P− =0.126 355
Relative edge distribution entropy Her =0.912 919
Power law exponent γ =1.488 92
Tail power law exponent γt =1.971 00
Degree assortativity ρ =−0.011 789 4
Degree assortativity p-value pρ =0.000 00
Clustering coefficient c =0.001 167 31
Directed clustering coefficient c± =0.091 640 1
Spectral norm α =462.636
Operator 2-norm ν =458.807
Cyclic eigenvalue π =10.000 0
Reciprocity y =0.017 395 7
Non-bipartivity bA =0.016 316 5
Normalized non-bipartivity bN =0.000 427 231
Controllability C =1,679,087
Relative controllability Cr =0.684 583

Plots

Degree distribution

Cumulative degree distribution

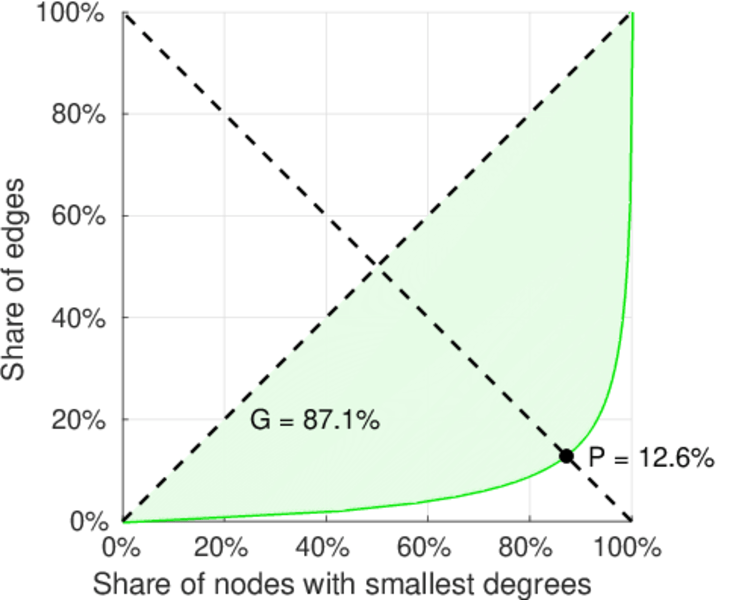

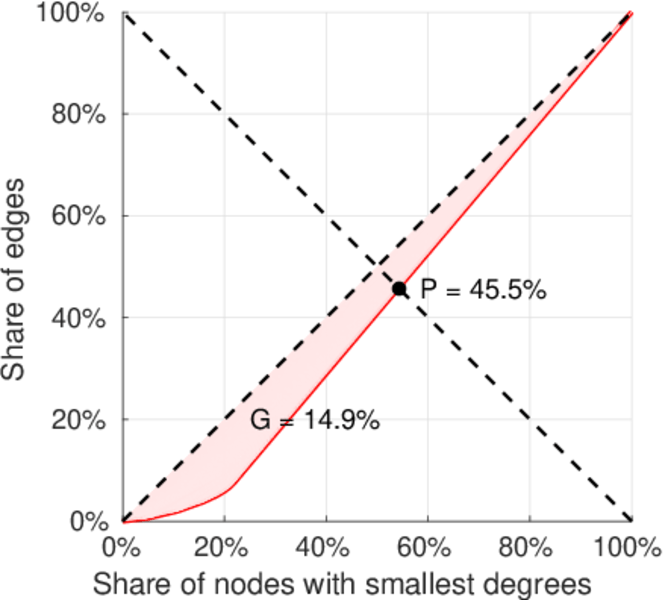

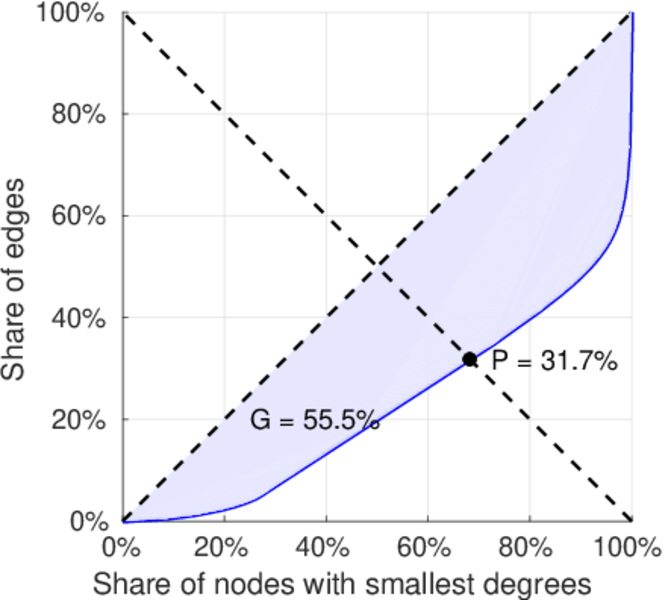

Lorenz curve

Spectral distribution of the adjacency matrix

Spectral distribution of the normalized adjacency matrix

Spectral distribution of the Laplacian

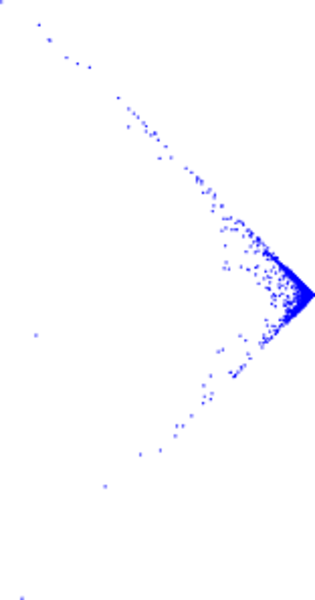

Spectral graph drawing based on the adjacency matrix

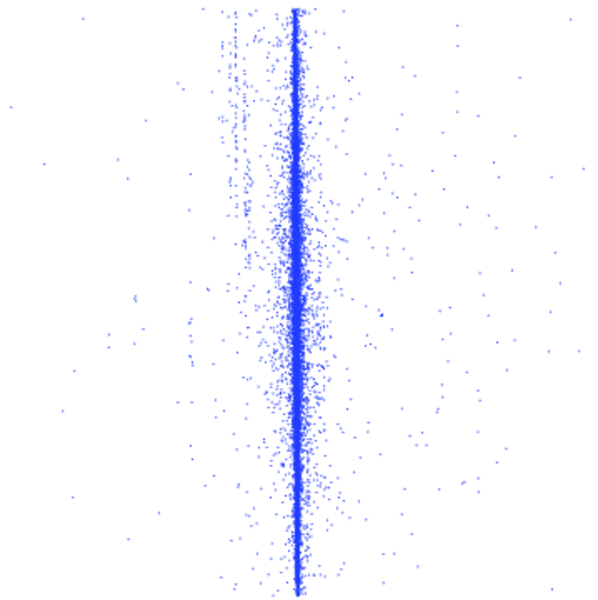

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

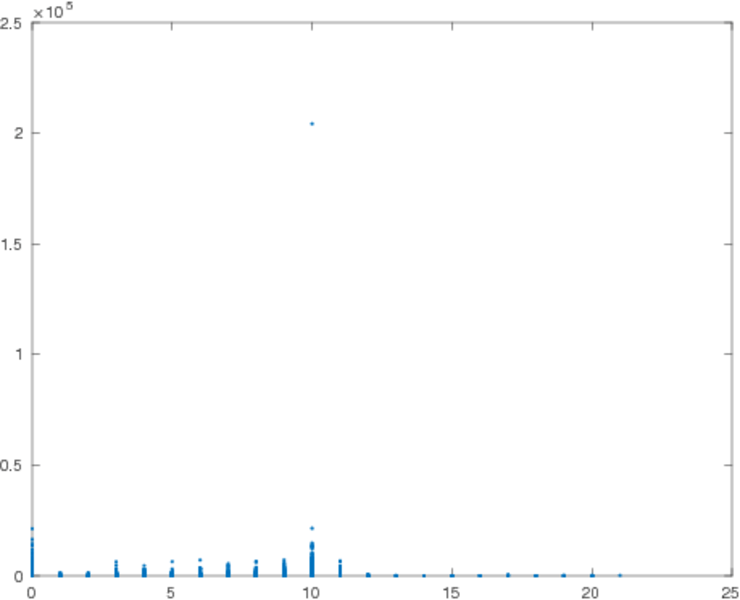

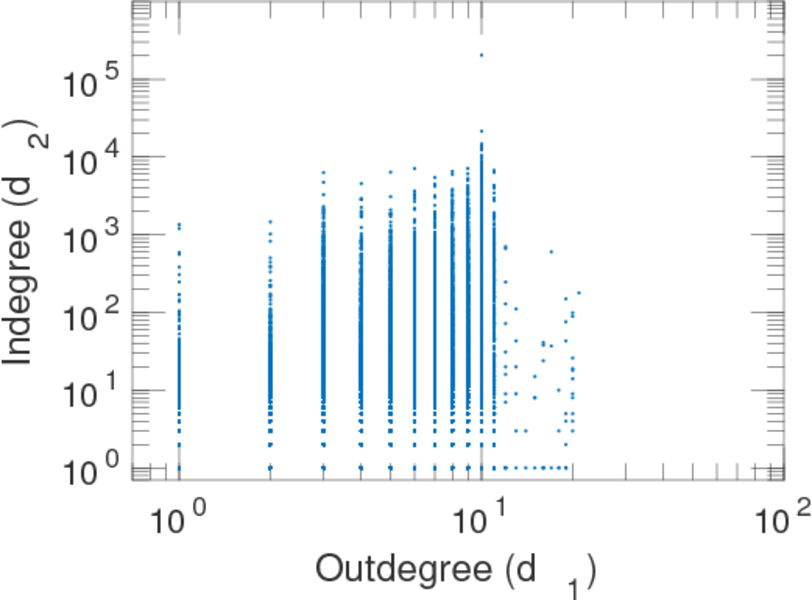

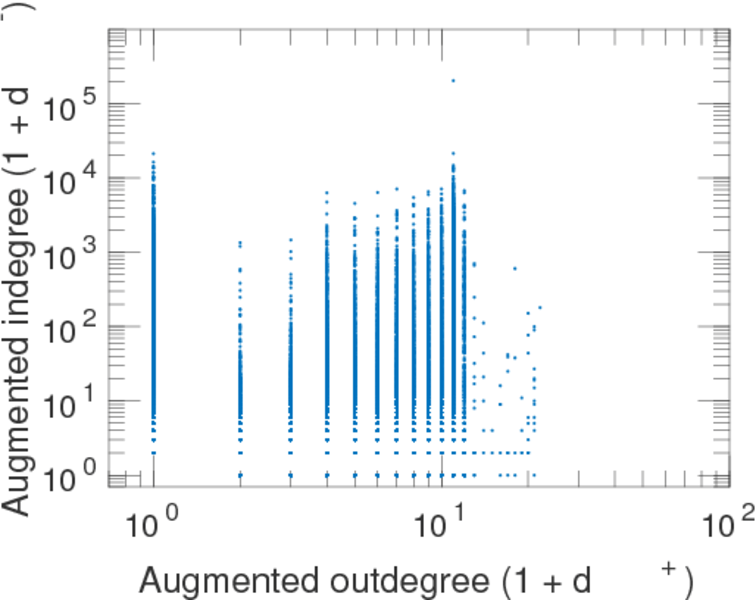

In/outdegree scatter plot

SynGraphy

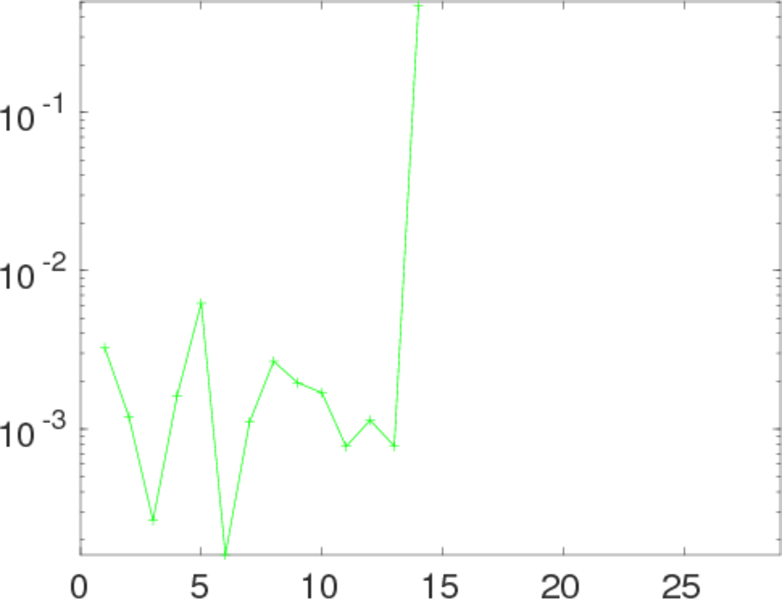

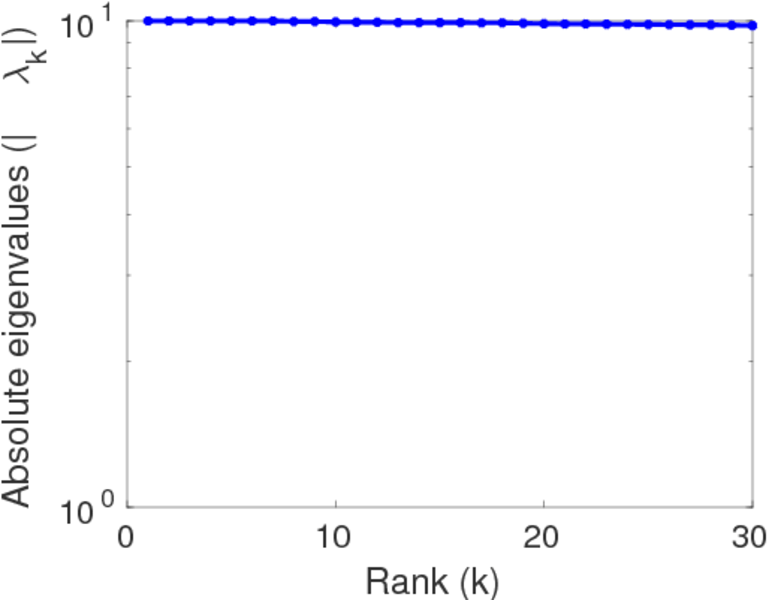

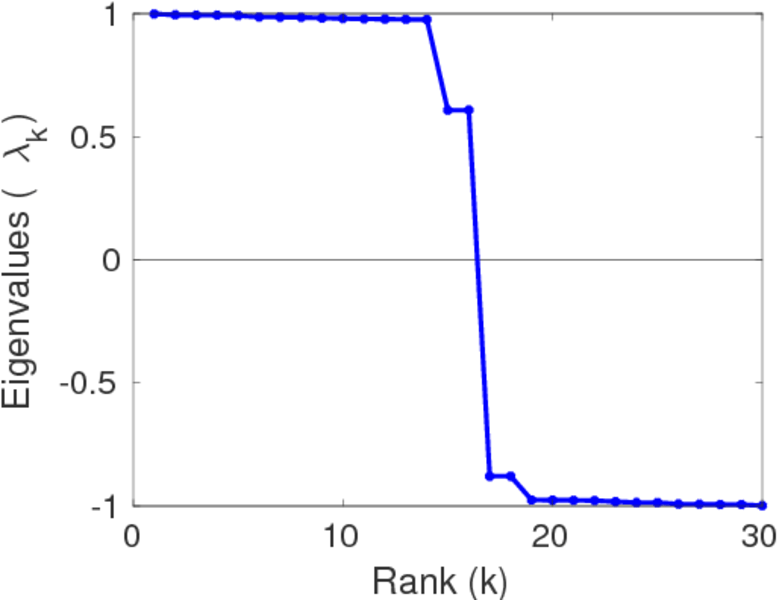

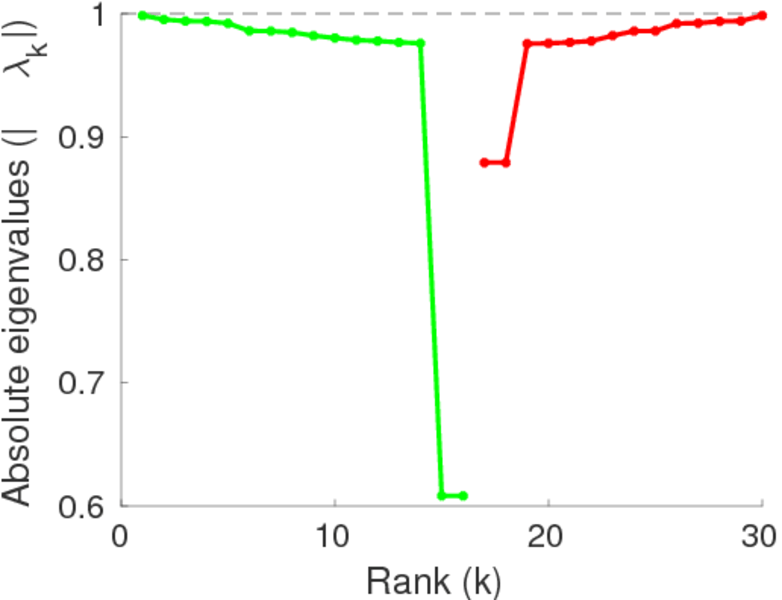

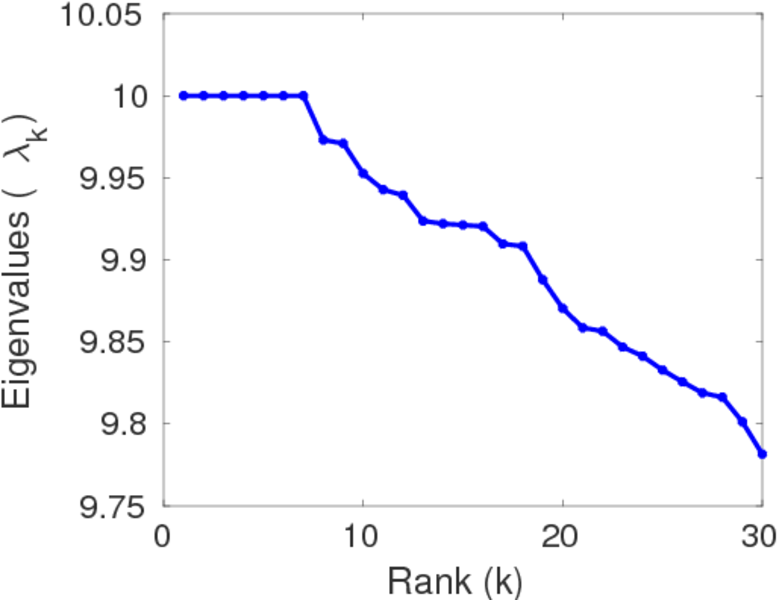

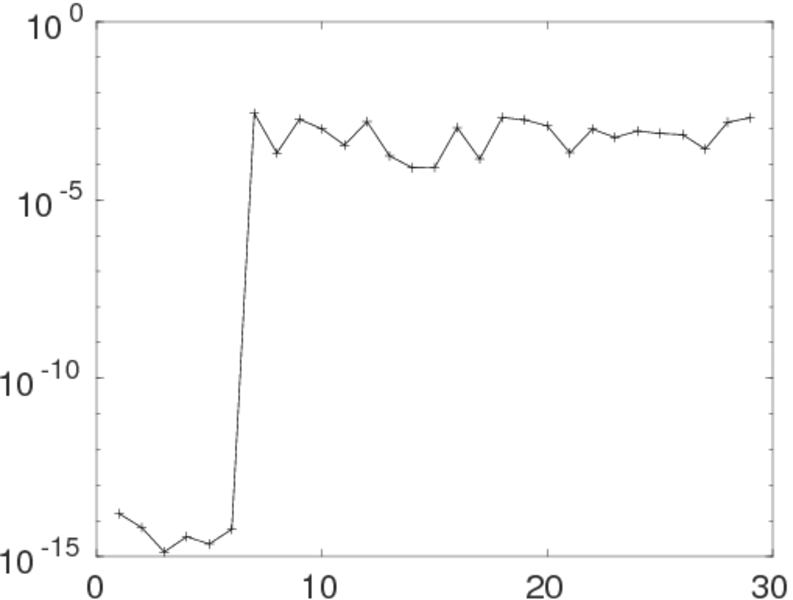

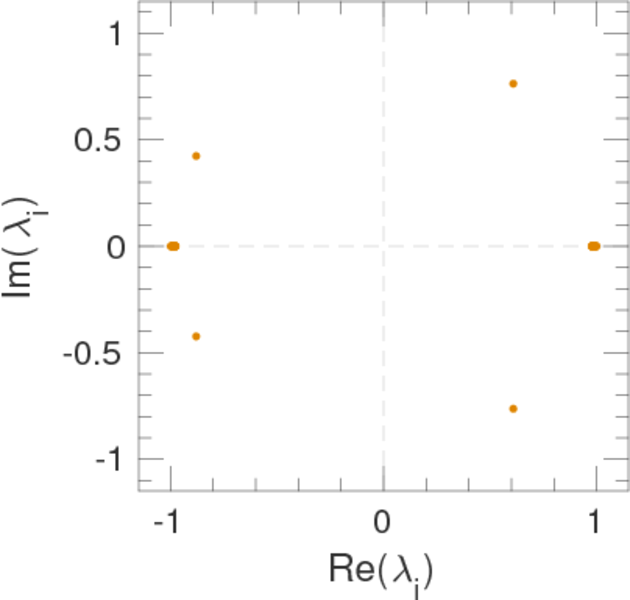

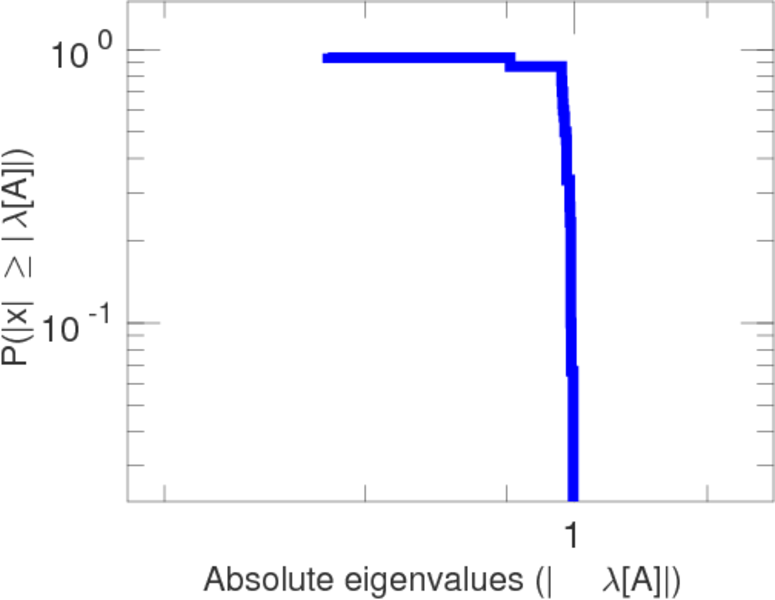

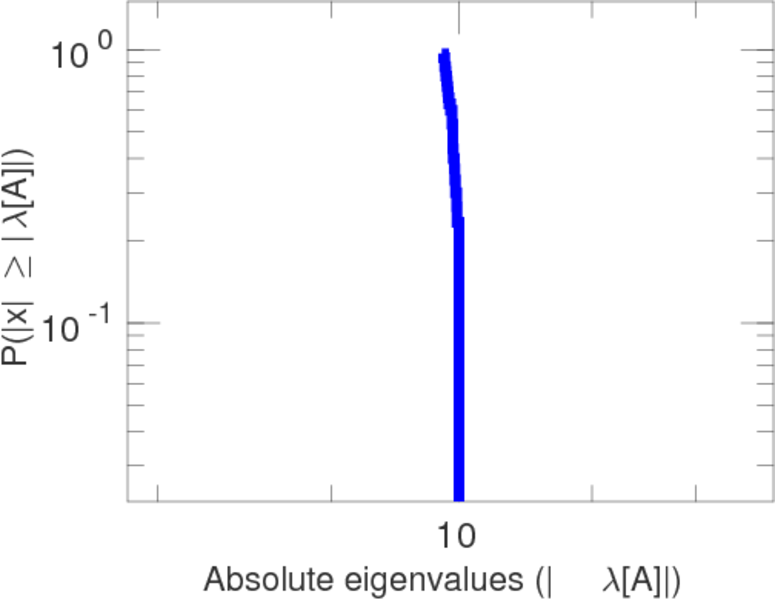

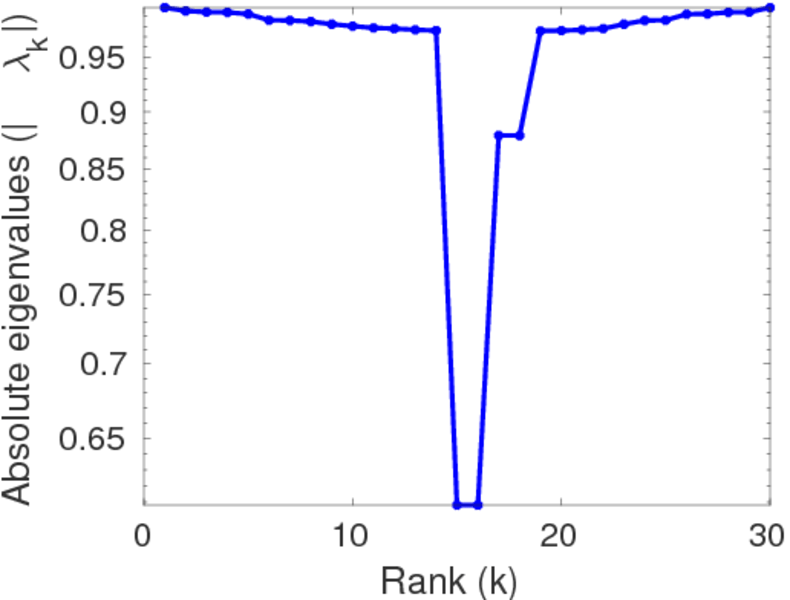

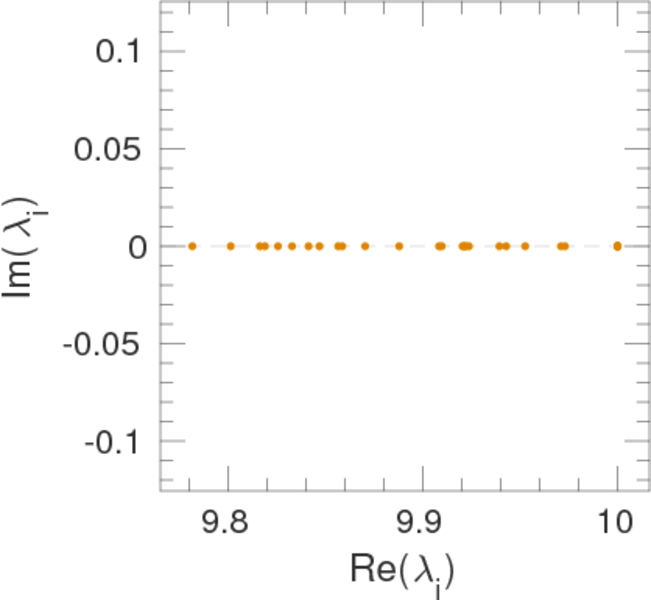

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
[2] Xing Niu, Xinruo Sun, Haofen Wang, Shu Rong, Guilin Qi, and Yong Yu. Zhishi.me – weaving Chinese linking open data. In Proc. Int. Semant. Web Conf., pages 205–220, 2011.
