Wikibooks edits (af)

This is the bipartite edit network of the Afrikaans Wikibooks. It contains users and pages from the Afrikaans Wikibooks, connected by edit events. Each edge represents an edit. The dataset includes the timestamp of each edit.

Metadata

Codebaf
Internal nameedit-afwikibooks
NameWikibooks edits (af)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Authorship network
Dataset timestamp 2017-10-20
Node meaningUser, article
Edge meaningEdit
Network formatBipartite, undirected
Edge typeUnweighted, multiple edges
Temporal data Edges are annotated with timestamps

Statistics

Size n =971
Left size n1 =243
Right size n2 =728
Volume m =1,487
Unique edge count m̿ =918
Wedge count s =23,566
Claw count z =1,221,427
Cross count x =55,566,429
Square count q =404
4-Tour count T4 =99,696
Maximum degree dmax =214
Maximum left degree d1max =214
Maximum right degree d2max =68
Average degree d =3.062 82
Average left degree d1 =6.119 34
Average right degree d2 =2.042 58
Fill p =0.005 189 26
Average edge multiplicity m̃ =1.619 83
Size of LCC N =620
Diameter δ =16
50-Percentile effective diameter δ0.5 =5.177 96
90-Percentile effective diameter δ0.9 =7.919 13
Median distance δM =6
Mean distance δm =5.537 18
Gini coefficient G =0.629 406
Balanced inequality ratio P =0.259 583
Left balanced inequality ratio P1 =0.205 783
Right balanced inequality ratio P2 =0.323 470
Relative edge distribution entropy Her =0.880 238
Power law exponent γ =4.763 09
Tail power law exponent γt =2.571 00
Tail power law exponent with p γ3 =2.571 00
p-value p =0.000 00
Left tail power law exponent with p γ3,1 =2.001 00
Left p-value p1 =0.041 000 0
Right tail power law exponent with p γ3,2 =3.011 00
Right p-value p2 =0.002 000 00
Degree assortativity ρ =−0.167 017
Degree assortativity p-value pρ =3.594 77 × 10−7
Spectral norm α =75.412 3
Algebraic connectivity a =0.015 618 4

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

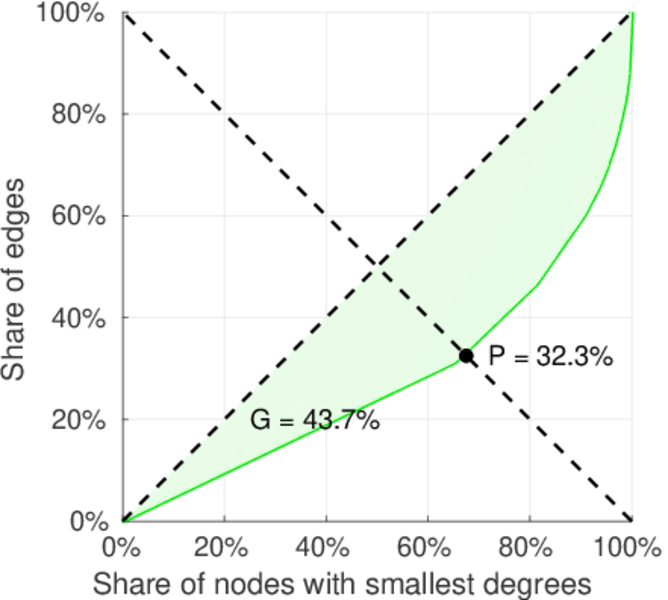

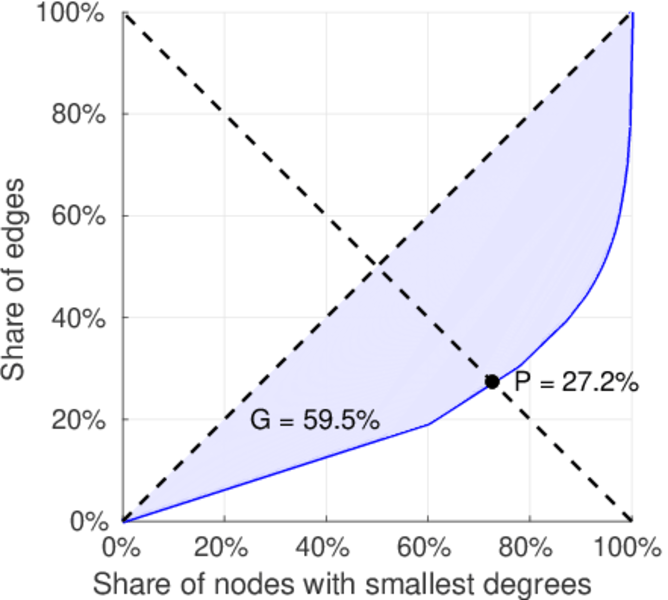

Lorenz curve

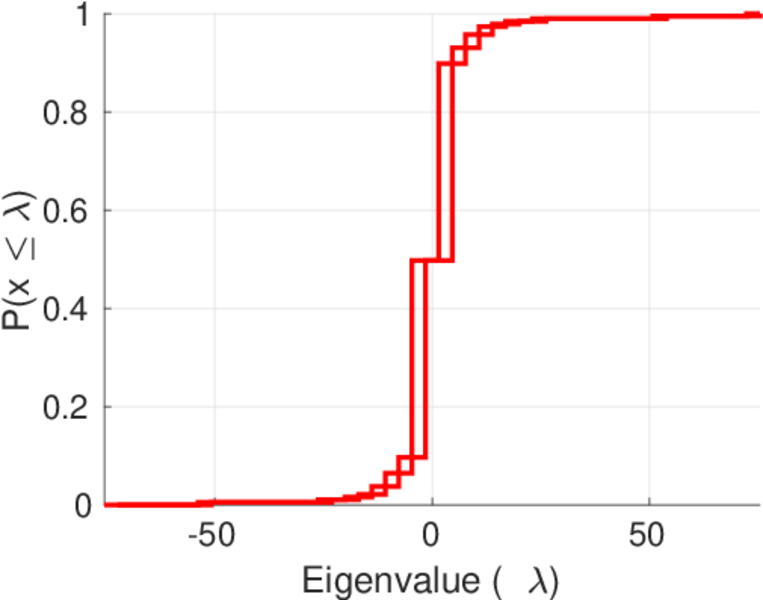

Spectral distribution of the adjacency matrix

Spectral distribution of the normalized adjacency matrix

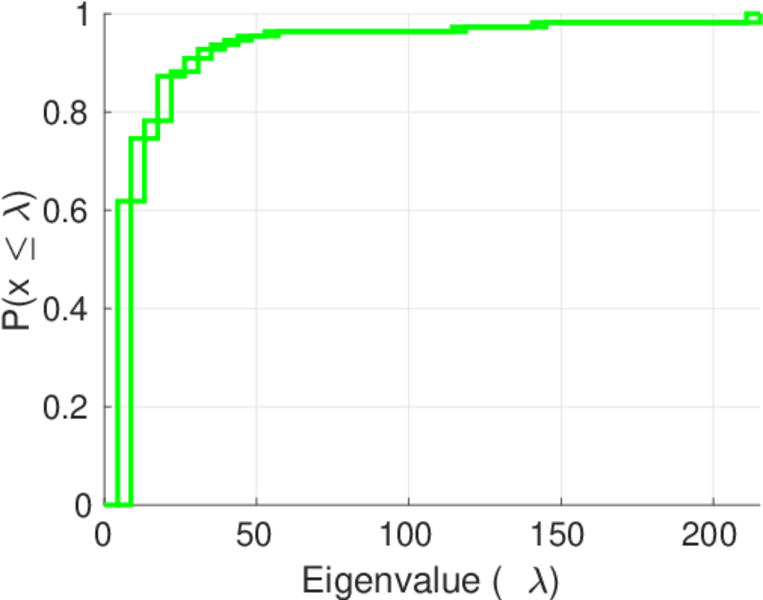

Spectral distribution of the Laplacian

Spectral graph drawing based on the adjacency matrix

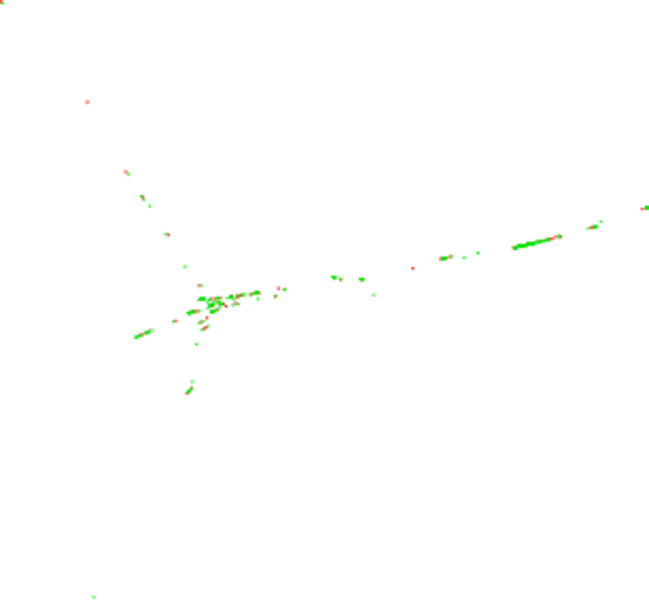

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

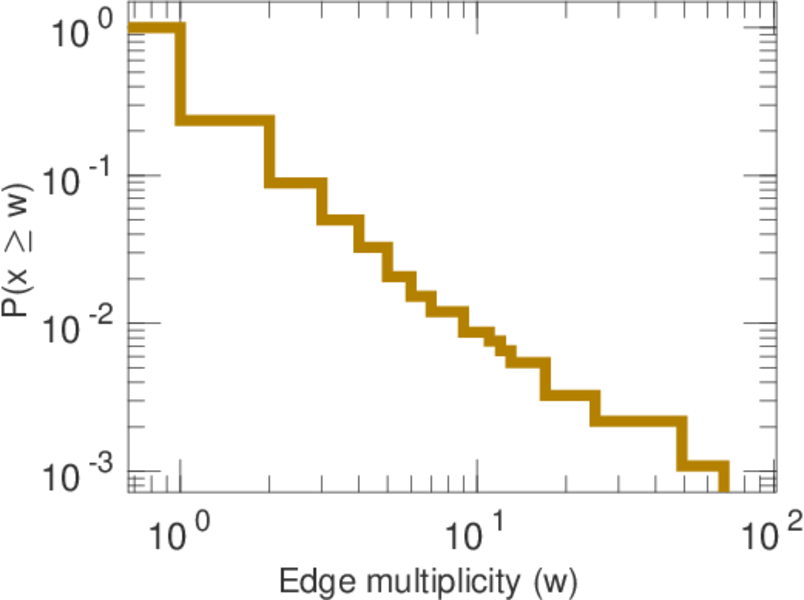

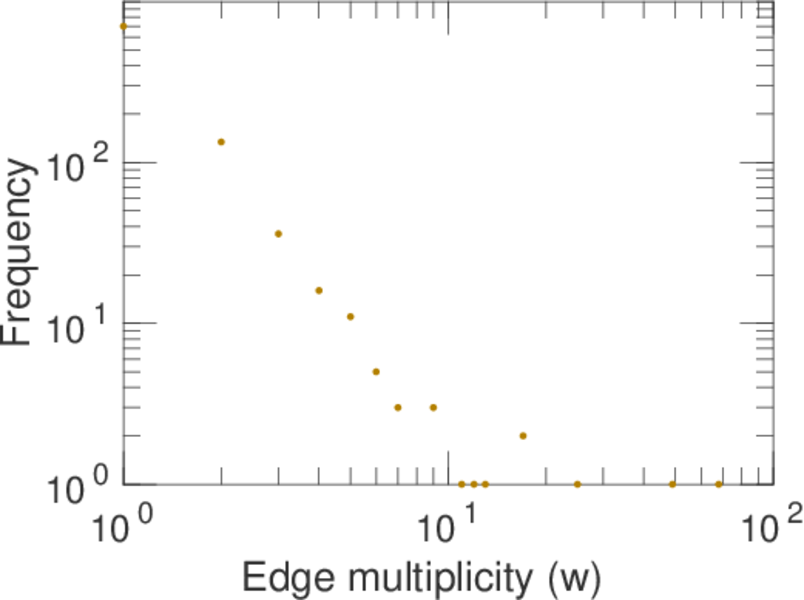

Edge weight/multiplicity distribution

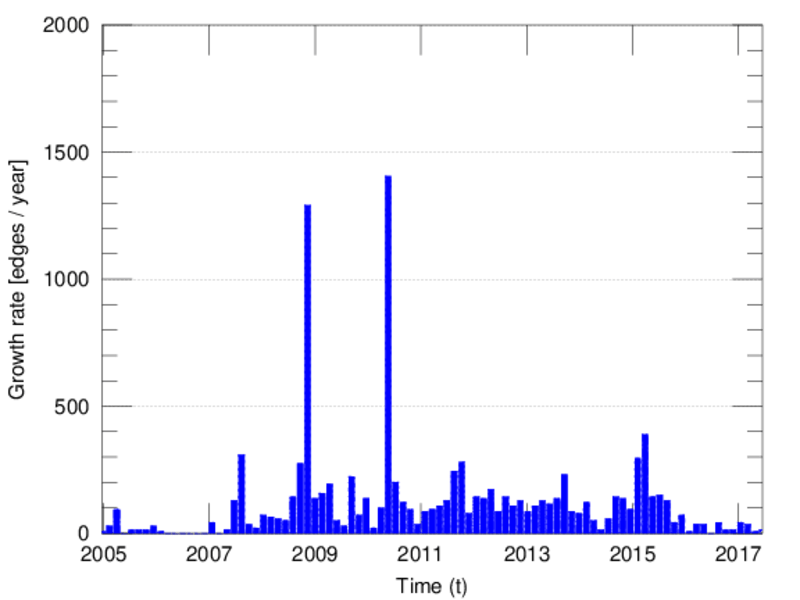

Temporal distribution

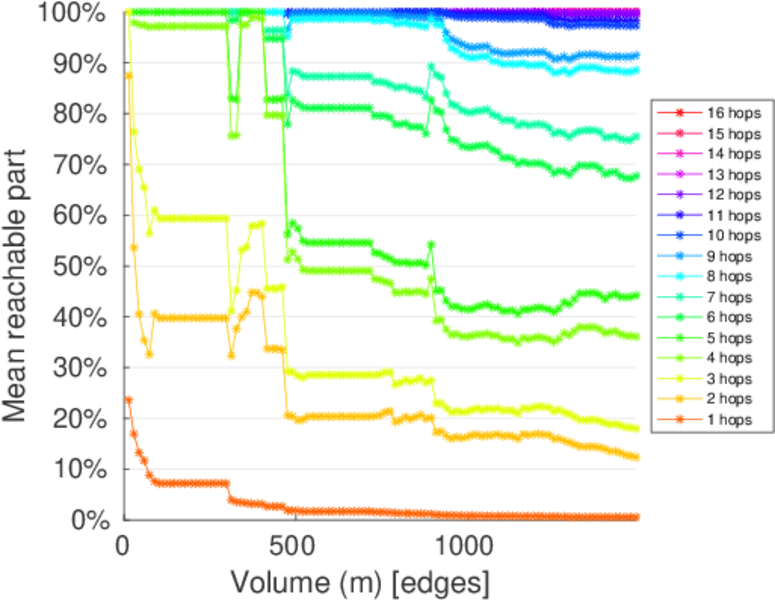

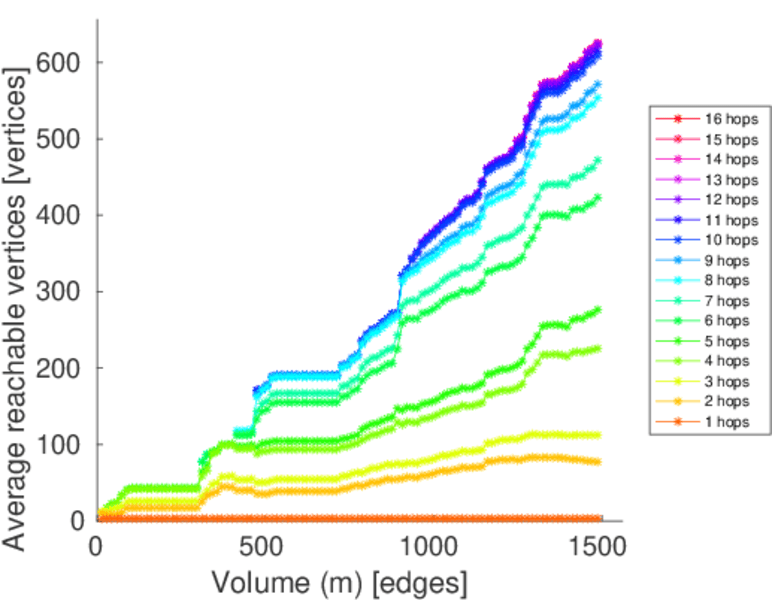

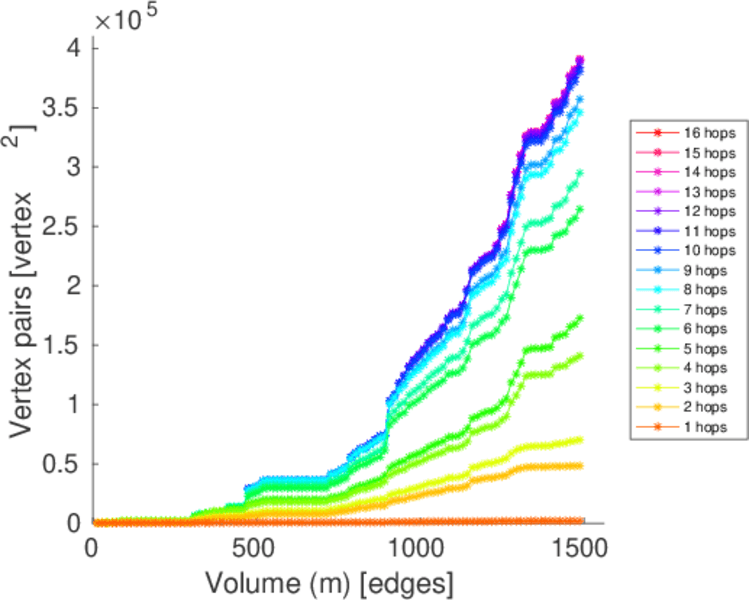

Temporal hop distribution

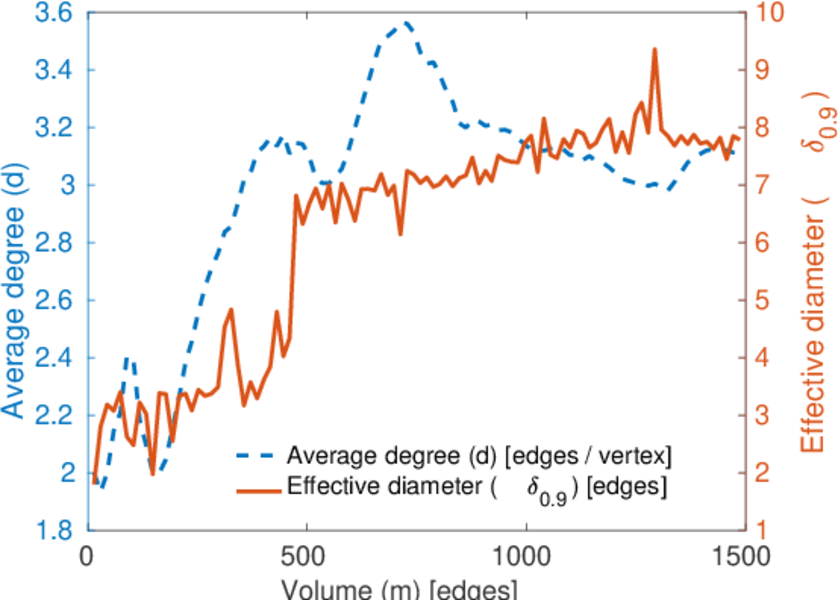

Diameter/density evolution

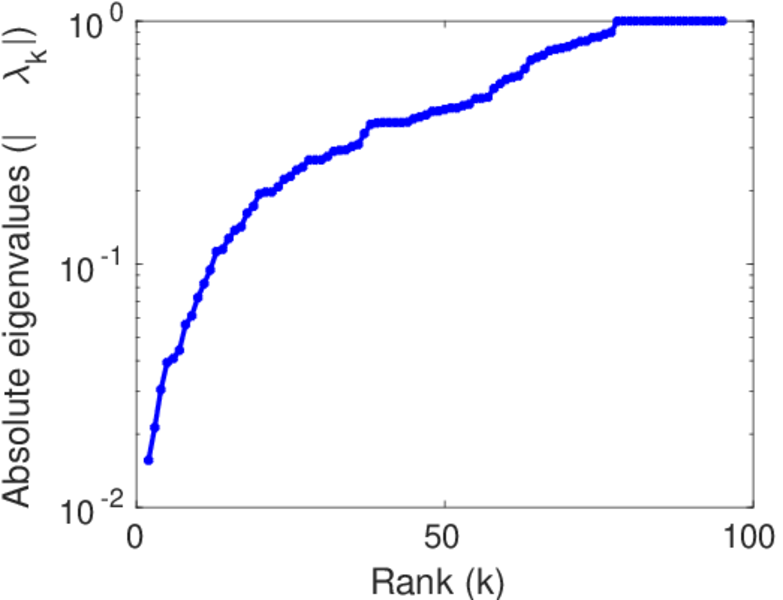

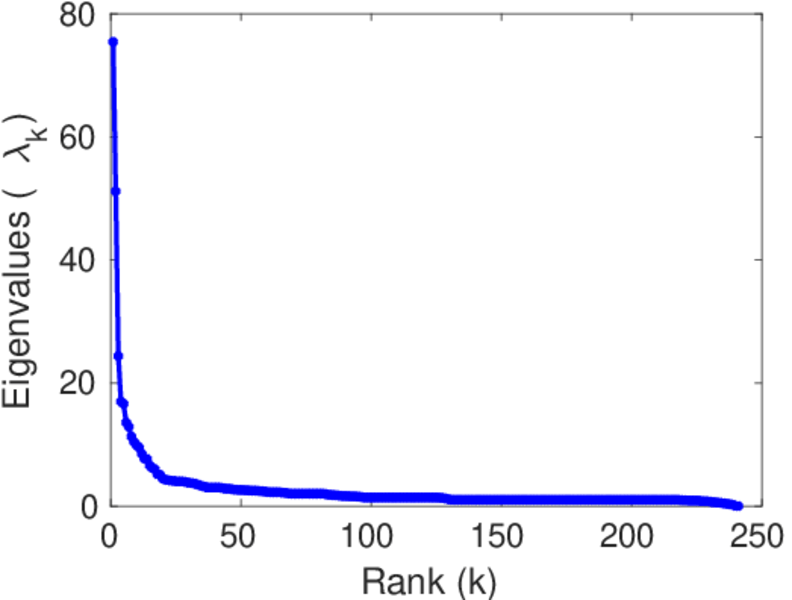

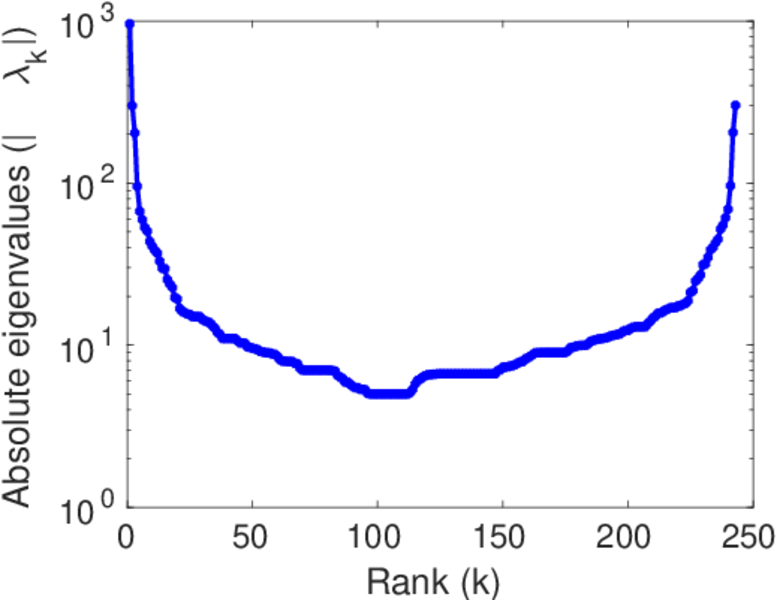

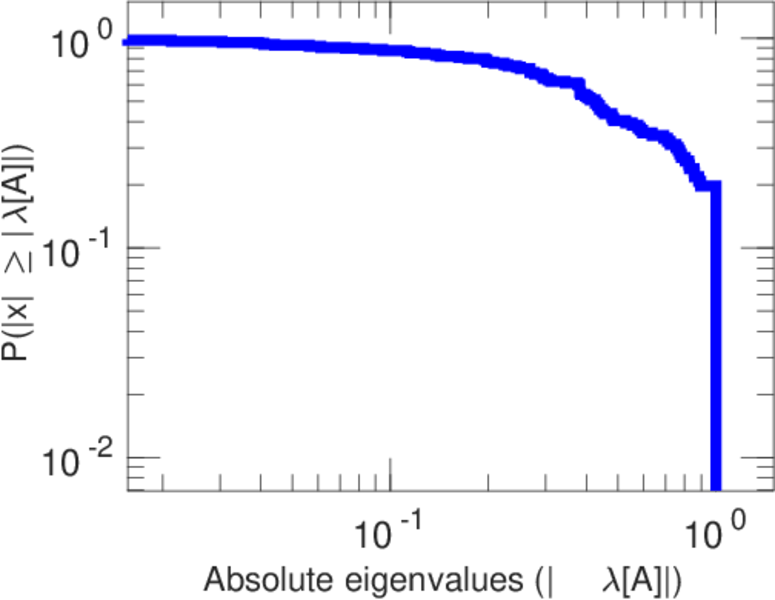

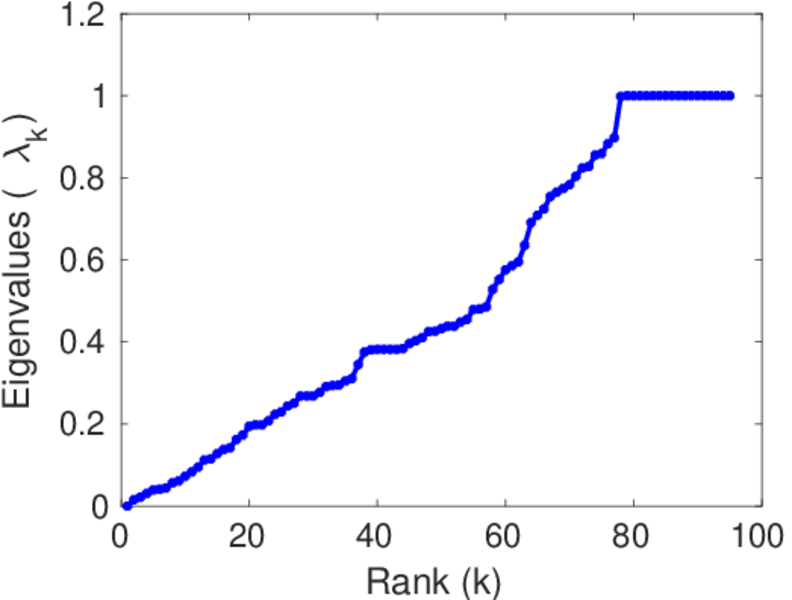

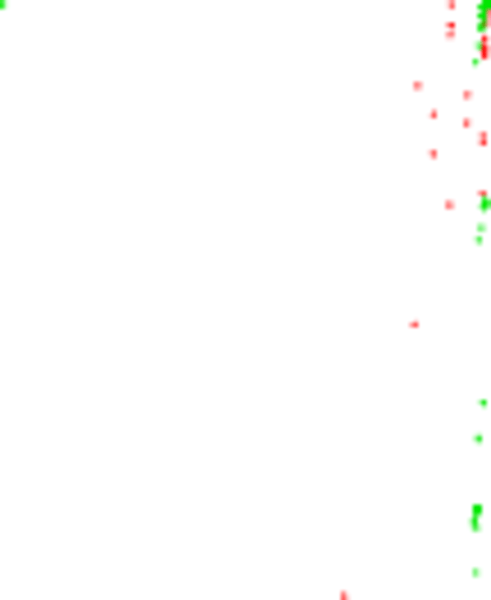

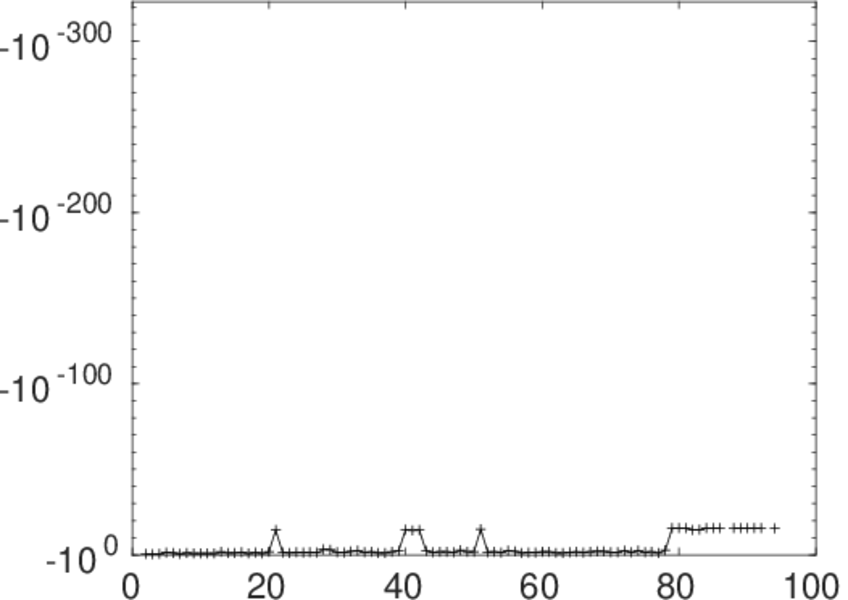

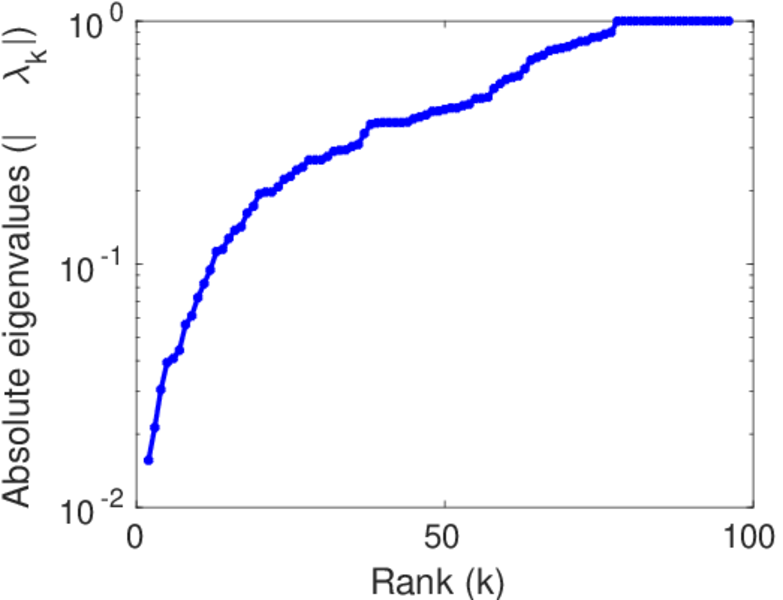

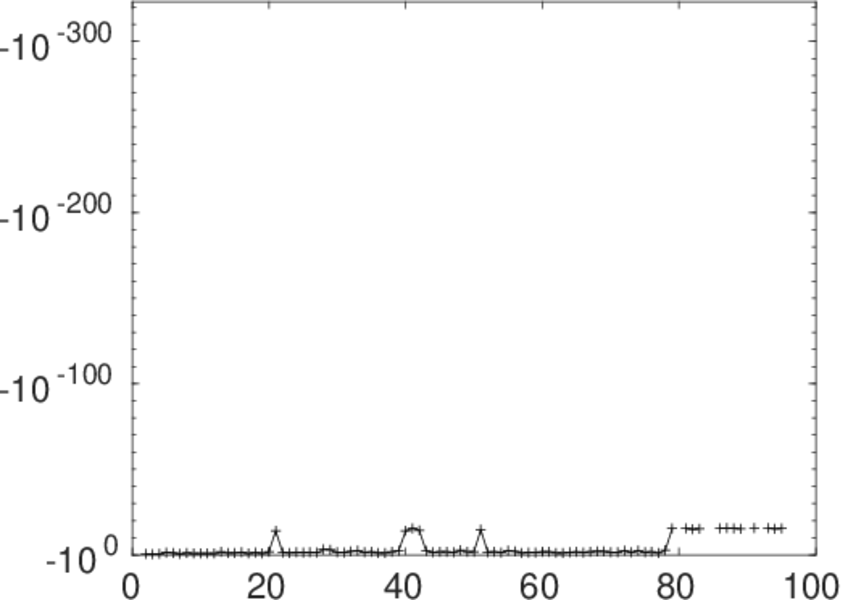

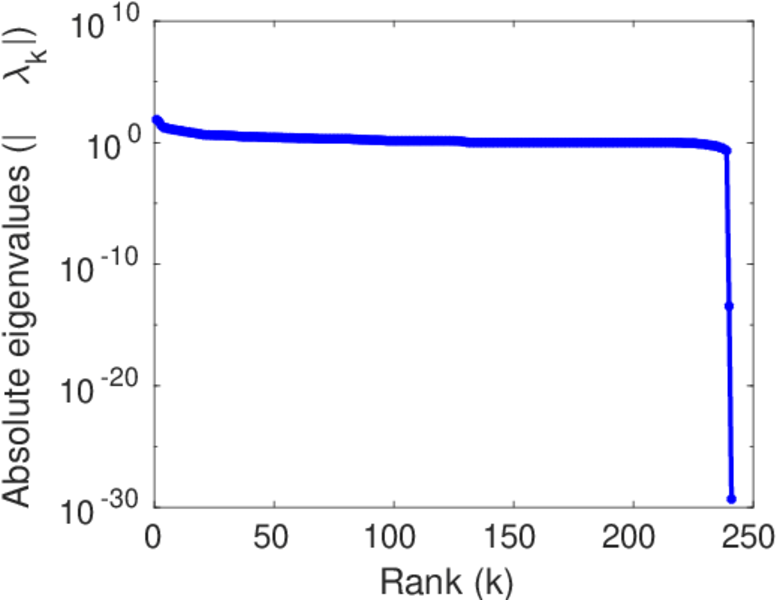

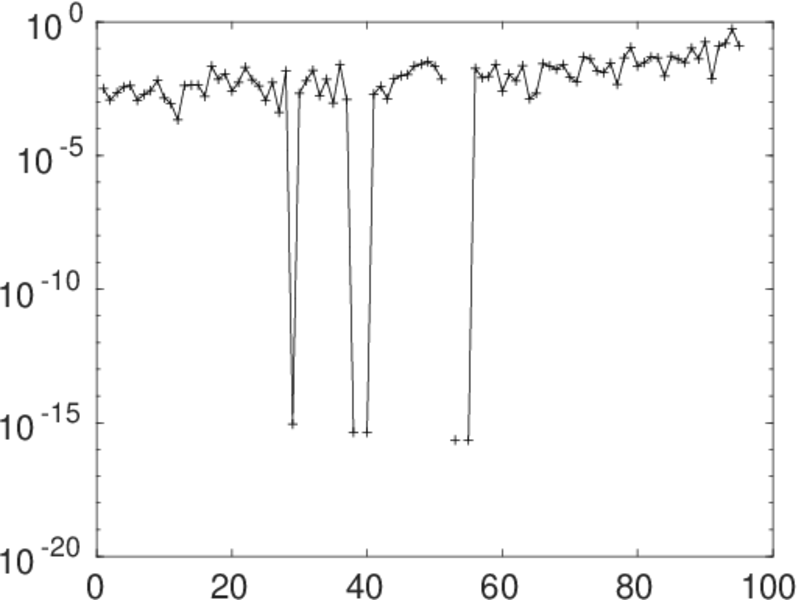

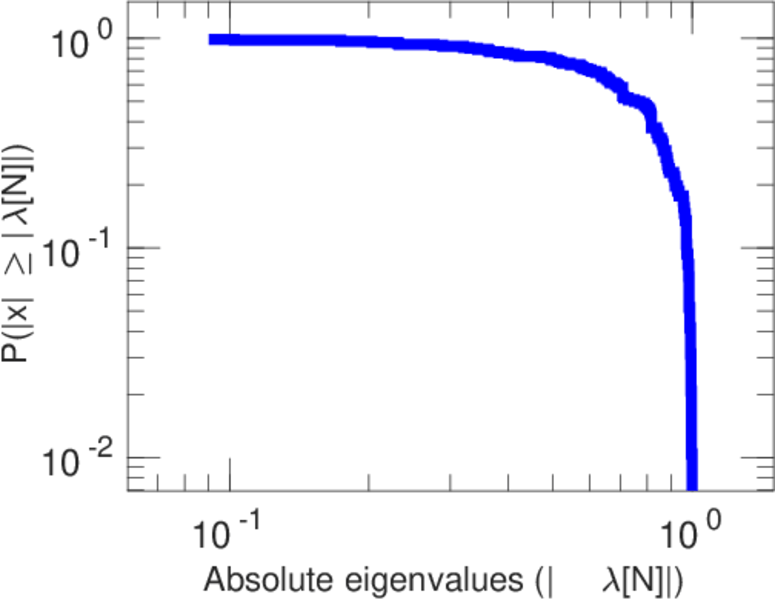

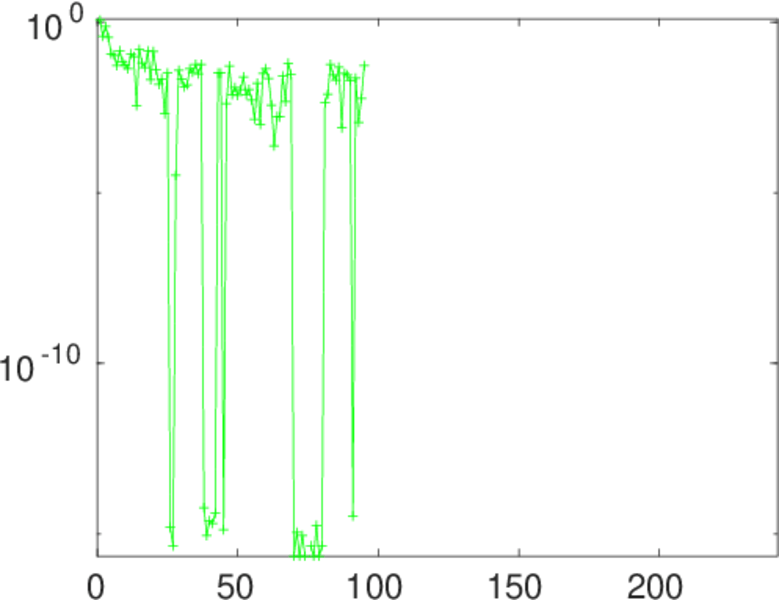

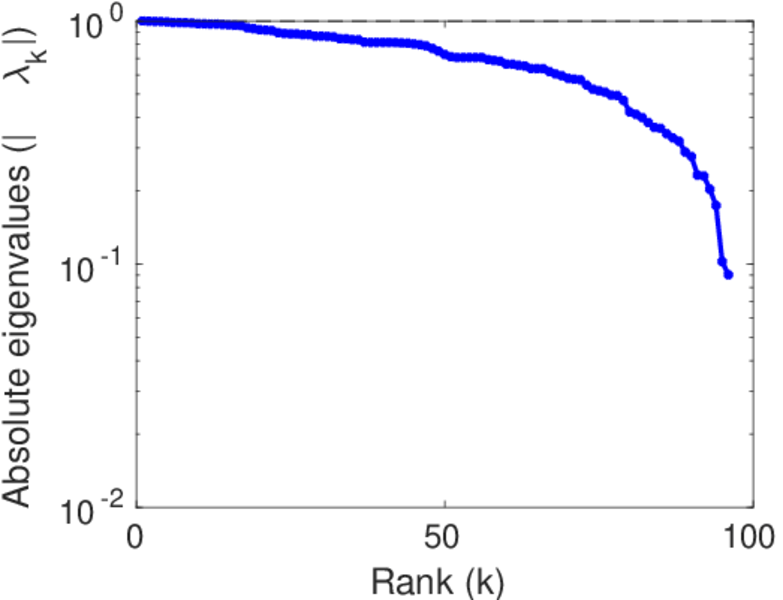

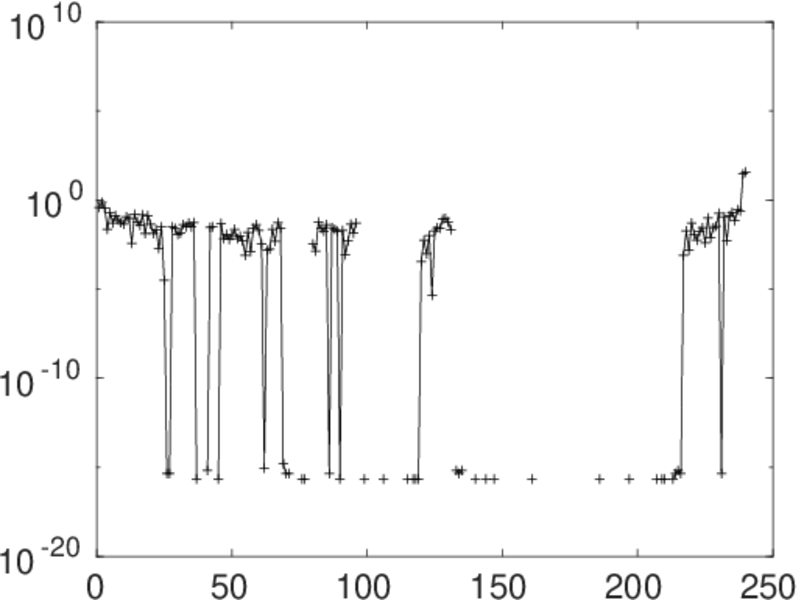

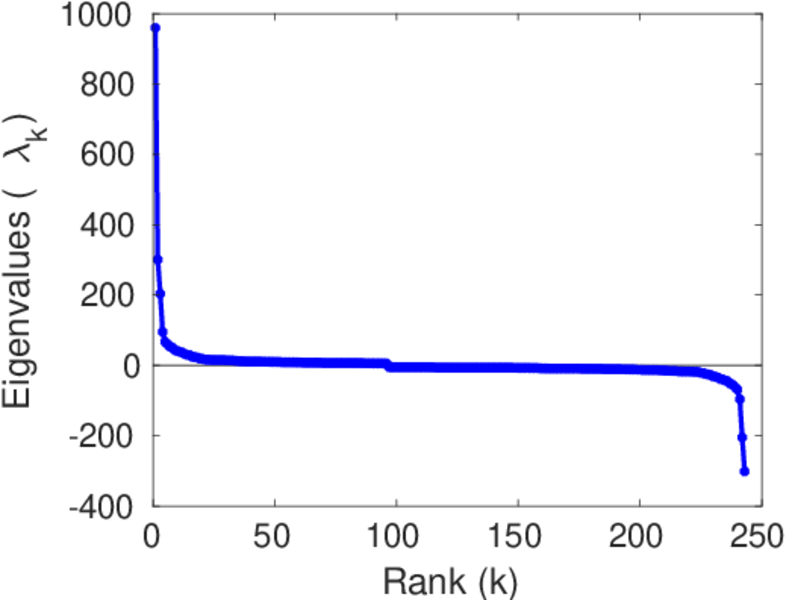

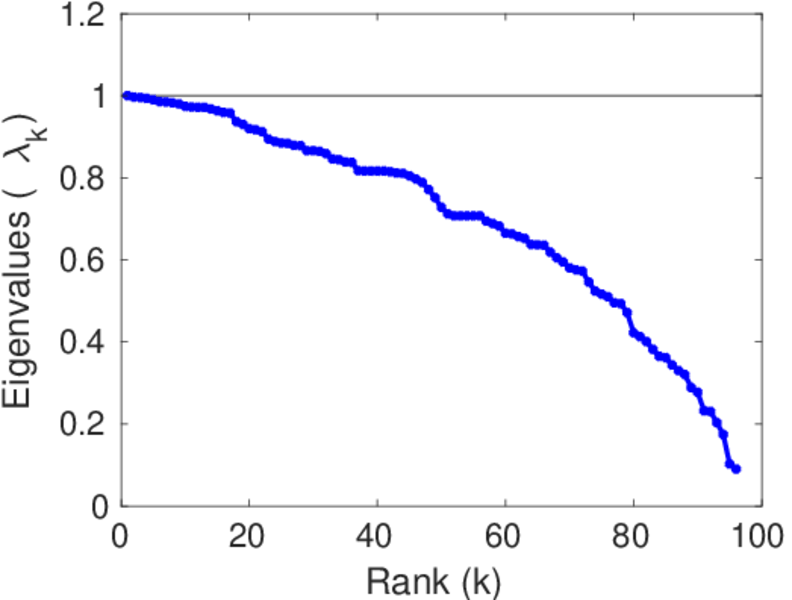

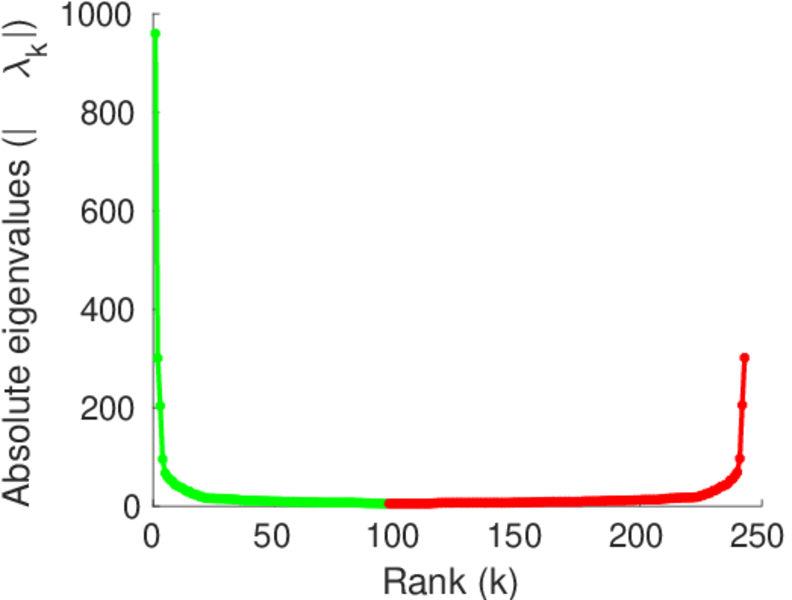

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
[2] Wikimedia Foundation. Wikimedia downloads. http://dumps.wikimedia.org/, January 2010.
