Wikibooks edits (az)

This is the bipartite edit network of the Azerbaijani Wikibooks. It contains users and pages from the Azerbaijani Wikibooks, connected by edit events. Each edge represents an edit. The dataset includes the timestamp of each edit.

Metadata

Codebaz
Internal nameedit-azwikibooks
NameWikibooks edits (az)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Authorship network
Dataset timestamp 2017-10-20
Node meaningUser, article
Edge meaningEdit
Network formatBipartite, undirected
Edge typeUnweighted, multiple edges
Temporal data Edges are annotated with timestamps

Statistics

Size n =6,596
Left size n1 =401
Right size n2 =6,195
Volume m =15,901
Unique edge count m̿ =8,783
Wedge count s =9,758,668
Claw count z =11,650,031,324
Cross count x =11,369,284,088,807
Square count q =328,803
4-Tour count T4 =41,698,982
Maximum degree dmax =7,291
Maximum left degree d1max =7,291
Maximum right degree d2max =119
Average degree d =4.821 41
Average left degree d1 =39.653 4
Average right degree d2 =2.566 75
Fill p =0.003 535 55
Average edge multiplicity m̃ =1.810 43
Size of LCC N =6,279
Diameter δ =15
50-Percentile effective diameter δ0.5 =2.344 81
90-Percentile effective diameter δ0.9 =3.890 11
Median distance δM =3
Mean distance δm =3.095 58
Gini coefficient G =0.715 368
Balanced inequality ratio P =0.222 502
Left balanced inequality ratio P1 =0.082 636 3
Right balanced inequality ratio P2 =0.324 005
Relative edge distribution entropy Her =0.704 301
Power law exponent γ =4.662 33
Tail power law exponent γt =3.201 00
Tail power law exponent with p γ3 =3.201 00
p-value p =0.000 00
Left tail power law exponent with p γ3,1 =1.841 00
Left p-value p1 =0.435 000
Right tail power law exponent with p γ3,2 =4.881 00
Right p-value p2 =0.039 000 0
Degree assortativity ρ =−0.320 065
Degree assortativity p-value pρ =2.216 76 × 10−208
Spectral norm α =161.223
Algebraic connectivity a =0.009 720 26
Spectral separation 1[A] / λ2[A]| =1.236 98
Controllability C =5,816
Relative controllability Cr =0.883 085

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

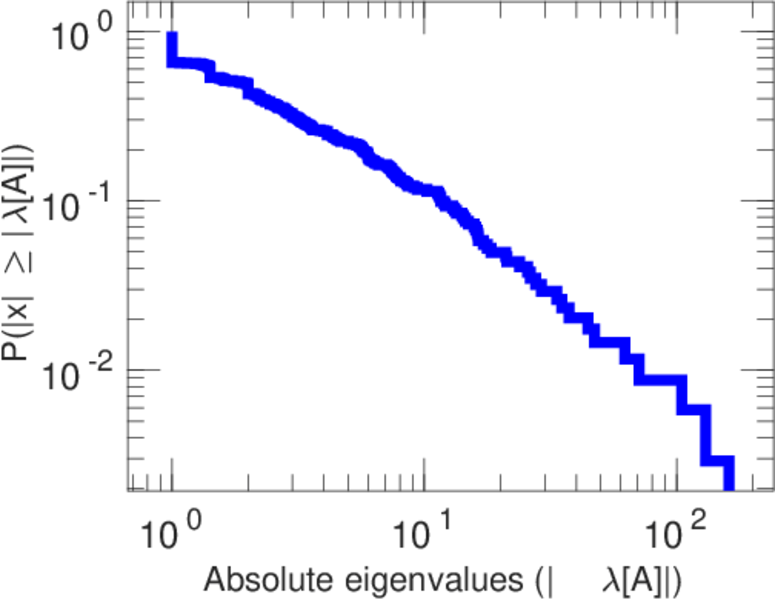

Spectral distribution of the adjacency matrix

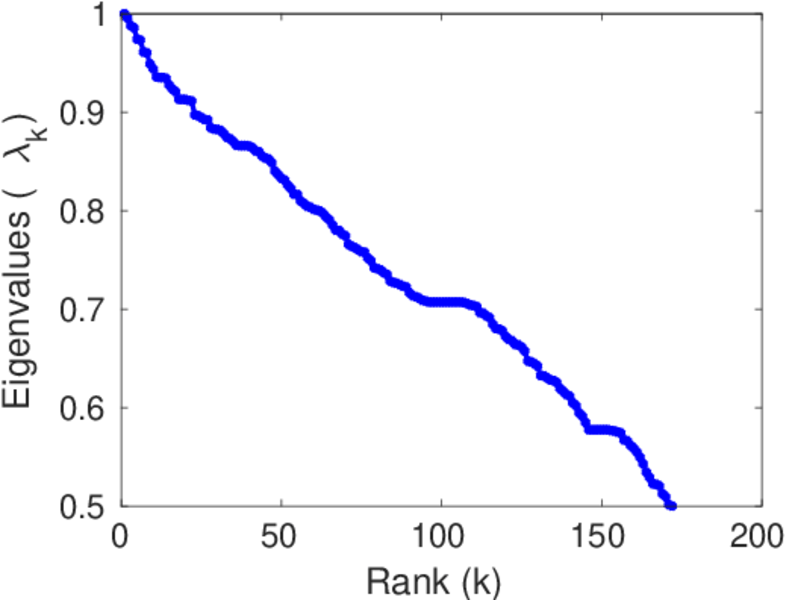

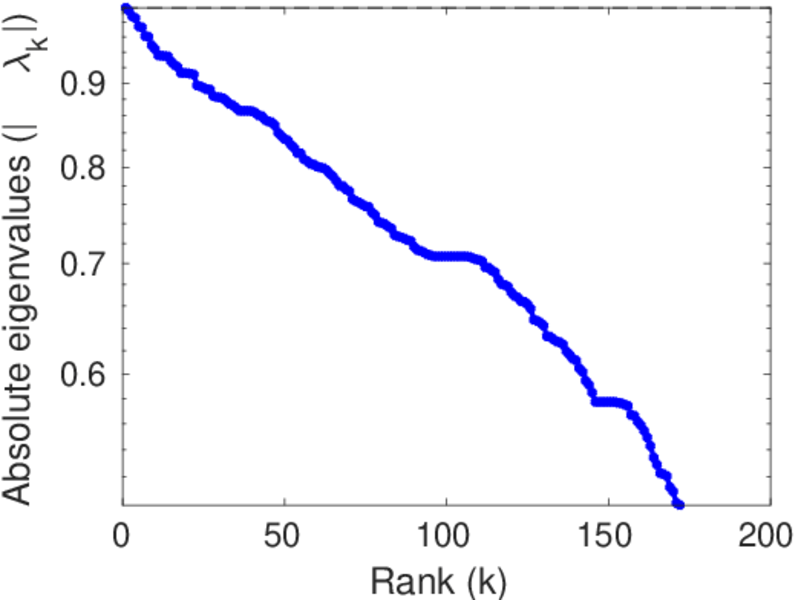

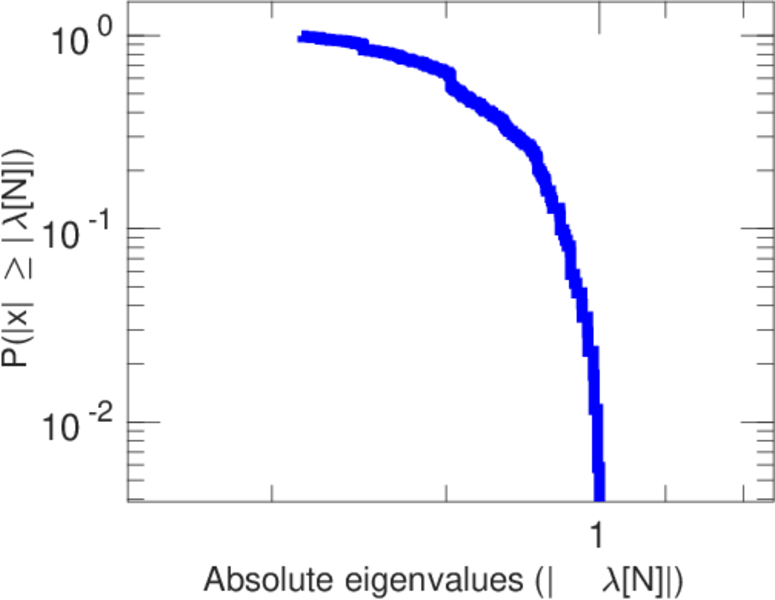

Spectral distribution of the normalized adjacency matrix

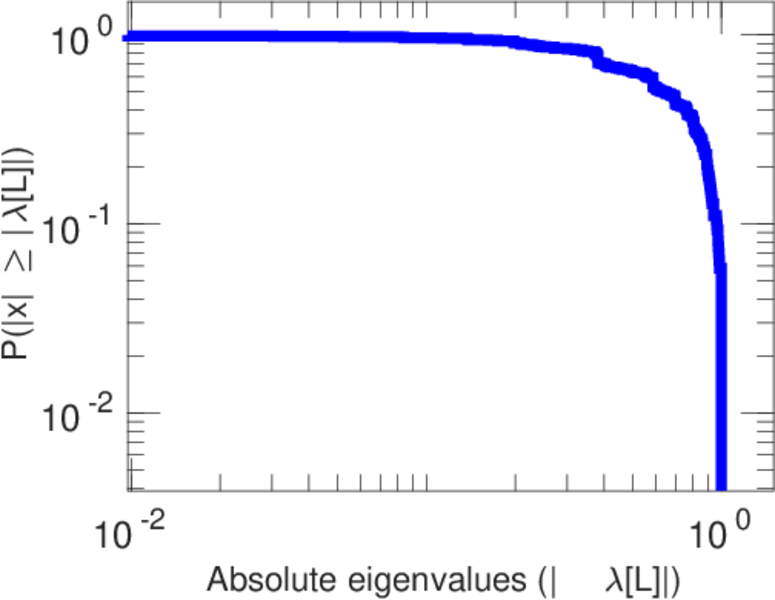

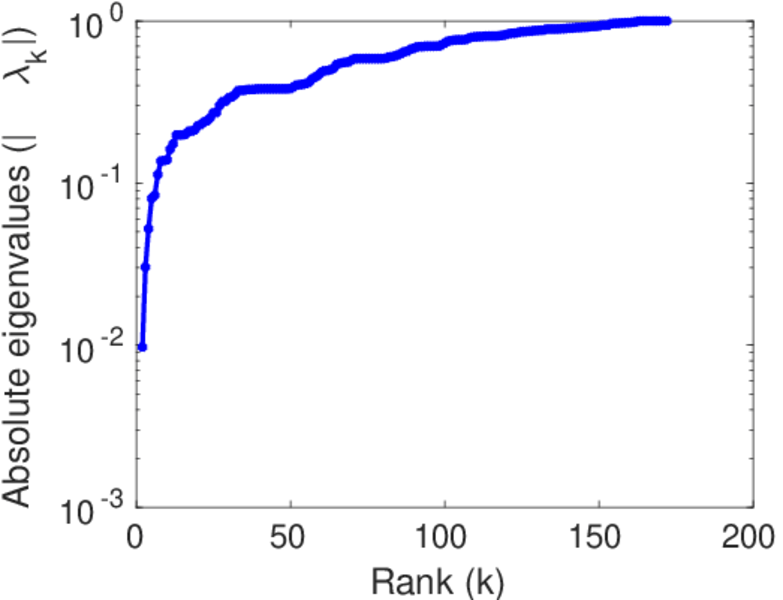

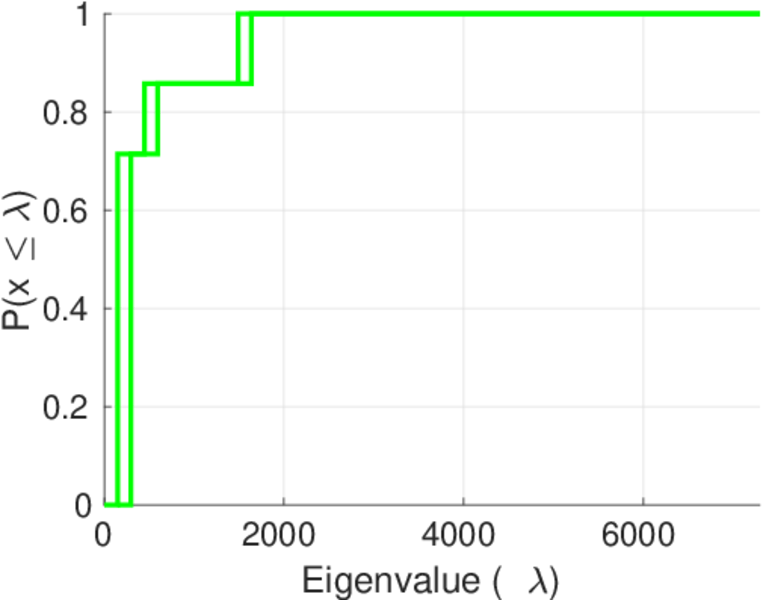

Spectral distribution of the Laplacian

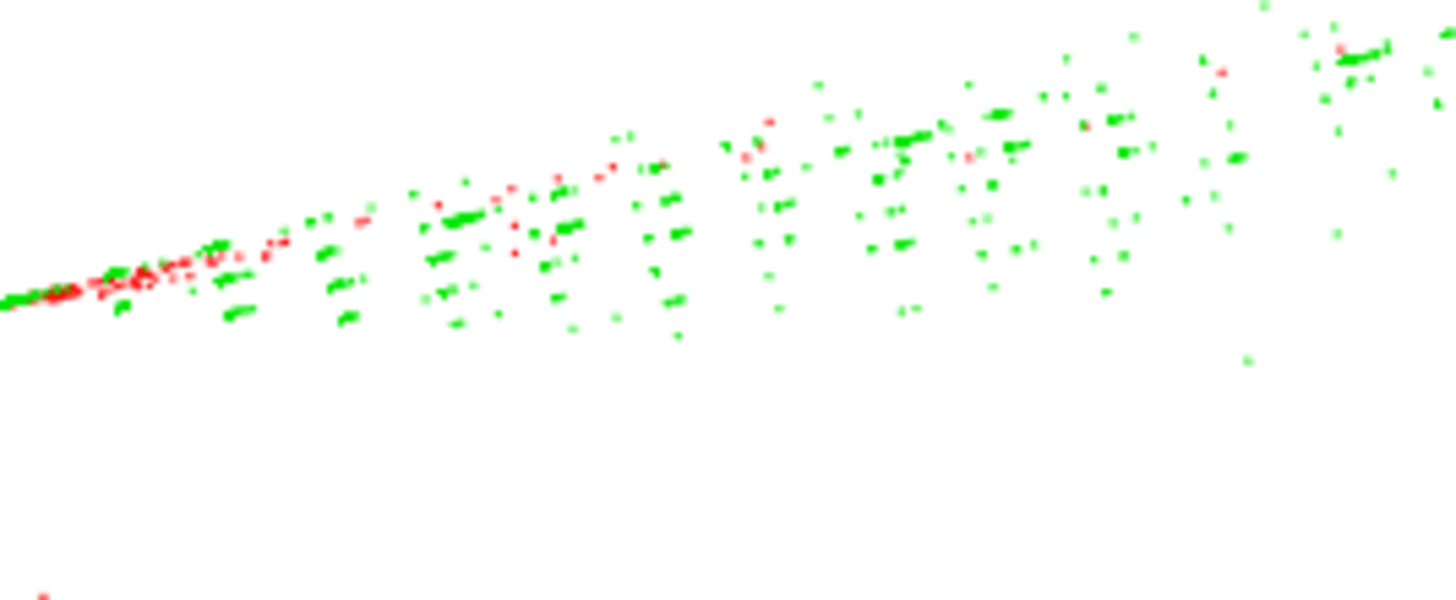

Spectral graph drawing based on the adjacency matrix

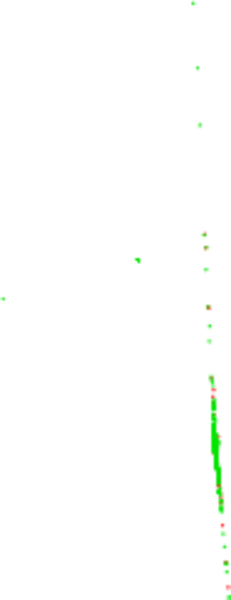

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

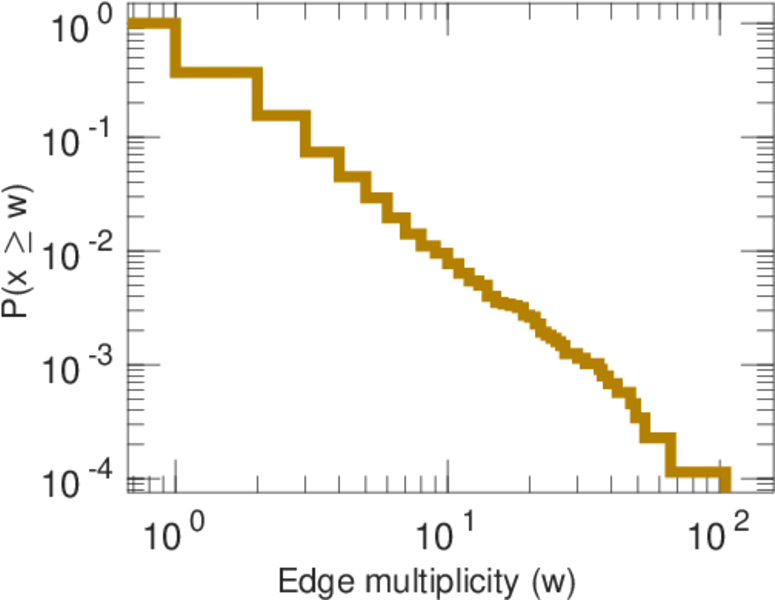

Edge weight/multiplicity distribution

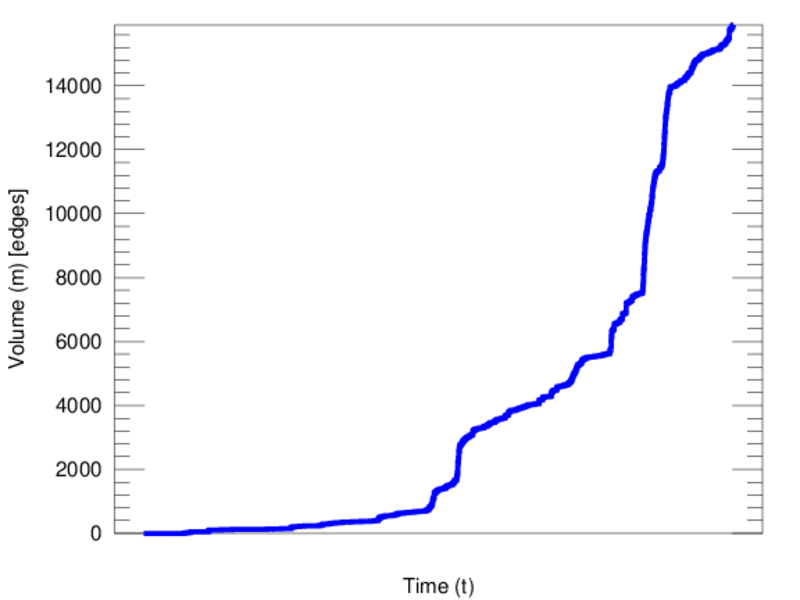

Temporal distribution

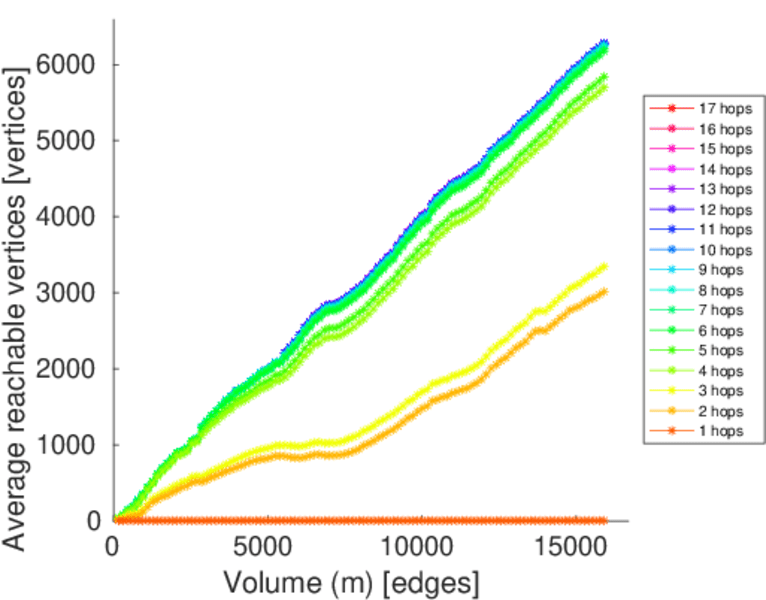

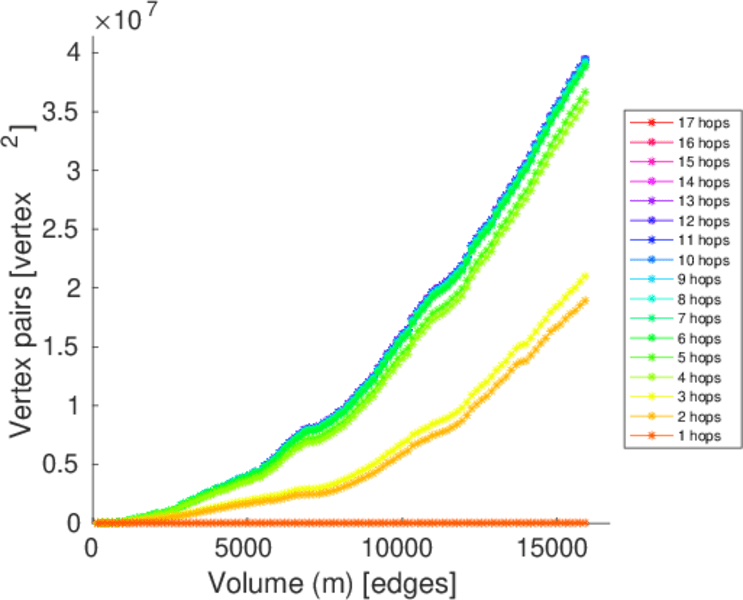

Temporal hop distribution

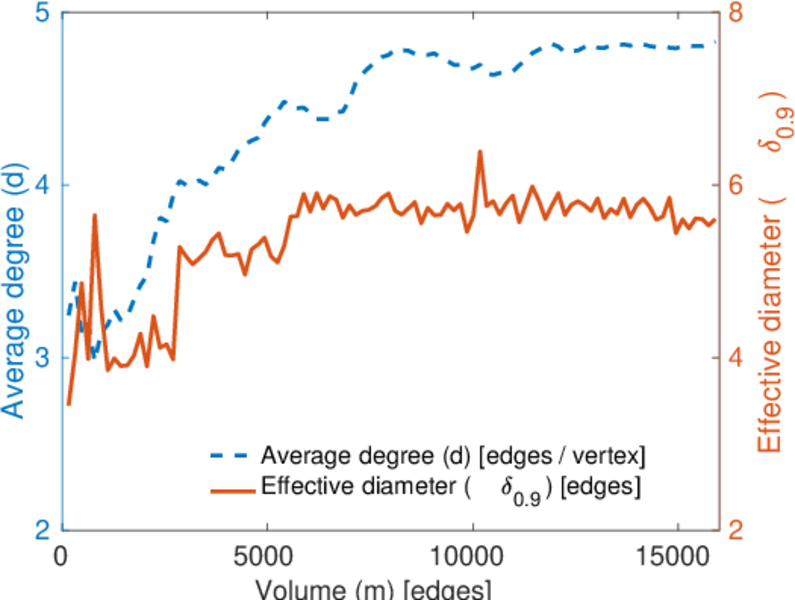

Diameter/density evolution

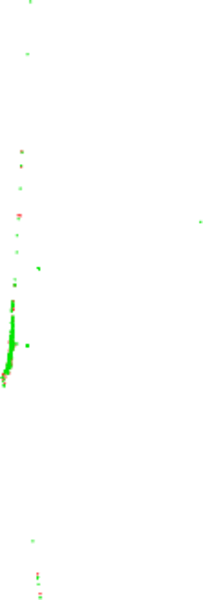

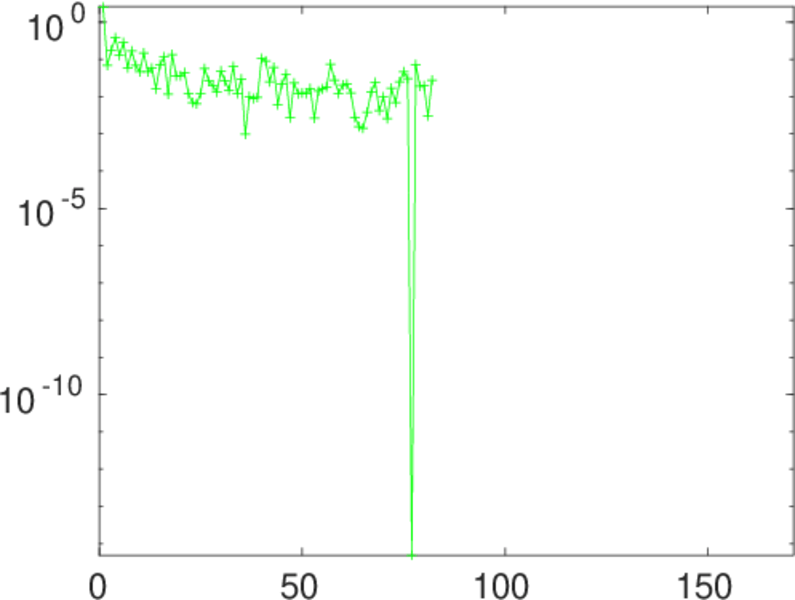

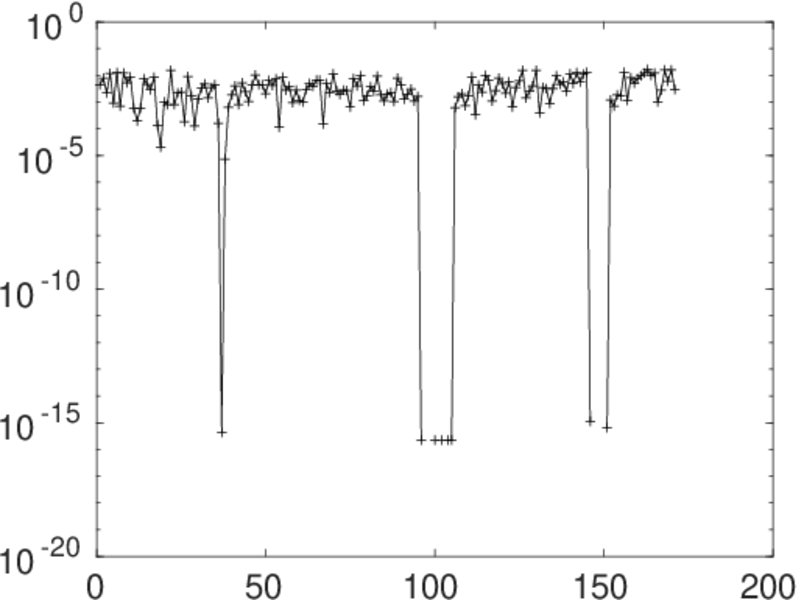

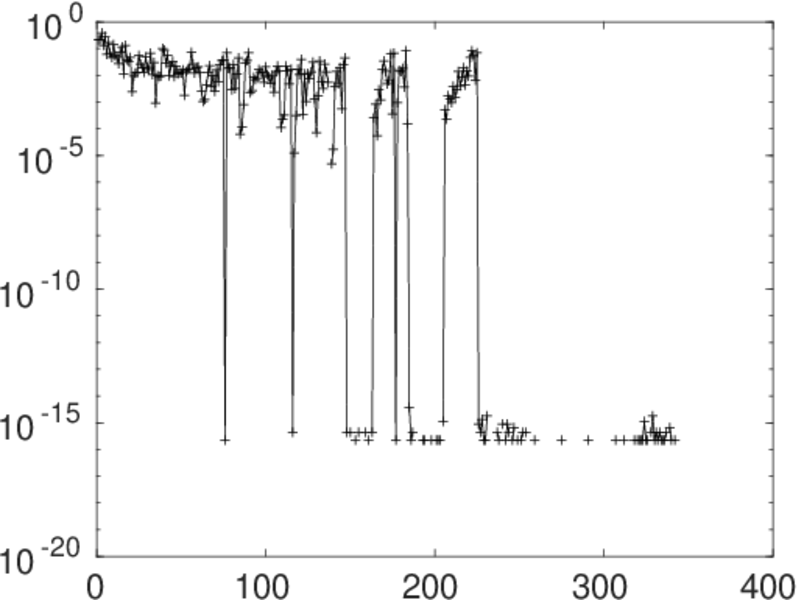

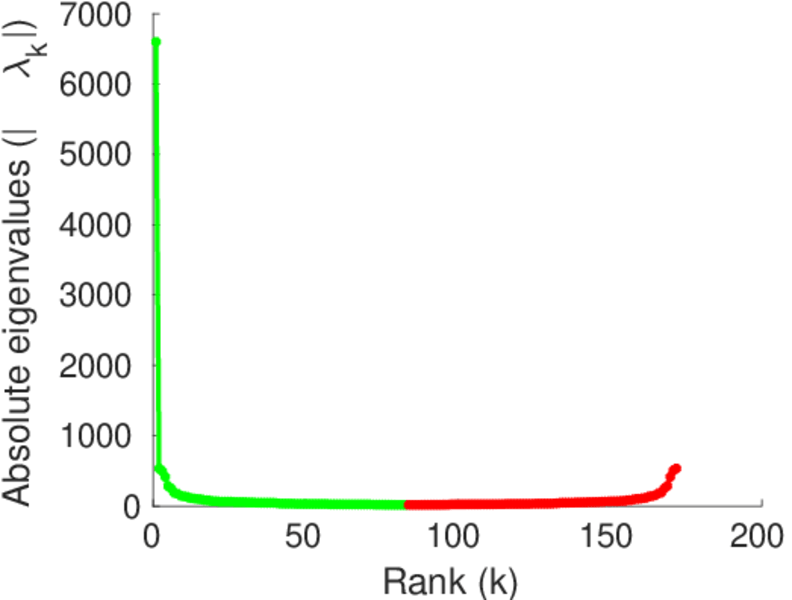

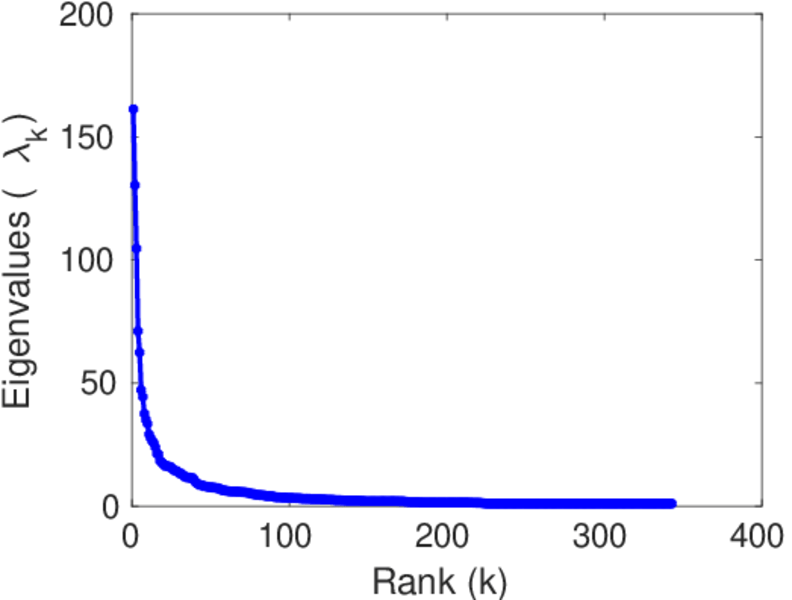

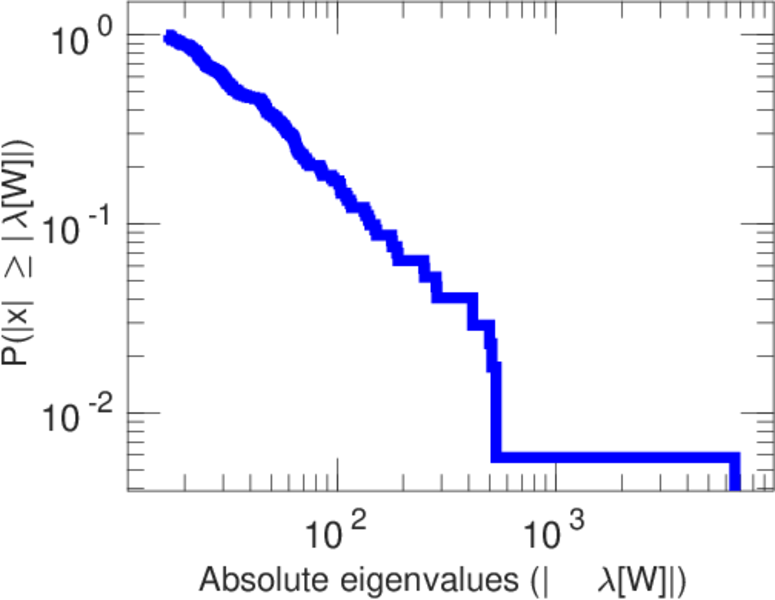

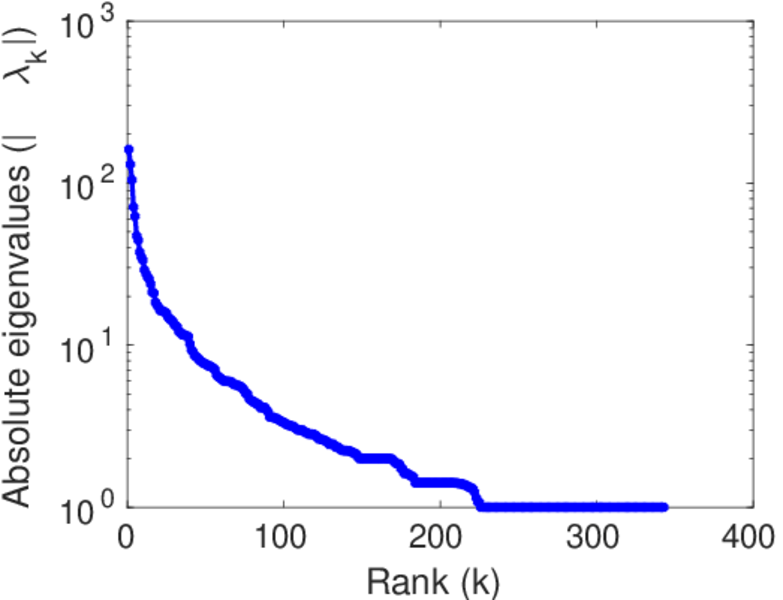

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
[2] Wikimedia Foundation. Wikimedia downloads. http://dumps.wikimedia.org/, January 2010.
