Wikibooks edits (de)

This is the bipartite edit network of the German Wikibooks. It contains users and pages from the German Wikibooks, connected by edit events. Each edge represents an edit. The dataset includes the timestamp of each edit.

Metadata

Codebde
Internal nameedit-dewikibooks
NameWikibooks edits (de)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Authorship network
Dataset timestamp 2017-10-20
Node meaningUser, article
Edge meaningEdit
Network formatBipartite, undirected
Edge typeUnweighted, multiple edges
Temporal data Edges are annotated with timestamps

Statistics

Size n =77,233
Left size n1 =11,476
Right size n2 =65,757
Volume m =528,120
Unique edge count m̿ =167,880
Wedge count s =202,581,757
Claw count z =440,266,762,958
Cross count x =865,810,231,318,856
Square count q =42,231,472
4-Tour count T4 =1,148,607,172
Maximum degree dmax =27,091
Maximum left degree d1max =27,091
Maximum right degree d2max =3,765
Average degree d =13.676 0
Average left degree d1 =46.019 5
Average right degree d2 =8.031 39
Fill p =0.000 222 467
Average edge multiplicity m̃ =3.145 82
Size of LCC N =74,043
Diameter δ =12
50-Percentile effective diameter δ0.5 =3.665 45
90-Percentile effective diameter δ0.9 =5.356 62
Median distance δM =4
Mean distance δm =4.298 88
Gini coefficient G =0.810 388
Balanced inequality ratio P =0.173 435
Left balanced inequality ratio P1 =0.096 334 2
Right balanced inequality ratio P2 =0.233 027
Relative edge distribution entropy Her =0.806 980
Power law exponent γ =2.517 55
Tail power law exponent γt =2.421 00
Tail power law exponent with p γ3 =2.421 00
p-value p =0.000 00
Left tail power law exponent with p γ3,1 =1.801 00
Left p-value p1 =0.013 000 0
Right tail power law exponent with p γ3,2 =3.071 00
Right p-value p2 =0.056 000 0
Degree assortativity ρ =−0.137 649
Degree assortativity p-value pρ =0.000 00
Spectral norm α =1,506.81
Algebraic connectivity a =0.044 917 2
Spectral separation |λ1[A] / λ2[A]| =1.136 49
Controllability C =57,913
Relative controllability Cr =0.766 988

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

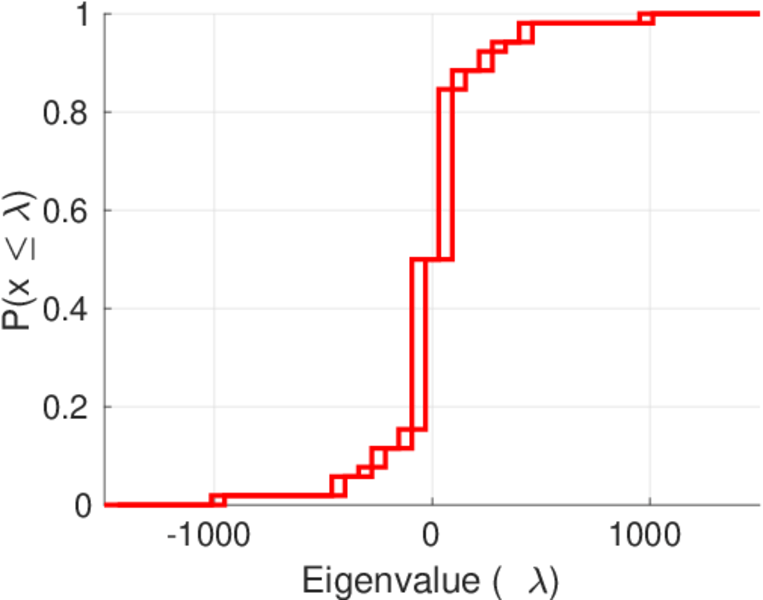

Spectral distribution of the adjacency matrix

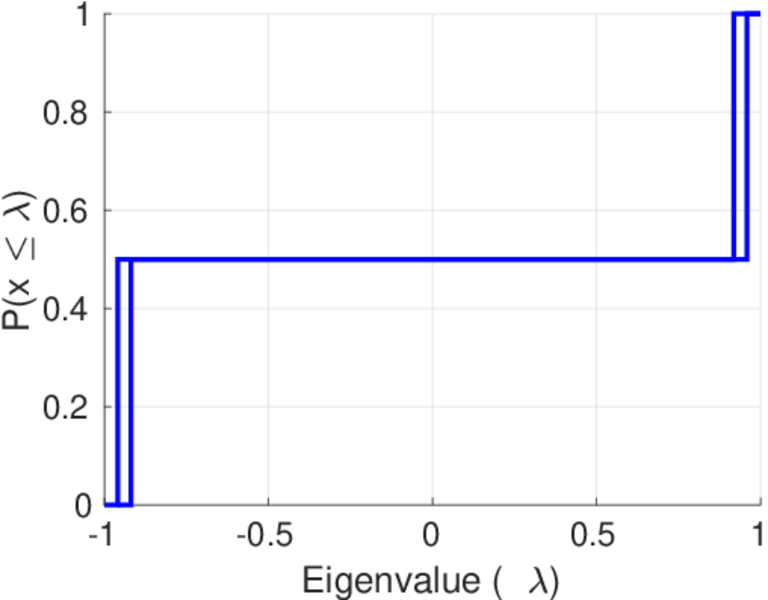

Spectral distribution of the normalized adjacency matrix

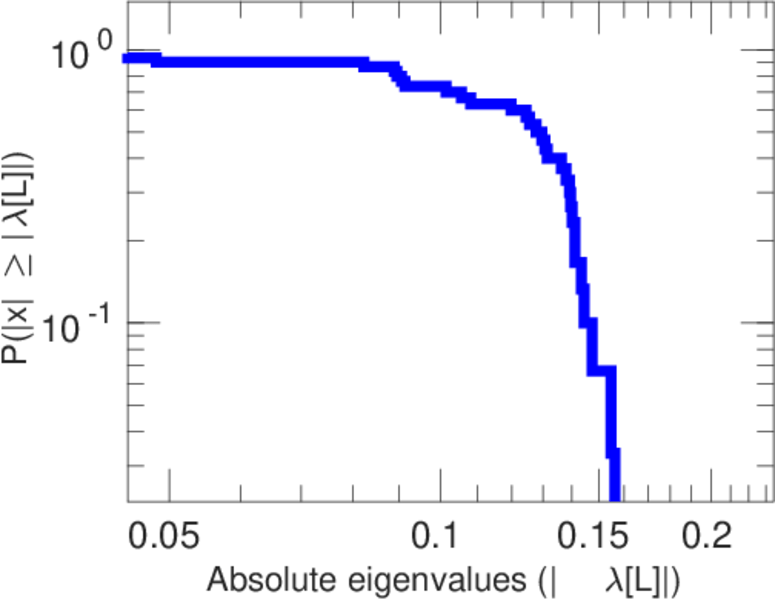

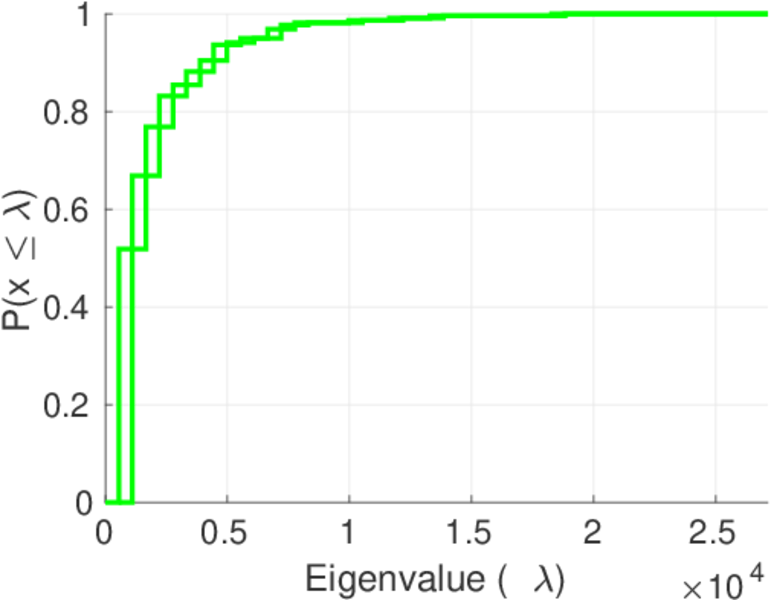

Spectral distribution of the Laplacian

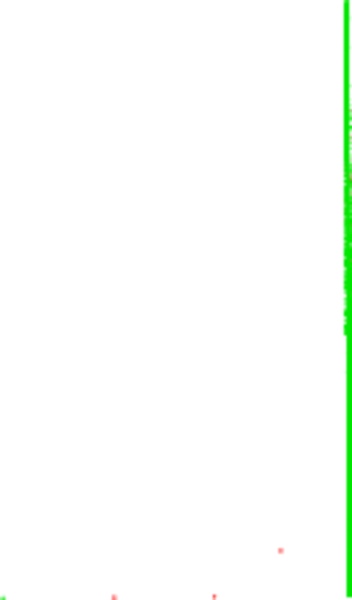

Spectral graph drawing based on the adjacency matrix

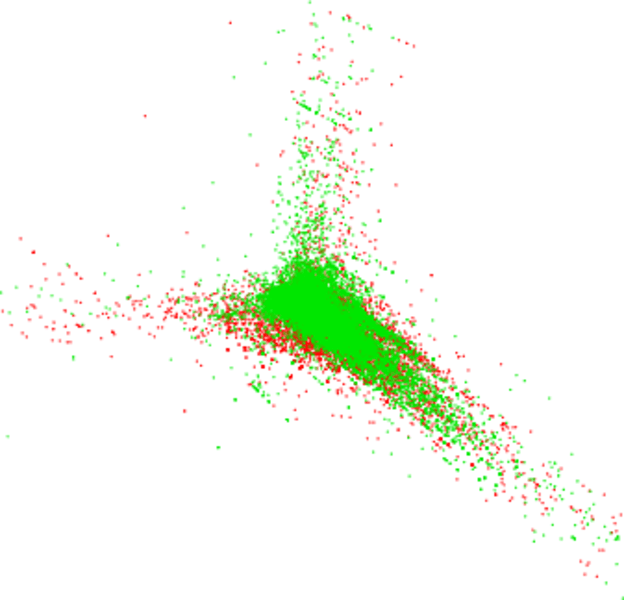

Spectral graph drawing based on the Laplacian

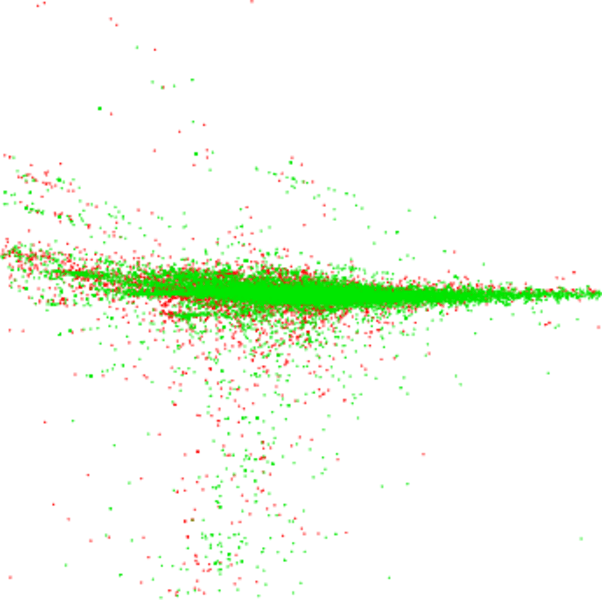

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

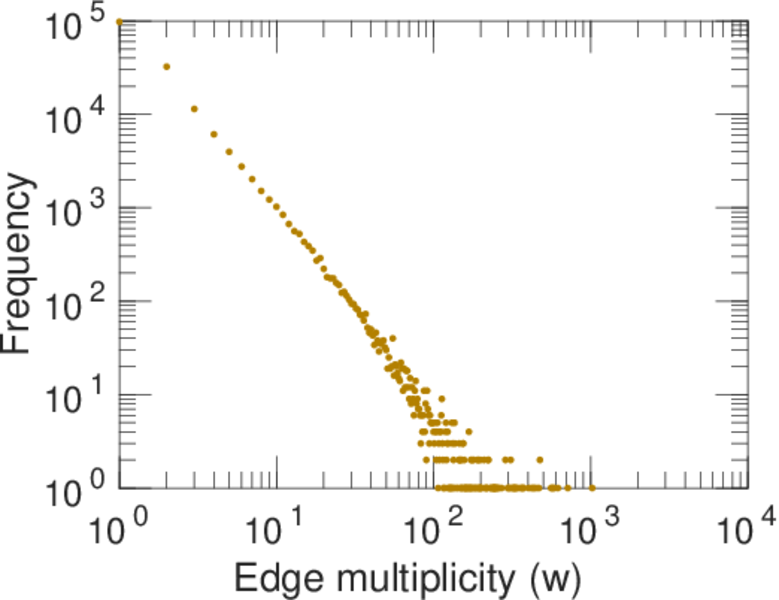

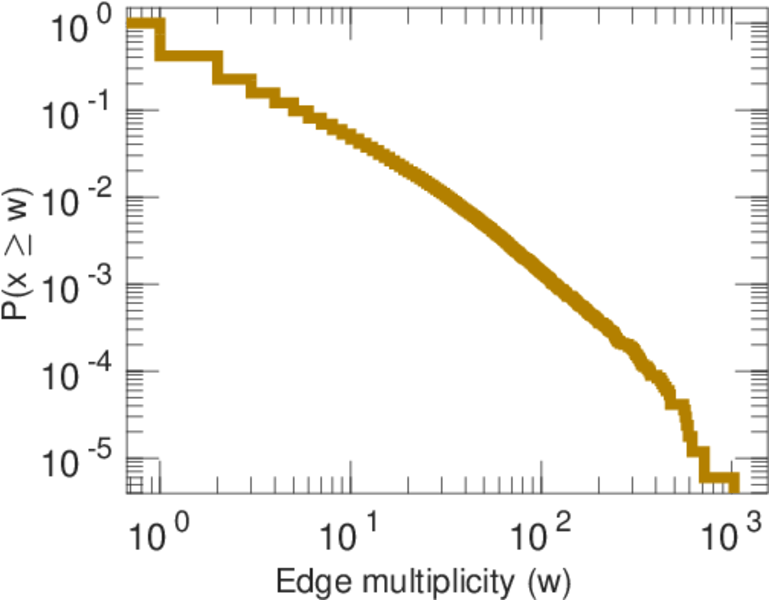

Edge weight/multiplicity distribution

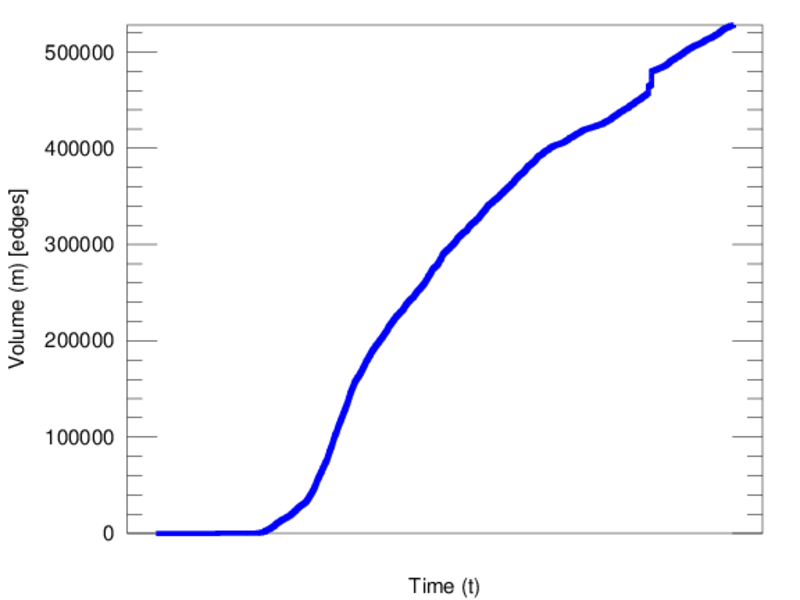

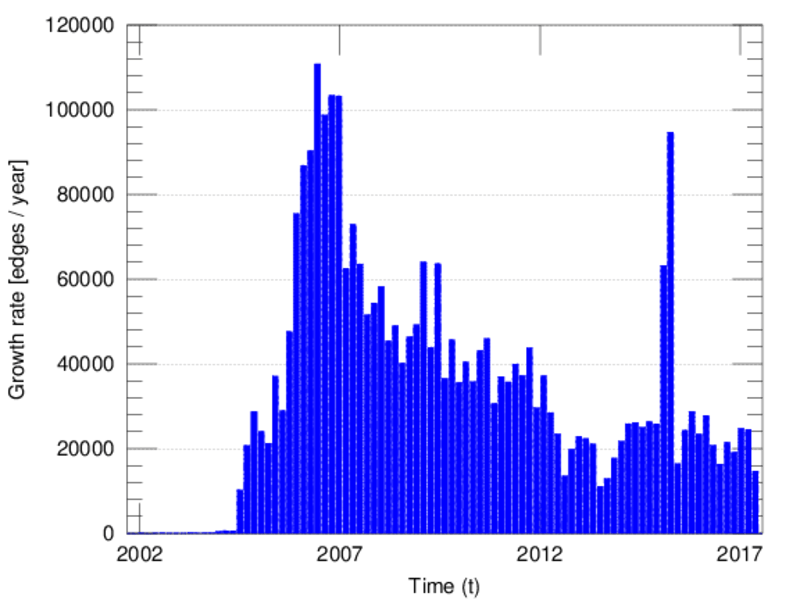

Temporal distribution

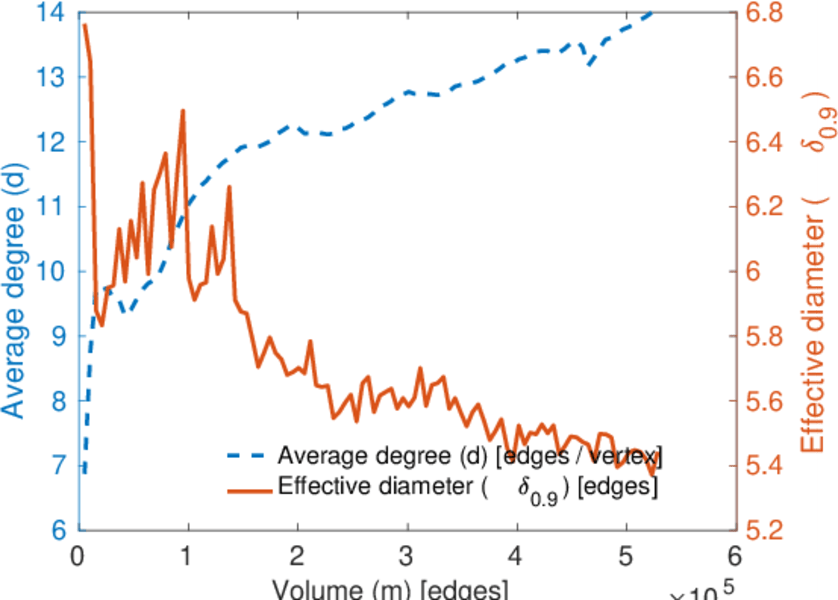

Diameter/density evolution

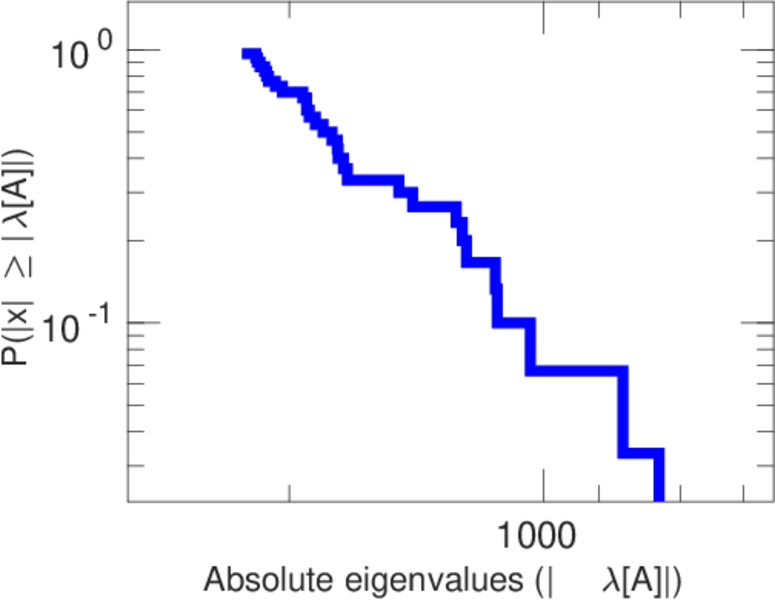

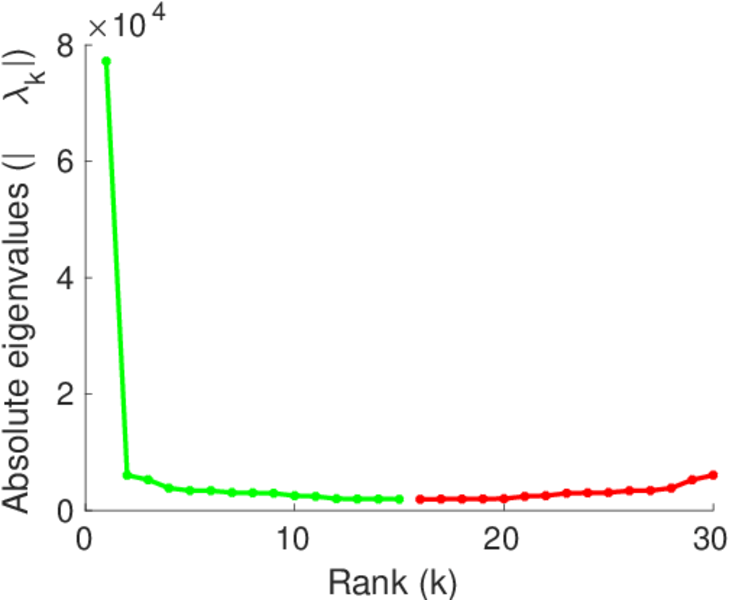

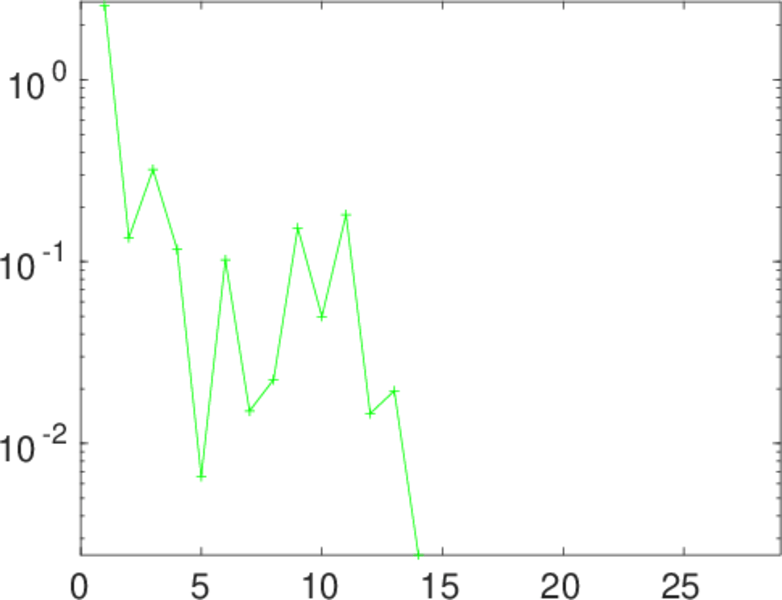

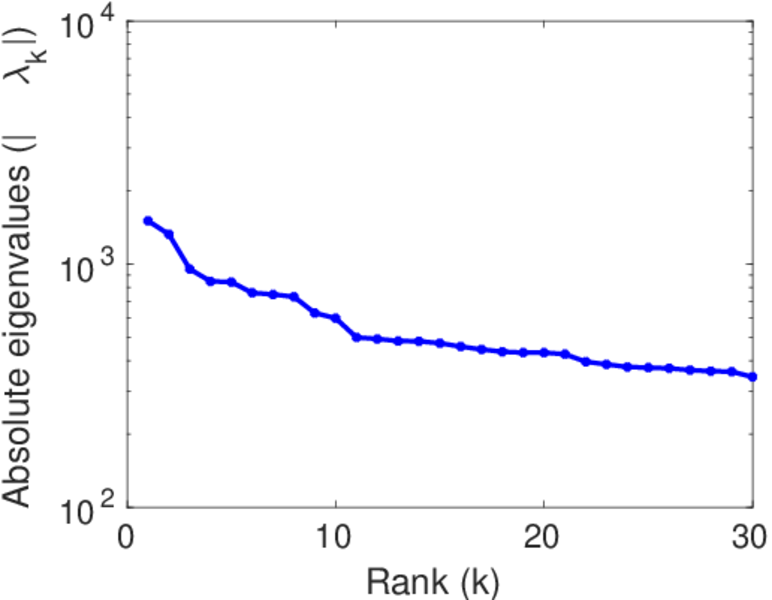

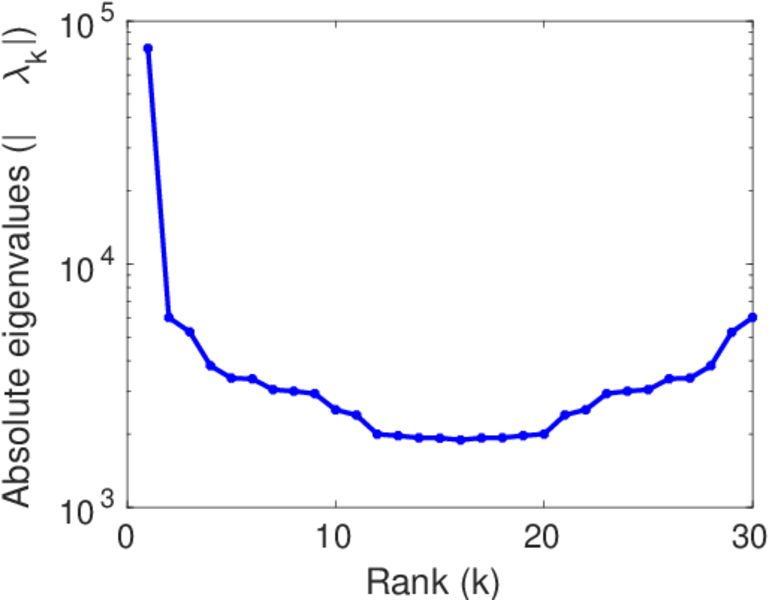

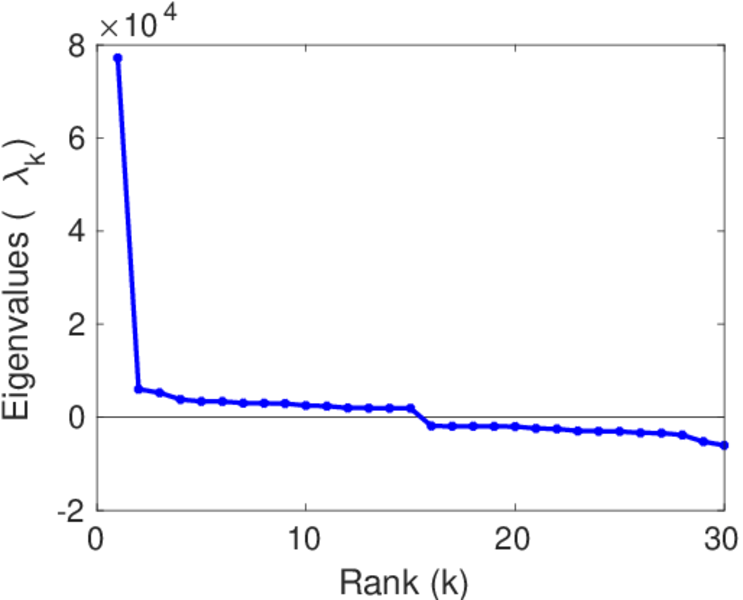

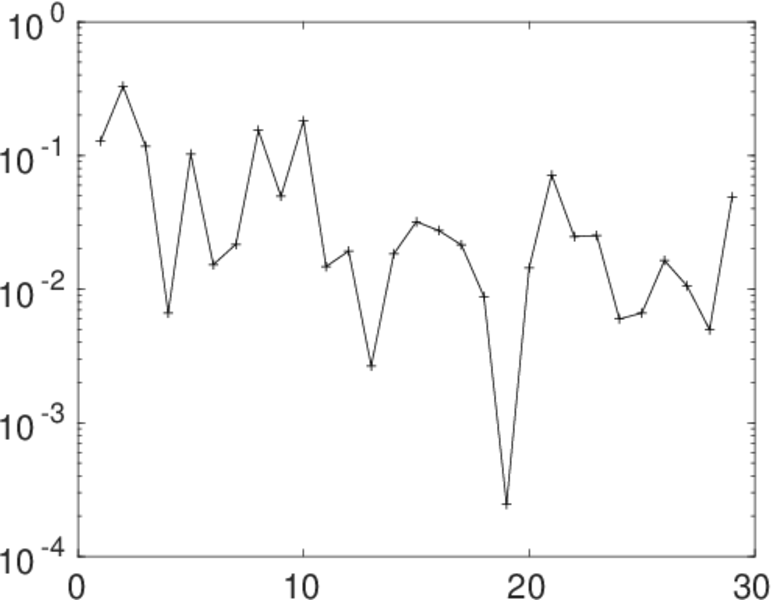

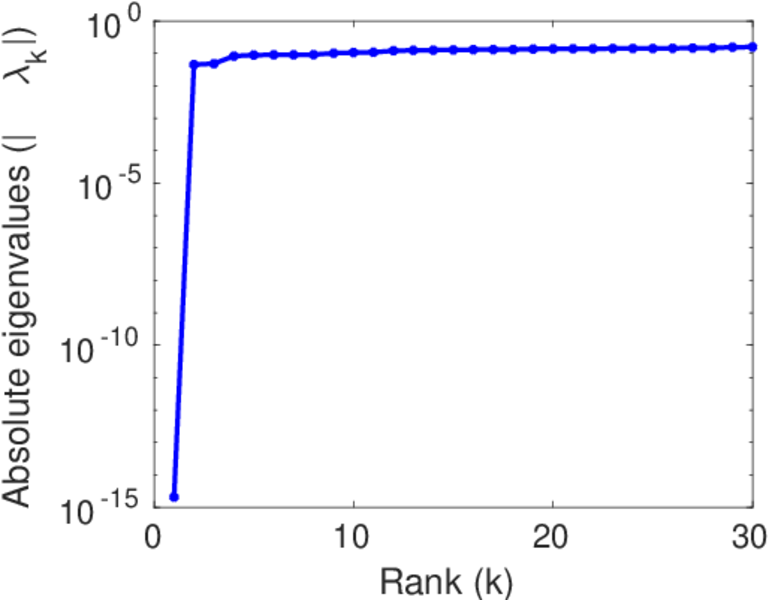

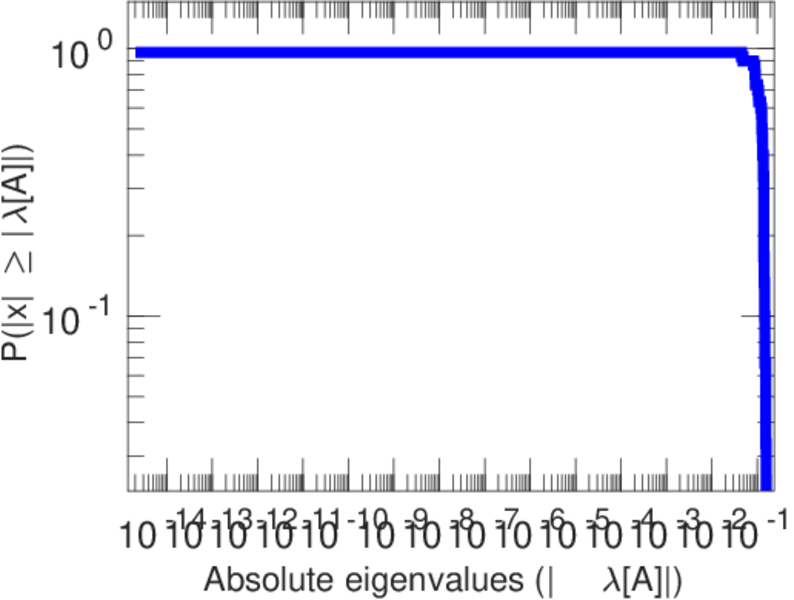

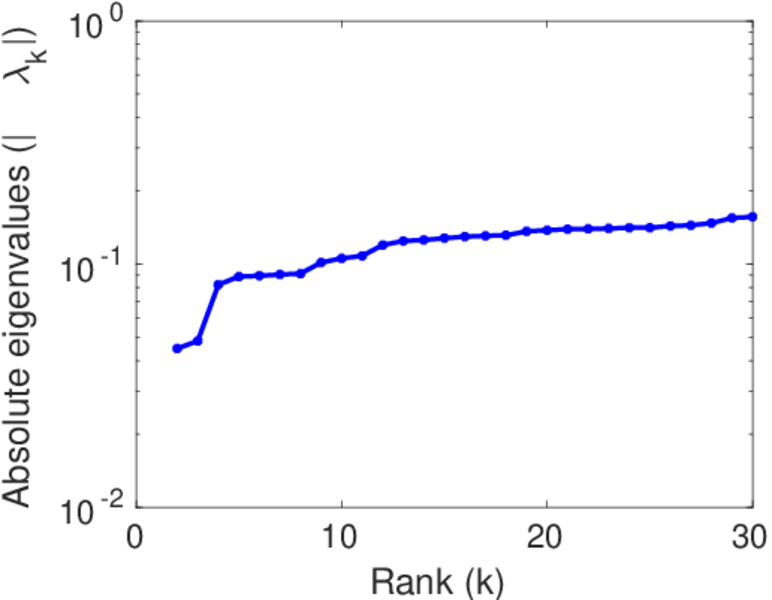

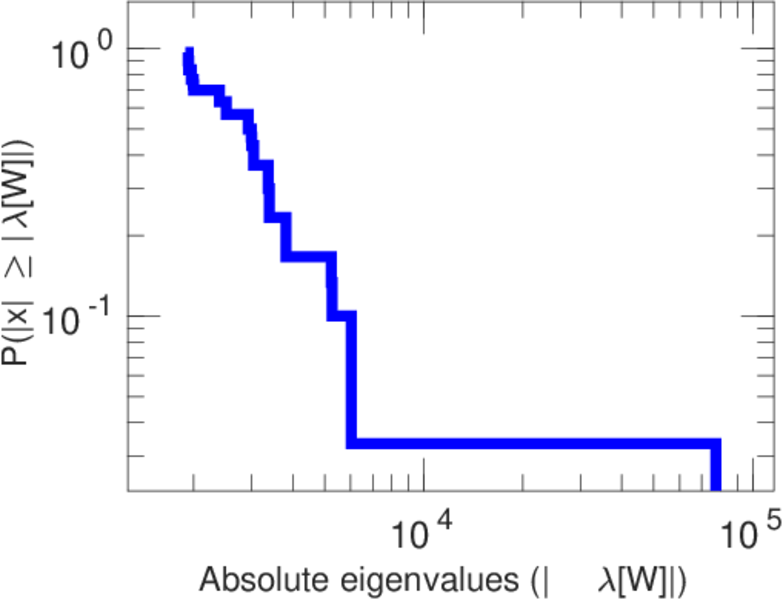

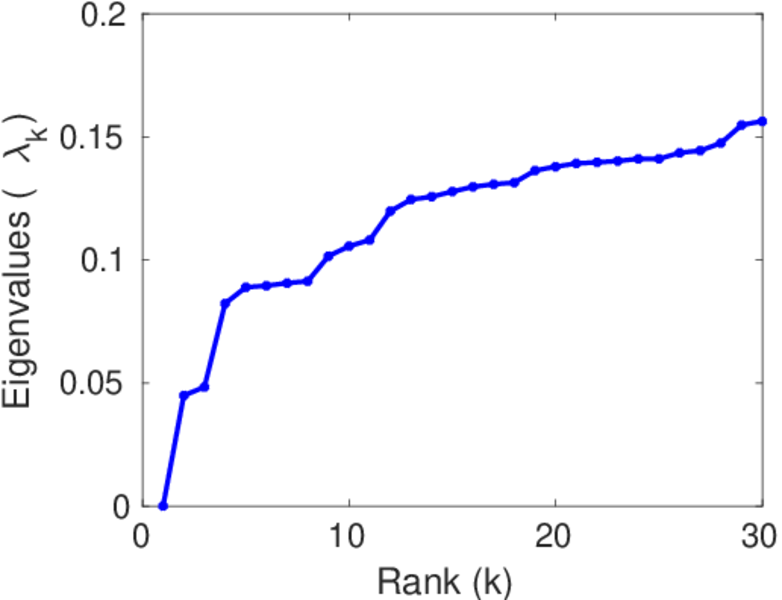

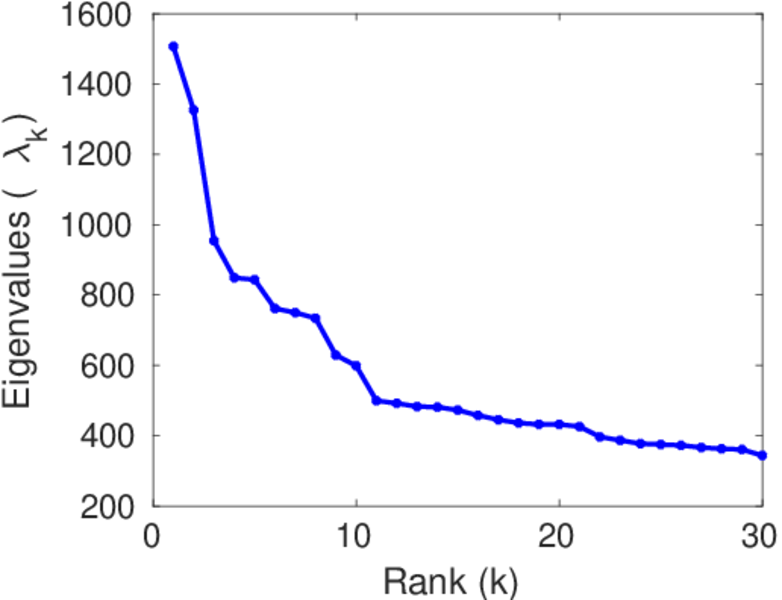

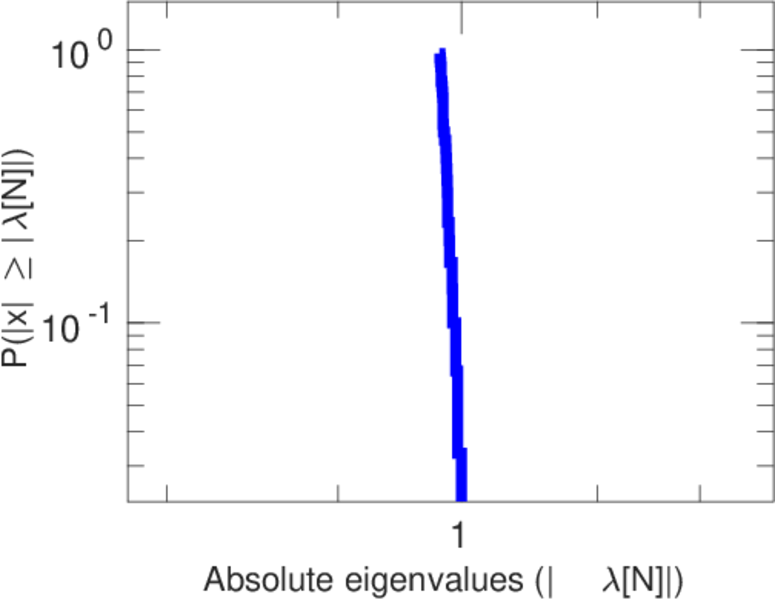

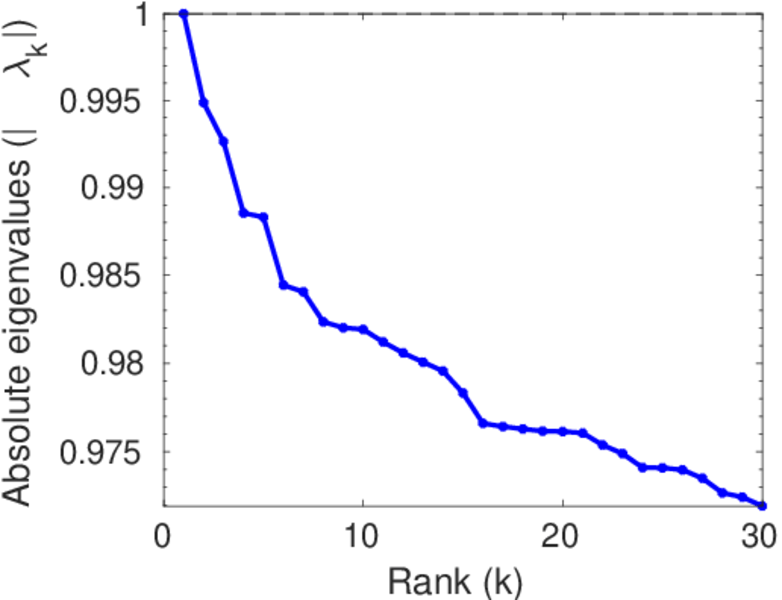

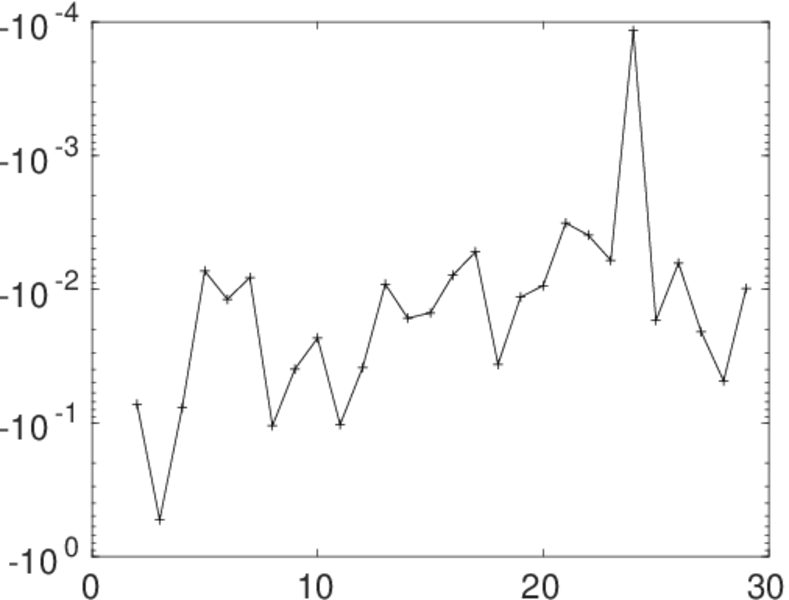

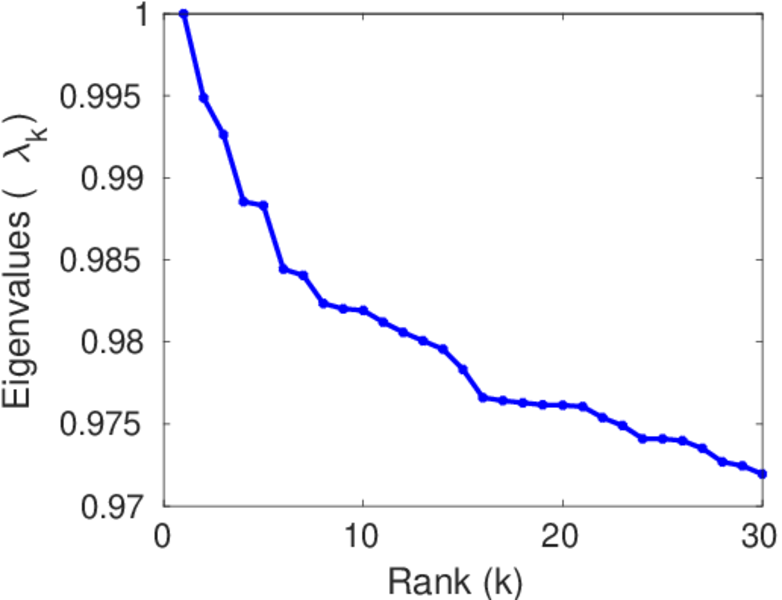

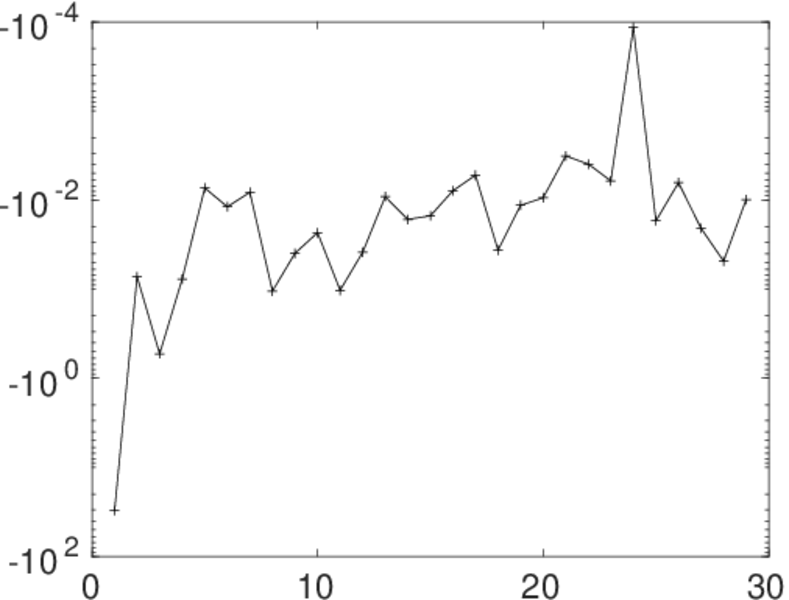

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
[2] Wikimedia Foundation. Wikimedia downloads. http://dumps.wikimedia.org/, January 2010.
