Wikibooks edits (he)

This is the bipartite edit network of the Hebrew Wikibooks. It contains users and pages from the Hebrew Wikibooks, connected by edit events. Each edge represents an edit. The dataset includes the timestamp of each edit.

Metadata

Codebhe
Internal nameedit-hewikibooks
NameWikibooks edits (he)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Authorship network
Dataset timestamp 2017-10-20
Node meaningUser, article
Edge meaningEdit
Network formatBipartite, undirected
Edge typeUnweighted, multiple edges
Temporal data Edges are annotated with timestamps

Statistics

Size n =18,548
Left size n1 =1,802
Right size n2 =16,746
Volume m =100,052
Unique edge count m̿ =36,655
Wedge count s =35,568,265
Claw count z =61,856,315,274
Cross count x =100,413,850,677,564
Square count q =3,015,983
4-Tour count T4 =166,496,766
Maximum degree dmax =17,205
Maximum left degree d1max =17,205
Maximum right degree d2max =1,499
Average degree d =10.788 4
Average left degree d1 =55.522 8
Average right degree d2 =5.974 68
Fill p =0.001 214 70
Average edge multiplicity m̃ =2.729 56
Size of LCC N =17,893
Diameter δ =13
50-Percentile effective diameter δ0.5 =3.318 48
90-Percentile effective diameter δ0.9 =3.993 38
Median distance δM =4
Mean distance δm =3.594 14
Gini coefficient G =0.794 040
Balanced inequality ratio P =0.181 745
Left balanced inequality ratio P1 =0.087 214 6
Right balanced inequality ratio P2 =0.258 865
Relative edge distribution entropy Her =0.774 342
Power law exponent γ =2.682 43
Tail power law exponent γt =2.751 00
Tail power law exponent with p γ3 =2.751 00
p-value p =0.000 00
Left tail power law exponent with p γ3,1 =1.761 00
Left p-value p1 =0.721 000
Right tail power law exponent with p γ3,2 =3.401 00
Right p-value p2 =0.261 000
Degree assortativity ρ =−0.155 873
Degree assortativity p-value pρ =4.583 25 × 10−198
Spectral norm α =542.005
Algebraic connectivity a =0.028 913 5
Spectral separation 1[A] / λ2[A]| =1.181 81
Controllability C =15,091
Relative controllability Cr =0.828 766

Plots

Fruchterman–Reingold graph drawing

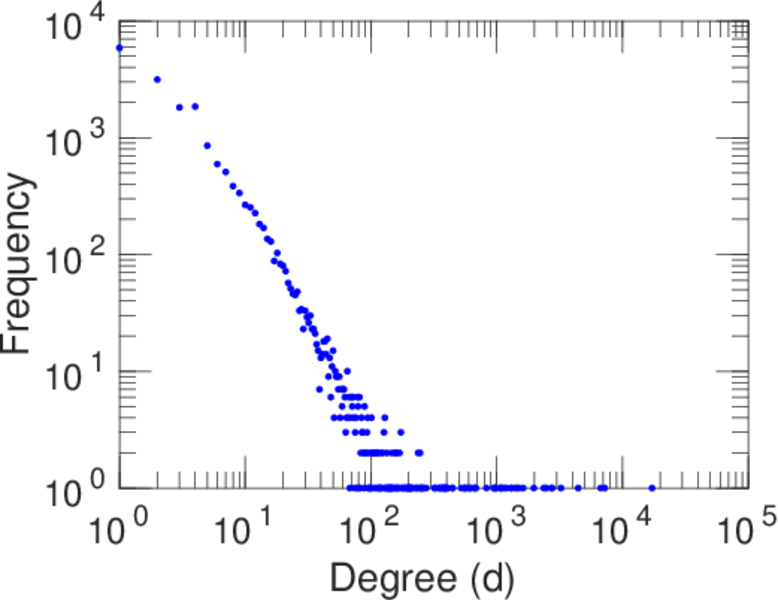

Degree distribution

Cumulative degree distribution

Lorenz curve

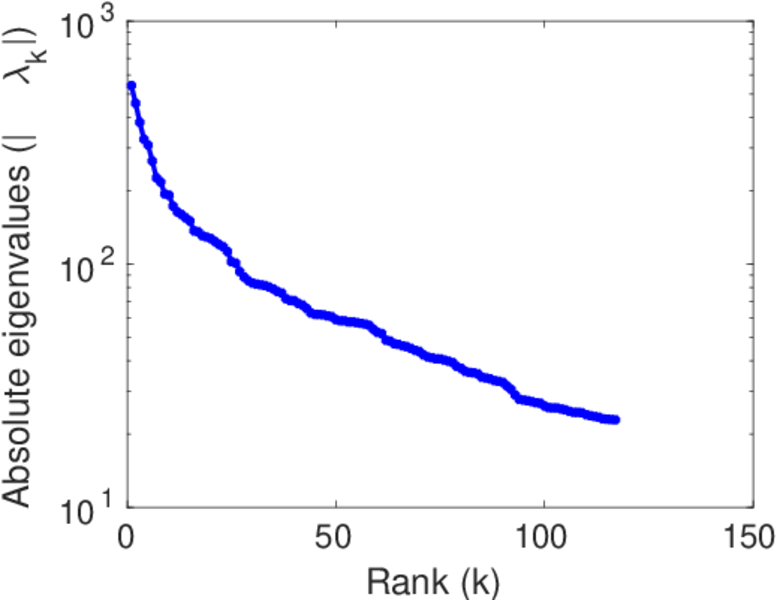

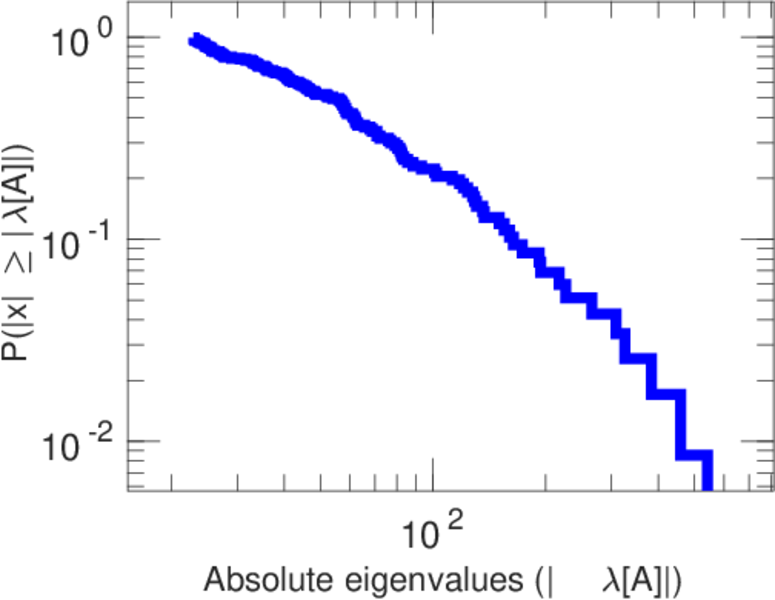

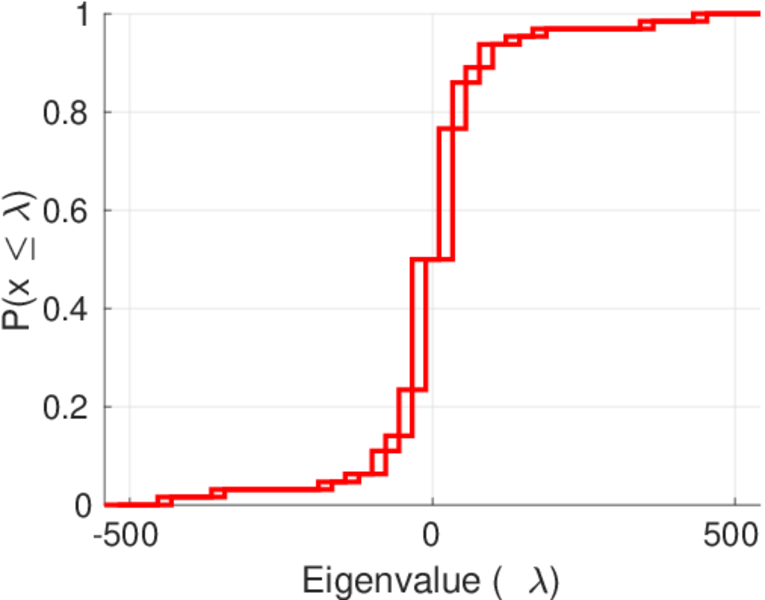

Spectral distribution of the adjacency matrix

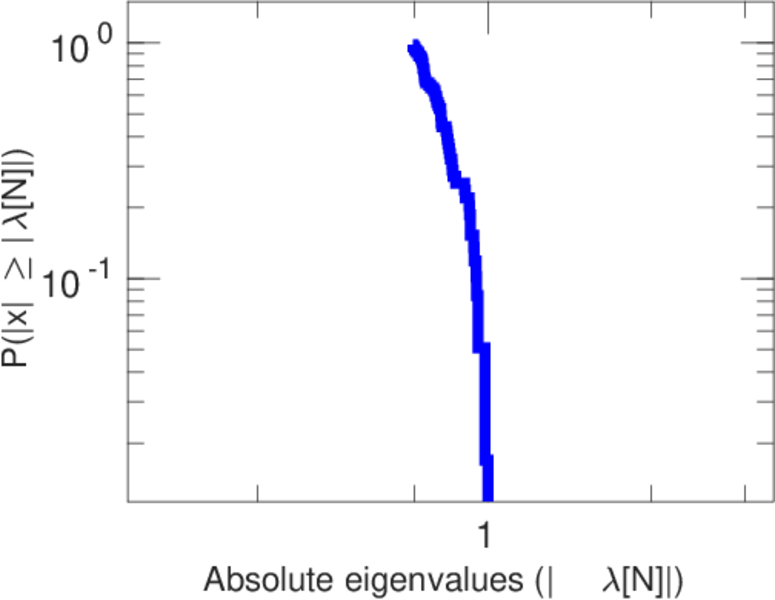

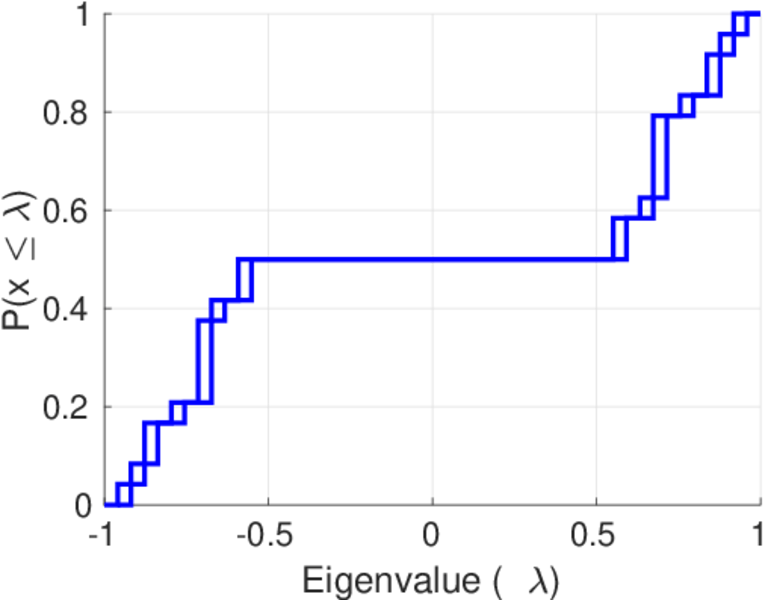

Spectral distribution of the normalized adjacency matrix

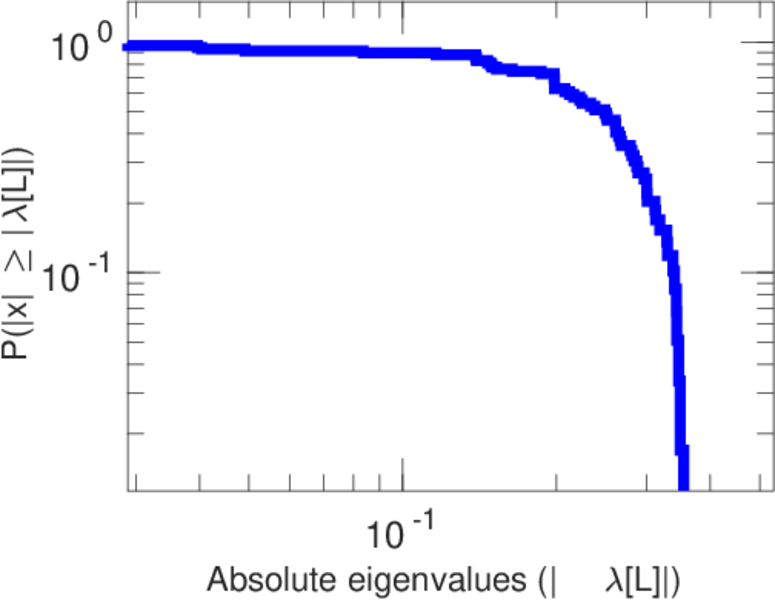

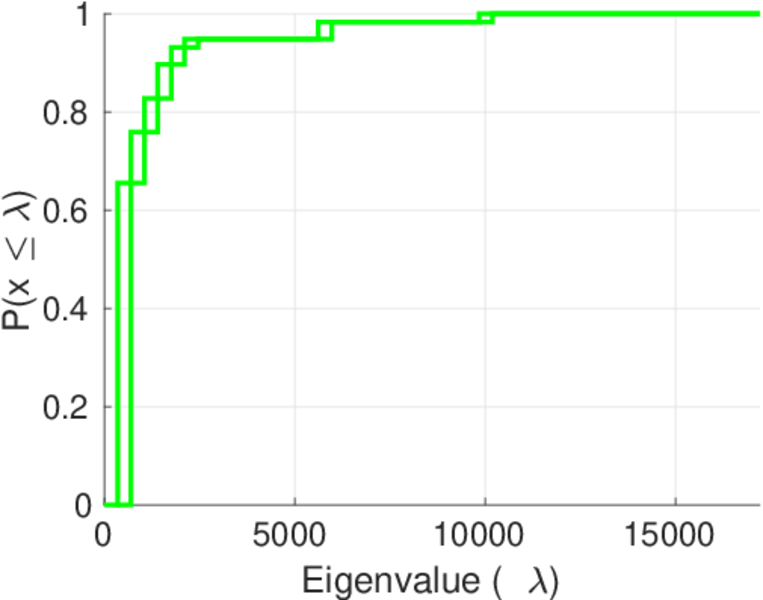

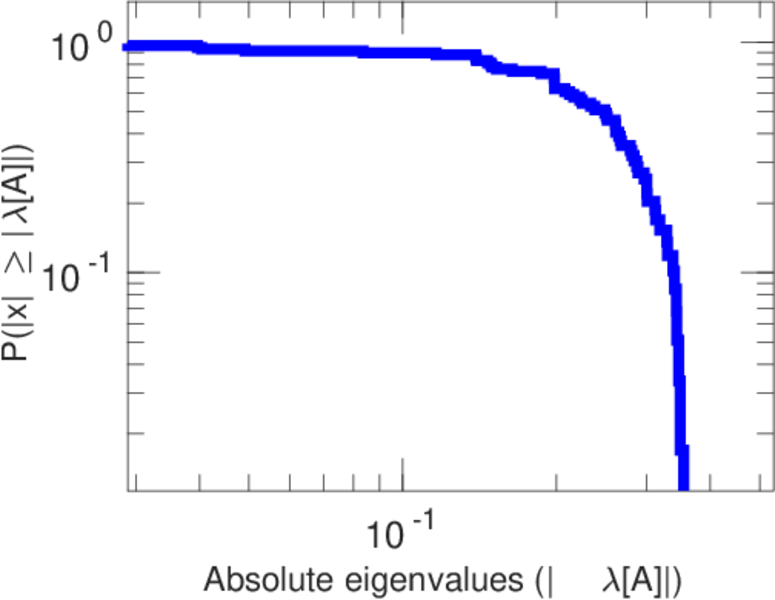

Spectral distribution of the Laplacian

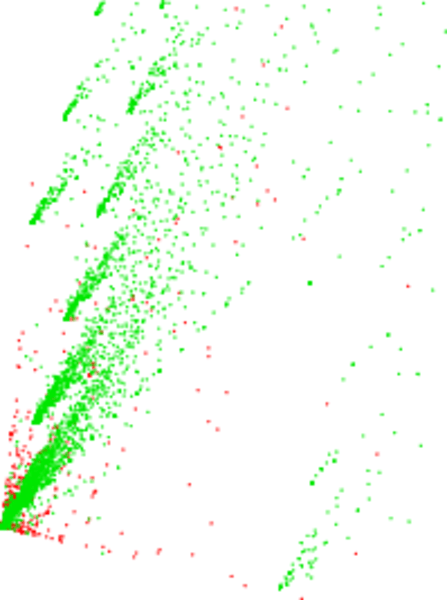

Spectral graph drawing based on the adjacency matrix

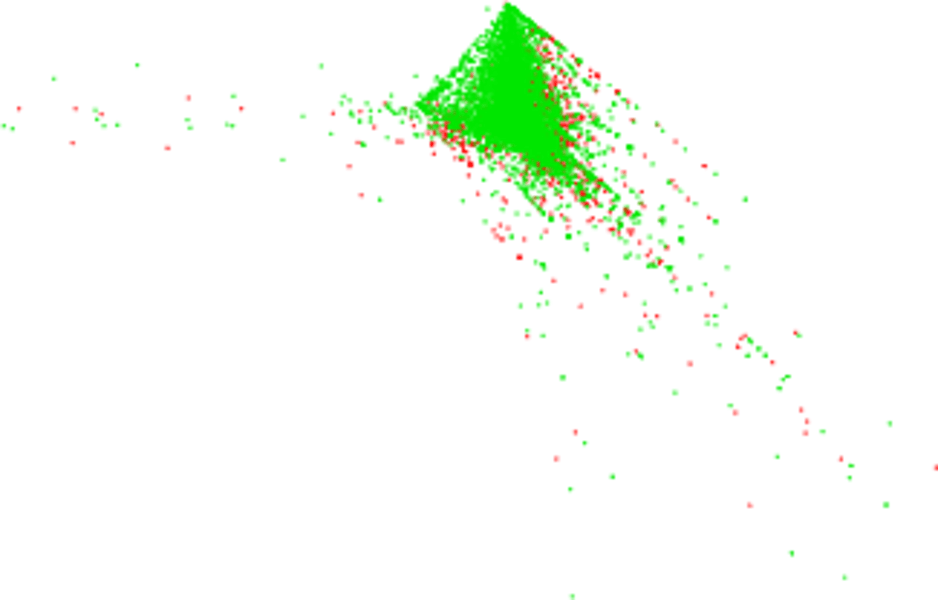

Spectral graph drawing based on the Laplacian

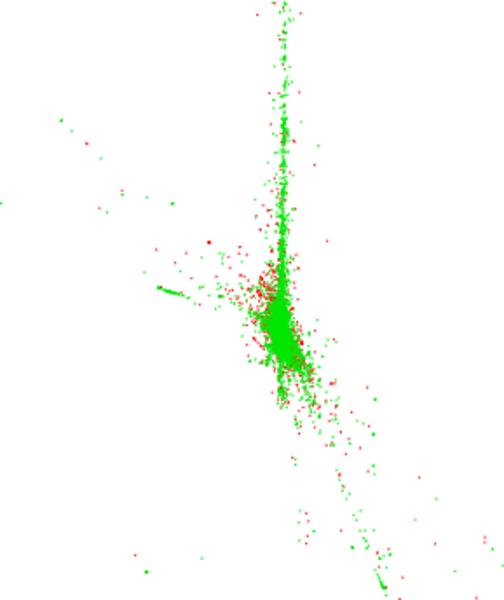

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

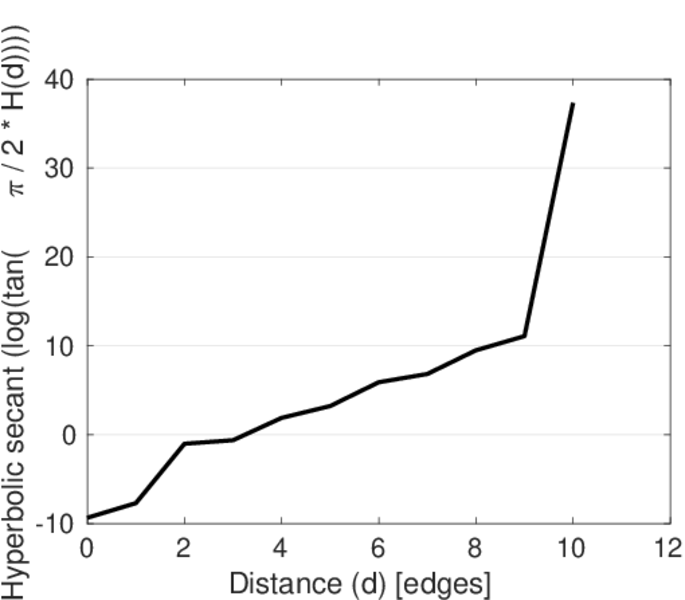

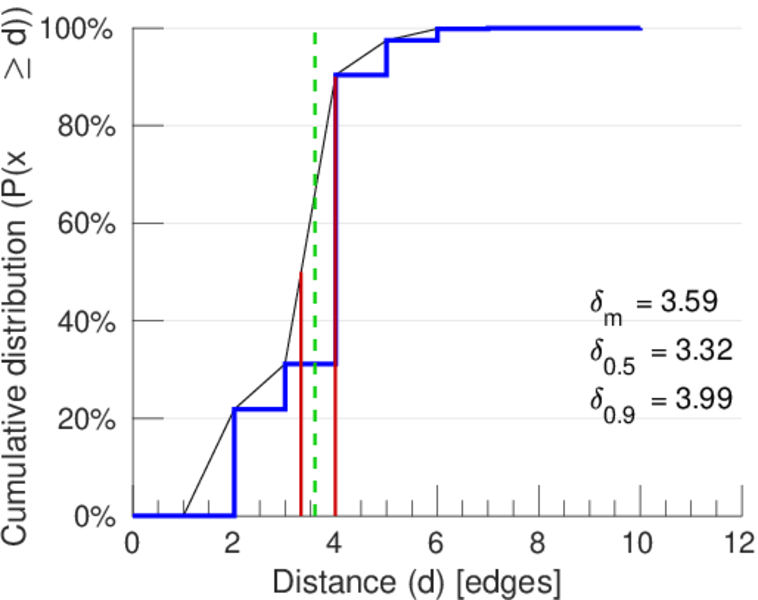

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

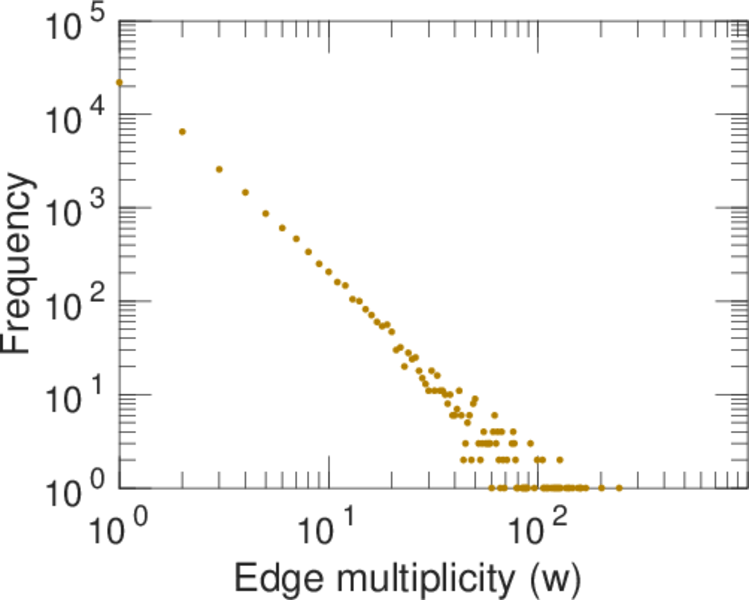

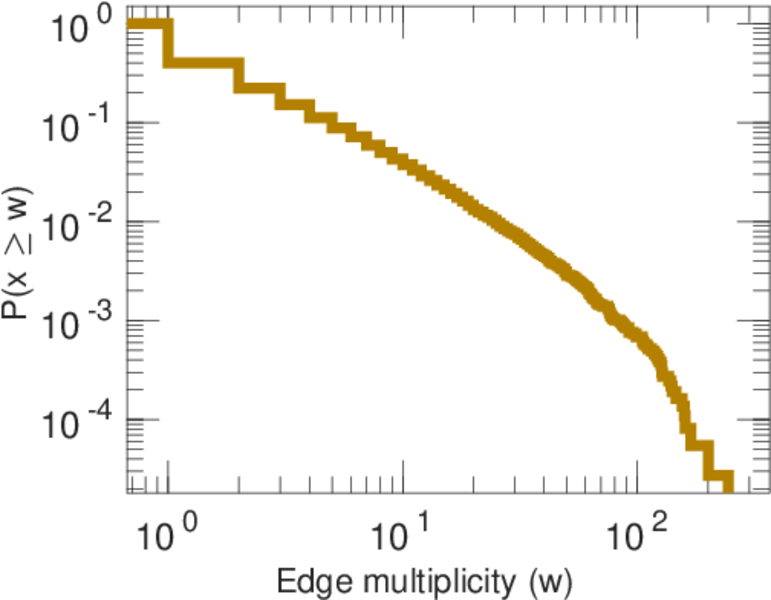

Edge weight/multiplicity distribution

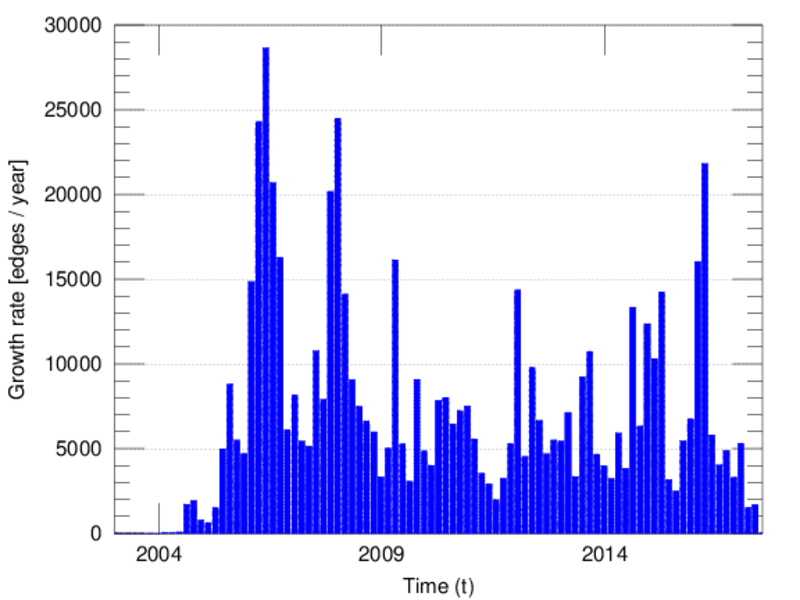

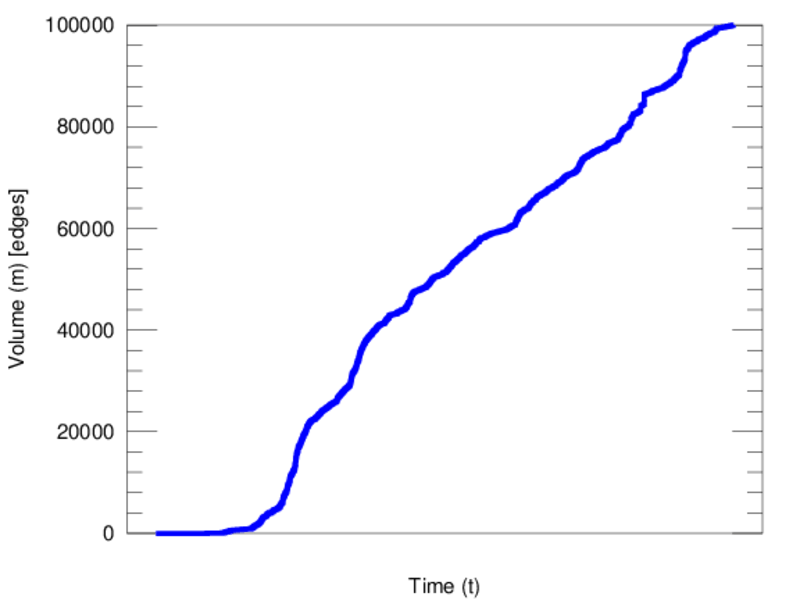

Temporal distribution

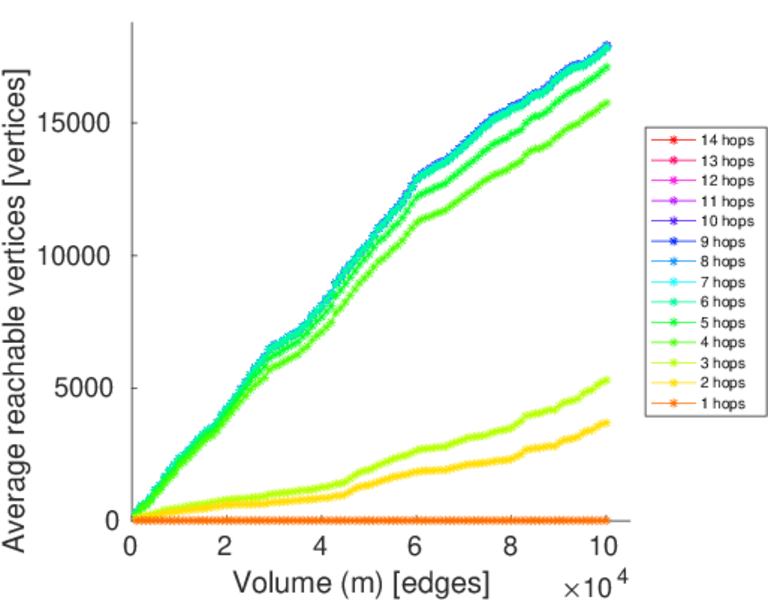

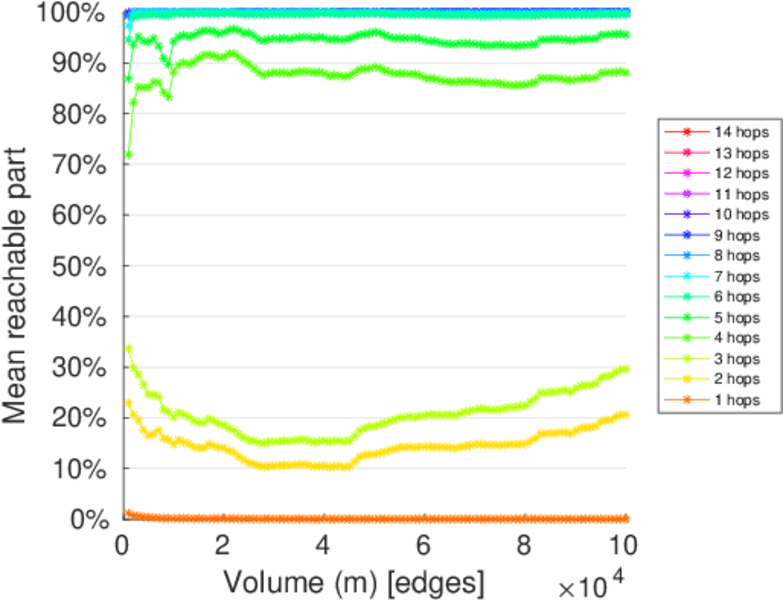

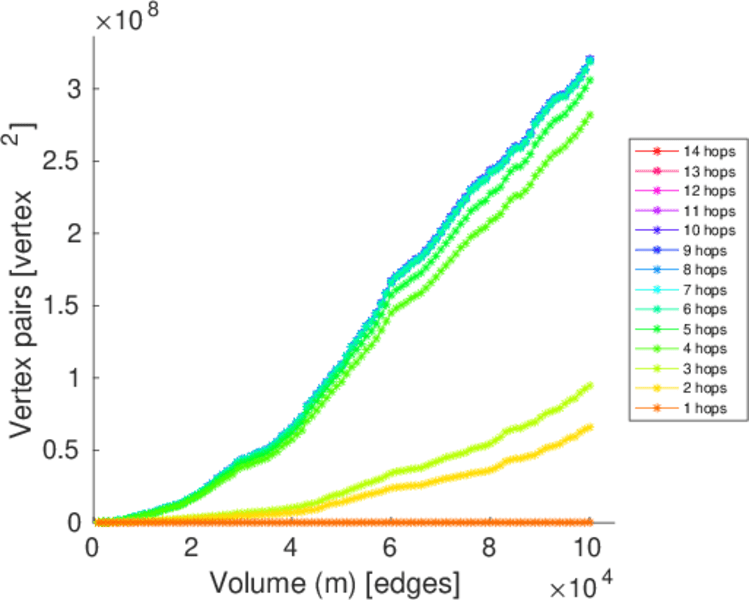

Temporal hop distribution

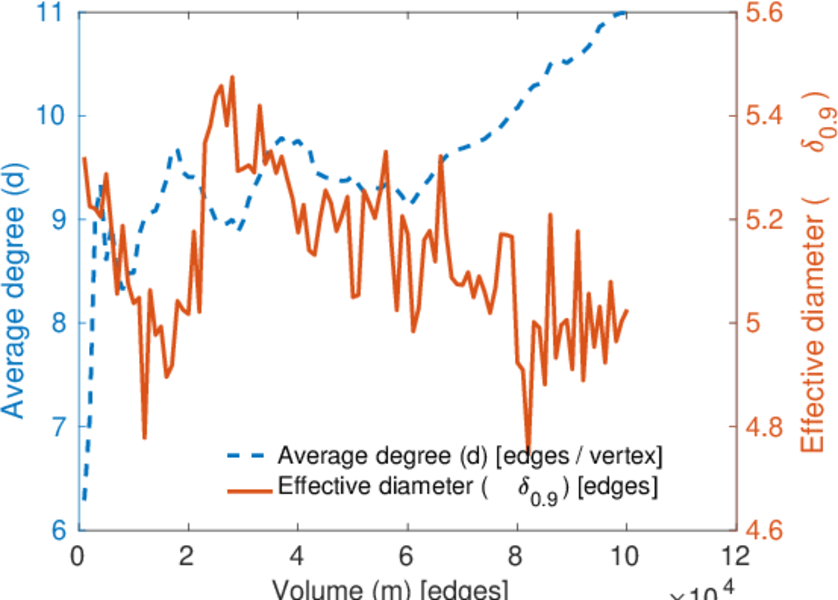

Diameter/density evolution

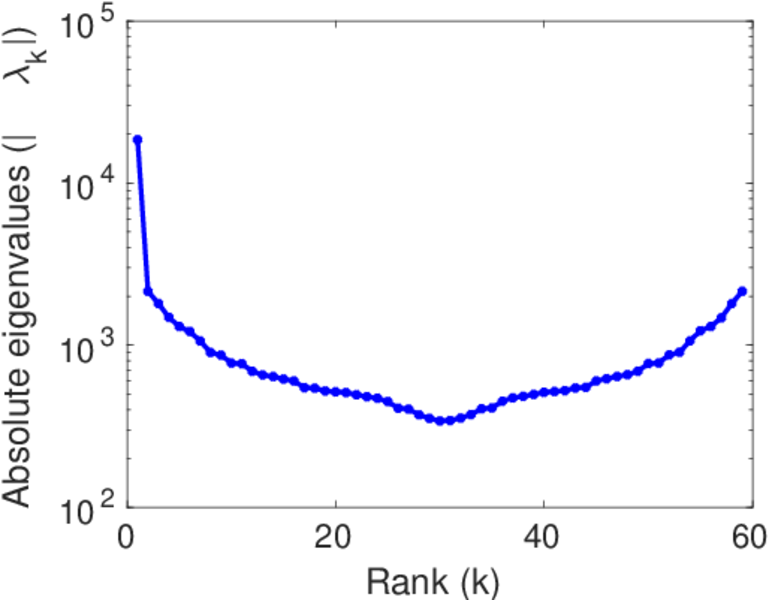

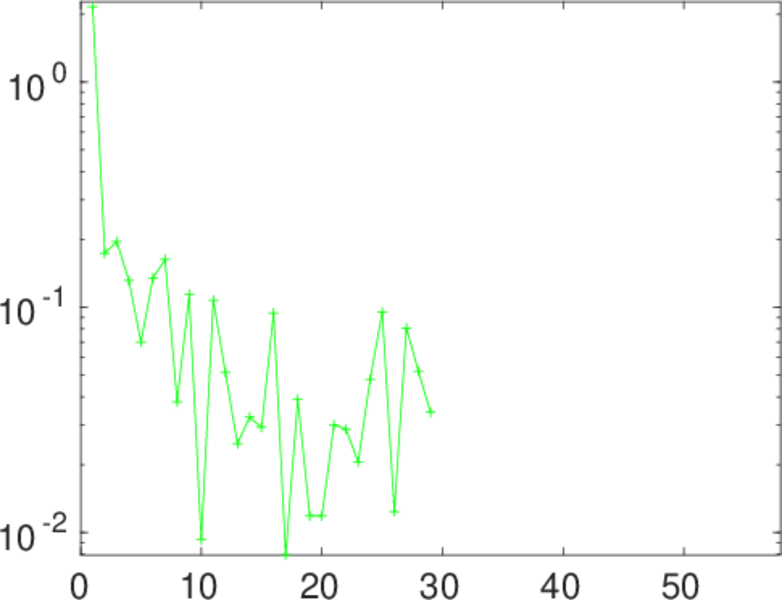

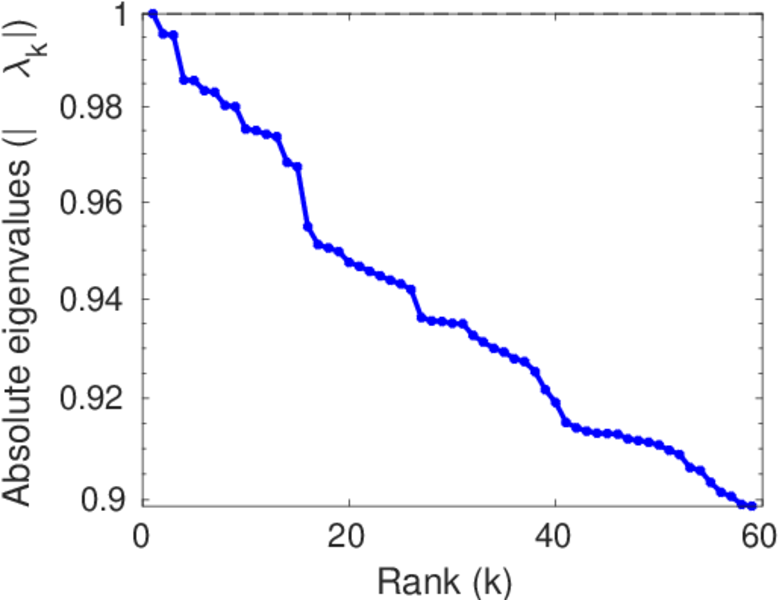

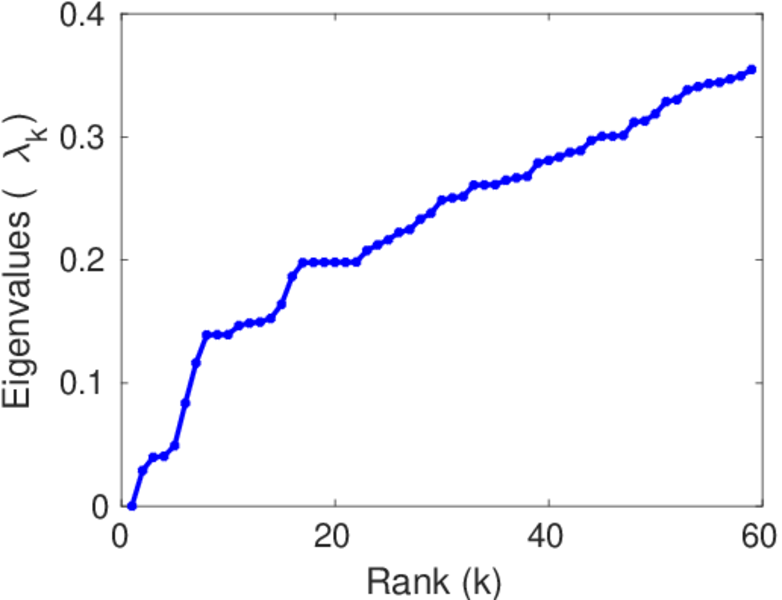

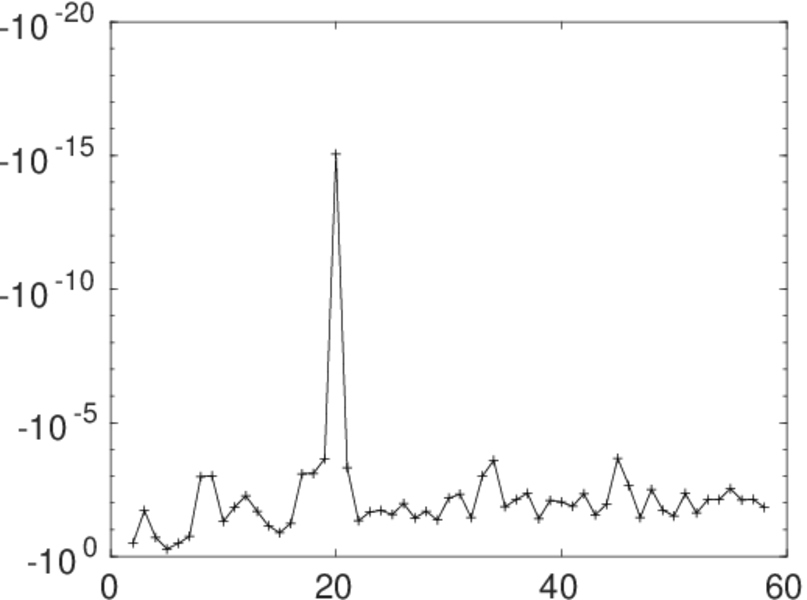

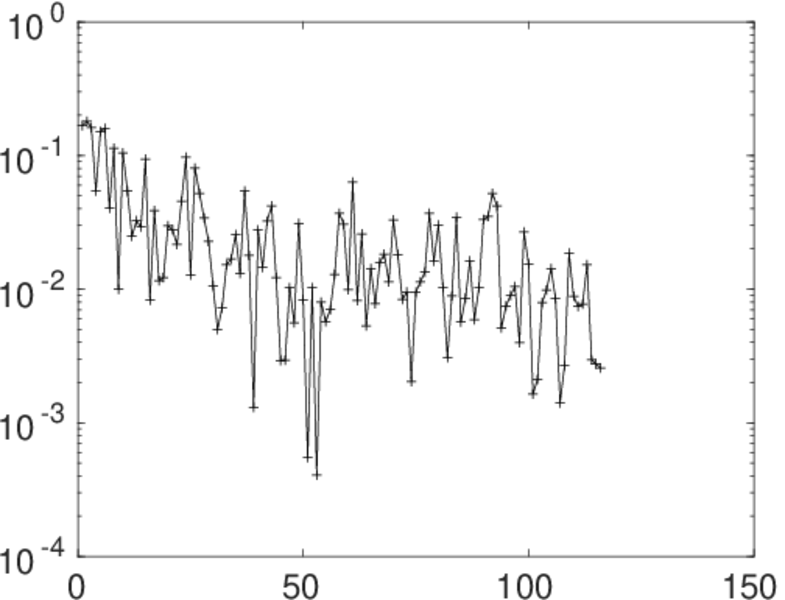

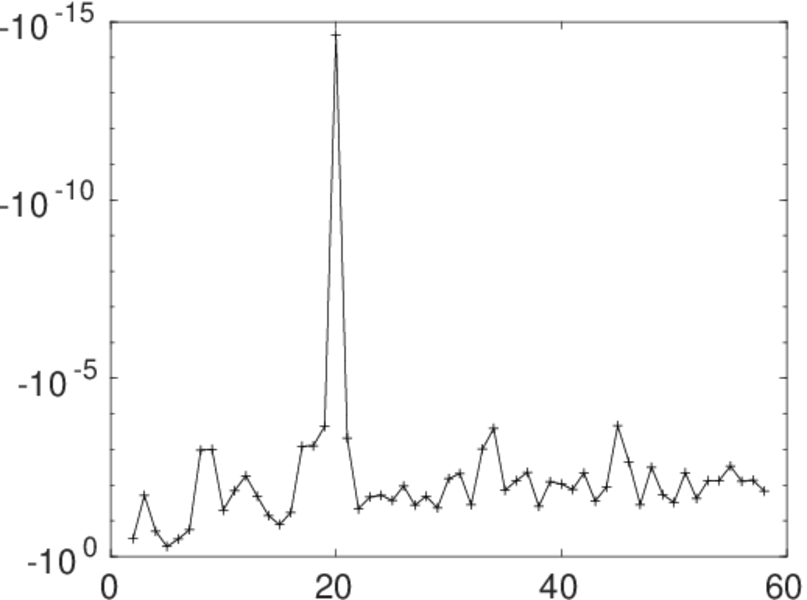

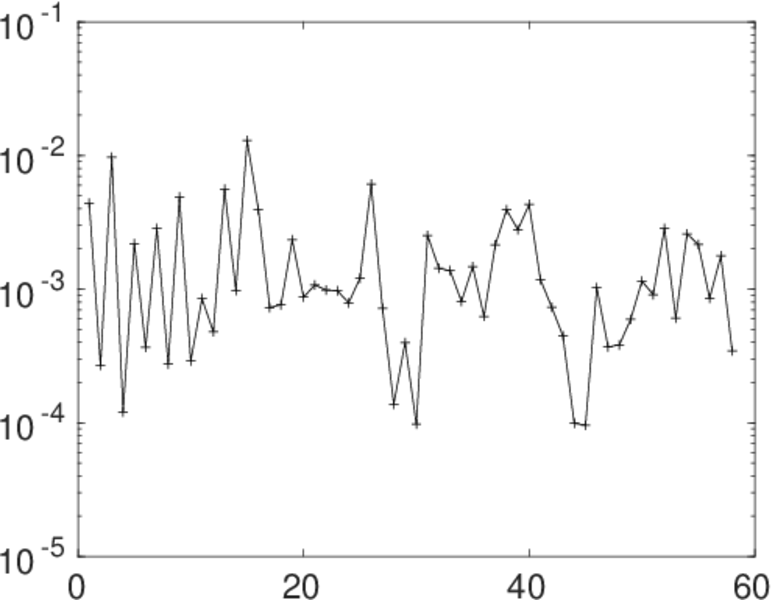

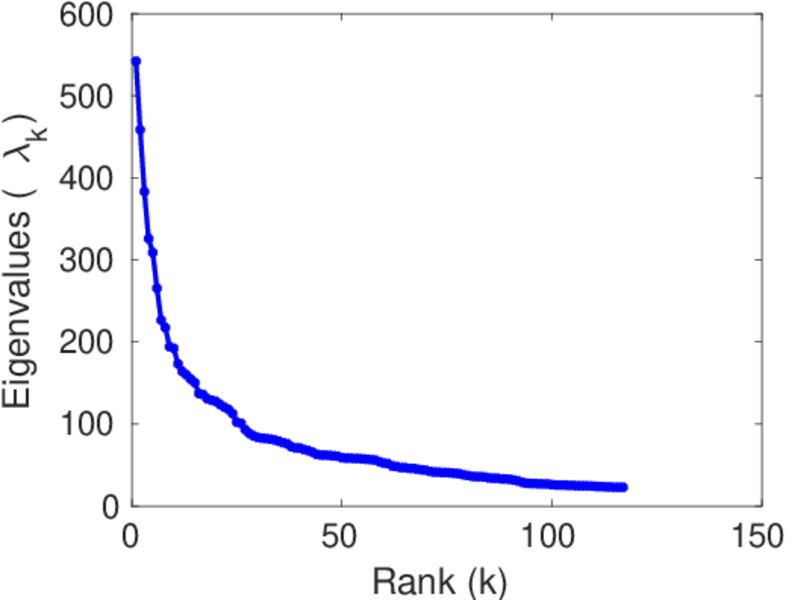

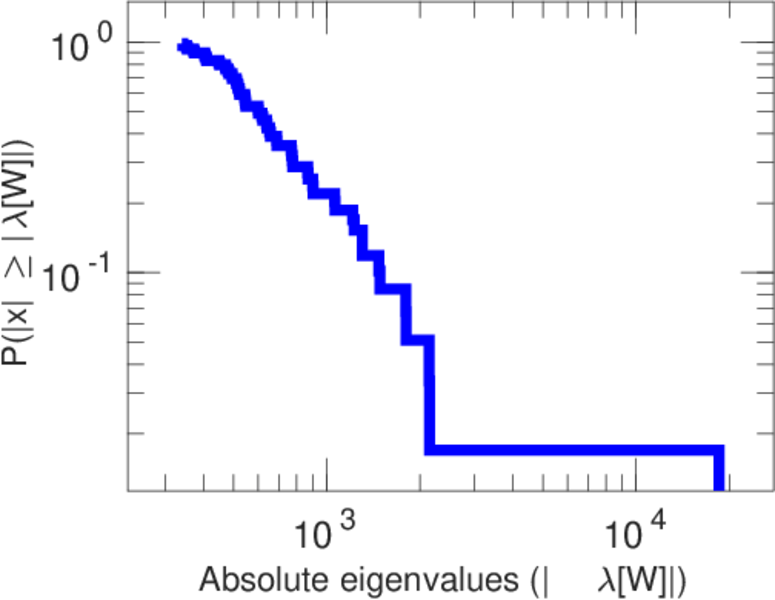

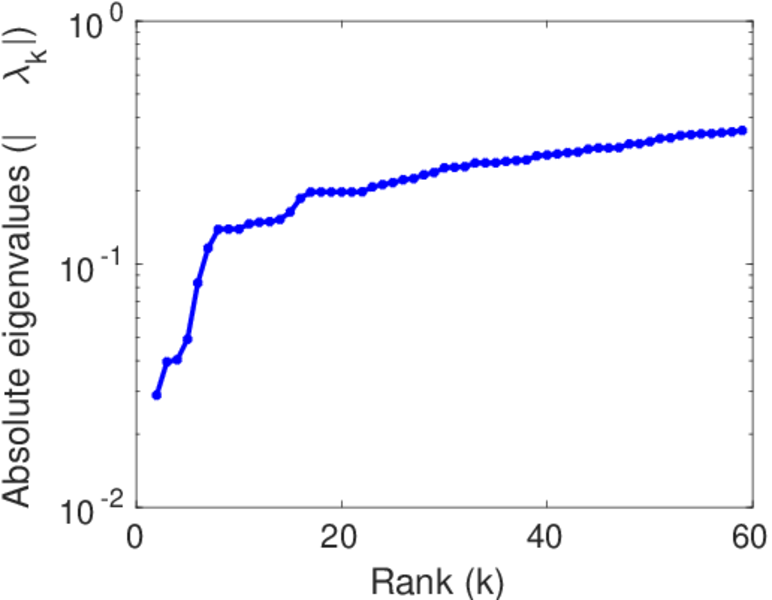

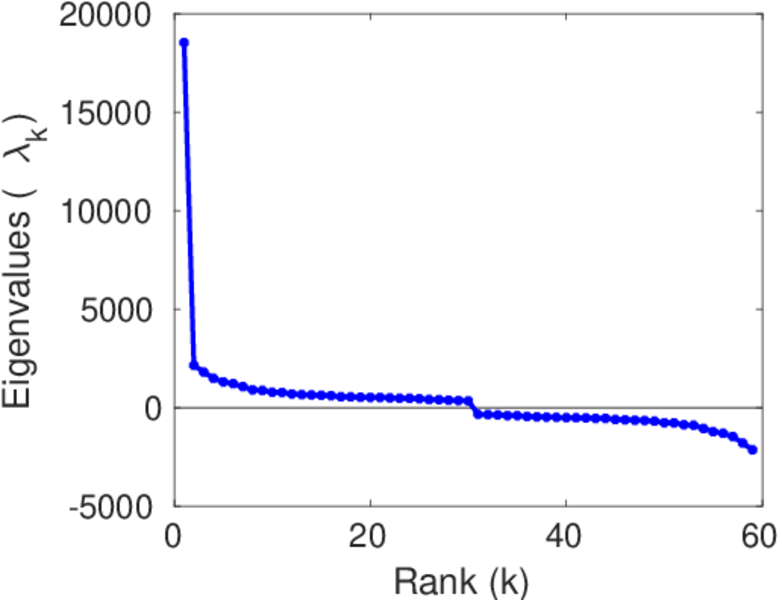

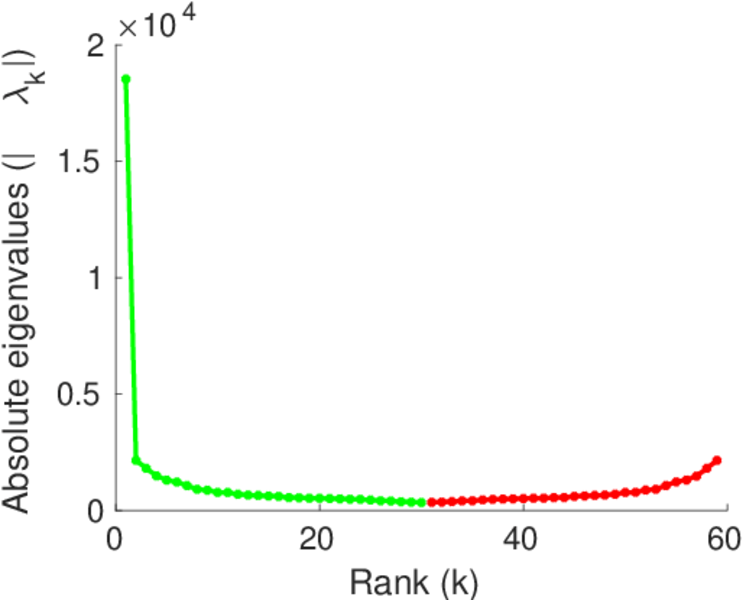

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
[2] Wikimedia Foundation. Wikimedia downloads. http://dumps.wikimedia.org/, January 2010.
