Wikibooks edits (ln)

This is the bipartite edit network of the Lingala Wikibooks. It contains users and pages from the Lingala Wikibooks, connected by edit events. Each edge represents an edit. The dataset includes the timestamp of each edit.


Internal nameedit-lnwikibooks
NameWikibooks edits (ln)
Data source
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Authorship network
Dataset timestamp 2017-10-20
Node meaningUser, article
Edge meaningEdit
Network formatBipartite, undirected
Edge typeUnweighted, multiple edges
Temporal data Edges are annotated with timestamps


Size n =114
Left size n1 =26
Right size n2 =88
Volume m =195
Unique edge count m̿ =129
Wedge count s =866
Claw count z =5,819
Cross count x =32,874
Square count q =288
4-Tour count T4 =6,106
Maximum degree dmax =51
Maximum left degree d1max =51
Maximum right degree d2max =7
Average degree d =3.421 05
Average left degree d1 =7.500 00
Average right degree d2 =2.215 91
Fill p =0.056 381 1
Average edge multiplicity m̃ =1.511 63
Size of LCC N =73
Diameter δ =14
50-Percentile effective diameter δ0.5 =5.026 29
90-Percentile effective diameter δ0.9 =9.063 89
Median distance δM =6
Mean distance δm =5.468 54
Gini coefficient G =0.574 419
Balanced inequality ratio P =0.284 615
Left balanced inequality ratio P1 =0.210 256
Right balanced inequality ratio P2 =0.364 103
Relative edge distribution entropy Her =0.893 242
Power law exponent γ =3.012 67
Tail power law exponent with p γ3 =2.311 00
p-value p =0.431 000
Left tail power law exponent with p γ3,1 =1.951 00
Left p-value p1 =0.598 000
Right tail power law exponent with p γ3,2 =6.281 00
Right p-value p2 =0.388 000
Degree assortativity ρ =+0.338 628
Degree assortativity p-value pρ =8.663 94 × 10−5
Spectral norm α =13.773 0
Algebraic connectivity a =0.018 517 5
Spectral separation 1[A] / λ2[A]| =1.242 47
Controllability C =62
Relative controllability Cr =0.553 571


Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

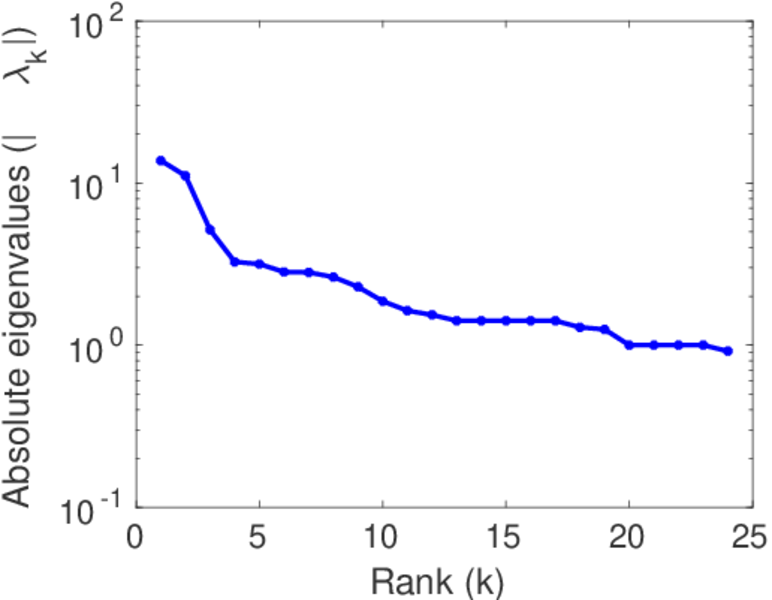

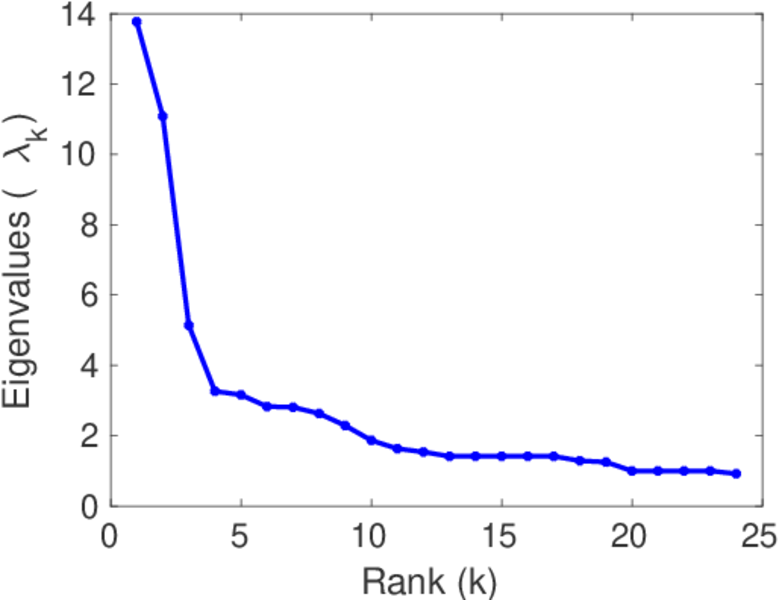

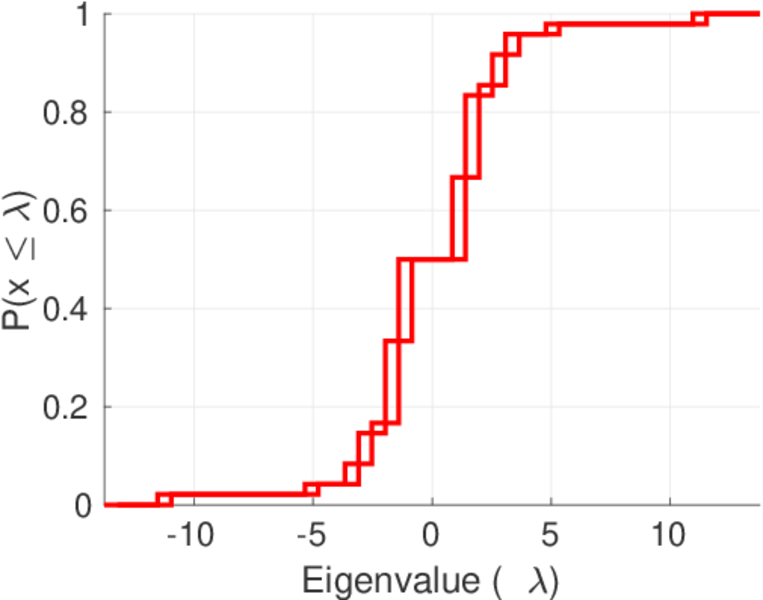

Spectral distribution of the adjacency matrix

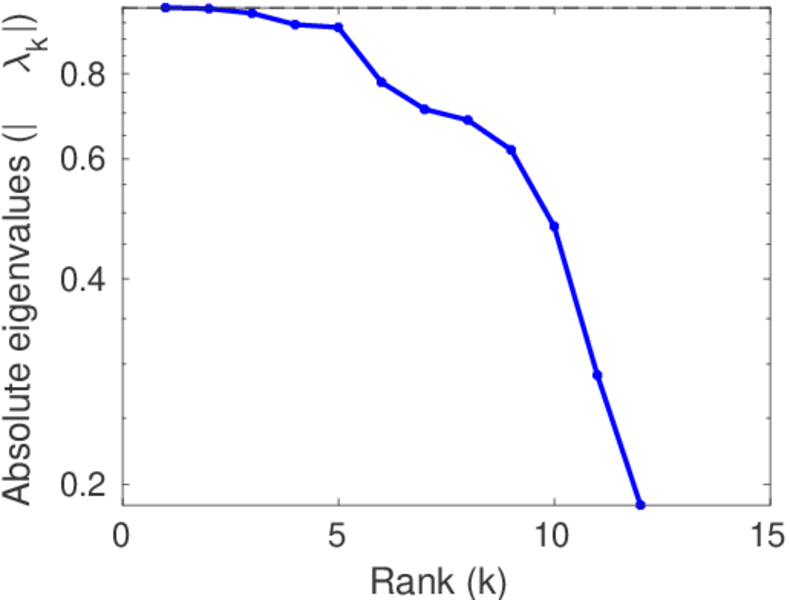

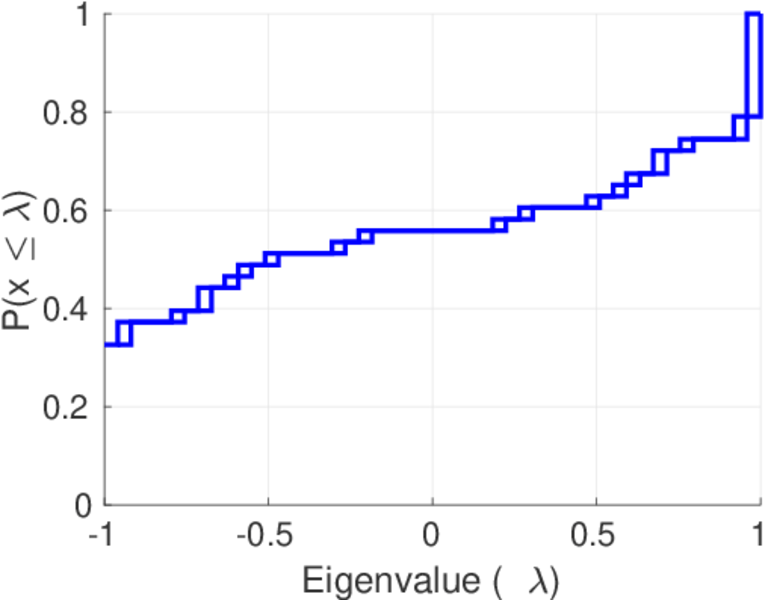

Spectral distribution of the normalized adjacency matrix

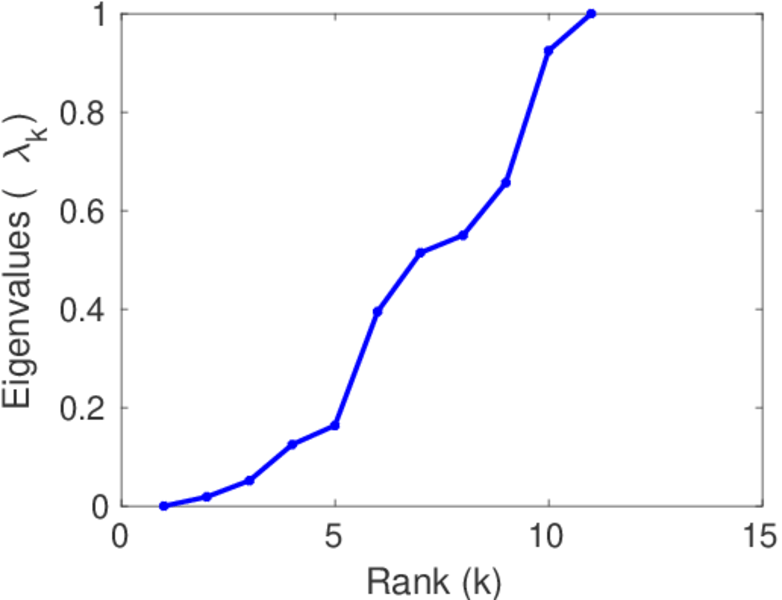

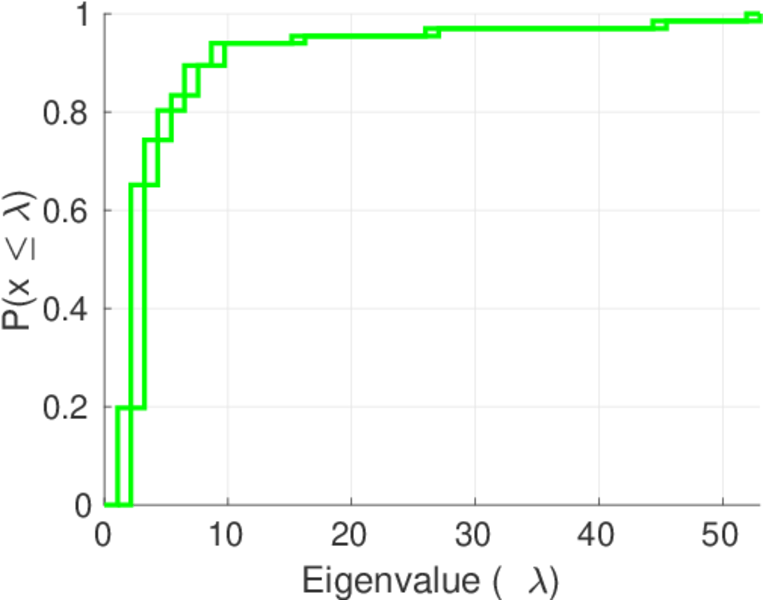

Spectral distribution of the Laplacian

Spectral graph drawing based on the adjacency matrix

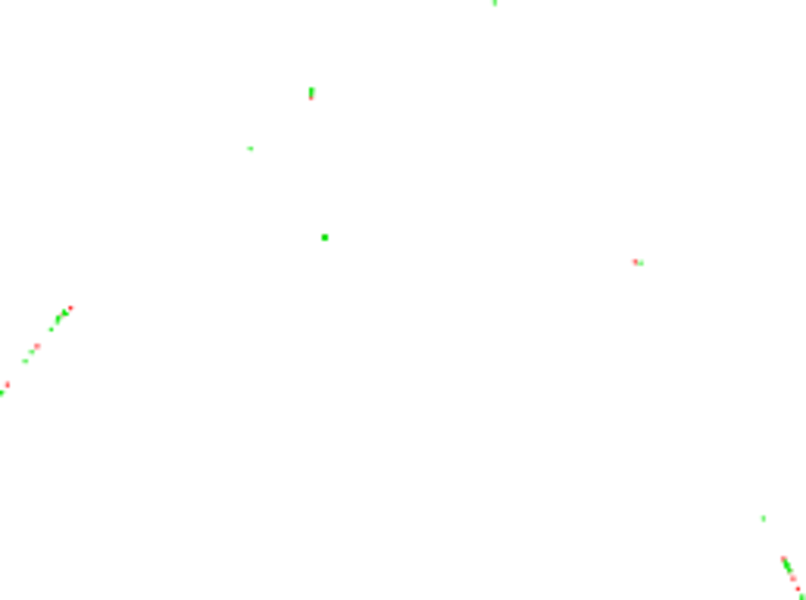

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

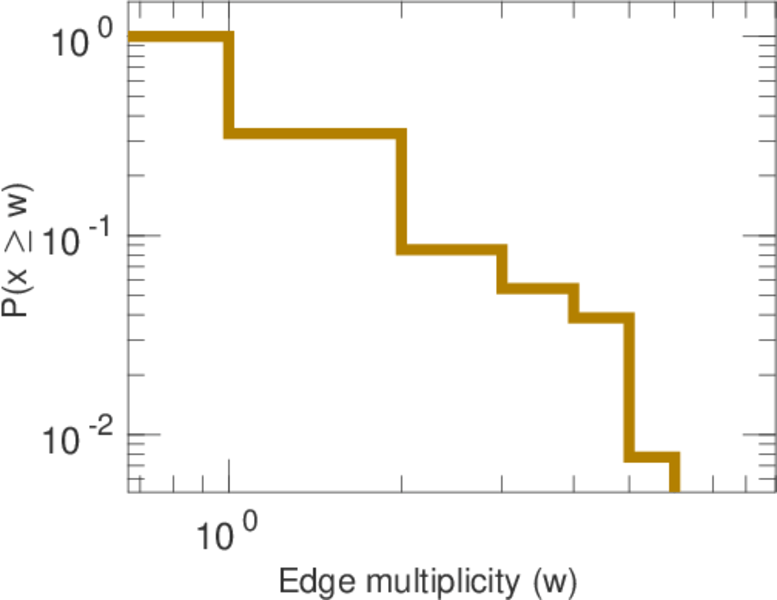

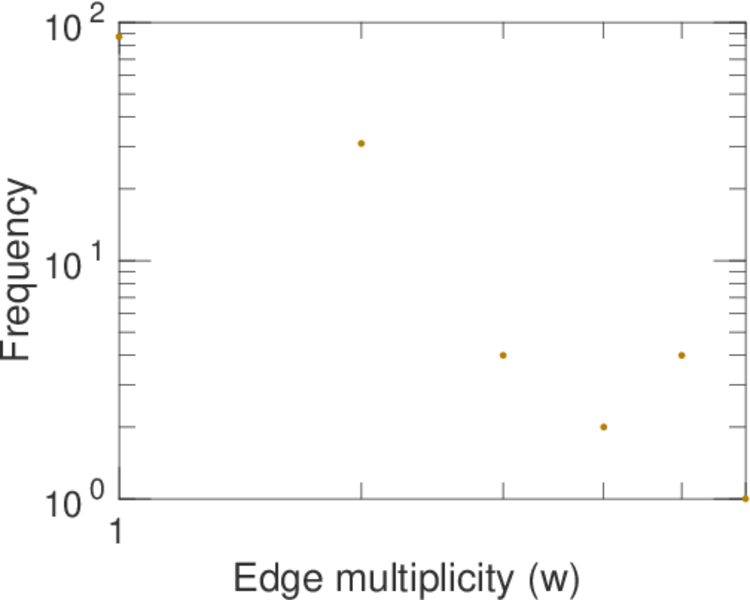

Edge weight/multiplicity distribution

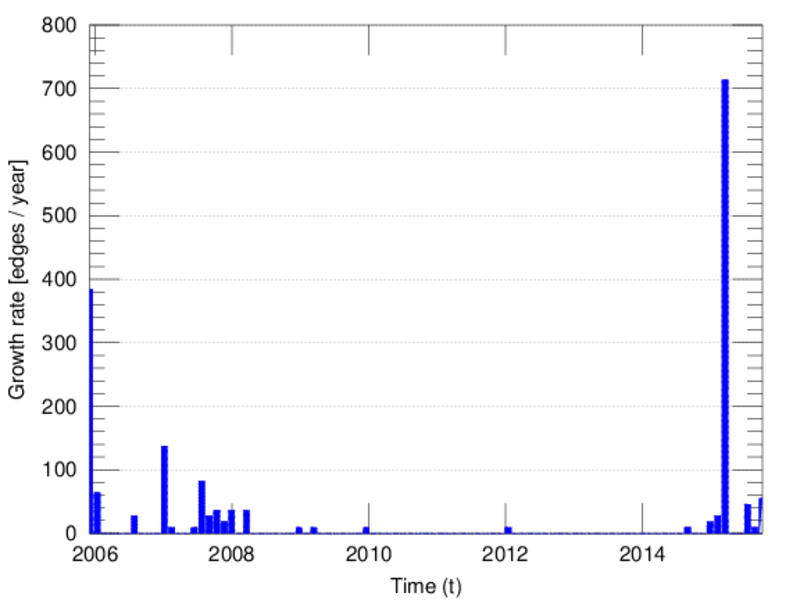

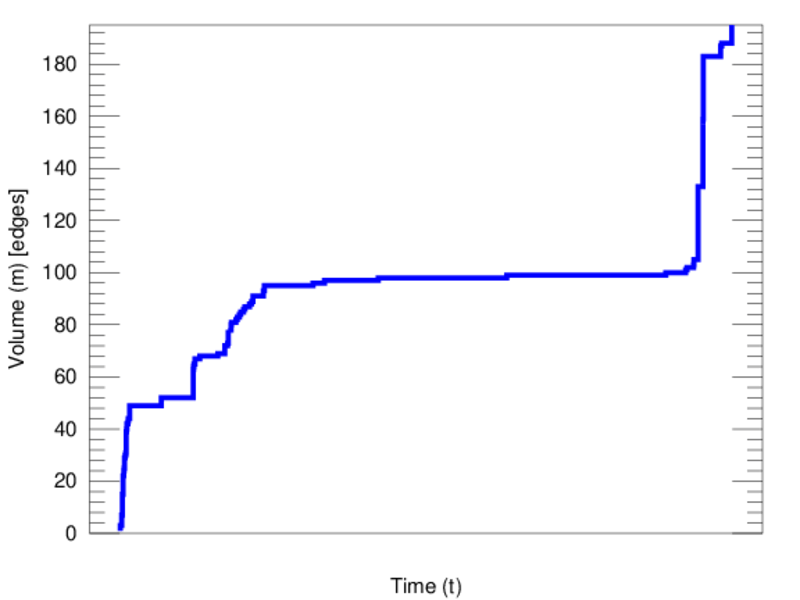

Temporal distribution

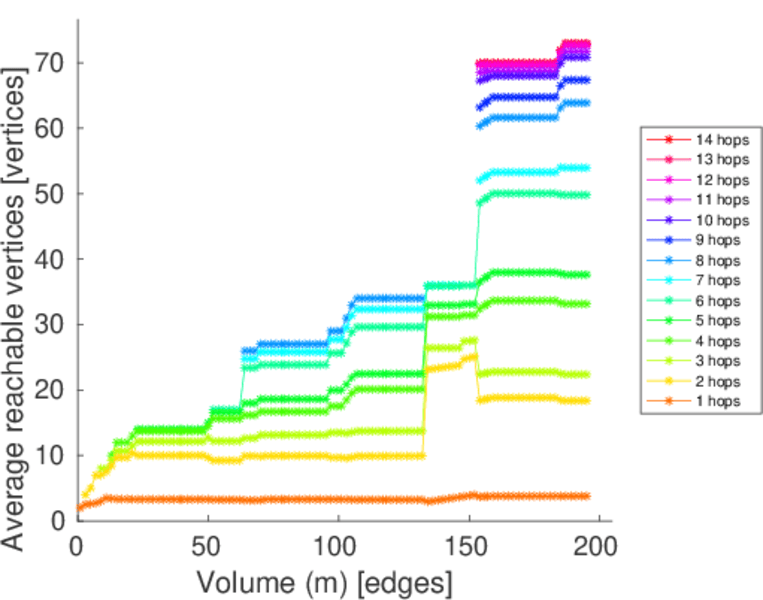

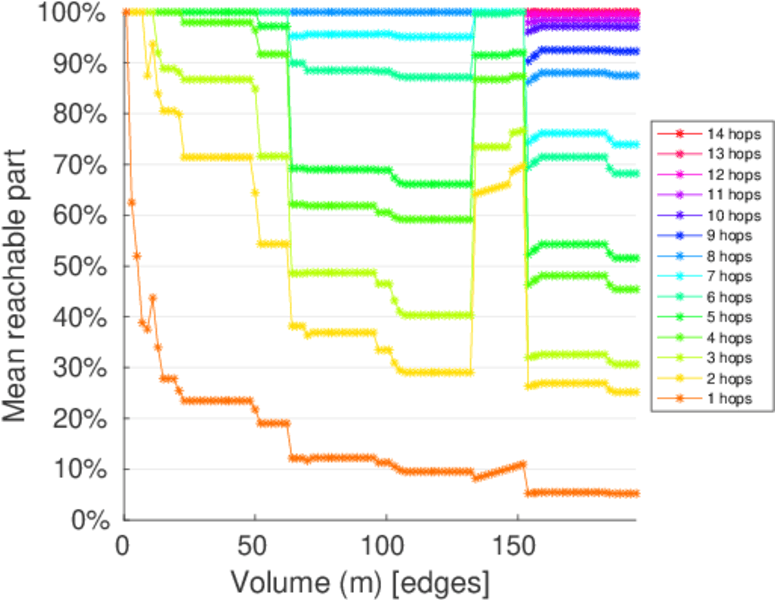

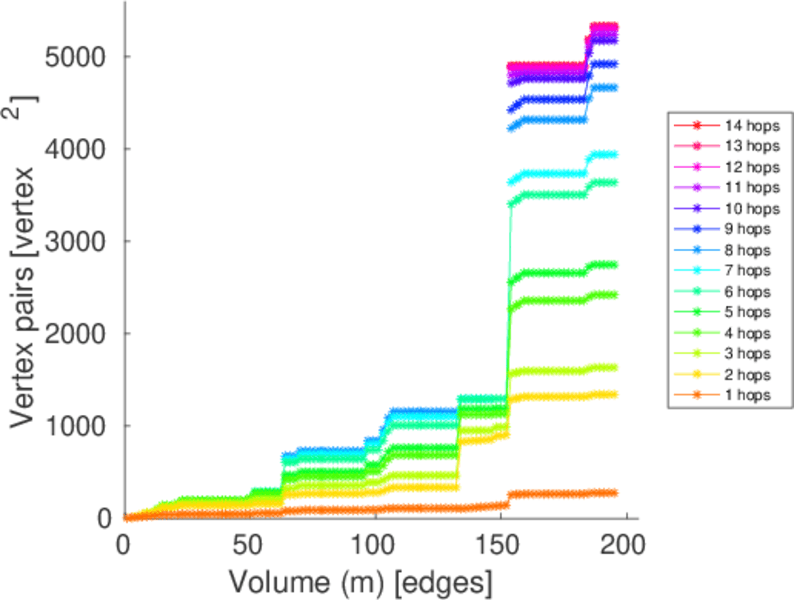

Temporal hop distribution

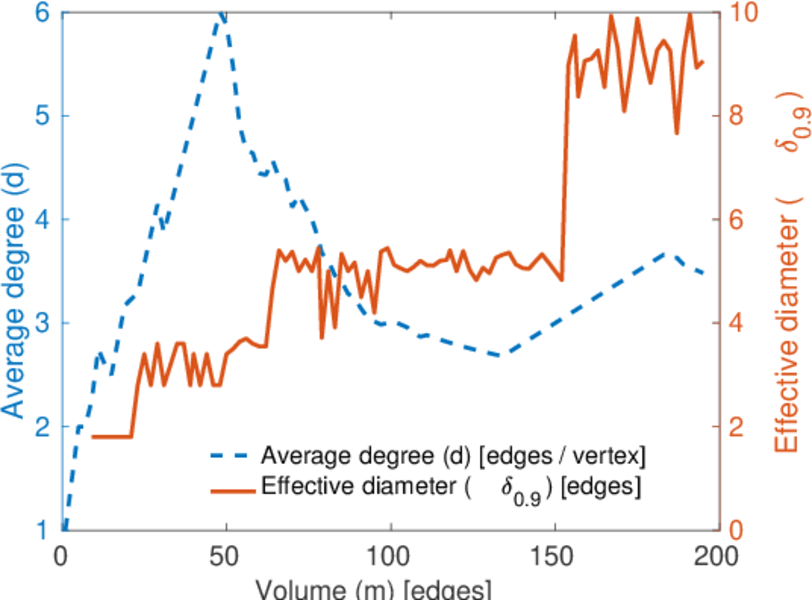

Diameter/density evolution

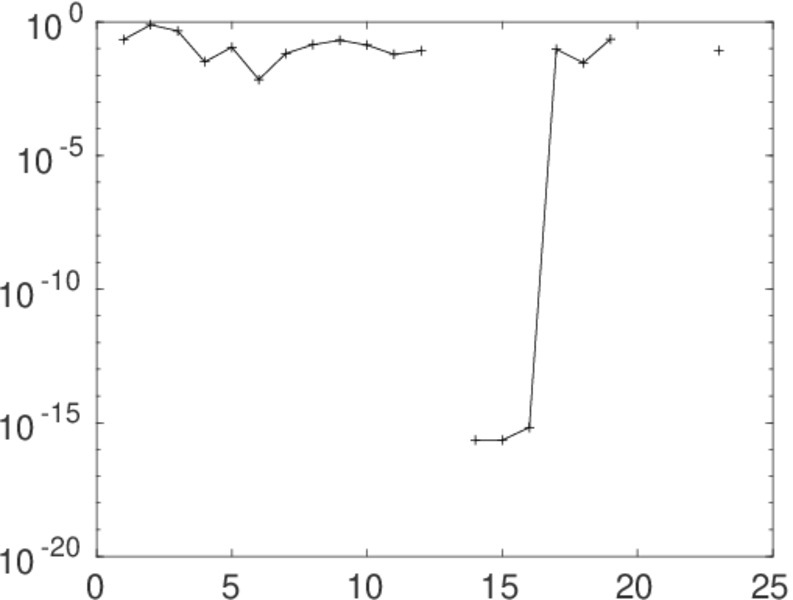

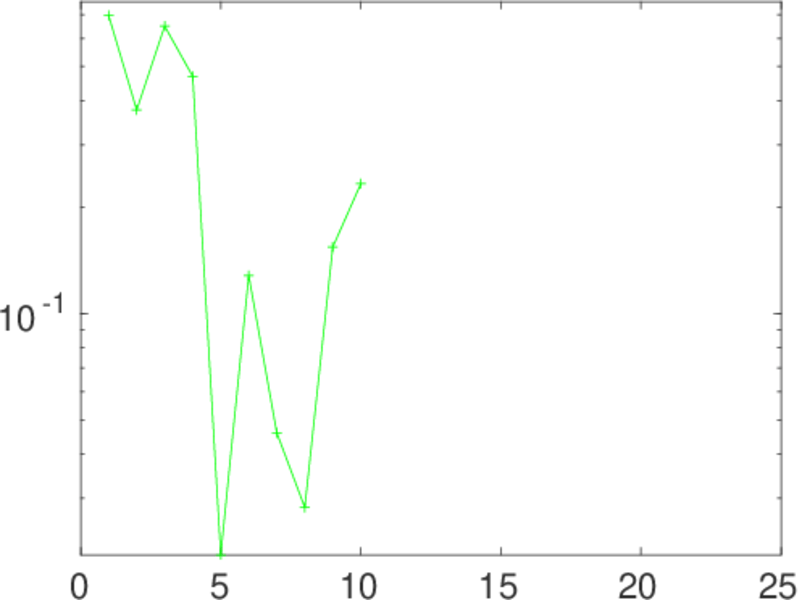

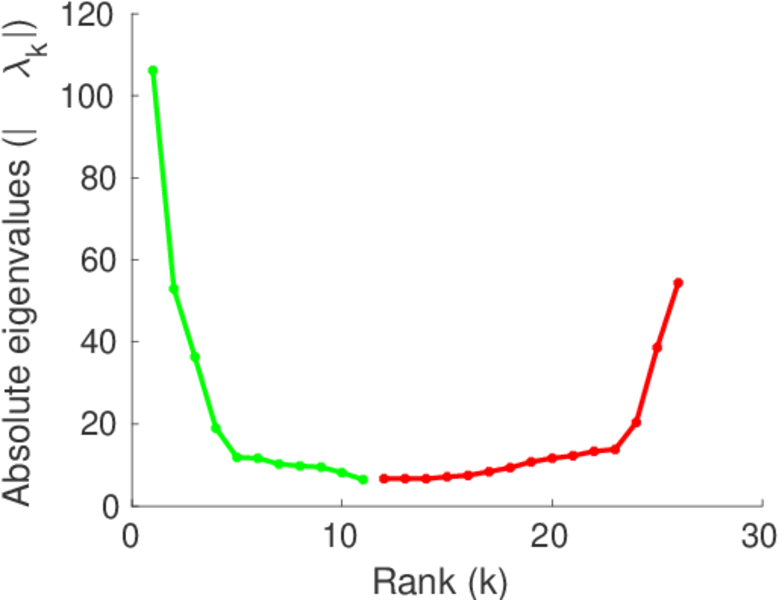

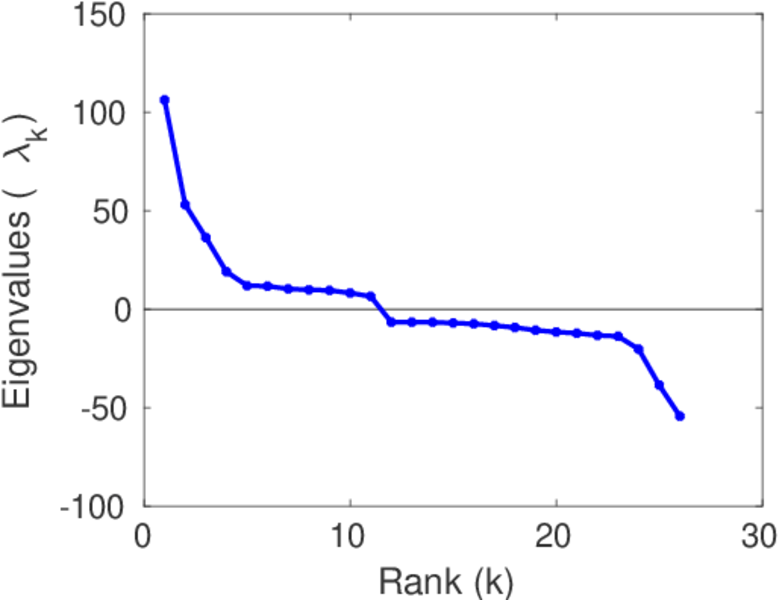

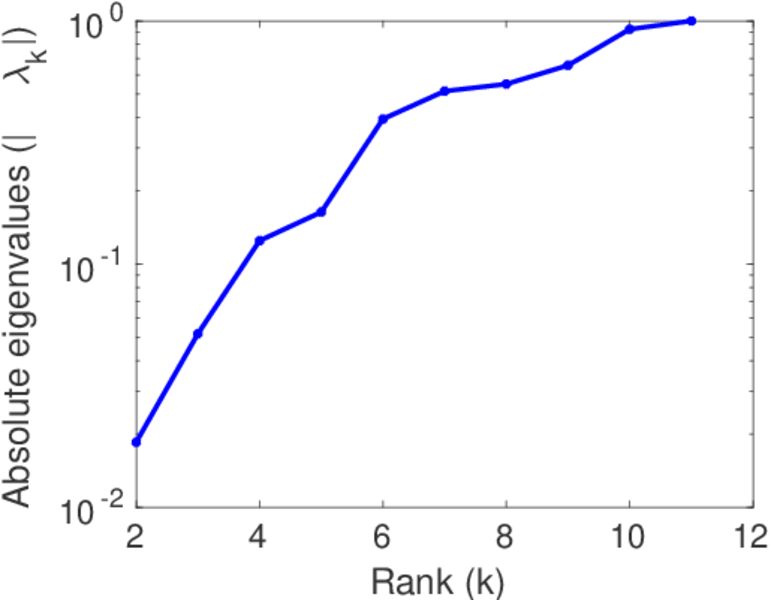

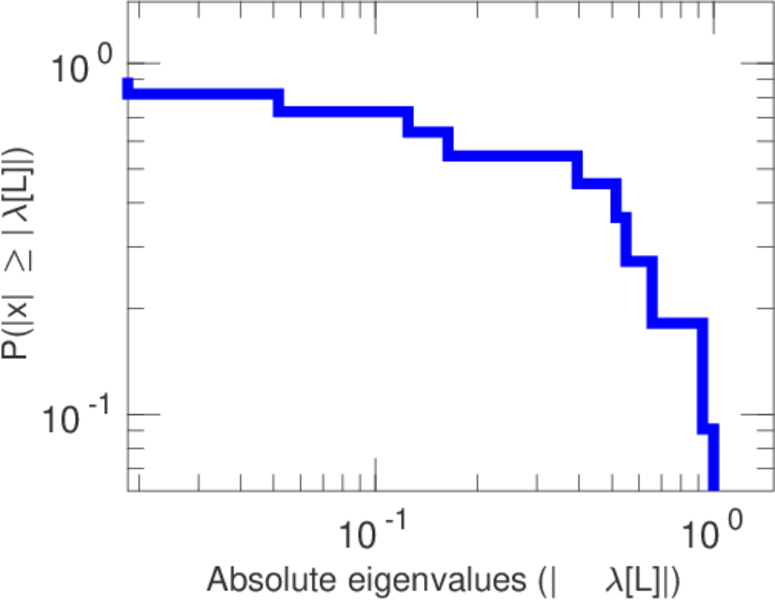

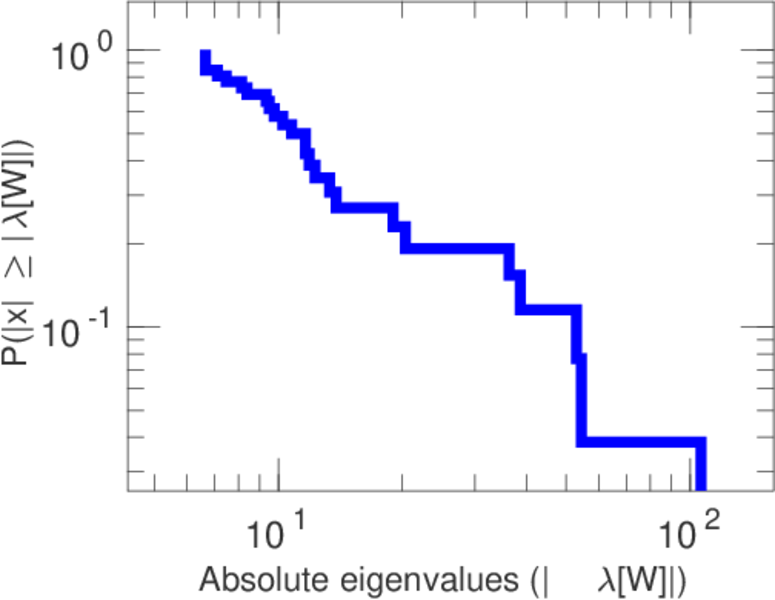

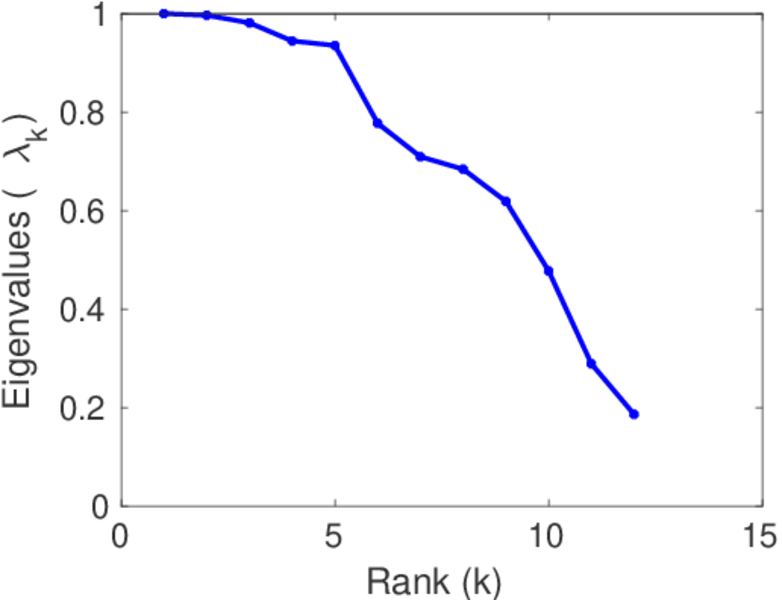

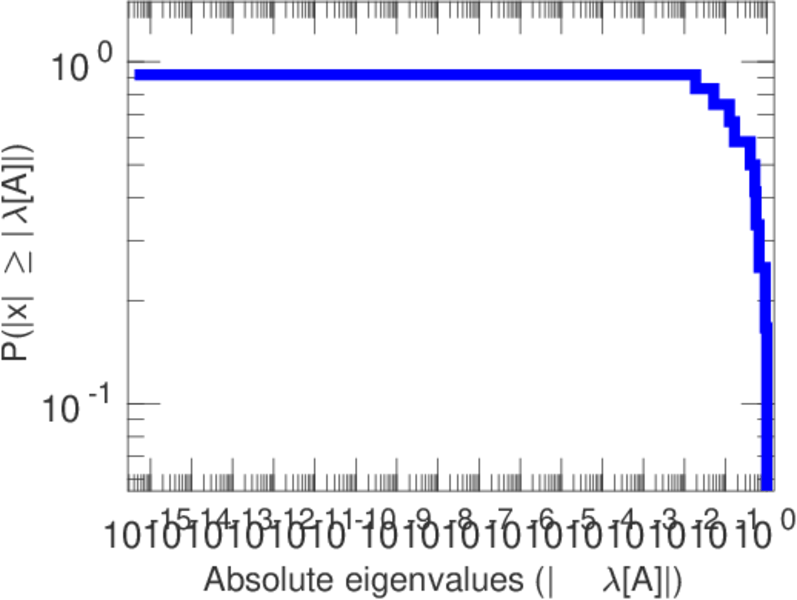

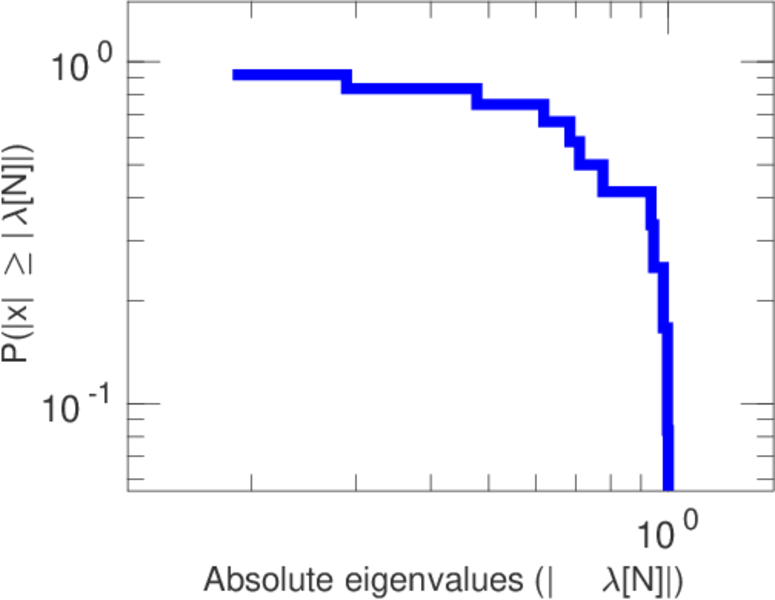

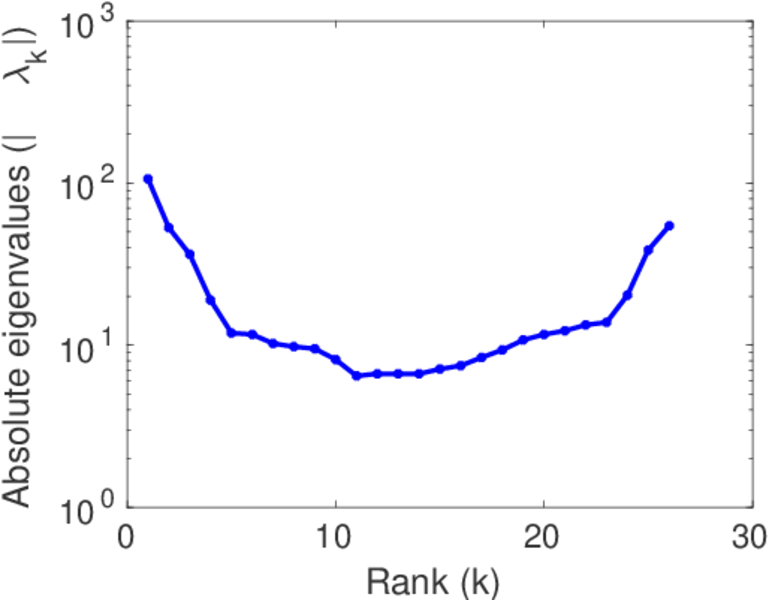

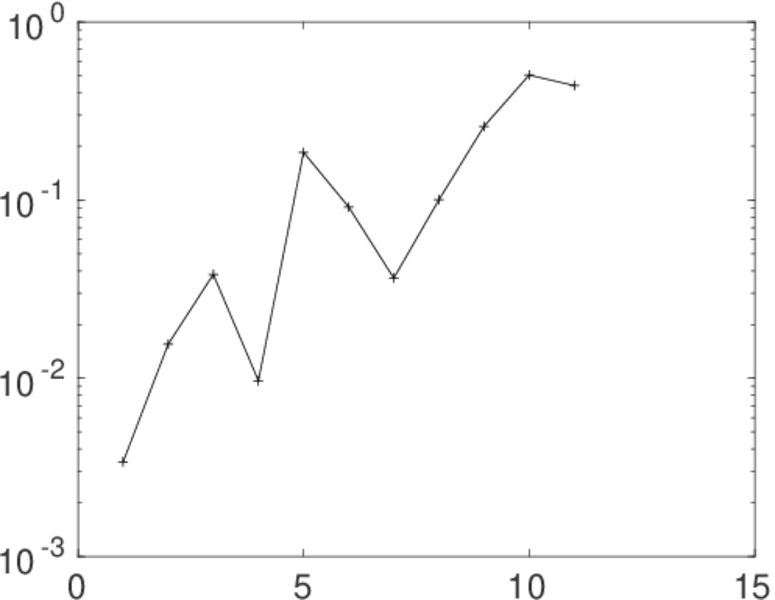

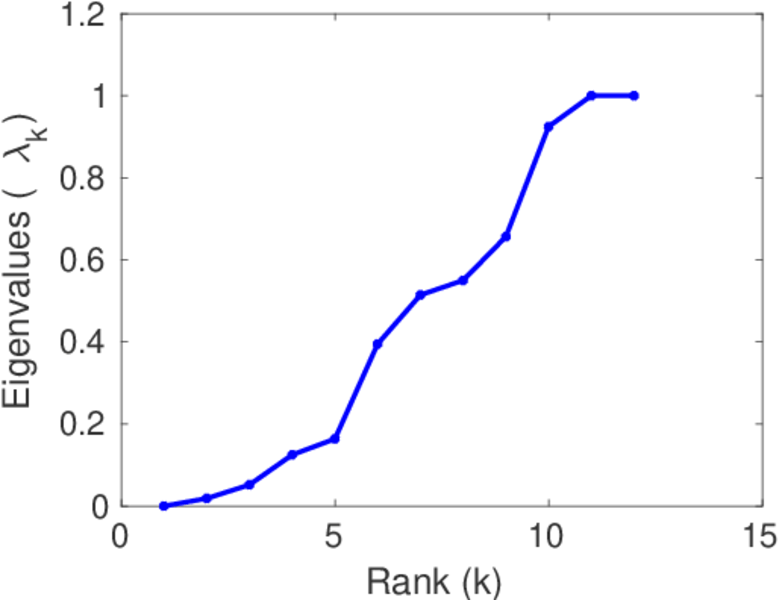

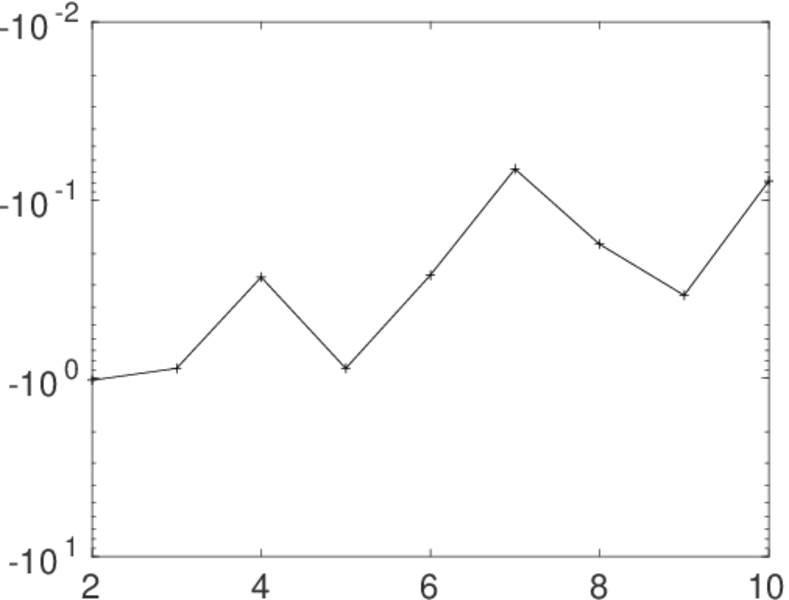

Matrix decompositions plots



[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
[2] Wikimedia Foundation. Wikimedia downloads., January 2010.
