Wikibooks edits (nl)

This is the bipartite edit network of the Dutch Wikibooks. It contains users and pages from the Dutch Wikibooks, connected by edit events. Each edge represents an edit. The dataset includes the timestamp of each edit.

Metadata

Codebnl
Internal nameedit-nlwikibooks
NameWikibooks edits (nl)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Authorship network
Dataset timestamp 2017-10-20
Node meaningUser, article
Edge meaningEdit
Network formatBipartite, undirected
Edge typeUnweighted, multiple edges
Temporal data Edges are annotated with timestamps

Statistics

Size n =29,946
Left size n1 =4,136
Right size n2 =25,810
Volume m =213,603
Unique edge count m̿ =79,477
Wedge count s =88,486,934
Claw count z =217,139,404,982
Cross count x =514,581,012,973,920
Square count q =17,193,716
4-Tour count T4 =491,720,950
Maximum degree dmax =32,832
Maximum left degree d1max =32,832
Maximum right degree d2max =4,559
Average degree d =14.265 9
Average left degree d1 =51.644 8
Average right degree d2 =8.275 98
Fill p =0.000 744 514
Average edge multiplicity m̃ =2.687 61
Size of LCC N =29,539
Diameter δ =11
50-Percentile effective diameter δ0.5 =3.353 93
90-Percentile effective diameter δ0.9 =4.357 39
Median distance δM =4
Mean distance δm =3.693 05
Gini coefficient G =0.833 099
Balanced inequality ratio P =0.159 663
Left balanced inequality ratio P1 =0.098 224 3
Right balanced inequality ratio P2 =0.210 774
Relative edge distribution entropy Her =0.782 595
Power law exponent γ =2.552 00
Tail power law exponent γt =2.071 00
Tail power law exponent with p γ3 =2.071 00
p-value p =0.000 00
Left tail power law exponent with p γ3,1 =1.701 00
Left p-value p1 =0.000 00
Right tail power law exponent with p γ3,2 =3.521 00
Right p-value p2 =0.368 000
Degree assortativity ρ =−0.267 571
Degree assortativity p-value pρ =0.000 00
Spectral norm α =3,807.69
Algebraic connectivity a =0.026 736 2
Spectral separation 1[A] / λ2[A]| =2.865 83
Controllability C =24,295
Relative controllability Cr =0.814 257

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

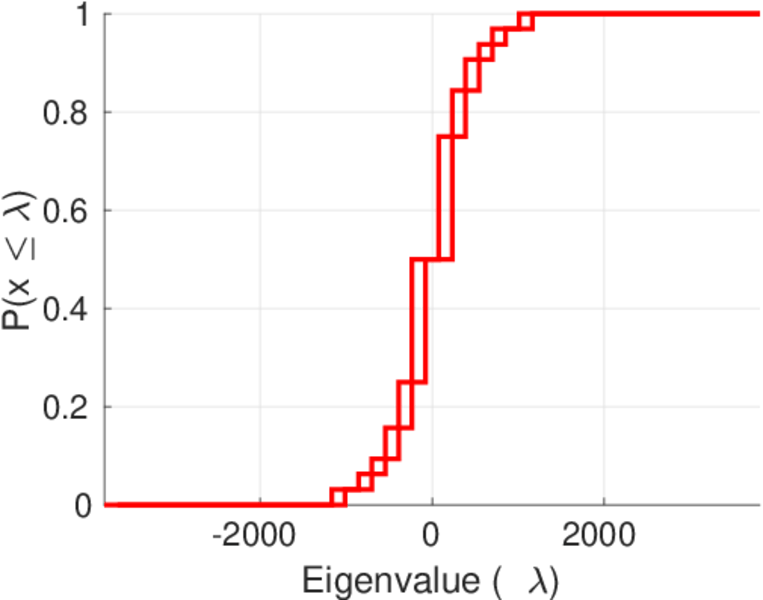

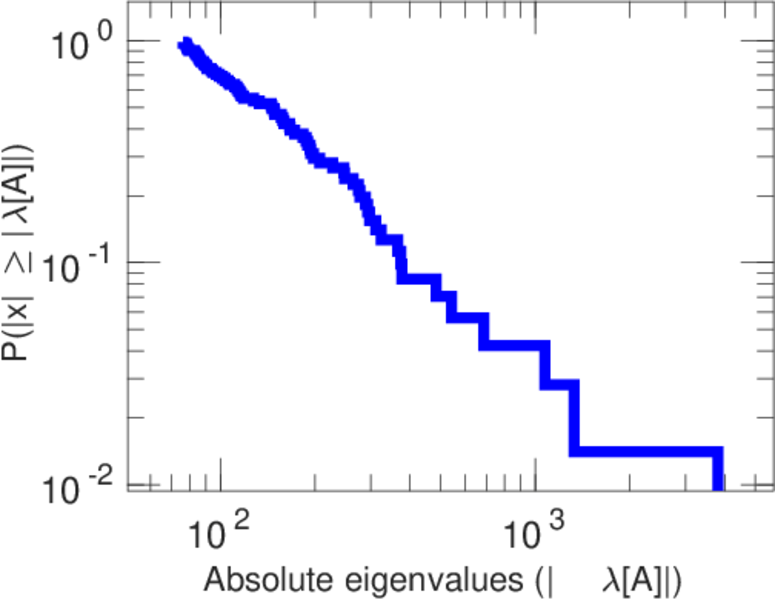

Spectral distribution of the adjacency matrix

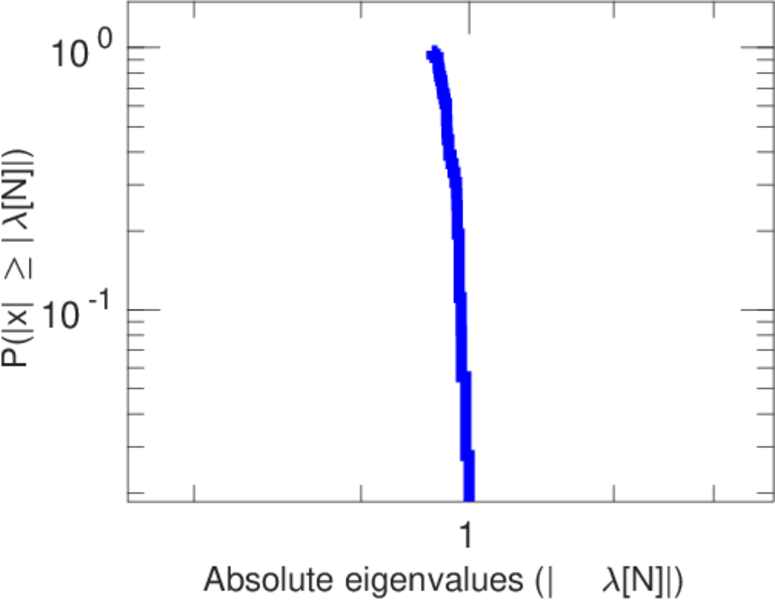

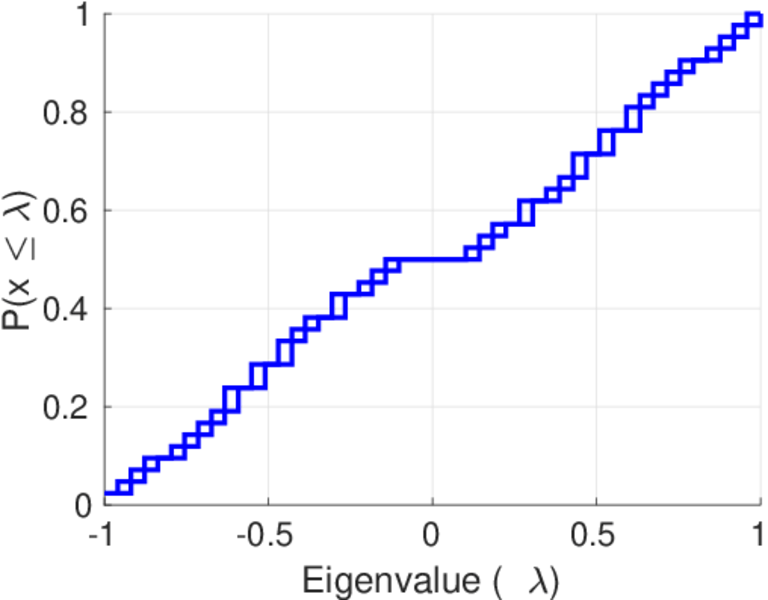

Spectral distribution of the normalized adjacency matrix

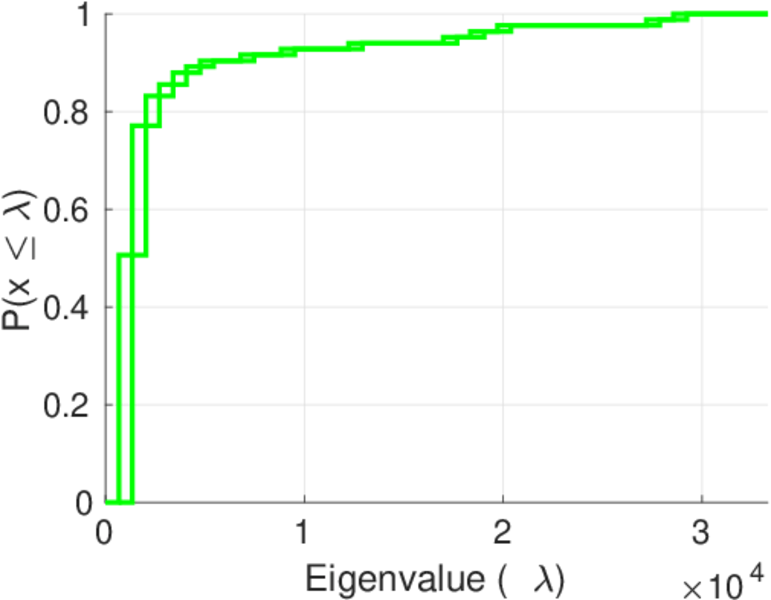

Spectral distribution of the Laplacian

Spectral graph drawing based on the adjacency matrix

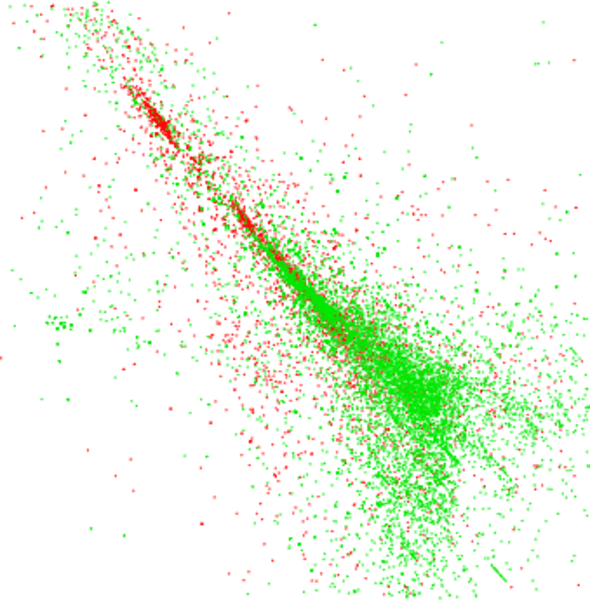

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

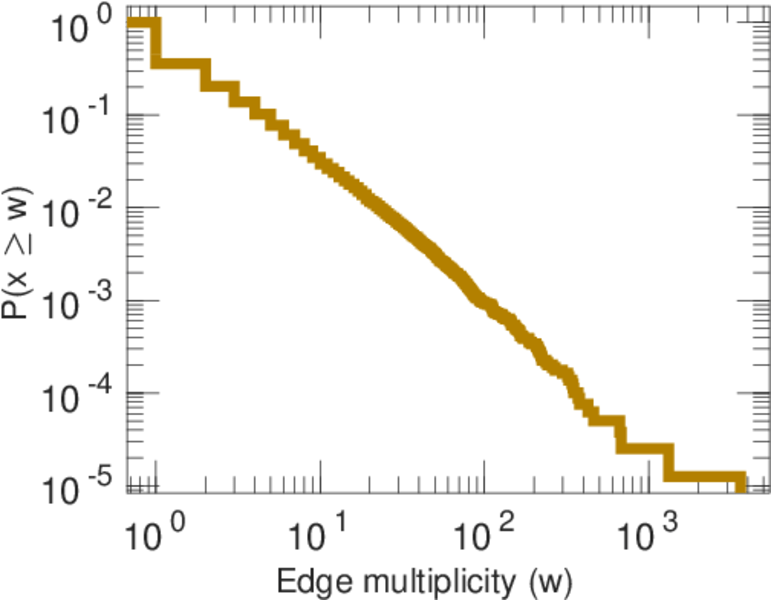

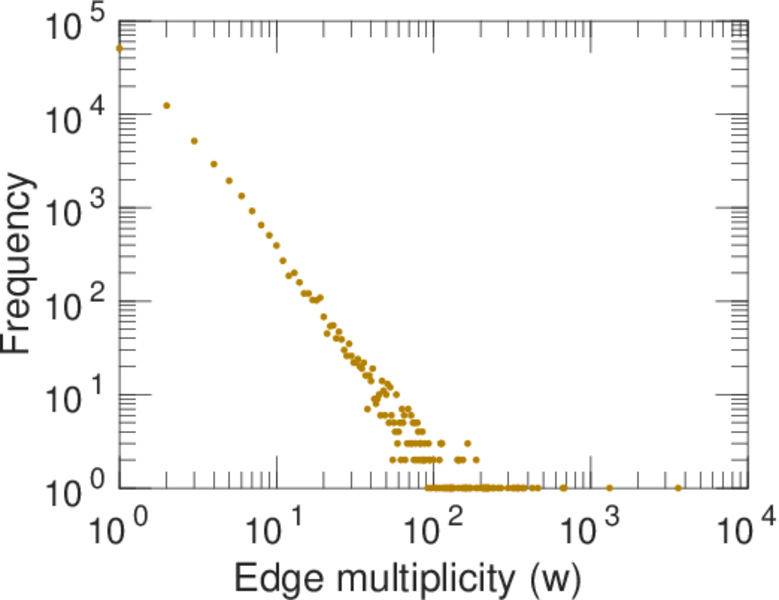

Edge weight/multiplicity distribution

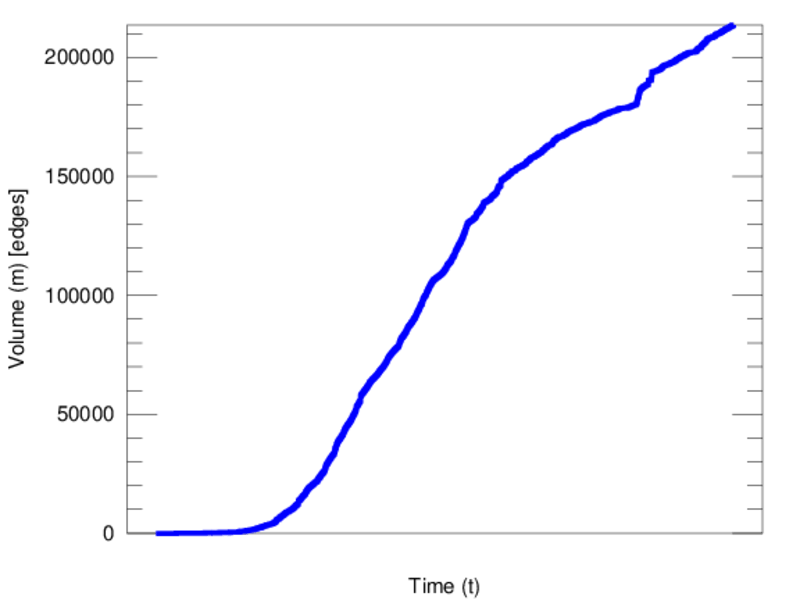

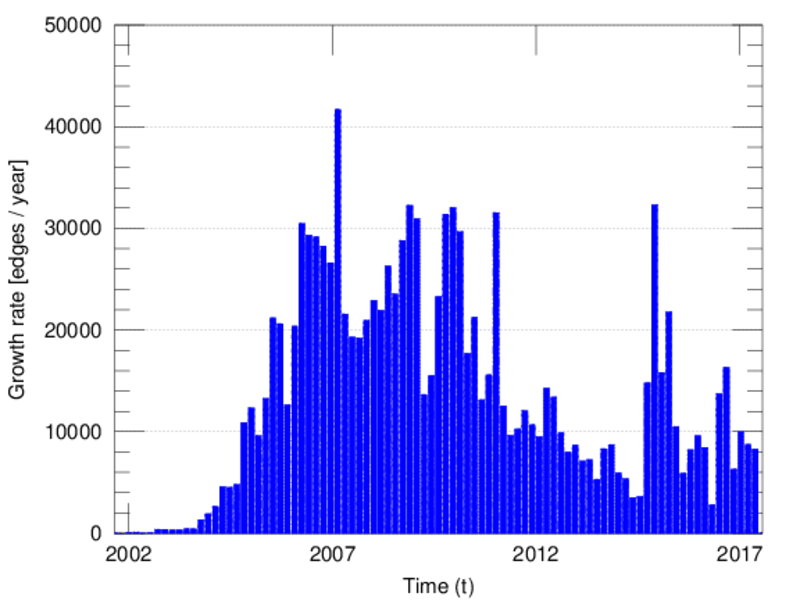

Temporal distribution

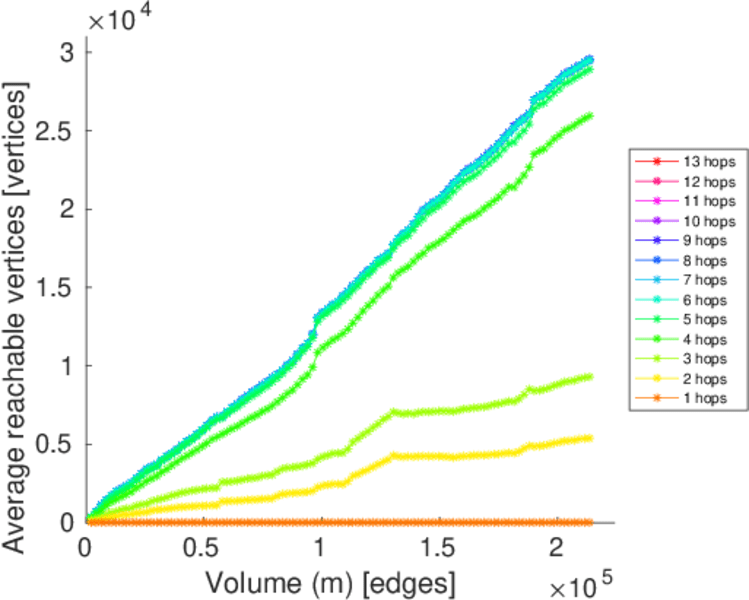

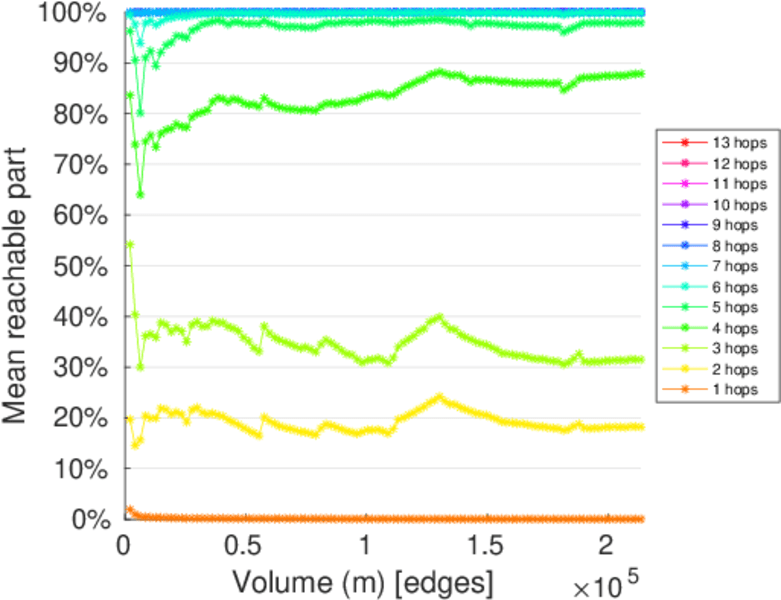

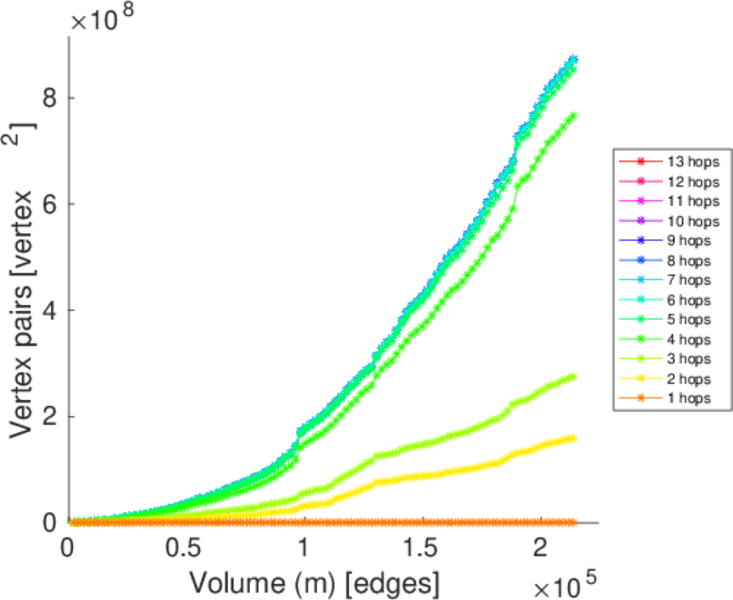

Temporal hop distribution

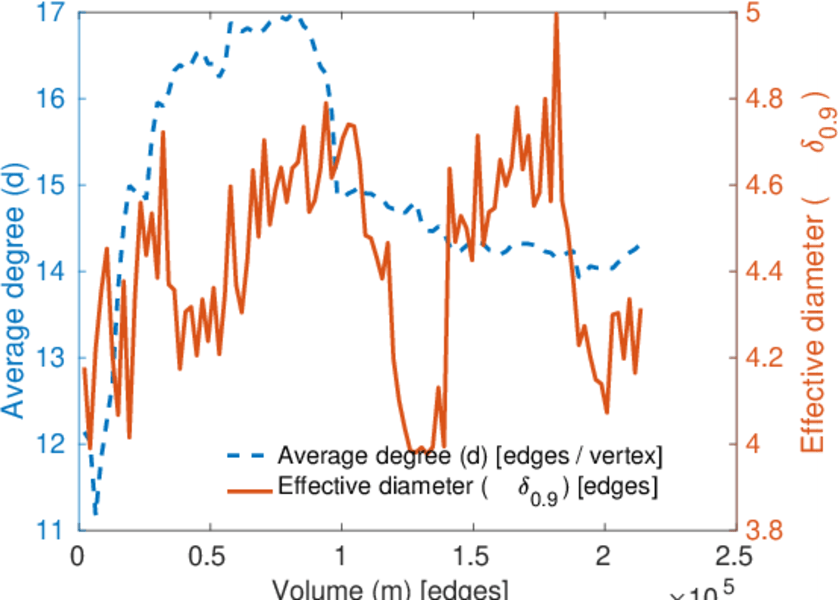

Diameter/density evolution

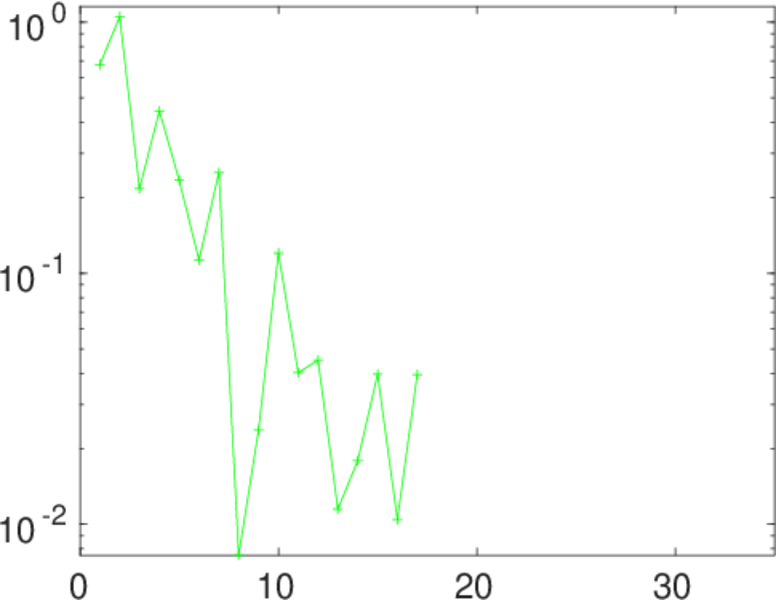

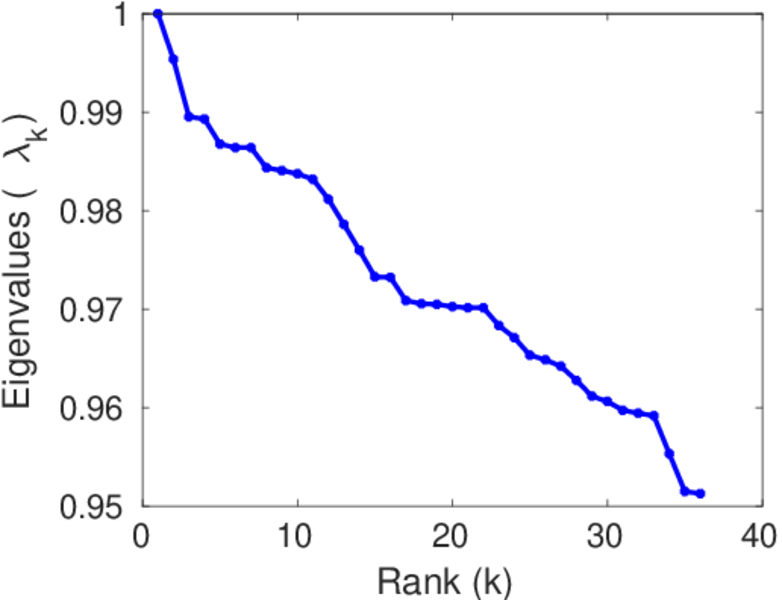

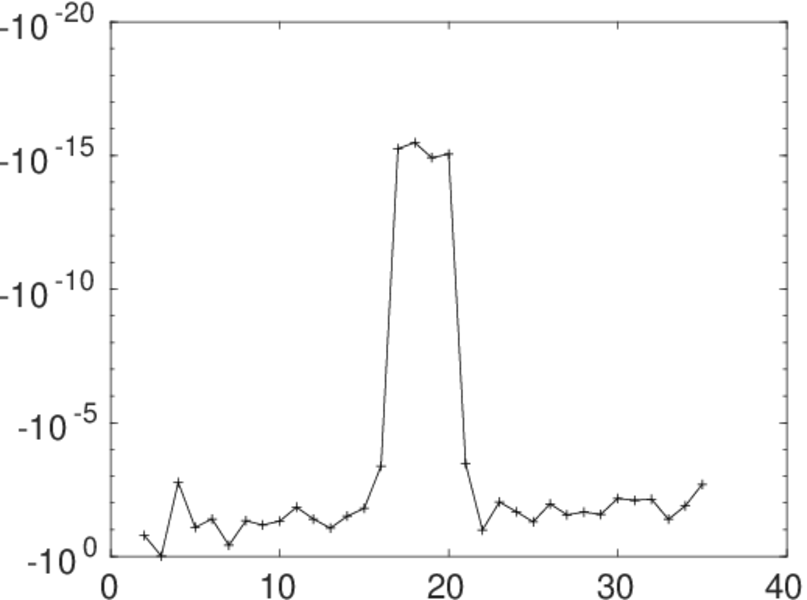

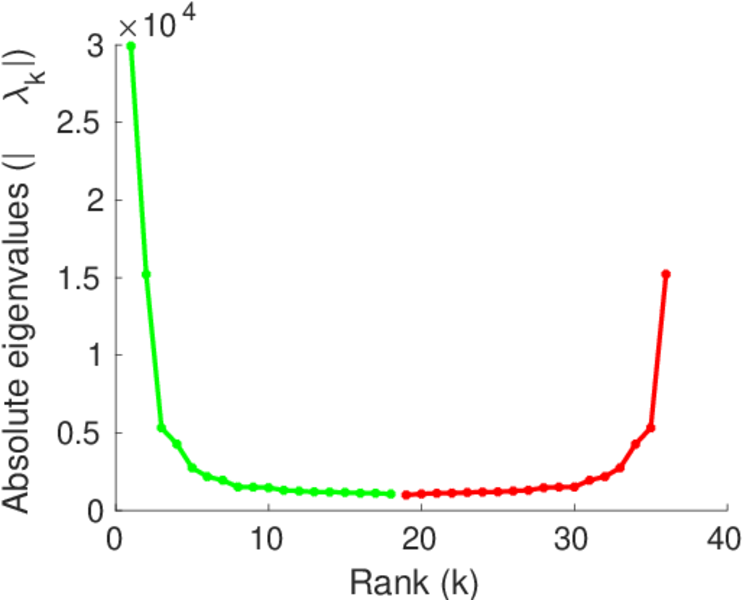

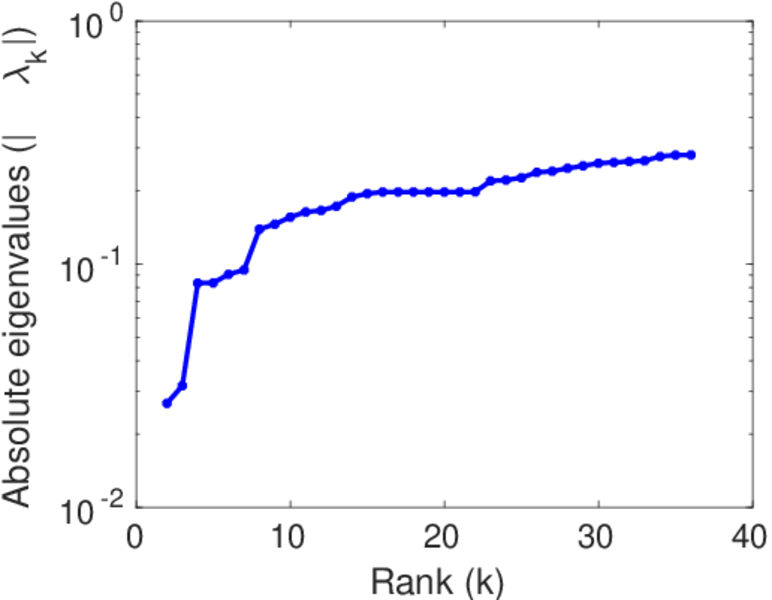

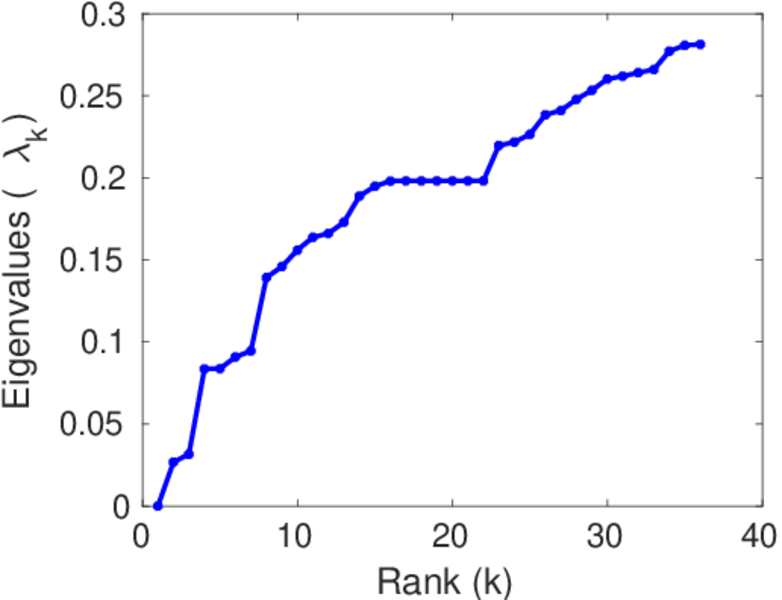

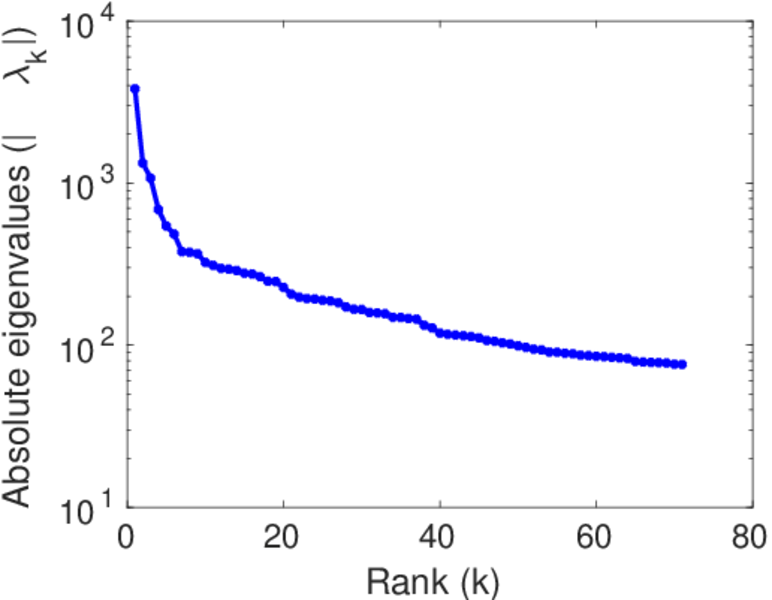

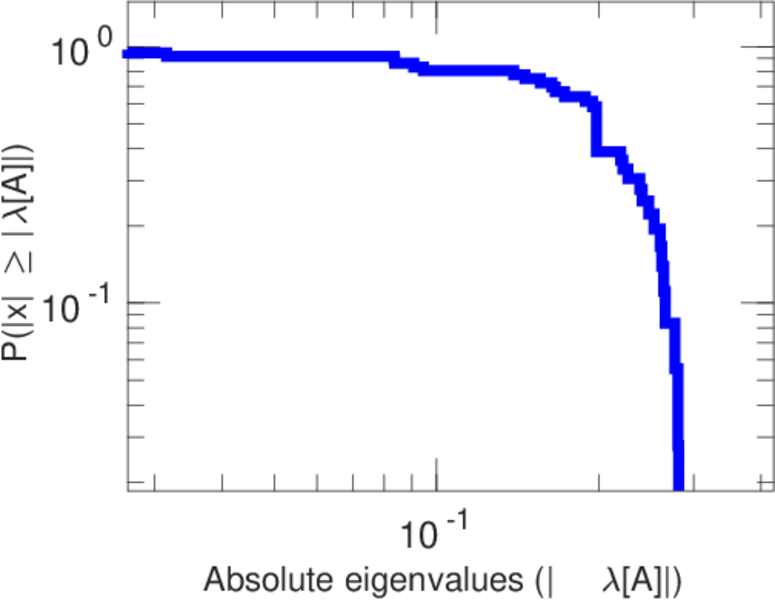

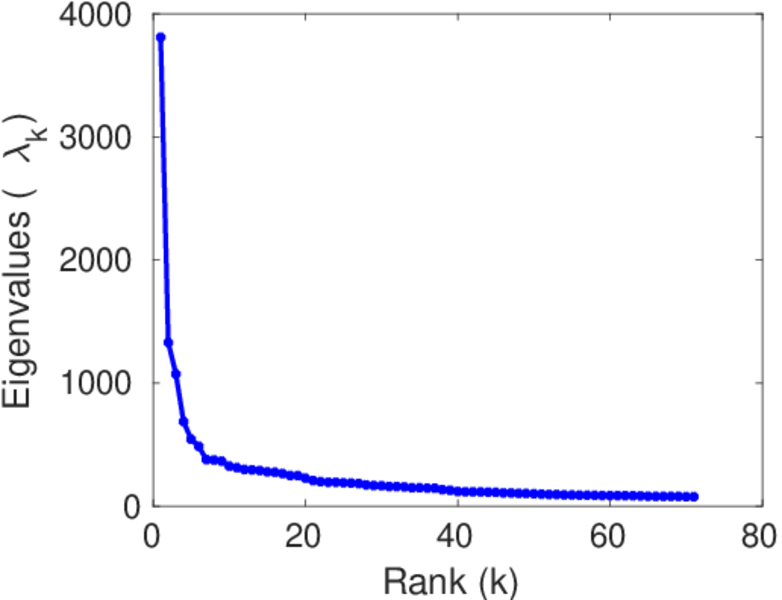

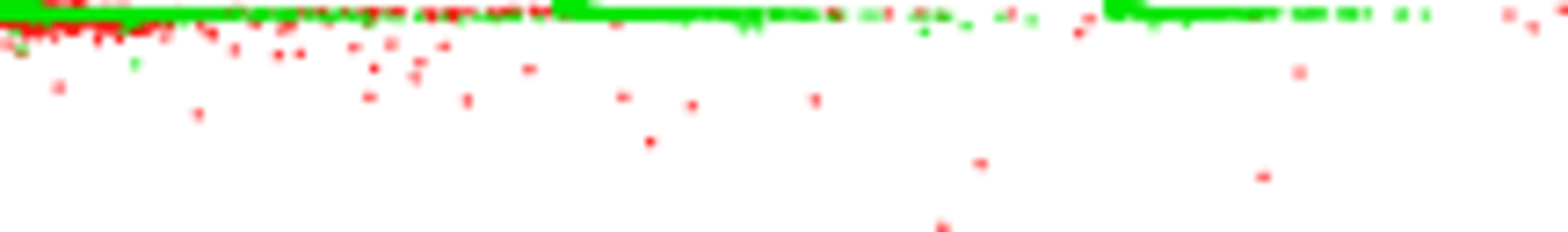

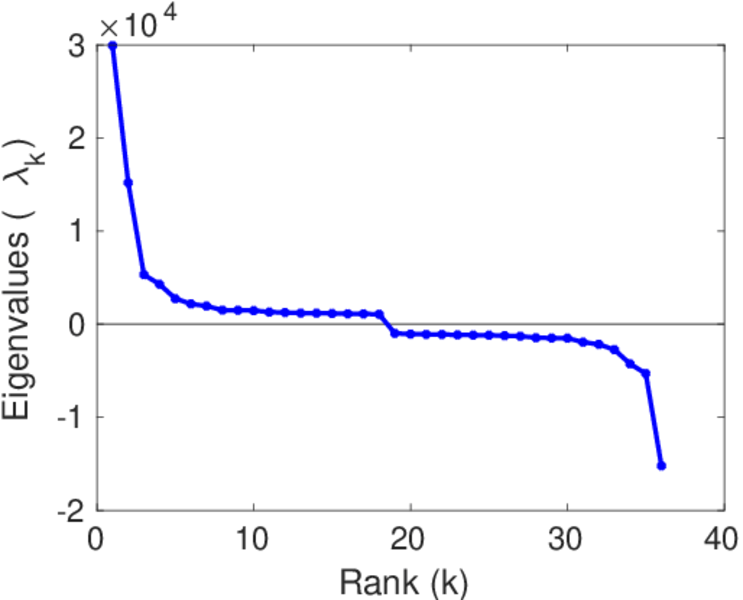

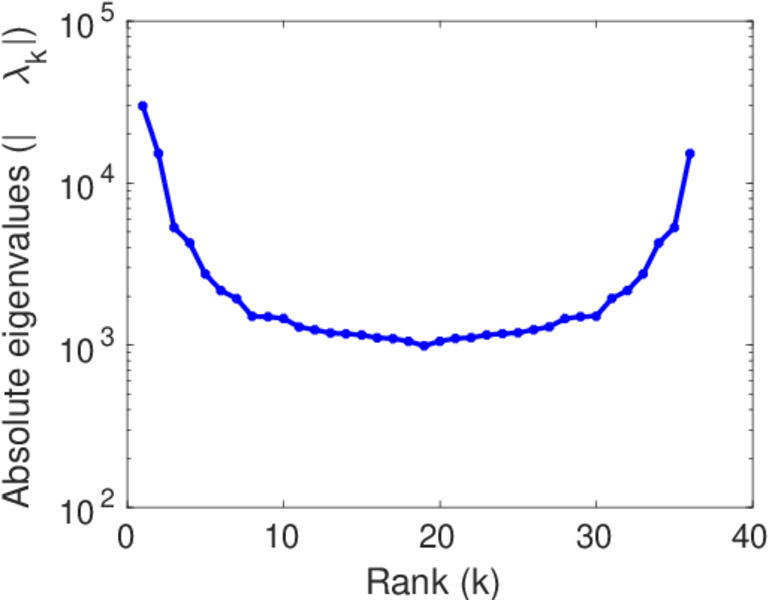

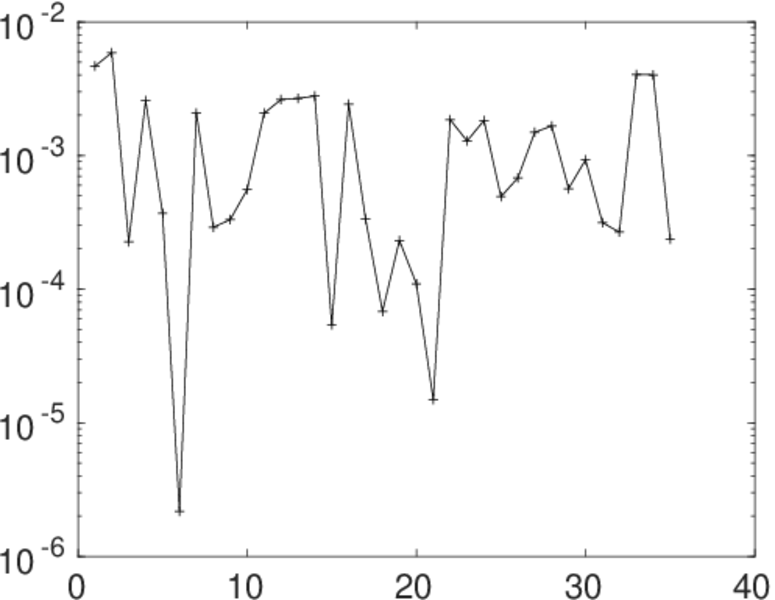

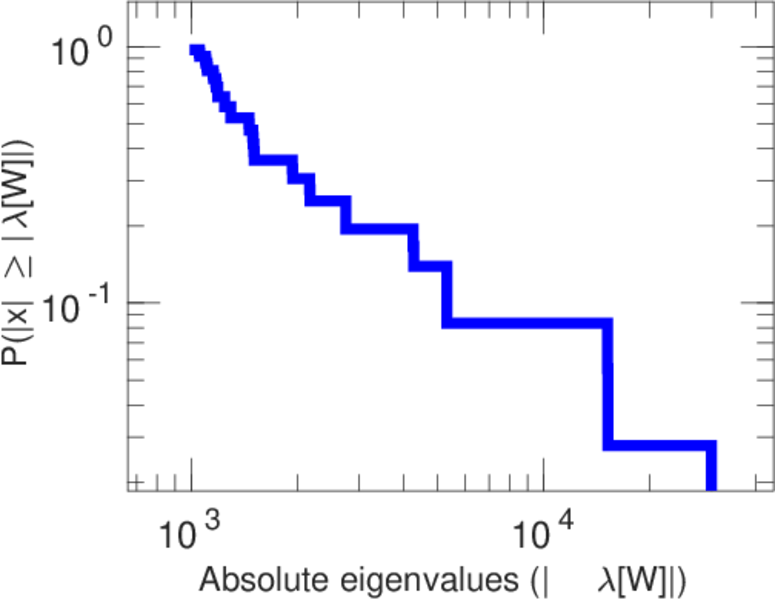

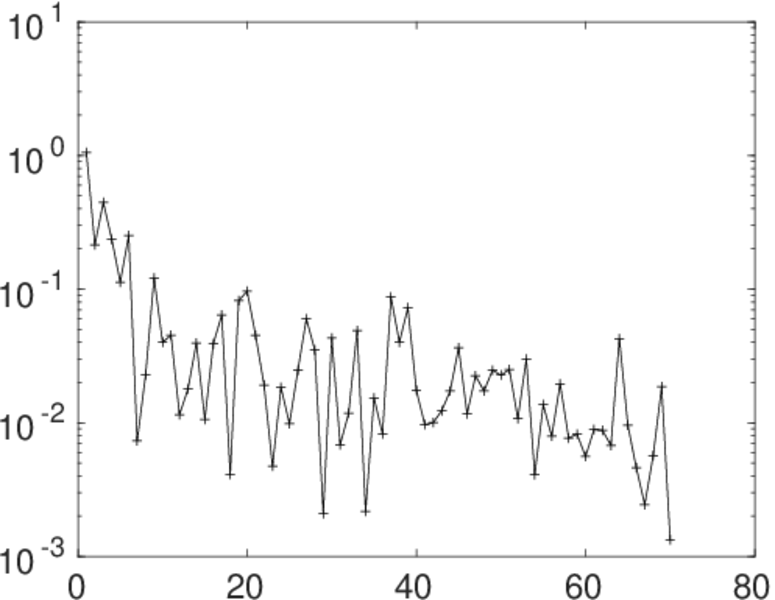

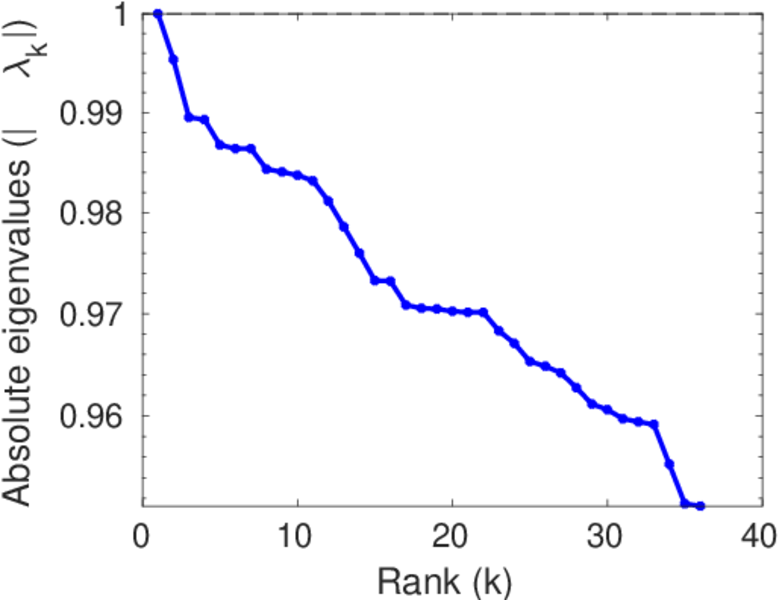

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
[2] Wikimedia Foundation. Wikimedia downloads. http://dumps.wikimedia.org/, January 2010.
