Wikibooks edits (ru)

This is the bipartite edit network of the Russian Wikibooks. It contains users and pages from the Russian Wikibooks, connected by edit events. Each edge represents an edit. The dataset includes the timestamp of each edit.

Metadata

Codebru
Internal nameedit-ruwikibooks
NameWikibooks edits (ru)
Data sourcehttp://dumps.wikimedia.org/
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Authorship network
Dataset timestamp 2017-10-20
Node meaningUser, article
Edge meaningEdit
Network formatBipartite, undirected
Edge typeUnweighted, multiple edges
Temporal data Edges are annotated with timestamps

Statistics

Size n =16,447
Left size n1 =3,286
Right size n2 =13,161
Volume m =88,077
Unique edge count m̿ =28,943
Wedge count s =11,344,088
Claw count z =7,260,811,567
Cross count x =3,963,711,819,520
Square count q =3,113,891
4-Tour count T4 =70,354,846
Maximum degree dmax =6,195
Maximum left degree d1max =6,195
Maximum right degree d2max =1,906
Average degree d =10.710 4
Average left degree d1 =26.803 7
Average right degree d2 =6.692 27
Fill p =0.000 669 248
Average edge multiplicity m̃ =3.043 12
Size of LCC N =15,235
Diameter δ =13
50-Percentile effective diameter δ0.5 =3.700 06
90-Percentile effective diameter δ0.9 =5.335 77
Median distance δM =4
Mean distance δm =4.276 12
Gini coefficient G =0.804 787
Balanced inequality ratio P =0.168 966
Left balanced inequality ratio P1 =0.116 171
Right balanced inequality ratio P2 =0.222 601
Relative edge distribution entropy Her =0.815 630
Power law exponent γ =2.825 34
Tail power law exponent γt =2.371 00
Tail power law exponent with p γ3 =2.371 00
p-value p =0.007 000 00
Left tail power law exponent with p γ3,1 =1.881 00
Left p-value p1 =0.631 000
Right tail power law exponent with p γ3,2 =2.861 00
Right p-value p2 =0.741 000
Degree assortativity ρ =−0.188 324
Degree assortativity p-value pρ =2.906 24 × 10−229
Spectral norm α =1,431.56
Algebraic connectivity a =0.043 727 2
Spectral separation 1[A] / λ2[A]| =1.388 72
Controllability C =11,756
Relative controllability Cr =0.723 847

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

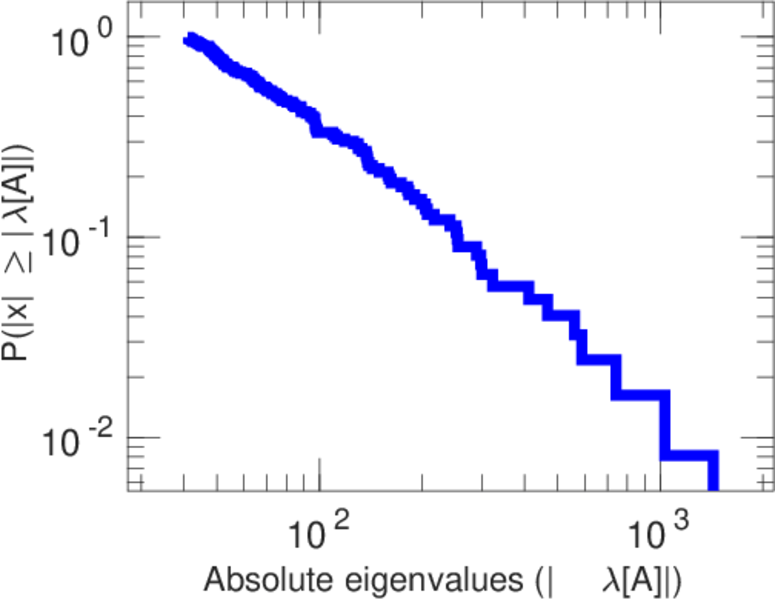

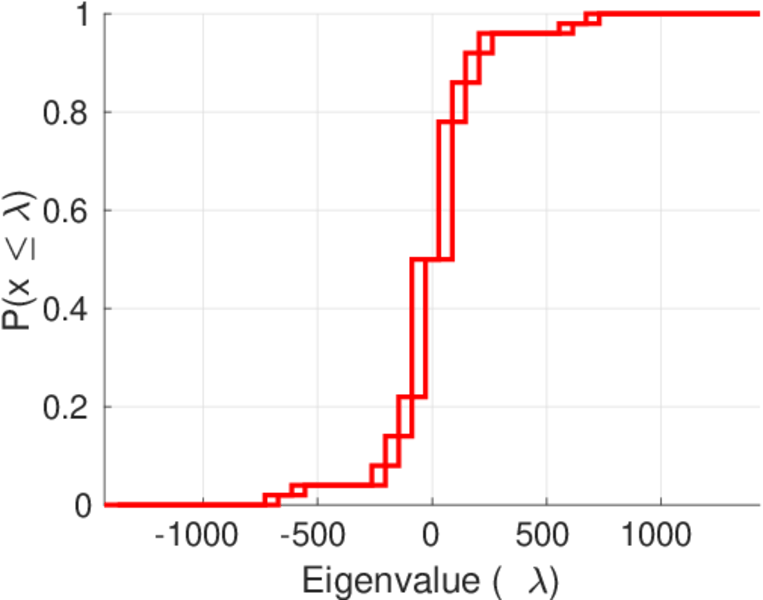

Spectral distribution of the adjacency matrix

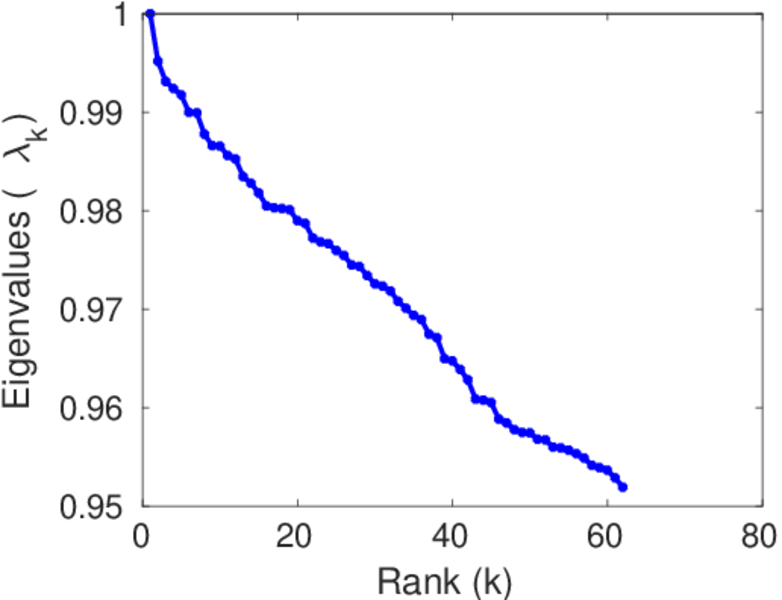

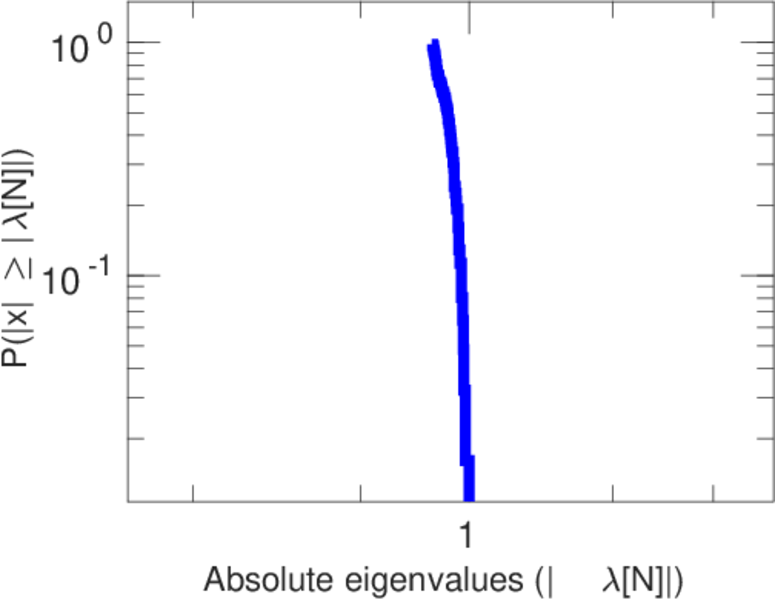

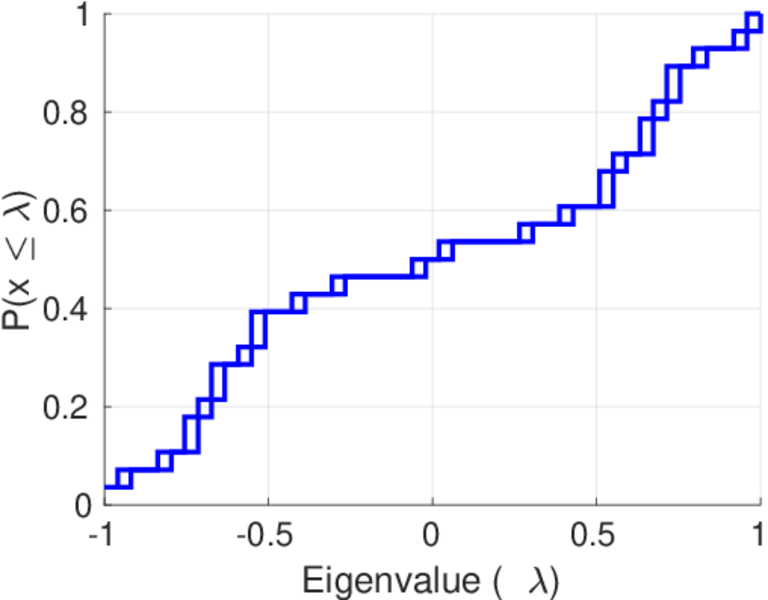

Spectral distribution of the normalized adjacency matrix

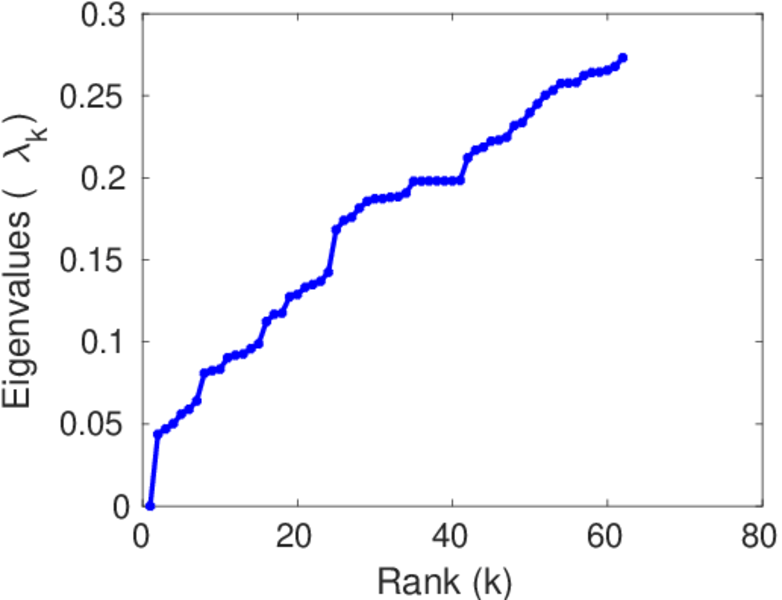

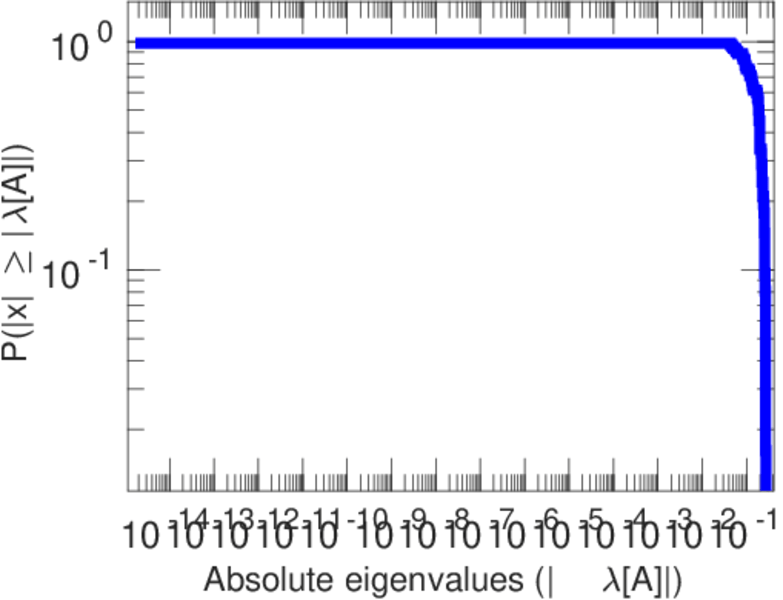

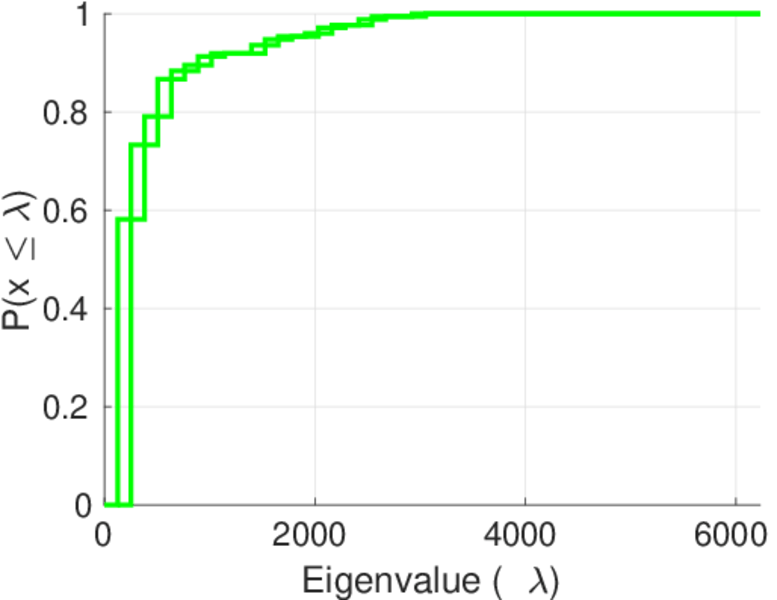

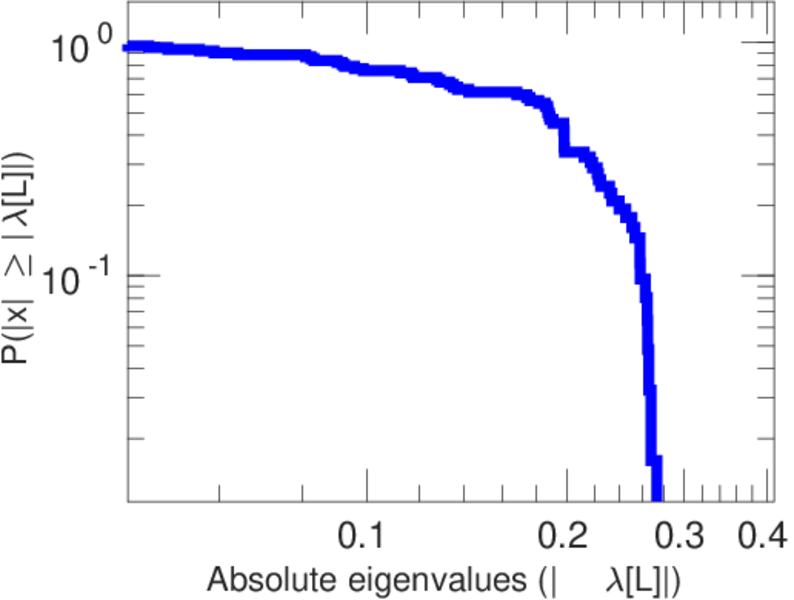

Spectral distribution of the Laplacian

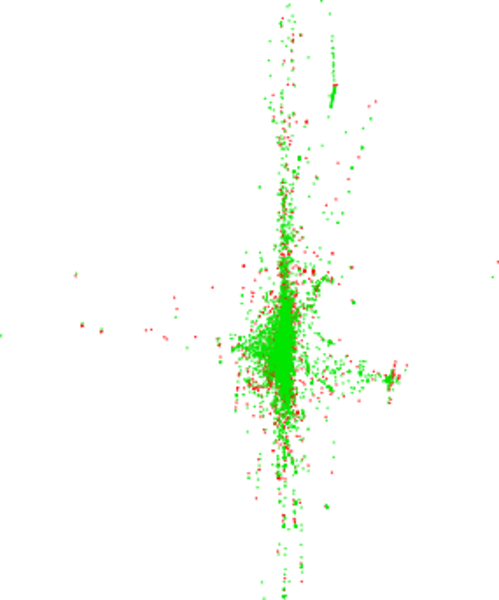

Spectral graph drawing based on the adjacency matrix

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

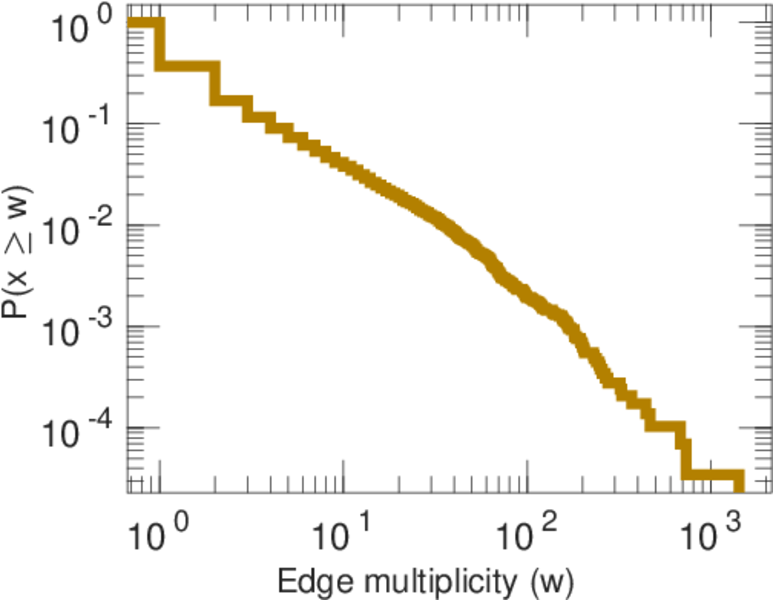

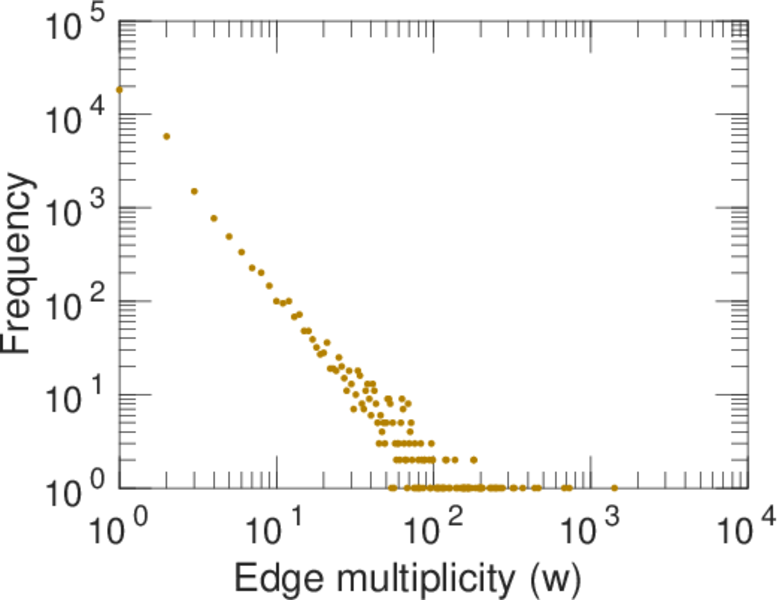

Edge weight/multiplicity distribution

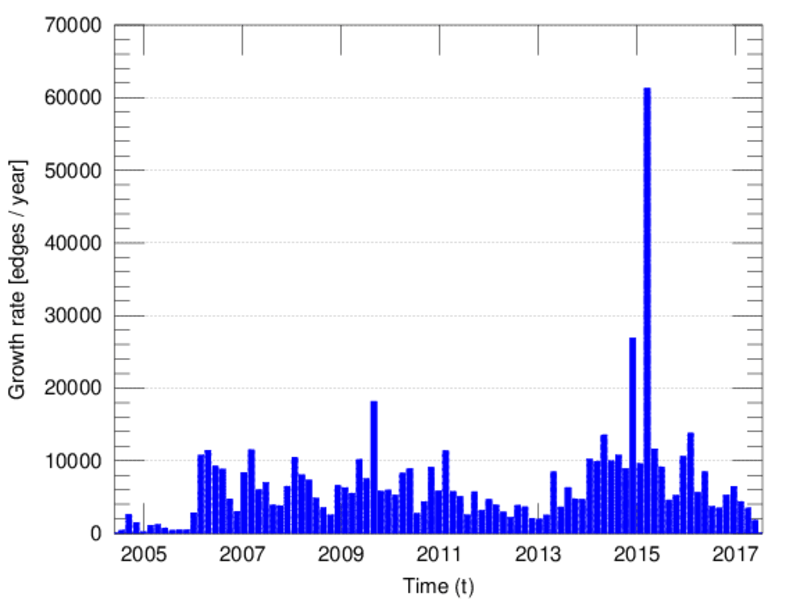

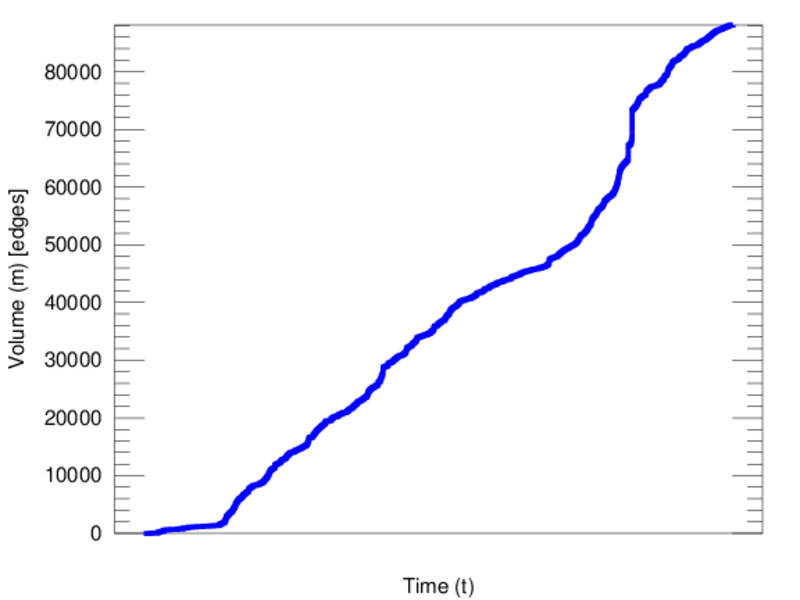

Temporal distribution

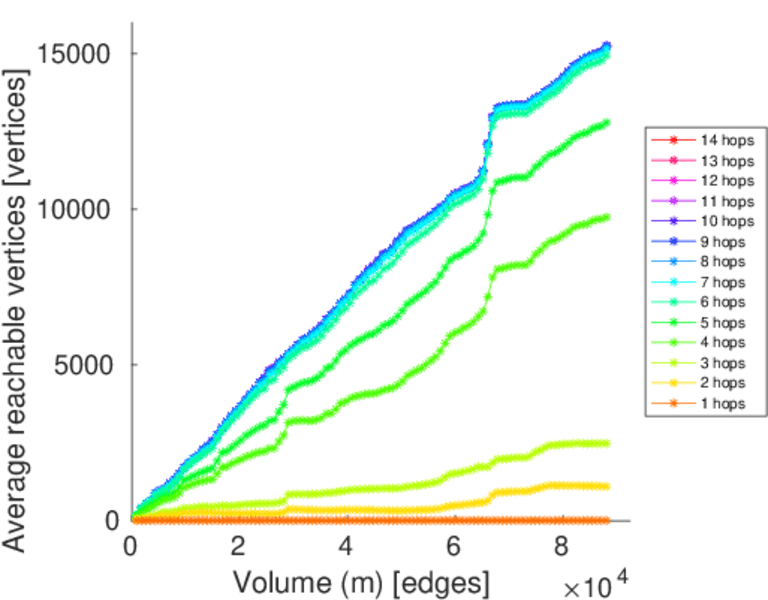

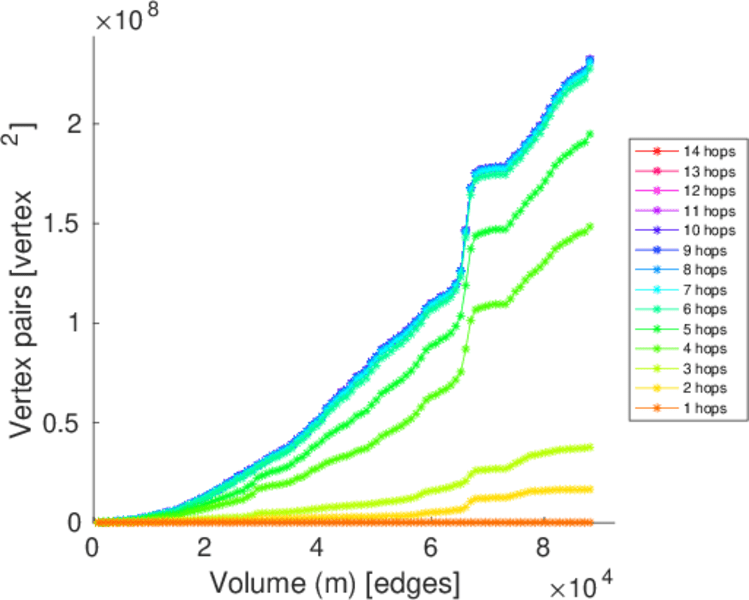

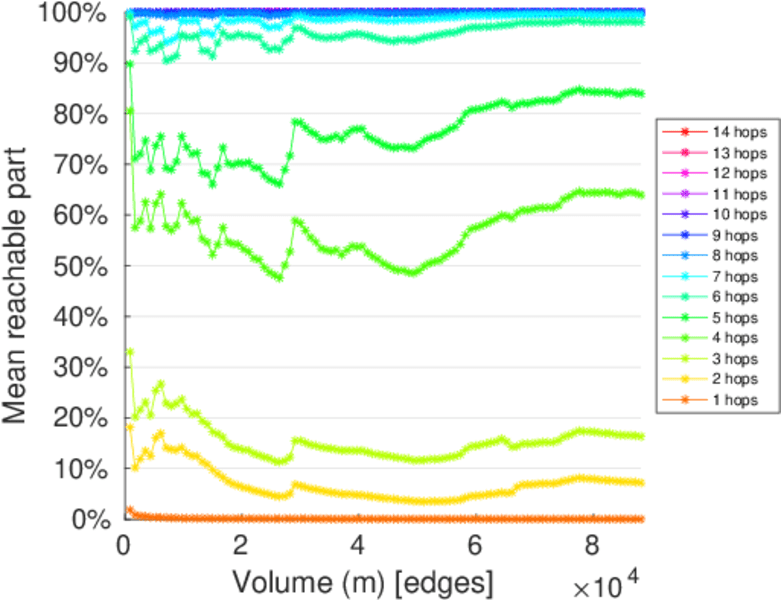

Temporal hop distribution

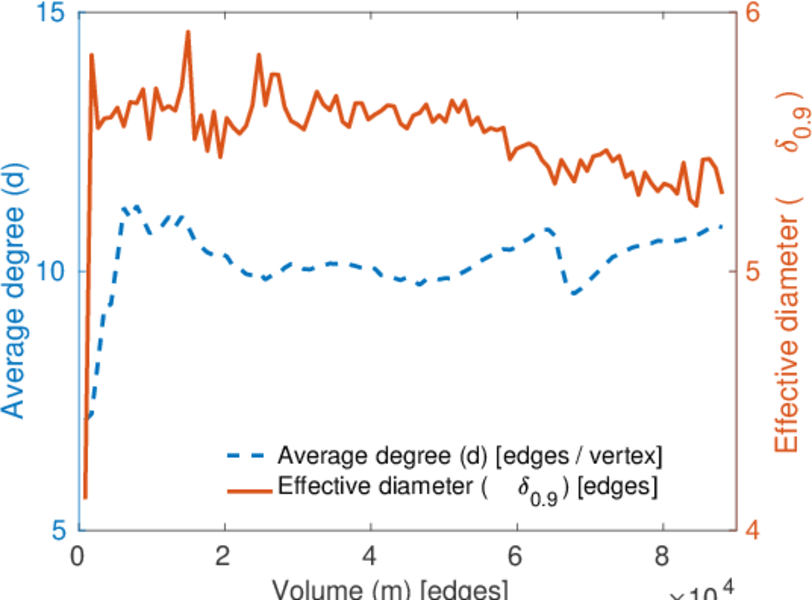

Diameter/density evolution

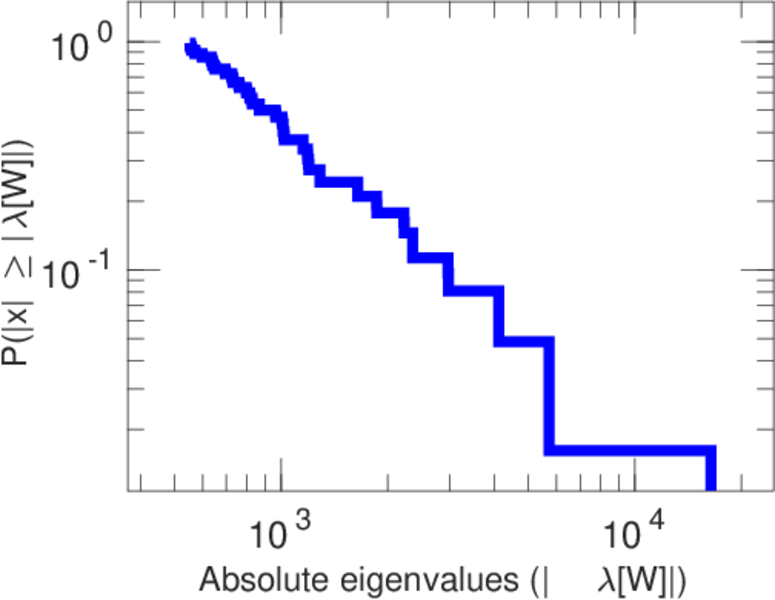

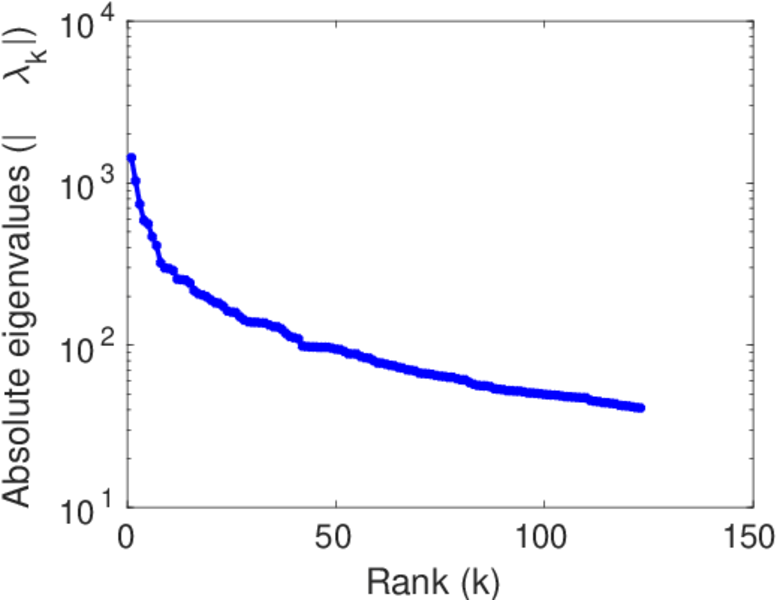

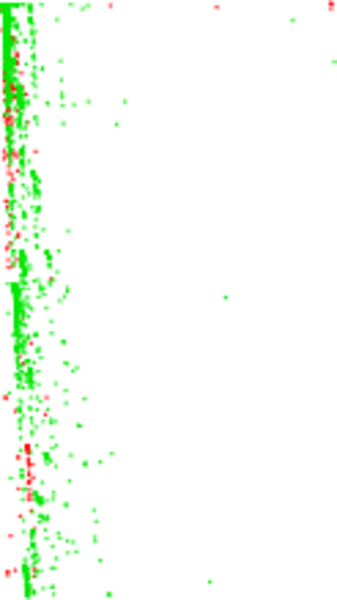

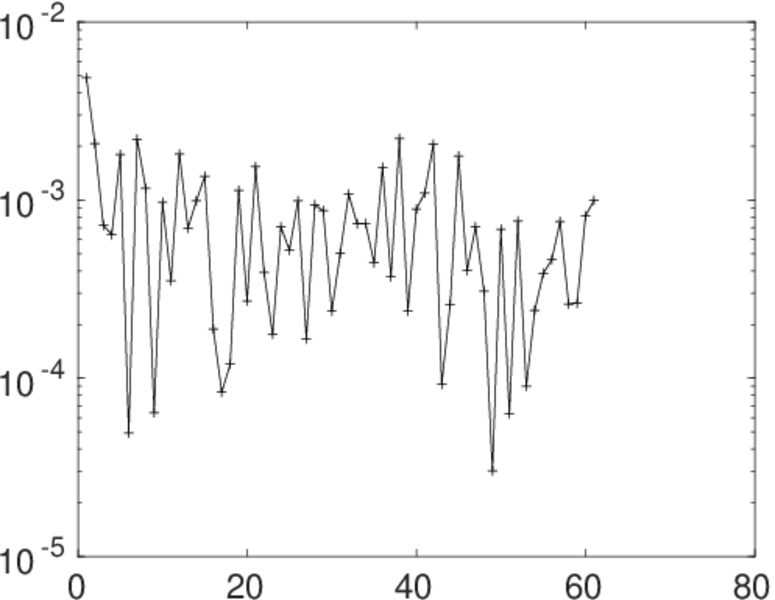

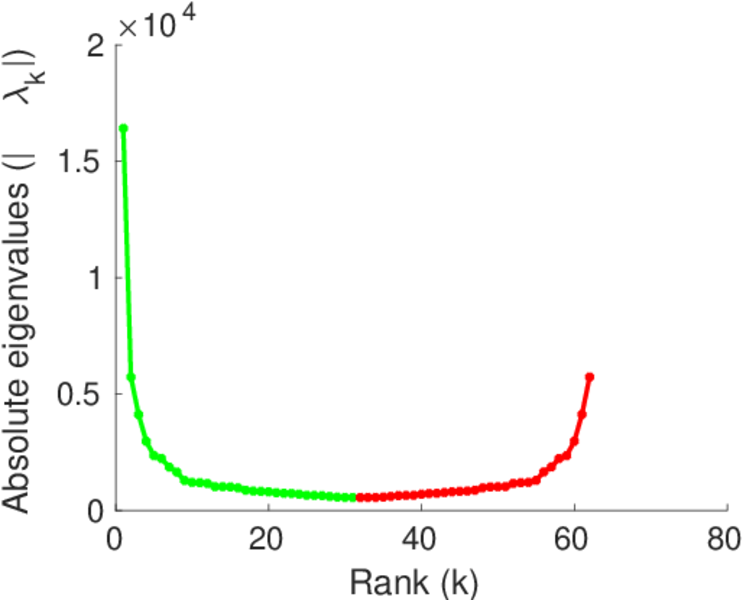

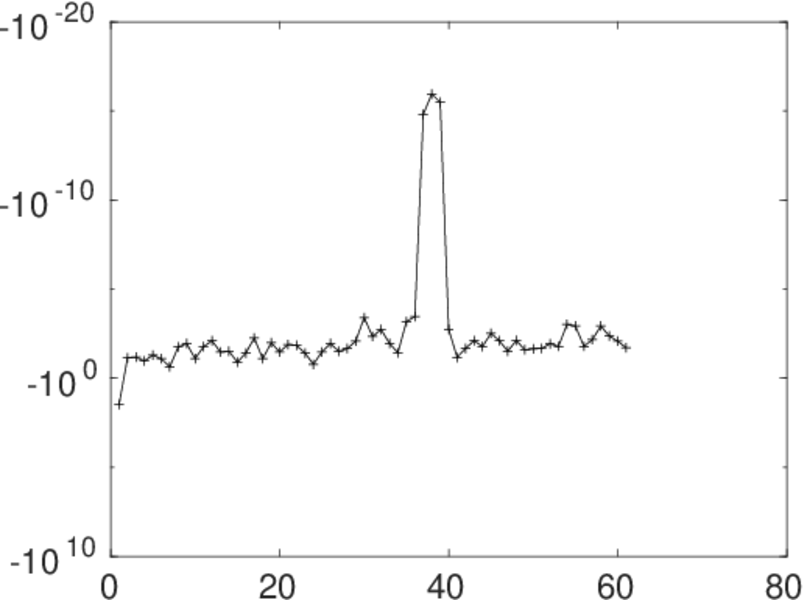

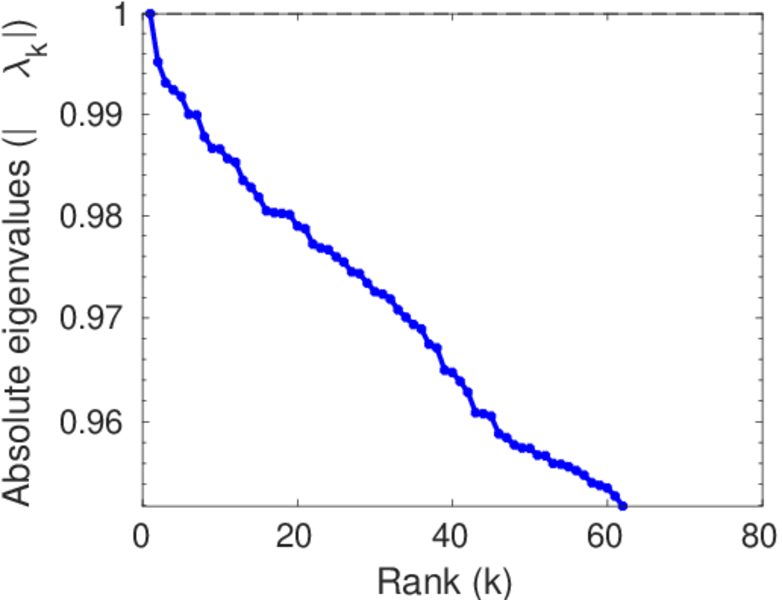

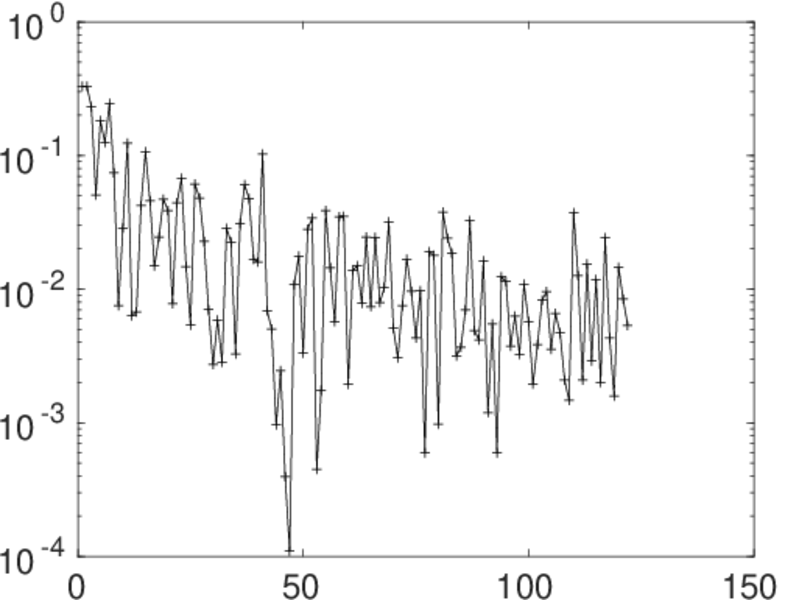

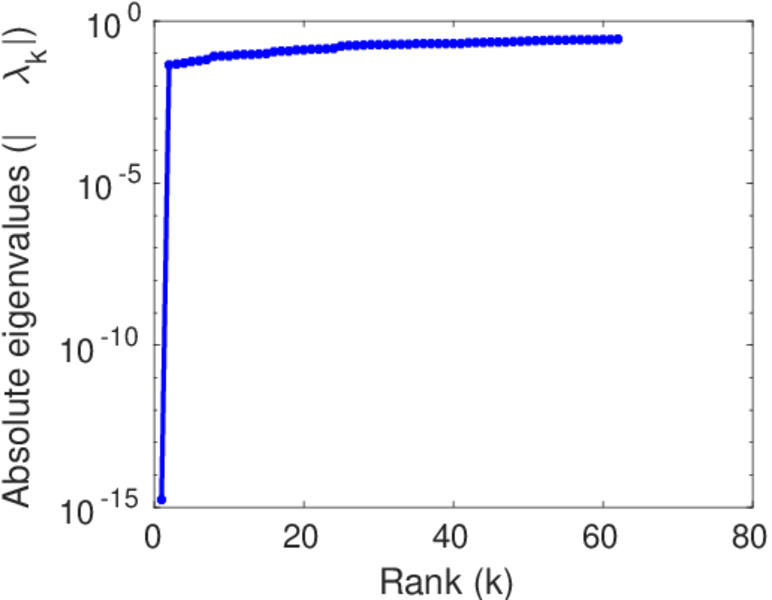

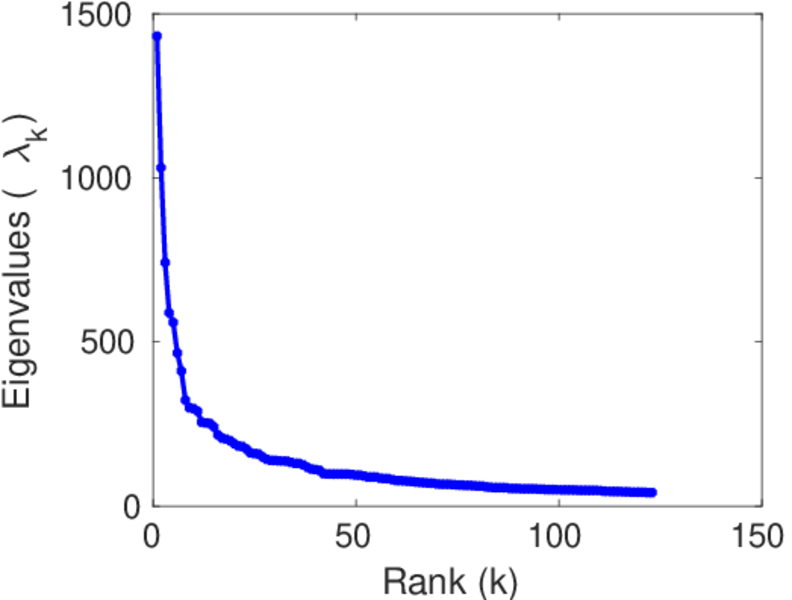

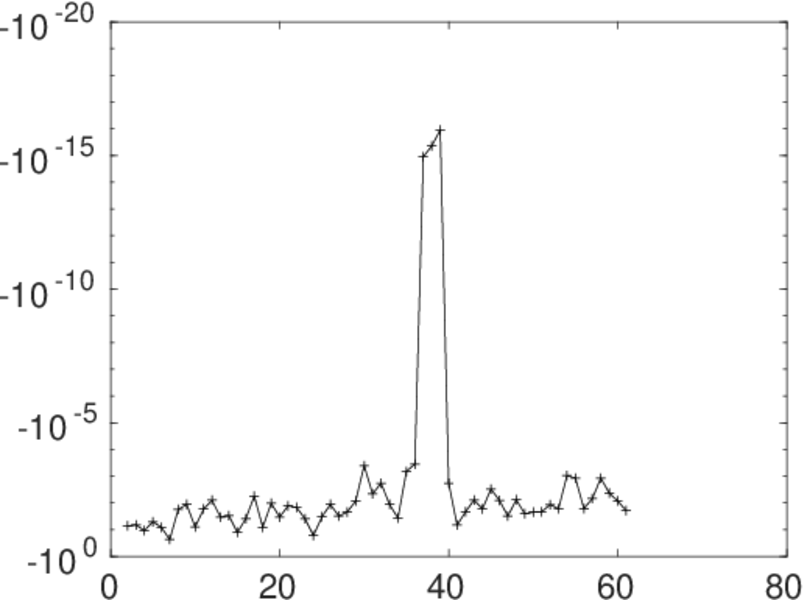

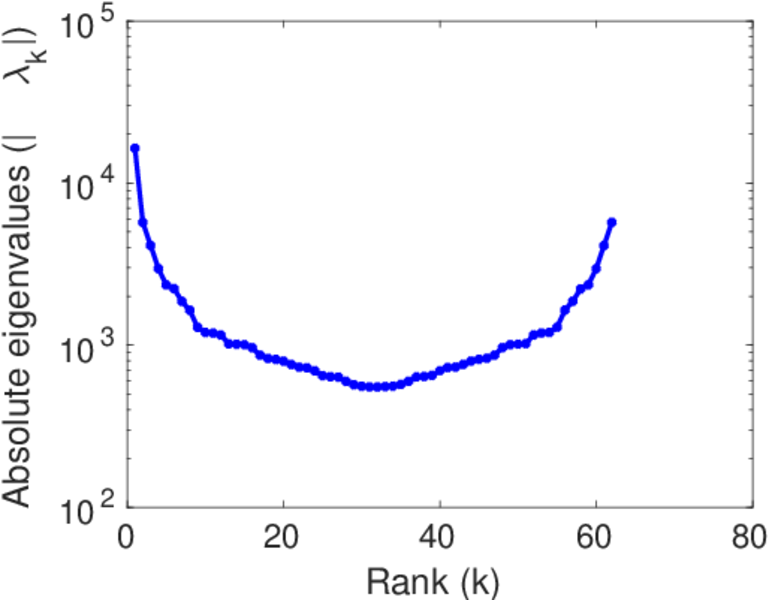

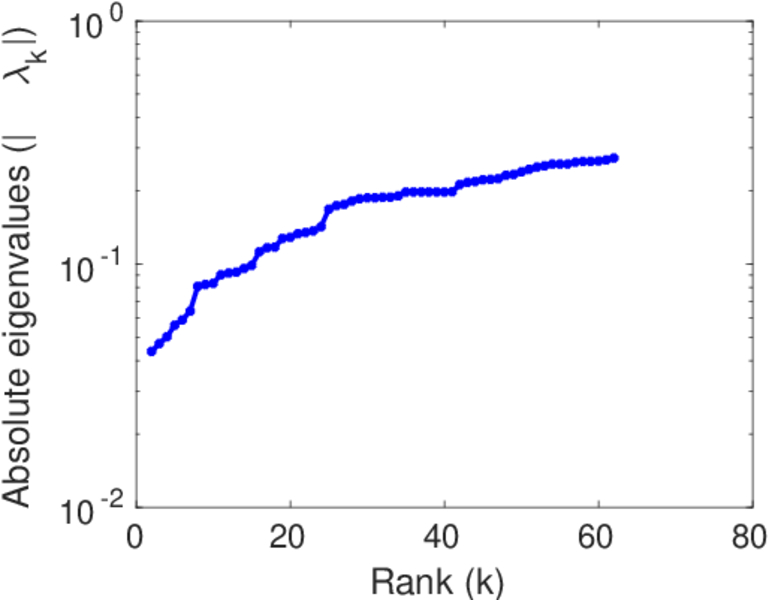

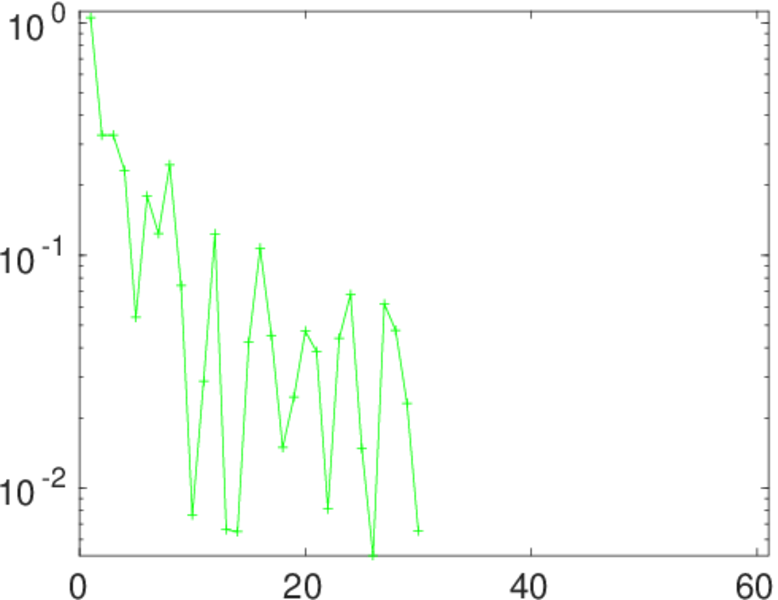

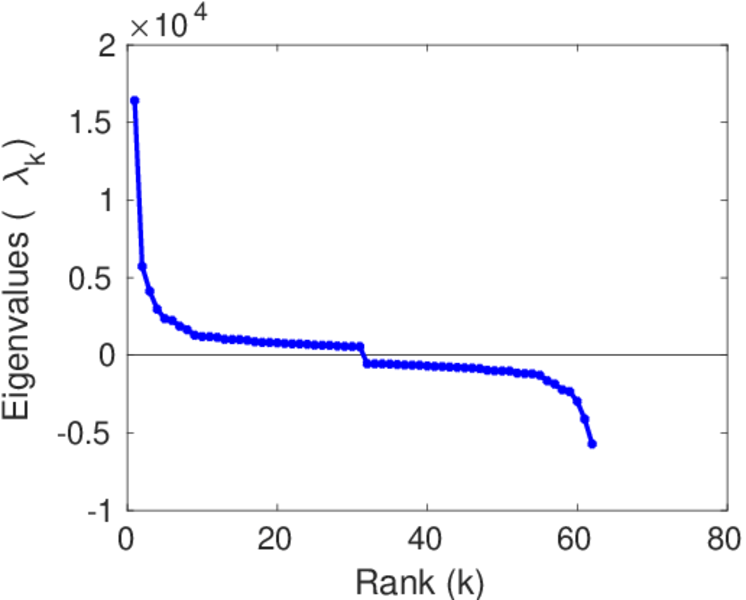

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
[2] Wikimedia Foundation. Wikimedia downloads. http://dumps.wikimedia.org/, January 2010.
