Wikibooks edits (za)

This is the bipartite edit network of the Zhuang Wikibooks. It contains users and pages from the Zhuang Wikibooks, connected by edit events. Each edge represents an edit. The dataset includes the timestamp of each edit.

Metadata

Code		`bza`
Internal name		`edit-zawikibooks`
Name		Wikibooks edits (za)
Data source		http://dumps.wikimedia.org/
Availability		Dataset is available for download
Consistency check		Dataset passed all tests
Category		Authorship network
Dataset timestamp		2017-10-20
Node meaning		User, article
Edge meaning		Edit
Network format		Bipartite, undirected
Edge type		Unweighted, multiple edges
Temporal data		Edges are annotated with timestamps

Statistics

Size	n =	190
Left size	n₁ =	48
Right size	n₂ =	142
Volume	m =	233
Unique edge count	m̿ =	169
Wedge count	s =	1,230
Claw count	z =	14,665
Cross count	x =	149,753
Square count	q =	17
4-Tour count	T₄ =	5,538
Maximum degree	d_max =	55
Maximum left degree	d_1max =	55
Maximum right degree	d_2max =	42
Average degree	d =	2.452 63
Average left degree	d₁ =	4.854 17
Average right degree	d₂ =	1.640 85
Fill	p =	0.024 794 6
Average edge multiplicity	m̃ =	1.378 70
Size of LCC	N =	46
Diameter	δ =	2
50-Percentile effective diameter	δ_0.5 =	1.467 55
90-Percentile effective diameter	δ_0.9 =	1.893 51
Median distance	δ_M =	2
Mean distance	δ_m =	1.919 31
Gini coefficient	G =	0.589 373
Balanced inequality ratio	P =	0.266 094
Left balanced inequality ratio	P₁ =	0.240 343
Right balanced inequality ratio	P₂ =	0.373 391
Relative edge distribution entropy	H_er =	0.899 268
Power law exponent	γ =	4.617 07
Tail power law exponent	γ_t =	2.541 00
Tail power law exponent with p	γ₃ =	2.541 00
p-value	p =	0.869 000
Left tail power law exponent with p	γ_3,1 =	2.191 00
Left p-value	p₁ =	0.221 000
Right tail power law exponent with p	γ_3,2 =	3.301 00
Right p-value	p₂ =	0.245 000
Degree assortativity	ρ =	−0.321 601
Degree assortativity p-value	p_ρ =	2.011 52 × 10⁻⁵
Spectral norm	α =	42.201 9
Spectral separation	\|λ₁[A] / λ₂[A]\| =	6.291 09
Controllability	C =	97
Relative controllability	C_r =	0.513 228

Plots

Fruchterman–Reingold graph drawing

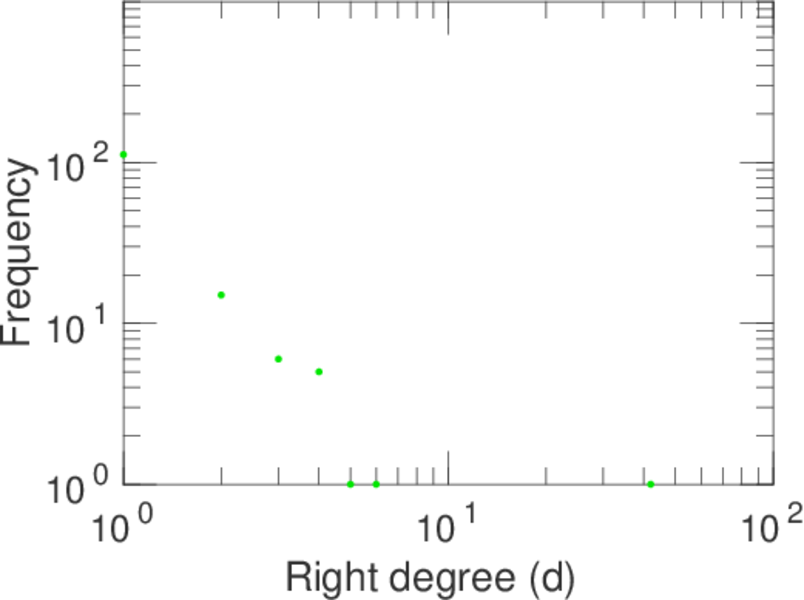

Degree distribution

Cumulative degree distribution

Lorenz curve

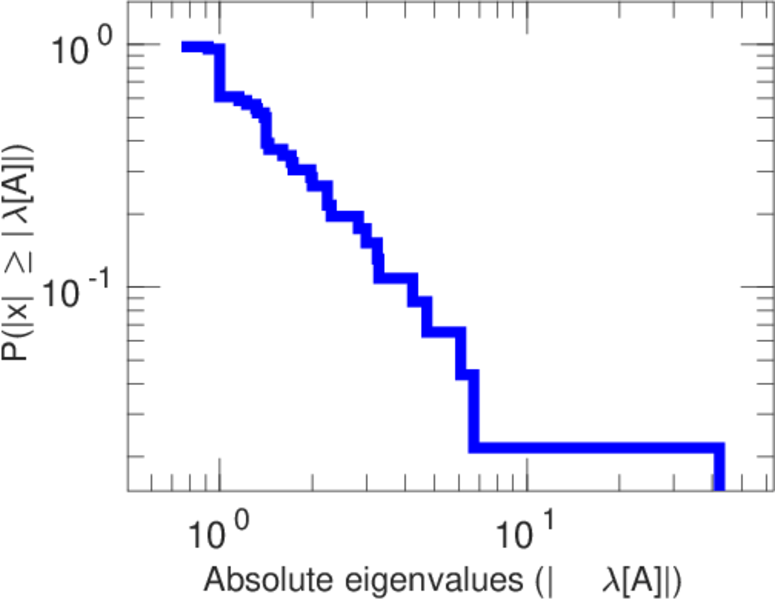

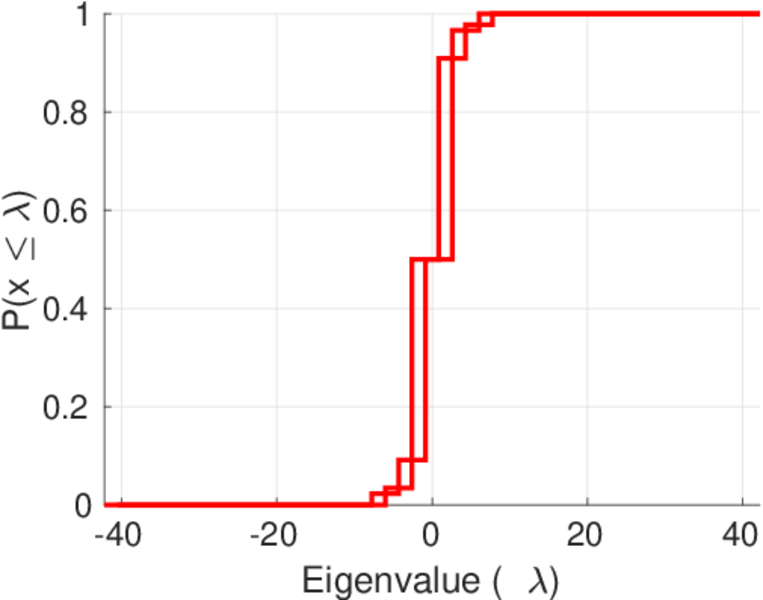

Spectral distribution of the adjacency matrix

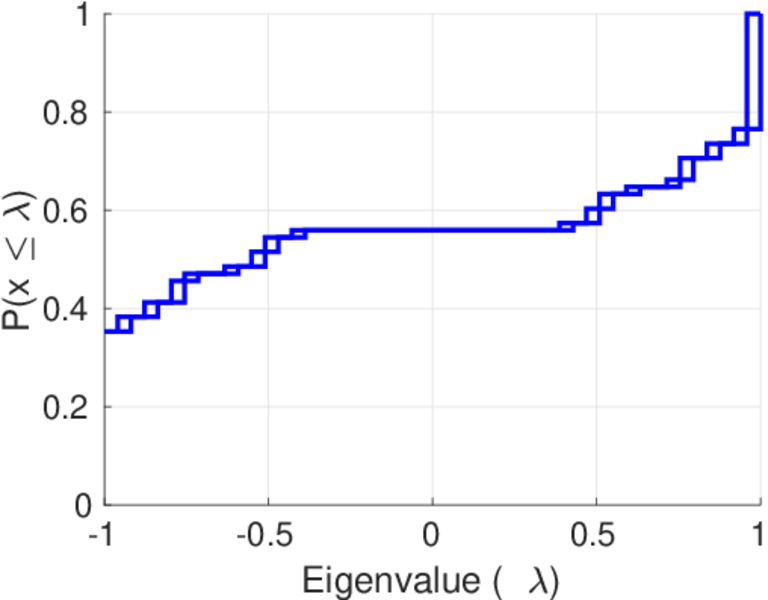

Spectral distribution of the normalized adjacency matrix

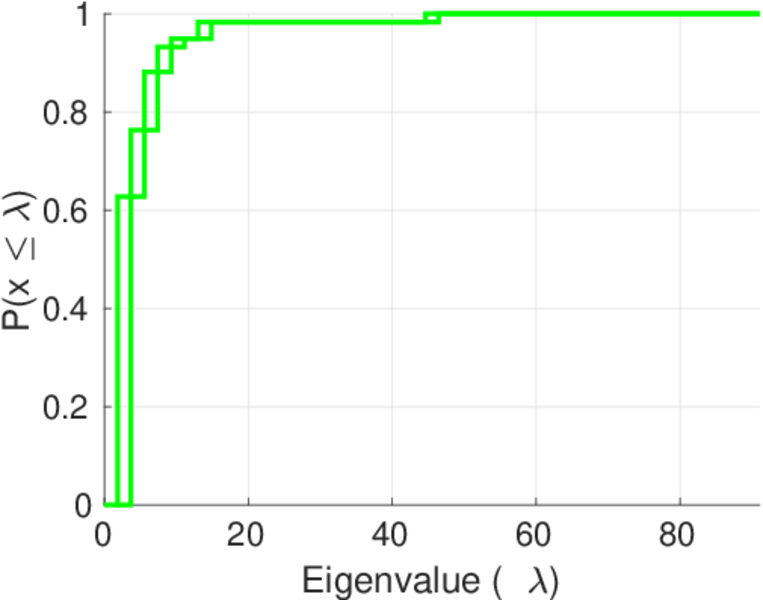

Spectral distribution of the Laplacian

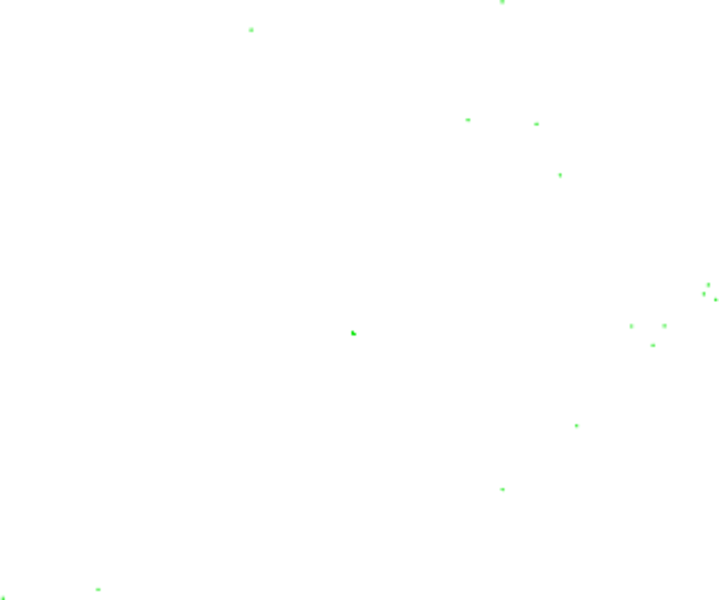

Spectral graph drawing based on the adjacency matrix

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

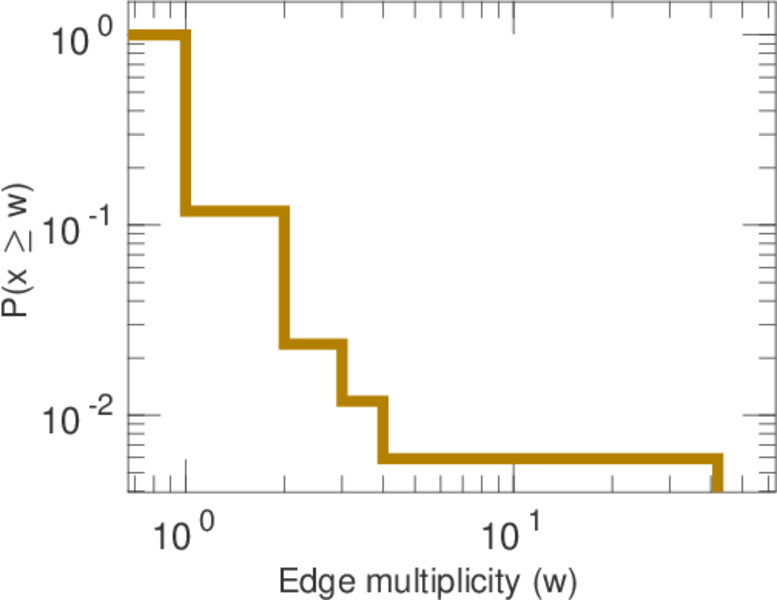

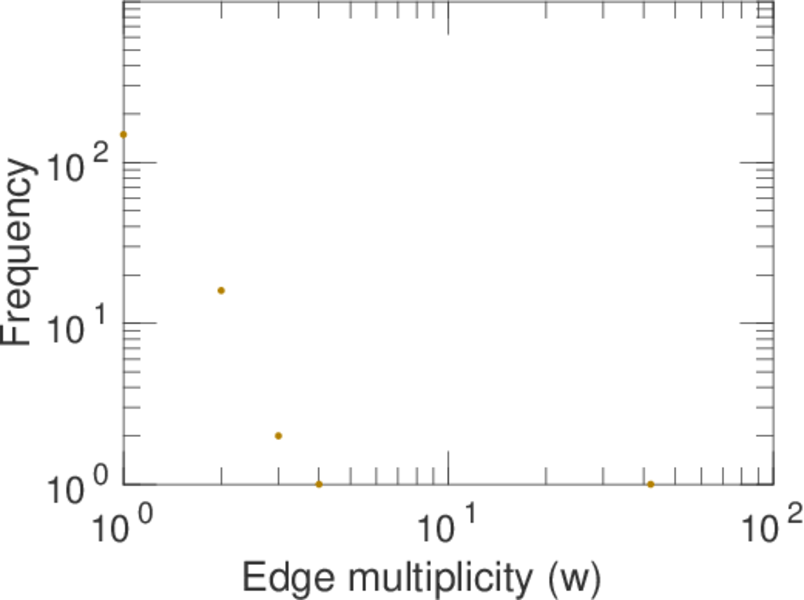

Edge weight/multiplicity distribution

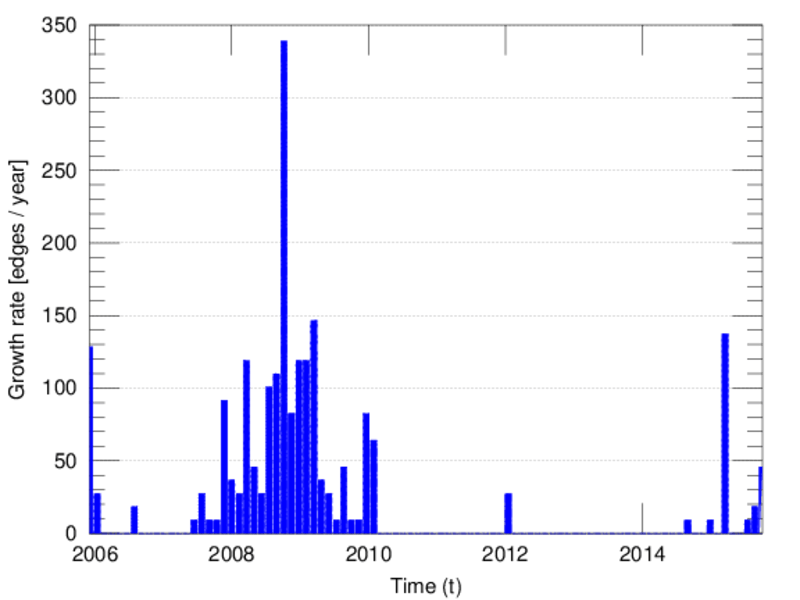

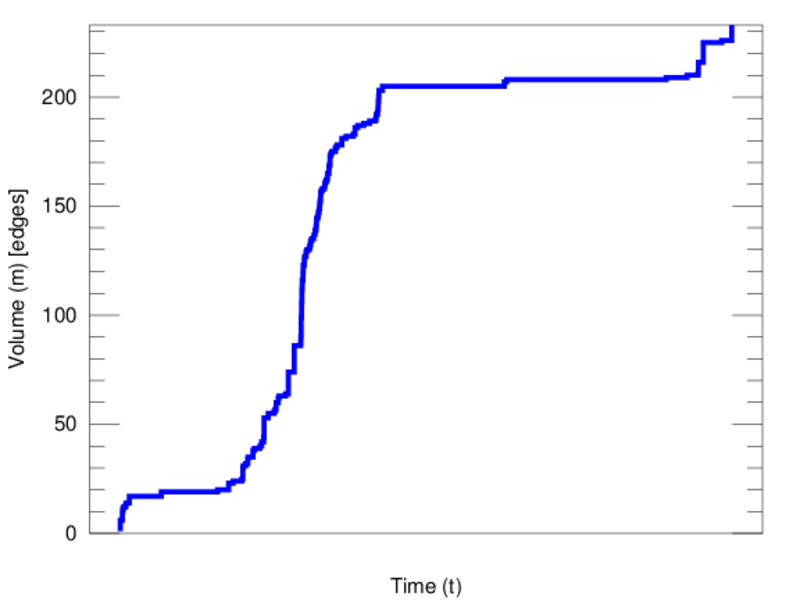

Temporal distribution

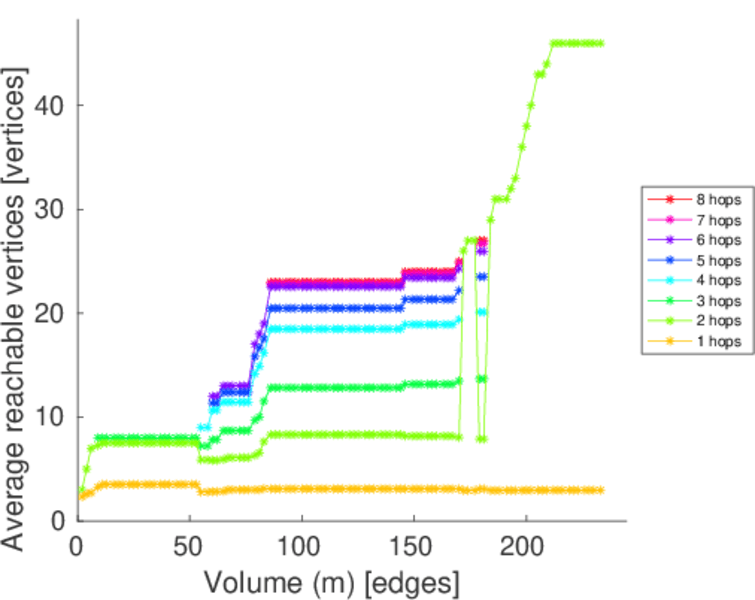

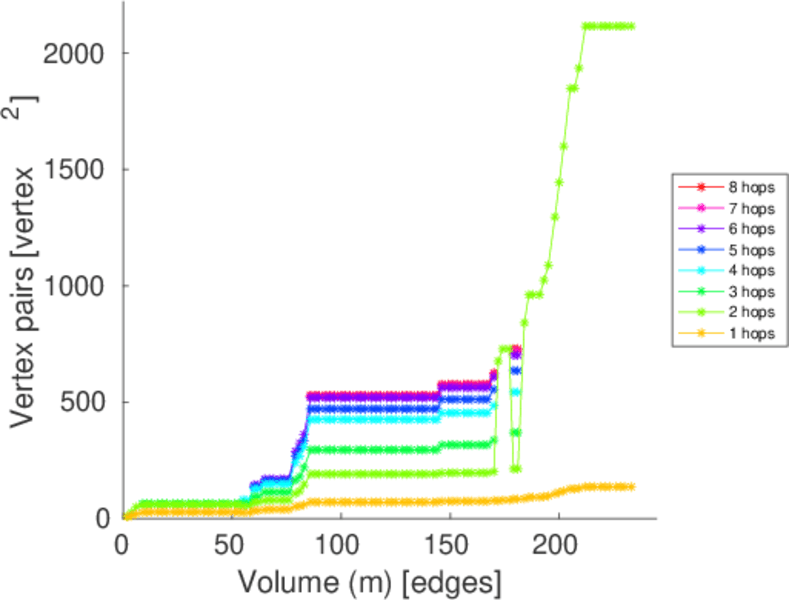

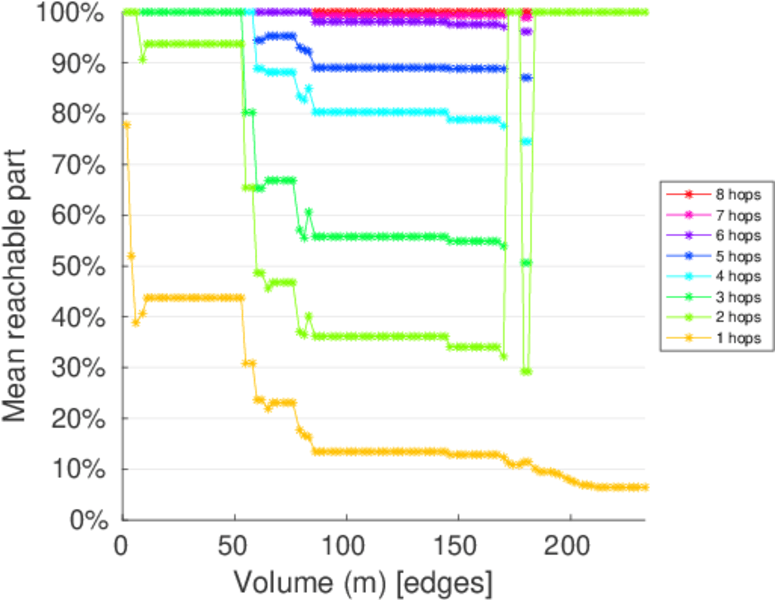

Temporal hop distribution

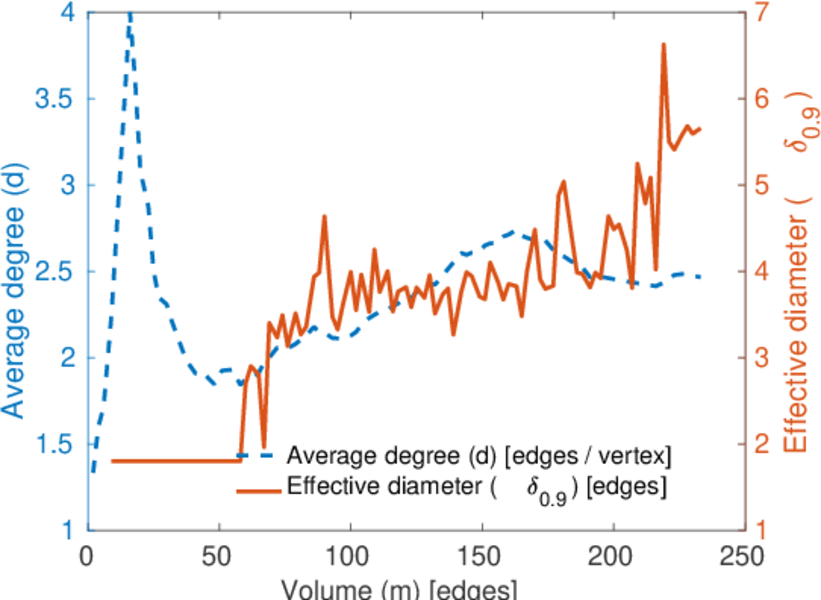

Diameter/density evolution

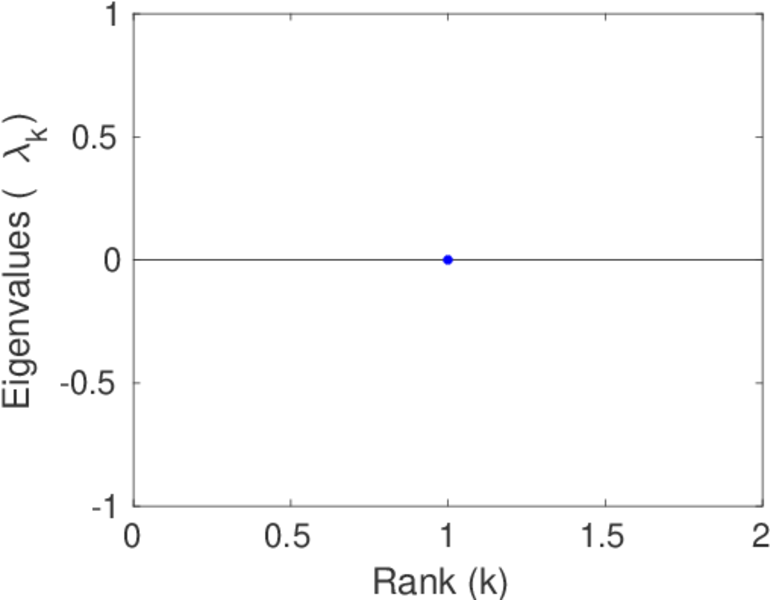

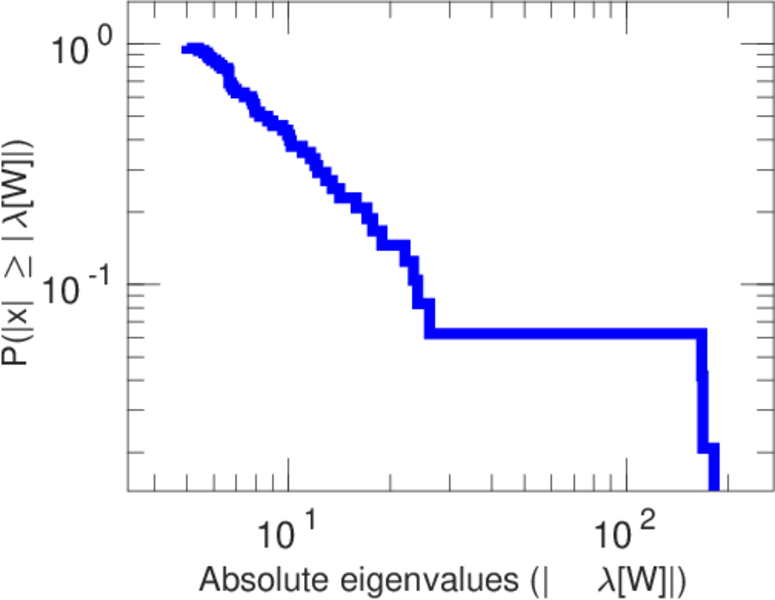

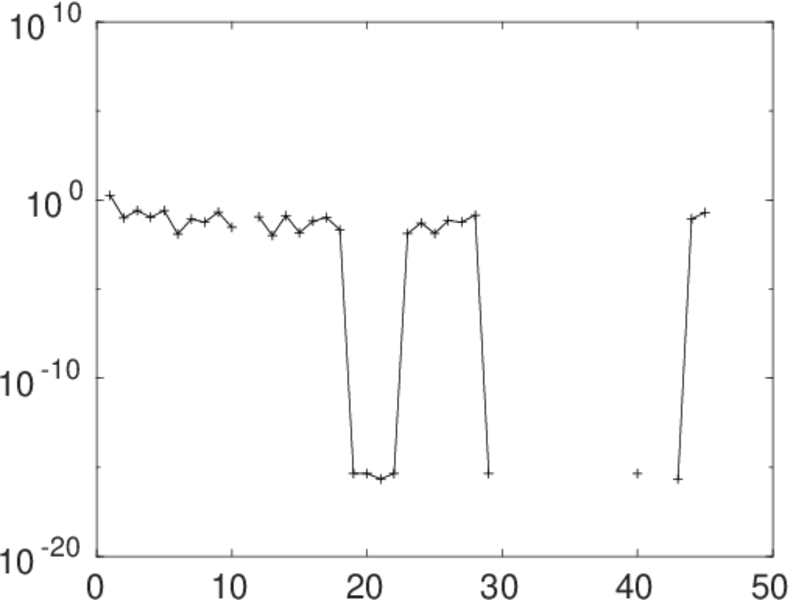

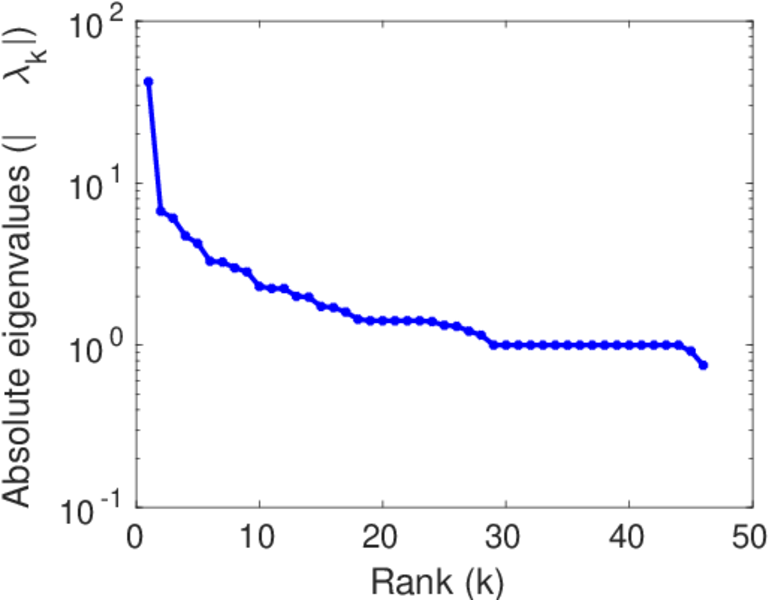

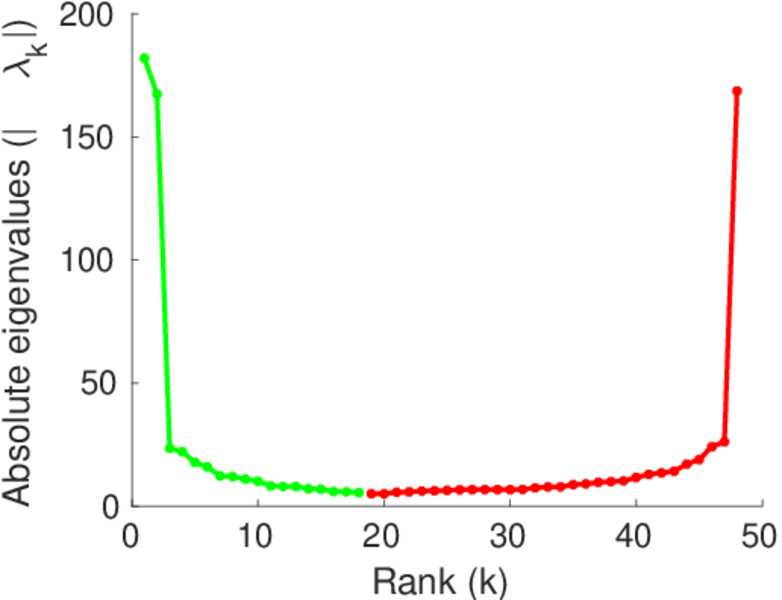

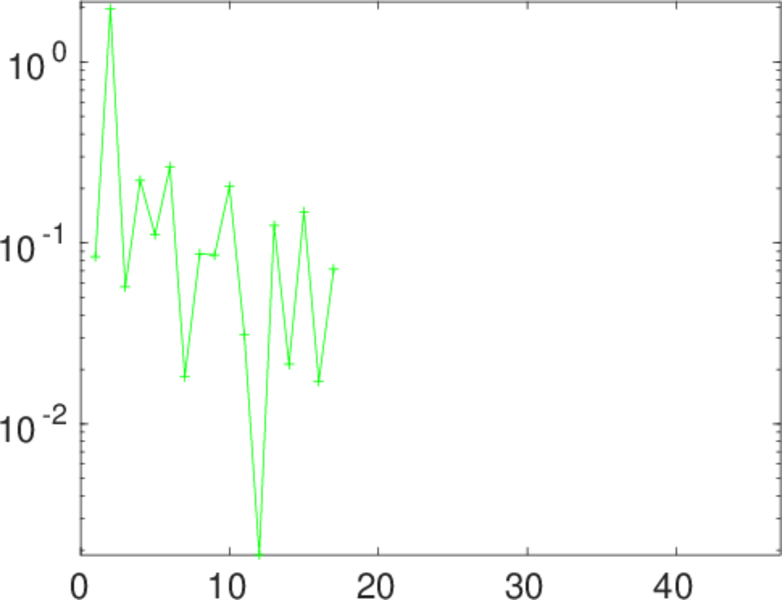

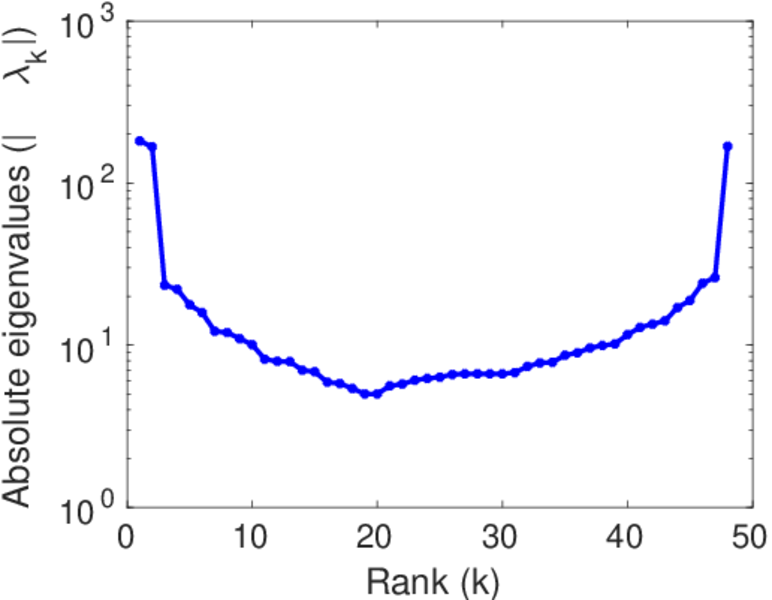

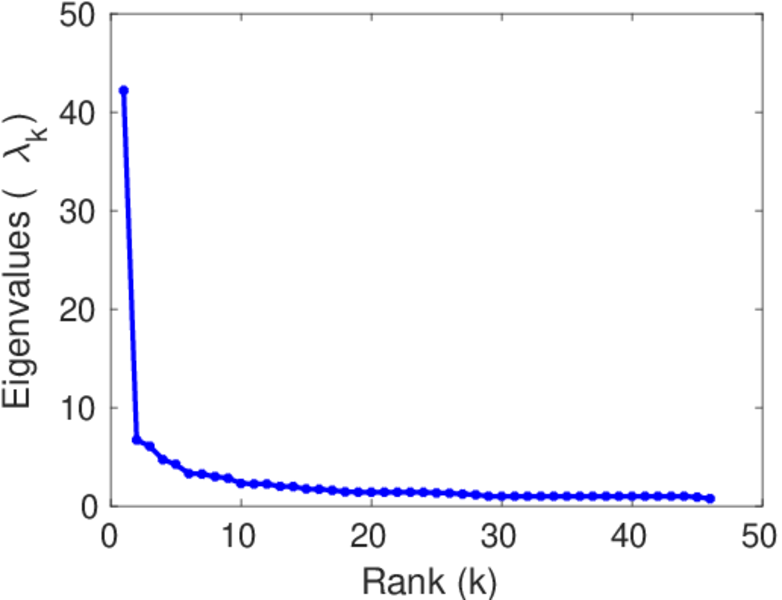

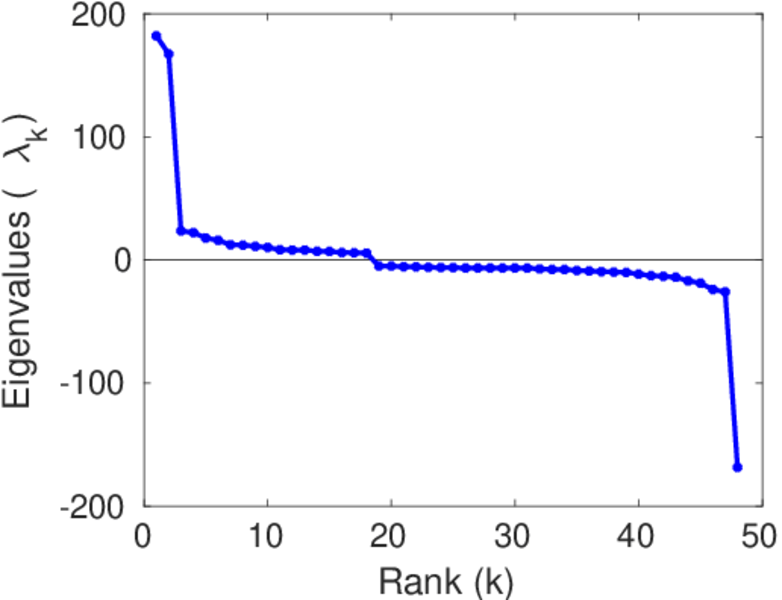

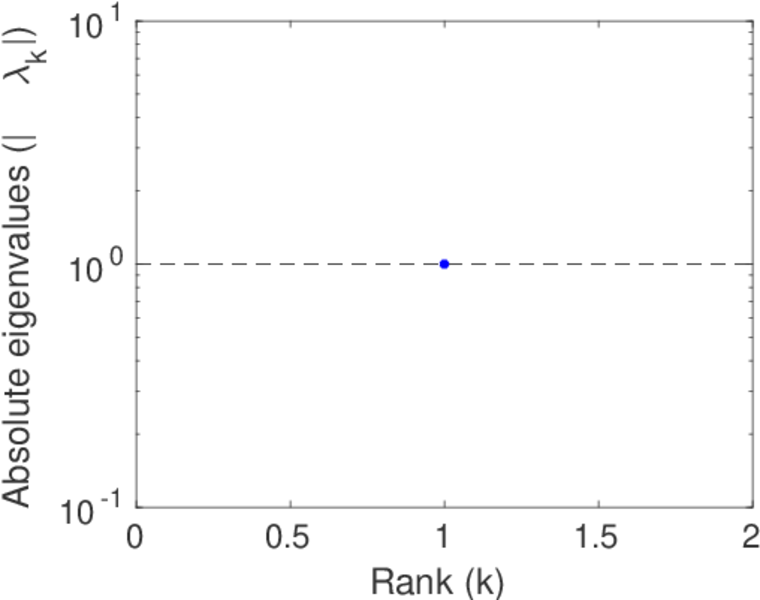

Matrix decompositions plots

Downloads

References

[1]	Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
[2]	Wikimedia Foundation. Wikimedia downloads. http://dumps.wikimedia.org/, January 2010.
