Wikipedia talk (lv)

This is the communication network of the Latvian Wikipedia. Nodes represent users, and an edge from user A to user B denotes that user A wrote a message on the talk page of user B at a certain timestamp.

Metadata

CodeTlv
Internal namewiki_talk_lv
NameWikipedia talk (lv)
Data sourcehttps://zenodo.org/record/49561
AvailabilityDataset is available for download
Consistency checkDataset passed all tests
Category
Communication network
Dataset timestamp 2017-10-27
Node meaningUser
Edge meaningMessage
Network formatUnipartite, directed
Edge typeUnweighted, multiple edges
Temporal data Edges are annotated with timestamps
ReciprocalContains reciprocal edges
Directed cyclesContains directed cycles
LoopsContains loops

Statistics

Size n =41,424
Volume m =73,900
Unique edge count m̿ =51,098
Loop count l =8,740
Wedge count s =649,358,980
Claw count z =7,621,516,311,302
Cross count x =68,032,007,206,512,256
Triangle count t =10,408
Square count q =5,154,202
4-Tour count T4 =2,638,768,688
Maximum degree dmax =35,755
Maximum outdegree d+max =35,733
Maximum indegree dmax =2,220
Average degree d =3.567 98
Fill p =2.977 83 × 10−5
Average edge multiplicity m̃ =1.446 24
Size of LCC N =41,278
Size of LSCC Ns =510
Relative size of LSCC Nrs =0.012 311 7
Diameter δ =6
50-Percentile effective diameter δ0.5 =1.662 40
90-Percentile effective diameter δ0.9 =3.095 04
Median distance δM =2
Mean distance δm =2.355 89
Gini coefficient G =0.709 842
Balanced inequality ratio P =0.218 606
Outdegree balanced inequality ratio P+ =0.057 659 0
Indegree balanced inequality ratio P =0.357 673
Relative edge distribution entropy Her =0.630 515
Power law exponent γ =9.150 63
Tail power law exponent γt =3.291 00
Tail power law exponent with p γ3 =3.291 00
p-value p =0.000 00
Outdegree tail power law exponent with p γ3,o =2.181 00
Outdegree p-value po =0.000 00
Indegree tail power law exponent with p γ3,i =3.381 00
Indegree p-value pi =0.000 00
Degree assortativity ρ =−0.593 242
Degree assortativity p-value pρ =0.000 00
In/outdegree correlation ρ± =+0.604 761
Clustering coefficient c =4.808 43 × 10−5
Directed clustering coefficient c± =0.019 684 1
Spectral norm α =1,931.81
Operator 2-norm ν =981.703
Cyclic eigenvalue π =943.056
Algebraic connectivity a =0.080 124 8
Spectral separation 1[A] / λ2[A]| =1.419 92
Reciprocity y =0.040 451 7
Non-bipartivity bA =0.902 004
Normalized non-bipartivity bN =0.011 472 6
Algebraic non-bipartivity χ =0.026 898 5
Spectral bipartite frustration bK =0.002 753 43
Controllability C =40,325
Relative controllability Cr =0.973 469

Plots

Fruchterman–Reingold graph drawing

Degree distribution

Cumulative degree distribution

Lorenz curve

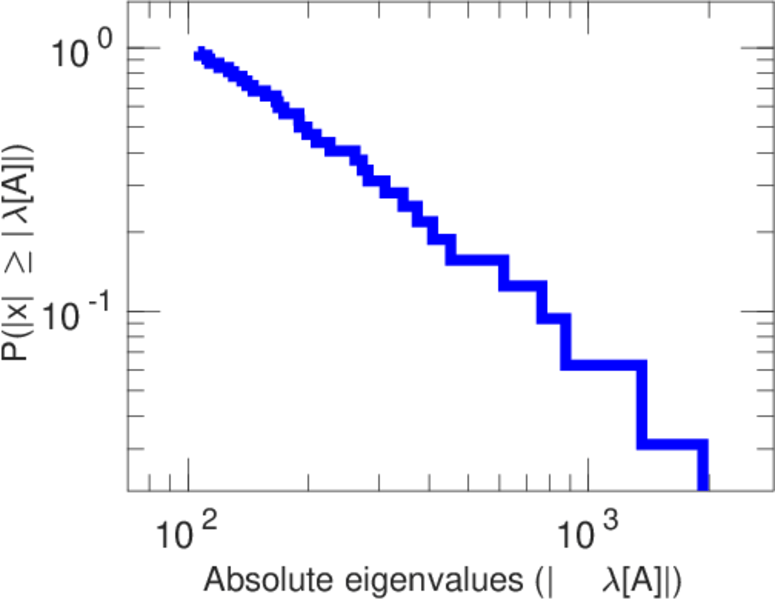

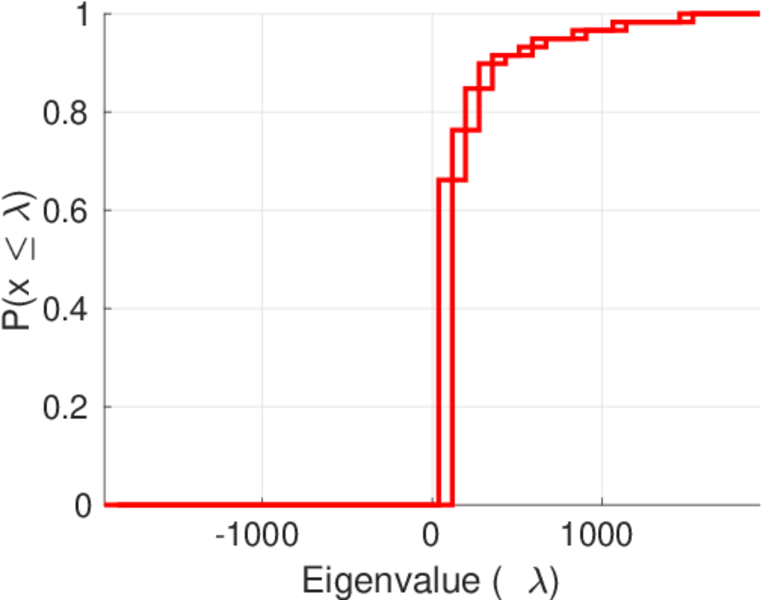

Spectral distribution of the adjacency matrix

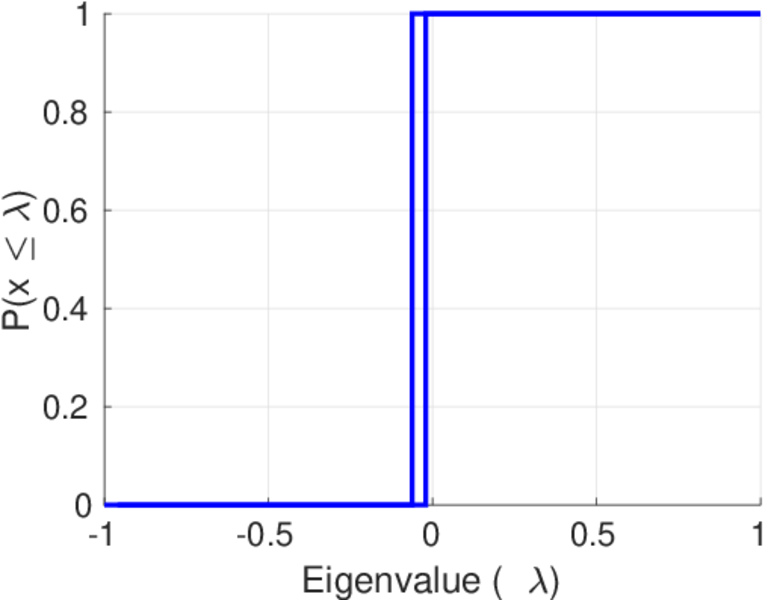

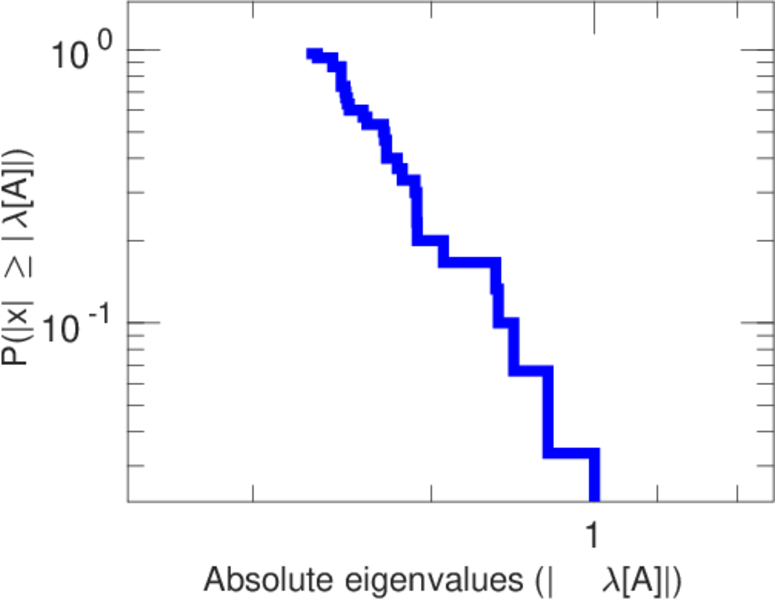

Spectral distribution of the normalized adjacency matrix

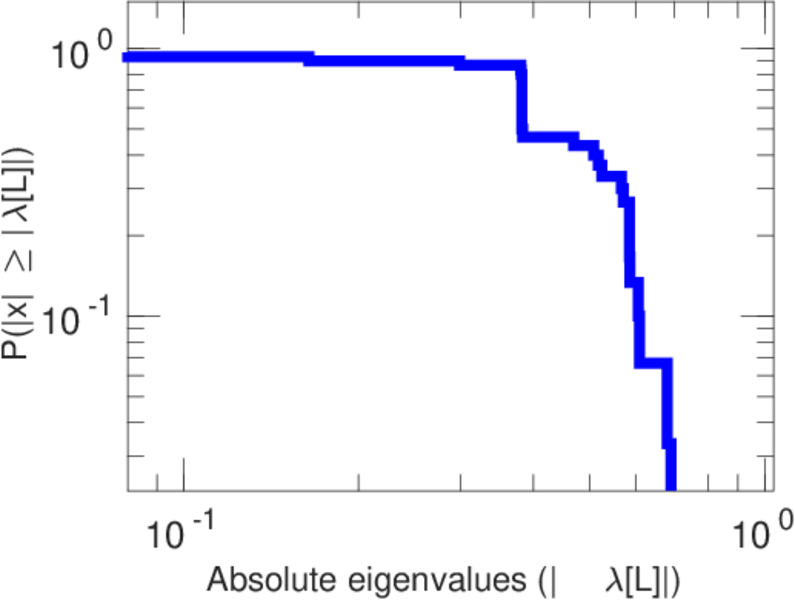

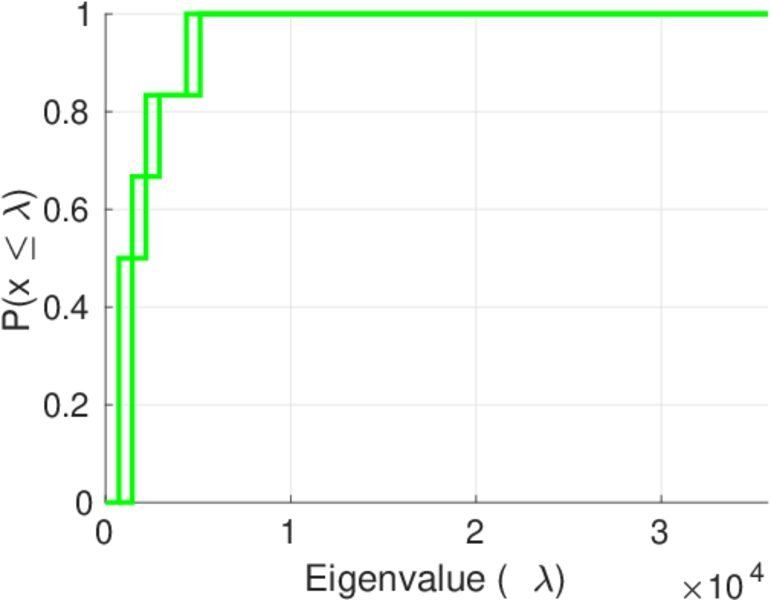

Spectral distribution of the Laplacian

Spectral graph drawing based on the adjacency matrix

Spectral graph drawing based on the Laplacian

Spectral graph drawing based on the normalized adjacency matrix

Degree assortativity

Zipf plot

Hop distribution

Double Laplacian graph drawing

Delaunay graph drawing

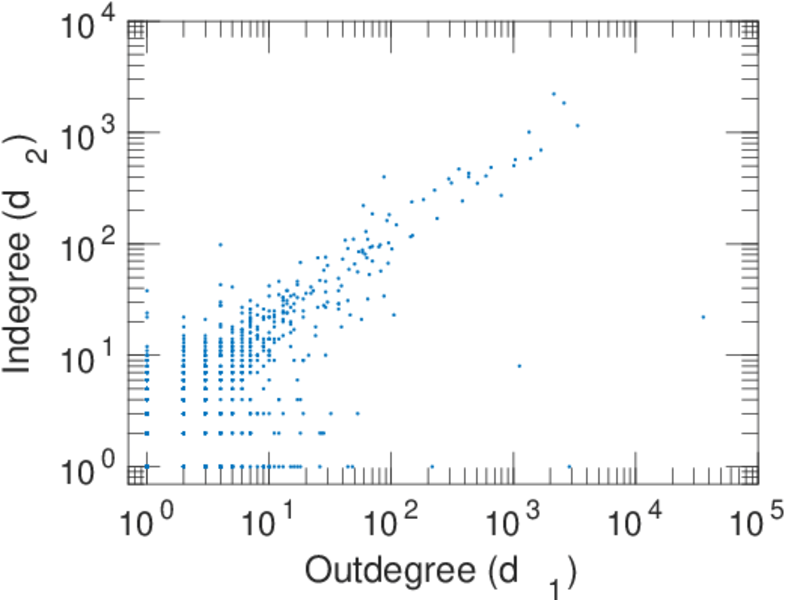

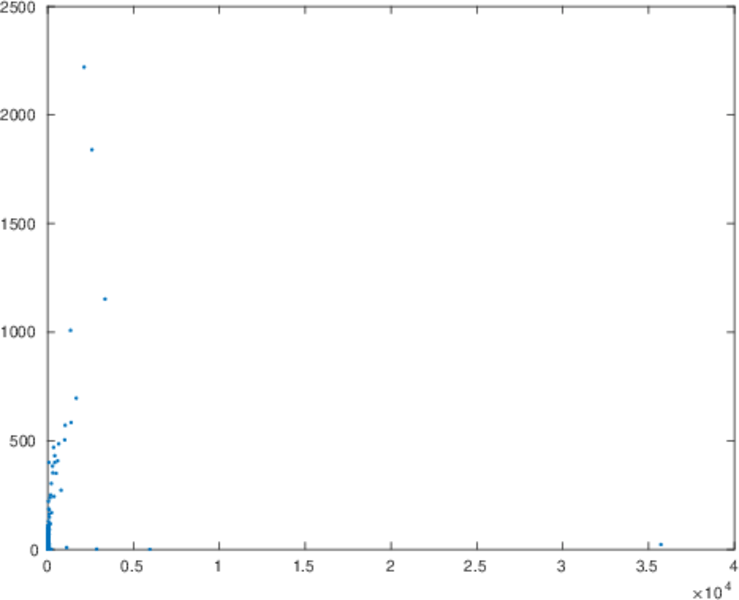

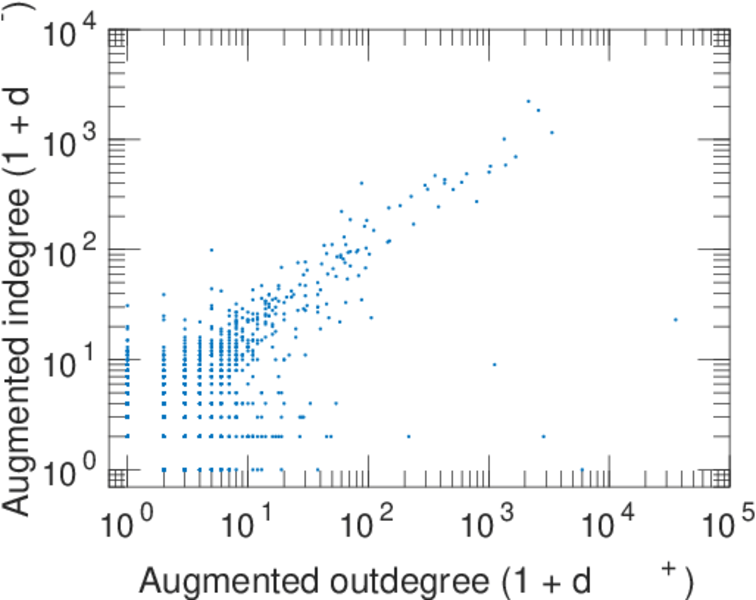

In/outdegree scatter plot

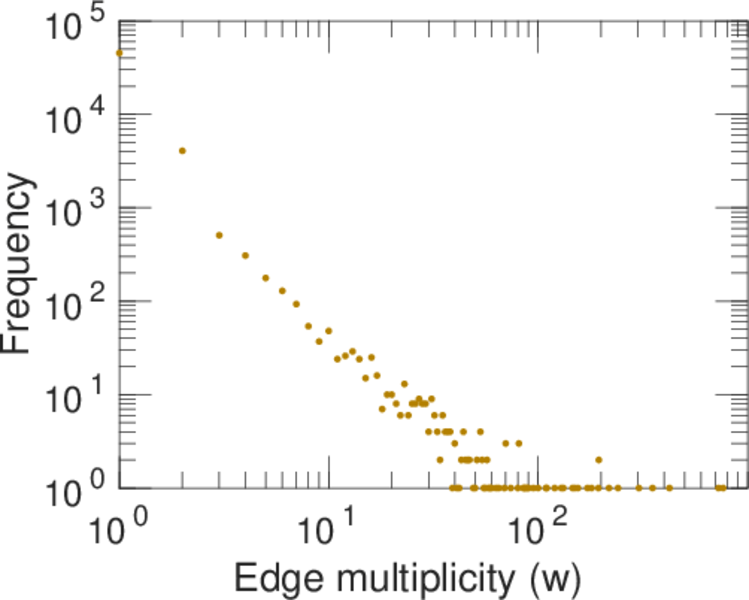

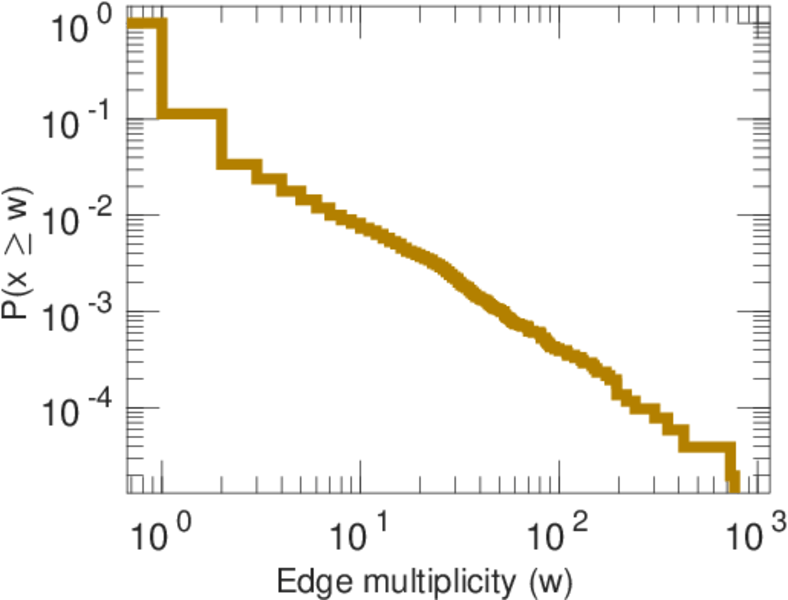

Edge weight/multiplicity distribution

Clustering coefficient distribution

Average neighbor degree distribution

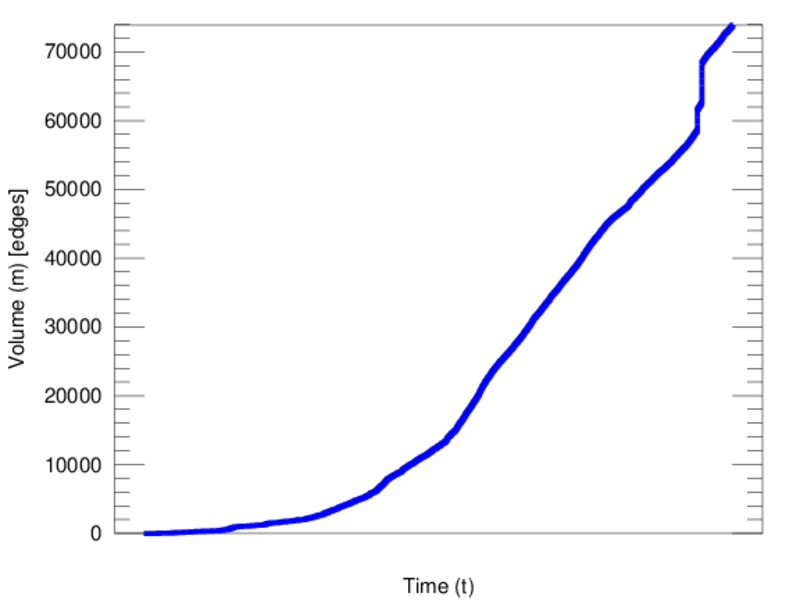

Temporal distribution

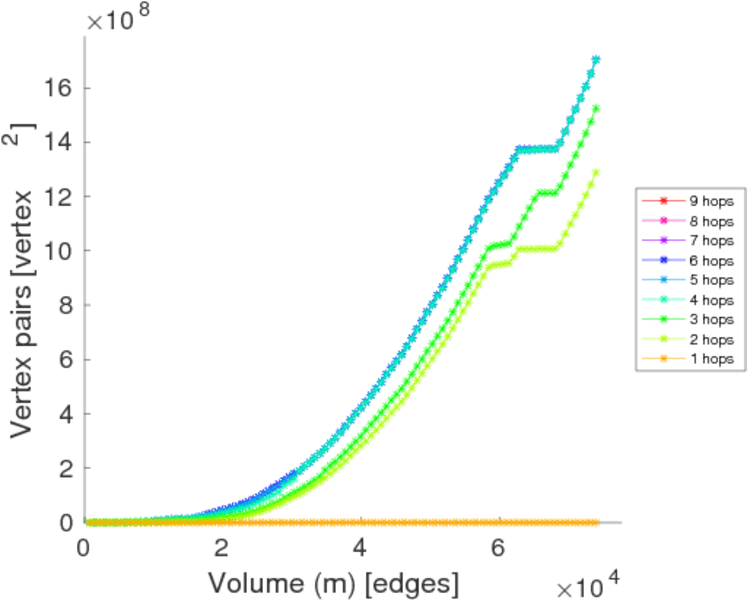

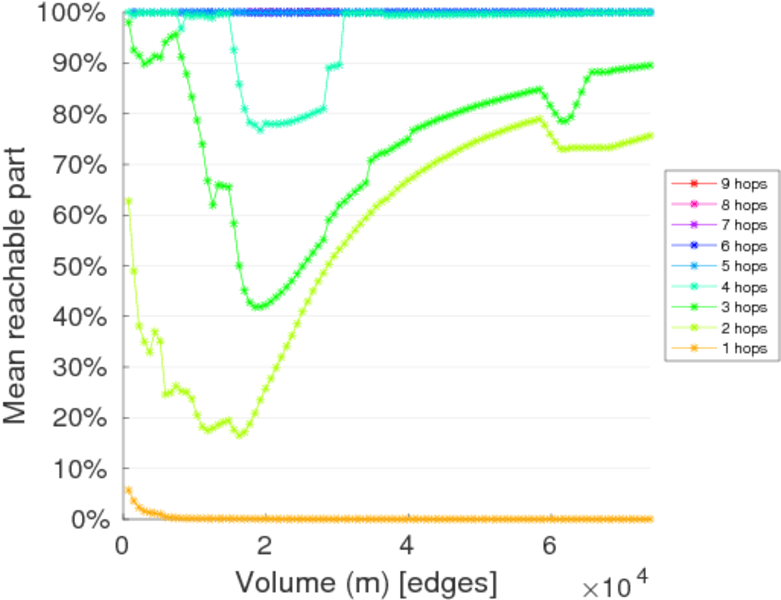

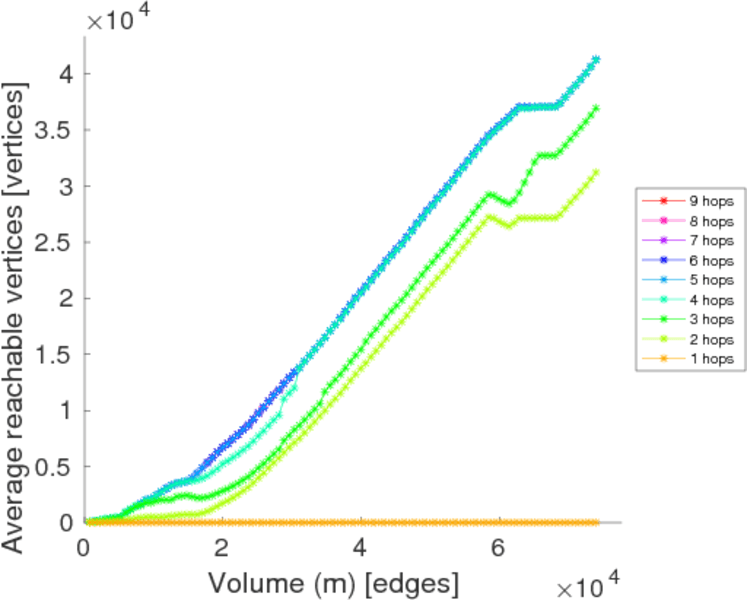

Temporal hop distribution

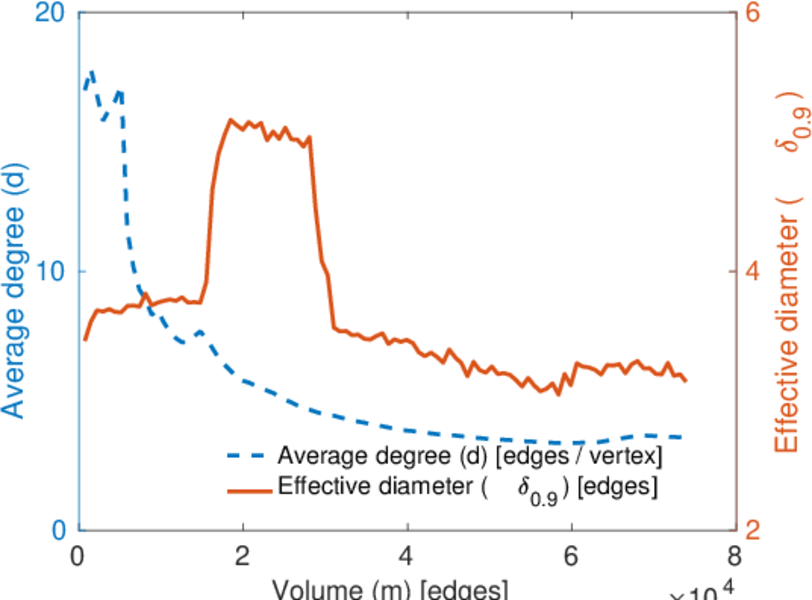

Diameter/density evolution

SynGraphy

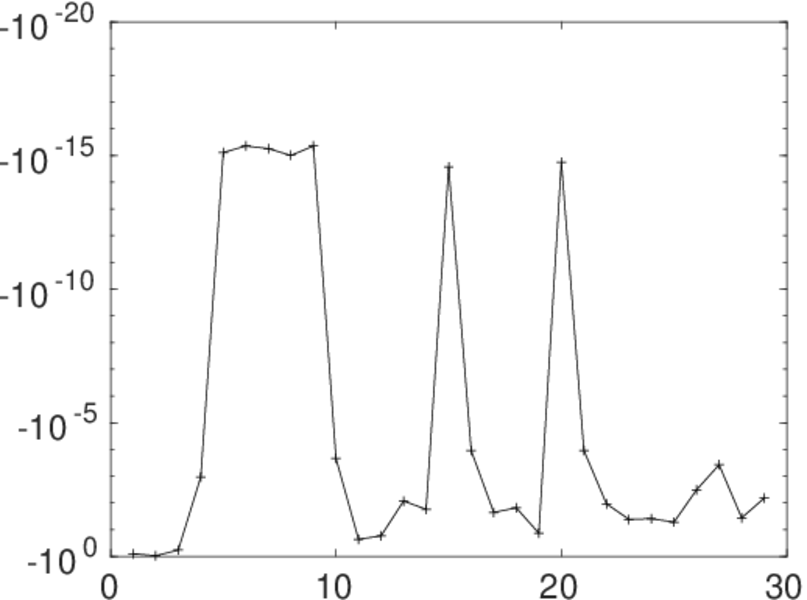

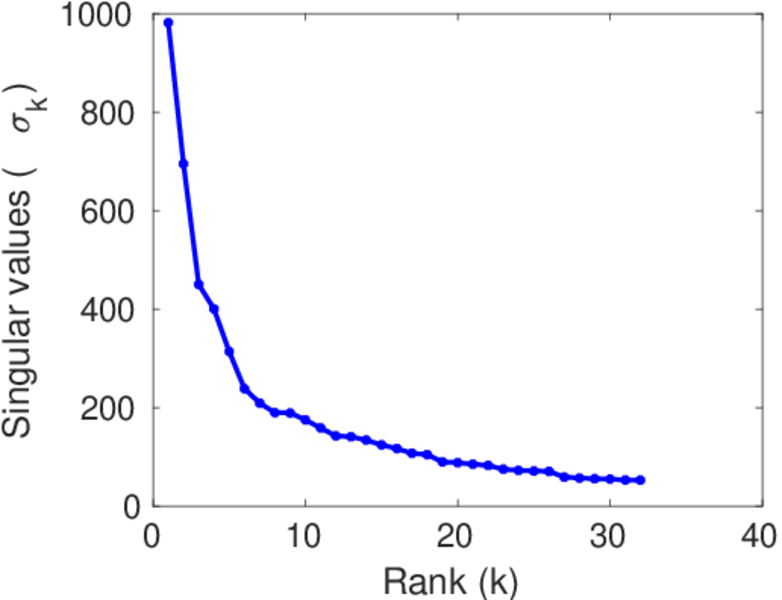

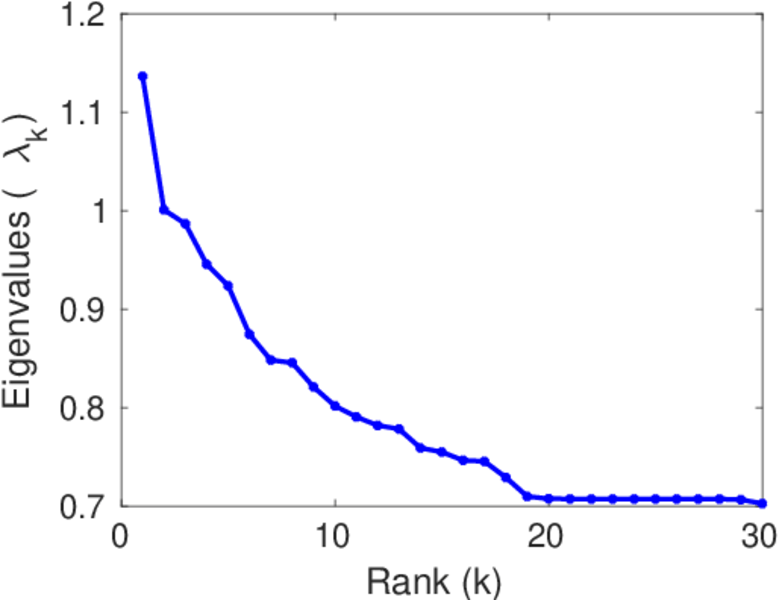

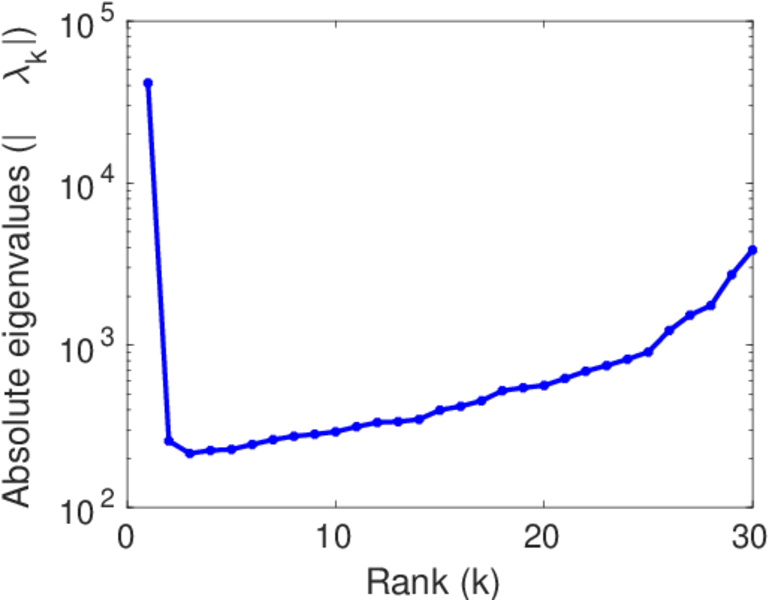

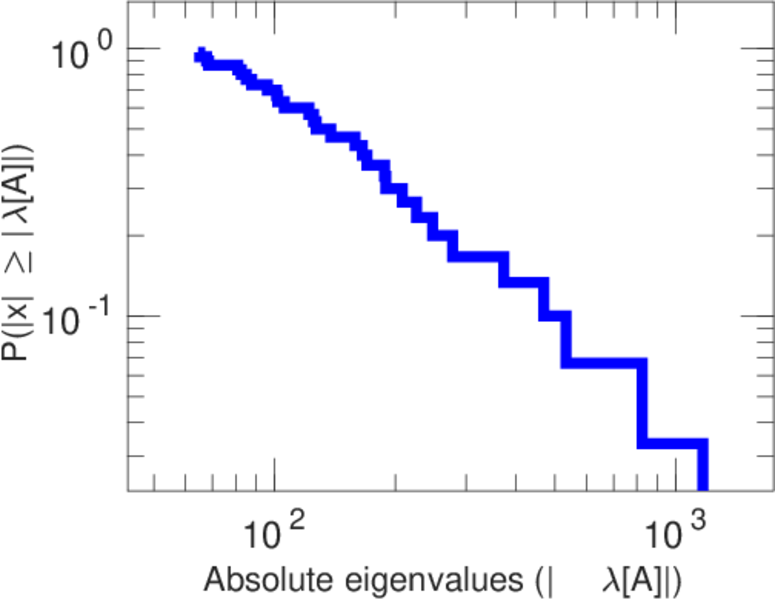

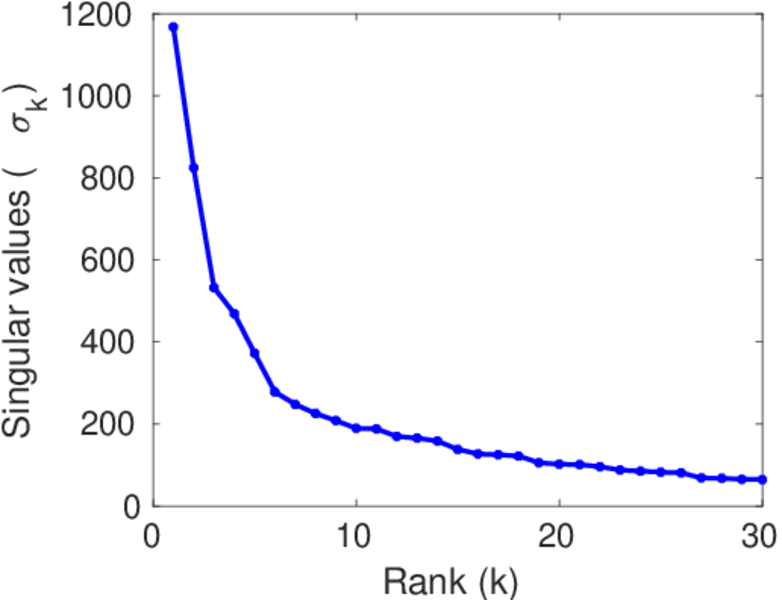

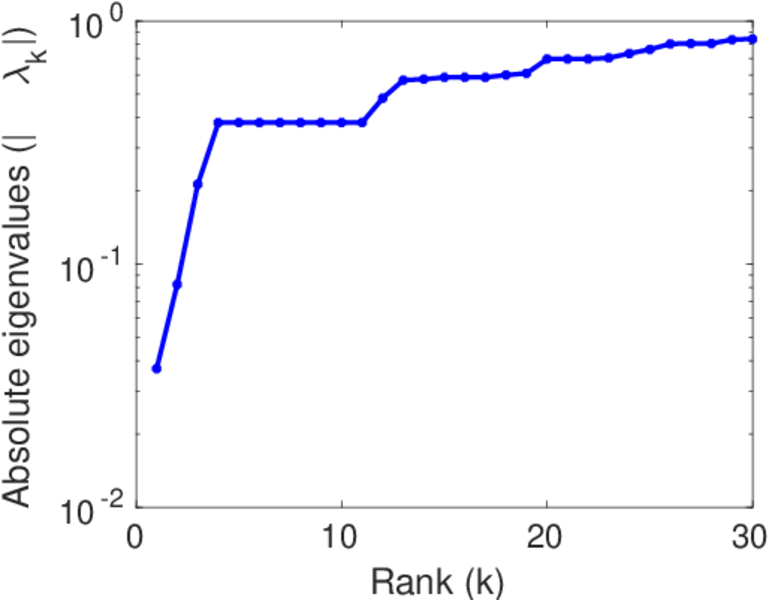

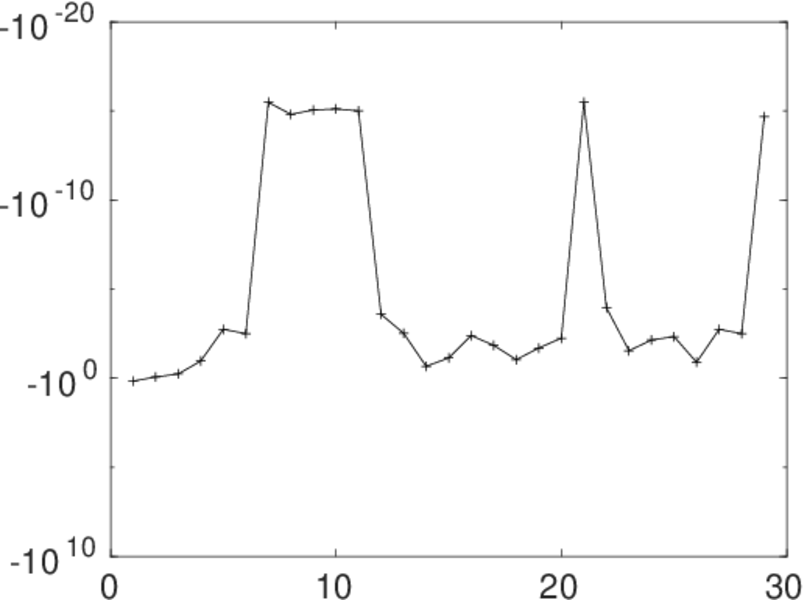

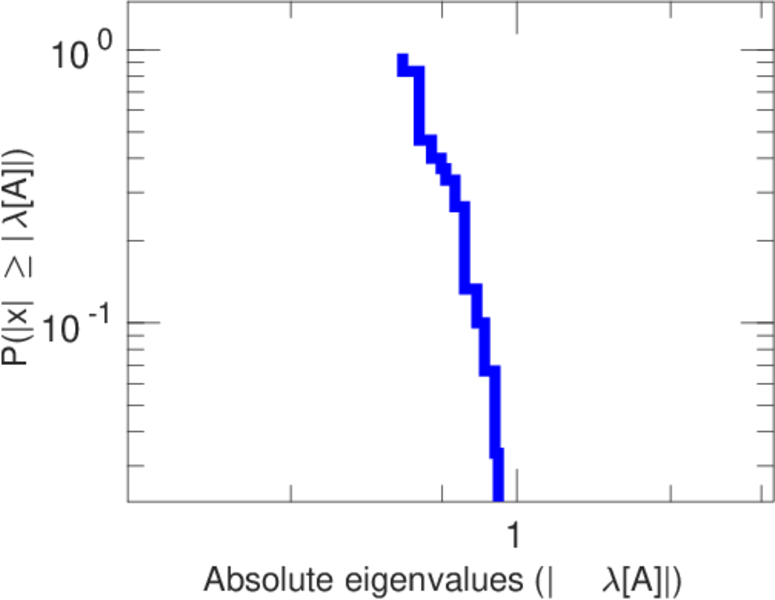

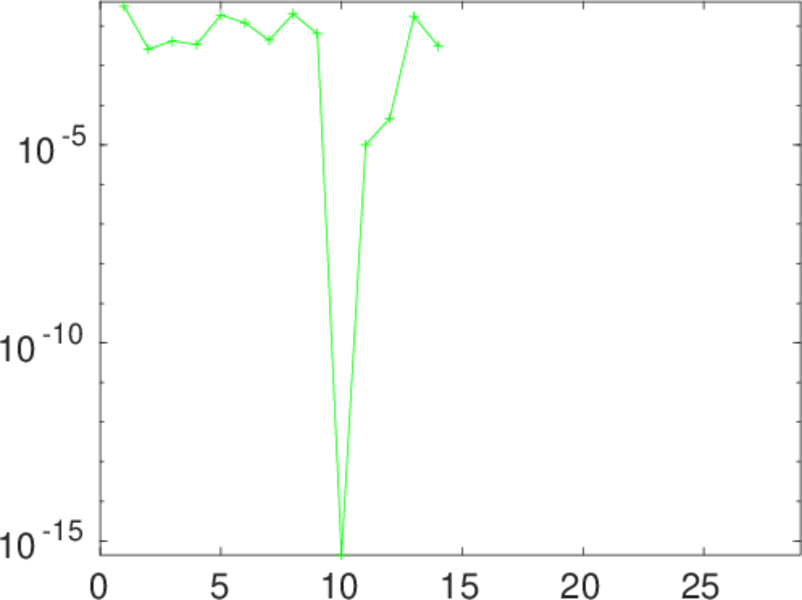

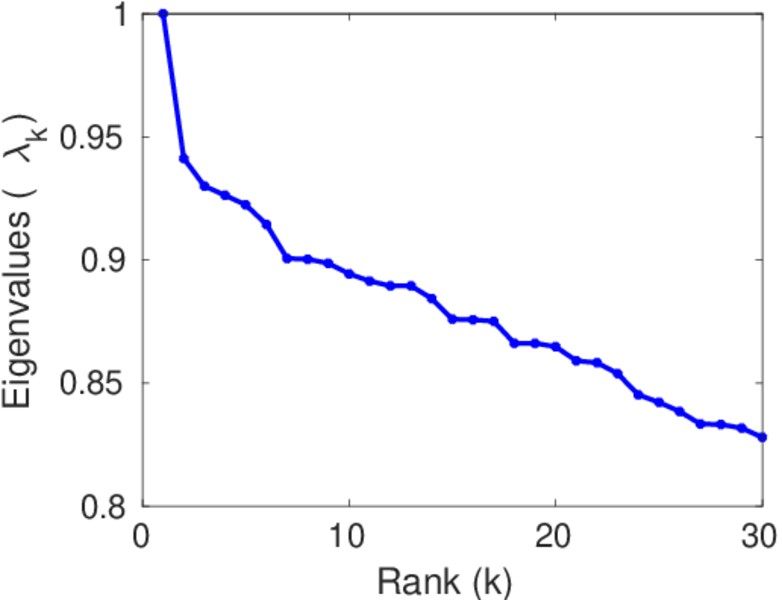

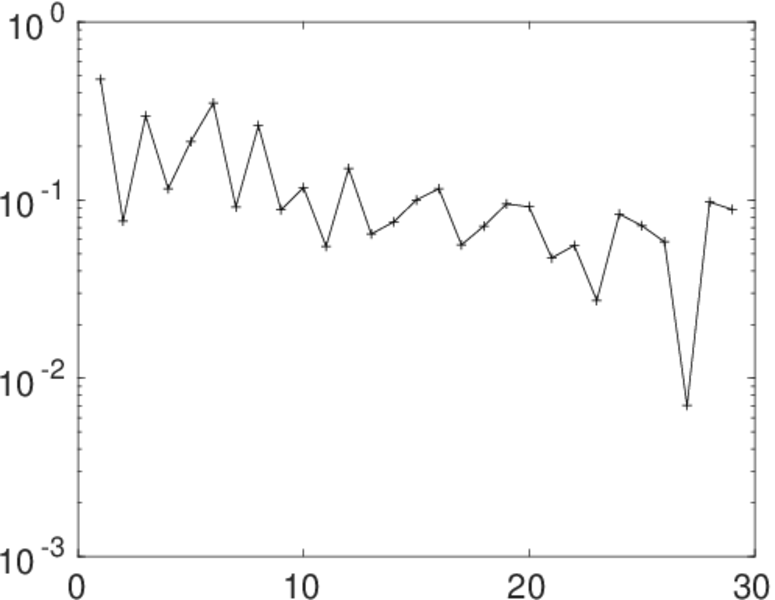

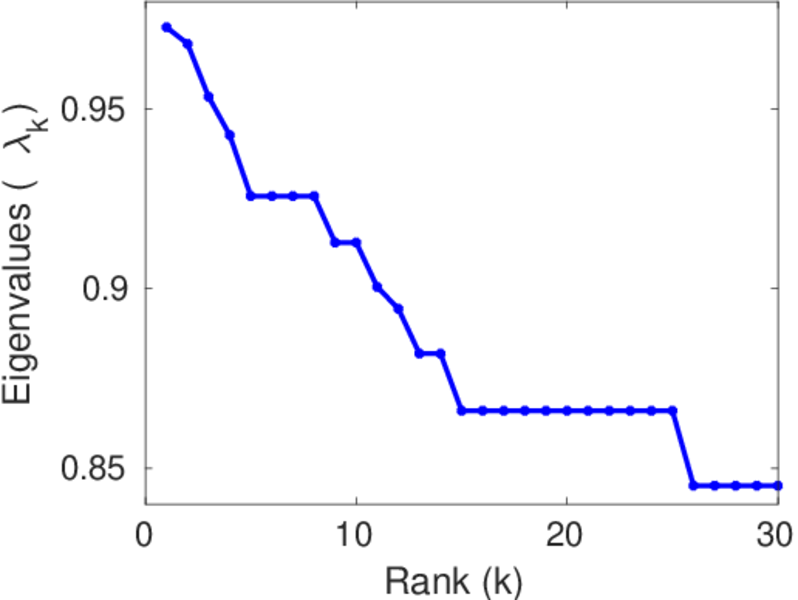

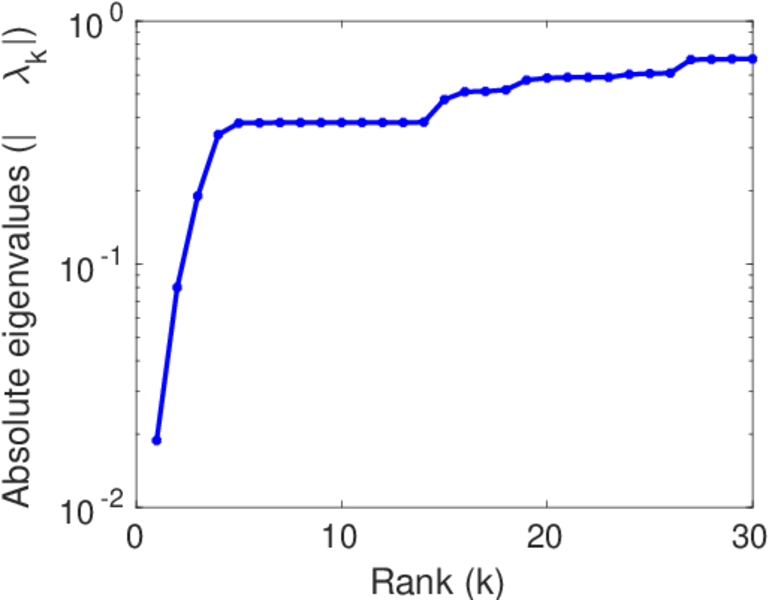

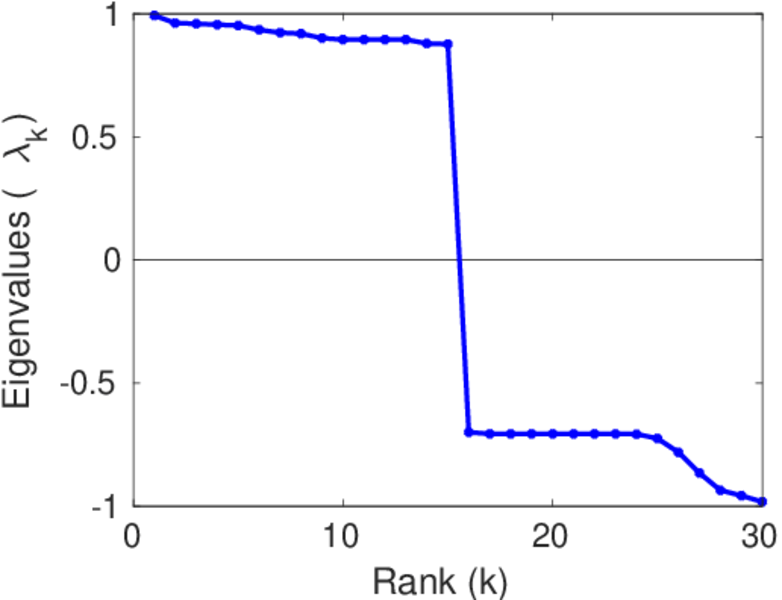

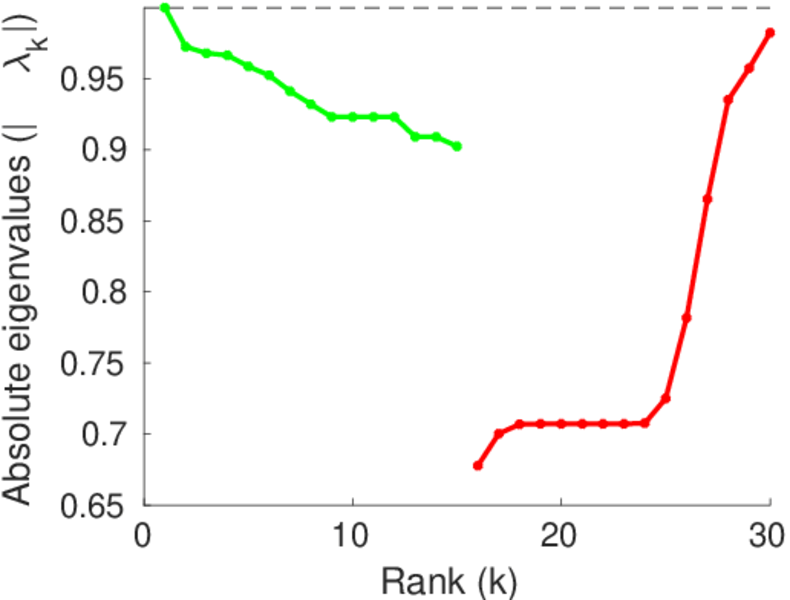

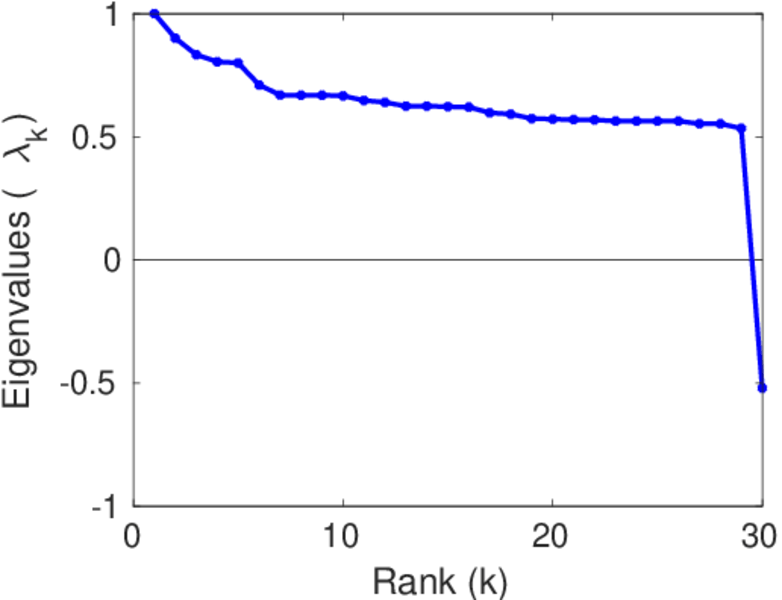

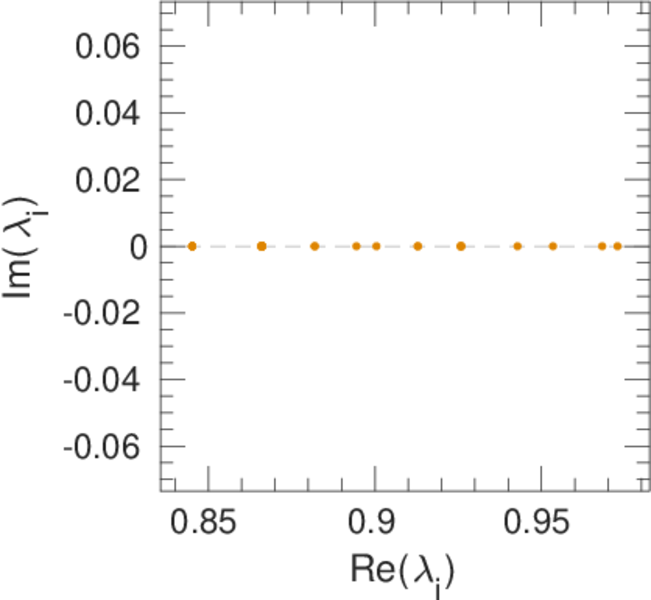

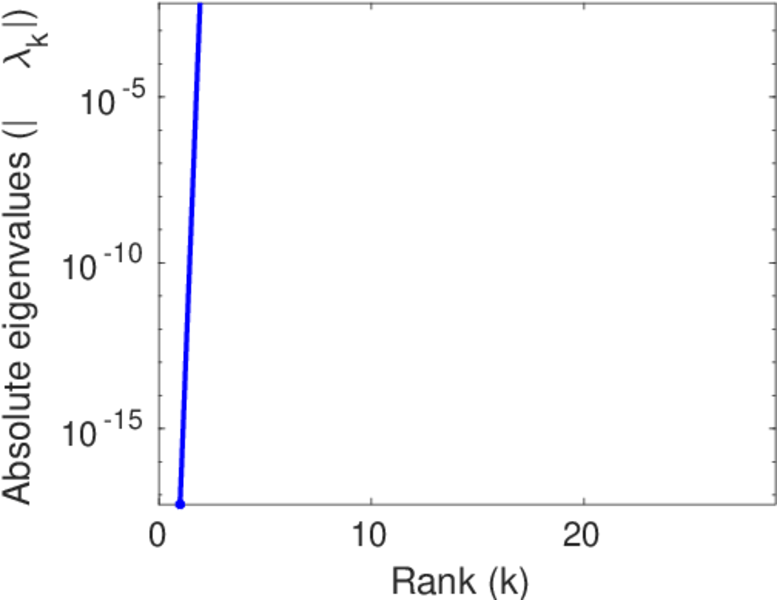

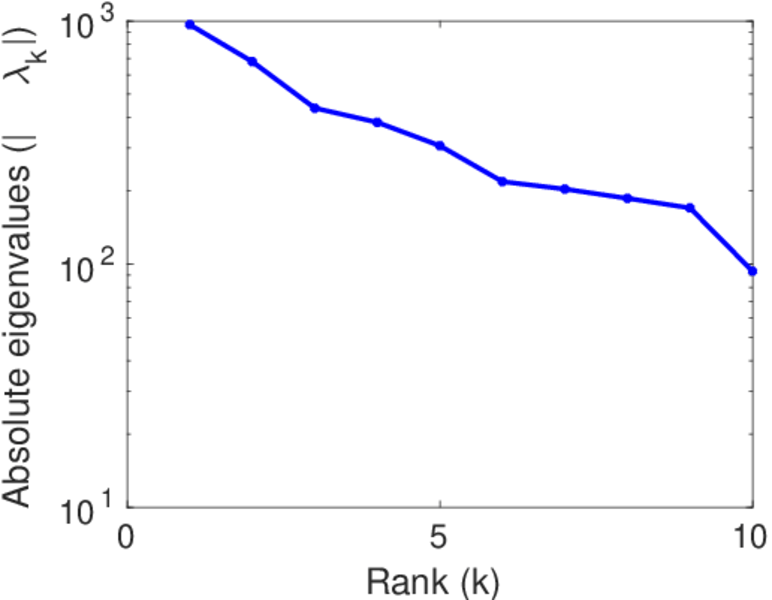

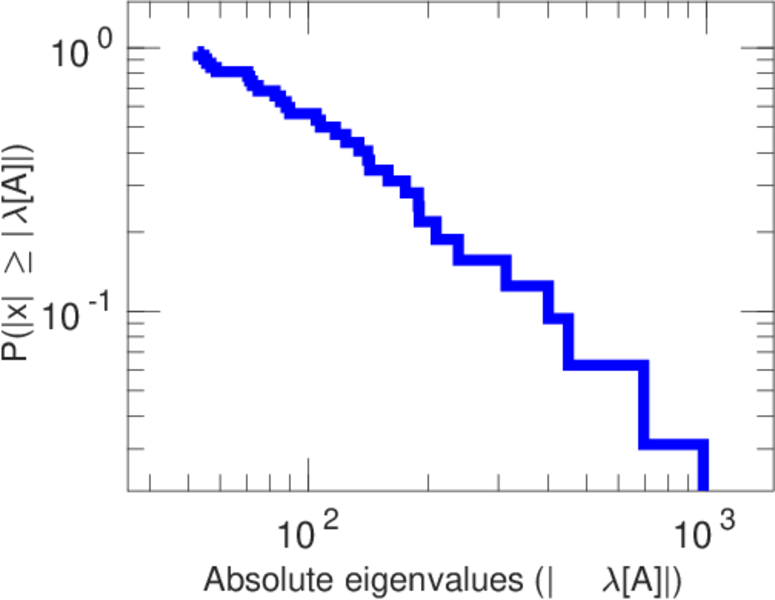

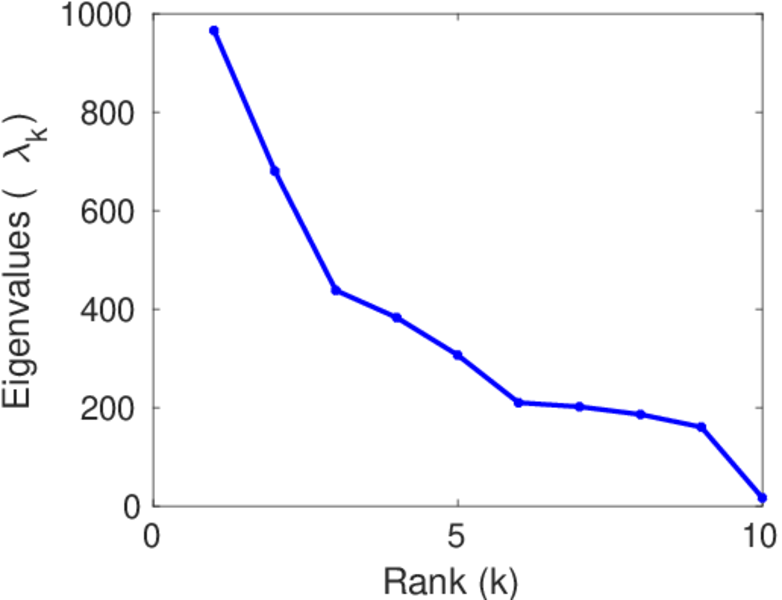

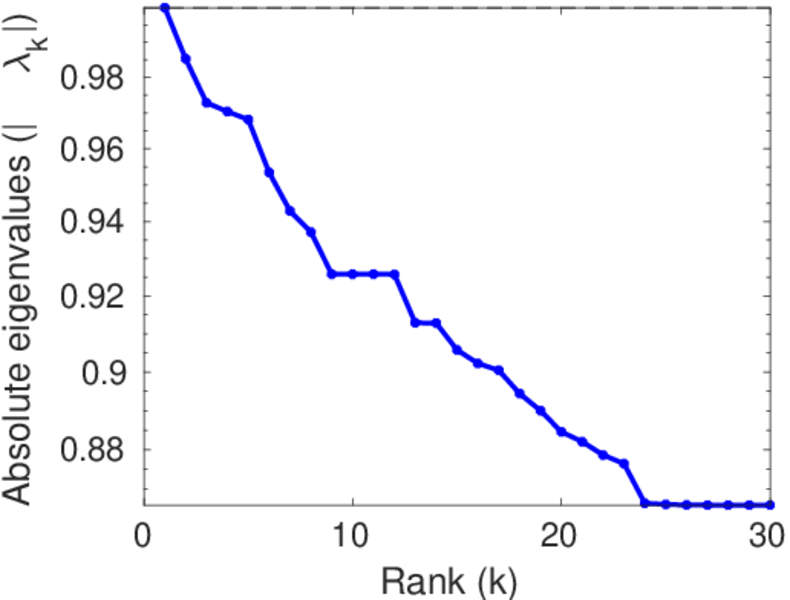

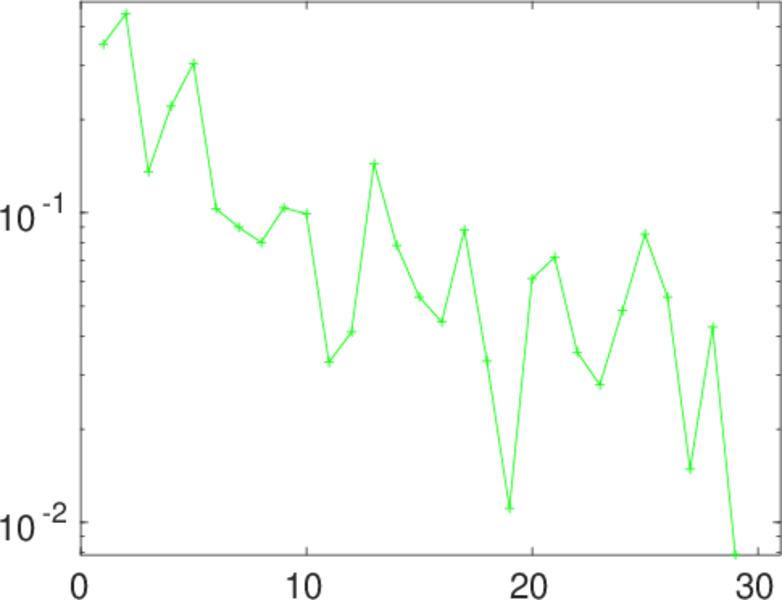

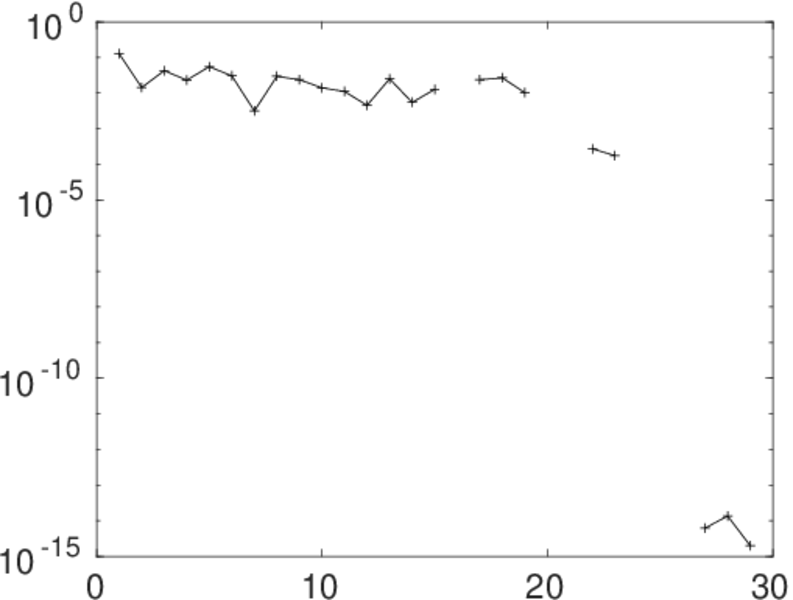

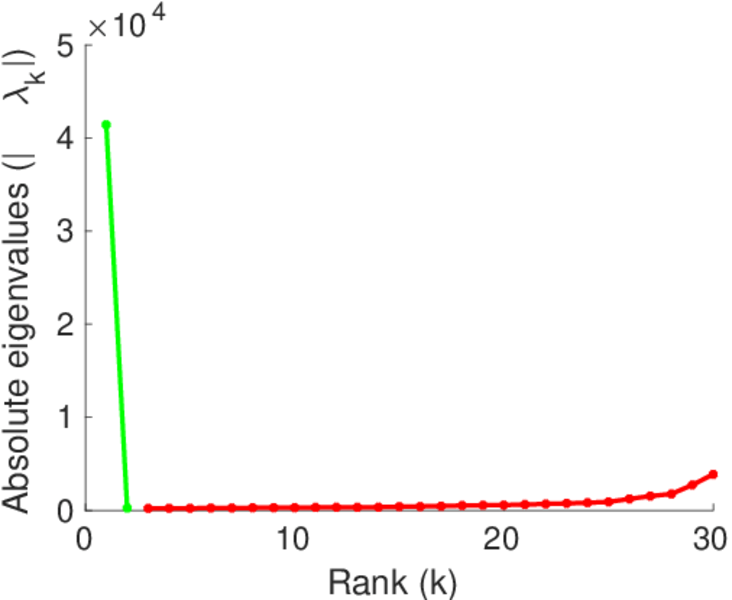

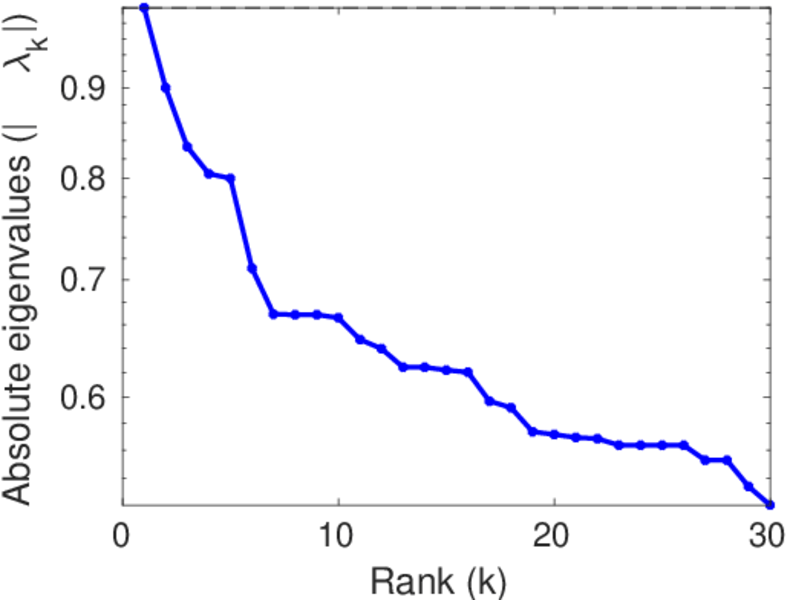

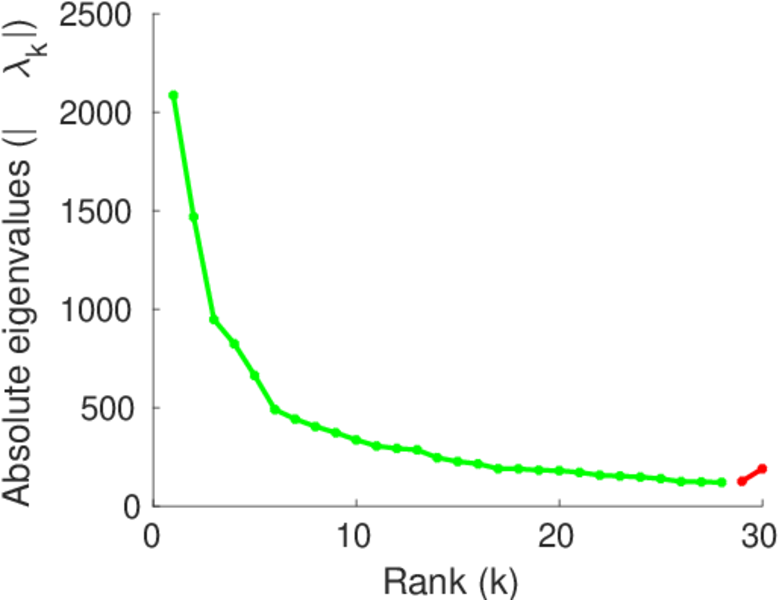

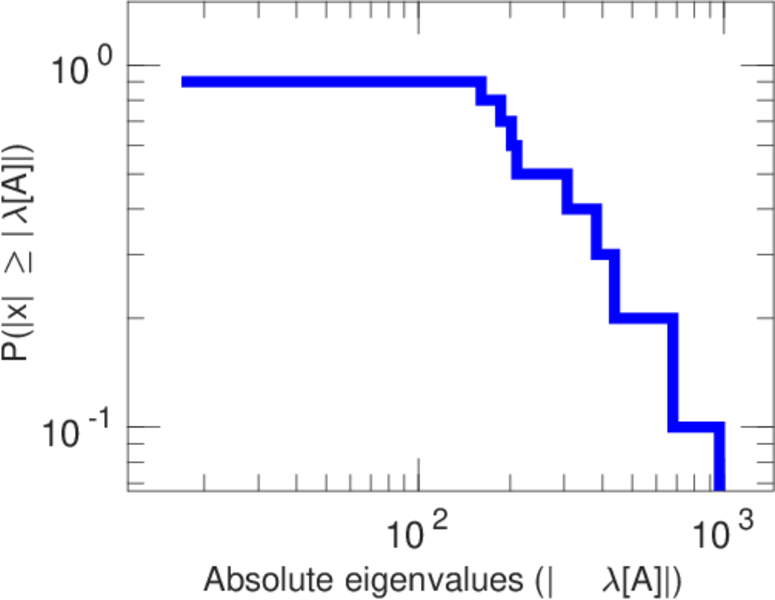

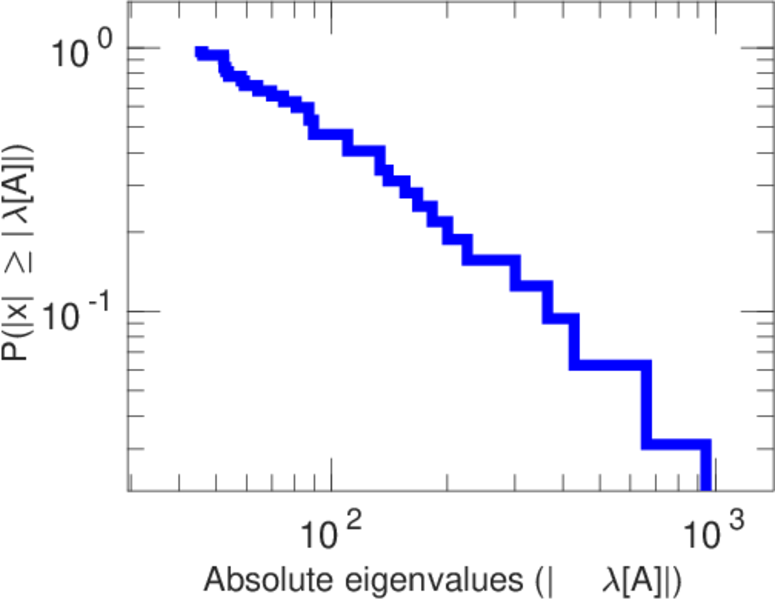

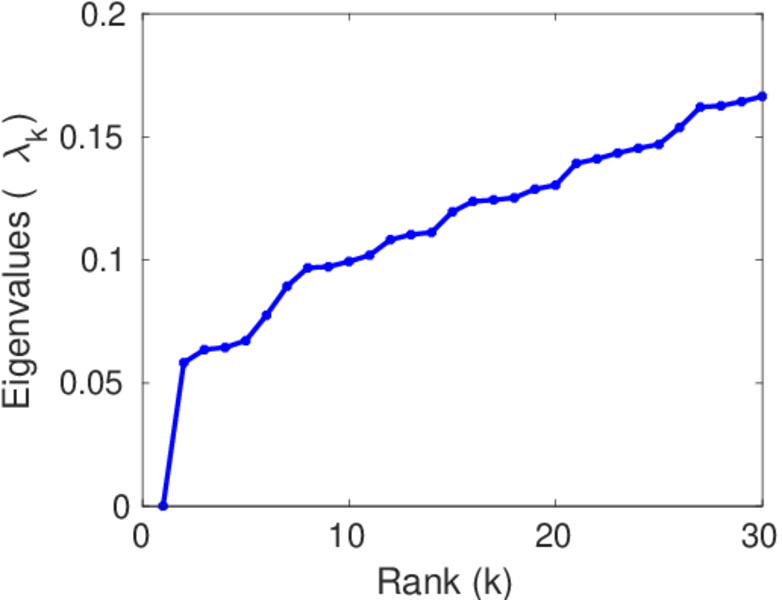

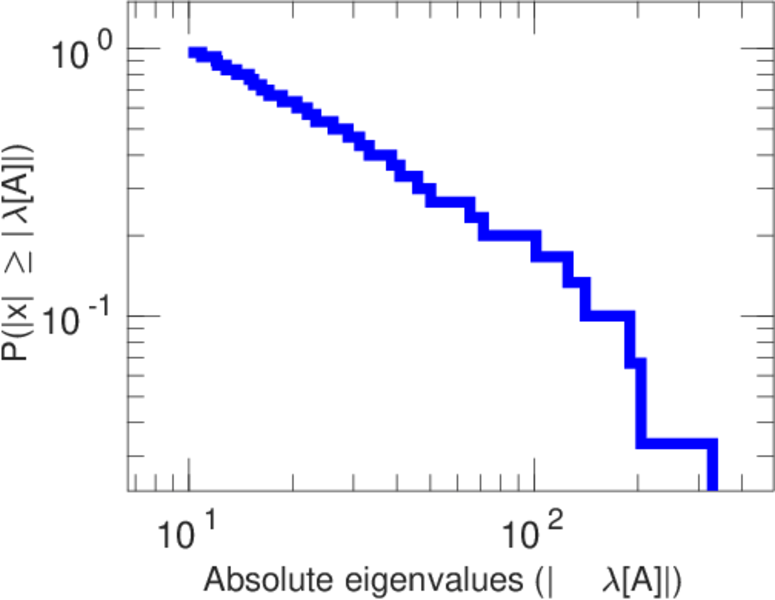

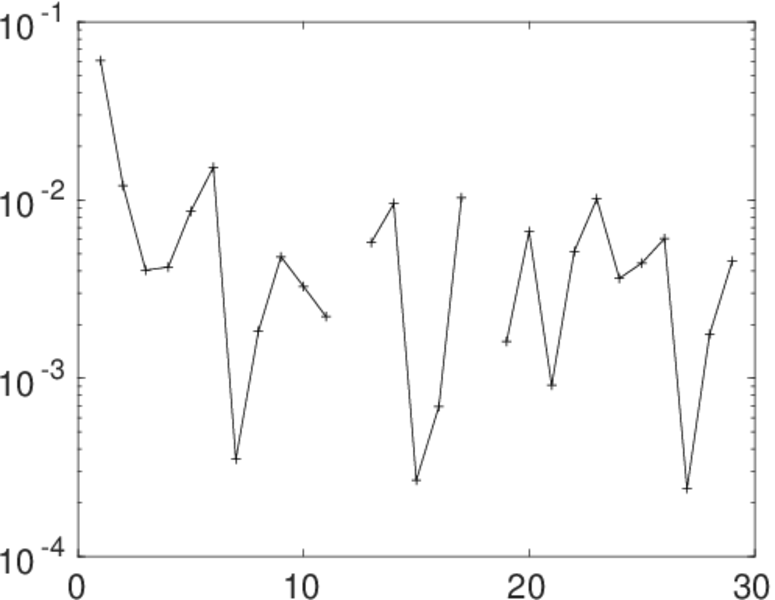

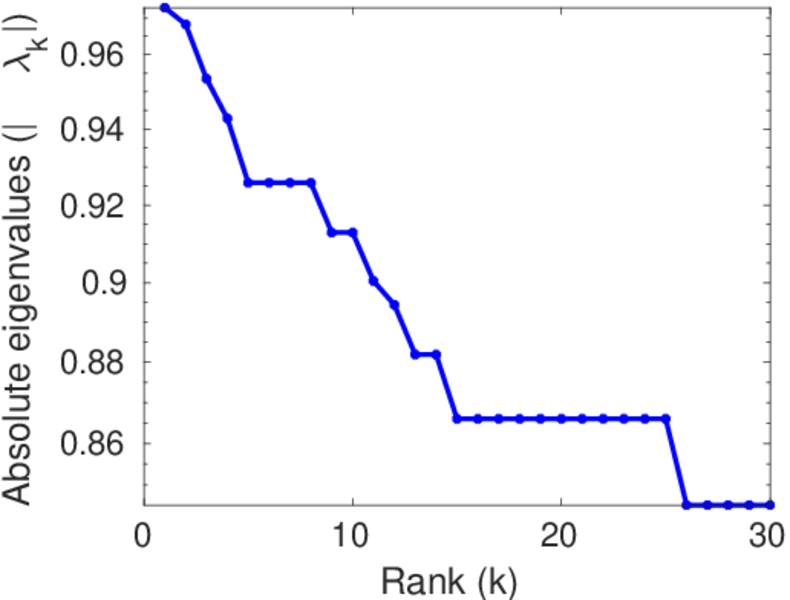

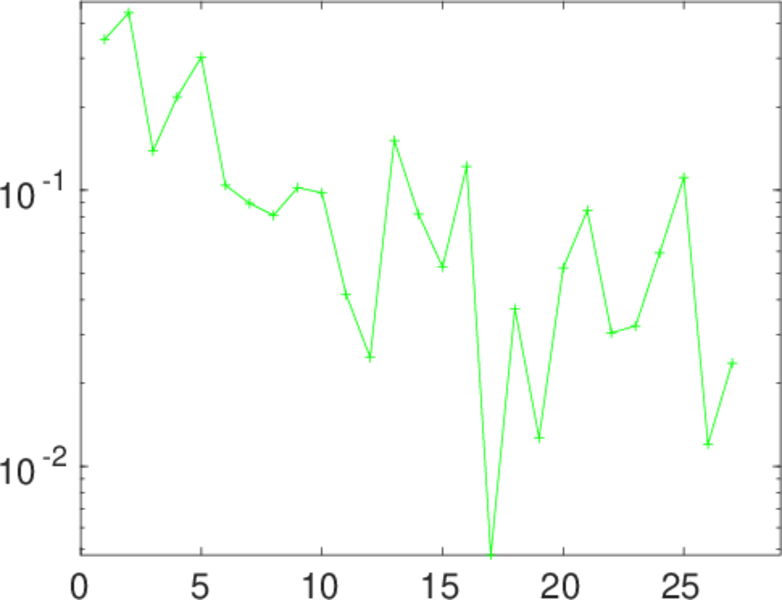

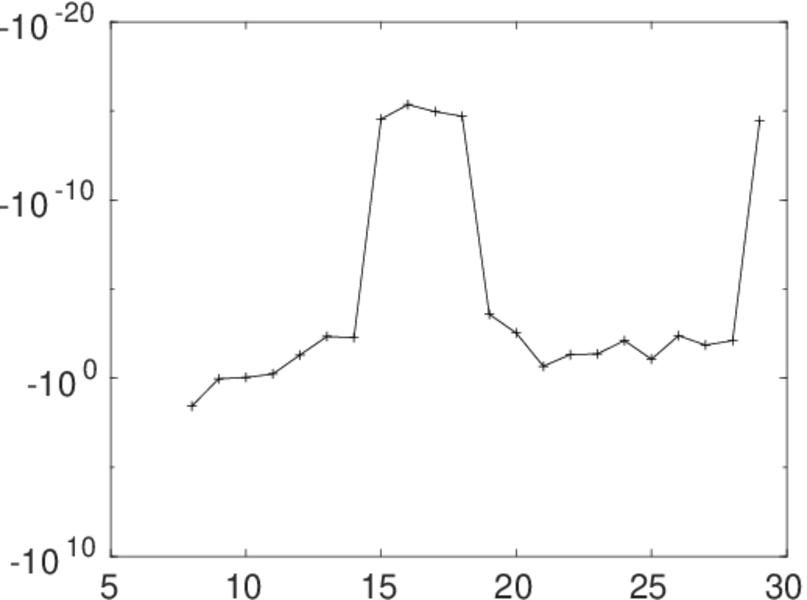

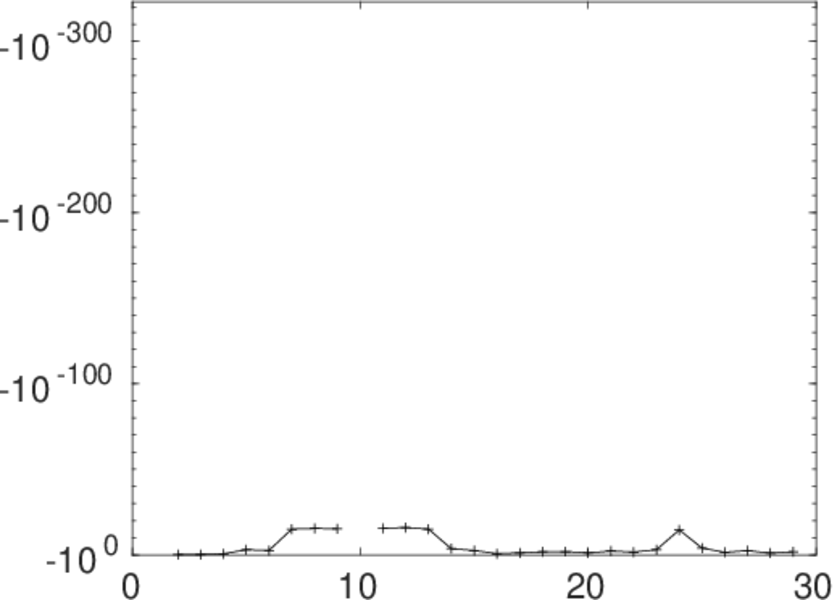

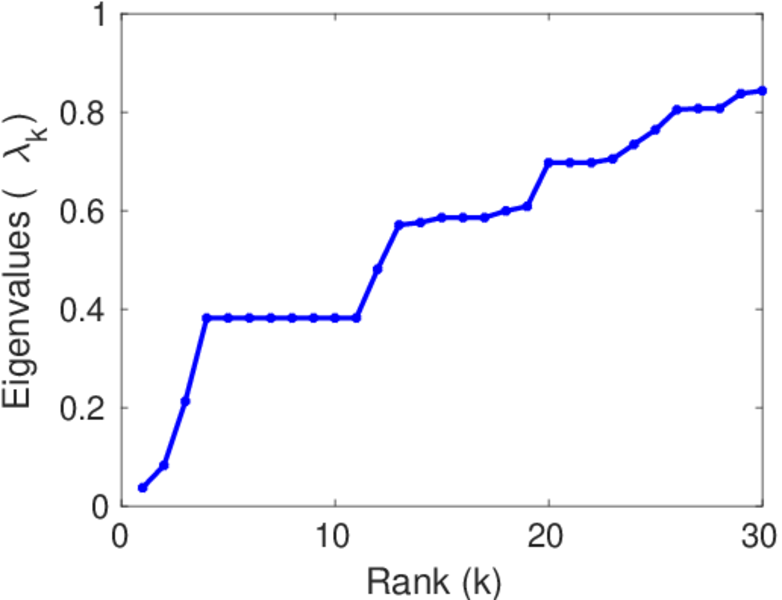

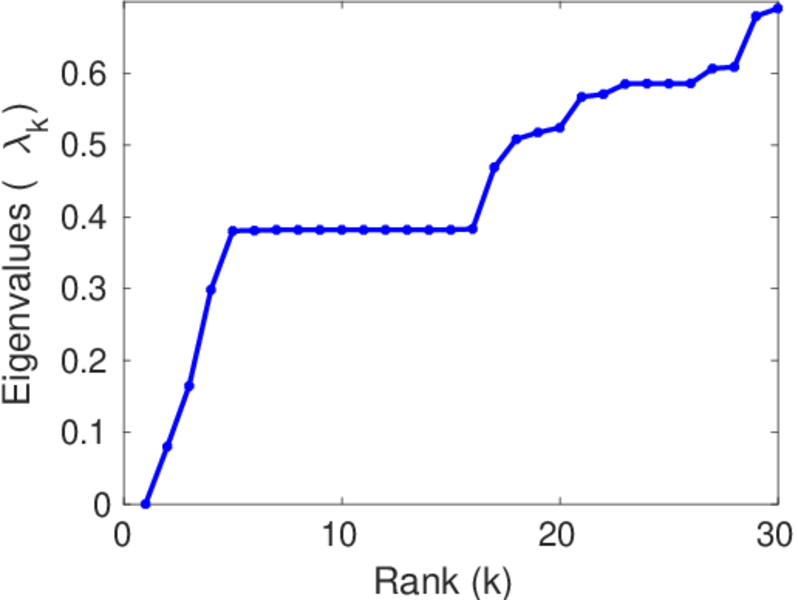

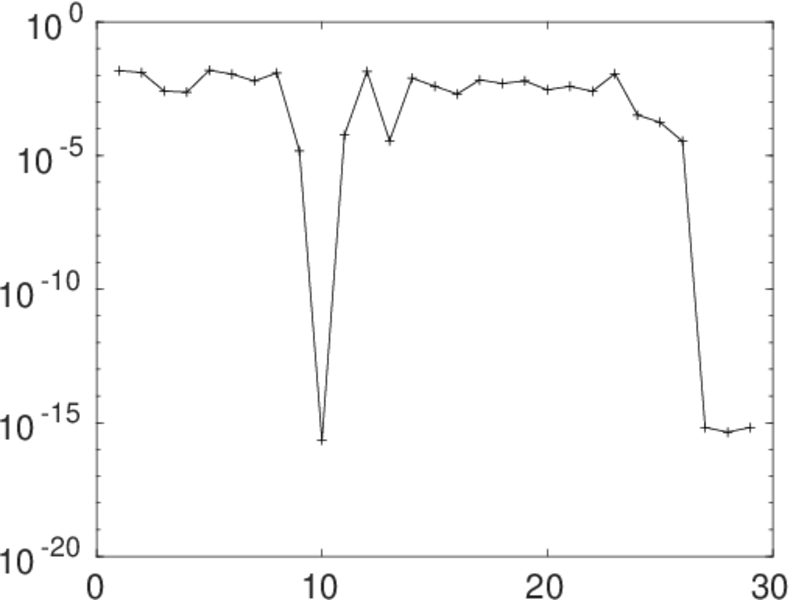

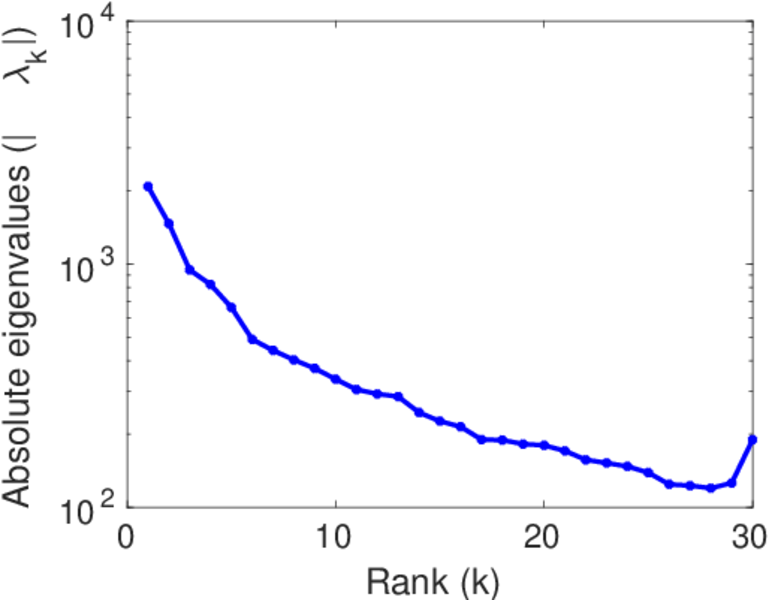

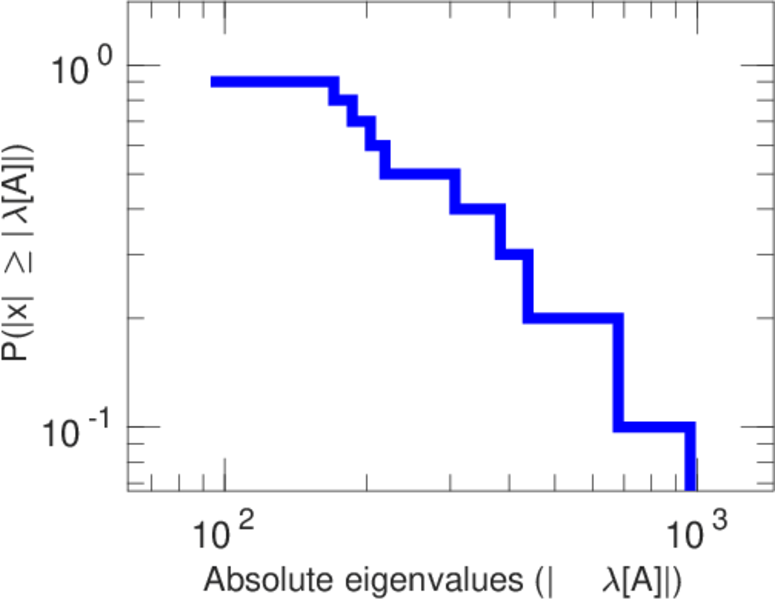

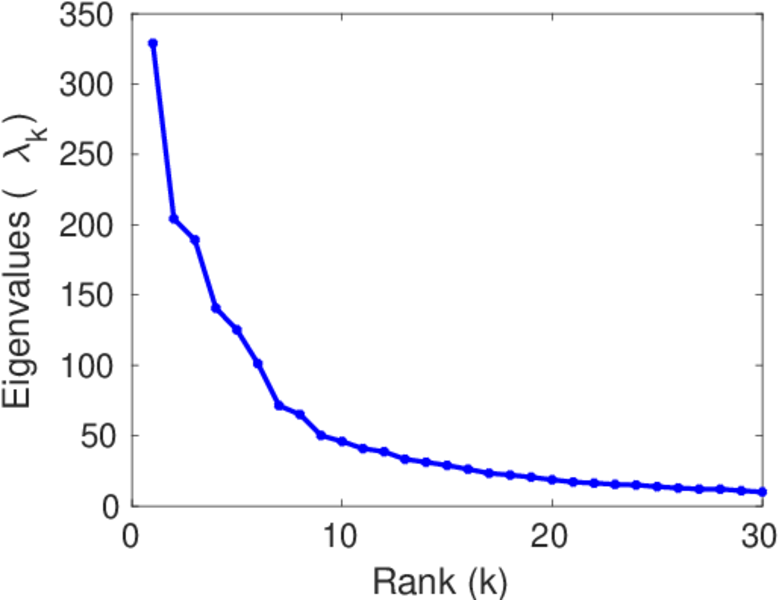

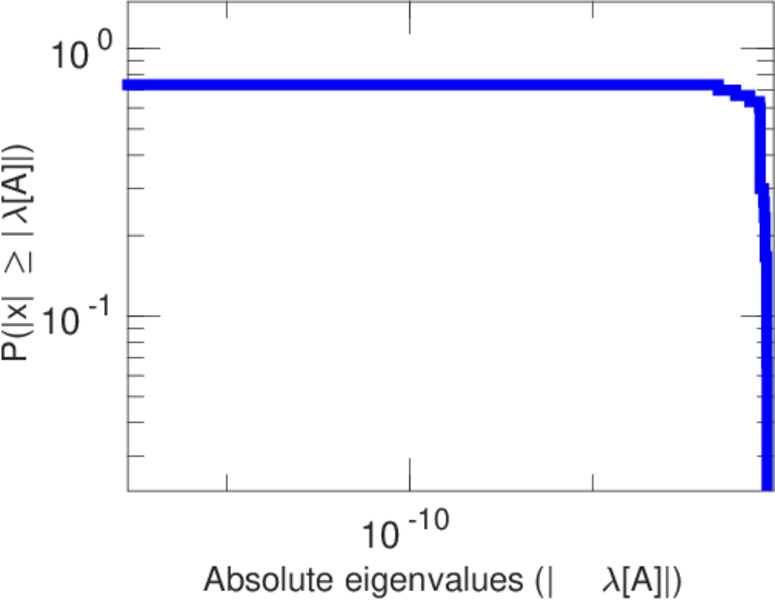

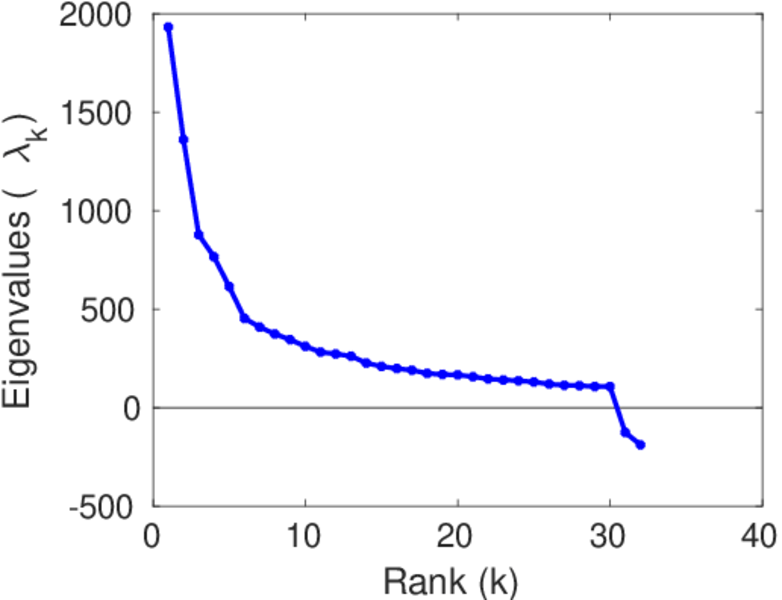

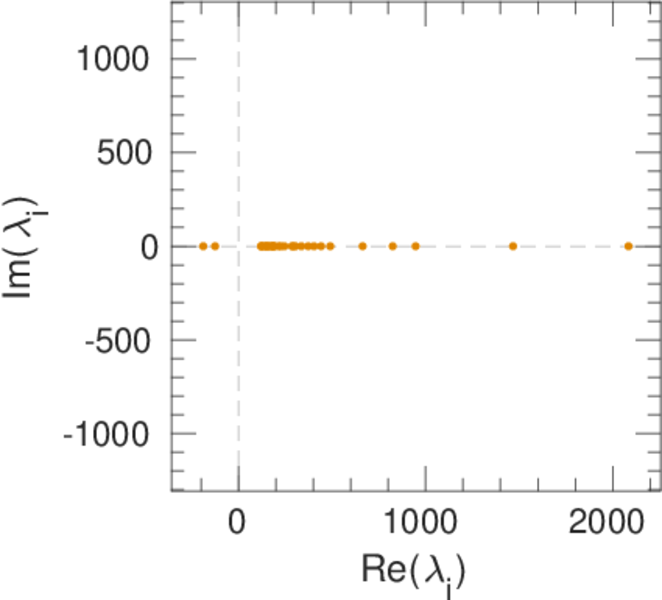

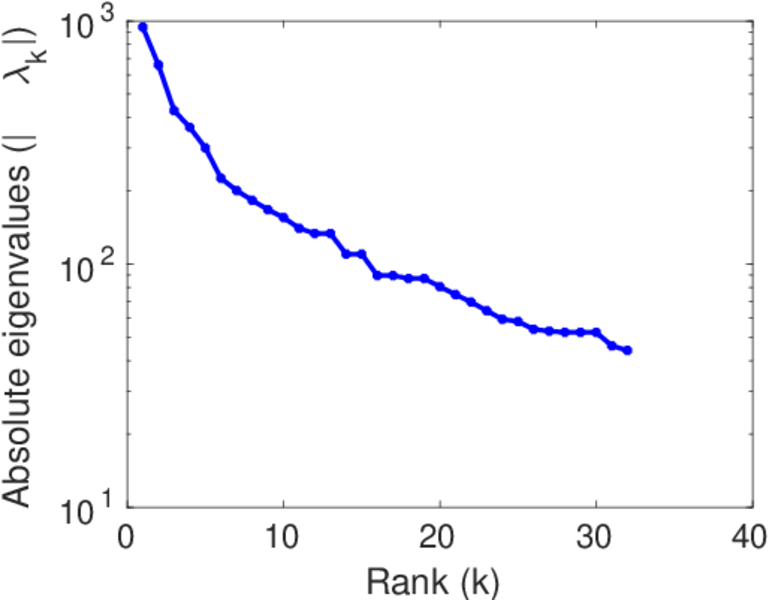

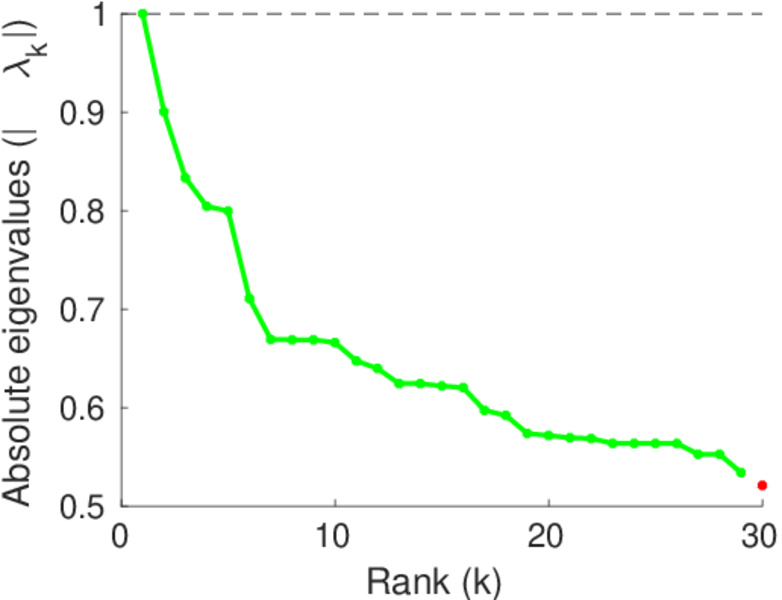

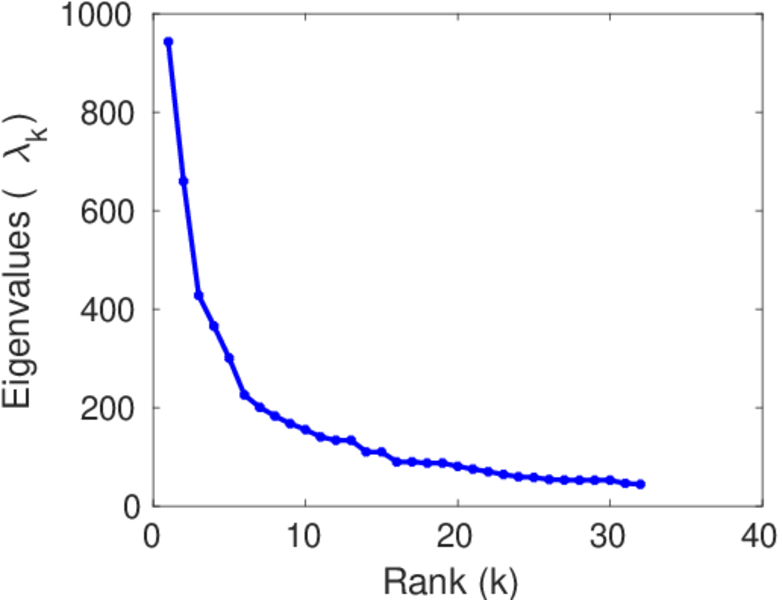

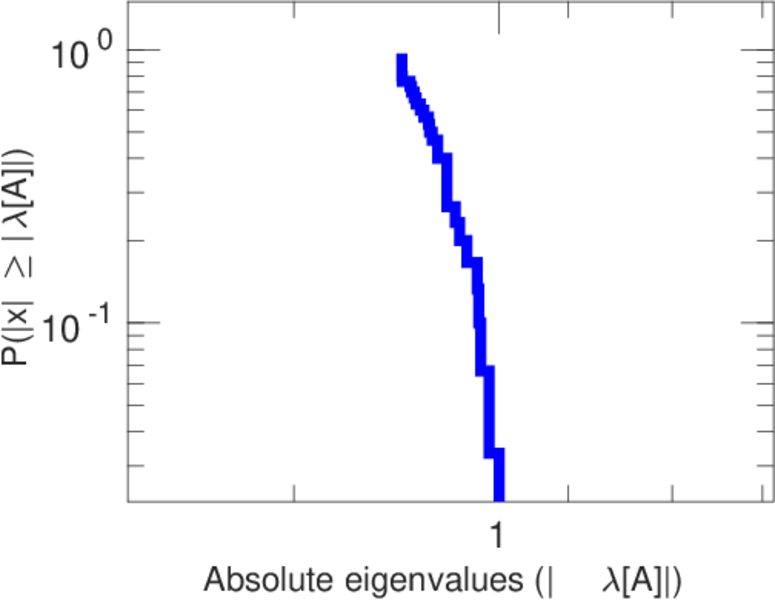

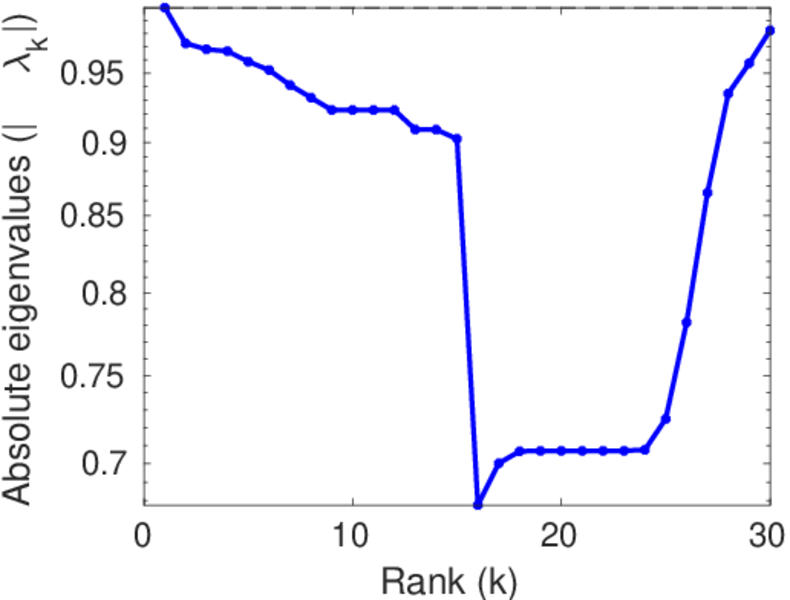

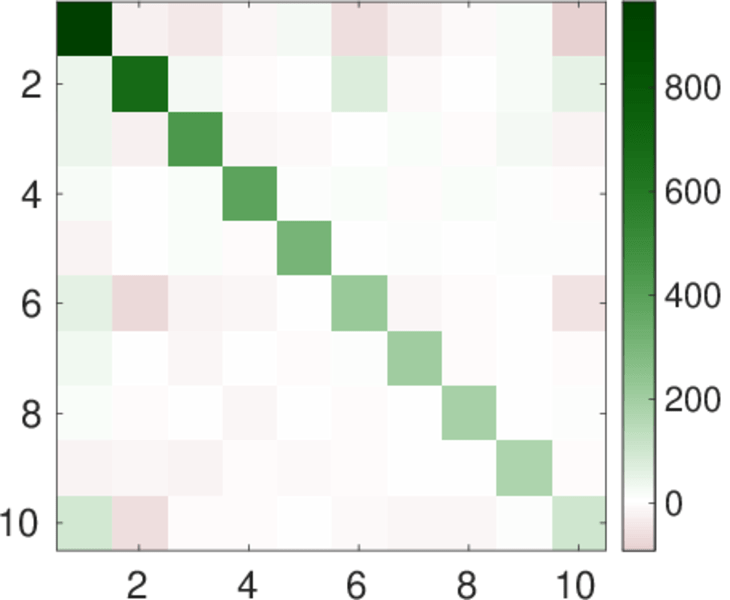

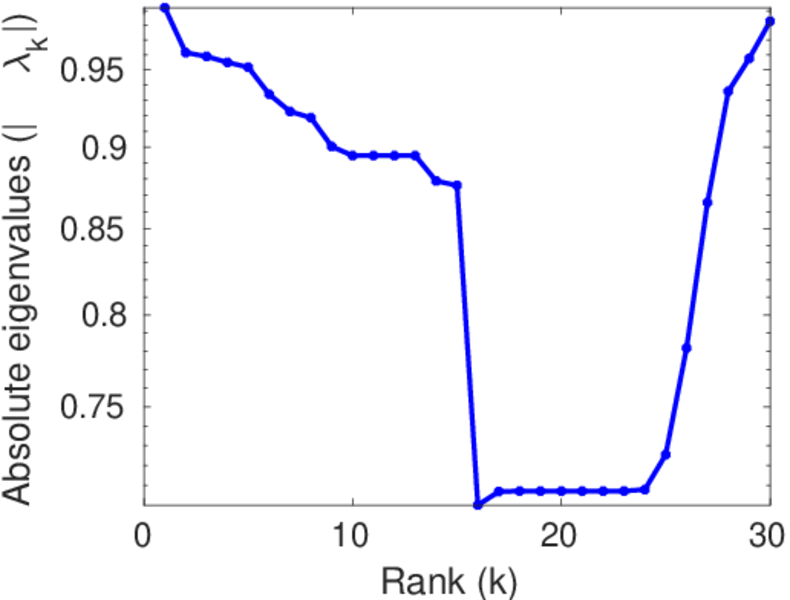

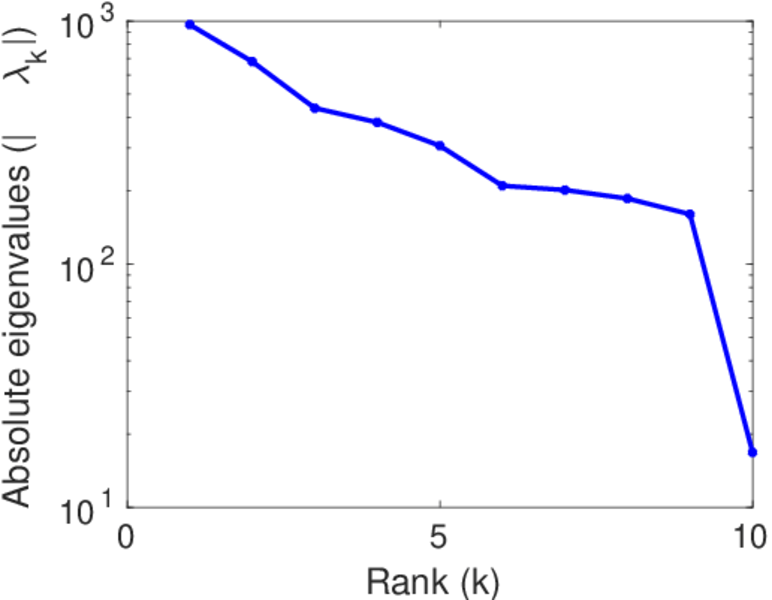

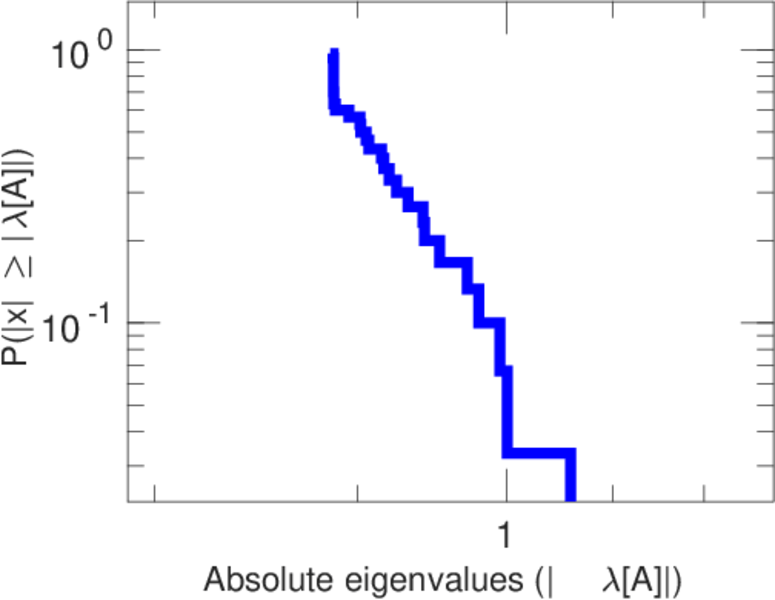

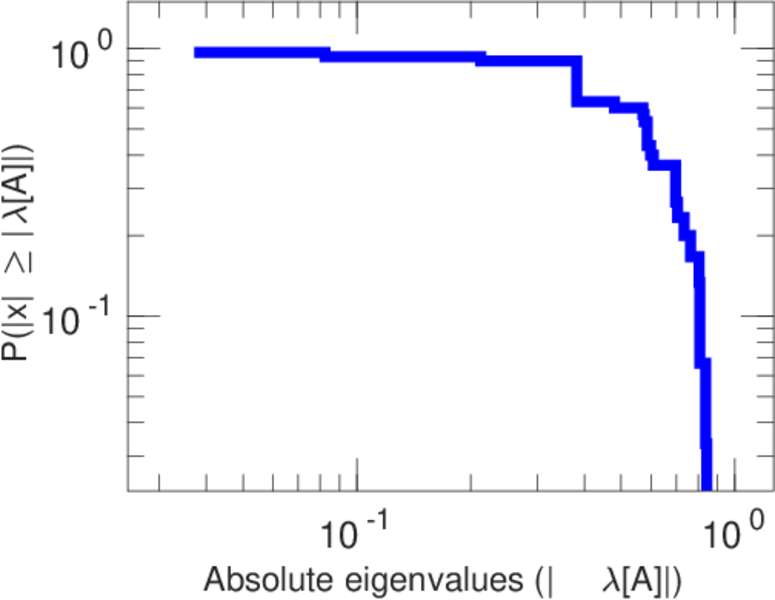

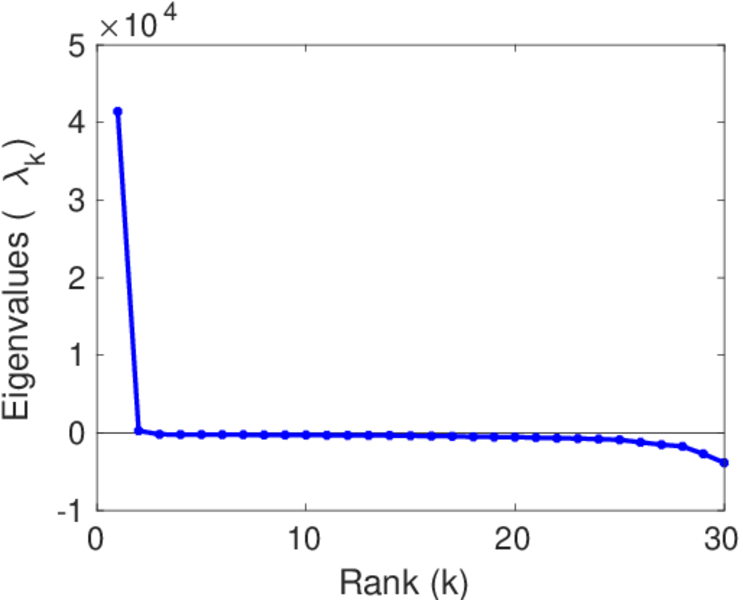

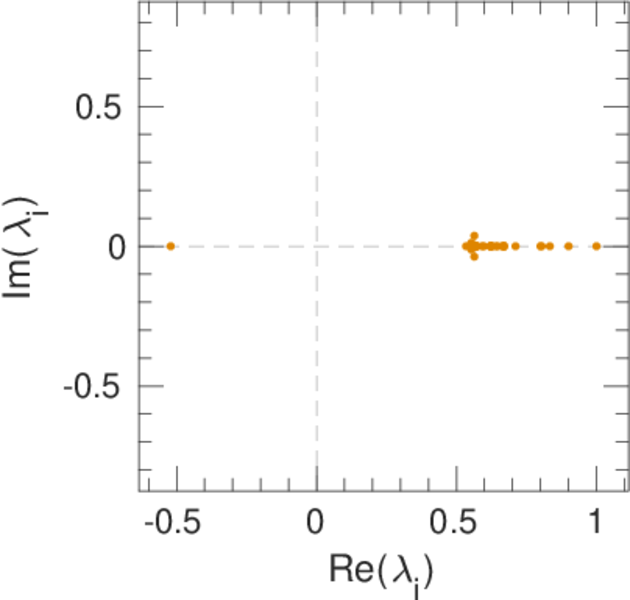

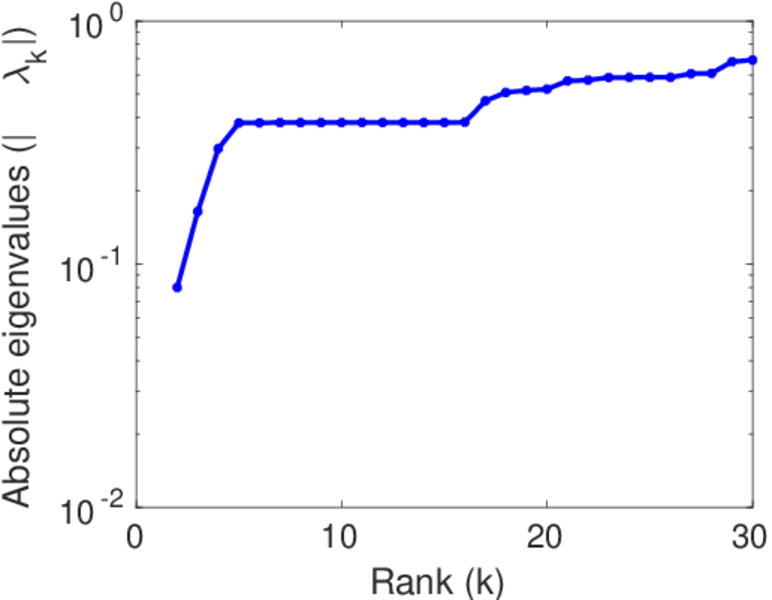

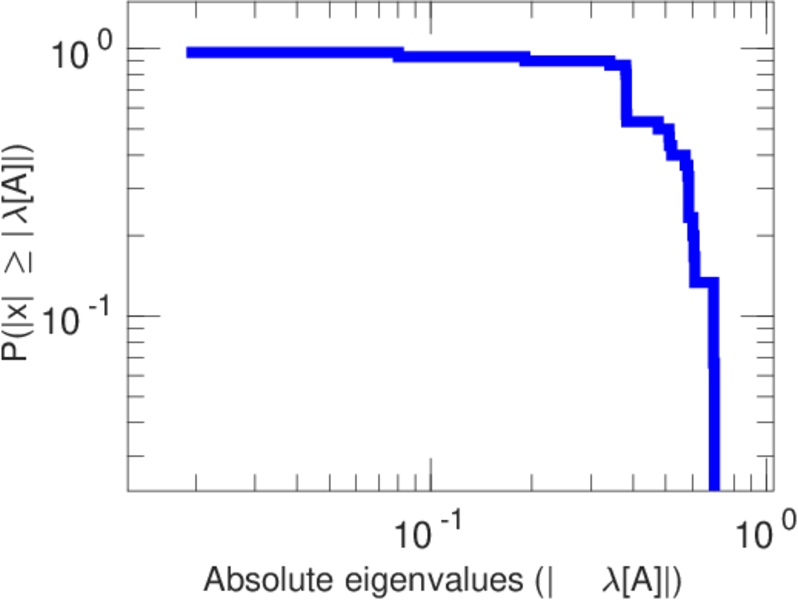

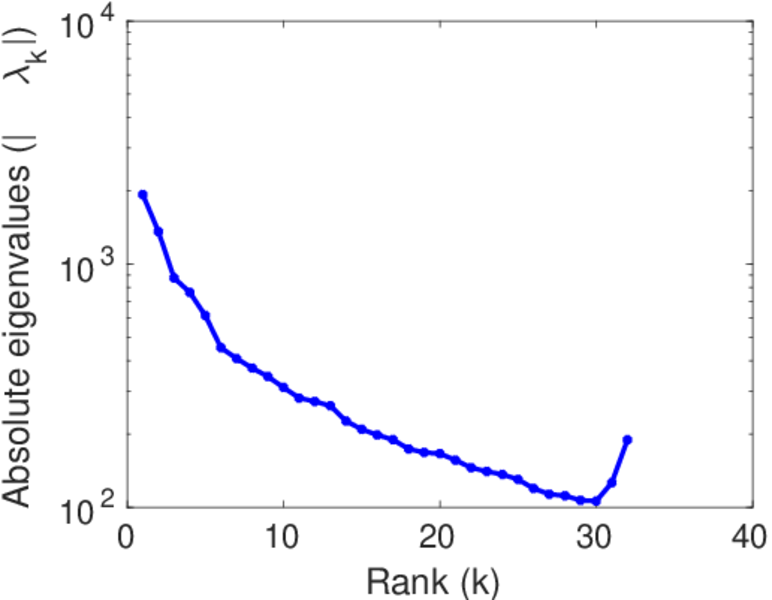

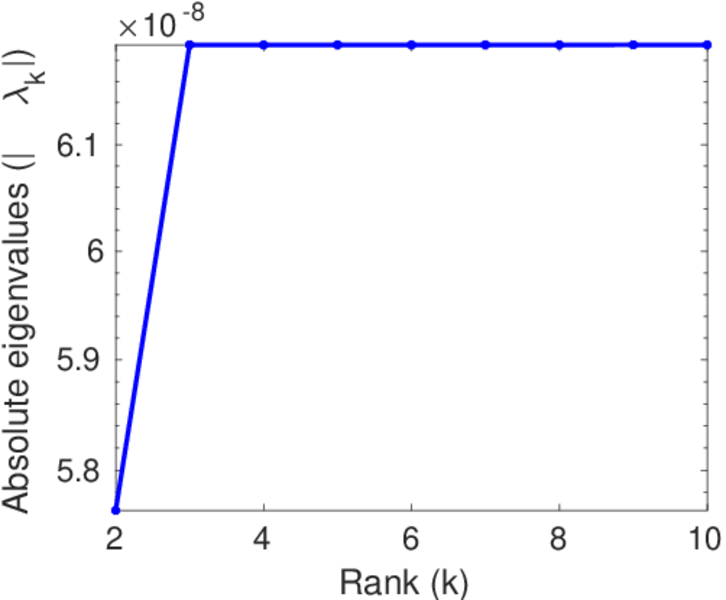

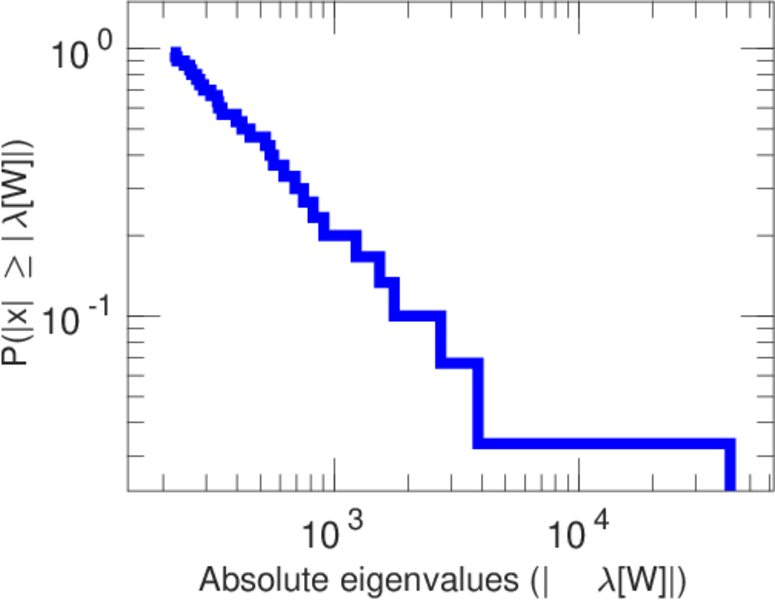

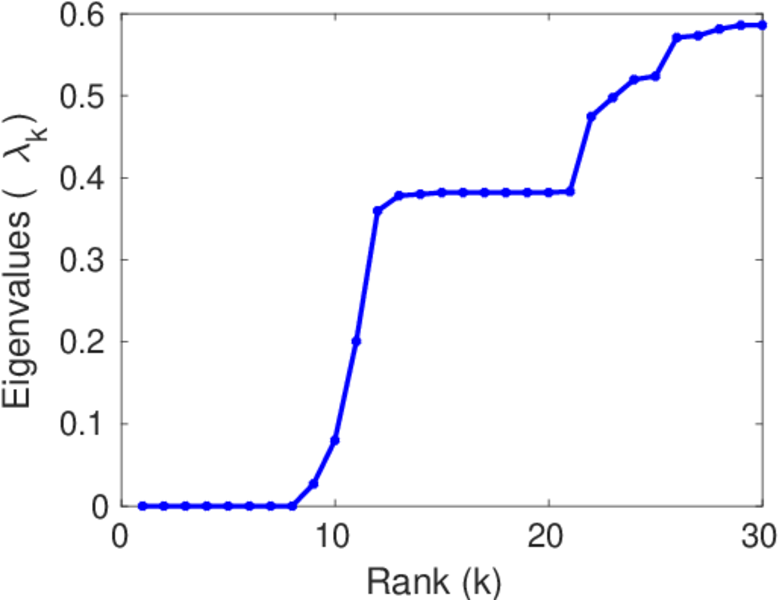

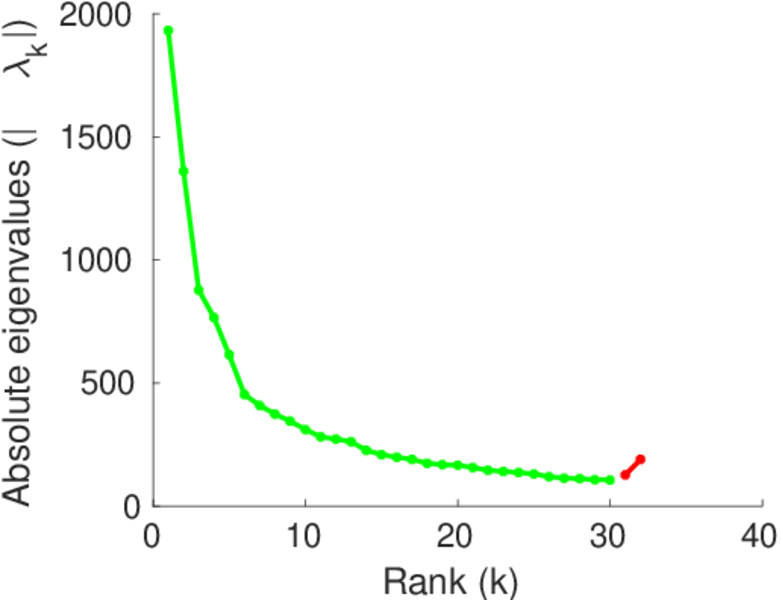

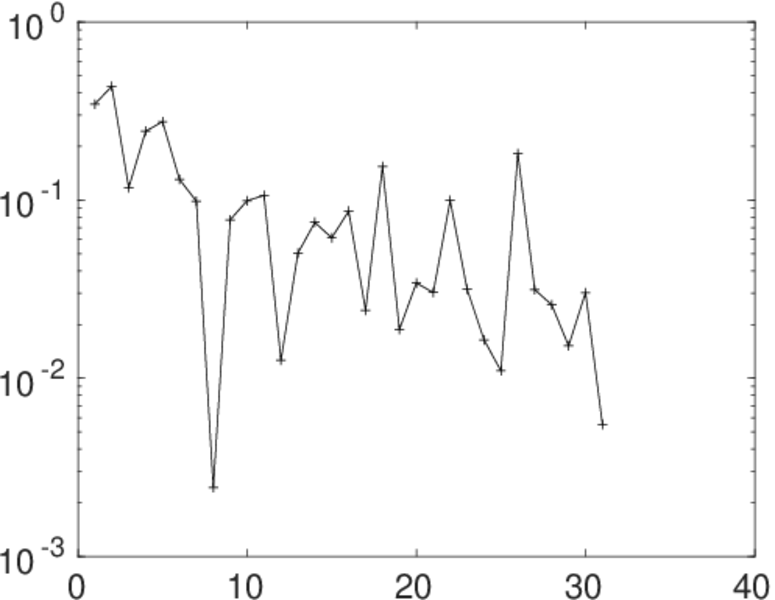

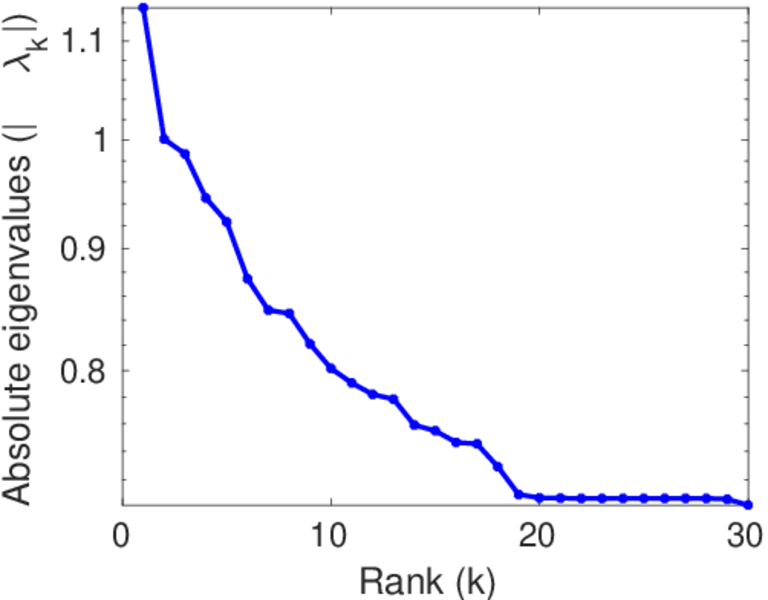

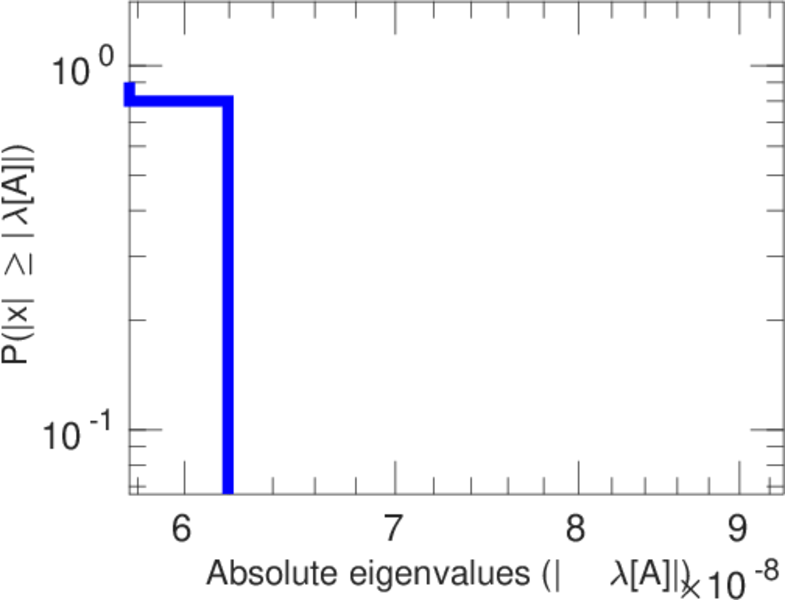

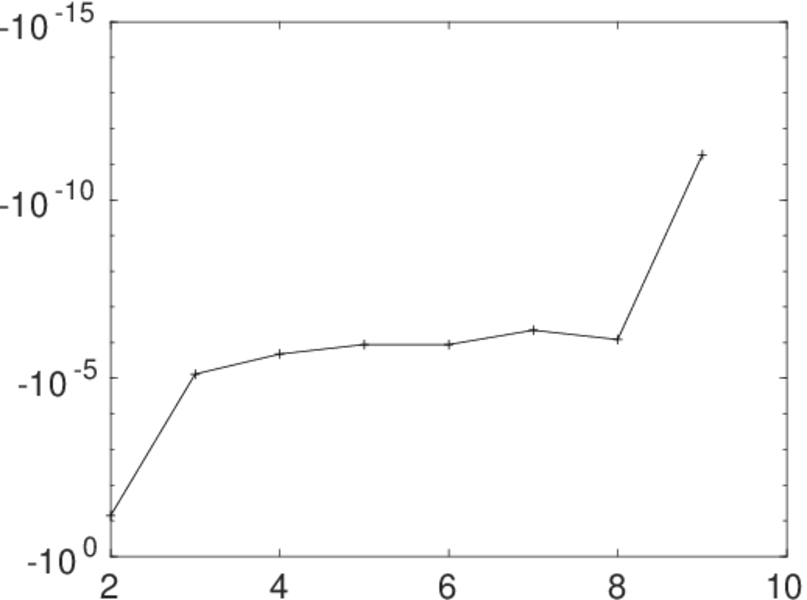

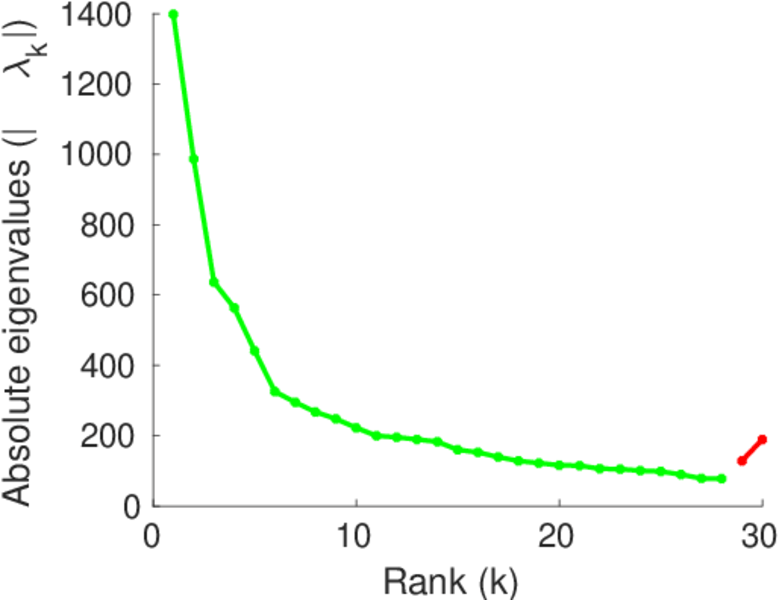

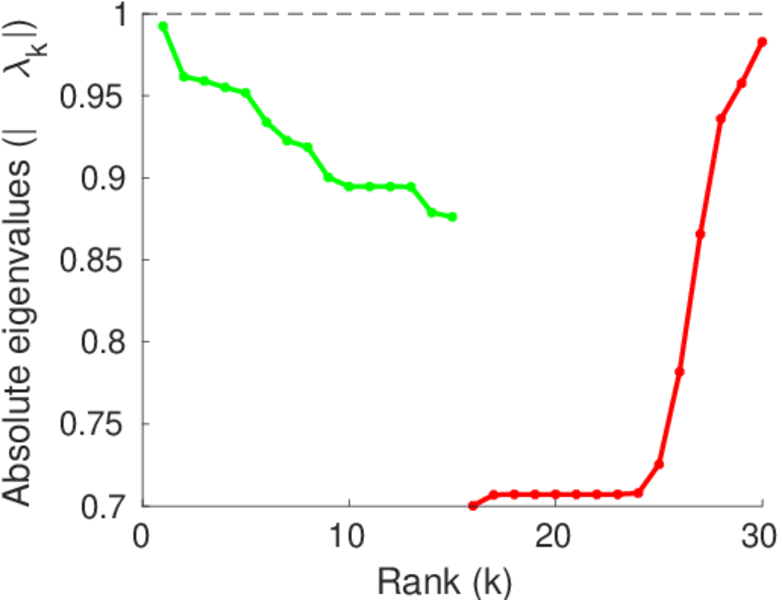

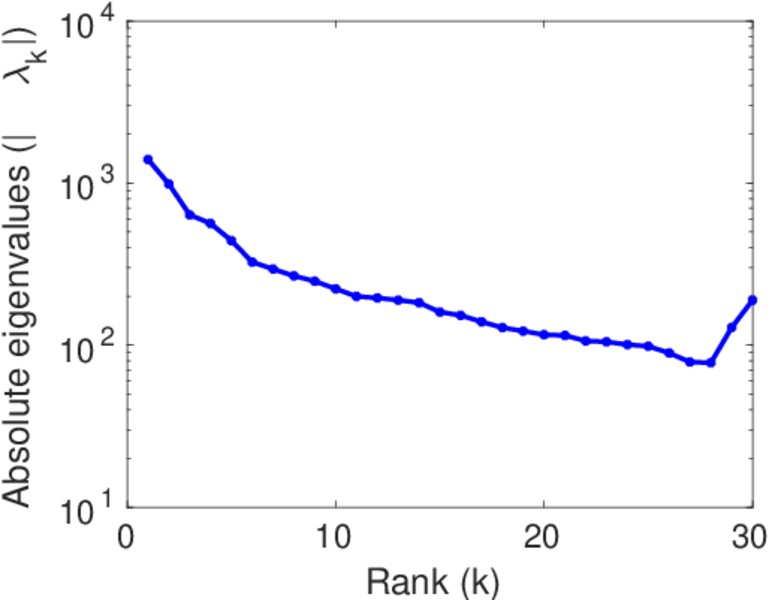

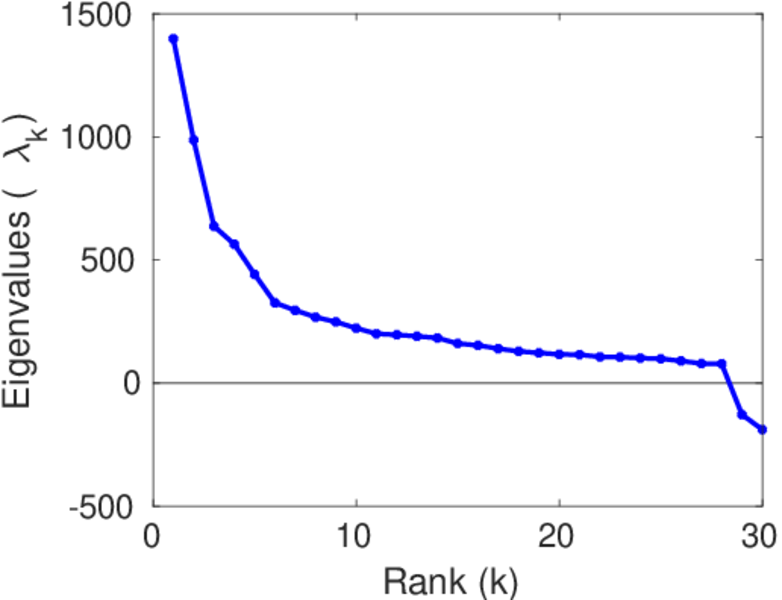

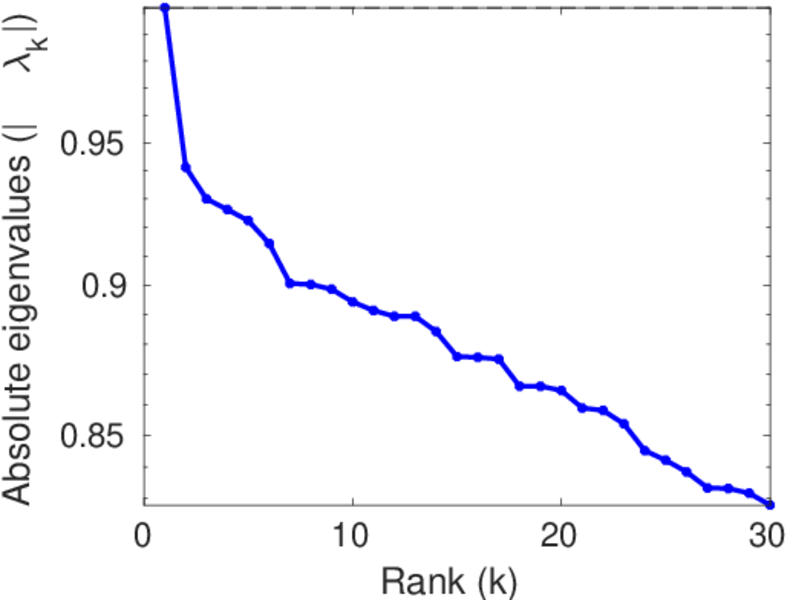

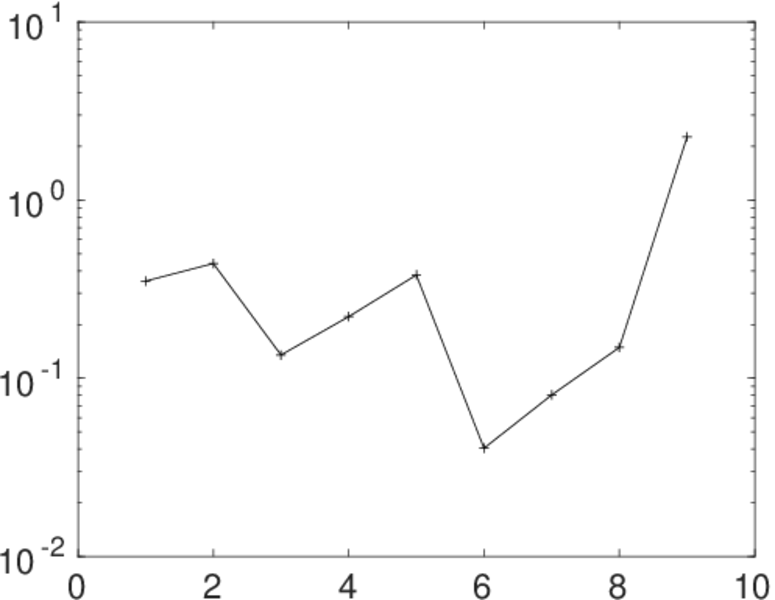

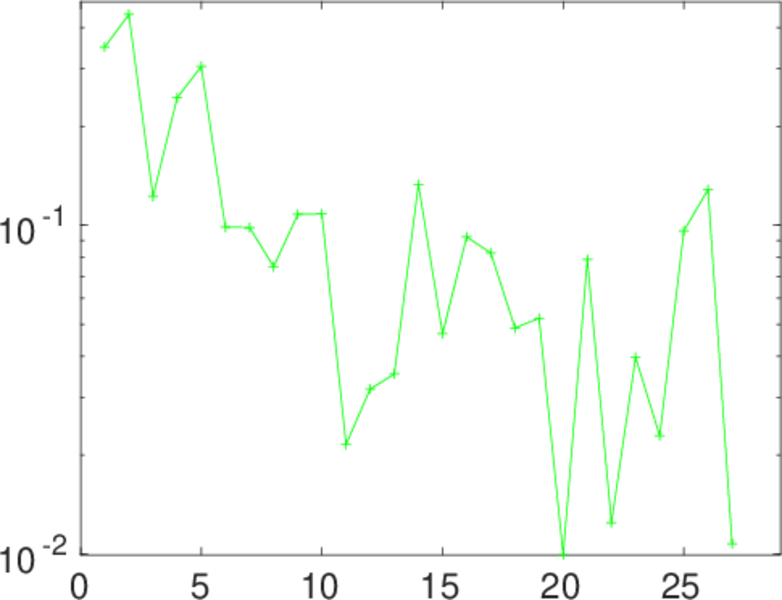

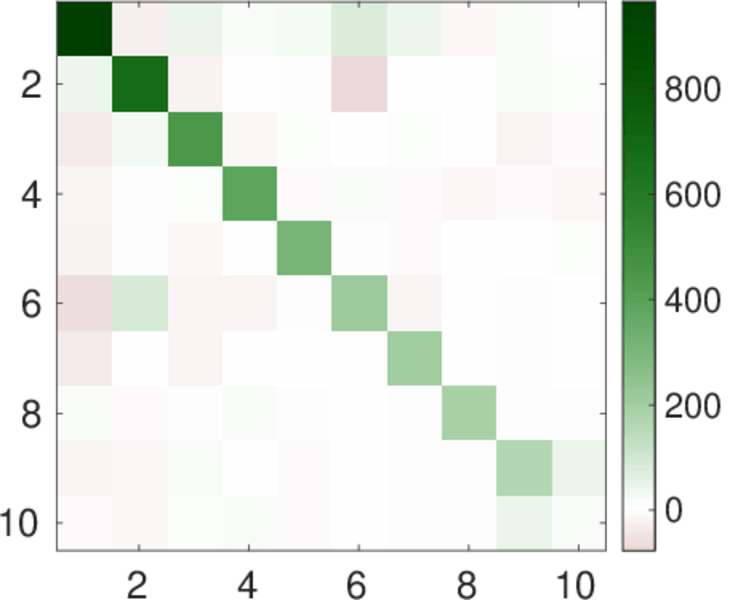

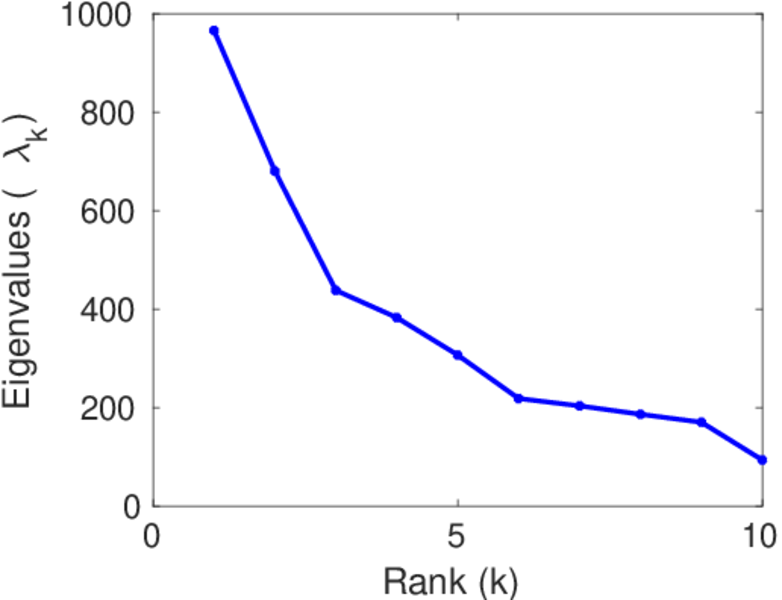

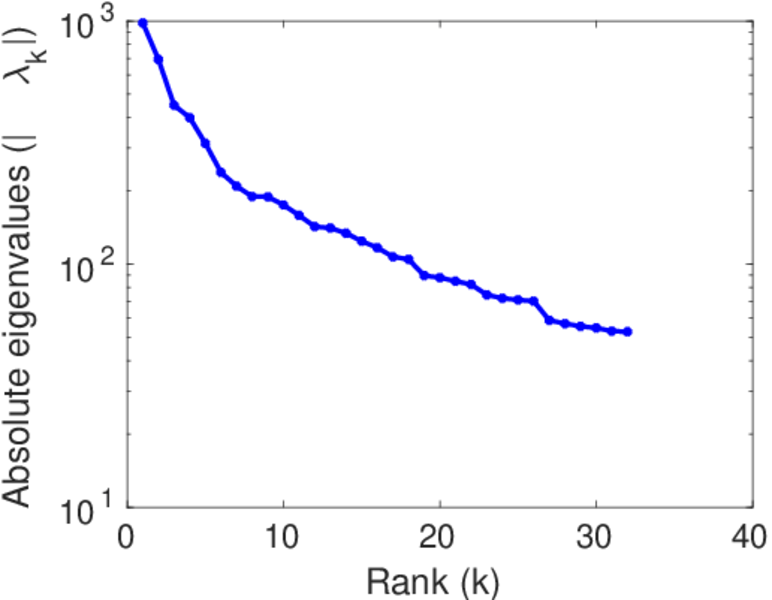

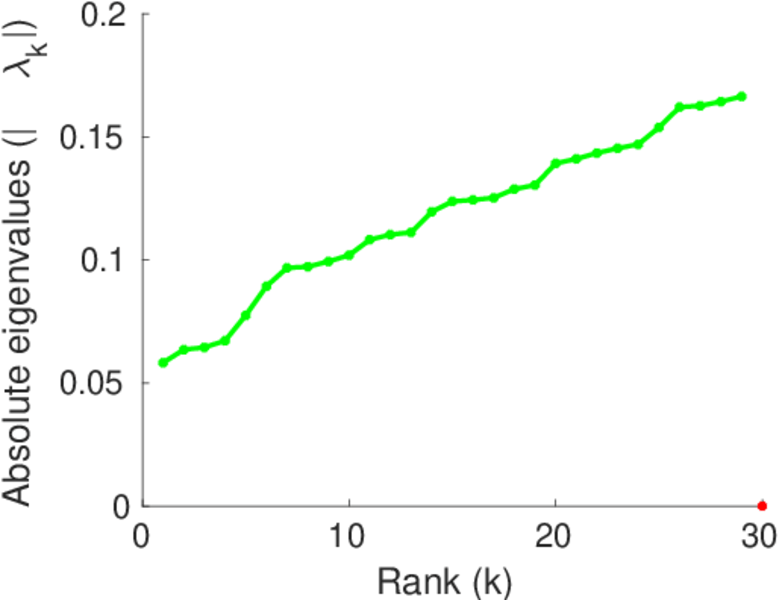

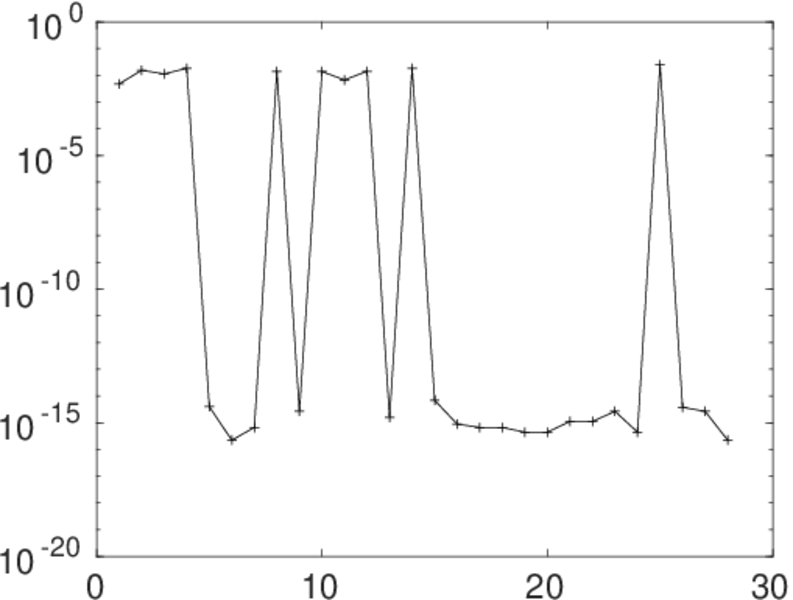

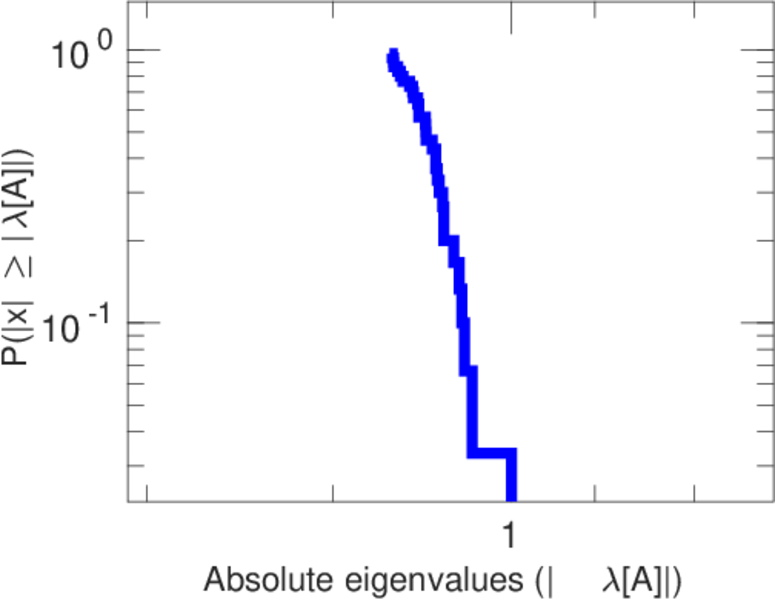

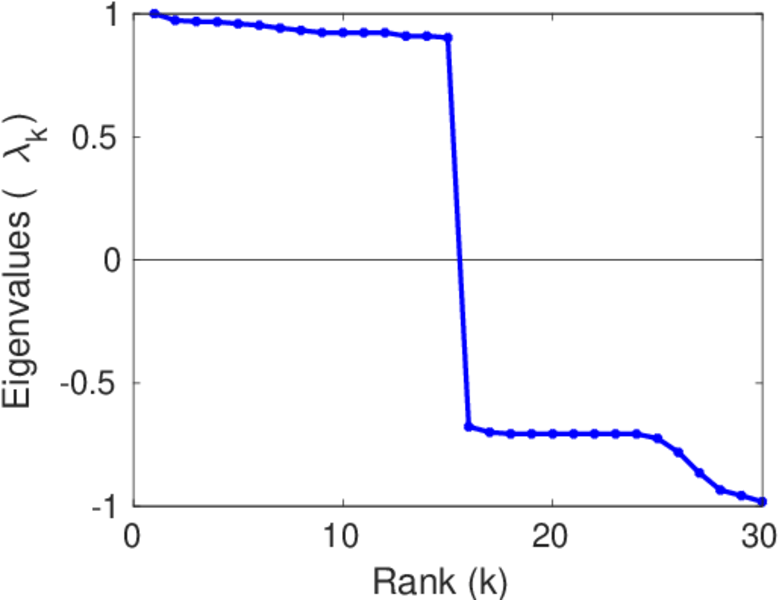

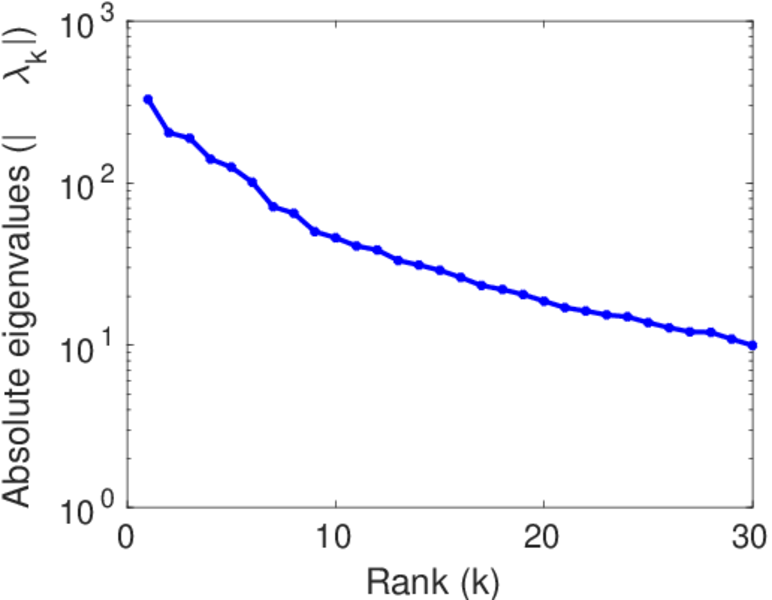

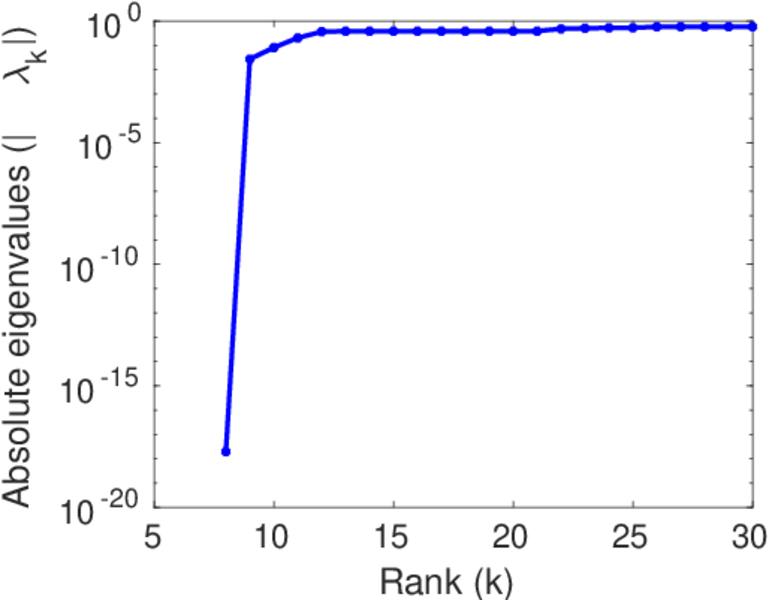

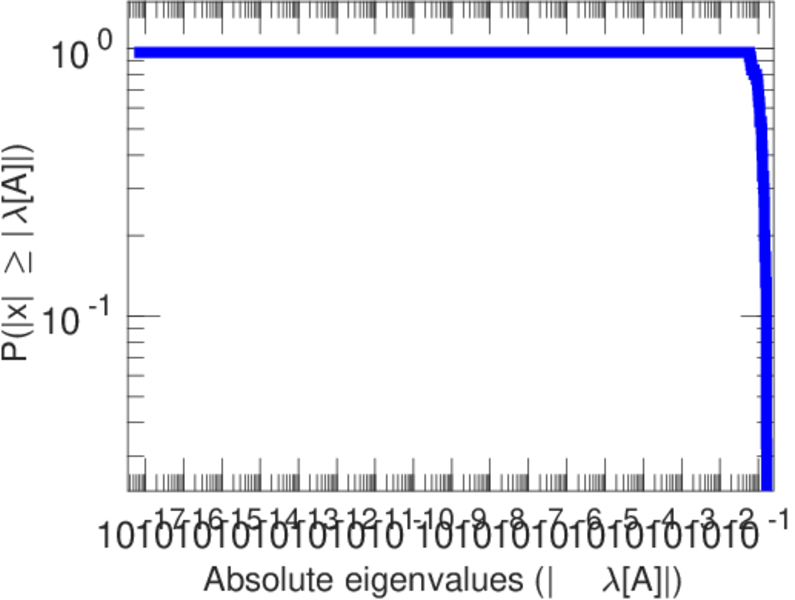

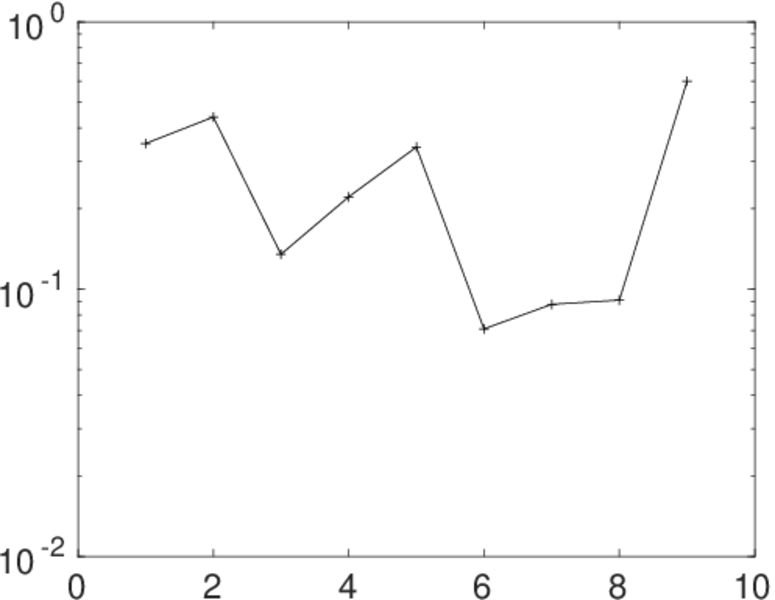

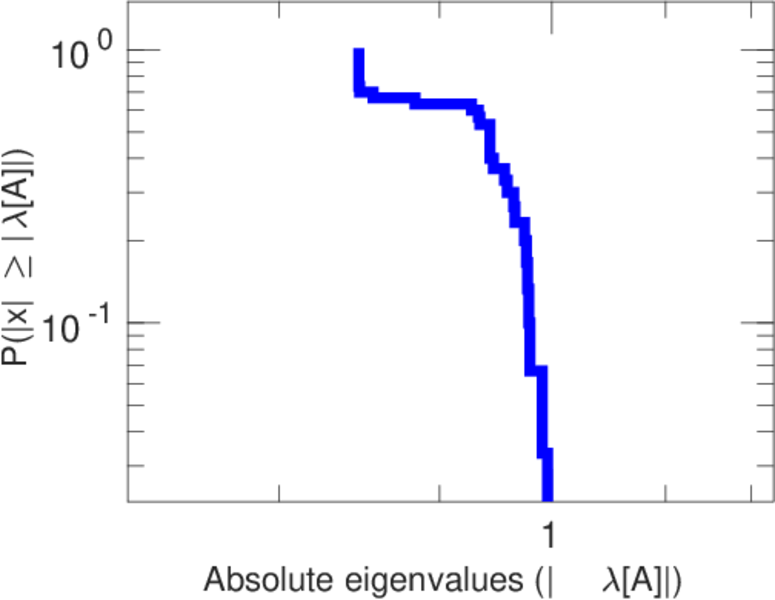

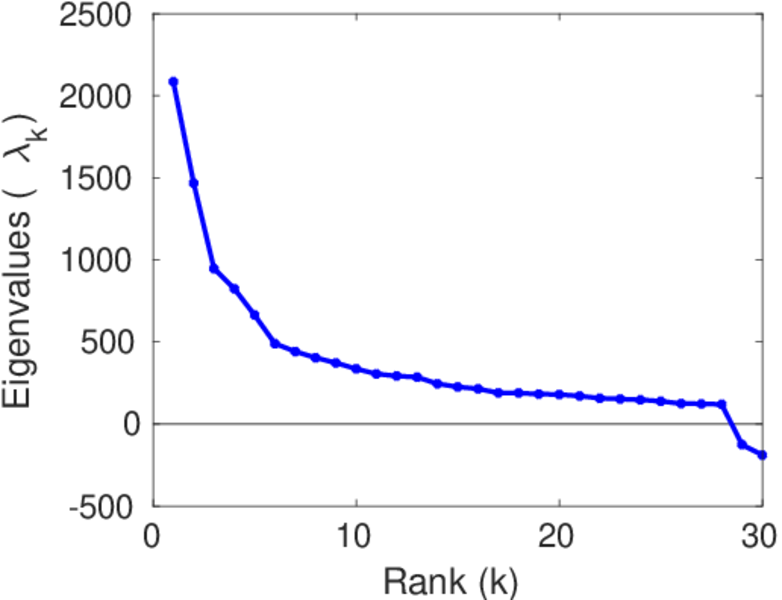

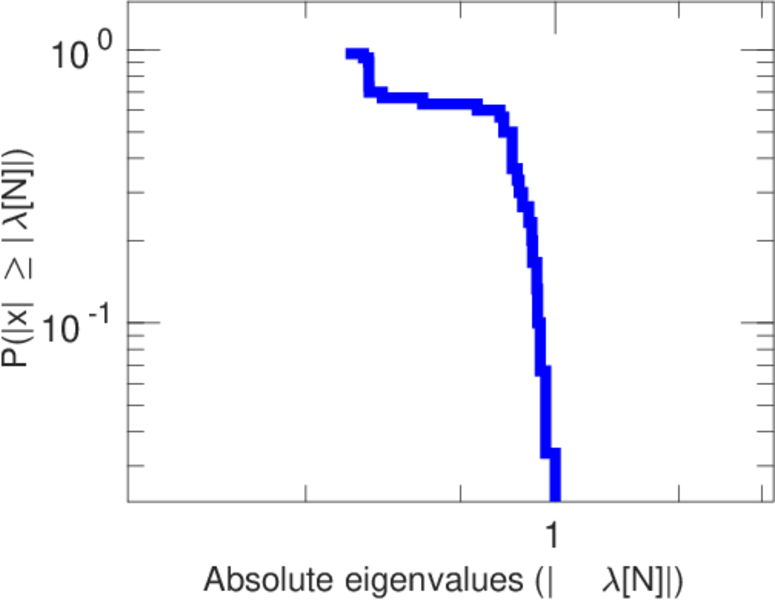

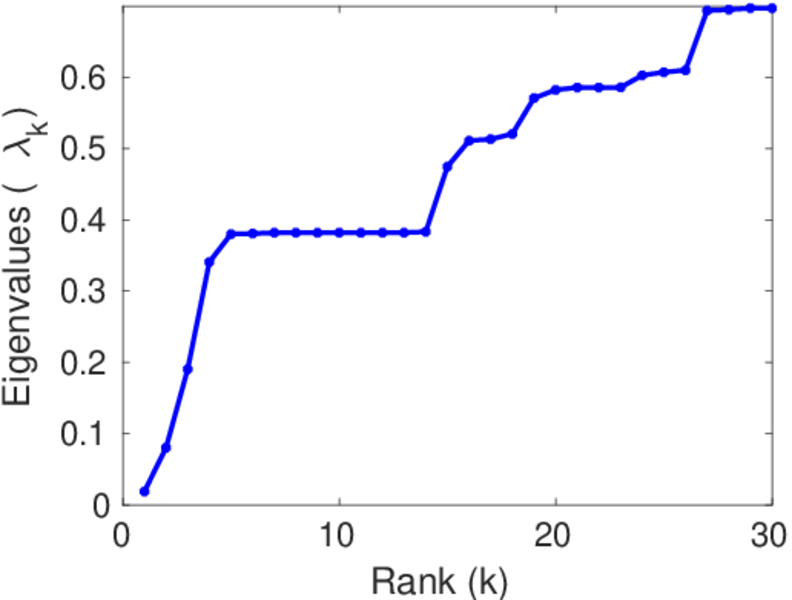

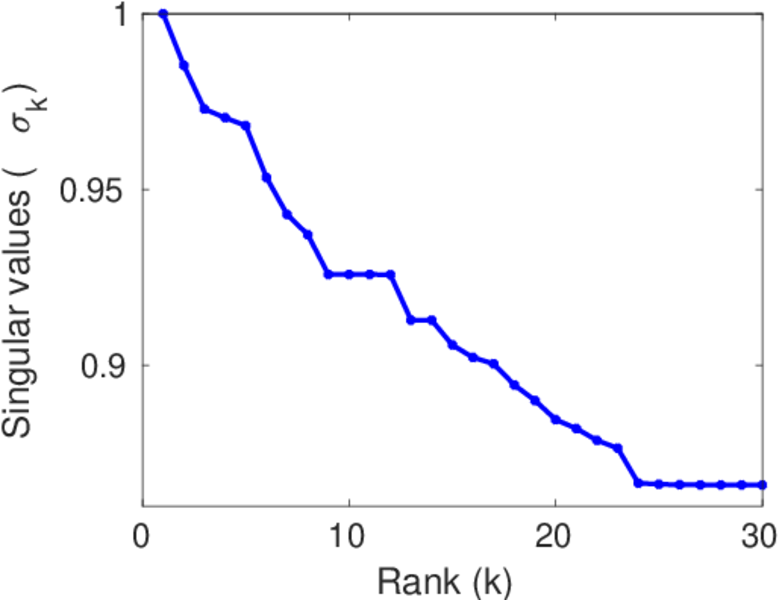

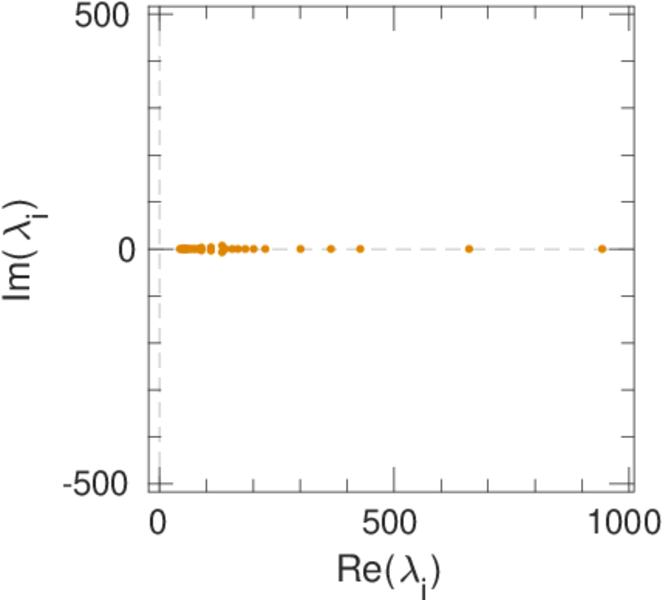

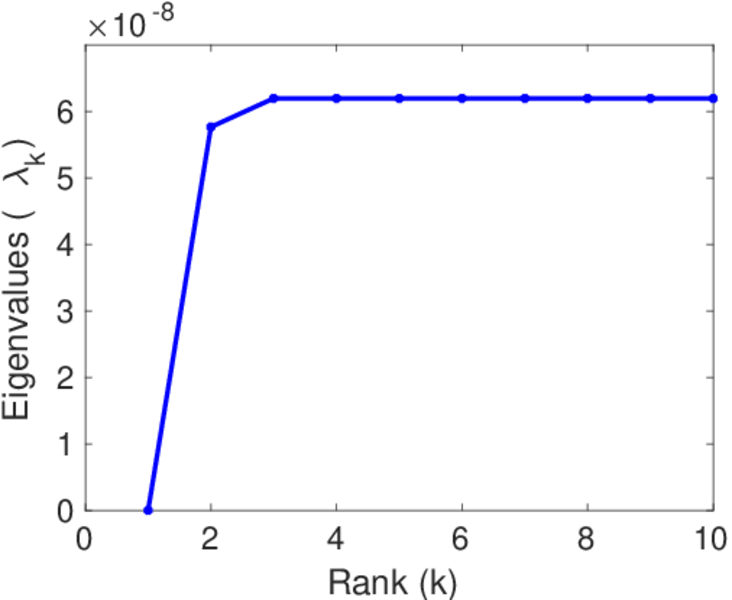

Matrix decompositions plots

Downloads

References

[1] Jérôme Kunegis. KONECT – The Koblenz Network Collection. In Proc. Int. Conf. on World Wide Web Companion, pages 1343–1350, 2013. [ http ]
[2] Jun Sun, Jérôme Kunegis, and Steffen Staab. Predicting user roles in social networks using transfer learning with feature transformation. In Proc. ICDM Workshop on Data Min. in Netw., 2016.
